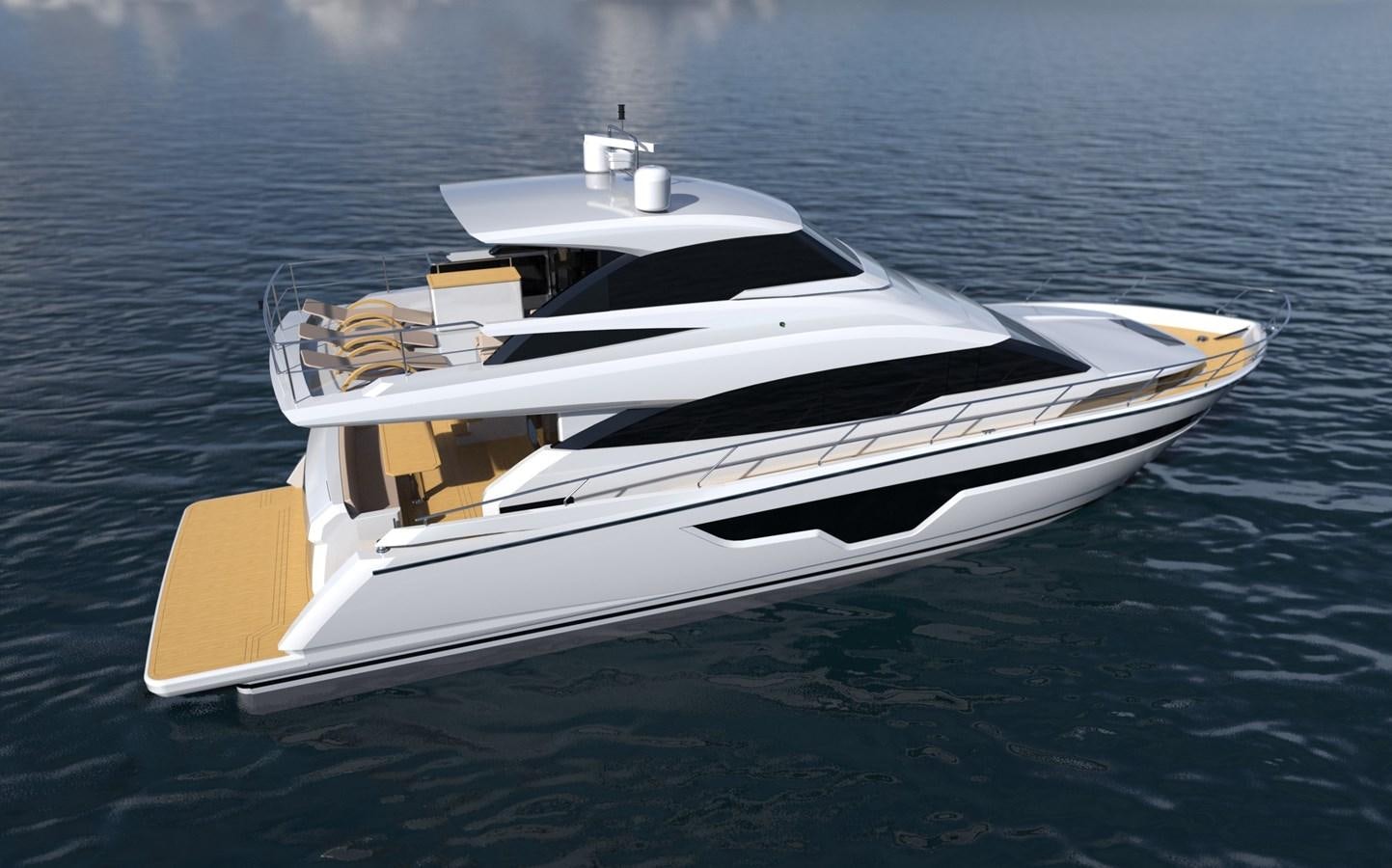

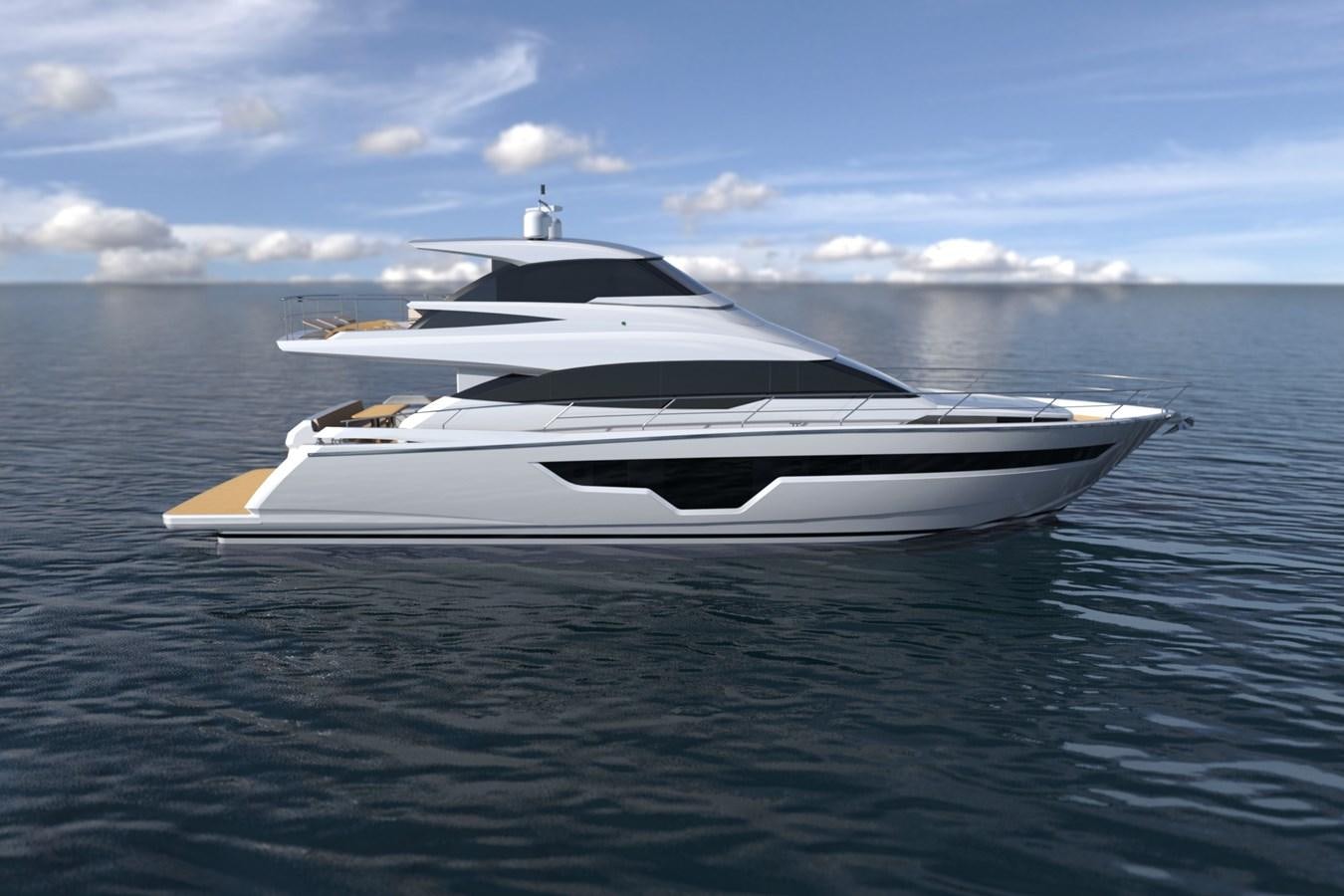

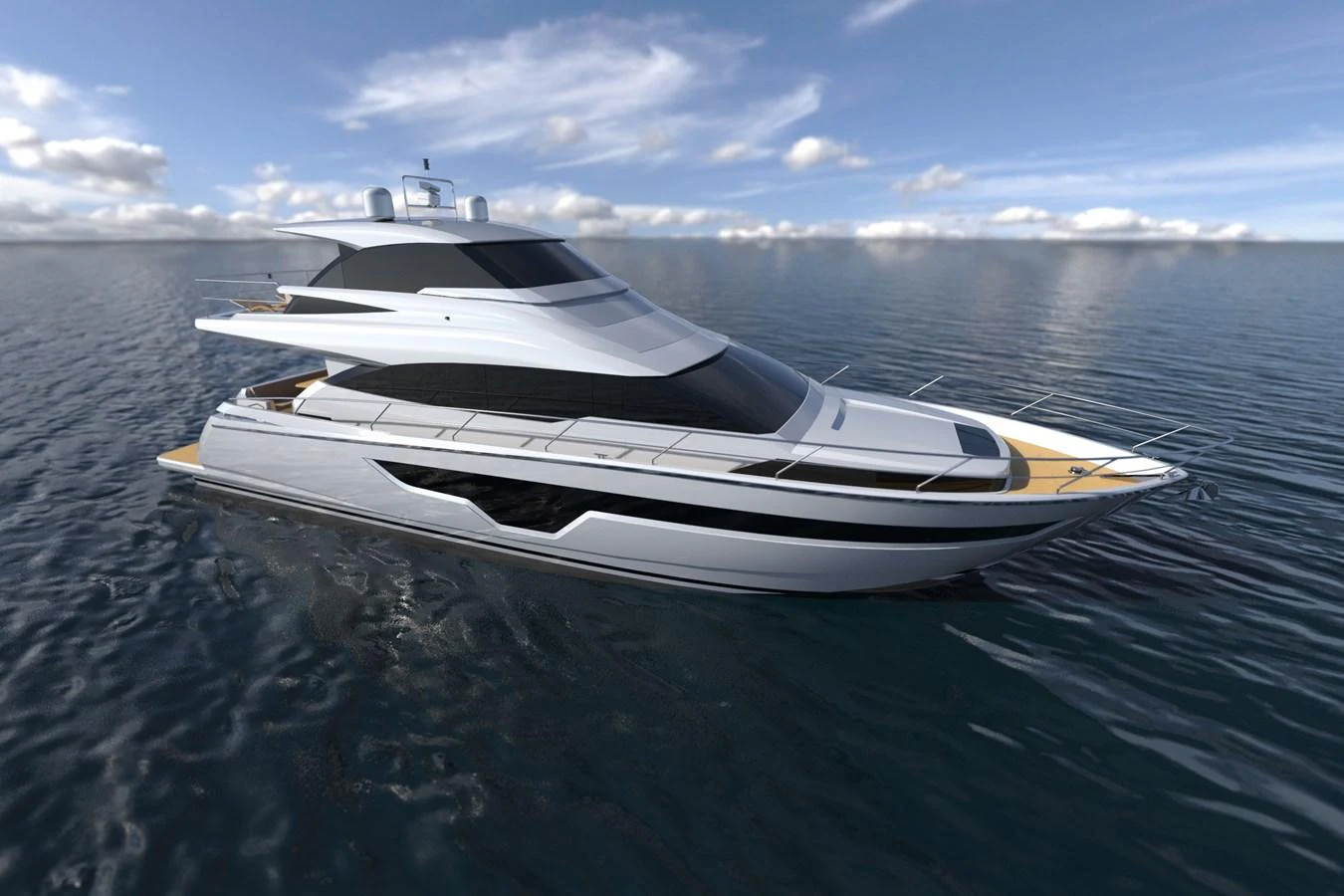

JOHNSON 70' SKYLOUNGE M/Y Yacht for Sale

Length: 70' (21.46m)
Builder: JOHNSON
Build: 2025

Cabins: 4
Crew: 1
Asking Price: $3,960,000

Overview

Specifications

Inquire

Not for sale or charter to U.S. residents while in U.S. waters.

New Build

JOHNSON 70' SKYLOUNGE M/Y in the News

Specifications

Builder	JOHNSON
Model	Skylounge
Length (LOA)	70' (21.46m)
Year	2025
Gross Tonn.	48
Draft	4' (1.04m)
Beam	18' (5.58m)
Location	Taiwan

Accommodations

Staterooms	4
Sleeps	8
Heads	4

Crew Cabins	1
Crew Sleeps	1
Capt. Quarters	Yes

Dimensions & Capacity

LOA	70' (21.46m)
LWL	58' (17.6m)
Min Draft	4' (1.01m)
Max Draft	4' (1.04m)
Fuel Tank	1,096 g (1,096 L)
Fresh Water	260 g (260 L)
Holding Tank	150 g (567 L)
Gross Tonn.	48

Construction

Hull Material	Fiberglass
Hull Config	Semi-Displacement
Ext. Designer	Dixon Yacht Design
Int. Designer	Design Unlimited, England
Cruising Speed	22 Knots

Have Questions?

Complete the form below and one of our experienced sales brokers will be in touch soon.

How to Buy a Yacht Our experienced brokers will assist you throughout your yacht buying journey

Yacht Buying Guide

Full Details

I. Hull & Deck – Exterior General:

1. MAIN DECK-TEAK

2. STAINLESS STEEL INTEGRAL ROLLERS & CHAIN STOPPER FOR ANCHOR CHAIN

3. 250 FEET GALVANIZED CHAIN (3/8”)

4. MAXWELL HYDRAULIC RC12-12 WINDLASS

5. STAINLESS STEEL 120 LB ANCHOR (SINGLE)

6. HEAVY DUTY 316# S/S HANDRAIL & STANCHIONS

7. HEAVY DUTY 316# S/S CLEATS AND FAIRLEADS

8. MEDIUM TINTED SAFETY GLASS

9. PNEUMATIC STAINLESS STEEL SALOON SLIDING DOOR WITH PUSH BUTTON AND SAFETY SENSORS

10. STAINLESS STEEL PORT LIGHTS

11. S/S RUB RAIL W/RUBBER INSERT AROUND HULL & DECK JOINT

12. STERN CAPSTAN 24V x 2 SETS - MAXWELL VC2500

13. AFT DECK SEATING BUILT IN WITH CUSHIONS

14. AFT DECK TABLE

15. LED LOW LEVEL COURTESY LIGHTS ON SIDE DECK

16. LED LOW LEVEL COURTESY LIGHTS ON AFT DECK

17. STAIRS TO FLYBRIDGE

18. LARGE TEAK INLAY SWIM PLATFORM WITH STAIRWAY TO AFT DECK

19. HOT & COLD TRANSOM SHOWER

20. S/S SWIM LADDER

21. SUN BATHING/SEATING AREA IN FWD DECK

22. WATER FILL DECK FITTING

23. DIESEL FILL DECK FITTING

24. FLOJET 4325-343L DECK WASHDOWN PUMP

25. FLOODLIGHT FOR COCKPIT - LED

26. CANVAS COVERS FOR EXTERIOR SETTEE AND TABLES

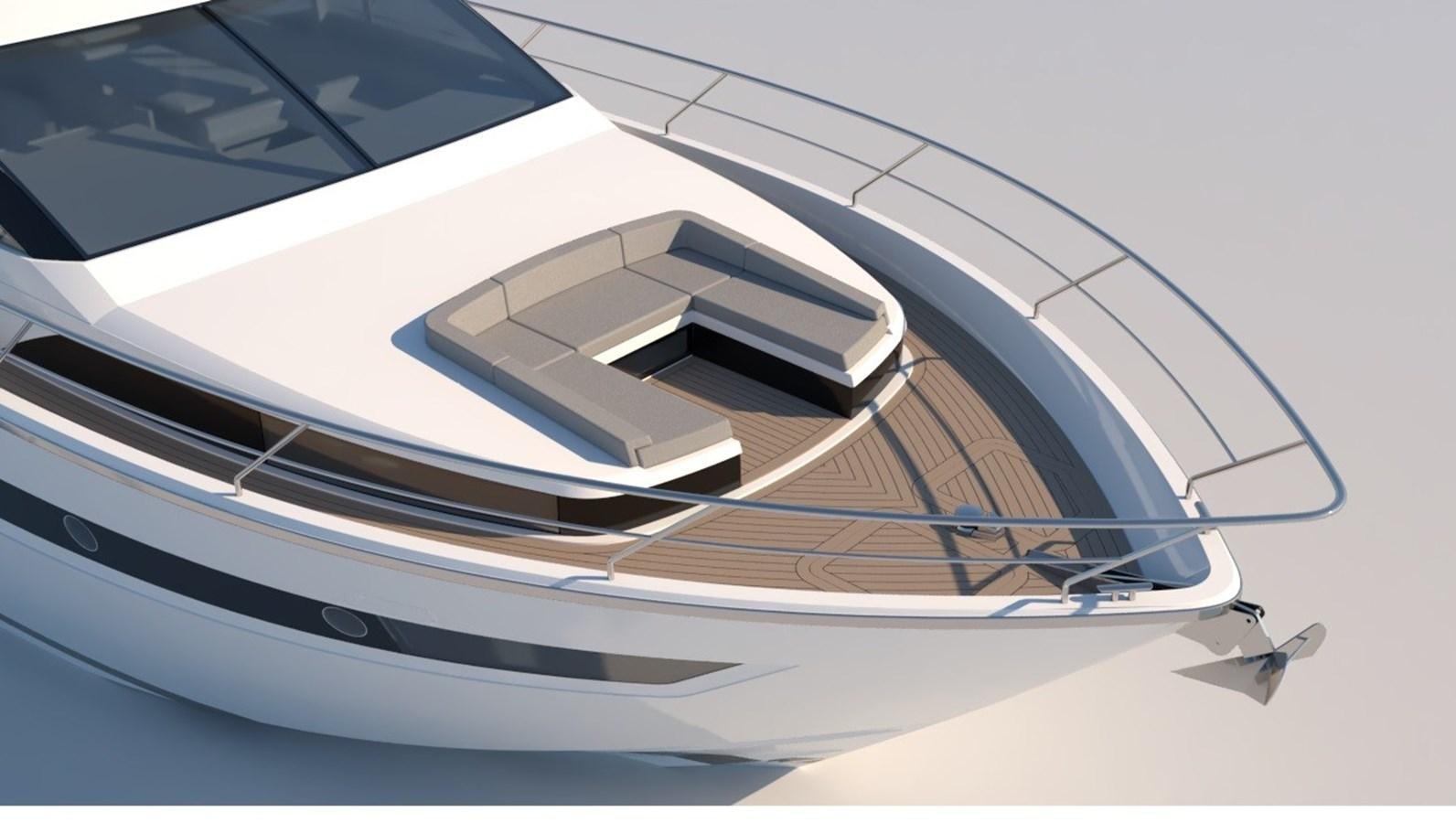

27. WATER RESISTANT SUN PAD ON BOW WITH U-SHAPED SEATING

28. WHITE GEL COAT THROUGHOUT HULL

Ii. Underwater Gear:

1. 5 BLADE BRONZE PROPELLERS

2. BRONZE P-BRACKETS

3. S/S AQUATECH 22HS SHAFTS

4. SHAFT SEAL AND SHAFT LOG - TIDES RUDDER SEAL 3”; TIDES SHAFT SEAL 3”

5.   ANTI-FOULING BOTTOM PAINT
      SEA HAWK PRIMER SYSTEMS TUFF STUFF 1284 GREY OR 1285 WHITE
      SEA HAWK SELF-POLISHING COPOLYMER ANTIFOULING CUKOTE 3445 BLACK
       OR 3430 DARK BLUE

6. BOOT TOP STRIPE SIZE 3” COLOR BLACK, BLUE OR RED

7. HUMPHREE INTERCEPTOR TRIM TABS H750 x 2

8. FULL CATHODIC BONDING SYSTEM TO ZINC ANODES

9. SEAWATER STRAINERS FOR ENGINES, GENSET AND AIR-CONDITIONING

10. SEACOCKS ON ALL UNDERWATER FITTINGS

11. UNDERWATER EXHAUST SYSTEM

Iii. Skylounge:

1.   FLOOR
      HELM AREA: TEAK
      LOUNGE AREA: CARPET

2. INSTRUMENT CONSOLE

3. LEATHER SOFA & COFFEE TABLE

4. U-LINE COMBO REFRIGERATOR/ICE MAKER

5.   GARMIN
      GPSMAP® 8617 FULLY-INTEGRATED MULTI-TOUCH MFD x 2
       GMI 20 MARINE INSTRUMENT DISPLAY x 1
       GMR FANTOM™4"/40W/72NM, SOLID-STATE, OPEN-ARRAYRADAR X 1
GARMIN VHF 210 MARINE RADIO x 1
GARMIN AIS 600 CLASS B TRANSCEIVER x 1
GHP™ 20 MARINE AUTOPILOT SYSTEM WITH SMARTPUMP x 1
GARMIN GSD 25 MARINE NETWORK SOUNDER 2KW x 1

6. RUDDER INDICATOR

7. MAGNETIC COMPASS

8. S/S GUARD RAILS AND GRAB RAILS

9. SPEICH NAUTIC TYPE LP WIPERS x 2

10. LOW LEVEL COURTESY LIGHTS 24V

11. SEARCH LIGHT - PAR 60010-2024 24V

12. AIR HORN - BUELL

13. BESENZONI P217 24V HELM SEAT x 2

14. S/S STEERING WHEEL

15. POP-UP TV CABINET WITH VIZIO M322I-B1 32” 1080P LED LCD HDTV

16. FUSION STEREO SYSTEM

       SKYLOUNGE
       MS-AV700I DVD / RECEIVER – WITH FUSION LINK.
       MS-CL602 6” MARINE CEILING MOUNT SPEAKERS x 2
       MS-BT200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT

       FLYBRIDGE AFT
     MS-RA205 RECEIVER / MEDIA PLAYER WITH FULL IPOD / IPHONE CONTROL
     MS-FR7021 7” 260 WATT SPEAKERS x 3 GRILLES INCL.
       MS-BT200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT

17. APPLE TV

18. CCTV SYSTEM WITH 4 CAMERAS
(ENGINE ROOM, SALOON DOOR, AFT DECK PORT & STBD)

19. ONE SHIP-SET LED NAVIGATION LIGHTS

Iv. Engine Propulsion & Engine Room Equipment:

1. TWIN CATERPILLAR C-18 ACERT 1150HP ENGINES WITH ZF 550IV GEAR BOXES

2. ENGINE DUAL RACOR FILTERS

3. GENERATOR RACOR FILTER

4. SOUNDPROOFING THROUGHOUT ENGINE ROOM

5. WELL PLANNED, SPACIOUS E/R WITH DIAMOND PATTERN DECK PLATES

6. FUEL TANKS WITH BEP ELECTRIC SENDING UNITS

7. AUTOMATIC SEA-FIRE FIRE EXTINGUISHER

8. ENGINE ROOM AIR INTAKE SYSTEM

9. ENGINE ROOM AC FLUORESCENT LIGHTS & DC DOME LIGHTS

10. HENDERSON BP0510 MANUAL BILGE PUMP

11. HIGH VOLUME AC F.W. PRESSURE PUMP AND ONE 24V DC PUMP FOR BACK UP
HEADHUNTER MARCH 5 M5-115 AC PUMP
GROCO PSR 4000004-24 24V DC PUMP

12. CHILLED WATER AIR CONDITIONING -
CRUISAIR AIR CONDITIONING W/48000 BTU COMPRESSOR x 2

13. SEA RECOVERY 700GPD WATER MAKER x 1

14. OIL CHANGING PUMP FOR ENGINES, GENERATOR AND CLUTCHES

15. GENERATOR - ONAN MDKDS 29KW 60HZ x 1

16. WATER HEATERS - SEAWARD HF2250 20 GALLONS x 2

17. 600 GPD HEADHUNTER SEWAGE TREATMENT SYSTEM

V. Electrical:

1. 110V/220 AC ELECTRICAL SYSTEM

2. DC 24V SYSTEM

3. 70’ GLENDINNING CABLE MASTER CM7 50A x 2

4. BATTERY CHARGER FOR 24V CIRCUIT

5. BATTERY CHARGER FOR 12V CIRCUIT

6. ALTERNATOR SPLIT CHARGING SYSTEM

7. 255AMP/HR GELL CELL SEALED BATTERIES FOR SHIP SERVICE x 4

8. 255AMP/HR GELL CELL SEALED BATTERIES FOR ENGINES x 4

9. 210AMP/HR GELL CELL SEALED BATTERIES FOR GENSET x 1

10. AC SOCKETS THROUGHOUT THE BOAT

11. GFI PROTECTION FOR AC REQUIRED SOCKETS

12. BATTERY SELECTOR SWITCH

13. MAIN ELECTRICAL PANEL INCLUDES AC & DC CIRCUIT BREAKERS

14. AUTOMATIC ISOLATING & BOOSTER TRANSFORMER - 50AMP x 2

15. ANTI ELECTROLYSIS BONDING SYSTEM

16. 4KW INVERTER x 1

Vi. Mechanical And Plumbing System:

1. HOLDING TANK WITH MACERATOR PUMP

2. HOLDING TANK LEVEL INDICATOR

3. SUMP PUMP FOR SHOWERS

4. MARINE GRADE LINES FOR FRESH WATER SYSTEM

5. S/S WATER TANK WITH SENDING UNIT - 260 GALLONS

6. ALUMINIUM FUEL TANK WITH SENDING UNIT - 1130 GALLONS

7. SIGHT GAUGES FOR FUEL AND WATER TANKS

8. DOCKSIDE FRESH WATER INLET

9. COLOR CODED PIPING FOR EASY IDENTIFICATION

10. BRONZE INTAKE VALVES FOR ALL THRU-HULL FITTINGS

11. MANIFOLD FOR OVERBOARD DISCHARGES TO MINIMIZE NUMBER OF THRU-HULL FITTINGS

12. SEALAND FRESH WATER VACUUM TOILET SYSTEM

13. HIGH WATER BILGE ALARM X 6 AREAS

14. RULE 3700 BILGE PUMPS 24V x 6

15. BOW & STERN HYDRAULIC THRUSTERS

16. "AT REST" STABILIZERS

Vii. Interior Finish:

Viii. Galley:

1. SUB-ZERO ID-24R DRAWER TYPE REFRIGERATOR

2. SUB-ZERO ID-24FI DRAWER TYPE FREEZER

3. S/S SINK

4. HOT AND COLD WATER SYSTEM

5. FISHER & PAYKEL LATEST MODEL DISHWASHER x 1

6. DOUBLE AC SOCKETS x 2

7. CUPBOARD, DRAWERS AND STOWAGE

8. GE LATEST MODEL MICROWAVE W/EXTRACTOR FAN

9. GE LATEST MODEL TRASH COMPACTOR

10. TEAK SOLE

11. MIELE LATEST MODEL 4 BURNER COOKTOP

Ix. Saloon:

1. PNEUMATIC S/S SALOON SLIDING DOOR

2. VIZIO M471i-A2 47” TV

3. BOSE LIFESTYLE 535 SERIES III HOME THEATER SYSTEM

4. PIONEER BDP-160 BLU-RAY DISC PLAYER

5. APPLE TV

6. HIGH QUALITY LEATHER COUCH IN LOWER SALOON & DINING AREA

7. BLINDS, CURTAINS

8. LOW LEVEL LIGHTS 24V

9. CEILING LED LIGHTING 24V

10. COFFEE TABLE

11. INDIRECT LIGHTING

12. U-LINE 1115WC WINE COOLER

13. SPLENDID LATEST MODEL WASHER

14. SPLENDID LATEST MODEL DRYER

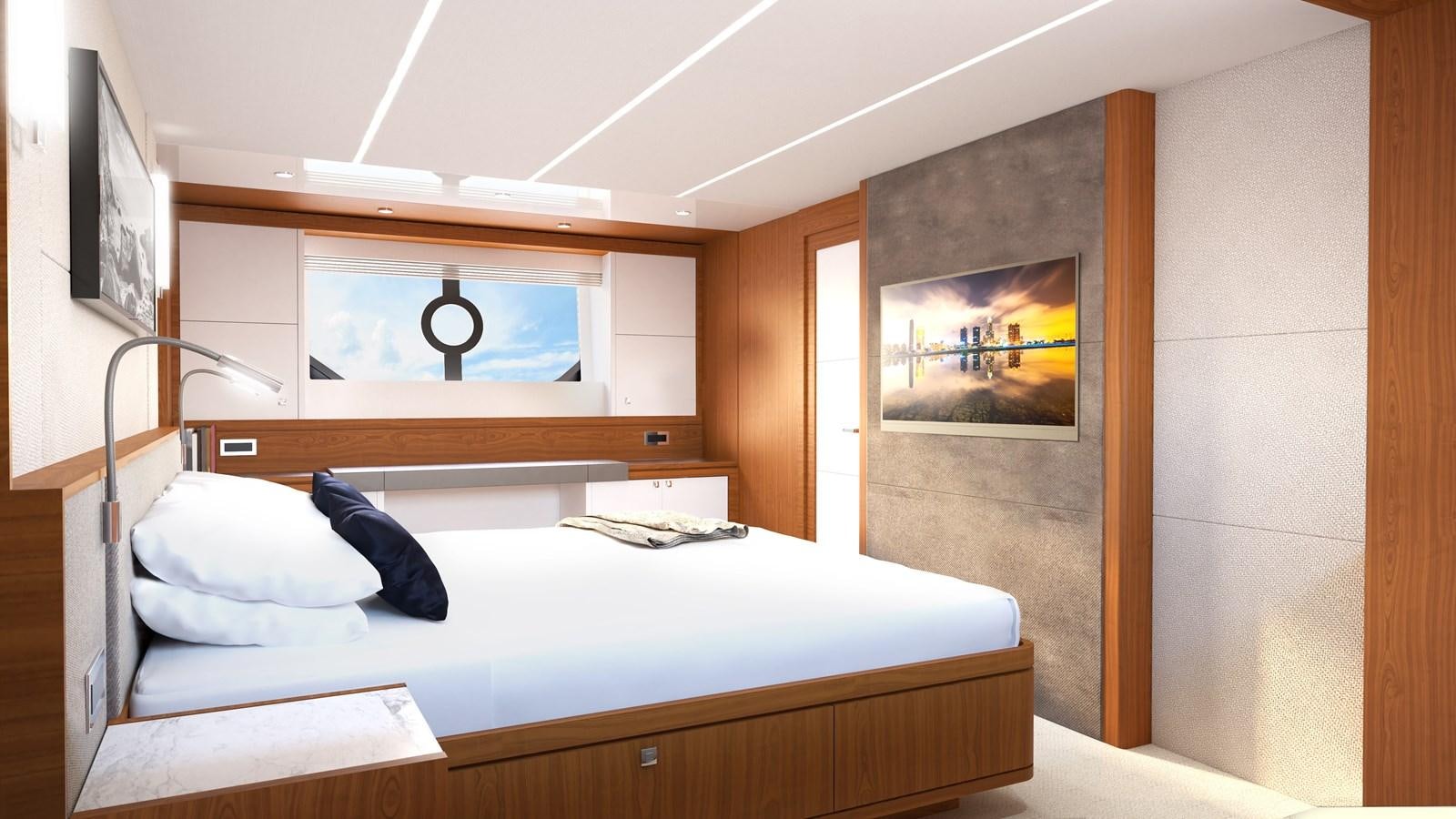

X. Master Stateroom:

1. KING SIZE BERTH

2. STORAGE BENEATH

3. DRAWERS IN BASE OF BERTH

4. VANITY

5. LED CEILING LIGHTING 24V

6. CANTALUPI MILOS/CHROME/MATT NICKLE LED READING LIGHTS 110VAC x 2

7. TWO LARGE RECTANGULAR PORTLIGHT WINDOWS ON EACH SIDE W/CENTER PIECE OPENABLE

8. VIZIO M322I-B1 32" 1080P LED LCD HDTV

9. FUSION STEREO SYSTEM
     MS-RA205 RECEIVER / MEDIA PLAYER WITH FULL IPOD / IPHONE CONTROL
     MS-CL602 6” MARINE CEILING MOUNT SPEAKERS x 4
     MS-BT200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT

10. SONY BDP-S360 BLU-RAY DISC PLAYER

11. APPLE TV

12. WALK-IN CLOSET

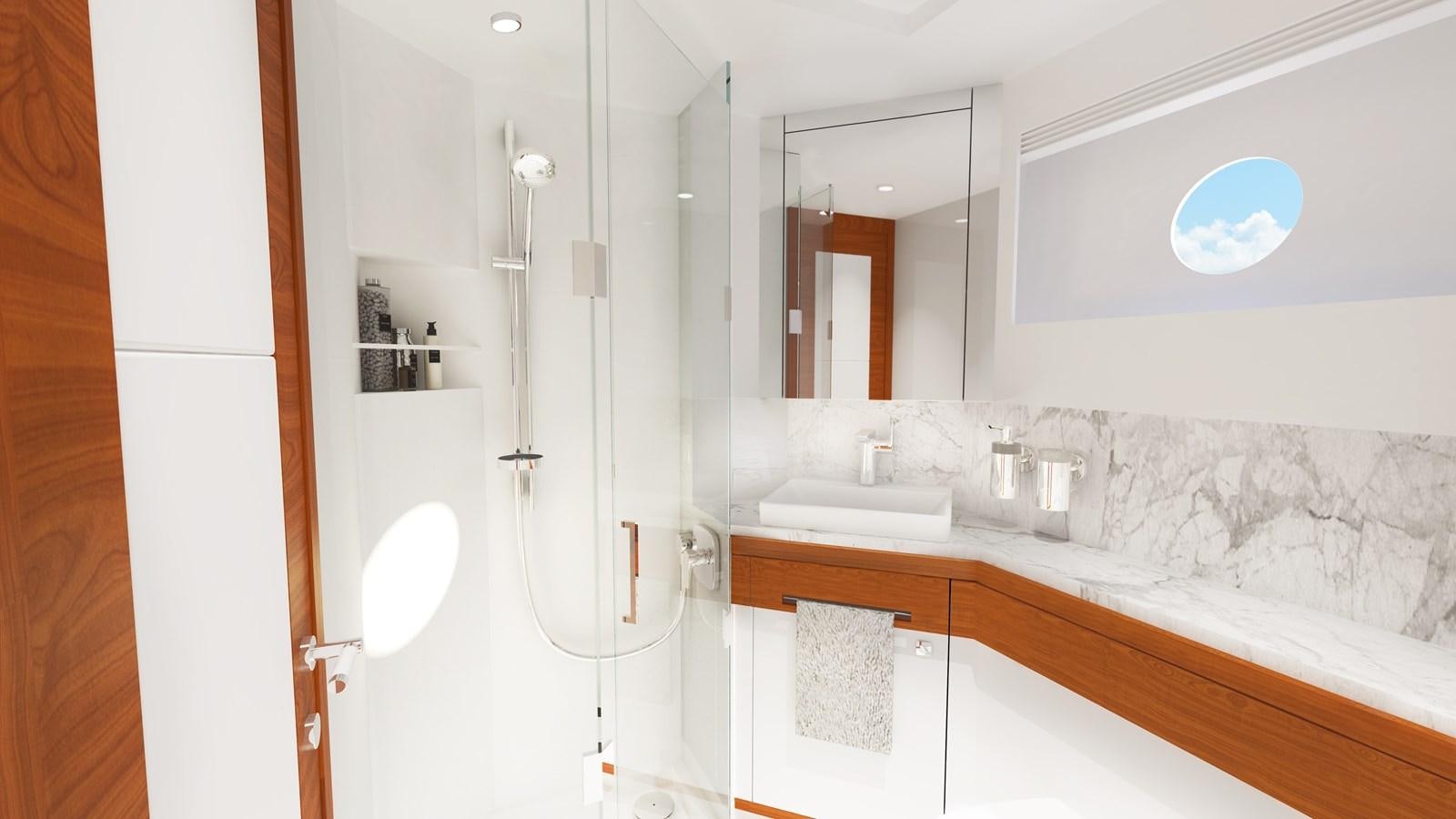

Xi. Master Ensuite Shower Room:

1. SEALAND VACUUM TOILET (BONE COLOR)

2. WASH BASIN WITH MABLE COUNTERTOP

3. HOT & COLD WATER

4. FAUCET AND FITTINGS

5. DRESSING MIRROR AND MIRRORED CEILING

6. LACQUER FINISH ABOVE BASIN COUNTERTOP

7. VENEER FINISH BELOW BASIN COUNTERTOP

8. EXTRACTOR FAN

9. AC DOUBLE SOCKET WITH GFI

10. LAQUER FINISH IN SHOWER AREA

11. LED CEILING LIGHTS 24V

12. MARBLE FLOOR

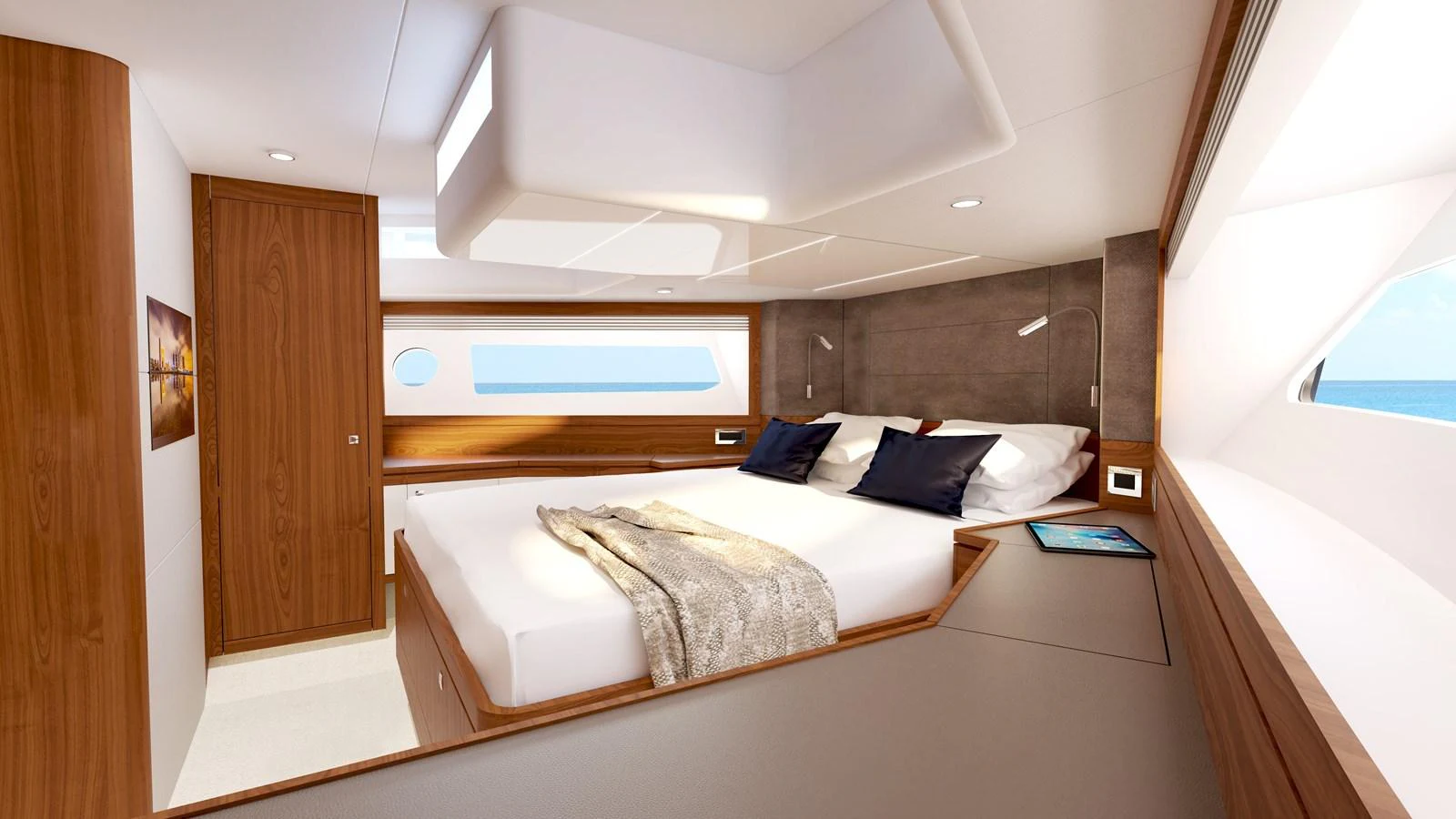

Xii. Forward (vip) Stateroom:

1. DOUBLE BERTH

2. STORAGE BENEATH

3. DRAWERS IN BASE OF BERTH

4. WALK-IN CLOSET

5. VIZIO M322I-B1 32" 1080P LED LCD HDTV

6. QUICK MAYA30 READING LIGHTS 24V x 2

7. LED CEILING LIGHTS 24V

8. FUSION STEREO SYSTEM
     MS-AV700I DVD / RECEIVER – WITH FUSION LINK.
     MS-CL602 6” MARINE CEILING MOUNT SPEAKERS x 4
     MS-BT200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT

9. APPLE TV

10. AC DOUBLE SOCKETS

11. ESCAPE HATCH

12. ONE LARGE RECTANGULAR PORTLIGHT WINDOW EACH SIDE WITH CENTER PIECE OPENABLE

Xiii. Forward (vip) Ensuite Shower Room:

1. SEALAND VACUUM TOILET (BONE COLOR)

2. WASH BASIN WITH MABLE COUNTERTOP

3. HOT & COLD WATER

4. FAUCET AND FITTINGS

5. DRESSING MIRROR AND MIRRORED CEILING

6. LACQUER FINISH ABOVE BASIN COUNTERTOP

7. VENEER FINISH BELOW BASIN COUNTERTOP

8. EXTRACTOR FAN

9. AC DOUBLE SOCKET WITH GFI

10. SHOWER AREA W/LACQUER FINISH

11. LED CEILING LIGHTS 24V

12. MARBLE FLOOR

Xiv. Port Guest Cabin:

1. ONE DOUBLE BERTH

2. UNDER BERTH STORAGE

3. QUICK MAYA30 READING LIGHTS 24V x 2

4. LED CEILING LIGHTS 24V x 2

5. HANGING LOCKER

6. VIZIO M322I-B1 32” 1080P LED LCD HDTV

7. FUSION STEREO SYSTEM
     MS-AV700I DVD / RECEIVER – WITH FUSION LINK.
     MS-CL602 6” MARINE CEILING MOUNT SPEAKERS x 2
     MS-BT200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT

8. APPLE TV

Xv. Port Head/day Head:

1. SEALAND VACUUM TOILET (BONE COLOR)

2. WASH BASIN WITH MABLE COUNTERTOP

3. HOT & COLD WATER

4. FAUCET AND FITTINGS

5. MIRROR AND MIRRORED CEILING

6. SEPARATE SHOWER COMPARTMENT W/LACQUER FINISH

7. AC DOUBLE SOCKET WITH GFI

8. LACQUER FINISH ABOVE BASIN COUNTERTOP

9. VENEER FINISH BELOW BASIN COUNTERTOP

10. EXTRACTOR FAN

11. LED CEILING LIGHTS 24V

12. MARBLE FLOOR

Xvi. Starboard Cabin:

Xvii. Crew Cabin:

Remarks

70' JOHNSON SKYLOUNGE (New Construction)

Please note, this is an unbuilt new
construction project which has not yet been started.

Listing broker has a list of popular options
and prices, however, the standard equipment list above is very complete!
Completion time is approximately 9-12 months depending on other yard projects.

**OPTIONS UPON REQUEST**

**ALL SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE **

Price
FOB Taiwan and includes U.S. Duty and Pre-Delivery Commissioning

Since this is a new build offering, all photos are
of previous projects. Exact layout, wood and stone selection are buyer's
choice.
