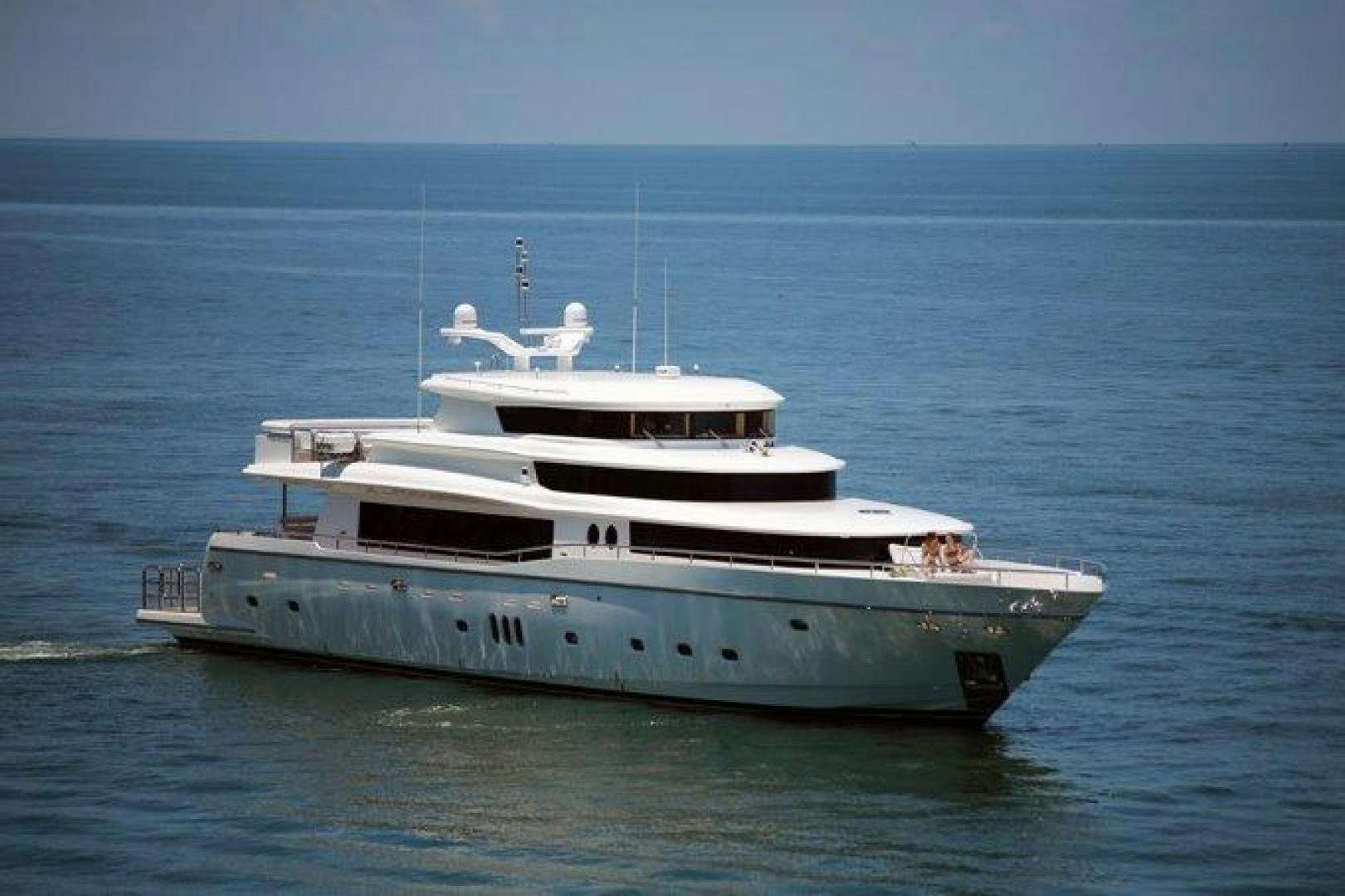

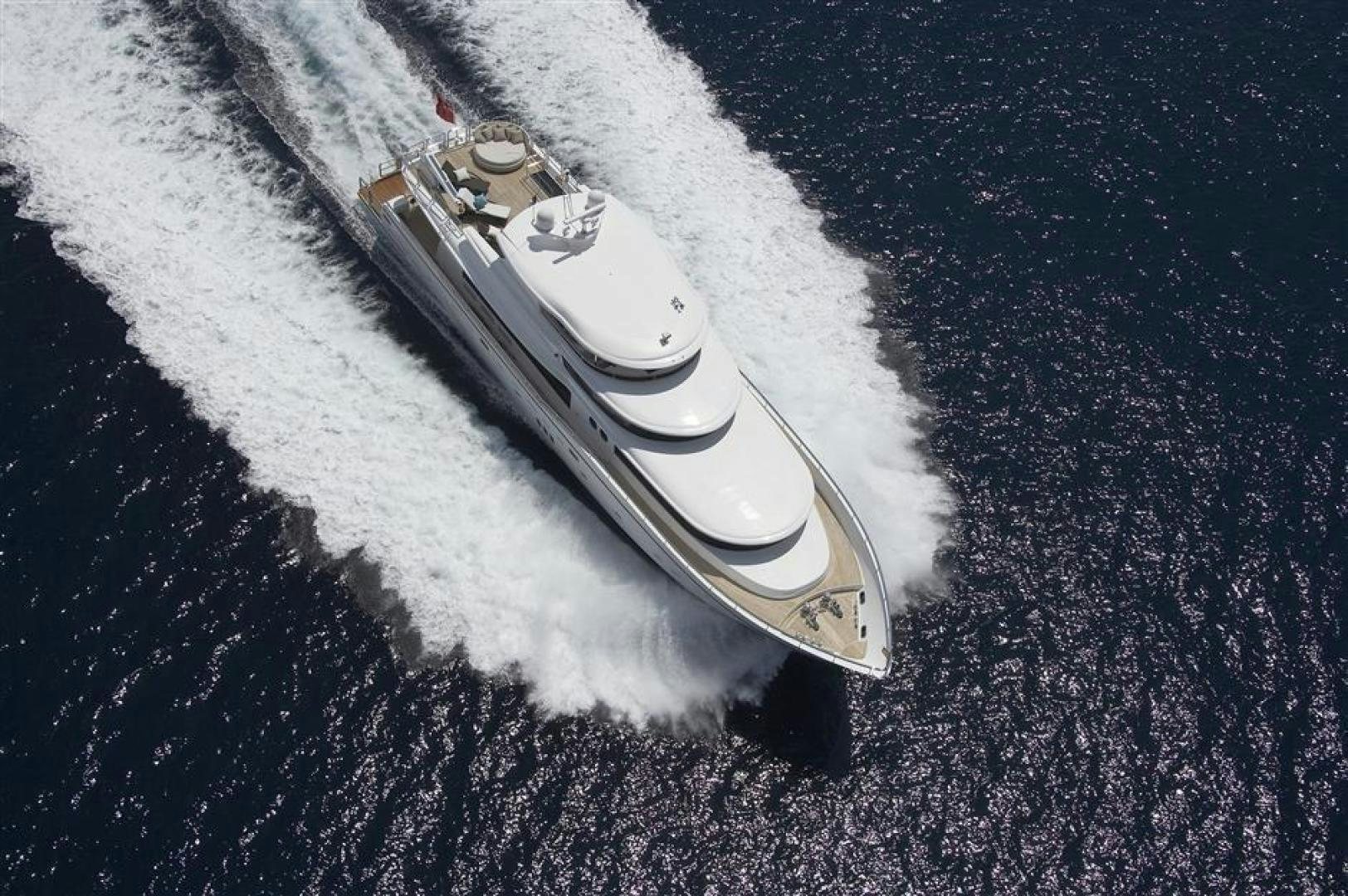

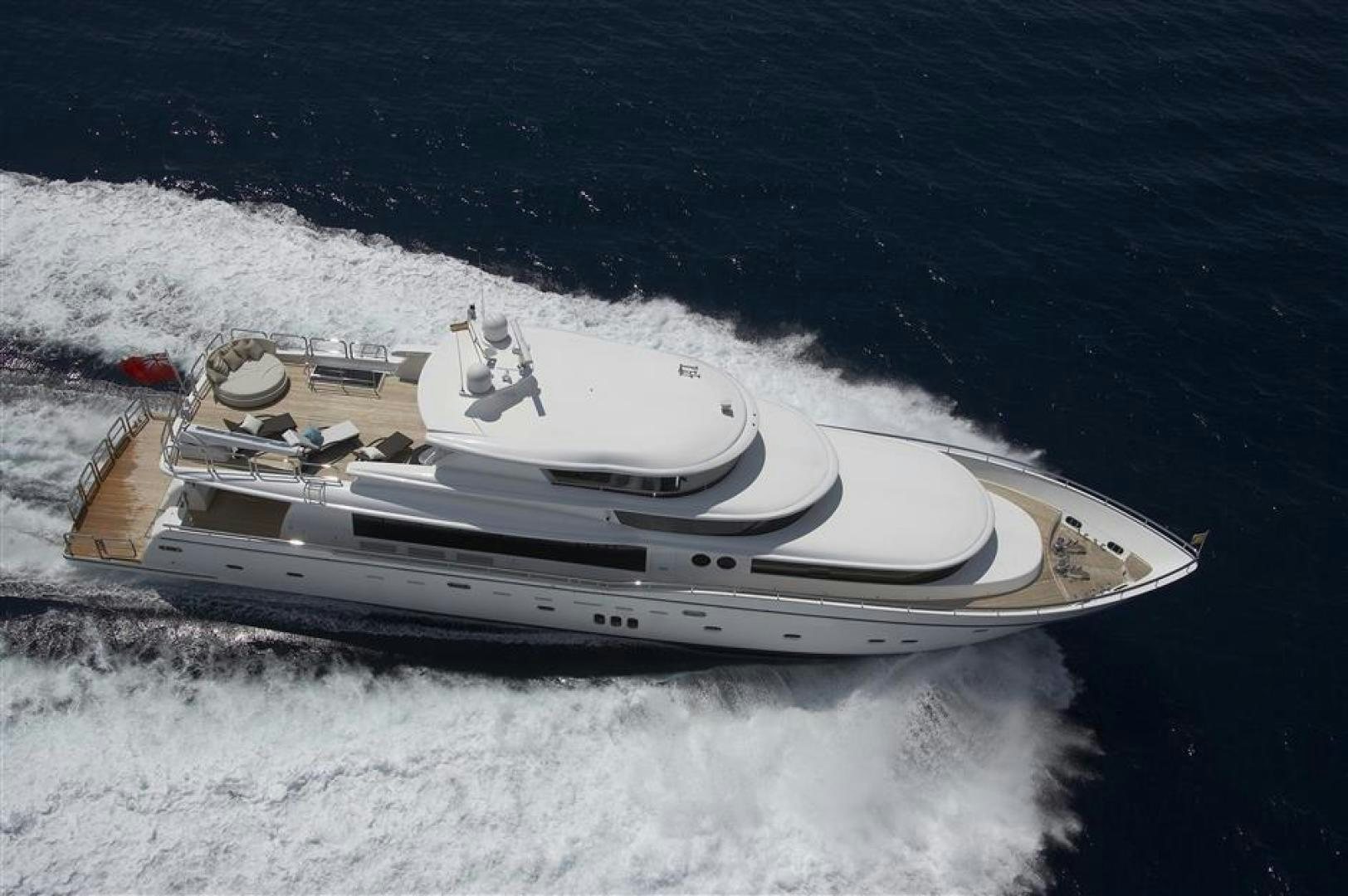

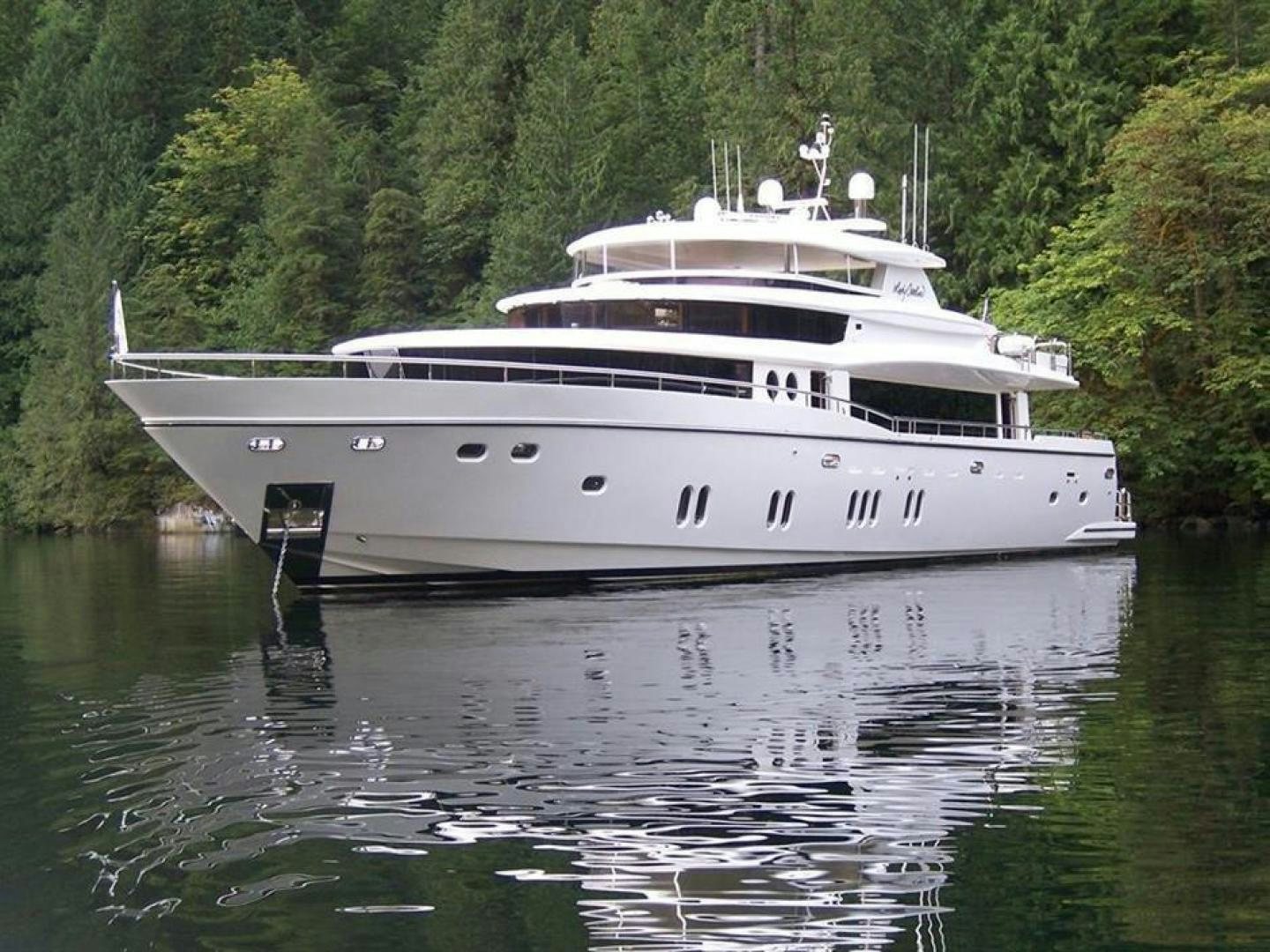

JOHNSON 110 SKYLOUNGE Yacht for Sale

1. MAIN DECK-TEAK 14MM

2. HIGH BULWARK W/FLUSH MOUNTED LED DECK LIGHTS, TWO REAR BULWARK SIDE DOORS FOR BOARDING (ONE BOARDING GATE ON EACH SIDE)

3. STAINLESS STEEL INTEGRAL ROLLERS & CHAIN STOPPER FOR DUAL ANCHOR CHAIN

4. VERTICAL ELECTRIC ANCHOR WINCHES x 2

MAXWELL VWC6000C/HYD:

VERTICAL HYDRAULIC WINDLASS, DUAL DIRECTION, CHROMED, MATCHED PAIR, WITH CHAIN WHEEL C1=3182/016 (1/2”HT) AND PARTS:

2 x AA560 ROPE/CHAIN COUNTER/REMOTE CONTROL
1 x BAND BRAKE
1 x CHAIN ROLLER STOPPER TENSIONER
1 x HAND HELD REMOTE CONTROL

5. AFT DECK MOORING CAPSTAN x 2 SETS

MAXWELL VC2200W/D:

VERTICAL ELECTRIC CAPSTAN, WIDE DRUM SINGLE DIRECTION, 24VDC, CHROMED, AND PARTS:

1 x FOOT SWITCH W/COVER
1 X 80 AMP BREAKER PANEL
1 x REVERSING SOLENOID PACKS, 24VDC

6. STAINLESS STEEL 250 LB ANCHOR x 2

7. HIGH TENSILE GALVANIZED ANCHOR CHAIN x 2:

LEFT: 300 FEET (5/8”)
RIGHT: 300 FEET (5/8”)

8. FRESH WATER ANCHOR CHAIN WASH DOWN

9. HEAVY DUTY S/S 3” OVAL HANDRAIL WITH 1 1/2” STANCHIONS

10. S/S FLAGPOLE ON BOW RAIL

11. S/S FLAGPOLE ON BOW RAIL

12. HEAVY DUTY 316# STAINLESS STEEL TWIN CLEATS AND FAIRLEADS WITH ROLLERS

13. BLACK TEMPERED SAFETY GLASS (EXCEPT 5 WINDOWS IN FRONT OF PILOT HOUSE)

14. STAINLESS STEEL PNEUMATIC SALOON SLIDING DOOR WITH BUTTON AND SAFETY SENSOR DEVICE

15. TWO PANTOGRAPH SIDE DOORS (PORT SIDE & STARBOARD SIDE) IN DECK HOUSE

16. STAINLESS STEEL PORTHOLES ALL WITH BLACKOUT SHIELDS/ ROUND PORT LIGHTS ON DECK HOUSE

17. BUILT-IN HOT & COLD WATER SHOWER – SWIM PLATFORM:

SSI 48300000 STOWAWAY SHOWER UNIT WHITE x 1

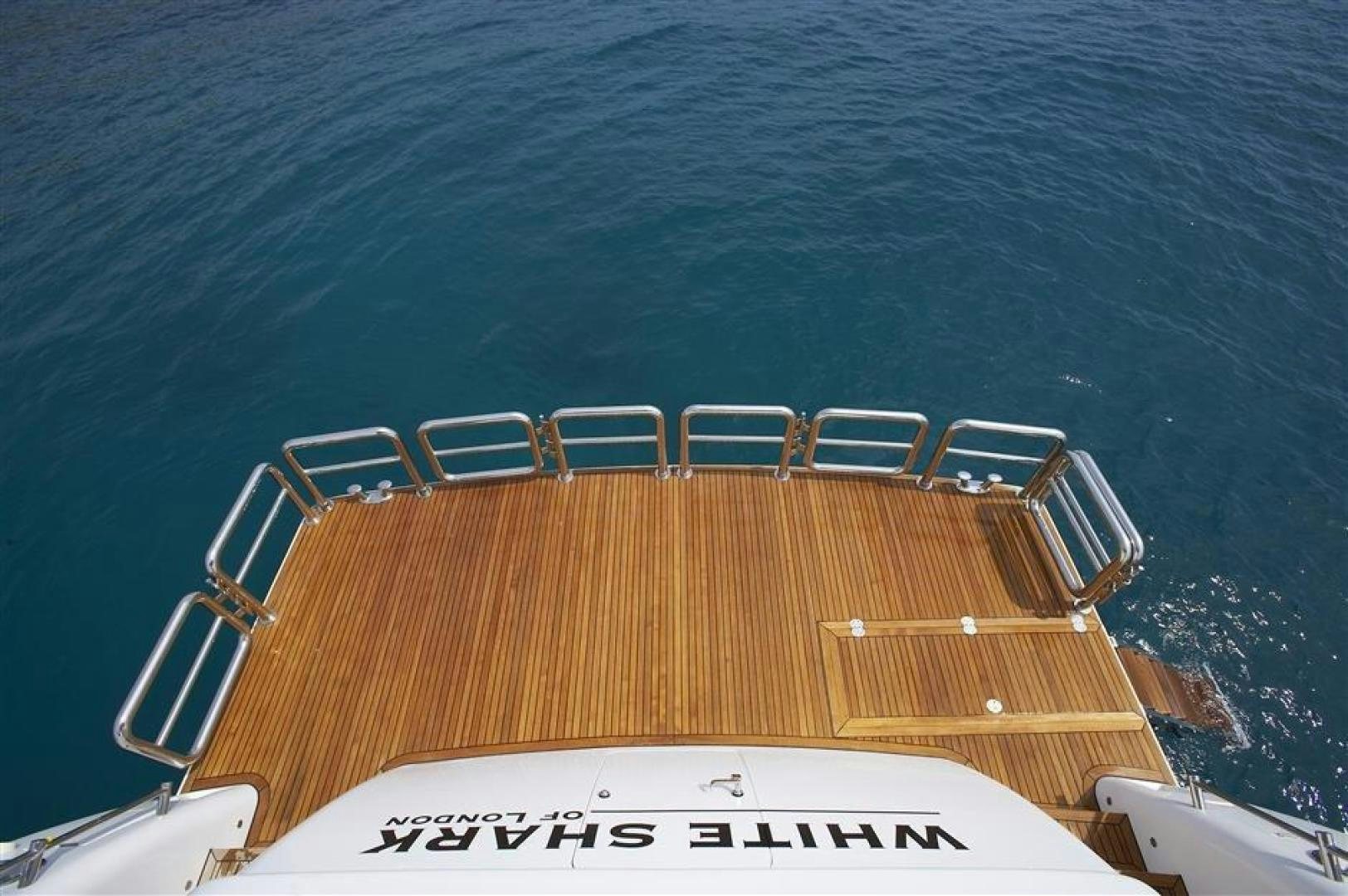

18. LARGE TEAK INLAY SWIM PLATFORM WITH STAIRWAYS TO AFT DECK

19. FRP “U” SHAPE SEATING ON AFT DECK WITH CUSHION AND COVERS

20. AFT DECK CUSTOM SLIDING HIGH-LOW TABLE WITH COMPASS INLAY x 2

21. FRP STORAGE CABINET ABOVE RUDDER IN THE LAZARETTE

22. ANTI-FOULING BOTTOM PAINT:

SEA HAWK PRIMER SYSTEMS TUFF STUFF 1284 GREY OR 1285 WHITE

SEA HAWK SELF-POLISHING COPOLYMER ANTIFOULING CUKOTE 3445 BLACK OR 3430 DARK BLUE

23. SINGLE BOOT STRIPE COLOR: BLACK

24. S/S HANDRAILS ON AFT DECK STAIRS WITH TWO INTERMEDIATE RA

25. LED FLOOD LIGHT ON THE END OF AFT DECK CEILING x 2

26. EXTERIOR STEP LIGHTS:

IMTRA KODIAK BLUE LED S/S 24V

27. RUB RAIL WITH S/S CAP ON LOWER AFT HULL SIDES

28. SOLID STAINLESS STEEL RUB RAIL AROUND HULL/DECK JOINT

29. ZINC ANODES ON TRANSOM, SHAFT AND BOW AND STERN THRUSTER

30. FRESH WATER WASH DOWN SPIGOTS ON THE BOW AND AFT DECK:

SCANDVIK 10187 S/S

31. AFT DECK REFRIGERATOR:

U-LINE WH95TP-20 110V/60HZ

32. DECK WASHDOWN, SALT WATER:

FLOJET 4325-343L WATER PUMP 24V W/NaOZZLE x 1

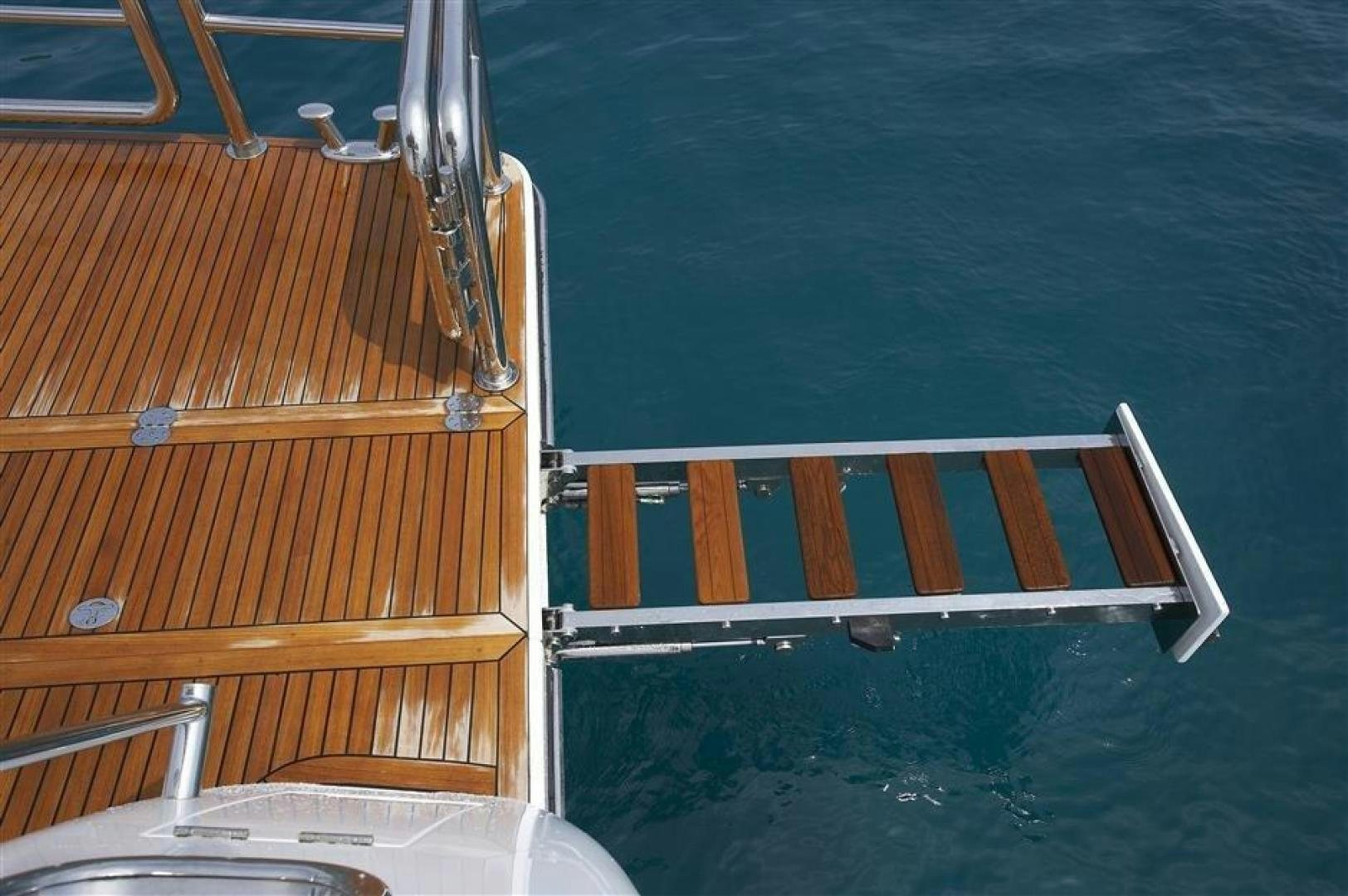

33. HYDRAULIC SWIMMING PLATFORM (BESENZONI PL850 OR EQUIVALENT W/ 1873 LBS LIFTING CAPACITY

34. LADDER, SIDE RAILS + SUN PADS ON MASTER COACH ROOF

35. WATER FILL DECK FITTING X 1

36. DIESEL FILL DECK FITTING X 4

1. MAIN DECK - TEAK 14MM

2. FRP RADAR ARCH, MAST, AND WINGS

3. MANUAL HIGH-LOW TEAK TABLE WITH COMPASS INLAY x 2

4. TEAK TREAD STAIRWAY FROM AFT DECK TO FLYBRIDGE WITH HAND RAILS AND LED STEP LIGHTS

5. AIR HORN:

BUELL S/S AIR HORN COMPRISING:

1 X 5444-3 24V TANK MOUNTED COMPRESSOR

1 X 1062 12” STROMBOS AIR HORN

1 X 1063 15” STROMBOS AIR HORN

1 X 1064 18” STROMBOS AIR HORN

6. CUSTOM WALK BEHIND WET BAR:

REFRIGERATOR/ICEMAKER: U-LINE CO29BTP-20 110V/60 HZ
FAUCET: GROHE
SINK
3 X BAR STOOLS
GRANITE TOP

7. FRP SETTEE WITH REMOVABLE CUSHIONS, STORAGE BELOW AND COVER

8. S/S FLAG STAFF ON REAR OF FLYBRIDGE

9. HELM SEAT:

PORT SIDE: AIRTEX HELM SEAT X 2

10. HIGH QUALITY ARITEX S/S GAS BBQ

11. S/S HATCH ON F/B DECK STEP OPENING

12. OVERSIZE DRAINS W/STRAINERS AT EACH CORNER OF FLY BRIDGE DECK WITH INTERNAL OVERBOARD DRAINS

13. CUSTOM LIFERAFT BRACKET ON THE OUTBOARD X 2 (LIFERAFTS OWNER SUPPLIED)

14. SEARCH LIGHT,DUAL STATION:

ACR RCL-100 24V

15. CHOICE OF (I) GARMIN OR (II) RAYMARINE NAVIGATION SYSTEM

I. GARMIN:

GPSMAP® 8215 FULLY-INTERGRATED MULTI-TOUCH MFD x 2
GMI 20 MARINE INSTRUMENT DISPLAY x 1
GMR™ 404 XHD OPEN ARRAY RADAR AND 4KW PEDESTAL x 1
GARMIN VHF 200 MARINE RADIO x 1
GARMIN AIS 600 CLASS B TRANSCEIVER x 1
GHP™ 20 MARINE AUTOPILOT SYSTEM WITH SMARTPUMP x 1
GARMIN GSD 24 MARINE NETWORK SOUNDER 2KW x 1


II. RAYMARINE:

RAYMARINE A125 MULTIFUNCTIONAL DISPLAY WITH WI-FI x 2
RAYMARINE I70 MULTIFUNCTION COLOR DISPLAY x 1
RAYMARINE 48” HD COLOR OPEN ARRAY AND 4KW PEDESTAL x 1
RAYMARINE RAY218E VHF RADIO x 1
RAYMARINE AIS 650 CLASS B TRANSCEIVER x 1
RAYMARINE EVOLUTION AUTOPILOT WITH P70R CONTROL HEAD & ACU-400 ACTUATOR CONTROL UNIT X 1
RAYMARINE CP100 DOWNVISION FISHFINDER X 1

16. STABILIZER CONTROL AND MONITORING DISPLAY

17. ABT BOW & STERN THRUSTER CONTROL PANEL

18. CCTV SYSTEM WITH 8 CHANNEL NETWORK DVR, 5 CAMERAS WITH 2 IN THE ENGINE ROOM AND  2 ON AFT DECK, AND ONE ON FOREDECK FACING WINCH

19. RUDDER INDICATOR

20. DANFORTH 5” MAGNETIC COMPASS

21. FUEL GAUGE HEADHUNTER TS-3000 SERIES

22. ACRYLIC DEFLECTING WIND SCREEN

23. FUSION STEREO SYSTEM, FLYBRIDGE, AFT DECK:

MS-AV700I DVD / RECEIVER – WITH FUSION LINK
MS-CL602 6” MARINE CEILING MOUNT SPEAKERS x 4
MS-BT200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT

24. DROP DOWN TV CABINET W/ 32” LCD TV

25. APPLE TV

26. LOW LEVEL COURTESY LED LIGHTS 24V

27. INTERNATIONAL NAVIGATION LIGHTS & CONTROLLER ALL LED:

AQUA-SIGNAL ONE SET (5)
3532-003 #55 MASTHEAD LIGHT 24V
3535-103 #55 STARBOARD LIGHT 24V
3534-203 #55 PORT LIGHT 24V
3533-703 #55 STERN LIGHT 24V
3531-703 #55 ALL-ROUNG LIGHT 24V

28. SIDE AND AFT BRIDGE RAIL STAINLESS STEEL

29. S/S GRAB RAIL AROUND BAR UNIT

30. INDIRECT LED LIGHTING UNDER WET BAR AND SEATING

31. OVERHEAD LED LIGHTS

32. INTERLOCKING HEADLINER

1. ENGINE:

CAT C-32 ACERT 1925 HP X 2 GEARBOX

ZF2070A MARINE GEAR RATIO 2.467: 1 x 2

2. SOUNDOWN ENGINES MOUNTS TO REDUCE VIBRATION

3. CAT ELECTRONIC ENGINE CONTROL SYSTEM, INCLUDING REMOTE STATION CONTROL & BACKUP SYSTEM:

FIXED STATIONS x 1 AT F/B; REMOTE CONTROL STATION x 1 IN THE AFT DECK PORT SIDE

4. ENGINE FUEL FILTERS:

RACOR 75/1000MAX2 W/ALARM x 2

5. GENERATOR FUEL FILTERS:

RACOR 75/500MAX2 W/ALARM x 2

6. S/S SHAFTS:

AQUATECH 22 HIGH STRENGTH DIAMETER 4” x 2

7. HIGH PERFORMANCE 5–BLADE PROPELLERS:

HUNG SHEN NIBRAL PROPS x 2

8. MAIN & INTERMEDIATE BRONZE SHAFT STRUTS WITH BACKING PLATES

9. SHAFT & RUDDER PACKING GLANDS WITH MAINTENANCE FREE TIDE STRONG SEALS:

TIDES MARINE RUDDER SEAL DIAMETER 3-1/2” & SHAFT SEAL DIAMETER 4”

10. HYNAUTIC POWER STEERING SYSTEM WITH PTO ON BOTH ENGINES:

PSC-2252-21-2 DUAL STATION W/COOLING WATER FLOW DETECTOR

11. SEA WATER STRAINERS FOR ENGINE, GENERATORS, AIR CON AND WATER MAKER

12. SEA COCKS ON ALL UNDERWATER FITTINGS

13. S/S EMERGENCY TILLER

14. S/S RUDDERS:

DIAMETER 3-1/2”

15. HEAVY DUTY S/S WIPERS WITH VARIABLE SPEED CONTROLS & SCREEN WASHER SYSTEM:

EXALTO 24V X 4

16. HYDRAULIC ABT BOW/ STERN THRUSTER:

ABT 16”-50HP BOW & STERN THRUSTERS WITH CENTRAL HYDRAULIC SYSTEM

17. HYDRAULIC FIN DIGITAL STABILIZER SYSTEM

18. STEERING WHEELS AT P/H & F/B:

S/S 22” DIAMETER x 2

19. UNDERWATER EXHAUST W/ BYPASS

1. WELL PLANNED, SPACIOUS E/R WITH REMOVABLE NIDA-CORE DECK PLATES

2. VAN CAPPELLEN CONSULTANCY DESIGN SOUND INSULATED MATERIALS

3. WATER TIGHT BULKHEAD UP TO ENTRANCE DOOR

4. FULL LENGTH S/S GRAB RAIL ON EACH SIDE OF ENGINE

5. E/R AC LED LIGHTS & DC LED DOME LIGHTS

6. ENGINE COMPARTMENT BLOWER & MOISTURE ELIMINATOR:

DELTA “T” BLOWERS WITH 600-P/T4 CONTROL SYSTEM, ADJUSTABLE SPEED DRIVE AND COLOR TOUCH SCREEN

500-219183-45/8 INTAKE FAN W/DAMPER, AXIAL. 21 IN. x 2 SETS

500-215363-30/8 EXHAUST FAN W/DAMPER, AXIAL. 15 IN. x 2 SETS

7. AUTOMATIC FIRE EXTINGUISHING SYSTEM W/AUTOMATIC ENGINES & VENTILATION SHUTDOWN:

SEA-FIRE FM-200 24V

SEA-FIRE FIRE DETECTION & MONITORING SYSTEM THROUGHOUT THE BOAT

8. ENGINE ALARM SYSTEM FOR LOW OIL PRESSURE & HIGH WATER TEMPERATURE

9. HIGH VOLUME AC FRESH WATER PRESSURE PUMP & ONE DC PUMP FOR BACK UP:

HEADHUNTER XR-124 12-24VDC x 1

HEADHUNTER M5-230 MACH 5 230VAC x 2

10. CHILLED WATER AIR CONDITIONING UNITS LOCATED IN ENGINE ROOM:

CRUISAIR CHILLED WATER AIR CONDITIONING 230V/60HZ W/SMXHT DIGITAL CONTROL AIR COMPRESSOR:

TWC72DC (72000 BTU) x 3
AIR HANDLER:
SALOON: 24000 BTU/HR x 3
GALLEY: 12000 BTU/HR x 1
MASTER CABIN: 18000 BTU/HR x 2
MASTER BATHROOM: 12000 BTU/HR x 1
HALLWAY: 6000 BTU/HR x 1
VIP CABIN/BATHROOM: 18000 BTU/HR x 1
PORT GUEST CABIN/BATHROOM: 12000 BTU/HR x 1
STBD AFT GUEST CABIN/BATHROOM: 12000 /HR x 1
PORT AFT GUEST CABIN/BATHROOM: 12000 /HR x 1
FLY BRIDGE: 24000 BTU/HR x 2
OFFICE/LOWER HELM: 24000 BTU/HR x 1
CAPTAIN CABIN: 9000 BTU/HR x 1
CREW CABIN: 6000 BTU/HR x 1
CREW GALLEY: 12000 BTU/HR x 1

11. ALUMINIUM & FRP FUEL TANKS W/ HEADHUNTER FUEL GAUGE:

723 GAL ALUMINIUM FUEL TANK x 2
1,180 GAL FRP FUEL TANK x 1
1,355 GAL FRP FUEL TANK x 1

12. OIL CHANGE PUMP SYSTEM FOR ENGINES, GENERATORS AND CLUTCHES
REVERSO OP-704 24V x 1

13. HEAVY DUTY ENGINE ROOM DOOR WITH VIEWING WINDOW

14. MANUAL BILGE PUMP:

HENDERSON MK5 UNIVERSAL MOUNT PUMP x 1

15. FUEL TRANSFER PUMP W/ MECHANICAL FLOW METER:

TUTHILL FR2410C 24V 1/4HP x 2
TUTHILL 901-1 x 2

16. S/S COVER OUTSIDE ENGINE EXHAUST

17. FRESH-WATER HOSE FOR FILLING ENGINE AND GENERATOR AND EXPANSION TANK IN
ENGINE ROOM:

BASIN: LP-7000 x 1
TAP: SCANDVIK 10477 COMPACT MIXER WHITE x 1
SHOWER DRAIN: RULE 98 800GHP 24V x 1

18. WATER MAKER:

SEA RECOVERY 1400GPD(ONE) COMPLETE PREFILTER, OIL/WATER SEPARATOR, CARBON
FILTER, SRC FWF/AW AUTOMATICALLY RINSES WITH FRESH WATER

19. WORK BENCH OVER THE ENGINE X 2

1. 110/220 VOLT ELECTRICAL SUPPLY FROM GENERATOR OR SHORE POWER

2. SHORE POWER INLET W/ RADIO REMOTE CONTROL IN THE TRANSOM:

GLENDINNING CABLE MASTER CM-8 100AMP 24V WITH 120’ CABLE x 2 SETS
GLENDINNING RADIO REMOTE CONTROL 04155 (2 TRANSMITTERS) x 1 SET

3. INVERTERS:

MASTERVOLT MASS COMBI 24/4000-100 x 1

4. COLOR-CODED WIRING FOR EASY IDENTIFICATION

5. GENERATOR:

ONAN MARINE DIESEL GENERATORS 35KW 1 PHASE,(60HZ); 110V/220V 60HZ x 2
INCLUDING STANDARD EQUIPMENT(CONTROL PANEL): SOUND SHIELD, WET EXHAUST MUFFLER, GAS/WATER SEPARATOR

6. AUTOMATIC BATTERY CHARGER:

DOLPHIN 80 AMP 24V 115-230V 50/60HZ x 2 FOR SERVICE BATTERIES
PROTECH 12V 30AMP x 1 FOR GENERATOR BATTERIES

7. BATTERY SWITCH (VAPOR PROOF):

BEP 701-MDO x 3

8. 225 AMP/HR GEL CELL SEALED BATTERIES FOR SERVICE/ENGINES/GENSETS:

SERVICE LIFELINE GPL-8DL 255AMP x 4
ENGINE LIFELINE GPL-8DL 255AMP x 4
GENSETS LIFELINE GPL-8DL 255AMP x 2

9. ALL BATTERIES ENCLOSED WITH FIBERGLASS BOXES AND COVERS

10. MAIN ELECTRIC PANEL INCLUDES AC AND DC CIRCUIT BREAKERS

11. 24 VOLT DC MONITORING AND MAIN CIRCUIT BREAKERS

12. AC VOLT DUPLEX RECEPTACLES LOCATED THROUGHOUT INCLUDING ENGINE ROOM

13. GFI PROTECTION FOR AC REQUIRED OUTLETS:

VIMAR 16511.16B 120V~60HZ

14. AUTOMATIC ISOLATION & BOOSTING TRANSFORMER:

CHARLES 93-ISOBOST 100 AMP x 2

15. INDIRECT LED LIGHTING UNDER VALANCE IN SALOON, STATEROOMS, PILOTHOUSE, HAND RAILS AND GALLEY

16. COMPLETE ANTI ELECTROLYSIS BONDING SYSTEM VIA 2” COPPER STRAP AND HULL ANODES

17. SHORE TELEPHONE INLET:

HUBBELL PH6594TV x 1

1. FWD 150 GALLON HOLDING TANK WITH MACERATOR PUMP & AFT 50 GALLON TANK WITH MACERATOR

2. WASTE TREATMENT SYSTEM IN E/R:

HEADHUNTER TW-HMX-512 1200GPD

3. SUMP PUMPS FOR SHOWERS:

RULE 12 24V/2000GPH x 3

4. BILGE PUMPS:

RULE 16A 24V/3700GPH x 7

5. FLOAT SWITCH:

LOW-SUREBAIL 382251 x 6
HIGH-SUREBAIL 382251 x 9

6. MARINE GRADE LINES FOR FRESH WATER SYSTEM

7. WATER HEATERS W/HOT WATER CIRCULATING PUMP:

WATER HEATER: TORRID MV40S 120V 1500W S/S 40 GALLONS x 2
HOT WATER CIRCULATING PUMP: GRUNDFOS UP10-16B5/ATLC 115V/60HZ x 1

8. 634 GAL S/S WATER TANKS W/ HEADHUNTER TS-3001B ELECTRIC WATER GAUGE

9. PRESSURE STORAGE TANKS:

HEADHUNTER AVF-4 4 GAL x 2
GROCO PST-1 1 GAL x 1

10. MANIFOLD FOR OVERBOARD DISCHARGES TO MINIMIZE NUMBER OF THRU-HULL FITTINGS, IN BRONZE WITH BALL VALVES

11. HIGH WATER BILGE ALARM SYSTEM - 7 AREAS

12. DOCKSIDE FRESH WATER INLET:

PAR JABSCO 44410-1001 x 1

13. COLOR CODED PIPING SYSTEM FOR EASY IDENTIFICATION

14. BRONZE INTAKE VALVES (BALL). ALL THRU-HULL FITTINGS ARE BRONZE

15. 2HP AC FIRE PUMP WITH ON-DECK FIRE HOSE

16. BILGE EXHAUST VENTILATION:

PAR 35740-0013 24V 3” FLANGEMOUNT BLOWER

1. HIGH QUALITY FABRIC SOFAS

2. INTERLOCKING VINYL CEILING PANELS THROUGHOUT

3. HIGH QUALITY DOOR LOCK SETS THROUGHOUT:

HAFELE-SANDRA

4. TGI LIGHTING SYSTEM THROUGHOUT:

TGI SP0101 (#3) / CHROME TRIM & WHITE COLOR

5. ITALIAN SWITCH & OUTLETS THROUGHOUT:

VIMAR / CHROME TRIM

6. CHOICE OF FABRICS FOR BEDDING & CURTAINS

7. INDIRECT LIGHTING SYSTEM THROUGHOUT, UNDER SOFAS, BEDS & CURTAIN VALANCES IMTRA LED ROPE LIGHTING 24V WARM WHITE

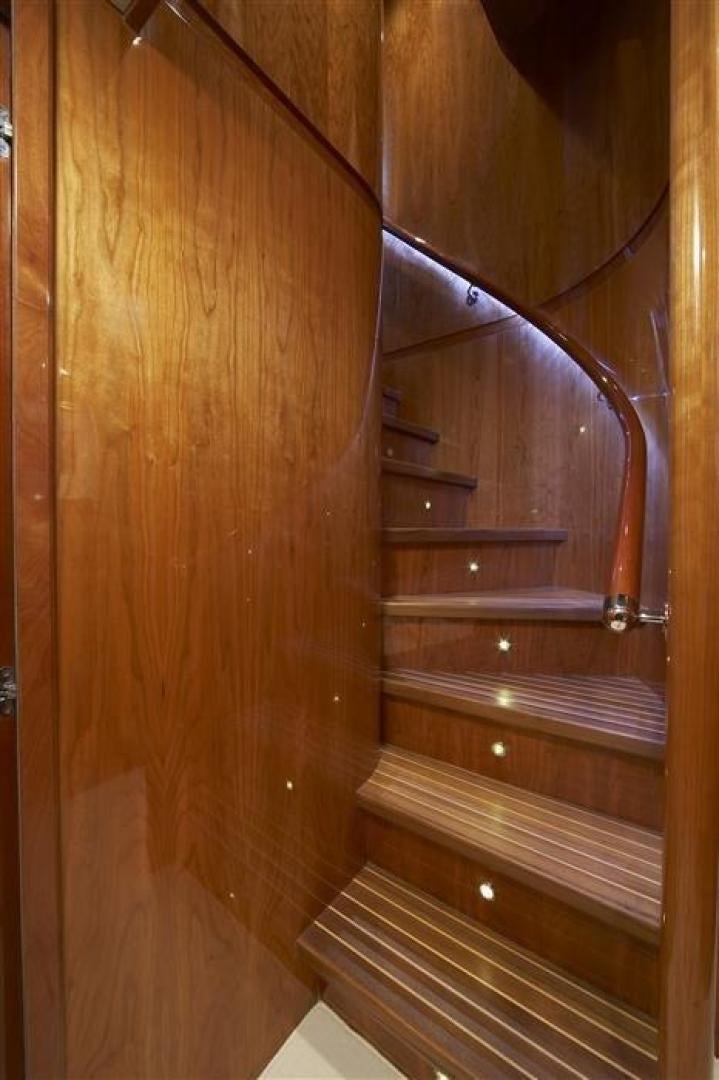

8. INTERIOR STAIRWAYS WITH SAFETY LIGHT SYSTEM:

SEA WORLD 10435WW LED ROPE LIGHTING 24V WARM WHITE

9. CEDAR LINED HANGING LOCKER CABINET W/LED LIGHT (SPK LEDCAchW24) IN EACH CABIN

10. HIGH QUALITY OF SOUND INSULATION IN WALLS BETWEEN CABINS

11. CENTRAL VACUUM SYSTEM W/ OUTLETS:

NUTONE 110V/60 HZ x 1

12. OPEN/CLOSE ELECTRIC CURTAIN IN SALOON & MASTER STATEROOMS

13. CHROME COLOR BATHROOM FIXTURE THROUGHOUT

14. FROSTED GLASS FOR SHOWER DOORS

15. PAINTED SOJI SCREEN IN ALL STATEROOMS IN FRONT OF PORTHOLES

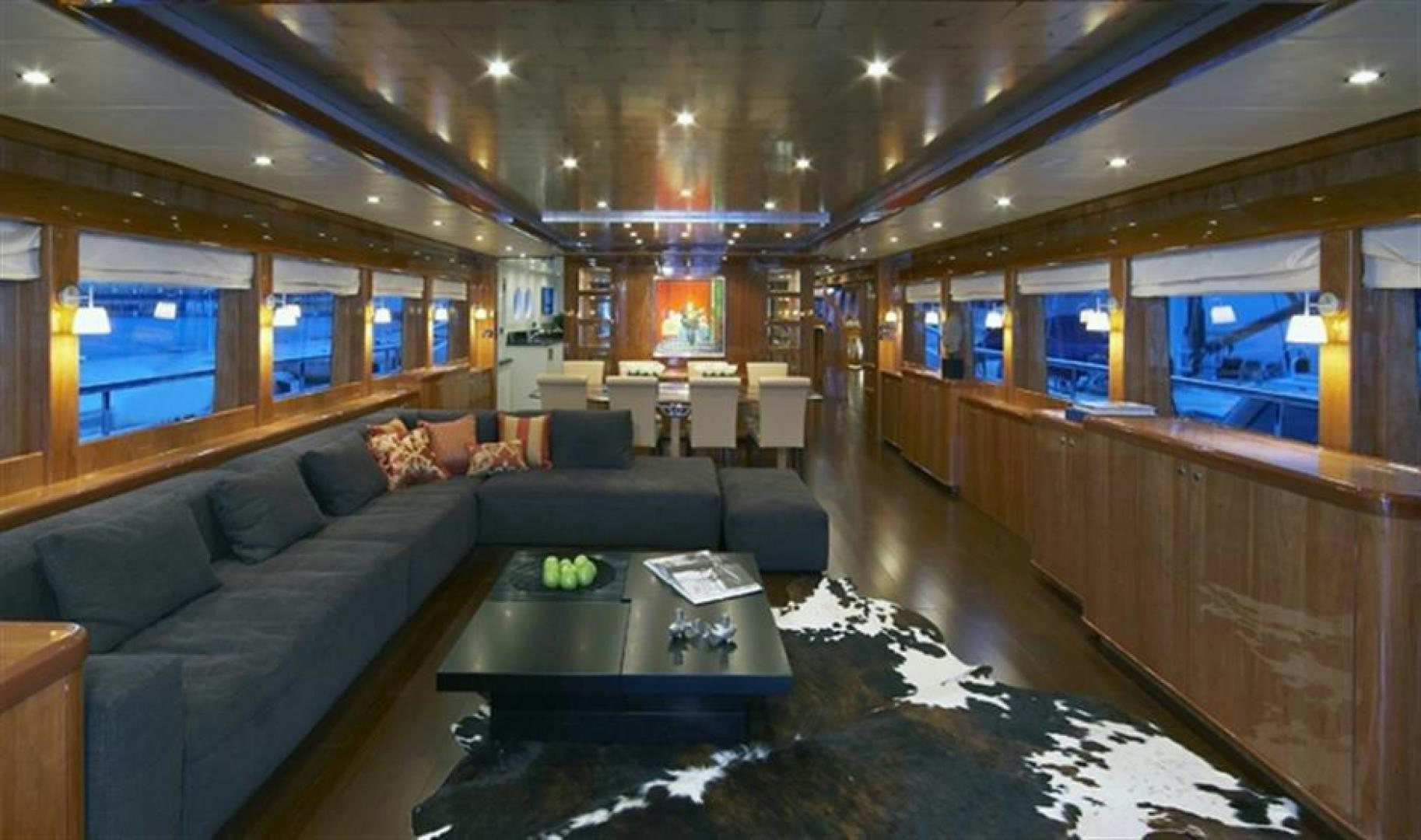

16. SALOON:

HIGH QUALITY CUSTOM BUILT UPHOLSTERED SOFA x 2
INTERLOCKING VINYL CEILING PANELS THROUGHOUT
S/S HIGH POLISH AIR DOOR
CUSTOM DESIGN DINING TABLE
CUSTOM DESIGN CEILING SOFFIT
CUSTOM DESIGN TV CABINET
HANGING CLOSET
BOSE LIFESTYLE 535 SERIES III HOME THEATER SYSTEM
SAMSUNG LCD 47” TV
PIONEER BLU-RAY DISC PLAYER
APPLE TV

18. MASTER CABIN:

INTERLOCKING VINYL CEILING PANELS
KING SIZE BED
CUSTOM DESIGN HEADBOARD
CUSTOM STORAGE CABINETS
POWER CURTAINS
VANITY LIGHT: QUICK QB-COMPASS/CHROMED x 1
SIDE SOFA x 1
CEDAR LINED CLOSET
REFRIGERATOR: NORCOLD DE-7040 24V
READING LIGHTS: QUICK DOMINIQUE 22-35/CHROMED/SHADE LINEN/ B15D LED x 2
SAMSUNG LCD 47” TV
PIONEER BLU-RAY DISC PLAYER
APPLE TV
FUSION STEREO SYSTEM
MS-RA205 RECEIVER / MEDIA PLAYER WITH FULL IPOD / IPHONE CONTROL
MS-CL602 6” MARINE CEILING MOUNT SPEAKERS x 4
MS-BT200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT

19. FWD VIP CABIN:

INTERLOCKING VINYL CEILING PANELS
QUEEN SIZE BED
CUSTOM DESIGN HEADBOARD AND CEILING
CUSTOM STORAGE CABINETS
VANITY LIGHT: QUICK QB-COMPASS/CHROMED x 1
CEDAR LINED CLOSET
READING LIGHTS: QUICK ISABELLA 15-25 /CHROMED/SHADE LINEN/ B15D LED x 2 \
SAMSUNG LCD 32” TV
APPLE TV
FUSION STEREO SYSTEM
MS-AV600G DVD / RECEIVER – WITH FUSION LINK.
MS-CL602 6” MARINE CEILING MOUNT SPEAKERS x 4
MS-BT200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT

20. AFT VIP CABIN:

INTERLOCKING VINYL CEILING PANELS
QUEEN SIZE BED
CUSTOM DESIGN HEADBOARD AND CEILING
CUSTOM STORAGE CABINETS
VANITY LIGHT: QUICK QB-COMPASS/CHROMED x 1
CEDAR LINED CLOSET
READING LIGHTS: QUICK ISABELLA 15-25 /CHROMED/SHADE LINEN/ B15D LED x 2
SAMSUNG LCD 32” TV
APPLE TV
FUSION STEREO SYSTEM
MS-AV600G DVD / RECEIVER – WITH FUSION LINK.
MS-CL602 6” MARINE CEILING MOUNT SPEAKERS x 4
MS-BT200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT

21. PORT GUEST CABIN:

INTERLOCKING VINYL CEILING PANELS
QUEEN SIZE BED, OUTBOARD
CUSTOM DESIGN HEADBOARD AND CEILING
CUSTOM STORAGE CABINETS
CEDAR LINED CLOSET
READING LIGHTS: QUICK MAYA 30 /CHROMED/ALUMINIUM x 2
SAMSUNG LCD 32” TV
APPLE TV
FUSION STEREO SYSTEM
MS-AV600G DVD / RECEIVER – WITH FUSION LINK.
MS-CL602 6” MARINE CEILING MOUNT SPEAKERS x 4
MS-BT200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT

22. STBD GUEST CABIN:

INTERLOCKING VINYL CEILING PANELS
TWIN BEDS x 2
CUSTOM DESIGN HEADBOARD AND CEILING
CUSTOM STORAGE CABINETS
CEDAR LINED CLOSET
READING LIGHTS: QUICK MAYA 30 /CHROMED/ALUMINIUM x 2
SAMSUNG LCD 32” TV
APPLE TV
FUSION STEREO SYSTEM
MS-AV600G DVD / RECEIVER – WITH FUSION LINK
MS-CL602 6” MARINE CEILING MOUNT SPEAKERS X 4
MS-BT200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT

23. CAPTAIN’S CABIN -PORTSIDE

TEAK & HOLLY FLOORS
HANGING LOCKER
DOUBLE BED
DESK & READING LIGHTS
SAMSUNG LCD 24” TV
APPLE TV

FUSION STEREO SYSTEM:
MS-AV700I DVD / RECEIVER WITH FUSION LINK
MS-CL602 6” MARINE CEILING MOUNT SPEAKERS x 4
MS-BT200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT

CREW QUARTERS STBD SIDE:

TWIN BEDS
READING LIGHTS

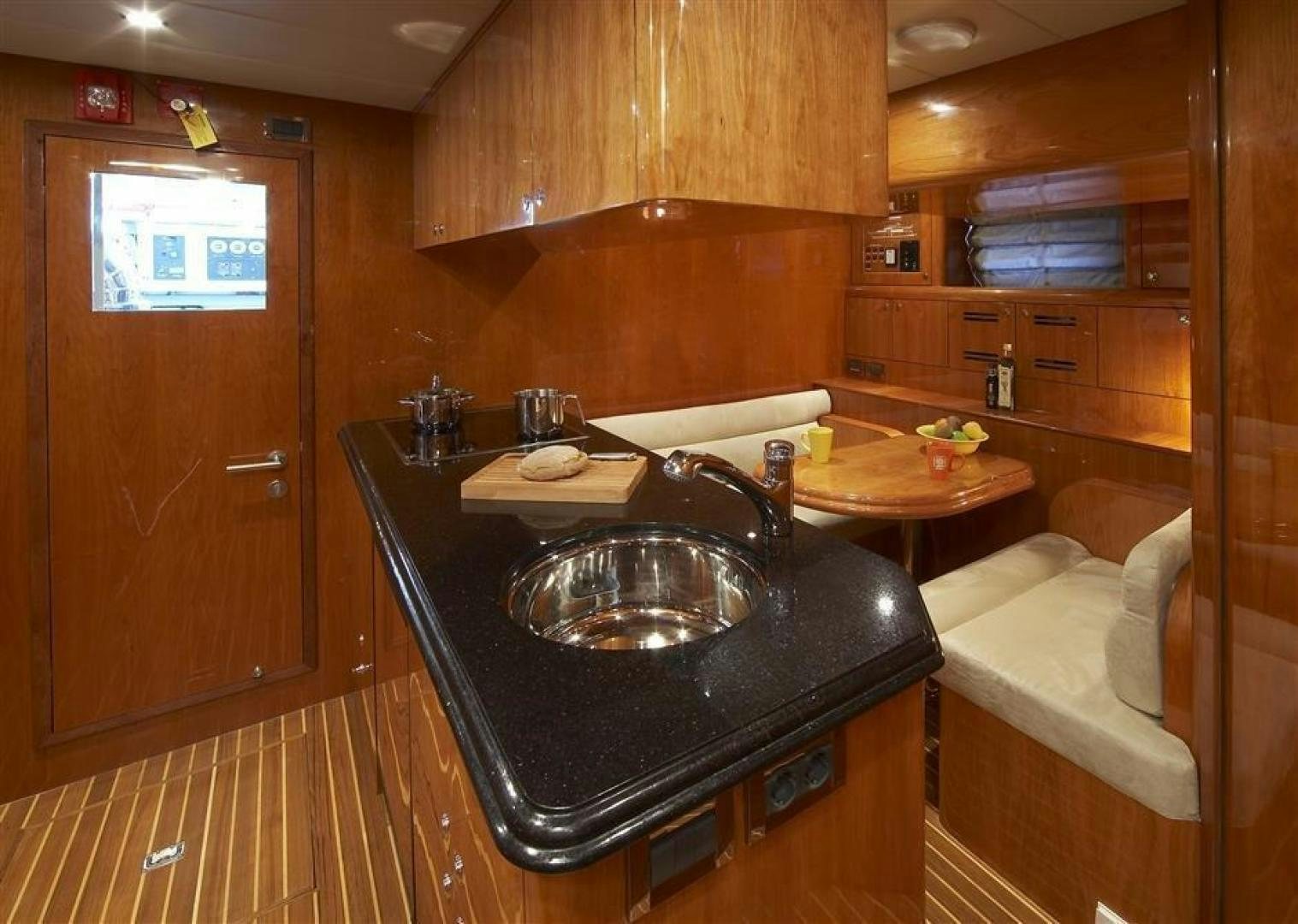

CREW’S GALLEY:

REFRIGERATOR: U-LINE CO29BTP-20 BLK 110V/60 HZ
COOK TOP: SEAWARD SEW3247-5200 220V/60HZ
MICROWAVE: GE LASTEST MODEL
WASHER: GE LASTEST MODEL
DRYER: GE LASTEST MODEL
4 PERSON DINETTE
AUXILIARY ELECTRICAL PANEL
SAMSUNG LCD 24” TV
APPLE TV

FUSION STEREO SYSTEM:

MS-AV600G DVD / RECEIVER – WITH FUSION LINK.
MS-CL602 6” MARINE CEILING MOUNT SPEAKERS x 4
MS-BT200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT

24. ENTERTAINMENT SYSTEM (REFER TO ATTACHED DRAWINGS FOR EQUIPMENT DETAILS)

1. TRASH COMPACTOR:

BROAN # 15SSEXF S/S

2. COOKTOP:

GE LATEST MODEL

3. DOWNDRAFT VENTILATOR:

GE LATEST MODEL W/ LIGHT

4. DISHWASHER:

GE LATEST MODEL

5. OVEN:

GE BUILT IN LATEST MODEL

6. REFRIGERATOR + FREEZER:

GE LATEST MODELS

7. MICROWAVE:

GE LATEST MODEL

1. MARBLE COUNTER TOP AND LACQUER FINISH IN ALL HEADS

2. SEAMLESS POLYURETHANE FINISH IN ALL HEADS

3. NON-SLIDE MARBLE FLOORING SELECTED BY THE OWNER WITH HONEYCOMB BACKING

4. SEALAND VACCUM TOILETS SYSTEM IN EACH HEAD

5. EXHAUST FANS IN EACH HEAD/ MANROSE BSL24C/24V

6. MIRROR CEILING WITH WOOD BORDERS IN EACH HEAD

7. SINKS WITH GROHE FAUCETS

8. STALL SHOWER W/ HAND HELD SPRAYS

1. FLOOR: TEAK & HOLLY

2. STAIRWAY: TEAK & HOLLY

3. STAINLESS HANDRAIL OF STAIRWAY

4. LEATHER SETTEE W/ WOOD TABLE

5. HELM CHAIR BESENZONI P217 24V HELM SEAT x 1

6. RUDDER INDICATOR:

VDO 382-233 24V x 1

7. CHOICE OF (I) GARMIN OR (II) RAYMARINE NAVIGATION SYSTEM:

I. GARMIN:

GPSMAP® 8215 FULLY-INTERGRATED MULTI-TOUCH MFD x 2
GMI 20 MARINE INSTRUMENT DISPLAY x 1
GMR™ 404 XHD OPEN ARRAY RADAR AND 4KW PEDESTAL x 1
GARMIN GSD 24 MARINE NETWORK SOUNDER 2KW x 1

II. RAYMARINE :

RAYMARINE A125 MULTIFUNCTIONAL DISPLAY WITH WI-FI x 2
RAYMARINE I70 MULTIFUNCTION COLOR DISPLAY x 1
RAYMARINE 48” HD COLOR OPEN ARRAY AND 4KW PEDESTAL x 1
RAYMARINE RAY218E VHF RADIO x 1
RAYMARINE AIS 650 CLASS B TRANSCEIVER x 1
RAYMARINE EVOLUTION AUTOPILOT WITH P70R CONTROL HEAD & ACU-400 ACTUATOR CONTROL UNIT X 1
RAYMARINE CP100 DOWNVISION FISHFINDER x 1GARMIN VHF 200 MARINE RADIO x 1
GARMIN AIS 600 CLASS B TRANSCEIVER x 1
GHP™ 20 MARINE AUTOPILOT SYSTEM WITH SMARTPUMP x 1

8. INTERGRADED INSTRUMENT PANEL AT BOTH HELM STATIONS

9. ENGINE CONSOLE WITH ALL GAUGES

10. COMPASS DANFORTH 5” X 1

Please note, this is a new build construction project with hull and deck completed in the molds waiting for Buyers choices of customization.

Listing broker has a list of popular options and prices, however, the standard equipment list above is very complete! Completion time is approximately 14 months depending on other yard projects.

** OPTIONS UPON REQUEST **

** ALL SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE **

New build project. Hull and deck complete.  Waiting for Buyer's choice of customization.

Since this is a new build offering, all photos are of previous projects. Exact layout, wood and stone selection are buyer's choice.
