INDIGO was built for her current, experienced sailing owner.

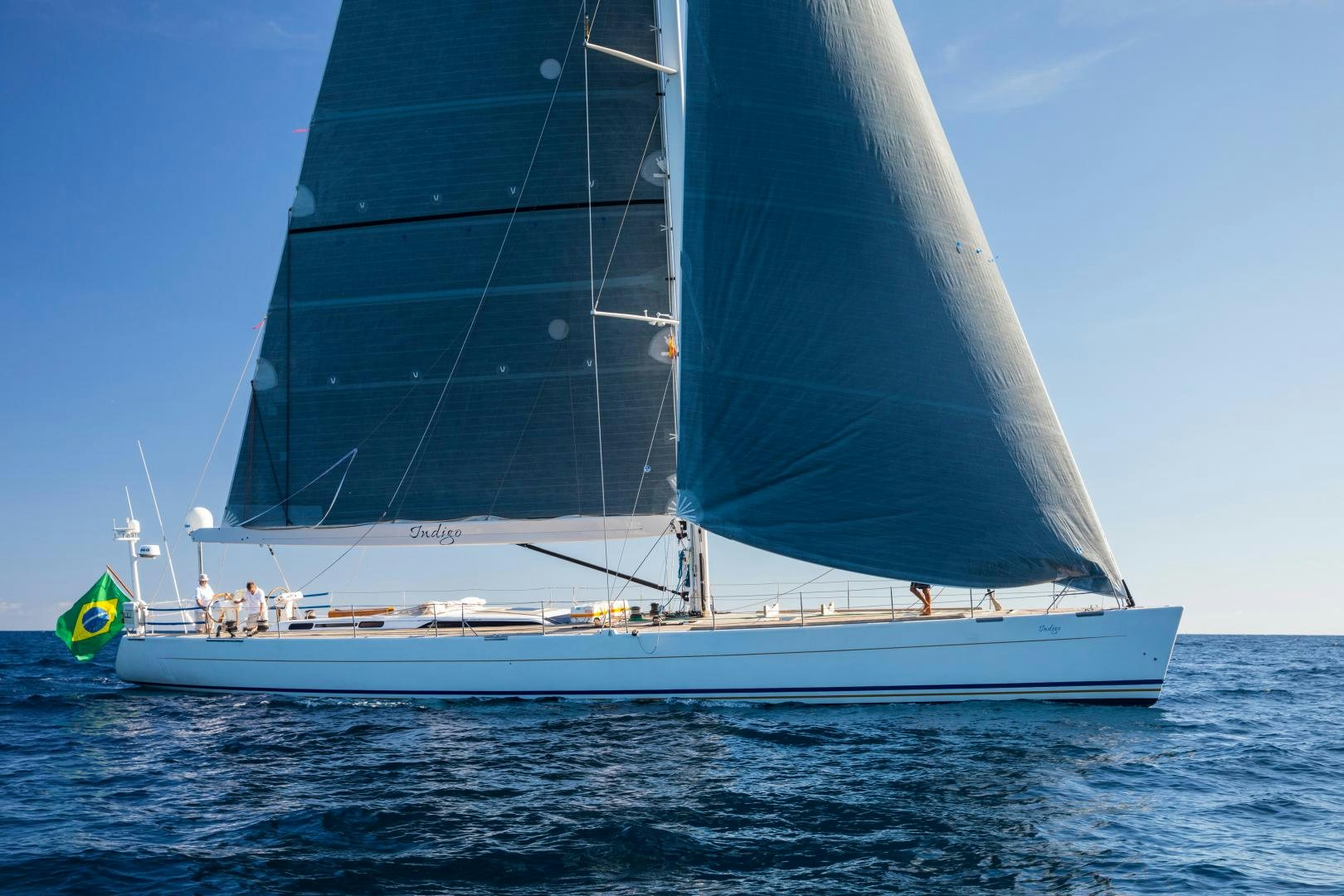

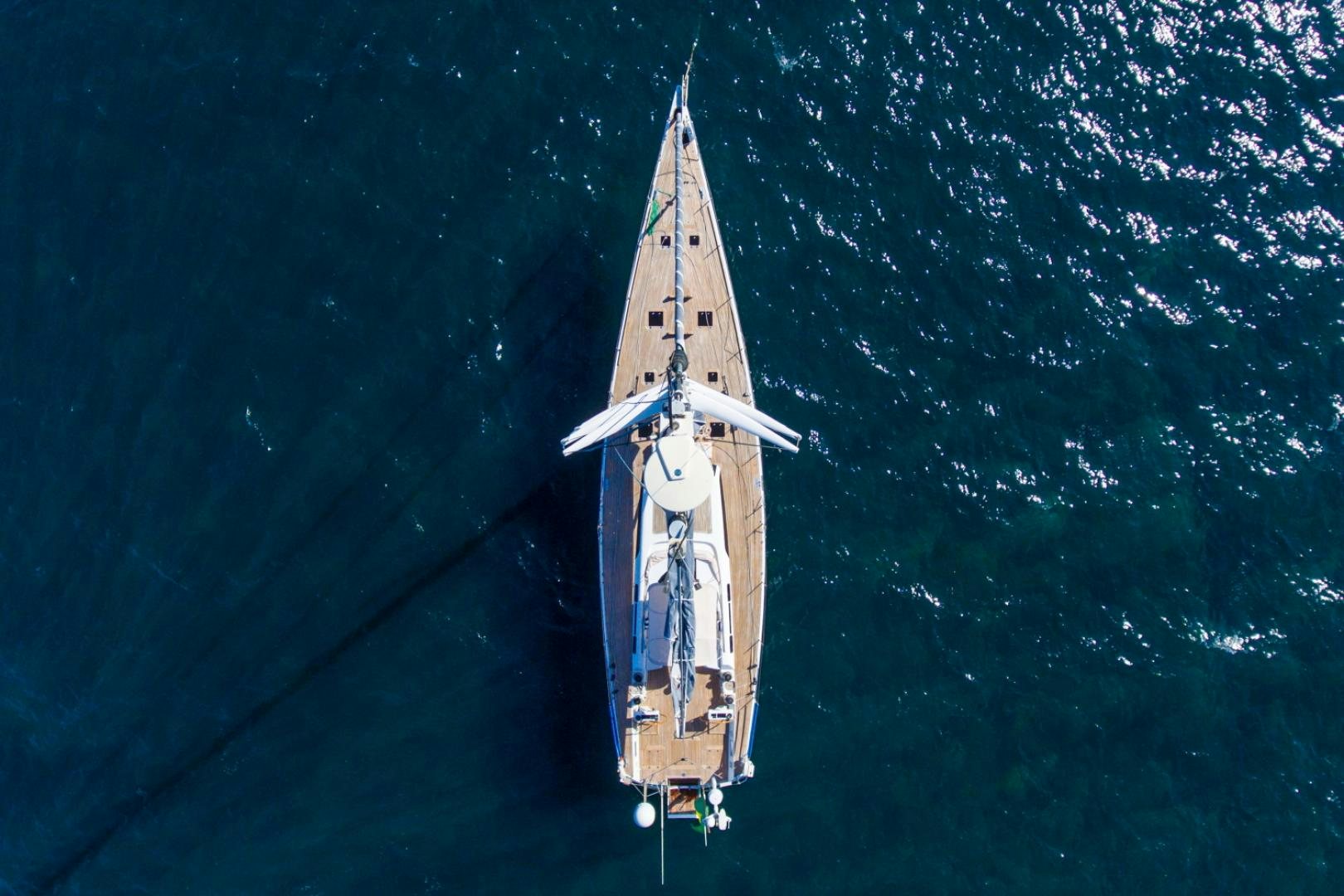

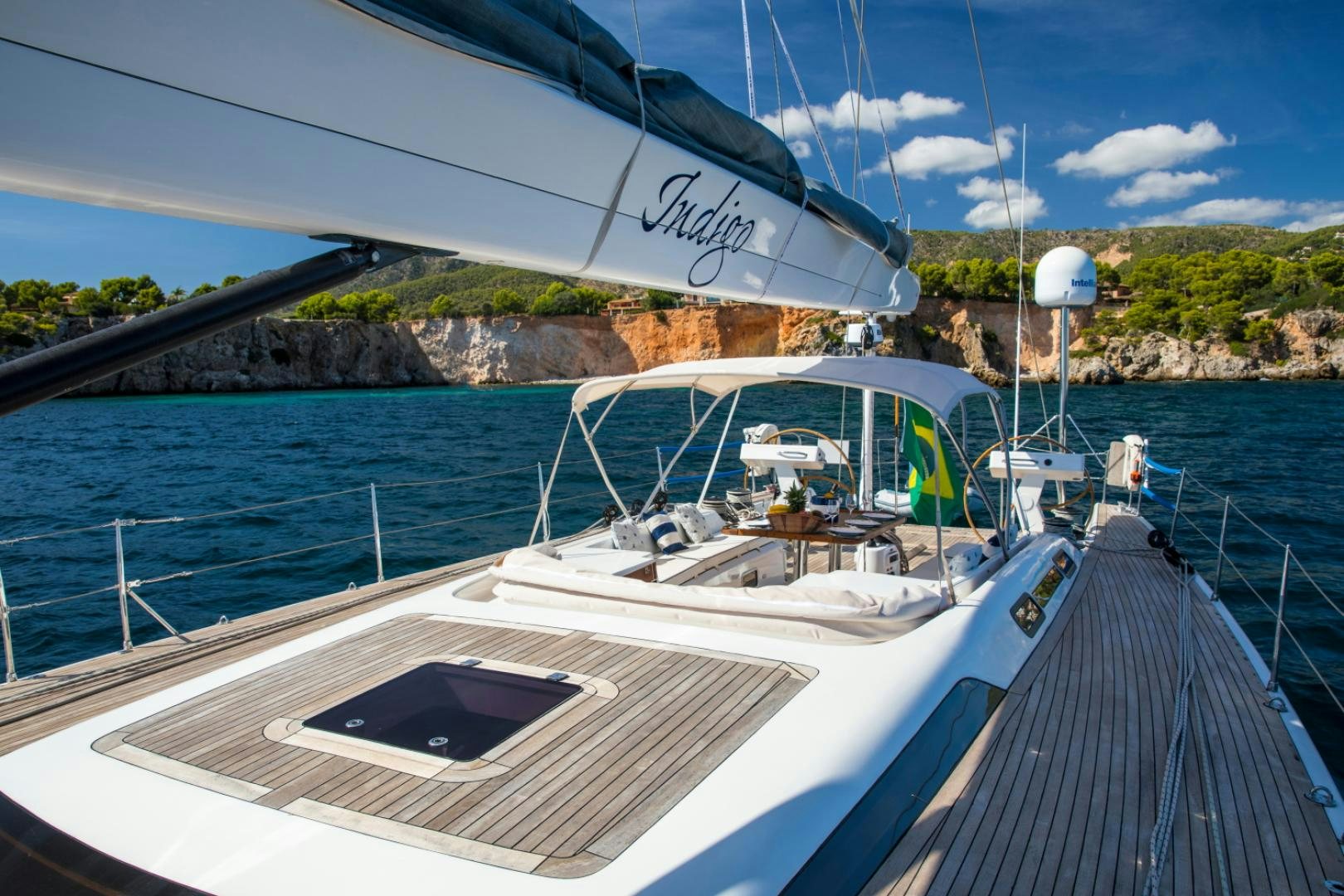

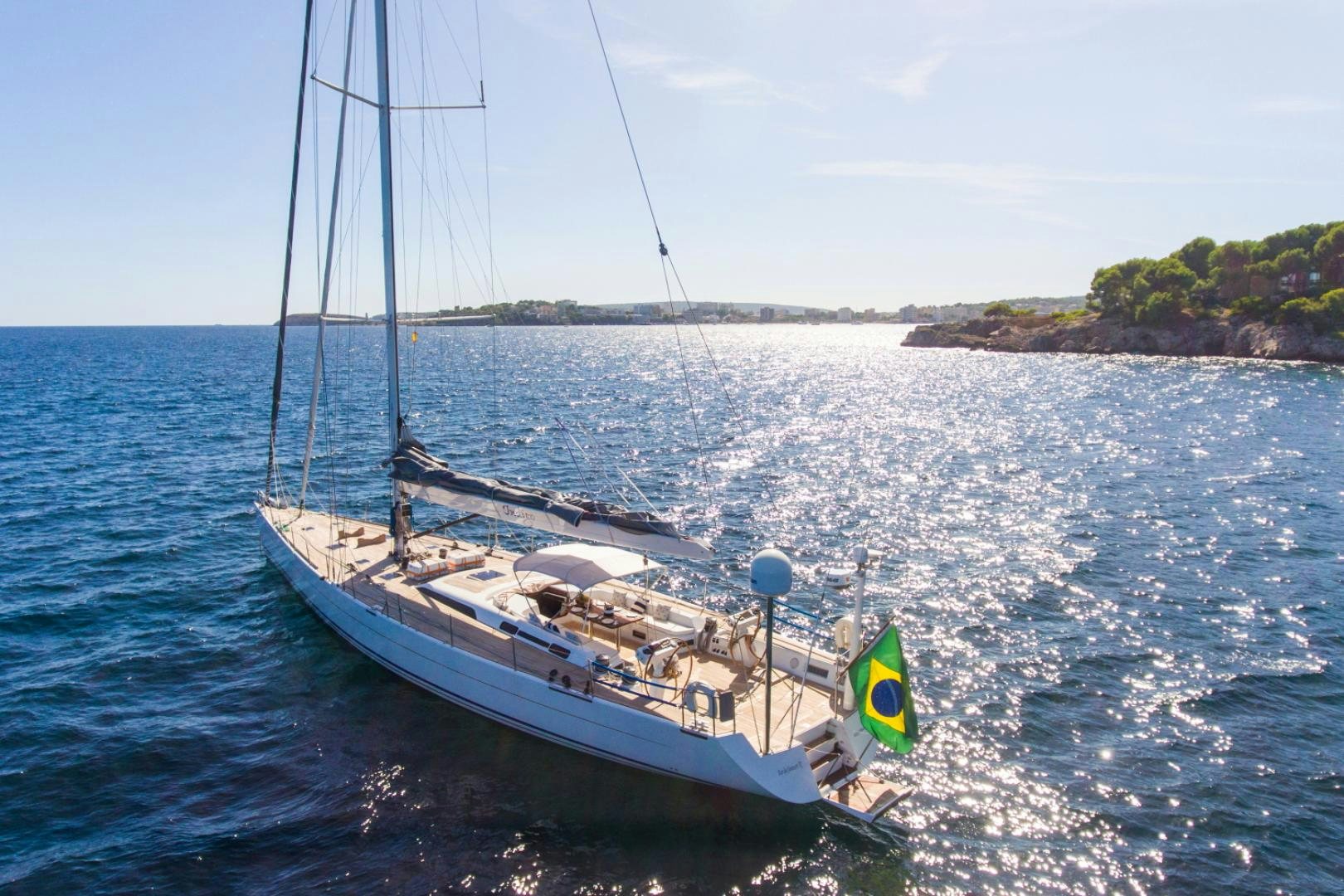

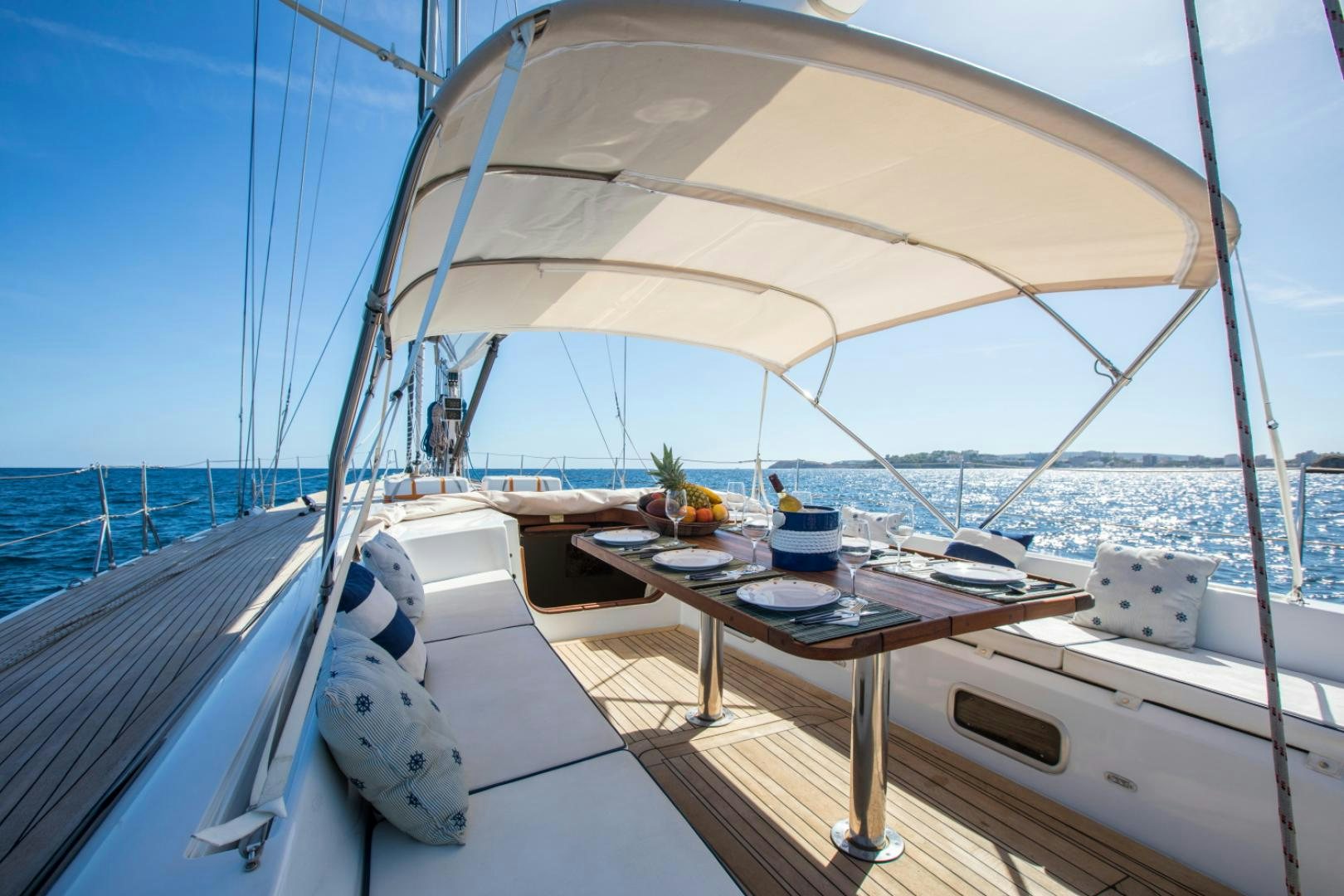

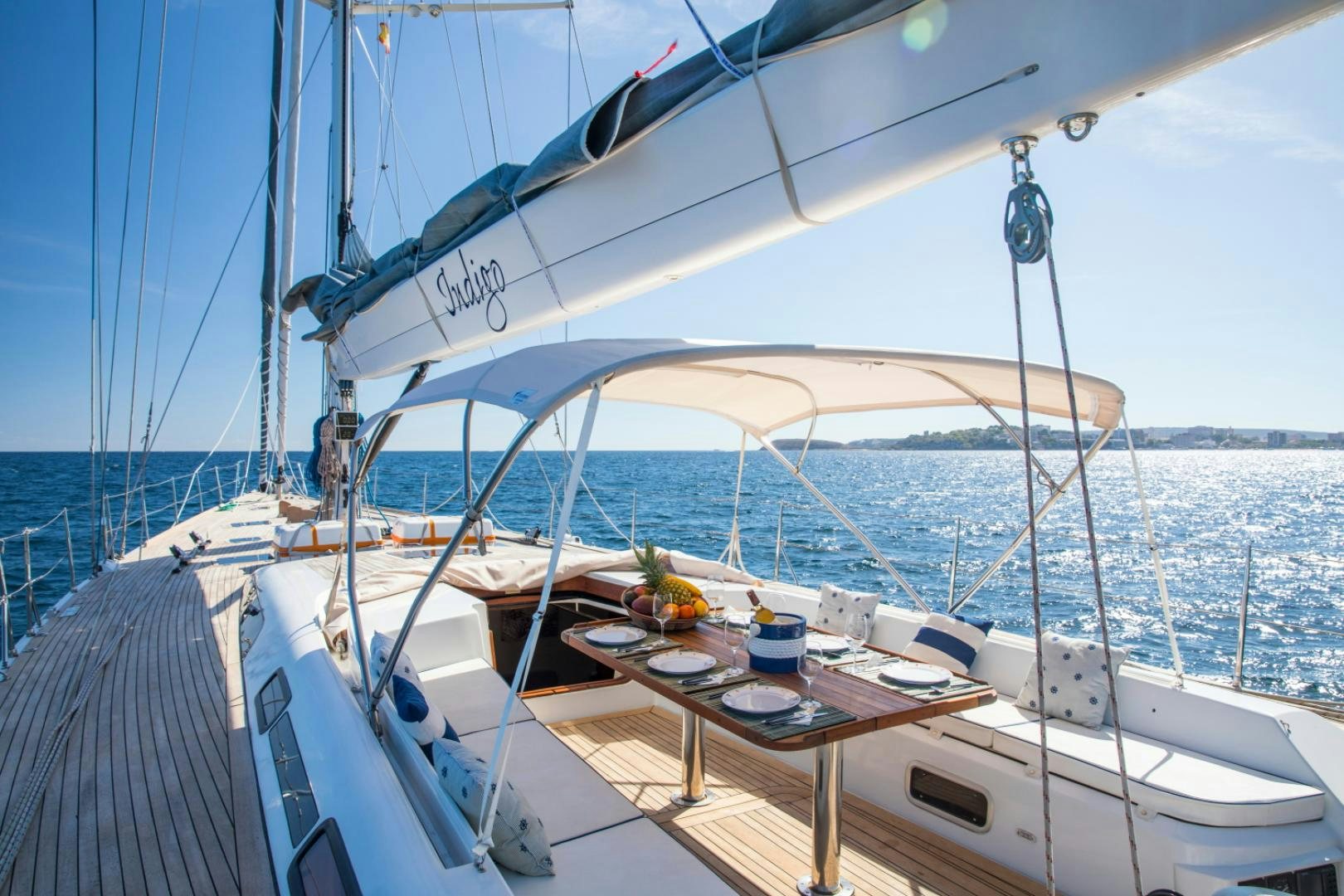

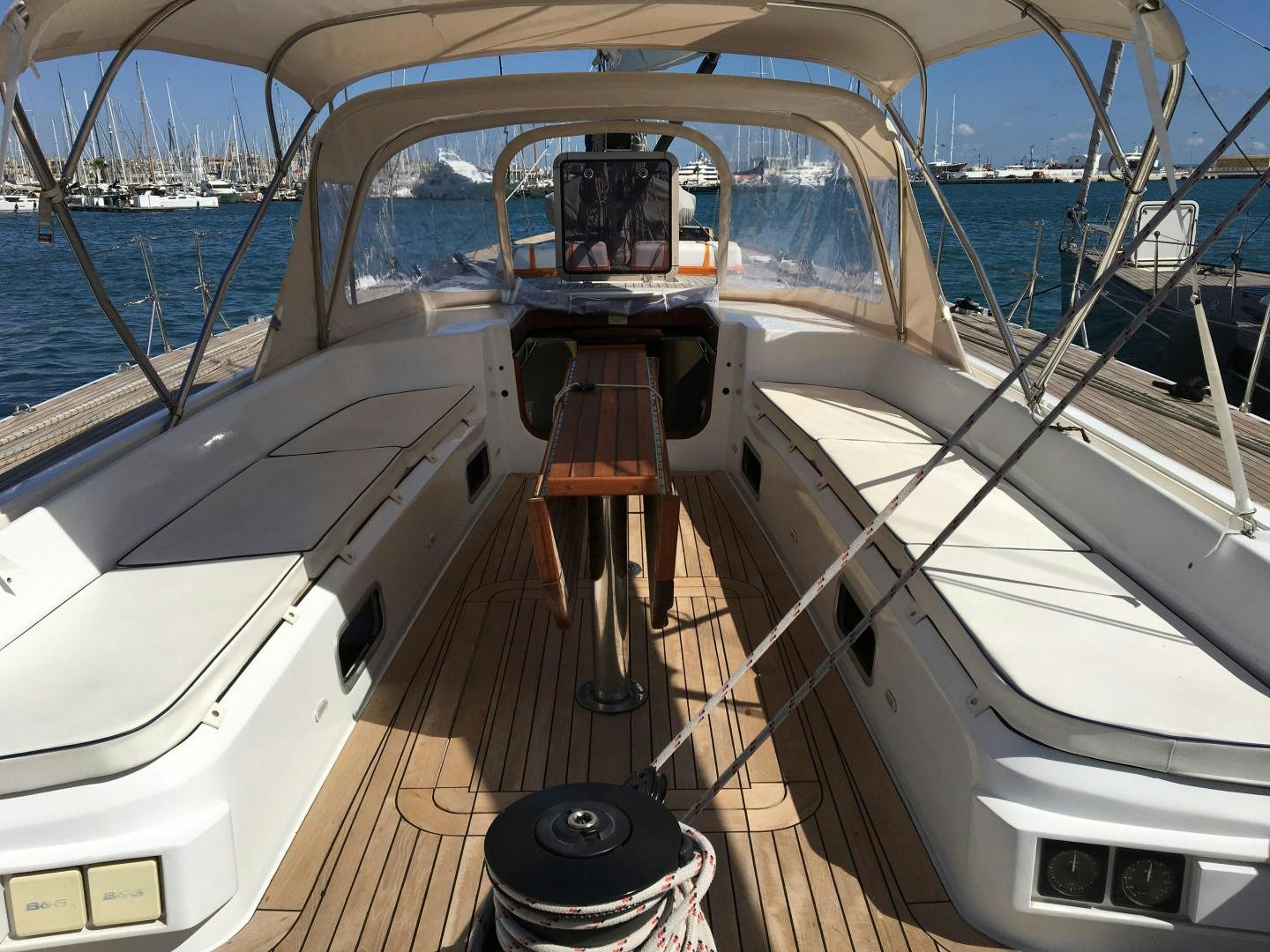

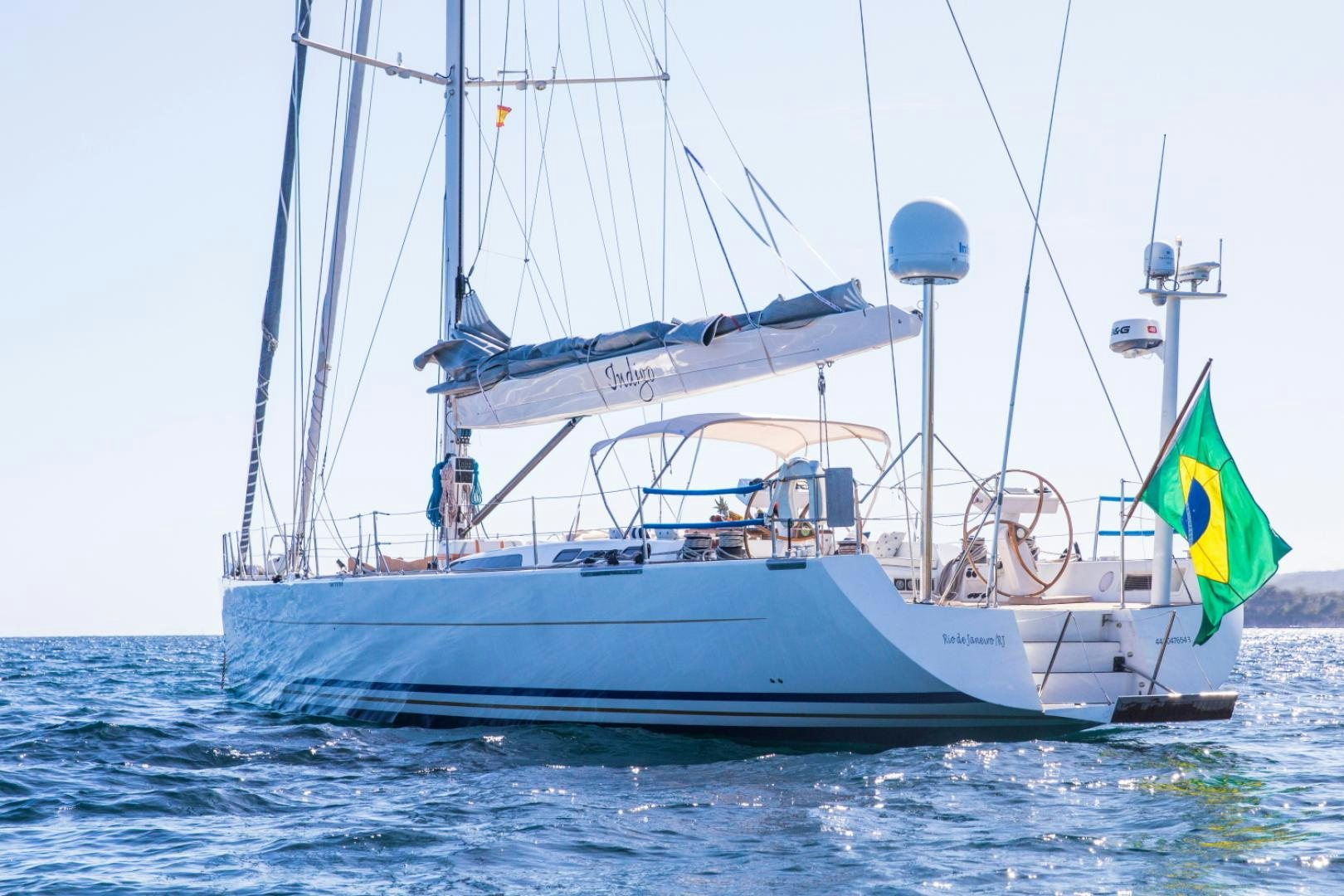

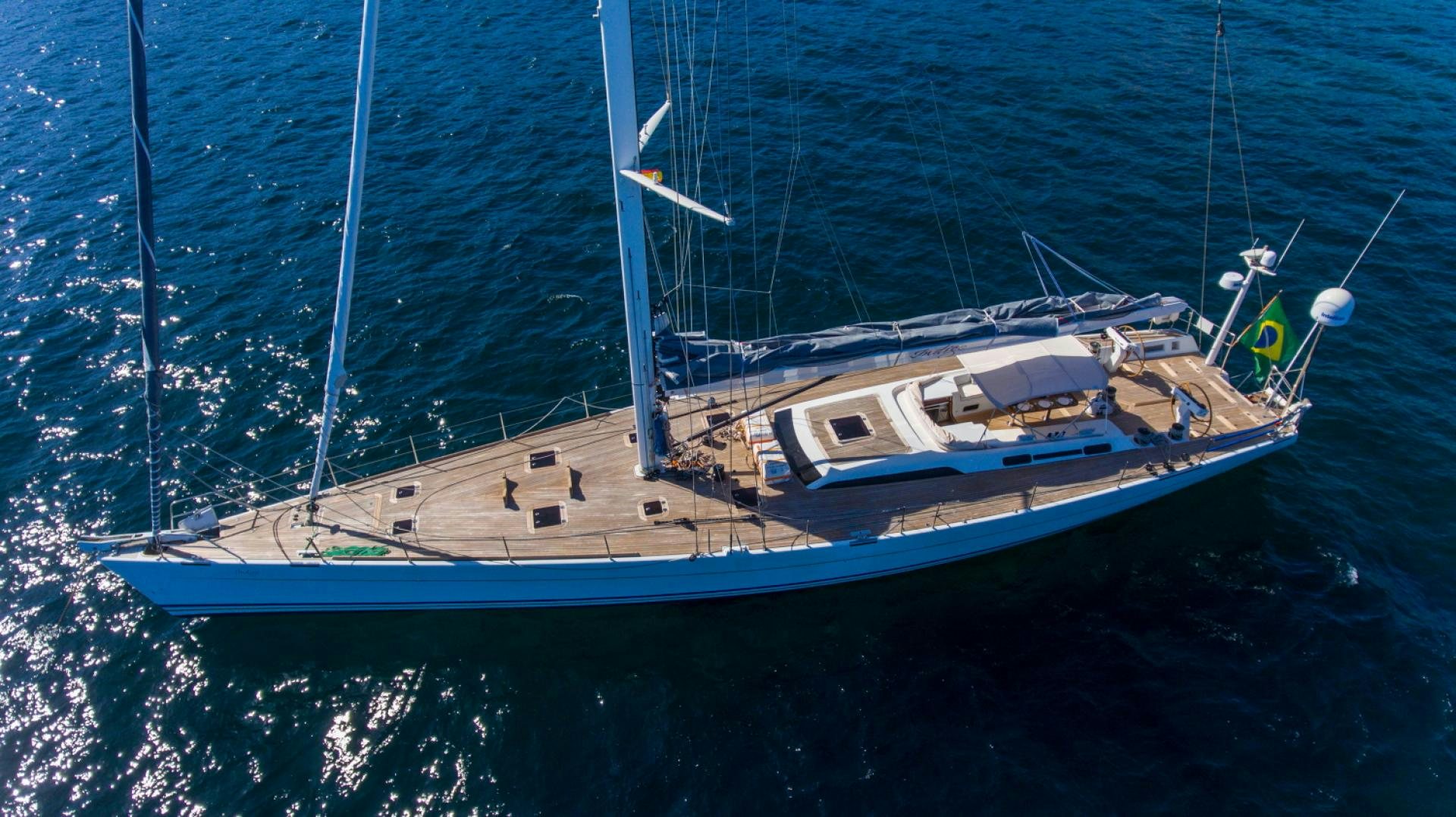

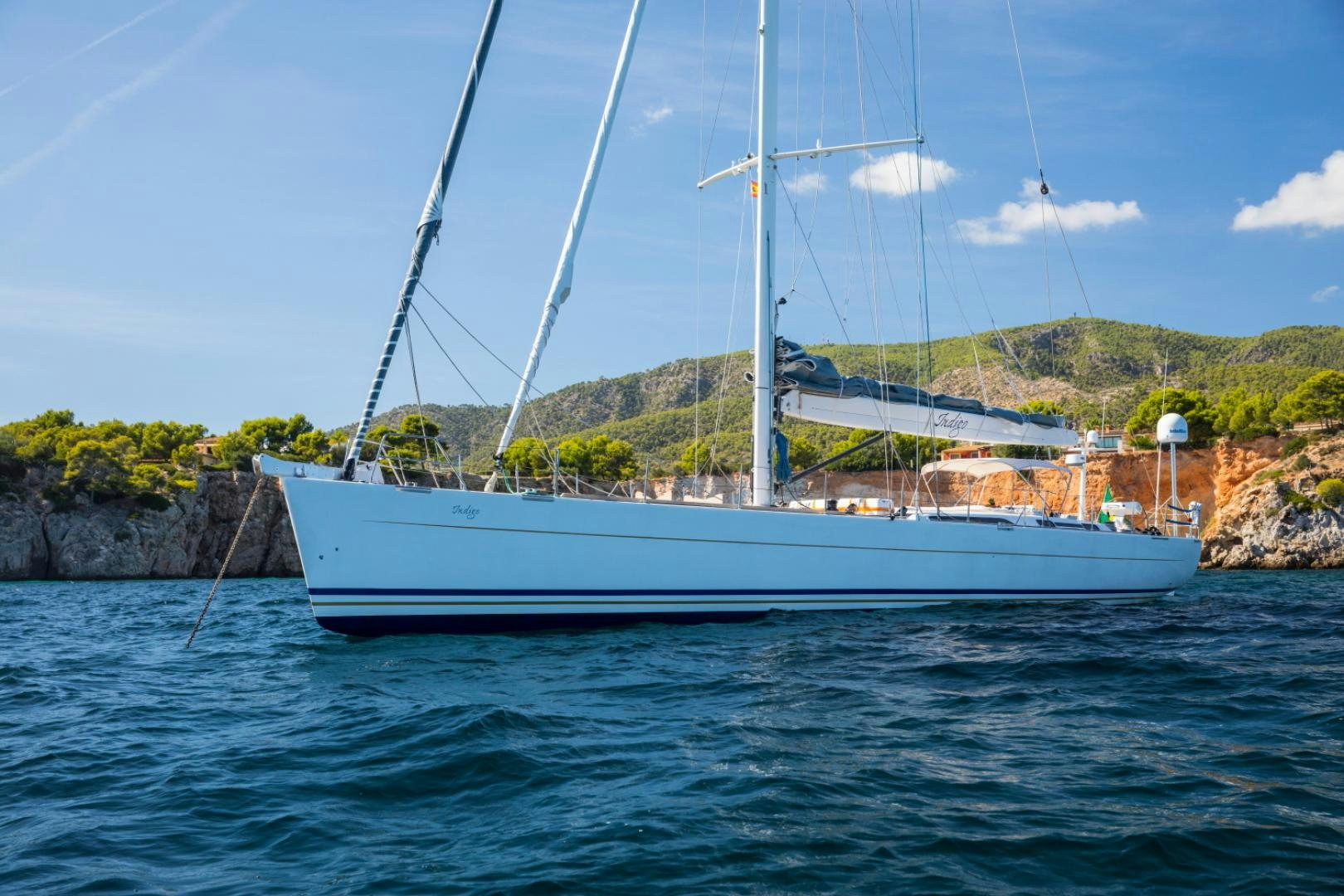

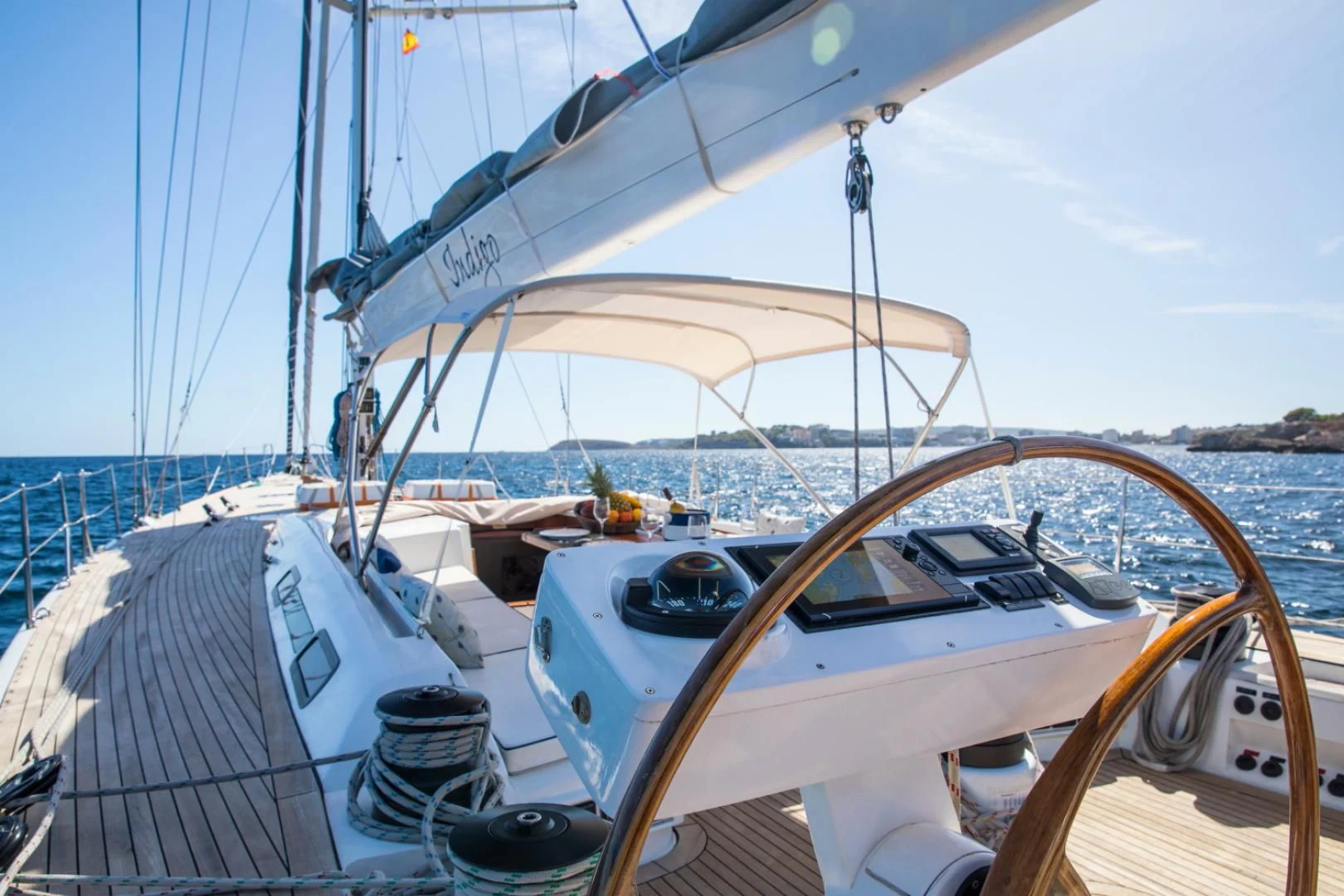

Designed by Javier Soto Acebal, INDIGO is a custom and one-of-a-kind yacht built for warm water sailing by the M.L. and Bravo Shipyards in Brazil. She showcases clean lines and a flush deck laid with teak. The yacht boasts a large sheltered cockpit area where guests can sit or dine in comfort under sail or at anchor. INDIGO’s sail handling is operated predominately aft near the yacht’s twin helms; she has oversized sheet winches that are hydraulically operated.

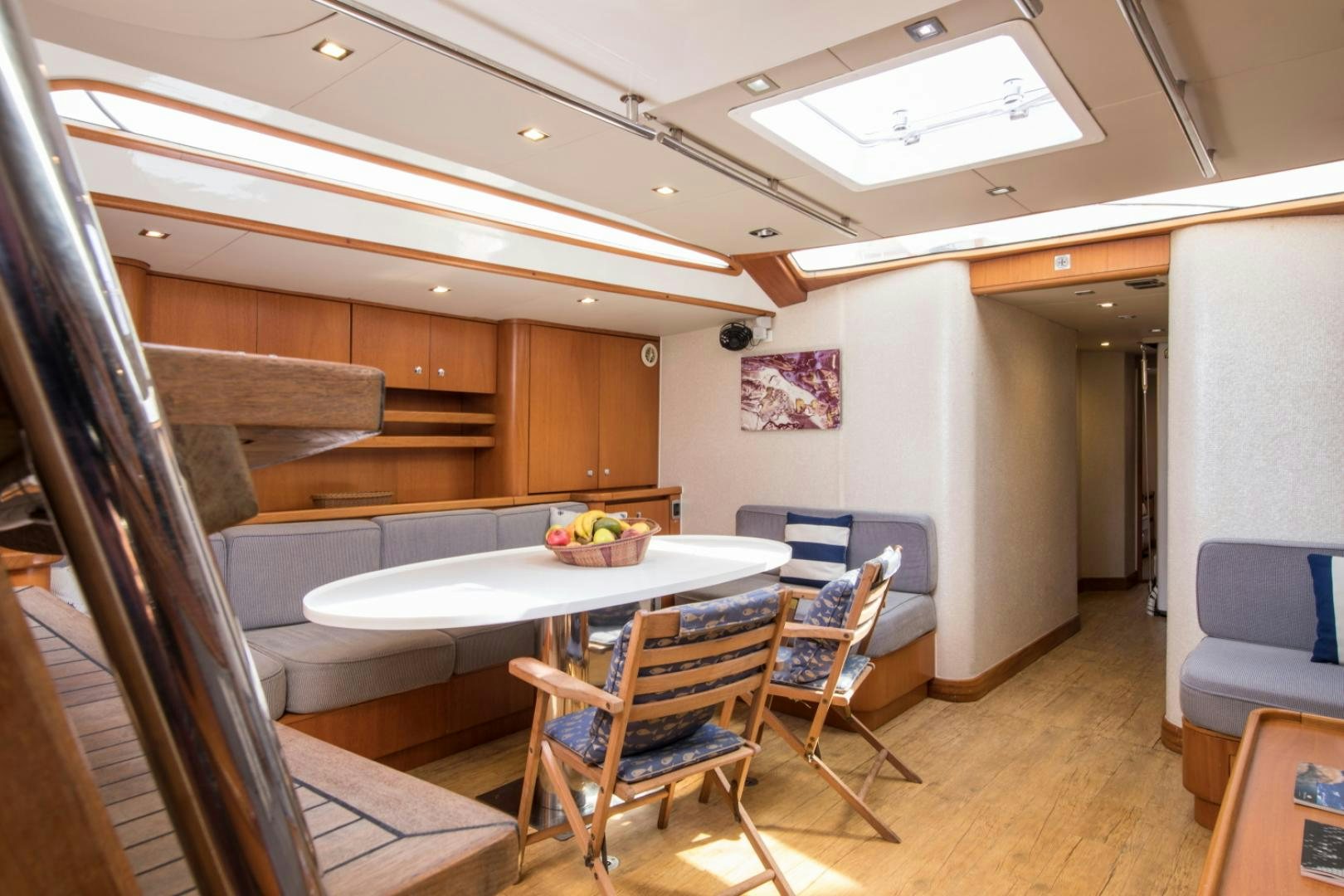

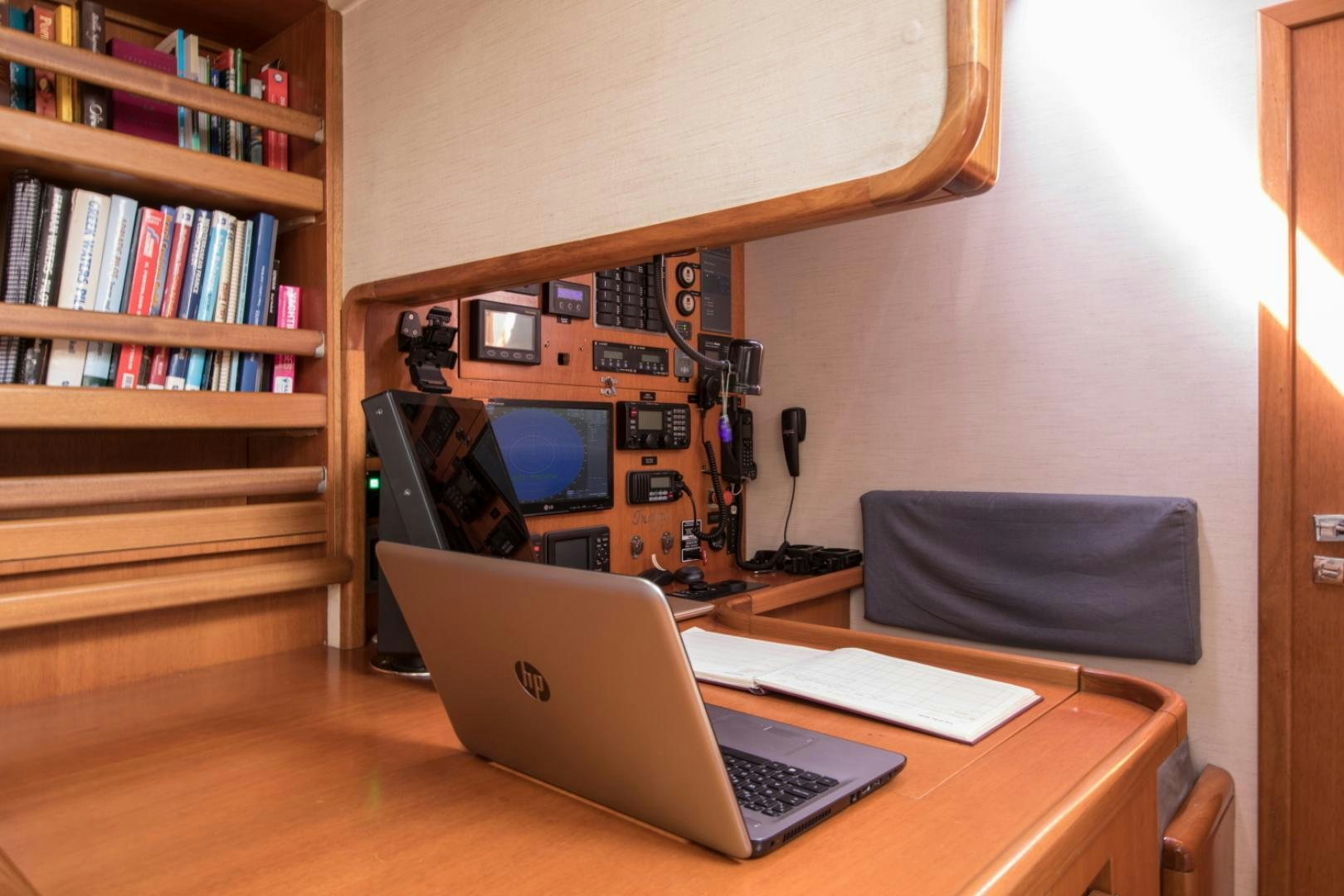

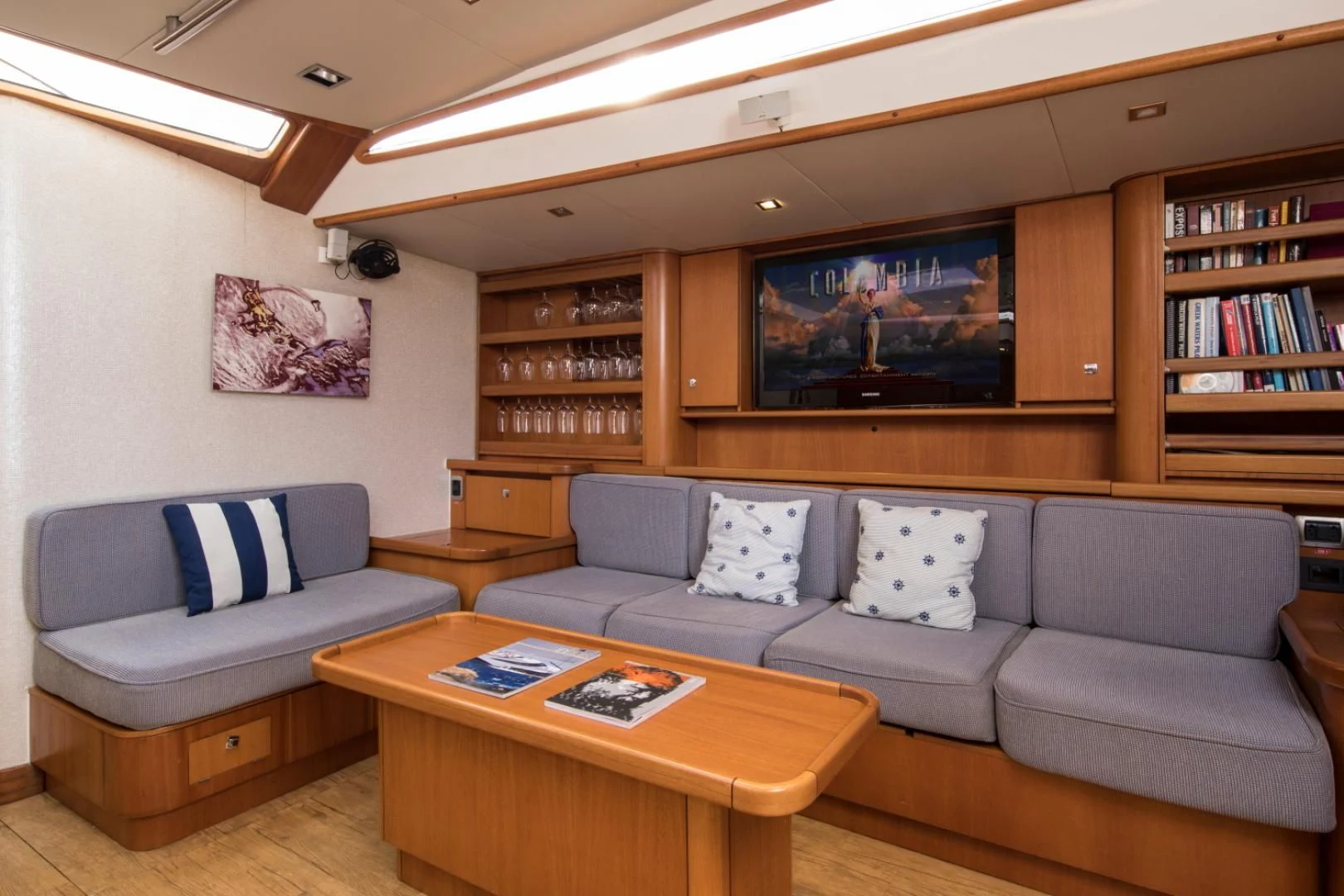

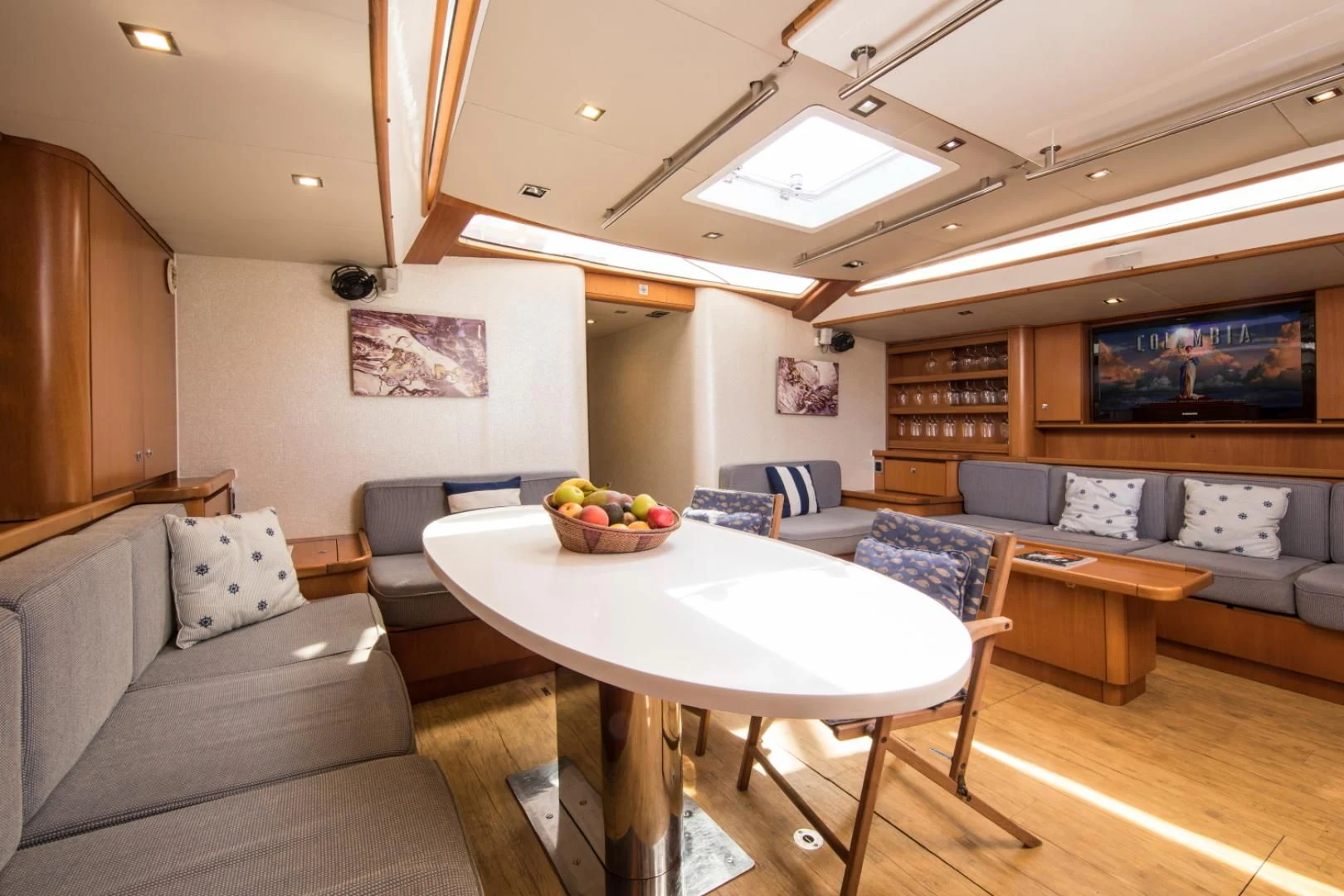

Sailing yacht INDIGO’s interior is practical and comfortable at sea. Her salon is full beam and features a settee to starboard and a dining area with seating for eight on the port side. She also boasts a chart table aft of the salon that is well equipped with instruments, radio equipment and the electrical panel. The well equipped large galley area is on portside aft of the salon.

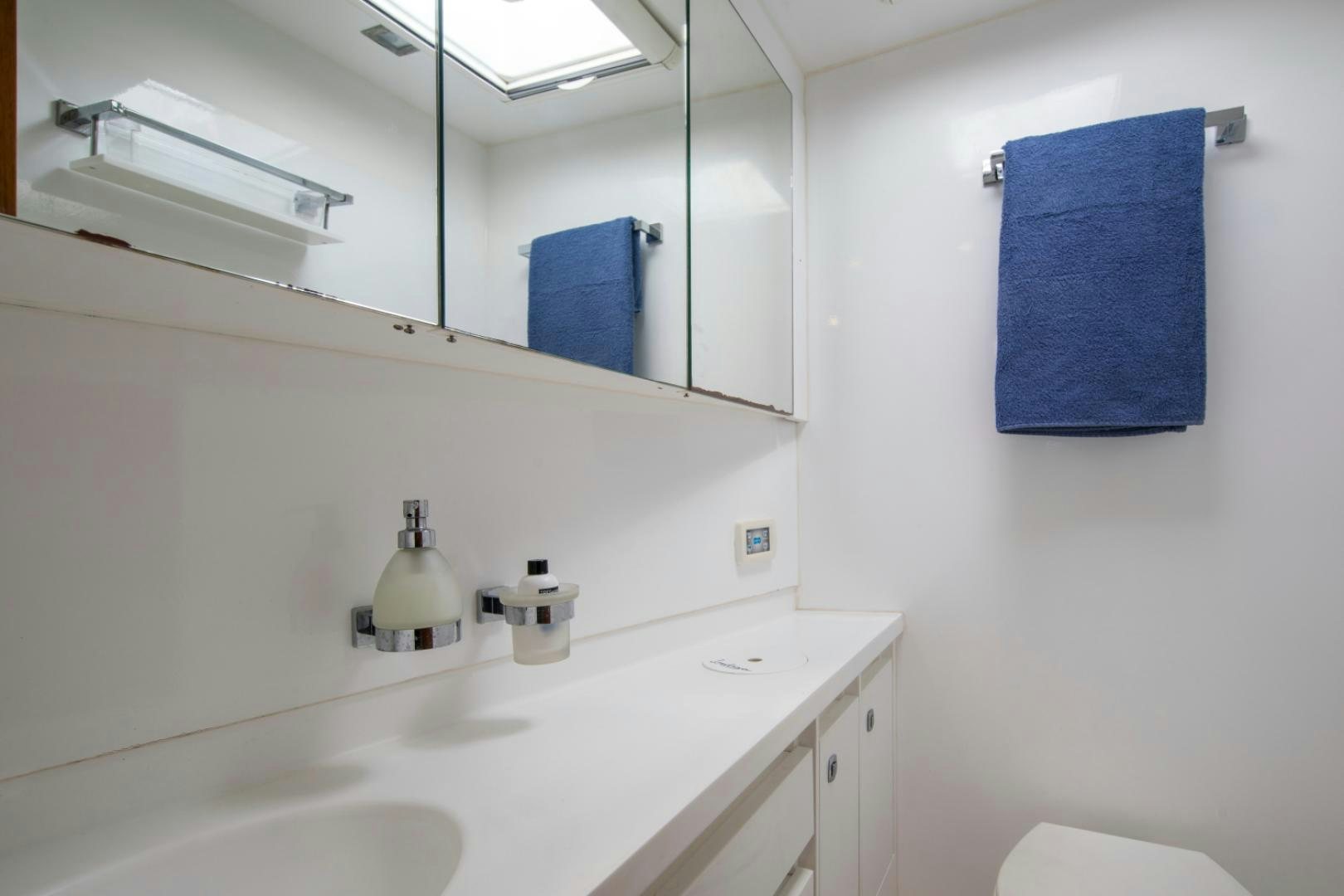

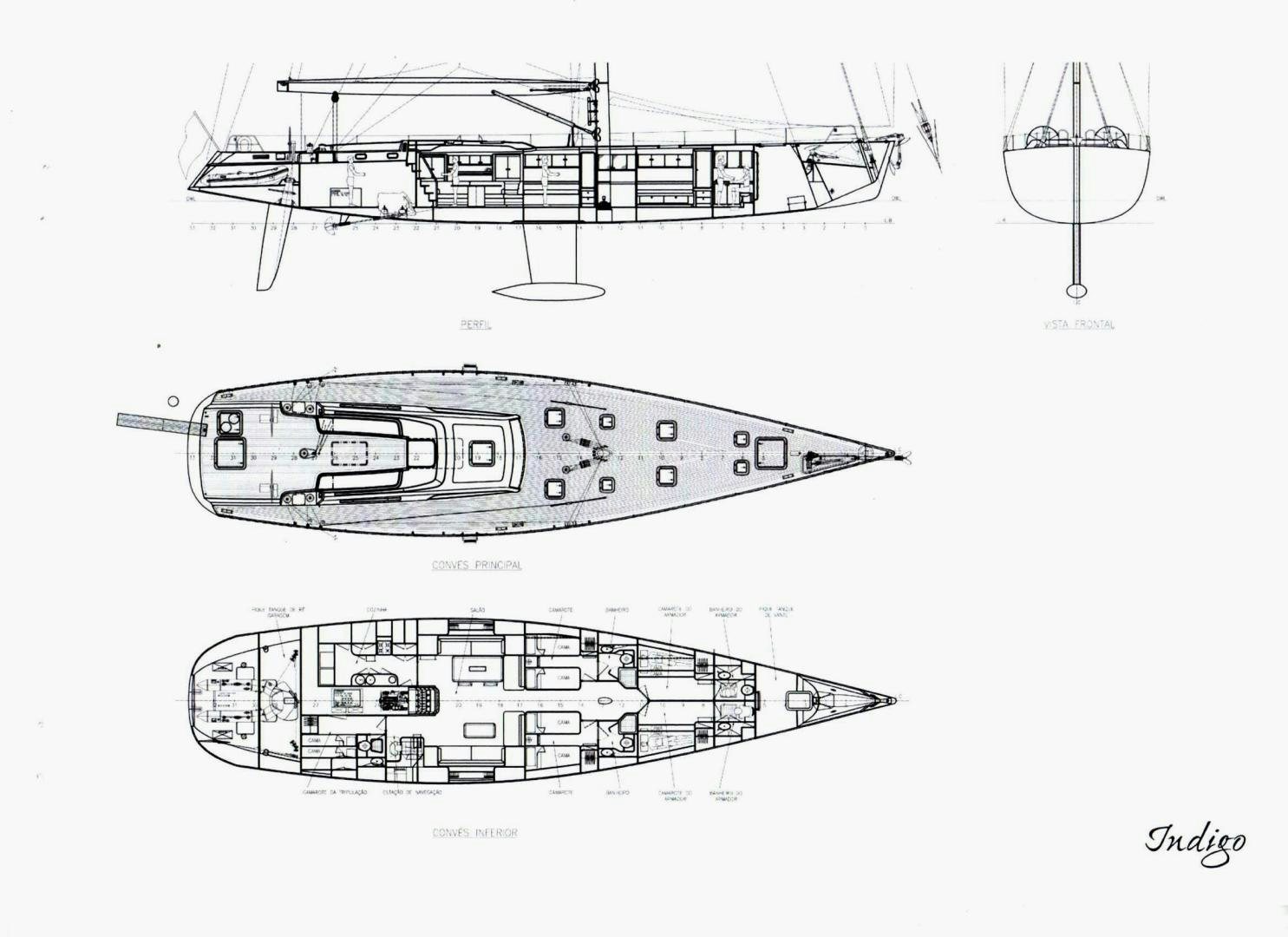

This luxury sailing yacht has a classic disposition. INDIGO accommodates eight guests in four staterooms. Her accommodation includes two twin staterooms mid ship and two staterooms forward. Each stateroom is complete with its own private en-suite bath. There is also a crew cabin aft for her two crew members.
The initial design provided for a large owner stateroom in the bow (where there are now two twin bed staterooms.) A new owner could refit this area if desired.

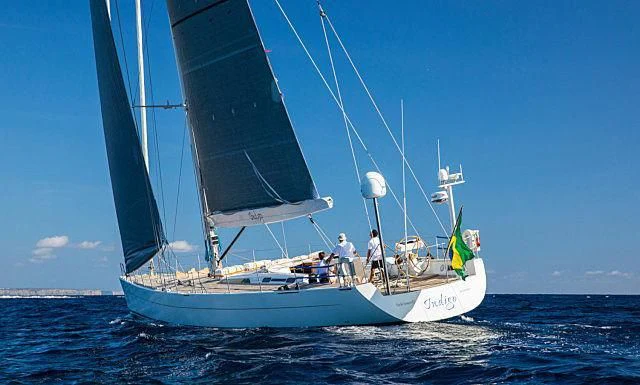

The vessel is a high performance fast cruiser also suited to regatta sailing.
Following delivery new the yacht was sailing in Brazil and Caribbean area 2011.
In 2012 they crossed to the Mediterranean, visiting Palma and cruising throughout the Med (Italy, Greece etc.) and back to the Caribbean. Since then she has cruised the South America area and San Blas islands and Caribbean – only for family use (not charter). She has competed in several races including the Recife to F. Noronha – and offshore race of 350 nm for which she beat the record, completing in less than 25 hours!
Summer 2017 INDIGO returned again to Spain.
Her owner is now retiring from yachting.
In a recent sailing trip, during 14 hrs INDIGO sailed from Palma to Valencia, with an average speed of 10 knots, and a top speed amazing 23.9 knots ! This in a Force 7 !
October 2018 INDIGO sailed to Gibraltar for her export from the EU and was in Valencia since then.
In July 2019 the yacht relocated to Barcelona for refit and upgrade work to be done. This included general servicing but also a full rig inspection, new seacocks, new batteries and some interior modifications to the port cabin.
NOTE: INDIGO does not have a dinghy garage in the stern. At build her owner opted to have a closed transom with swimming platform & steps and to have a large stowage area accessed from deck. The dinghy stows on the forward deck.
Hull, deck and structure in Carbon fibre composite with epoxy.
Topsides newly painted in AwlGrip, white, August 2016.
Teak laid deck (12mm when built).
New antifouling August 2019
Fixed keel – fin with bulb, inverted T.
Elliptical balanced single rudder.

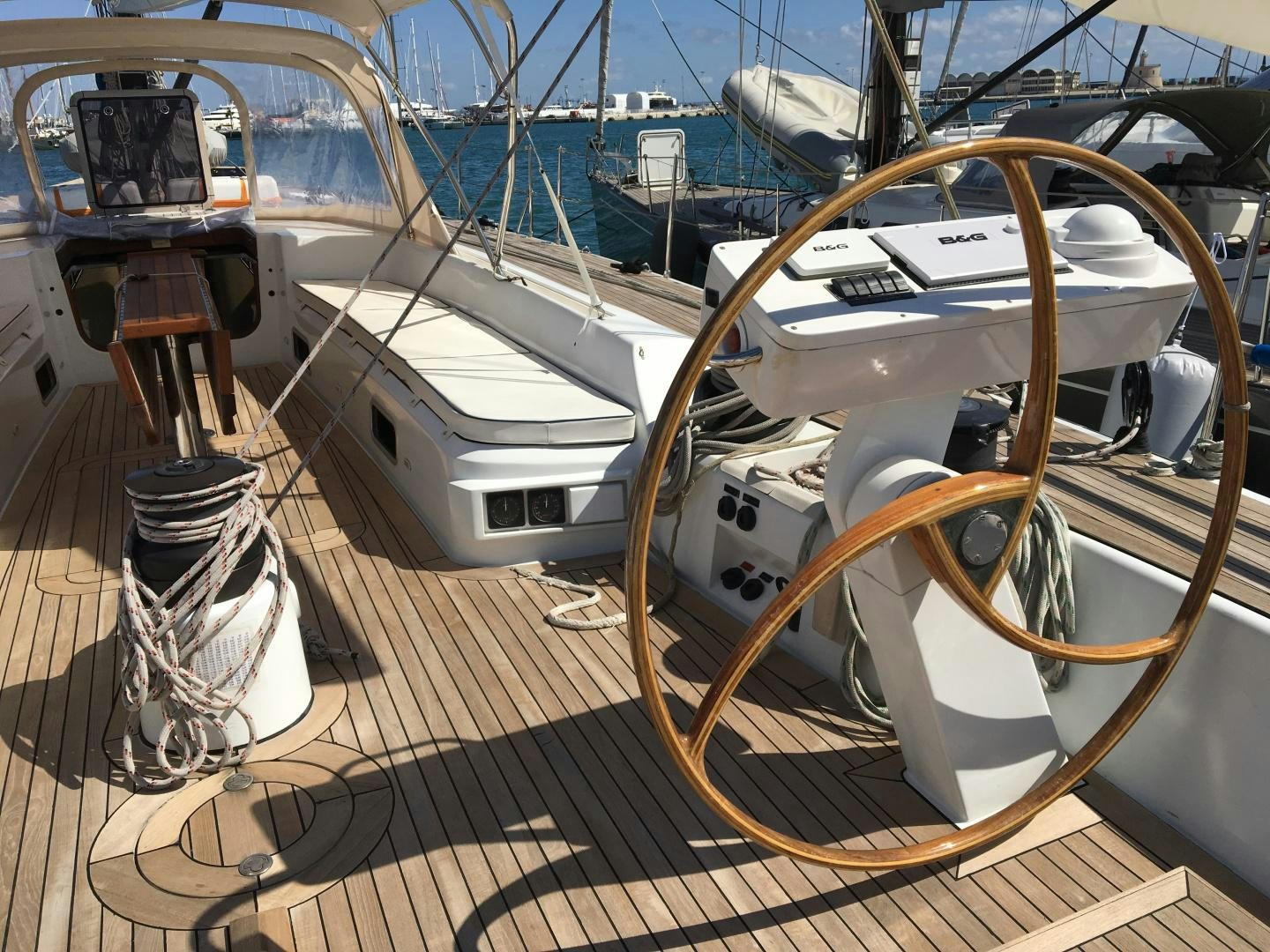

Cable and quadrant steering, twin pedestals.
Wooden wheels.

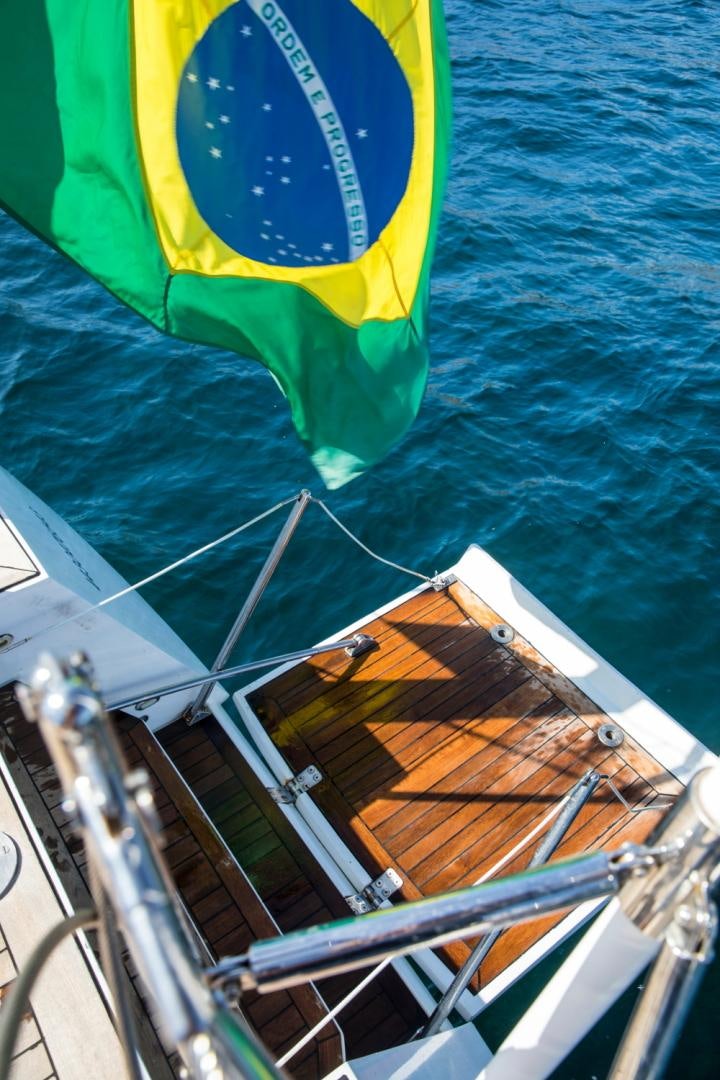

Hydraulic stern platform with steps.
Large lazarette, access from deck only.
Deck fittings and equipment:
Hydraulic anchor arm with fold out system.
Lofrans electric windlass recessed in bow locker.

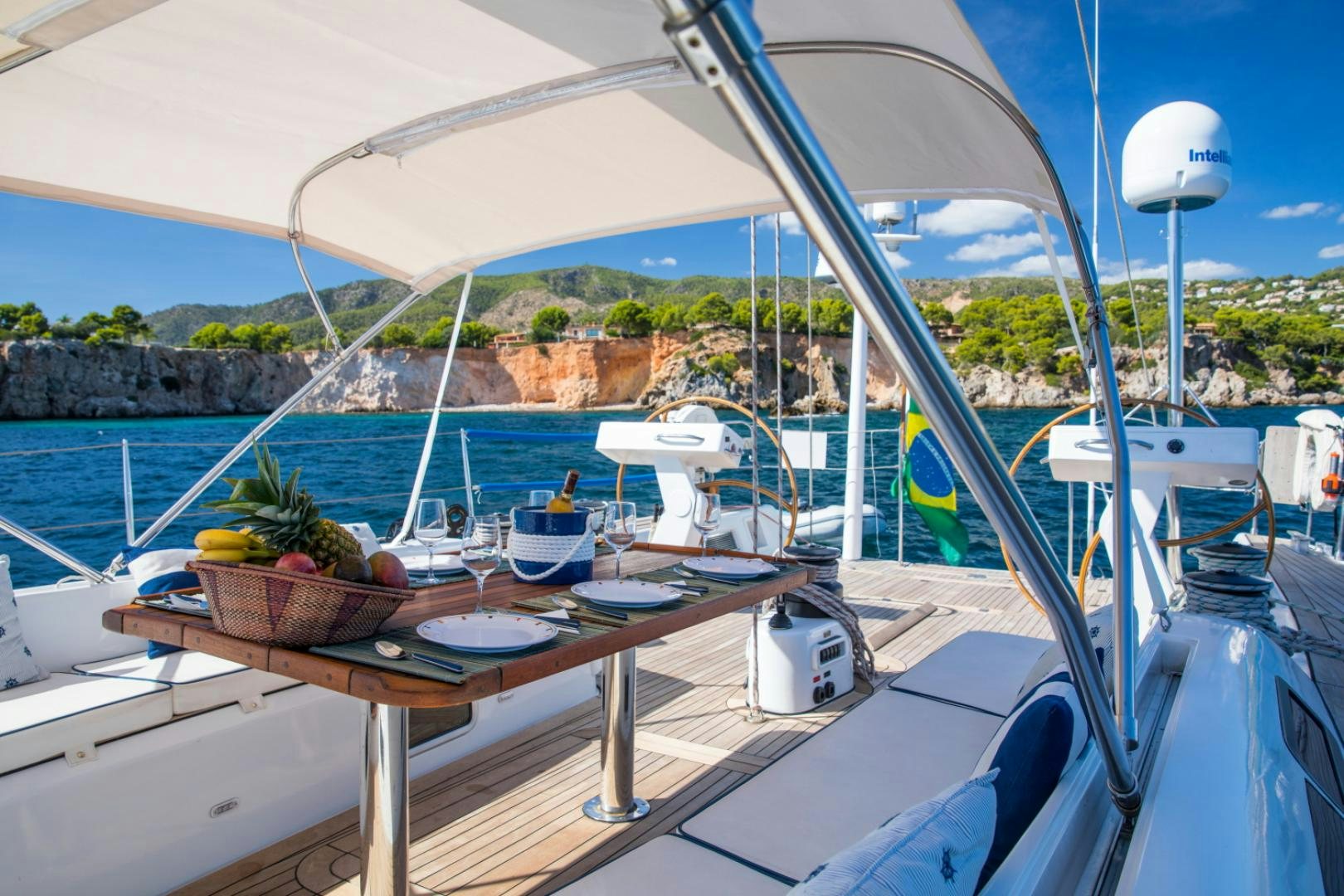

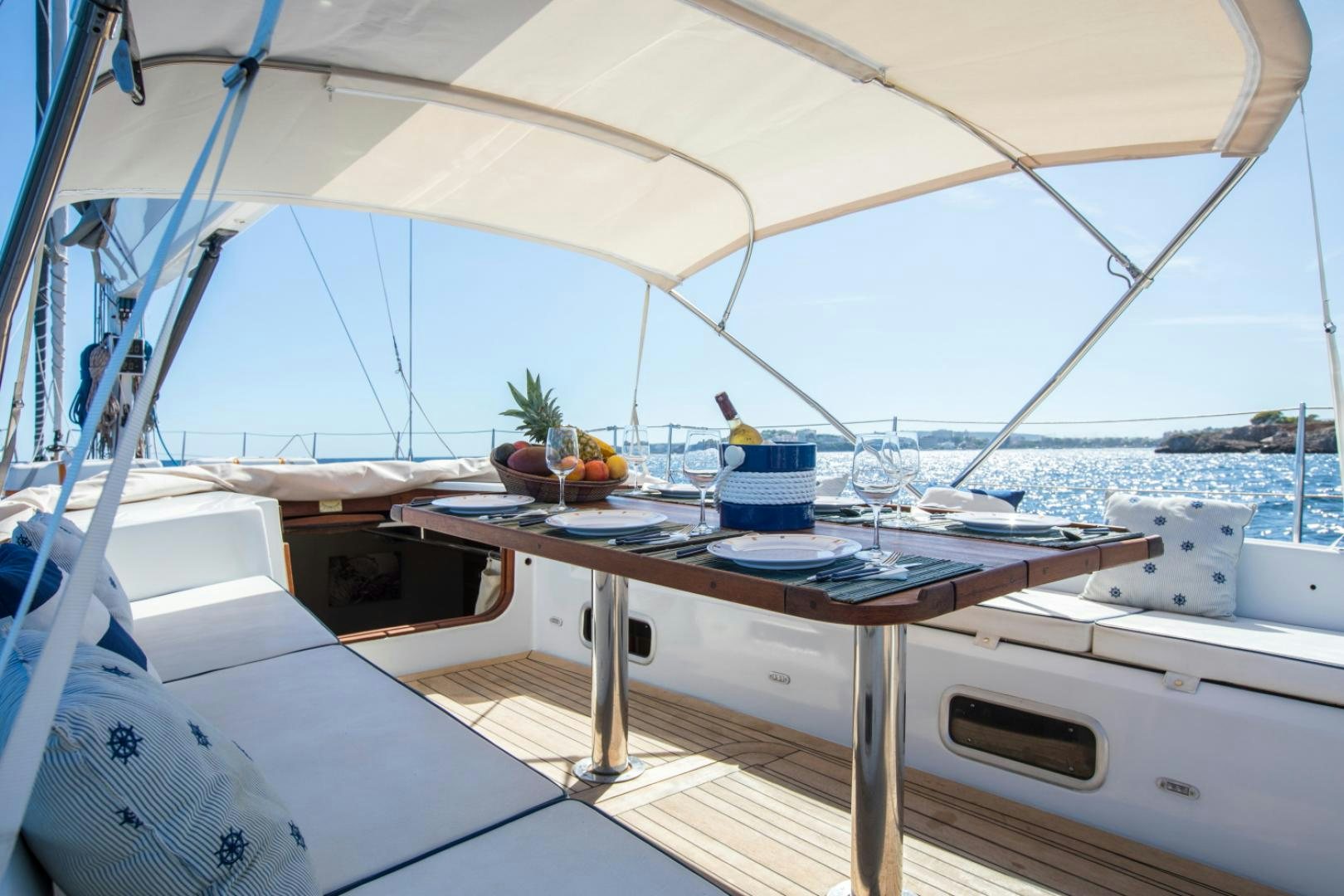

Large Teak cockpit table seats 8
Deck shower aft to port.
Stainless pole at transom for “Intellian” antenna.
Carbon pole at stern for radar and antennas.
“Pop up” mooring cleats.
Stainless steel stanchions, pulpit & pushpit, life-lines with gates to port / starboard and aft.
Teak “chocks” on foredeck for stowage of the dinghy.
Winches (Harken)
5 x Harken 990 hydraulic self tailing 3 speed at aft cockpit:
1 mainsheet winch centrally positioned
2 winches each side, primary and secondary
2 x 3 speed electric winches, by mast, for halyards.
ENGINE
Yamnar 4HLA 230 hp turbo diesel 4 cylinder engine with V drive system.
Approx 2300 hours at May 2019
Varifold 4 blade propeller
9 knots cruising speed under motor
100 Ah 24v alternator service
35 Ah 12v alternator start
Range 900nm on engine
Cruising consumption 13 litres/day
14/15 knots sailing regatta speed. 18 knots max sailing speed
Fuel:
Capacity: 1460 litres in 4 stainless steel tanks
53 litre day tank with manual selection and electric transfer motor.
Fuel polishing system between tanks (or from one back to itself).
Electric pump for oil changes on genset, engine and gearbox.
Generator Onan, 17kW installed aft of main engine. 1656 hours at May 2019. Start panel at chart table.
Good access in engine room for genset, engine and hydraulic system.
There is also a “soft spot” in cockpit floor above genset to allow removal if required.
Hydraulic power pack system for winches.
Bowthruster Max Power retractable hydraulic.
Water-maker Sea Recovery Aquamatic 220v 260 litres/hour.
Air conditioning Sea Mach– two pumps run 6 units (1 saloon, 4 cabins, and 1 crew cabin)
18-32 degrees hot/cold
Water-maker Schenker 24v 80 litres/hour (secondary emergency system), refitted Feb 2018.
PTO serviced August 2019
1140 litres fresh water in 4 stainless steel tanks
Hot water – via 220v tank (from shorepower or genset), or from calorifier on engine.
Pressure water hot/cold throughout
5 x Jabsco heads with fresh water flushing
2 x shower cubicle units, one each for primary guest cabins
Grey water – shower sump pump tanks
Black water – all toilets can go to one tank (at bow) and from there overboard or via deck outlet.
New seacocks August 2019
Fresh water pumps new August 2019
Batteries
Service batteries 24v x 24
Emergency batteries 24v x 3
Start batteries 12v x 3 ( 2 engine and 1 genset – can be connected if necessary)
Electronic batteries 24v x 6 and 12v x 6
Ventilator system for batteries
New batteries (August 2019)
Auto system for switching between generator and correct shorepower.Electrical continued:
Multi system shorepower – 220/110v and 60/50Hz
220v and 110v outlets in the boat.
Transformer.
Victron 5000 W 220v invertor
Victron 3000 W 110v invertor
3 x Victron Skylla 100 amp chargers (one was replaced June 2017)
Multiplus 24v charger
Phoenix 12v charger
Hella 24v ventilation fans (at galley; saloon; Nav Station; each cabin.

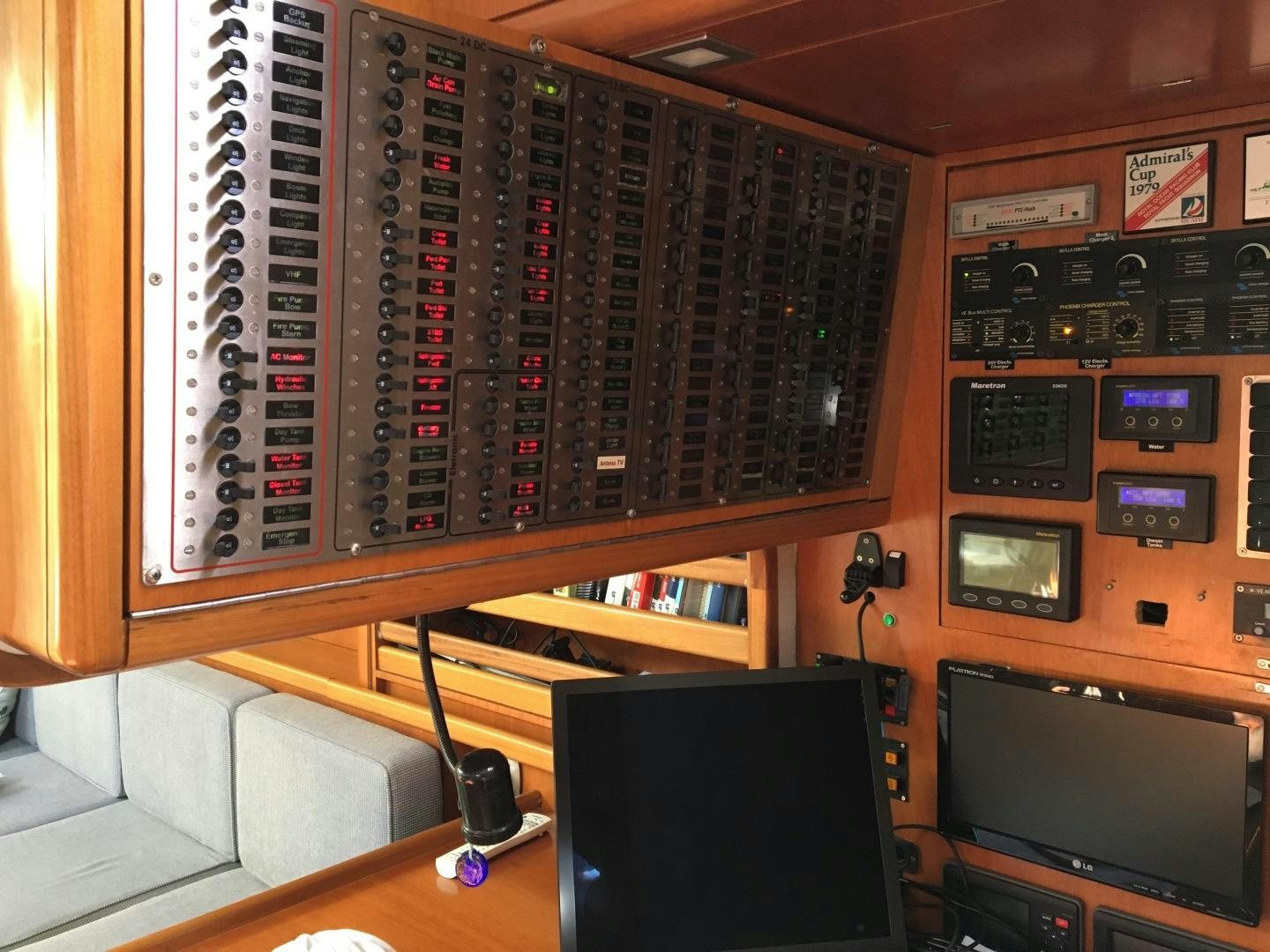

CS Nautica electric panel
Promariner Corrosion Controller
Smartswitch diesel tank pressure sensors
VE.net battery charge monitors
Promariner polarity indicator
Multi-alarm system, light and sound alarms for max power, battery, day tank, emergency systems etc.
Fire system at navigation table
Carbon monoxide alarm
Master volt panel for energy system (generator, inverter, batteries etc).
Cantalupi LED lights with dimmers.
Refrigeration, Isotherm 24v
At galley – 2 x fridges and 2 x freezers, all front loading at aft end of galley, with stainless steel doors.
1 x chest freezer at forward end of galley.
Icemaker at saloon.
Fridge at cockpit, new August 2019
Brookes and Gatehouse ZEUS instrument package new June 2017
B&G 4G BB RADAR KIT
B&G ZEUS BB MPU, GLOBAL BASEMAP
B&G plotter, GPS and radar system
B&G autopilot, control unit at chart table and controls at each helm.
B&G H3000 unit at chart table.

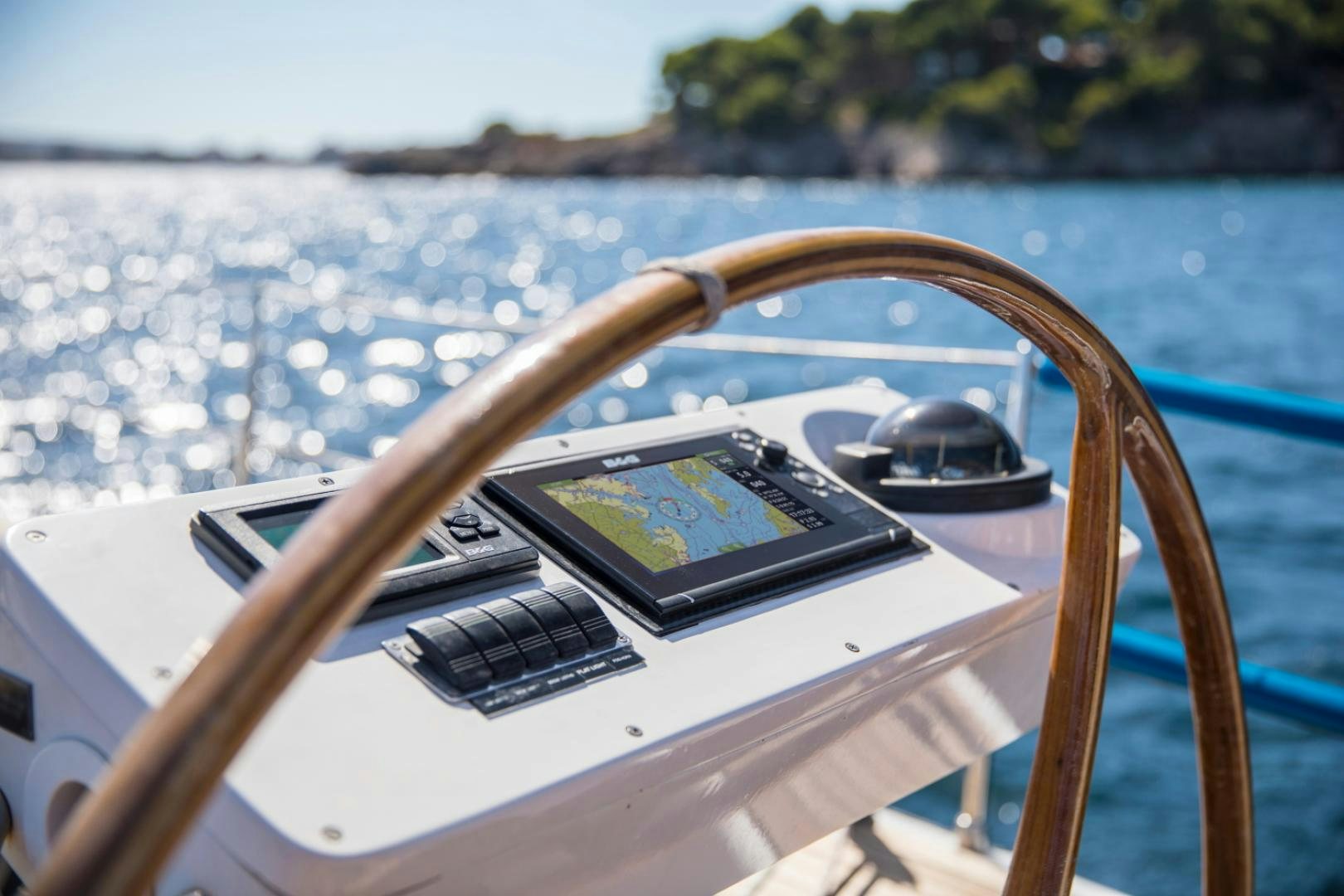

B&G Zeus 3 screen at each helm, plotter / GPS / radar
Hercules 2000 B&G repeaters, port and starboard, in front of helm
2 x “Jumbo” repeaters at the mast
B&G MFD at each helm pedestal
B&G analogue wind direction repeaters in front of each helm
Icom IC M802 HF radio
Icom IC M422 VHF radio
Iridium sat phone
Icom M24 and Icom M23 hand held VHFs (2)
Flatron LG screen at chart table with PC, for navigation program, Deckman system.
Hatteland screen at chart table - showing navigation, radar, GPS, AIS – connected to B&G
Meteo Man weather (Mb and C°)
Maretron DSM 250 control unit multi display (engine, battery, nav info, GPS, speed & direction, barometer etc.)
Furuno Satellite compass
Sunto compass x 2 (one at each pedestal)

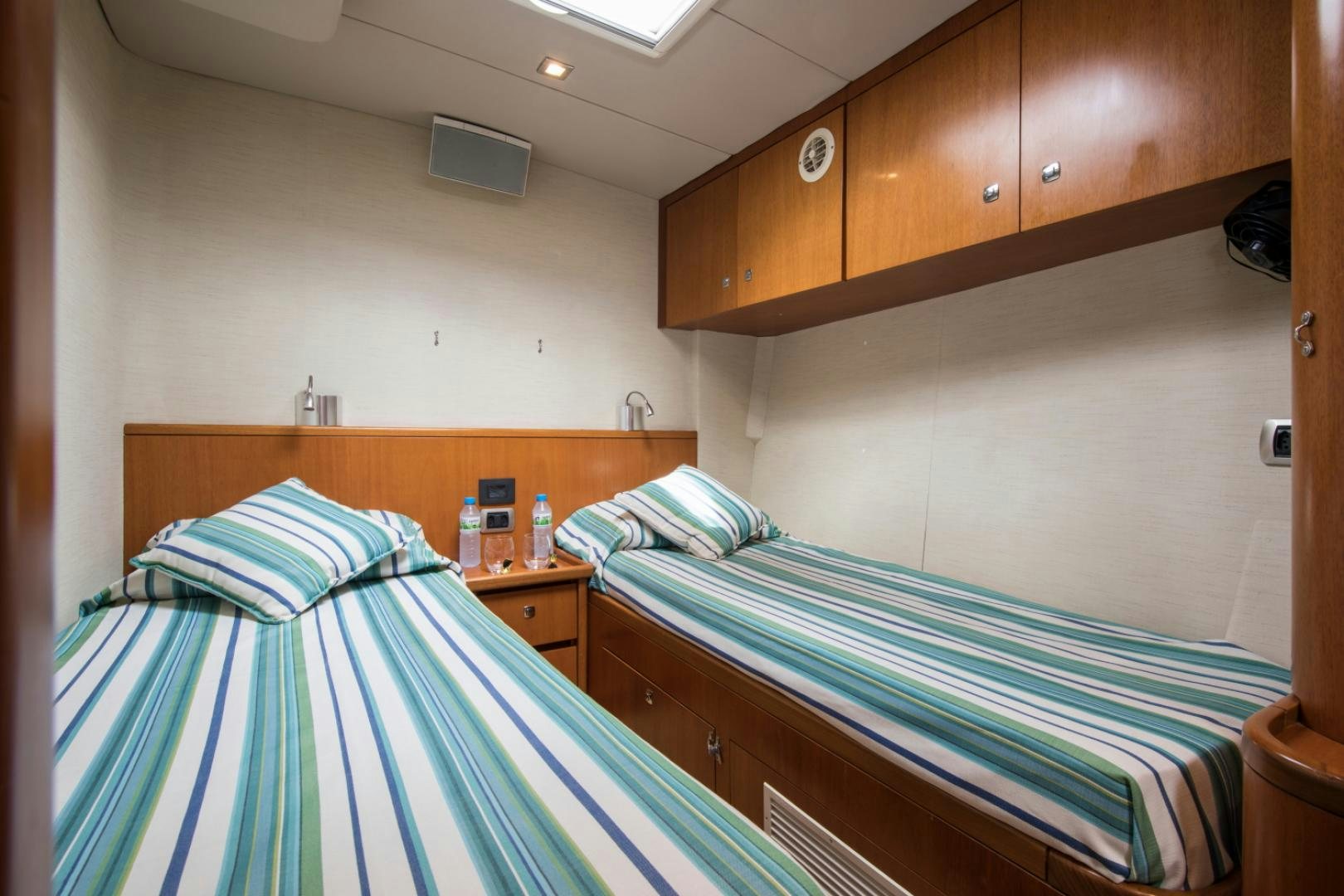

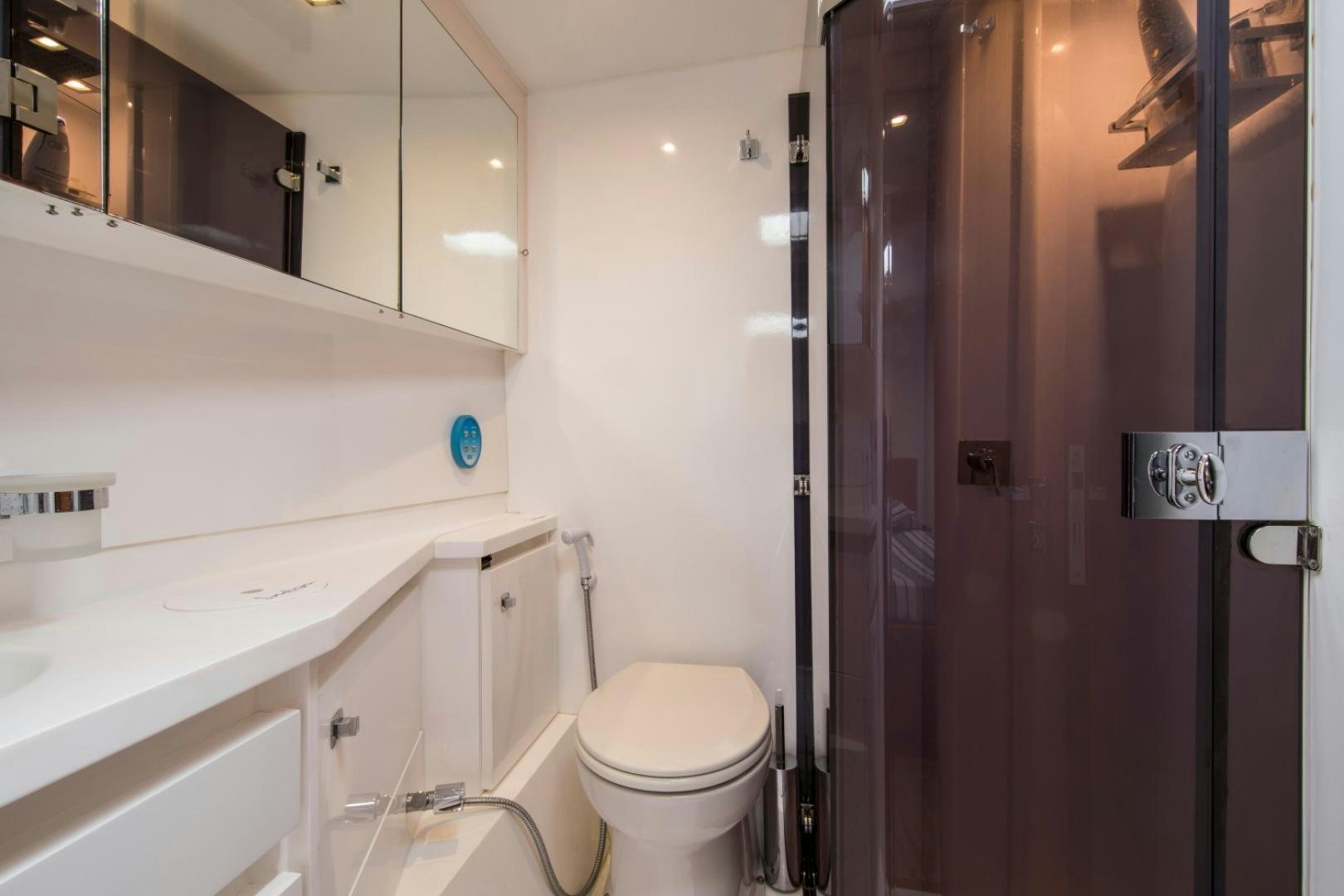

Two twin guest cabins amidships with ensuite head and shower. The port cabin was modified to allow 2 twin beds or 1 double bed (August 2019).

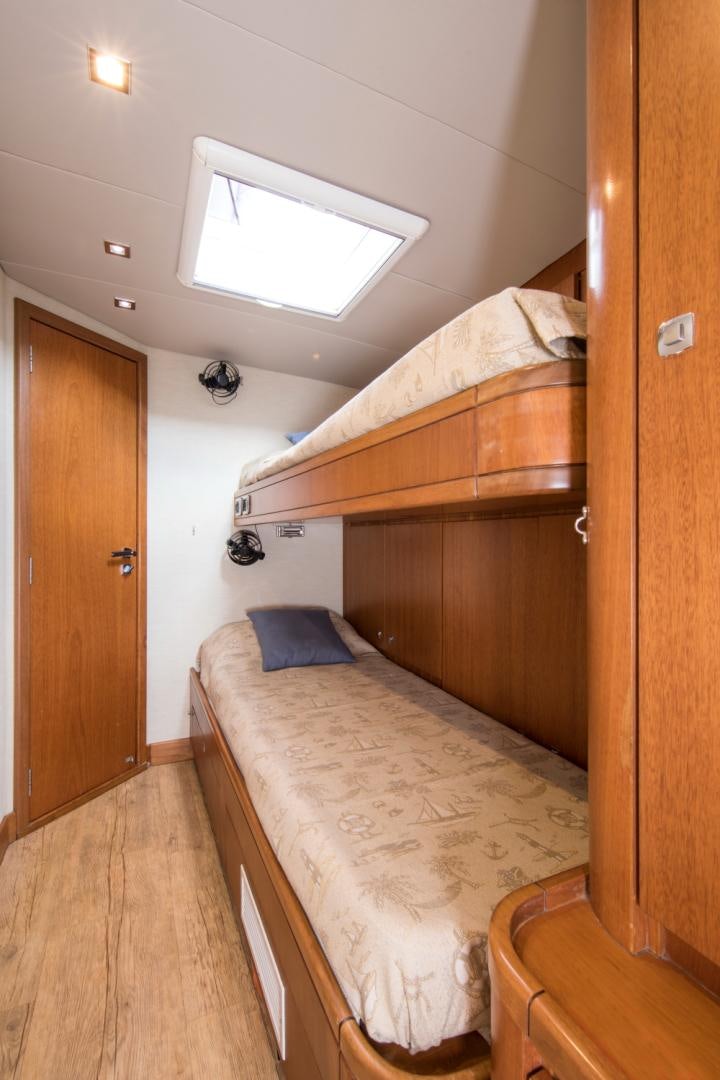

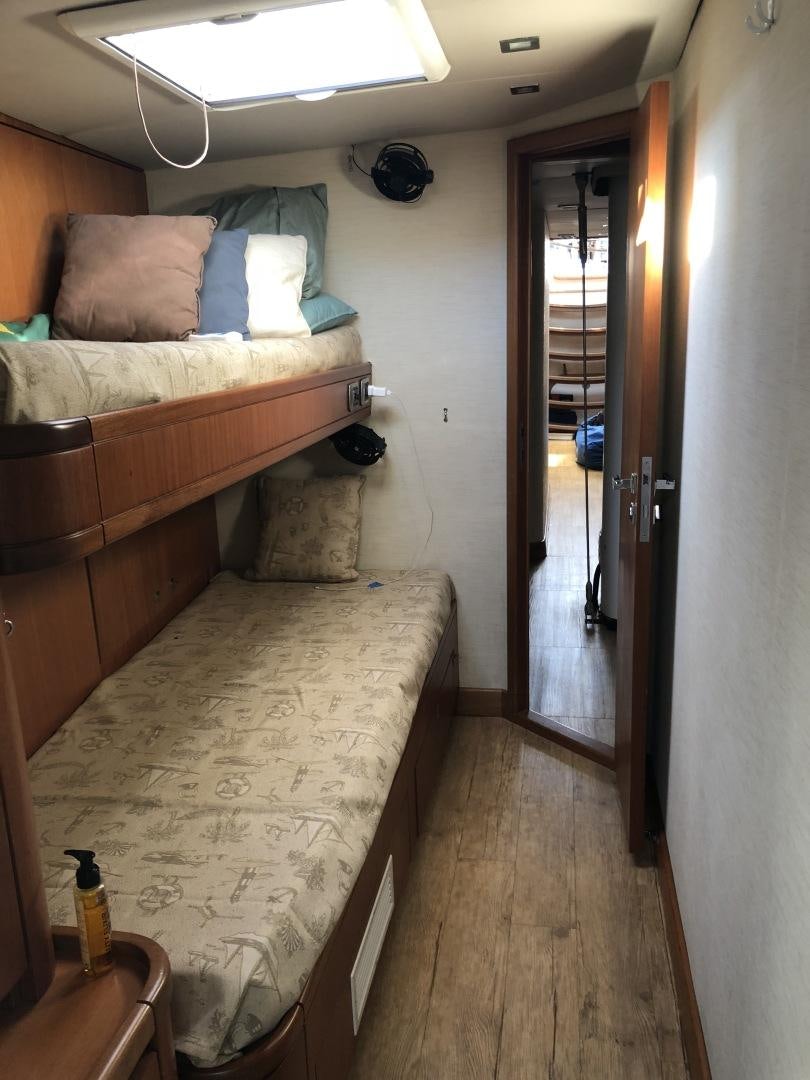

Two upper/lower bed guest cabins forward, both ensuite.
Full width Saloon. New cushions in saloon August 2019
Coffee table on starboard, dining table area to port.
Crew cabin aft of saloon on starboard.
Galley aft of saloon on port.

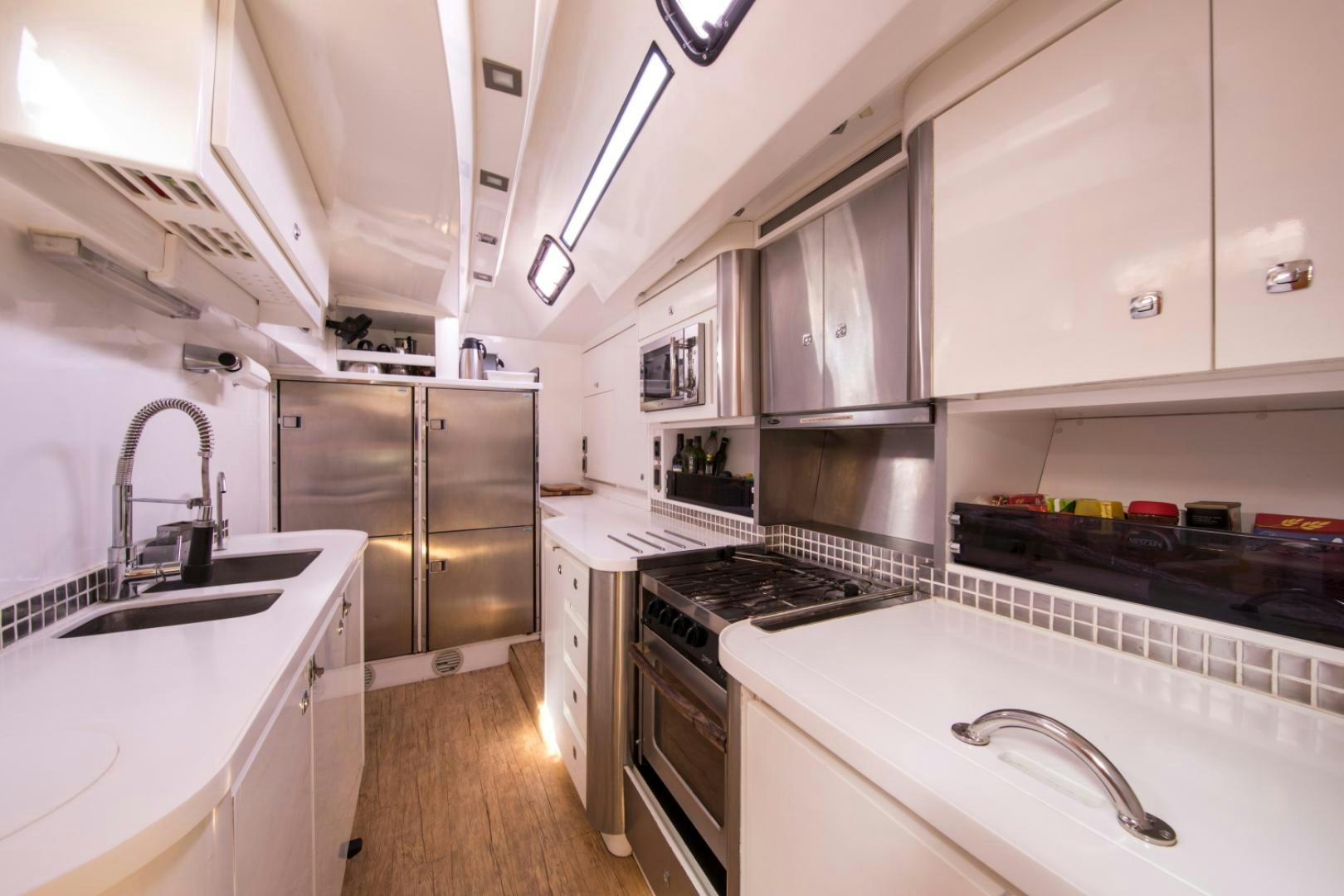

Galley Equipment
Force 10 gas cooker with 4 burners and oven
Elber horizontal freezer 24v
2 x Isotherm fridges 24v/220v
2 x Isotherm freezers 24v/220v
Fischer extractor over cooker
New microwave August 2019
Twin stainless-steel sinks
Isotherm ice maker 220v (in the saloon) aft portside
Bottle storage under lifting top of the coffee table in the saloon
Samsung flat TV in the saloon starboard, connected to Bose music system and speakers.
Cockpit speakers new in 2017
RIG
Carbon fibre King Composite Modulus mast
Park Avenue boom in carbon fibre
King Composites, Stainless Rod Nitrix 50 standing rigging.
Harken hydraulic furling headstay for genoa (furler recessed).
Manual removable furler for staysail.
Navtec hydraulics, with electric switches by the mainsheet winch:
-Vang with quick release button at the helm
-Outhaul in boom
-Jib halyard, (ram on mast)
-Backstays
-Inner forestay
Staysail halyard 2 for 1 purchase system
Mast out and all rigging serviced and in August 2019 with NDT. Report available upon request.
SAILS
North Vectran main sail – new 2016, 2 reefs (used for ocean crossing Brazil to Spain May 2017)
North Vectran genoa, new 2016 (used one week sailing during summer 2017)
Stay sail, new August 2019
Code 0 sail
Asymmetric spinnaker (green and yellow)
Main and genoa serviced August 2019.
Rig measurements:
I 29m.
P 28,70m.
J 6,12m.
E 11m.
Sail areas
Genoa 132 sqm
Main 157 sqm
Jib 104%
Asymmetric 500 sqm
Flexboat SR12LX dinghy with Yamaha 20 hp engine, with cover.
Safety
2 x new life-rafts (August 2019)
2 x lifebuoys
GME EPIRB Class 2 USA
Canvas
Bimini, new 2017
Sprayhood, new 2017
Pedestal covers, 2016
Wheel covers, 2016
Cockpit cushions
Ground tackle
CQR 50kg anchor with 100m chain 5/8
2 x Delta anchors 45 kg.
Fortress FX 32 anchor
Bauer Junior compressor.
Carbon boarding gangway.
