Asking
$10,773,140
Not for sale or charter to U.S. residents while in U.S. waters.

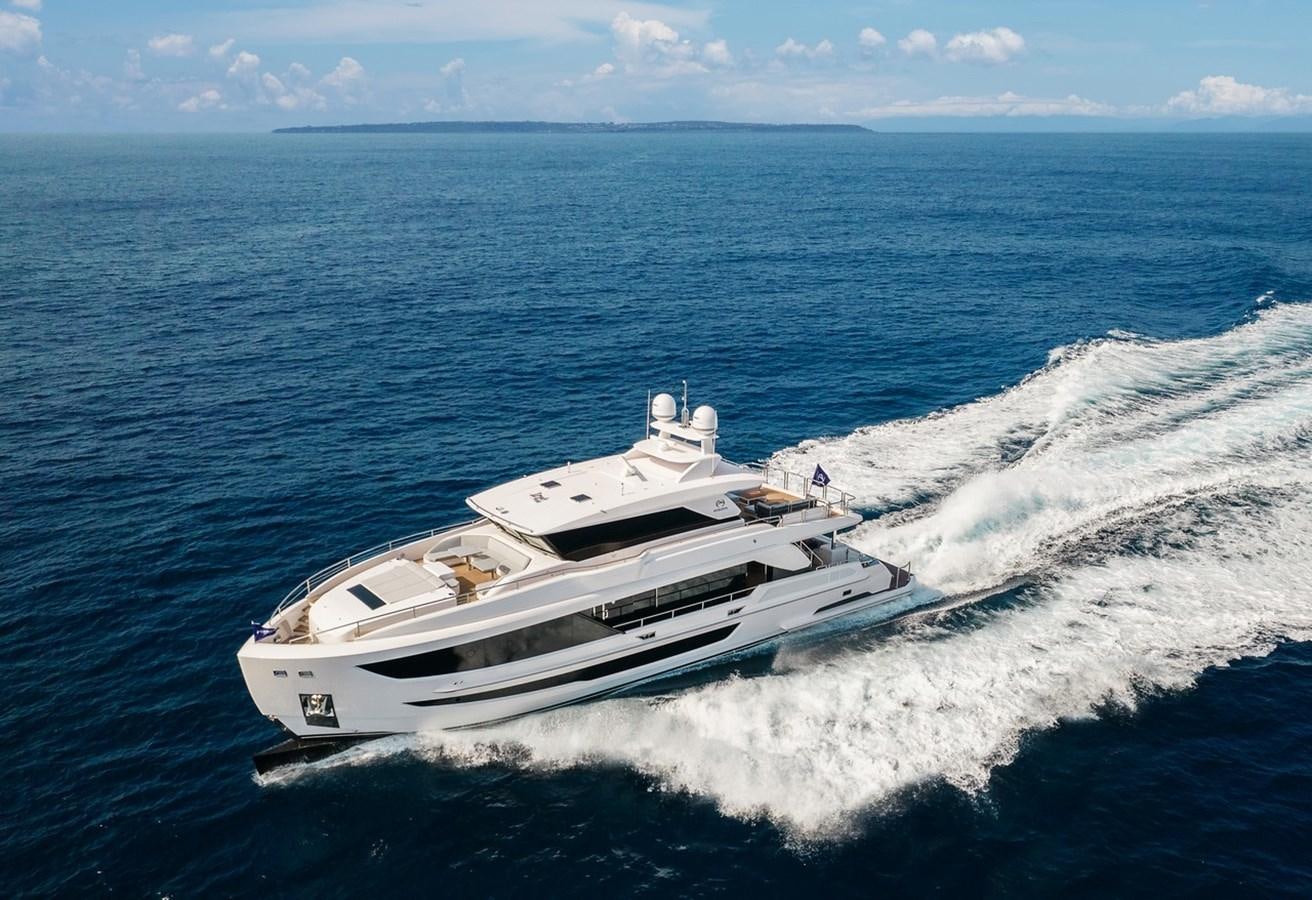

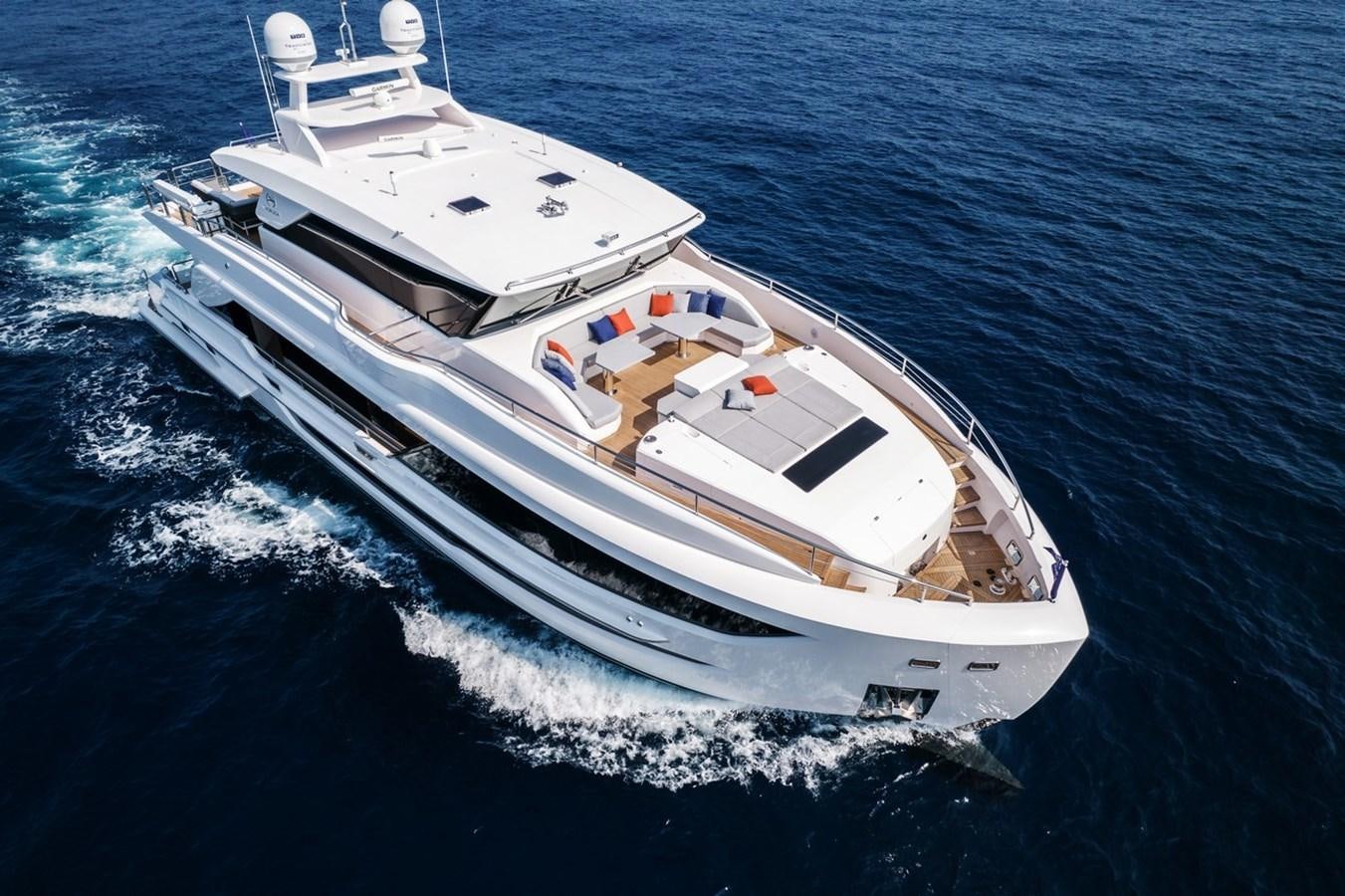

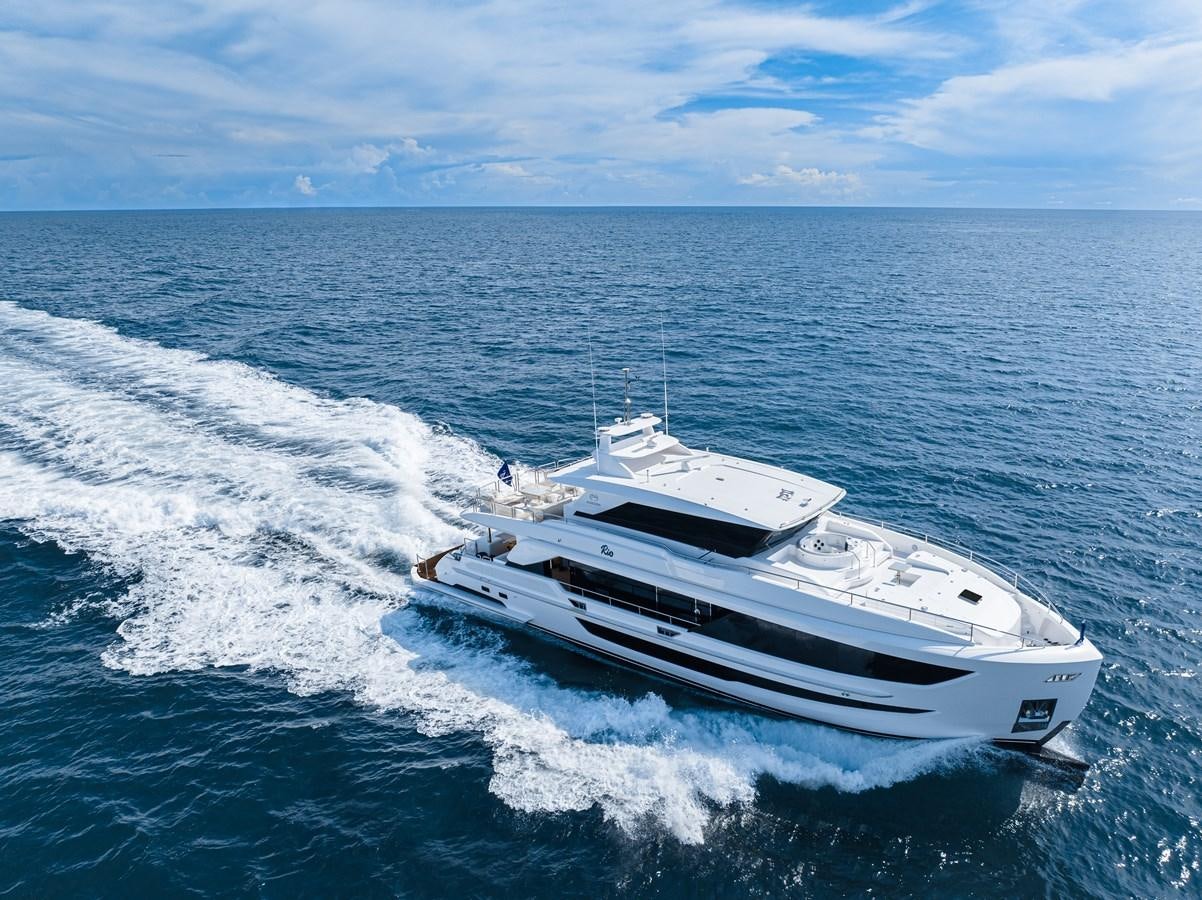

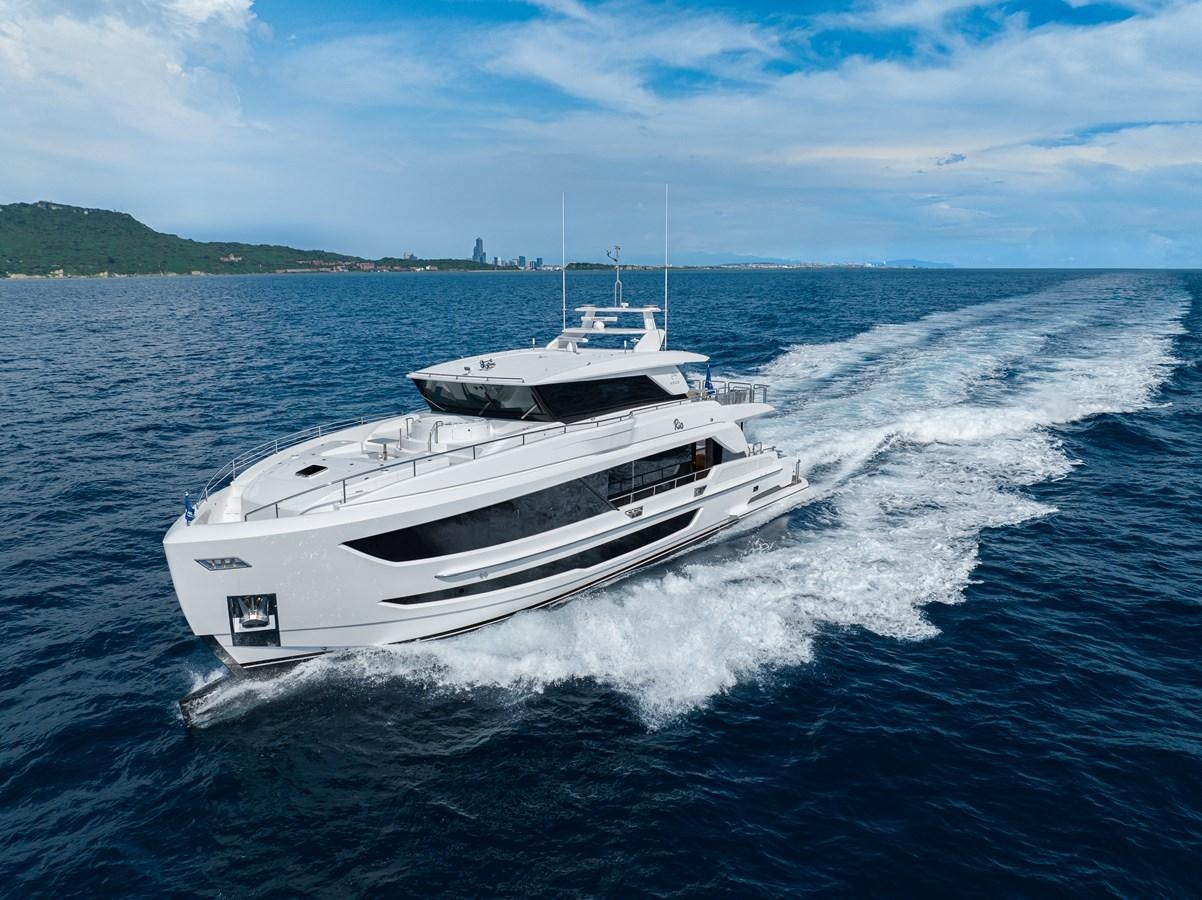

The most popular model in the acclaimed FD Series, the FD90 embodies the
\n space, layout and performance that define the Fast Displacement range. The FD90 features an expansive 23’ 3” beam, spacious
\non-deck Master with four guest staterooms and two crew cabins below
\ndeck, and large windows in the salon. A walkaround design on the bridge
\ndeck affords ease of access between the boat deck and forward seating
\nareas, which can be customized with multiple features from refrigeration
\n to storage, sun shades and more. Each Fitted throughout with ingenious
\namenities and endless options for customization, the FD90 is quickly
\nbecoming one of the world’s most sought-after mid-range motor yachts.
\n
SPECIFICATIONS
ABS/DNV type approved fiber/resin & sandwich core material applied
White gel coat finish
One-piece hull cored lamination w/ deep skeg & longitudinal girders
Hull, deck & superstructure-built w/ 3D VAR™ infusion for improved strength & less
weight
High density foam cored hull bottom
High density foam cored hull sides, decks & superstructure
Stringers with high density foam coring, bonded during layup for increased structural rigidity and strength
Interior structural components all properly bonded to hull
Strong collision bulkhead for extra safety
International anti-fouling bottom paint w/ anti-osmosis treatment
PropSpeed/PropGold metal paint for underwater appendages
Tunnels for reduced draft
HPPB High performance Piercing Bow
Upper deck with bump out design at port & side stbd
FORWARD & AFT DECKS
Non-skid fwd deck & side decks
(2) High tensile1/2" 300ft anchor chains
(2) Maxwell anchor chain counters
(2) S/S 100kg anchors
(2) S/S rollers & chain stopper
(2) Maxwell VC2500 capstan on aft deck
Freshwater/seawater anchor chain washdown
Heavy-duty S/S 1 3/4" handrail w/ 11/2" tanchions & steel cable
Frameless windows, tinted Low-E tempered glass for windshield
Frameless windows, tinted tempered laminated glass for side windows
Portuguese bridge w/ U-shaped seating, sunpads & storage per layout
Cabinet at fwd settee w/ fridge/freezer & icemaker
Sink & faucet with storage along port walkway, per layout

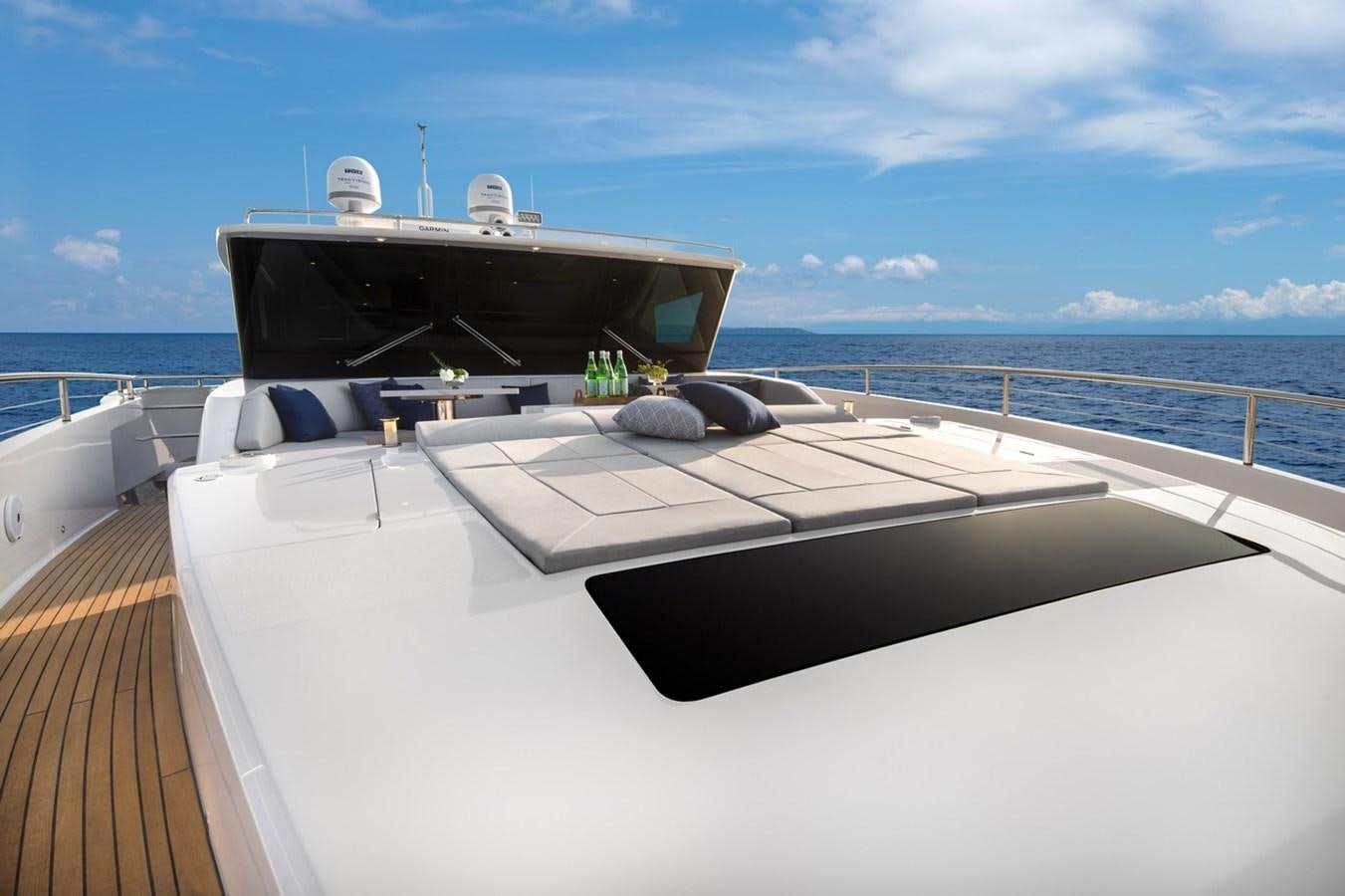

(3) Fwd deck sunpad roll top cushions
(2) Pop-up lights on each side of forward sunpad
Sunshades at foredeck, per layout
Teak aft deck and teak steps
(2) FRP aft bulwark side boarding doors
Wind doors each side of aft deck, to side walkway

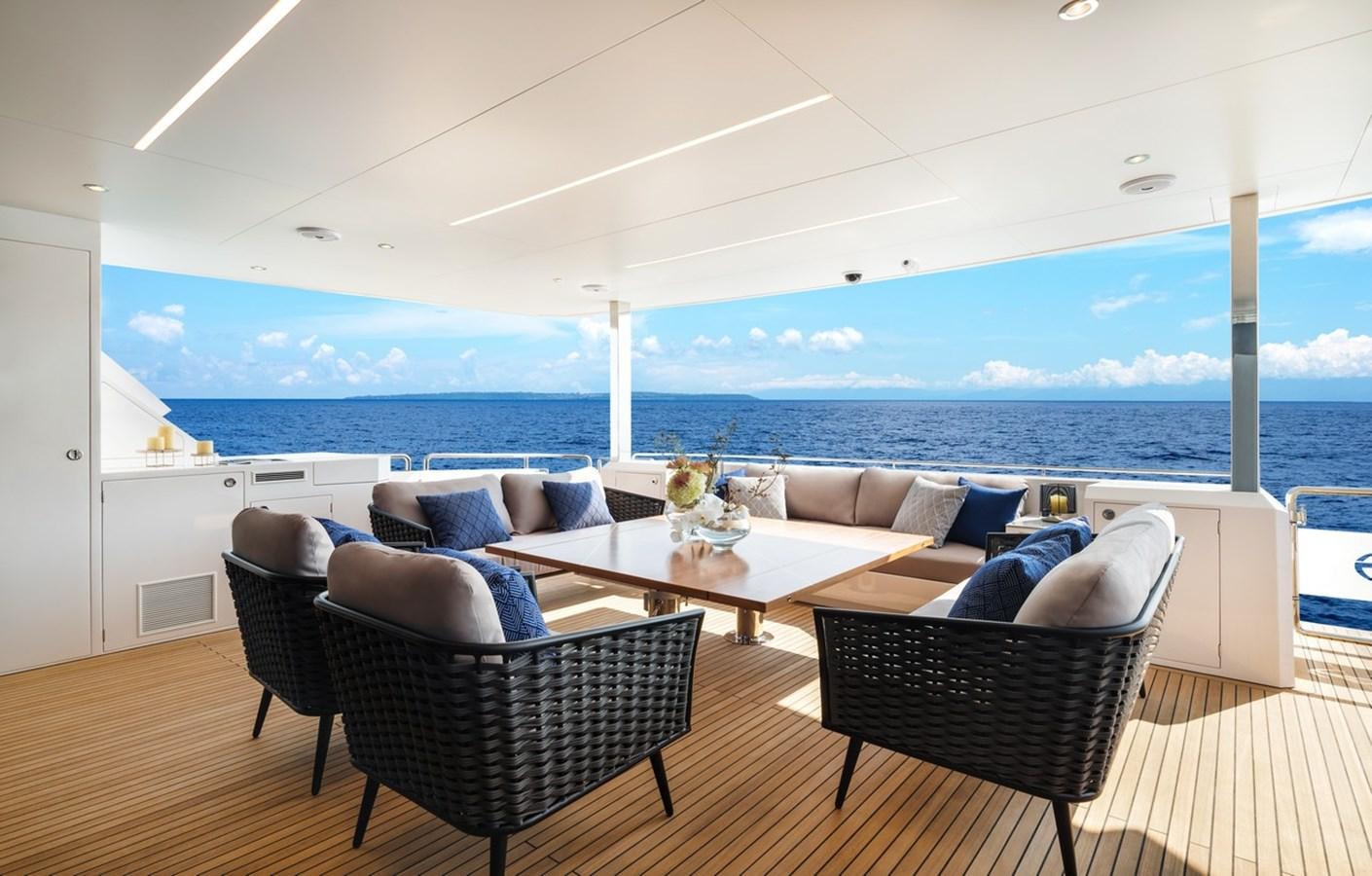

Aft deck seating w/ sliding, foldable, dining table, per layout
Custom mini bar w/ sink, fridge, icemaker & storage to stbd
Aft deck electric flip down folding 43" LED TV
S/S sliding door for main salon, self-locking
Marquipt 7-step side boarding sea stairs
Pre-wire for boat name on stern, port & stbd sides
STERN GARAGE
Extended crew area, stern garage w/ extra Miele washer & dryer, storage
Hydraulic door w/ pantograph door
(2) built in storage lockers
Hydraulic Hi/Lo swim platform w/ 2,500lb capacity
(4) sockets for removable handrails on swim platform
Built-in hot/cold shower above swim platform
Teak swim platform
SPLIT USE SKYLOUNGE & BOAT DECK
Open skylounge design w/ U-shaped sofa, folding dining table, full bar w/ barstools, ice maker, fridge, 43" hi/lo TV
Sliding wind panel windows
Pre-wire for ceiling fans
Extensive added storage
Teak boat deck
(2) “L” shaped sofa seats with side tables, as per layout on boat deck
Removable S/S rails around boat deck
Oversize drains w/ strainer on each corner w/ internal overboard drains
Sunshade for boat deck area, per layout
Pre-engineering for jacuzzi
Hi/Lo 24" propane BBQ in FRP cabinet
Pre-wire & pre-engineer w/ structure reinforcement for steelhead davit (2500lbs)
(4) Flood lights for mast & boat deck
(2) Tokai Sanshin search lights
Marine stereo system w/ speakers
ENCLOSED PILOTHOUSE
Custom designed helm w/ full set of engine gauges, monitoring system for important equipment, fuel & water gauges, Ritchie Supersport magnetic compass, surveillance
camera system (PTZ cameras for aft deck & engine room), bilge pump panel & nav lights
Day head
(2) STIDD helm chairs
Sliding door to skylounge
Lounge seating with table
Added storage
ENGINE & PROPULSION DETAILS
Twin CAT C32A 1900HP engines w/gearboxes
Seatorque system w/ cardan shaft & quicKutter line cutters
High performance S-class 5 Blade propellers
Bronze struts w/ backing plates
Shaft & rudder packing glands w/ Tides Marine seals
Side-Power hydraulic zero speed stabilizer system SPS93 VF1650
Side-Power hydraulic bow thruster SH550 and stern thruster SH420
Delta-T engine room ventilation system
S/S Rudder w/ Zinc plates
S/S emergency tiller in rudder cabin
Hypro Steering System
Underwater exhaust system for engines w/ bypass mufflers
Anti-noise treatment to exhaust system
Engine load distributed through flexible mountings on S/S engine bed bonded to FRP hull girder
ER clean design w/ lightweight honeycomb floor
S/S overhead grab rail on each side of engine
Engine room LED ceiling
Engine alarm system for low oil pressure & high-water temp Pre-wire and pre-plumb for O/S diving compressor
Air compressor
(2) Dyson wireless portable vacuum cleaners
Air conditioning in ER
S/S custom tool box
Workbench w/ sink & vice
MECHANICAL SYSTEMS
Chilled water Marine Air air conditioning
Backup A/C circulation pump (ship loose)
Backup A/C sea water cooling pump (ship loose)
Fuel tanks w/ sight & electrical gauges
Dual Racor 75/100 MA fuel filters/water separator, each engine.
(2) Racor 500 MA fuel filters, one each generator
(2) Electric fuel transfer pumps
Reverso fuel polishing system
Oil change pump system for engines, gears, & generators
400 Gallon FRP water tank
Dometic Seaxchange watermaker 1,800 GPD + SpotZero 2000 GPD
High-volume Headhunter AC freshwater pressure pump & back up DC pump
Fresh water charcoal filters in main supply pipe & galley
Fresh water hose for filling engine and generator expansion tank
Marine grade lines for freshwater system
(2) 30 Gallon water heaters
Hot water circulation pump
Headhunter sanitary waste treatment system
Headhunter toilets system
200 Gallon holding tank w/ macerator pump
100 Gallon sump tank
Sump pumps system for grey water
Electric level indicators for holding tank & sump tank
(5) Electric Rule bilge pumps
(2) Manual bilge pumps in ER & forward staterooms
High water level bilge alarm
Bilge exhaust ventilation fans
Seafire fixed fire extinguisher (FM200) for ER w/ remote control
Fire insulation in engine room
Fire resistant treatment for pipe
Auto shutdown system
Automatic fire damper system
(5) Portable fire extinguishers in recessed lockers
Integrated fire alarm in skylounge w/ heat & smoke detectors in each cabin
ELECTRICAL SYSTEMS
LED lighting system throughout interior & exterior
Maretron monitoring & control system
(2) Onan 29kW/60Hz generators w/ sound shields
100A shore power system w/ ISO Boost transformers 100A (2) & (2) 100A cablemasters
(4) 255AH AGM start batteries for engines/ gens w/ (2) battery chargers
(8) 210Ah Lifeline AGM batteries for boat’s DC 24V service power w/ (2) combined
inverter/chargers
(2) 210Ah Lifeline emergency batteries w/ independent battery charger
Main electric panel w/ AC & DC circuit breakers
Emergency power package & lighting system
AC volt receptacles located throughout including engine room
GFI protection for all AC outlets in heads, galley & ER
Electrolysis bonding system
Cathodic protection w/ zinc anodes for shafts, struts, etc.
(8) Underwater lights
(2) Stern docking lights
ELECTRONICS
TV antenna on top of radar arch
SAT TV KVH UHD7 + Dummy Dome (SAT phone pre-wire only)
(5) Panasonic PBX Telephones w/ intercom
Exterior connector for shore phone and cable TV
(2) cameras (aft deck & engine room)
Fusion Marine Stereo system speakers in, guest staterooms, main exterior areas,
garage & crew cabins
PILOTHOUSE NAVIGATION
Full Garmin nav system includes:
(3) Garmin GPSMAP 8624 24" multifunction display Garmin GPS
Garmin GMR 1226 72" 12kW 72nm open array radar system
MBB300C for inputting Maretron info to Garmin display
Garmin Grid 20 remote input device
(2) Garmin VHF 315
Garmin AIS 800
Garmin Reactor Autopilot control system
Garmin instrument display w/wind transducer;
Airmar Ultrasonic speed & temp transducer
Garmin fishfinder
Garmin GXM 54 Satellite weather antenna
INTERIOR DÉCOR & EQUIPMENT
Guest accommodations include on-deck master stateroom, fwd VIP cabin, port & stbd VIP cabins & laundry/ mutli- use room, all ensuite
Multi-use room w/ pullman, fold down ironing board & hanging lockers, as per layout
Crew area has 2 staterooms w/ pullman in captains, 2 heads, crew galley & access from aft deck & transom
Custom luxury interior package for soft goods, décor & lighting
Washer/dryer in laundry/ multi-use room & garage (total of 2)
Full set of Horizon logo galley tableware for 10 including dish holders, pots/pans, dishes, plates, cutlery, glasses, etc.
AV system upgrade
Upgrade interior/exterior package (ex. Fabric and furniture)
Extra sheets sets for every bed, towels for every guest cabin

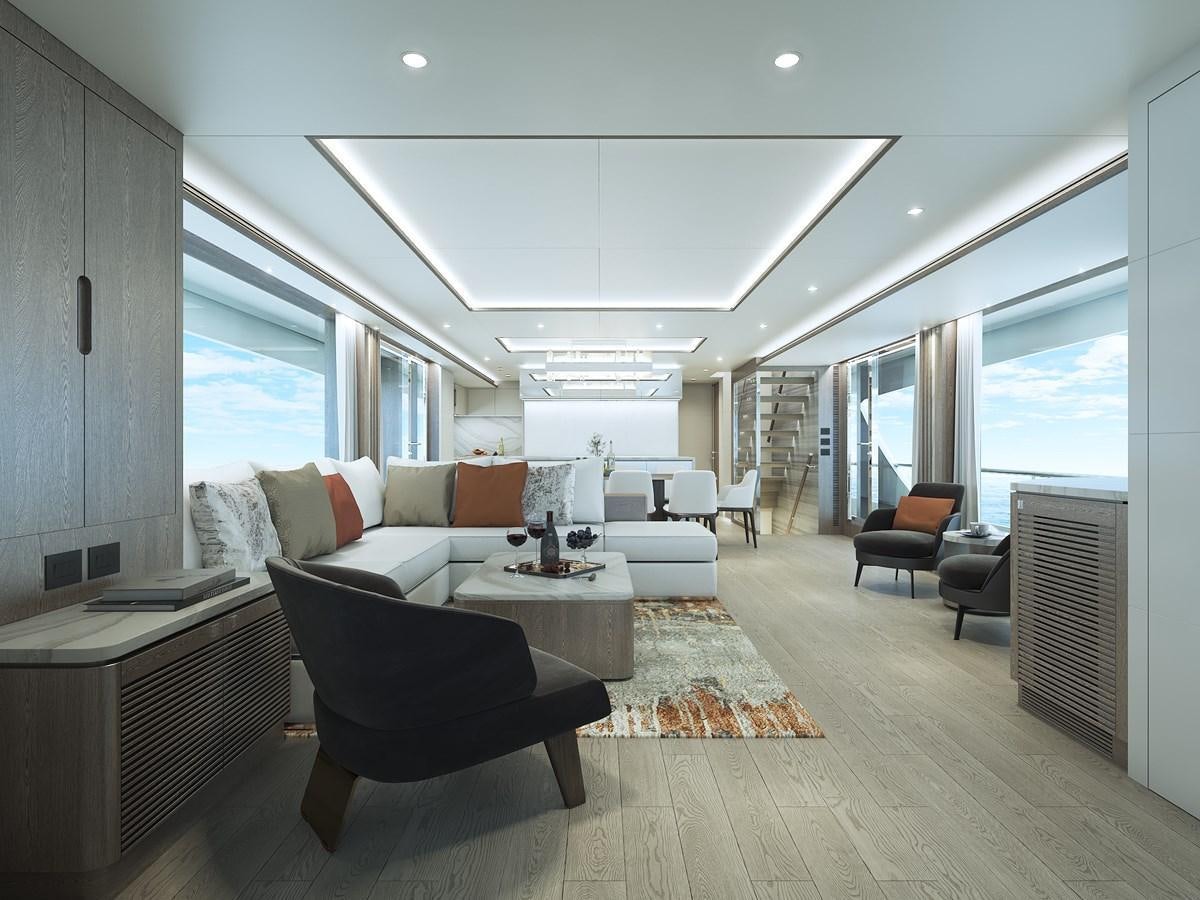

SALON
Dayhead in main salon aft
L-shaped sofa w/ custom coffee table, per layout
(2) Loose chairs & side table to stbd
Single armchair w/ ottoman to port
Custom area rug

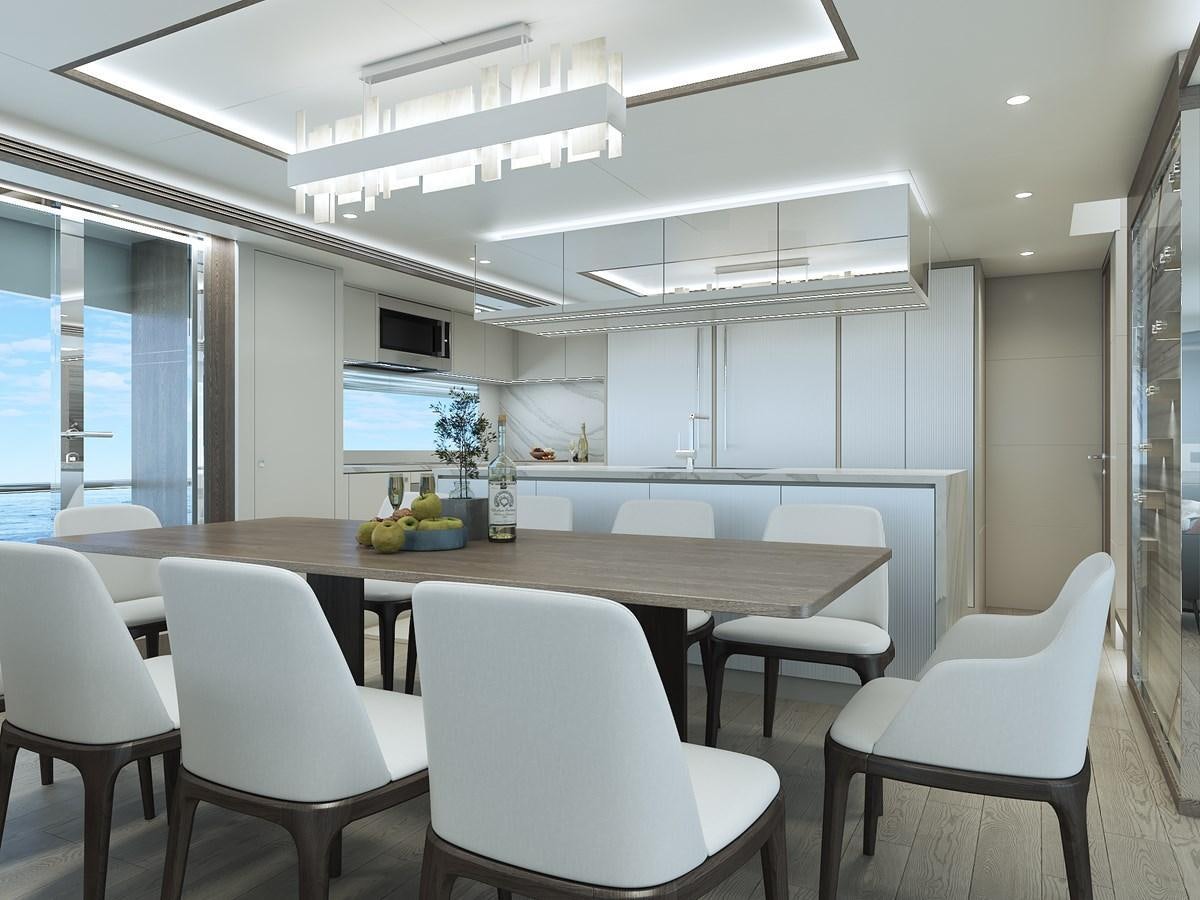

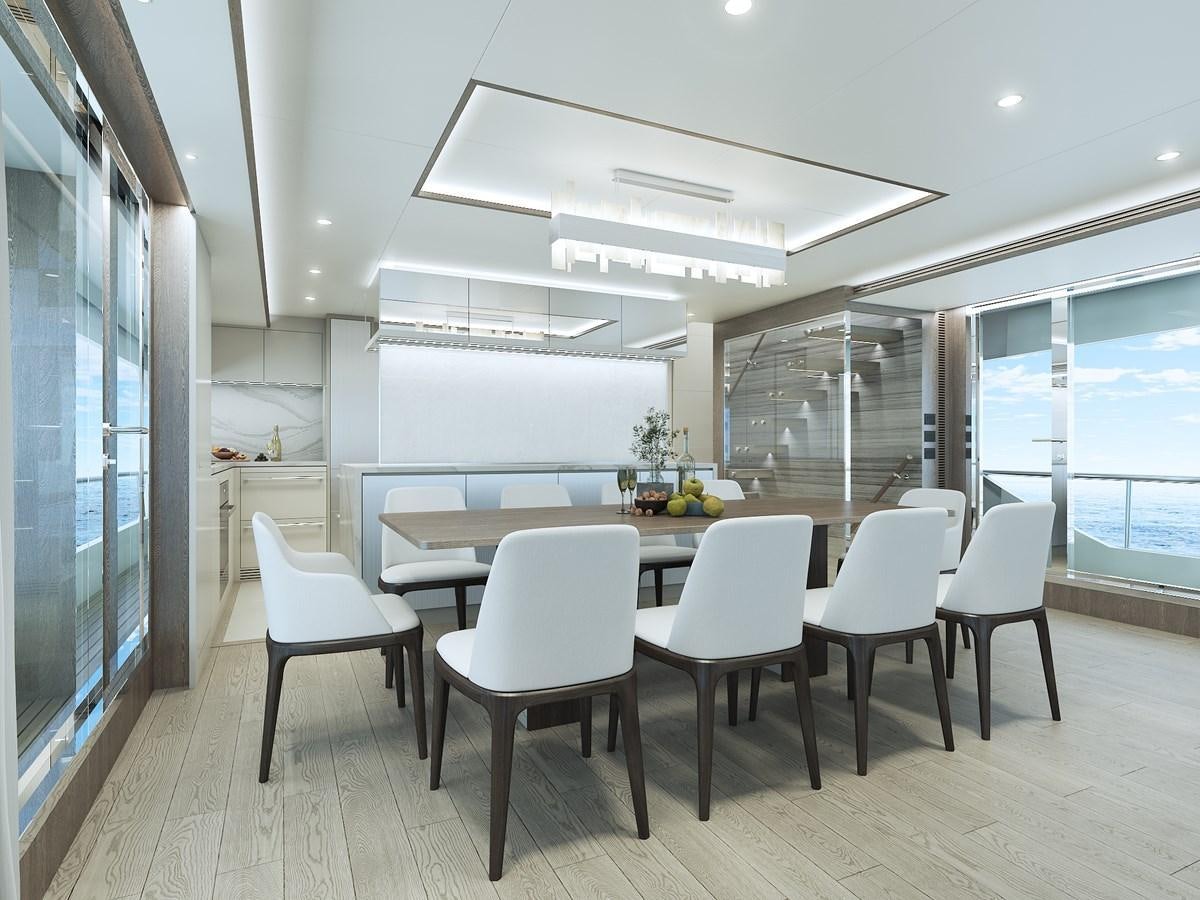

Formal dining table w/ 10 chairs, per layout
Free-standing custom storage cabinet
Custom wine glass locker to port
Electric single treatment curtains
Hinged doors to port and sliding doors to stbd of main salon
LED TV

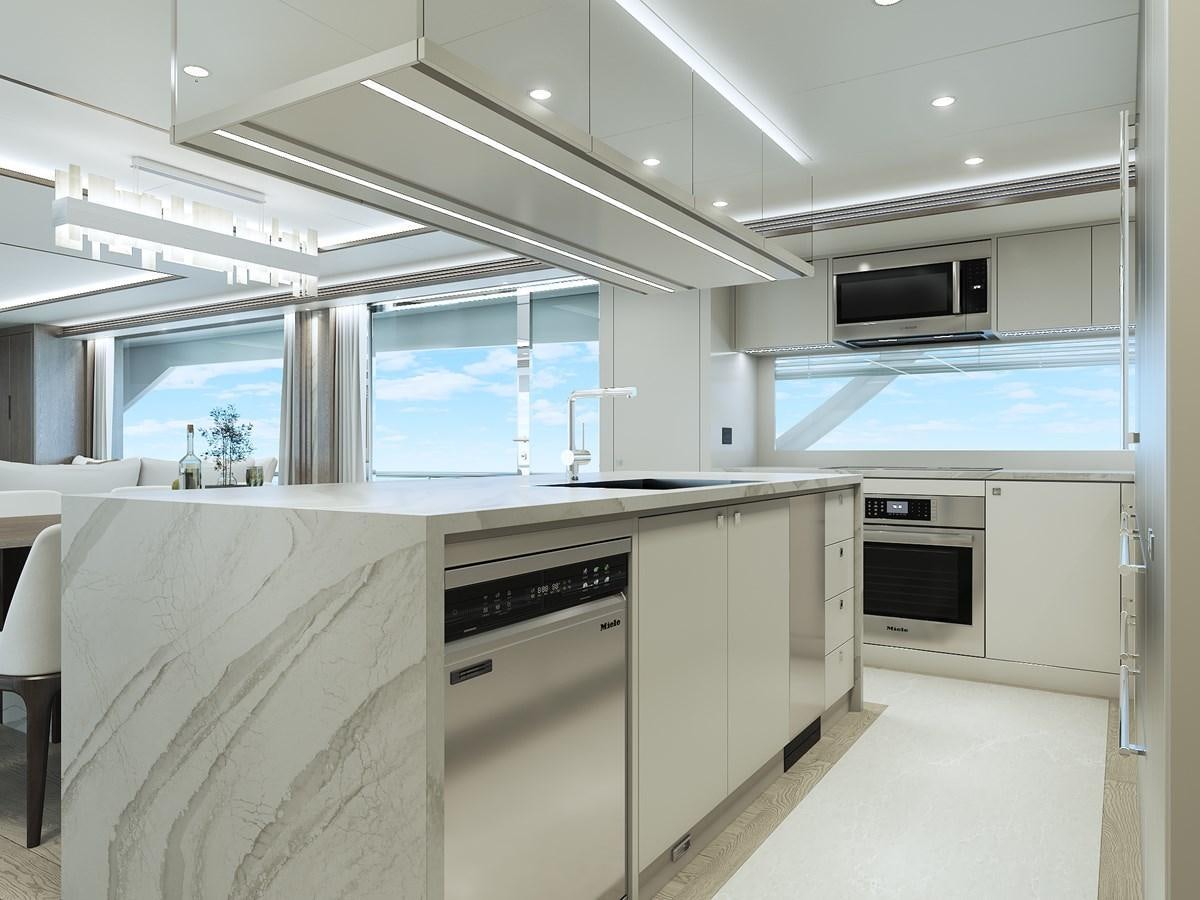

GALLEY
Standard selection of Cambria quartz countertops & floor
Full height SubZero fridge + full-height freezer w/ icemaker and S/S paneling
Miele cooktop, oven & dishwasher
Bosch over-the-range microwave
G.E Trash compactor
S/S sink w/ disposal
U-line under counter wine cooler
Full height pantry + storage per layout
Integrated hi-lo glass privacy screen in kitchen island
Opening porthole on port side
MASTER STATEROOM
King bed w/ storage drawers & nightstands
Matching chest of drawers port & stbd

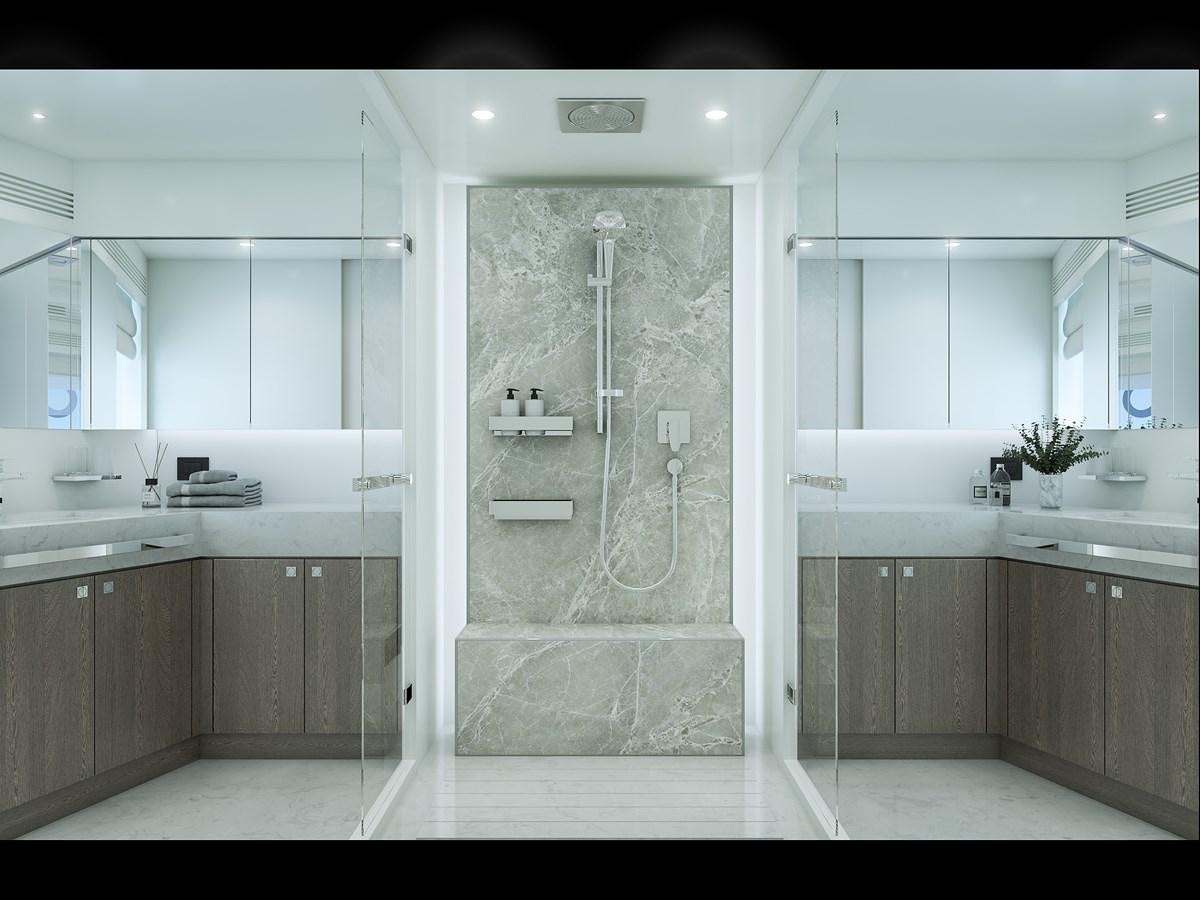

Ensuite his & hers head w/ sink, toilet & storage on each side, middle shower w/ rain shower head
2 hanging lockers (port & stbd)
Electric blinds
Opening portholes (4) units
49" LED TV
FWD VIP QUEEN STATEROOM
Queen bed w/ storage drawers & nightstands
Large hanging locker on stbd side
Ensuite head w/ sink, shower & toilet
43" LED TV
MIRROR VIP STATEROOMS (2)
Mirrored staterooms w/ Queen bed, storage drawers & nightstand
Escape hatch in port stateroom
Large hanging lockers
Ensuite head w/ sink, shower, & toilet
43" LED TV
MULTI-USE LAUNDRY ROOM
Pullman bed
Hanging lockers
Ensuite head w/ sink, shower & toilet
Dyson vacuum
Washer, dryer & linen locker
Built in ironing board
CREW QUARTERS
Captain’s cabin w/ hanging locker, pullman,
32" LED TV & ensuite head
Bunk crew room w/hanging locker, ensuite head
Crew galley w/ sink, convection microwave & cooktop
