CONSTRUCTION
Hull, Deck & Superstructure:
GRP hull and deck. First layer vinyl ester resin and balsa sandwich core.
Hull and Deck with isophthalic gelcoat.
Deck and coach roof in white with non-slip finish.
Hull topsides in grey with white stripes at waterline and white cove line
Keel & Rudder:
Rudder: Semi-balanced, profiled rudder with self-aligning roller bearings.
Keel: Standard composite iron/lead keel, L-shaped, stainless steel keel bolts.
HULL / DECK FITTINGS & EQUIPMENT
Winches: Lewmar. 4 x ST EVO 65 electric winches – 2 at cockpit outboard of seating and 2 by helm position, for sheets and halyards.
Windlass: Lofrans Team electric 3000W windlass mounted on deck at bow, with remote control and chain counter.
Anchor: Delta 45kg anchor with 150m of s/s chain. Anchor chain wash down system.
Teak in cockpit and on bathing platform.
Opening transom hydraulic, with remote control, for dinghy storage, “Easy-Tender” winch system to pull in dinghy, swim steps, shower.
Seven hull windows each side (14).
Cockpit lockers port and starboard.
Two white carbon steering wheels.
Stowage bags for running rigging at each helm.
Helm seats (life raft stowed under port side one).

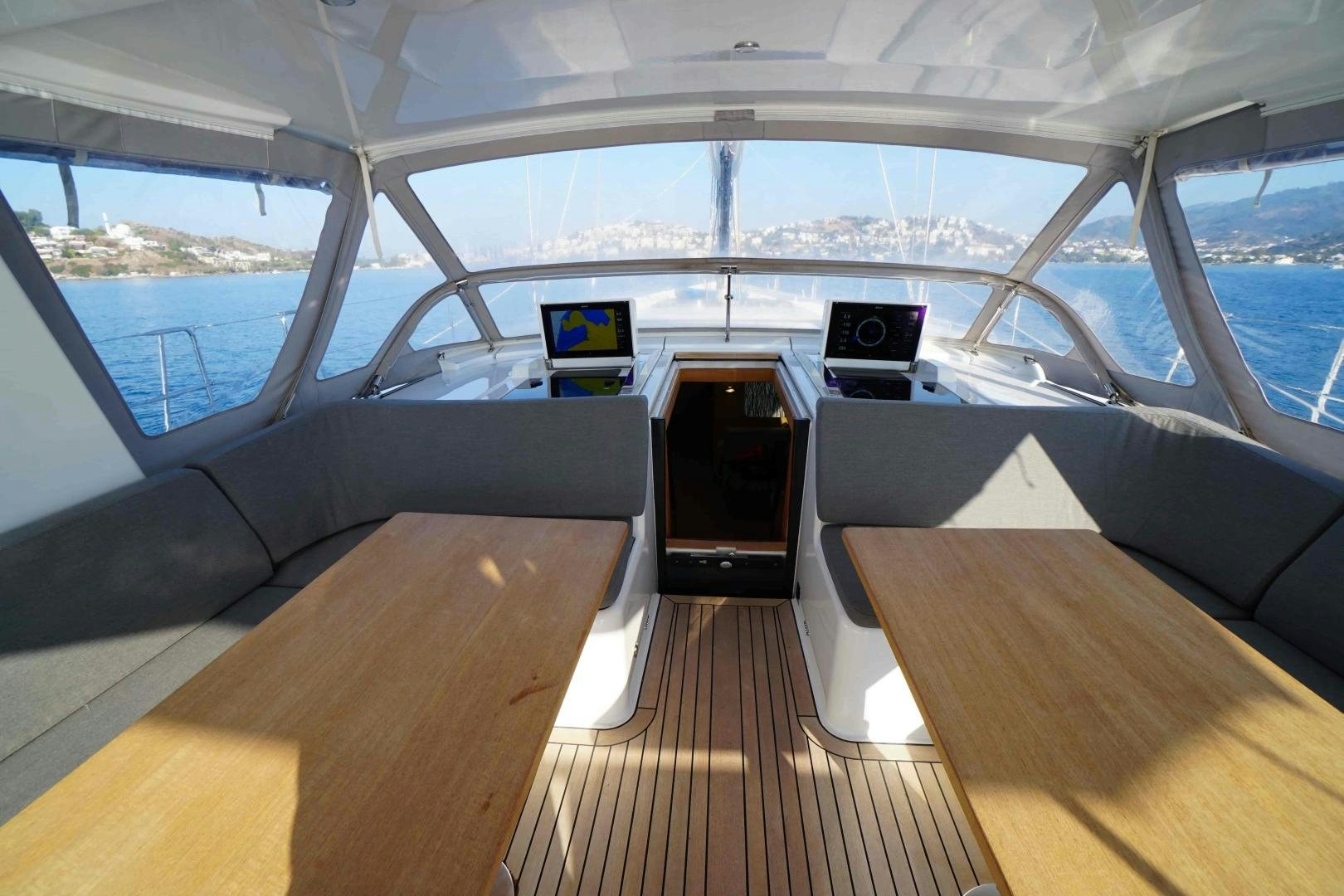

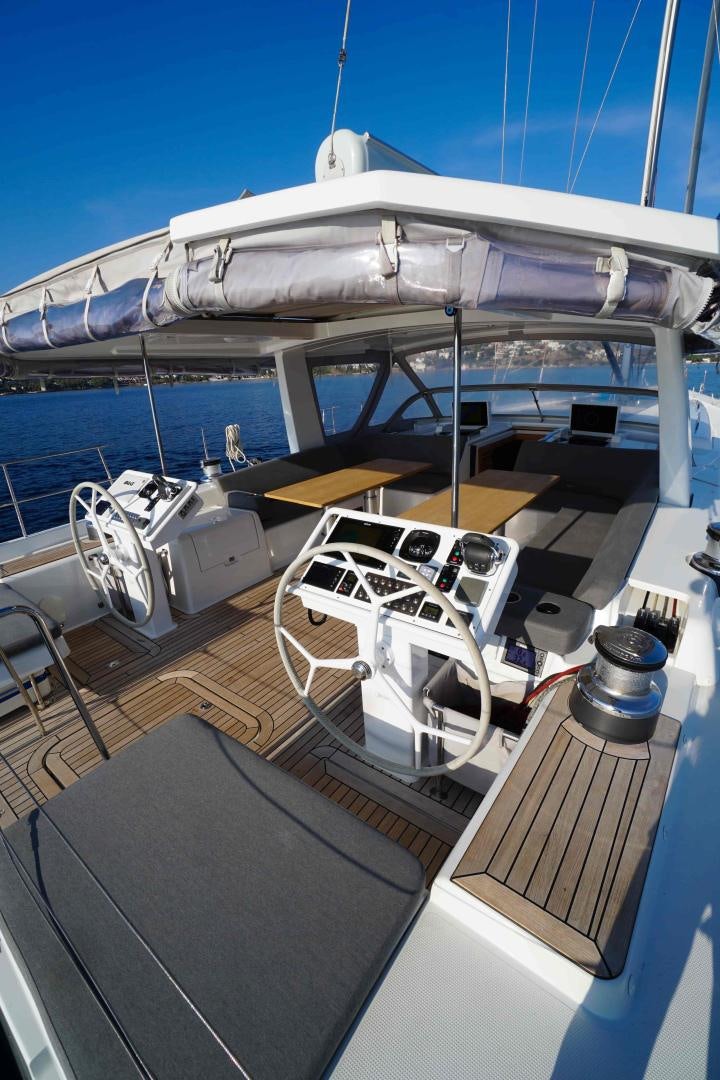

Twin pedestals, each with compass; VHF, thruster controls; B&G screen; Autopilot control; B&G MFD; push button panel for sail controls, winches etc.; throttle controls; etc.
Two B&G screens near companionway, one each side.
Coach roof, side and forward deck areas are white GRP.
Hard-top bimini over cockpit. Side screens from bimini form a “tent enclosure” for the cockpit. Sprayhood connects to bimini.
Mainsheet built on to bimini (clear of cockpit).

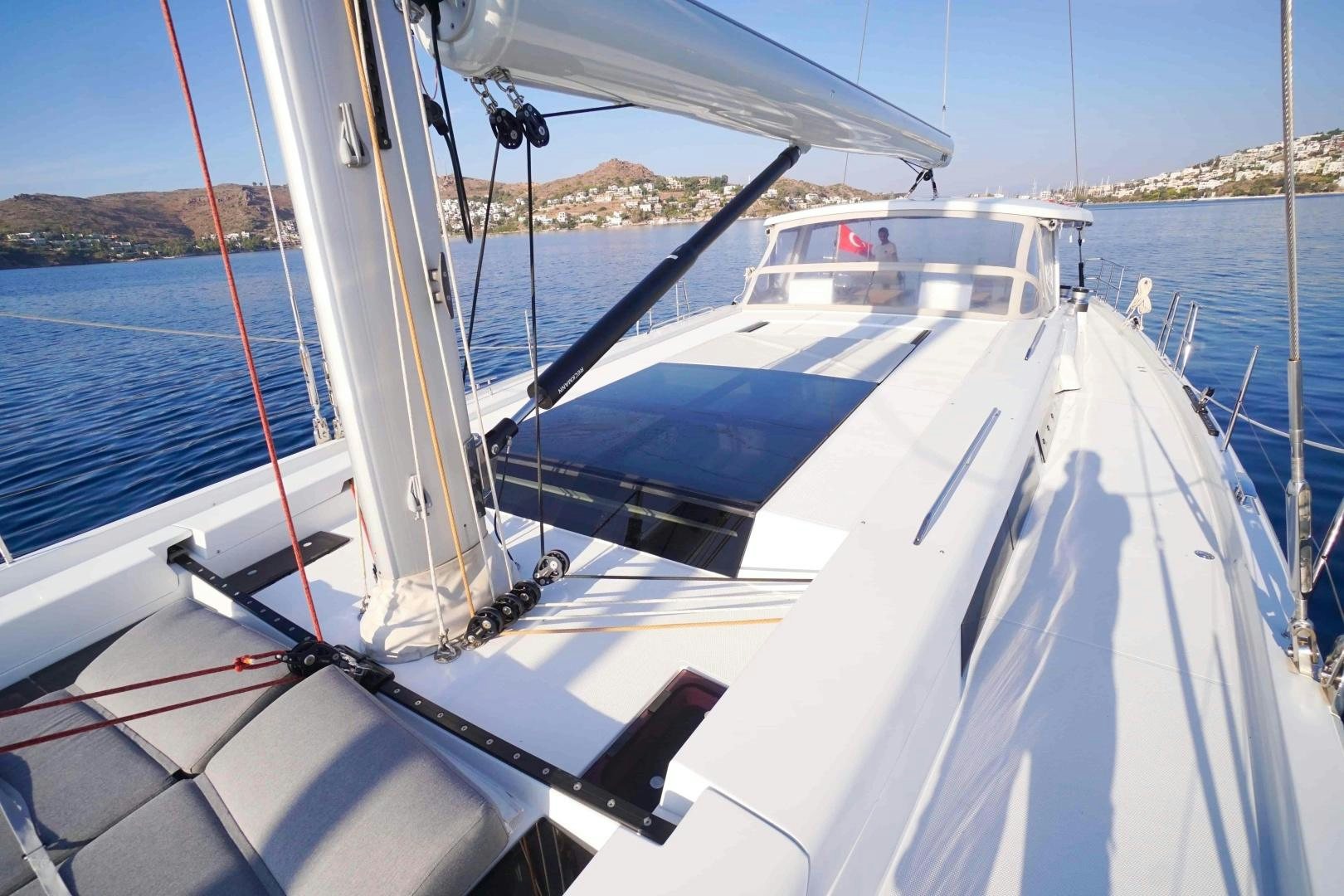

Large foredeck sail storage locker.
Anchor locker at bow.
Bow anchor fitting with step.
Self-tacking jib track, on the foredeck by mast.
Genoa tracks inboard port and starboard.
Stainless steel pushpit, pulpit with navigation lights.
Stainless steel stanchions tapered and guard wires.
Opening side gates on both sides and at stern.
8 retractable mooring cleats.
Handrail on coach roof.
Two electrically adjustable (high / low) cockpit tables (one each side).
Deck shower at cockpit, hot / cold fresh water.
Swim ladder.
Cockpit fridge.
Manually operated retractable / folding anchor arm davit.
Besenzoni hydraulic retractable 2.7m boarding gangway.
Extras: Cockpit cover, mainsail cover, grey sun cushions forward of the mast, grey cockpit upholstery, fenders and mooring lines.
TANK CAPACITIES
Fuel: 1,100 L / 291 gal
Fresh Water: 900 L / 238 gal
Holding Tank: 100 L / 26 gal
INTERIOR & ACCOMMODATION
HORIZON has the following build options (codes refer to builders specification / options):

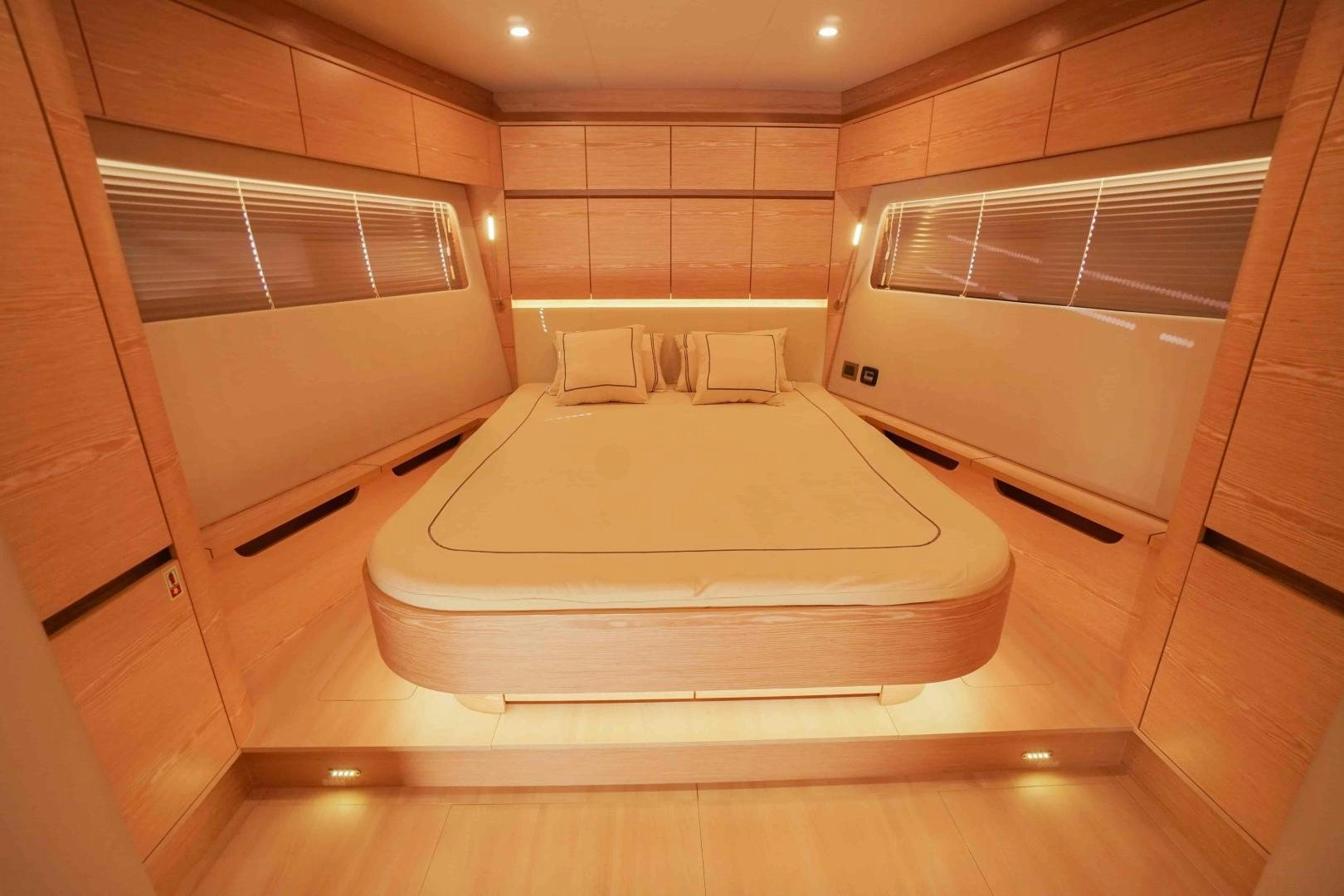

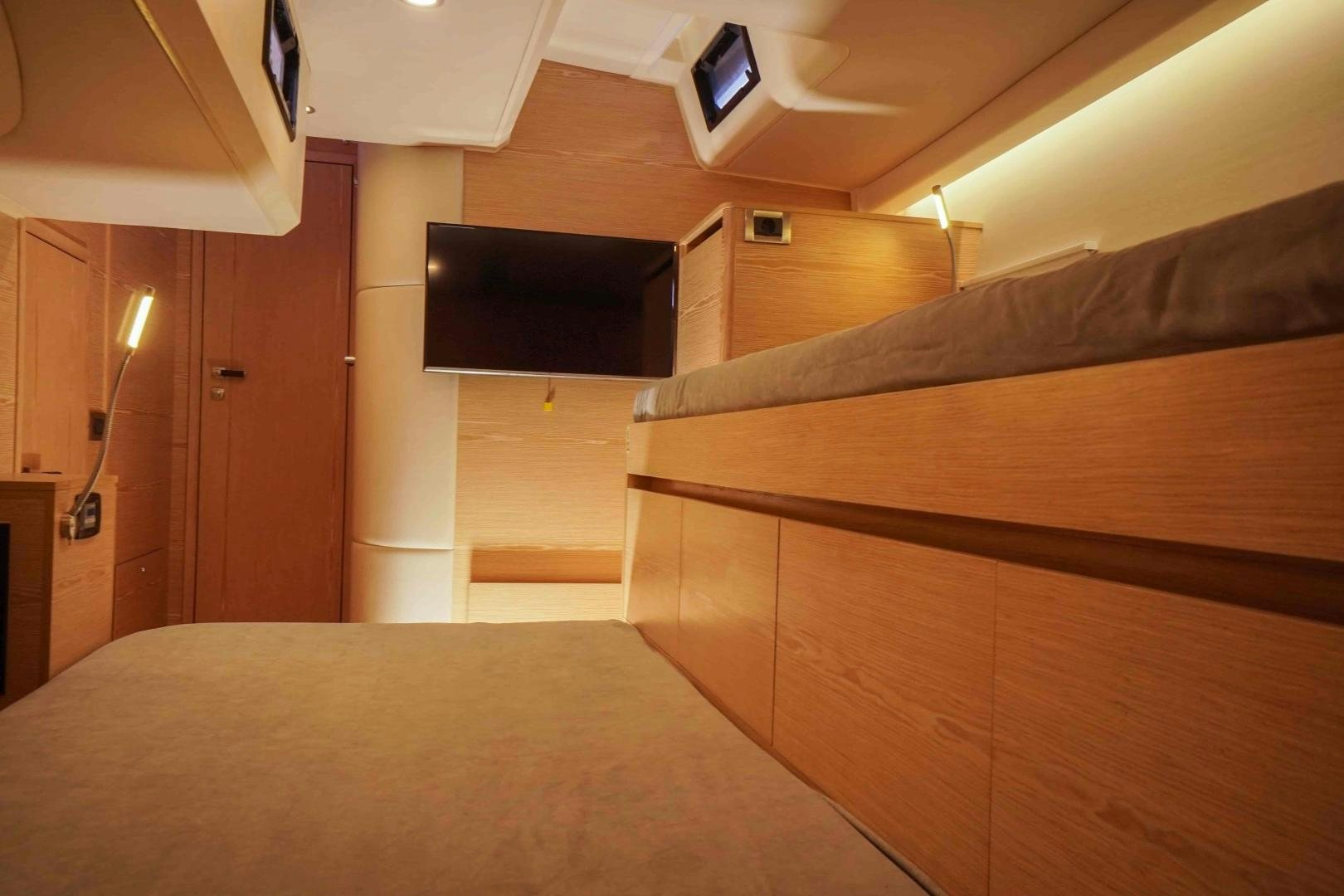

A1 forepeak stowage and owner cabin forward with central double bed facing aft.

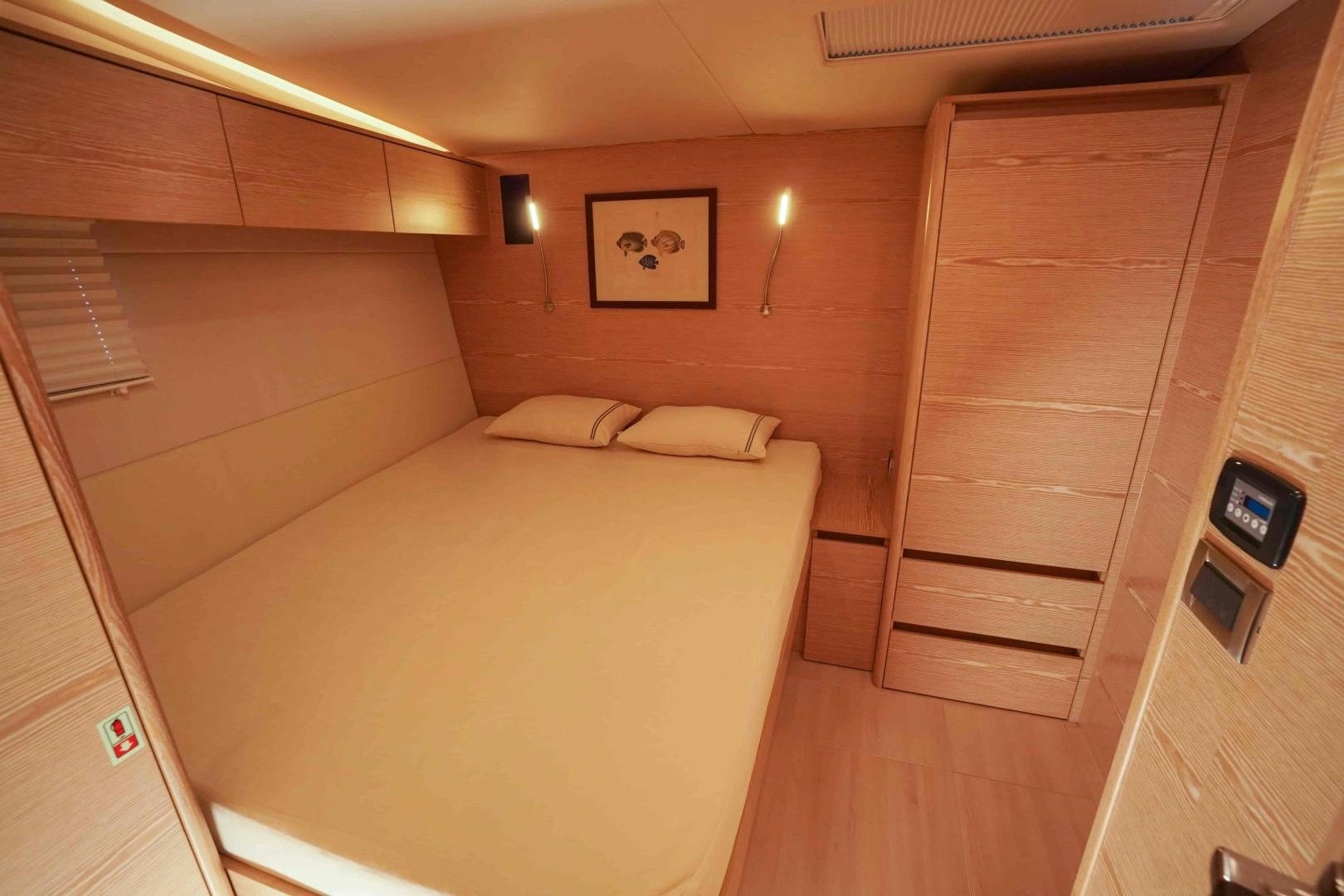

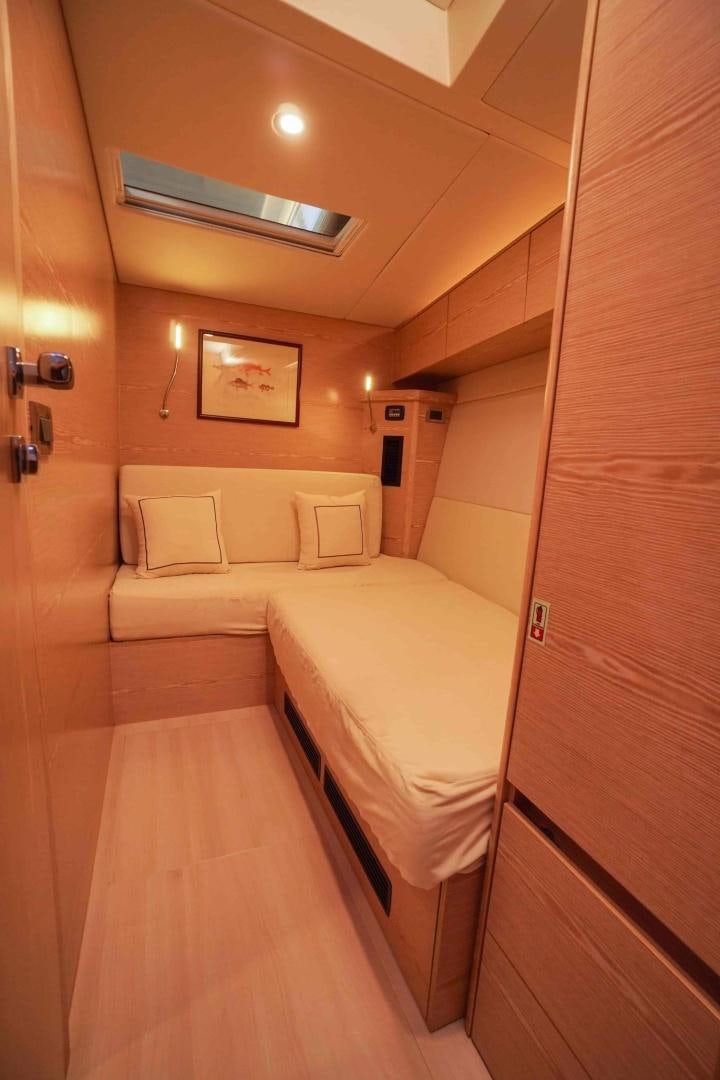

B2 with double guest cabin on starboard side and single guest cabin on port side.

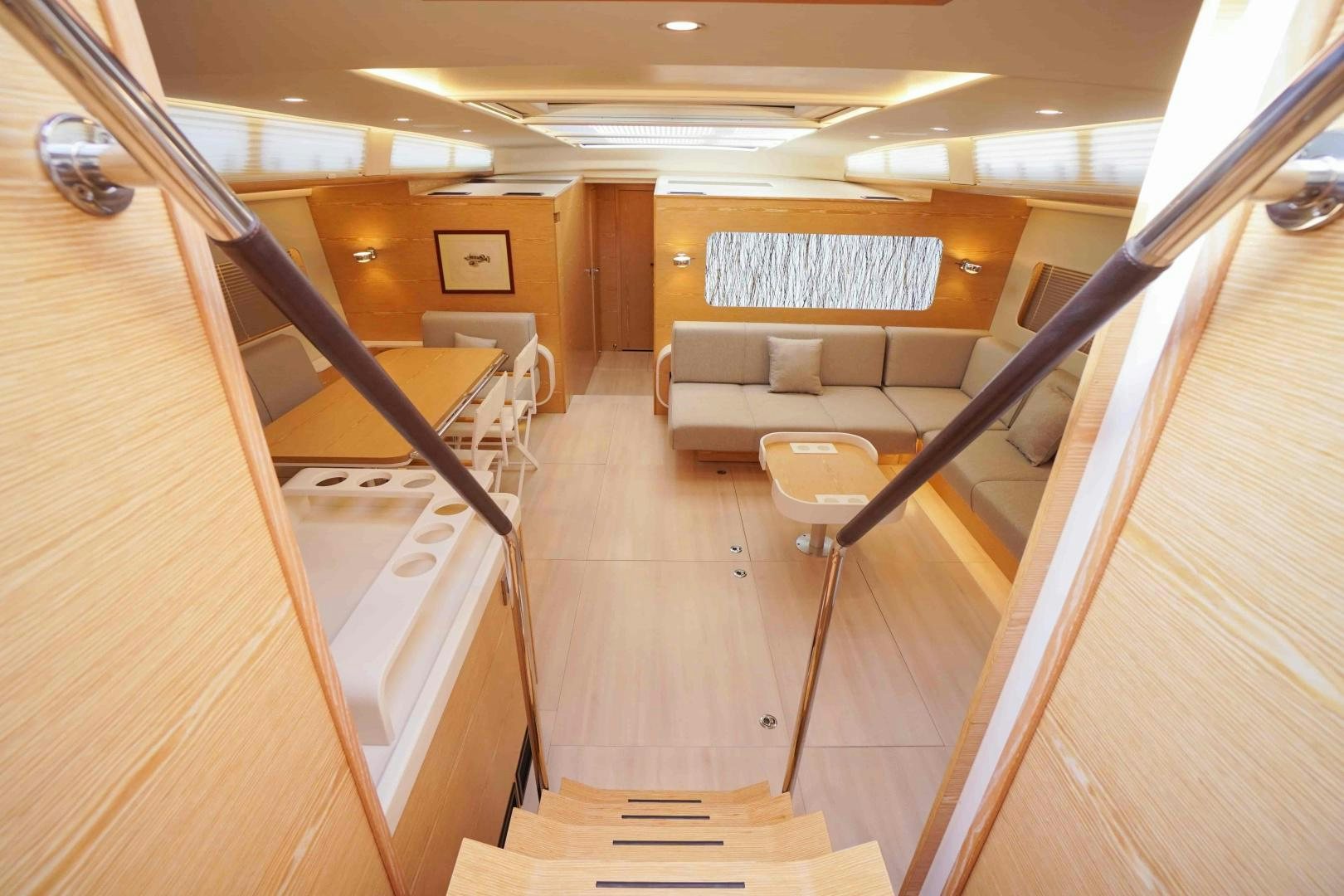

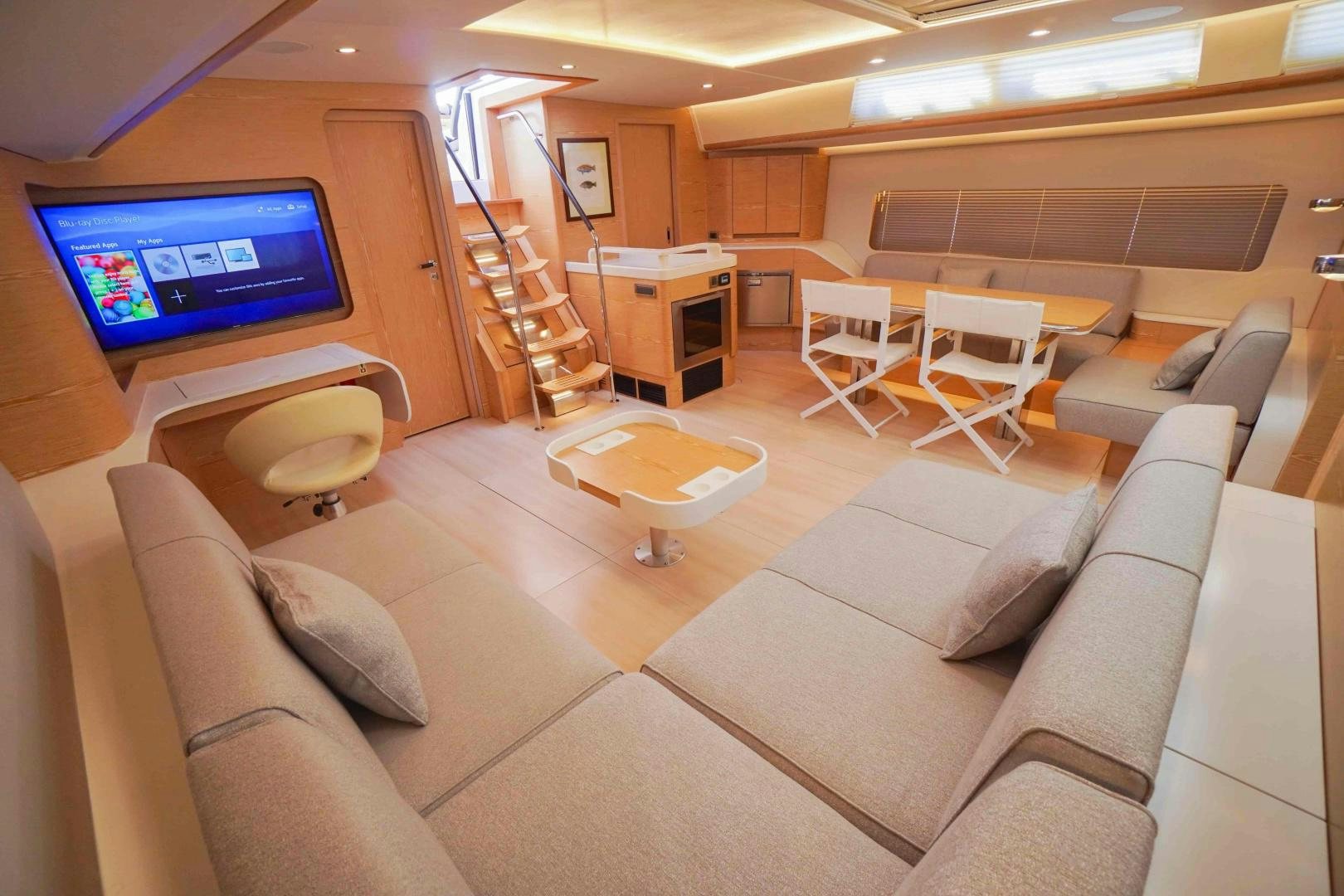

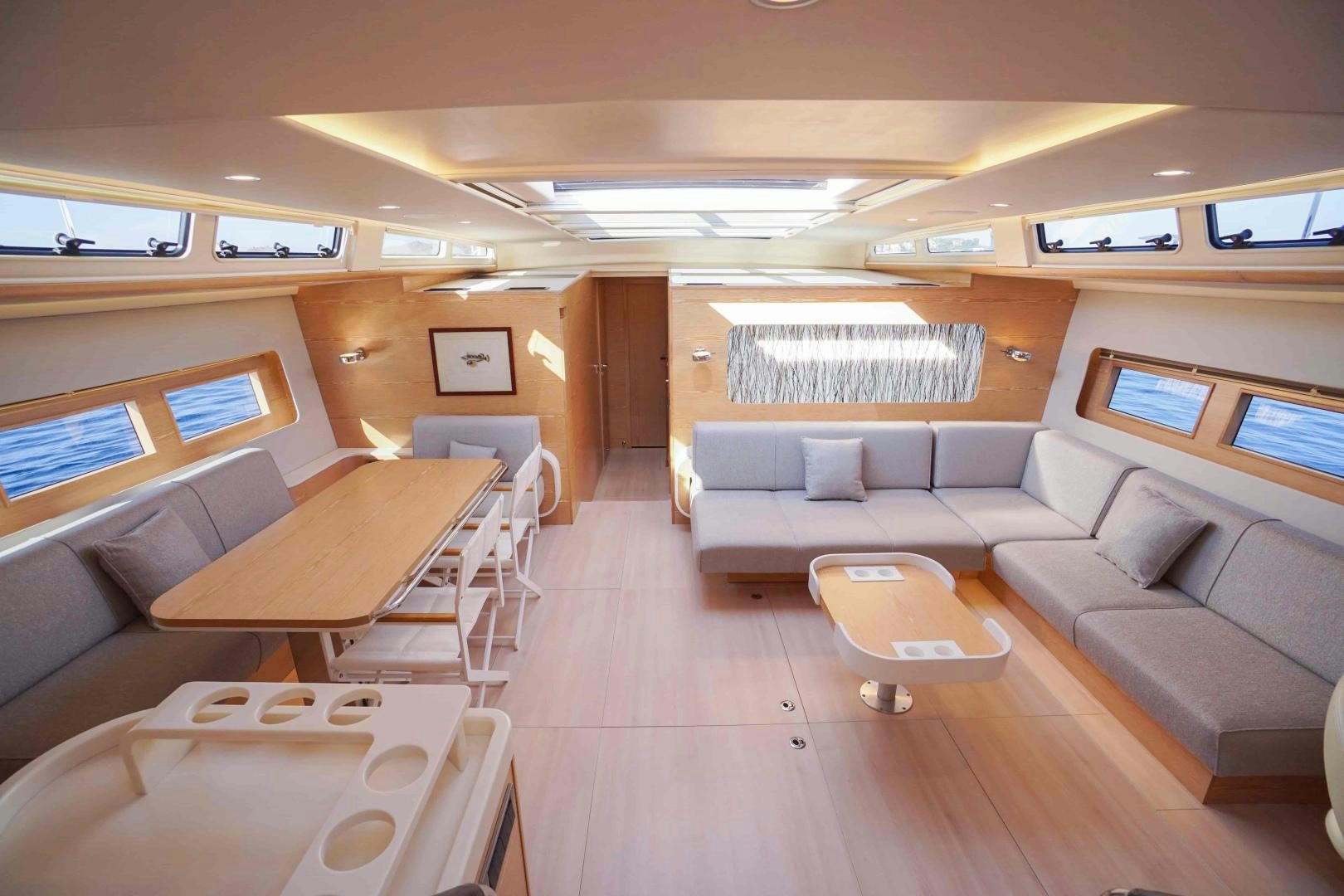

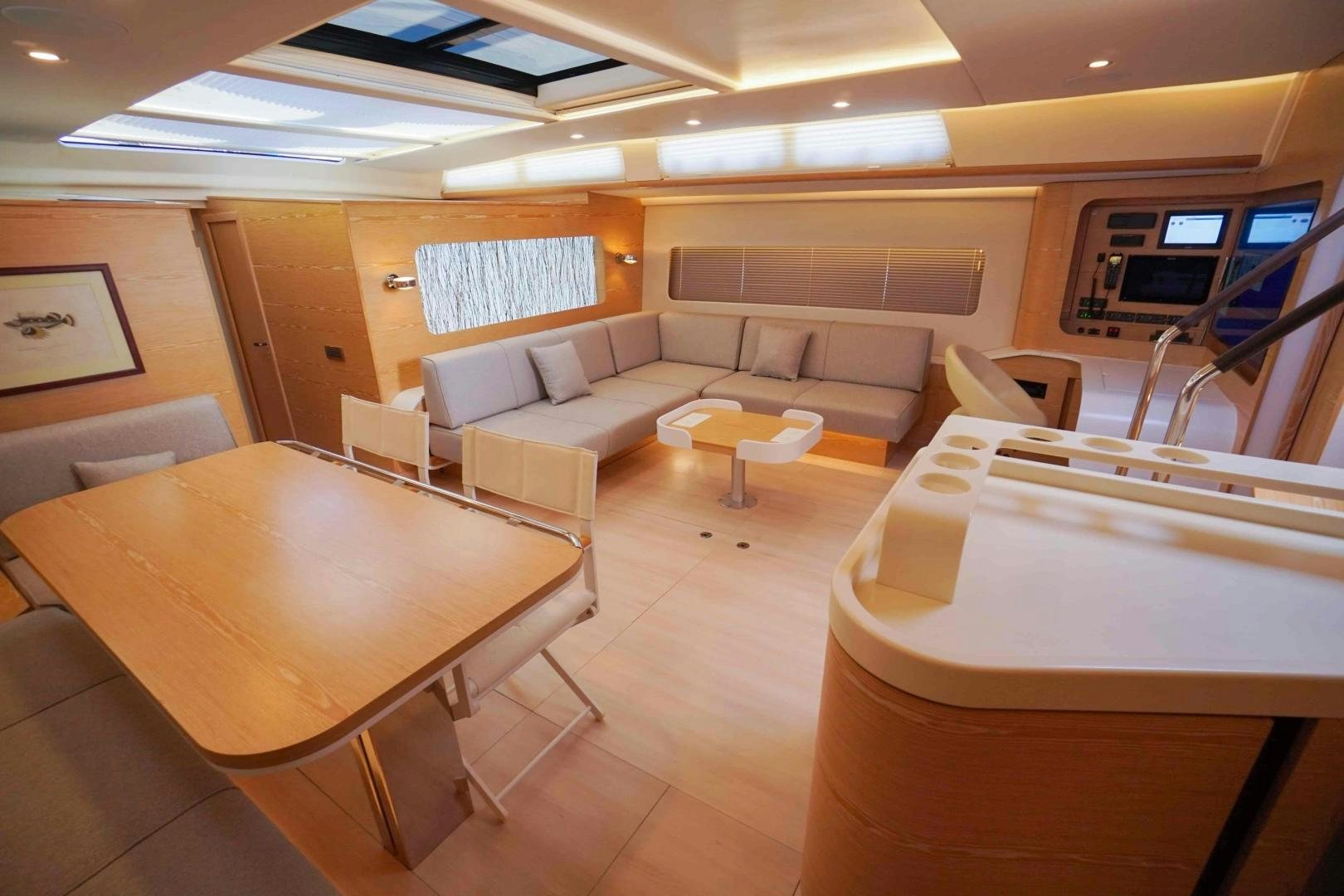

C1 saloon. Full width spacious saloon that is very light and airy thanks to the generous hull windows and the panoramic sunroof.
L sofa to starboard with coffee table.

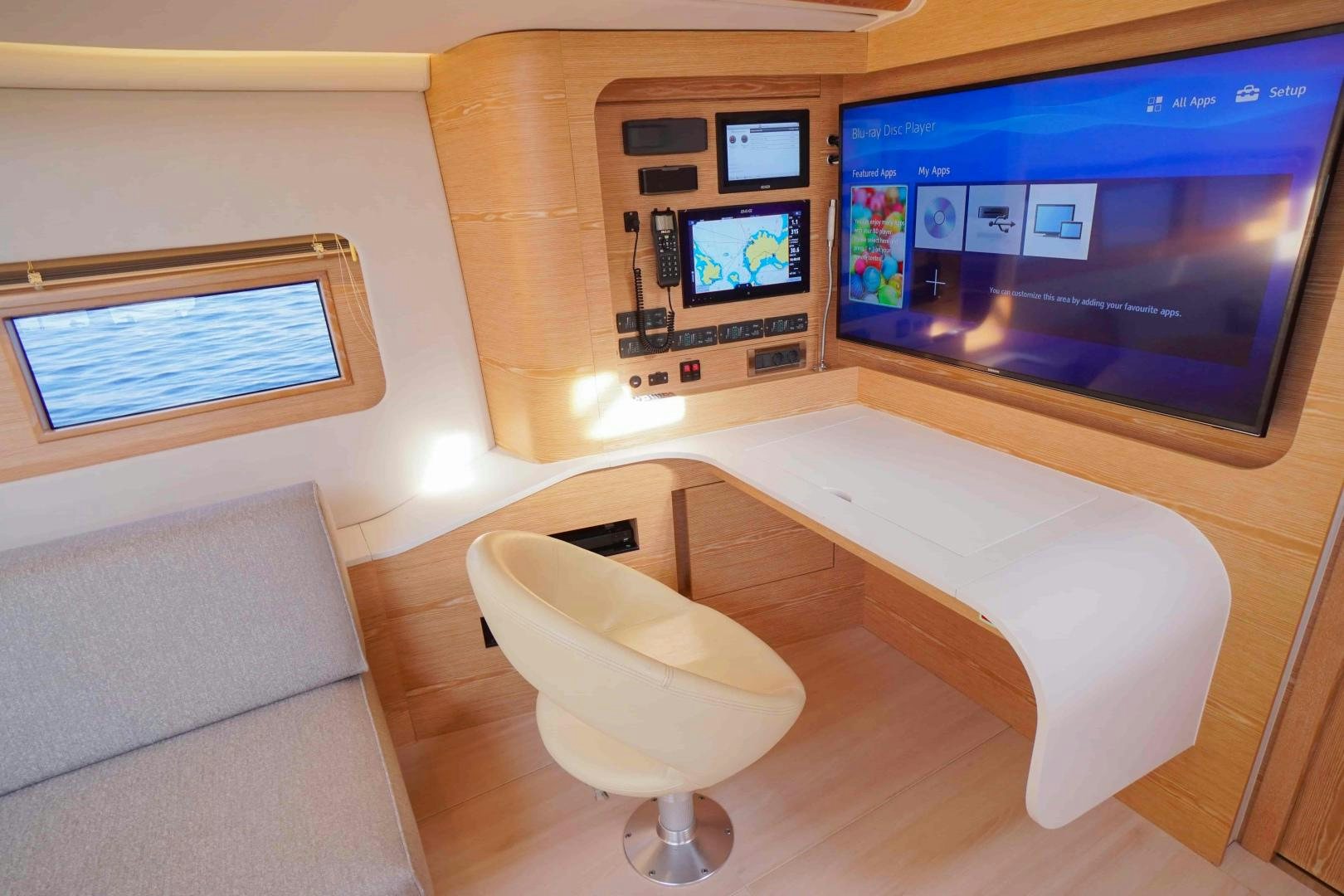

Chart table aft with desk and seat facing aft. Including B&G display, VHF, huge screen, music controls, sockets, etc.
To port is a seating unit with dining table, and two chairs inboard.
Aft of the dining area is a bar unit with fridge and wine cooler.
Grey upholstery.

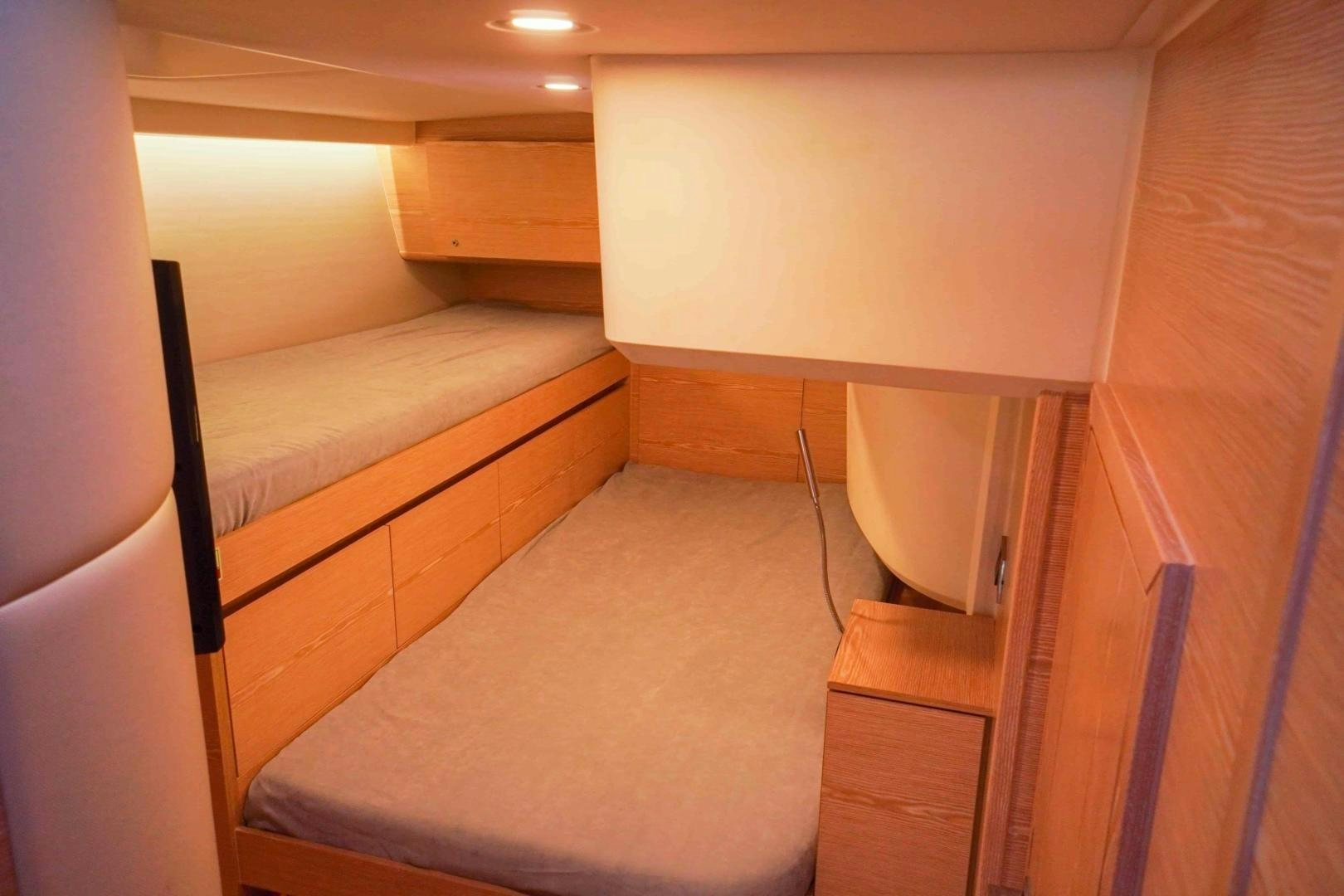

D3 with guest cabin aft on starboard side with two beds.

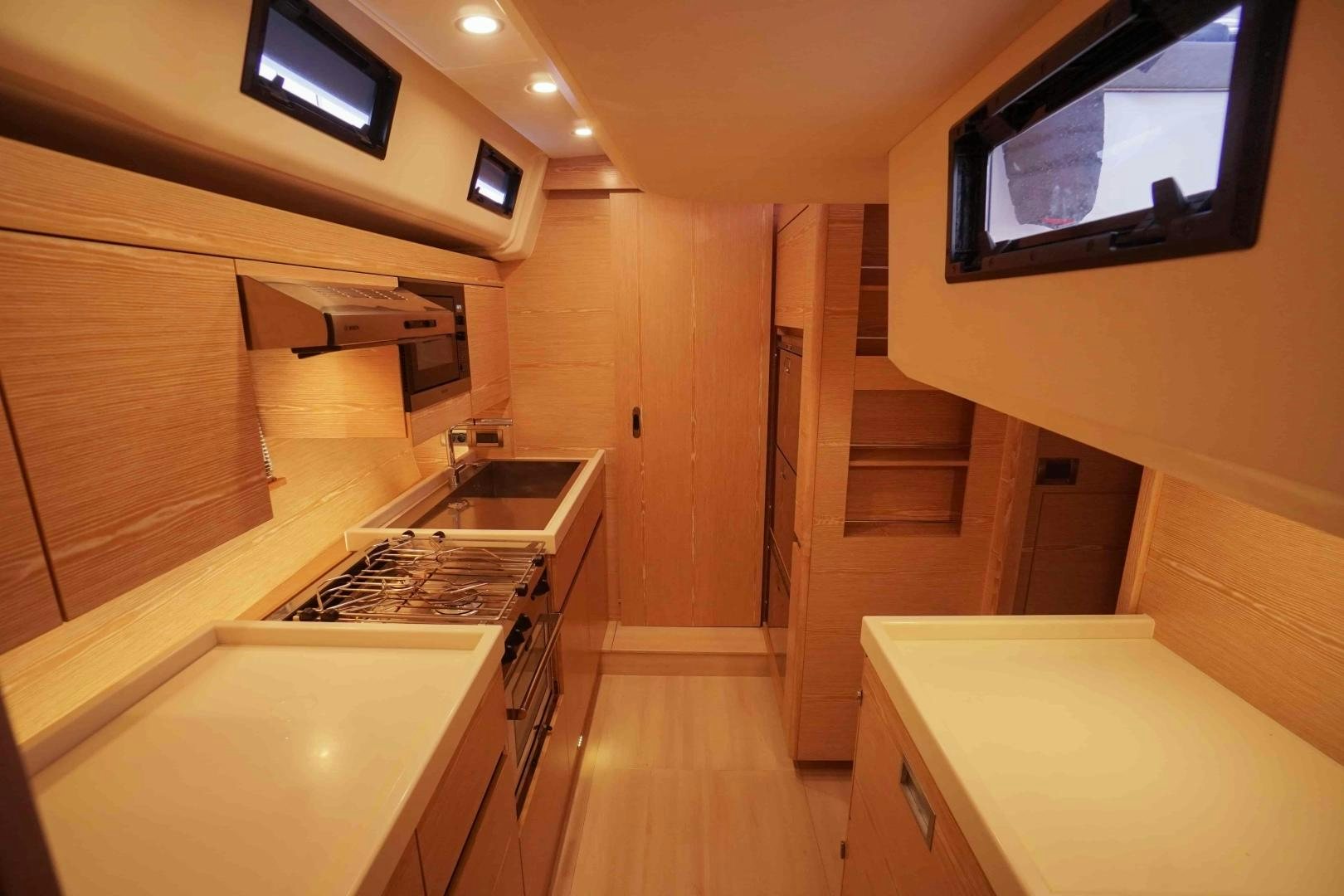

Galley (aft on port side):
3 burner gas cooker with oven
Extractor over cooker
Miele microwave
s/s sink unit and drainer
3 s/s drawer style fridge units
2 freezers
Coffee machine
Dish washing machine
Wine cooler
Planch BBQ
ENTERTAINMENT SYSTEMS
Raymarine 45cm Sat TV
2 x TV
DTV
Hi-Fi system
Satellite decoder
Satellite TV antenna
Speakers
Internet connection
ENGINES & MECHANICAL
Engine: Volvo Penta D4-225 marine diesel engine (upgraded from standard 150hp),
3-blade propeller.
Electronic engine controls (at each helm).
Fuel Type: Diesel.
Generator: 15 kva Whisper Power.
Bow Thruster & Stern Thruster: Both by Maxpower, hydraulic. Control panel at helm.
Water Maker: Capable of 200 litres per hour.
Hot Water System: Hot water system (via engine and 220v), 75 litre hot water tank.
Air conditioning: Chiller and two units, total 66,000 BTU Heating System.
Bilge Pumps: Automatic bilge pump system, electric bilge pump, manual bilge pump.

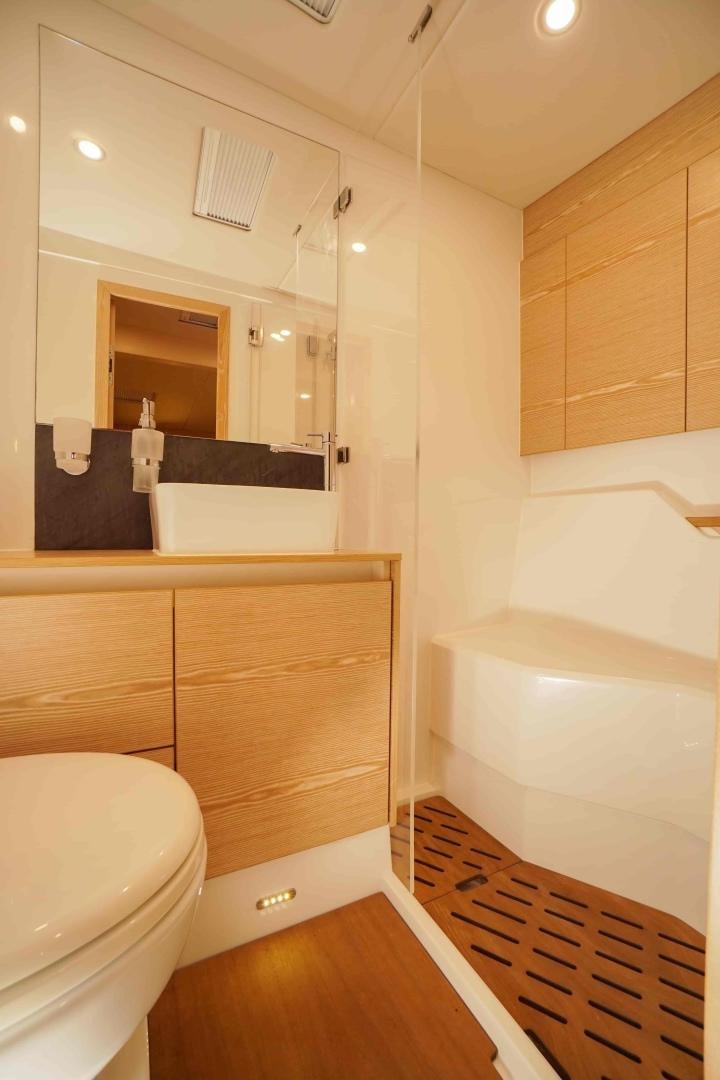

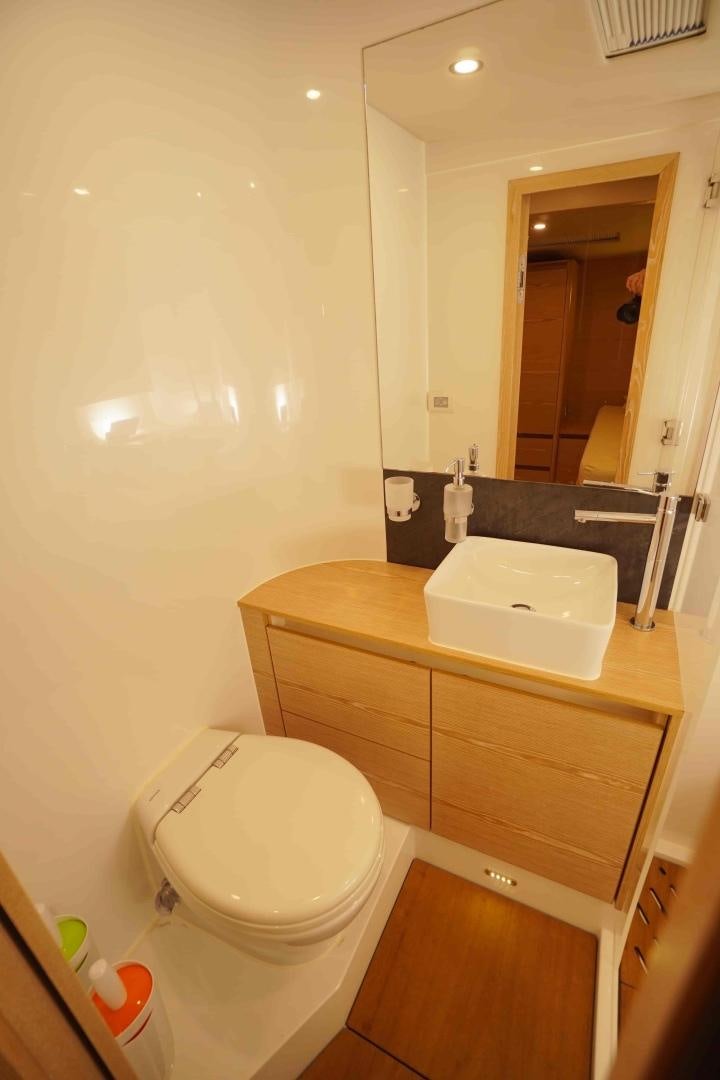

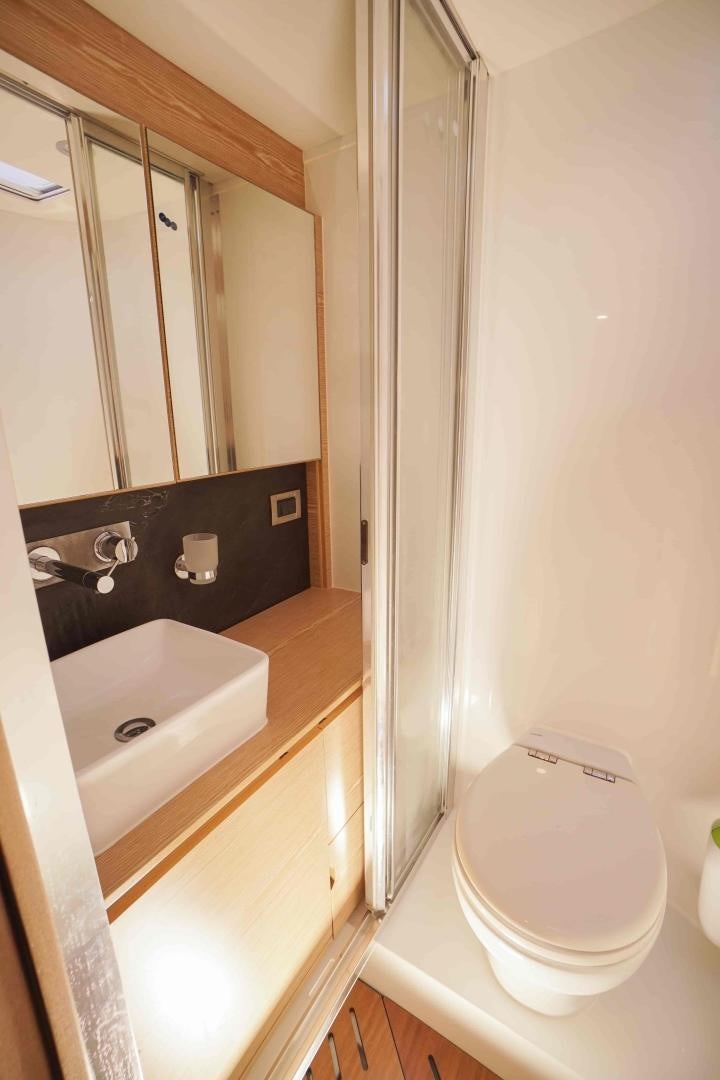

WC’s: 4 x Tecma fresh water flush marine toilets with integrated bidet
Wastewater plant
ELECTRICAL SYSTEM
Shore Power: 220v Shore power connection, ring main and 220v outlets.
Transformer/Converter:
Inverter: 2 x Inverters (7000W each).
Batteries: AGM battery bank for service, (upgraded from standard to 12 x 225AH batteries). Engine and Gen set start batteries.
Battery Charger: 3 x Whisper battery chargers.
12v outlets
NAVIGATION
Brookes and Gatehouse instruments including:
3 x chart plotters
AIS
Autopilot
Compass (2)
Depth sounder
Multi-Function Displays
GPS
Radar (displays to plotters) and antenna (on spreader)
Odometer
Rudder Angle indicator
Wind direction / Speed
2 x DSC VHF units
2 x additional 19’’ multifunction displays at companionway
ACCESSORIES
Tender: Williams Jet Boat 285, outboard
FIRE & SAFETY EQUIPMENT
Life Rafts: Yes.
SPARS & RIGGING

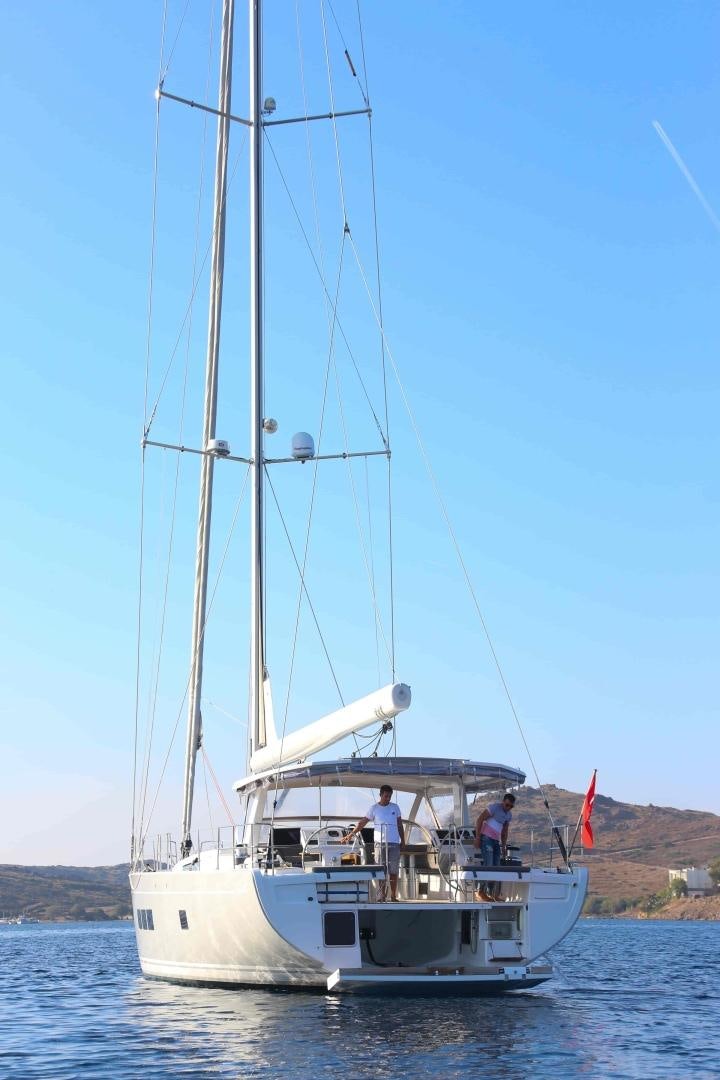

Sloop rig.
Mast stepped on keel.
White painted aluminium mast by Sparcraft, with triple spreaders.
In boom furling system for mainsail.
Furlex hydraulic furling systems for genoa and staysail (operated from helm).
Self-tacking system for staysail.
Reckmann hydraulic “furl-finder” self-adjusting vang unit.
Hydraulic back stay tensioner.
Halyards and control lines lead under deck to cockpit organizers and jammers.
Video cameras located on spreaders, one view aft and one forward.
SAILS
By Elvstrom
Mainsail (boom furling)
Genoa 130% (furling)
Staysail (furling)
Asymmetric spinnaker
Trysail
