HISTORY Yacht for Sale

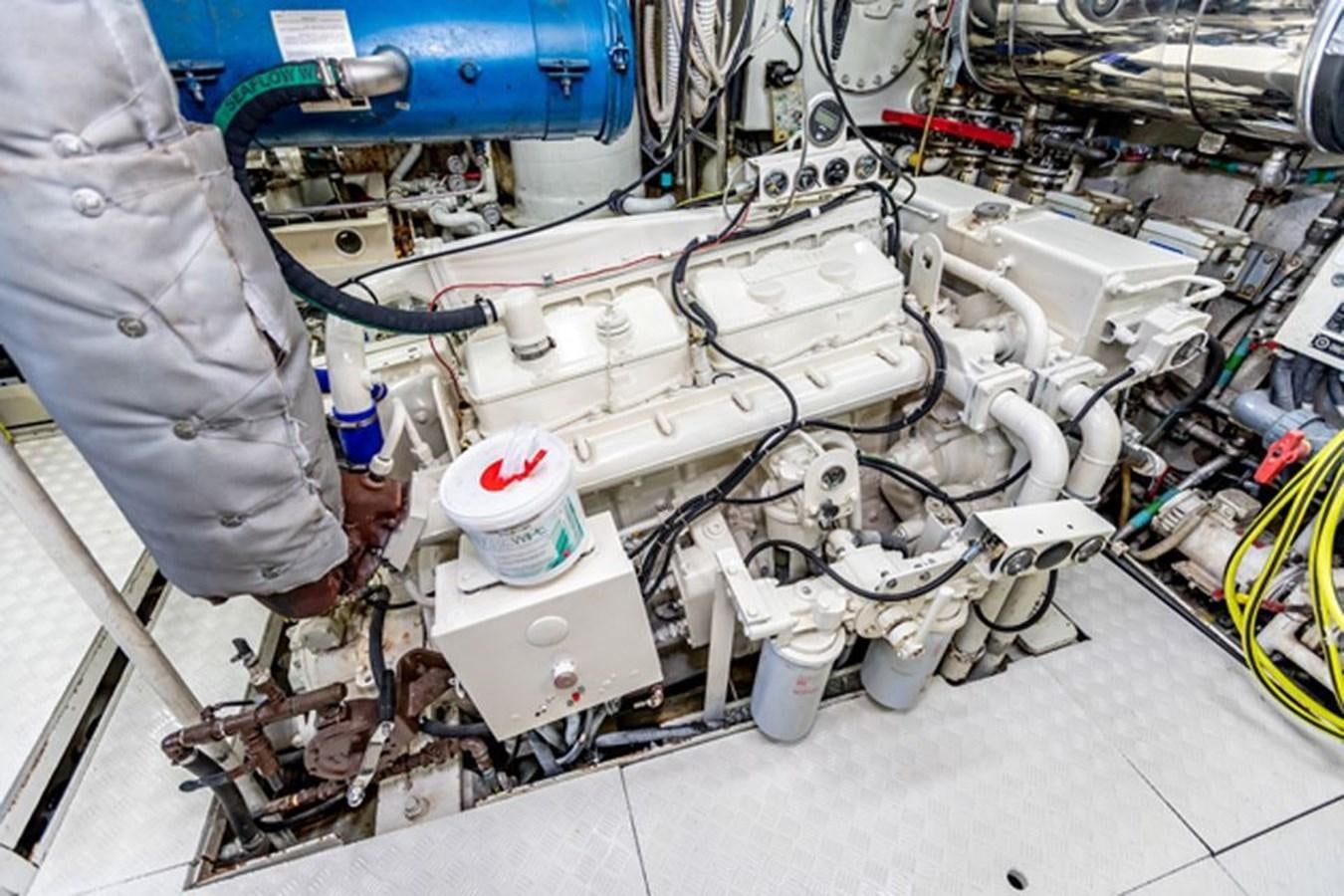

Engine & Gearboxes

• Full deep service on both main engines 2019.
• Twin Racor fuel filters & twin oil & fuel change over filters. Full local & remote instrumentation.
• Exhaust system on both main engines rebuilt in 2020/21 cooled by a separate raw water feed.

Propulsion & Steering:

• 2 x stainless steel with electric grounding system.
• Repeaters on fly bridge at the stern.

Other Mechanical Equipment

• 2 hull mounted grid coolers for the main engines.
• 1 x Cramm Hydraulic PTO driven & electric motor back up Westmar 50 hp.
• 1 x Cramm electro-hydraulic with Westmar electronic gyro control to power the stabilizer system.
• 1 x Cramm Electro-Hydraulic. 230 volt with 24 volt emergency back-up.
• Separate power packs to drive the retractable passerelle and the retractable bathing platform located in the aft lazararette.
• Westmar stabilizers all disassembled and rebuilt 2019.

Voltage Systems

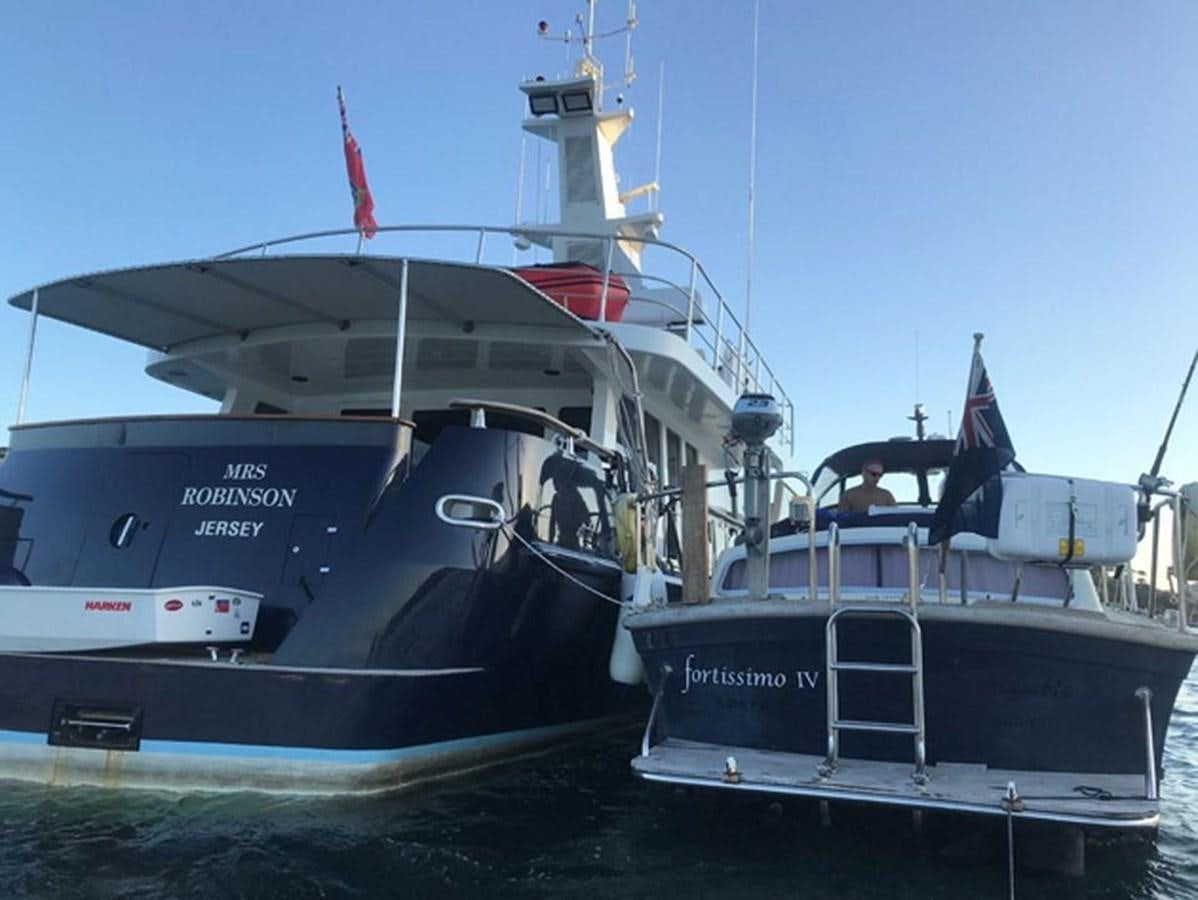

• MRS ROBINSON has a 3 phase 360 power system at 32 amp with a transformer to enable her to accept 220v or 110v.
• 24vDC domestic system with 220v/110AC ring main from generator and/or shore power.
• 12v domestic system.

Battery Banks

• 4 x Caterpillar engine start. 24 volt, 200A, lead acid 2020.
• 2 x Westerbeke generator start. 24 volt, 120A lead acid 2019.
• 1 x Mannesmann Rexroth engine control. Gel bat. 24 volt 90A.
• 1 x emergency navigation & communication. Gel bat. 24volt 200A.
• 1 x emergency night generator start. Lead acid 90Ah 12volt.
• 12 x service batteries, 12 x 2 volt gel to 24v, 480A (in lazarette).
• 1 x Minerva fire control back up bat. 12v 15A (integral charger).

Battery Chargers

• 1 x 24v 50A - Engine batteries.
• 1 x 24v 30A - Generator batteries.
• 1 x 24v 120A - Service batteries (in lazarette).
• 1 x 12v 20A – Navigation & communication (on bridge).
• 1 x 12v 20A - Emergency night generator (in funnel).

Alternators

• Alternators on both main engines 120amp 24 volt, new 2021.

Shore Power

• 1 x Glendinnig shore power system.
• 380 volt 3 phase. 32A.
• Transformer and phase change over switch enabling the Vessel to accept 110v and 220v. The Ship’s supplies are also dual, new 2020.
• Full instrumentation.

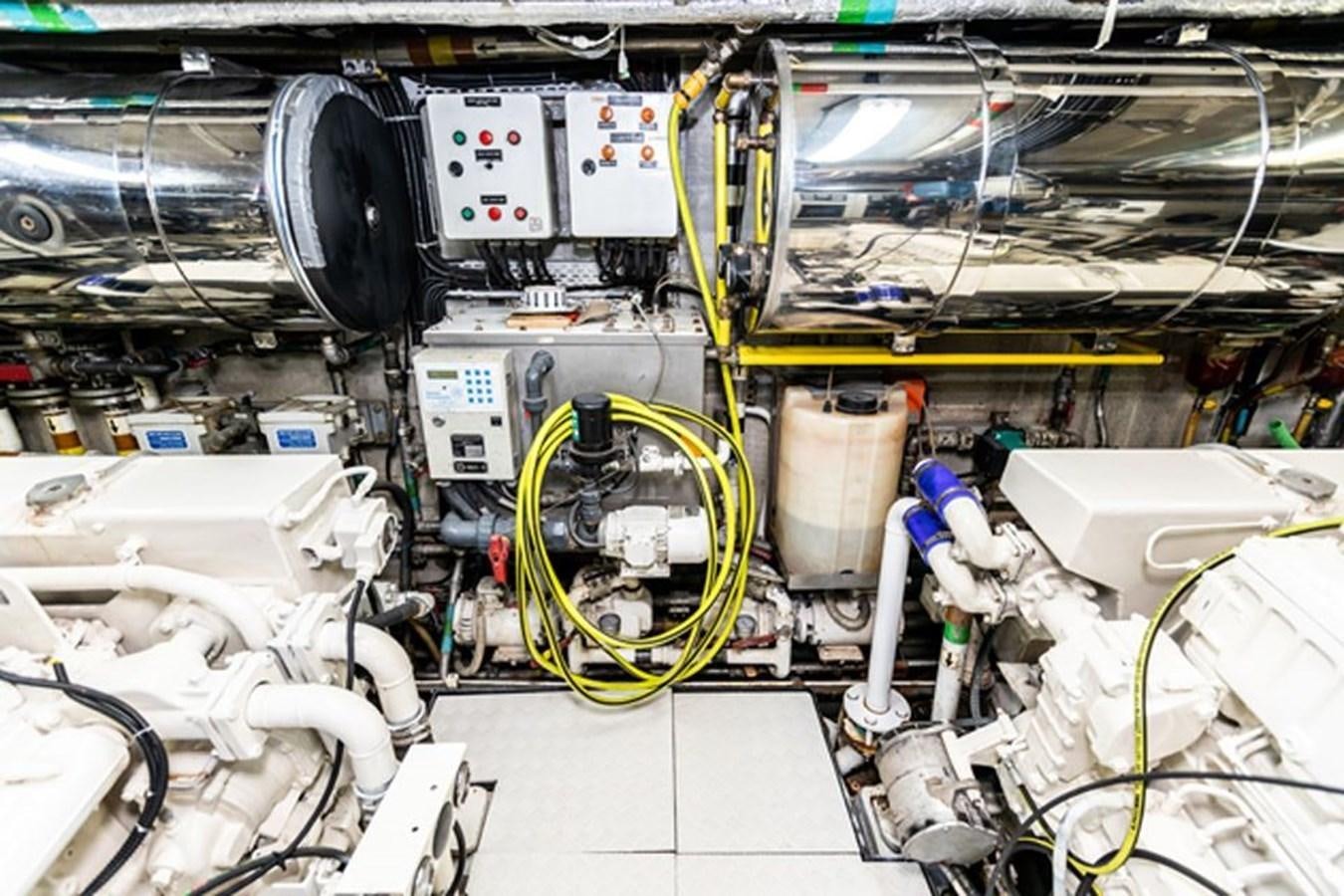

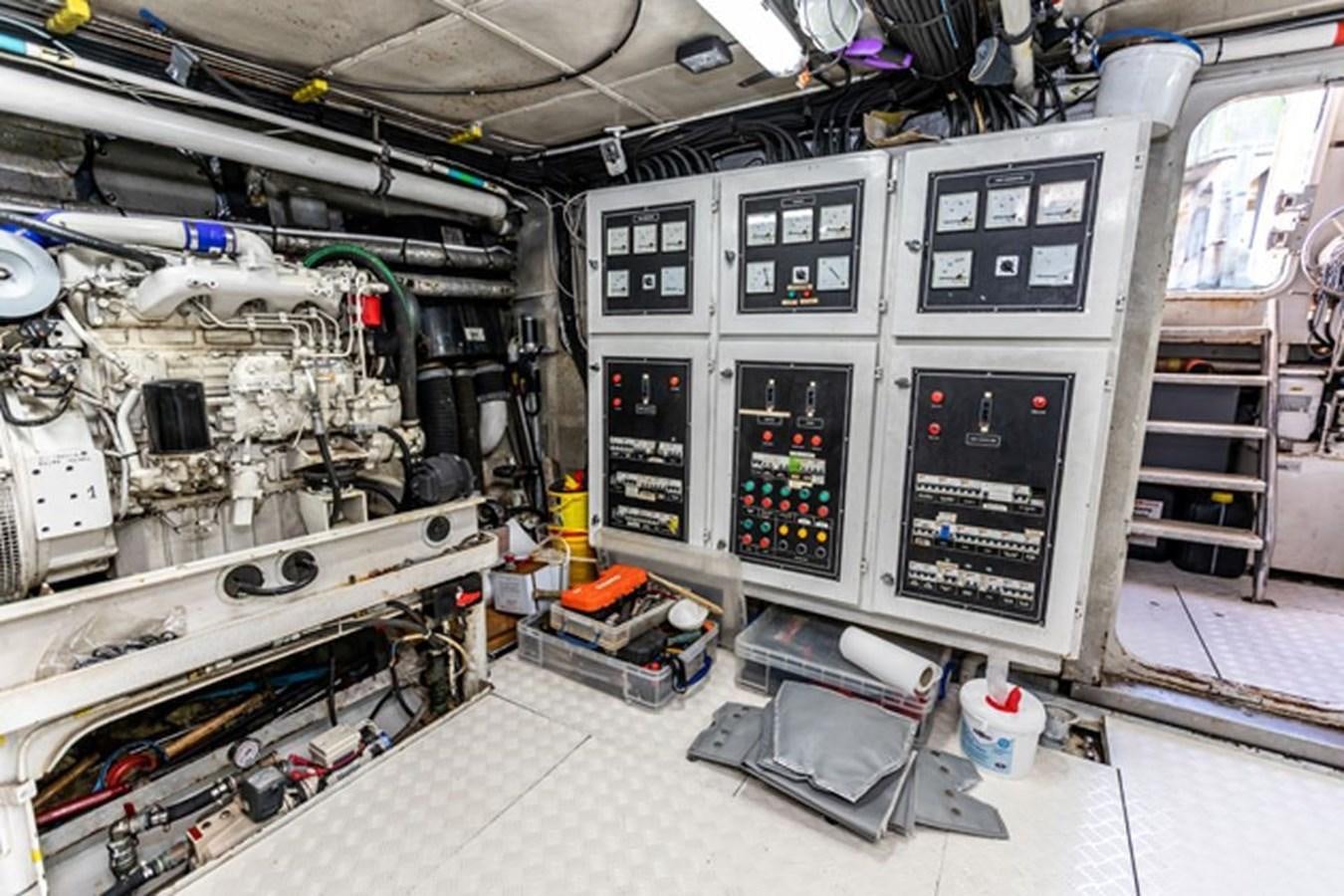

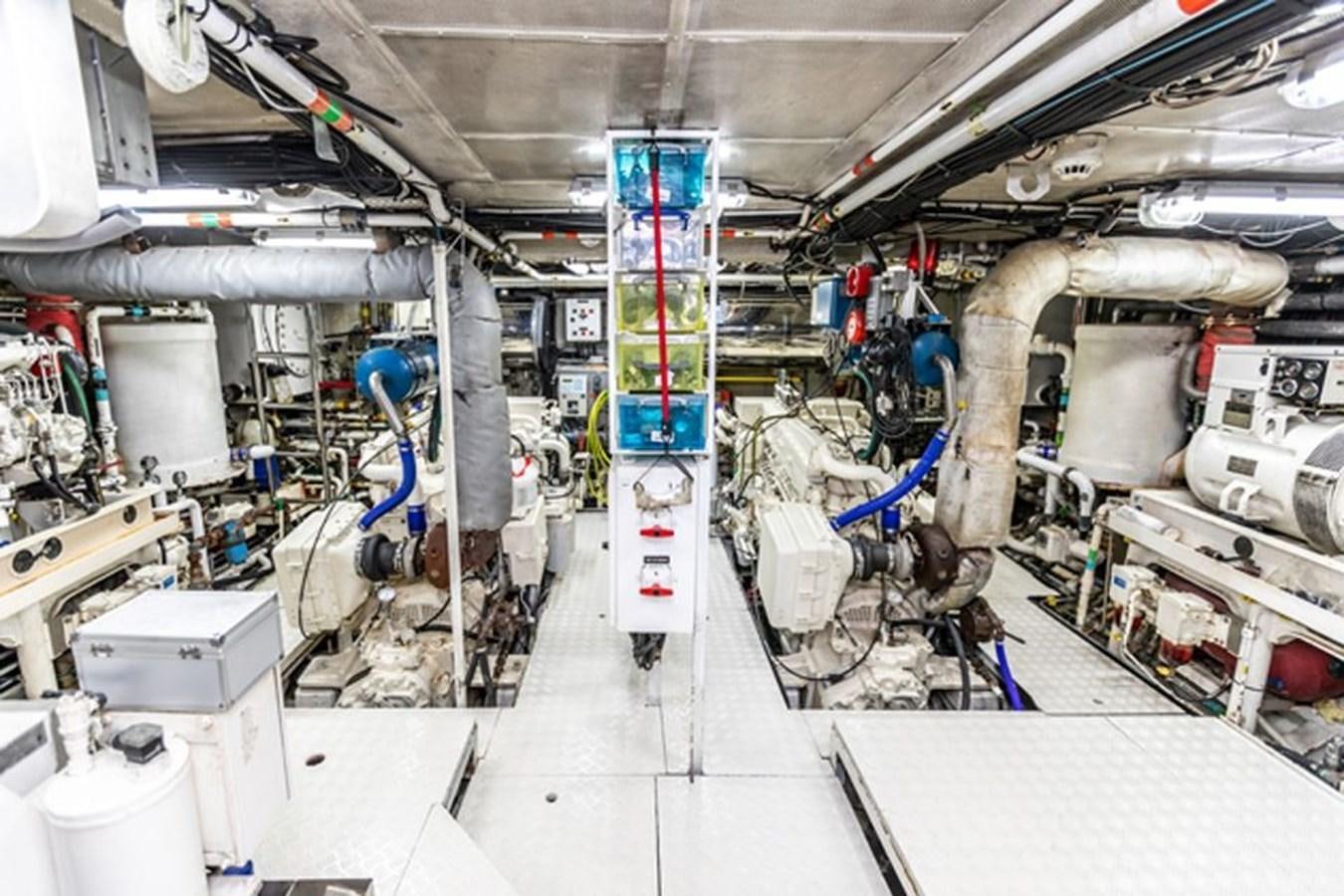

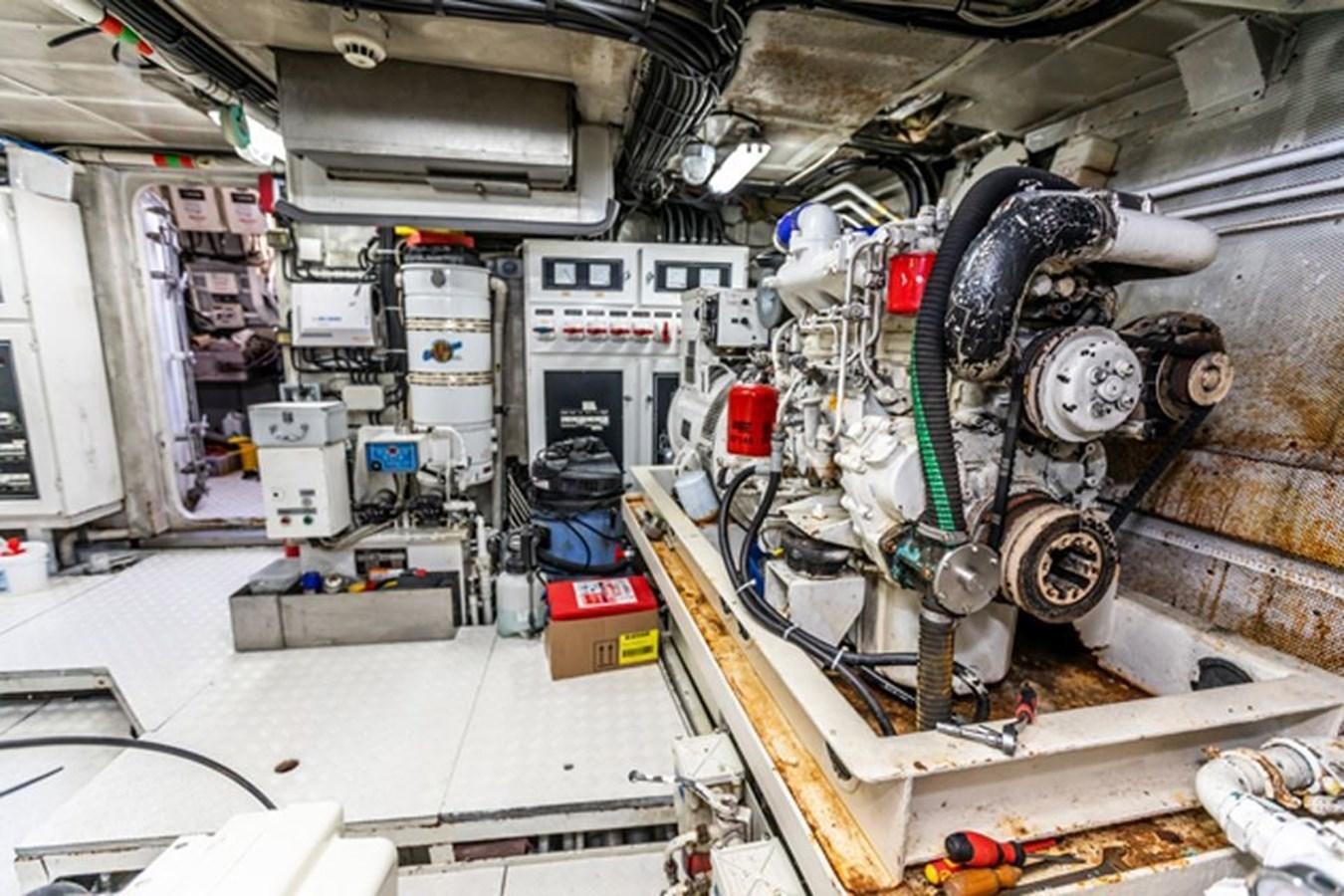

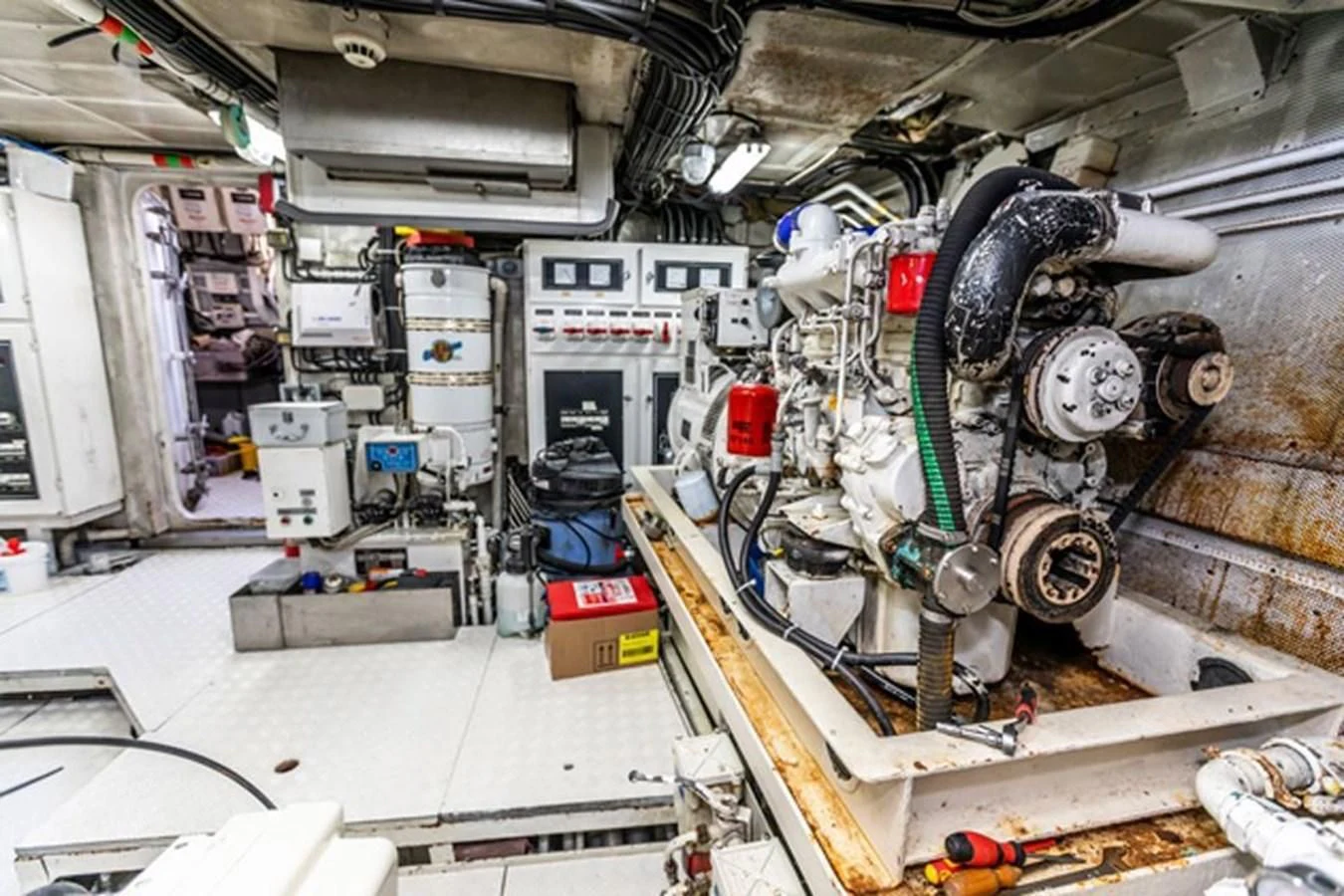

Engine Room

• Accessed either from the bathing platform of via and access watertight door on the starboard side of the mid-deck.

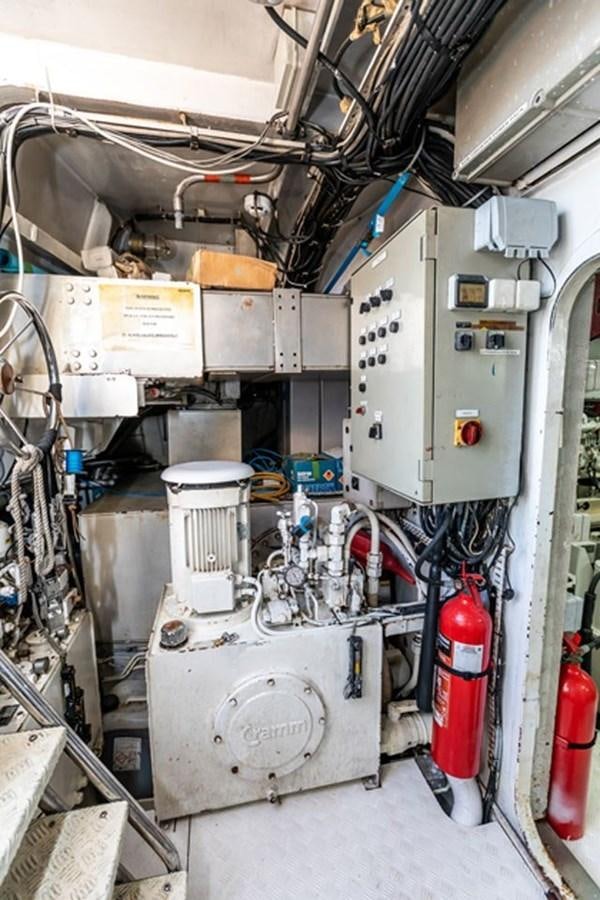

• Separate lazarette area aft housing transformer, air conditioning units, batteries, and hydraulics for the passerelle and bathing lader.

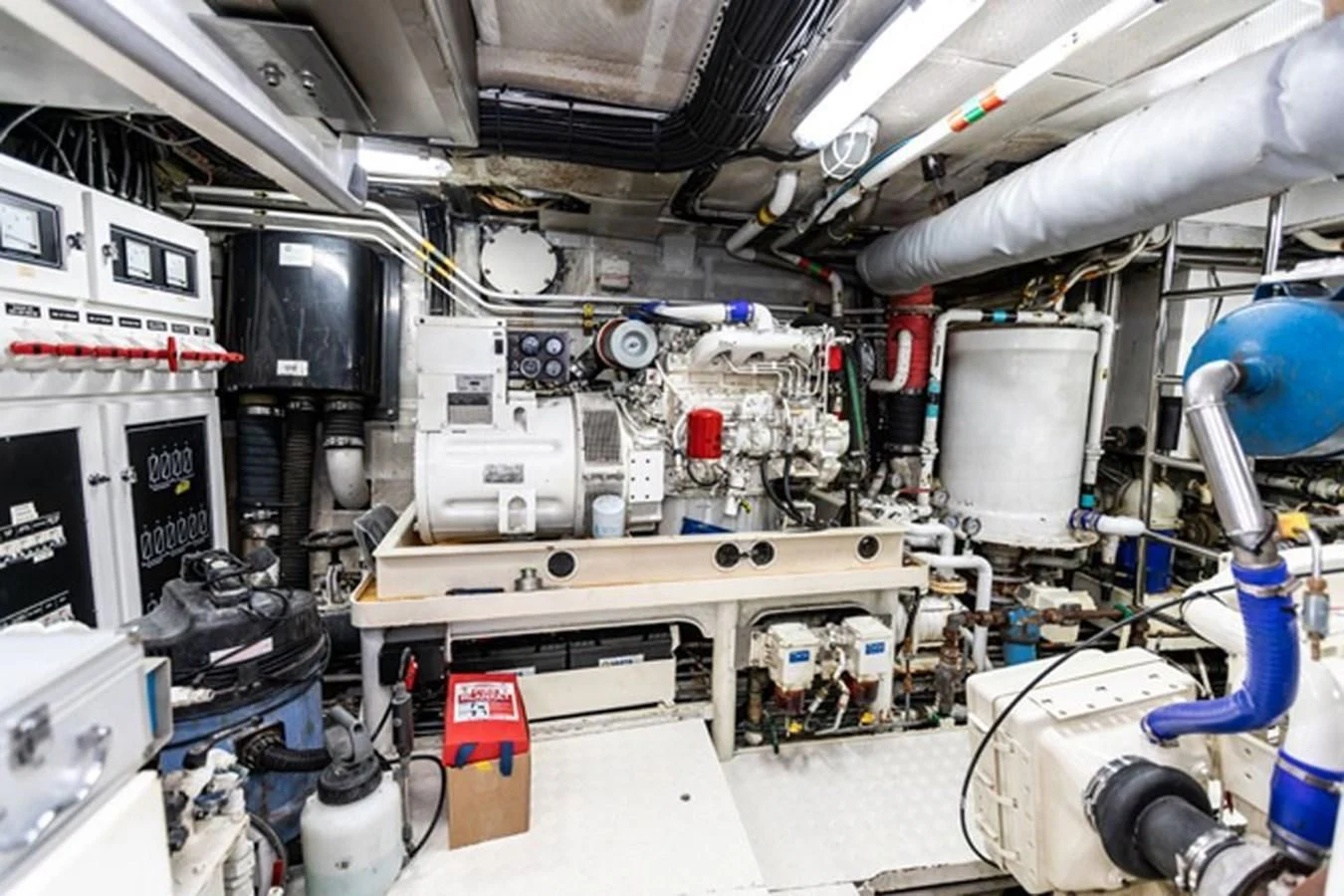

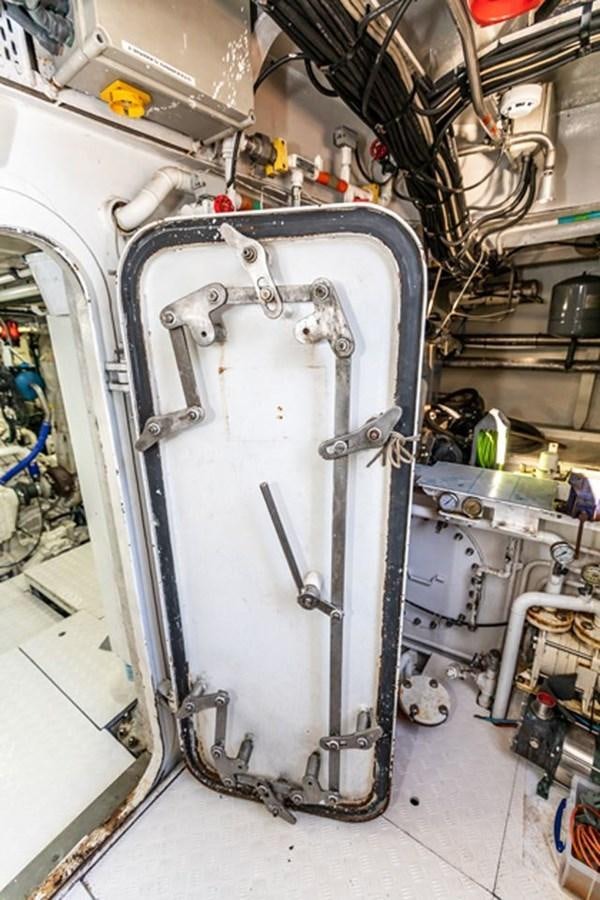

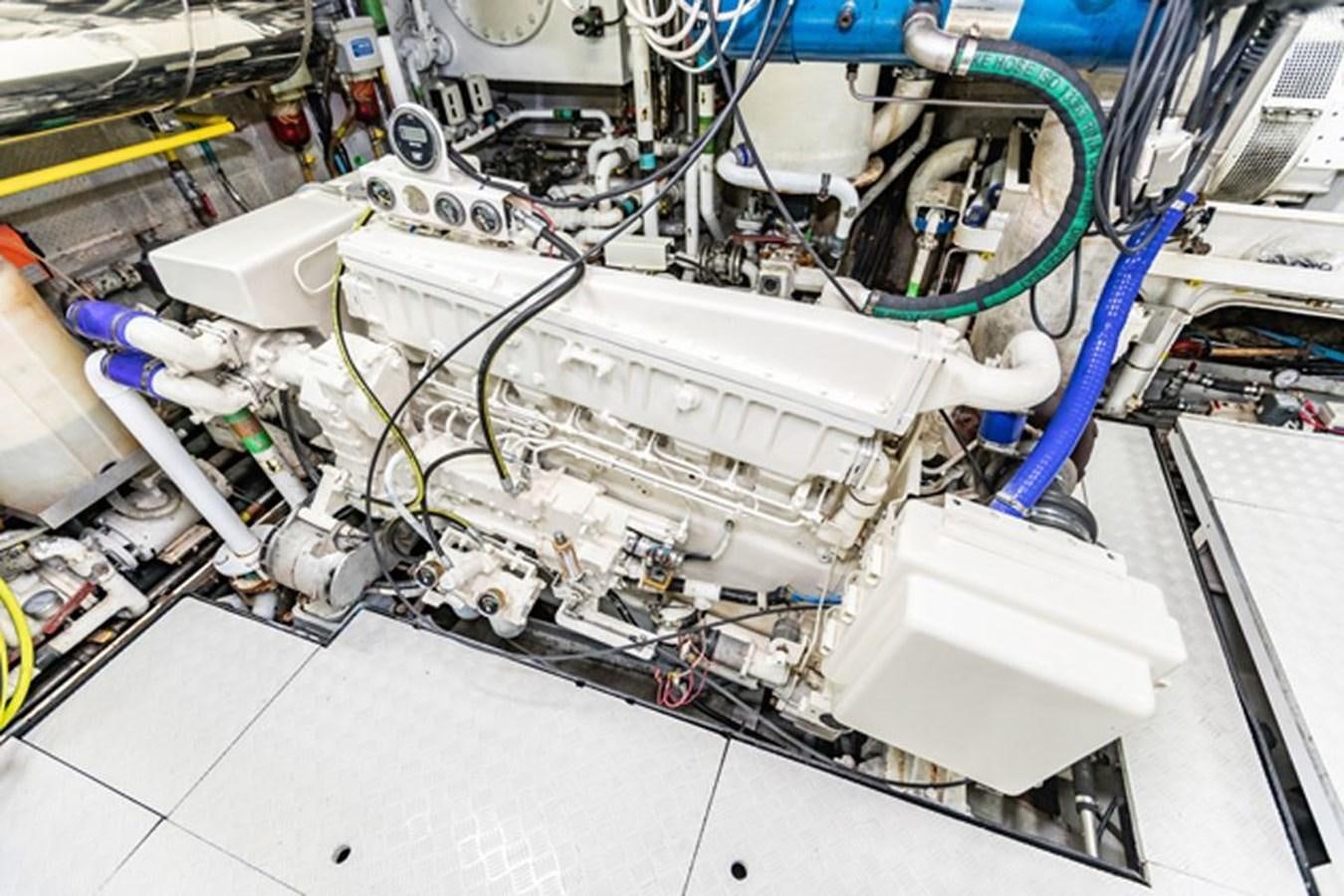

• Watertight door into the well laid out engine room with main engines, generators, and other services.
• Fully sound insulated and with chequer plate sole.

Other

• Vacuum cleaner -Central remote unit (engine room) with portable plug in hose.
• Safe located in owners walk in wardrobe.

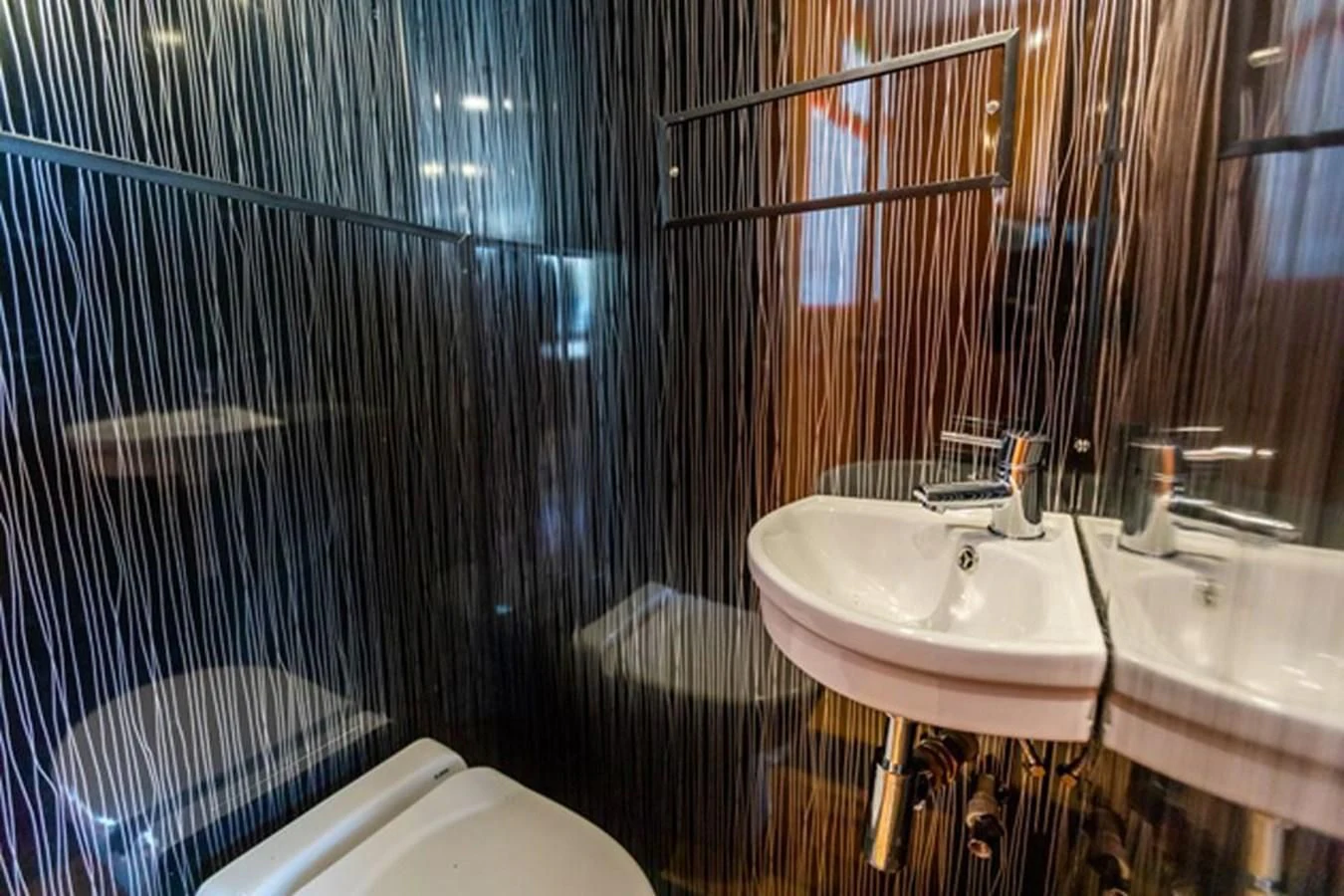

Heads/Showers

• Vacuflush electric fresh water WCs.
• Separated shower stalls to all sleeping cabins.

Heating & Ventilation

• 2 x sea water cooling pumps & 2 x chilled water circulation pumps.
• Air conditioning has been checked and overhauled. New compressors require fitting.

Lighting

• LED built in lighting.
• 240v and DC additional lighting conventional halogen.

Fresh Water & Water Heating System

• 2 hot water boilers situated in engine room, one replaced 2019. Heated via Immersion heaters and run via generator, ships power or shore powers.
• Accumulator tanks for pressurised water systems.
• Full sewage treatment plant.

Watermaker

• 1 x HP Reverse Osmosis watermaker. SC 140. 120 litre/hour.
• Currently ashore after full service and requires refit to the vessel.

Bilge Pumps

• Separate bilge pumps for each compartment on the Vessel.
• Emergency fire pump situated in the lazarette.

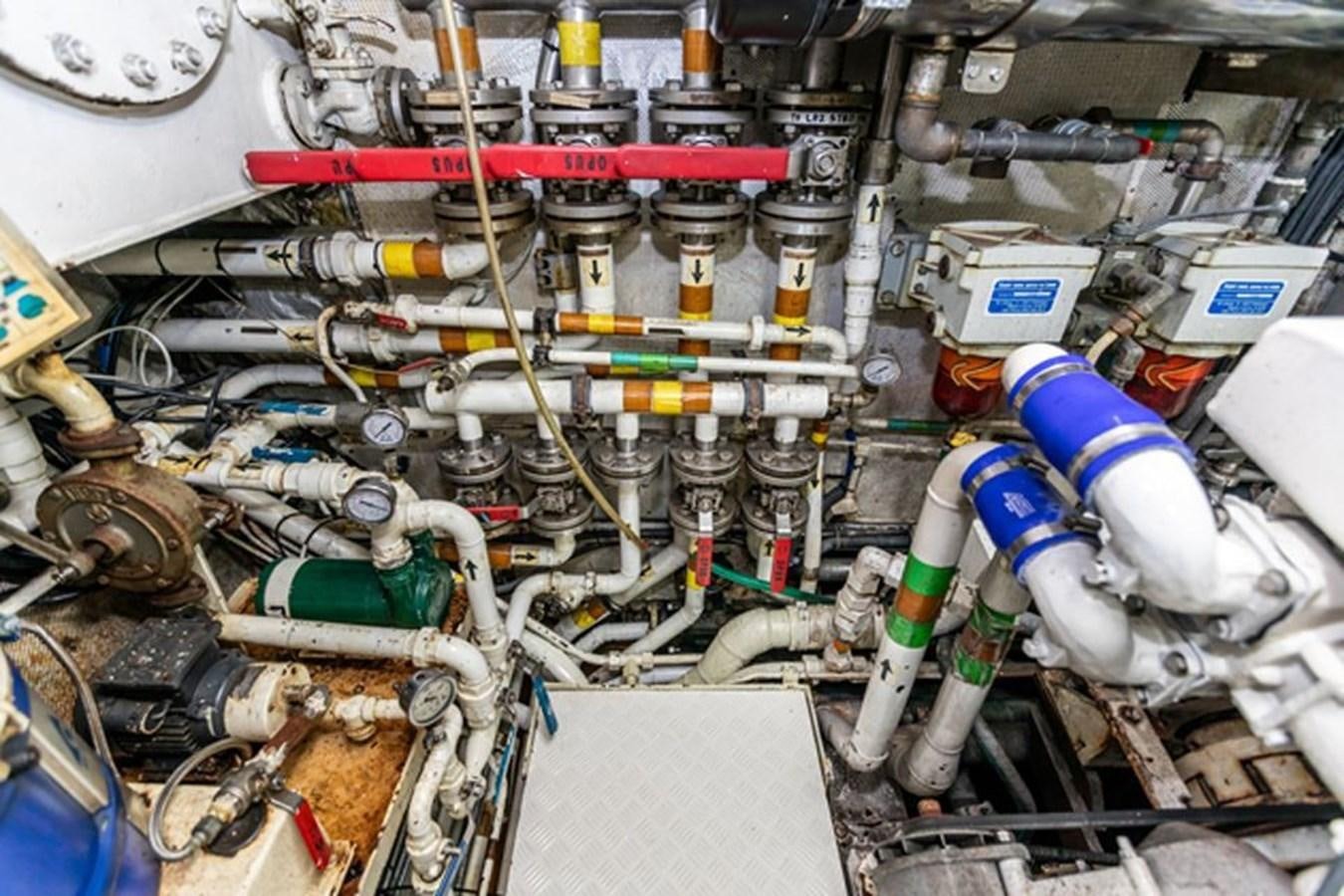

• Manifold in engine room to control pump out.

Grey & Black Water

• 1 x Hamann HL-Cont. Super Mini. 2.52 M³ / day USCG & MARPOL compliant.
• Y valves for both grey and black water to enable discharge both directly or into the grey and black water tanks.
• Deck pump out.

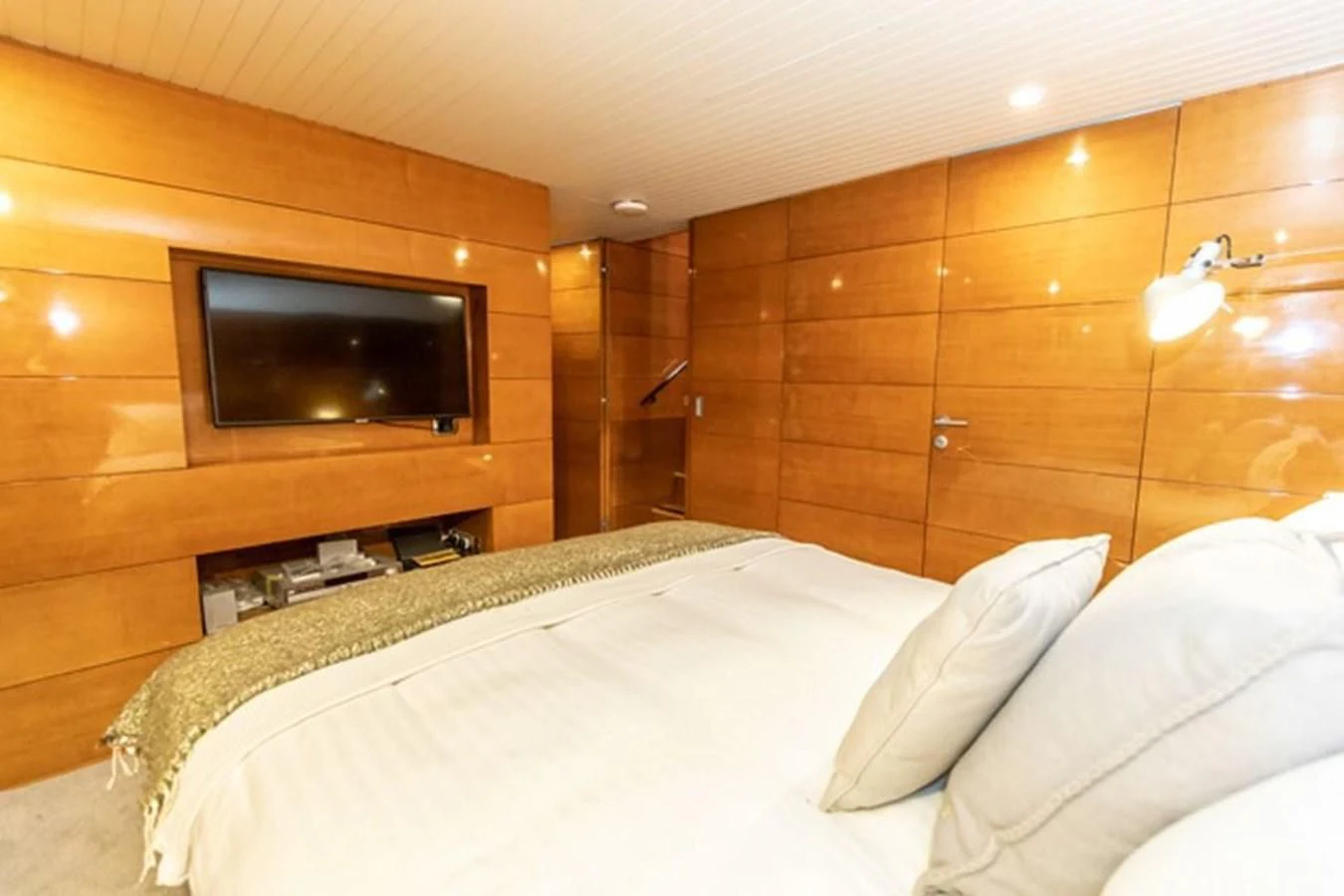

Owner’s Cabin

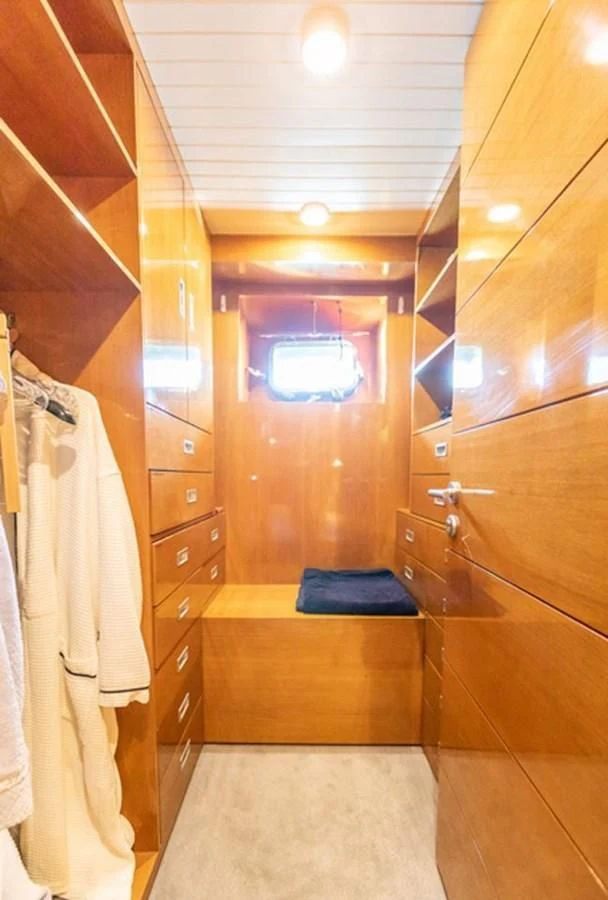

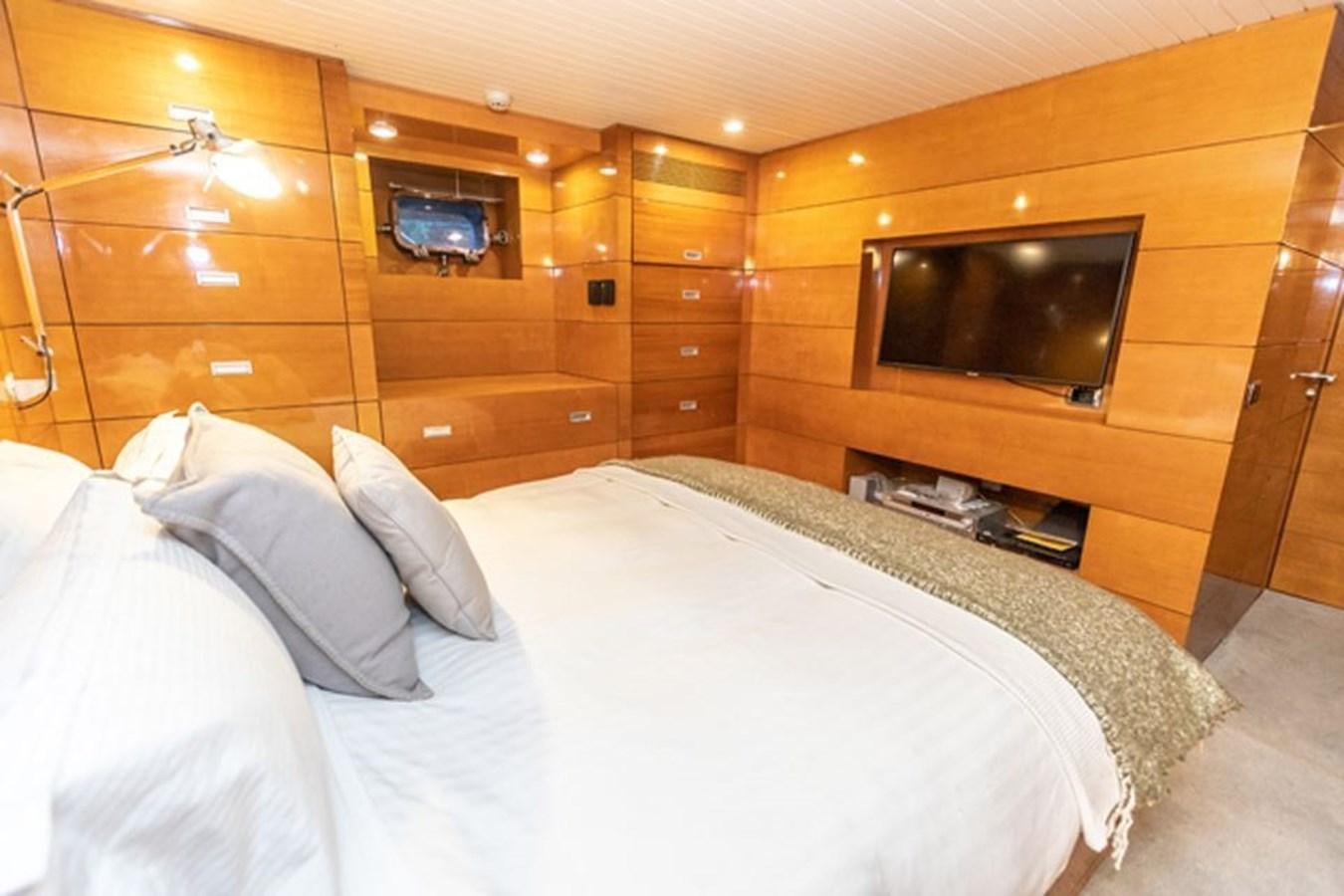

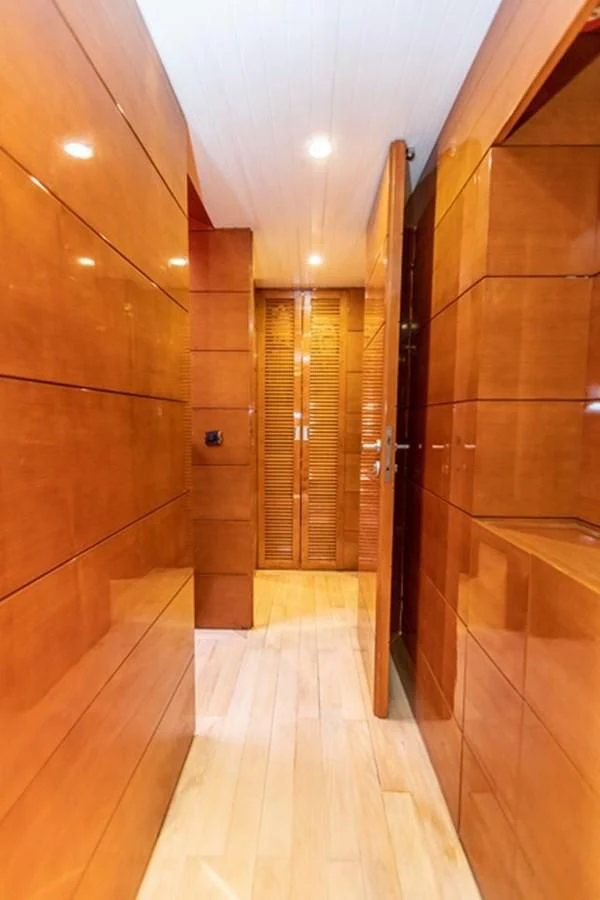

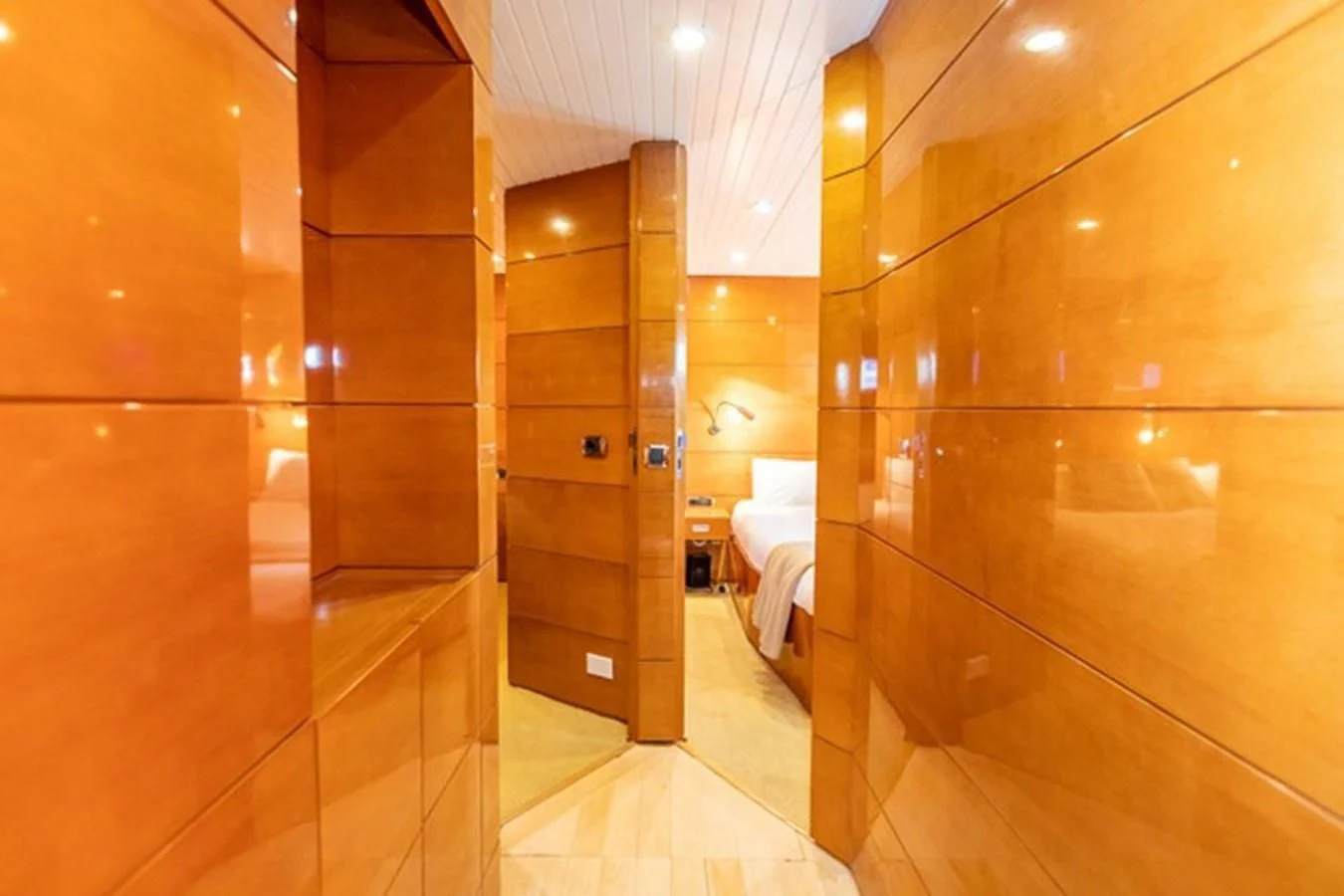

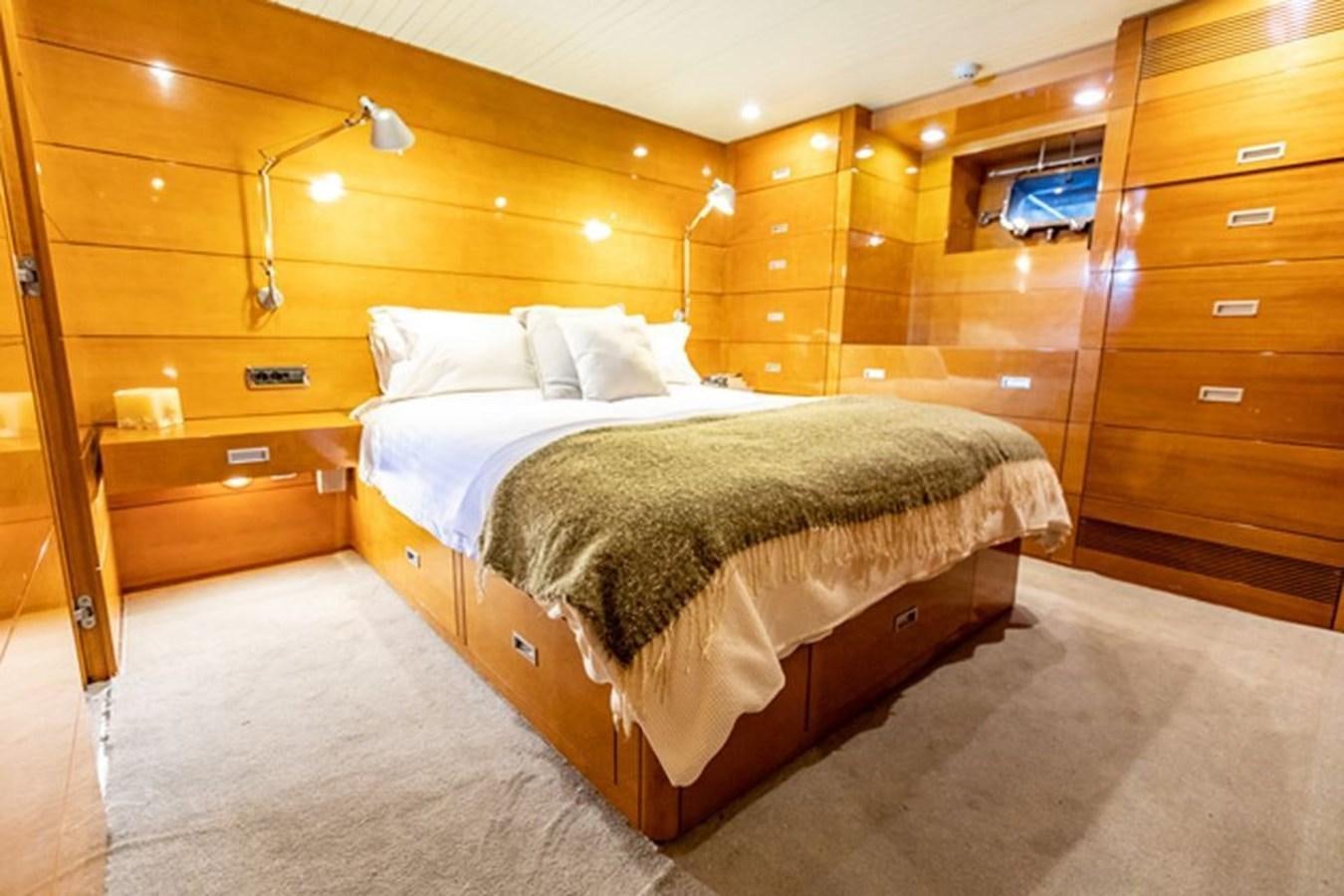

• Full beam Owners’ stateroom situated amidships with walk in wardrobe that houses the owners’ safe
• Cupboards and ample storage.
• Opening port hole windows both port and starboard.
• King size double berth with storage beneath.

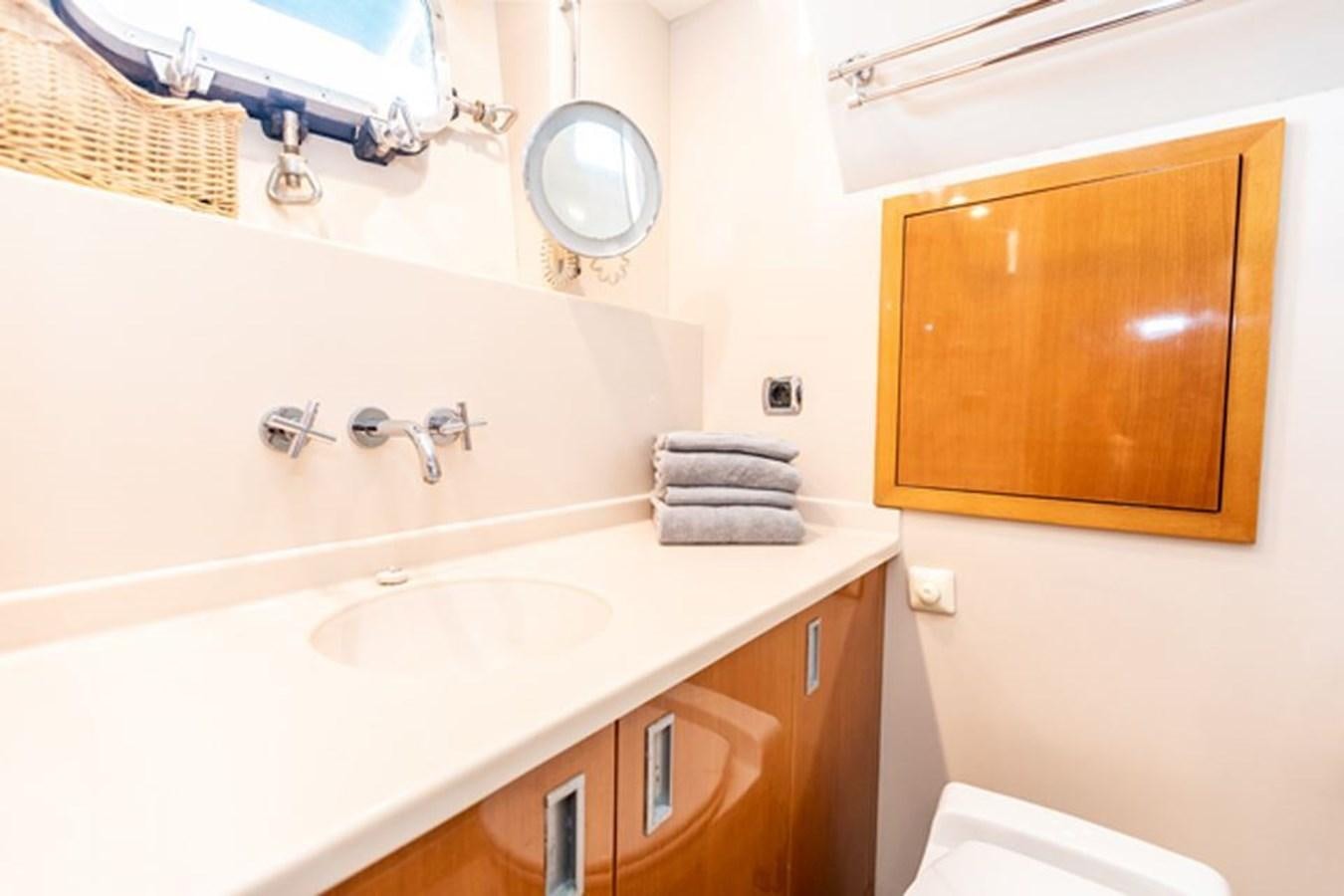

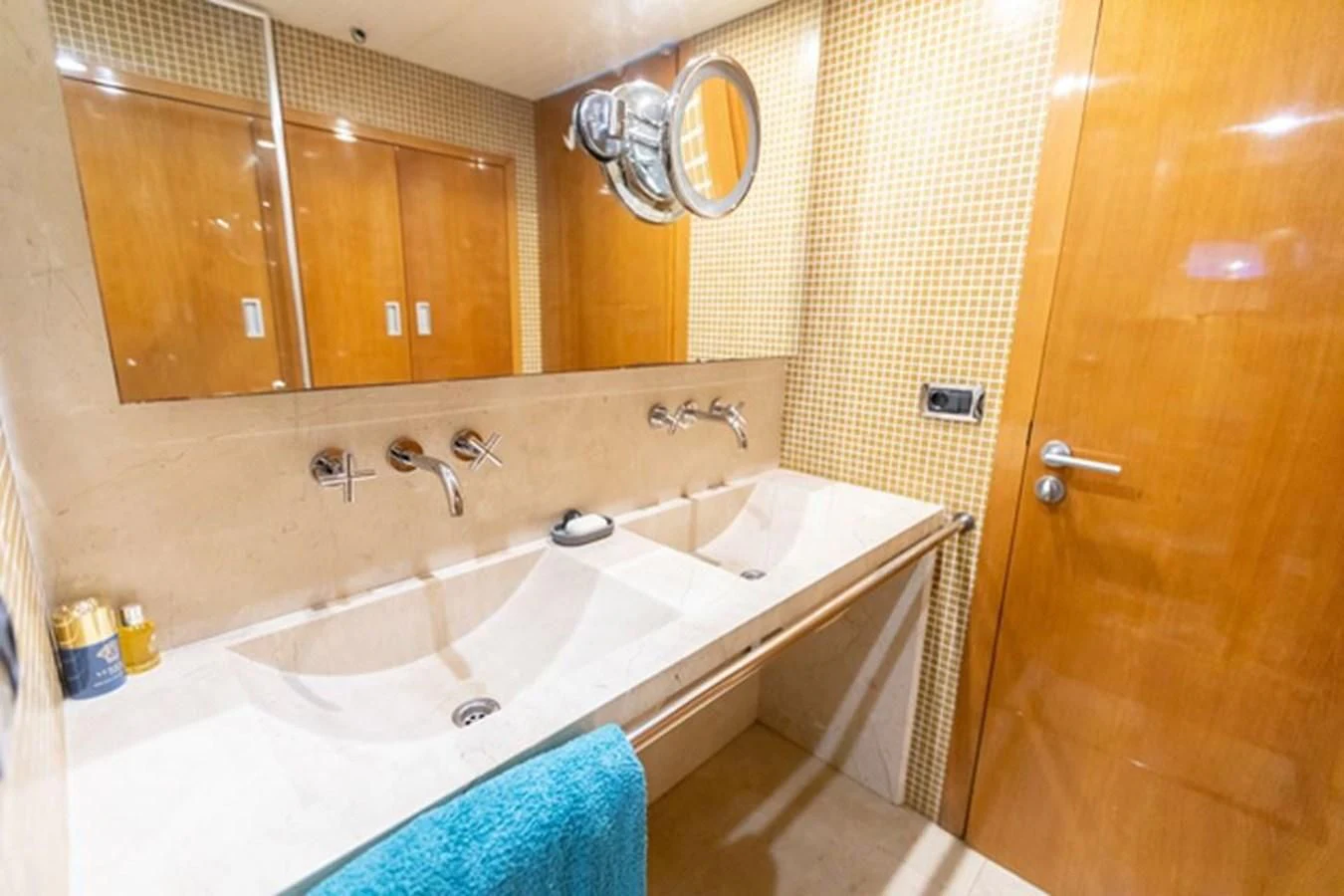

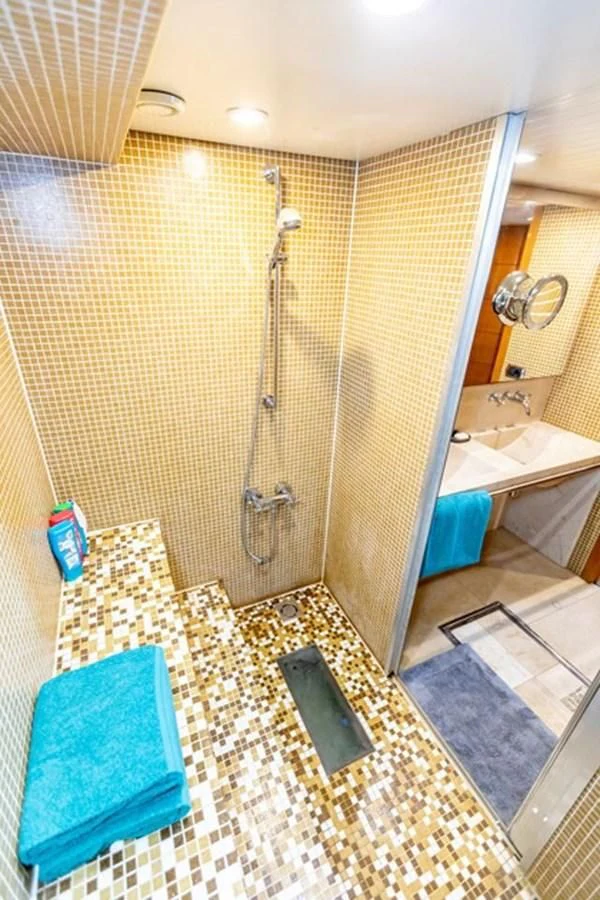

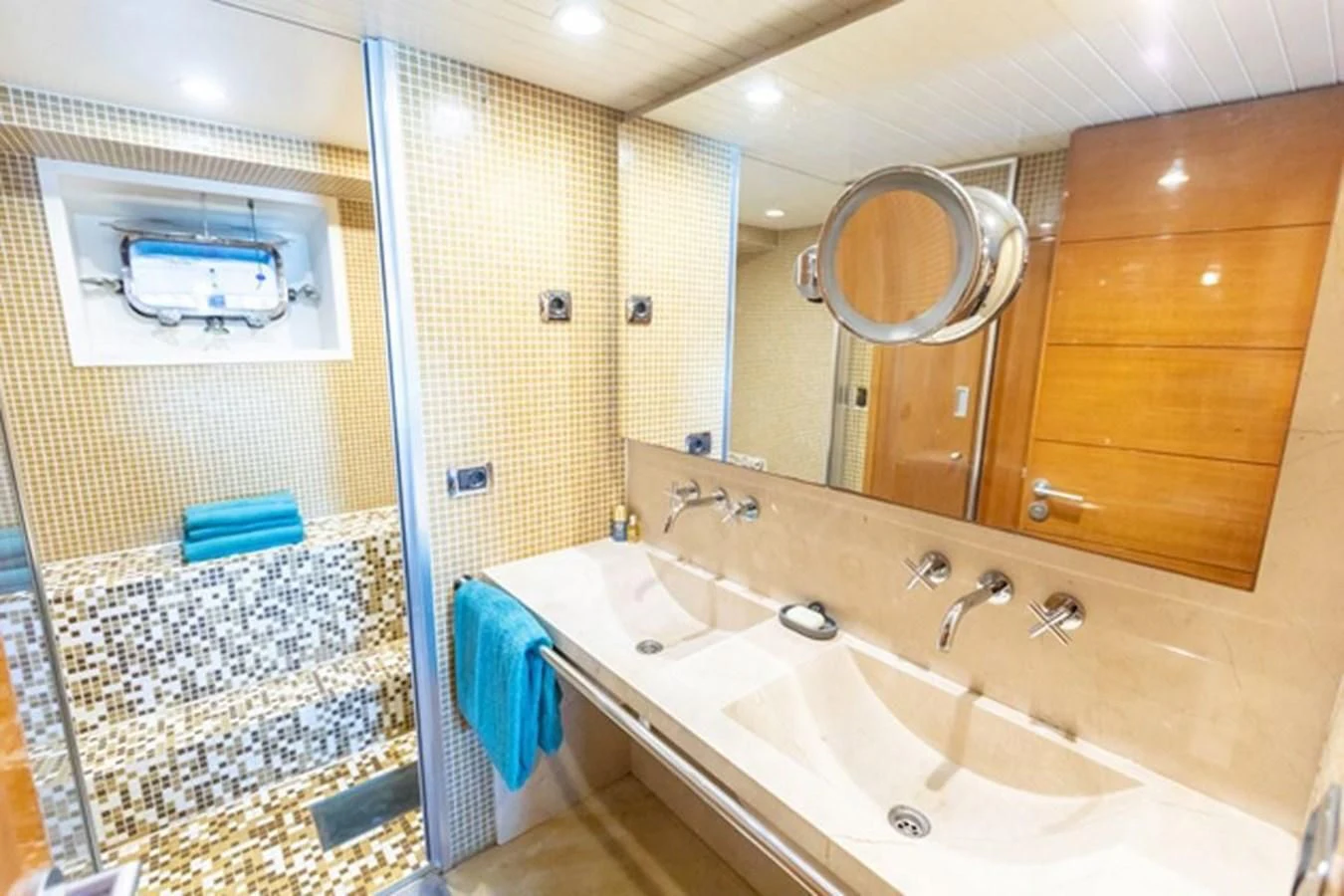

• Large double his/hers bathroom with storage, vanity mirrors and spacious shower compartment with sauna style seating area.

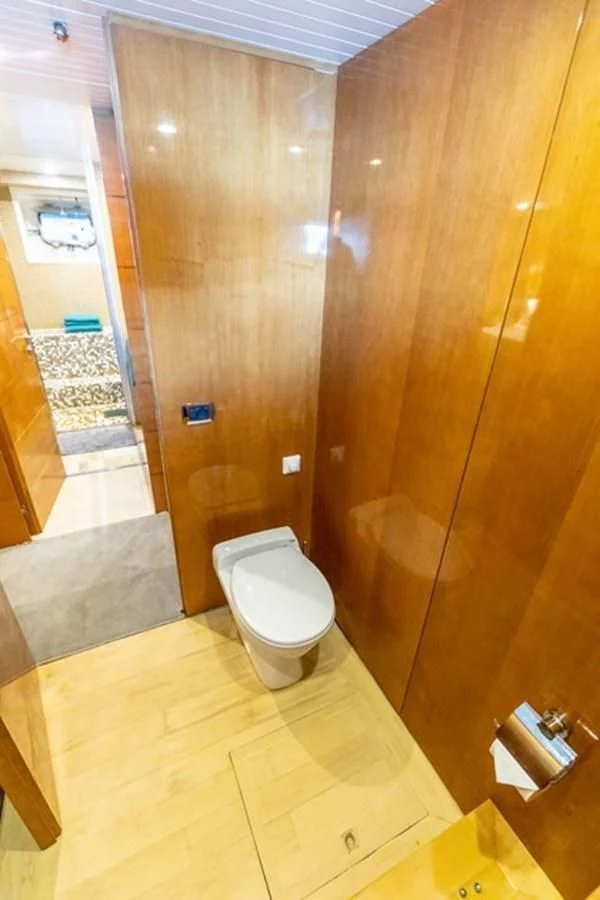

• Separate WC compartment.

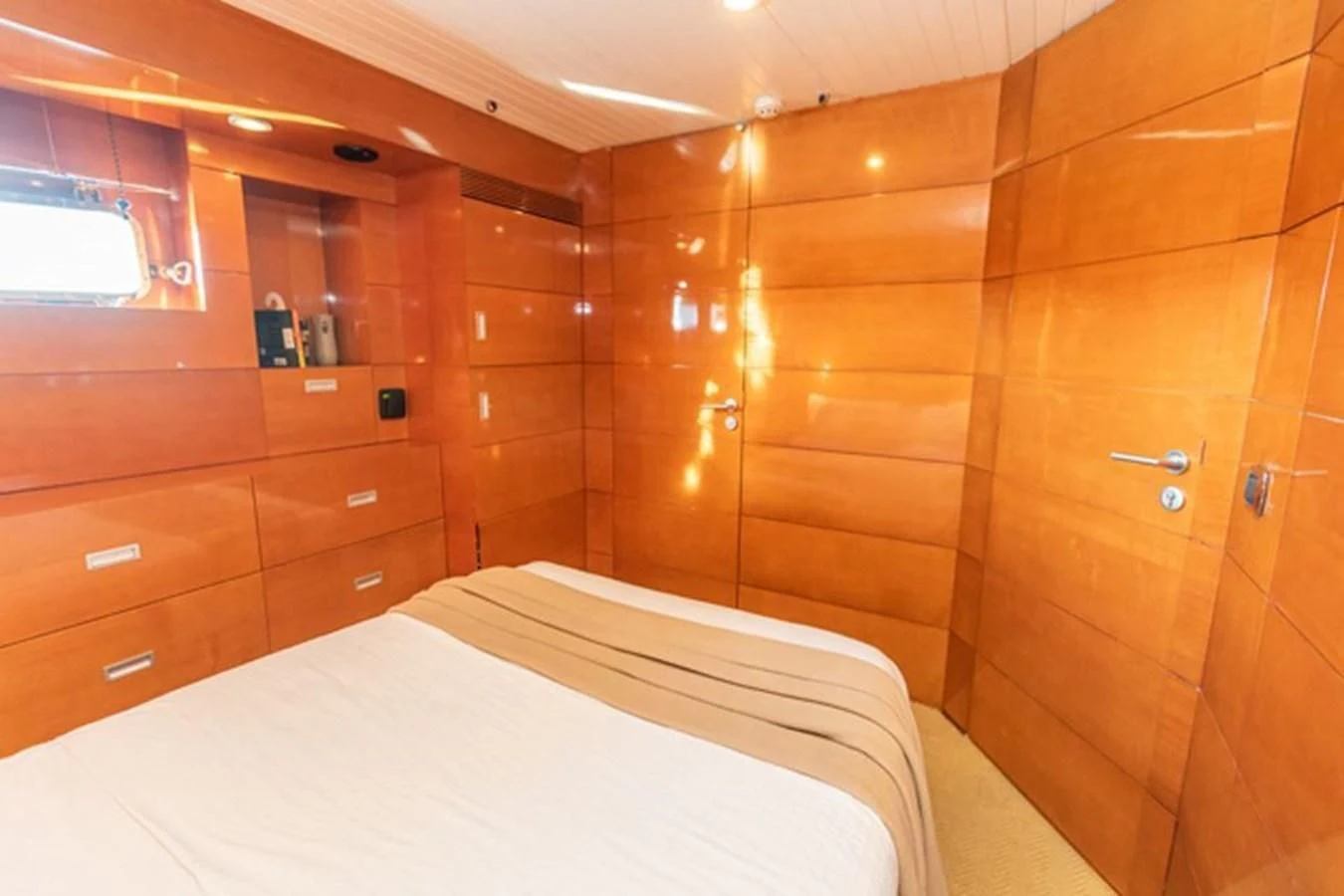

Guest Cabins

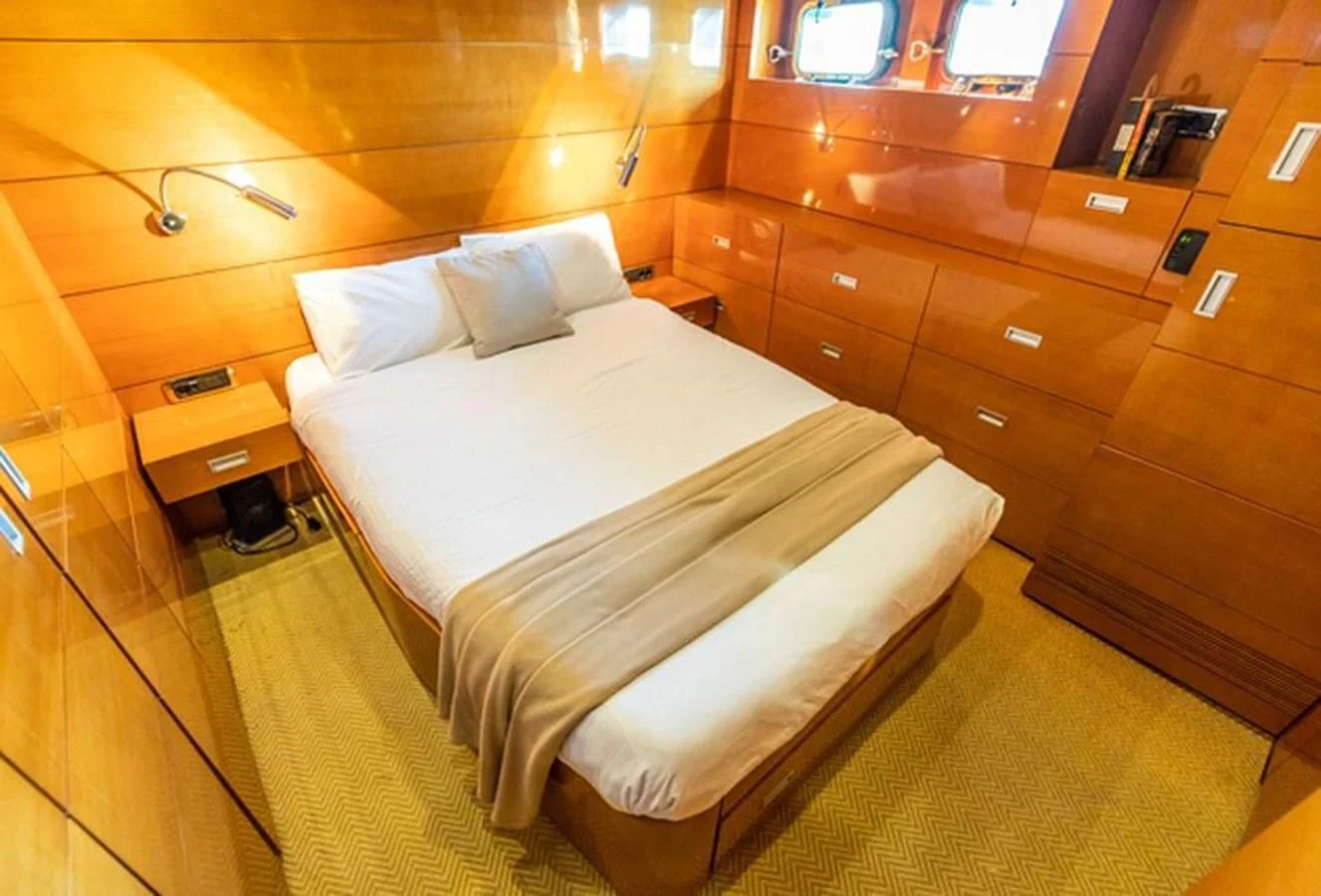

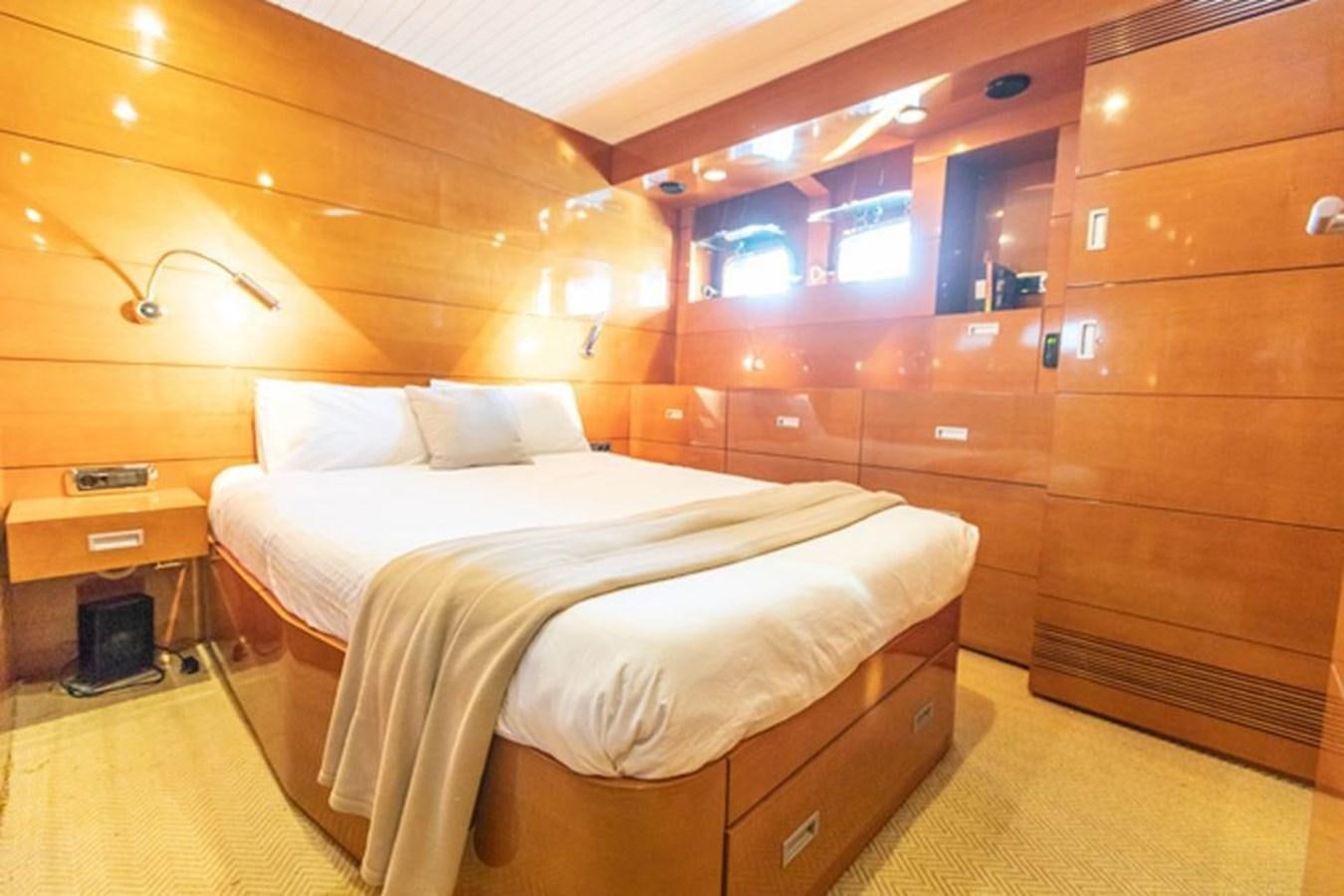

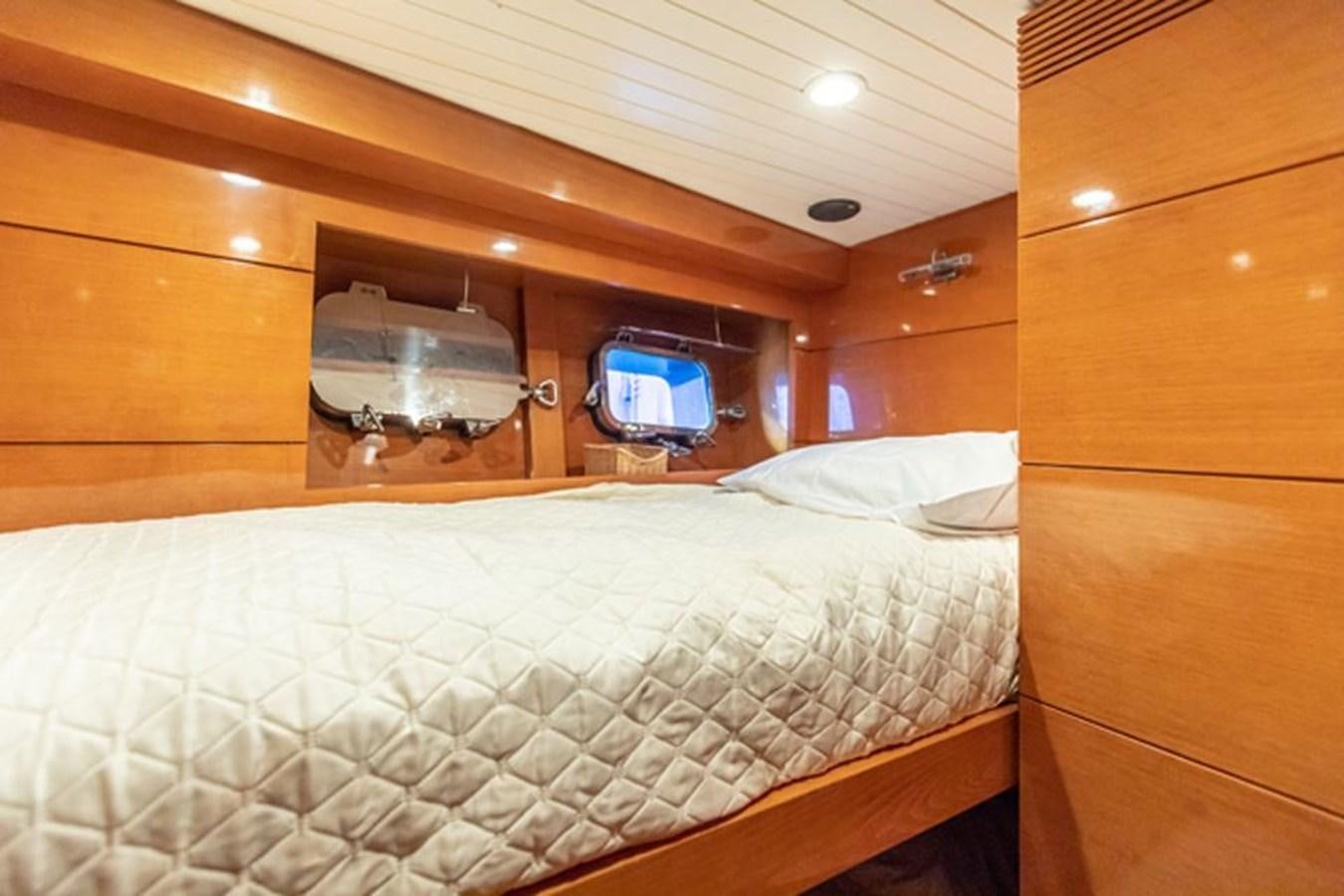

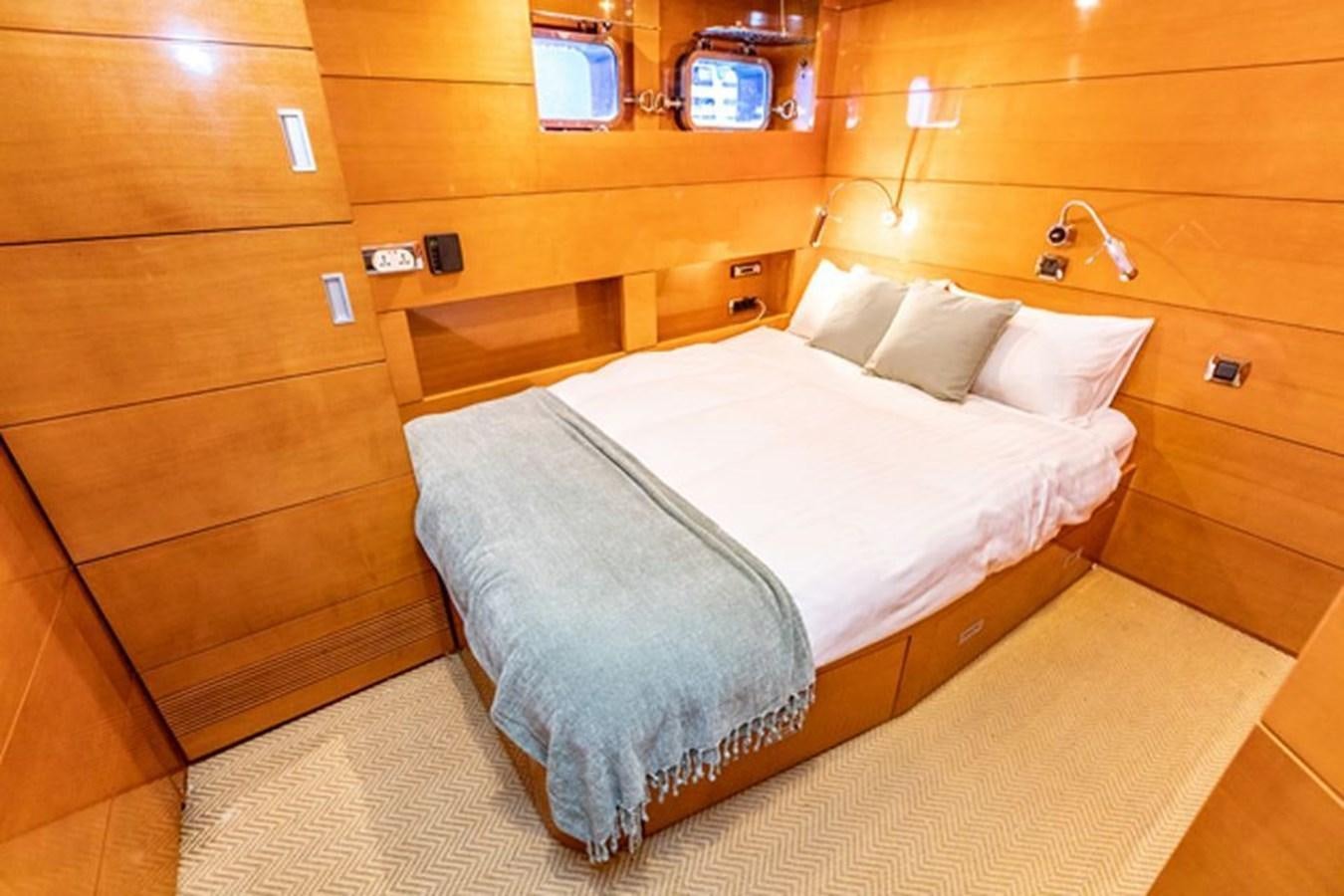

• 2 x VIP double berth cabins with massive storage.

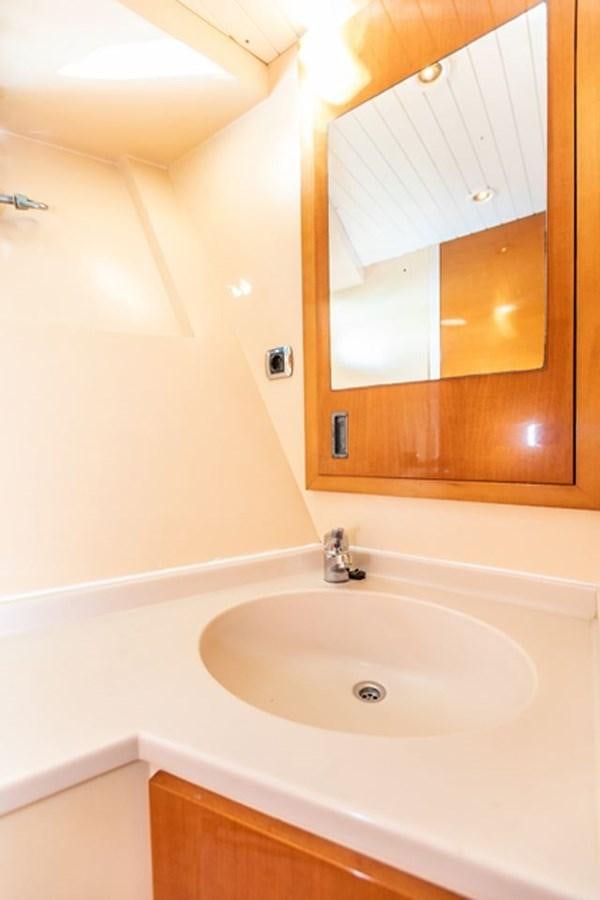

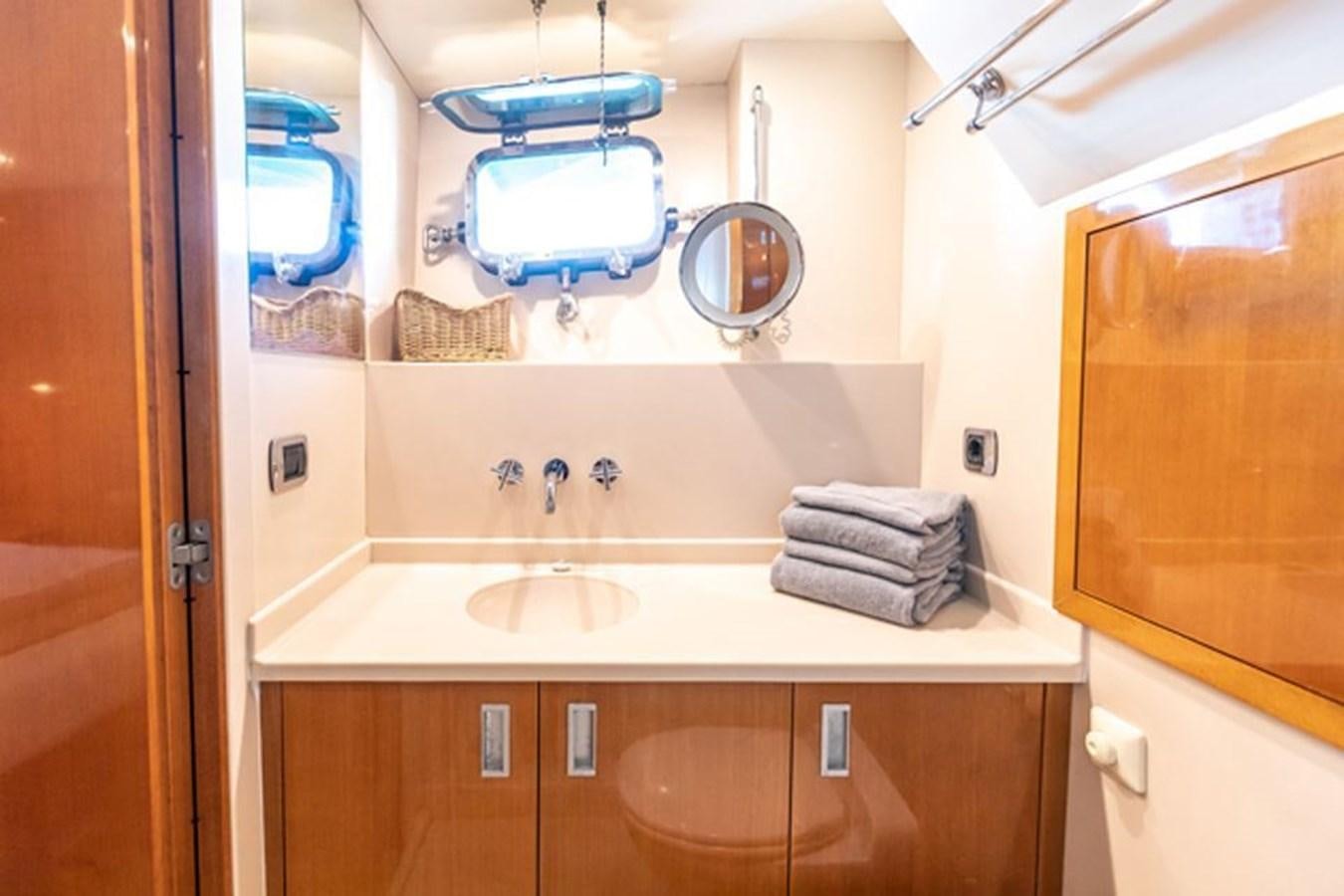

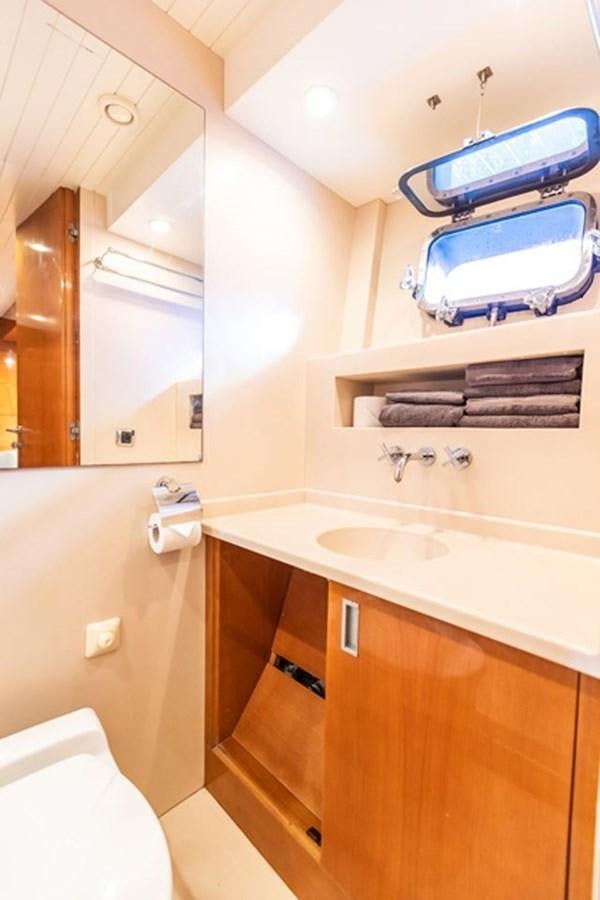

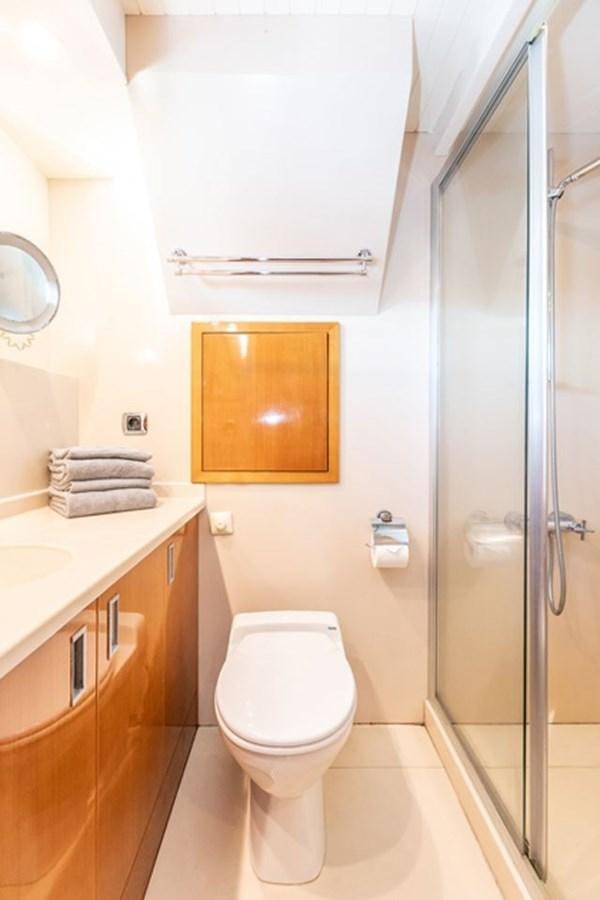

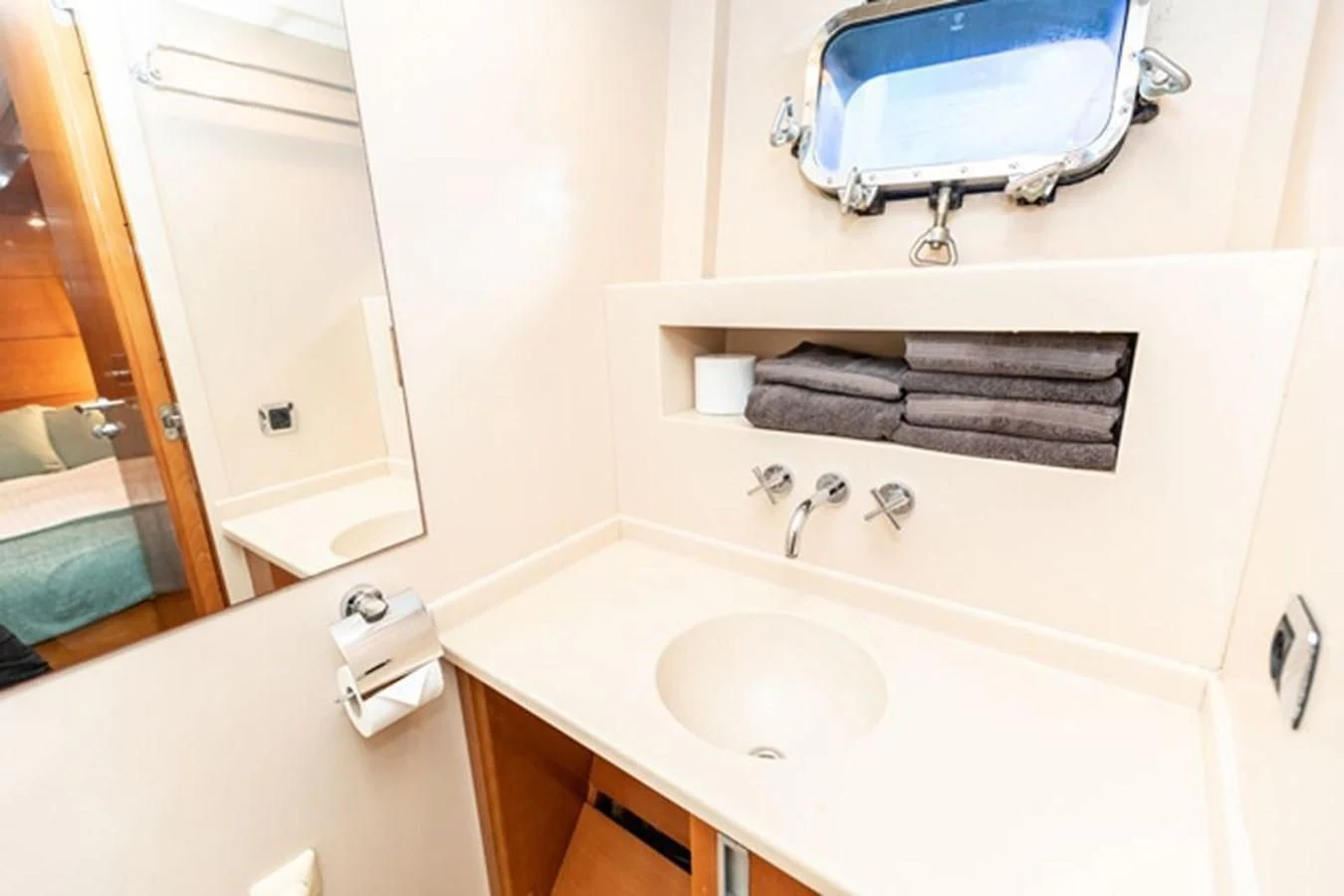

• En-suite shower and WC with vanity mirror units for each cabin.

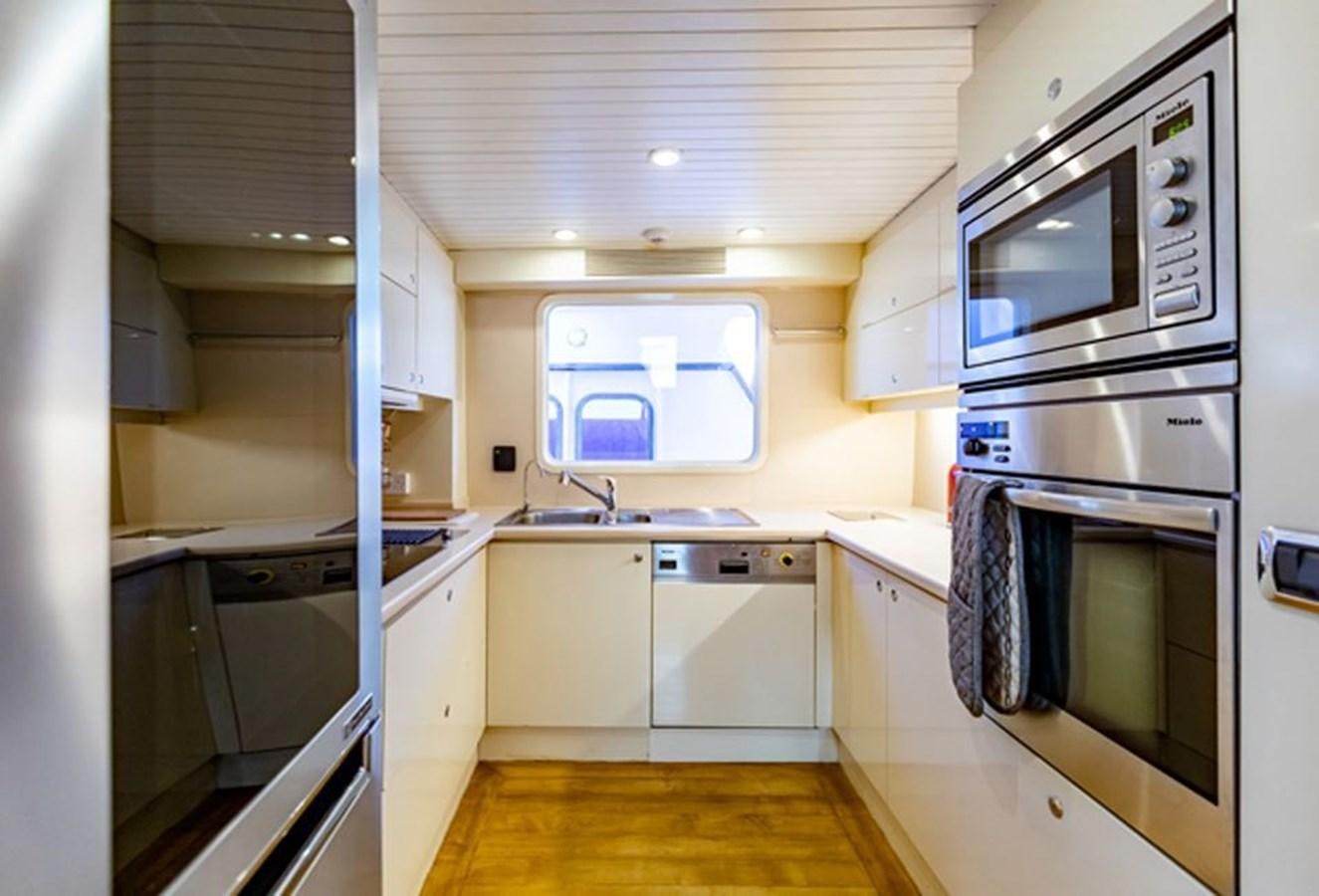

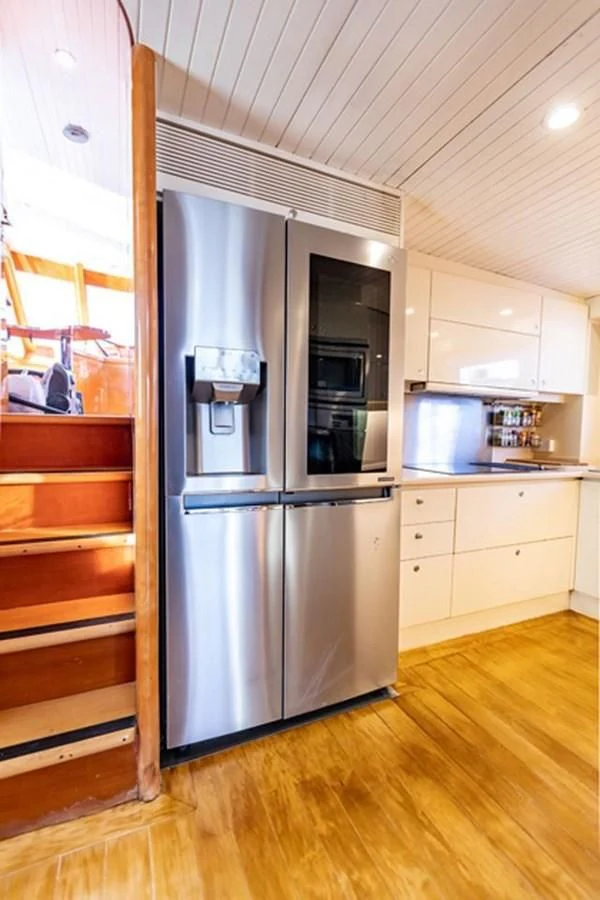

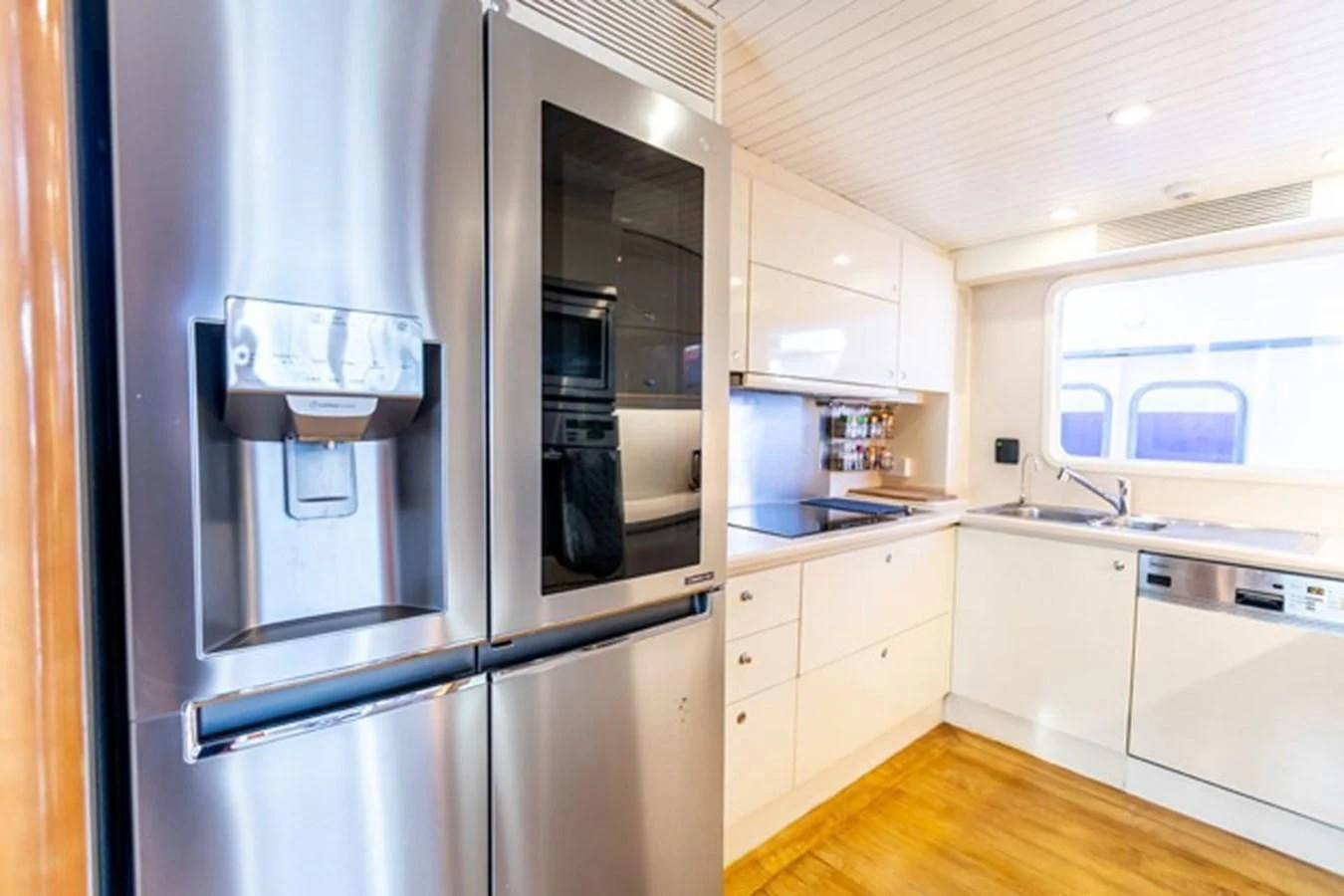

Galley

• Miele Deep Freeze/Refrigerator/ice maker - stainless steel marine unit.

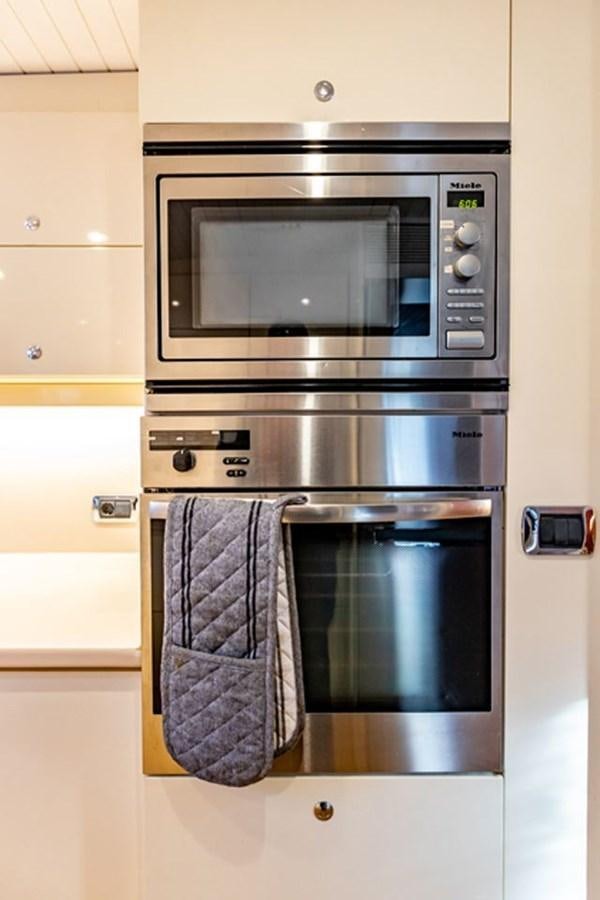

• Miele Microwave, M625 unit 1000w.

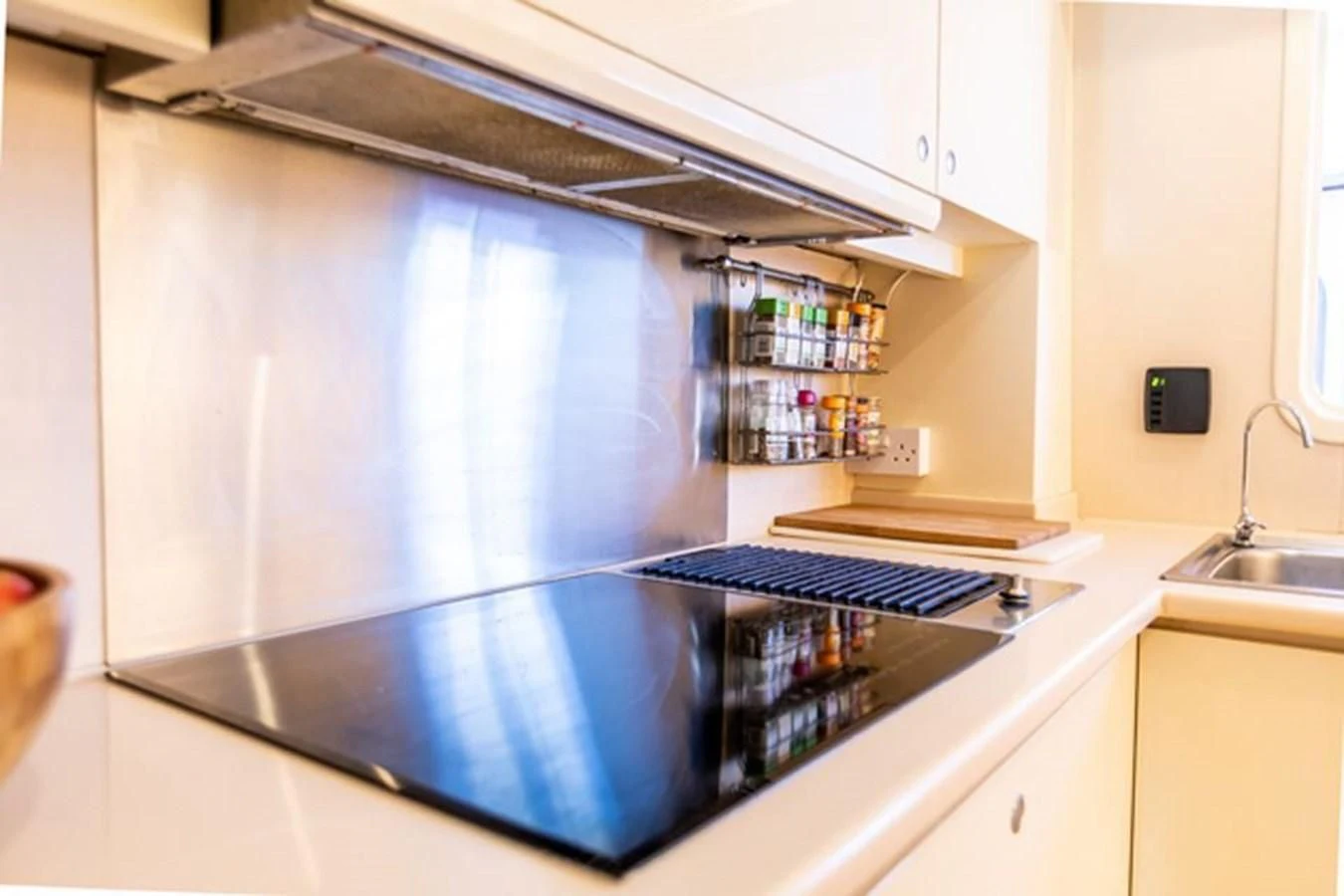

• Miele 4 x ceramic touch control hob & BBQ grill with hood extractor & overhead light CO2 fire control drench system.
• Miele Oven/Grill, H35OB 3.3Kw.
• Miele dish washer, G68 full service.
• Kärcher 720MX power washer.
• Kärcher NT65/2 Wet vac cleaner.

Crew Area

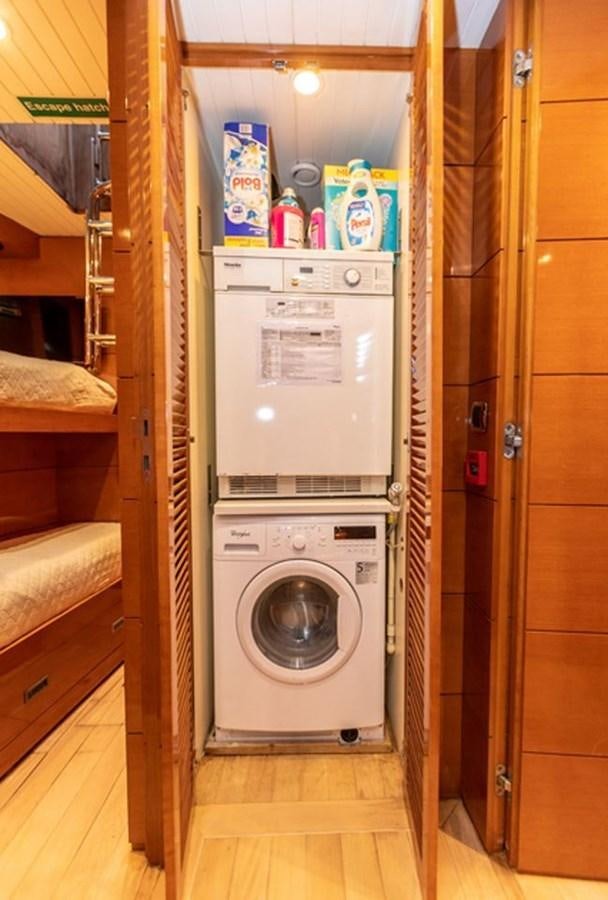

• Miele Washing machine, W989.
• Miele Dryer, T679C.

On Deck

• 1 x Wemo Bridge for Captain / crew.
• 2 x Wemo Aft deck.
• 1 x Coolstream icemaker & water filter. Aft deck.

• Simrad HT 50 hand held VHF.
• For services and manoeuvring air horn.
• Panasonic KX-T7433 telephone system 8 DECT – Handsets.
• 2 x Shipmate RS 8410 DSC handset.

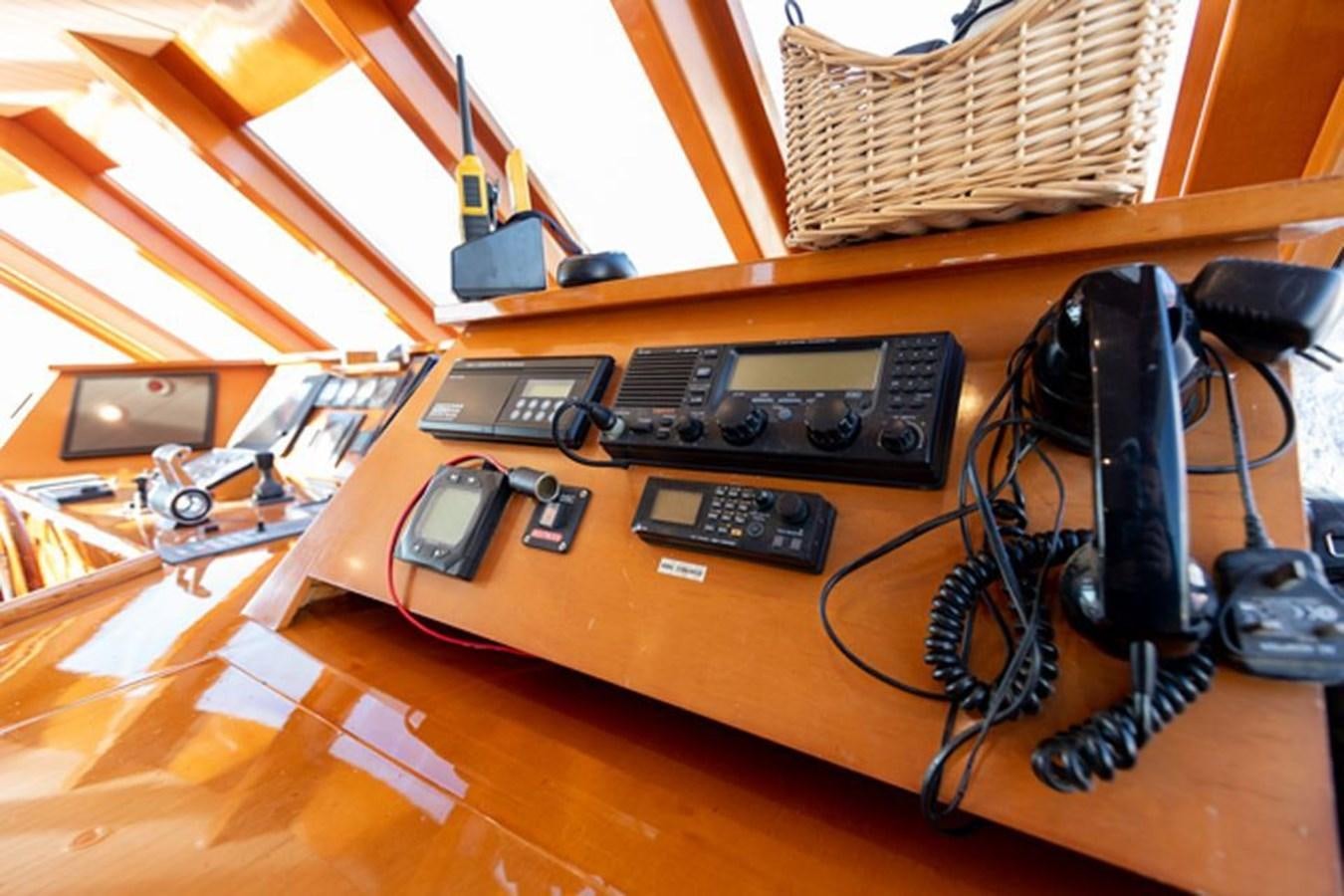

• ICOM M710 GMDSS MF/HF SSB radio with 130E ACU & GM 110 DSC unit.
• 1 x OKI Microline via HF radio.
• 1 x Sait Radio Holland ICS Nav 5. GMDSS. 518Khz.

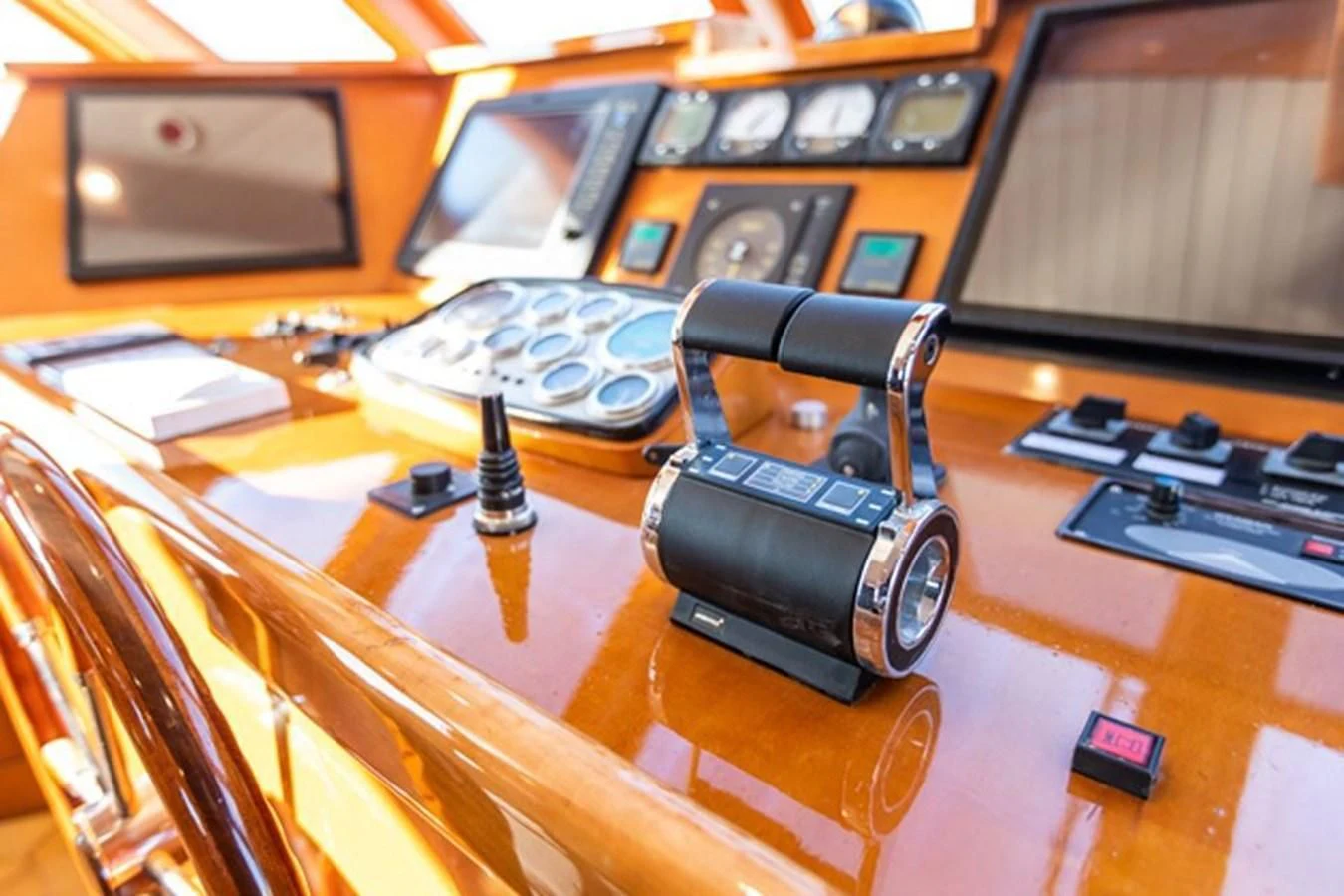

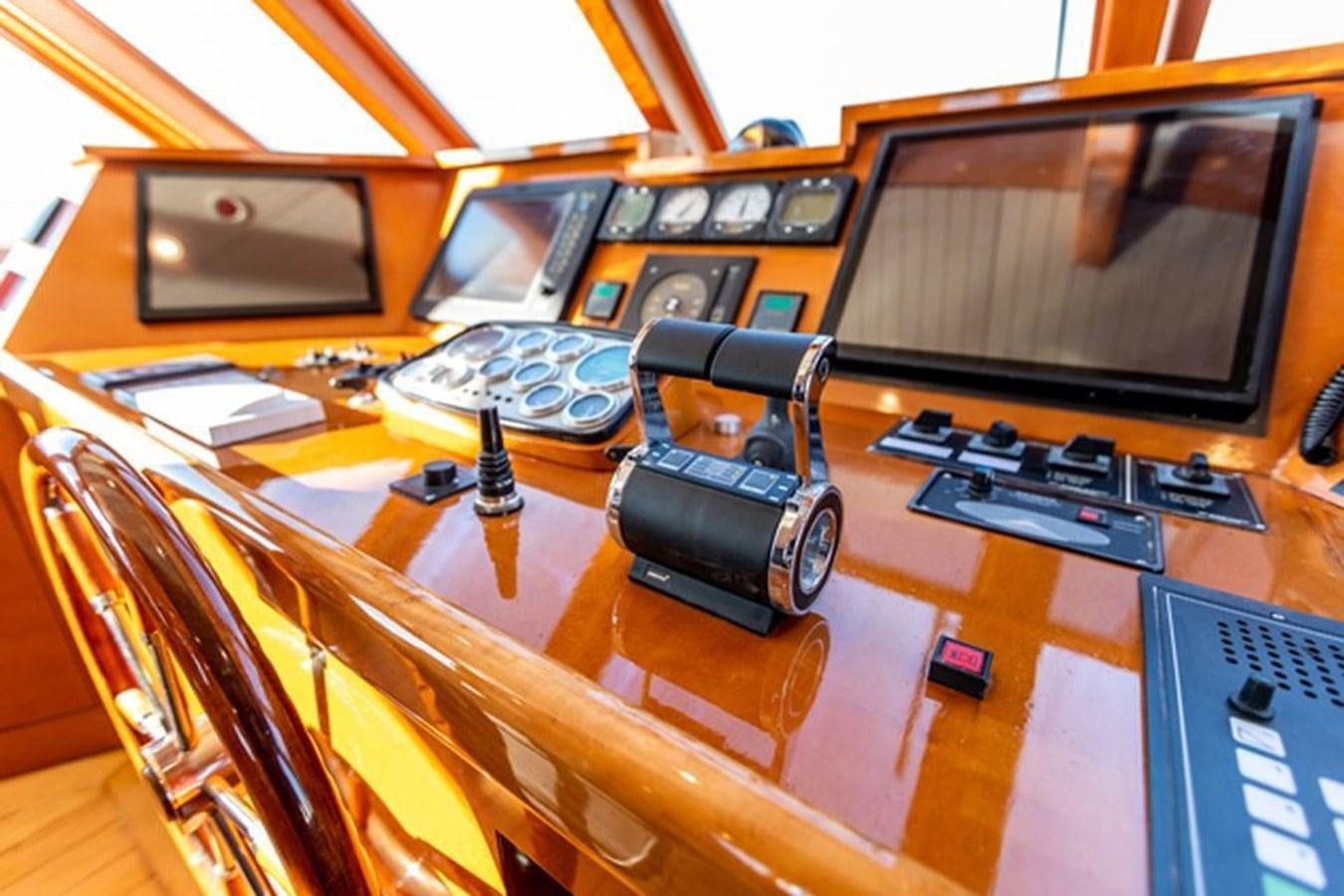

• 1 x Mannesmann Rexroth electro mechanical engine & gear control with bow thrust. Repeaters on fly bridge & stern. Rebuilt 2020.
• 2 x Robertson AP20 + Flux gate compass (Helm & fly bridge).
• 2 x Magnetic Silva 125BH wheel house & 100BH on fly bridge.

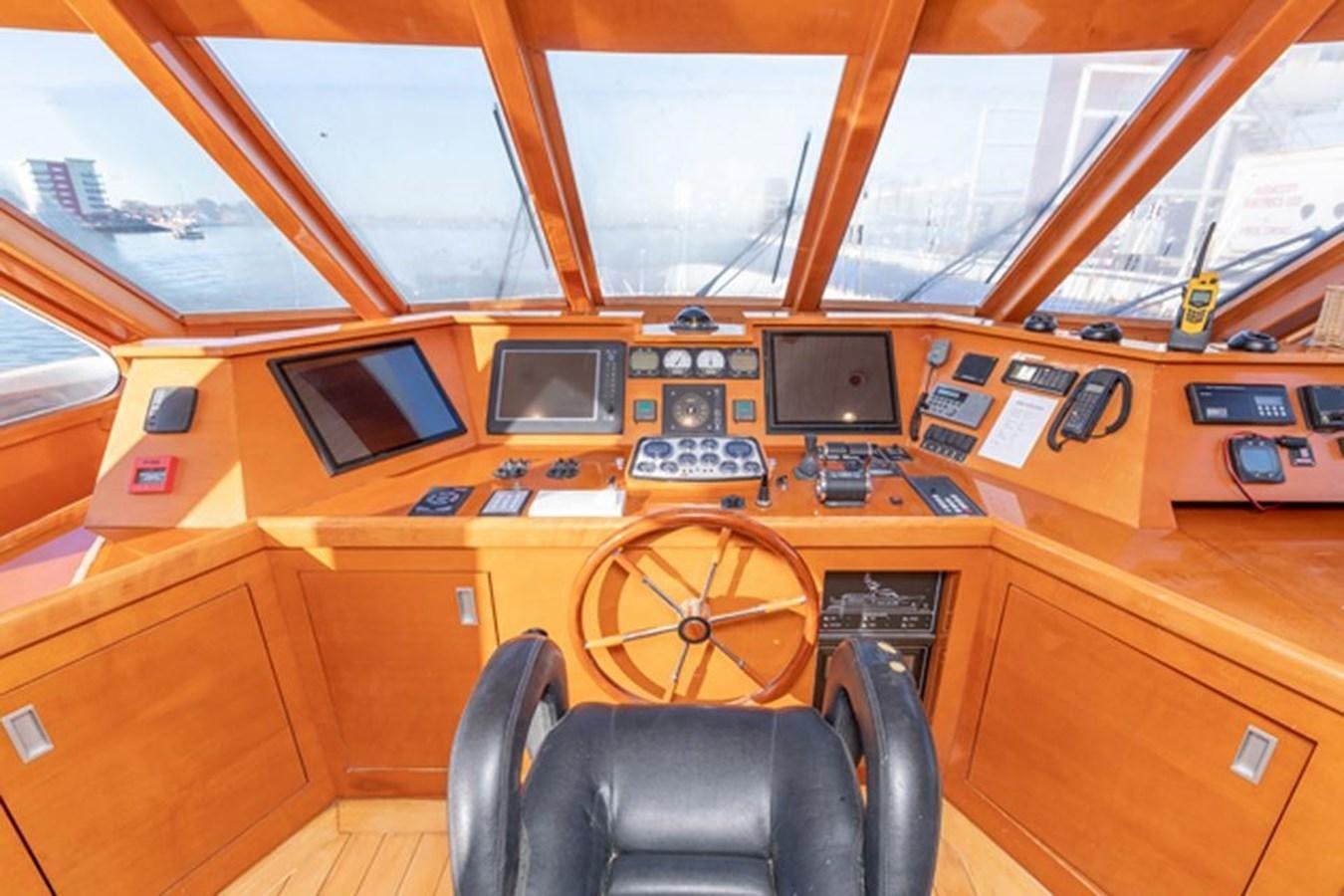

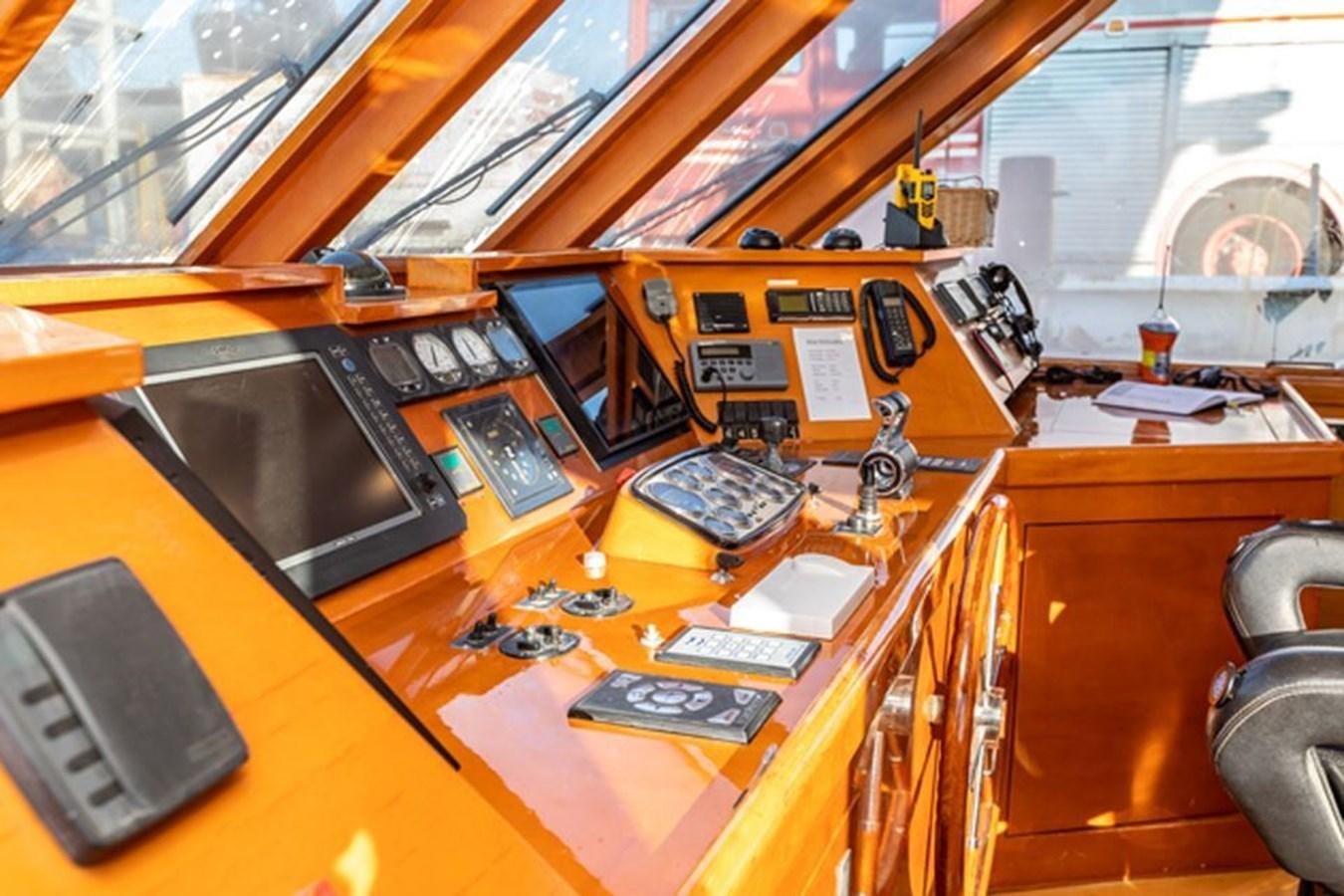

• Wheel house - Simrad CE 50 electronic chart display with Simrad combi transducer (50 & 200 khz) echo sounder, wind & compass data. Fly bridge: Simrad CR40 display for same.
• 50+ electronic navigation charts on chip for Europe, USA.
• Wheelhouse - Simrad RA54C 15” colour TFT display & Simrad CR40 10” colour TFT Display. Fly bridge: CR50 display for same.
• 1 x Delta 150 (with fly bridge repeater).
• 1 x Airmar Tridata: 200Khz with speed log & temperature probe.
• 1 x Raytheon Ray 430 hailer with automatic fog signal & horn.

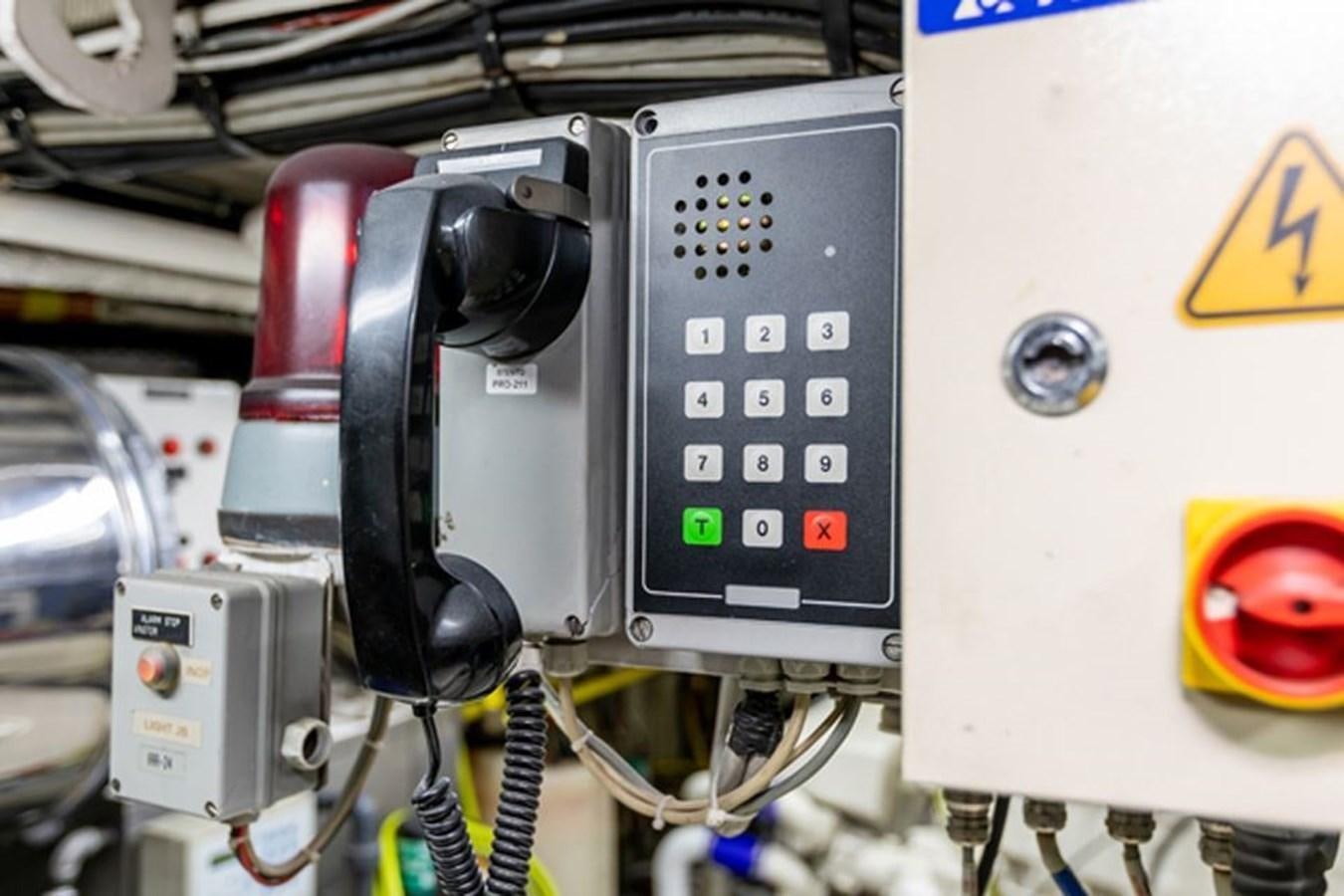

• 1 x Stento Pro700. 5 station VOX intercom.
• 5 x Wynn 3000 series with fresh water wash 32CV.
• Thrane & Thrane TT3606E Inmarsat C Combisystem with 3042C DSC alarm & 3626 Inmarsat Mini M.
• Panasonic KX Ft 83.

• Smart TV in Deck Saloon.
• Stereo CD radio in all cabins, wheelhouse, fly bridge & upper deck areas.
• Saloon: Bose Lifestyle 50 System with speakers in deck saloon and after deck area.

General

• Cramm 24v Hydraulic 4.5 meter passarelle with side safety rail, rope lighting & 2 remote control units.
• Cramm 24v / hydraulic bathing ladder at stern.
• Hot and Cold shower on bathing platform and on the top deck.
• Deck wash/water fill system included with double filler/filter & hose.

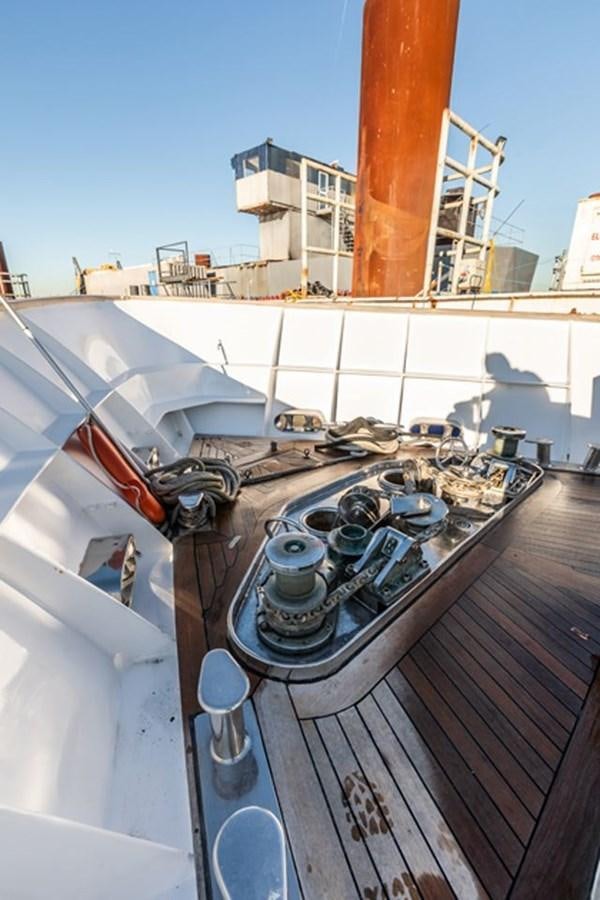

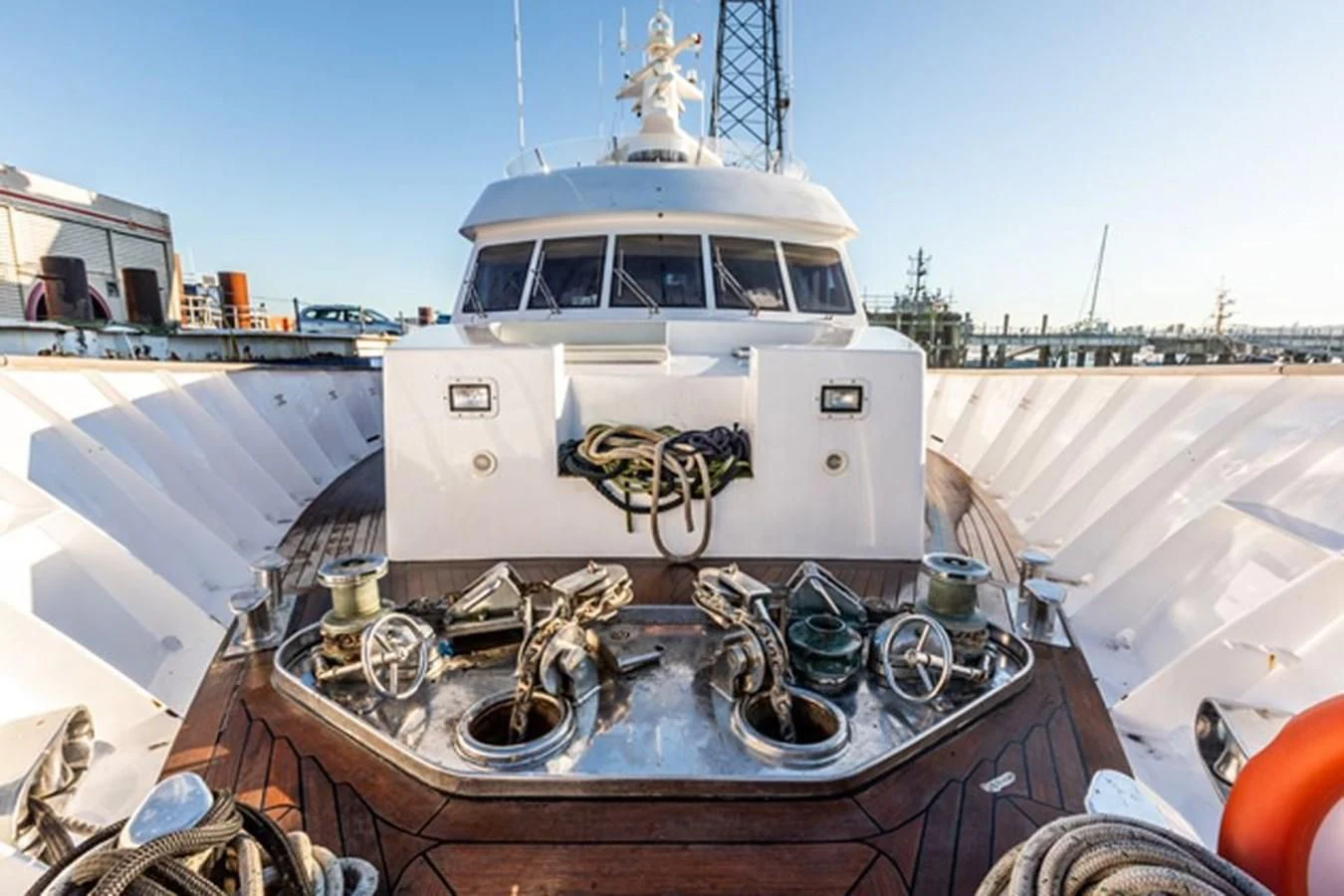

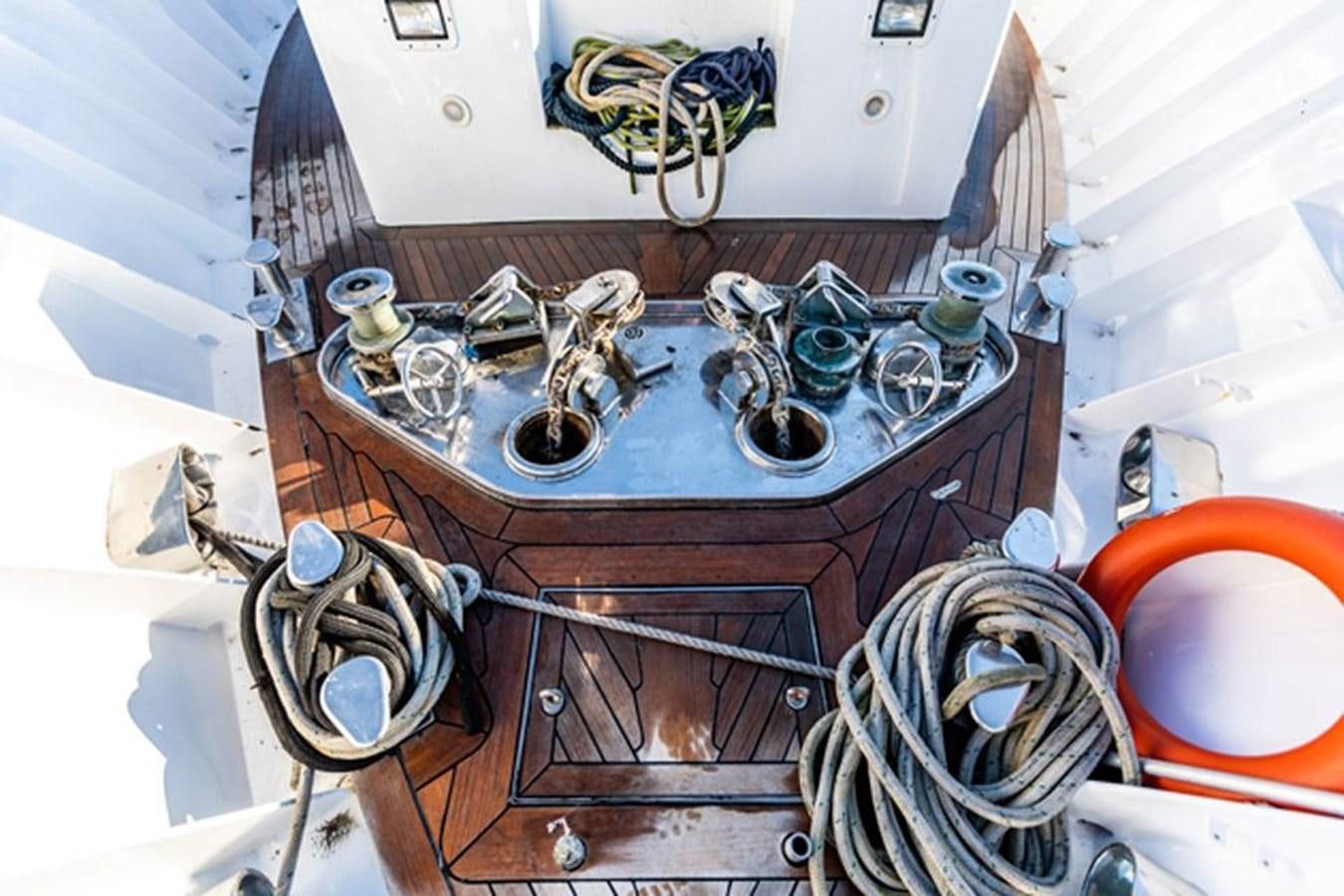

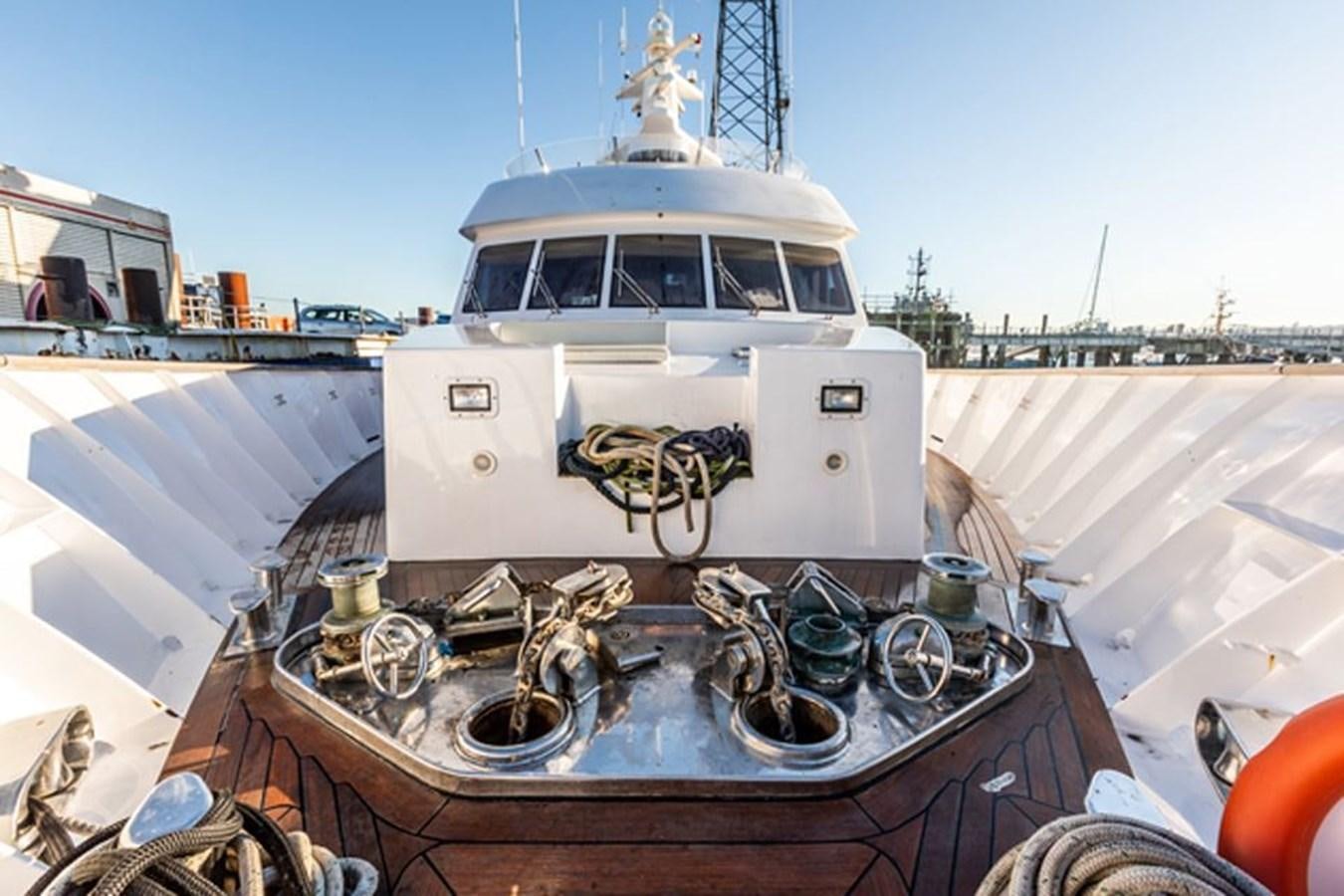

Anchoring & Mooring Equipment

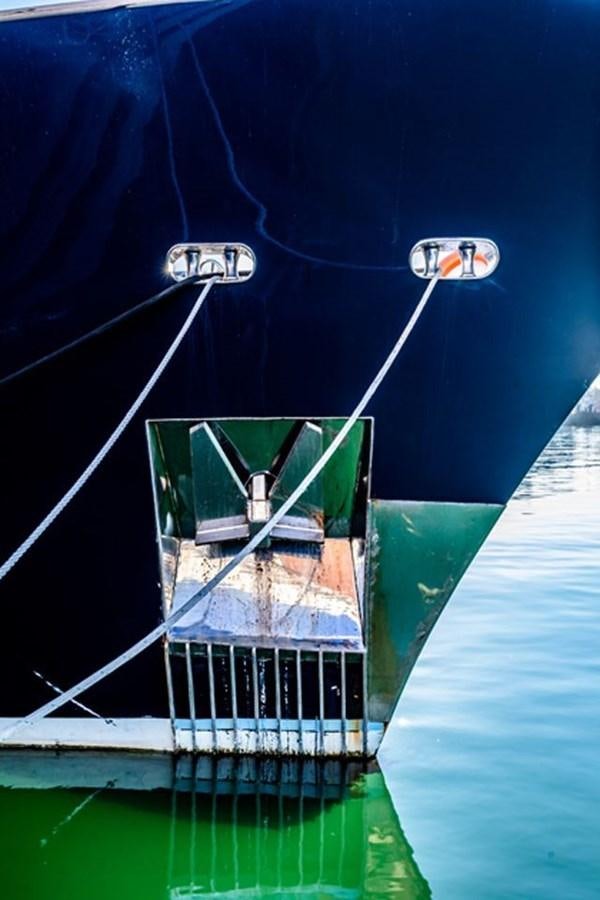

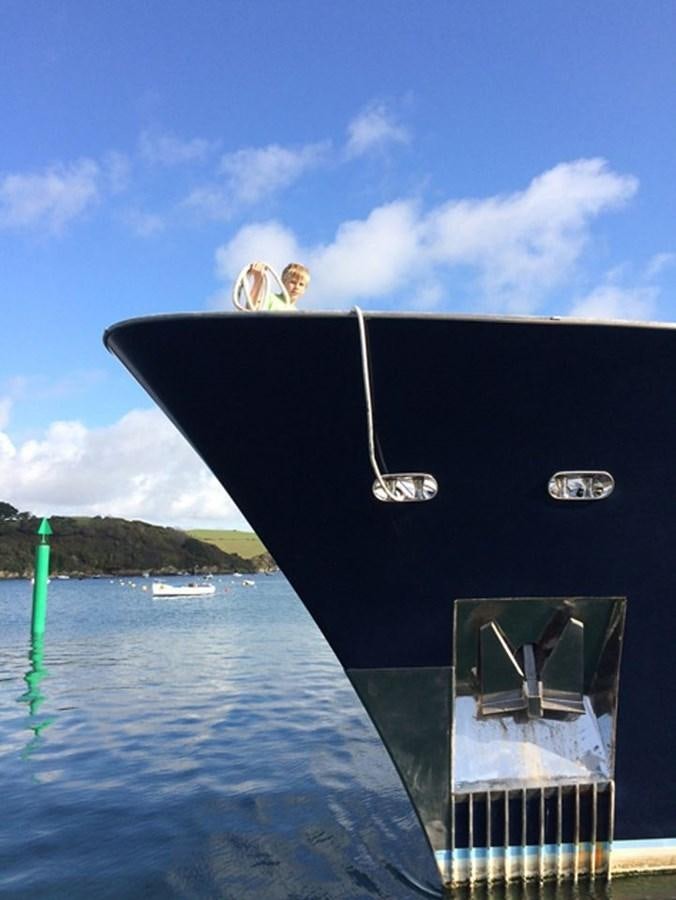

• 2 x 68kg Danforth type anchors.
• 110 m of 12.5 mm marked stud link chain.

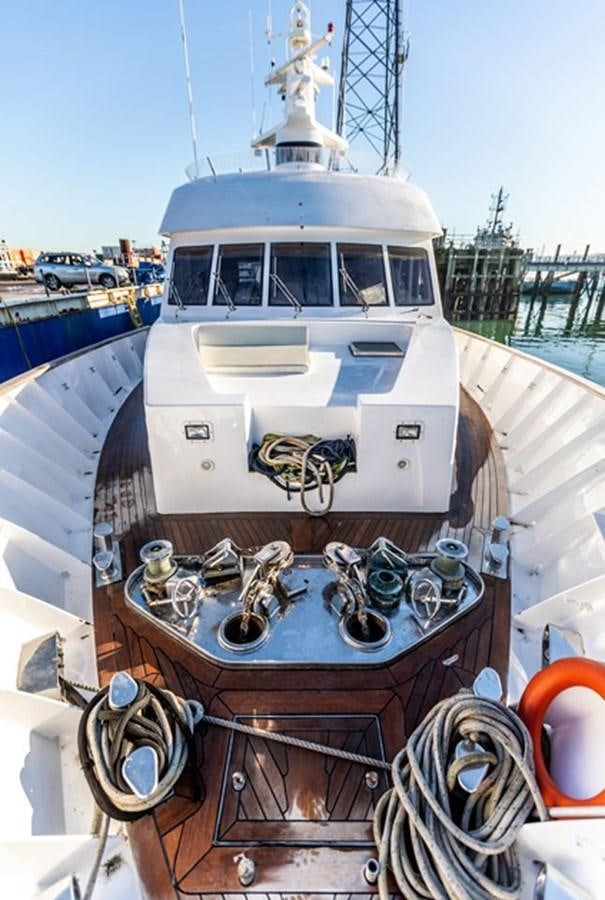

• 2 x Muir 4500 24v DC windlass with hand control.

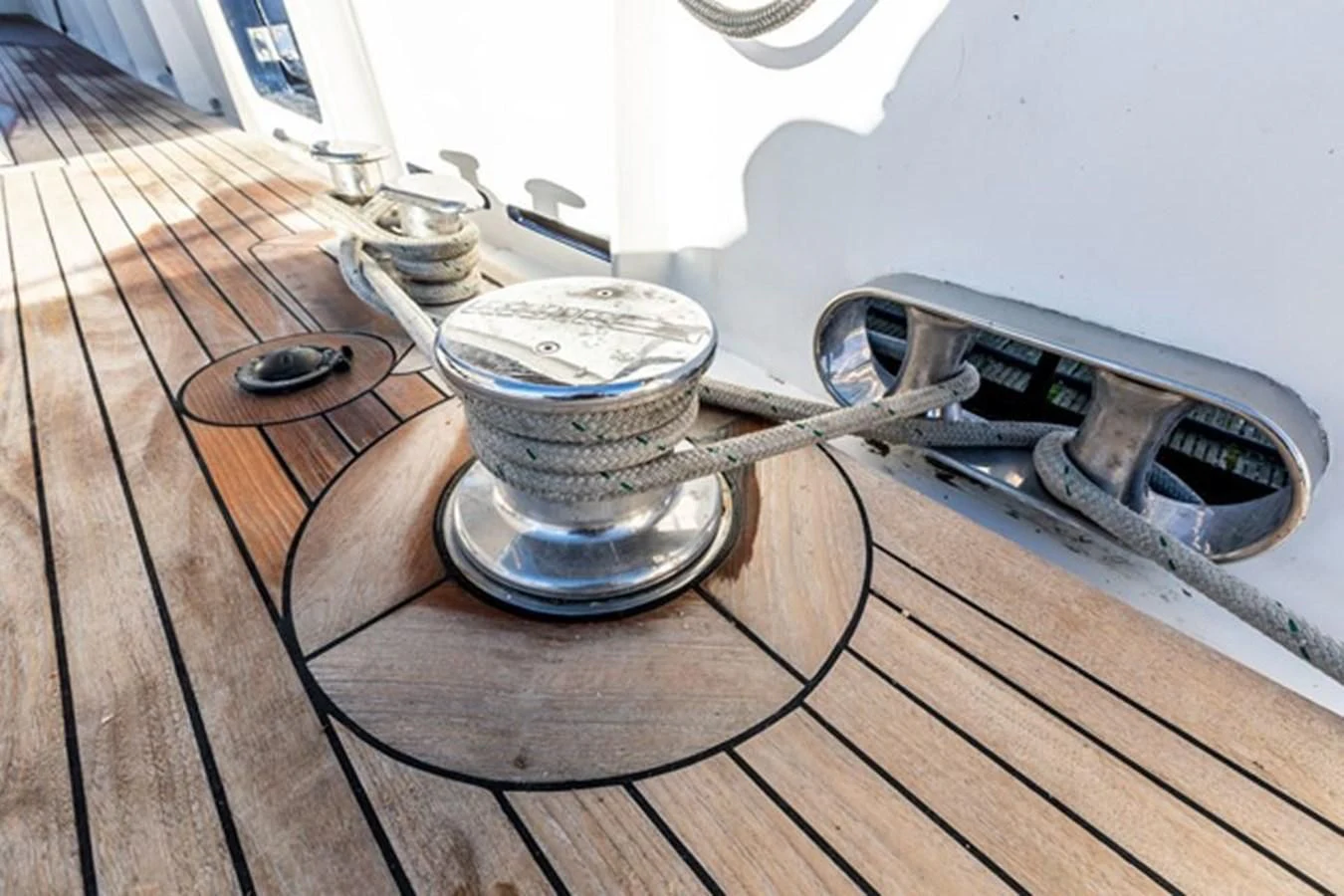

• 2 x Muir 4500 24 volt DC capstans aft deck with recessed foot control.
• Cramm electro-hydraulic Type CDTT 7002. SWL 1000kg.

Covers, Canvas & Cushions

• Enclosure for the entrance from the upper deck to bridge in navy blue 2020.
• Bimini for aft deck in navy blue 2021.
• Fitted cover for entire foredeck.

Tender & Outboard

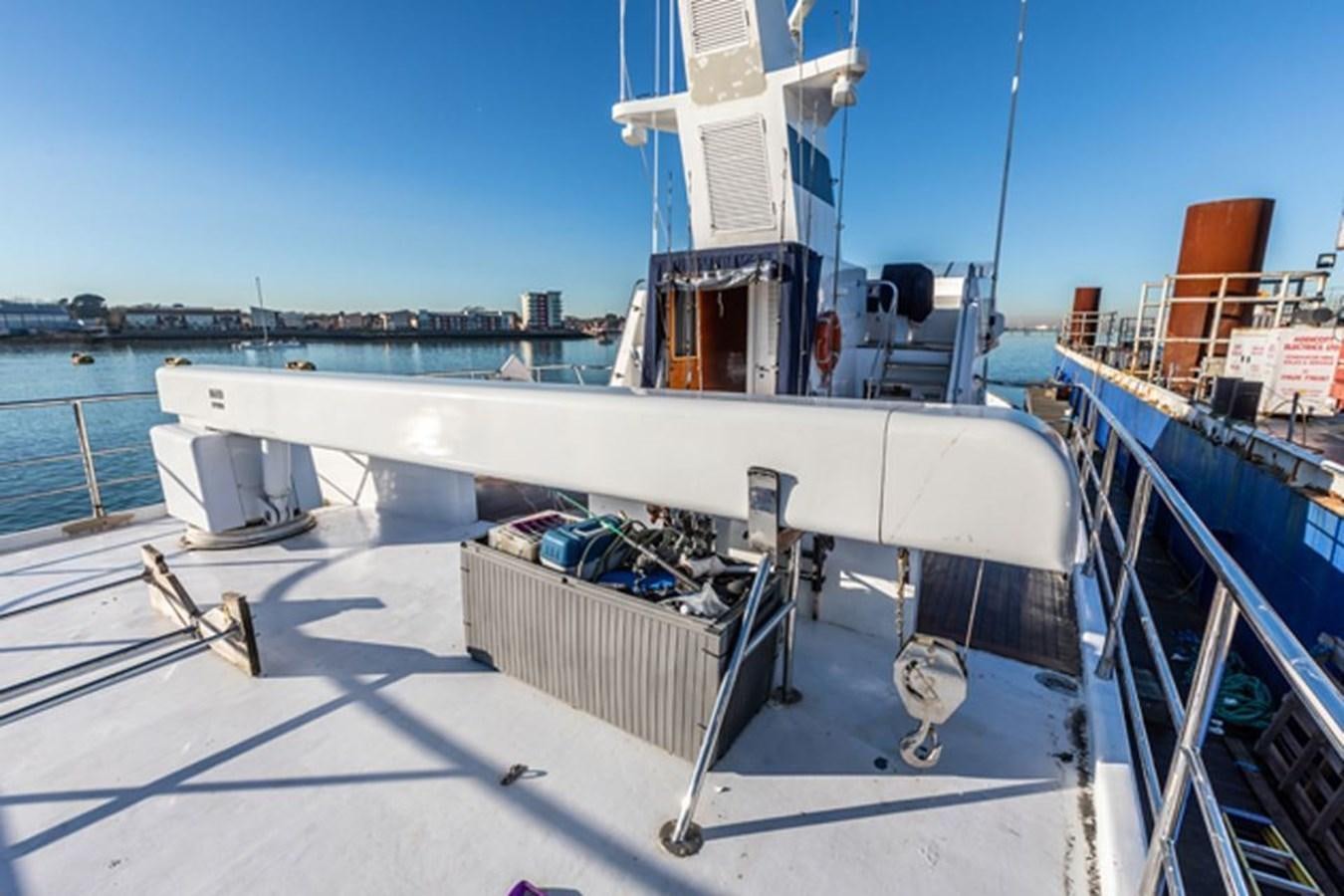

• There are chocks for a RIB on the upper deck and the hydraulic dinghy lift has been fully overhauled.


Fire-Fighting Equipment

• 2 x 45kg fixed Halon system in lazarette with shut down all replaced 2021 with Fireguard opening system for engine room.
• Fixed CO2 drench in galley.
• 1 x Minerva 1000 fire detection control on bridge with battery back-up, manual call points and general alarm function.
• 3 x 15m hoses on deck from sea water fire pump.

• 84' Troy Motor Explorer  is in her fourth ownership. She was originally built for a German owner who insisted on the use of an American designer and equipment that was American or North European. This has very much added to the look, feel, capability and comfort of the yacht, including a glorious high gloss maple interior specified by him.
• Sold to another European she was then purchased by a company that specializes in recovering artifacts from marine wrecks, for use in a support role. She was carefully assessed at this time for coding to MCA Category 0 that requires an additional bulkhead in the forward lower deck accommodation. Stability information and plans are available to intending owners for their review.
• Her current owner has used her for local cruising with his family. He has run her easily without crew, finding her easy to handle in confined spaces and very comfortable at sea. During his ownership she has been fully serviced and put into a sound operational condition. There are some outstanding works which are in progress –
• Completing the overhaul of the air conditioning system.
• Refitting the watermaker which was removed for refurbishment by the manufacturers’ agent.
• Completing the rewire of the stabiliser system. The fins have been completely overhauled.

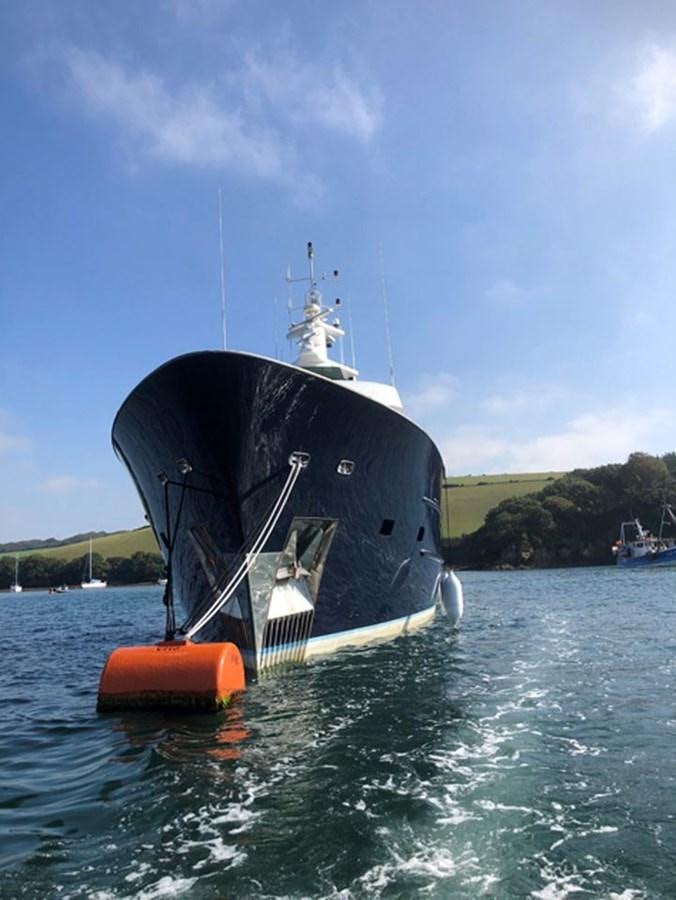

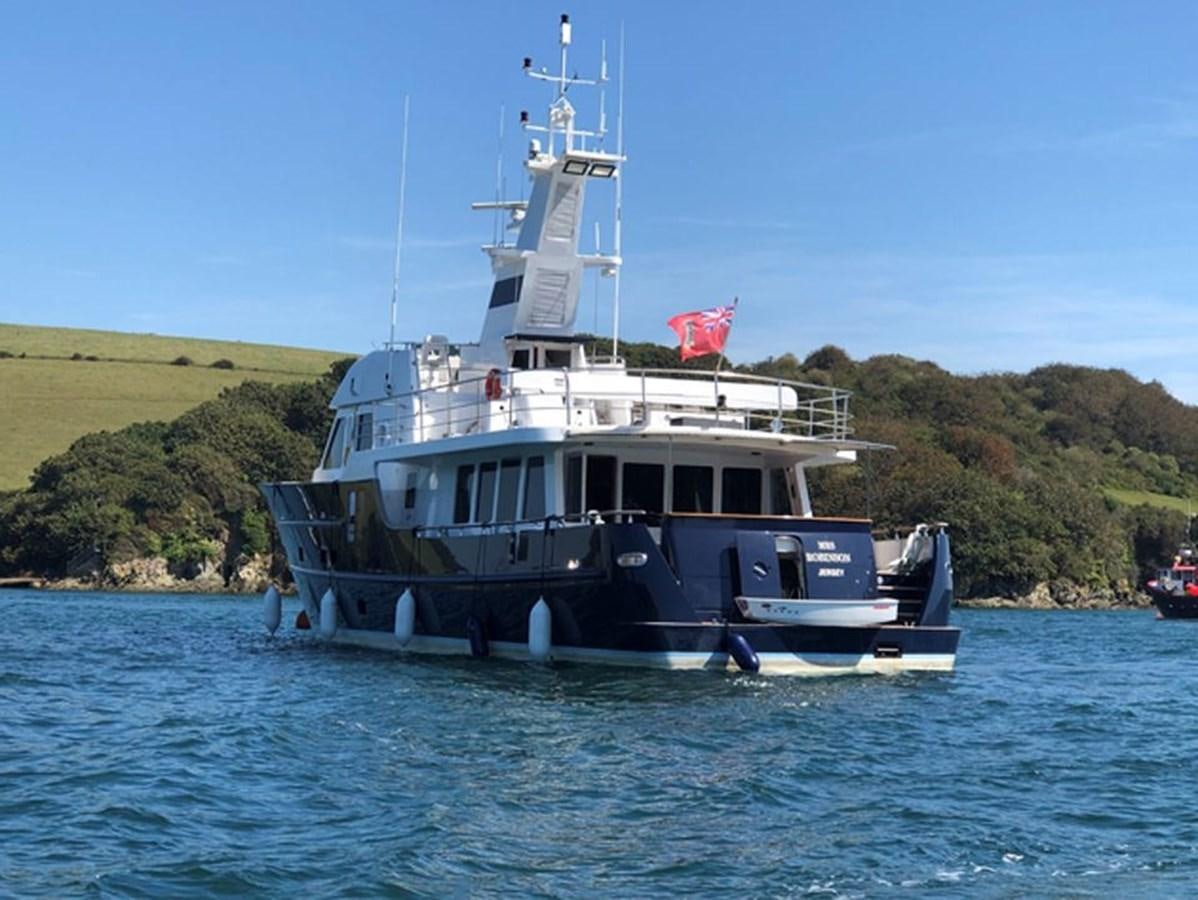

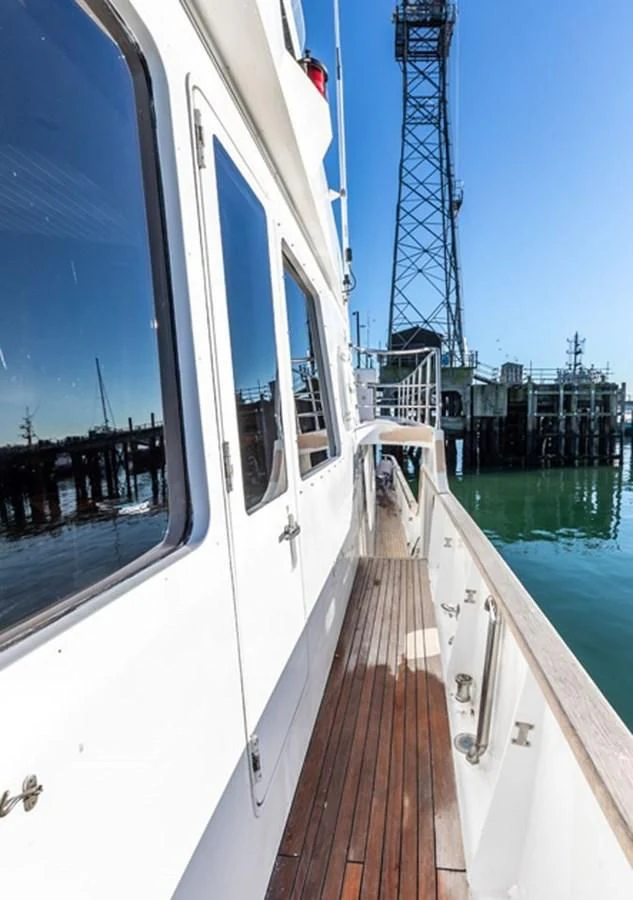

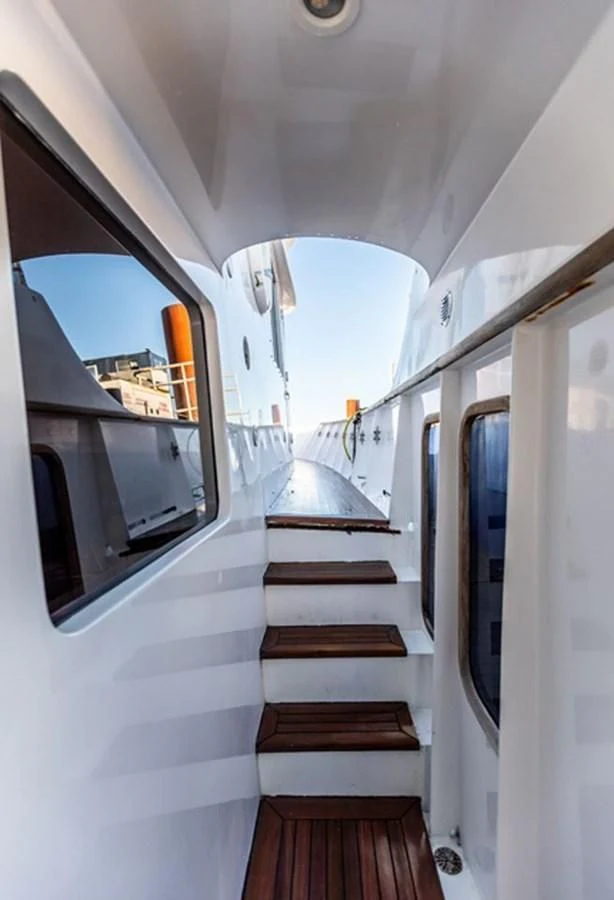

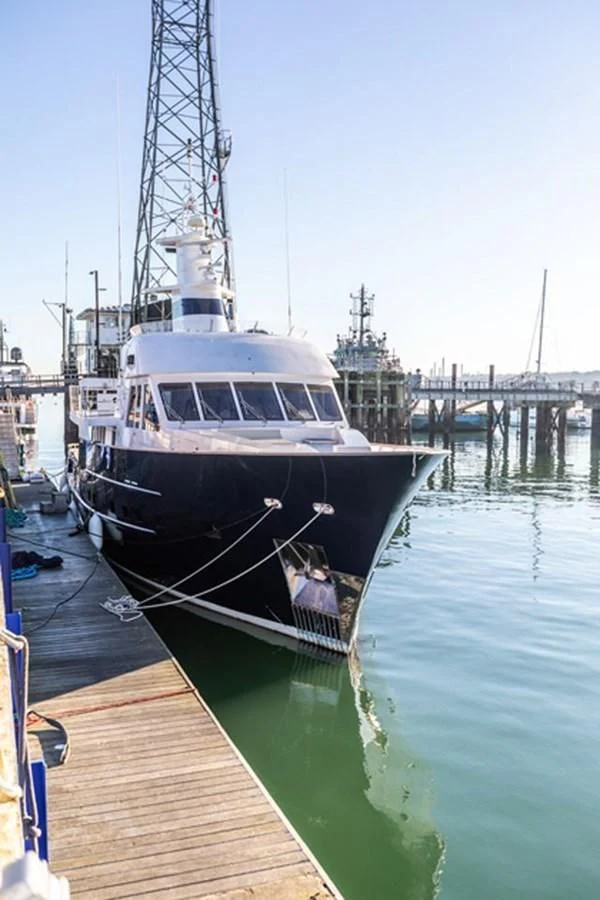

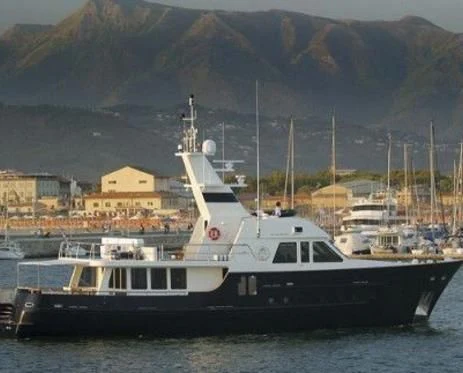

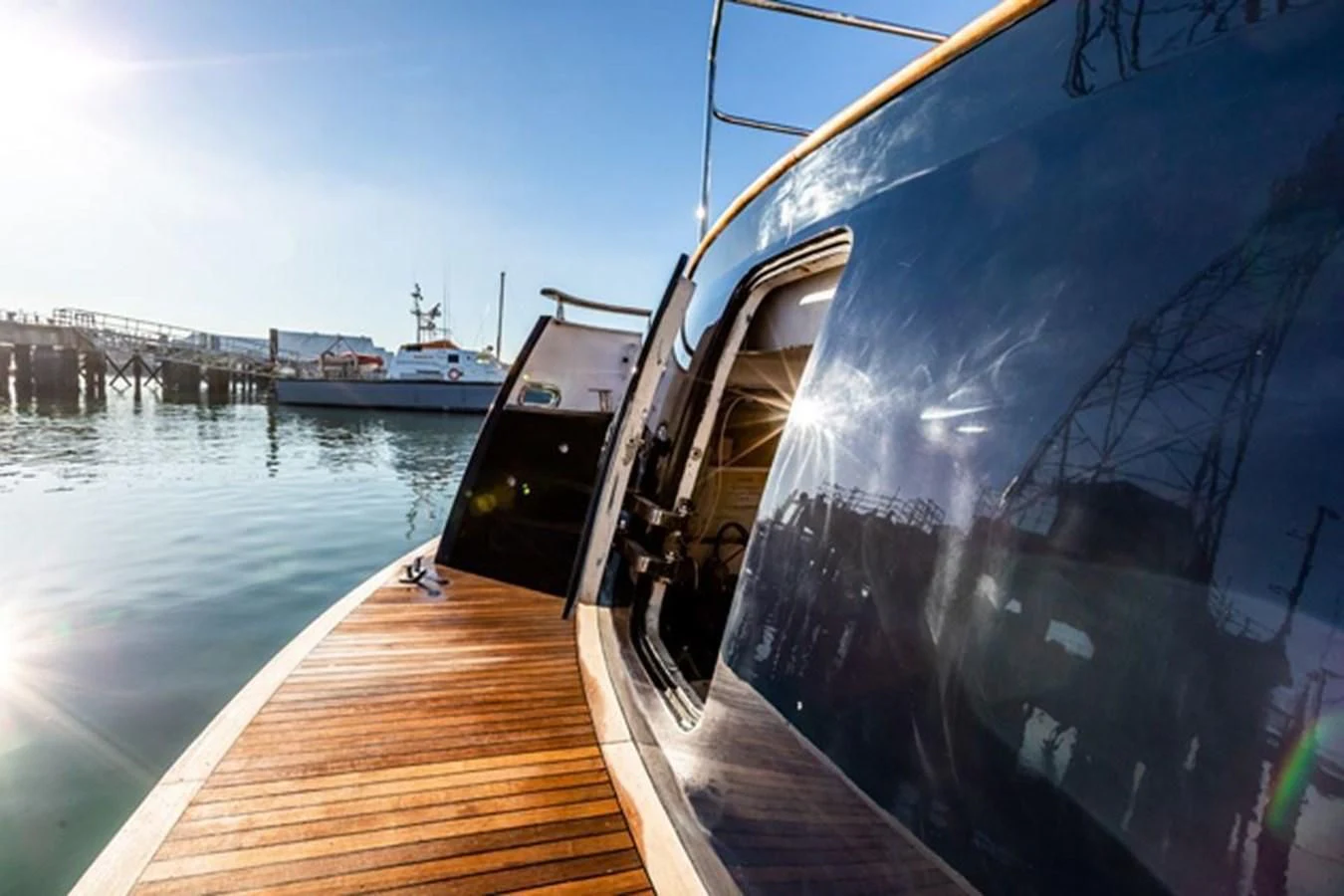

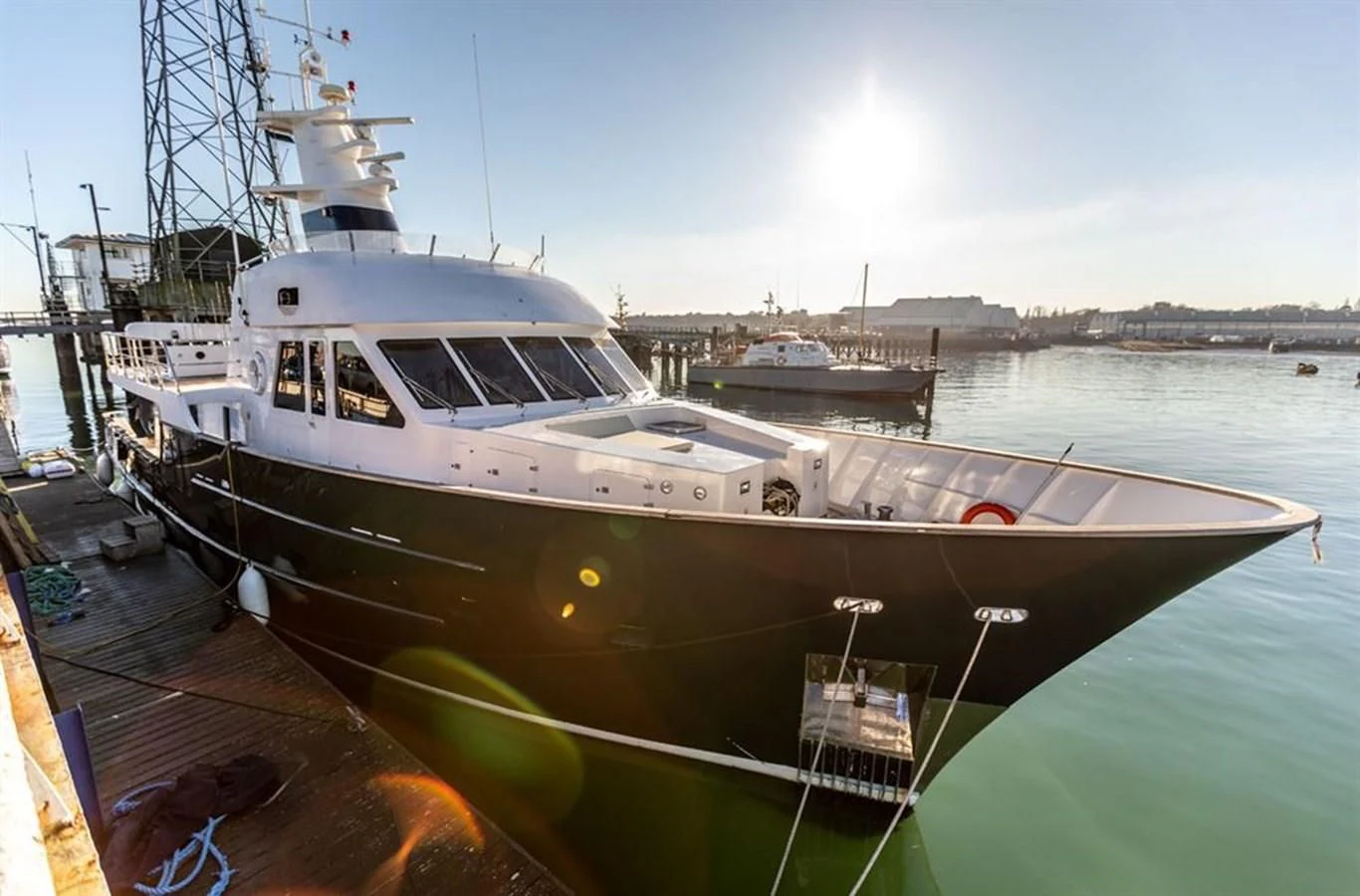

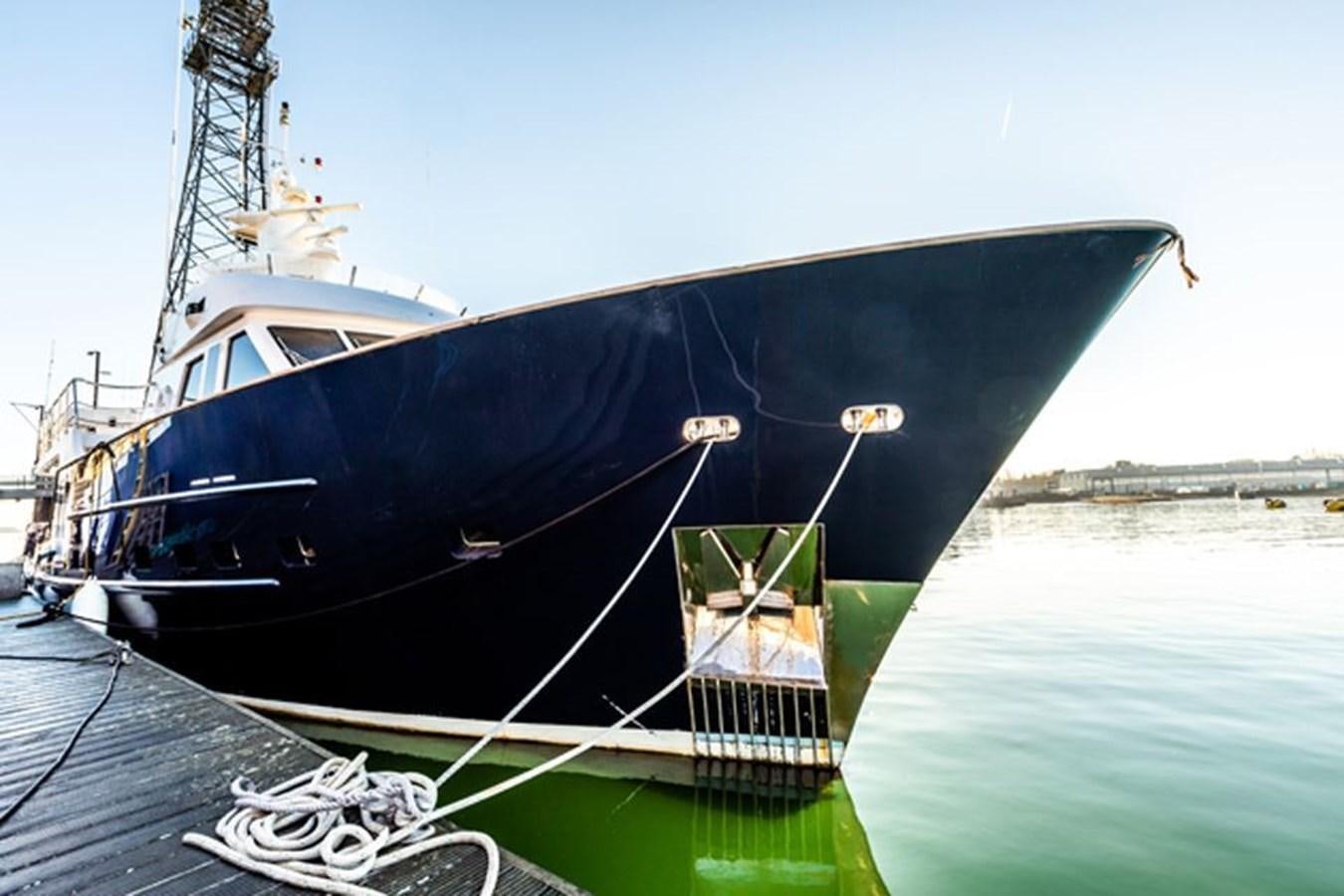

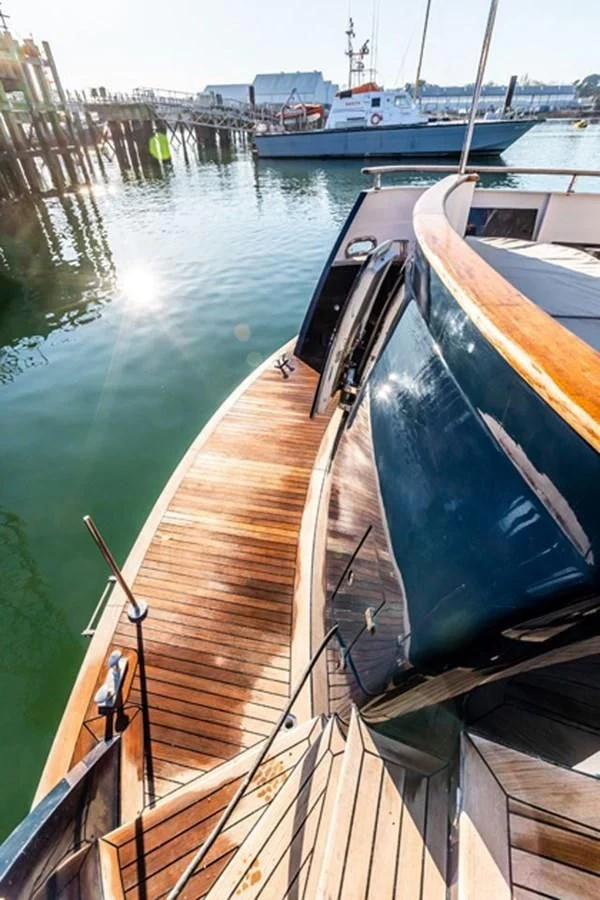

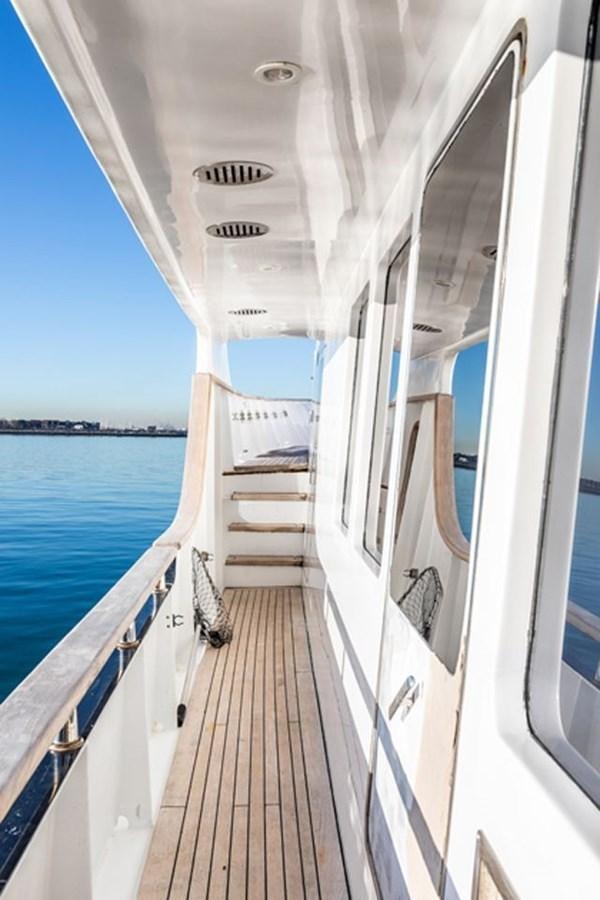

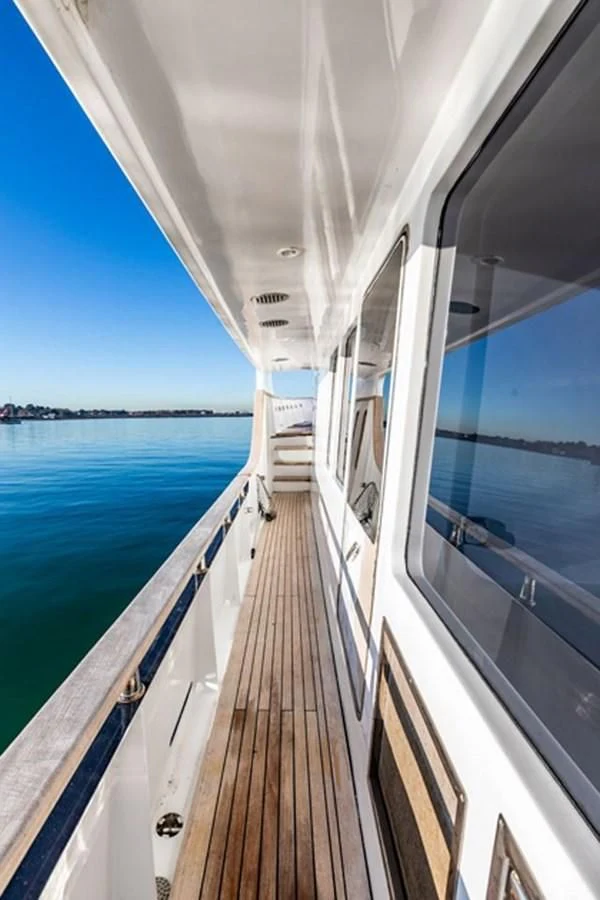

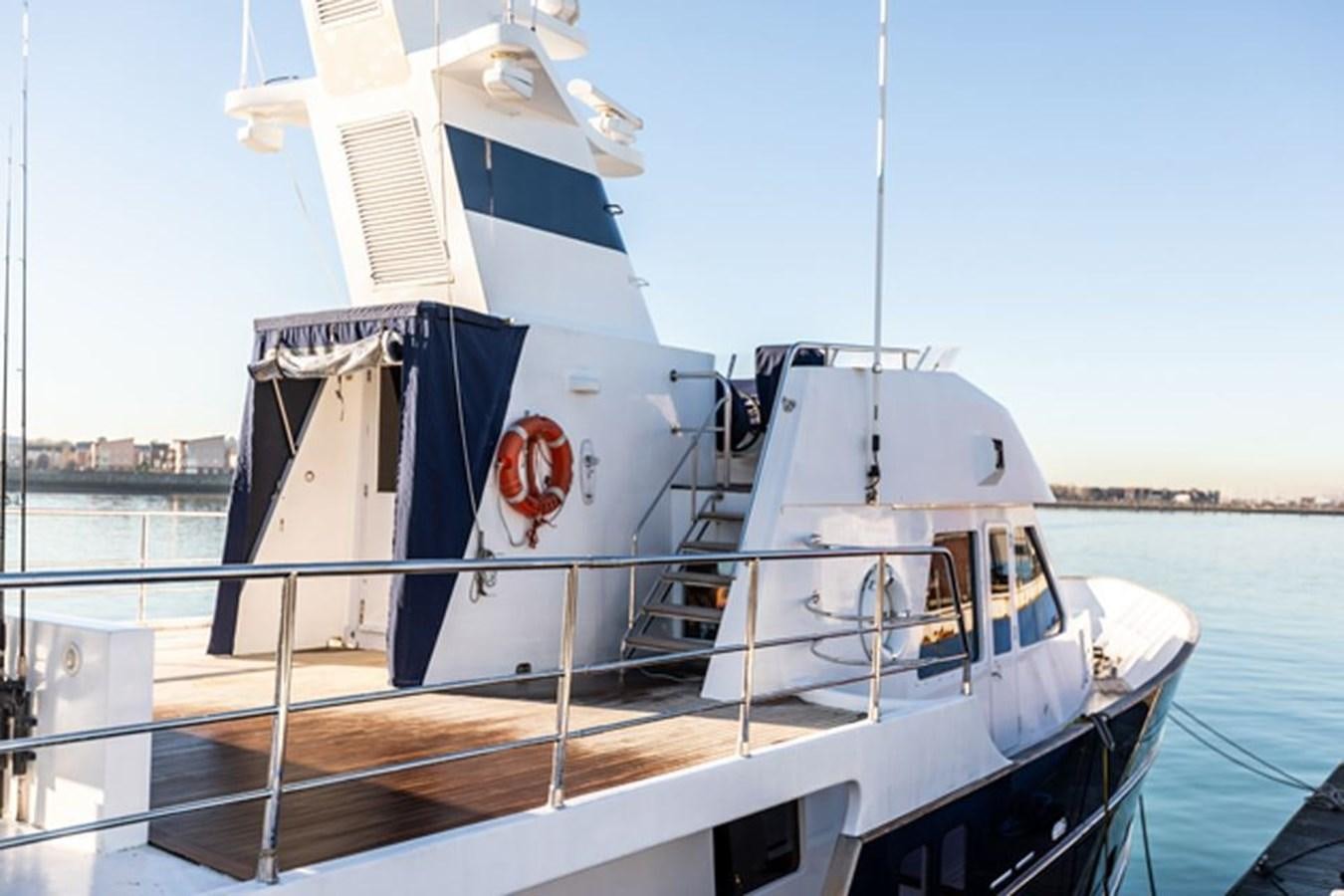

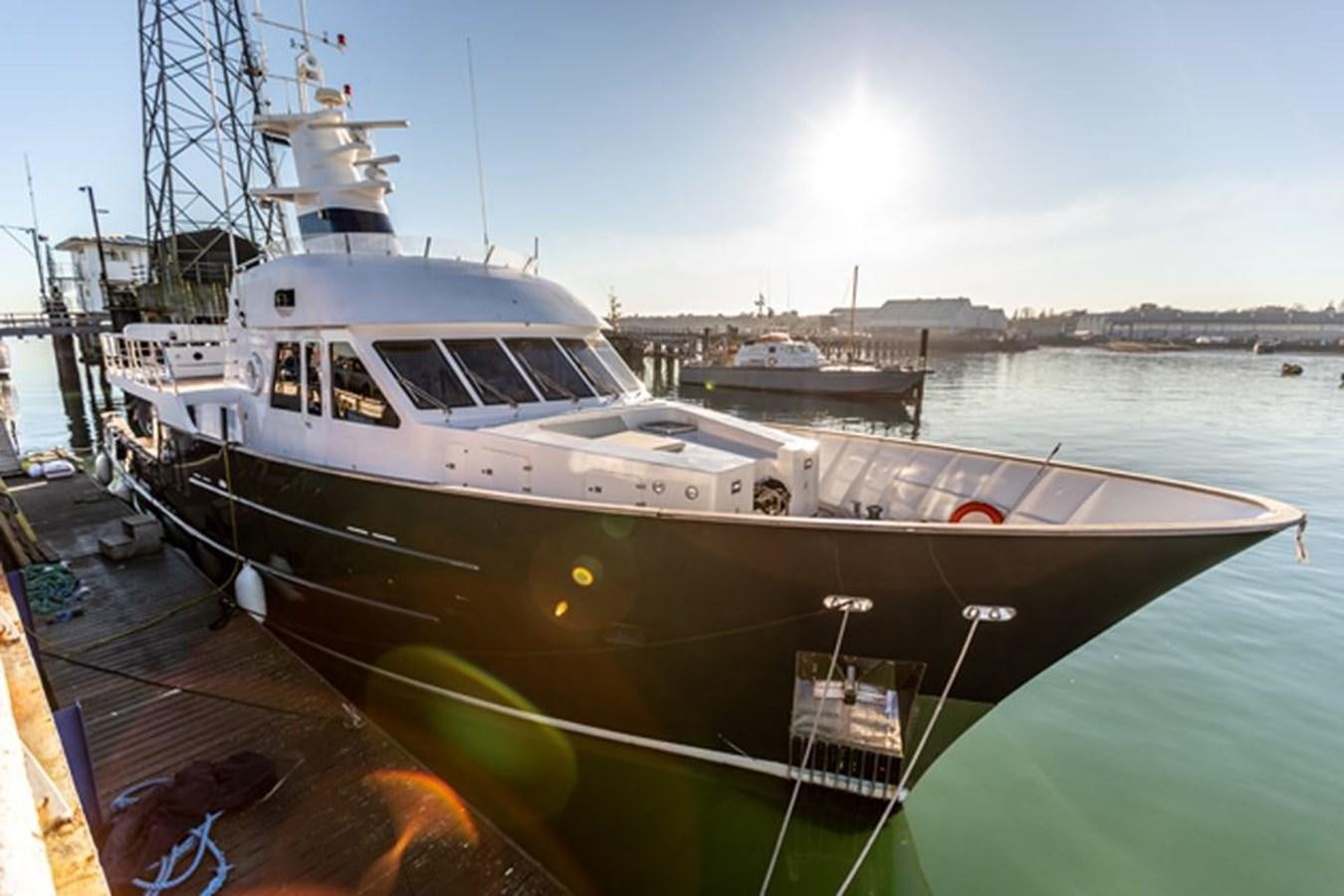

• She is a very handsome explorer yacht with a striking flag blue hull and smart upperworks. She has a hydraulic crane for handling the dinghy, good access to the water with a large platform with retractable passerelle and bathing ladder, a large aft deck, protected side decks and a sunbathing area forward. The flying bridge is large and has very good vision when at sea.

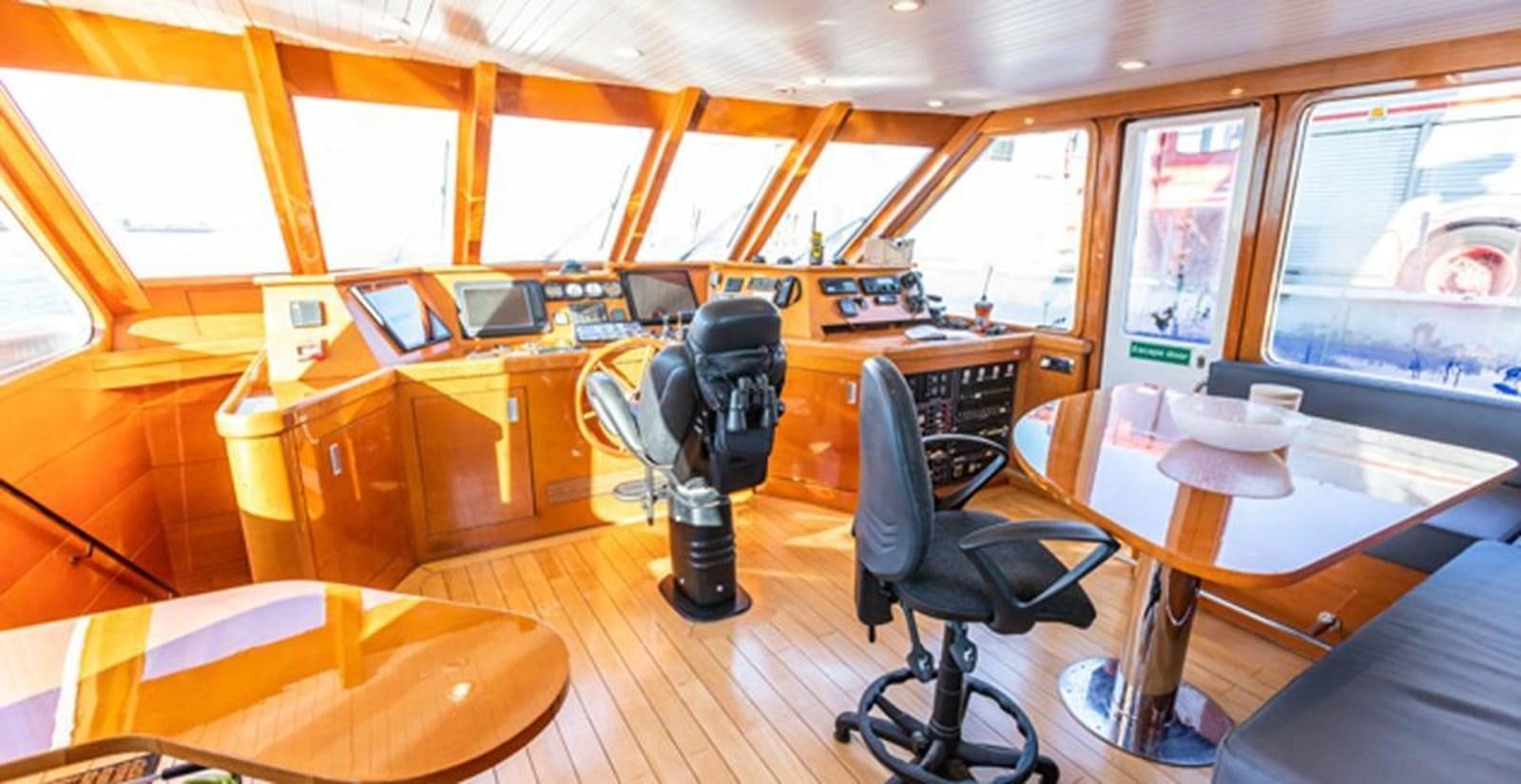

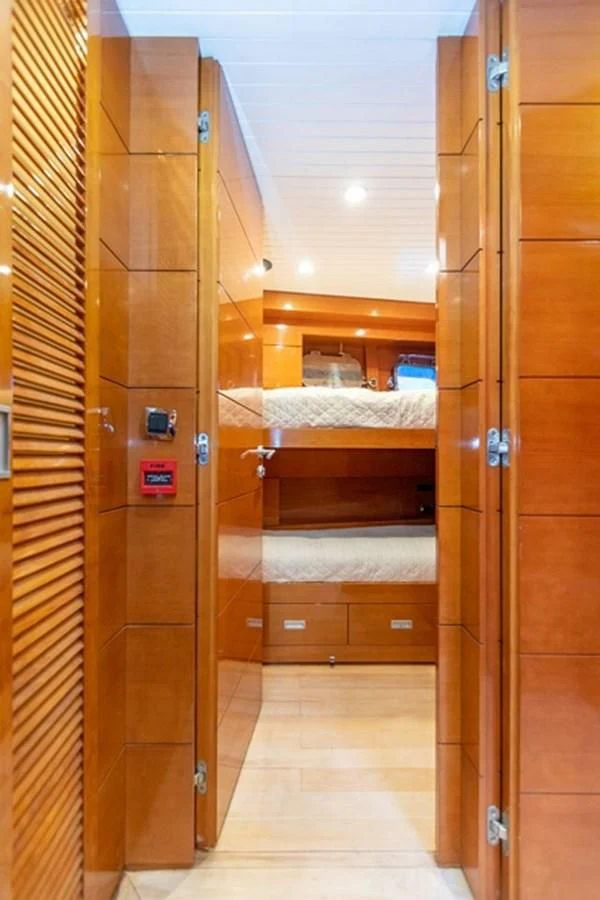

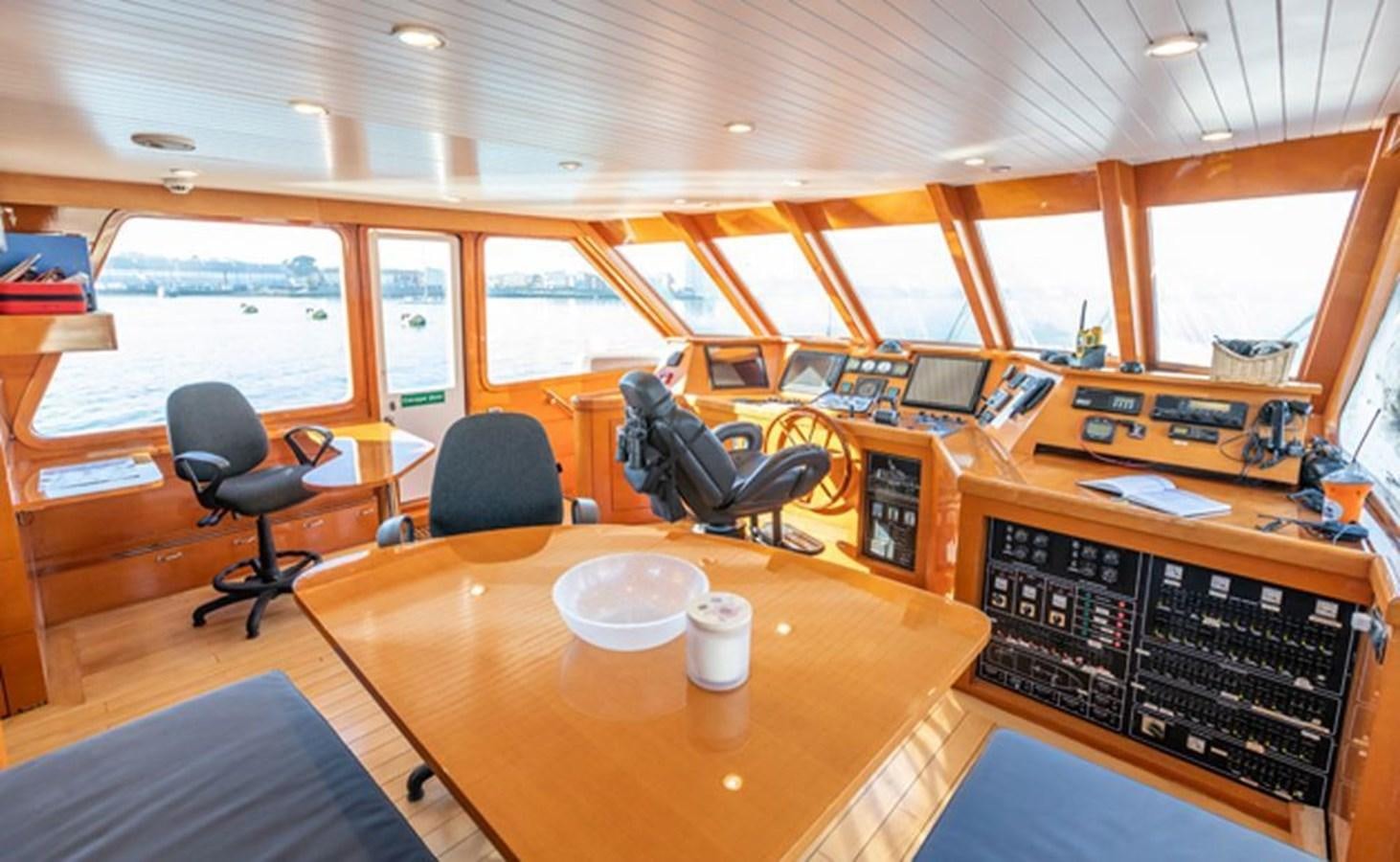

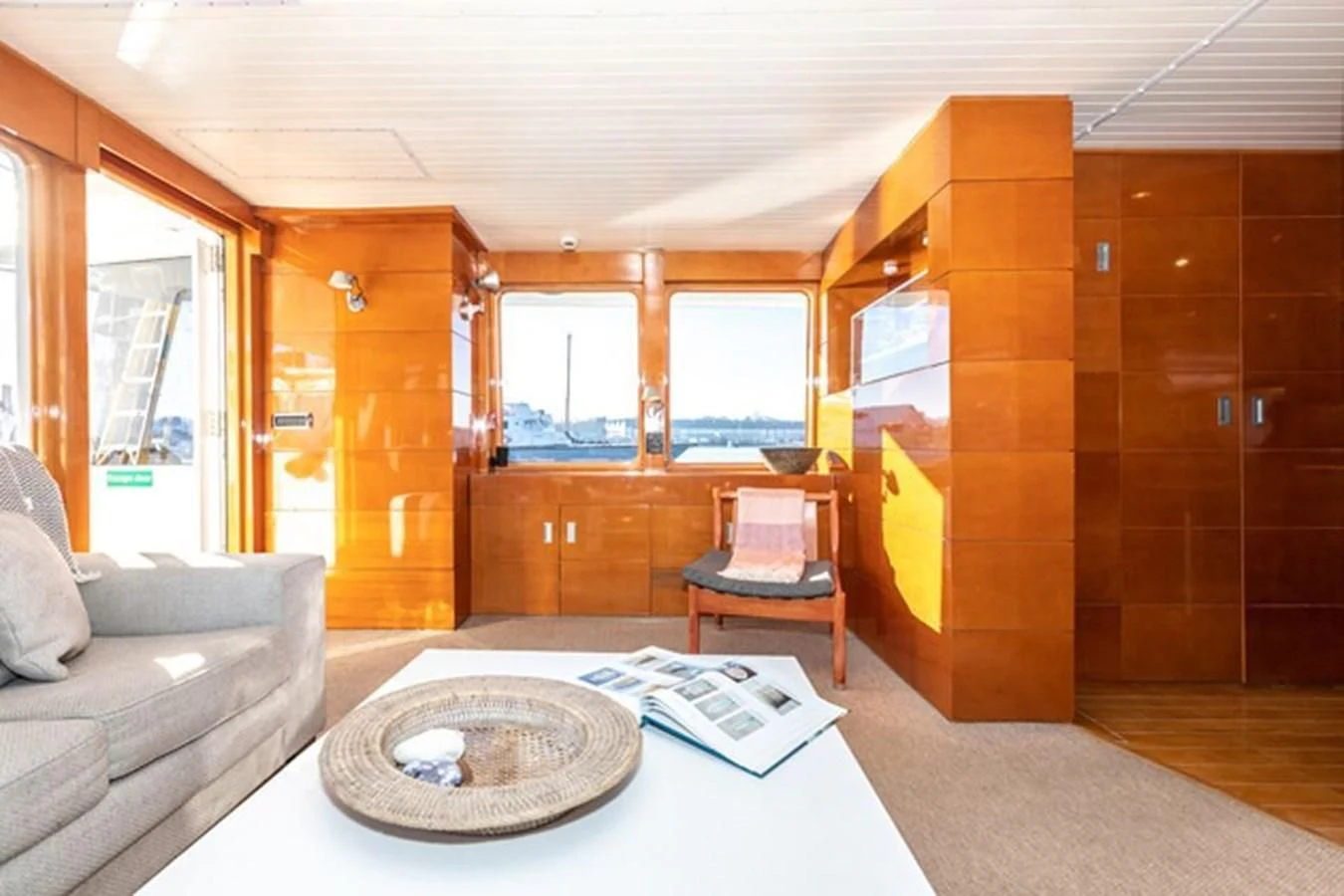

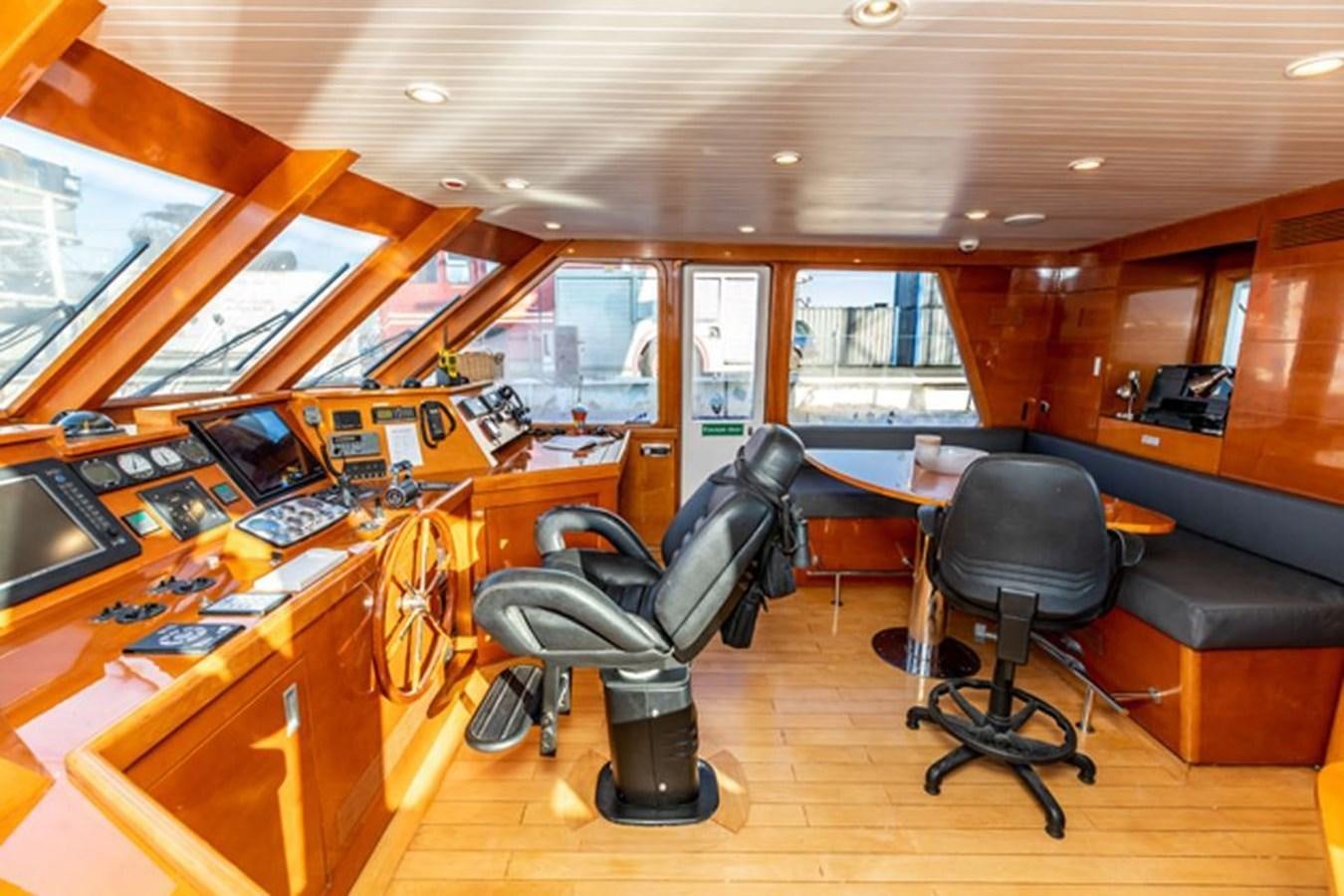

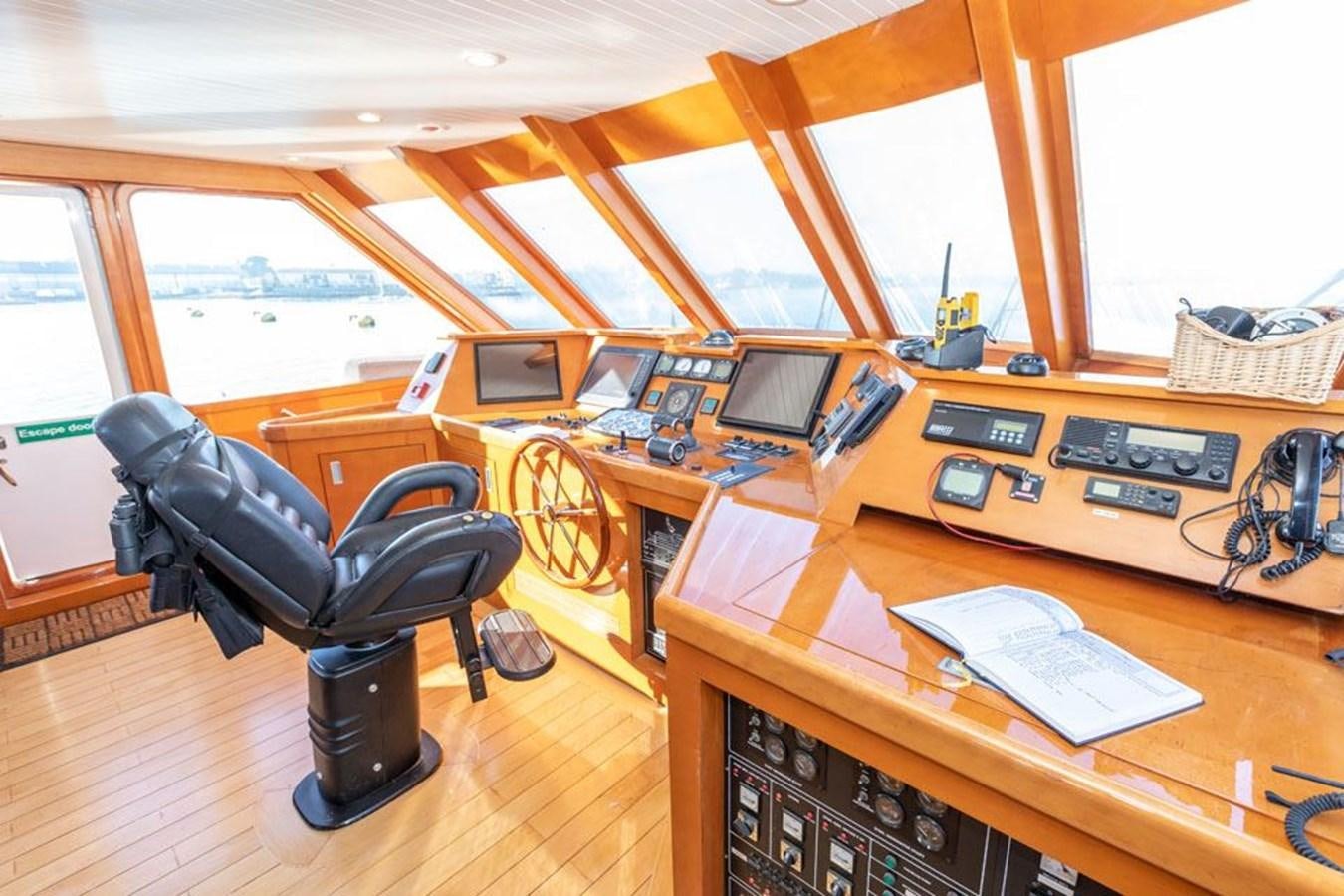

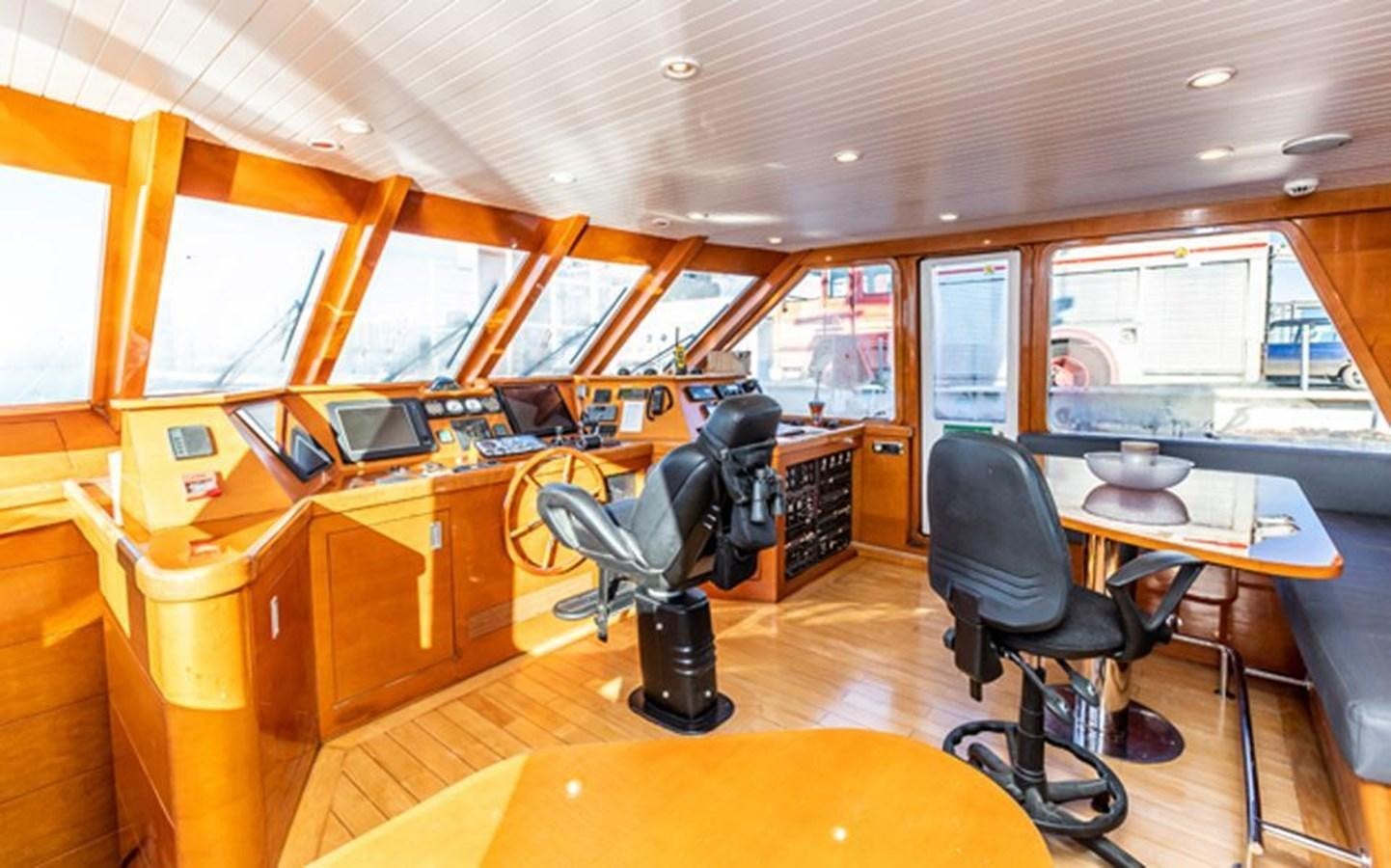

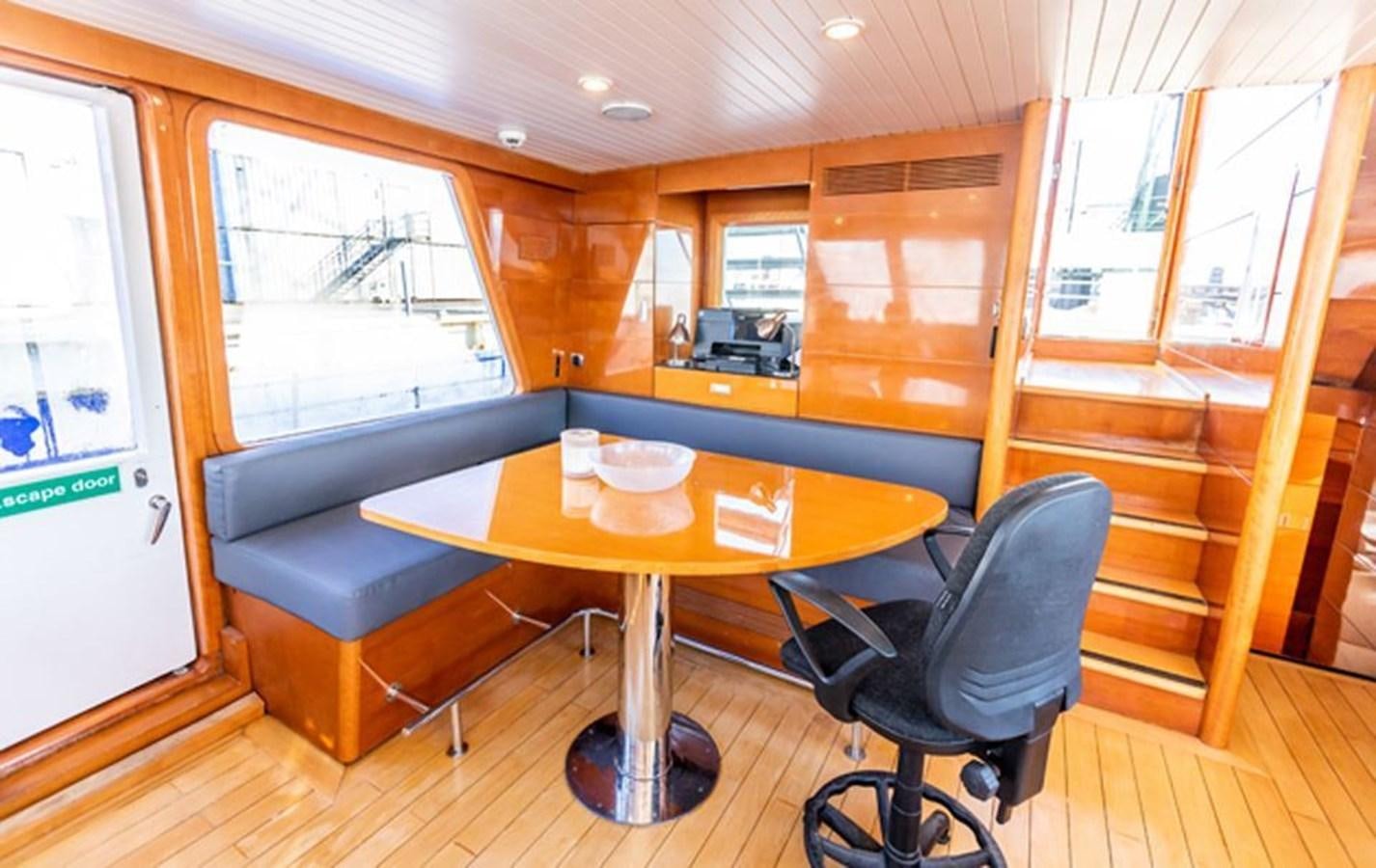

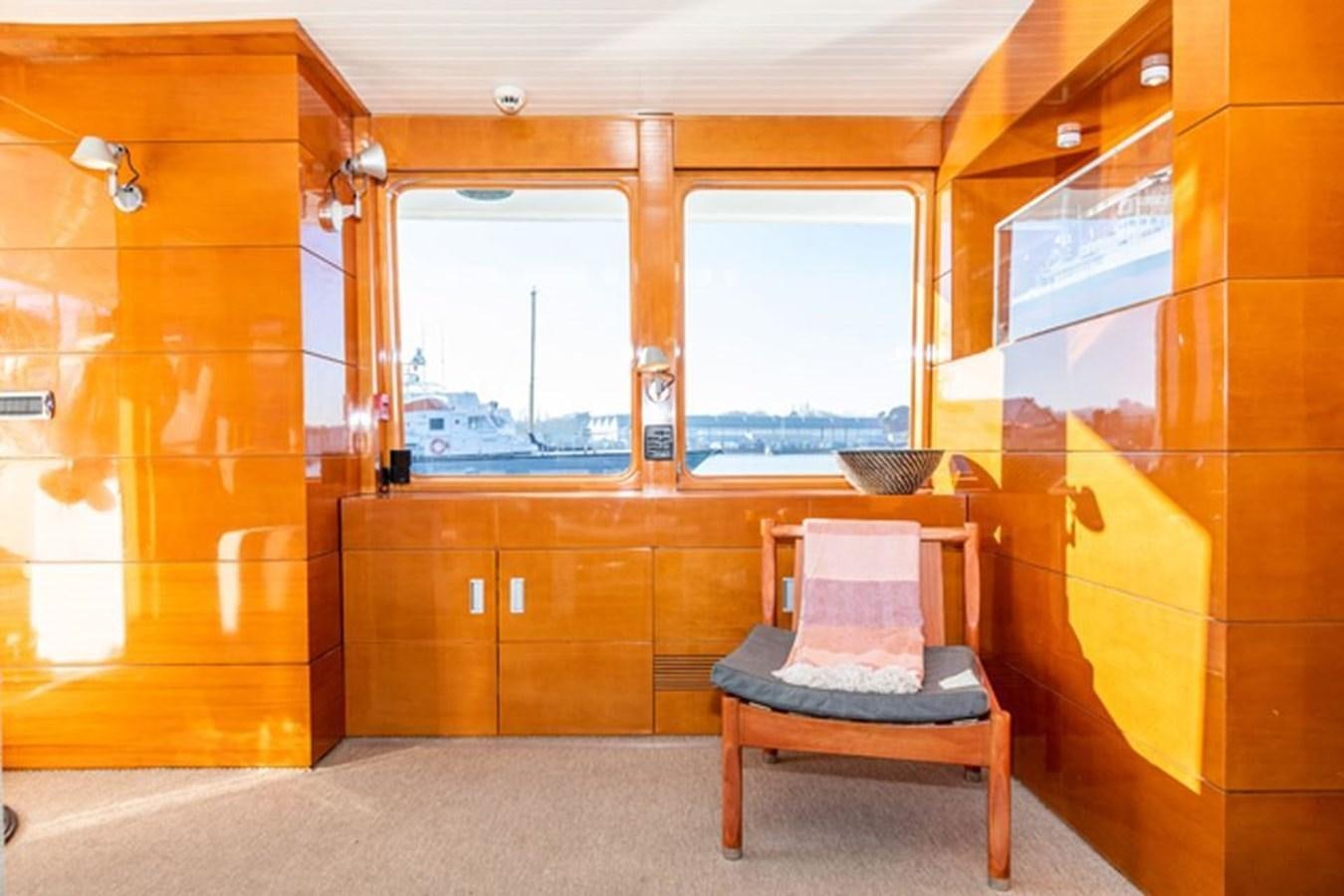

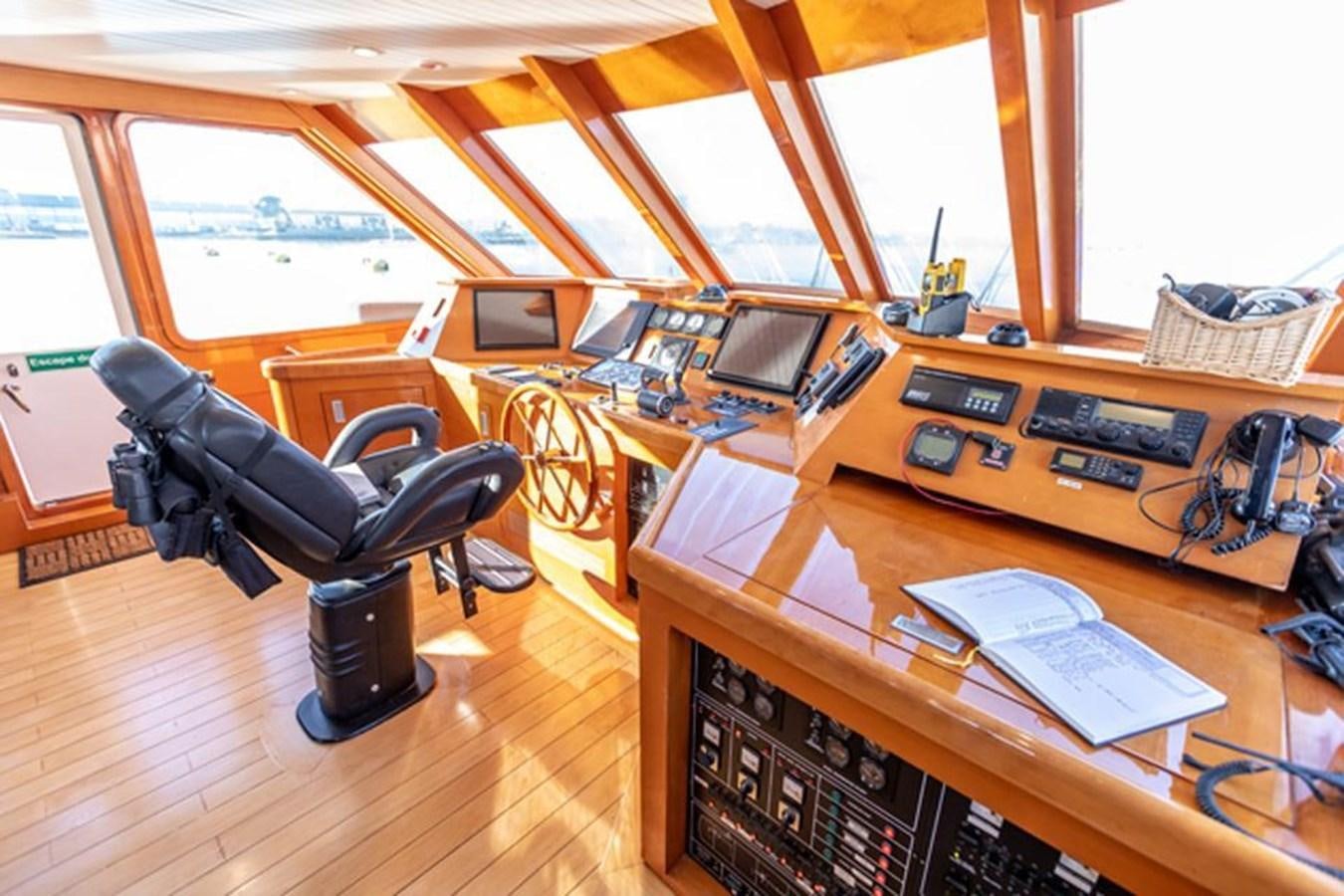

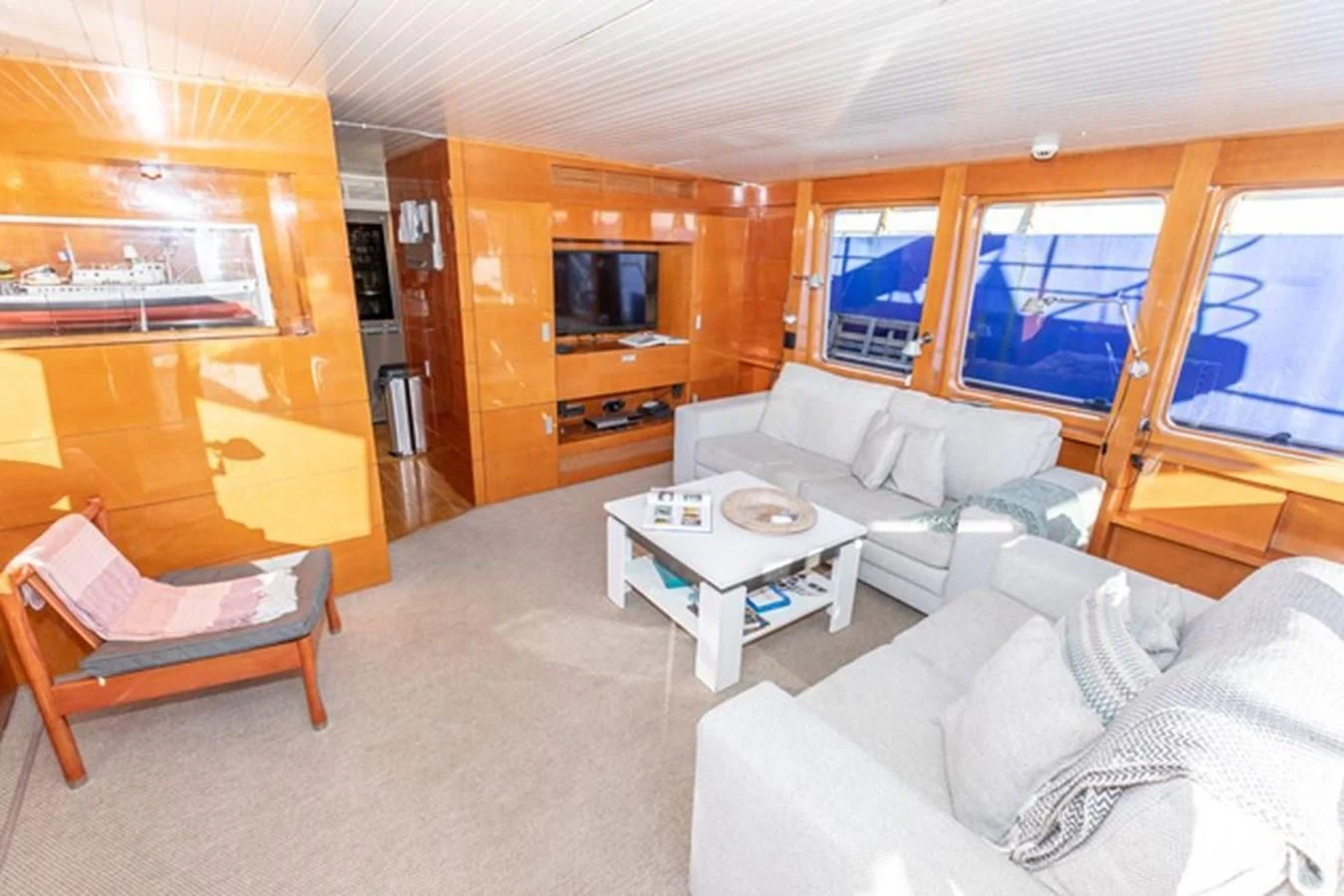

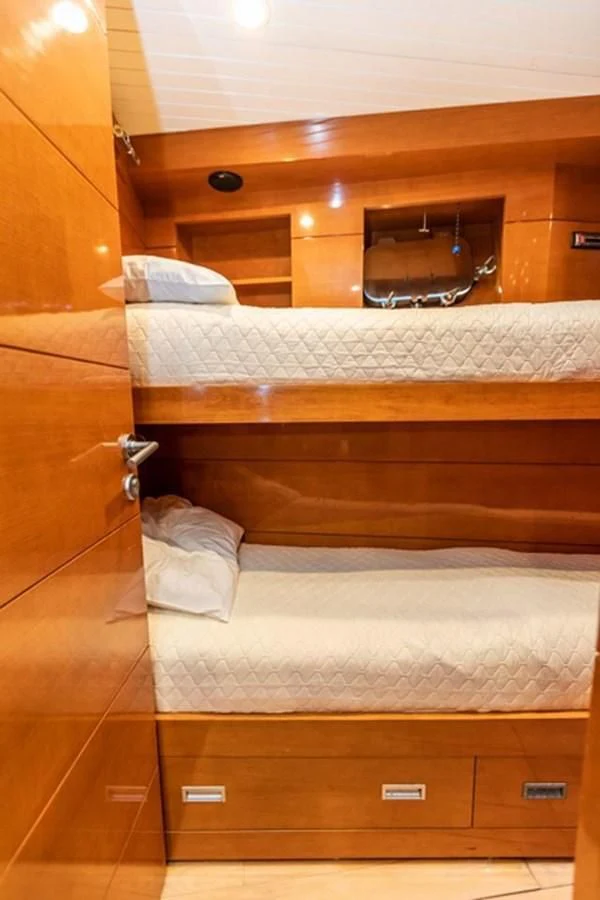

• Below there is a large bridge with seating area and seating behind, and access to the upper deck. There is a day head, and access to the practical galley which leads to the deck saloon with access to the aft deck. There are 2 guest cabins on the lower deck forward and a further 2 upper and lower berth cabins for crew or guests. All these cabins have ensuite heads and showers. Access to the owners’ stateroom on the lower deck is via steps in the main saloon. It is a large and comfortable area with king sized berth, heads, separate shower and walk in wardrobe.

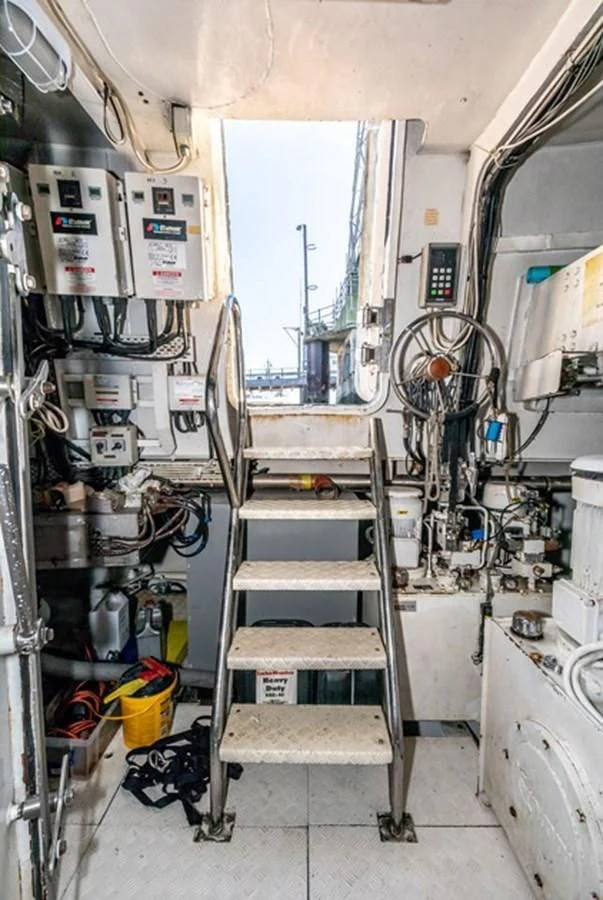

• The engine room and lazarette separated by a watertight door is spacious and can be accessed from either the stern platform or from an access door on the main deck.
• She is perfectly suited to serious cruising with a range of around 2,600 nautical miles and is also well mannered for local cruising. She is always the most handsome yacht in the anchorage.
• She has a current stability booklet and plans are available on request for the fitting of an additional watertight bulkhead if a new owner was interested in coding her to MCA Category Zero.
