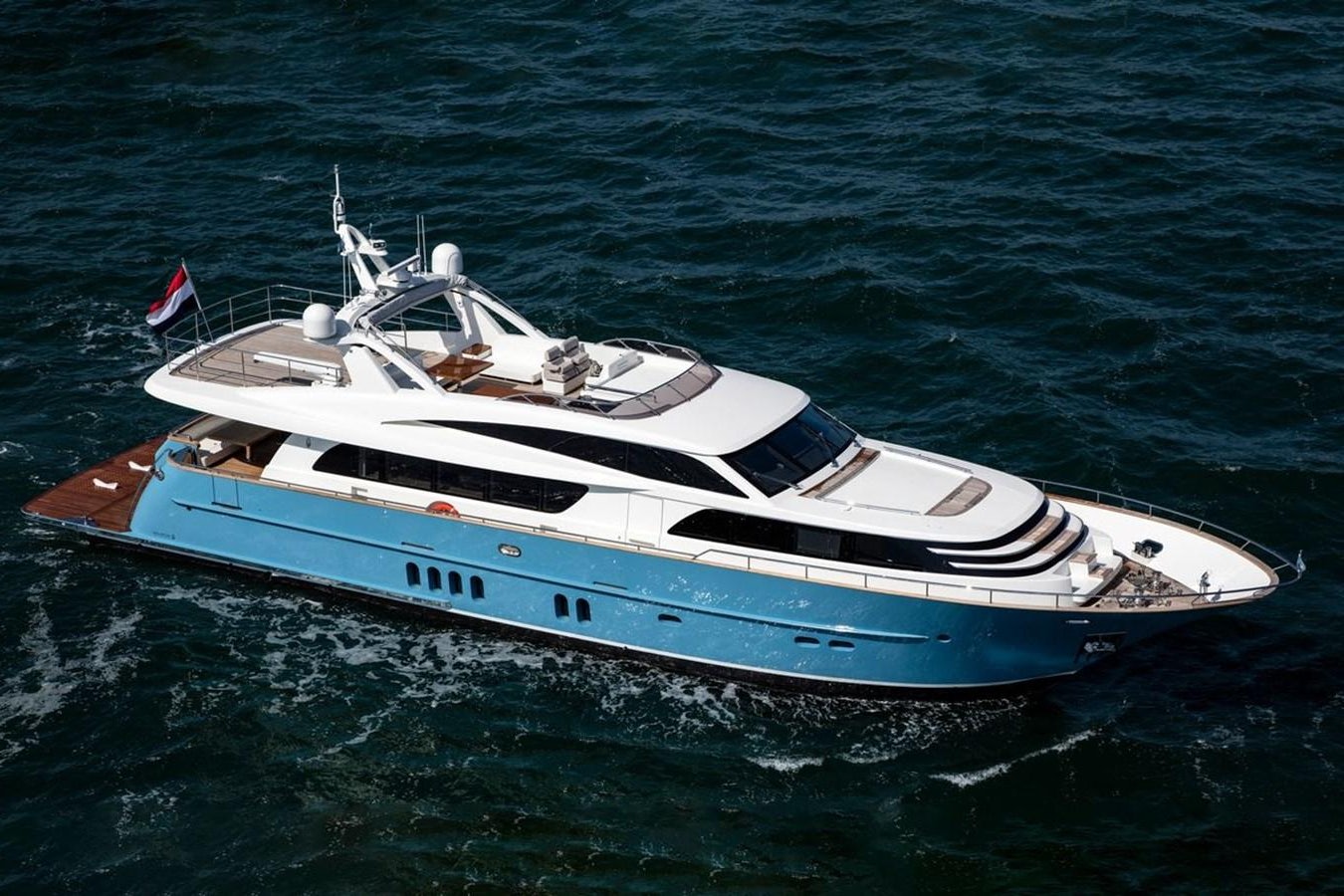

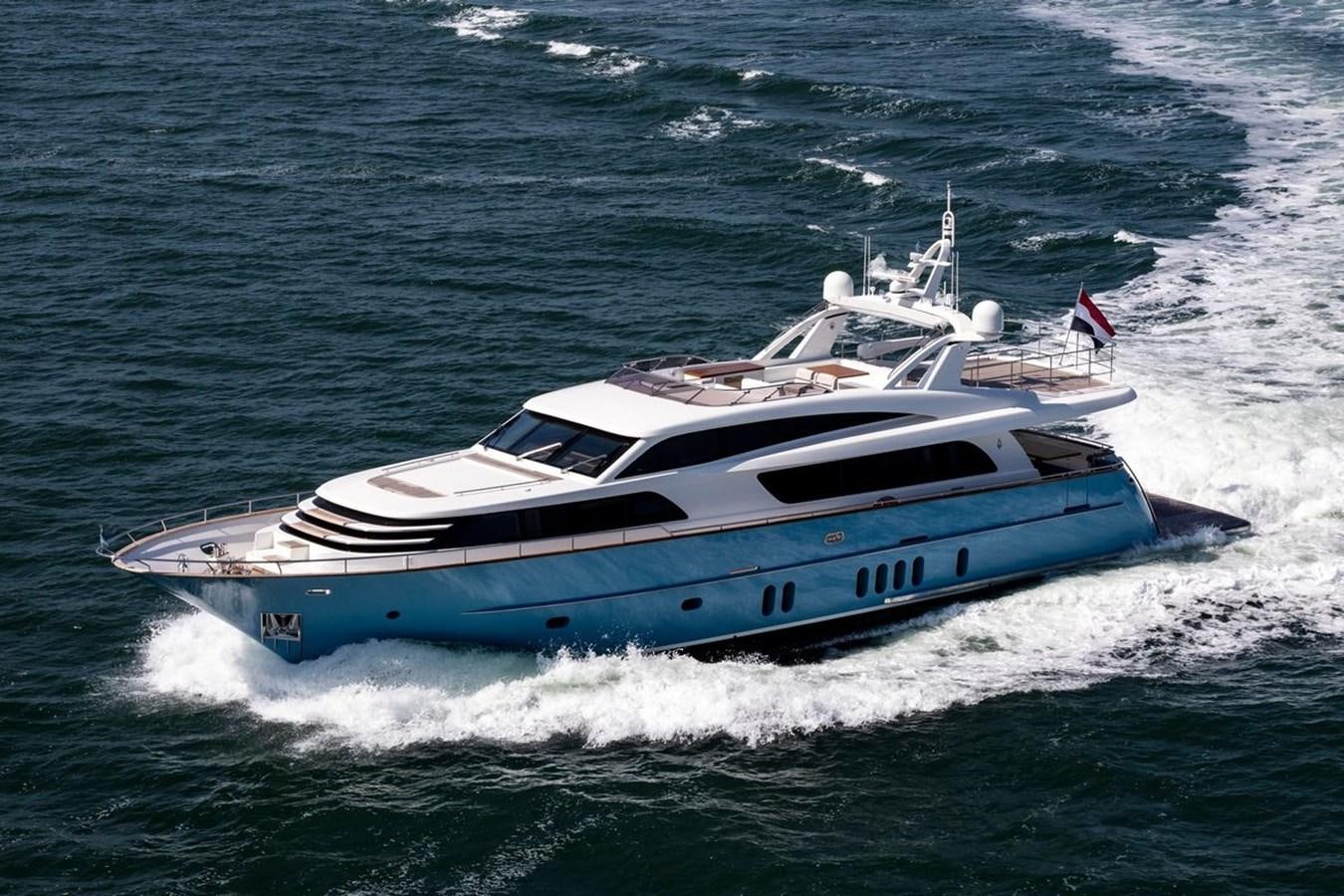

HELGA Yacht for Sale

• Rudder shafts - 2 x Stainless-steel duplex C301.4462 rudder shaft.
• Rudder blades - 2 x NACA 63A stainless steel rudder blade.
• 2 x Water lubricated rudder tube.
• Hydraulic trim system (Hydrosta).

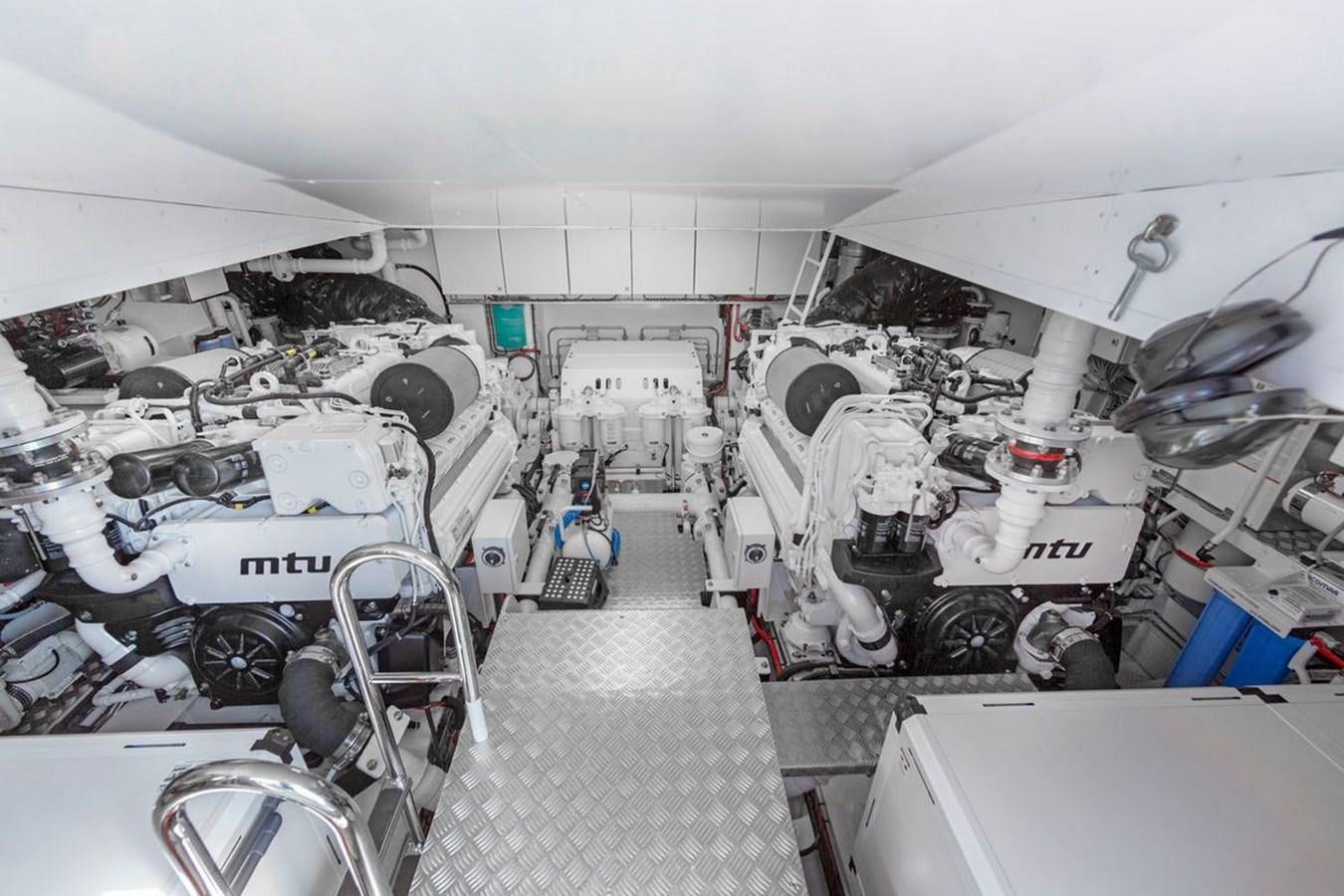

MTU "blue vision" engine control includes:

• 1 x Main helmstation steering position MTU "blue vision" engine control.
• 1 x Flybridge steering position MTU "blue vision" engine control.
• Remote control MTU (wired) used for docking (mobile docking station) with a connection at the cockpit

Heating system

• Diesel heater ("Kabola" KB75 combi) - for heating and hot water system, productivity 11 l/min with the water 90 degrees Celsius.
• Floor heating throughout the ship (each area and cabin separately adjustable).
• Boiler 120 litre (circulation system)

Fuel System

• Diesel transfer pump between the 2 diesel tanks ("Jabsco").
• Double diesel filters (2 filters per engine).
• Magnetic Fuel filters, ("AXI Int.")
• Fuel conditioners "AXI Int." (to destroy bacteria in diesel).
• Filters "Volvo Lucas" for "Kabola" system and generators.

Fresh Water System

• Water maker "Sea Recovery" Aquamatic 1800-2, productivity 284 l/hour.
• Drinking water desinfection system (HP water systems UV-5000 steriliser).
• Water-pump (Gianesshi JET 4B C.E. water pressure system), incl. back-up pump including filters.
• PE water tank (1900 l).

Waste water system

• Grey/Black water pump ("Gianesshi" WASTE PUMP MV 44G 24V / 50 l/min) incl. back-up pump.
• Shower pumps ("Planus Aqualift").
• Electric toilets/bidets ("Planus"). Toilet paper can be thrown.
• 3-way valve for shower / sinks of all the cabins, galley and flybridge / wash and dishwash machines water over board.
• PE waste water tank (2000 l) with extracting possibility and overflow security, incl. tank level meter.

Bilge System

• 4 x "Jabsco" 3500 automatic bilge pump (14.000 l/h) with signaling.
• 1 x "Jabsco" "Ocean Warrior" manual bilge pump.

Battery sets

• 2 x 24 Volt 1000 amp (2 volt cells for general use/operation (service batteries)).
• 4 x 24 Volt 160 amp type AGM (for main engines).
• 2 x 12 Volt 90 amp type AGM (for generators).

Chargers

• 2 x Mastervolt 24V 100 amp. (for service batteries).
• 1 x Mastervolt 24V 60 amp. (for engine batteries).
• 2 x Mastervolt 12 V 10 amp (for genset batteries).

Inverter

• 2 x 4 kW inverter 24/230 Volt

Shore power connection

• 1 x 400 volt 32 amp with isolation transformer.
• 1 x 230 volt 32 amp shore connection for chargers in case 400 volt is not available.

Switch panels 230 volt

• Switch panels have been equipped with “double pole” fuses and where necessary “earth fault” and “engine protection systems”. The switching between shore, generators and inverter is fully automatic and “fool proof”.
• A 230 V indication - monitoring system is mounted in the steering position.

Switch Panels 24 Volt

• A main switchboard is mounted in the engine room en is equipped with “double pole” fuses and where necessary engine security switches. Also a professional “earth fault” monitoring system is installed.
•  A 24 volt dc indication & monitoring system is installed in the steering position

Electrolysis

The ship is equipped with an earth fault measuring system equipped with alarm function. Should the ship find itself in an “electrically polluted” environment then the system will indicate this.

Dashboard wheelhouse

• Equipment flush mounted & equipped with foil panels.
• Enough visibility between top of dashboard and front windows.

Cable system

Type cables and installation according to latest classification demands. Only professional connectors have been used. Cables are heat resistant and have separate fuses.

Lighting system

• Salon, dinette, galley and all other (sleeping etc.) cabins are equipped with Cantalupi Halogen/LED spots with dimmers.
• Wheelhouse equipped with night-navigation lighting system.
• Indirect lighting is installed in several areas.
• Engine room equipped with LED ceiling panels.
• Deck lights, equipped with dimmers are mounted above the side and aft decks.
• Furthermore LED “foot” lighting is installed around main decks, fly bridge and corridore of the lower deck.
• All the stairs will be fitted with LED lights.
• A Domotica system is installed to allow for central operation of the lighting system.
• All outside lighting is waterproof.

Navigation lighting

• 1 x Navigation lights system for yachts up to 50 meters.

Switching materials

• Type BTicino (Colour optional).

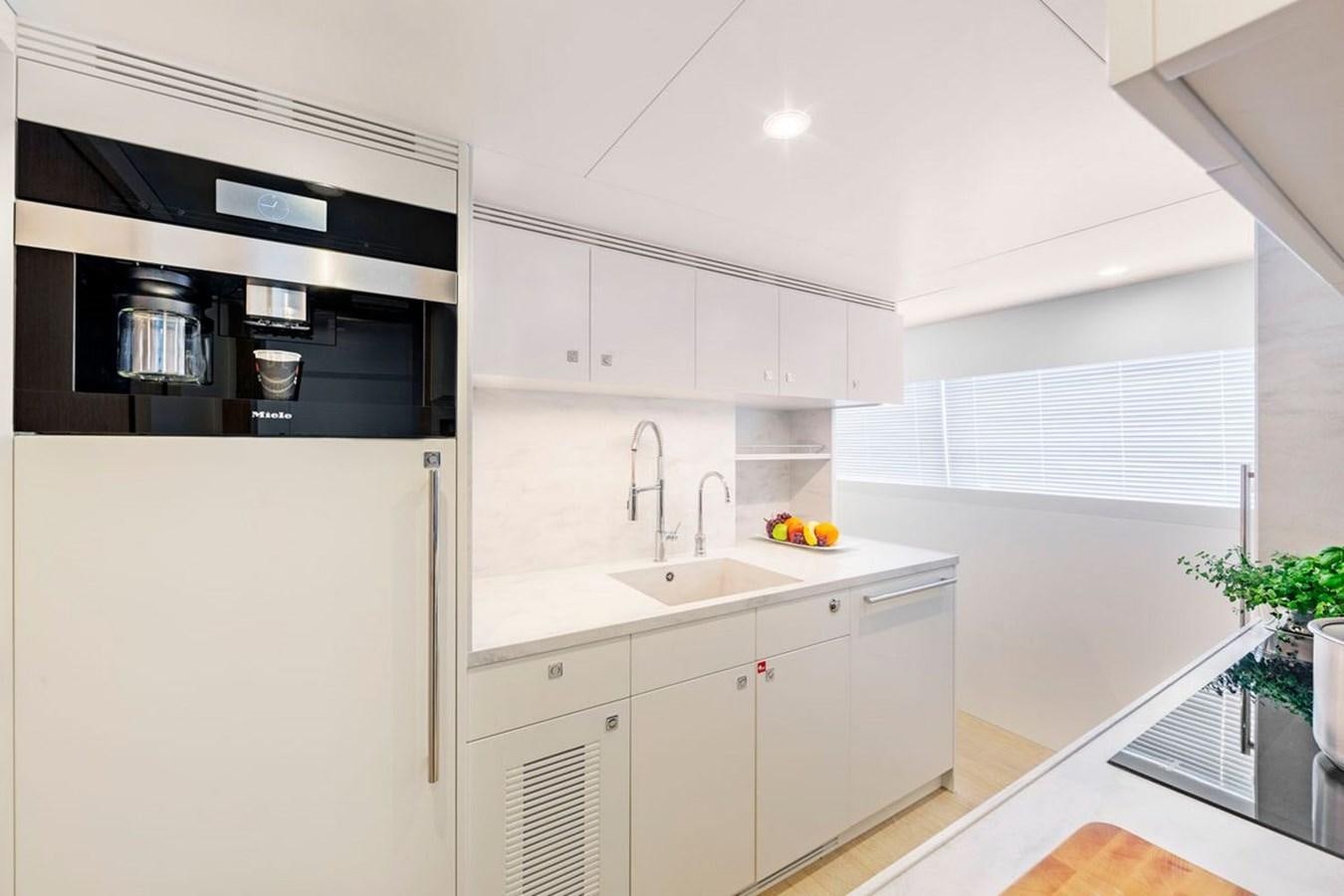

• 2 х Fridge/freezer
• 1 x Wine refrigerator
• 1 x Induction cook top
• 1 x Extractor fan
• 1 x Dishwashing machine
• 1 x Combi oven (oven/microwave)
• 1 х Сoffee machine
• 1 х Chopper integrated into sink
• 1 х Integrated tap for hot drinking water (Quooker)
• 1 х Washing machine
• 1 х Drying machine
• 1 х Fridge/freezer

Flybridge

Autopilot consist of:


• Raymarine P70R Autopilot Control Head The p70R autopilot control head is designed for power craft with push buttons and a rotary control dial. Advanced LED backlighting offers low power consumption and delivers vibrant colour and contrast. Wide horizontal and vertical viewing angles ensure the display can be seen clearly from acute positions.
• Raymarine Axiom Series Glass Bridge, Raymarine's consist of:
• 2x Raymarine Axiom XL 16” display’s.
• 1 х Raymarine’s fixed mount Ray90 modular VHF radio and 1 х handset A80289 “RayMic Wired Handset Accessory”.

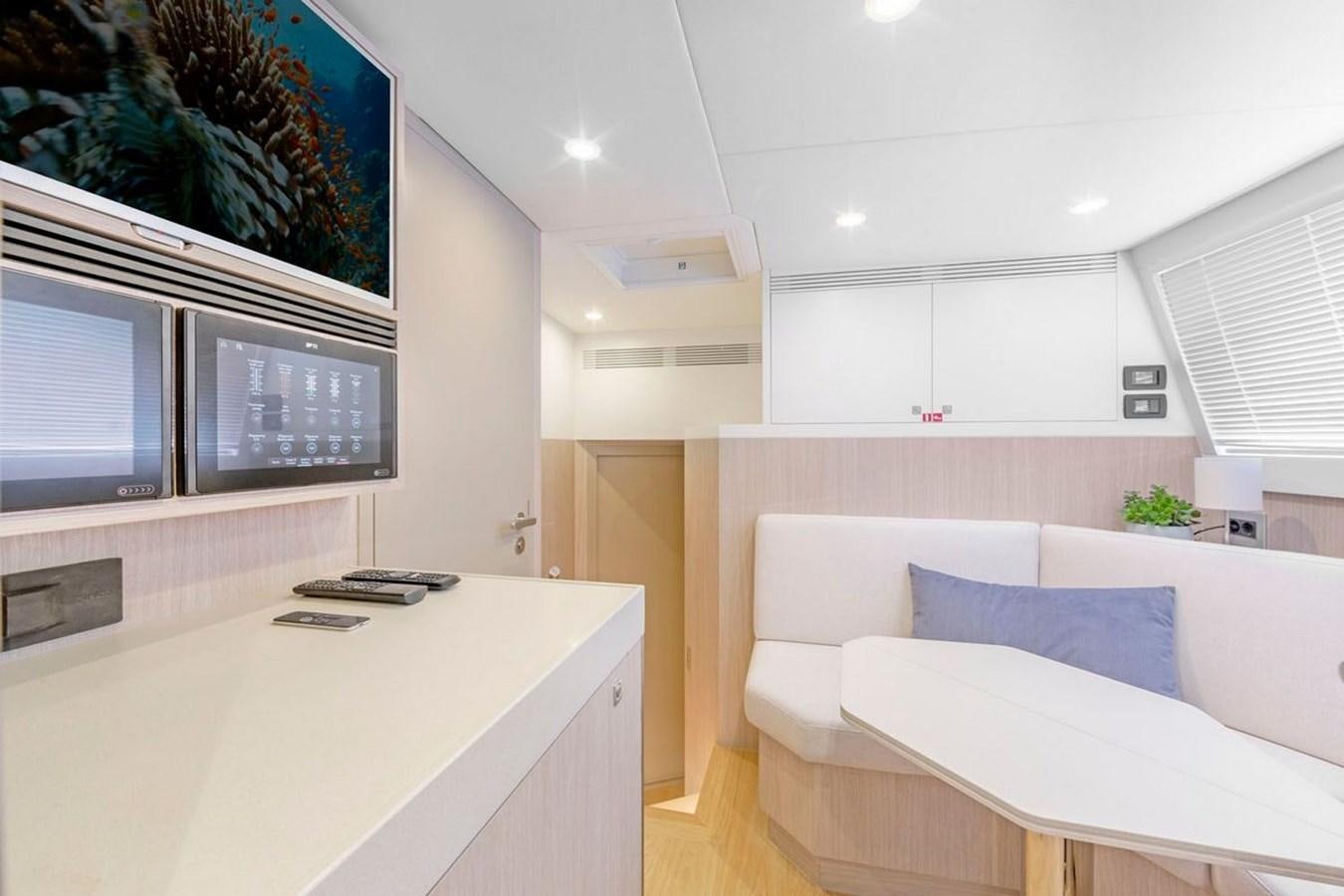

Crew area

• 12" touch screen with plotter repeater, anchor & depth alarm plus tank levels.
• 12” touch screen with duplication of information from IP cameras (see section 23.4).

IP Сameras system

• 1 x Camera IP, for engine room.
• 1 x Camera IP, aft view.
• 1 x Camera IP, cockpit view.
• 1 x Camera IP, portside view.
• 1 x Camera IP, starboard view.
• Visible on navigation screens in wheelhouse, in the crew cabin, and are also accessible remotely from a PC, laptop or iPad / iPhone.
• Night vision / thermal camera
•  1 x FLIR M364C XR Premium Maritime Thermal Night Vision System.

Receiver / Transmitter Raymarine AIS 950:

• 2 х Raymarine’s fixed mount Ray90 modular VHF radio and 2 х handset A80289 “RayMic Wired Handset Accessory”

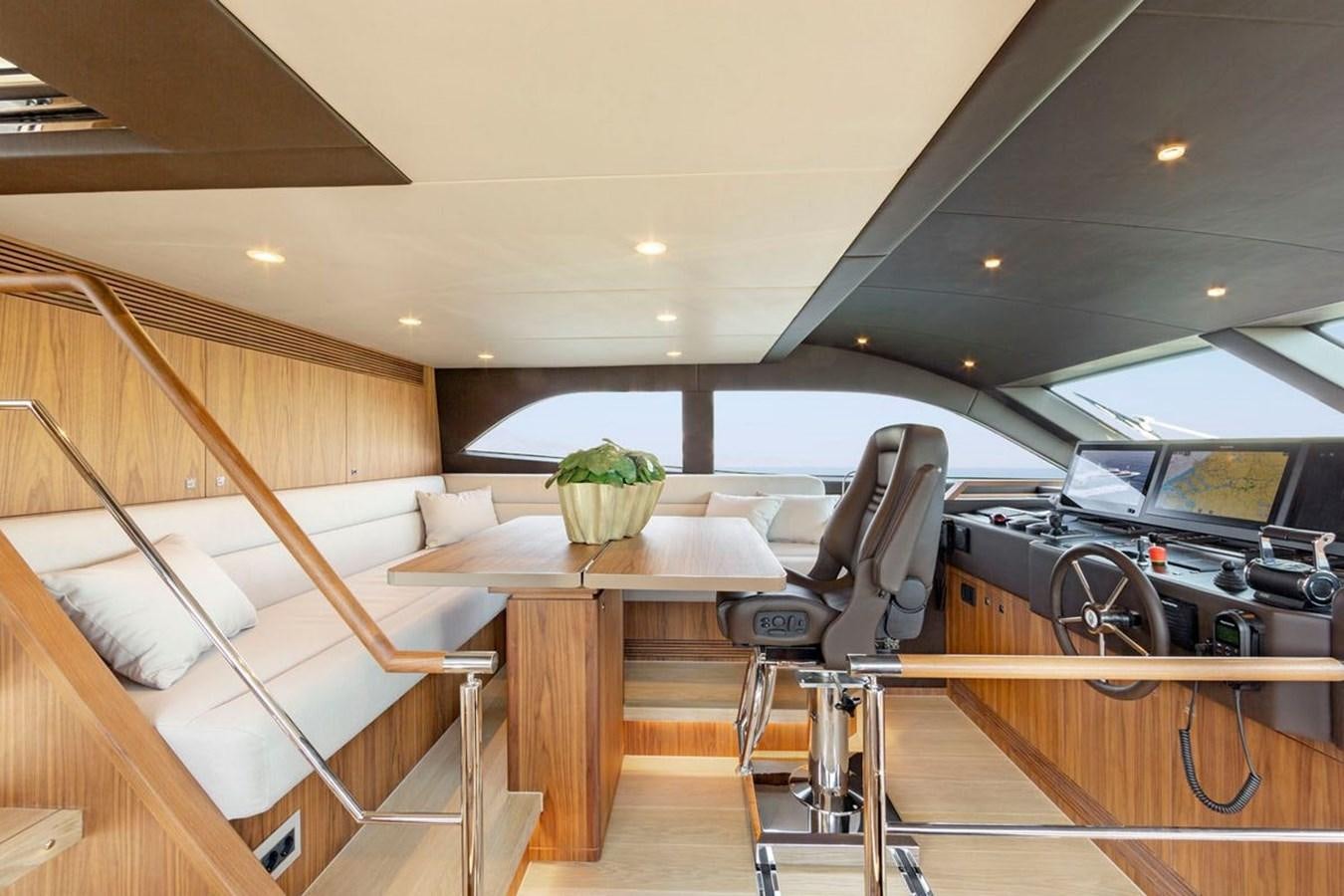

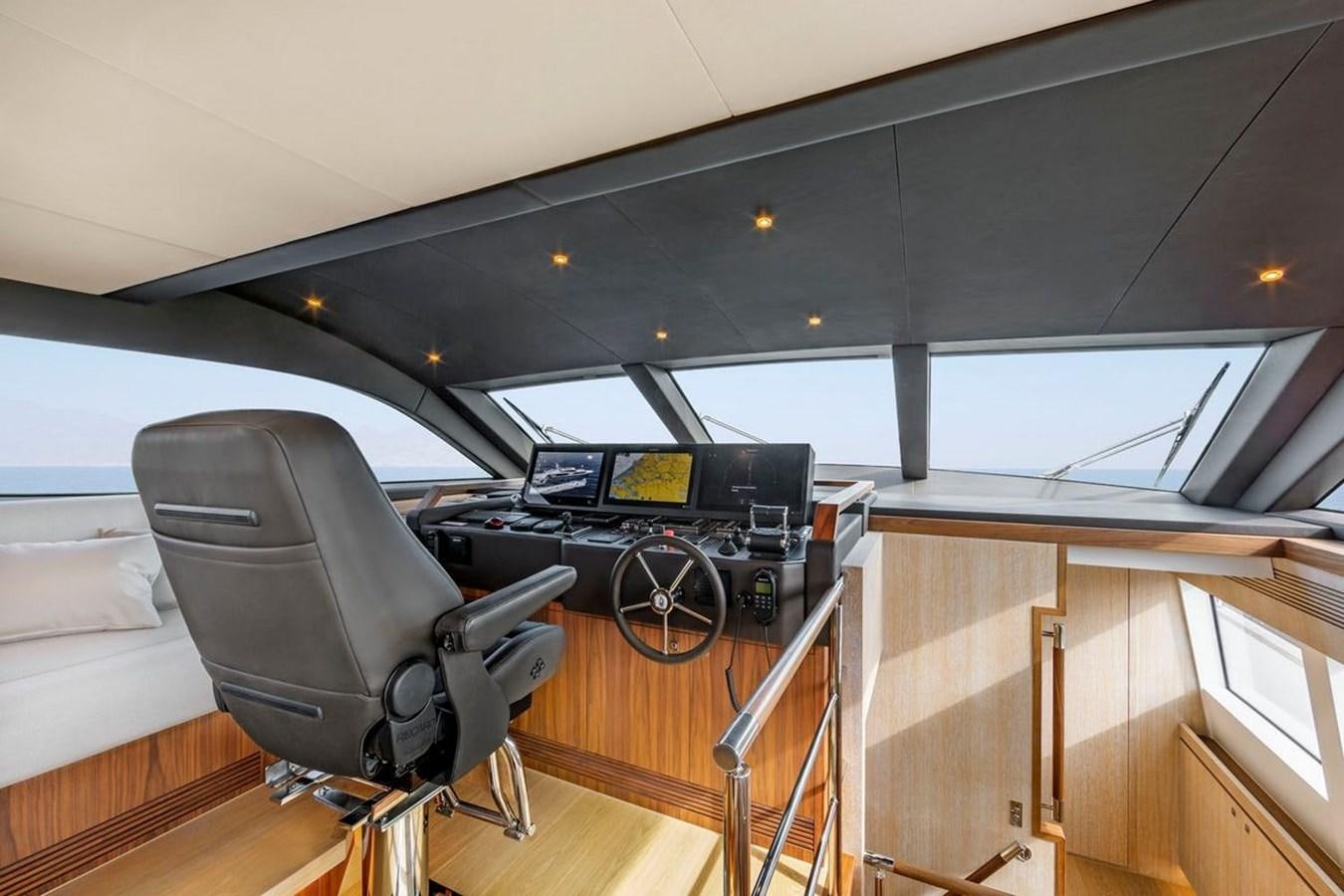

Wheelhouse

Autopilot consist of:

• Raymarine Evolution Autopilot ACU-300. Evolution autopilot systems perceive their environment and instantly calculate and evolve steering commands to maximize performance. The result is precise and confident course keeping, regardless of vessel speed or sea conditions - Evolution autopilots steer - transmistter class A.so accurately they can save fuel and get you to your destination faster.
• Raymarine P70R Autopilot Control Head The p70R autopilot control head is designed for power craft with push buttons and a rotary control dial. Advanced LED backlighting offers low power consumption and delivers vibrant colour and contrast. Wide horizontal and vertical viewing angles ensure the display can be seen clearly from acute positions.

Raymarine Axiom Series Glass Bridge, Raymarine's consist of:

• 2x Raymarine Axiom XL 19” display’s.
• Radar Raymarine Magnum.
  Consist of: 1x 4 ft open array scanner.

Receiver / Transmitter Raymarine AIS 950:

• transmistter class A.
• receiver class B

• The Raymarine AXIOM E70363 navigation system, with the built-in RealVision 3D ™ sonar, the updated LightHouse 3 operational system and a high-performance 4-core processor. Equipped with a display “Raymarine AXIOM” 7 ”(2 pcs.).

Sensors

• 1 x GPS sensor.
• 1 x Depth/speed sensor.
• 1 x Wind sensor.

Additional Computer/Navigation systems.

• 1 x Maritime computer.
• 1 x 19” Glass bridge monitor.
• 1 x Wireless mouse and keyboard.
• 1 x Receiver for navtex.
• 1 x Aerial for receiver.
• 1 x Magnetic compass.

1 x Satellite TV System KVH TracVision TV6.

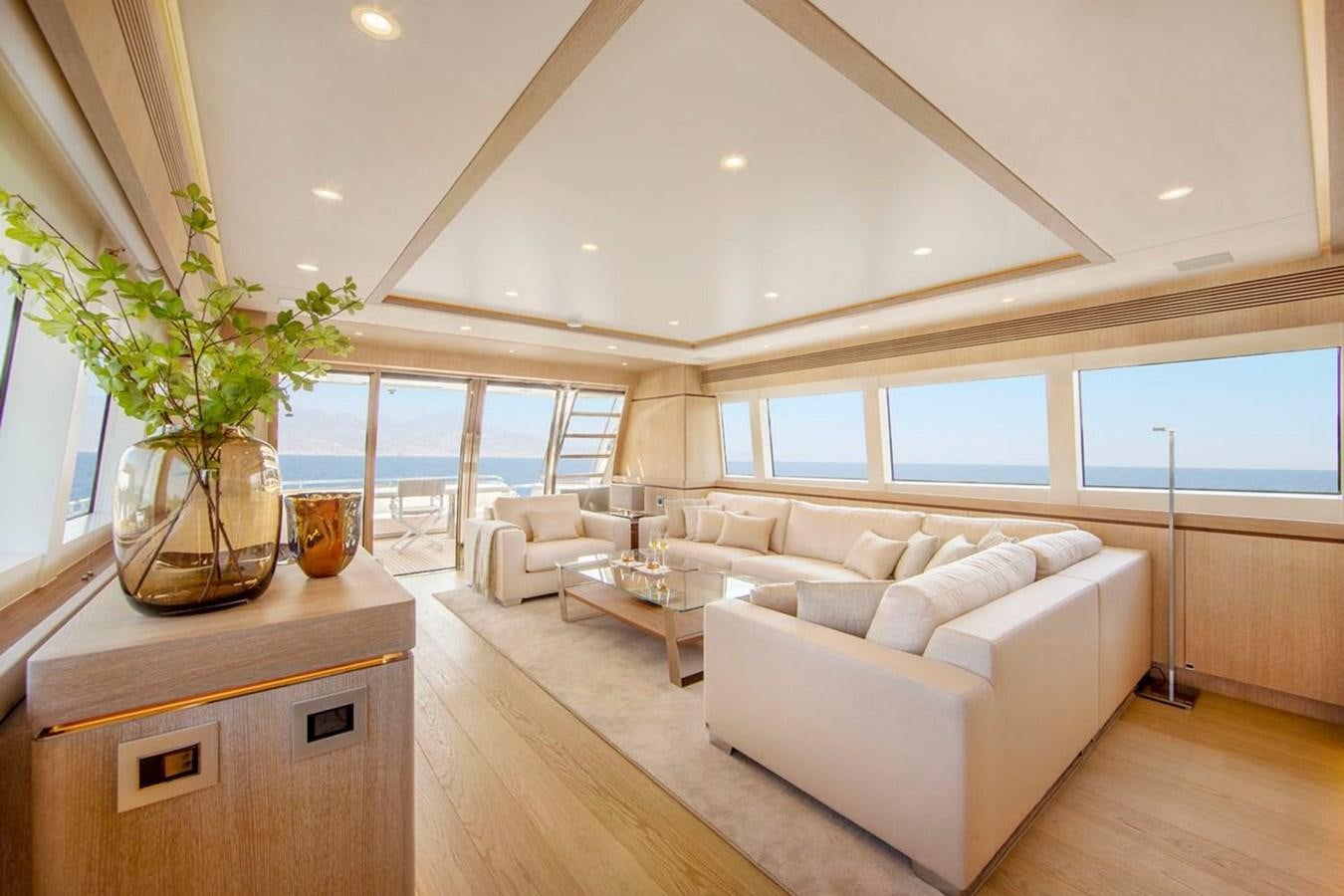

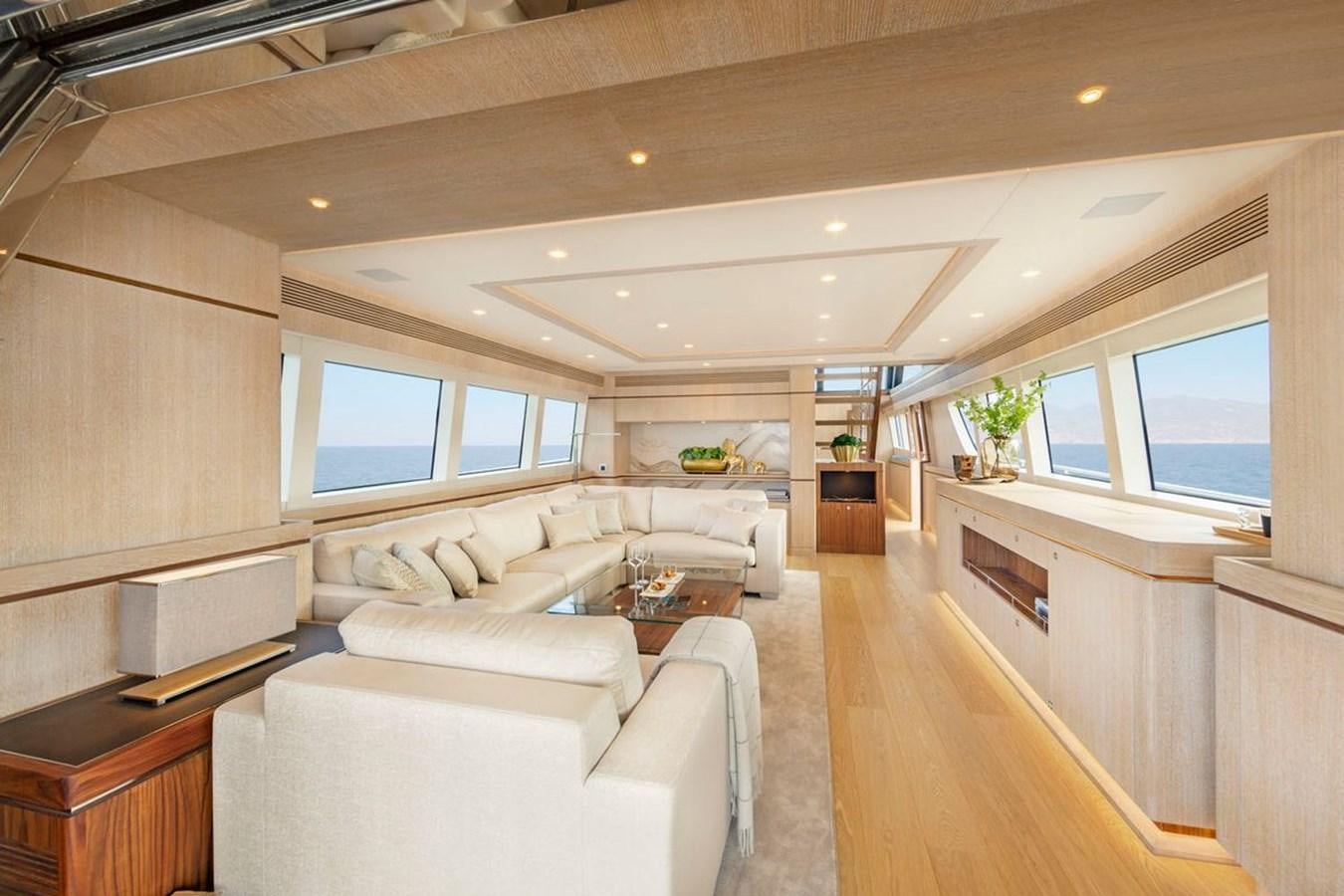

Salon

• 1 x Samsung 55” Led TV with integrated satellite receiver +DVB-T.
• 1 x Marantz ST8012 receiver.
• 4 x Bower & Wilkins CCM682 marine speakers.

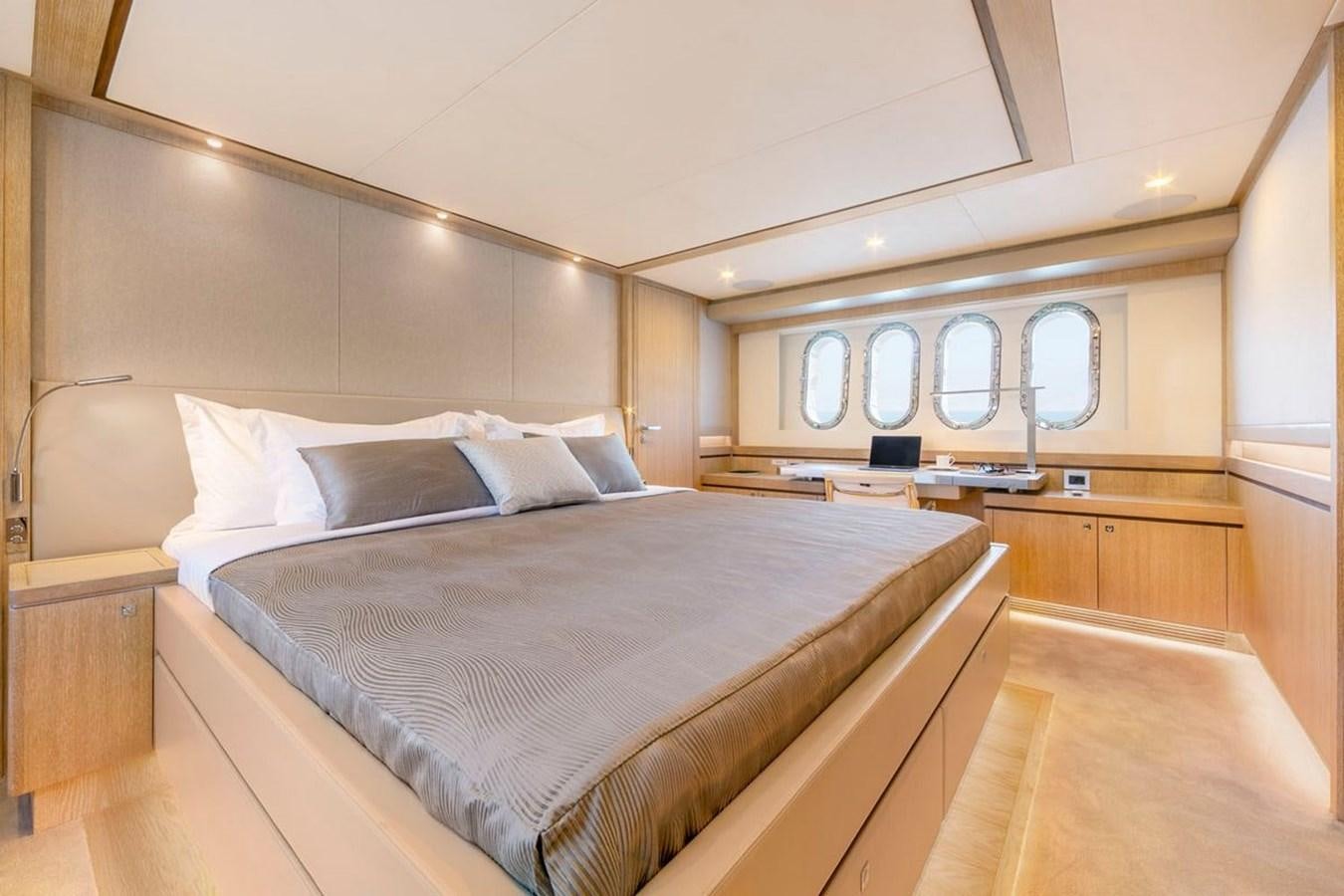

Master Cabin

• 1 x Samsung 42” Led TV with integrated satellite receiver + DVB-T.
• 1 x Marantz M-CR611 receiver.
• 4 x Bower & Wilkins CCM682 marine speakers.

Other cabins

• 1 x Samsung 22" Led TV with integrated satellite receiver + DVB-T.
• 1 x Marantz M-CR611 receiver.
• 2 x Celo5 2-way marine speakers.

Flybridge extension

• 4 x Bower & Wilkins CCM682 marine speakers

Aft deck extension

• 4 x Bower & Wilkins CCM682 marine speakers.

Lighting system

• 1х Searchlight Double Halogen (Jabsco 255SL RC).
• 6 х Underwater lights "Sea Vision" LED RGB.

Notification system

• 1 x Double-horned air horn (Kahlenberg D-OA).
• 1 x Loudhailer Raymarine Ray240E, mounted on the radar mast (arch).
• 3 x Double-arm windscreen wipers with adjustable interval and sprayers ("Speich").

Winches

• 2 x Electric anchor winch (MAXWELL model 6000 VWCLP 100TDC 24V 3.500W) with 150 kg stainless steel anchor and 150 m (13 mm) stainless
• steel anchor chain and anchor roll.
• 2 х MAXWELL electric capstan/winch in cockpit area (MAXWELL 3500VC 24V 190TDC tall drum).
• 2 х Anchor chain counter at both control stations (wheelhouse and flybridge).
• 1 x Hydraulic gangway in box ("Opacmare" 1103/58), unfolded length is 5 800 mm. The gangway will reach 1.8m behind the hydraulic swim platform.
• "Opacmare" hydraulic lower able swim platform (gross cap. 1.000 kg) with 2 removable U-shaped safety railings. Shipyard also supply a removable “mini” ladder with two/three steps to get safely from the fixed platform to the lowered platform.
• Opacmare 3220E/16 Automatic retractable swim ladder integrated in the fixed part of the swim platform (5 steps).
• Deck and equipment wash system.
• Crystal wash Pure water unit, 1.6–4m extension telescopic brush, remote control.
• Deck wash & anchor wash connection (bow, and flybridge deck)
• Carbon yacht shower (hot & cold water) with fixed part of the platform integration adapter.
• 3 x Infrared heater unit cockpit deck.
• Ship's bell on bow area.
• The name of the vessel is made of stainless steel AISI 316.

Fire extinguishing system.

• Automatic fire extinguishing system in the engine room (Firepro Automatical aerosol Marine Fire Extinguisher D118) as well as underneath the
  steering position plus additional manual fire extinguishers (the number and capacity depend on the classification demands).
• Manual fire extinguishers (the number and capacity depend on classification demands).
• 10 x 6 L Foam extinguisher, (MCA approved).
• Engine room ventilation system
• High-quality electric steering chair with complete electric adjustments, with armrests and footrest (Recaro).

Onboard intercom system (8 locations).

• Cabins (4 pc.)
• Wheelhouse (1 pc.);
• Flybridge (1 pc.);
• Salon (1 pc.);
• Crew cabin (1 pc.)
• Network switch (1 pc.)
• Moving sliding beds in one of the guest cabins.
• Documents safe in Master (1 pc) and crew cabin (1 pc) with digital lock.

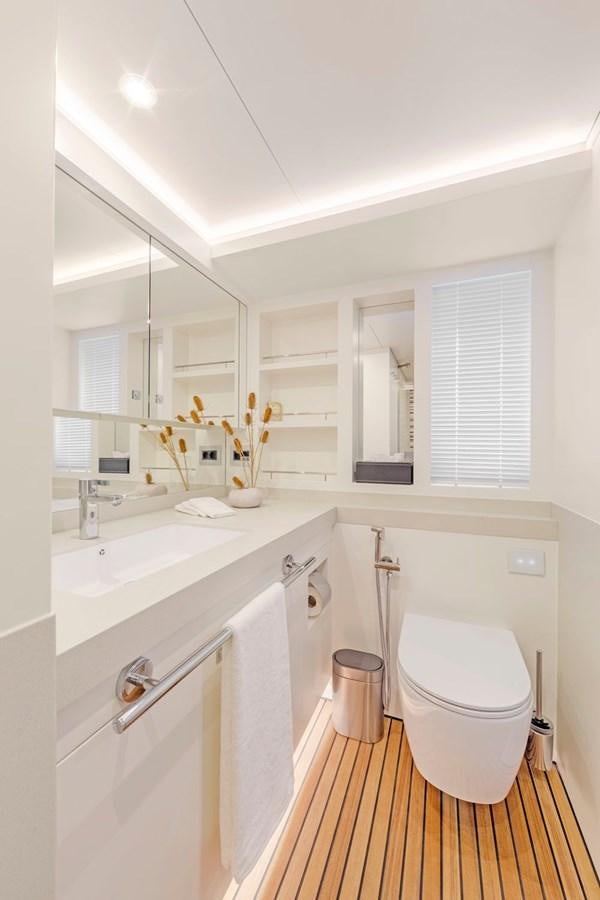

• High quality sanitary equipment, incl. toilet and bathroom accessories ("Hans Grohe").

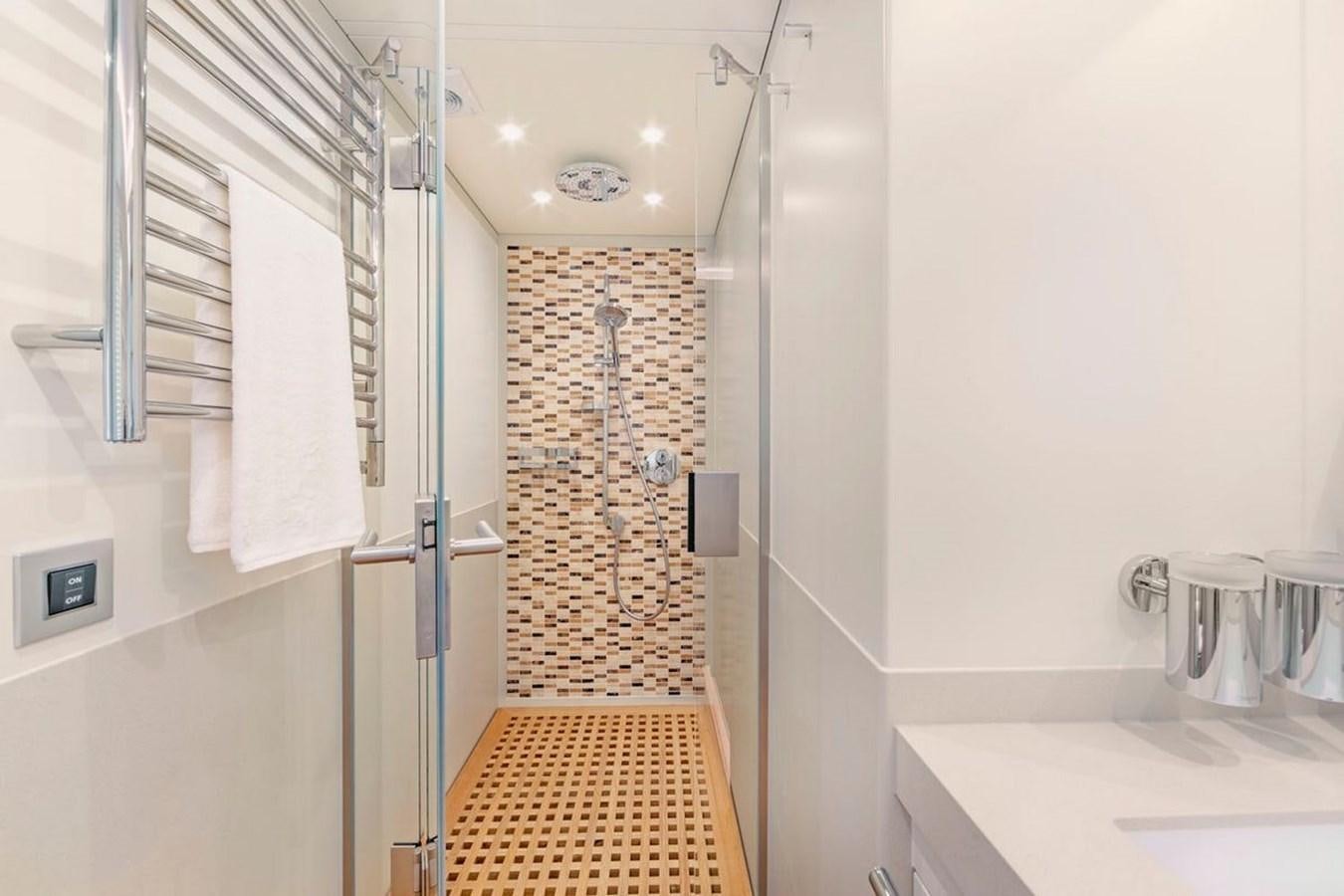

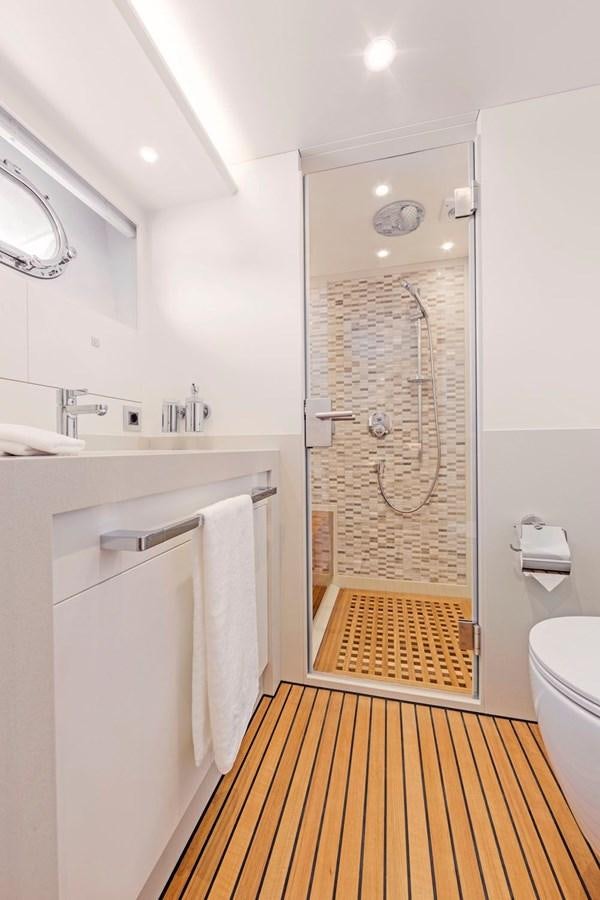

• Shower cabins with security glass doors with locking mechanism on/near the handle.
