GRACE Yacht for Sale

93' 9" (28.6m)

Yacht is no longer available for sale.
This is an archived web page showing historic information for reference purposes only. Search Yachts for Sale.

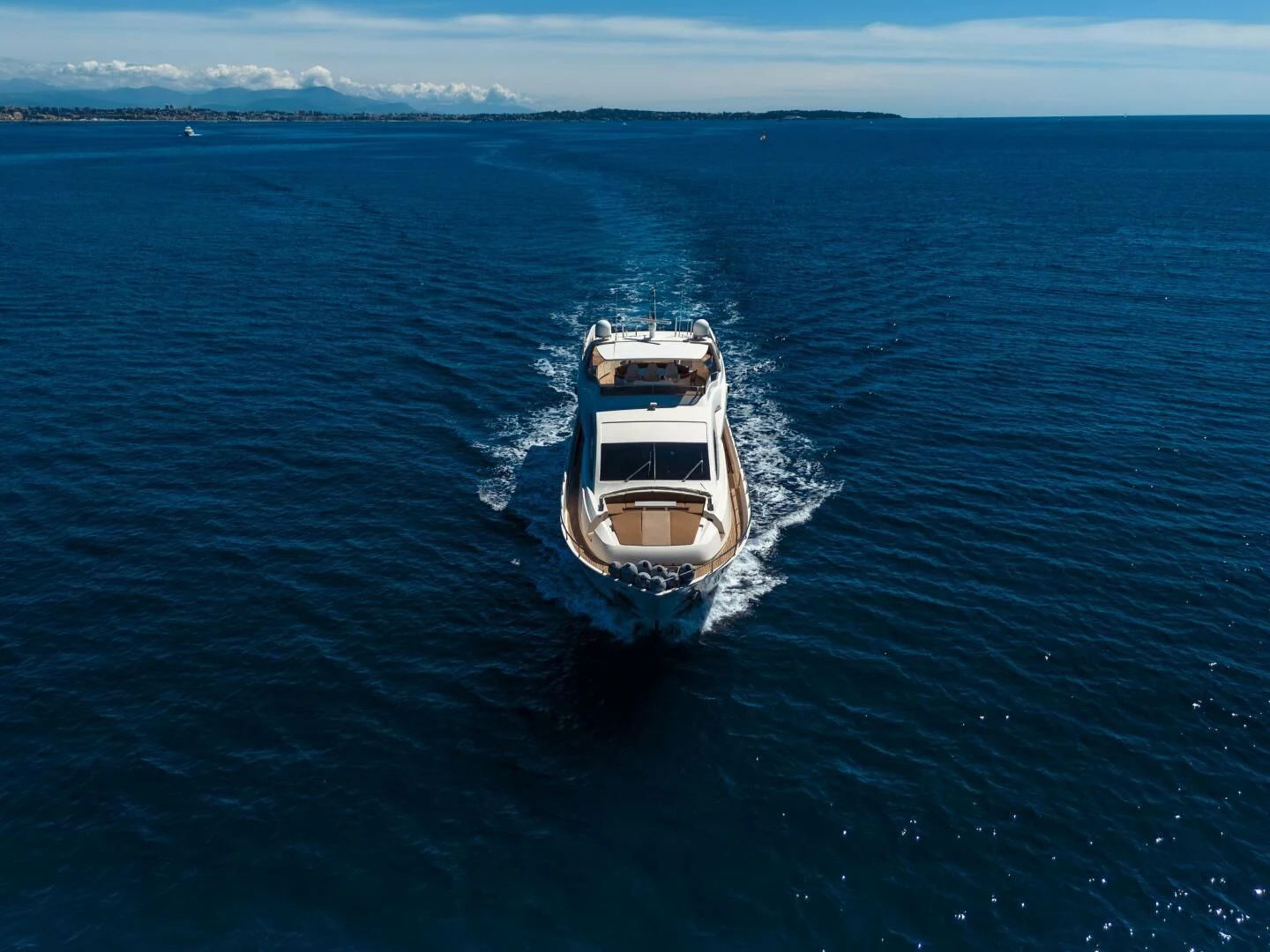

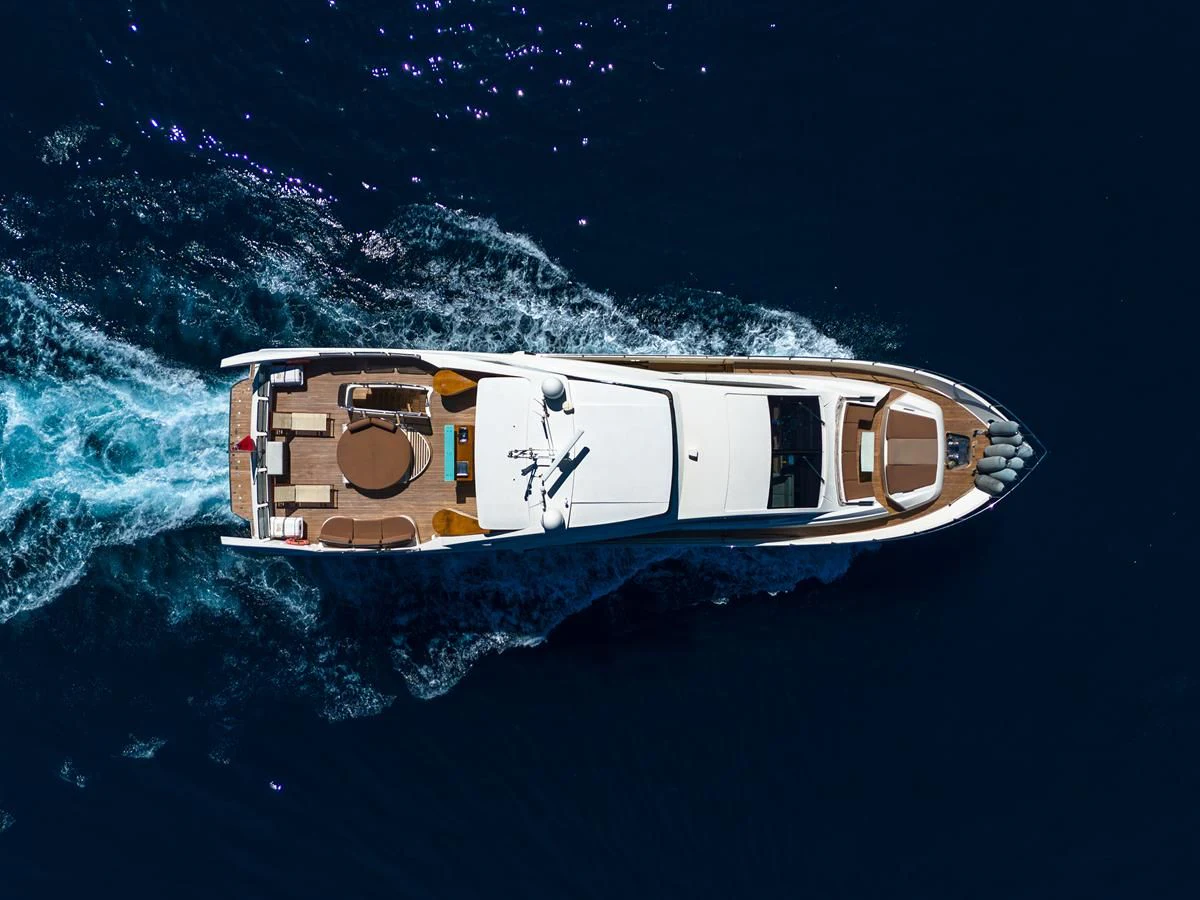

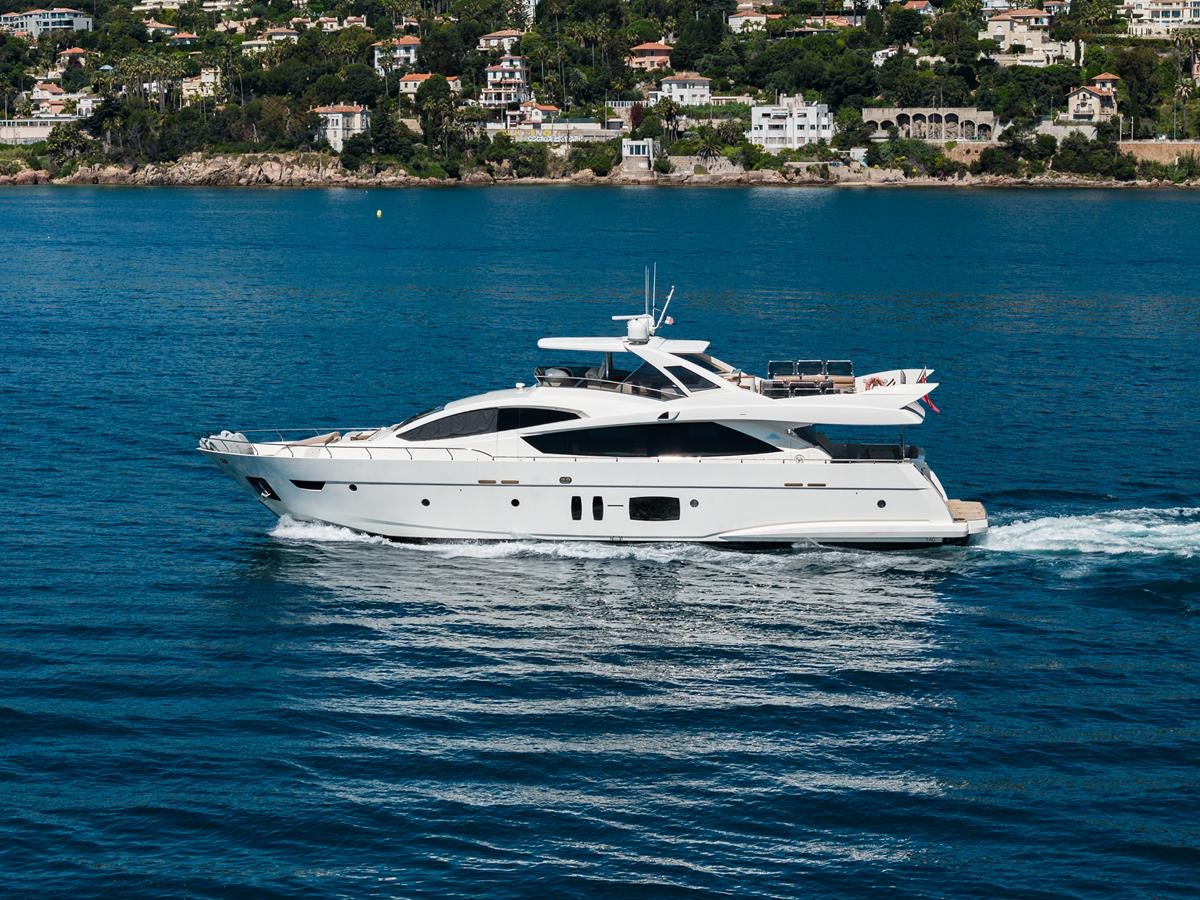

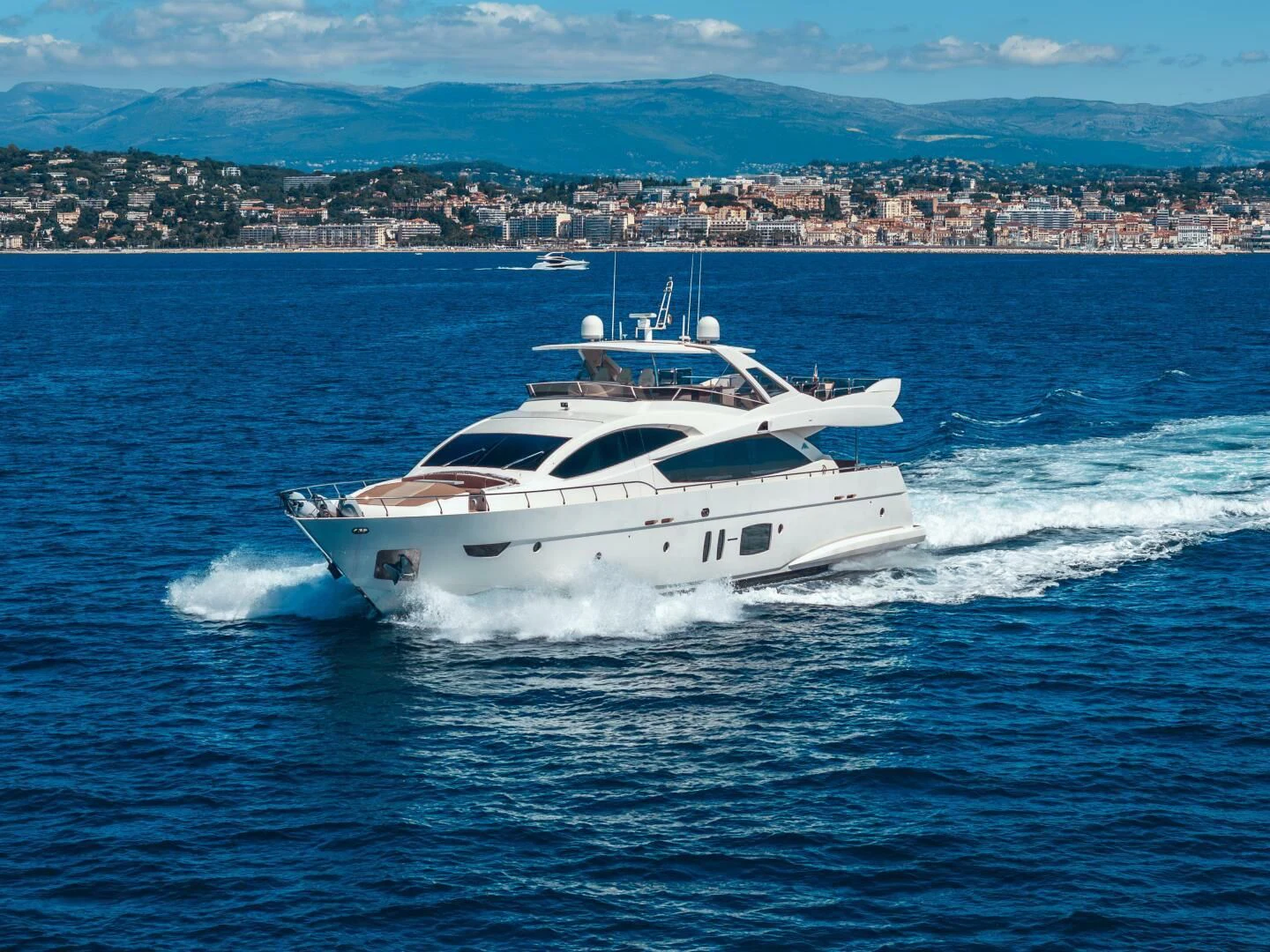

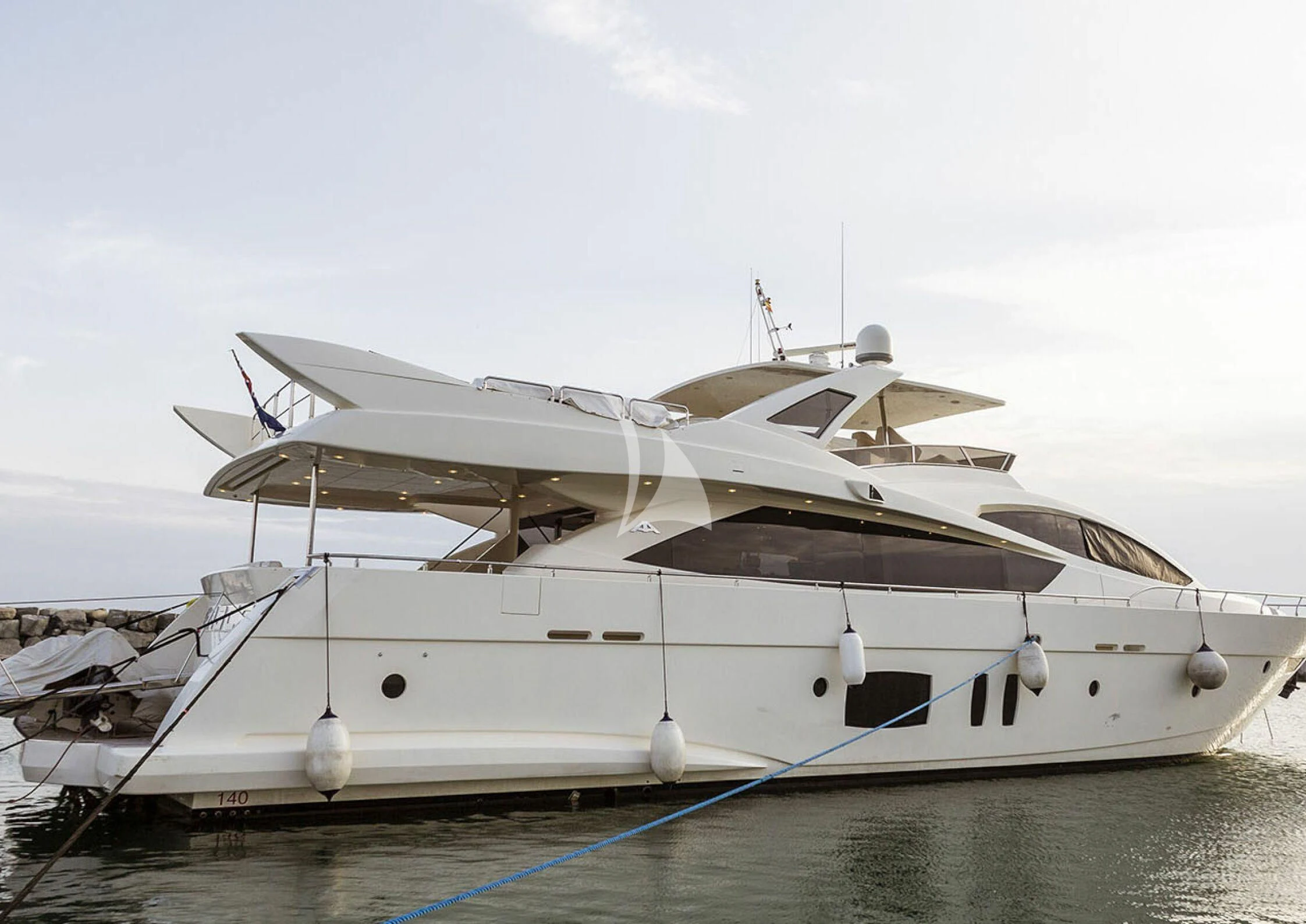

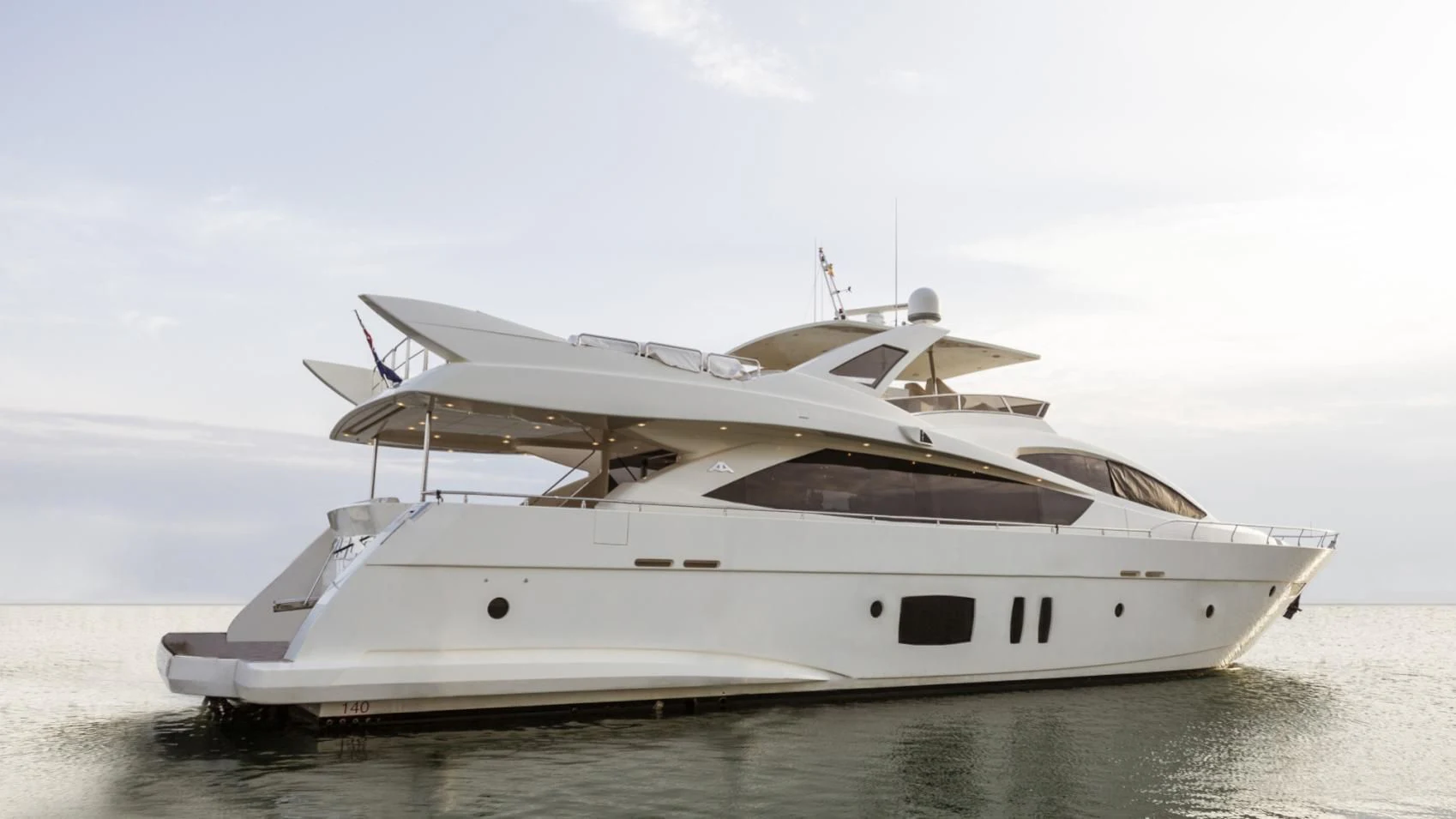

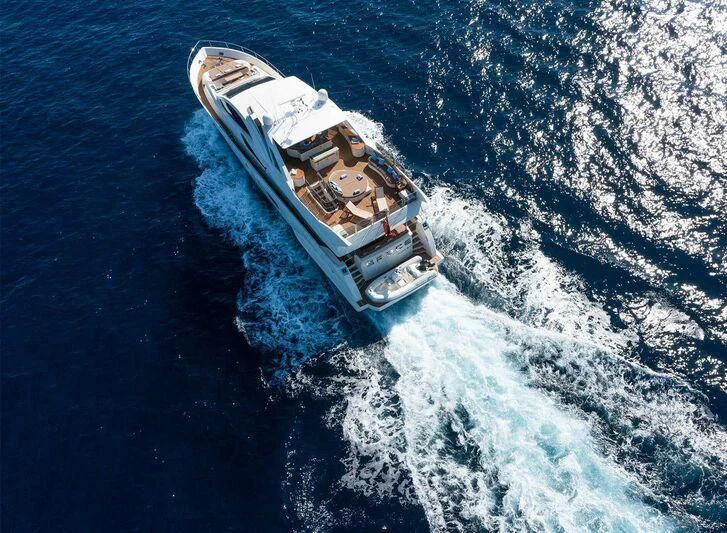

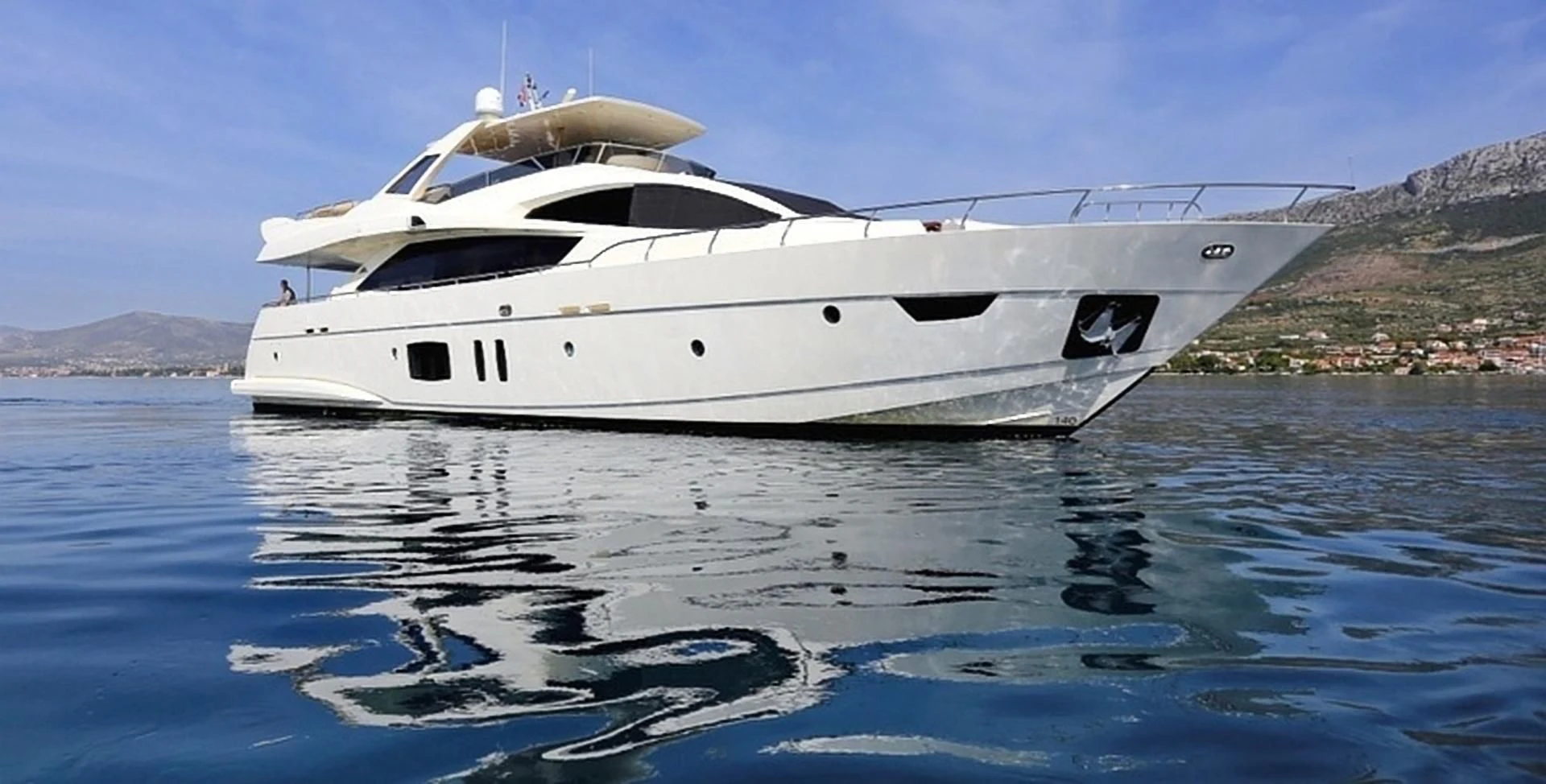

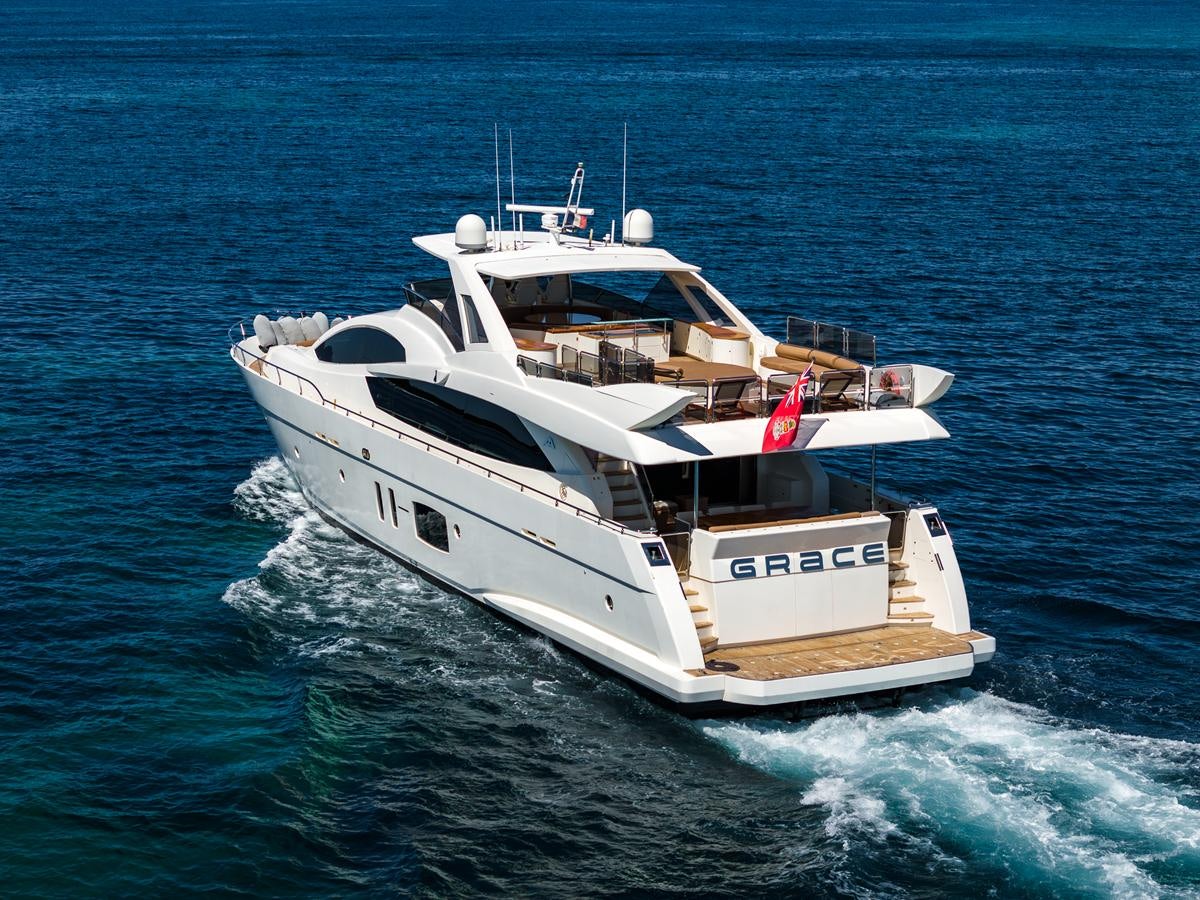

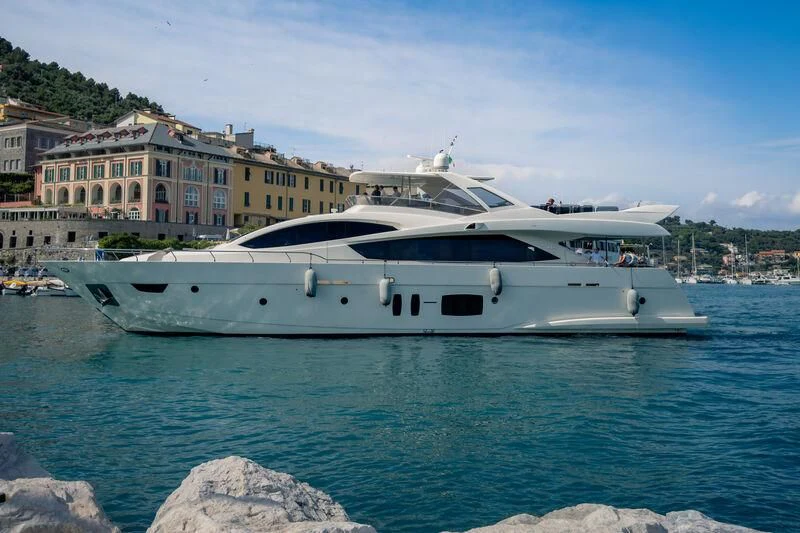

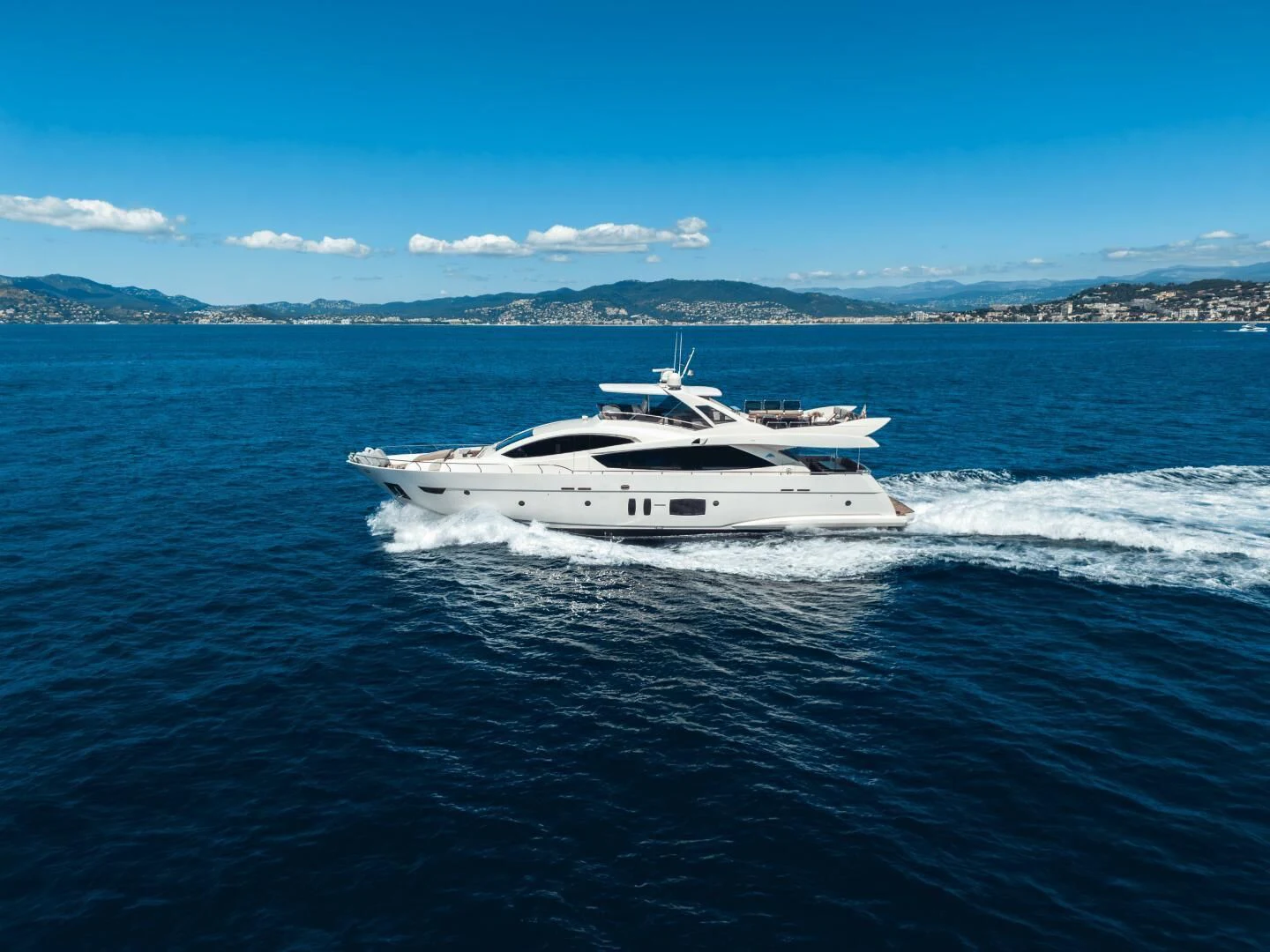

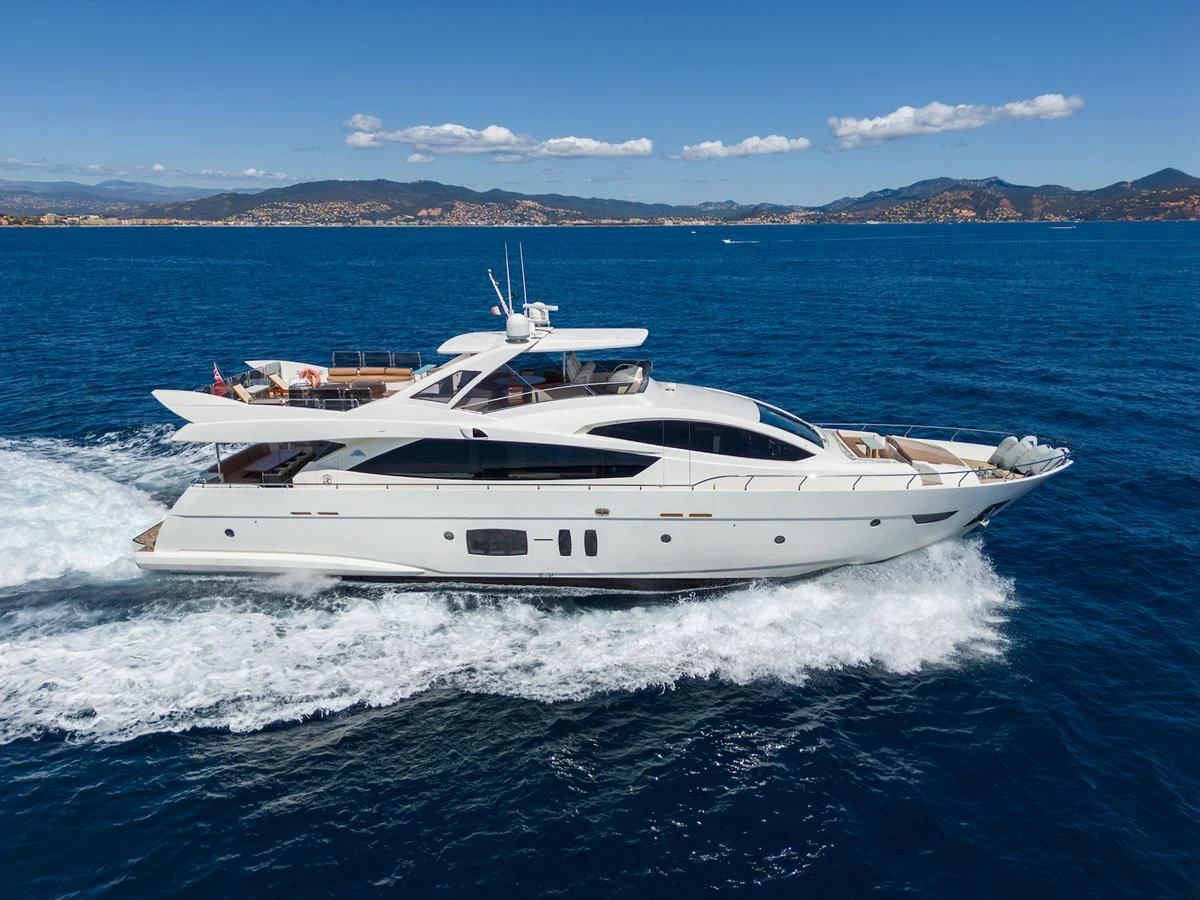

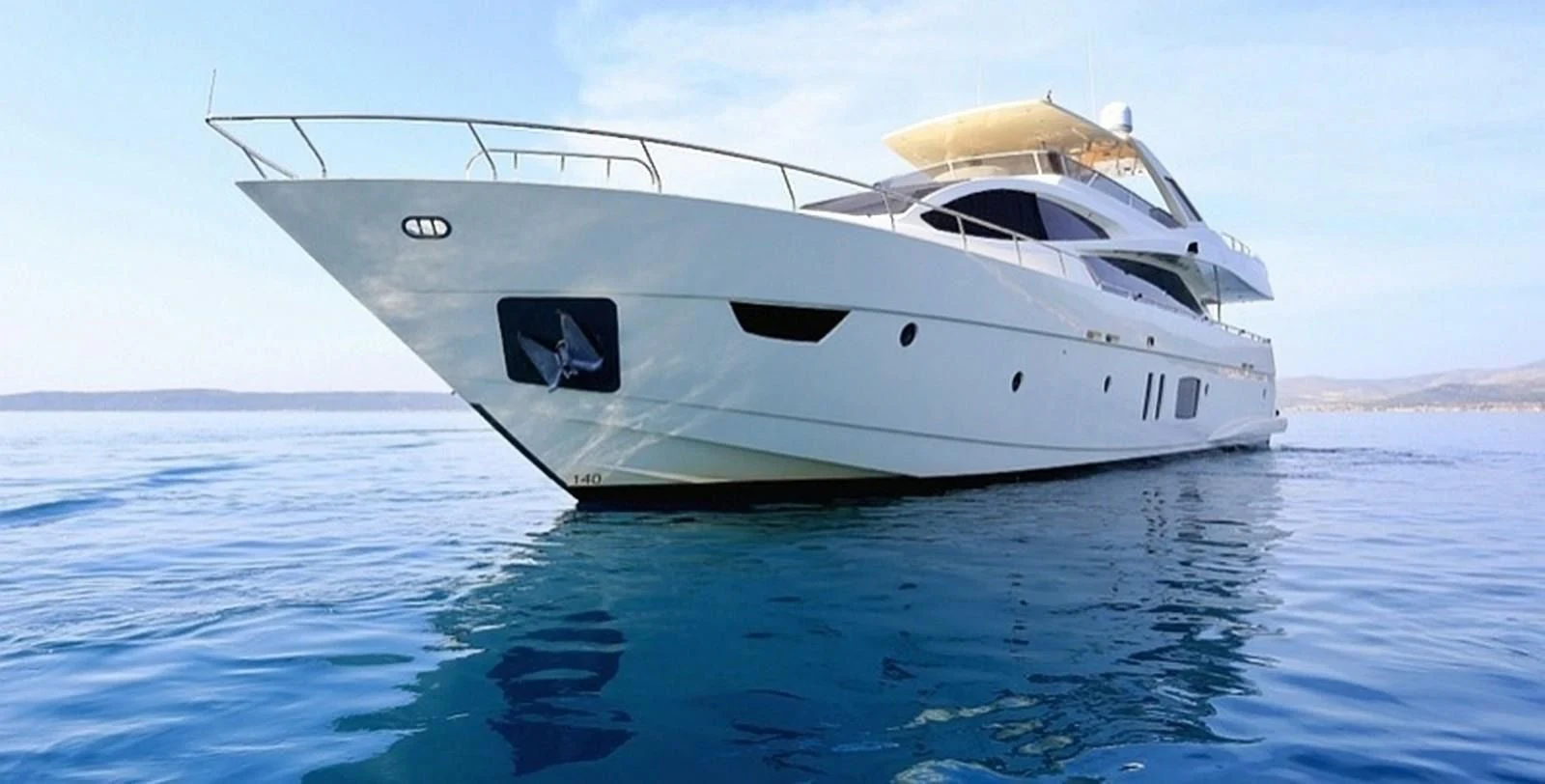

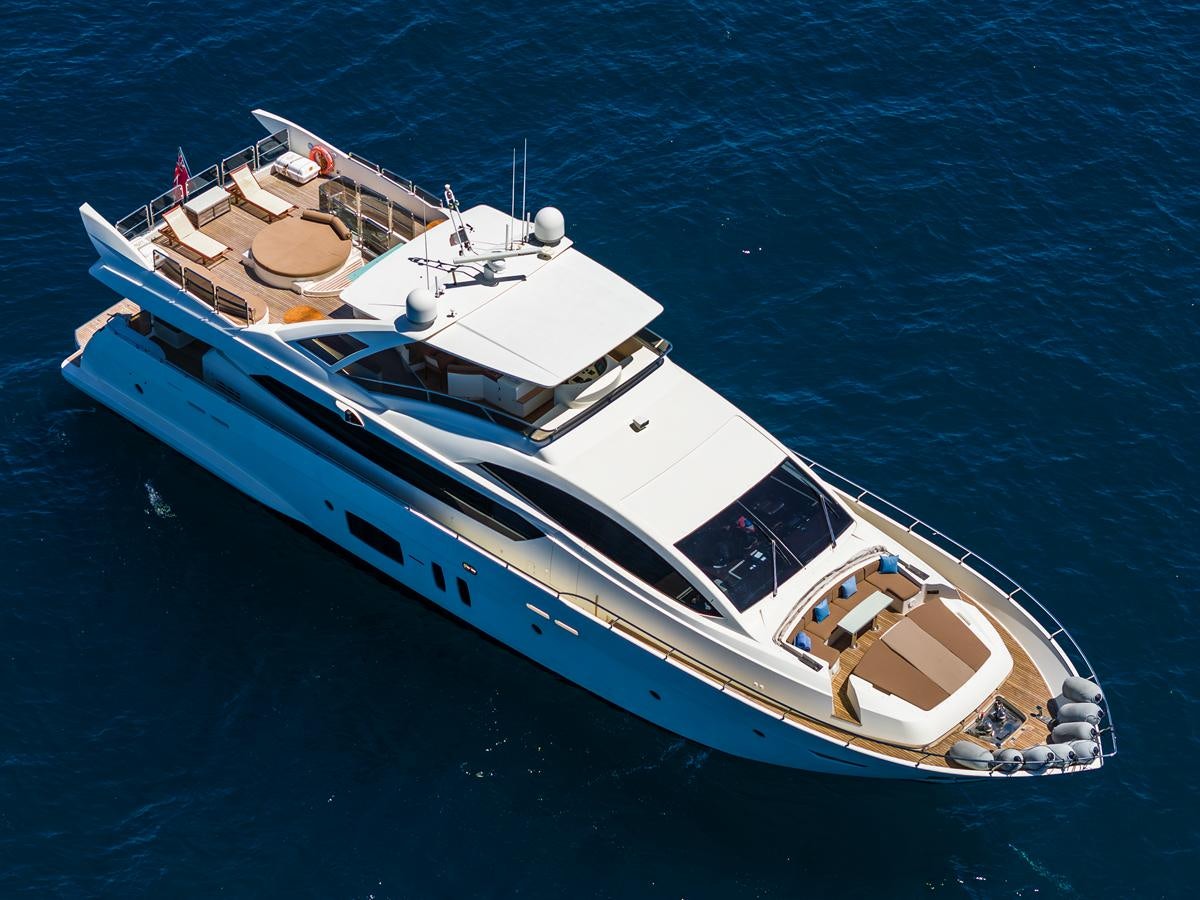

The 94-foot (28.65m) motor yacht GRACE offers exceptional space and luxuriously appointed amenities throughout.

GRACE is an excellent example of an Astondoa 96 GLX in impeccable condition. The yacht’s stunning interior was refitted in 2017 and in 2015 the yacht received an exterior paint job, ensuring she is ready for her next owner.

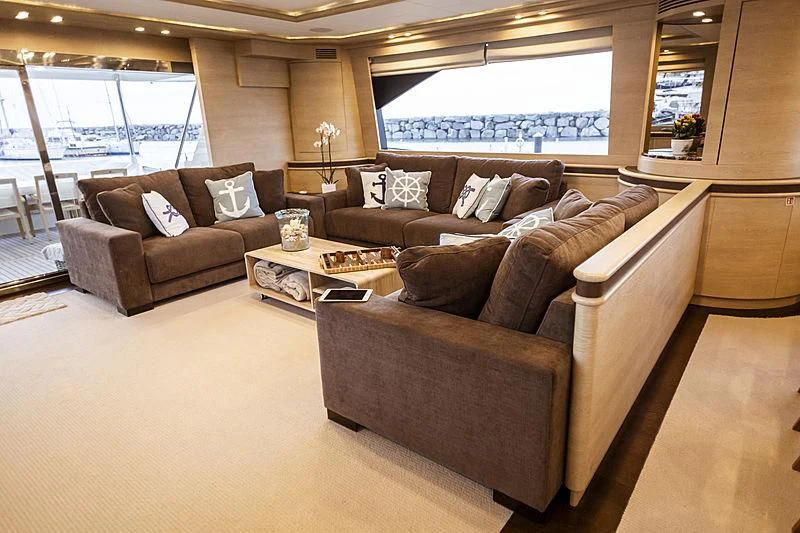

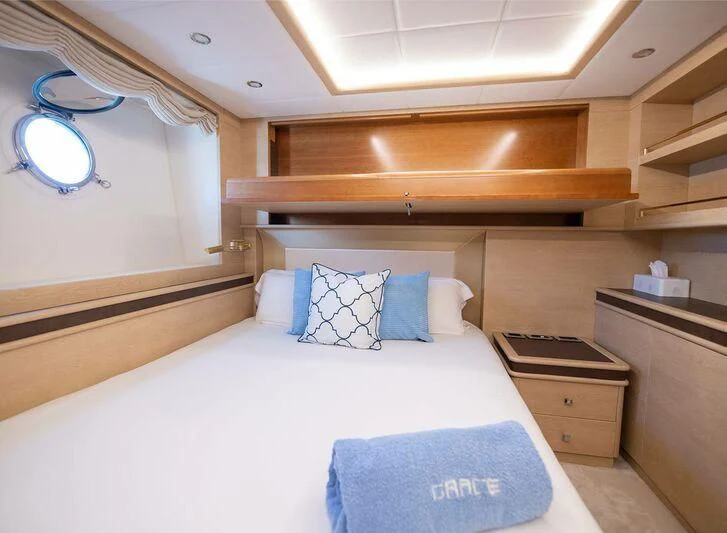

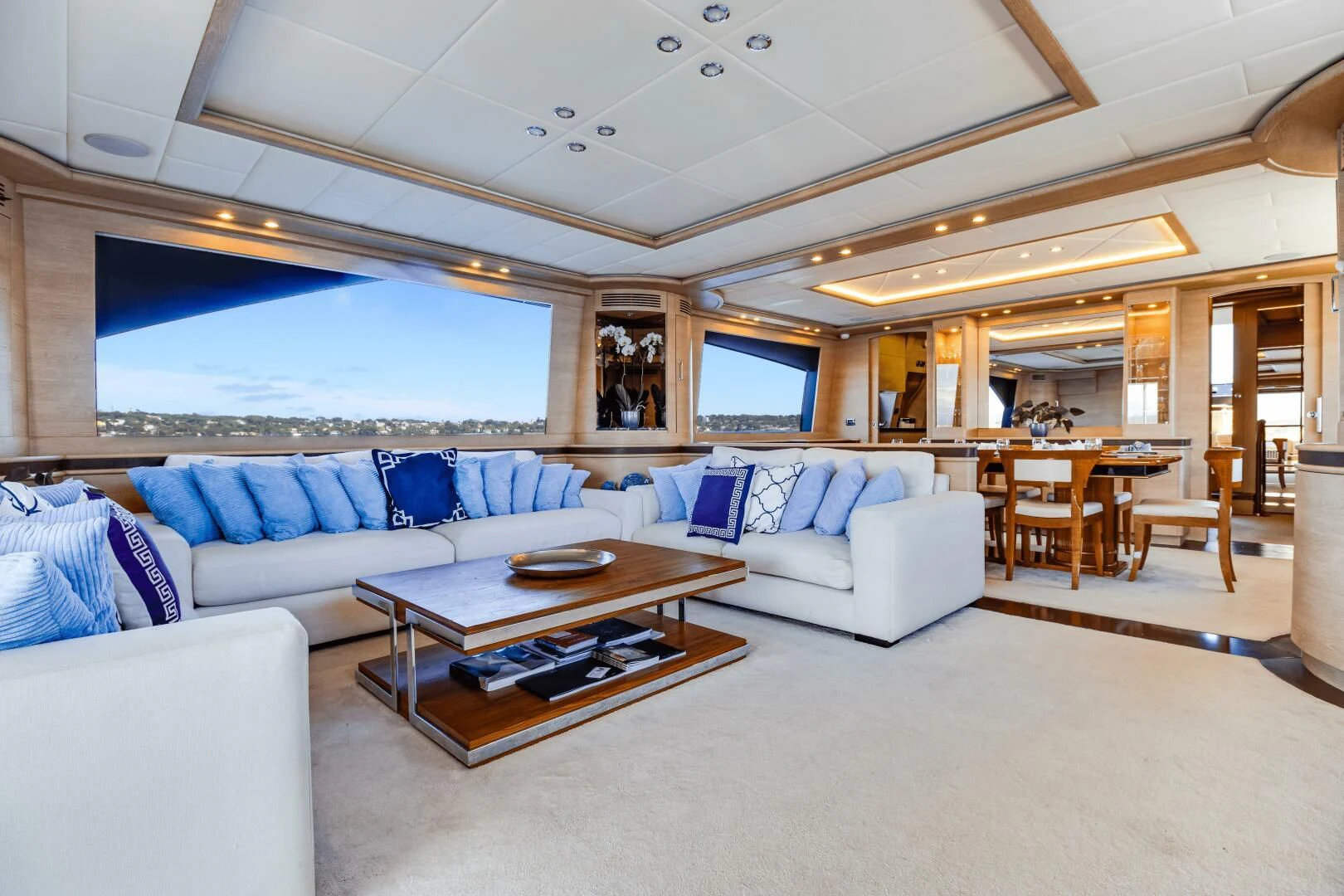

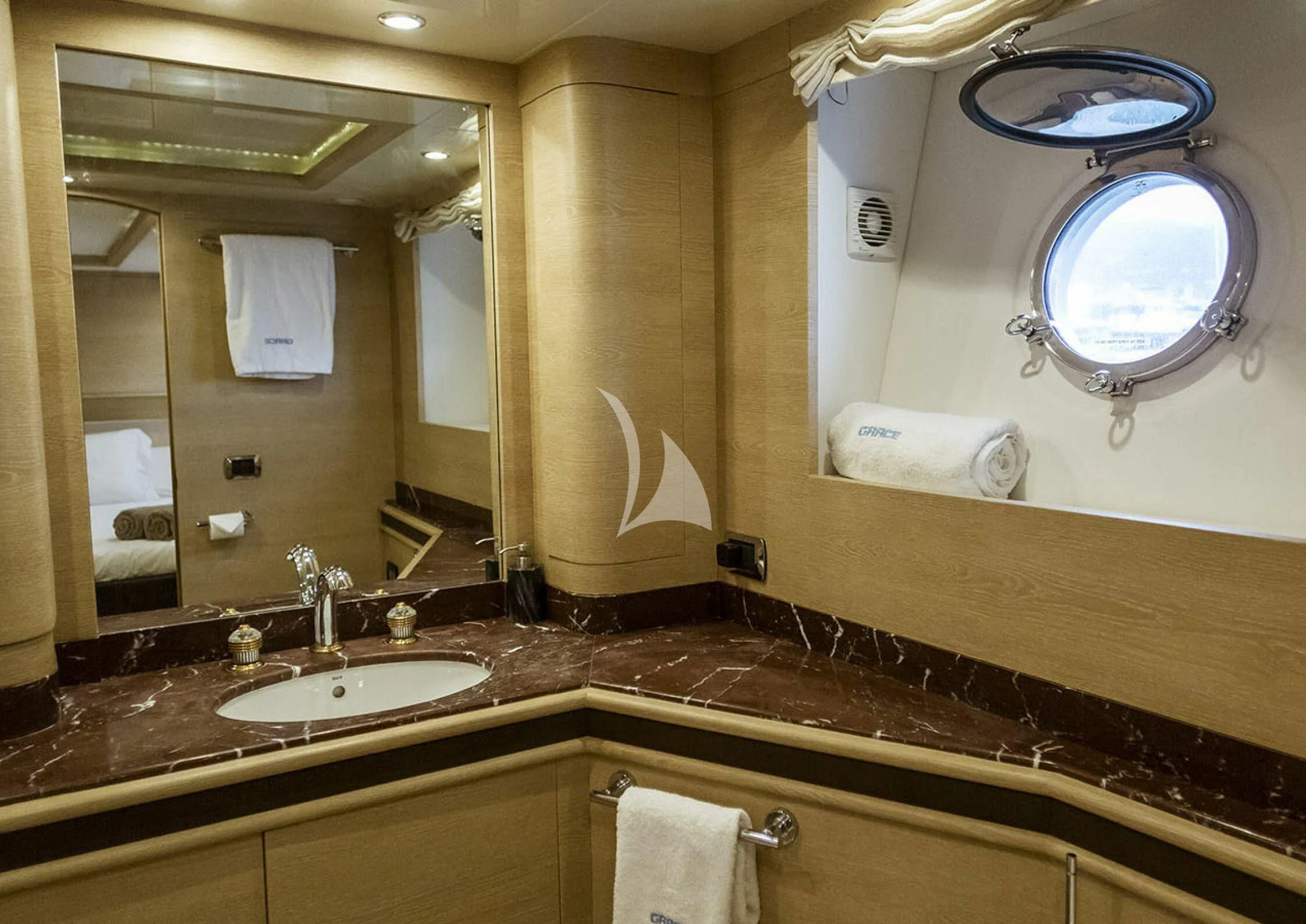

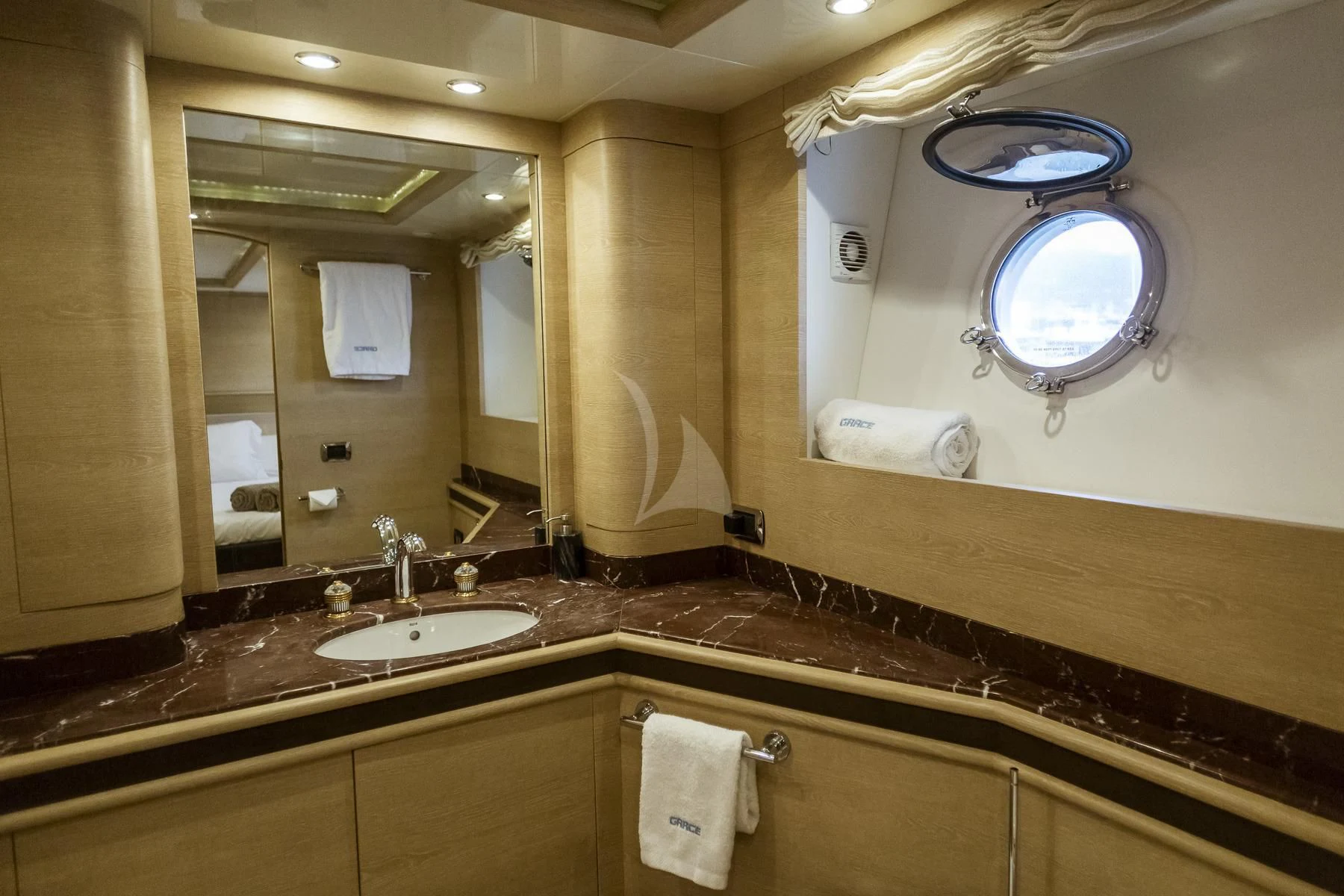

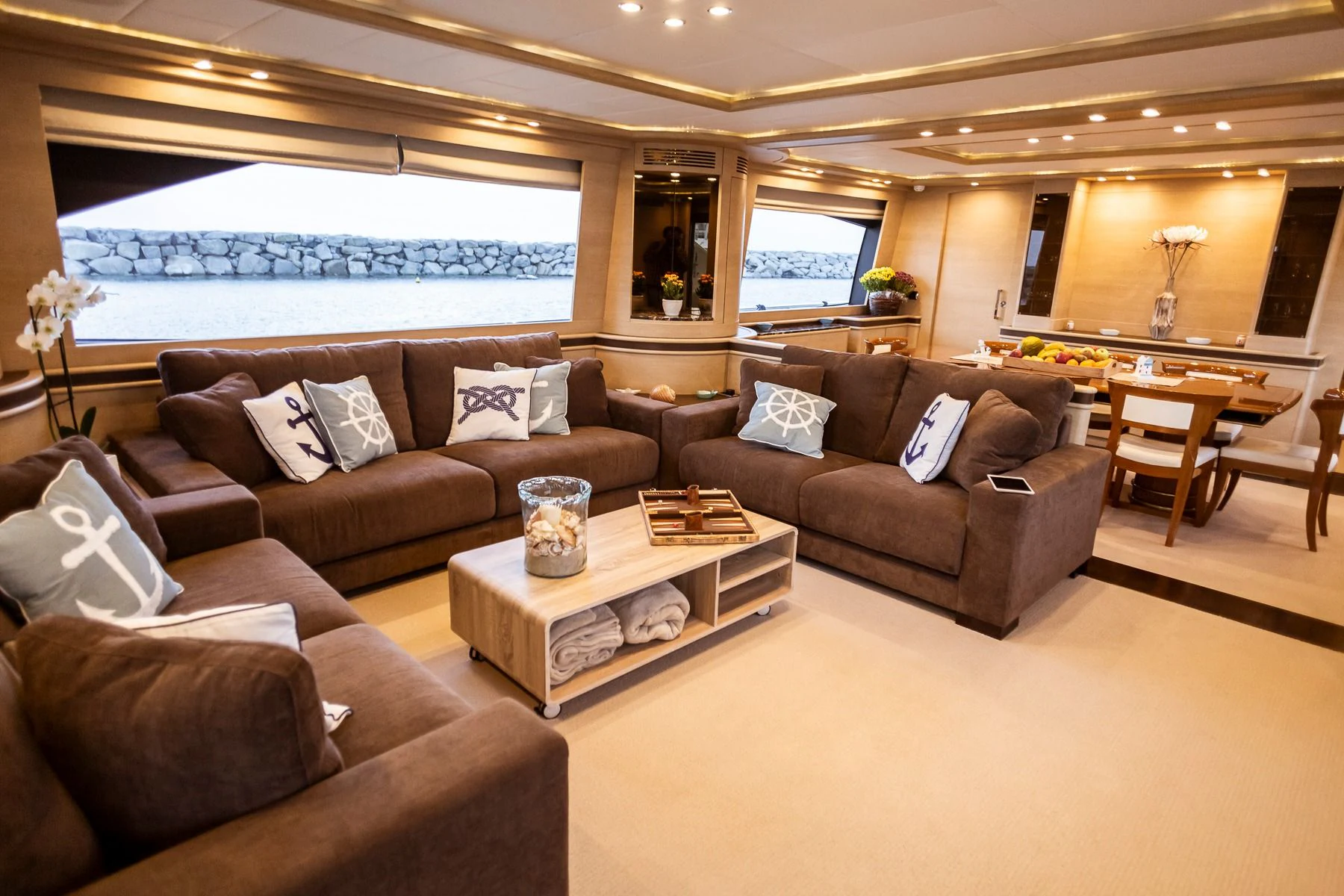

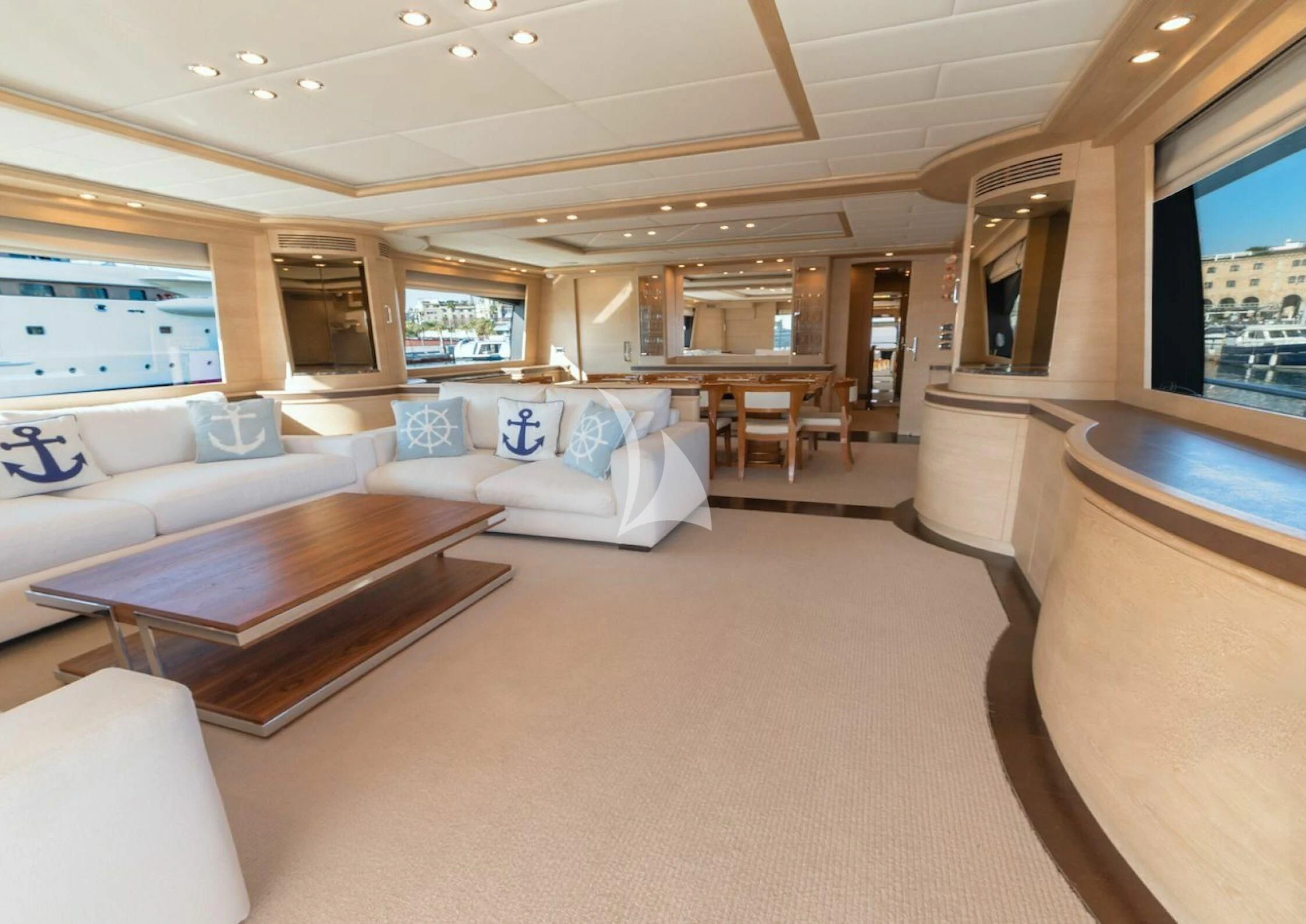

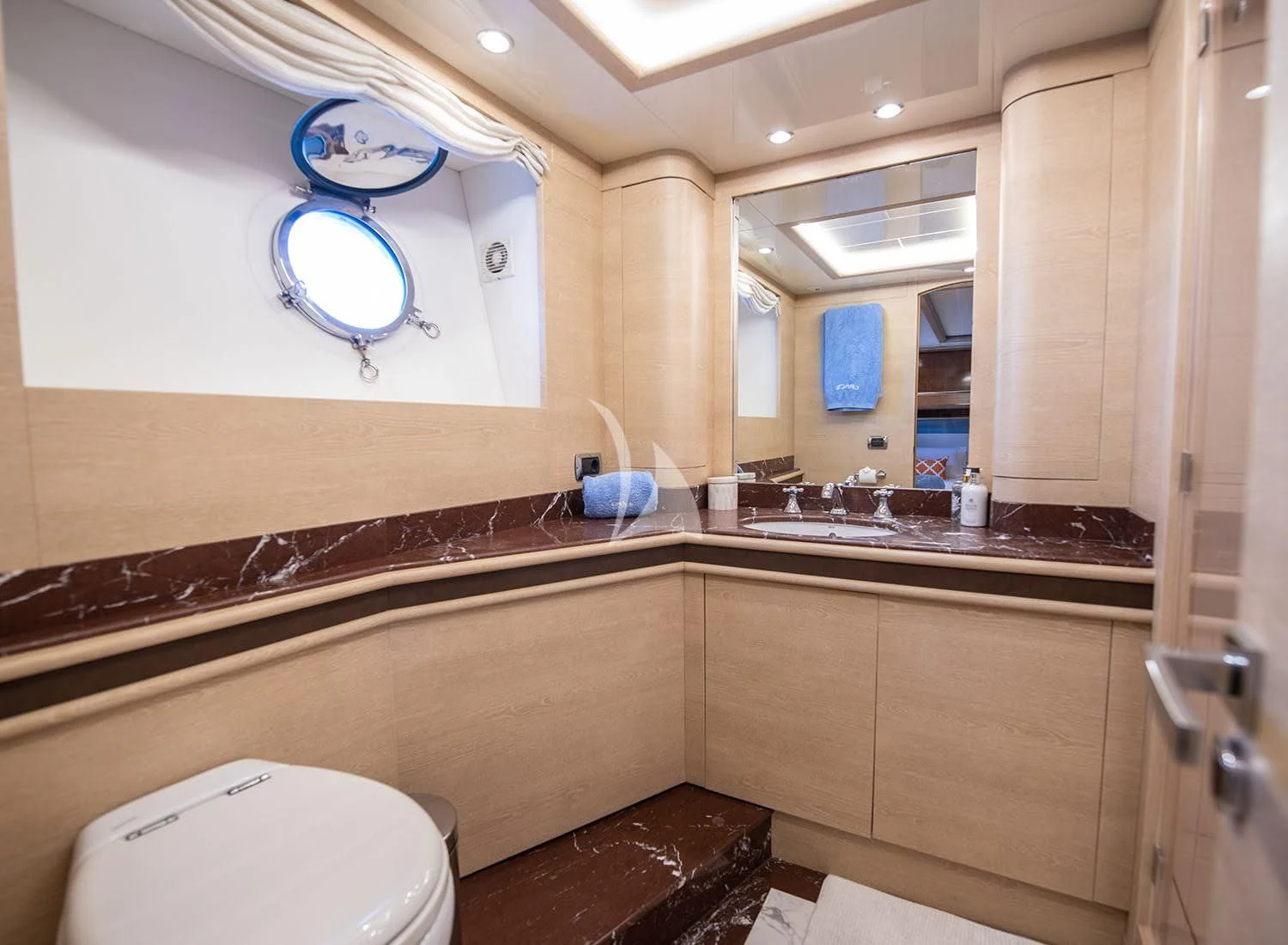

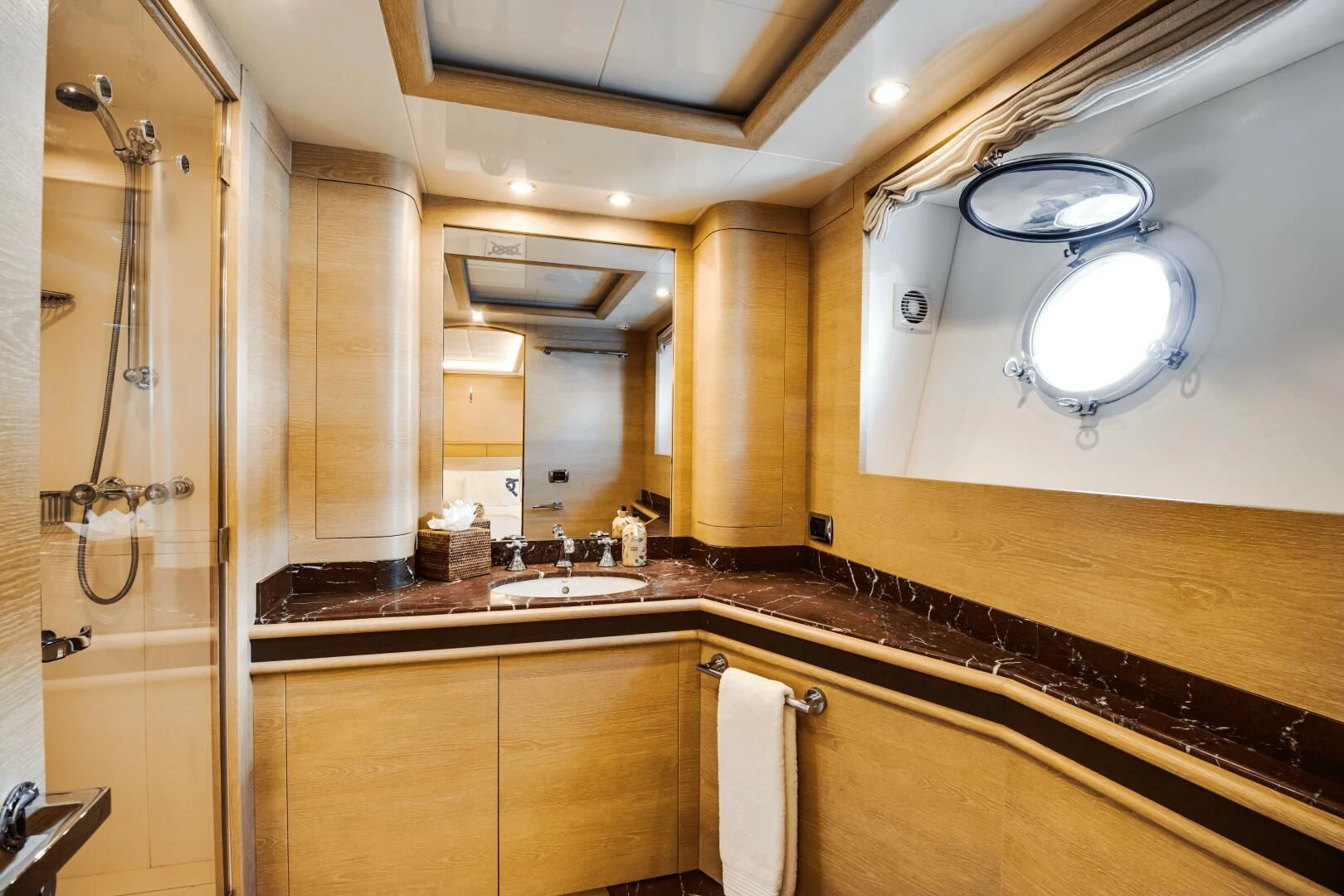

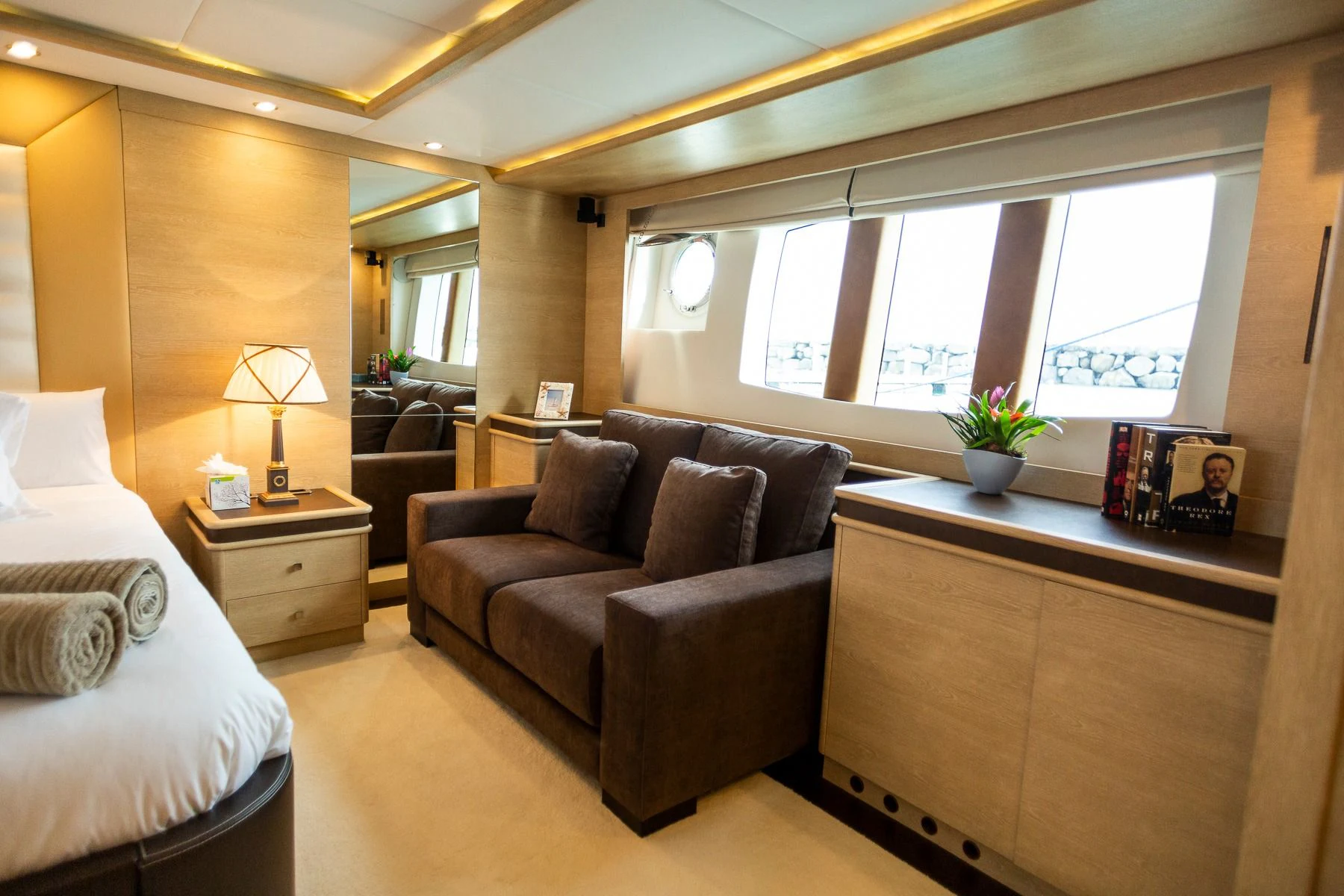

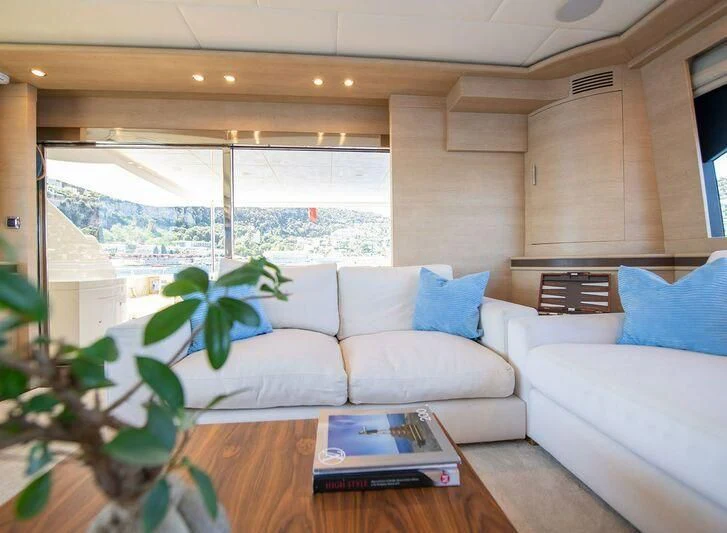

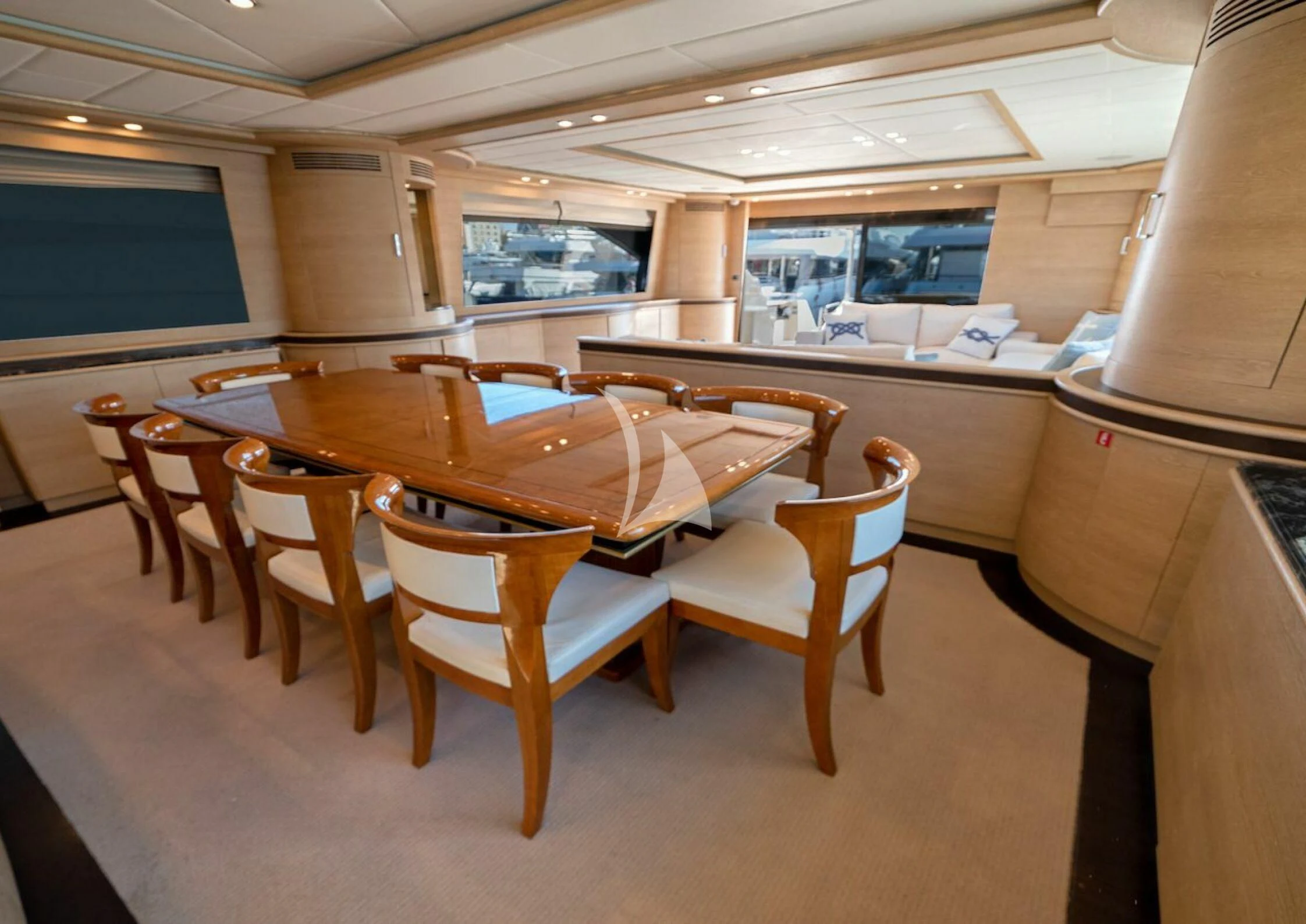

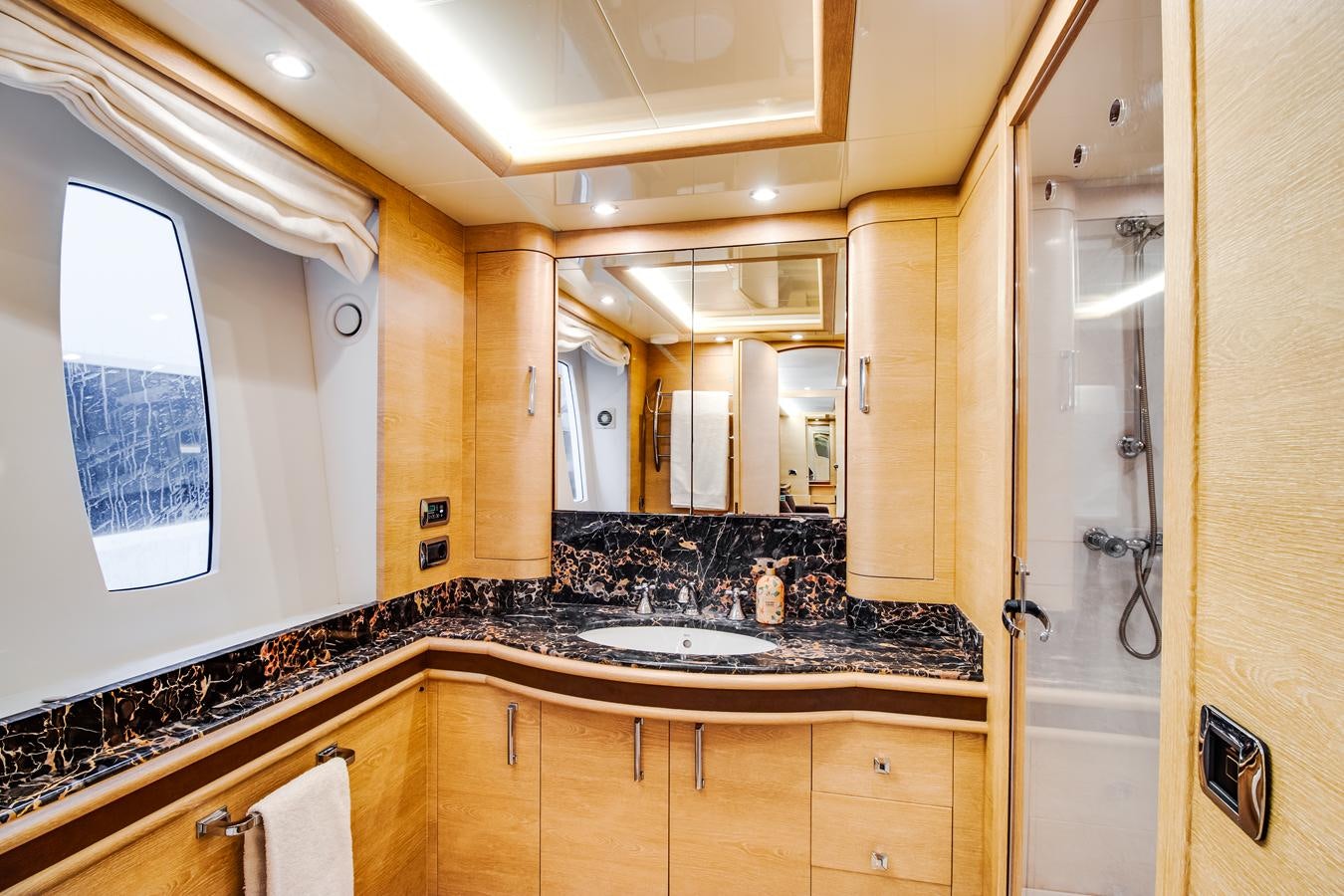

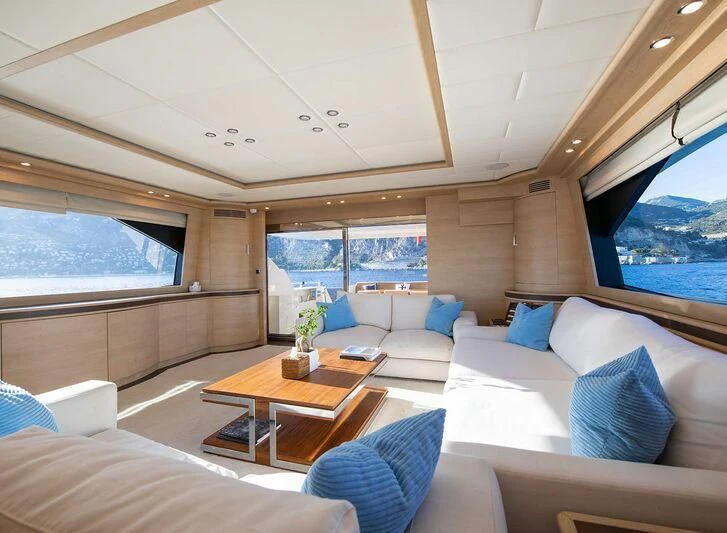

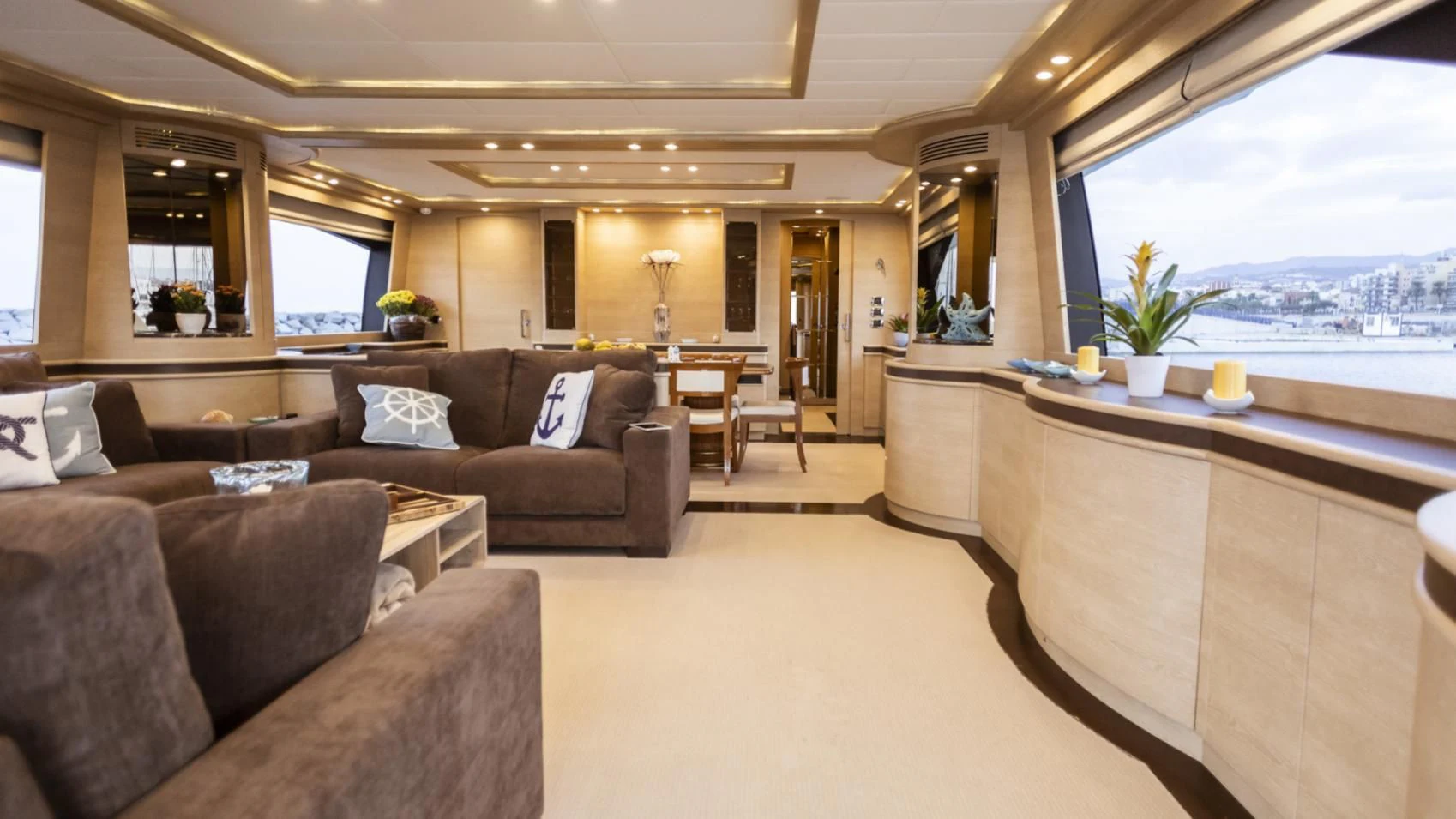

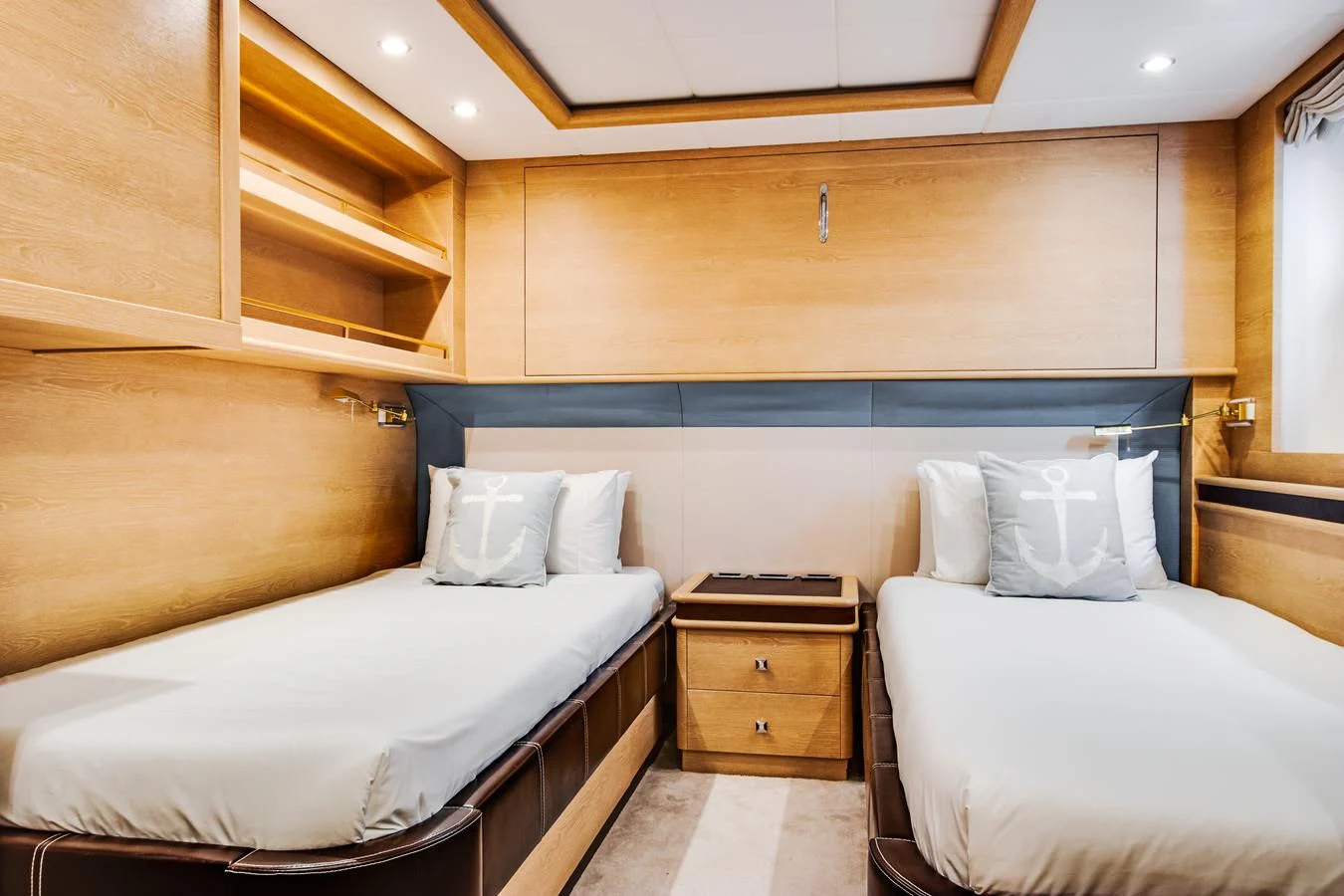

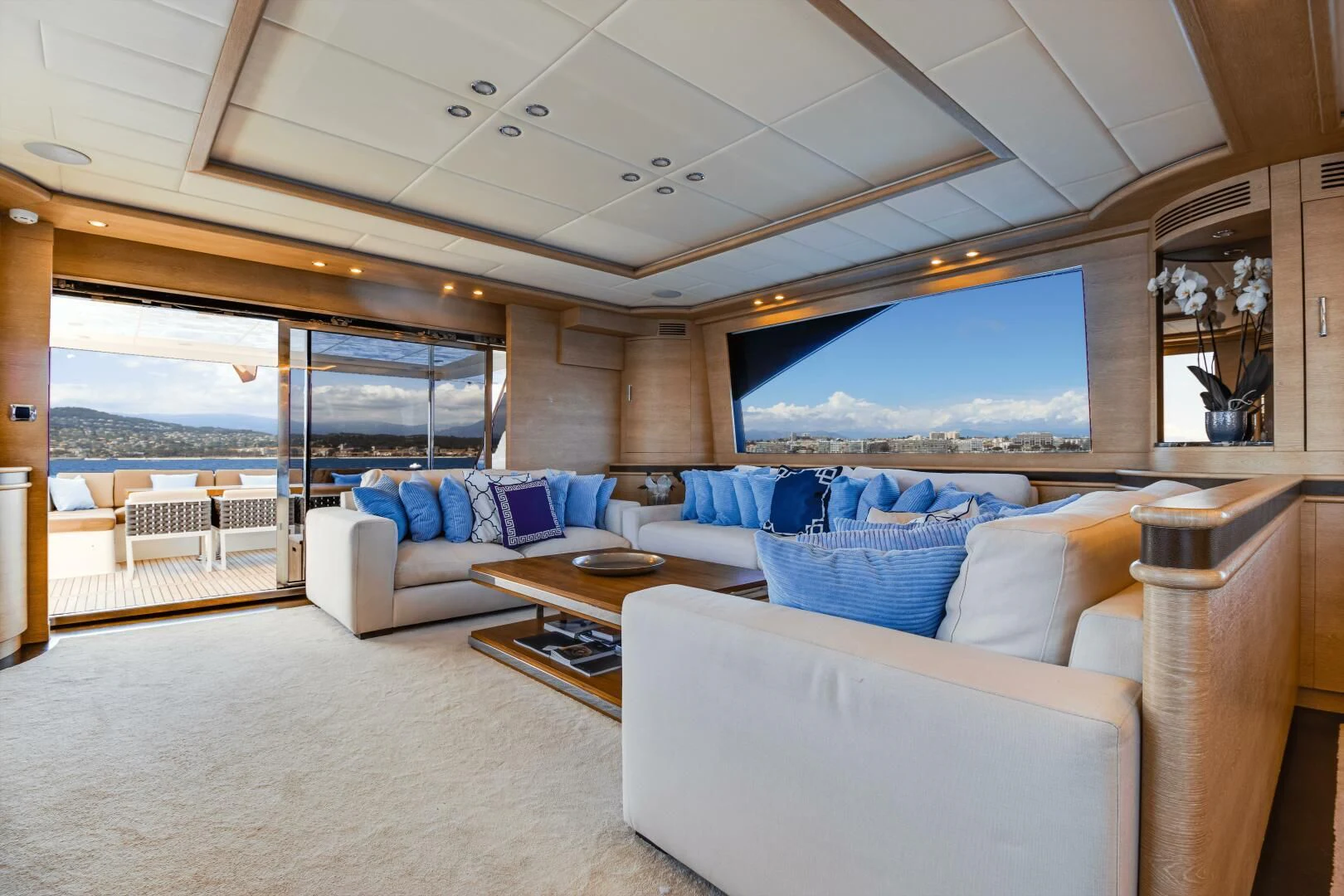

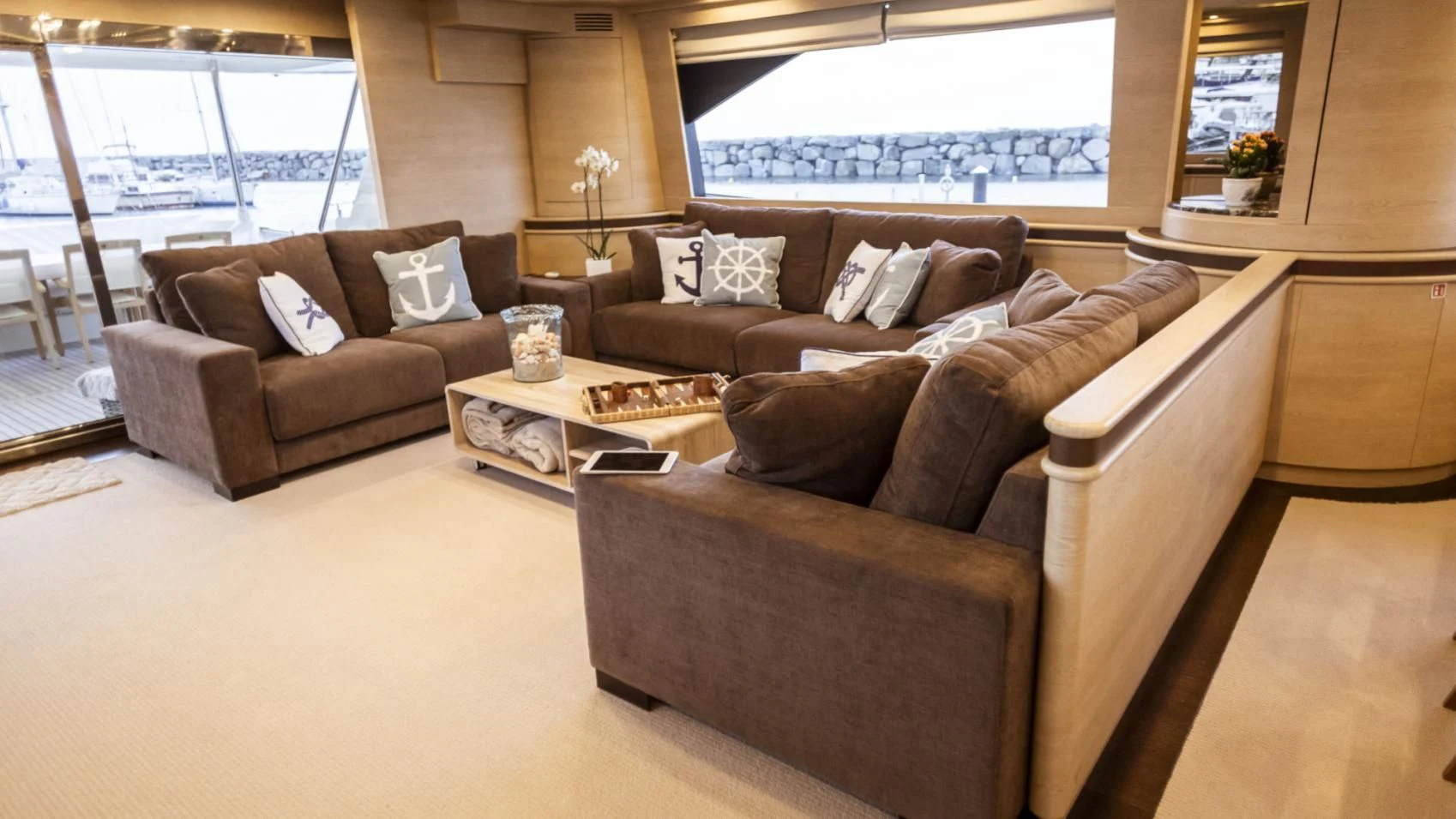

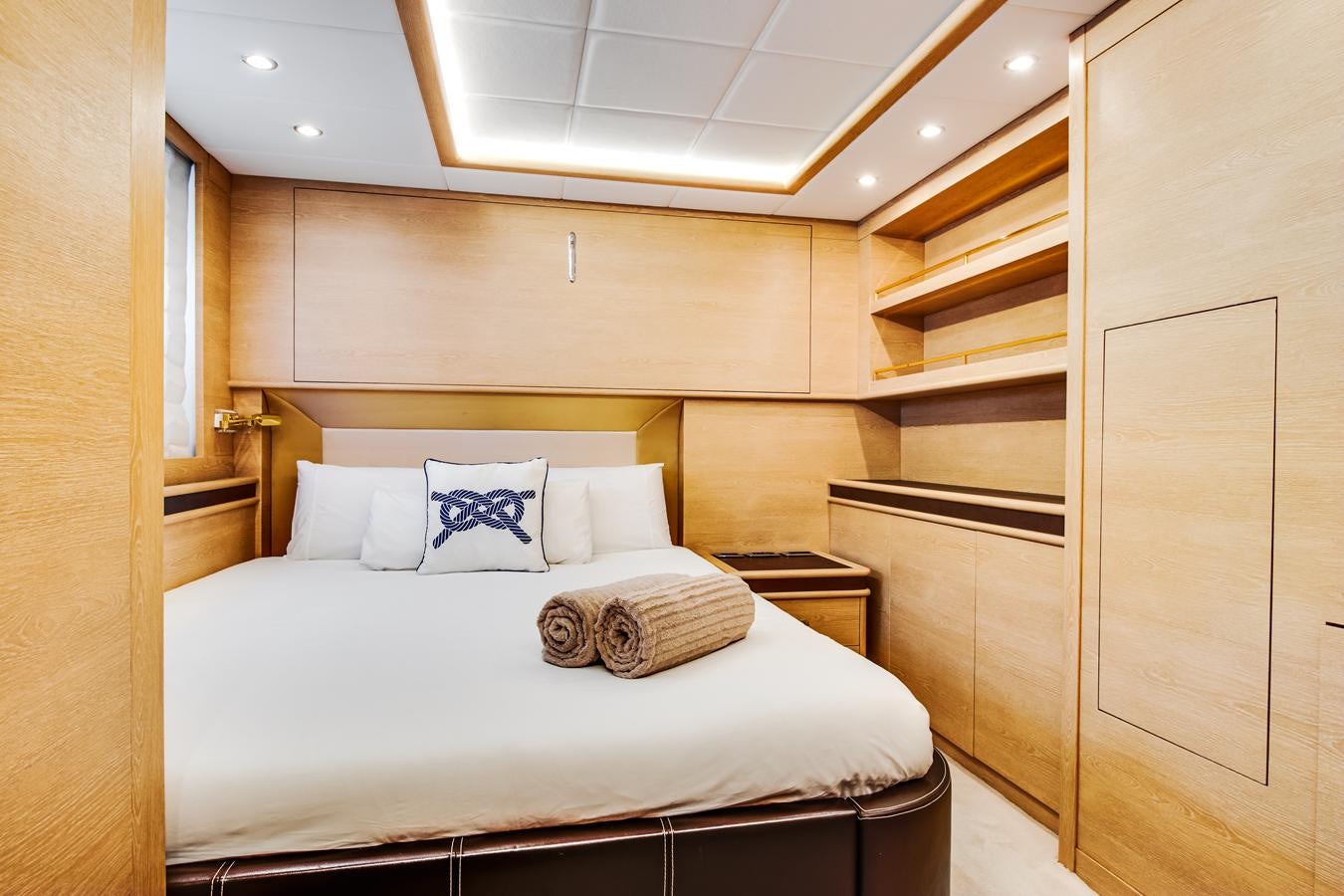

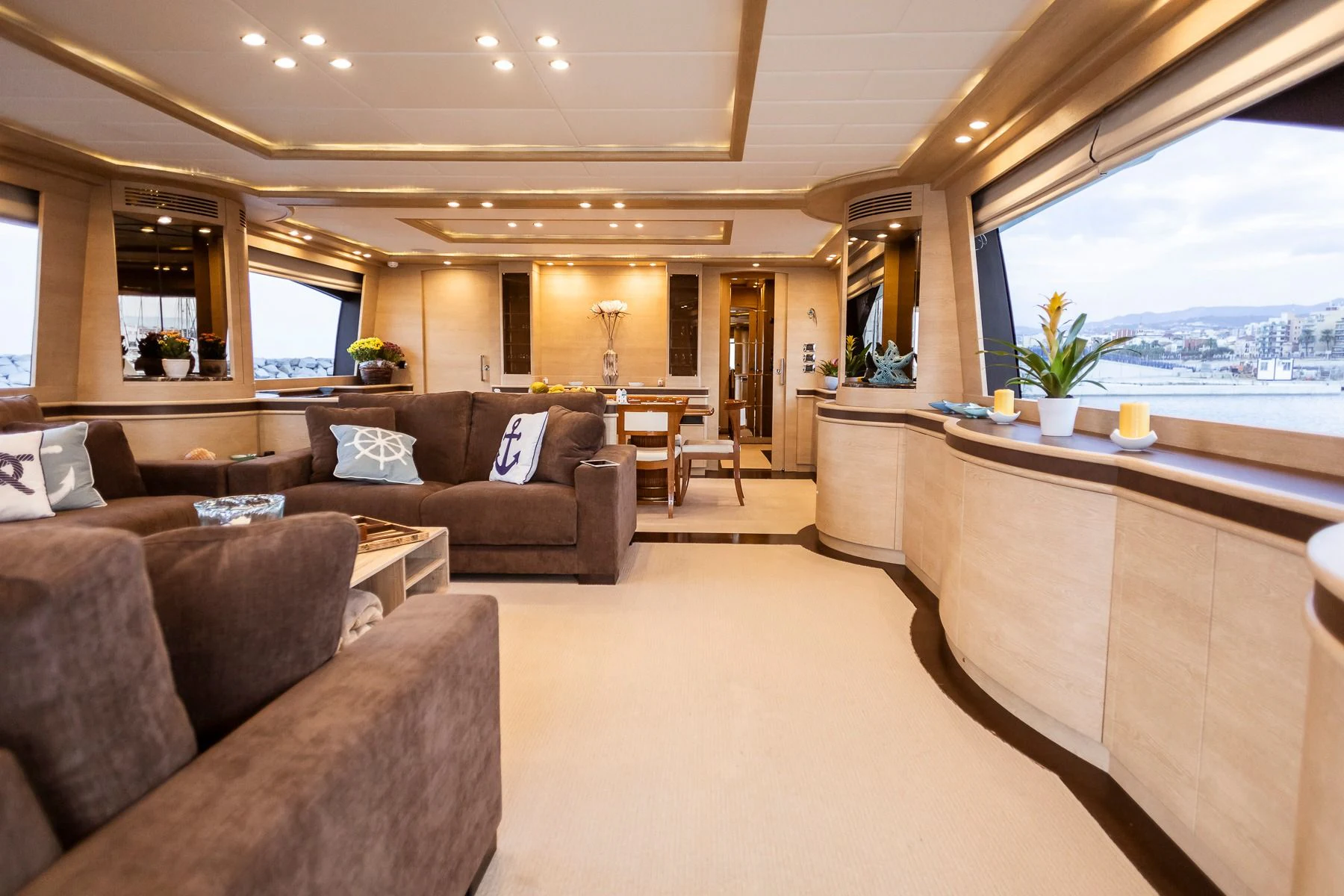

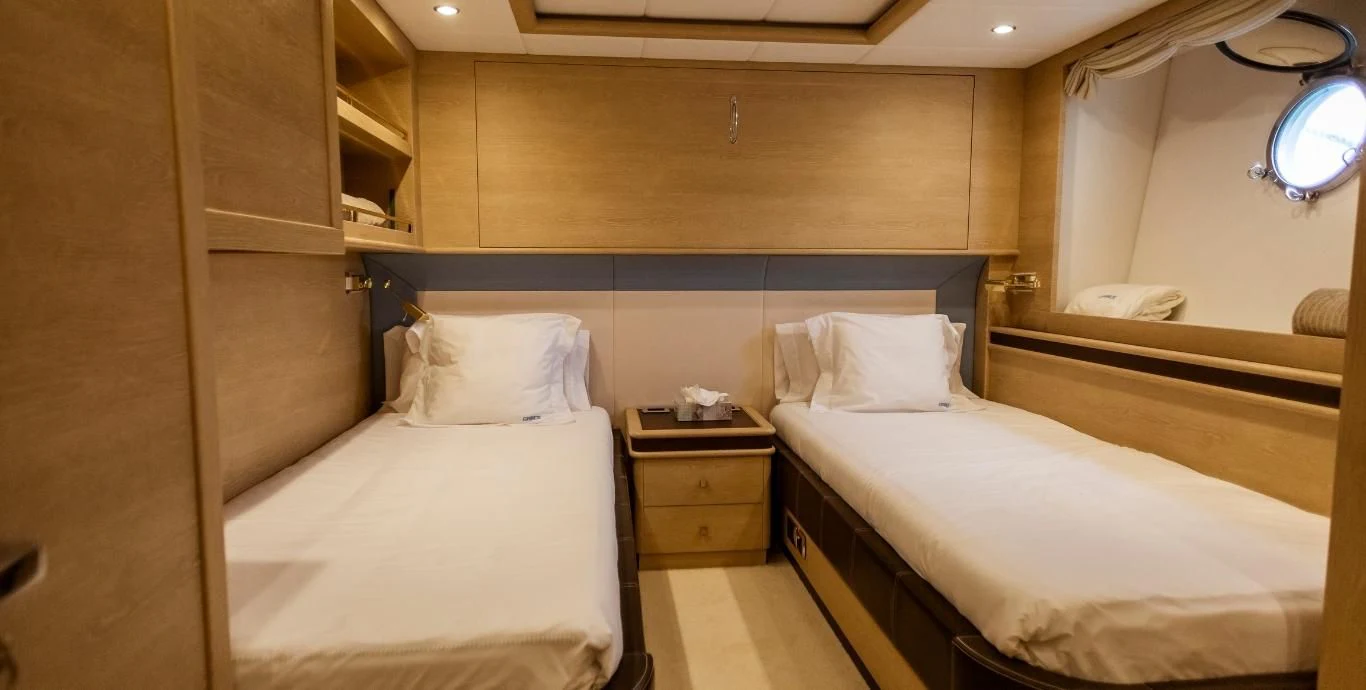

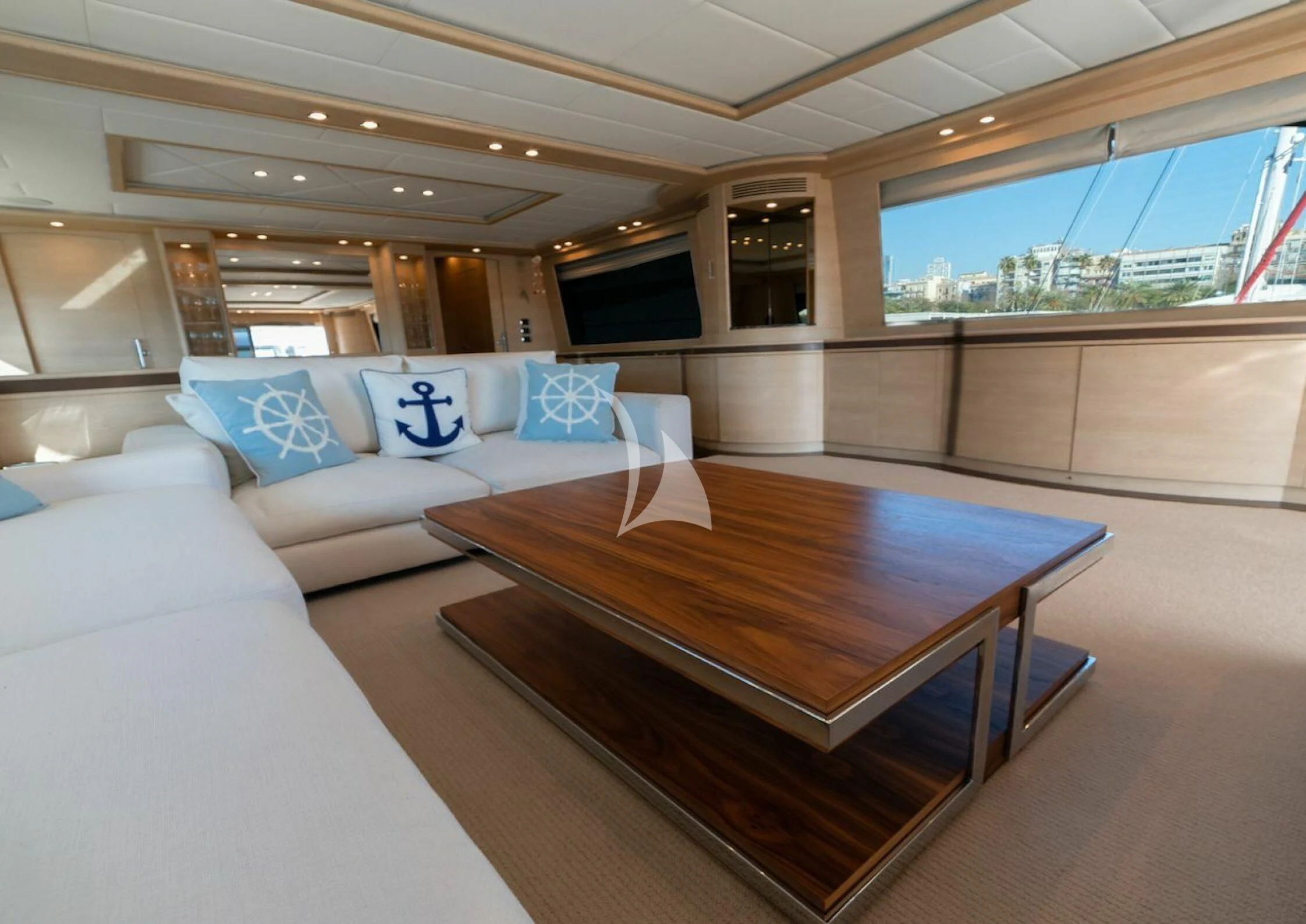

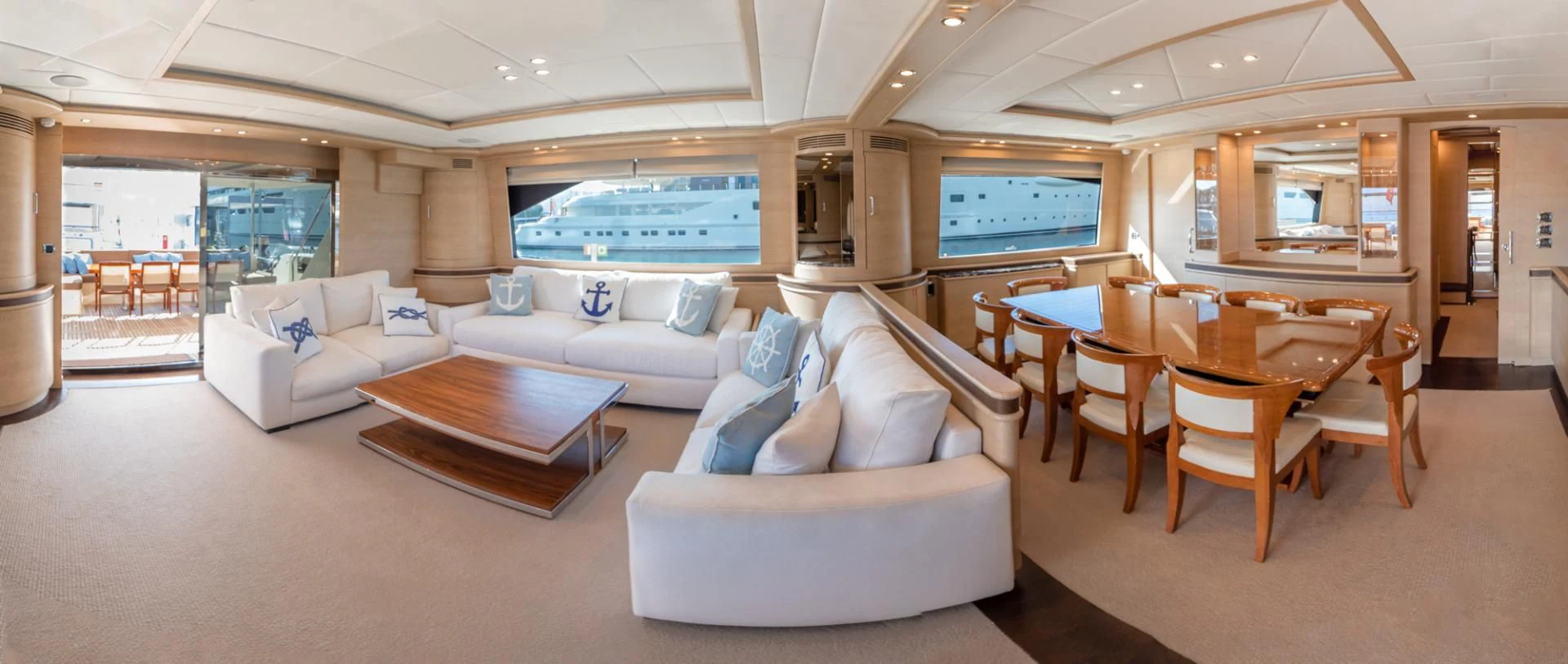

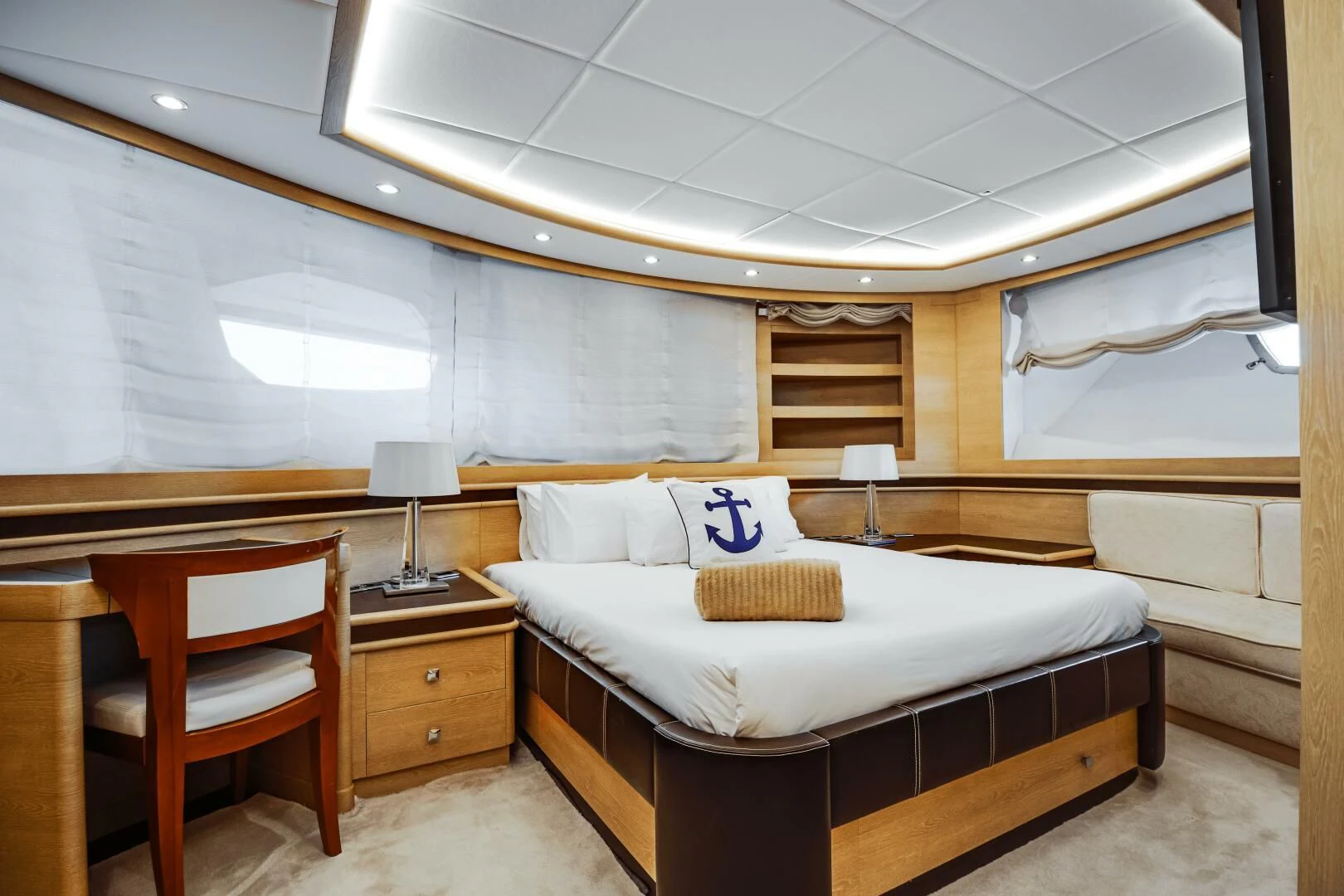

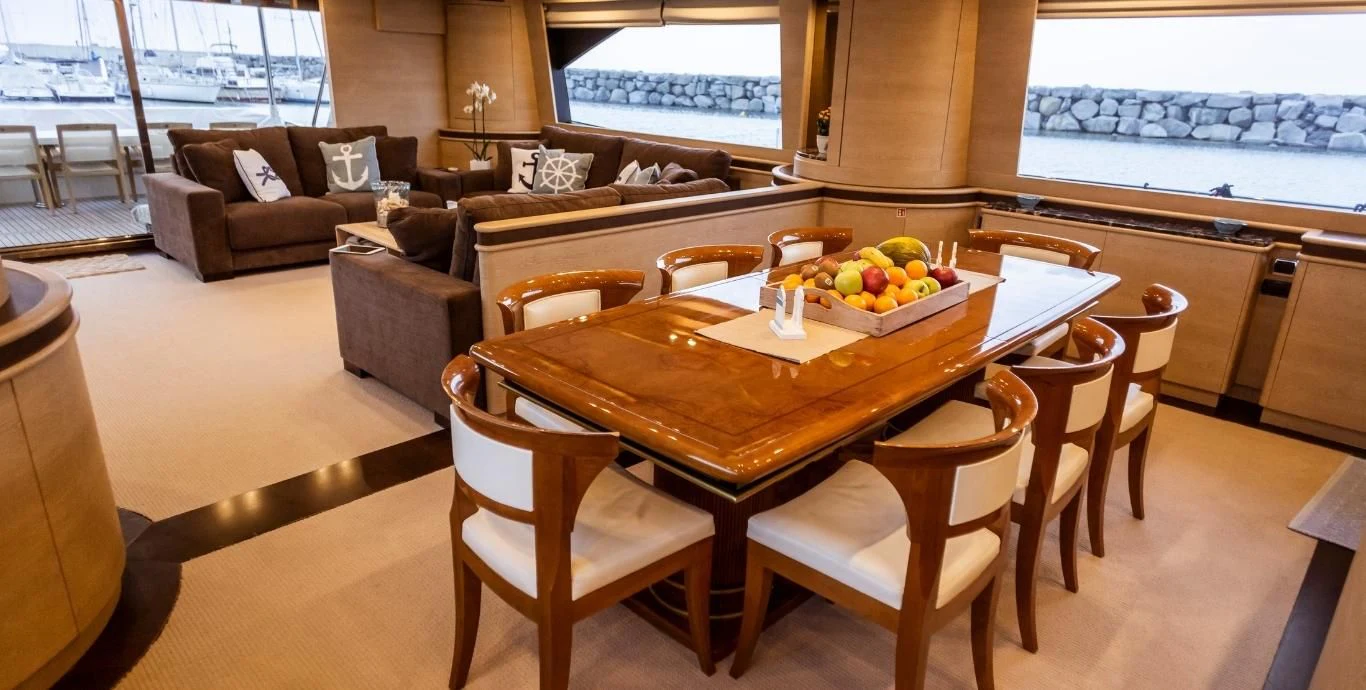

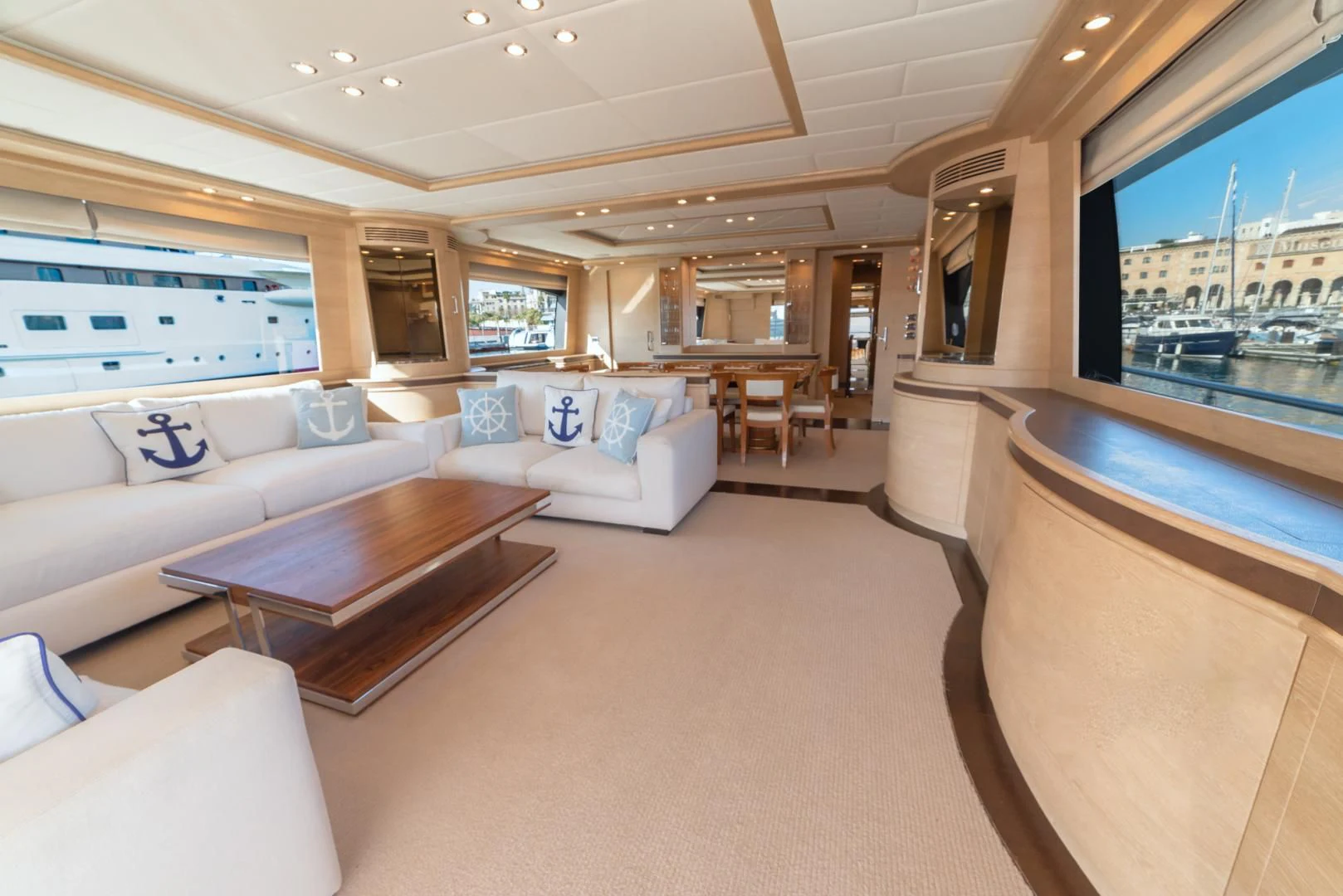

Offering incredibly high headroom for her size, the yacht’s interior is exceptionally spacious. Throughout the yacht is a stunning contrast of light and dark colors which creates a warm, inviting ambiance. GRACE welcomes 10 guests in four beautifully appointed staterooms. Accessed via a private staircase, the yacht’s master stateroom is stunning with a palatial ambiance. The motor yacht’s additional staterooms include a VIP, a double-bed stateroom and a twin-bed stateroom. Both the double-bed stateroom and the twin-bed stateroom have Pullmans. In addition, each stateroom features their own en-suite baths.

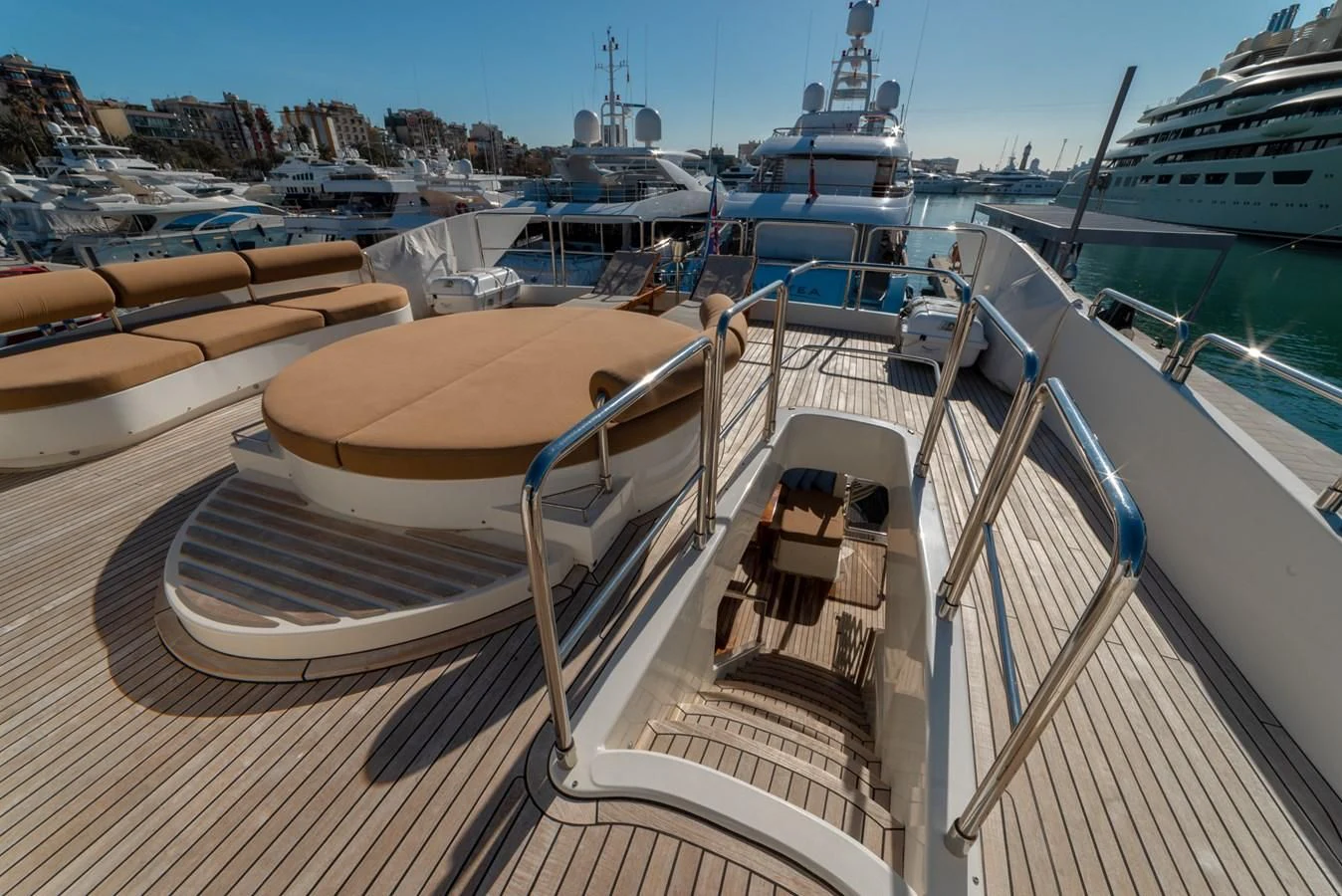

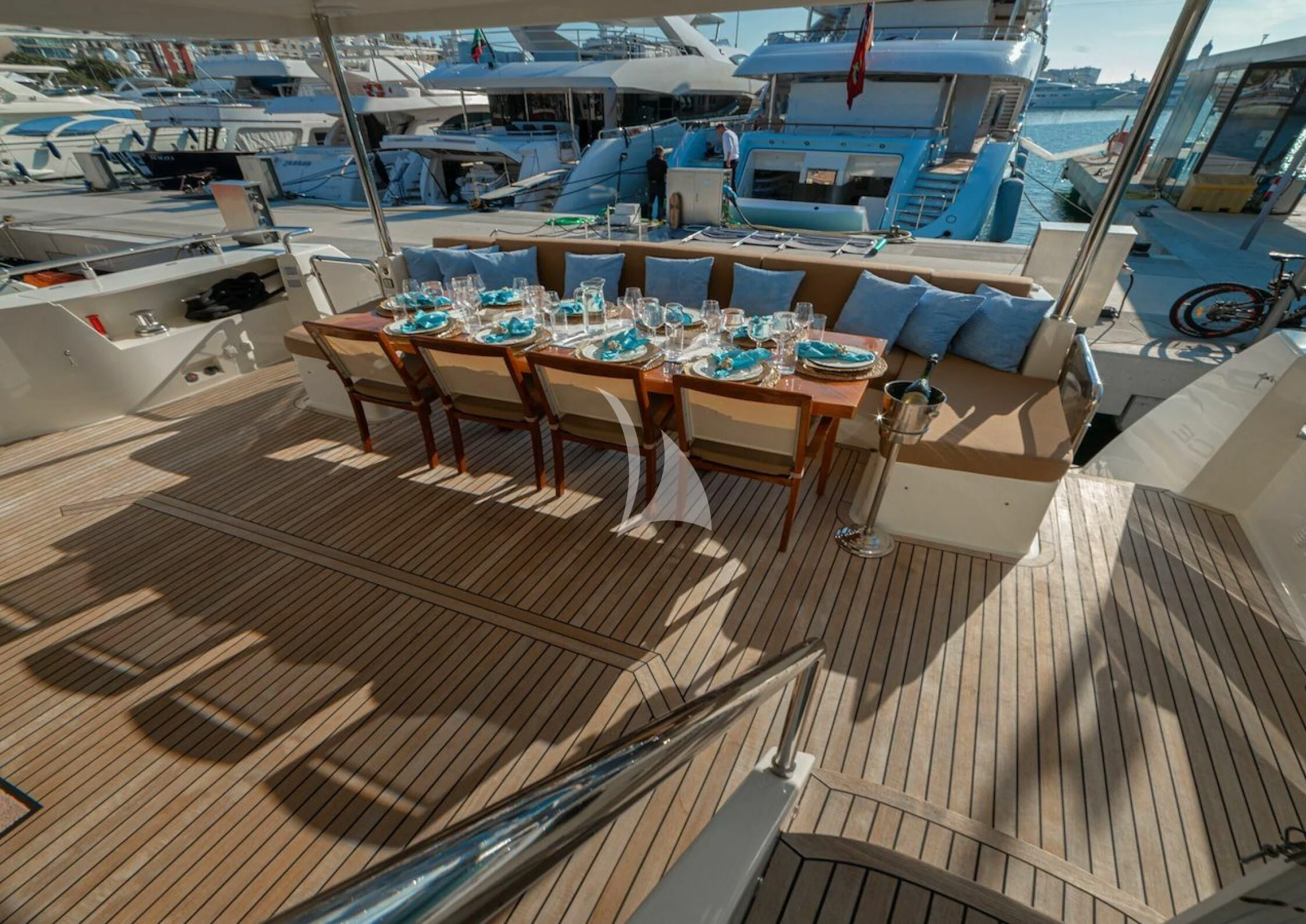

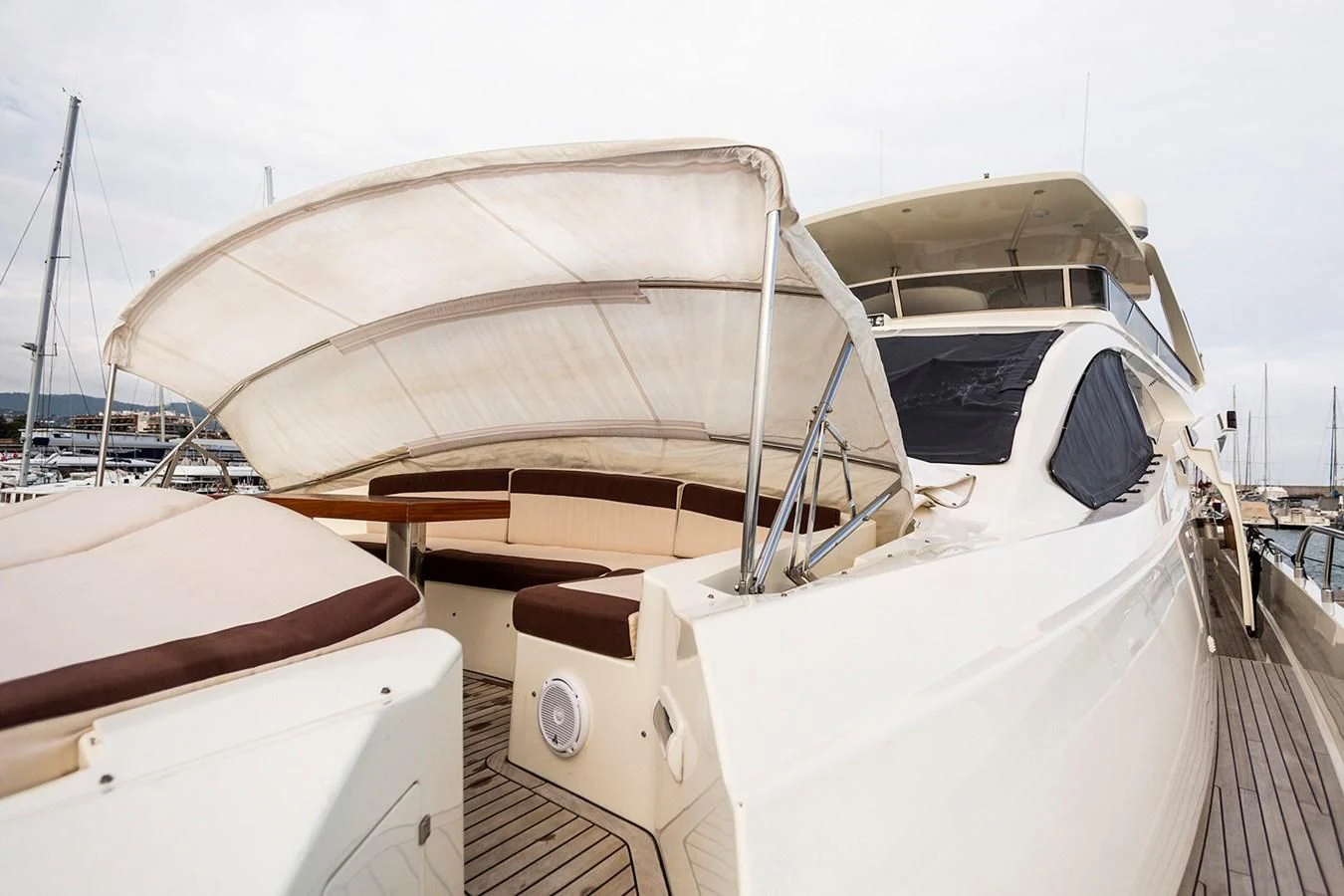

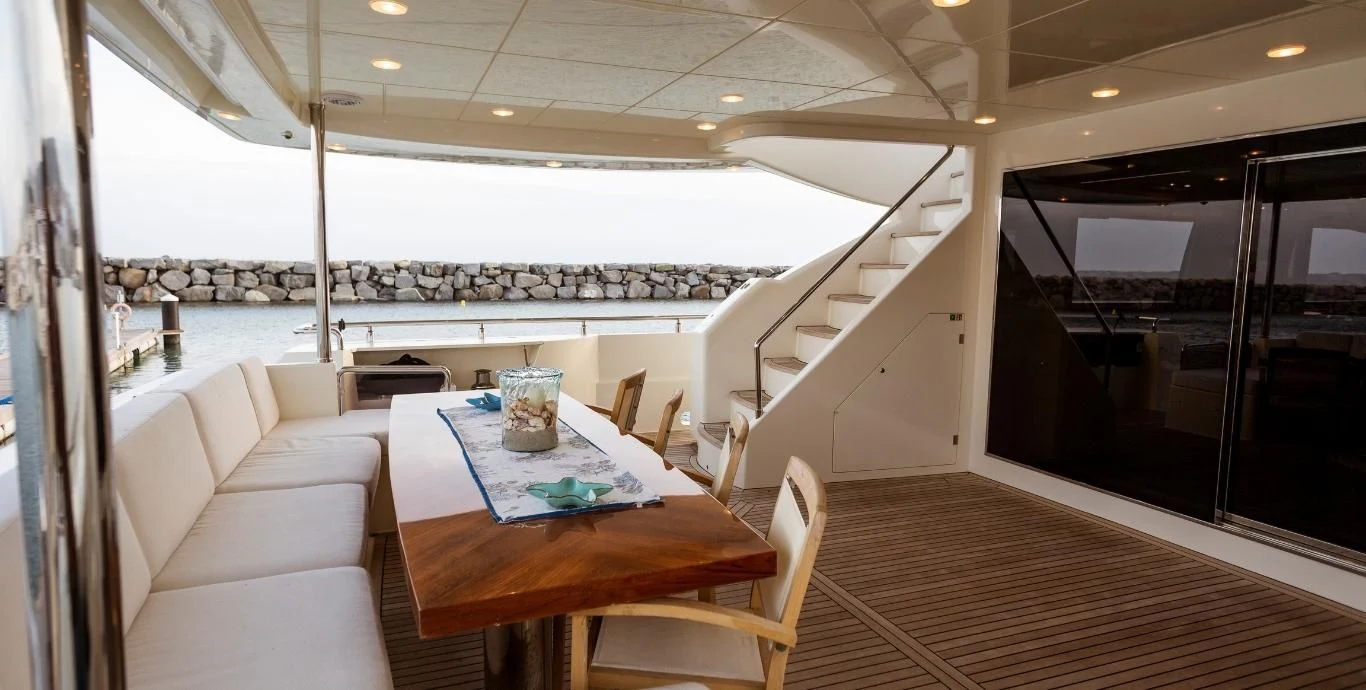

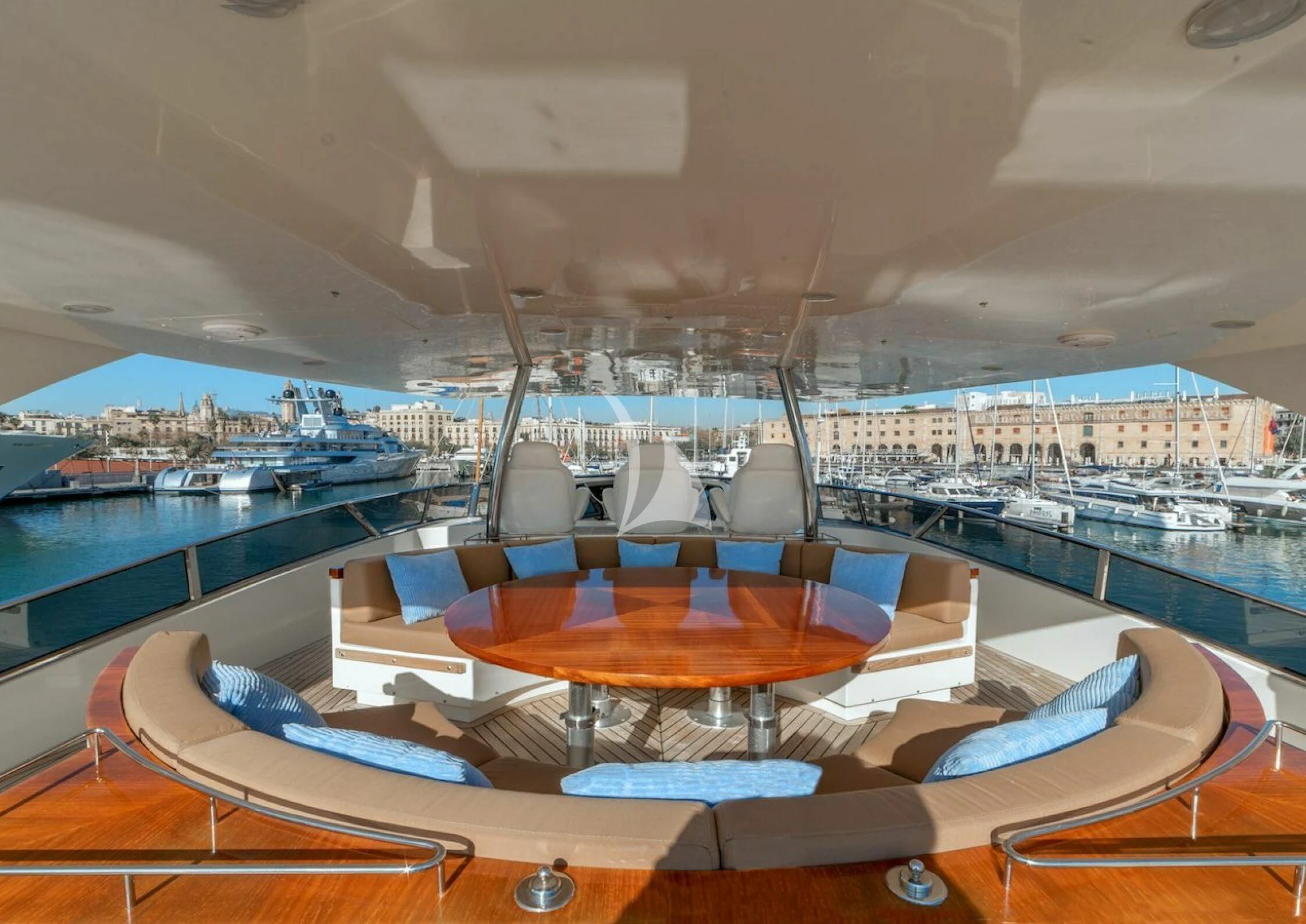

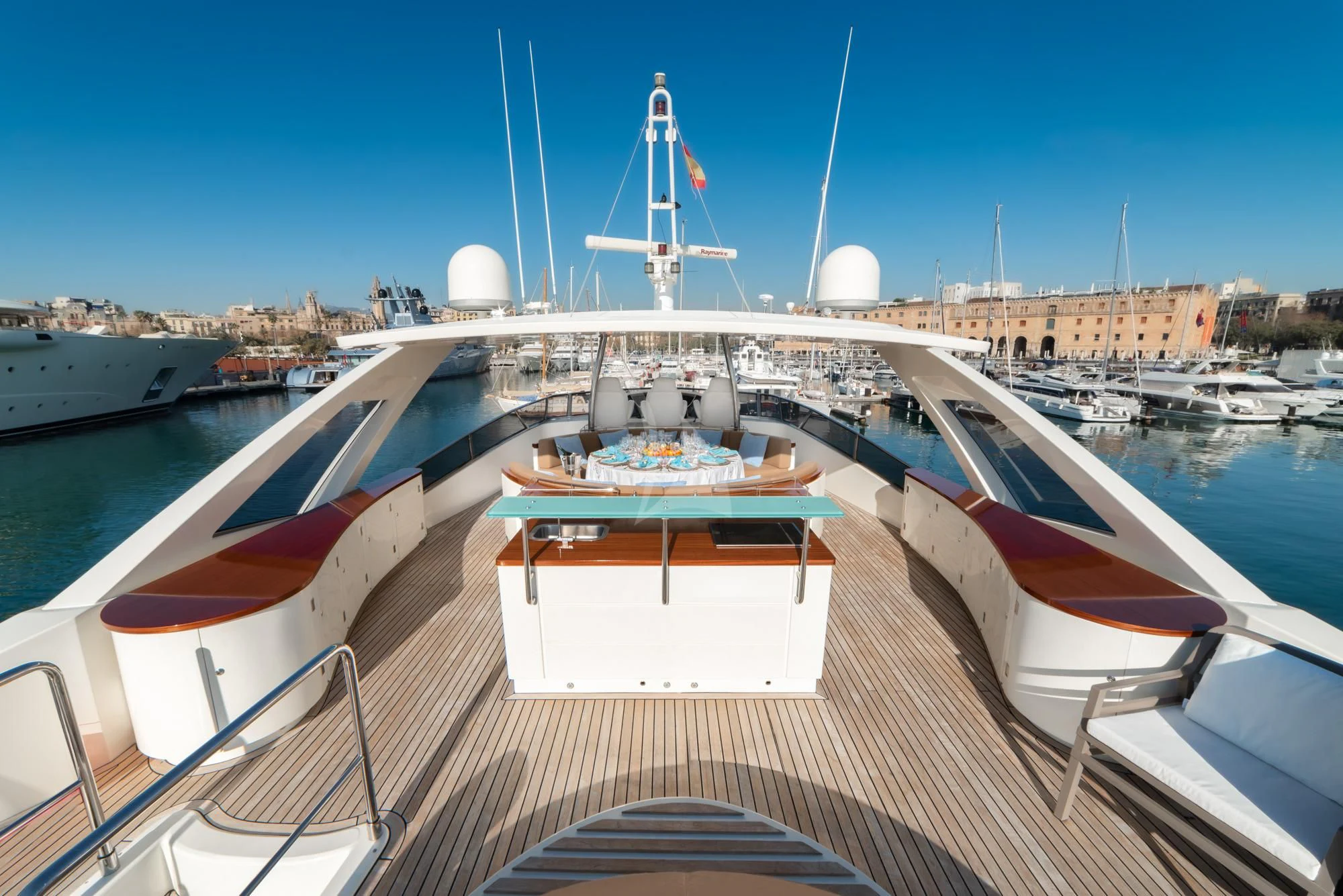

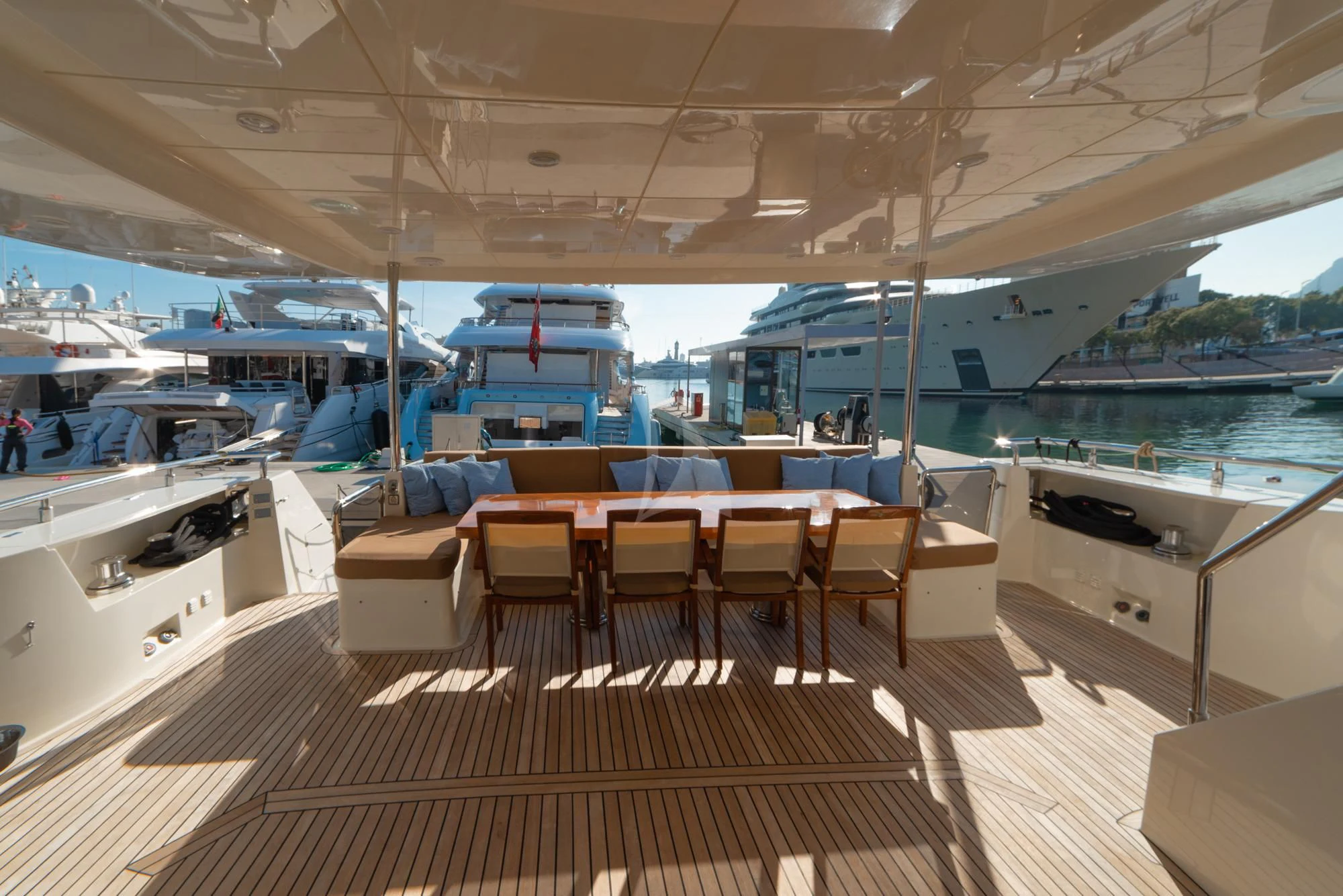

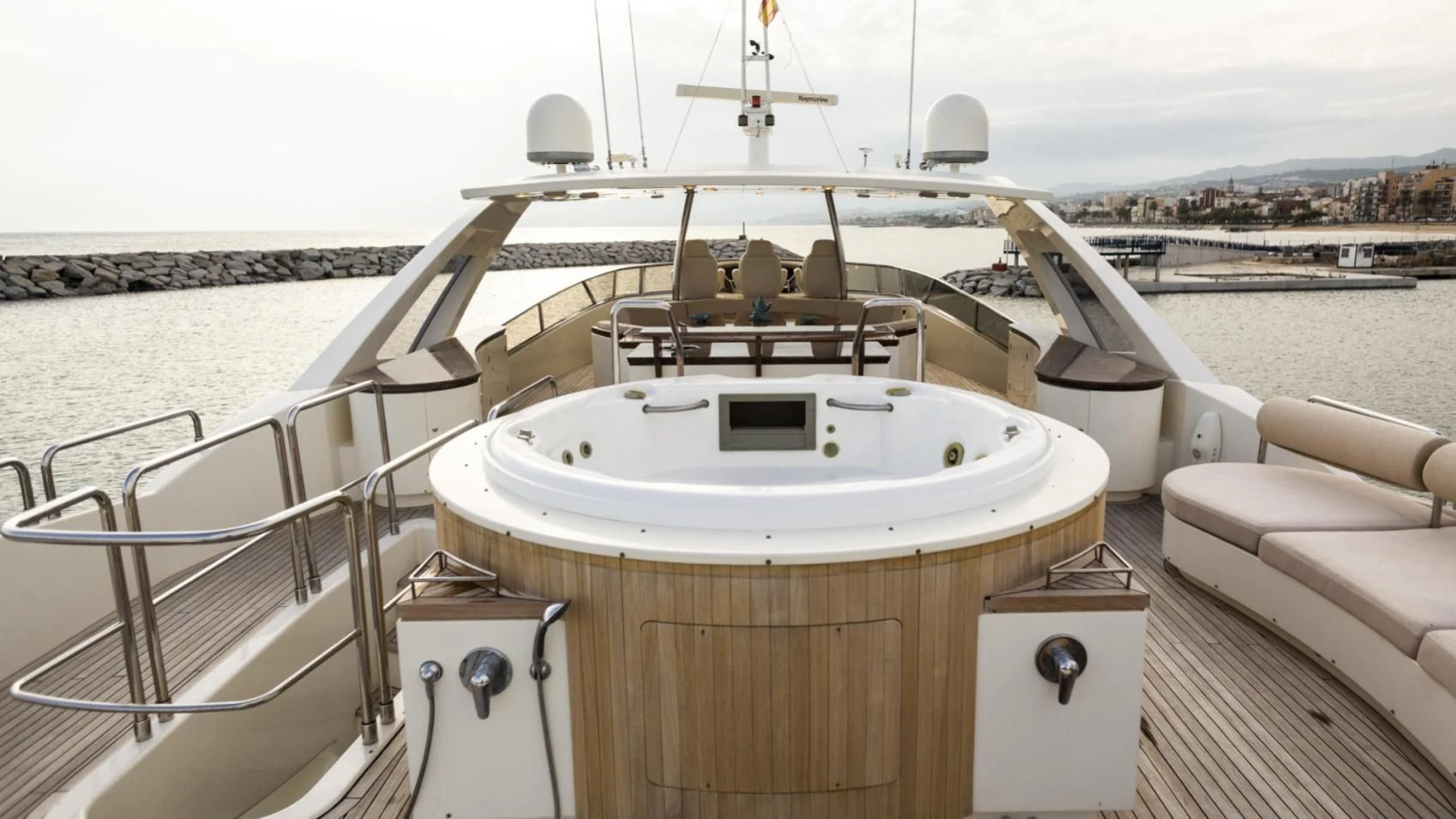

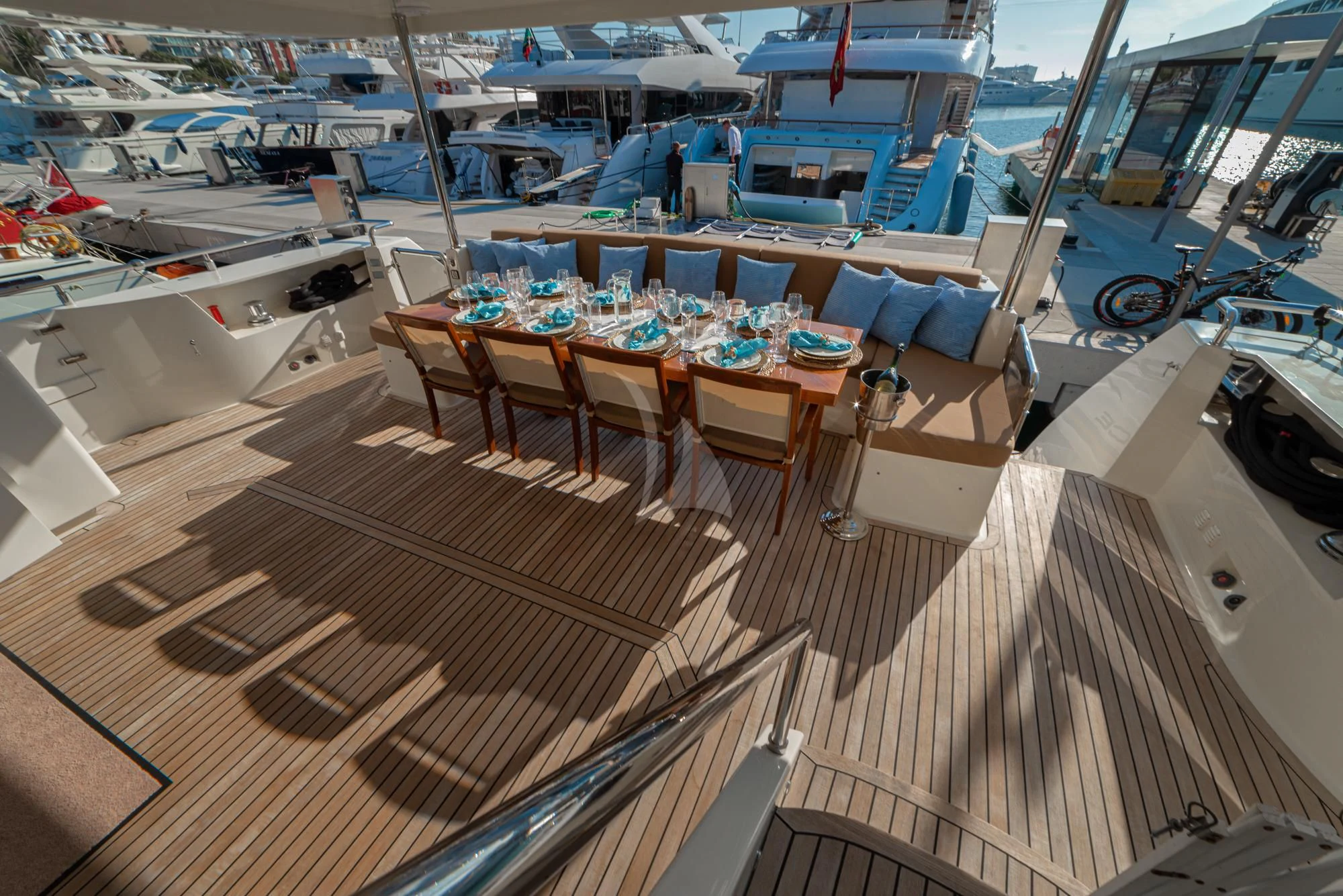

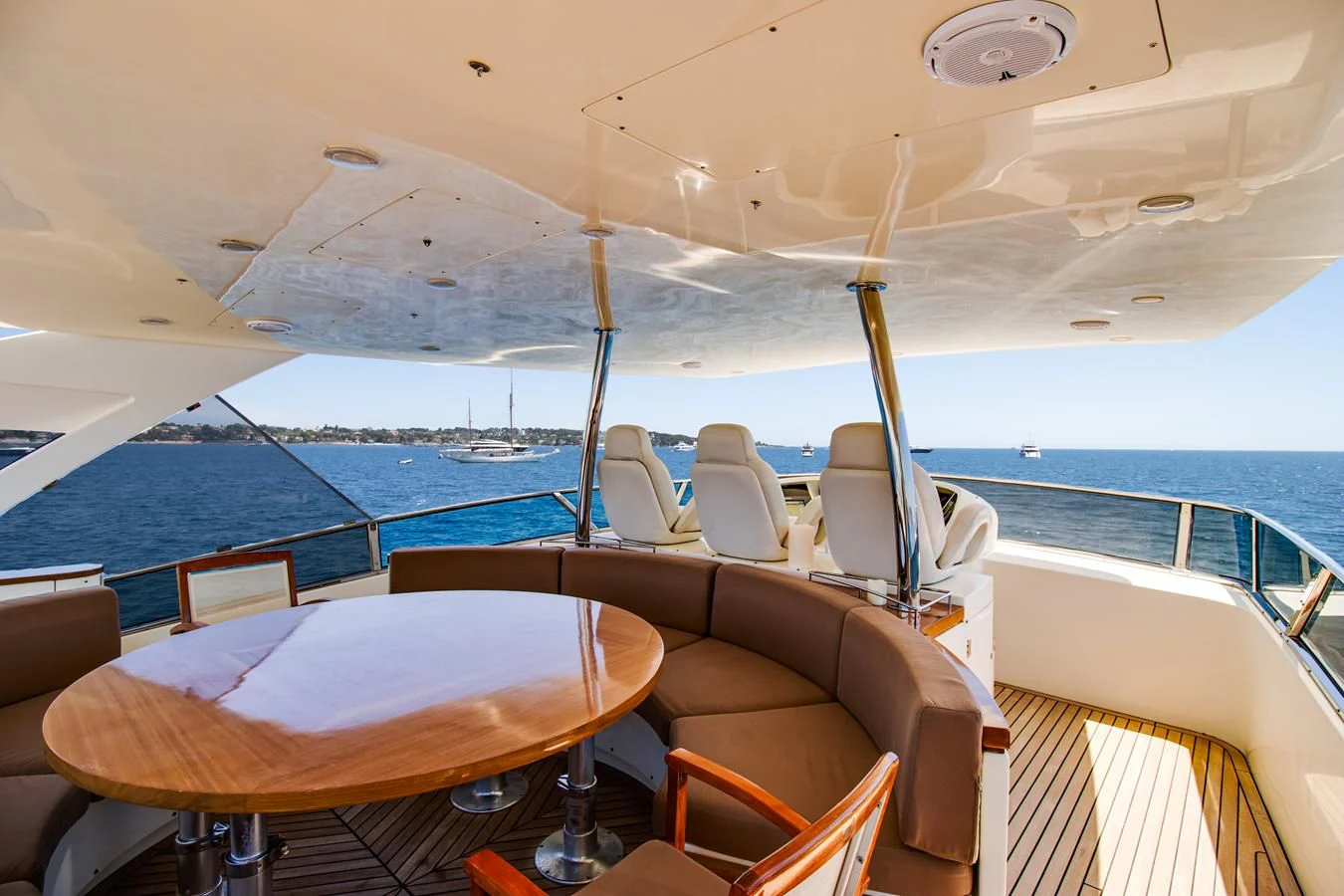

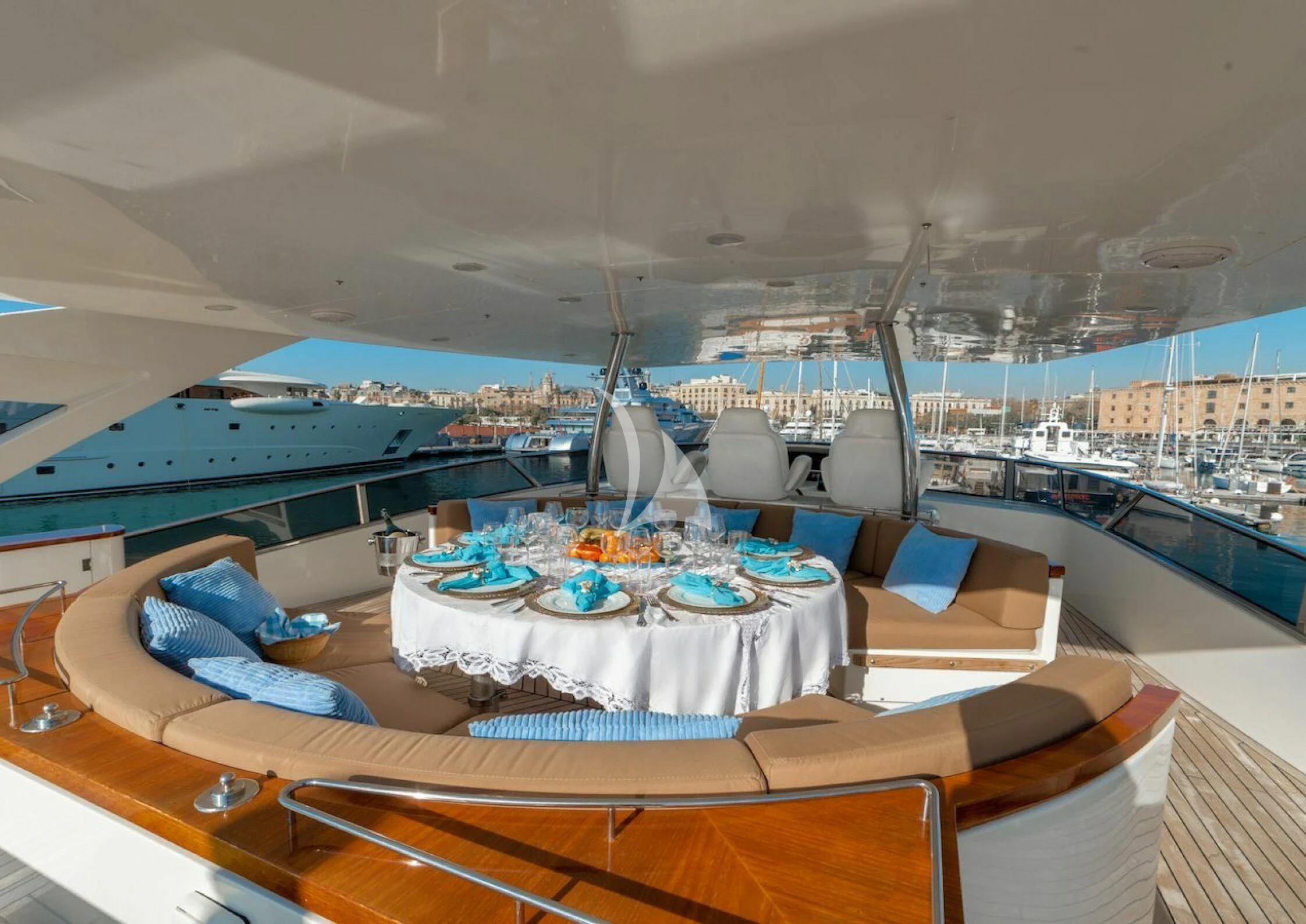

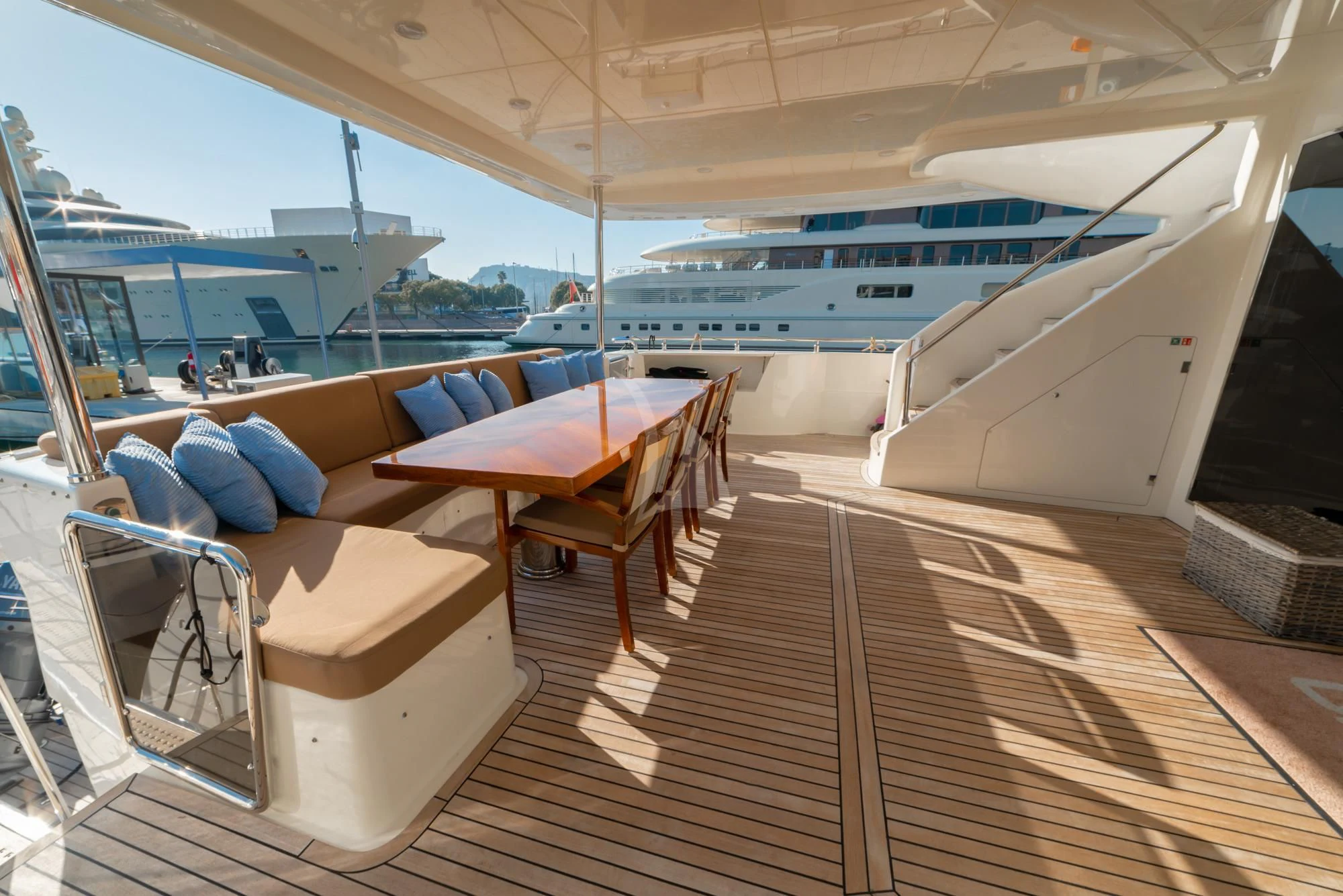

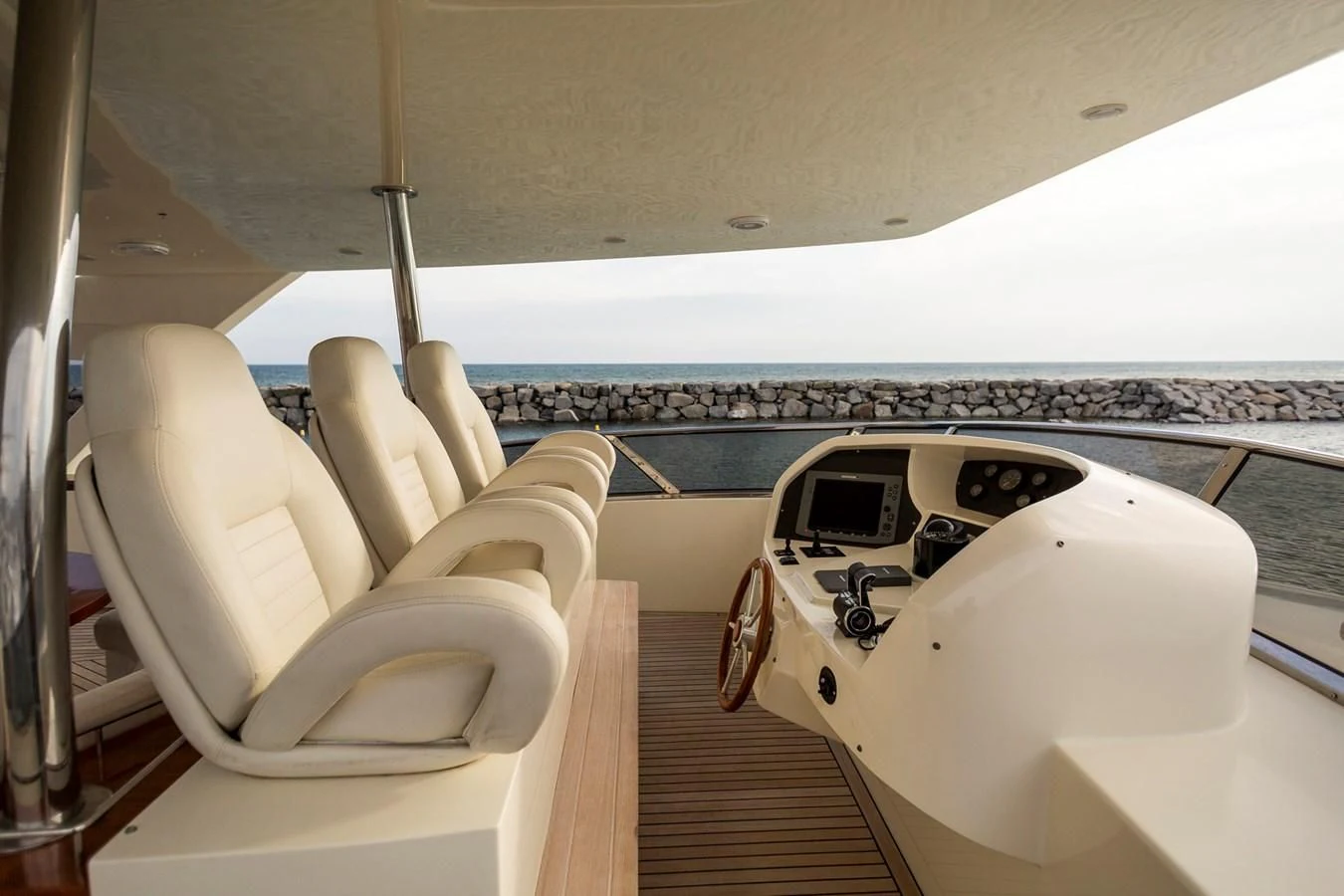

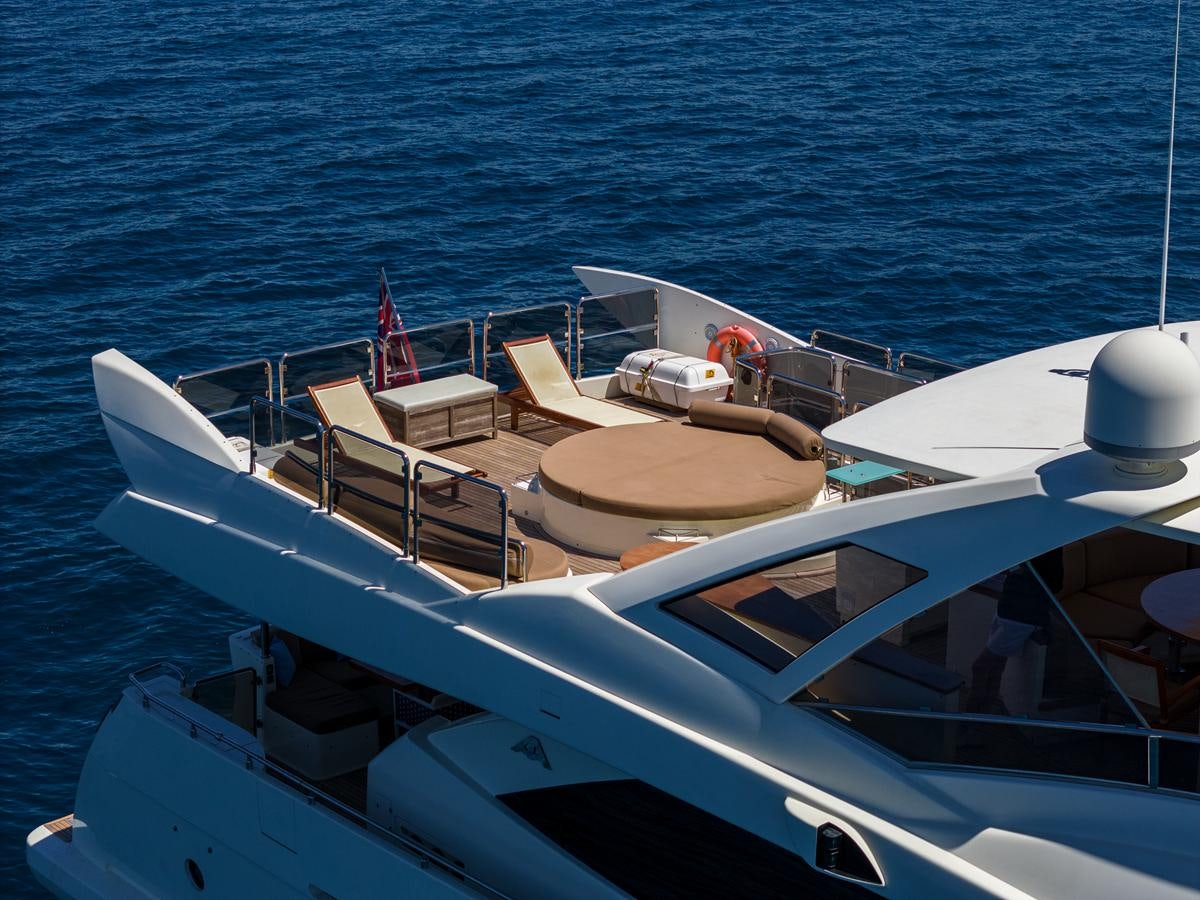

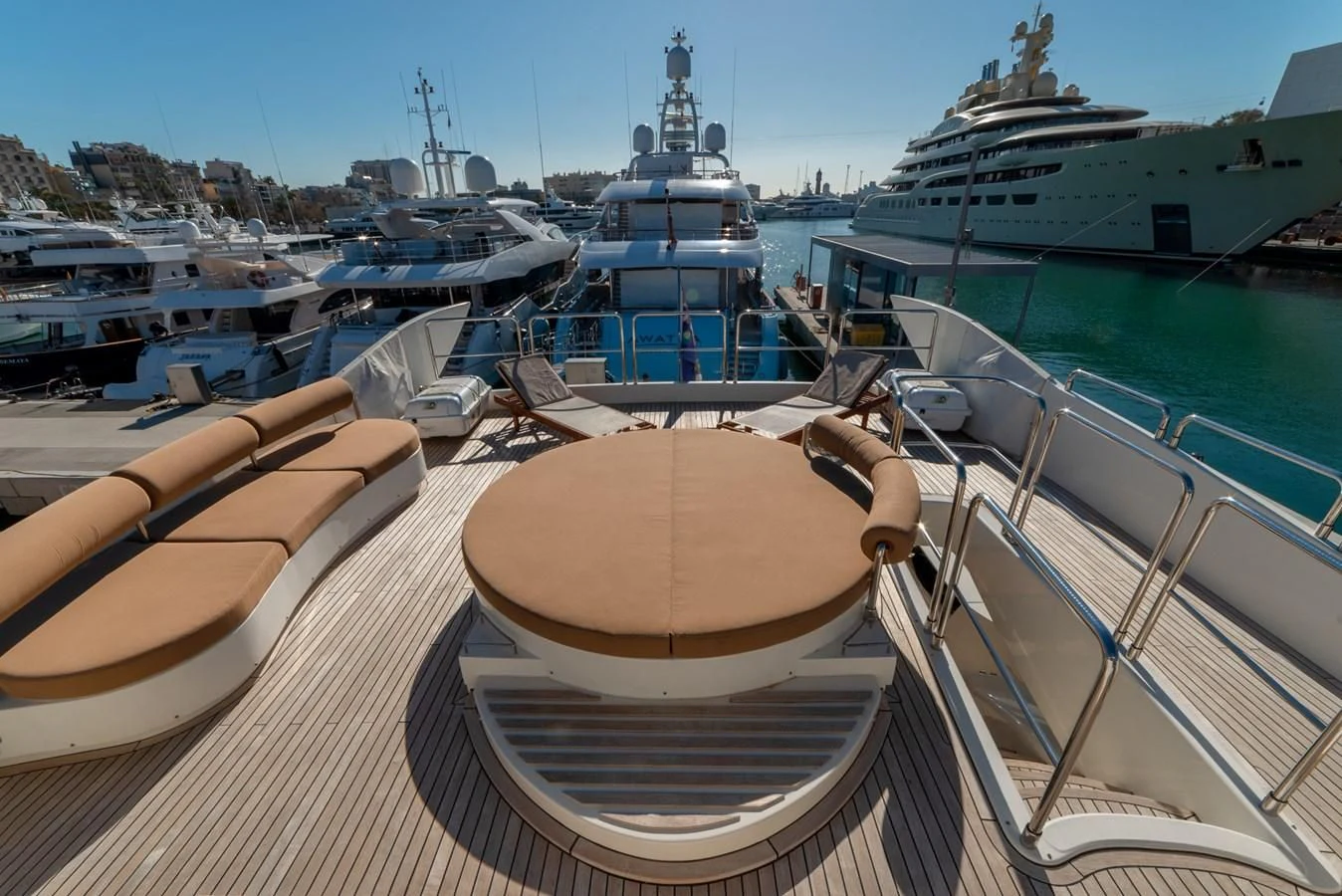

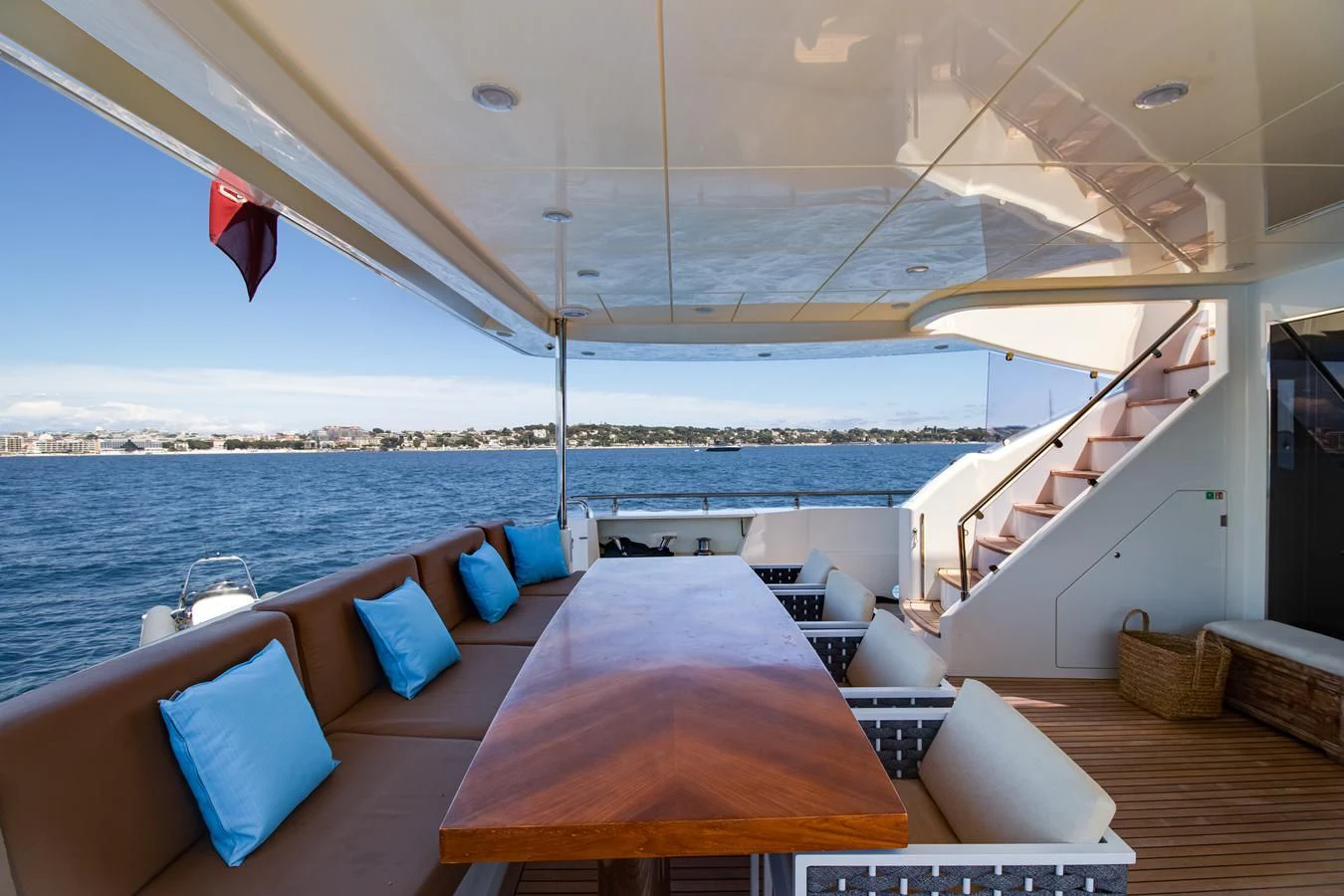

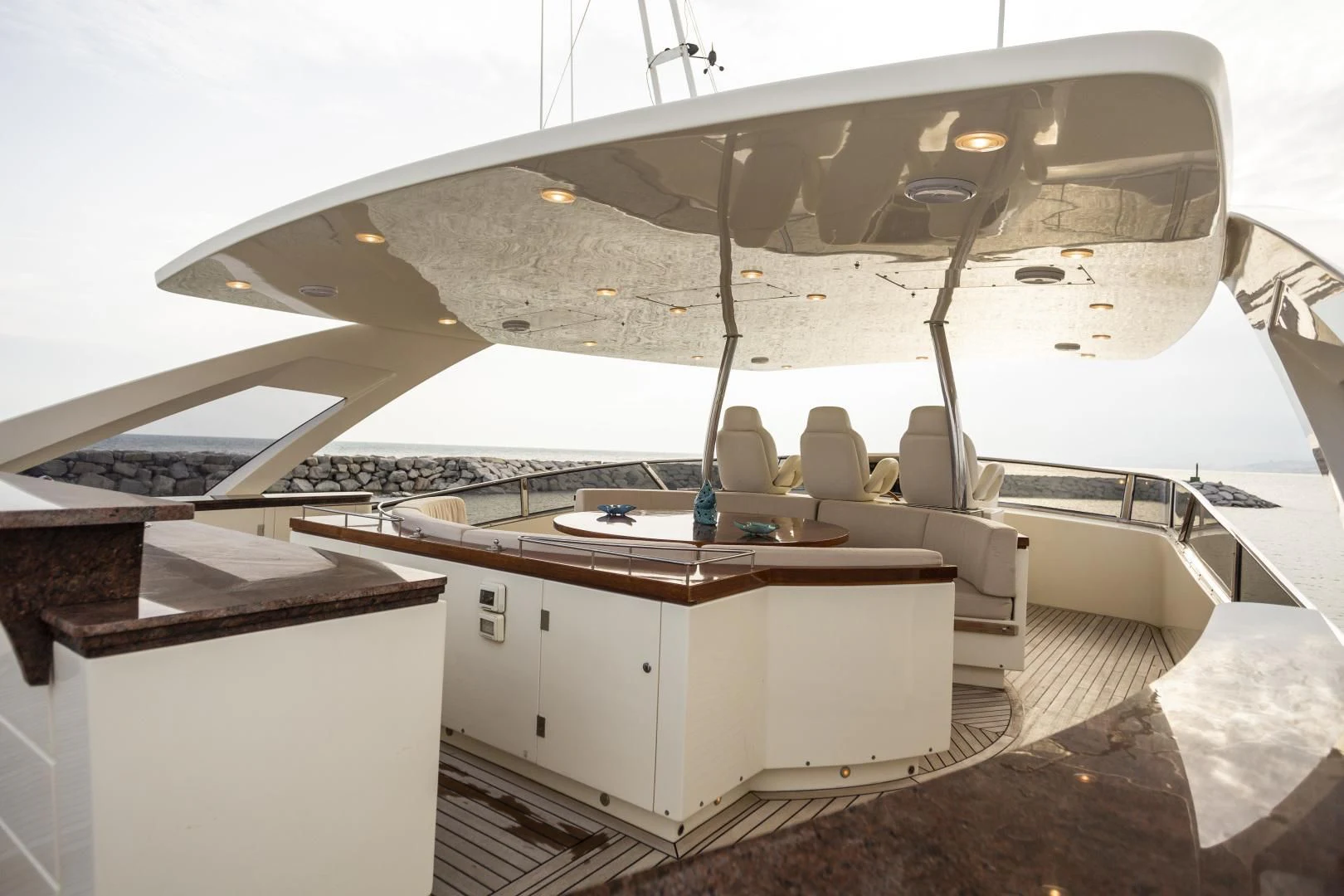

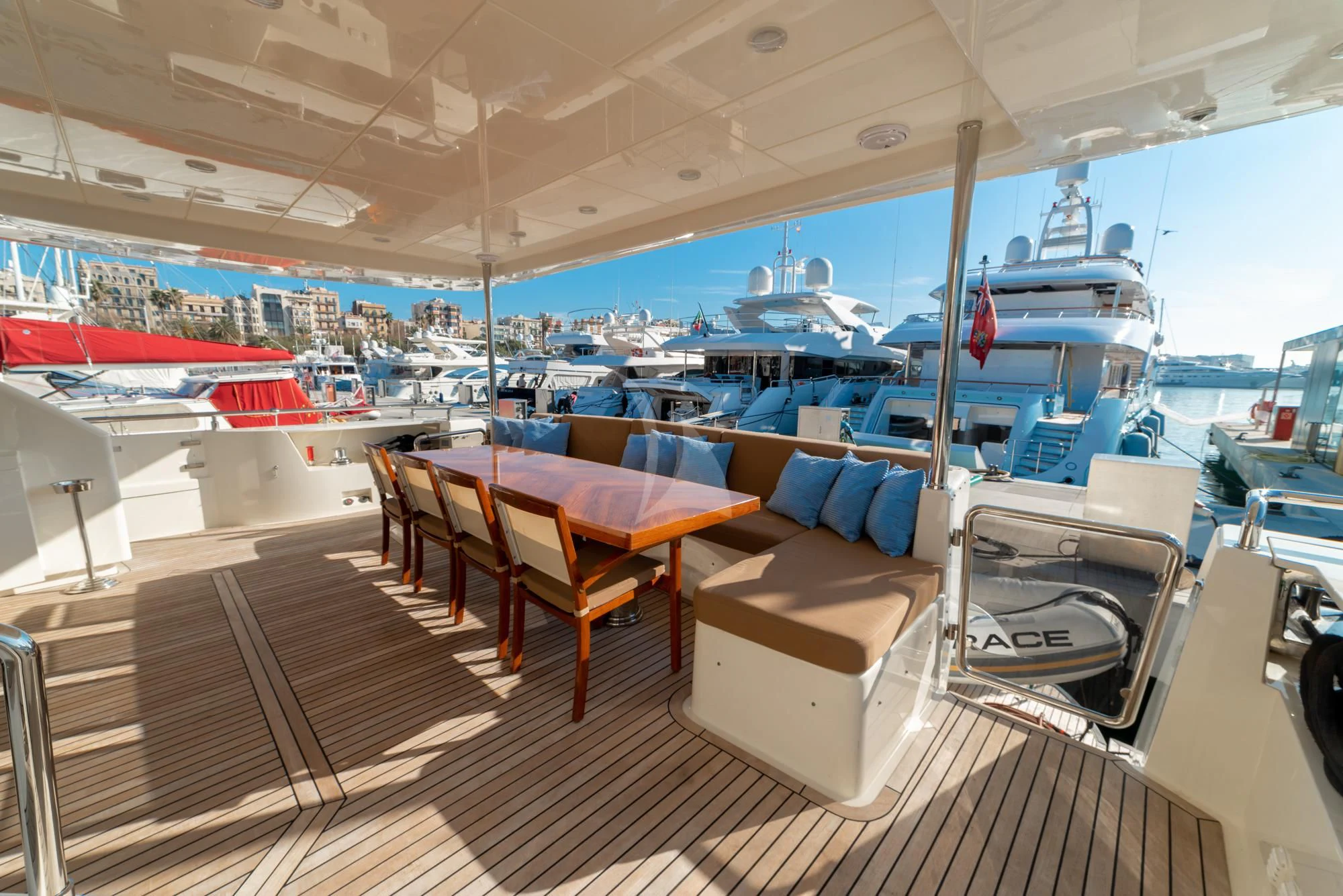

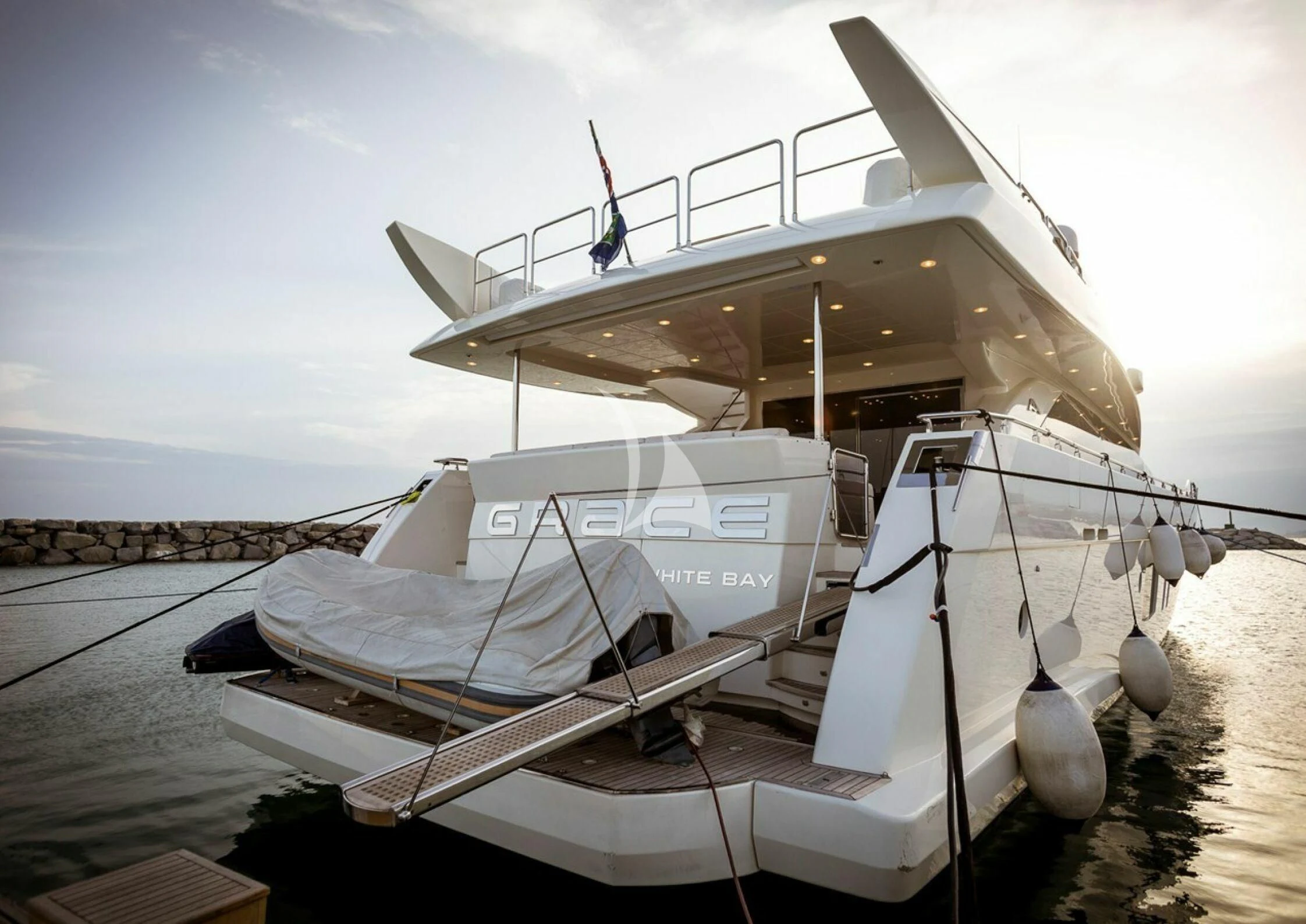

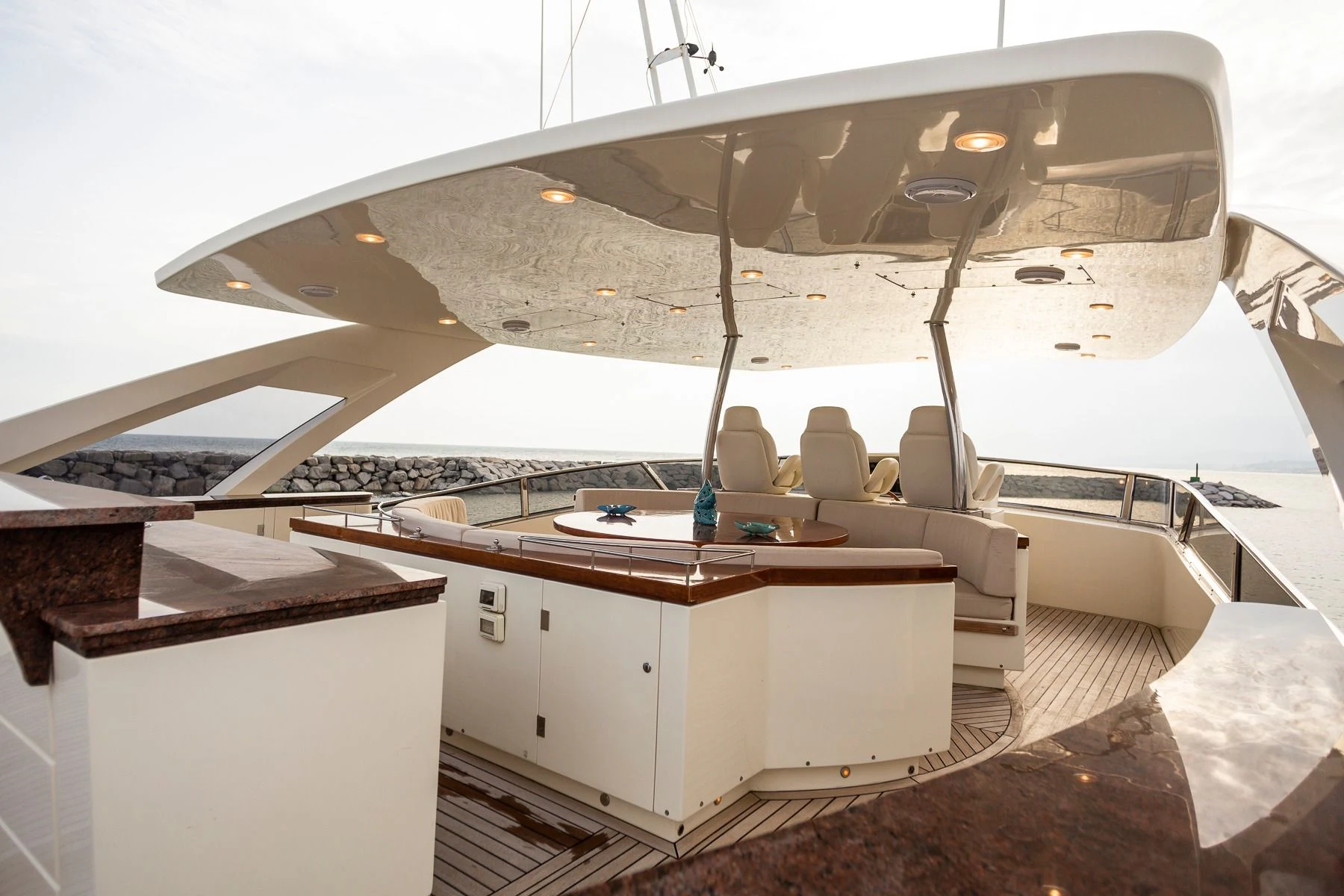

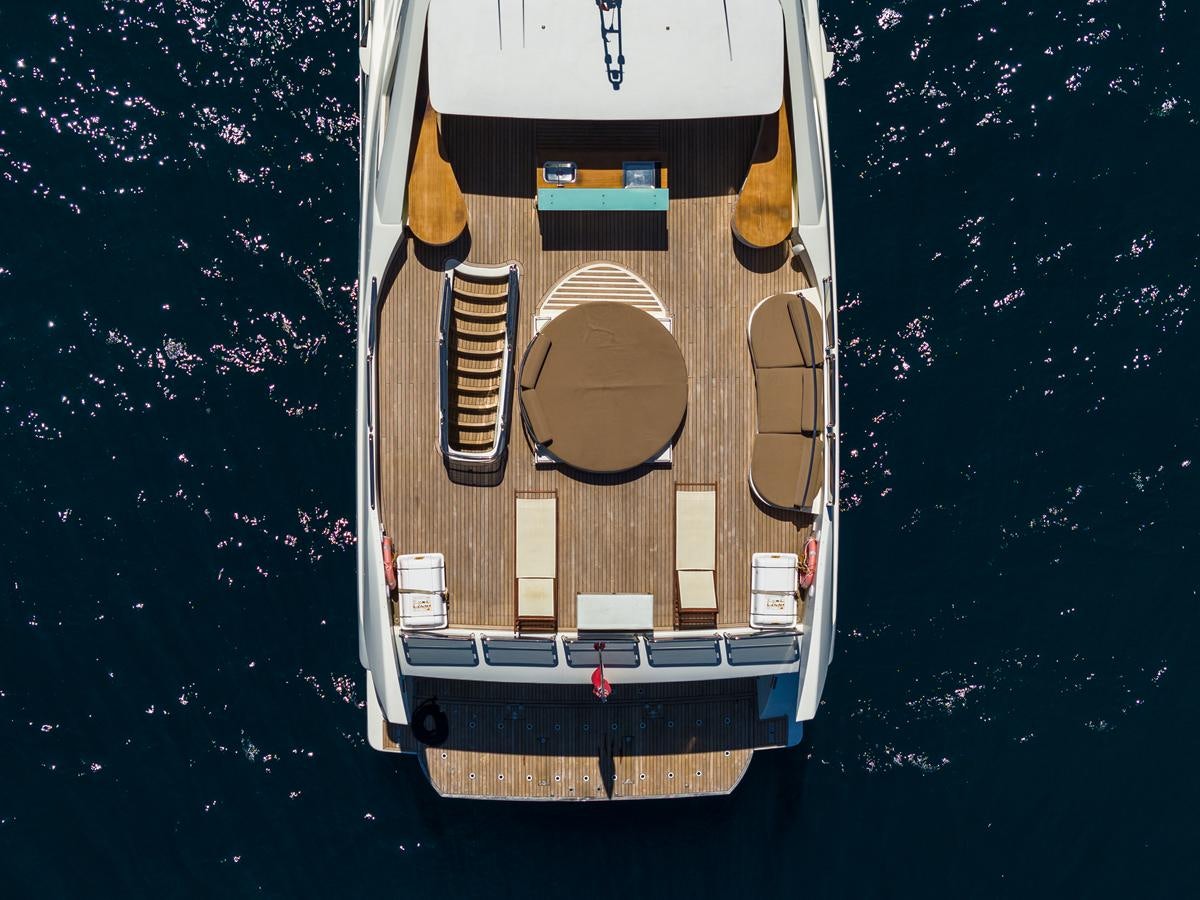

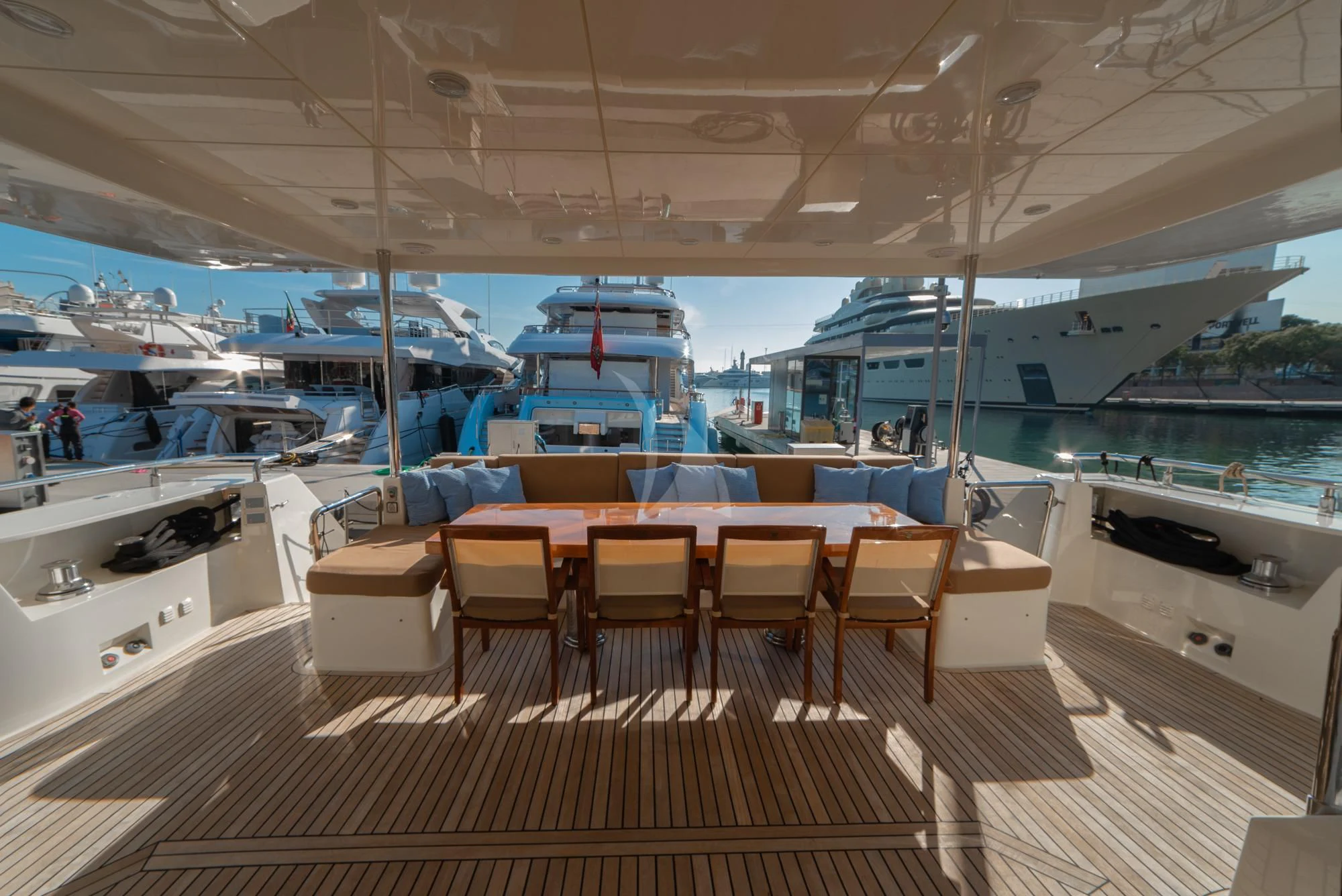

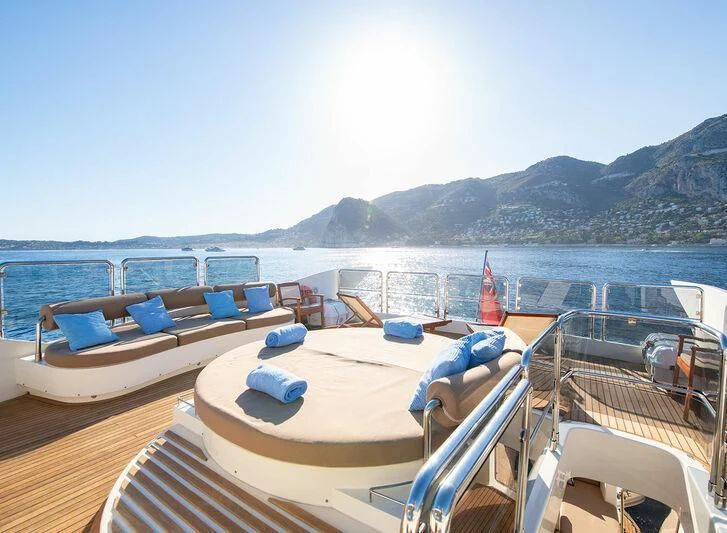

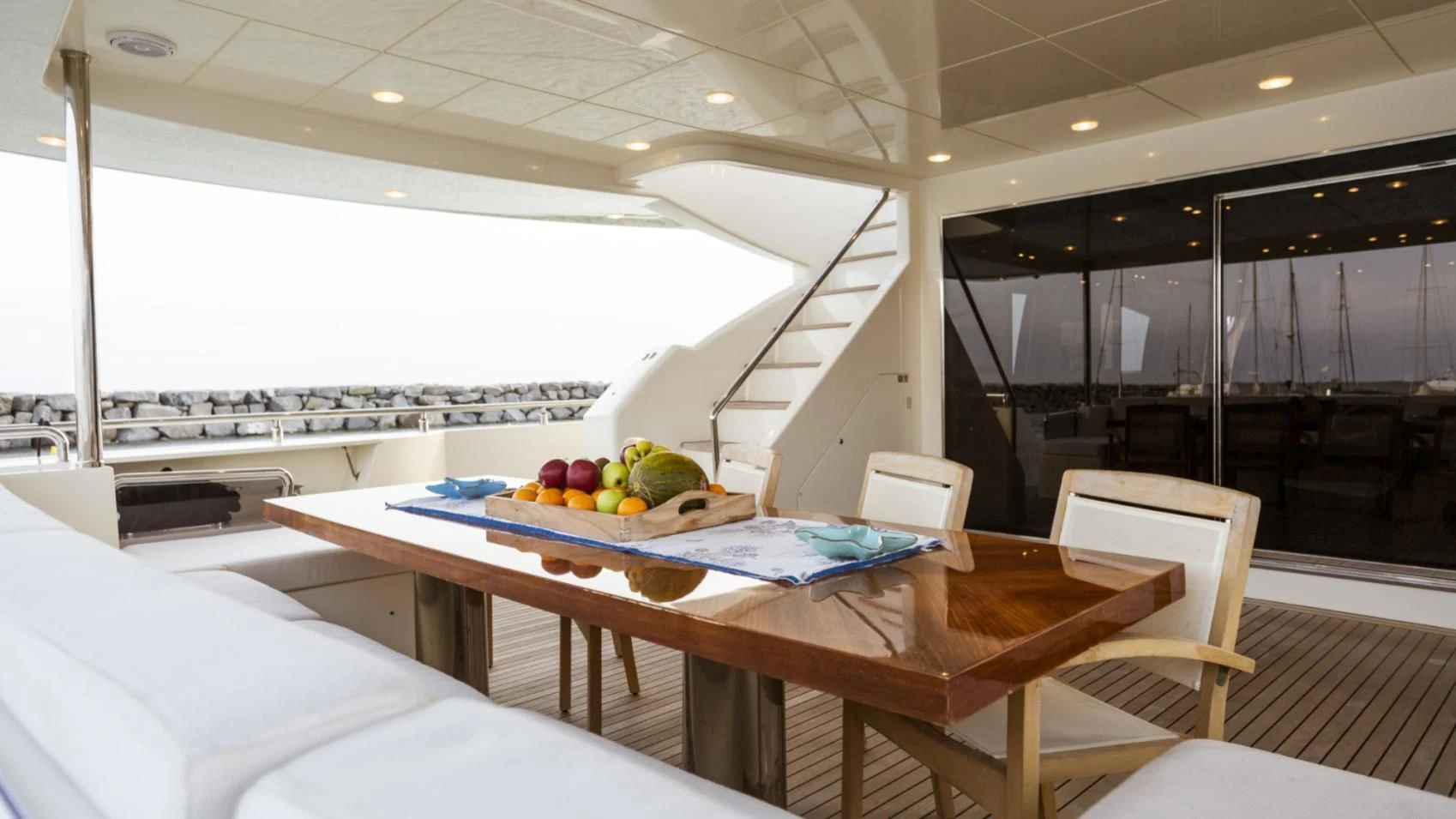

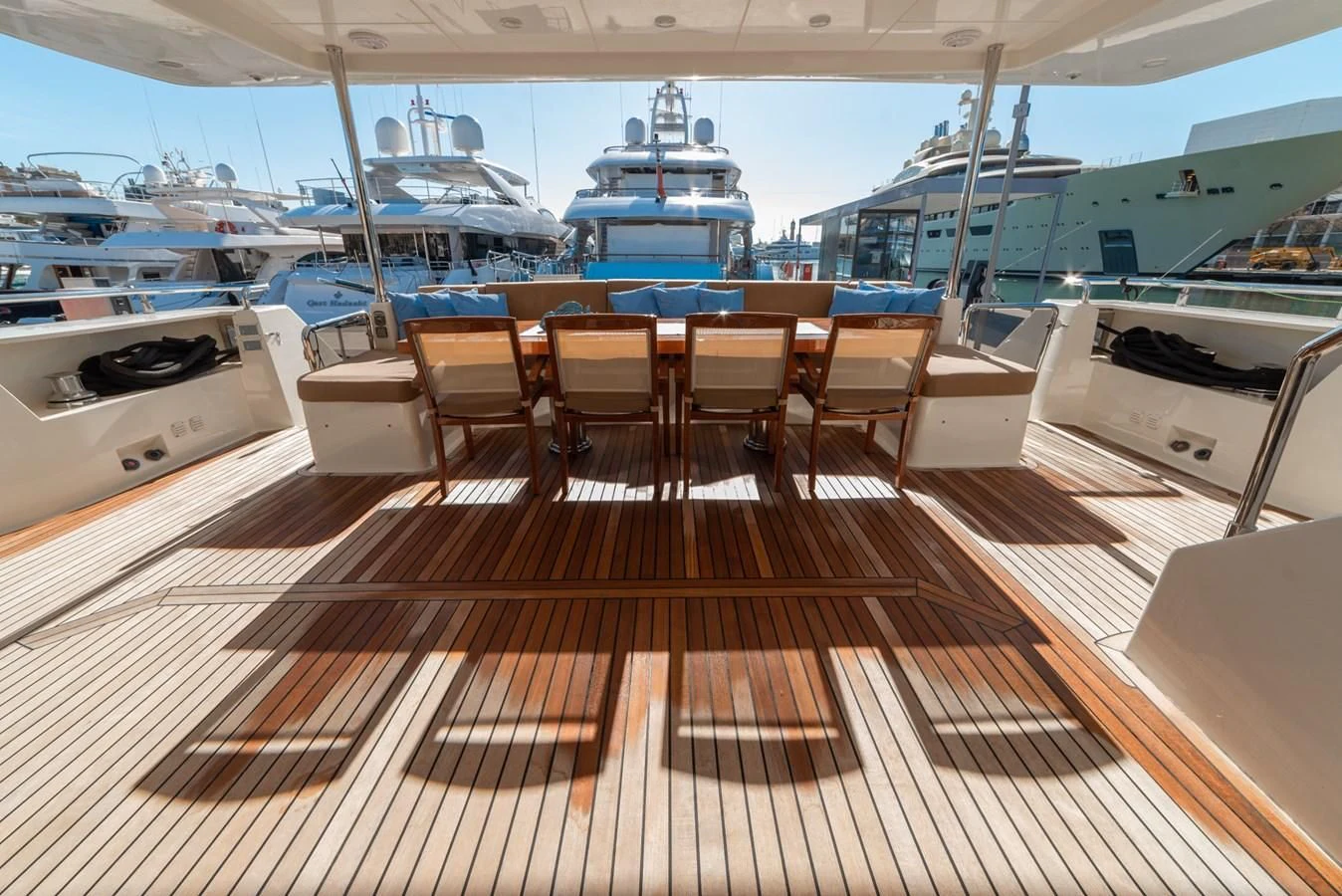

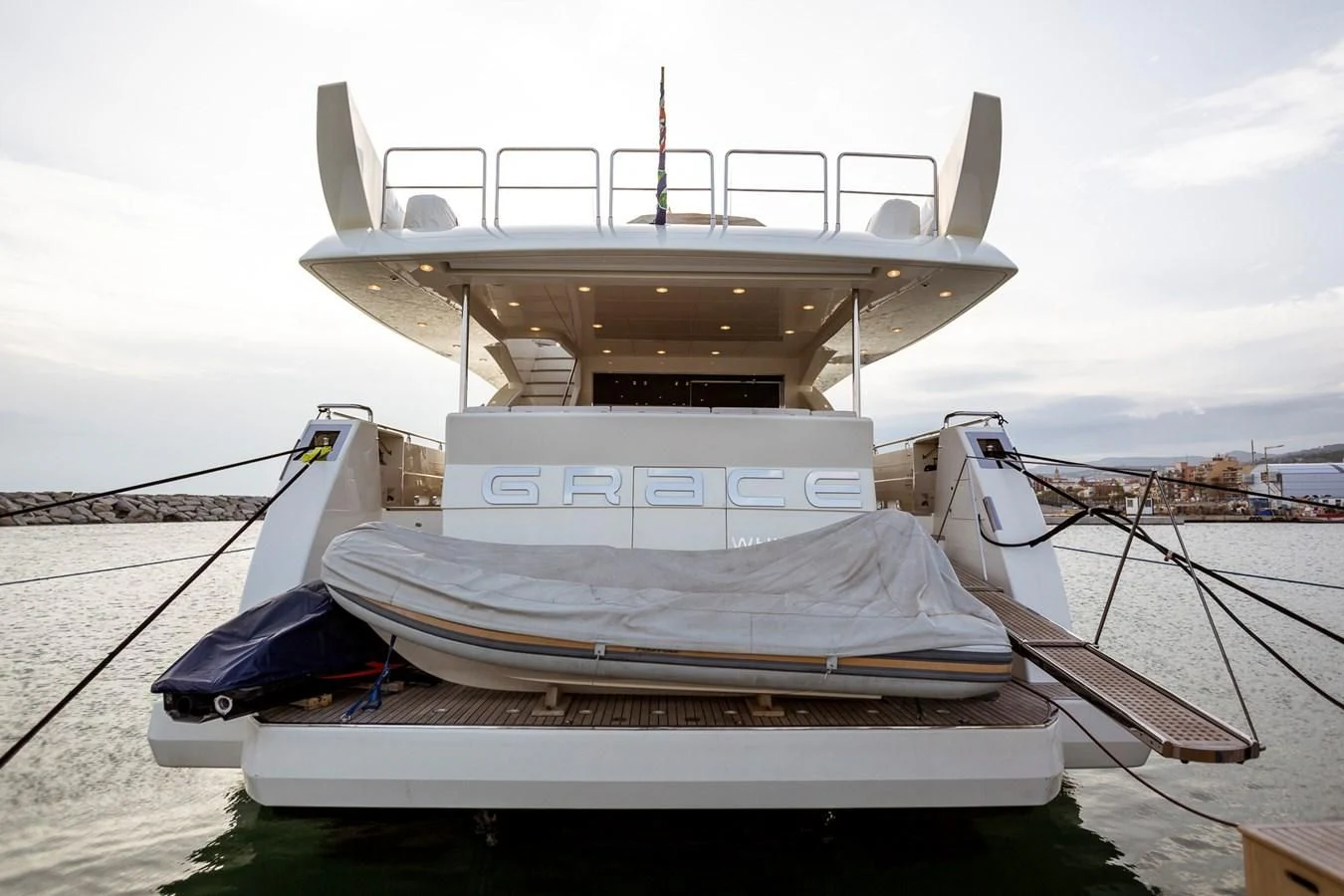

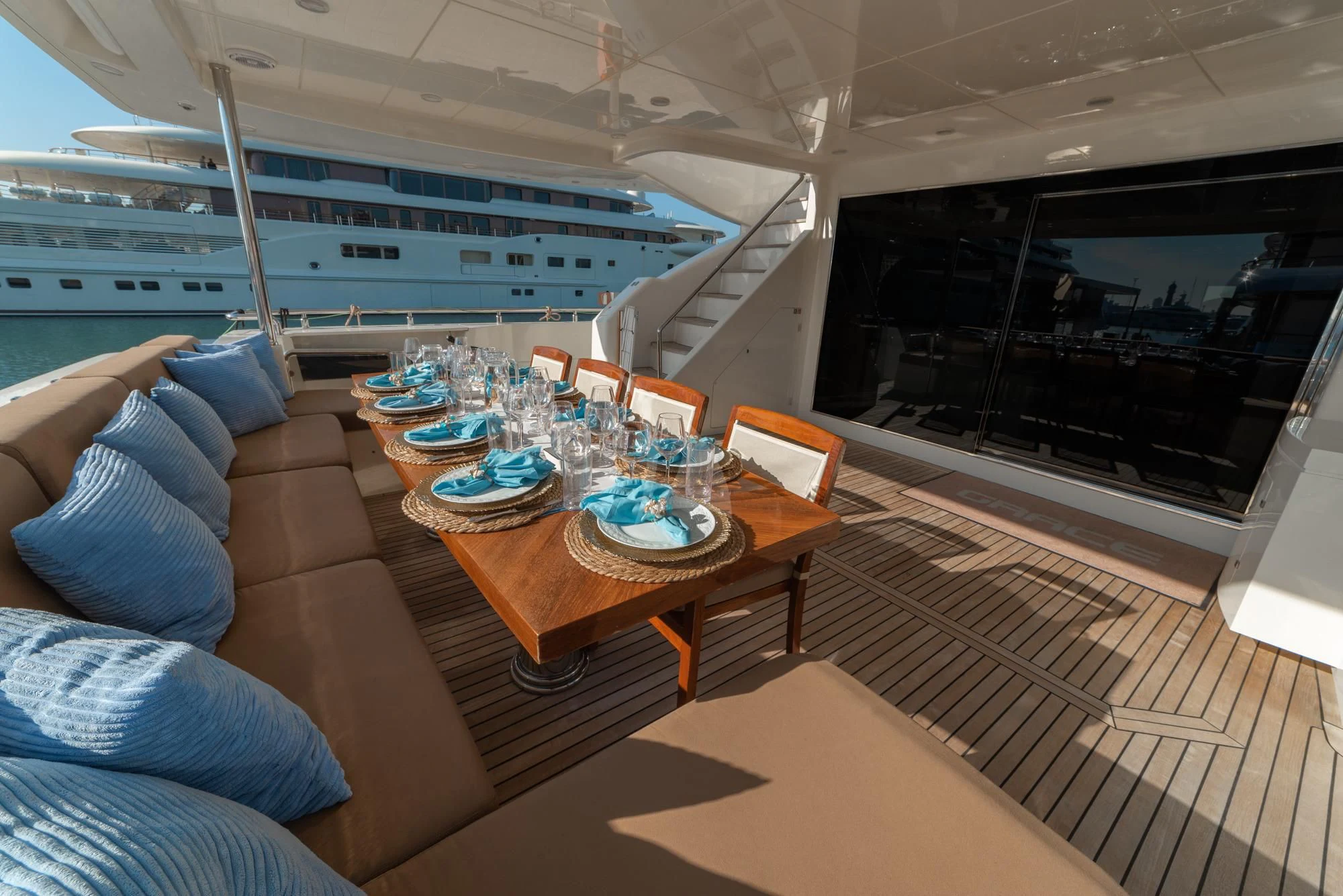

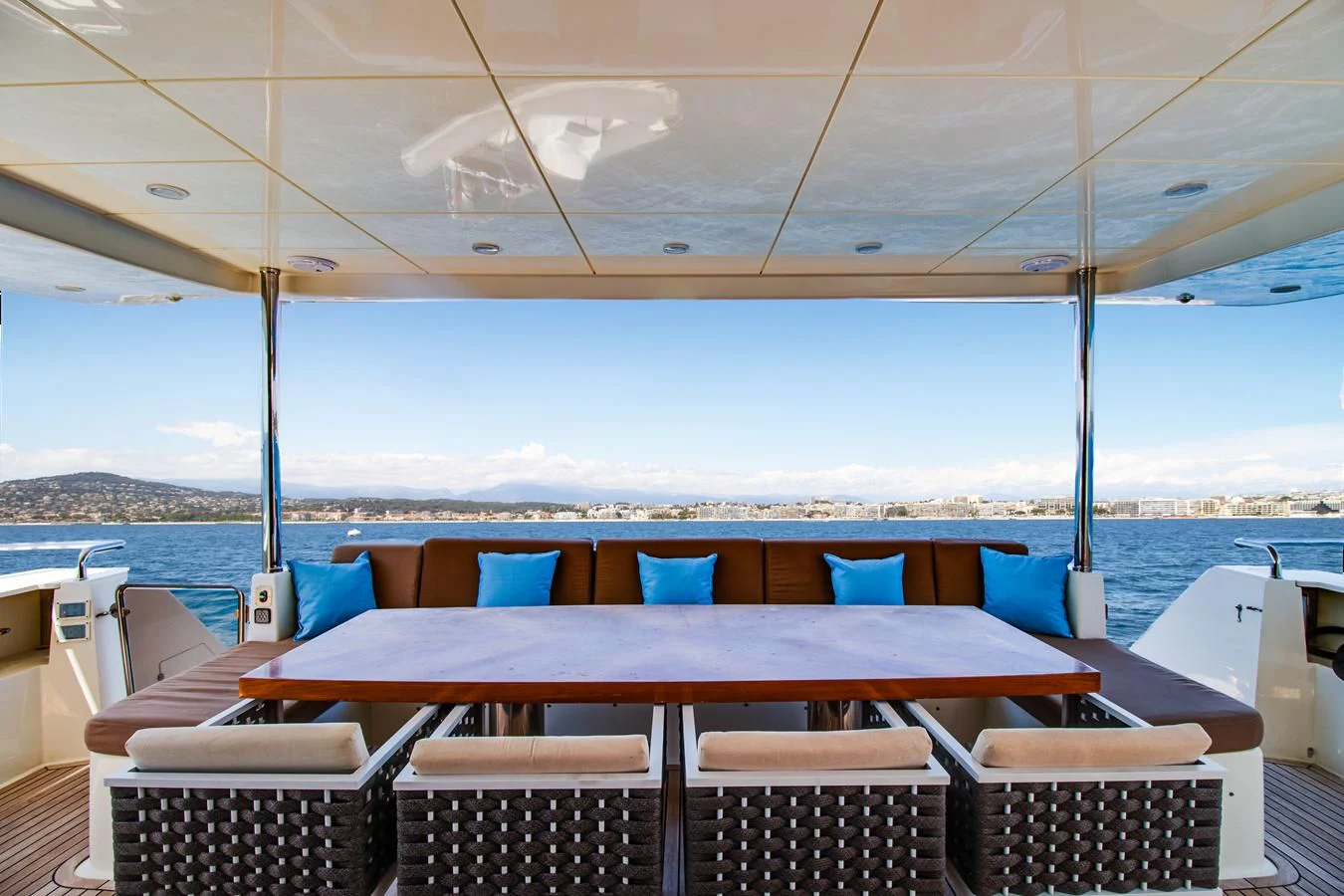

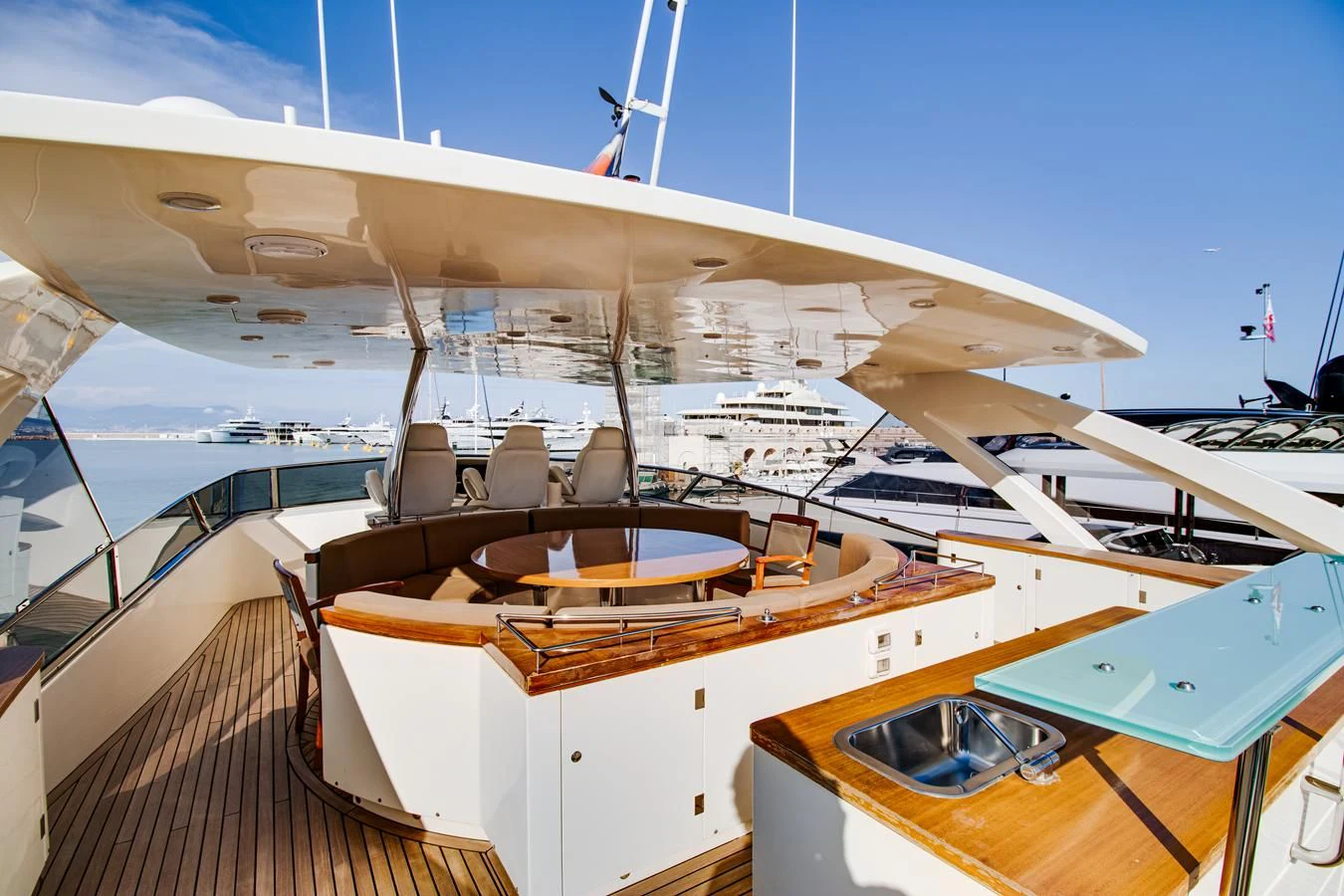

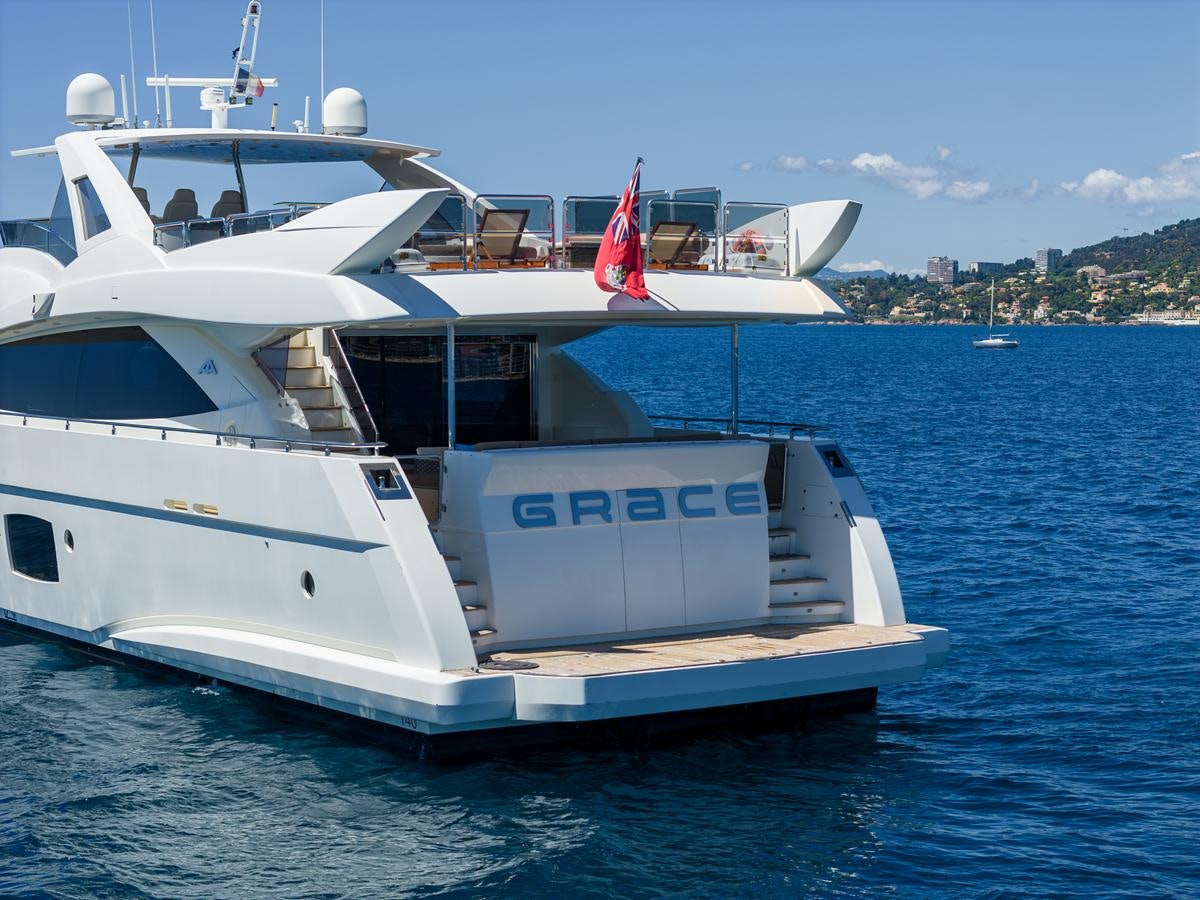

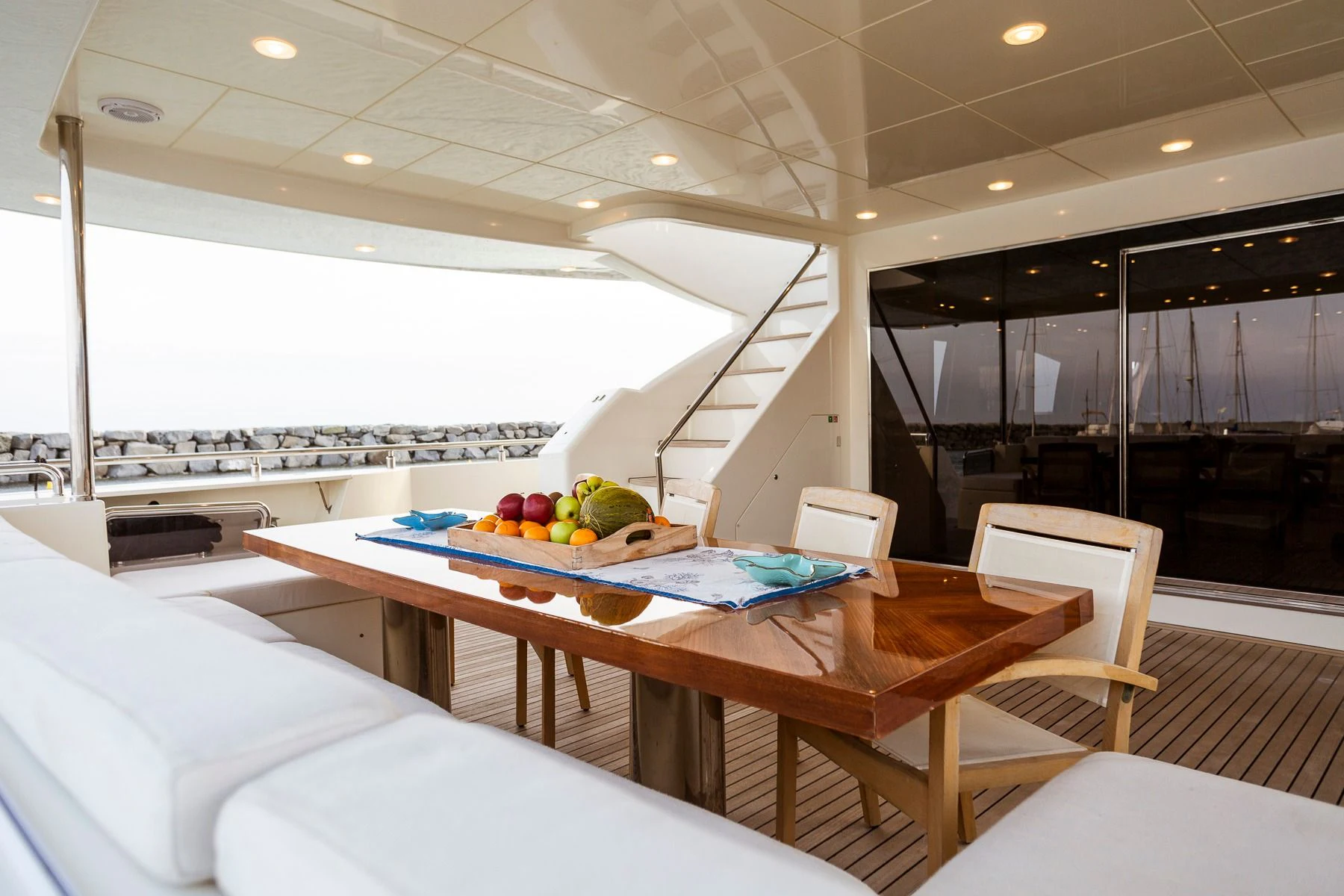

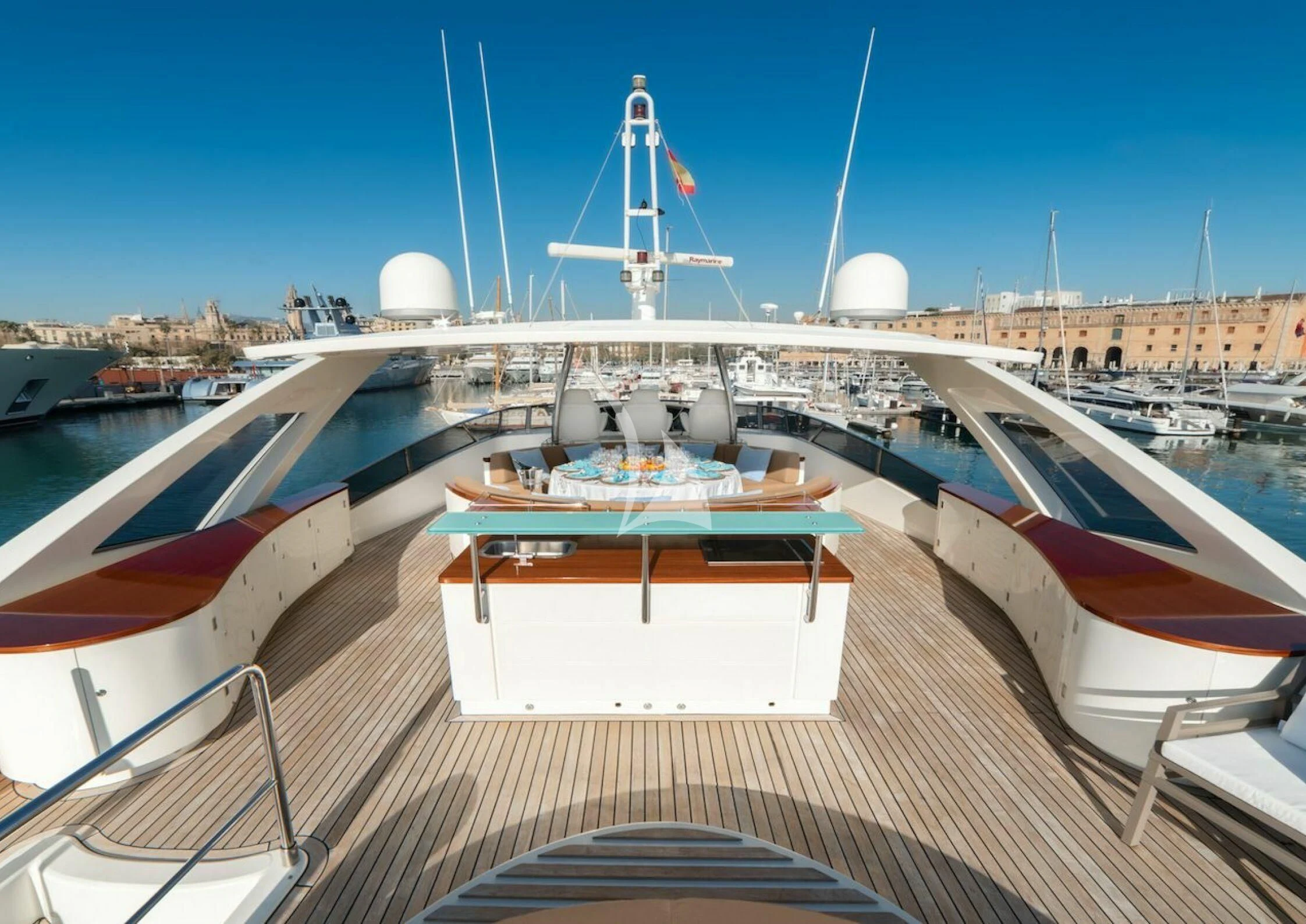

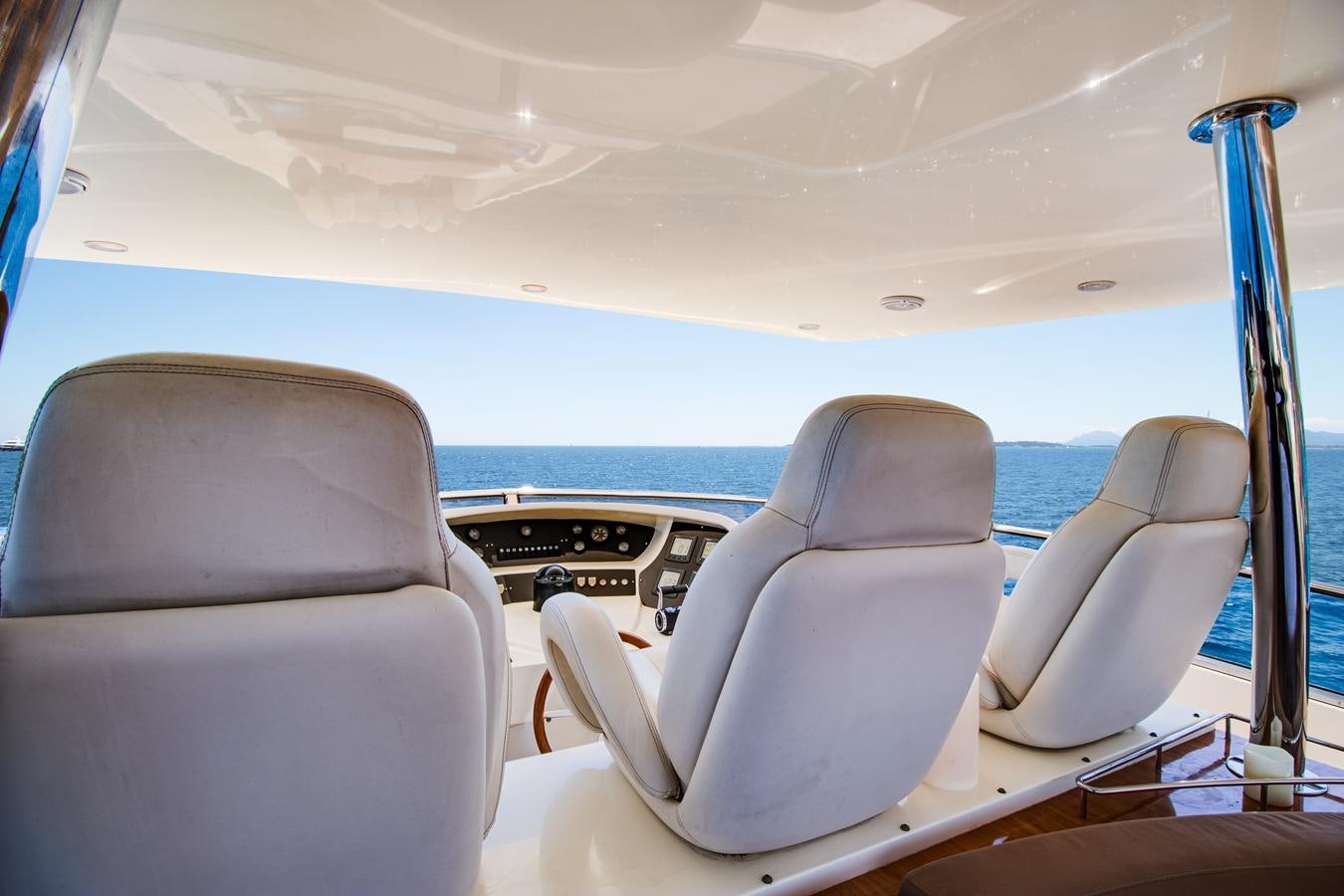

Motor yacht GRACE has an expansive flybridge allows for days to be spent relishing the alfresco lifestyle and taking in the views of the cruising destination. The flybridge features alfresco dining, a bar, a Jacuzzi and a lounge area. Below on the yacht’s aft deck is an additional space for alfresco dining and lounging. Steps lead down to the swim platform offering ease of access to the water and tender.


  • Remarkable headroom throughout
  • Only light private use

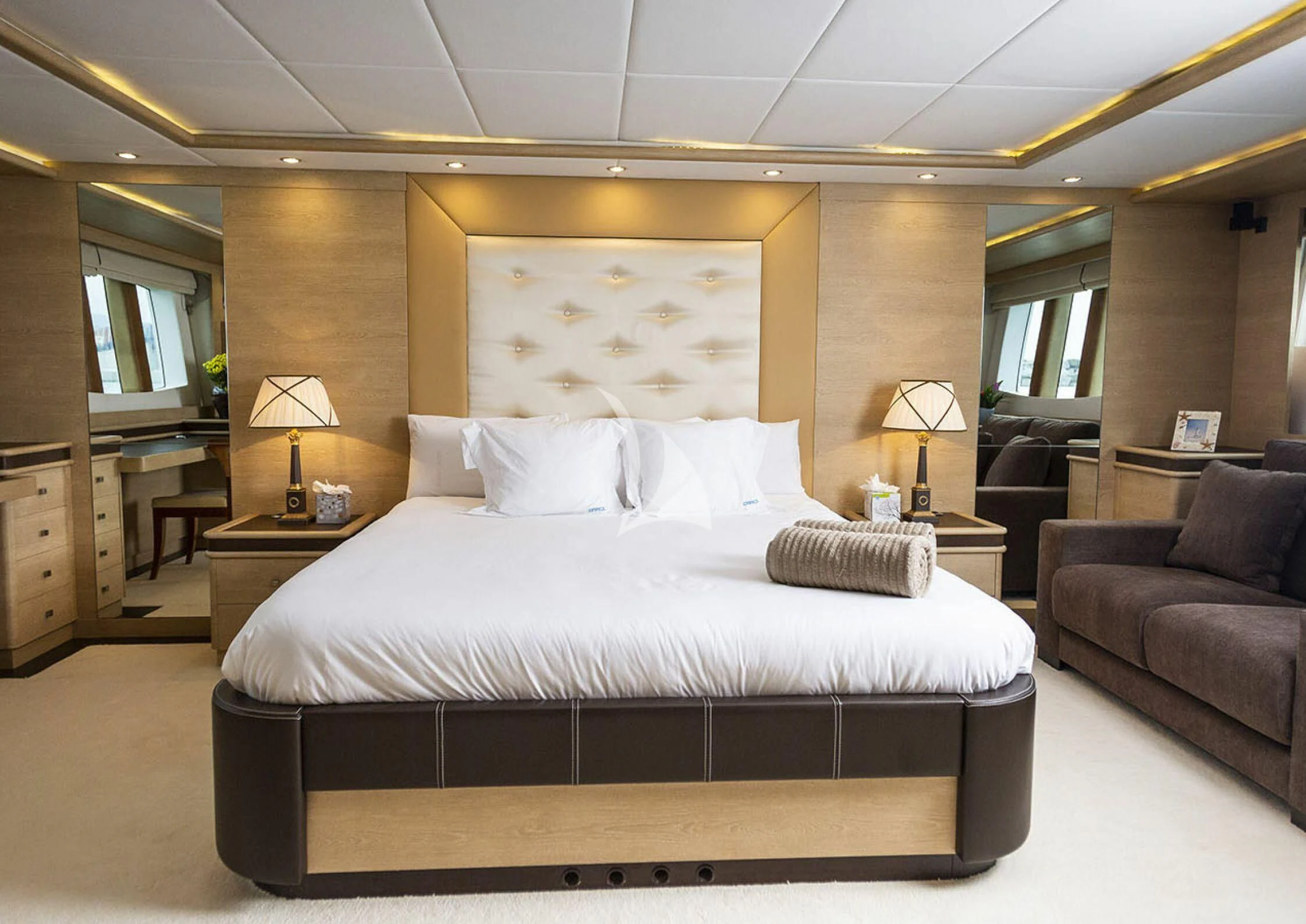

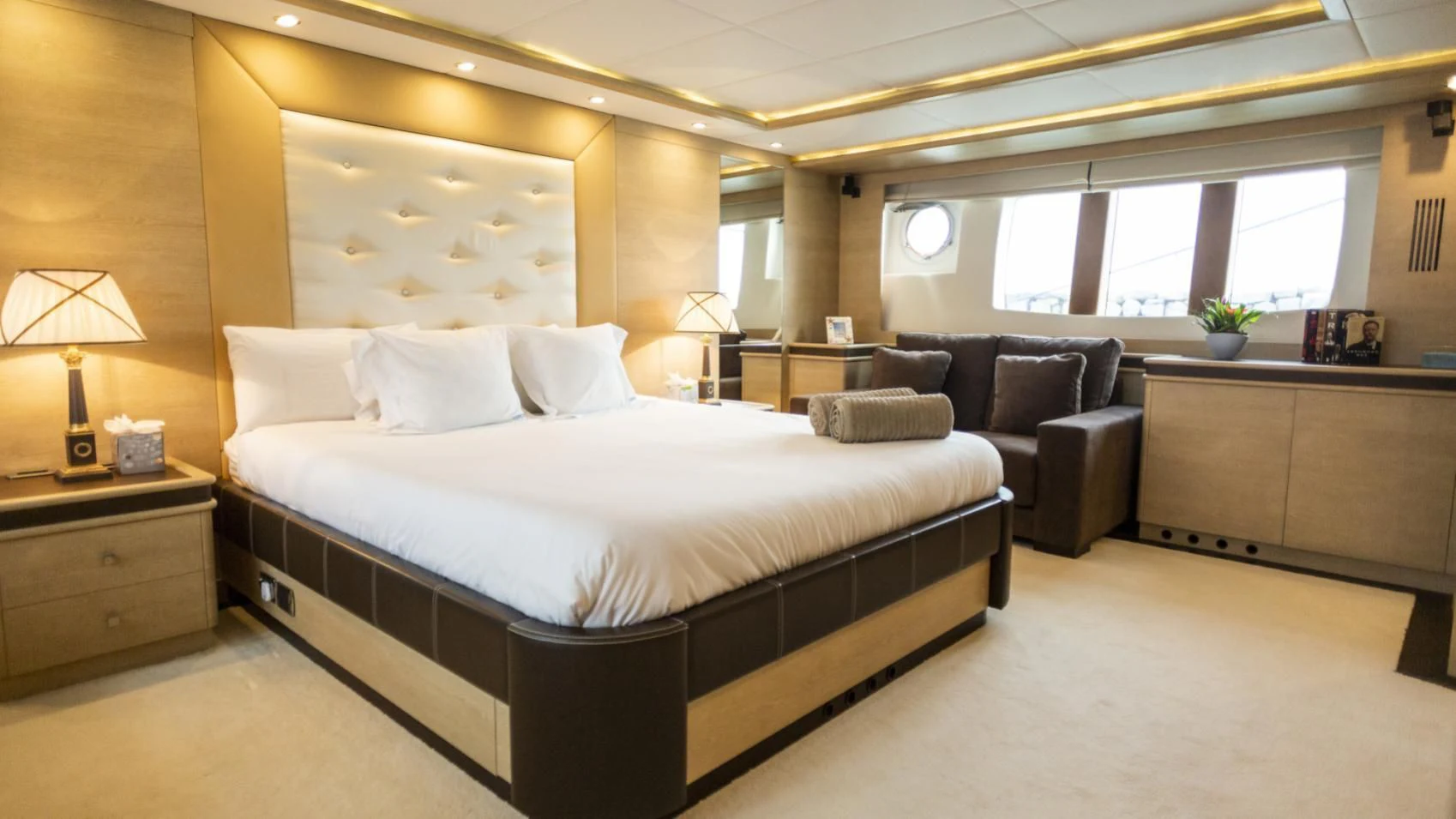

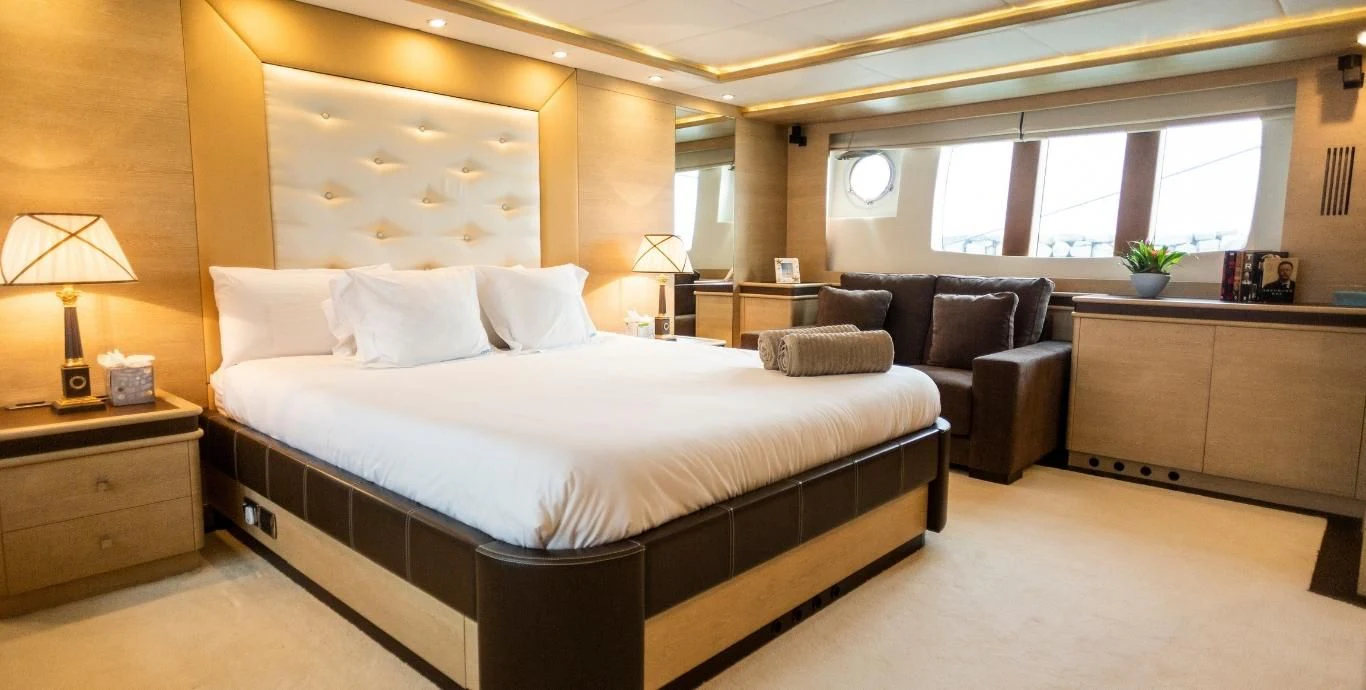

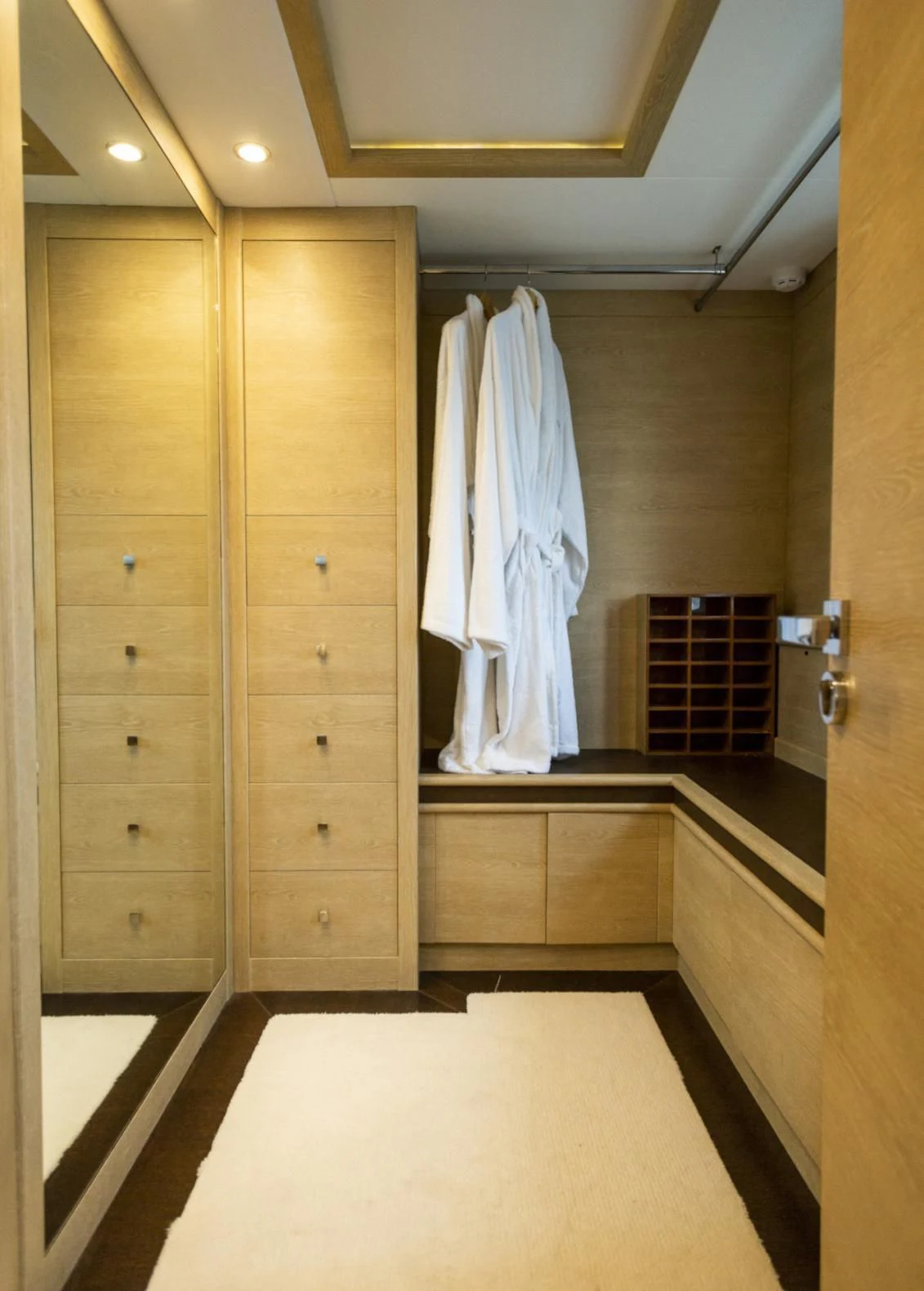

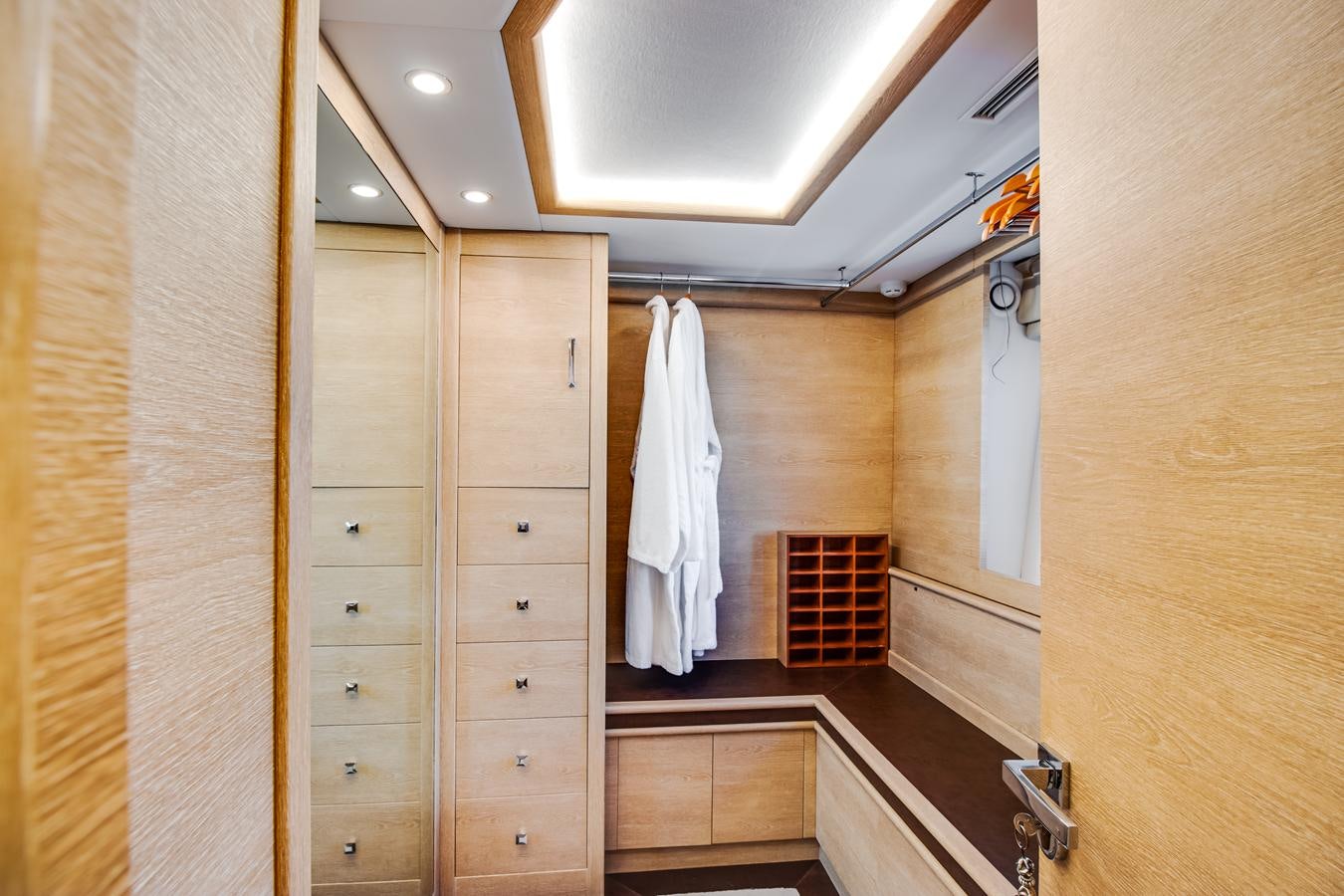

  • Extremely spacious master stateroom with a private staircase

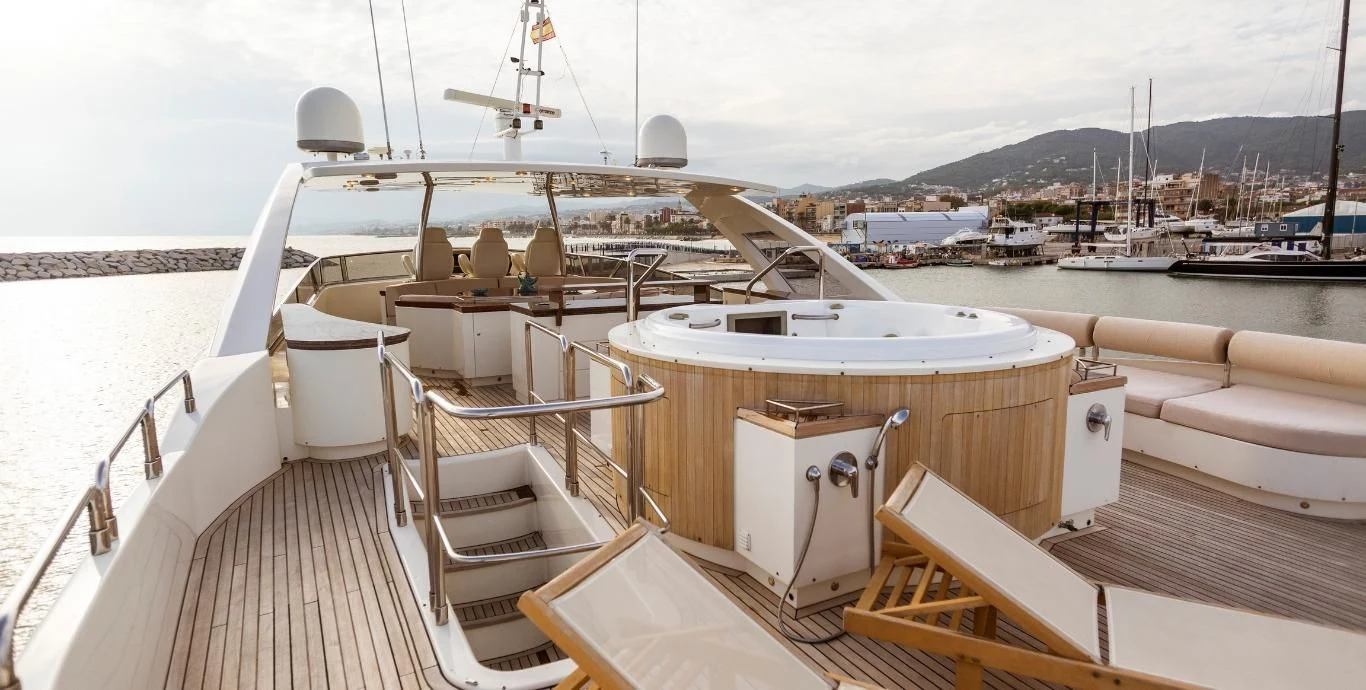

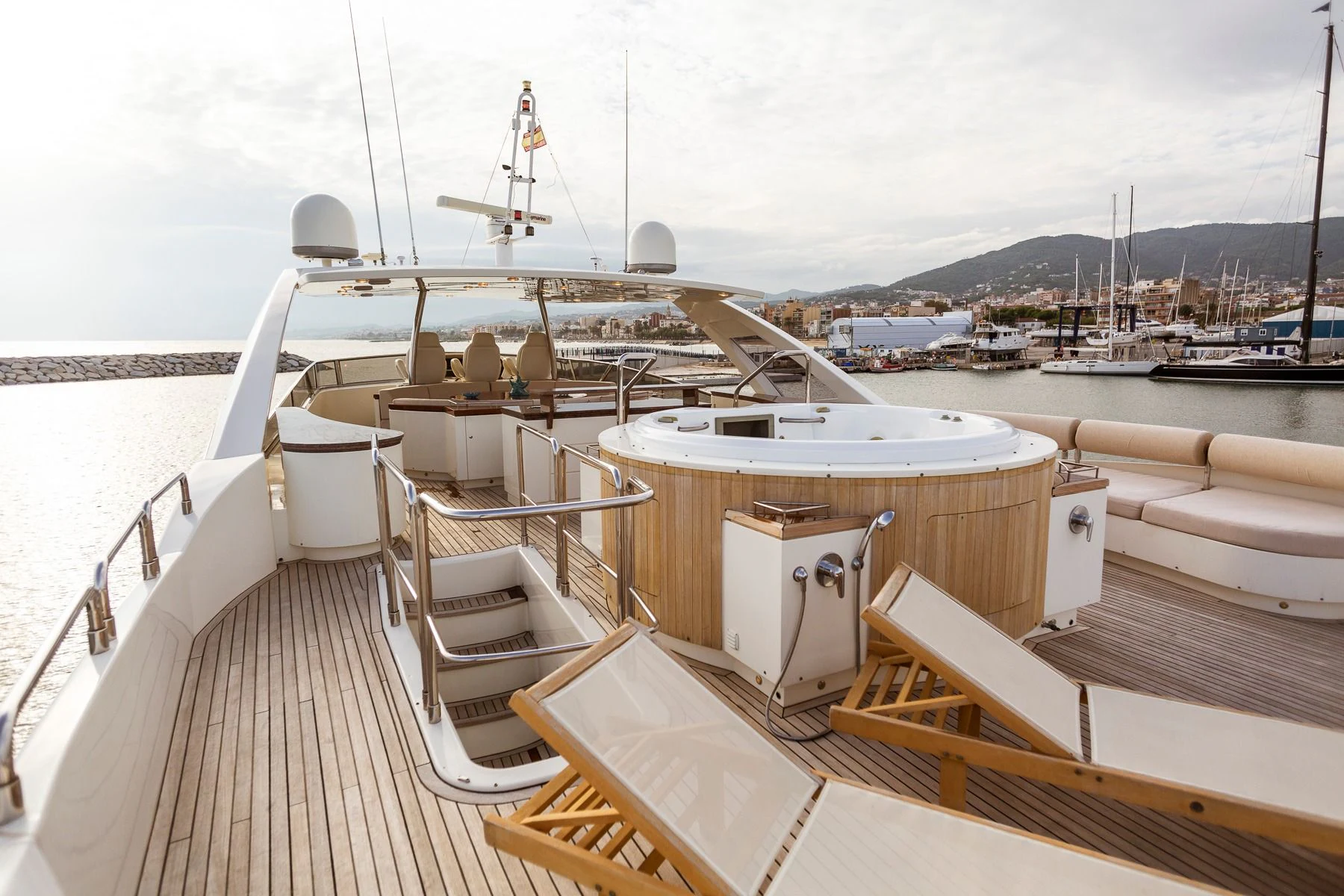

  • Expansive flybridge with Jacuzzi
  • The only 96 GLX available for purchase today


  • Jacuzzi
  • Personal Watercraft
  • Wi-Fi


Builder Astondoa
Model 96 glx
Length (LOA) 93' 9" (28.6m)
Year 2009
Year Refit 2017
Gross Tonn. 168
Draft 7' 10" (2.39m)
Beam 22' 5" (6.83m)
Range 350 NM
Location Barcelona, Spain


Staterooms 4
Sleeps 10
Twin Beds 2
Single Beds 2
Heads 7
Crew Cabins 2
Crew Sleeps 4
Capt. Quarters No

Dimensions & Capacity

LOA 93' 9" (28.6m)
Max Draft 7' 10" (2.39m)
Fuel Tank 2,774 g (10,500 L)
Fresh Water 660 g (2,500 L)
Gross Tonn. 168


Hull Material Fiberglass
Hull Config monohull
Max Speed 27 Knots
Cruising Speed 24 Knots
Range 350 NM
Stabilizers None

Engines (x2)

Engine Make MTU
Engine Model 2000 V16
Power HP 2,000
Power KW 0
Fuel Type Diesel
Engine Location Port
Have Questions?

Complete the form below and one of our experienced sales brokers will be in touch soon.

Full Details

Hull & Dimensions

Type Motor Yacht
LOA 93’ 8” (28.6m)
Length of hull 76’ 7” (23.4m)
Beam 22’ 3” (6.8m)
Draft 7’ 5” (2.3m)
Builder Astondoa
Year 2009
Refit 2015 / 2017
Mode 96 GLX
Designer In-house Astondoa
Interior Designer

In-house Astondoa

Refitted 2017 Wild Group

Construction GRP
Gross Tonnage 168 GRT
Net Tonnage 50.4 T
Cruising Speed 24 knots
Max speed 27 knots

Originally built to Lloyds

100 A 5 Motor Yacht –

Expired 2017

Range 350 nm
Flag British Virgin Islands


M/Y GRACE is an excellent example of the Astondoa 96 GLX. Having received a refit of the interior in 2017 and an exterior paint job in 2015, M/Y GRACE is ready for her next owner.

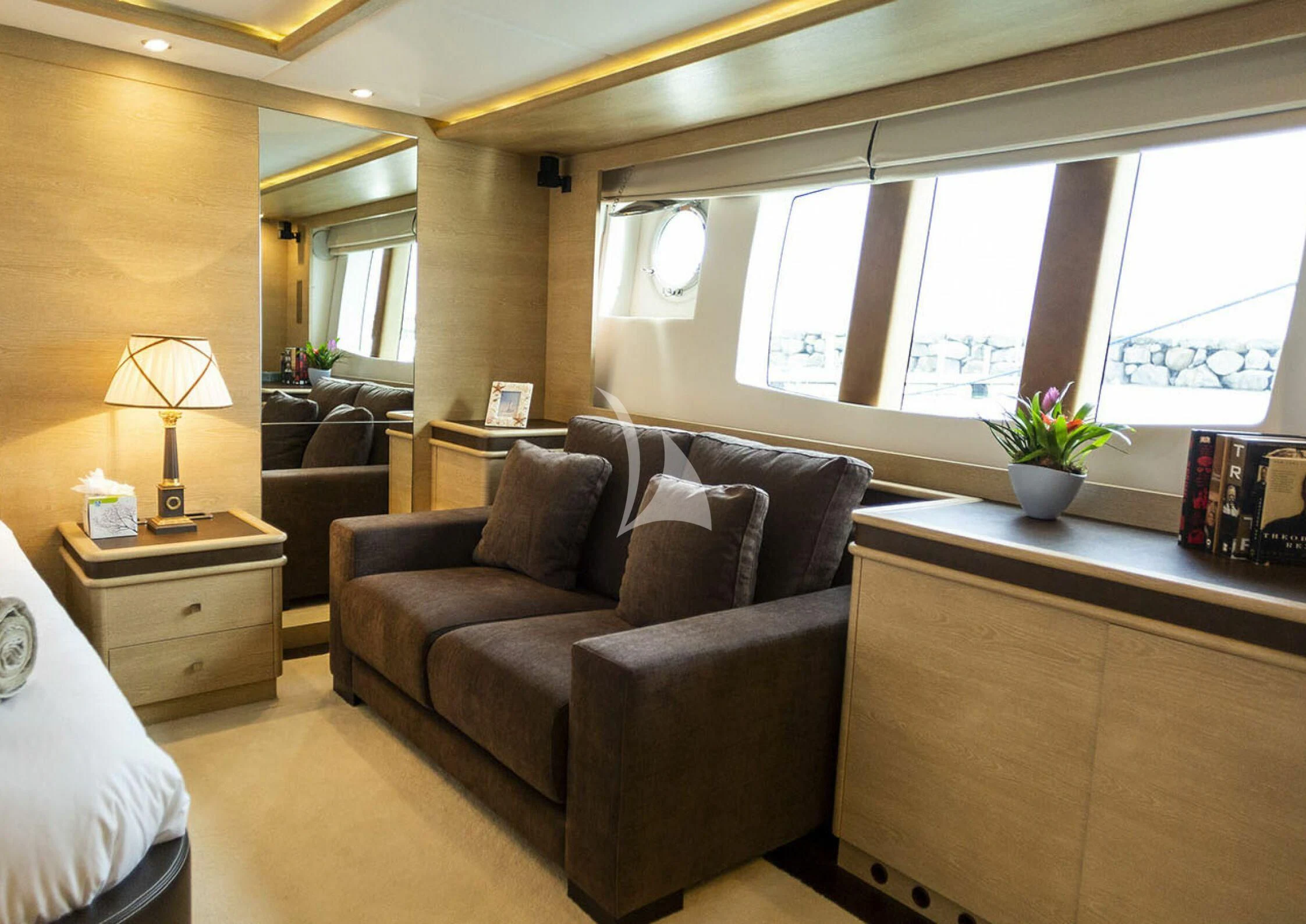

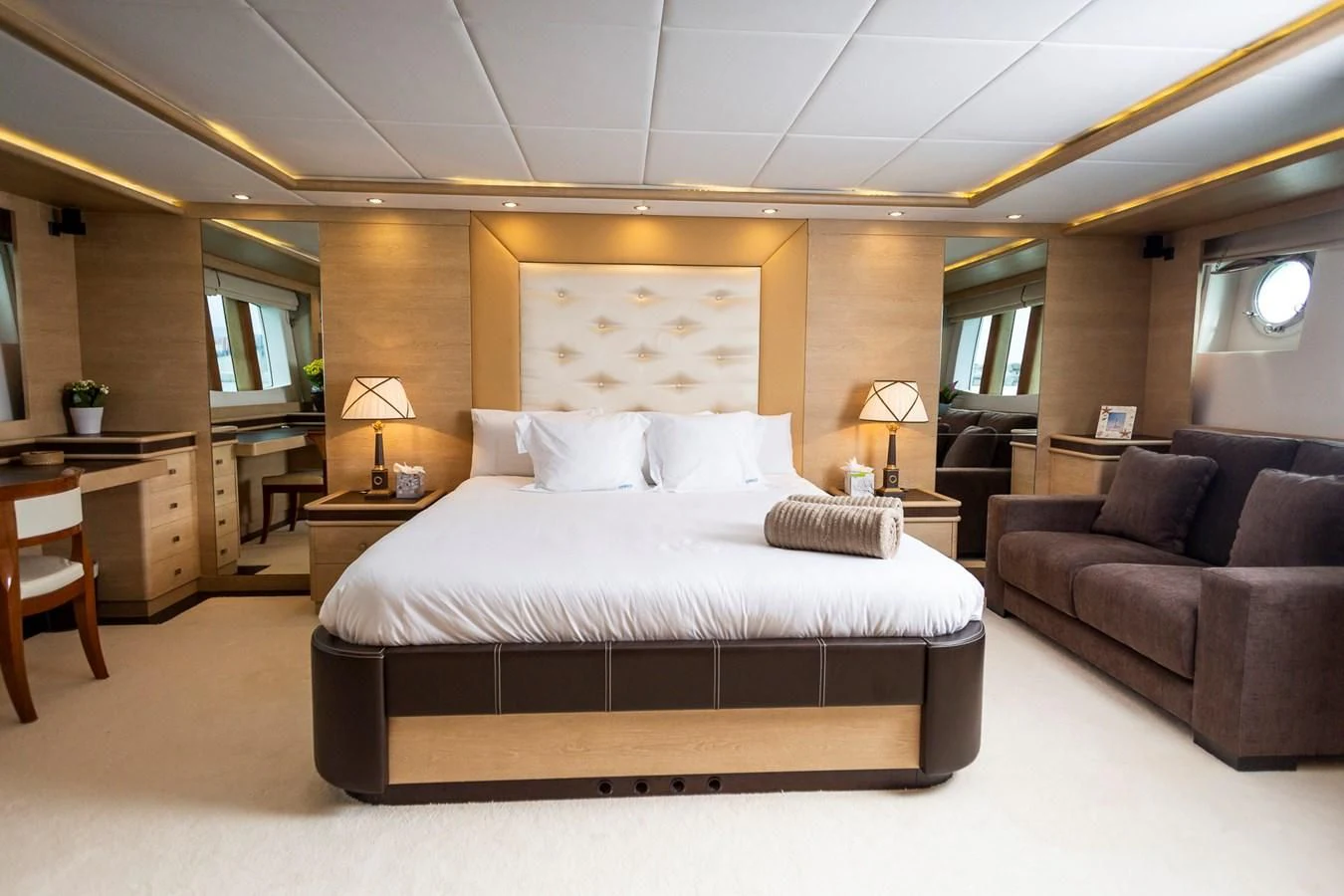

M/Y GRACE offers copious space throughout, from the expansive flybridge featuring a large jacuzzi and ample dining spaces, through to the interior which offers headroom rarely found on yachts of this size. The most impressive feature by far of M/Y GRACE is her palatial master cabin, which is accessed from a private staircase. Three further guest cabins can be found forward, offering a VIP, a double and a twin accommodating a further 8 guests

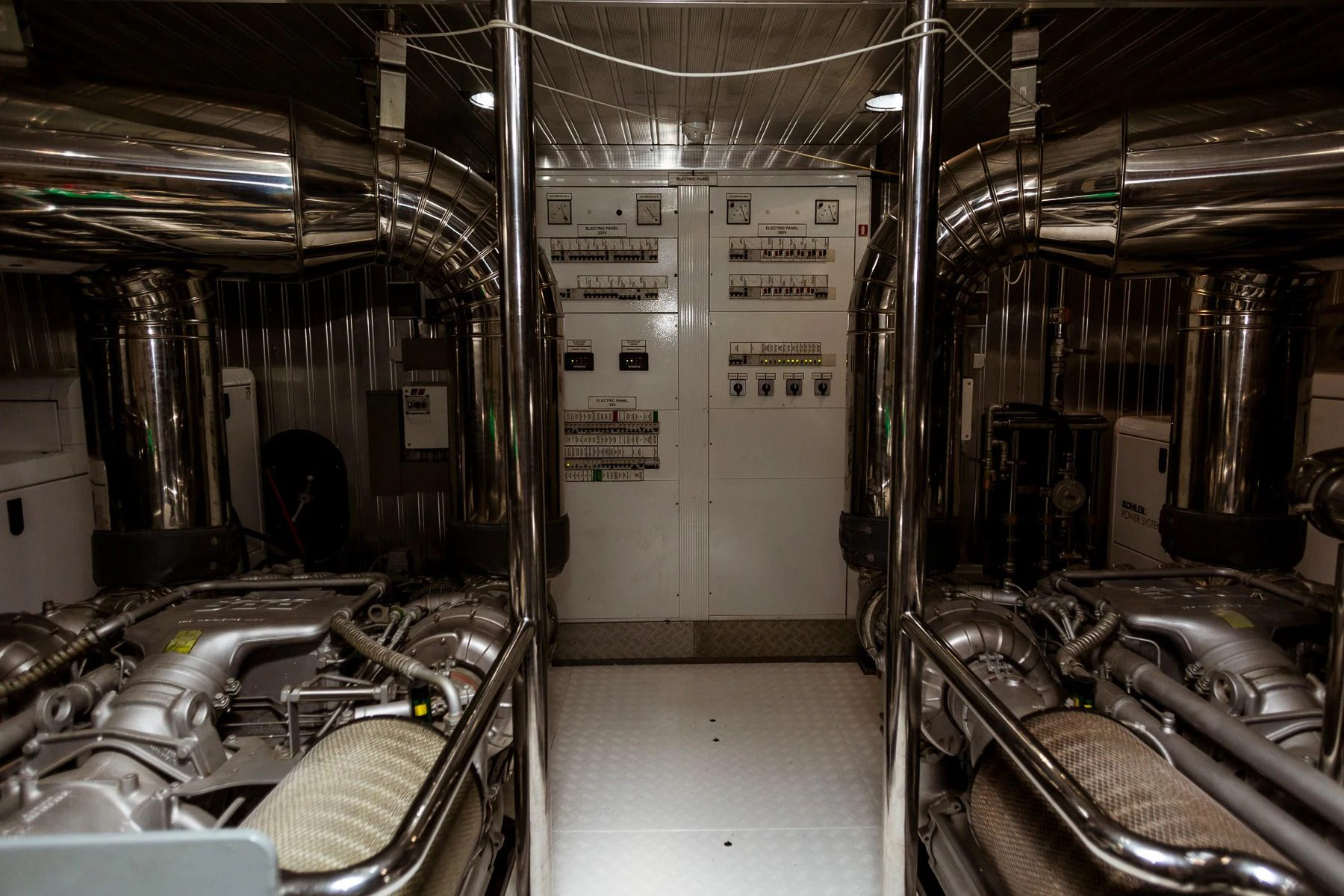

Mechanical Equipment

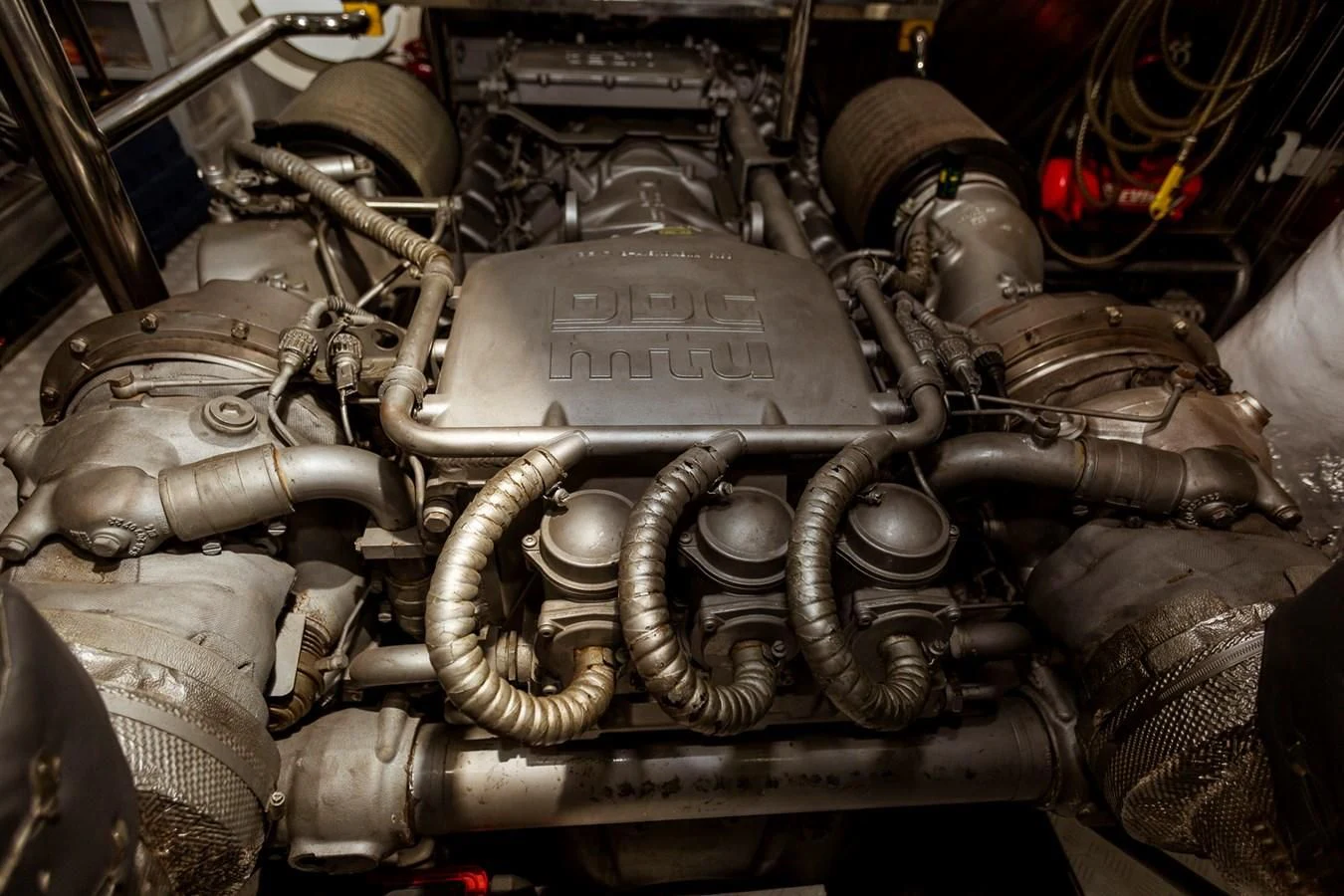

Engines 2 x MTU 2000 V16 2000 HP
Max RPM 2350
Engine hours 1990 (October 2018)
Generator 2 x Kholer 40 Kw 380 Volts
Generator hours 4400 (October 2018)
Propulsion Shafts
Air Condition Condaria, Tropical 180,000 BTU
Fuel Capacity 3 x Stainless Steel – 10,500l Capacity
Fresh Water capacity 3 x Stainless steel – 2,500l Capacity
Water Maker 1 Idromar 350L/Hr
Engine room air intake  24V extractor fans x 4
Bow thrusters Hydraulic
Stern thruster Electric
Starter system 24v electrical
Black water Tank capacity 1,000l
Bilge pumps 4 x 7,200l /h

Safety Equipment

Life Rafts 2
Lifejackets 32
Life-rings 2
Auto fire suppressions FM 200 Engine room + bridge
Fire extinguishers 12
Horn Yes

Electrical Equipment

The yacht’s electrical supply system consists of a DC system and an AC system. The direct current is supplied by 5 groups of independent batteries that, when required, will give a parallel and emergency service, and are the following:

  • 1 x Group of 740 A / H for general services of 24 volts
  • 1 x Group of 592 A / H for starting motors 24 volts.
  • 2 x 148 A / H for auxiliary starting 24 volts.
  • 1 x Group of 148 A / H emergency 24 volts.

Alternating current of 380/220 V. 50 Hz three-phase is supplied by two marine generator sets, both 40kw, and transformed to 220 V by two transformers for use in certain services.

The yacht is equipped with an emergency electric service for the supply of essential services in case of failure of the regular supply. The services that will be insured by this system are:

  • VHF / DSC
  • GPS
  • Radar
  • Bilge pumps
  • Navigation lights
  • Emergency lighting
  • Detection of fires and alarms
  • Battery charger: Mastervolt
  • Inverter: Mastervolt 5,000 W

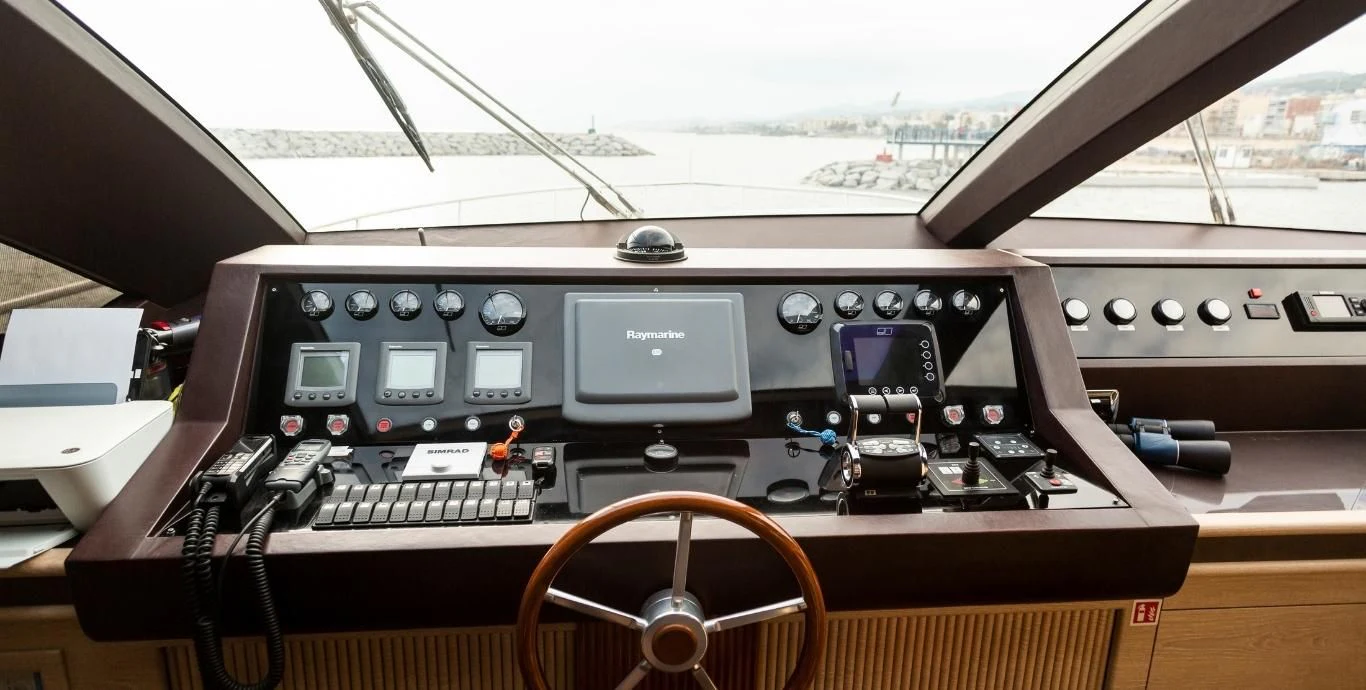

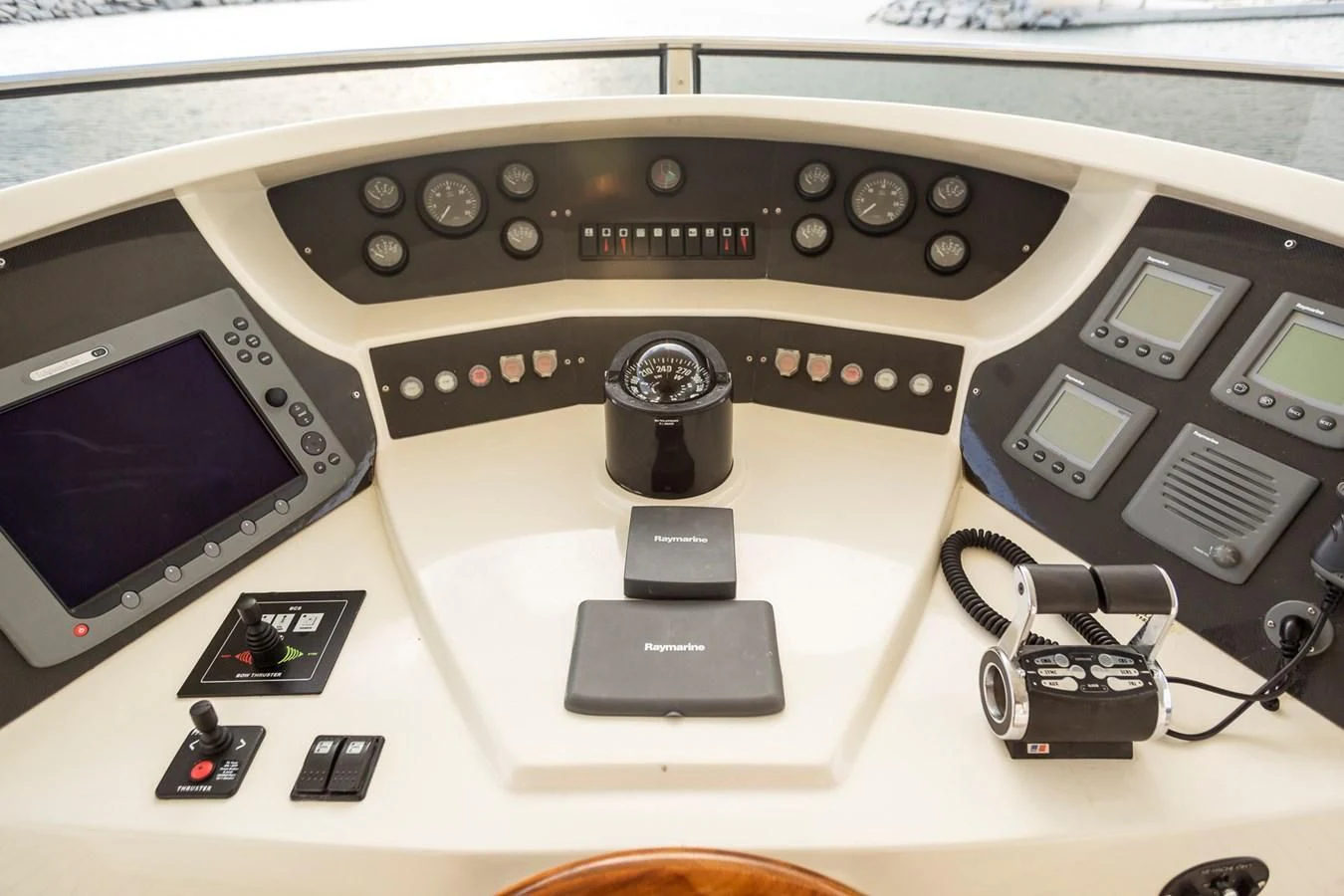

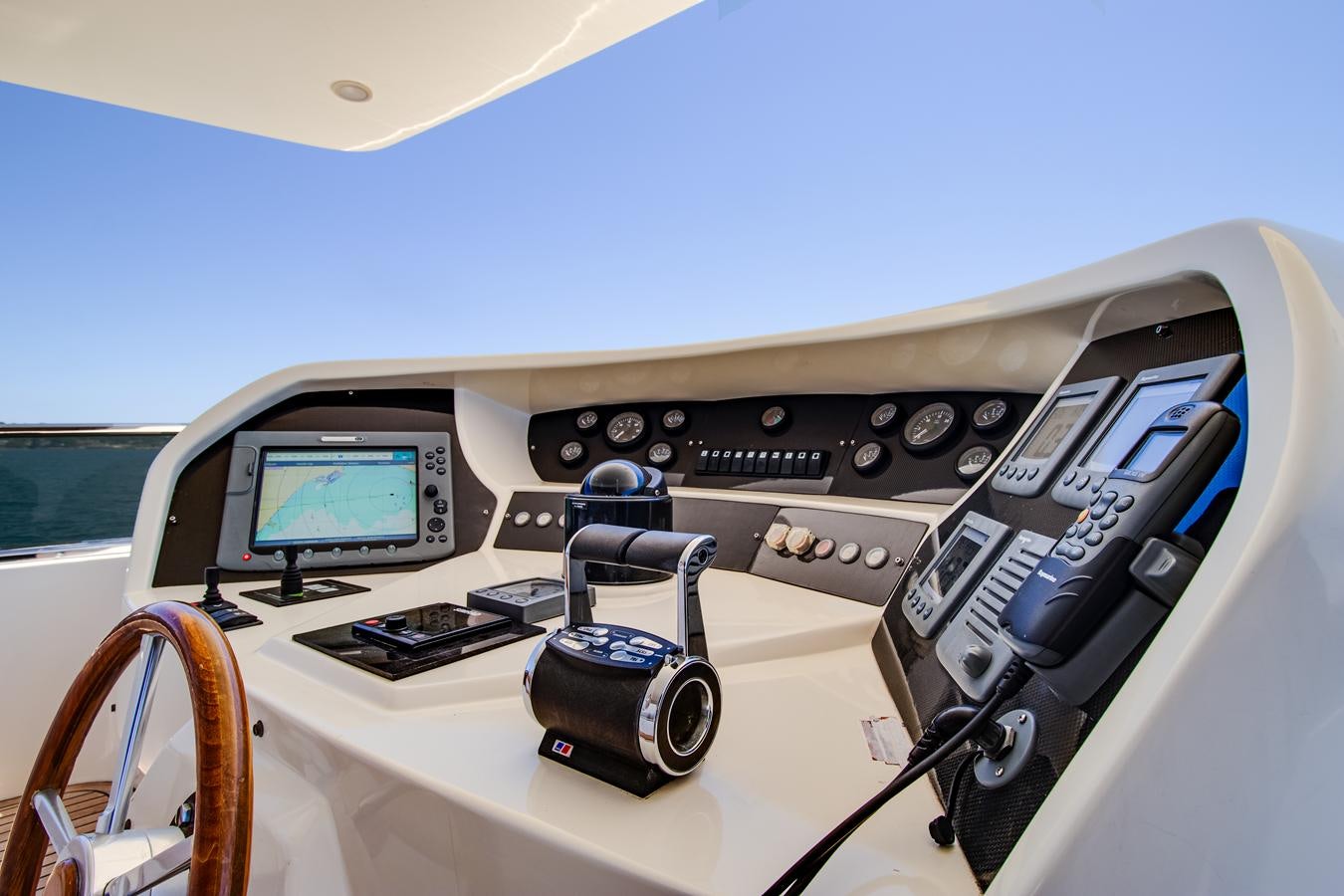

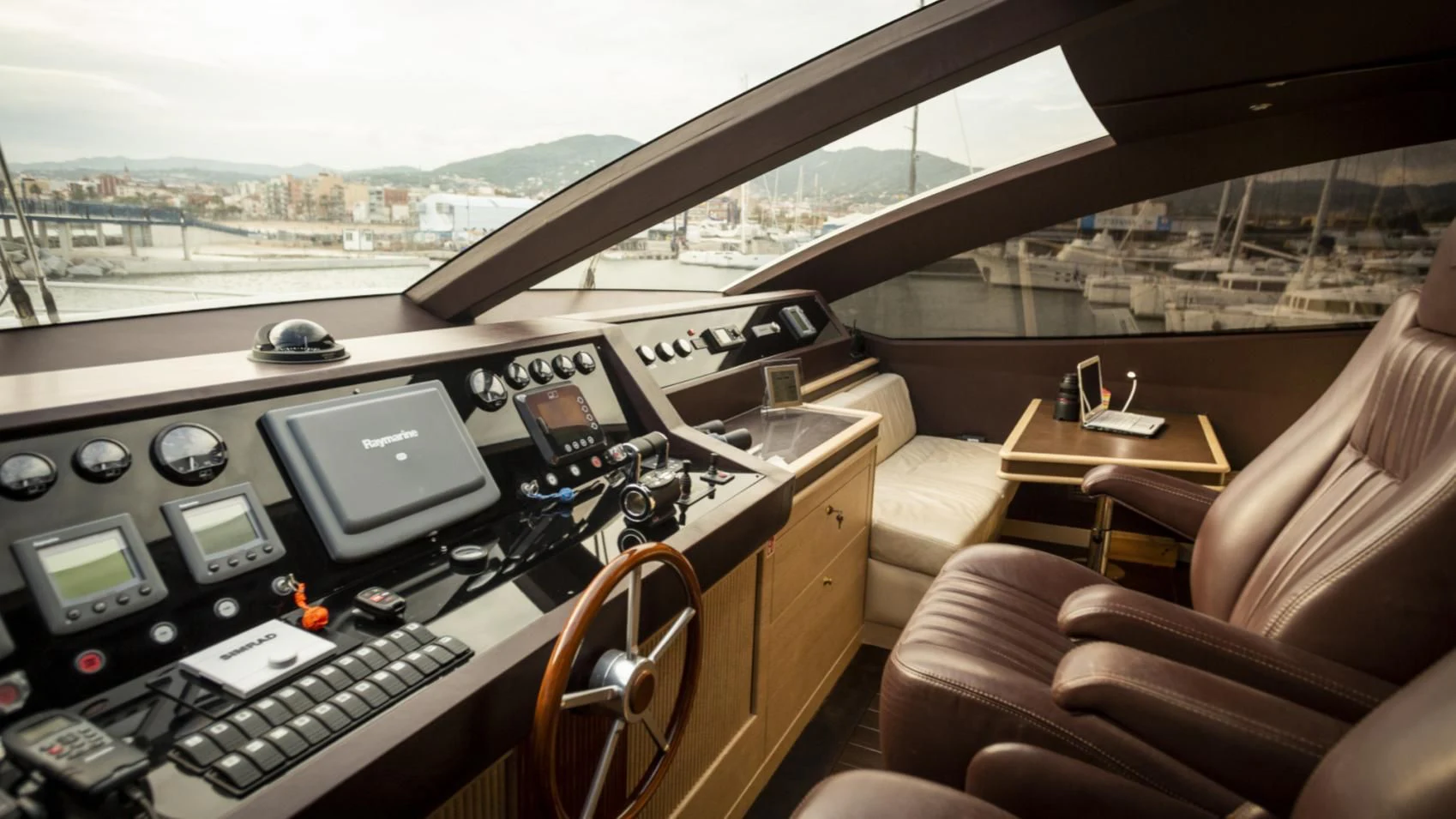

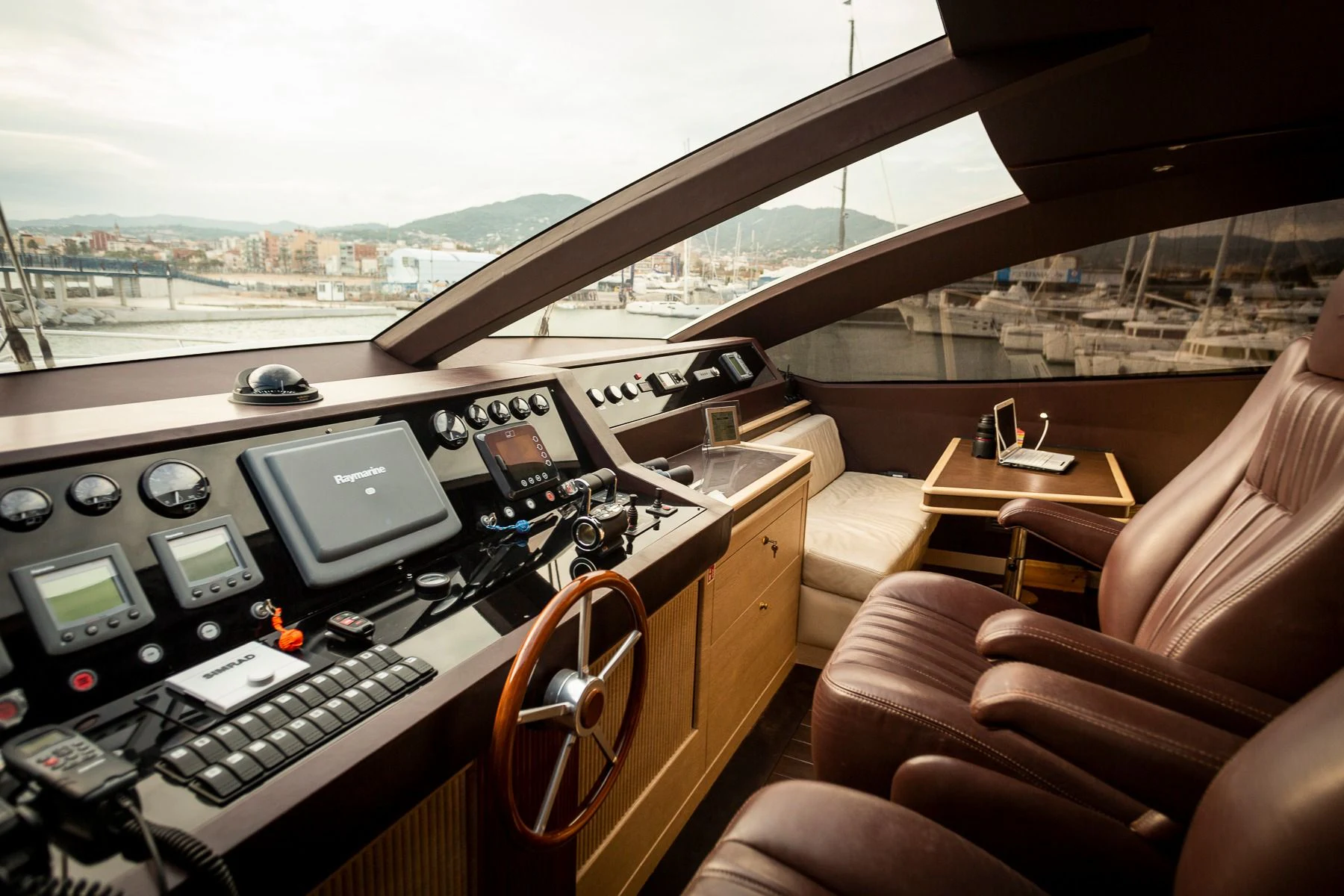

Inmarsat       KVH Fleet 33

VHF              Furuno 8800 Solas


Magnetic Compass Yes

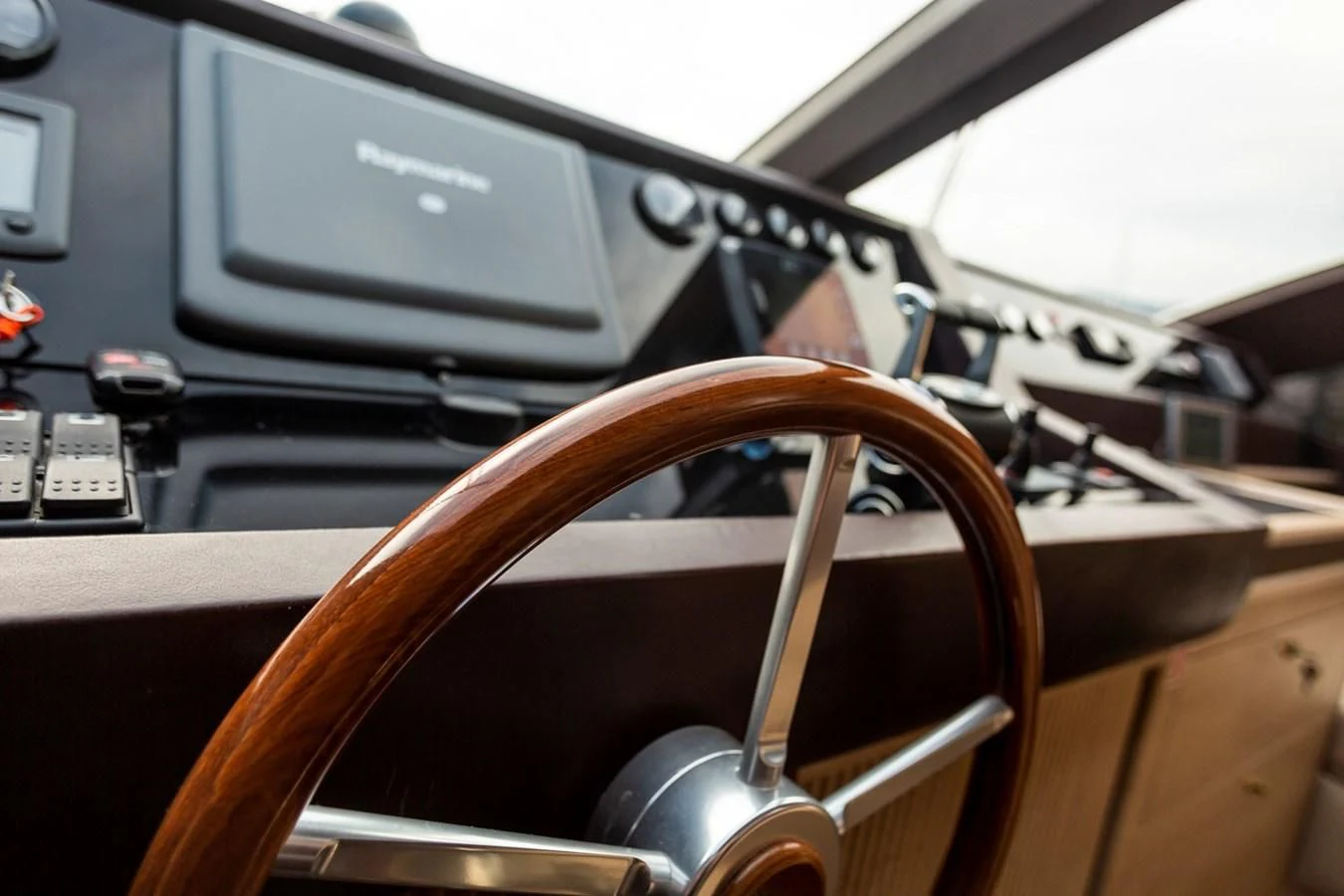

GPS Raymarine E120
Radars Raymarine E120
Chart plotters Raymarine E120
Autopilot Simrad
Deep Sounder Raymarine

Audio & Video

CD & DVD: Yamaha Entertainment audio

Master cabin: Bose media player

Additional: SAT receiver



Deck Equipment

Anchor 2x Galvanized steel 105 KG
Anchor Chain 2x 220m 12 mm
Jacuzzi  Flybridge + shower
Gangway Opacmare
Bathing ladder Opacmare
Sun awning Yes
Tender crane Yes

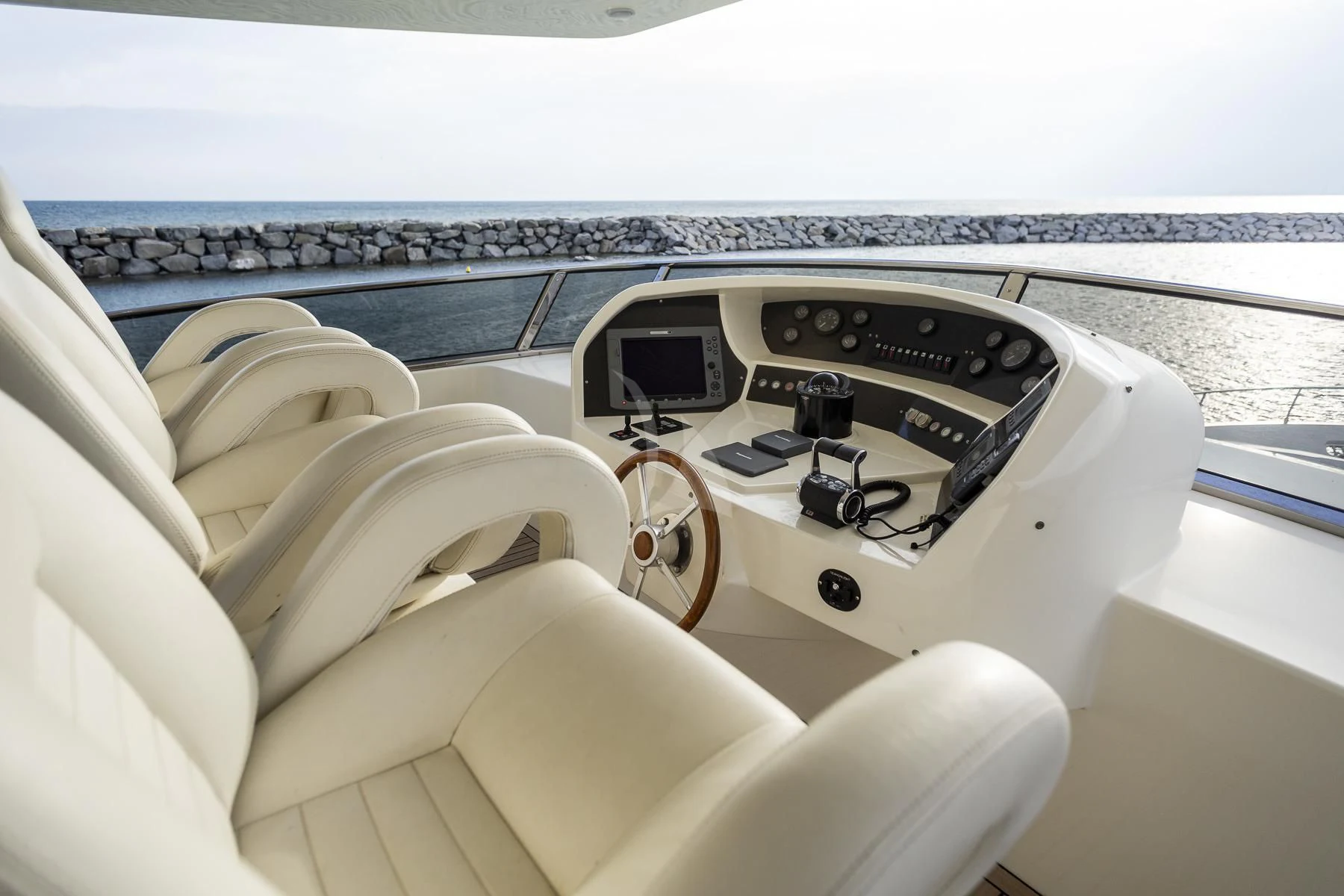

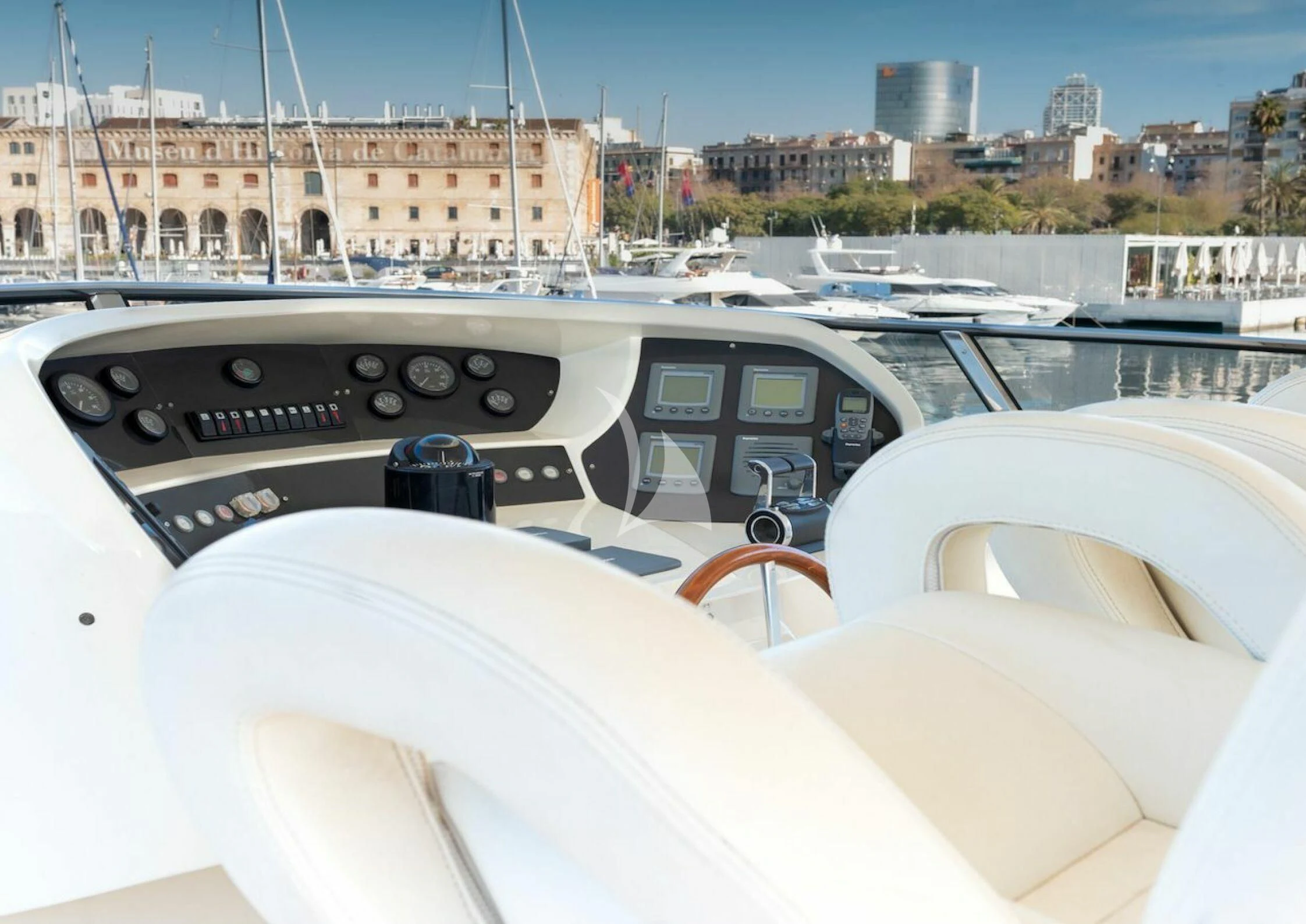

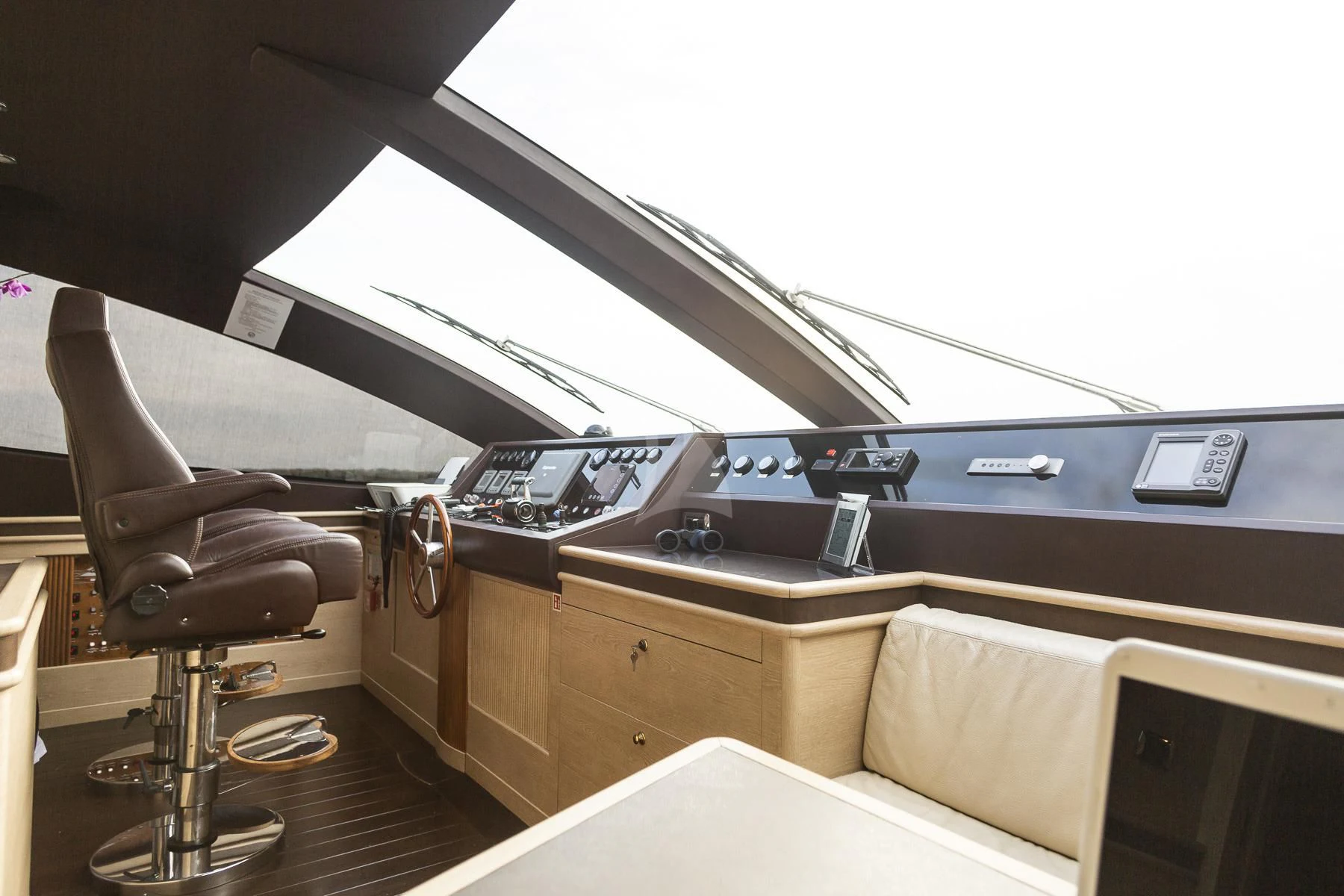

Helm stations 1 ton
Foredeck awning Pilot, flybridge & aft deck
Foredeck awning Yes

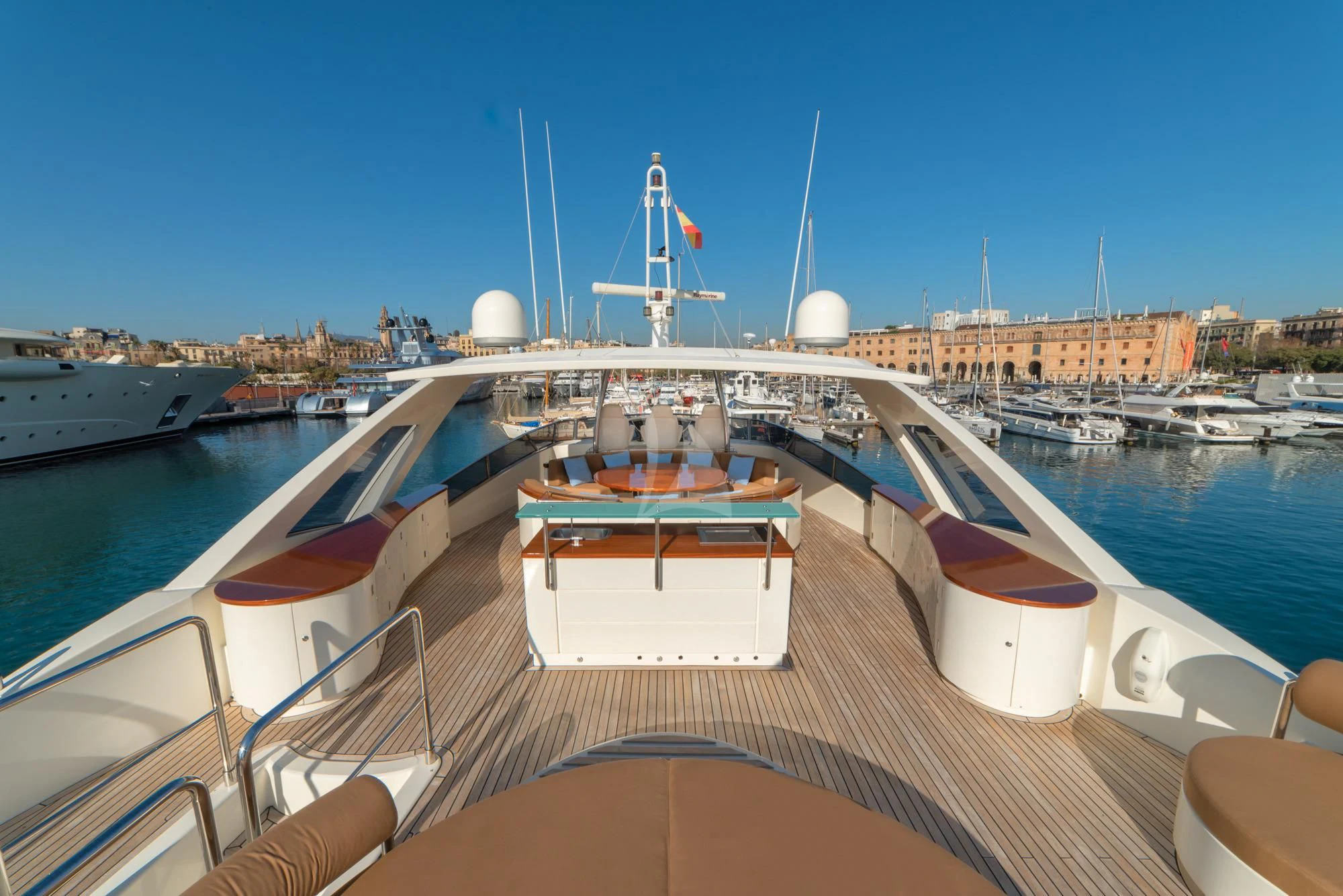

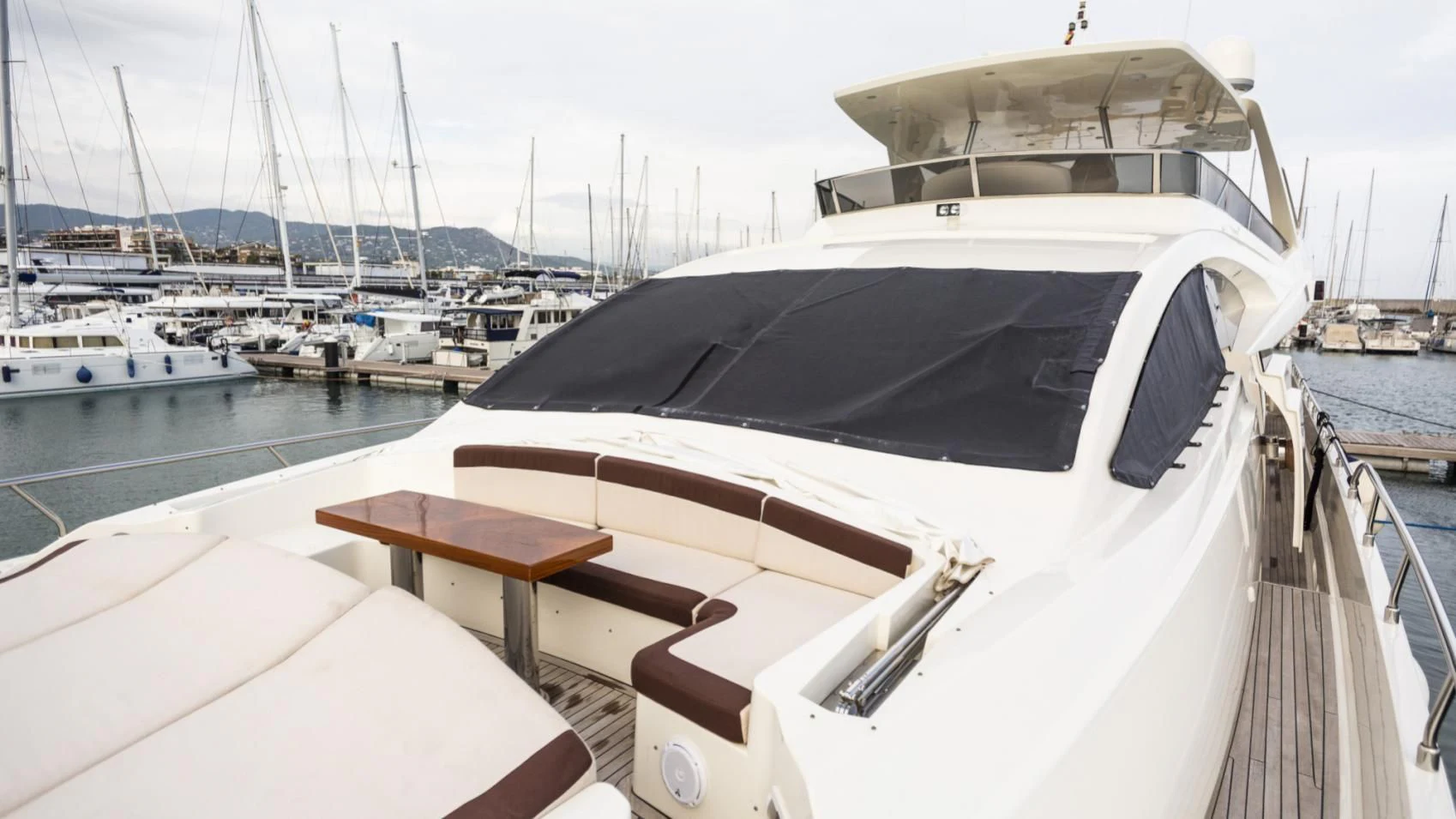

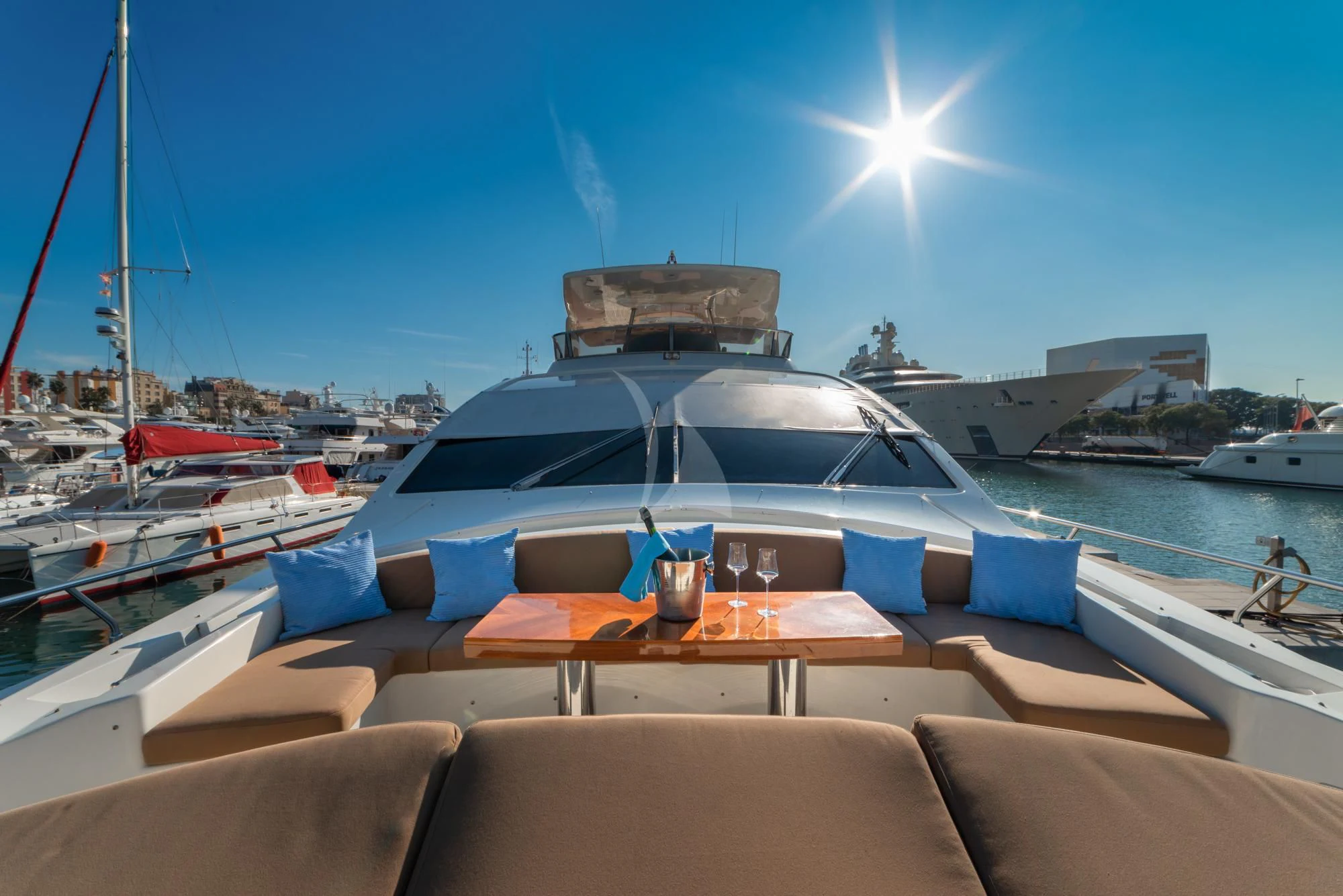

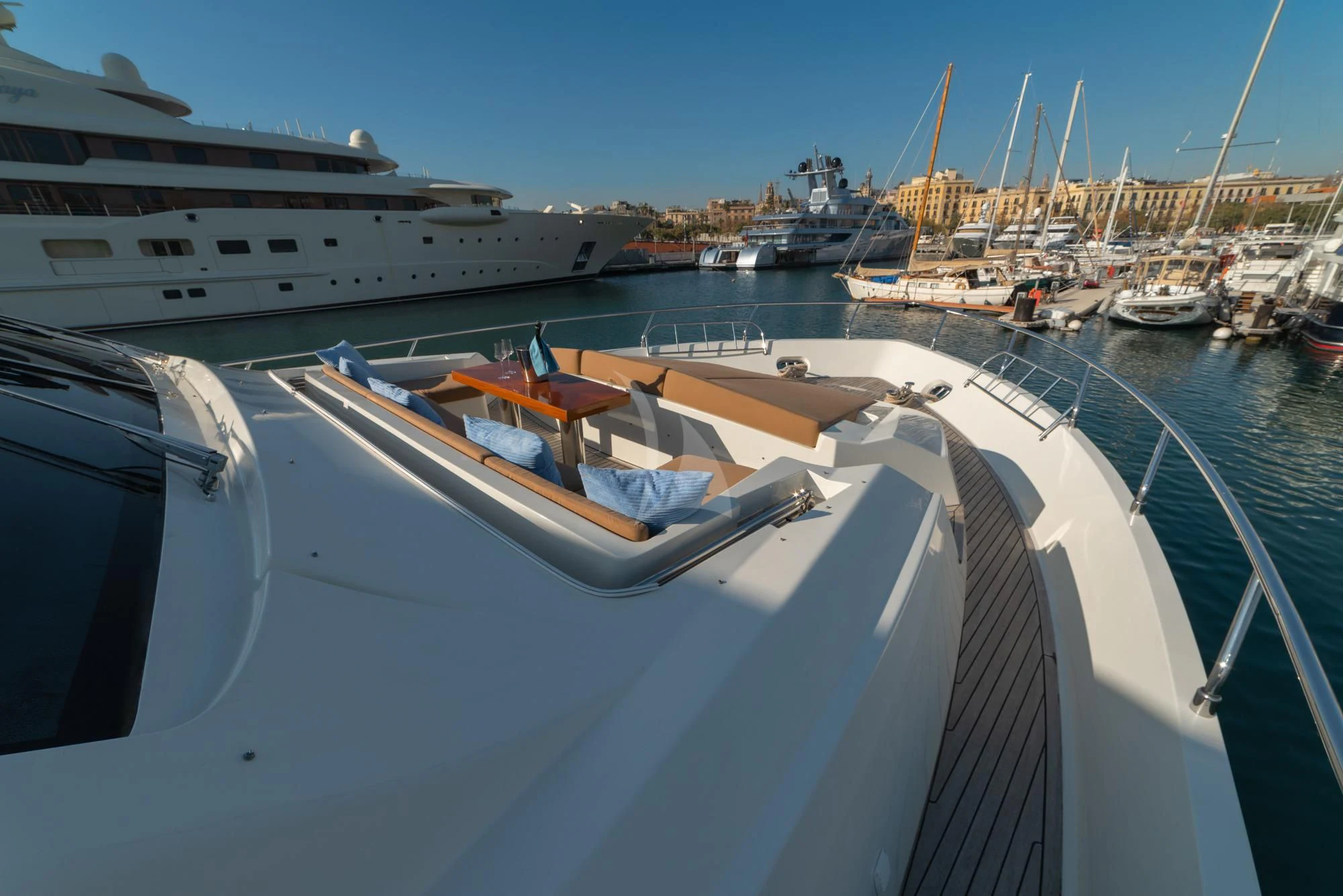

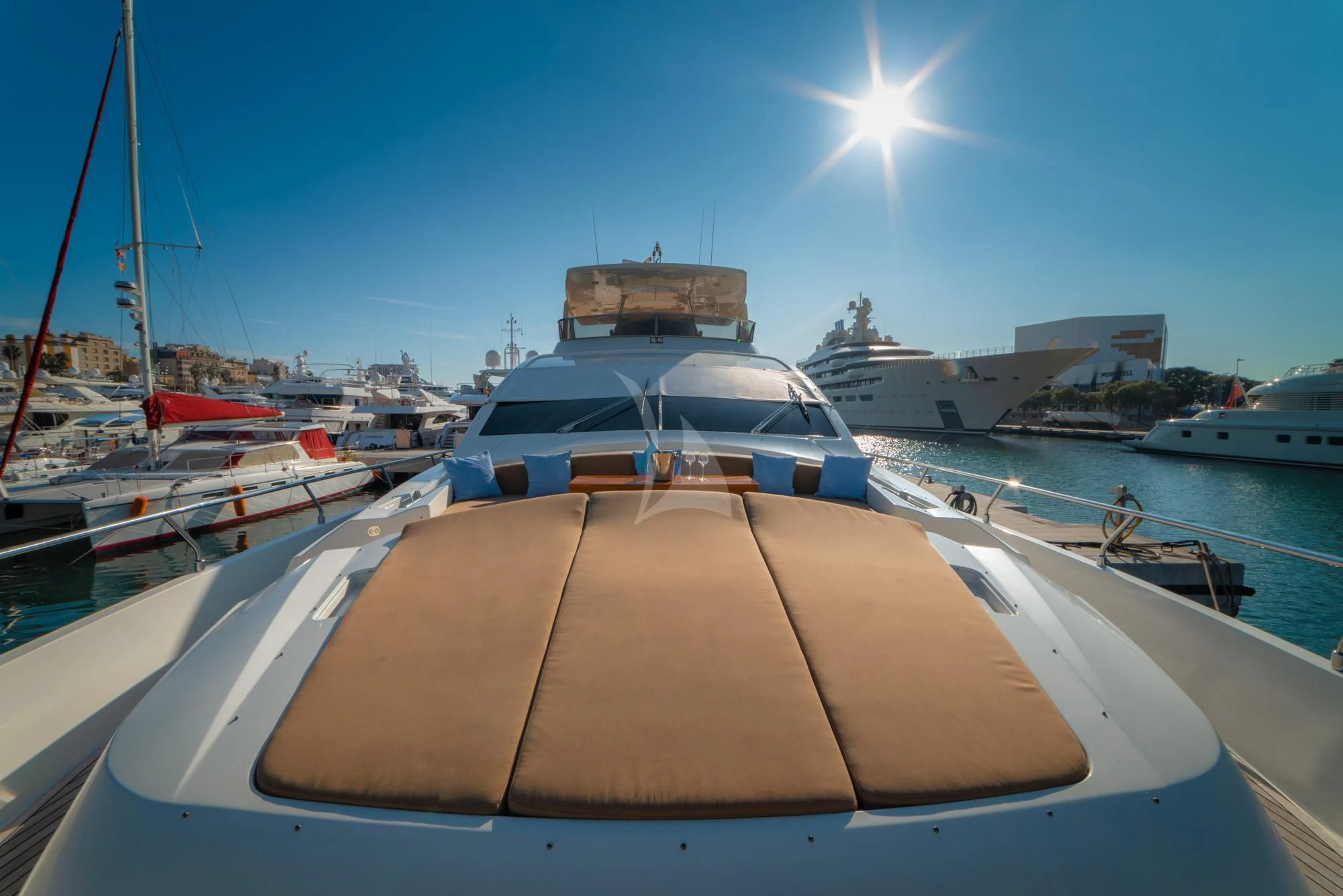

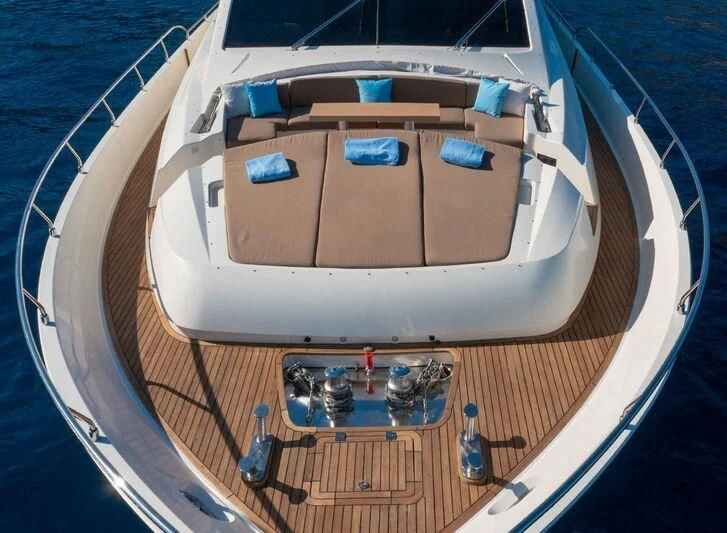

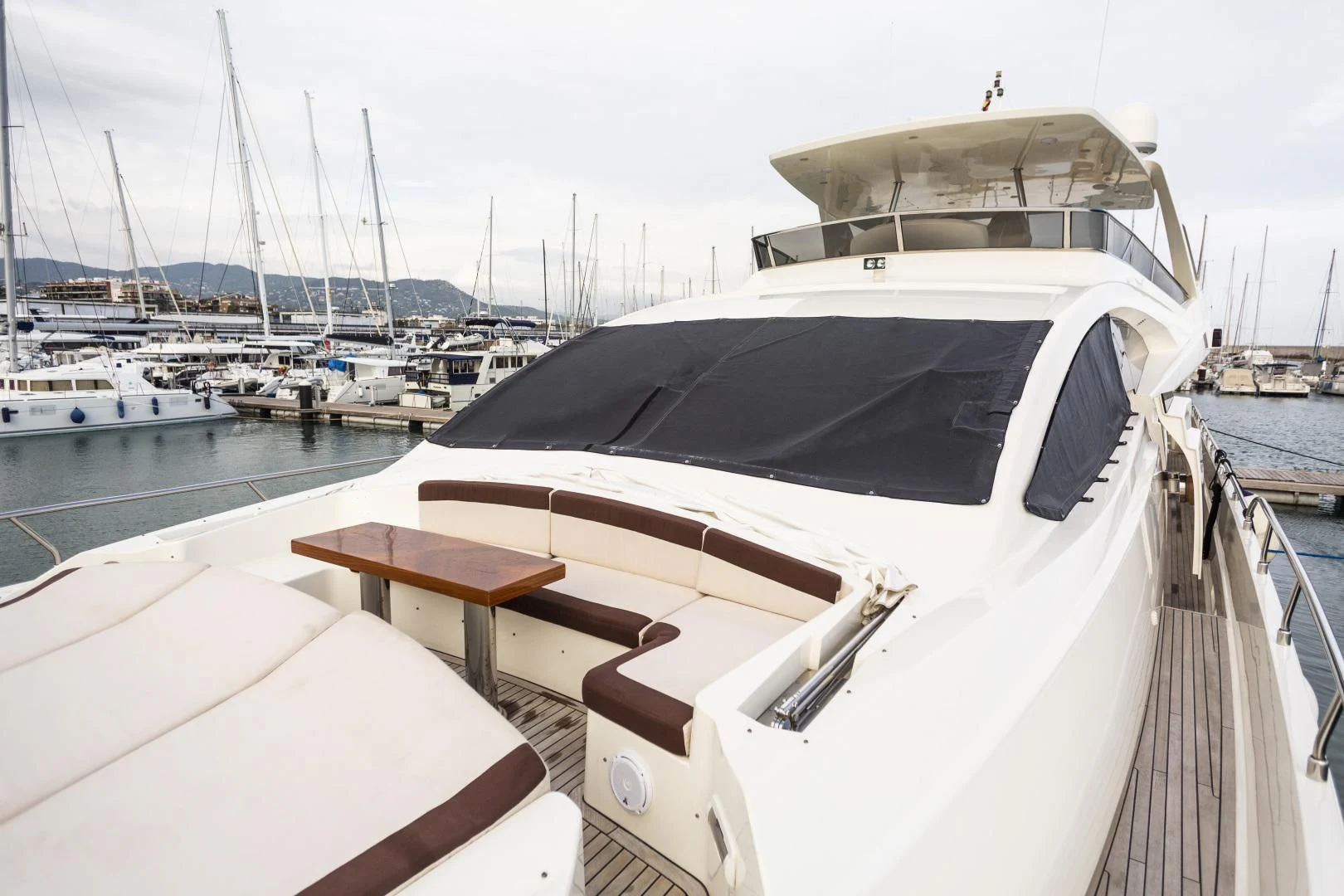

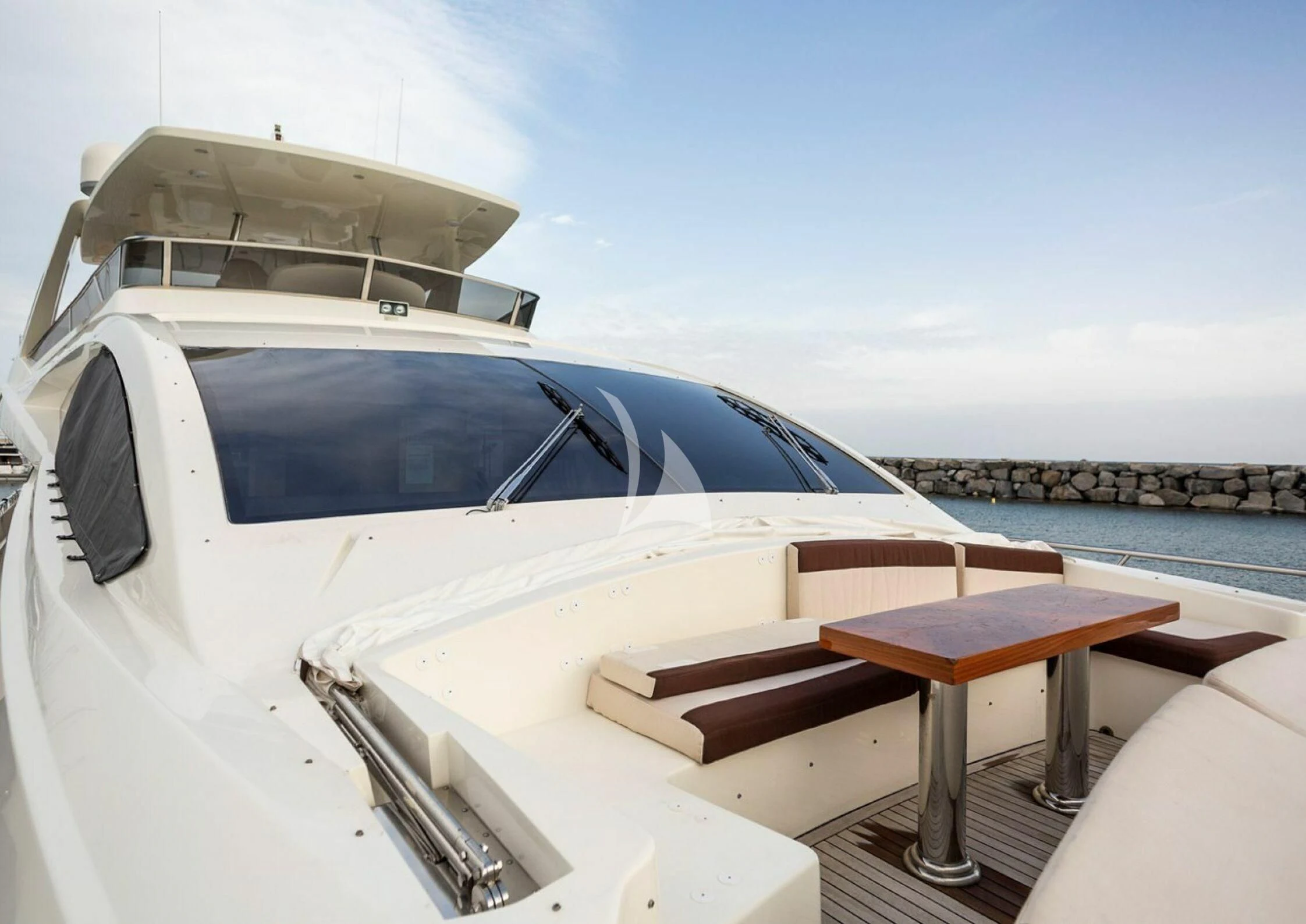

Foredeck Seating, table & sun pads
Fridge 2x on flybridge

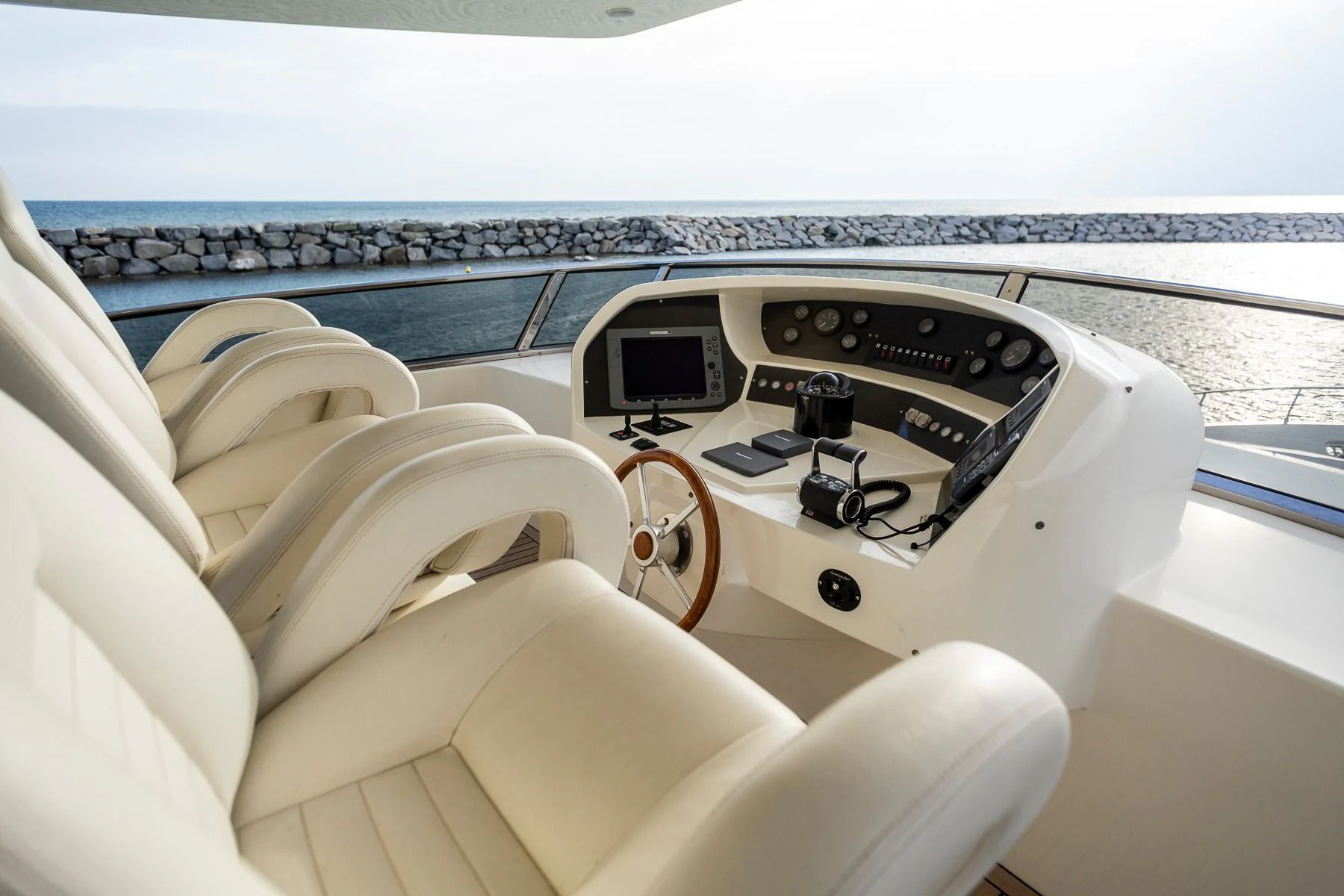

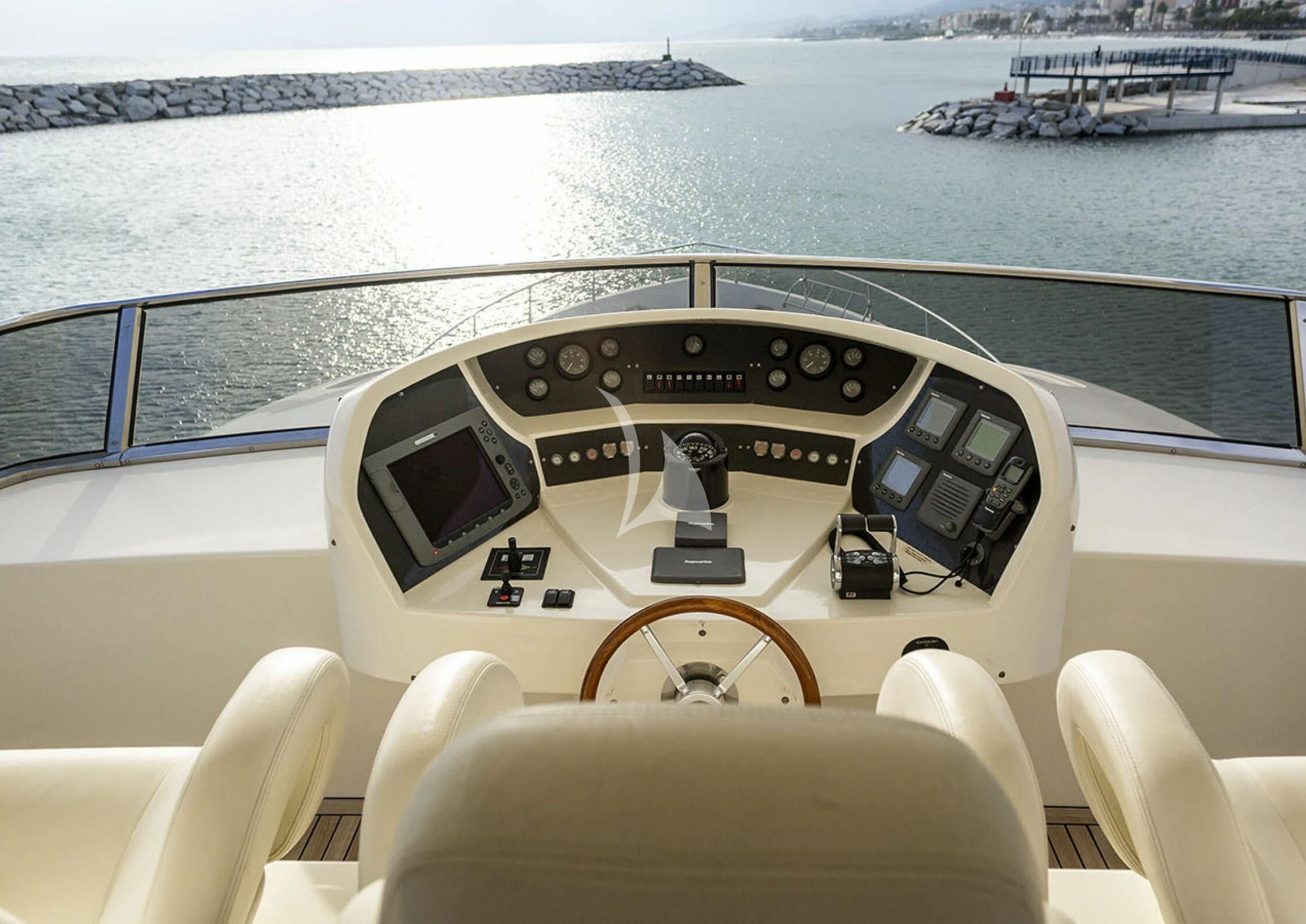

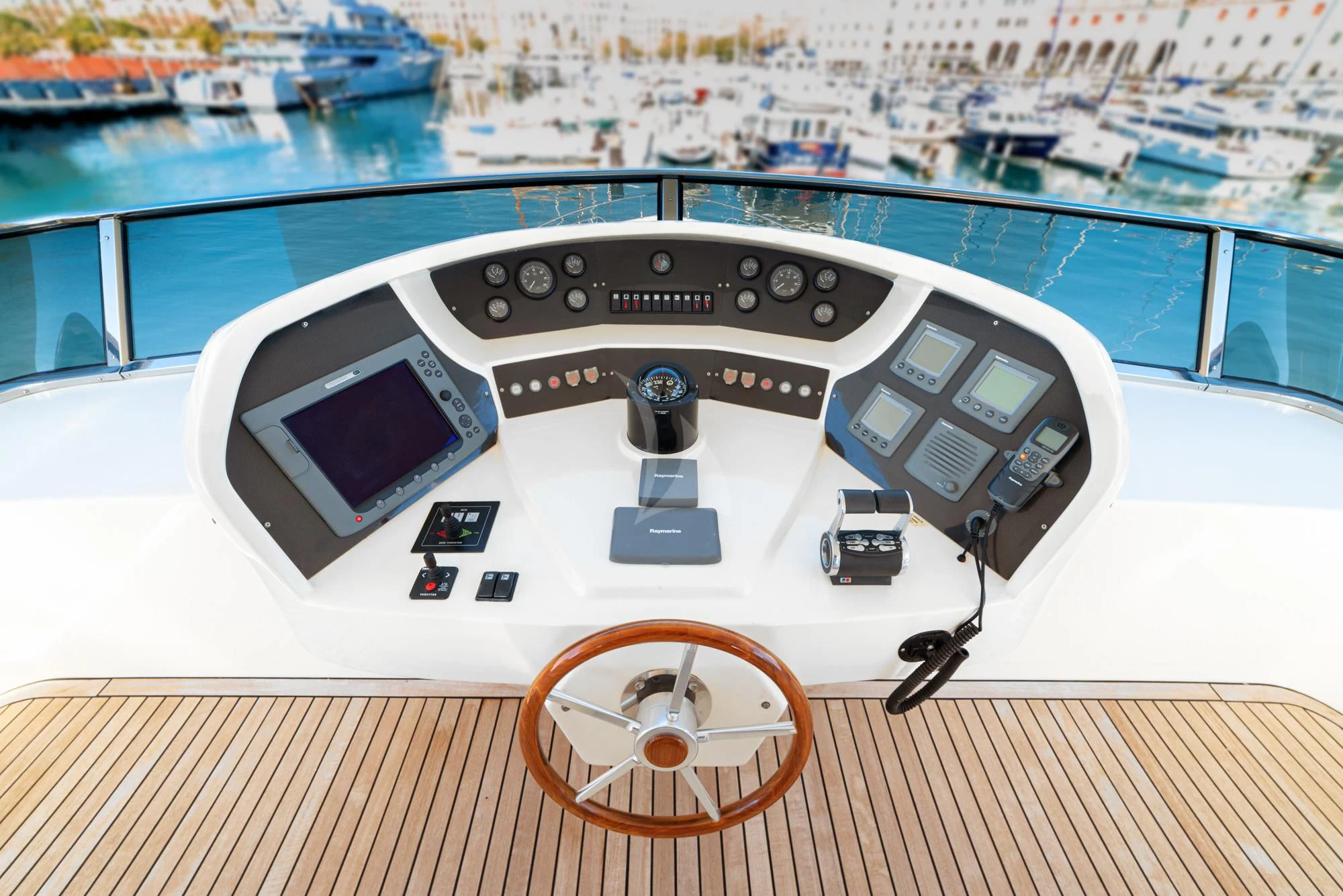

Sundecks Bar, large circular table, sunbathing, fixed bimini,   helm station and seating.

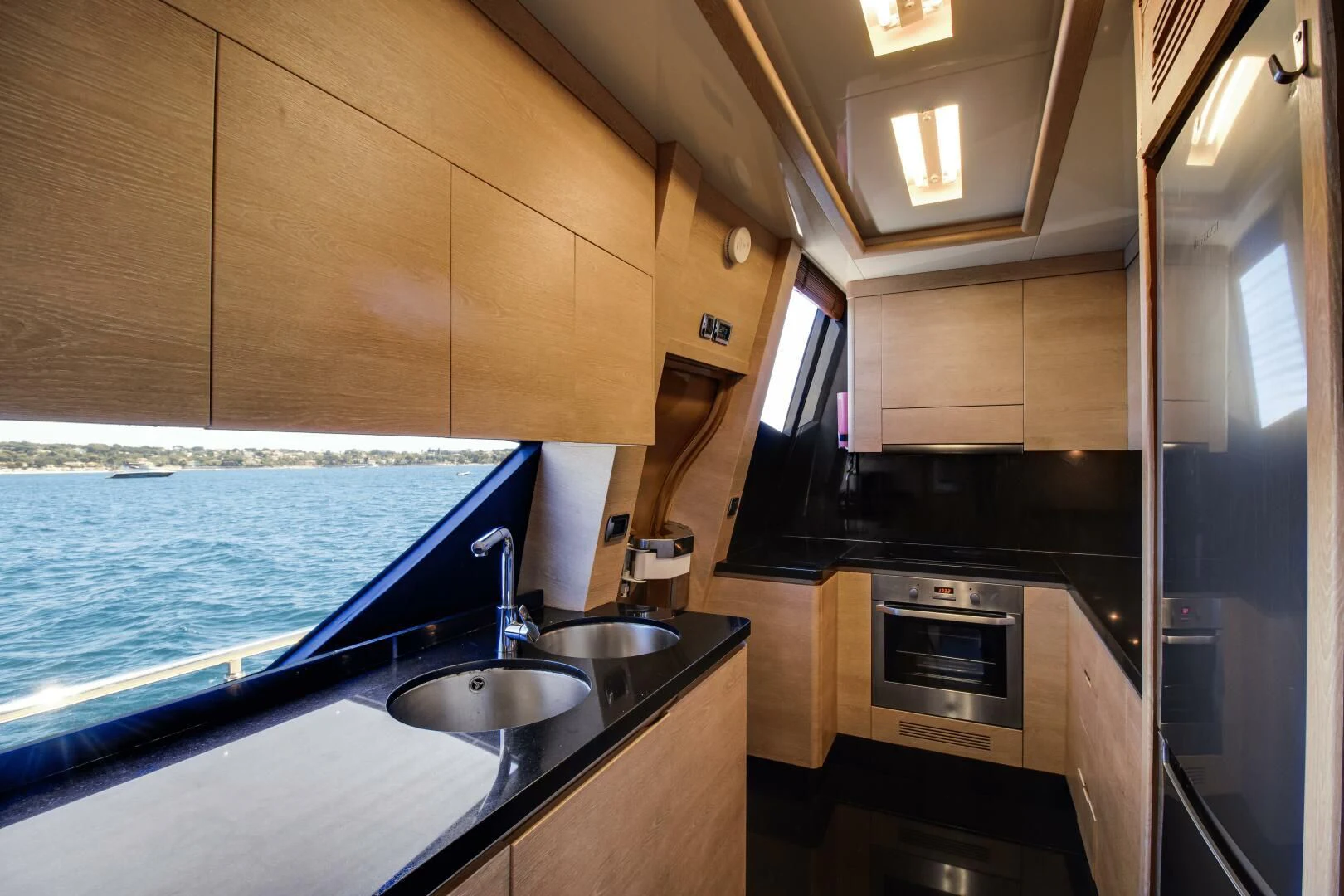

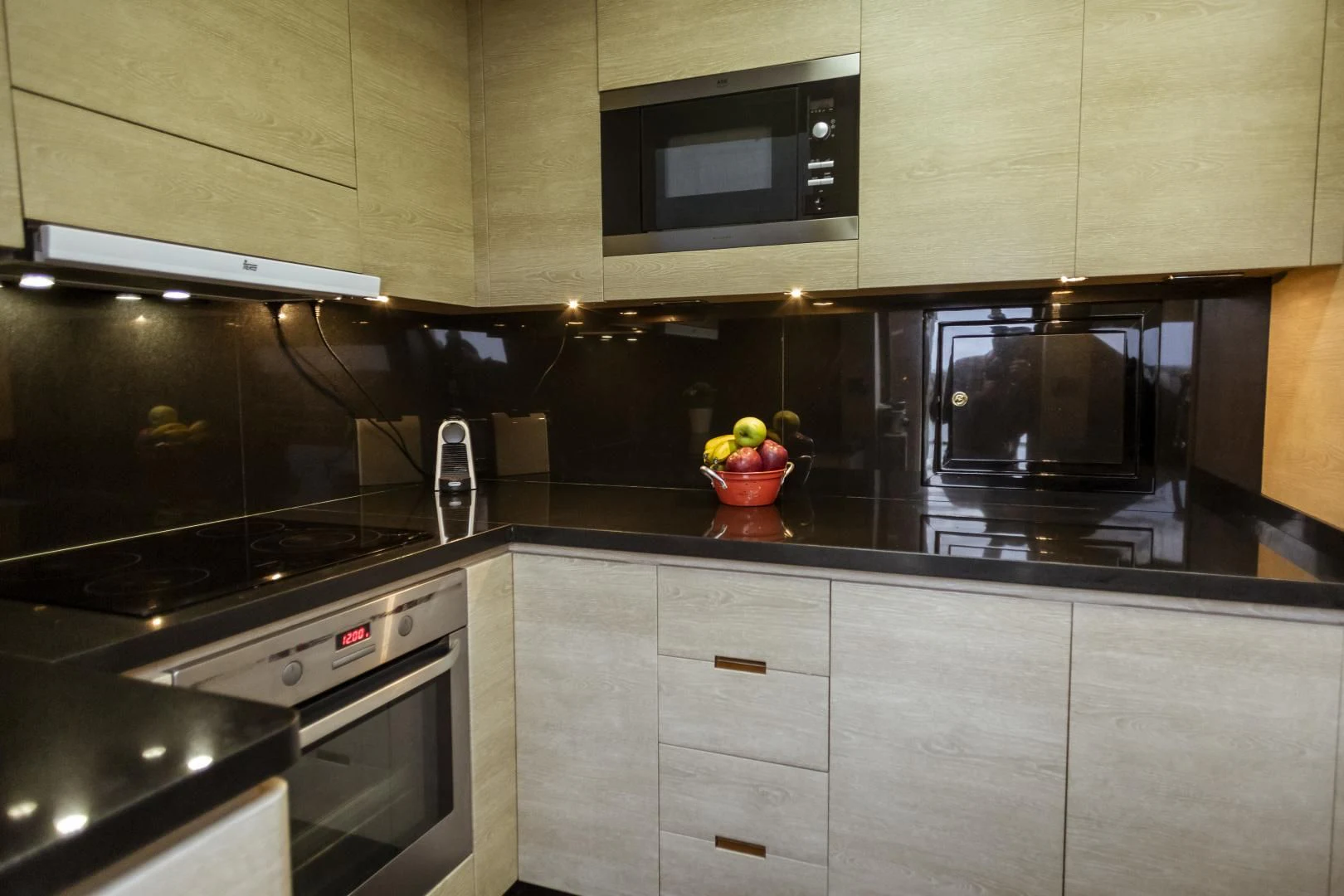

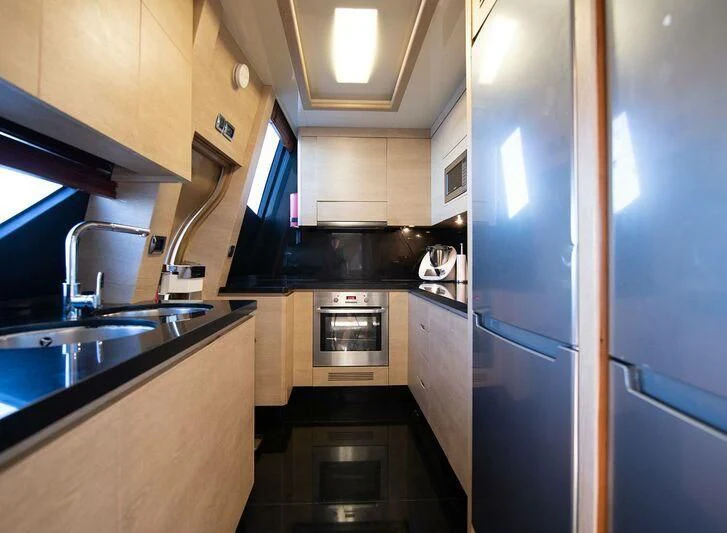

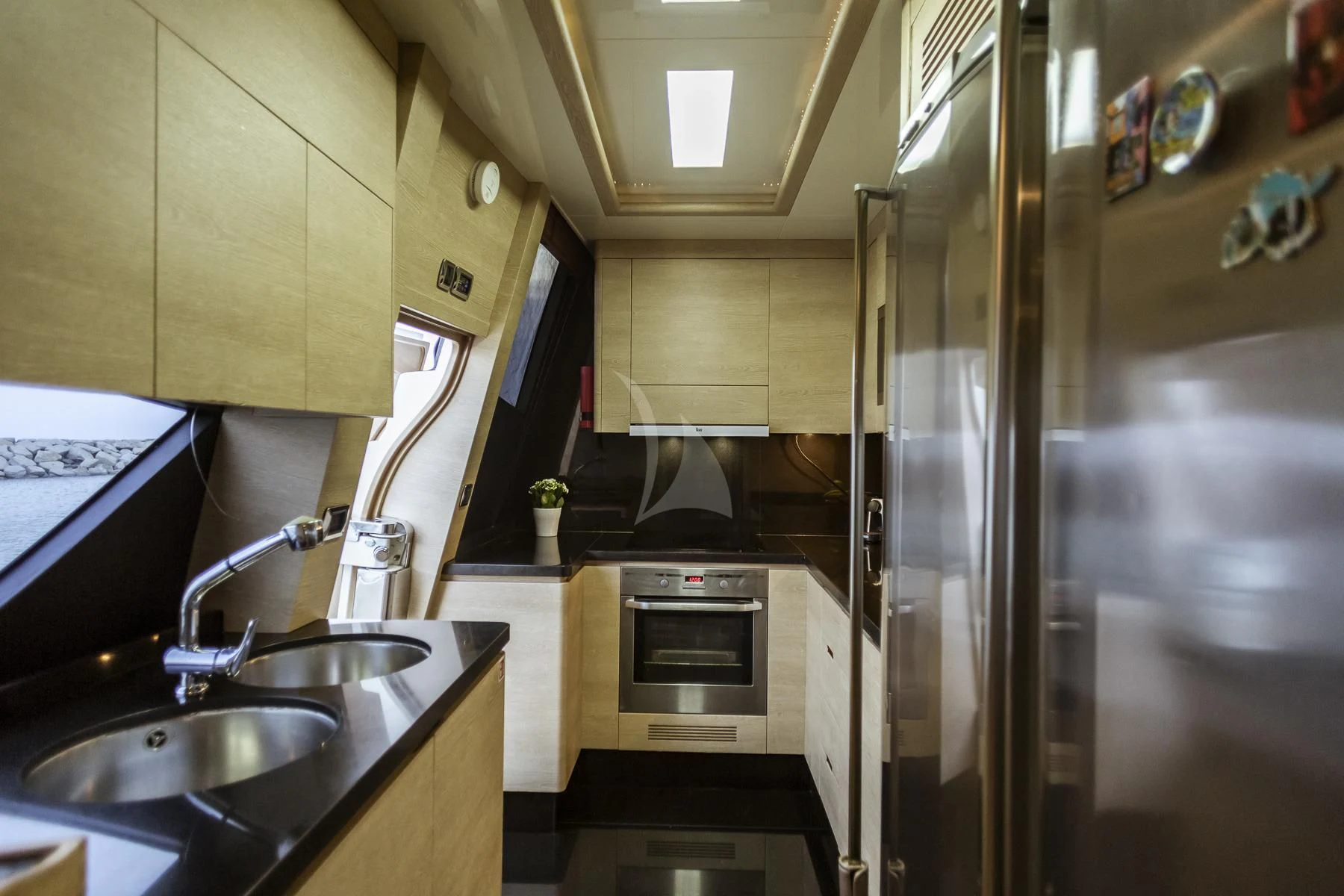

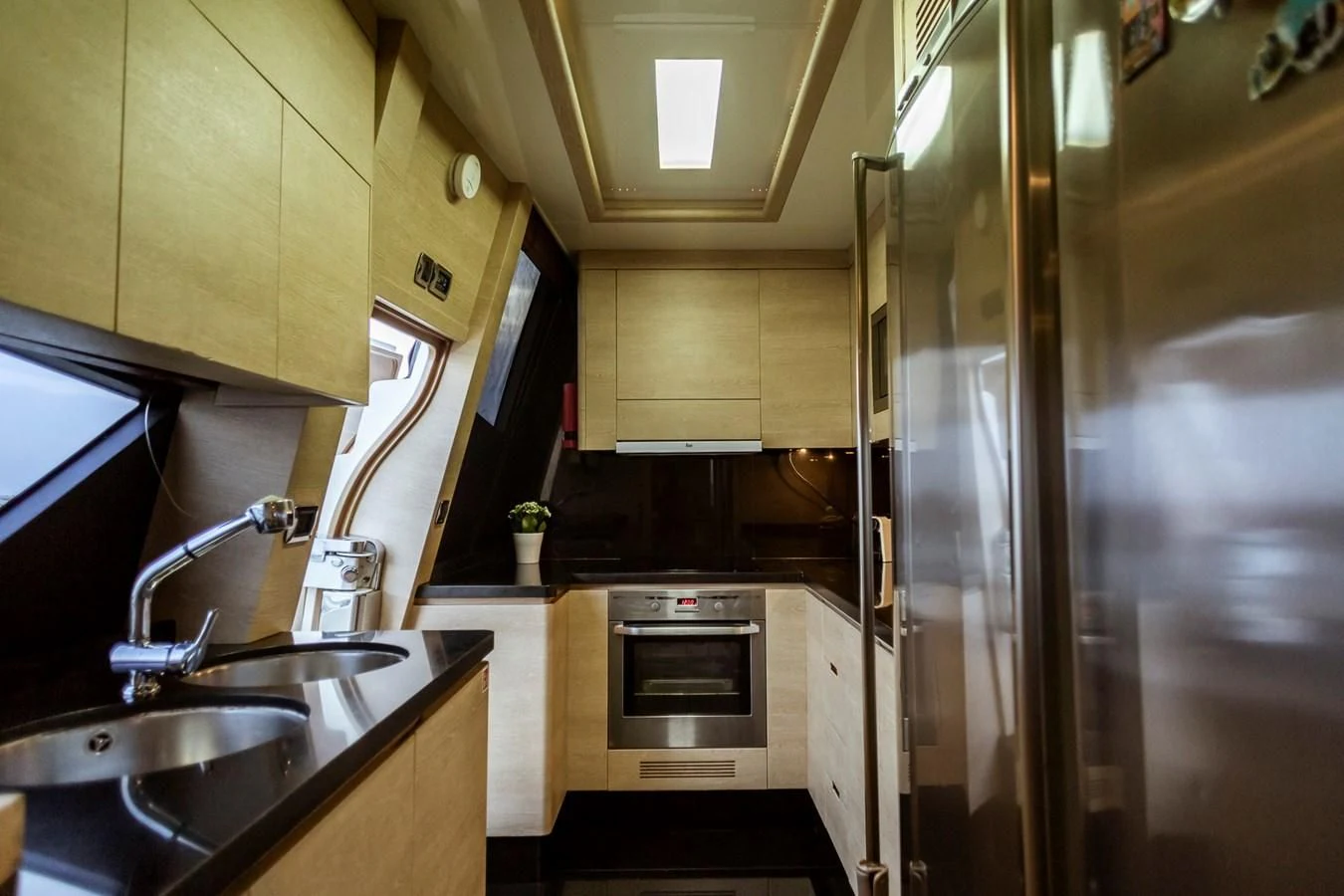

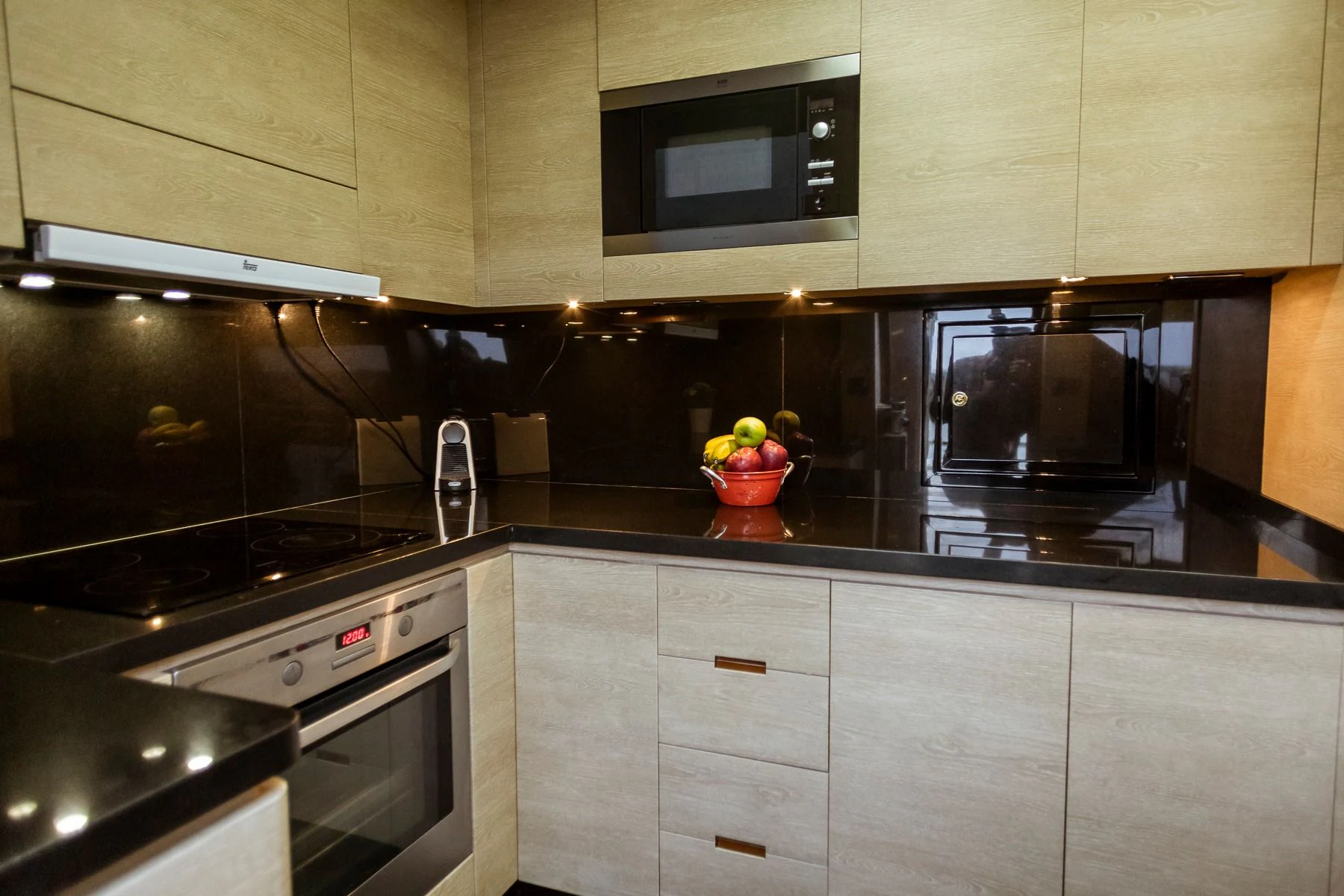

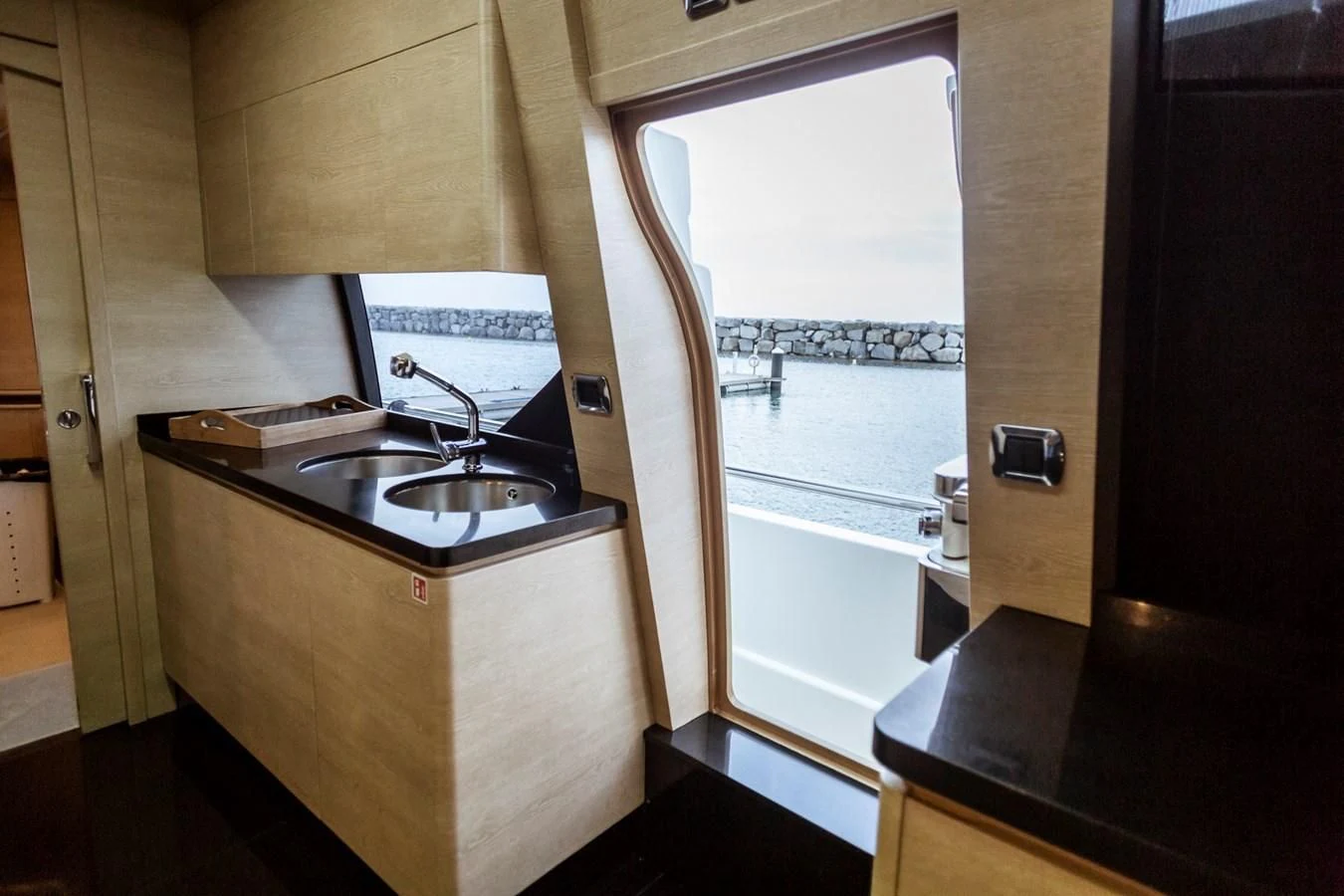

Galley Equipment

Ovens Yes
Stove Siemens
Microwave AEG
Fridge/Freeze AEG
Icemaker Yes
Coffee maker De Longhi
Dish washer Bosch
Washing machine Betco
Dryer Betco


Guests: 10

Guest Cabins: 4

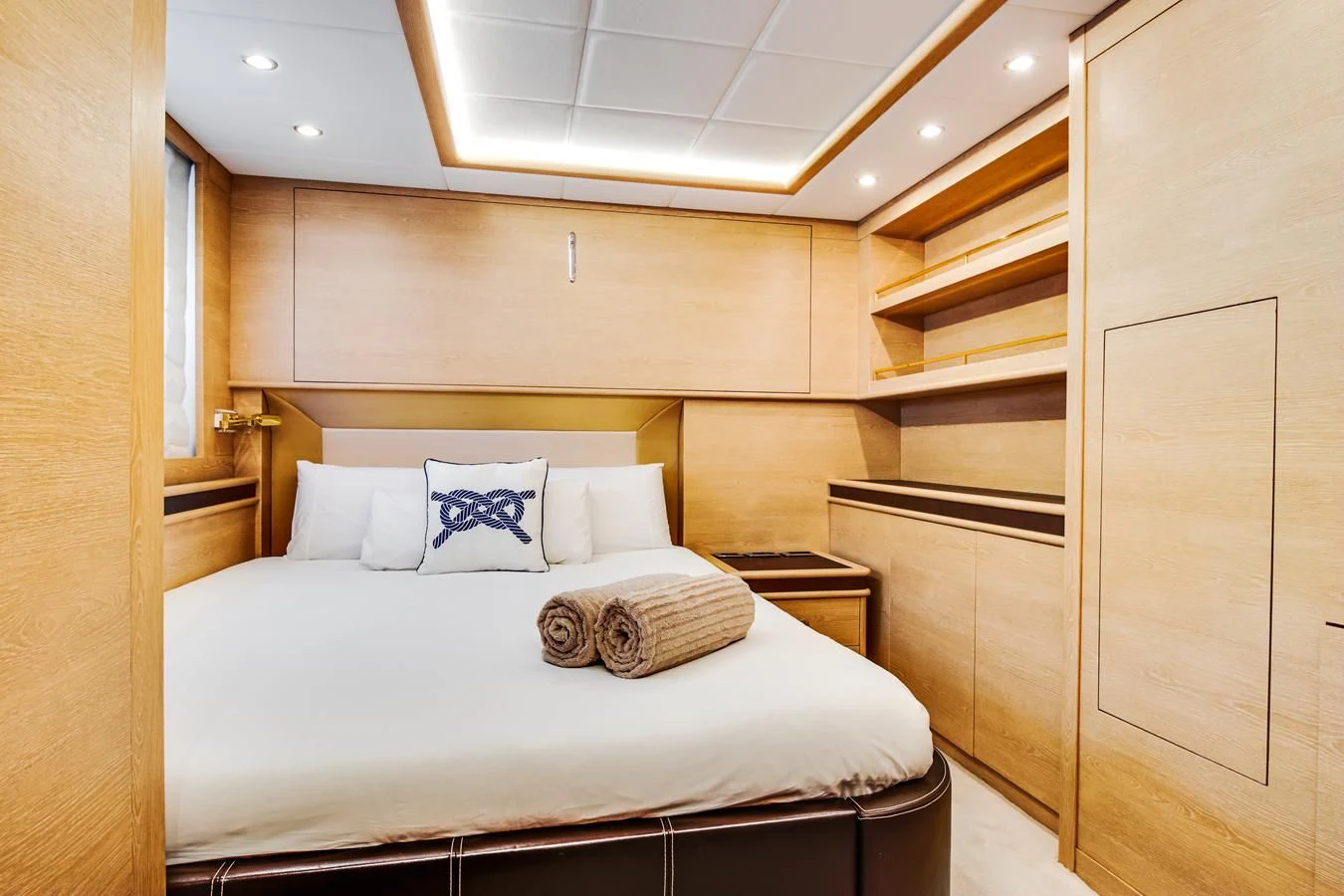

Configuration: 1x Master, 1x VIP, 1x Double (+ Pullman), 1x Twin (+ Pullman)

Heads: 7

Crew: 4

Crew Cabins: 2x Twins

Tenders & Toys

Tender 1          4.5m 50 HP 4 stroke Yamaha

Jet Ski             Yamaha Super Jet


Full interior restyling in 2017 & new paint in 2015
