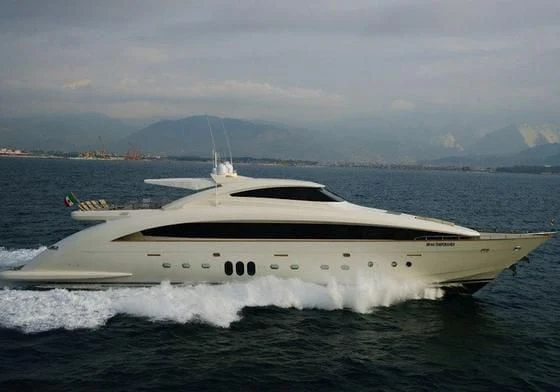

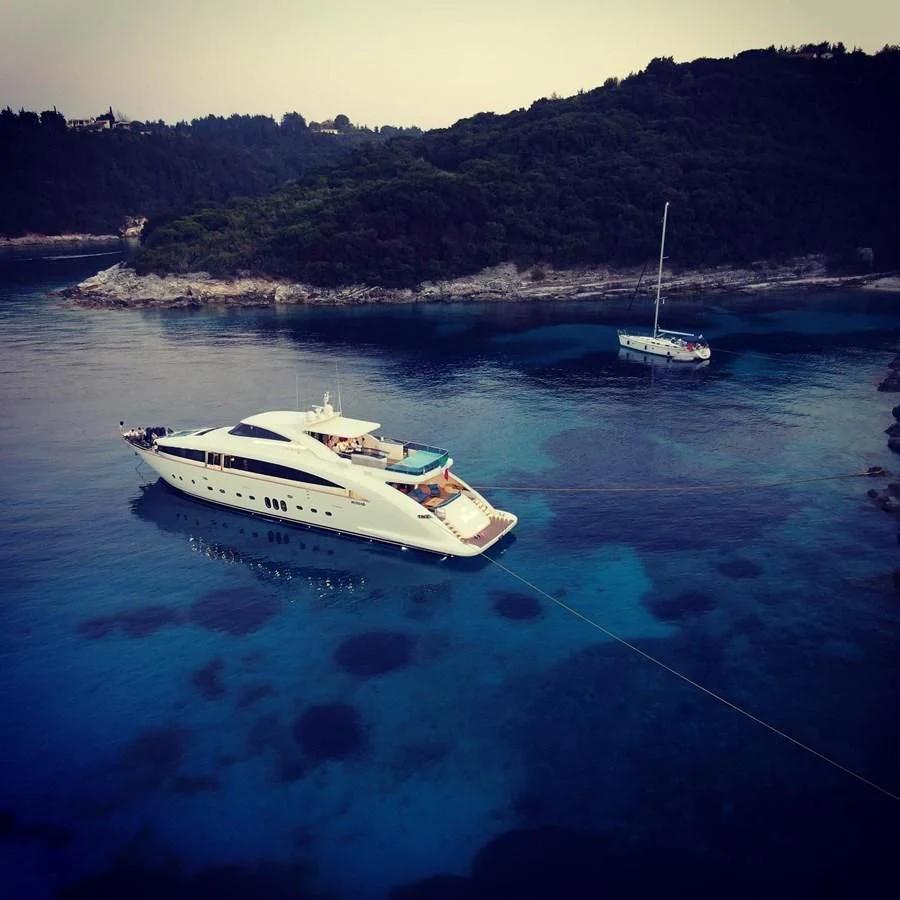

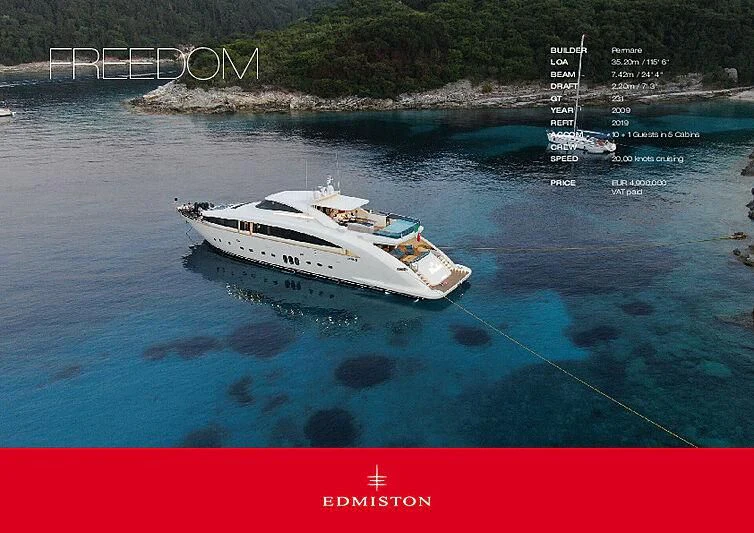

FREEDOM Yacht for Sale

115' (35.2m)
PERMARE
2009

Not for sale or charter to U.S. residents while in U.S. waters.

  • 5 cabin layout
  • Large open spaces
  • Recent 1M Euro refit in 2019
  • New Generators
  • 4 x Humphree Zero Speed Stabilizers
  • Lighty used – only privately operated since new
  • VAT Paid

Inquire Now

Details

Length 115 FT (35.2 M)
Beam 24 FT (7.42 M)
Gross Tonnage 231 Ton
Guests 11
Crew 5
Builder PERMARE
Year Built 2009
Construction GRP
Cruising Speed 20 Knots
LOA 115 FT (35.2 M)
Beam 24 FT (7.42 M)
Min Draft 8 FT (2.2 M)
Cruising Speed 20 Knots
Max Speed 23 Knots
Gross Tonnage 231 Ton
Water Capacity 3,000 Liters
Fuel Capacity 16,000 Liters
Hull Material GRP
Details for FREEDOM Private Luxury Yacht For sale

Full Specifications


  1. MAIN CHARACTERISTICS

    TYPE
    • Planing Motor Yacht
    MODEL
    • Amer 116
    BUILDER
    • Permare
    NAVAL ARCHITECT
    • Verme Projects
    EXTERIOR DESIGN
    • Verme Projects
    INTERIOR DESIGN
    • Verme Projects
    YEAR
    • 2009
    REFIT
    • 2019
    CALL SIGN
    • IN3449
    CLASSIFICATION
    • Rina
    CONSTRUCTION
    • GRP Hull and Superstructure
    CREW
    • 5
    FLAG
    • Italian
    ENGINES
    • 2 x CAT C32 Acert, 1,800hp
    GT
    • 231
    DISPLACEMENT
    • 120 Tons / 264,555 lbs - (Full Load)
  2. DIMENSIONS

    LOA
    • 35.2m / 115'6''
    BEAM
    • 7.42m / 24'4''
    DRAFT
    • 2.2m / 7'3''
  3. SPEED & RANGE UNDER POWER

    MAXIMUM SPEED
    • 23 knots
    CRUISING SPEED
    • 20 knots
    FUEL CONSUMPTION
    • 450 litres / hour
    RANGE
    • 710nm
  4. CAPACITIES

    ACCOMMODATION
    • 10+1 x Guests in 5 cabins
    CREW
    • 5 x Crew in 3 cabins
    FUEL
    • 16,000 litres / 4,227 US gallons
    FRESH WATER
    • 3,000 litres / 793 US gallons
    HOLDING TANK
    • 1,500 litres / 396 US gallons
    GREY WATER
    • 1,000 litres / 264 US gallons
    BLACK WATER
    • 500 litres / 132 US gallons

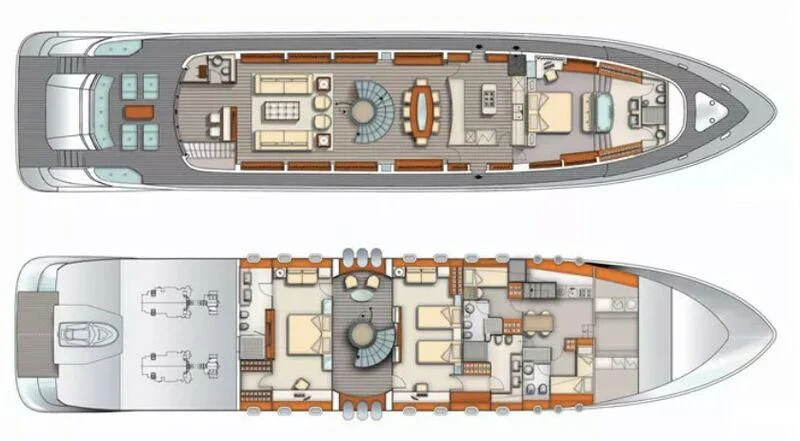

  5. ACCOMMODATION

    GUEST ACCOMODATION

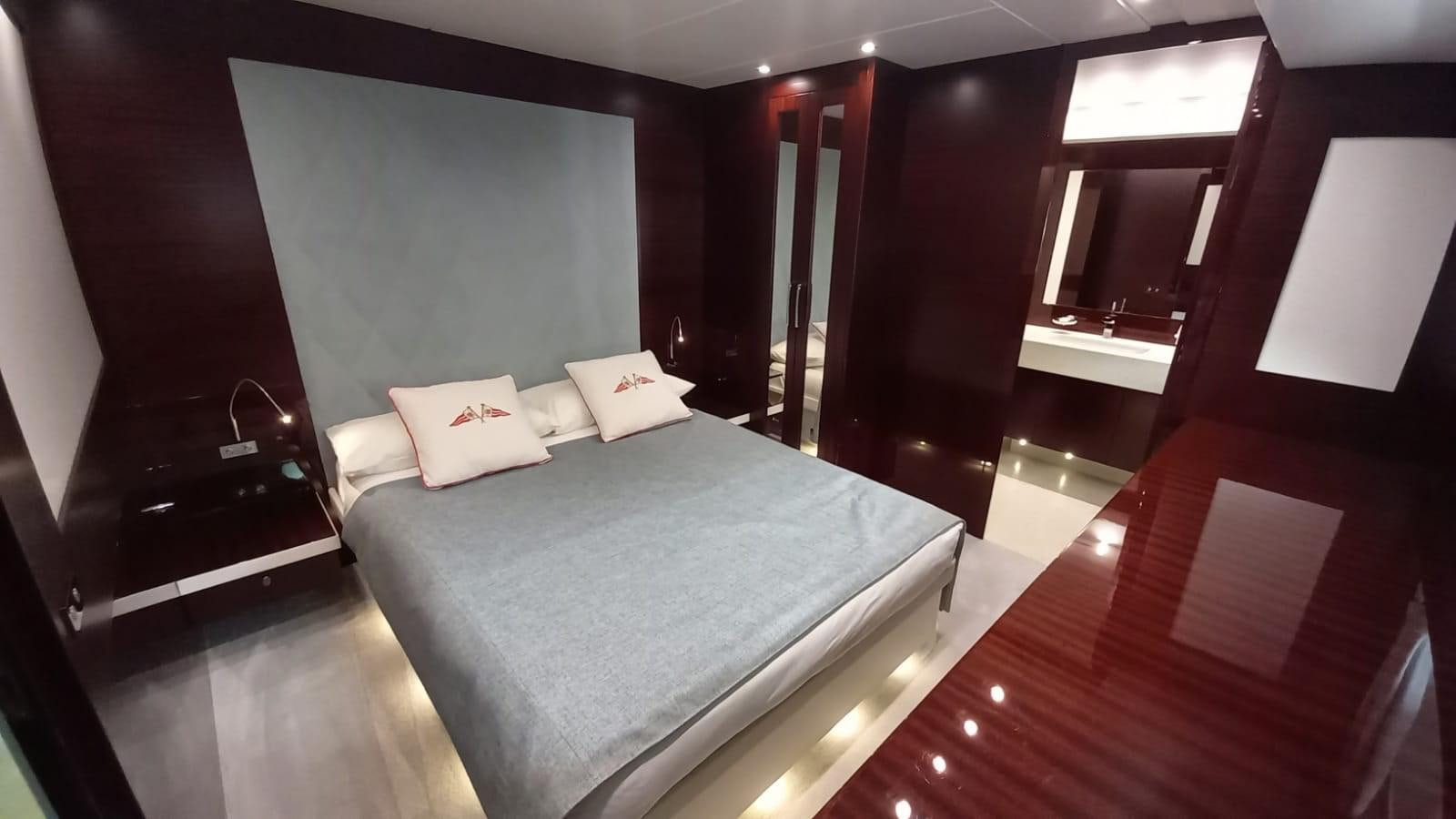

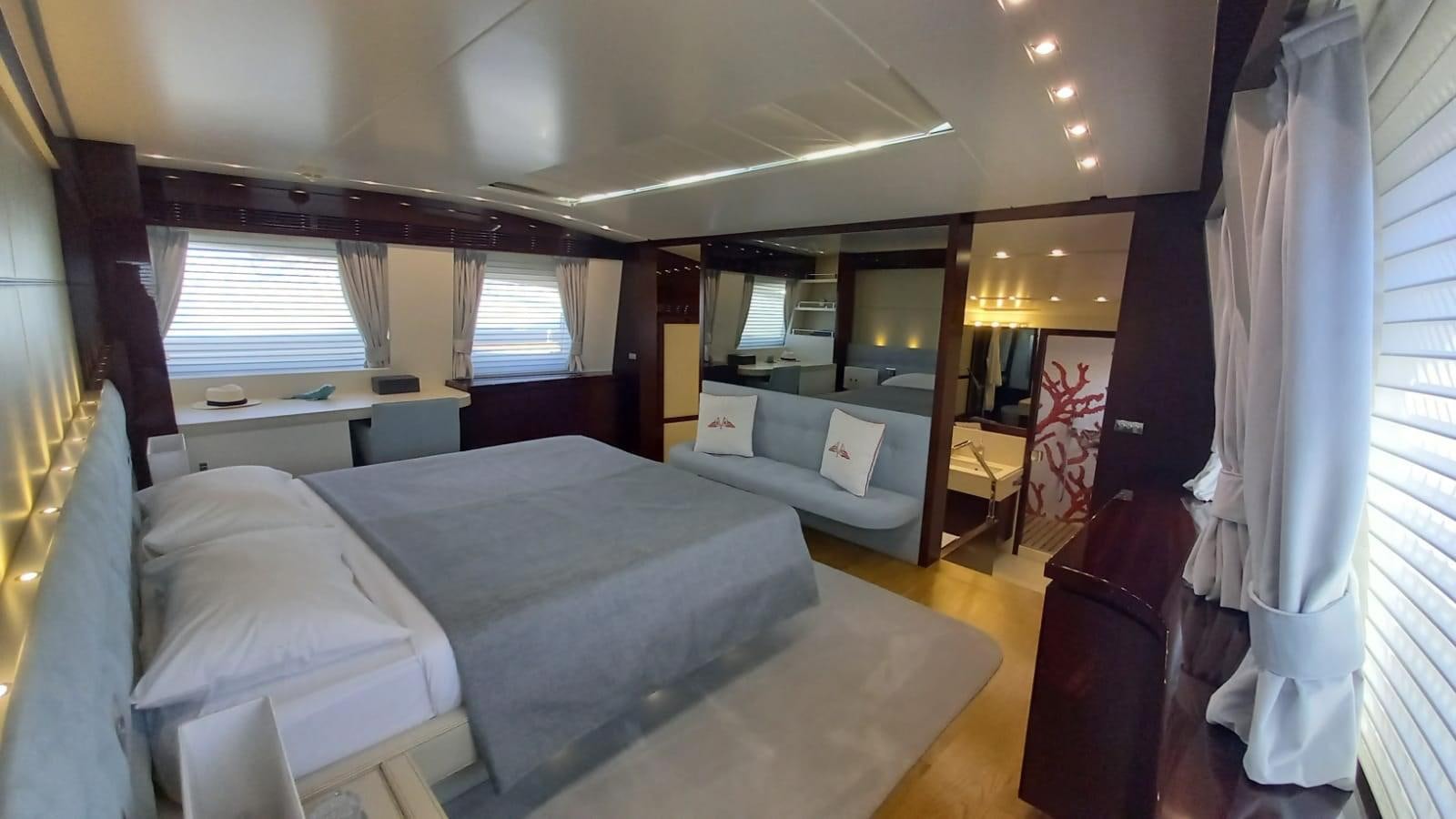

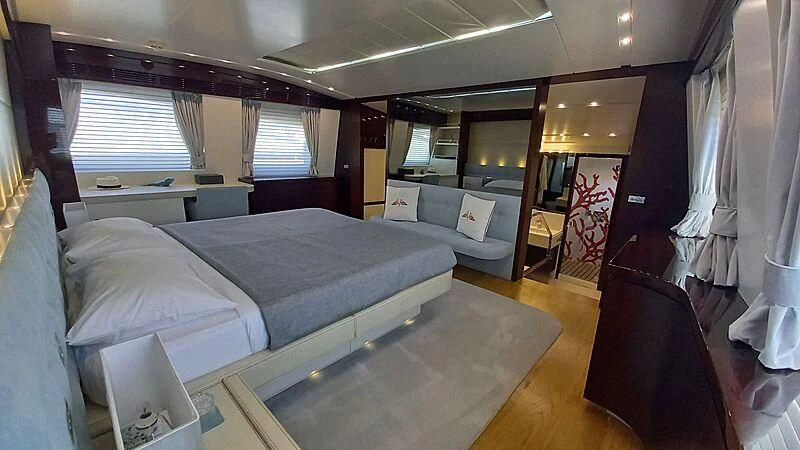

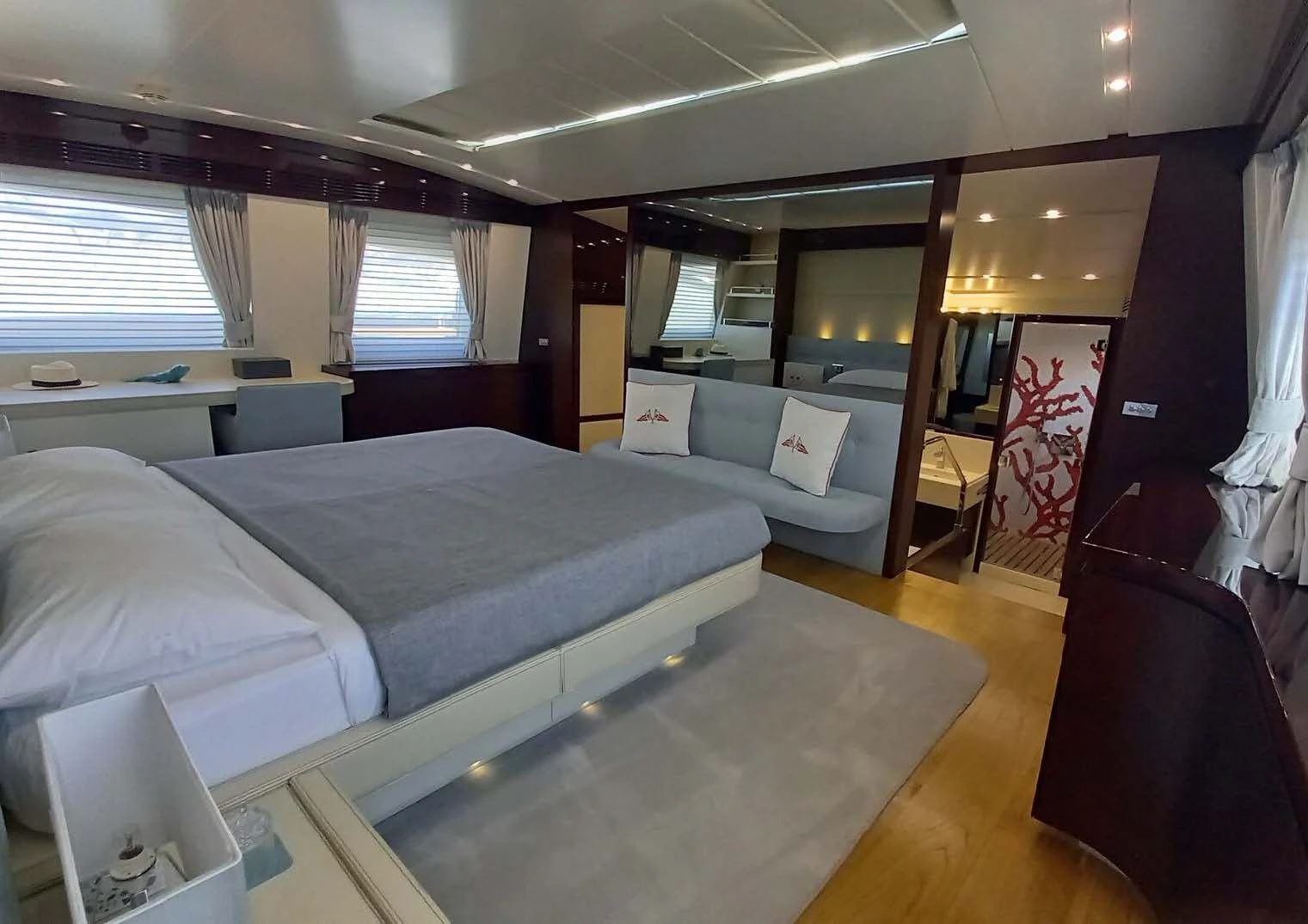

    • 1 x Master cabin

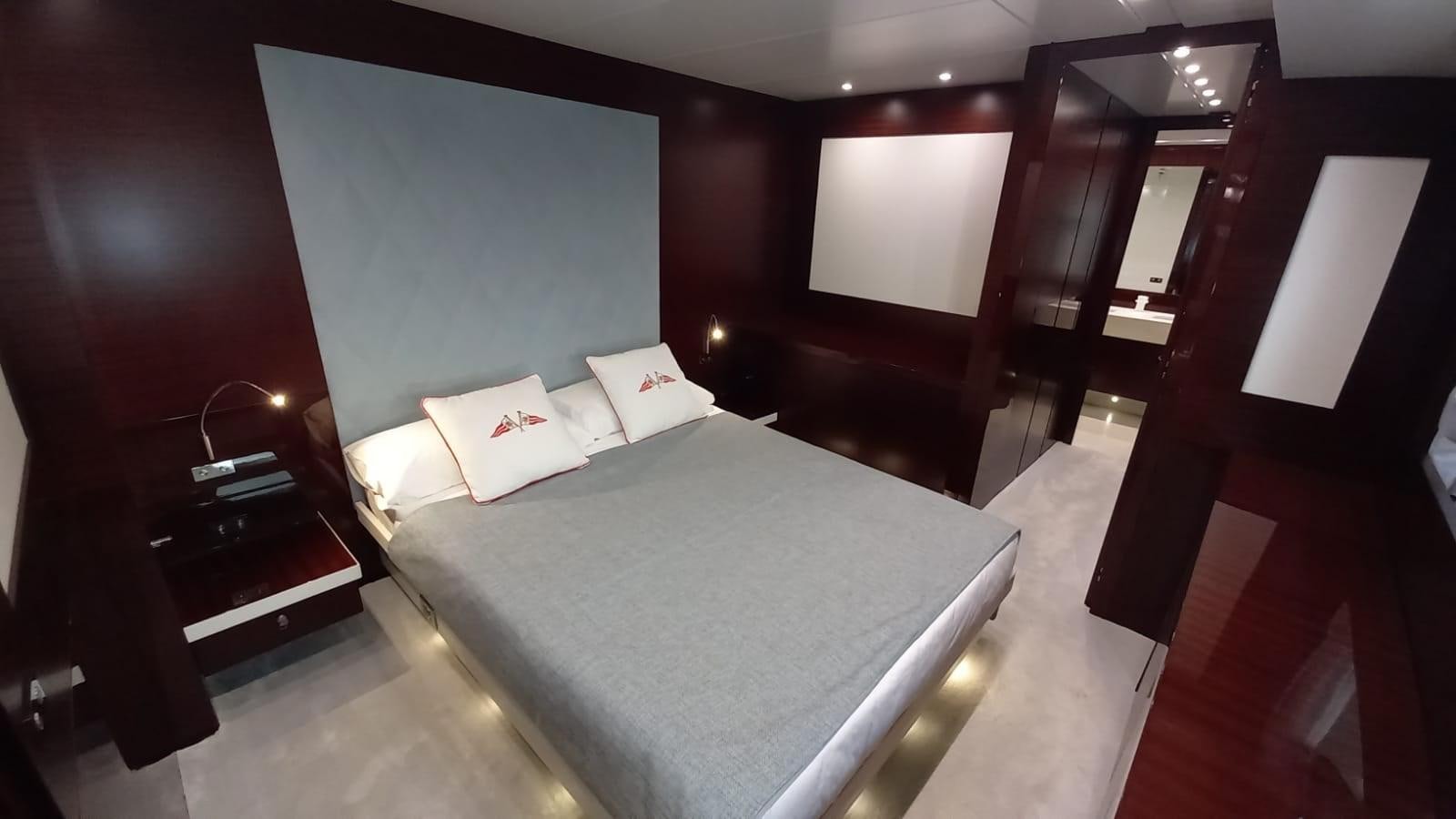

    • 3 x Double cabins

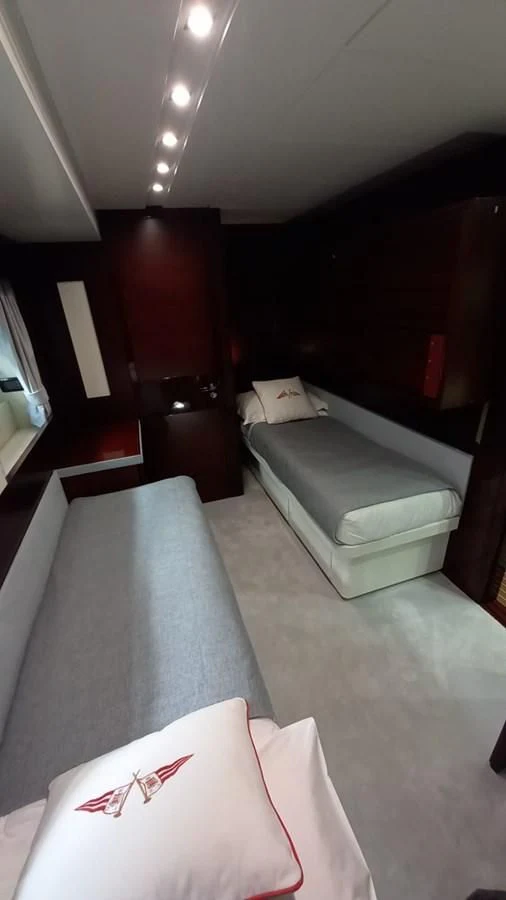

    • 1 x Twin cabin + pullman
    CREW ACCOMODATION
    • 1 x Captain's cabin
    • 2 x Twin crew cabin

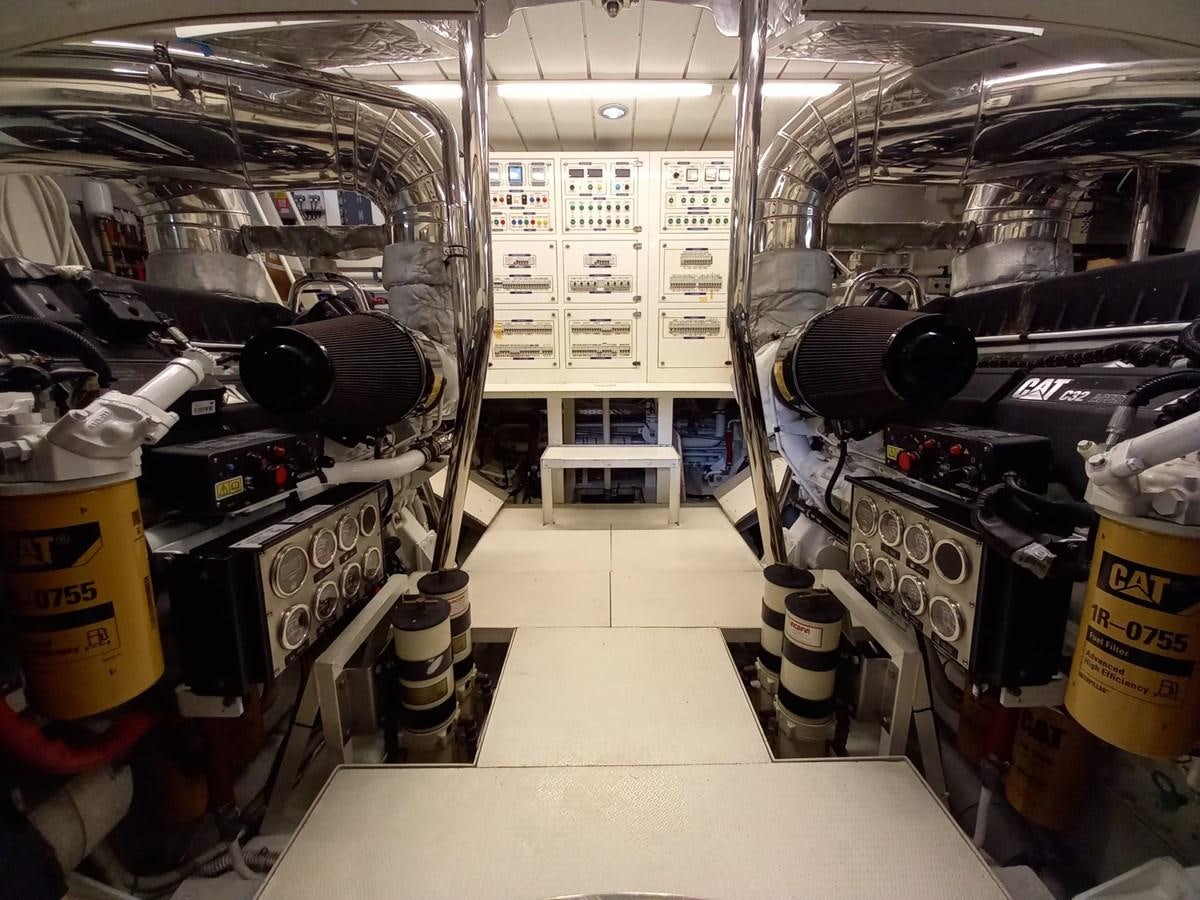

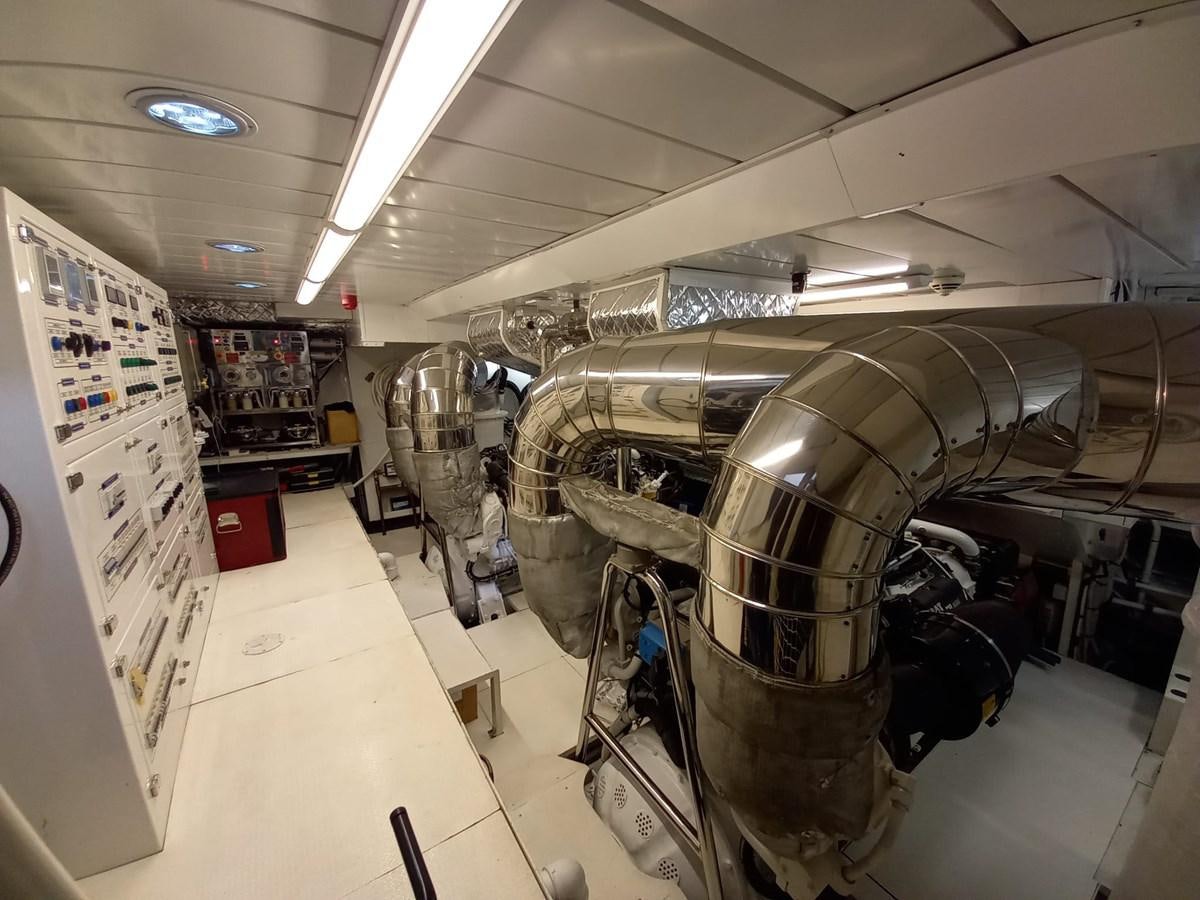

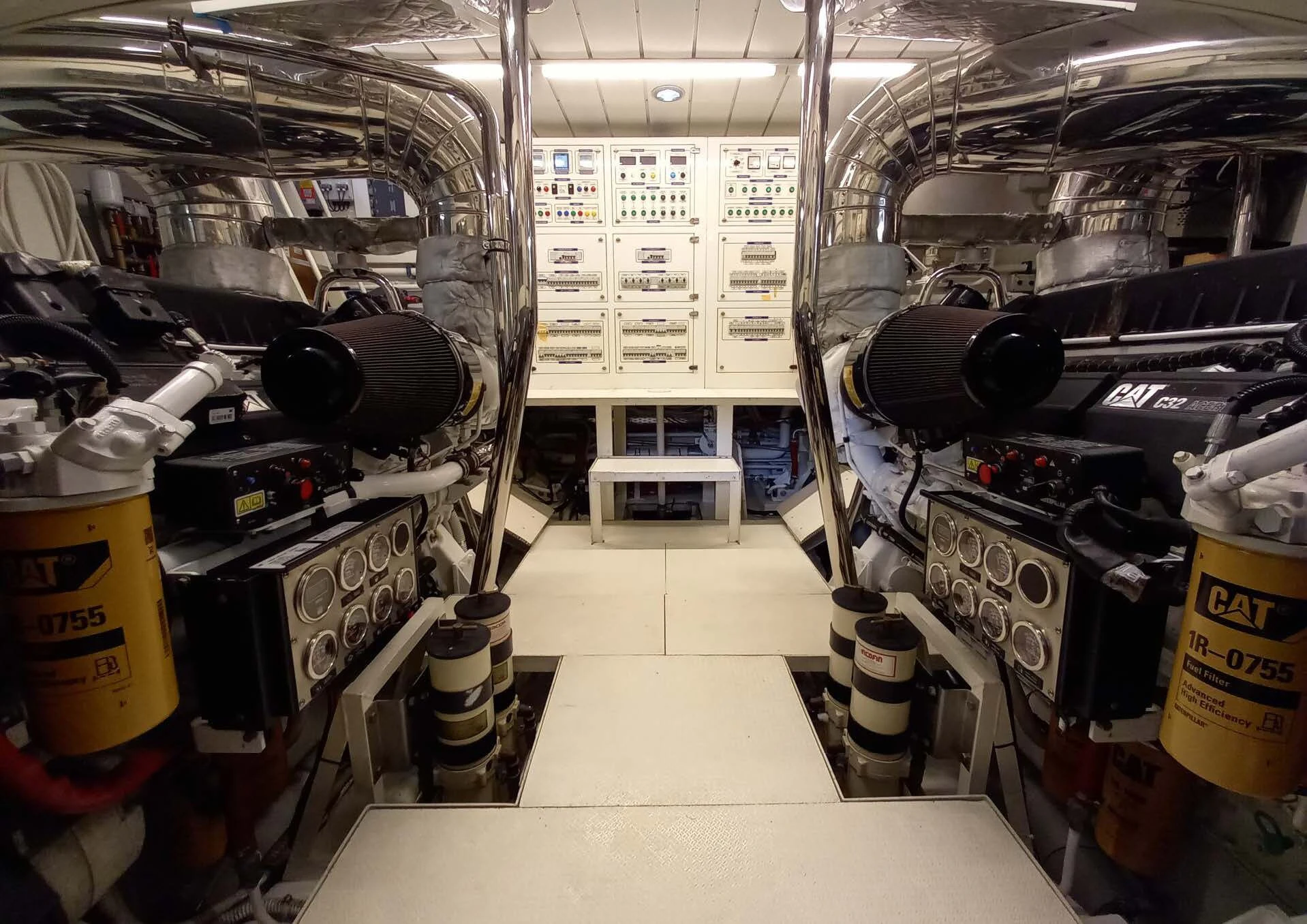

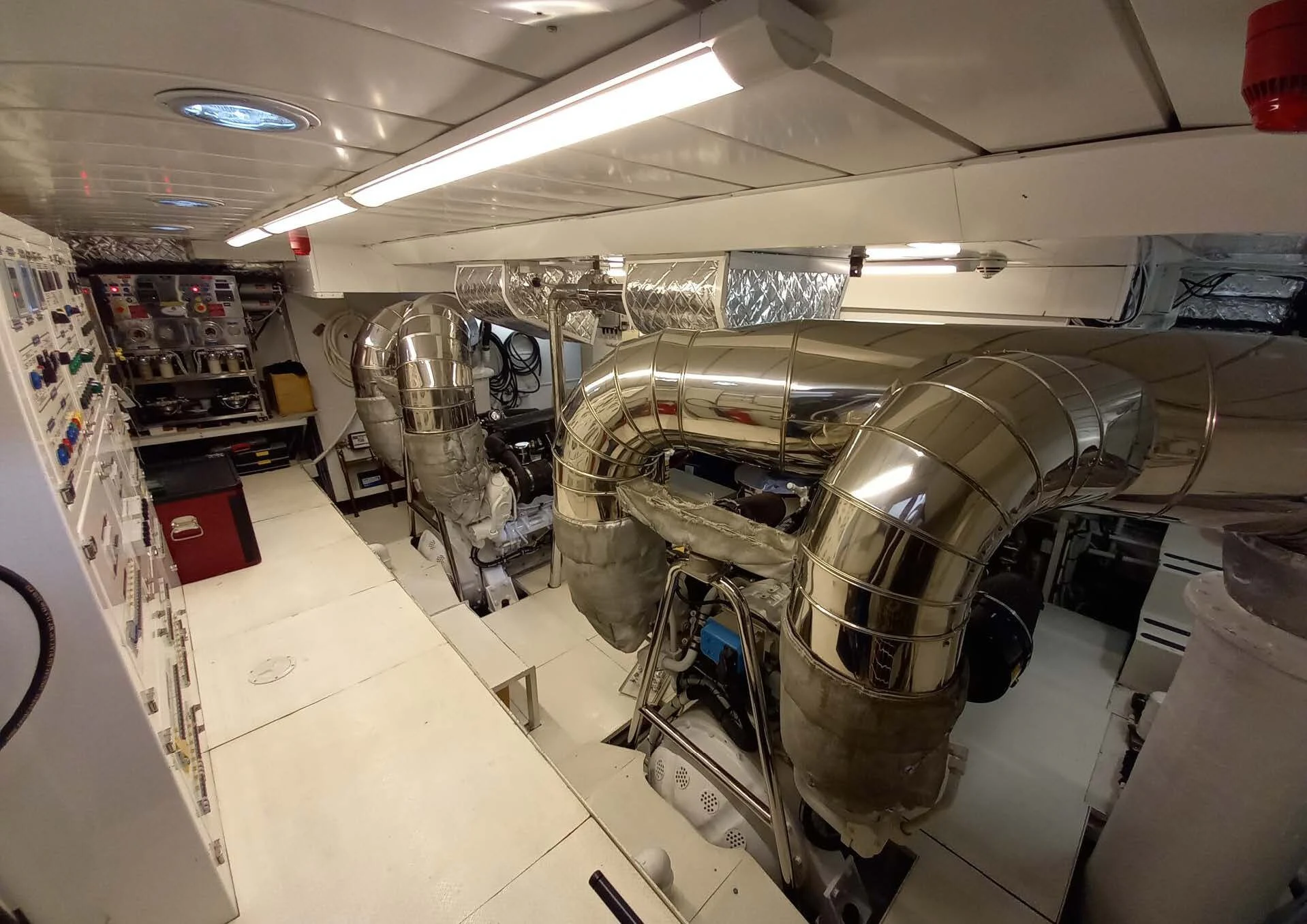

  6. MECHANICAL EQUIPMENT

    ENGINES
    • 2 x CAT C32 Acert, 1,800hp
    ENGINE HOURS
    • 1,260 hours (January 2021)
    GEARBOX
    • ZF
    PROPULSION
    • Twin screw
    PROPELLERS
    • 2
    STEERING SYSTEM
    • BCS By Aron
    STABILISERS
    • 4 x Humphree
    TRIM
    • 4 x Humphree
    BOW THRUSTER
    • Yes
    STERN THRUSTER
    • Yes
    GENERATORS
    • 2 x Kohler 35kw
    GENERATOR HOURS
    • 885 hours (January 2021)
    ELECTRICITY
    • 380V / 220V
    SHORE POWER
    • 380V
    BATTERIES
    • Fiamm Powercube
    MAIN ENGINE START
    • Electric
    SERVICE
    • OF. CAT Marinepower
    GENERATOR START
    • Electric
    CHARGERS
    • Mastervolt
    CONVERTERS
    • Mastervolt
    HYDRAULICS
    • BCS By Aron
    AIR CONDITIONING
    • Frigit
    WATER MAKER
    • 2 x Idromar Duplex – 200 litres / hour
    WATER SYSTEM
    • Gianneschi
    TOILET SYSTEM
    • Tecma
    SEWAGE SYSTEM
    • Tecnicomar-Ecomar
  7. NAVIGATION EQUIPMENT

    MAGNETIC COMPASS
    • Furuno PG-500
    GYRO COMPASS
    • Simrad HS-60 GPS
    AUTOMATIC PILOT
    • Furuno Navipilot 500 with 2nd station in Cockpit and Electric Wheel
    ECHO SOUNDER
    • Furuno DFF1 module
    RADAR
    • Furuno antenna open scanner 48nm
    • Furuno antenna (24nm radome – for backup or short range)
    AIS
    • Furuno FA-30 receiver
    CHART PLOTTER
    • Furuno Mfd12 Navnet 3-D black box with 2 x high bright screen (19''display) – Full coverage charts c-map & navionics for Med and Black Sea
    • Furuno TZTouch (14'' display) – 1 x Wheelhouse and 1 x Master Cabin – both linked to Navnet 3-D
    NAVTEX
    • Furuno NX-300
    WEATHER STATION
    • Airmar
    WIND INSTRUMENTS
    • Furuno RD-30 repeater (Wheelhouse, Cockpit & Master Cabin)
    CAMERA
    • Flir thermal imaging camera for night navigation
  8. COMMUNICATION EQUIPMENT

    VHF
    • Furuno FM-2721
    • Navicom (Wheelhouse)
    SSB
    • Icom GMDS Radiotelephone Class A
  9. DECK EQUIPMENT

    ANCHOR WINDLASSES
    • 2 x Lofrans Vertical ercole
    AFT WARPING CAPSTANS
    • 2 x Maxwell 4000
    ANCHORS
    • 2 x 140kg
    ANCHOR CHAINS
    • 150m
    BOAT CRANE & DAVITS
    • Mor Saverio 072H
    PASSERELLE
    • Angelo Gandola
    SIDE BOARDING GANGWAY
    • Opacmare
  10. ENTERTAINMENT EQUIPMENT

    SATELLITE TV
    • Seatel Antenna C24cm – with distribution of signal in all cabins
    HOME THEATRE
    • Sonos with Soundbar, Subwoofer & 5 satellite speakers
    TELEVISION
    • 1 x 75'' 8k television panel
    WIFI
    • Huawei router with 4G connection and Pepwave router with full coverage of boat for music streaming
    MUSIC
    • Fusion player with 3 zones (Sundeck, Wheelhouse and Cockpit) with high power amplifier and speakers

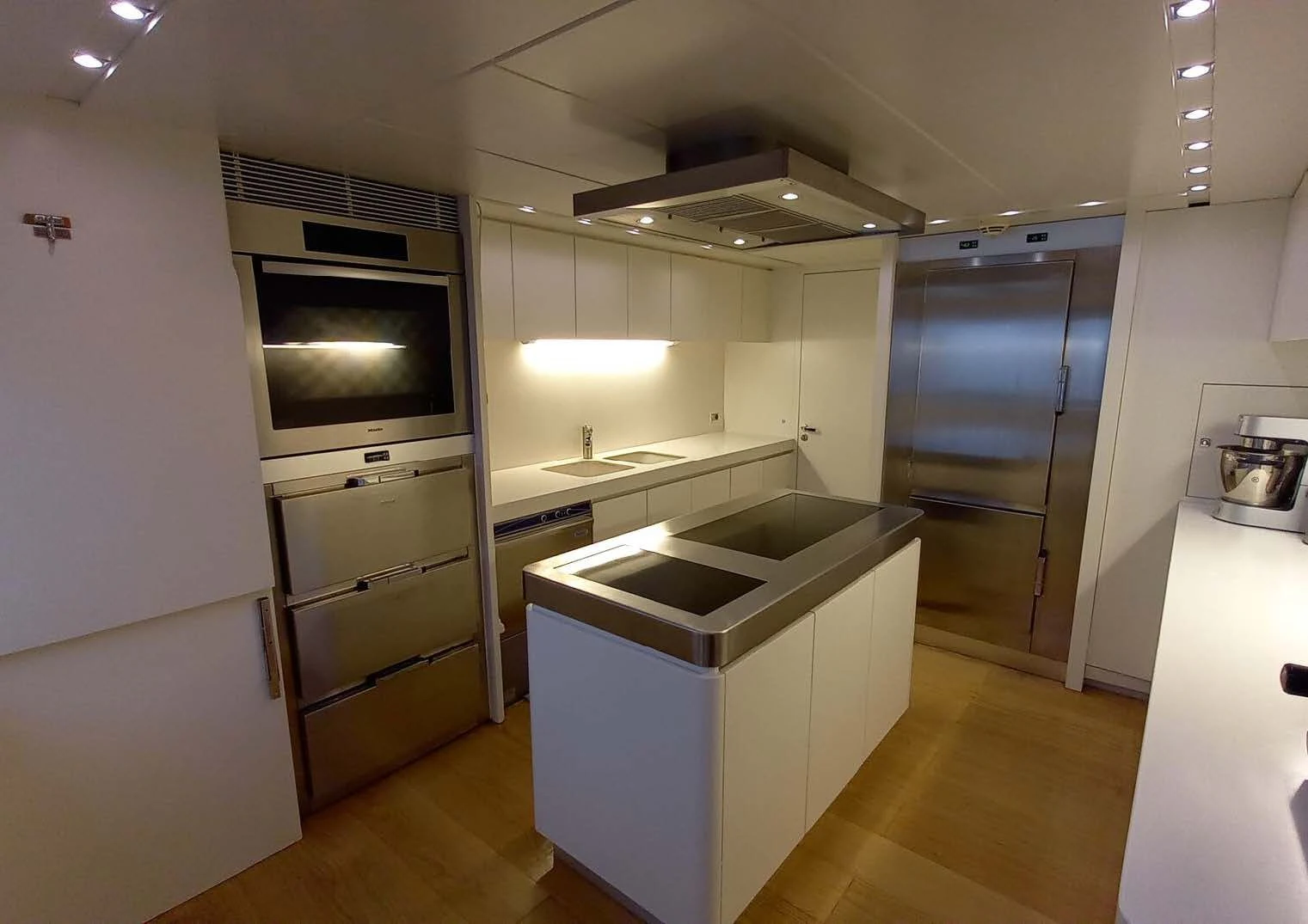

  11. GALLEY & LAUNDRY EQUIPMENT

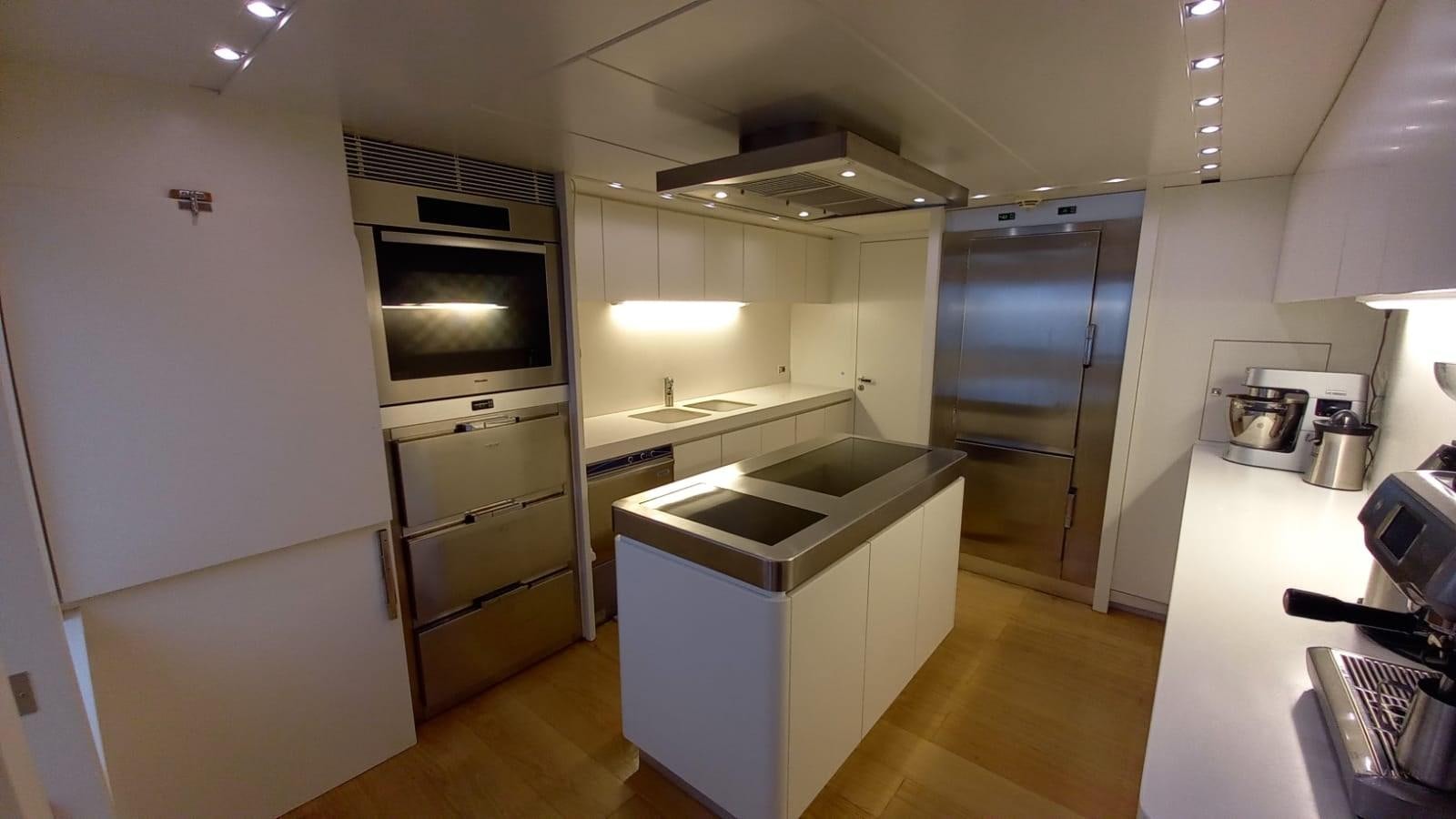

    GALLEY
    • Oven - Bosch
    • Induction Hob - Barazza
    • Fridges - Frigit
    • Dishwasher - Baratta
    • Cooker Hood - Faber
    LAUNDRY
    • Washing machine - Miele
    • Dryer - Miele
  12. SECURITY & SAFETY EQUIPMENT

    • SAFETY

      • 2 x Rafts (12 pers.)
      • Lifejackets
      • 2 x Lifebuoys
    • SECURITY

      • Video Surveillance with remote 4G monitoring of all cameras
      • Continuous record of events on Dahua NVR and 8 cameras
      • Ajax monitoring system with remote control via 4G network
      • Alarm for theft, water, smoke or fire
    • FIRE FIGHTING

      • Fire extinguishers
      • Eltek alarm system
      • 2 x Gianneschi electric pumps
      • 1 x Energen motor pump
  13. TENDERS & WATERSPORTS EQUIPMENT

    TENDERS
    • 1 x Williams 445
  14. REFIT

    • Installation of 2 x new generators Kohler
    • Installation of 4 x Humphree Stabilizers
    • Installation of 2 x Idromar Watermakers
    • Guest cabins increased with 5 more places (1 cabin - 3 x single beds and 1 cabin - 2 x places in double bed, with new toilet in each cabin)
    • New parquet in every room
    • Installation of exterior TV + new surround system (8 x speakers + 4 x Subwoofers)
    • Installation of exterior bar counter on flybridge with 2 x Baratta electric grills, electric plate, fridge, icemaker and sink

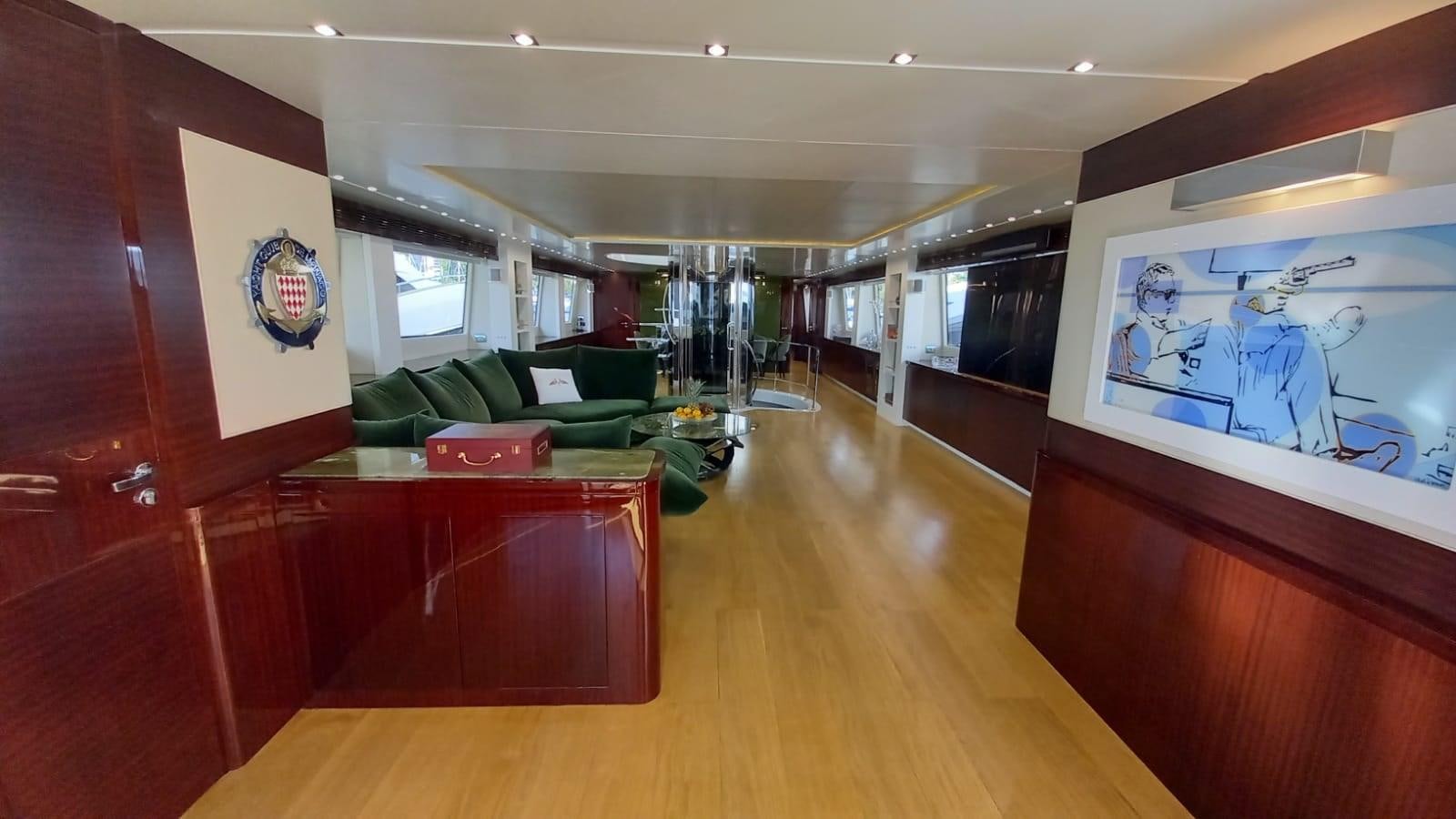

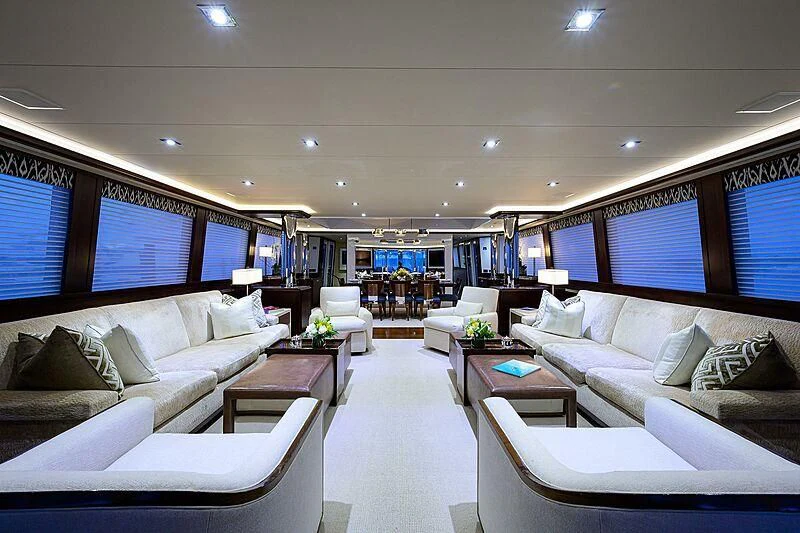

    • New living room layout with new 7-seater sofa, 70” TV and Sonos surround system (6 x speakers, soundbar and Subwoofer)

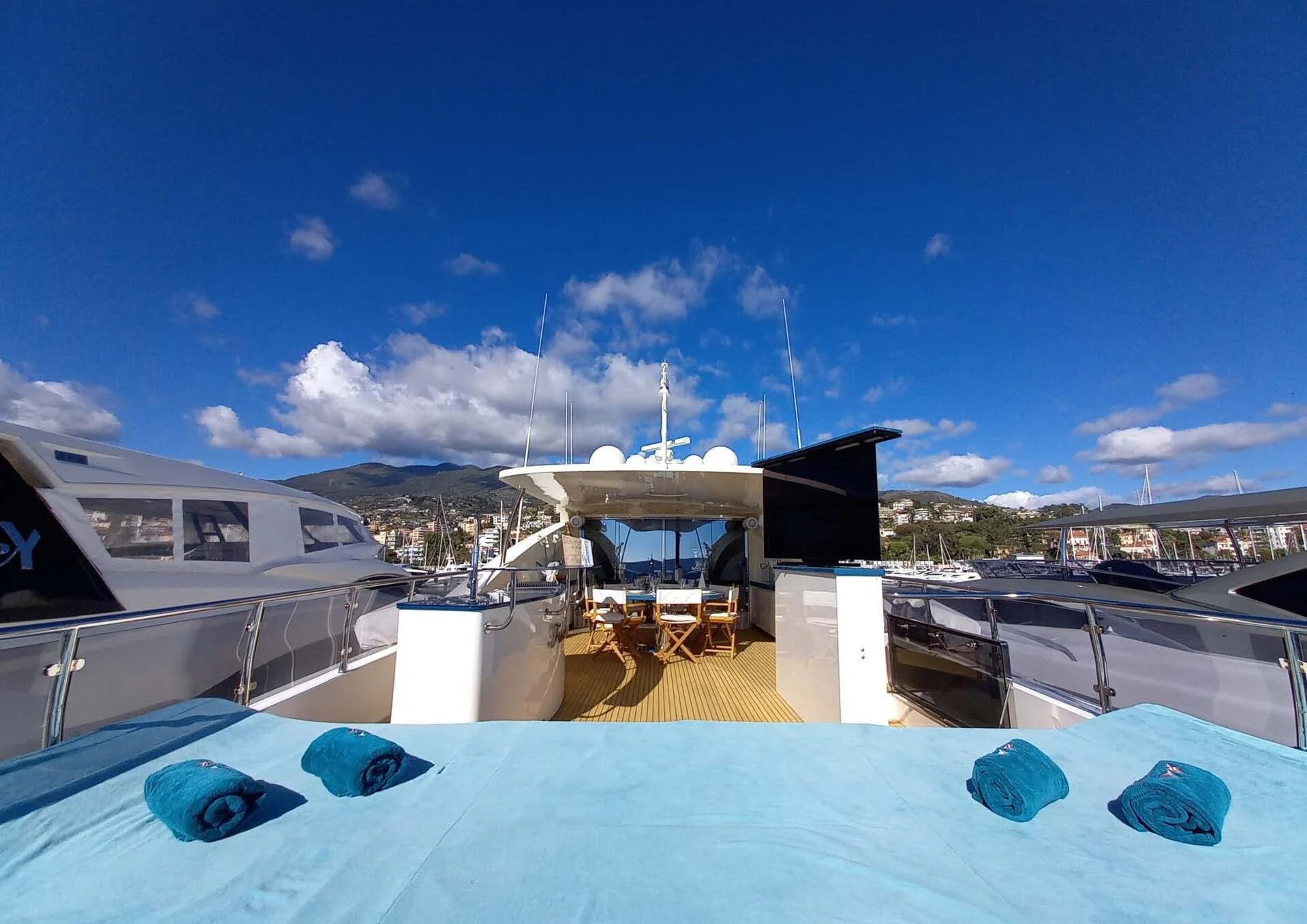

A spacious flybridge and aft cockpit feature plenty of social and sunbathing areas and are perfect to entertain guests. The foredeck offers further social and sunbathing areas, and includes a jacuzzi. "FREEDOM" offers a beautiful, open plan layout. Her full beam master cabin offers incredible space and features a stunning ensuite amongst the flowing design. With 4 further ensuite guest cabins, she can accommodate a total of 10 guests amongst her 5 cabin layout plus crew accommodation for 5.

Platinum Upgrade Package consisting of the following:

Upgraded Anchor chain

Second pair of Mooring Bollards on Forepeak

Stainless steel Hydraulic Passerella upgrade

Side mount stairway

Teak Decking on Foredeck

Teak Decking on Flybridge

Antifouling Application upgrade

Trailing Pumps

Auto Troll for Transmissions

Hydraulic Sleipner Stern thruster system

Fin stabilization system

Sewage Treatment plant

Air Conditioning for the engine room

Air Conditioning Marine Air chilled water system to Tropical specification and with quieter running WhisperCool DC fans

Diesel fuel long range overload tank of 5,050 litre capacity,

Alfa Laval Fuel cleaning centrifugal separator

Two Kohler 70kW in lieu of 55kW

Tijssen CCTV camera system with eight dedicated cameras

Tijssen SMS Paging facility

Tijssen Swipe card security alarm Integrated to MPA system

Tijssen MPA Generator Control and Monitoring System Upgrade,

Vimar ByMe Interior Premium Lighting System Package

Superyacht Custom Commercial Galley Refrigeration

Miele Professional Appliances upgrade - Miele Washing machine, Miele Tumble dryer and Miele dishwasher,

Flybridge hardtop, including retractable centre canopy and aft extending sun canopy

Underwater lights x 15.

Classification:

Built to RINA commercial rules 2013 and conformance to MCA LY3 and issued with RINA commercial certificate and MCA LY3 certificates (commercial registration prior to yacht leaving shipyard)

Certification - International tonnage certificate (issued by RINA)

Safe - 4 brick - with Digital lock in the Master Port side Wardrobe

Safe - 2 brick - with Digital lock in the Port Aft Guest Wardrobe

Safe - 2 brick - with Digital lock in the Starboard Aft Guest Wardrobe

Safe - 2 brick - with Digital lock in the Port Forward Guest Wardrobe

Safe - 2 brick - with Digital lock in the Starboard Forward Guest Wardrobe

Safe - 2 brick - with Digital lock in the Starboard forward crew cabin

Sprung mattress for Master and guests cabins

Foam mattress for crew beds

Bedlinen - Set of 570 thread count Egyptian cotton sheets for all guest cabins and cotton percale for crew. Comprising of quilted mattress protector, fitted bottom sheet, flat top sheet, housewife and oxford style pillowcases for all berths

Inboard berth moves outboard to create double berth - Ensure that bed linen is ordered for both double and single set up. Infill is supplied for double set up plus track infills to be supplied. for the Port Forward Twin Guest Stateroom

Inboard berth moves outboard to create double berth - Ensure that bed linen is ordered for both double and single set up. Infill is supplied for double set up plus track infills to be supplied. for the Starboard Forward Twin Guest Stateroom

Additional Pullman berth option installed on the inboard bulkhead (if selected then the black water treatment plant is needed as the number of persons on board has been increased) for the Port Forward Twin Guest Stateroom

Additional Pullman berth option installed on the inboard bulkhead (if selected then the black water treatment plant is needed as the number of persons on board has been increased) for the Starboard Forward Twin Guest Stateroom

Single Helm seat with electric movement

Black out Blinds for the Port Aft Guest Stateroom, the Starboard Aft Guest Stateroom, the Port Forward Guest Stateroom and the Starboard Forward Guest Stateroom.

Exterior Fit-out:

Main Deck Saloon sliding door on the port side

Main Deck Saloon sliding door on the starboard side

Main Deck Saloon stern sliding patio doors. Manual operation.

Tender recovery system with Hydraulic recovery winch (Max Tender size - Williams 565 Diesel Jet)

Jet Ski overhead crane and chock system

Seadoo RXP-X Jet Ski supply and fitted in the garage

Anchoring:

Lewmar V9 400 Volt AC three phase Windlass. Vertical Gypsy and Capstain drum. Manual hand wheel brake and Devils Claw chain stopper.

Seawater pressure washing of chain with outlet in each hawse pipe

Two Manson Ray 125kg polished stainless steel bow anchors

Each Anchor chain is to be marked every 10 meters - R.Y.B.W.G

Stern capstan winches - two Lewmar C6 400 Volt 3kW three phase vertical capstans fitted port and starboard

Exterior Equipment:

Hydraulically fall rise and tilt platform with maximum lift capacity of 2000 kg

Removable polished stainless steel bathing ladder with teak treads. One set of sockets on the aft face of the bathing platform and dedicated ladder stowage in the garage

Second set of stainless steel bathing ladder sockets on the aft face of the bathing platform.

Polished stainless steel ensign staff suitable for 2.5 yard ensign

Foredeck Spa Tub installation in lieu of Flybridge

Teak:

Teak Decking on the Aft Cockpit and Bathing Platform

Teak Decking on the Wheel House Deck

Canvas and protective covers:

Protective Covers Package.

Aft Cockpit. Seating cover, table covers, and wet bar cover.

Flybridge Deck. Console instrument cover, helm seat covers, seating covers, sunbed cover, table covers, bar stool covers and wet bar cover.

Wheelhouse Fore Deck. Seating cover, sunbed cover and table cover.

Wheelhouse exterior screen cover

Engine and machinery:

MTU BlueVision Basic New Generation ships automation systems.

MFD display per engine and dual station.

LOP-14 Local operating panel with display in engine room per engine.

MTU RCS Engine propulsion control levers dual station.

MTU Stop/start operating panel per engine and dual station.

Wiig station control - port and starboard of main wheelhouse.

MTU RCS Engine propulsion control levers.

MTU Stop/start operating panel per engine.

Sleipner Thruster controls

Simrad Steering Lever FU50.

Horn button. in the Wheel House Fore Deck

Hydraulic Sleipner Bow thruster system. Model SH1000/513TC 63kW in a 513mm ID GRP tunnel. (85hp)

Systems:

Air Conditioning Marine Air chilled water system to Tropical specification and with quieter running WhisperCool DC fans

The tropical A/C system in the Platinum pack comprises of

4 x 72,000 BTU Modular Chilled Water system.

In addition to this we have a DX system which is a gas refrigeration system in the following areas

Switch board compartment in engine room - 2 x 27,000 BTU

Technical area Area behind helm - 1 x 9,000 BTU

Laundry Area 1 x 27,000 BTU

Air Conditioning for the engine room. Two Marine Air VCD27SZ (54,000 Btu) Self-contained units

Fresh water systems:

Fresh water tank is an integral GRP tank, WRAS approval for portable water of 4000 litre capacity. Pressure system via two Gianneshi Duplex 400V 3 Phase 50Hz self priming pumps 100 l/m each and mounted with inlet/discharge manifold.

Fresh water marina connection regulator

Kinetico CC206C Water Softener

Idromar Chlorine dosing unit. Will disinfect the freshwater supply from the connection point in the starboard aft service locker or from the water maker.

General Ecology Seagull IV X-2BK in-line freshwater purifier serving the galley and bar faucets.

General Ecology Nature Pure QC in-line freshwater purifier to all independent icemakers.

Hot water calorifiers. Two x Surejust horizontal 200 litre stainless steel cased tanks, each with 3 x 2kW 230V 3 phase immersion heaters. 60 litre expansion tank.

Hot water circuit ring main throughout the lower and main decks with permanently running circulation pump 230V 1 Phase 50Hz - 120W

Hand held swimming shower

Hansgrohe removable shower stand over the platform, in place of standard

Fresh water deck wash system with hose reel and outlets on Aft deck, Flybridge deck and Fore deck

Watter Maker:

Water Maker - Idromar Water Maker 180 litres per hour (MC3J-180A-2) 380V 50Hz- Three Phase

Grey Water Systems:

Grey water from showers, wash basins and galley services will drain to Tecma transfer units 240V 1 Phase 50Hz to large diameter gravity fed pipes into the Grey water integral GRP holding tank of 1225 litre capacity.

Discharge is via a Gianneshi 400V 3 Phase 50Hz self priming centrifugal macerating pump to directly over board or the black water tank to that the waste can be removed via a shore side facility when available or to the optional sewage treatment system if specified.

Black Water Systems:

Black water holding tank is an integral GRP tank of 1340 litre capacity. Discharge via a Gianneshi 400V 3 Phase 50Hz self priming centrifugal macerating pump to either a shore facility when available or directly overboard (refer to MARPOL regulations) or a Sewage treatment plant if the option is taken.

Tecma Silent Plus 220Volt AC macerating toilets

Bidet option for Tecma toilet for the Master En suite Toilet

Bidet option for Tecma toilet for the Port Aft Double Guest Toilet

Bidet option for Tecma toilet for the Starboard Aft Double Guest toilet

Bidet option for Tecma toilet for the Port Forward Twin Guest toilet

Bidet option for Tecma toilet for the Starboard Forward Twin Guest toilet

Engine room systems:

Fire Hydrant stations in two locations (Main deck stbd side deck locker and main deck port side deck locker) with primary engine room pump being the Gianneshi self priming centrifugal 400V 3 Phase 50Hz 5.5kW and a secondary Gianneshi self priming centrifugal pump powered by an independent diesel engine located in the forward laundry room.

The tender garage space has a deluge system comprising of three sprinkler heads.

Bilge pump system with primary engine room pump being the Gianneshi self priming centrifugal 400V 3 Phase 50Hz 5.5kW and a secondary (as shared with the Hydrant system) Gianneshi self priming centrifugal pump powered by an independent diesel engine located in the laundry room. Both are coupled to bilge manifold valve blocks which are connected to the strum boxes throughout the boat.

Fitted in the tender garage is a Gianneshi self priming centrifugal 400V 3 Phase 50Hz 2.2kW bilge pump with strum box.

MTU fitted engine direct bilge pump with strum box.

Fireboy-Xintex Fire alarm detection system. Model 90900 control panel with dedicated Apollo Smoke/heat detectors in all accommodation areas. Connected to the MPA system to repeat alarm.

Sea-Fire FM-200 H-Series fixed machinery space fire extinguishing system.

Diesel fuel main tank is an integral GRP tank of 9,925 litre capacity.

Diesel fuel day tank is an integral GRP tank of 4,525 litre capacity with an AC transfer pump to replenish from the main tank.

Tender diesel fuelling station with transfer pump from day tank and fuel hose reel

Reverso portable electric transfer pump Oil change system for engines gearboxes and generators with quick coupling connection pipes.

Electric Systems:

Shore power configuration is a single 100A plugged flexible 20M cable on an electric reeling system.

Second Shore power configuration is a single 100A plugged loose flexible 20M cable via a fixed inlet.

Connected to a shore power converter Atlas 75 kVA-SPA-II Series 50Hz.

Input 180-530V single or three phase up to 75kVA. Output 230/400V 50Hz 3 phase 75kVA

Tijssen Elecktro Marine Personal Assistance (MPA) integrated power management, boat monitoring and control system.

Tijssen Master MPA 19" touchscreen display in the Wheelhouse bridge

Tijssen Master MPA 15" touchscreen display in the PMS Tech Room.

The above touchscreen interfaces allow the control of the following systems.

AC Electrical system power monitoring and display.

Status monitoring and control of AC switch gear.

Display of the main generator parameters.

DC System Power monitoring and display.

Monitoring and display of DC switch gear status.

Monitoring of Diesel fuel, fresh water, grey water and black water.

Control and monitoring of all major fluid pumps (Fuel Transfer, Black and Grey)

Monitoring of status of all the main circuit breakers.

Monitoring and control of navigation lights.

Monitoring of doors and Hatch Status.

Monitoring of Hydraulic systems tank levels and status.

Monitoring via a single float switch of bilge water level in five bilge compartments.

Provide control and monitoring of engine room ventilation.

Provide exhaust temperature monitoring.

Remote Access via internet VPN for Tijseen Elektro factory (captain approve access only)

Fire Alarm Monitoring. Pop up alarm in the event of active fire alarm

Tijssen Elecktro Marine Personal Assistance (MPA) 15" touchscreen master display in the Crew Mess

Tijssen MPA Generator Control and Monitoring System Upgrade.

Additional feature allowing complete control and monitoring of generator parameters and alarms via the Tijssen Touch Screen.

Tijssen SMS Paging facility allowing MPA alarms to be sent to up to five GSM accounts (Sim card and subscription not included)

Tijssen Swipe card security alarm Integrated to MPA system

Tijssen CCTV camera system with eight dedicated cameras.

 Camera 1 Aft Cockpit viewing towards stern entry point.

Camera 2 Engine room (viewing aft)

Camera 3 Engine room (viewing forward)

Camera 4 Port Main deck side deck (viewing aft)

Camera 5 Starboard Main deck side deck (viewing aft)

Camera 6 Tender Garage

Camera 7  Flybridge Deck (viewing forward over the wheelhouse fore deck)

Camera 8  Flybridge Deck (viewing aft)

Flir M625L PAL Slow Thermal and Low light Camera.

Kahlenberg Chimetone D1 chrome twin trumpet with separate Kahlenberg marine duty Air Compressor system Model KA500 (220V AC 1 Phase 50Hz, 0.6HP, 150 p.s.i. max pressure)

Galley Appliances

Superyacht Custom Commercial Galley Refrigeration by Frigoboat with polished stainless steel interiors - Two side by side units giving 406 litres fridge capacity and 334 litres freezer capacity. Increases volume and performance with remote sea water cooled refrigeration Plant

Miele H6460BP single convection oven in the Galley

Miele M6262TC Microwave oven 46 litre capacity. 1500W Grill in the Galley

Miele KM6389 Induction hob 5 zone - 900mm in the Galley

Miele DA3496 Stainless Steel slide out canopy cooker hood in the Galley

Icemaker Victrofrigo Classic in the Galley

Miele KWT6321 UG Built in Wine Cooler. 34 bottles in the Galley Servery

Laundry Appliances:

Miele Professional Appliances upgrade - Miele Washing machine, Miele Tumble dryer and Miele dishwasher

Icemaker. Custom in the Aft Cockpit bar

Refrigerator. In the Aft Cockpit bar

Flybridge appliances:

Icemaker Victrofrigo Classic on the Flybridge

Refrigerator. Waeco Coolmatic CR-110 on the Flybridge

Crew Mess appliances:

Miele integrated Refrigerator K621 UI-1 - 157 litres  in the Crew Mess

Miele Microwave with grill M6022SC (800W - 17 litres) in the Crew Mess

Interior lighting:

Vimar ByMe Interior Premium Lighting System Package

Exterior lighting:

Sanshin Twin Beam remote controlled Searchlight HR-1012 dual station control. 55W x2 Halogen 24V - 160,000cd

Underwater lights. Lumishore white LED 15 lights with 5 across transom and 5 on either side

General electrical:

Powered Blinds for the Master Stateroom, the Port Aft Guest Stateroom, the Starboard Aft Guest Stateroom, the Port Forward Communication equipment:

Guest Stateroom and the Starboard Forward Guest Stateroom.

Network and communications system as follows:

Terrestrial Communications and Control using a Pepwave MAX BR1 3G/4G ship to shore Wi-Fi Router.

3G, 4G Data Communications (dependant on SIM card and coverage)

Wi-Fi Data Communications (linked to marina Network)

User ability to select data method depending on availability. Note: Owner to supply 3G/4G SIM cards, set up for roaming.

Wireless network giving coverage throughout boat.

A Panasonic PABX telephone exchange system KX-TES824 shall be fitted as standard and will include the following handsets.

Panasonic 'Dect Phone' for the Main Deck Saloon, Master Stateroom and the Captains Cabin.

Panasonic 'Fixed Phone' for the Starboard Guest Double Stateroom, Port Guest Double Stateroom, Starboard Guest Twin Stateroom, Port Guest Twin Stateroom, the Wheelhouse, Crew Mess and the Galley.

Two Shorelines are provided for connection to the PABX and an external Ethernet Network connection

Navigation equipment:

Three x Hatteland Series X 19" Maritime multi Displays for Radar, Plotter and central navigation (Fourth standard display for the Tijssen monitoring system)

Electronic Chart System. Transas Navi-Sailor 4000 ECDIS

Furuno Radar FAR2117-BB X-Band 9GHz 12Kw with 6.5' Open Scanner with Furuno processor RPU-013 and Furuno keyboard RCU-14.

Navigation Equipment Upgrade for LY3:

Measuring Log and Echo Sounder.  Furuno FCV628 with console and crew mess repeater RD33.

GPS.  Furuno GP170 GPS Navigator with GPS antenna.

AIS.  Furuno FA170 Class A AIS Transponder with GPS and VHF antenna.

Bridge Navigational Watch Alarm.  Furuno BR500.

Rudder Angle Indicator.  Simrad RF45X.

Satellite Gyro Compass.  Hemisphere GNSS V103.

Autopilot.  Simrad AP70.

Magnetic Compass.  A magnetic compass with 6" card.

Central Navigation Display.  FT Nav-vision Navigation data display with trackball and wireless keyboard.

Communication Equipment Upgrade:

MF Radio.  Sailor 6310 MF/HF 150W Radio Telephone.

VHF Radio.  Sailor 6222 Class A VHF - DSc.

VHF Radio.  Simrad RS90 Class D VHF/DSc with Handsets in Wheelhouse, Fly console, Crew Mess and Emergency Steering Position.

Inmarsat C with LRIT.  Sailor 6110.

Navtex Receiver.  Furuno NX700B.

Handheld Portable VHFs.  2x Icom IC GM1600E and BP234.

EPIRB.  McMurdo E5.

SART.  McMurdo S4.

Flybridge Navigation Equipment:

2 x Hatteland Series X 15" Maritime multi Displays for Radar and Plotter.

Autopilot.  Simrad AP70.

Plotter trackball control.

VHF Radio.  Simrad RS90 Class D VHF/DSc handset.

Furuno ultra sonic wind sensor connected to the Central Navigation Display.

Entertainment Standard AV Package:

An integrated Sonos System will allow audio streaming throughout outside areas and saloon.  Audio streaming can be via any Apple or Android equipment with Wi-fi capability. Sonos Control App needs to be installed.  One tablet is supplied as standard.

1. Saloon AV - Samsung 55" HD LED 3D Television. Harmon Kardon 580 5.1 -3D Bluray surround system. Speakercraft Speakers x 5. Speakercraft Sub-Woofer. Sonos Connect wired to AV Receiver. HDMI and USB.

2. Master Stateroom AV - Samsung 55" HD LED 3D Television. Harmon Kardon 580 5.1 -3D Bluray surround system. Speakercraft Speakers x 5. HK Sub-Woofer. HDMI socket.

3. Starboard Aft Stateroom AV - Samsung 32" HD LED Television. Harmon Kardon 280 2.1-3D Bluray surround system. Speakercraft Speakers x 2. HK Sub-Woofer. HDMI socket.

4. Port Aft Stateroom AV -Samsung 32" HD LED Television. Harmon Kardon 280 2.1-3D Bluray surround system. Speakercraft Speakers x 2. HK Sub-Woofer. HDMI socket

5. Starboard Forward Stateroom AV - Samsung 32" HD LED Television. Harmon Kardon 280 2.1-3D Bluray surround system. Speakercraft Speakers x 2. HK Sub-Woofer. HDMI socket.

6. Port Forward Stateroom AV - Samsung 32" HD LED Television. Harmon Kardon 280 2.1-3D Bluray surround system. Speakercraft Speakers x 2. HK Sub-Woofer. HDMI socket.

7. Crew mess AV - Samsung 32" HD LED Television. Fusion DVD/CD/FM Tuner with Bluetooth function. Fusion Speakers x 2.

8. Captains Cabin AV - Samsung 22" HD LED Television. Fusion DVD/CD/FM Tuner with Bluetooth. Fusion Speakers x 2.

9. Each of the two Crew Cabins and the Wheelhouse have the following Audio. Fusion CD/FM Tuner with Bluetooth function. Fusion Speakers x 2.

10. Audio for Main Deck Aft Cockpit - Four Sonance VP65R XT Extreme Speakers. 1 x Speakercraft 8.2BAS Sub Woofer powered with Sonos Connect and amplifier.

11. Audio for the Flybridge Deck - Six Sonance VP65R XT Extreme Speakers. 1 x Speakercraft 8.2BAS Sub Woofer powered with Sonos Connect and amplifier.

12. Audio for Wheelhouse Deck - Four Sonance VP65R XT Extreme Speakers with Sonos Connect and amplifier.

Satellite Communication system. Sailor 800 VSAT 83cm KU band (6W BUC, 2x MB LNB) housed in 1m dome

Timber interior floors are fitted as standard in the wheelhouse, non slip floors in the servery and rest of the areas are carpet

Williams 565 Diesel Jet fitted in the garage (to standard specification)

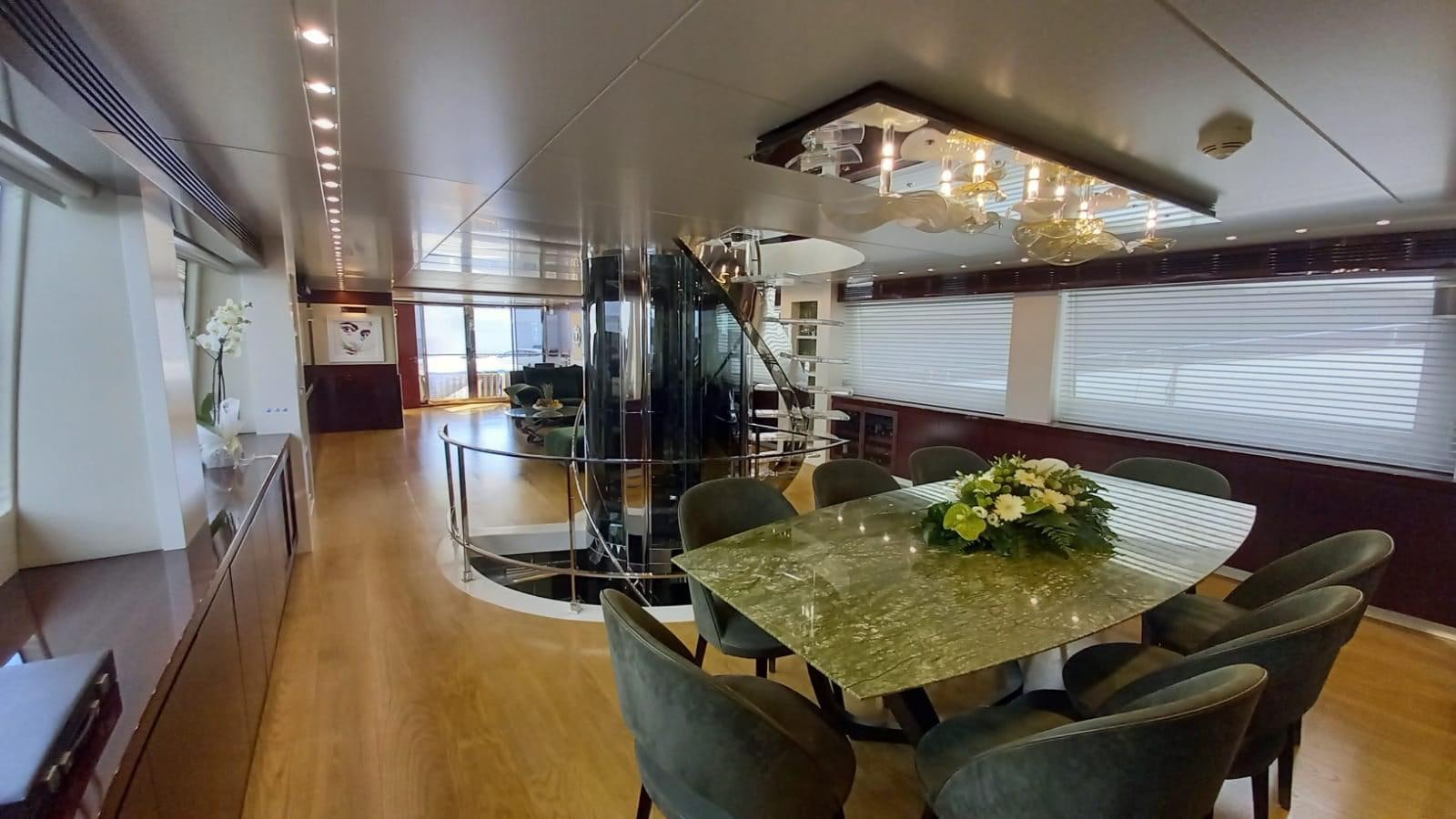

Lobby with timber floors, Saloon and Dining area flooring to be timber.

Two sail canopies held up on 6 poles on the foredeck area

Fit Trash Compactor in the galley

Stern Docking lights

Master cabin ensuites to have speaker linked to the cabin sound system

Galley/Servery:

Miele built in coffee maker in servery

Additional under counter wine cooler in servery - Miele KWT6321 UG Built in Wine Cooler. 34 bottles

Additional Miele refrigerator

Units - White Gloss

Counter top Black - Nero Assoluto

Flybridge:

Seating opposite the helm to have an  L shape

4 additional speakers to be fitted into the side mouldings of the sunpad

Two Kettal three seater sofas from Boma range

Two customized Poufs

Teak coffee table to be fitted between sofas, fitted loose

Bar to be locate between the new servery location behind helm seats and the forward end of the stbd sofa. Move the bar unit as far out board as possible, trying to achieve a minimum of 80cm between the open dining table and the back of the bar stool - See GA

Fit the modified 155 bar unit in white GRP ( a cut down version, to fit in the same floor space). Stainless foot rest required around the bar attached to the bar. Charge for the foot rest

L shaped seating on the port side, 40 cm high to top of cushion (90cm deep)

Two open and rotating tables to give a total length of 240cm x 120 cm. When closed gap between the two table tops to be 35cm. 65 cm high, to be fixed height. Charge for additional table.

Sunpad to be 2.1m x 2.1 m with fold up back rests to face forward and back. Drinks holders to be fitted to the sunpad

Foredeck:

Fit two speakers in the side combings or in an area forward close to the hot tub

Cockpit:

Custom bar unit. To contain refrigerator 80 litre and icemaker with corian/avonite su

Have Questions?

Ask our experienced sales brokers about this yacht

Related Yachts for Sale
