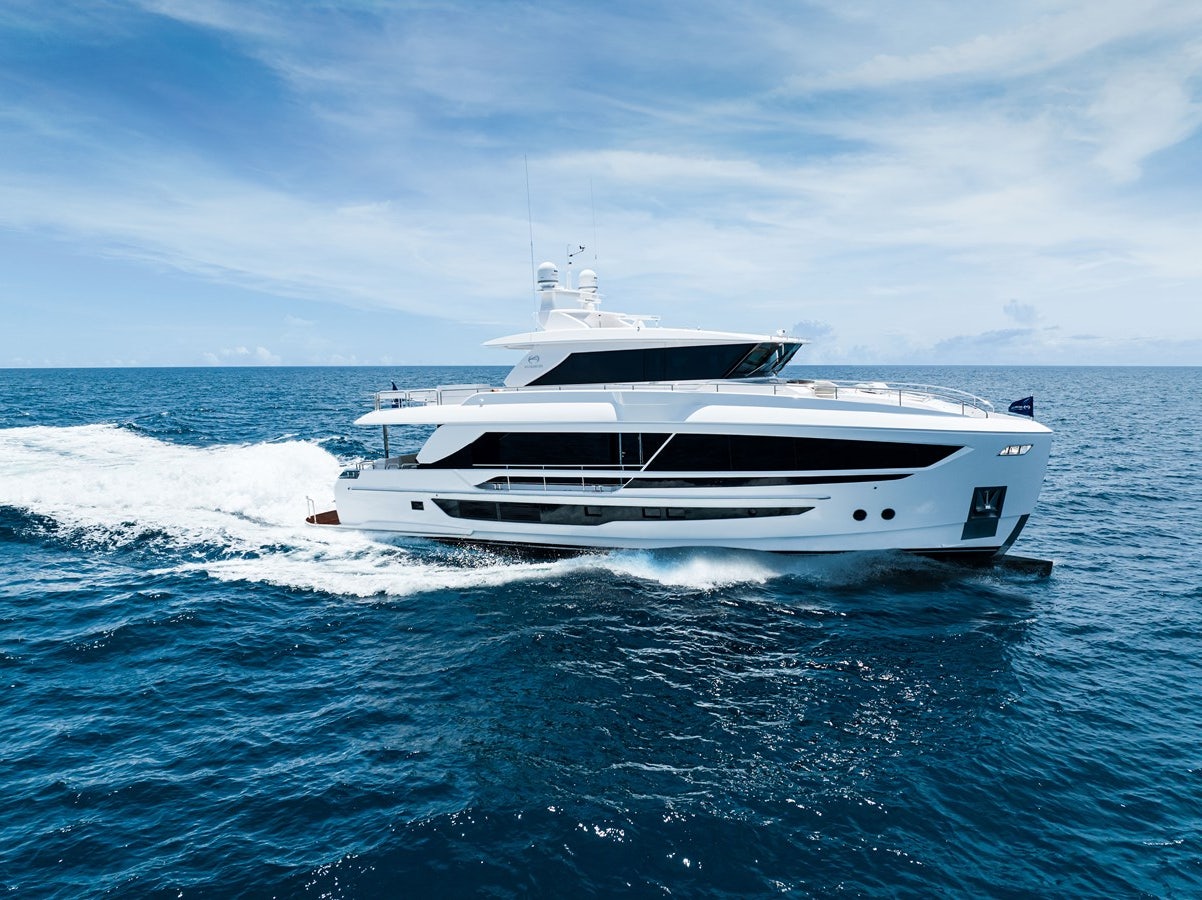

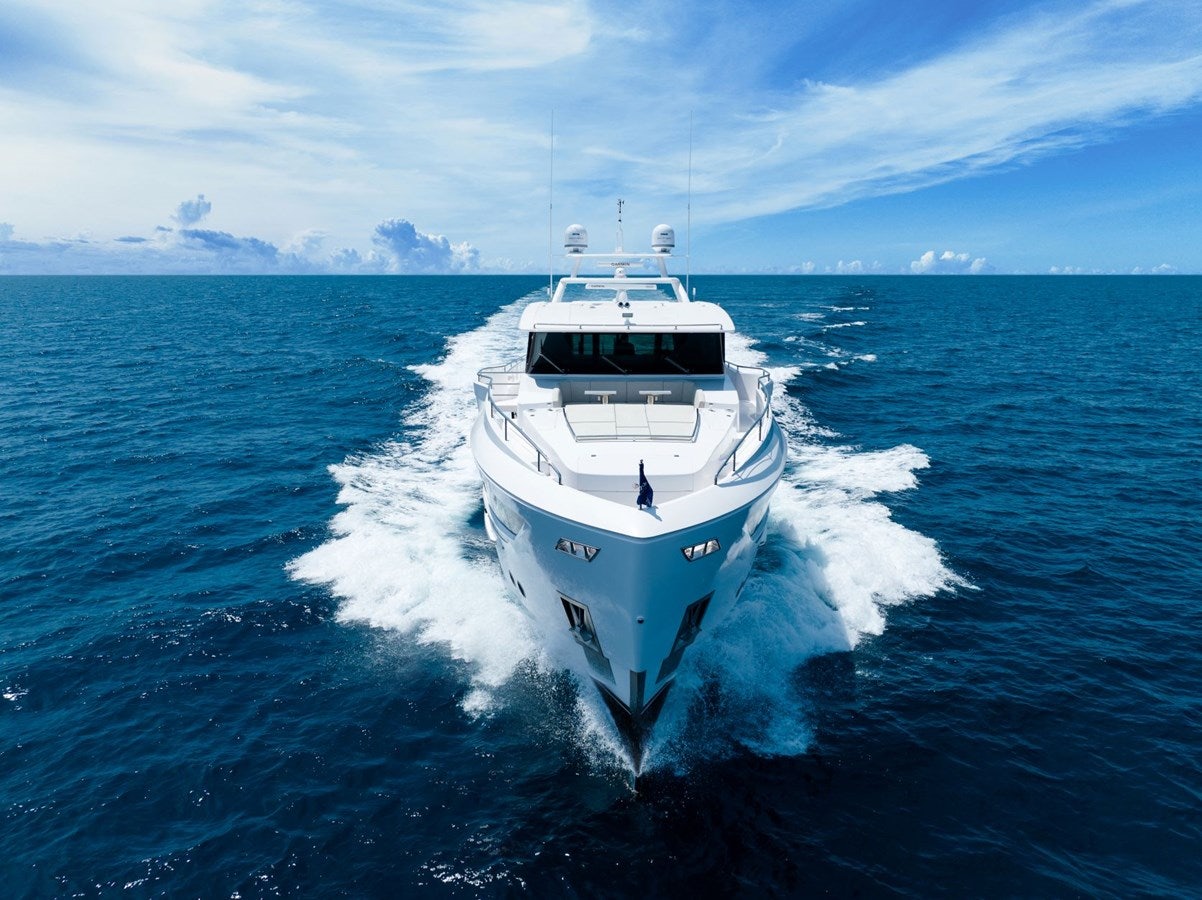

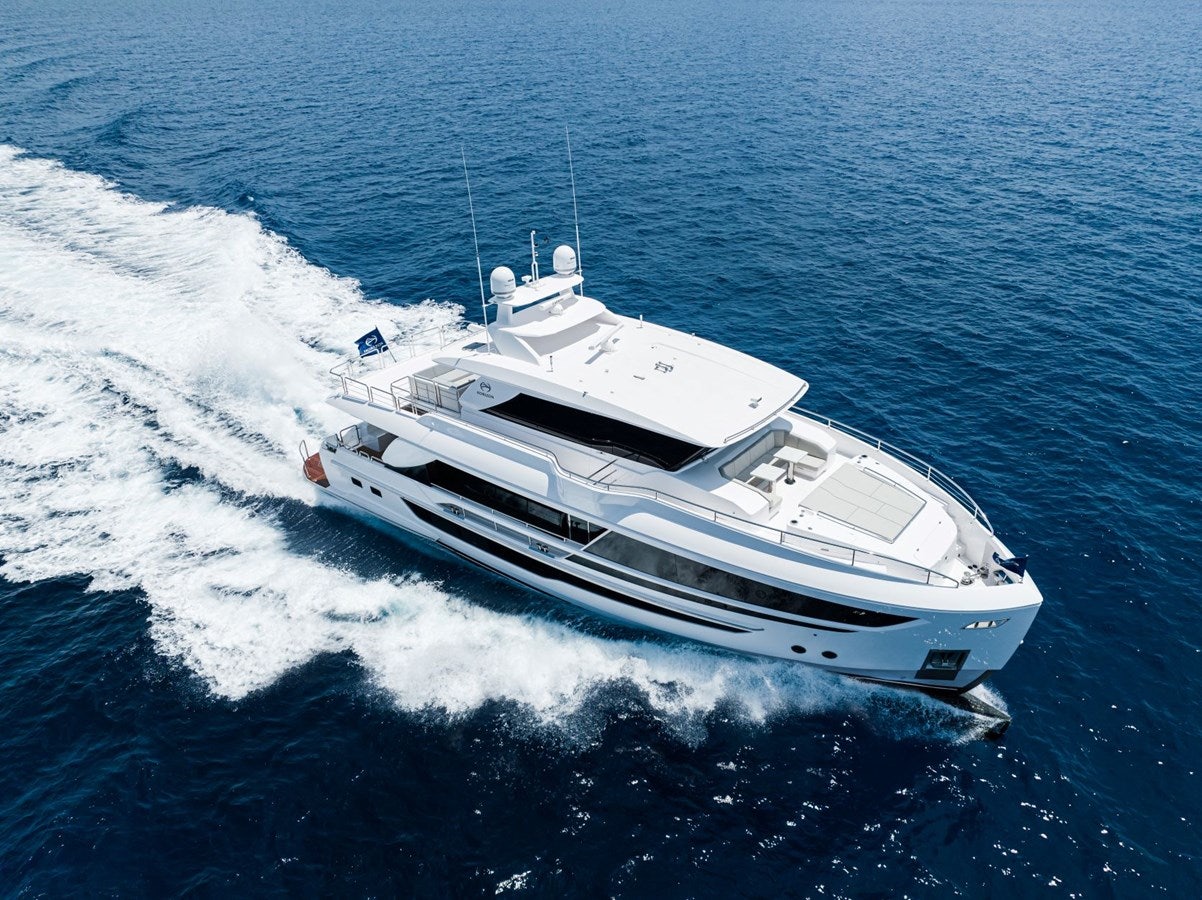

FD80 608 Yacht for Sale

80' (24.38m)

L.O.A.: 80’ 7” (24.18 m)

L.W.L.: 70’ 9” (21.57 m)

Beam: 22’ 8” (6.91 m)

Max Beam (with bump out): 23’ 8” (7.21 m)

Draft (half load): 5’ 11” (1.82 m)

Displacement: 91.9 tons (202,600 lbs.)

Fuel Tank: 2,700 US gal (10,220 L)

Water Tank: 400 US gal (1,500 L)

Engines: Twin MAN V8 1300HP

Generators: 2 X Onan 29kW (60Hz)

Beach club + hydraulic swim platform

Headhunter sanitary system

Side-Power zero speed stabilizers

Side-Power bow and stern thrusters

Steelhead davit ES1500

Dometic watermaker 1200 gal/day

Reverso fuel polishing system

Octoplex + Maretron systems

Four Ensuite staterooms, including on deck master + 2 crew cabin

Inquire Now


Length 80 FT (24.38 M)
Beam 22 FT (6.91 M)
Draft 6 FT (1.8 M)
Builder Horizon
Year Built 2022
Construction Fiberglass
LOA 80 FT (24.38 M)
LWL 71 FT (21.56 M)
Beam 22 FT (6.91 M)
Min Draft 6 FT (1.7 M)
Max Draft 6 FT (1.8 M)
Water Capacity 1,514 Liters
Fuel Capacity 10,221 Liters
Hull Material Fiberglass
Details for FD80 608 Private Luxury Yacht For sale

Full Specifications

Frameless windows w/ clear tempered laminated low-E glass for windshield

Frameless windows w/ tinted tempered laminated glass for side windows

Heavy duty 1-3/4” handrail with 1- 1/2″ S/S stanchions and steel cables

Forward and aft deck hawsers (4 total)

Nonskid side decks and bow deck

Foredeck accessed from stbd staircase/walk around on main deck

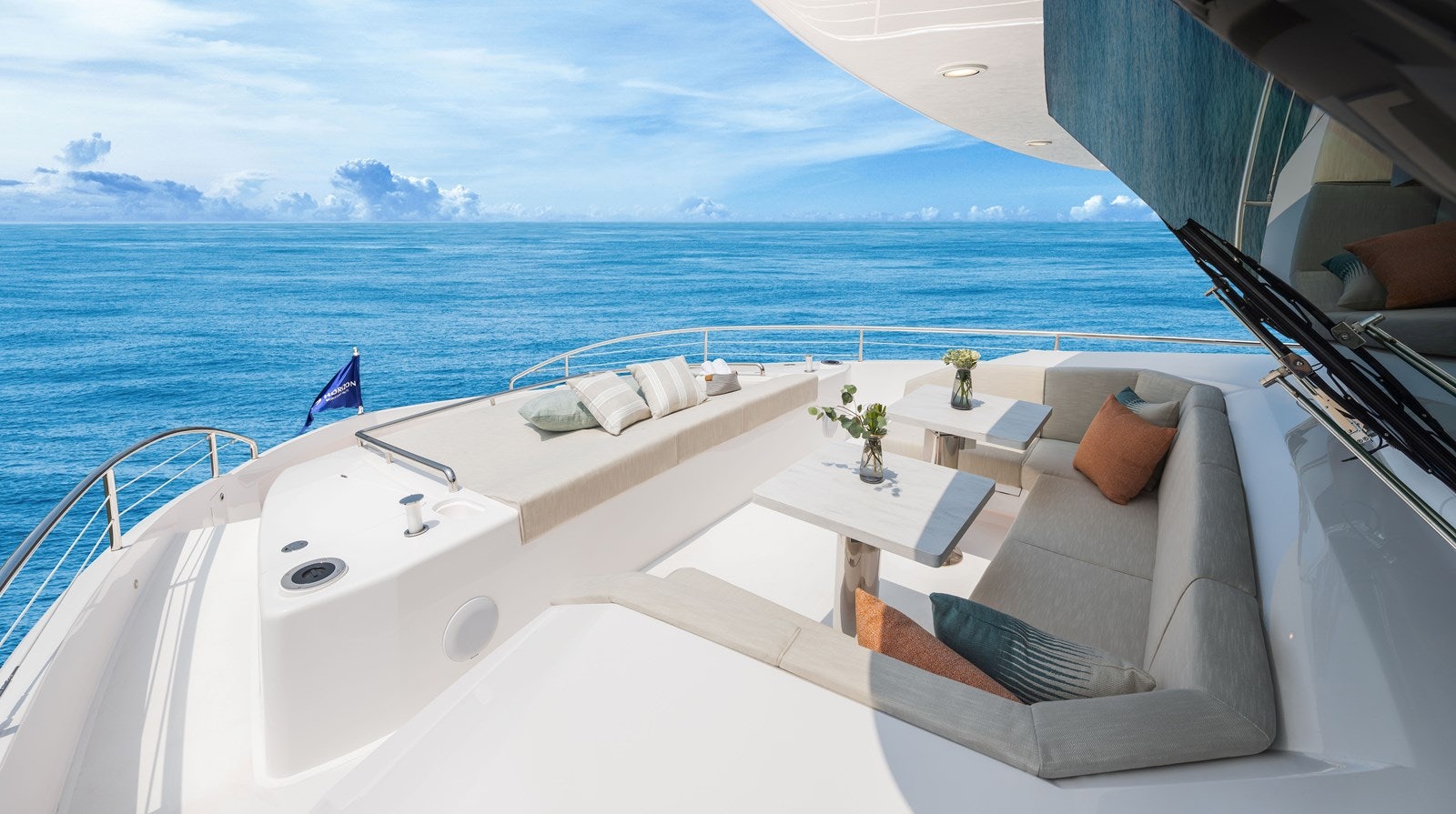

Foredeck built-in U shape seating w/ sliding table

Foredeck sun pad w/ drink holders (& sunpad cushion to cover skylight)

Sun awning to forward bridge sofa seating and F/B boat deck, total 2 sets

Pop-up LED lights

Freshwater and seawater washdown system

300 ft high tensile ½” anchor chain w/ rollers and devil’s claw stoppers

Two 200lb S/S pocket anchors

(2) Maxwell VWC3500 winches

Pre-engineering for two Maxwell VC2500 electrical rope capstan

Bulwark side doors close to aft deck for boarding

Upgrade the salon entrance door to 3-panel folding sliding door

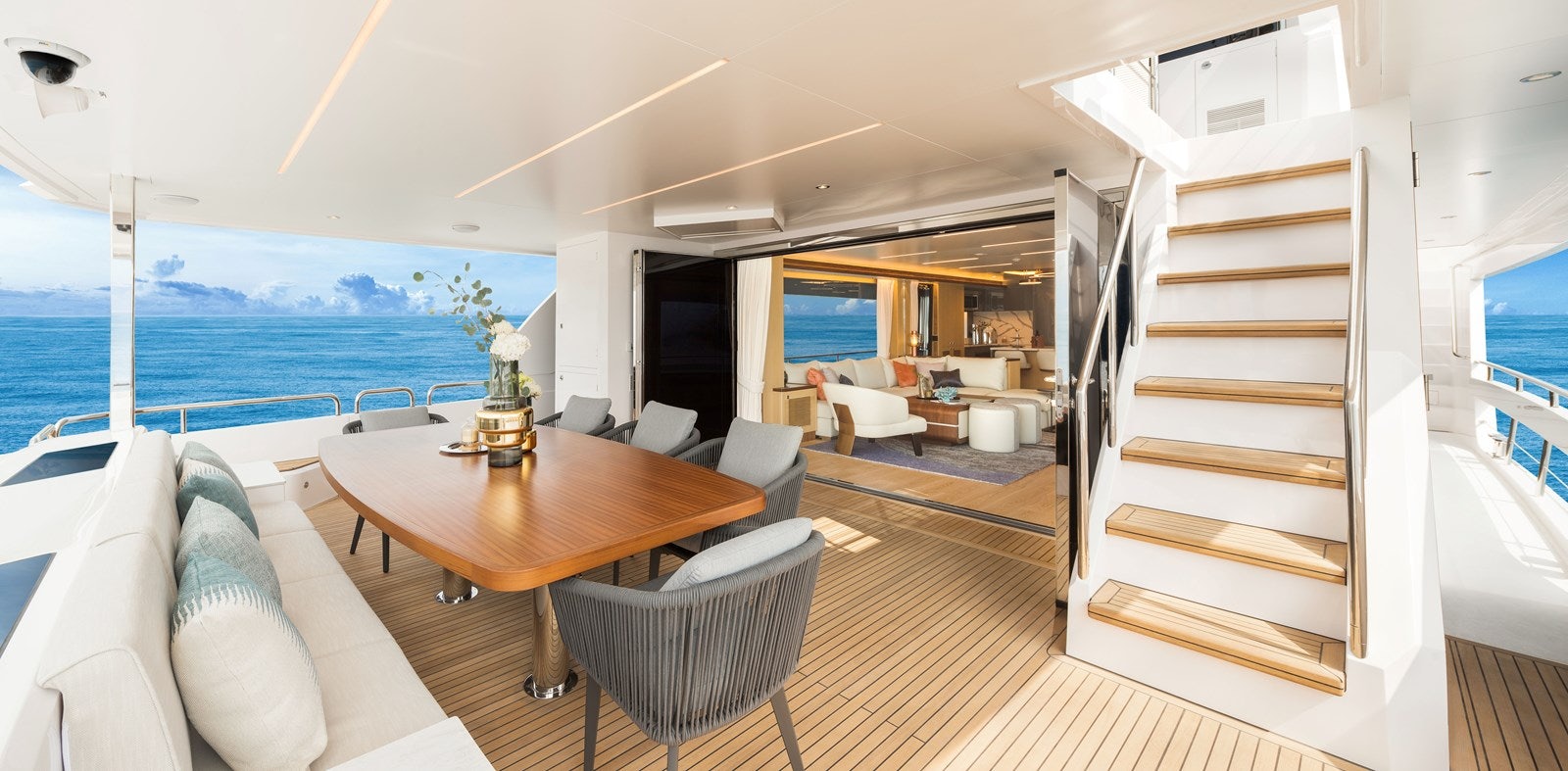

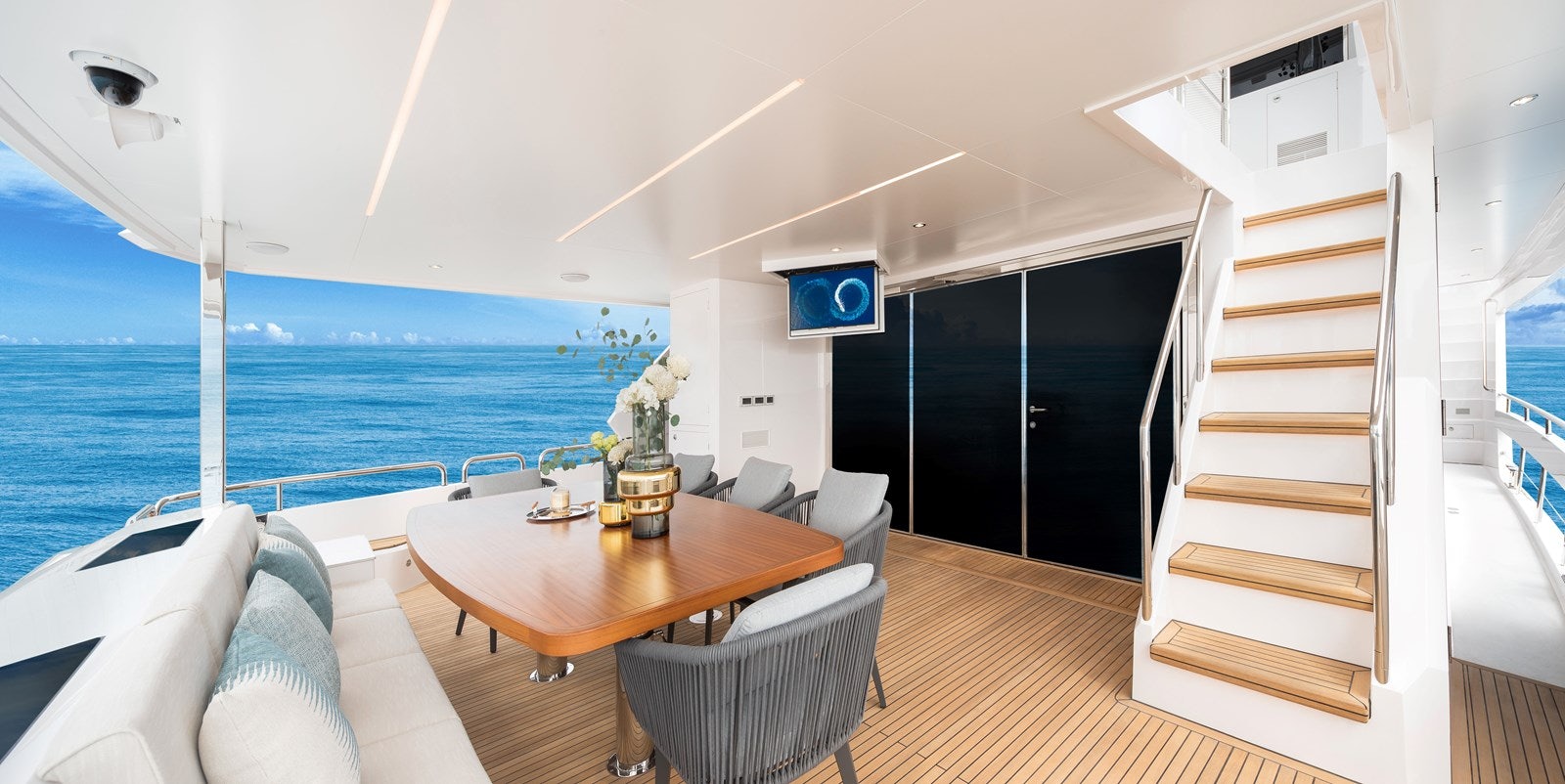

Teak aft deck, teak swim platform and teak steps to swim platform

Dayhead on aft deck

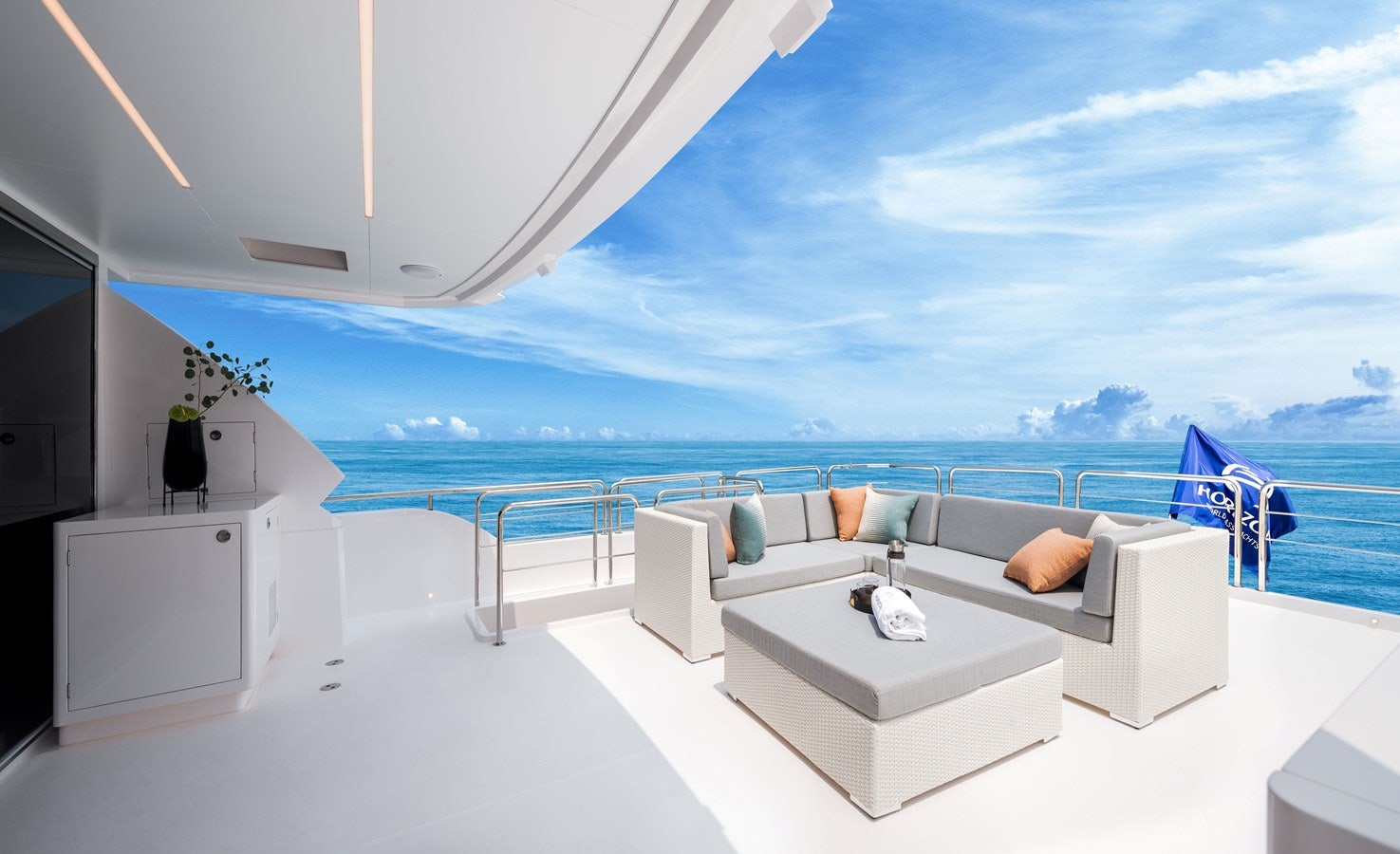

Built-in aft bench seating

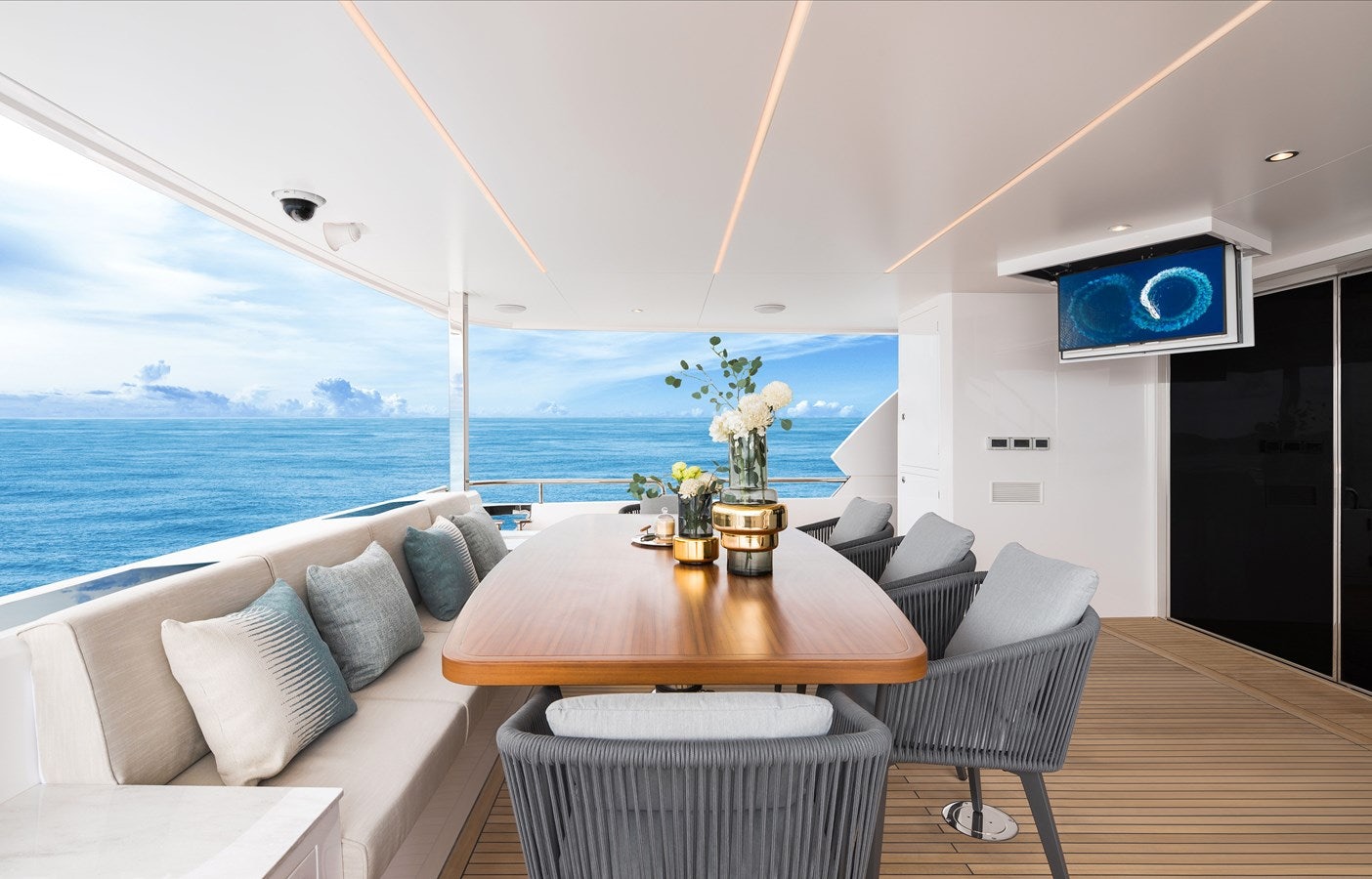

Hi/Lo table and loose chairs – two sets of table leg sockets for extended table positioning

Refrigerator on port side

Glass windows on aft deck seating top, for light into beach club

Wing/weather doors to port & stbd, leading to side decks

Electric flip down 32” TV in ceiling

Pre-wired for LED boat name on stern

Sonos stereo system w/ Fusion speakers

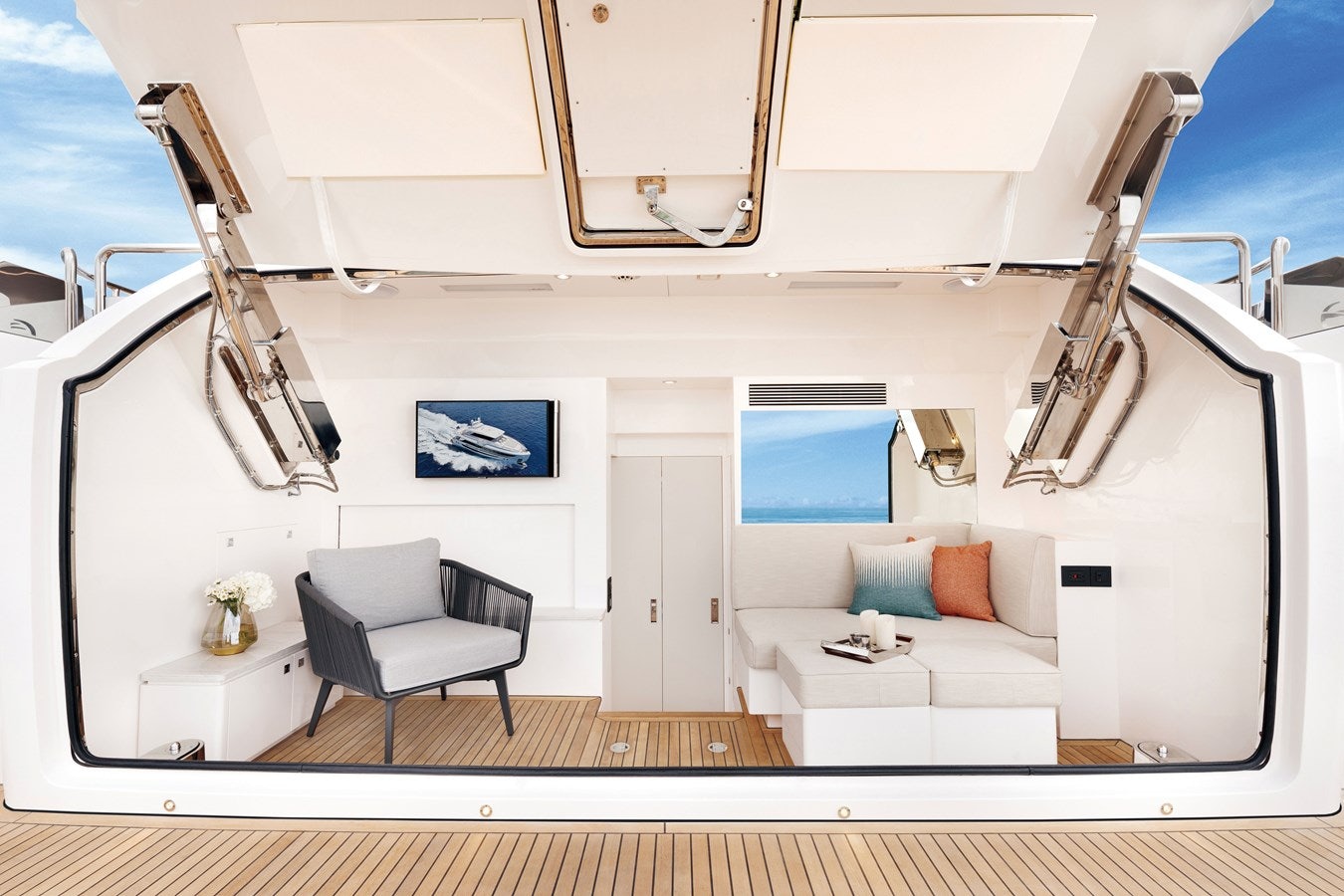

Hydraulic full-width stern door w/ pantograph door in the middle

Added electric hi-lo partition between crew galley and the beach club

Sofa seat w/ table as per layout

Hydraulic Hi-Lo swim platform with 1500lb capacity

(2) Pop up cleats on swim platform

Built-in shower w/ hot/cold water above swim platform

(2) Removable corner rails w/ extra sockets on fixed platform section

32” Samsung LED TV

Fusion marine stereo w/ speakers

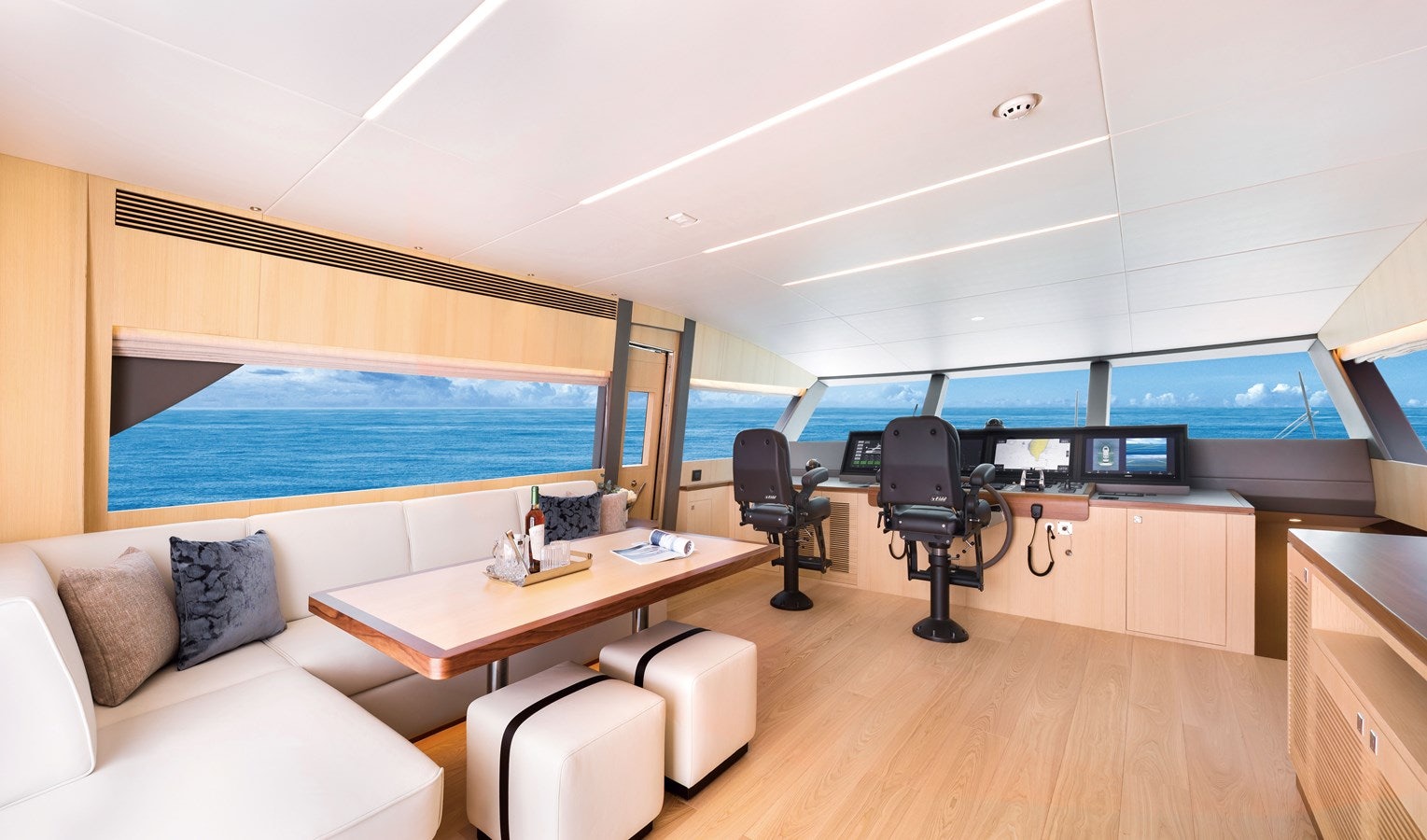

Skylounge design w/ sofa, table, ottomans, dayhead, (2) STIDD helm chairs at helm & 49” Hi/Lo TV

Custom designed helm w/ full set of engine gauges, monitoring system for important equipment, fuel & water gauges, Ritchie Supersport magnetic compass, surveillance camera system (PTZ cameras for aft deck & engine room), bilge pump panel & navigational lights, & chain counter (one per windlass)

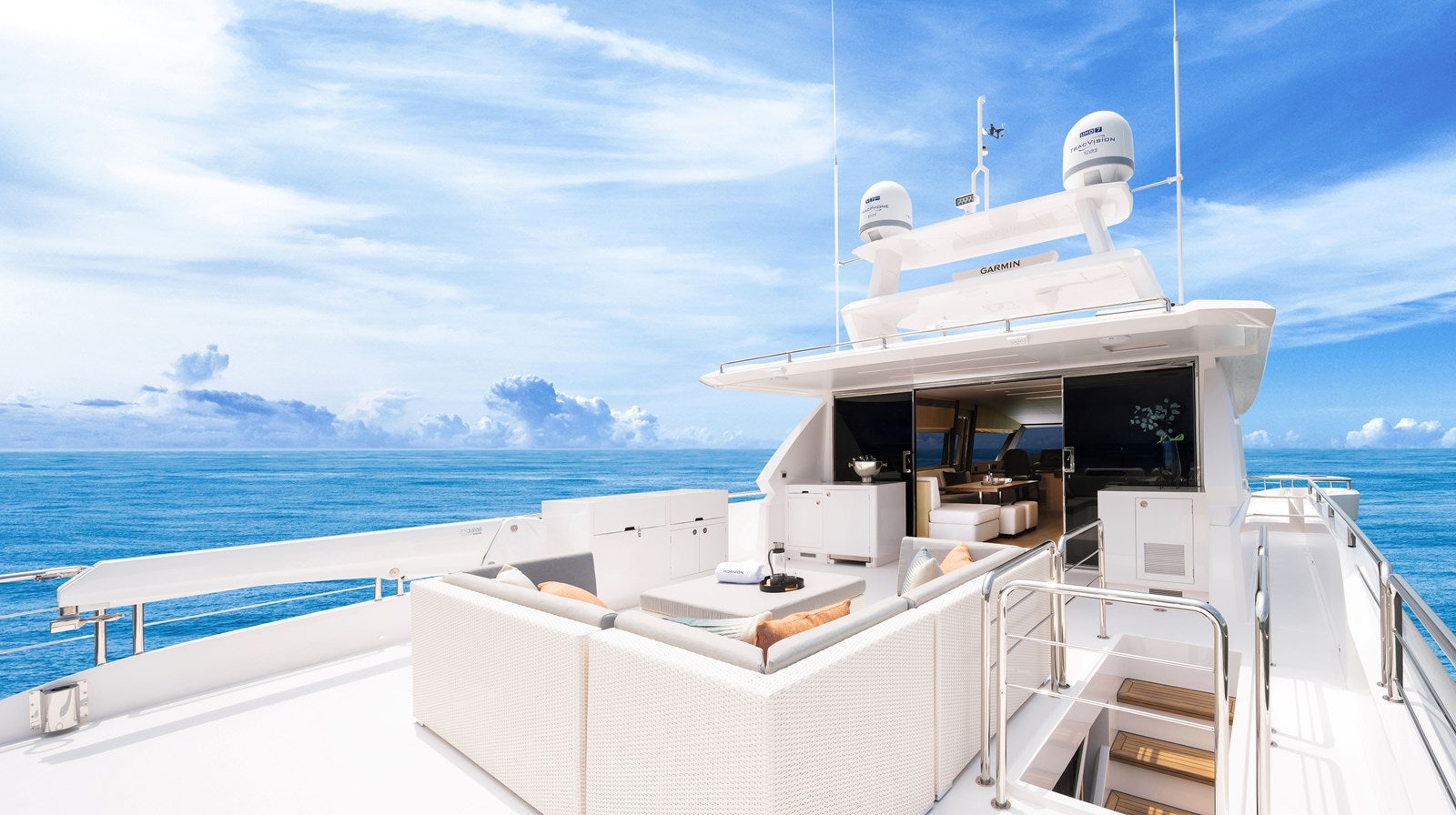

Multifunctional sunpad on boat deck that can convert into L-shape sofa and table with cushions, also including prewiring and pre-engineering for jacuzzi

Sonos stereo system w/ Fusion speakers

Non-skid boat deck

Walk-around bridge design – port side bridge leads forward to bow deck

Vitrifrigo S/S refrigerator/freezer, sink + Vitrifrigo icemaker per layout

24” propane BBQ w/ Hi-Lo stand and propane storage, in custom cabinet

Sunshades, per layout

Hydraulic Steelhead davit ES1500 with reinforced structure

Oversize drains w/ strainers on each corner w/internal overboard drains

(1) Hatch on hardtop w/ a ship-loose retractable ladder

Radar arch w/ antenna bracket

(4) Flood lights total – (2) on mast & (2) on boat deck

(2) Search lights

Chrome-plated air horns on top of radar arch

Pre-wired for LED boat name on port & stbd flybridge sides

Twin MAN V8 1300HP diesel engines

Engine mounts on S/S engine bed bonded to FRP hull girder

Engine alarm system as per engine standard

Remote control (w/ throttles, gears & thrusters) with plug on aft deck; extra plug at helm

Engine controls

S/S Shafts Aqualoy 22HS w/ Sea Torque system

High performance S class 5 blade propellers

Hypro or equivalent power steering system

S/S emergency tiller in rudder cabin

Underwater exhaust system for engines w/ bypass mufflers

Main bronze strut w/ backing plate

Side-Power zero speed stabilizers

Side-Power bow and stern thrusters

(4) Zipwake interceptors w/ optional Garmin GPS antenna

Delta T engine room ventilation system

Heavy-duty insulated engine room door

S/S grab rail on each side of engine

Engine room LED ceiling lights

Air compressor

Pre-plumb and pre-wire for dive compressor (Bauer Junior II)

ER strainer plumbing with cross over line and freshwater flush

2,700 Gallon (total capacity) fuel tanks w/ sight and electric gauges

Dual Racor 75/1000 MA fuel filters/water separator, each engine

(2) Electric fuel transfer pumps

Reverso FPS210 fuel polishing system

Oil change pump systems for engines, gears, & generators

(2) Racor 500 MA Fuel filters

400 Gallon FRP water tank

Marine Grade lines for freshwater system

(2) 20-gallon water heaters

Dometic watermaker 1200 gal/day

High Volume AC Fresh water pressure pump & back up DC pump

Freshwater charcoal filters plumbed into freshwater line: freshwater pump, shore water inlet, galley

Marine Air chilled water air conditioning system

Backup A/C sea water cooling pump (ship loose)

Hot water circulation pump

Tecma Silence Plus toilet system

100 gallon holding tank w/ “Y” valve & deck fitting for dockside pump out

Sump pumps system for grey water

Electric level indicators for holding tank

Headhunter sanitary system

Electric Rule bilge pump

(2) Manual bilge pumps in ER & forward staterooms

High water level bilge pump

Bilge exhaust ventilation fans

Fire insulation in ER

Fire resistant treatment for pipe penetrations

(4) Portable fire extinguishers

Automatic fire damper system

Integrated fire system in skylounge

LED lighting system throughout interior & exterior

(2) Onan Generators 29kW (60Hz) with sound shield

Maretron monitoring & control system

Octoplex multiplexing power distribution system

(2) Glendinning 100Amp shore power cable masters, each w/75’ power cable

(2) Shore power Acme ISO boost transformers

(4) Lifeline 255 Ah start batteries for engines/generators w/ battery chargers

(4) Lifeline 255 Ah AGM batteries for ships DC24V power w/ combined inverter/chargers

GFI protection for all AC outlets in exterior, heads, galley, and engine room

Electrolysis bonding system

Cathodic protection with zinc anodes for shafts, struts, etc.

(6) Underwater lights

Additional USB chargers and outlets aft deck, boat deck, bow seating, master and beach club

Guest accommodations include on-deck master stateroom, fwd.bow VIP cabin, port VIP cabin, and stbd twin guest room, all Ensuite

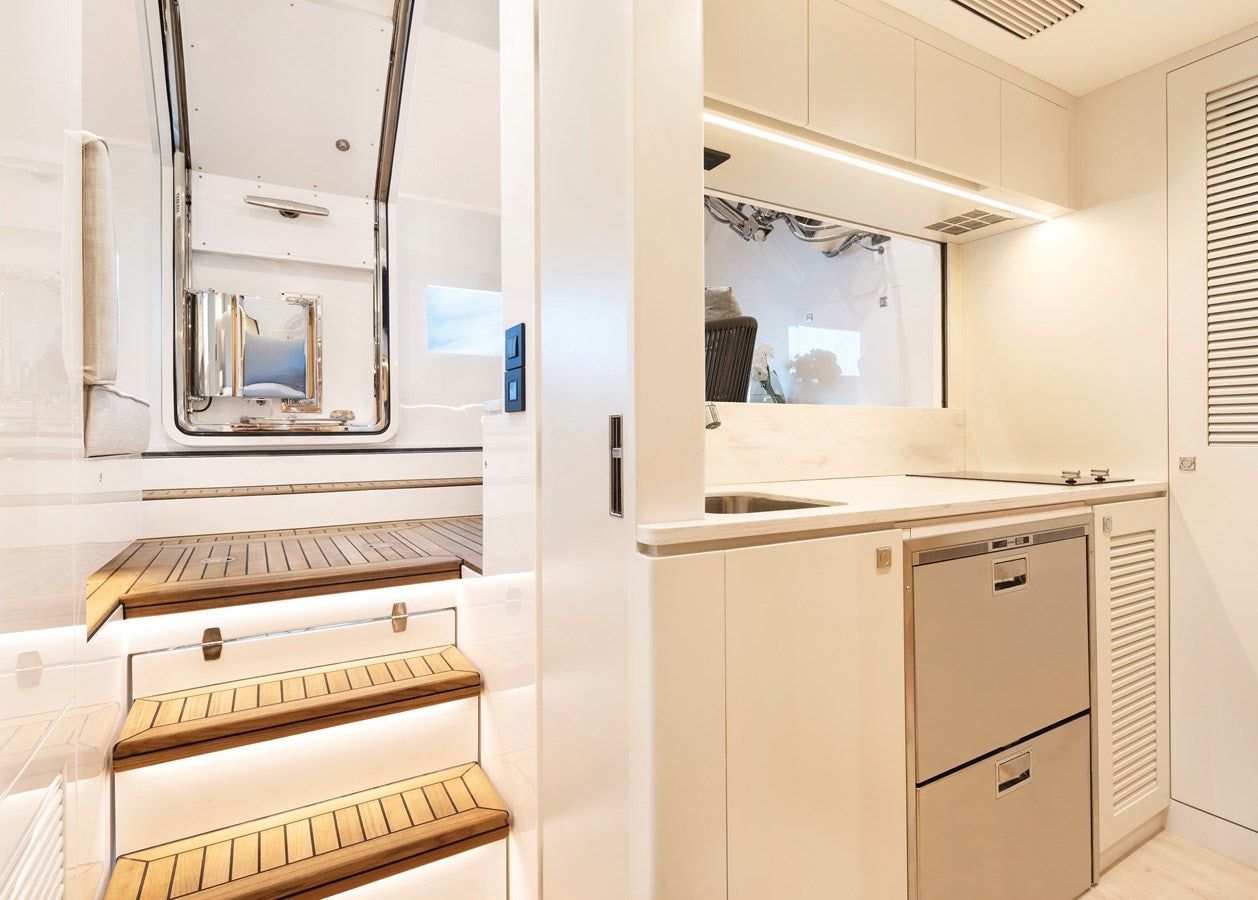

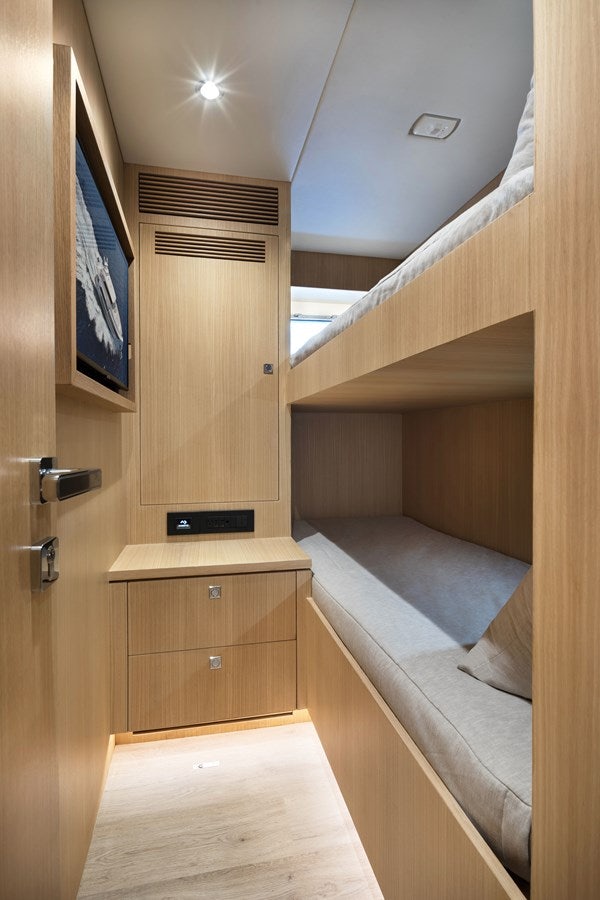

Crew area has port and stbd crew cabins, full head & crew galley, w/ access from salon and transom

Main wood: White Oak in satin finish, with Walnut accents in satin finish

White oak flooring in skylounge, main deck and companionway; Fabrica carpet in guest staterooms and Cambria quartz in guest heads and dayhead

Customized interior package for interior décor & lighting

Full set of Horizon logo galley tableware for 10, including dish holder, pot/pans, dishes, plates, knives, forks, glasses, etc.

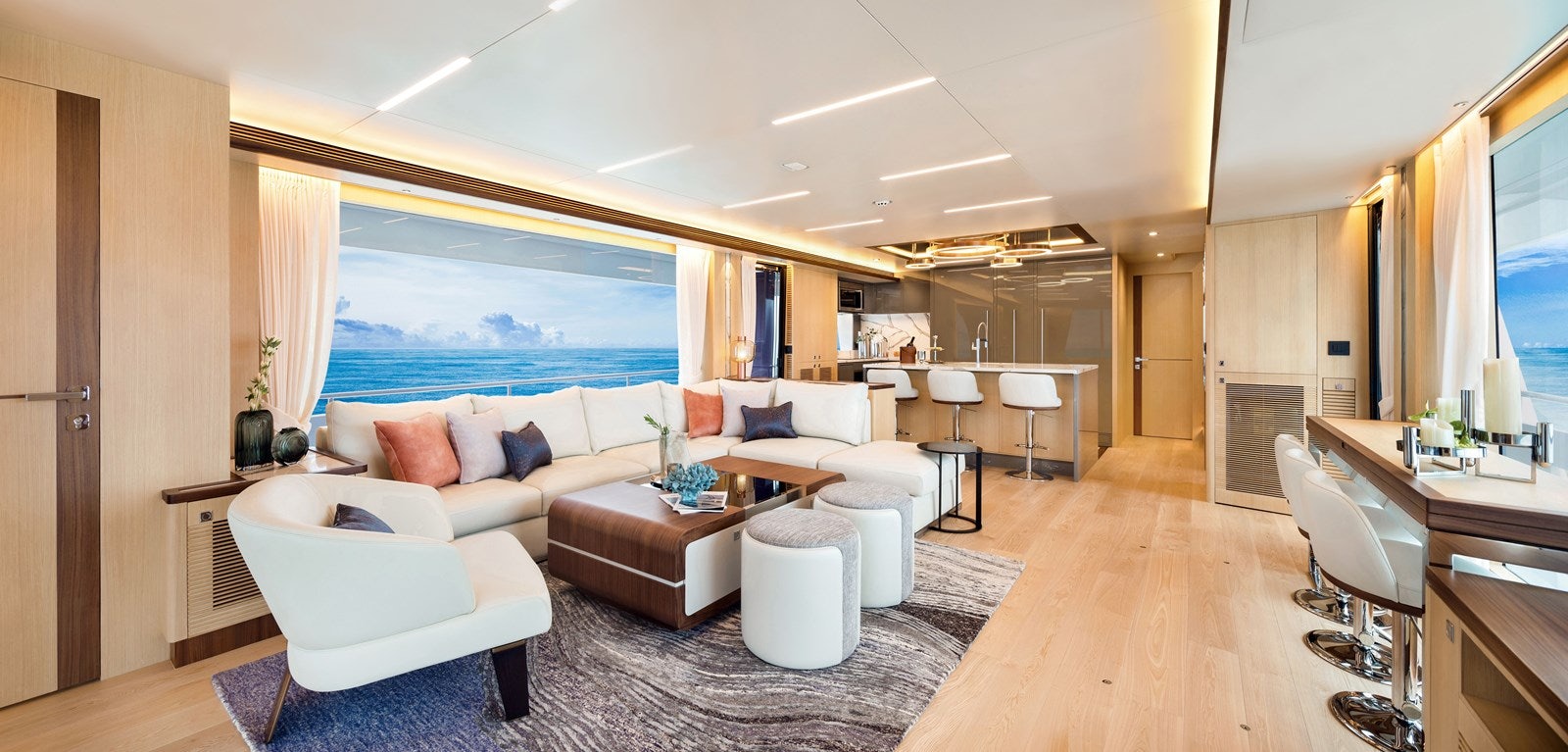

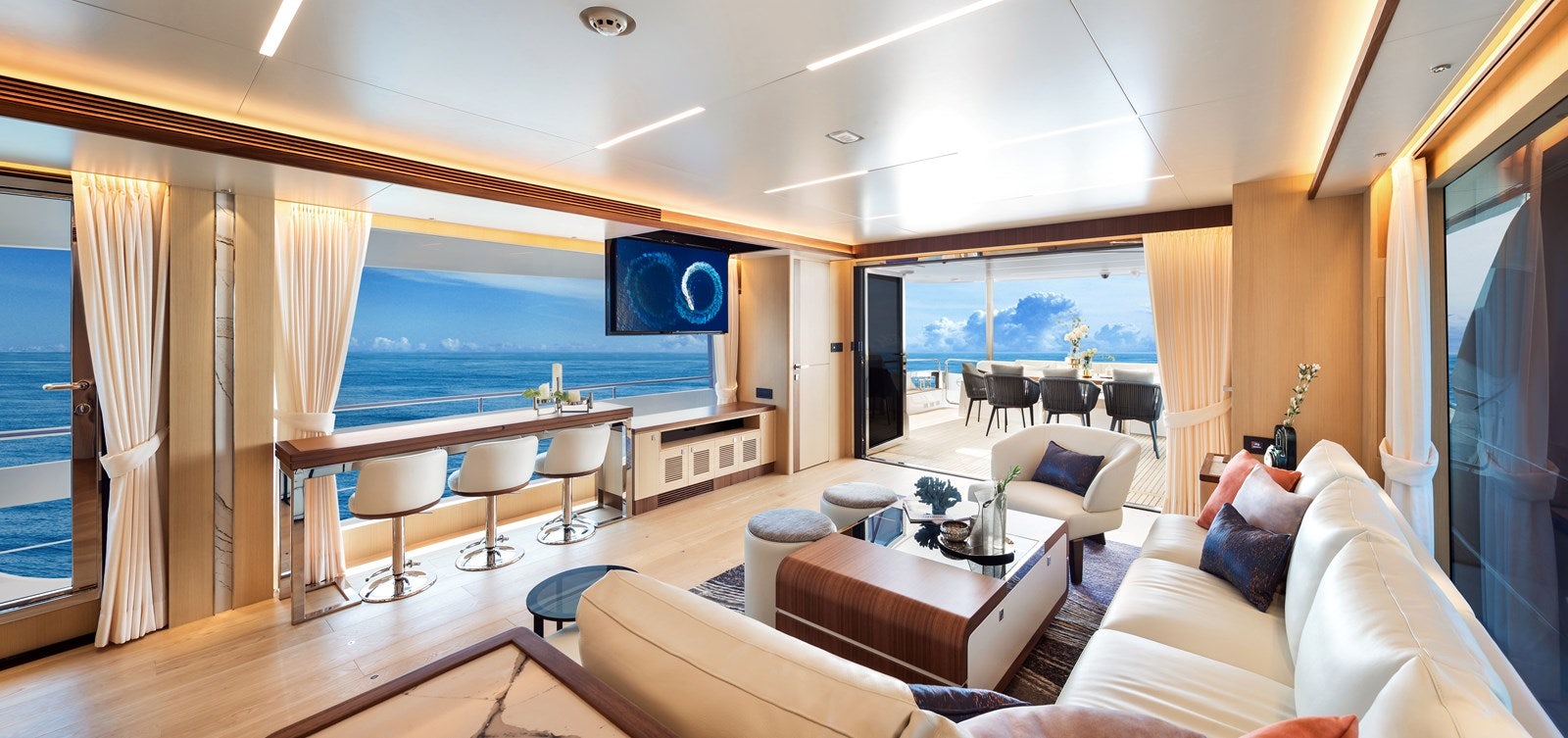

3 panel folding and sliding salon door

Hinged opening doors to port & stbd

Full-height windows in main salon aft

Electric single-treatment curtains

Dayhead in main salon aft

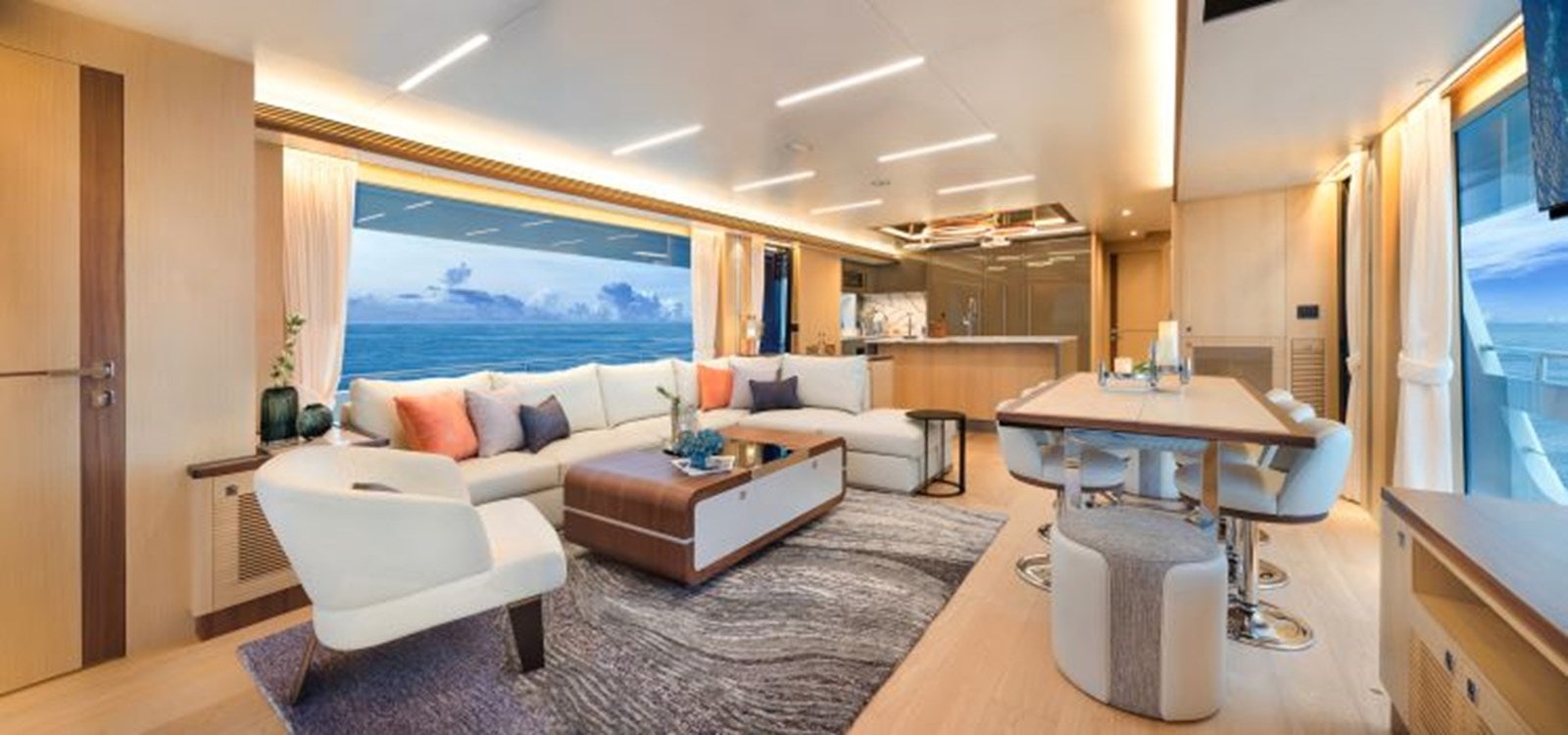

L-shaped leather sofa w/ storage underneath

Custom area rug

Coffee table w/ ottomans

Port side buffet cabinet

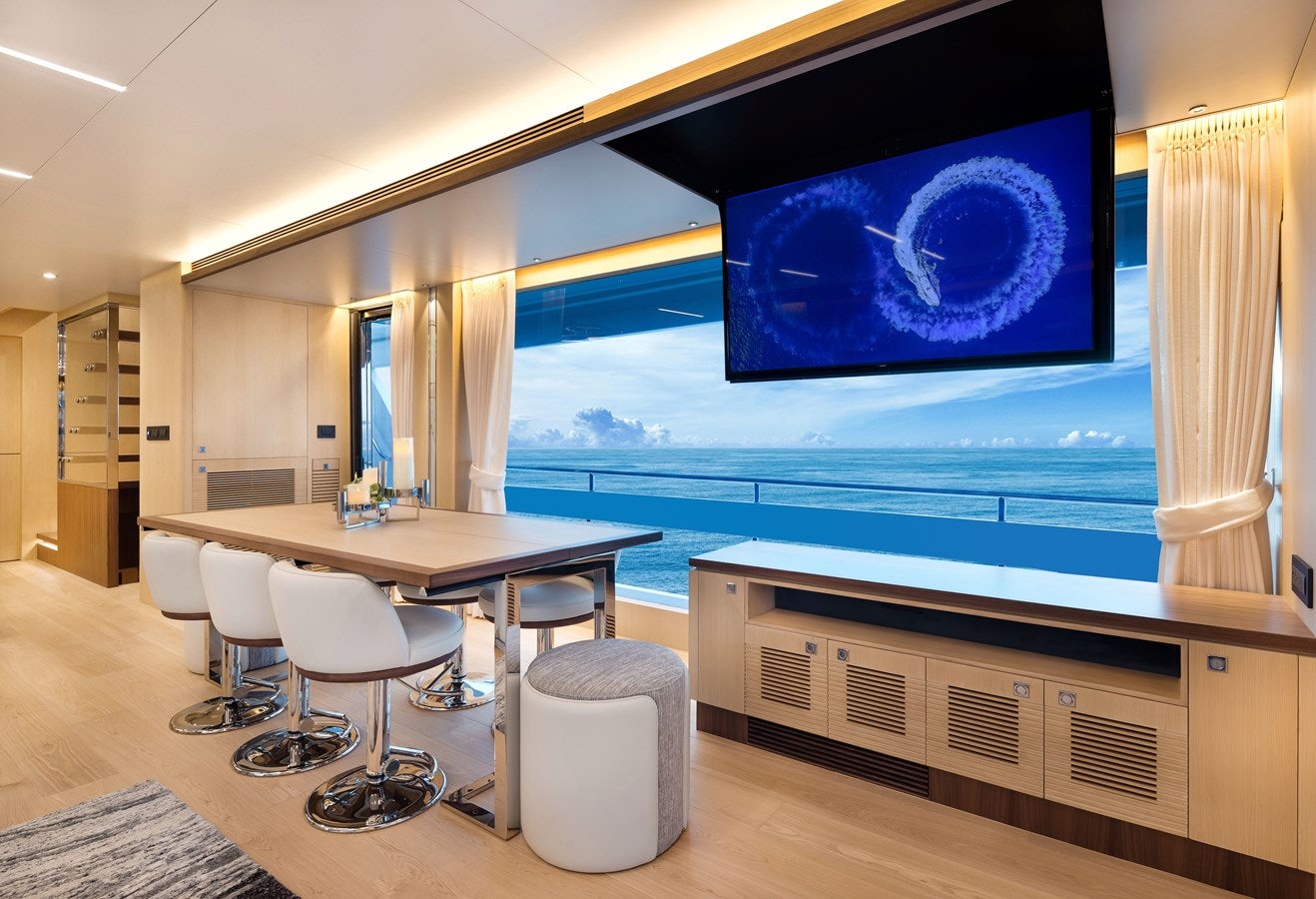

Convertible folding dining table & bar stools, per layout

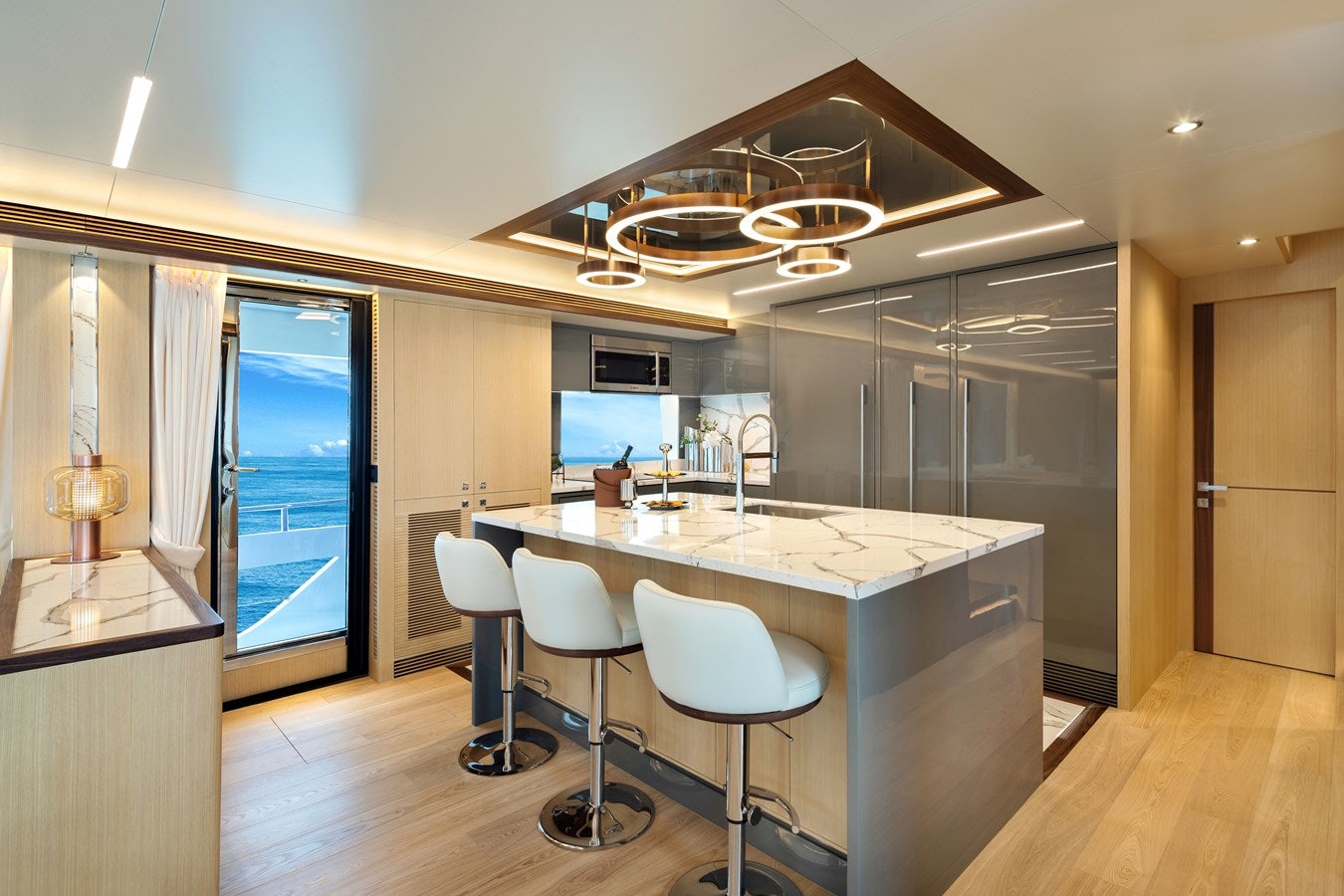

Breakfast bar design

U-Line wine cooler

55” LED TV, fold down from ceiling

Bose soundbar 700 home theatre system

Blu-ray player & Apple TV

Storage lockers per layout

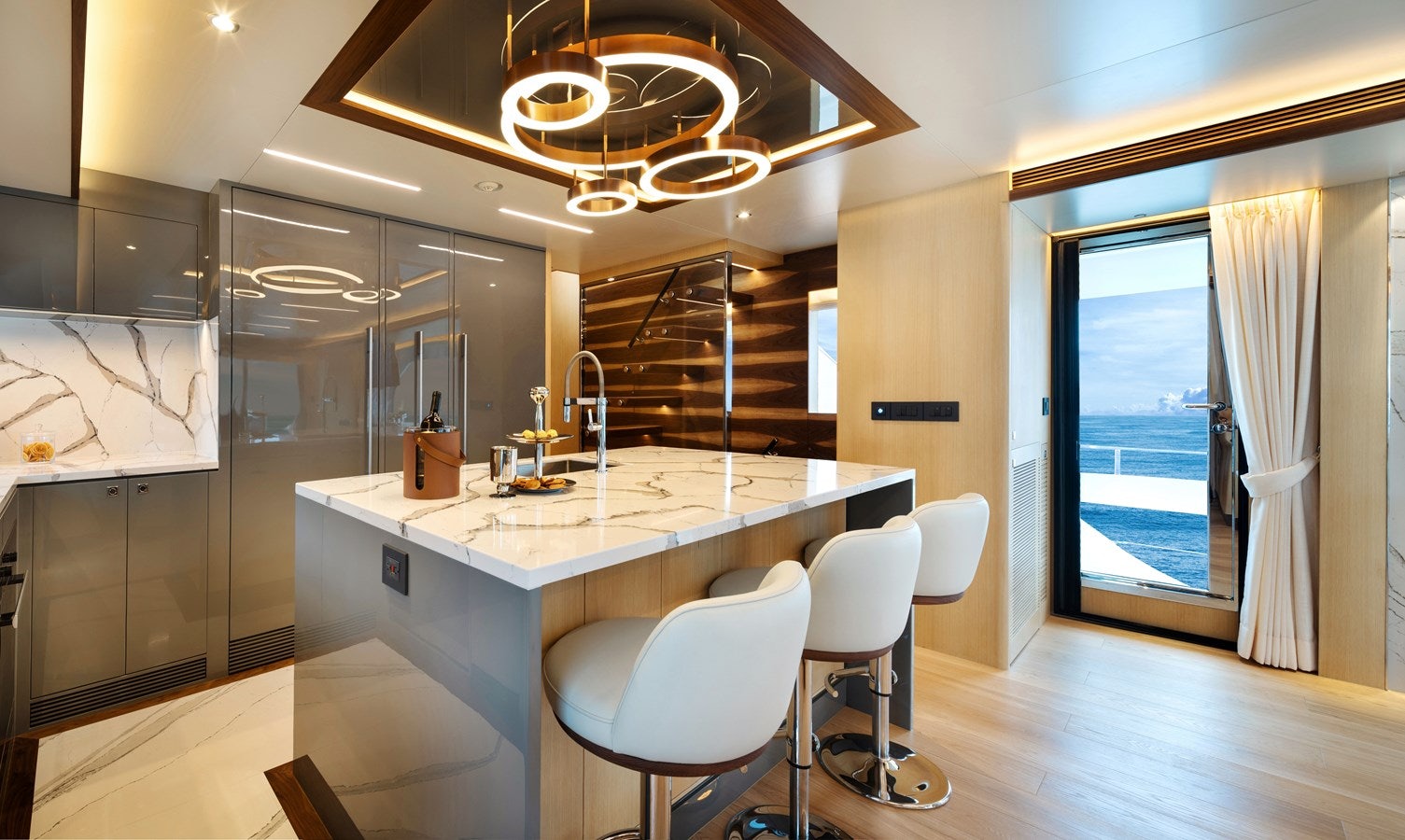

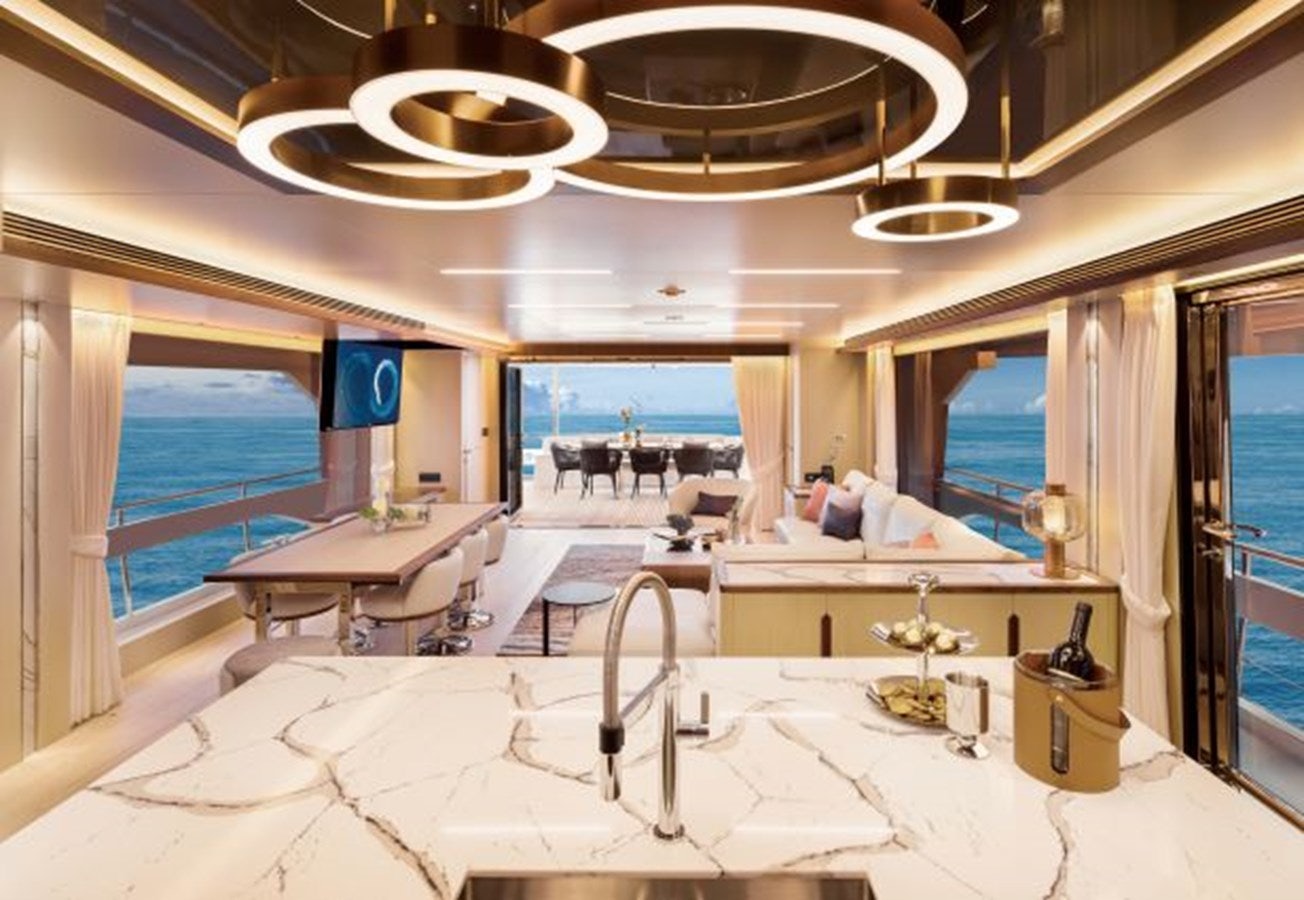

Cambria quartz countertops & floor

Sub Zero full height refrigerator w/freezer drawers & ice maker

Pantry w/ Sub Zero freezer drawers’ underneath

Miele oven & cook top

Bosch microwave & range hood

Miele dishwasher

Franke double sink w/ garbage disposal

Kitchenaid trash compactor

Hi-Lo privacy screen between galley & salon

Toe kick step stool under cabinet at the galley island

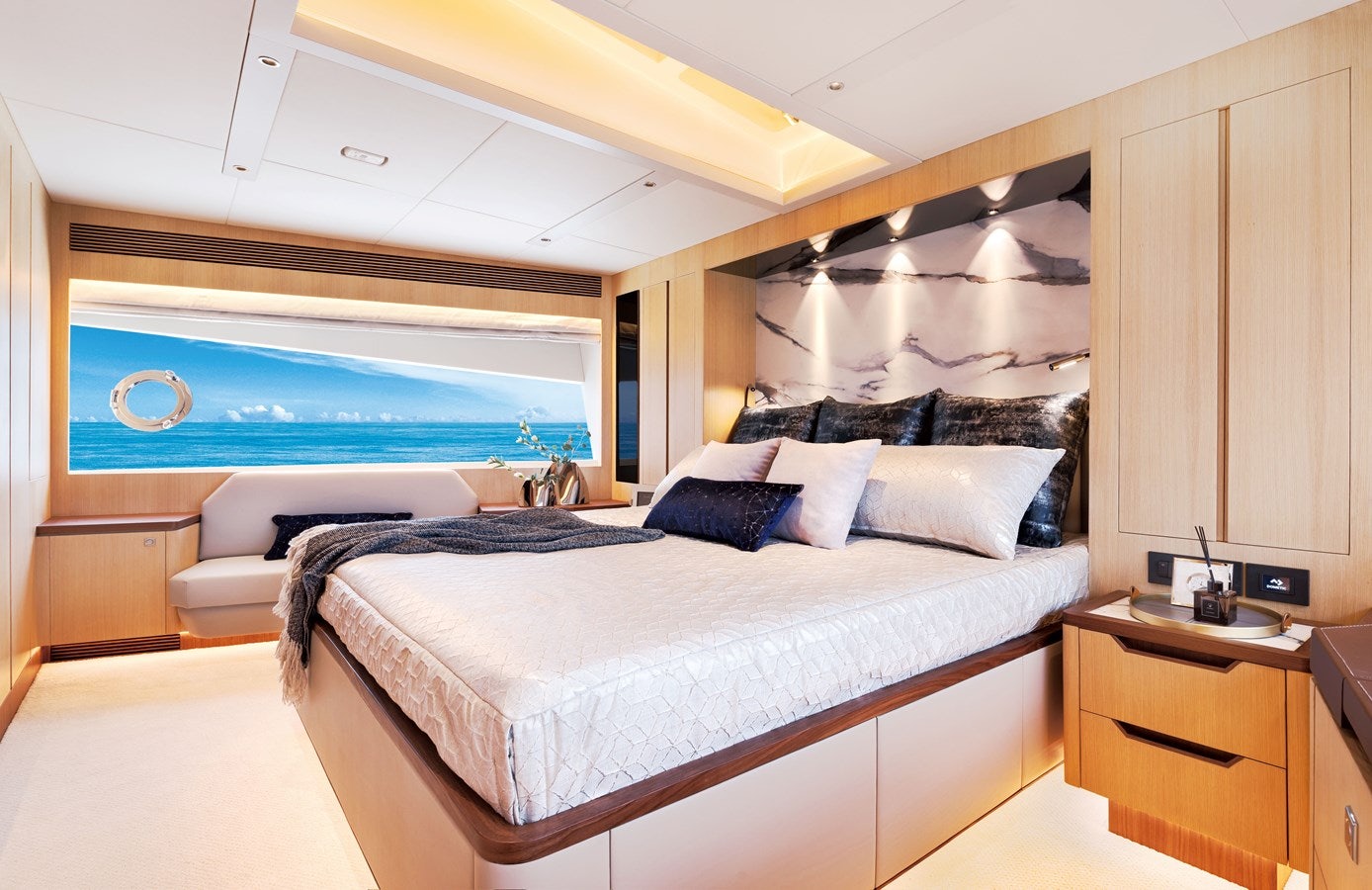

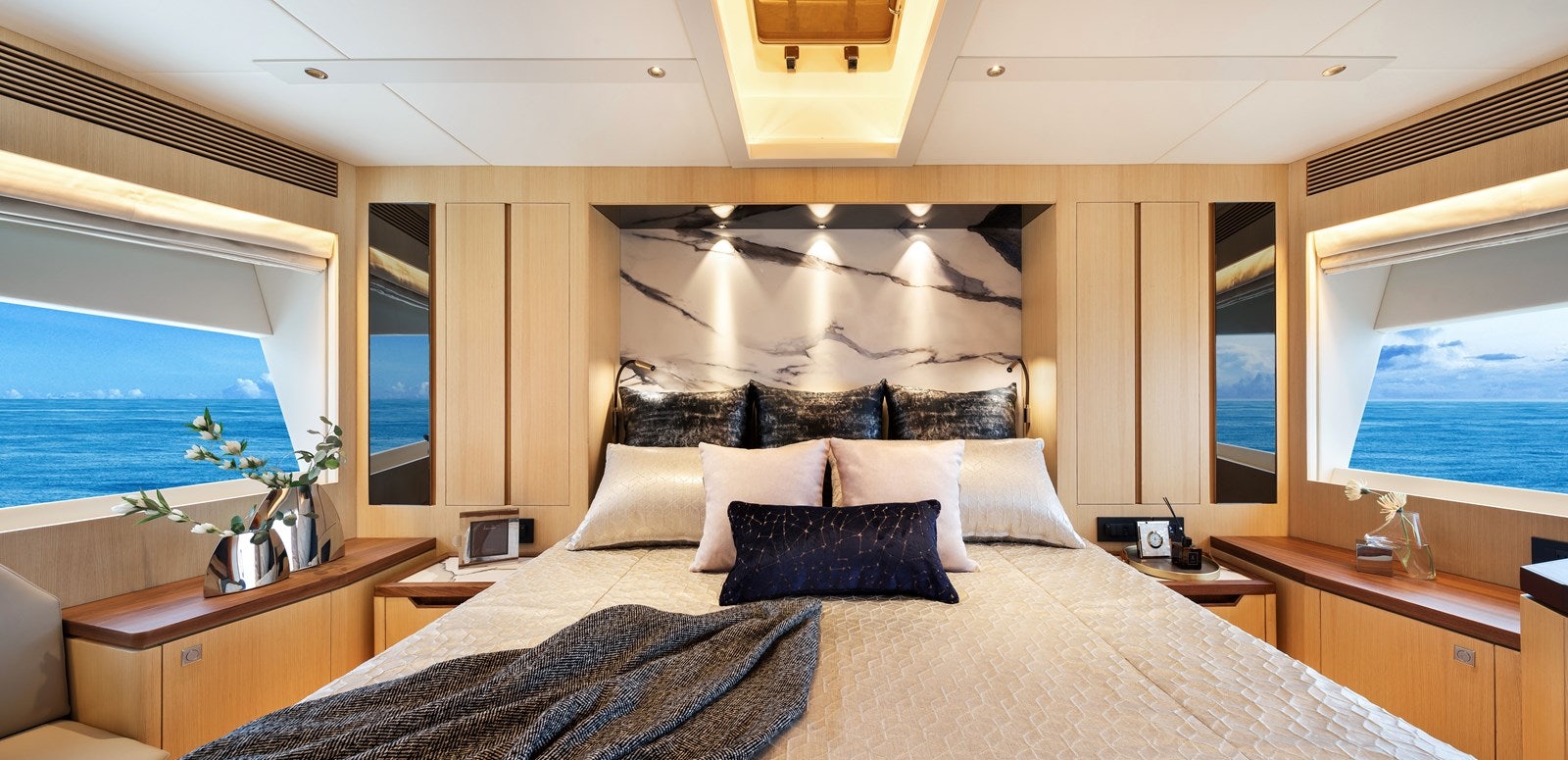

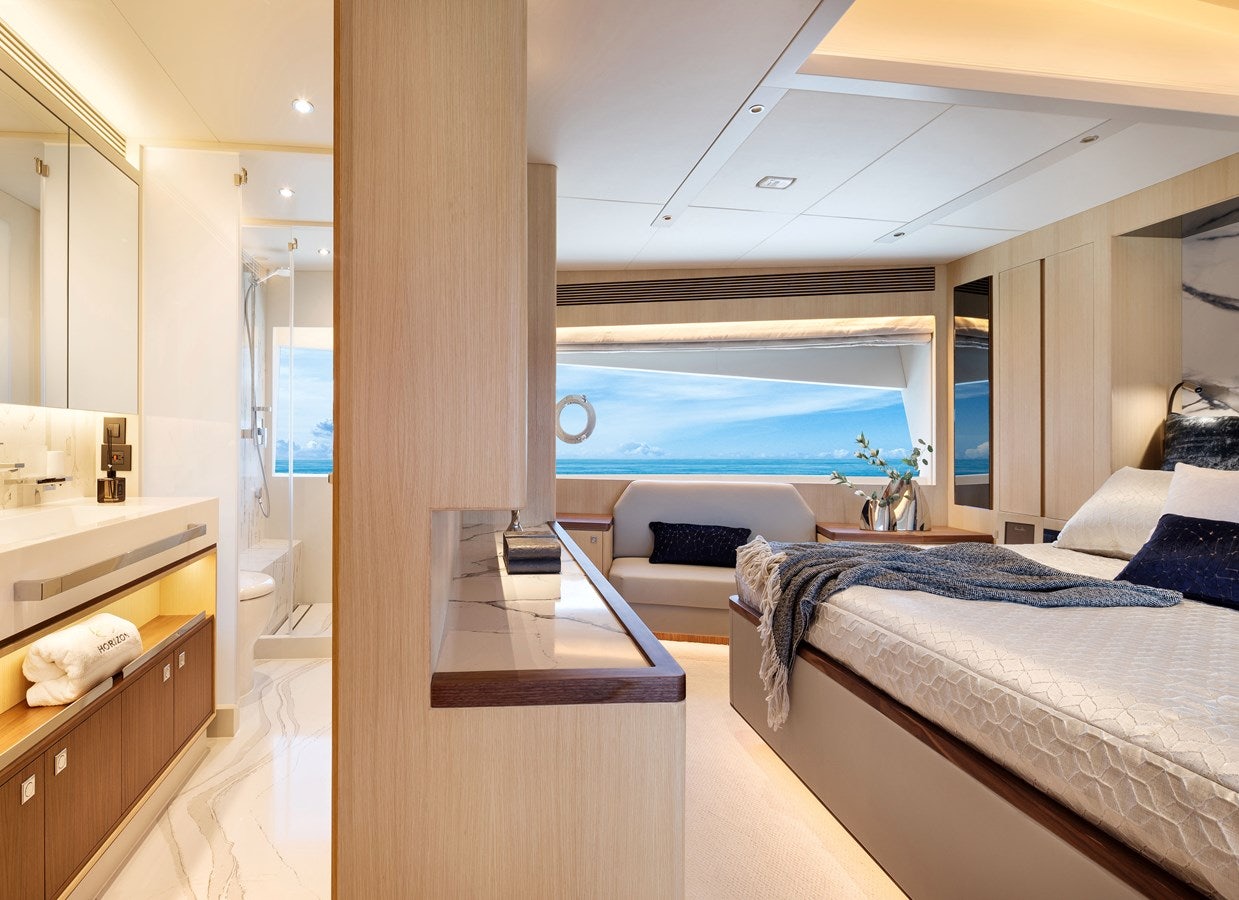

King bed with storage drawers

Walk-in closet + add’l closet per layout

Chest of drawers w/ built in vanity & storage to stbd

Sofa to port

Opening portholes in each large window port & stbd

Skylight w/ electric OceanAir blind

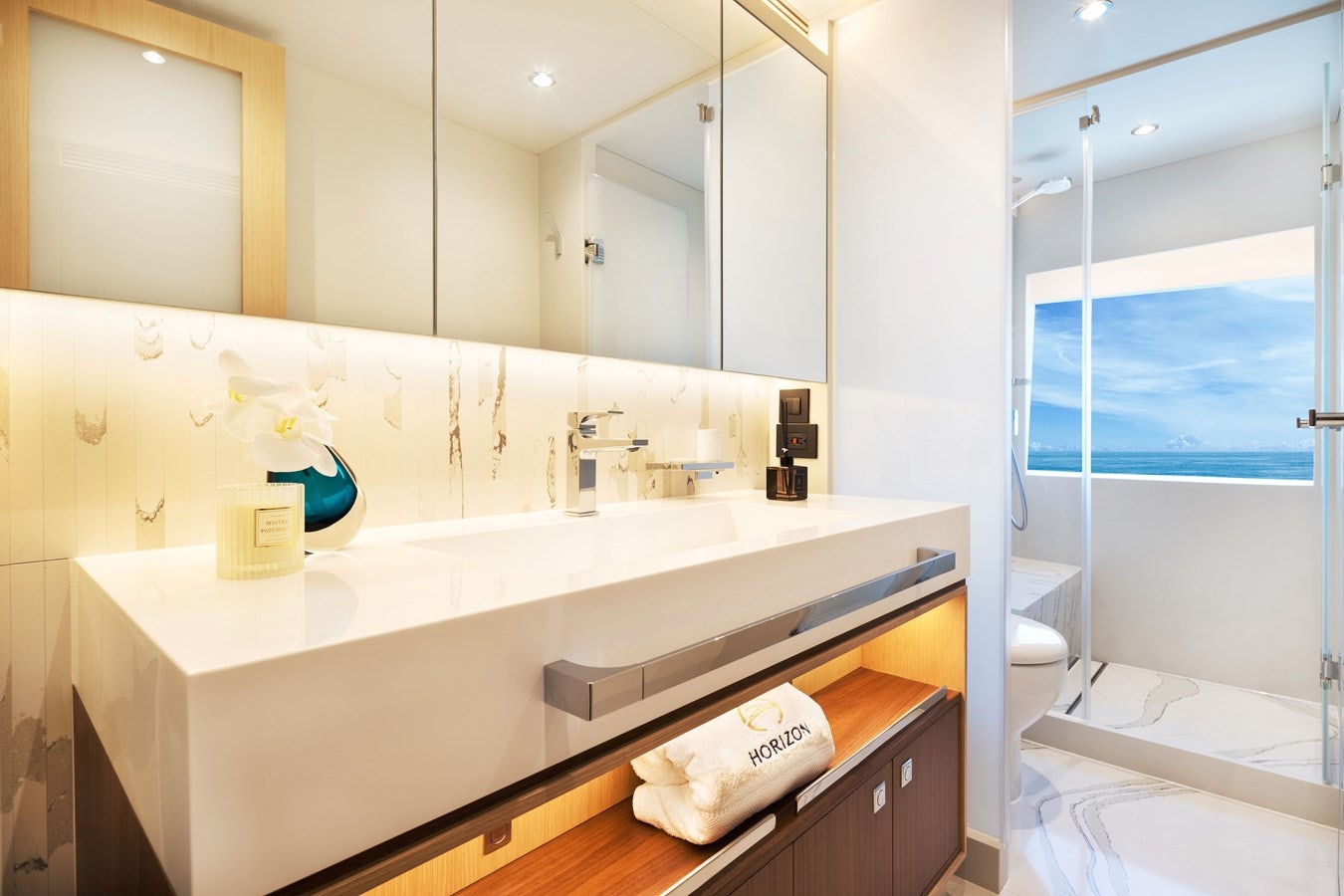

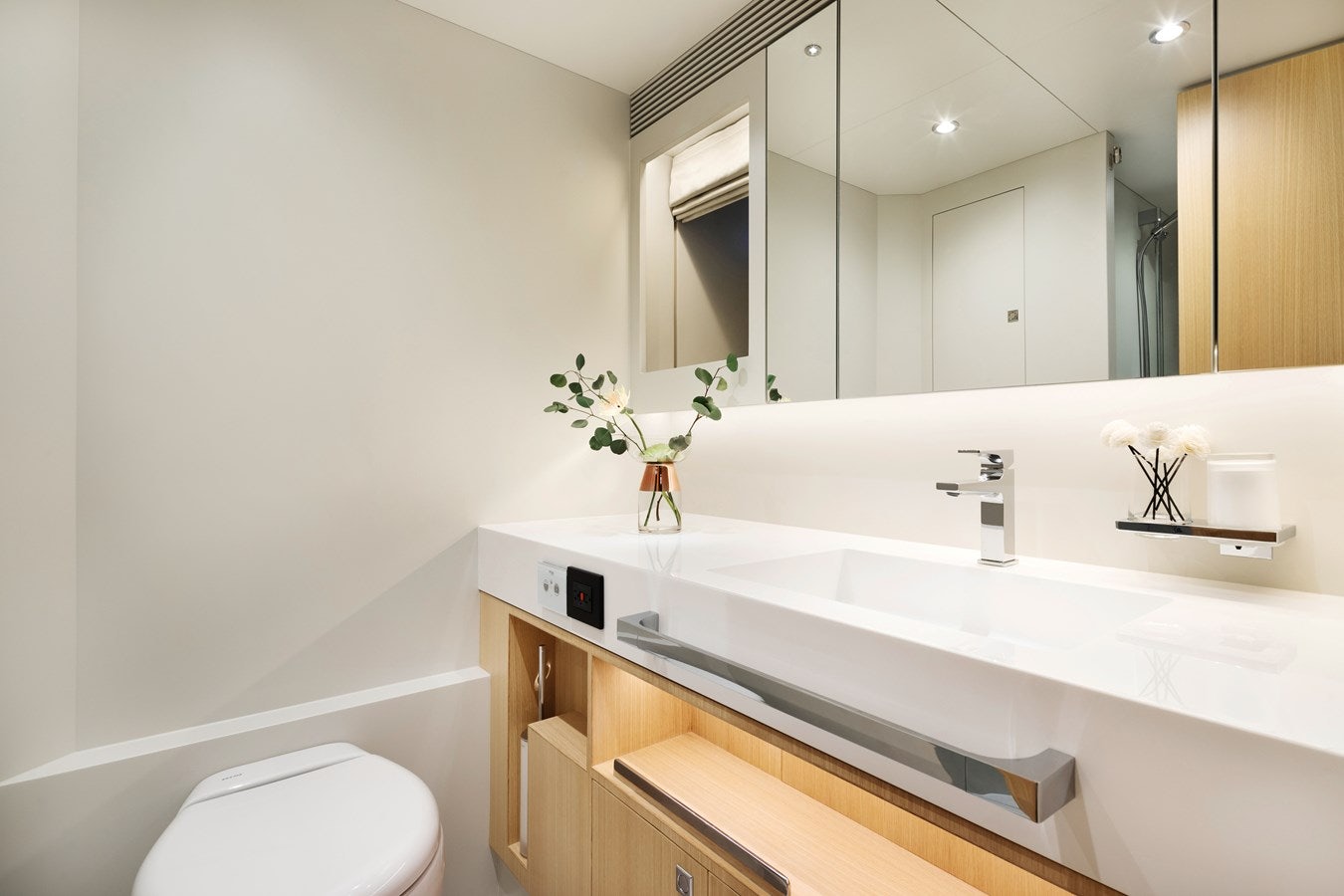

Ensuite head w/ shower, large sink, and toilet

Safe in walk-in closet

Electric roman blinds

49” LED TV


Blu-Ray player

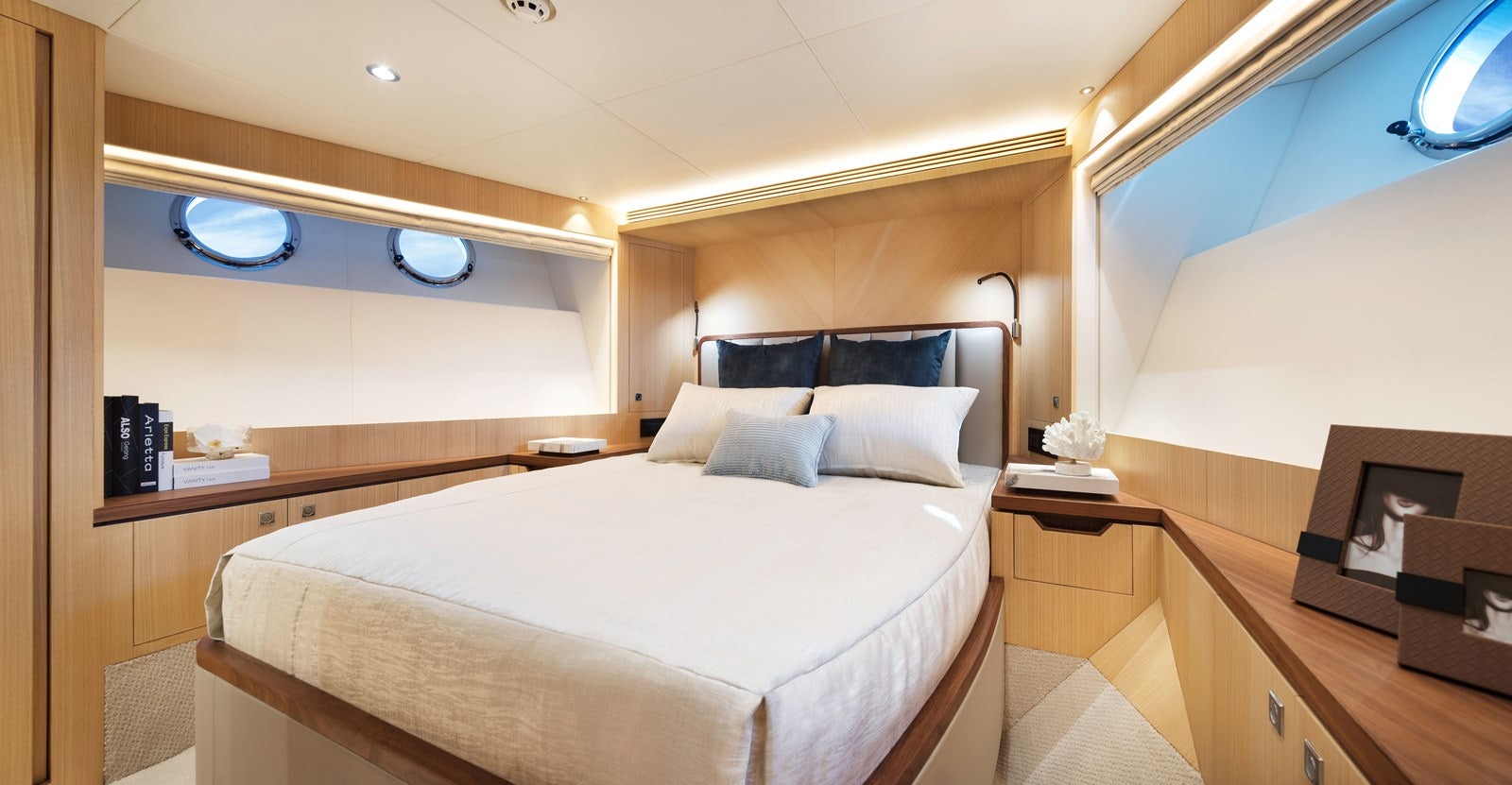

Walk-around Queen bed

Two hanging lockers, port & starboard

Ensuite head w/ shower, sink and toilet

32” LED TV

Sonos soundbar

Walk-around Queen Bed w/ drawers

Escape hatch up to galley

Large hanging closet

Ensuite head w/ shower, sink and toilet

32” LED TV

Sonos soundbar

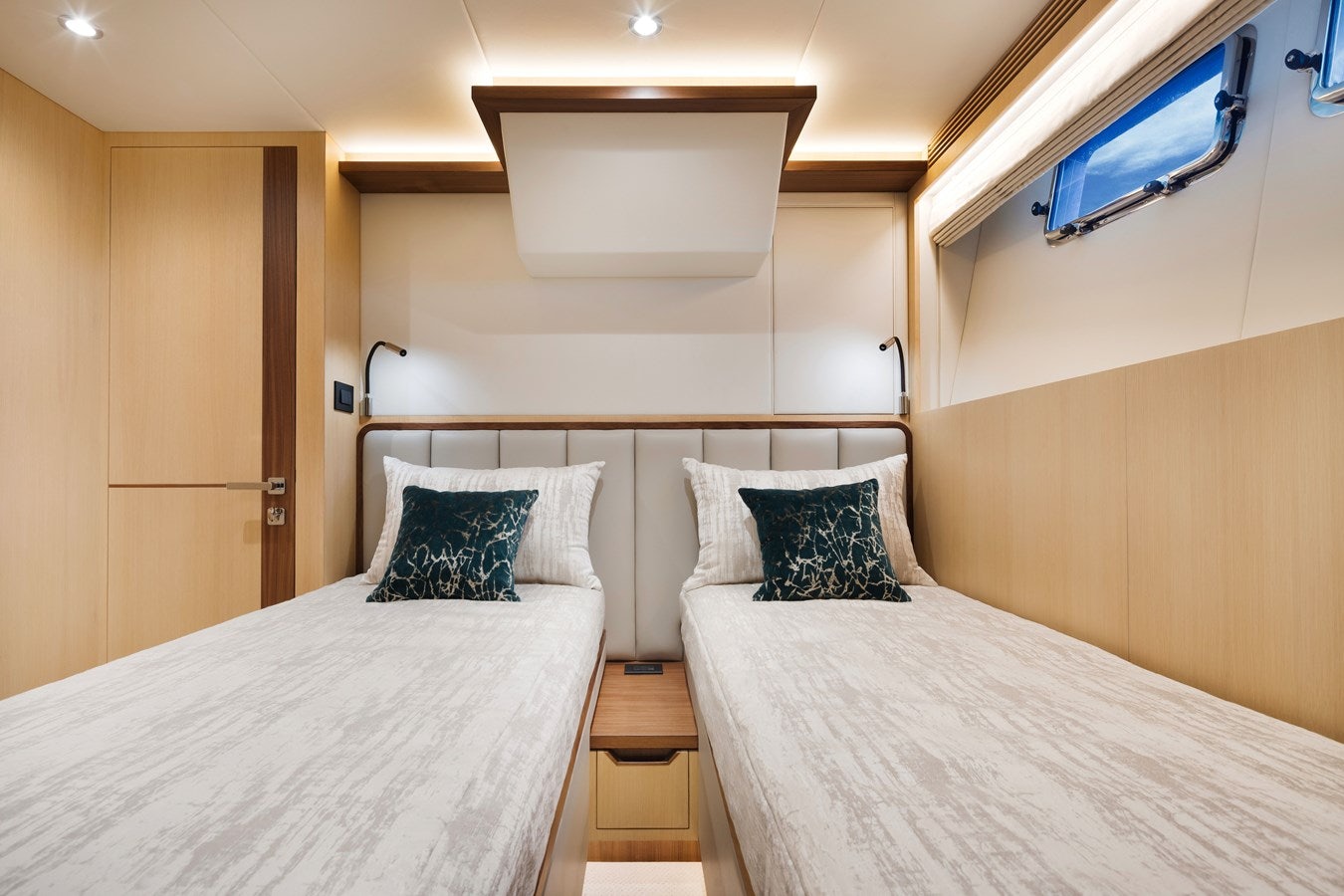

(2) Twin beds, 1 w/ sliding function

Hanging closet

Ensuite head w/ shower, sink and toilet

32” LED TV

Sonos soundbar

Miele stacked washer/dryer

Linen locker per layout

Dyson cordless vacuum w/ built-in storage spot

GE microwave & Kenyon cooktop

Vitrifrigo fridge + freezer drawers

GE stacked washer/dryer

Storage lockers per layout

Twin stateroom w/two beds & hanging locker

Head w/ shower, toilet & sink

Sonos soundbar

Dyson cordless vacuum w/ built-in storage spot

TV antenna on top of radar arch

(5) Panasonic PBX wireless telephones

Exterior connector for shore phone and cable TV

SAT TV (KVH TracVision HD7) + (1) KVH TracPhone V7-IP Empty Dome

SAT phone pre-wire only

4G Cellular router system w/ Wi-Fi onboard

(4) GPSMAP 8617 MED 17” Multifunction displays (1 dedicated to Maretron)

Garmin GMR 1226 72” 12kW 72nm open array radar system + GMR Fantom 54 solid-state open array radar & pedestal

MBB300C for inputting Maretron info into GARMIN display

Garmin GPS 19 NMEA 2000

Garmin Reactor 40 autopilot control unit

Garmin instrument display w/ wind transducer; depth, speed & temp transducers

Garmin fish finder

Garmin weather receiver

(2) Garmin VHF 215

Garmin AIS 800
