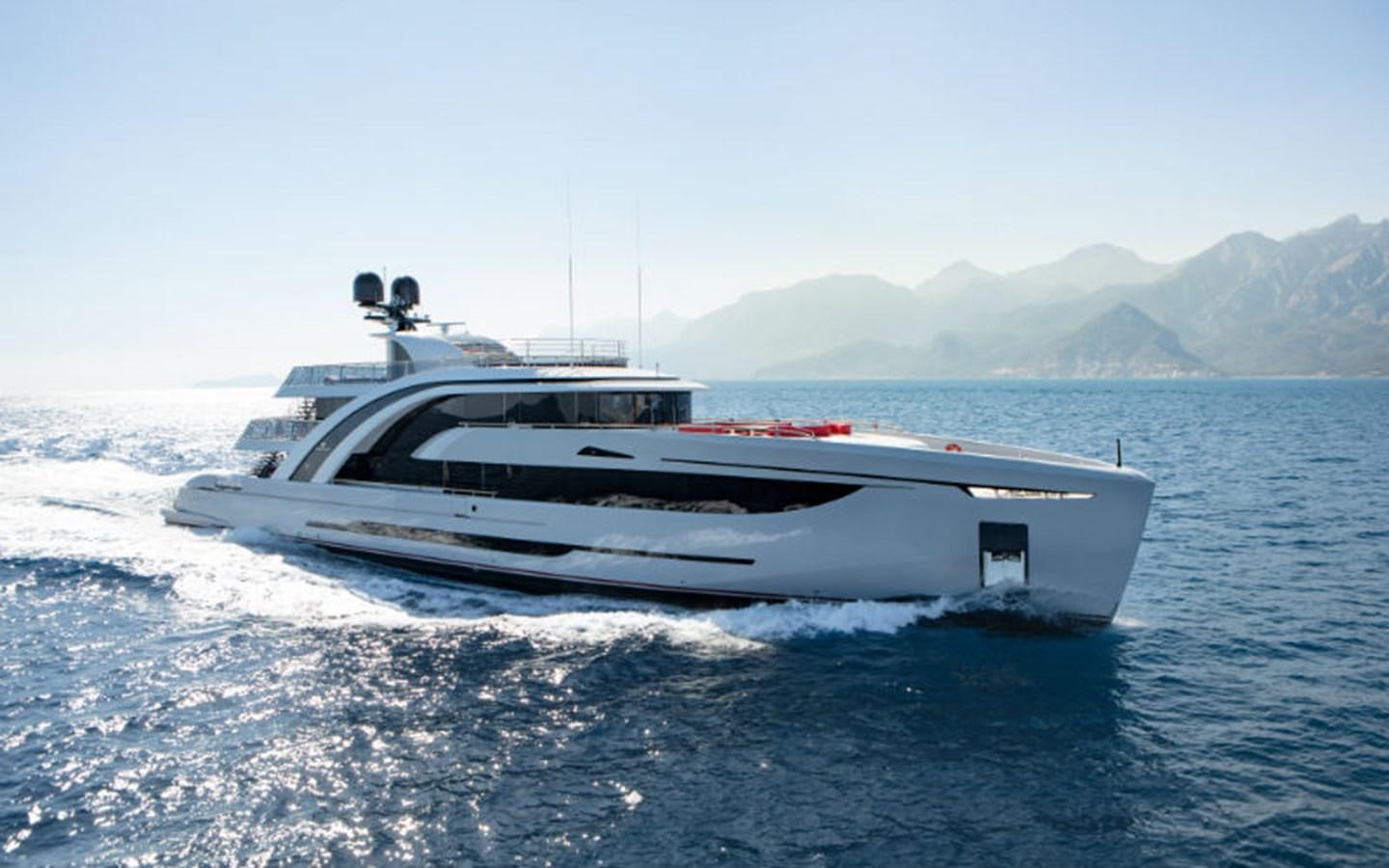

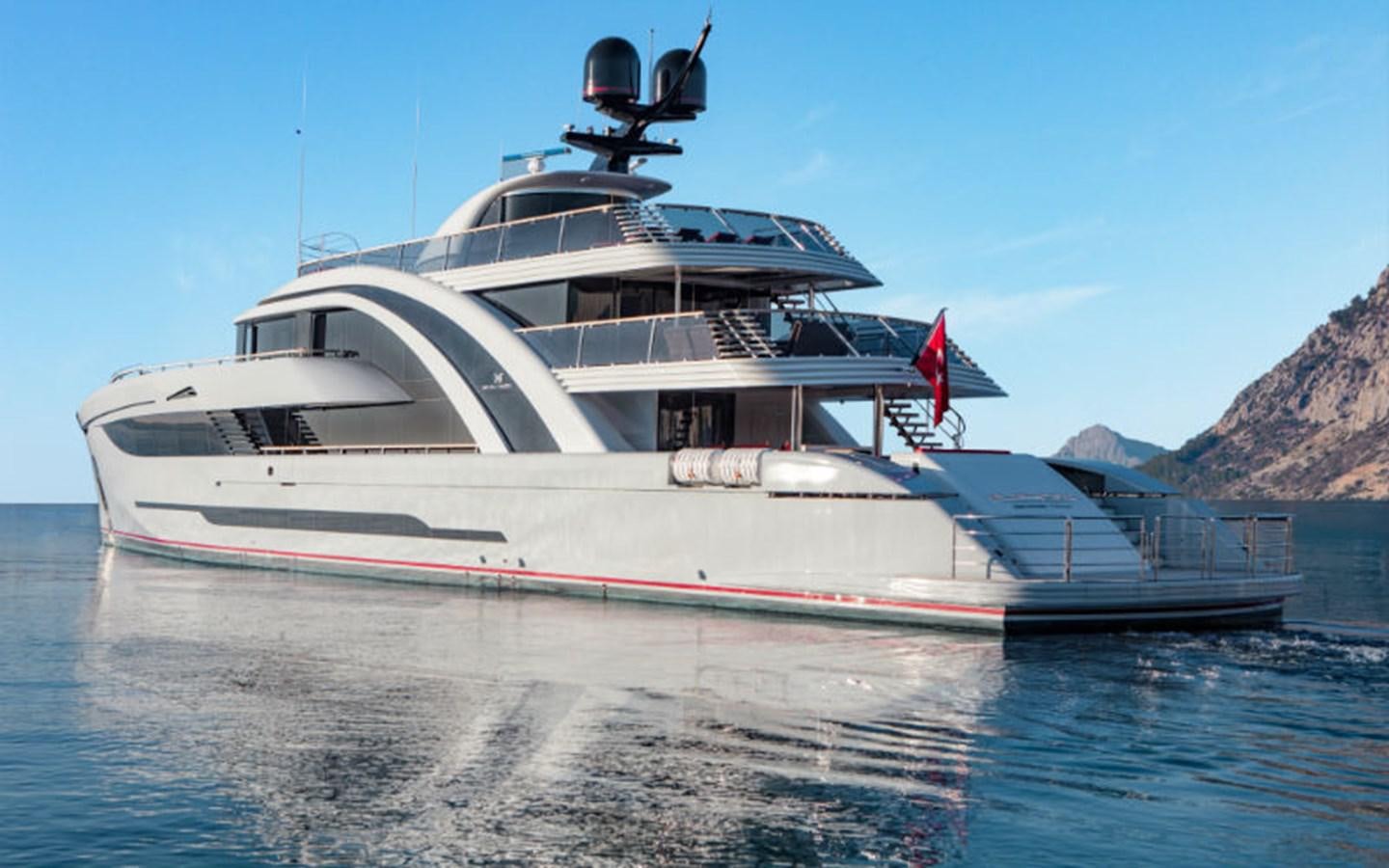

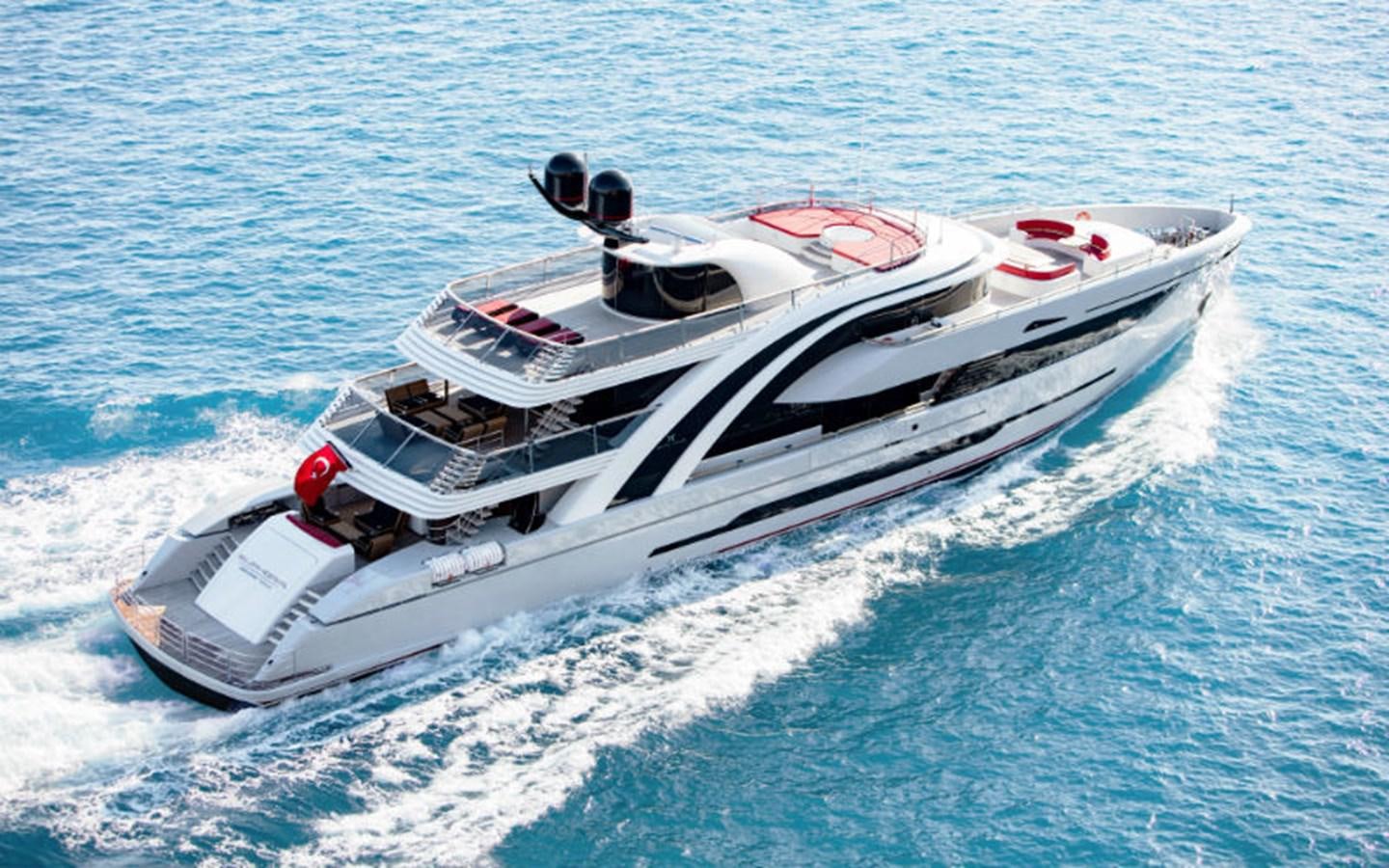

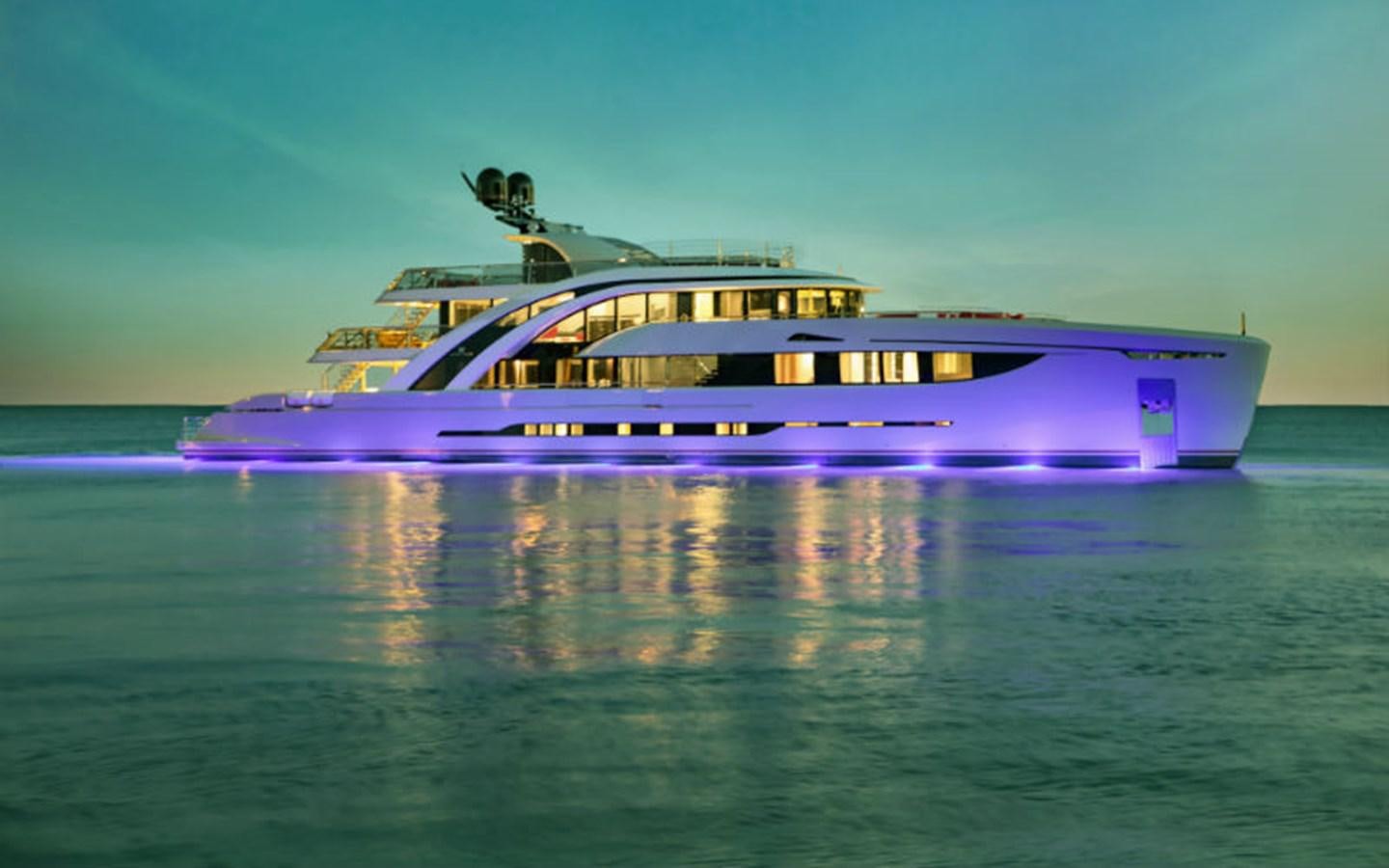

EUPHORIA Yacht for Sale

164' (50m)
MAYRA YACHTS
2021

Not for sale or charter to U.S. residents while in U.S. waters.

Length 164 FT (50 M)
Beam 27 FT (8.53 M)
Draft 9 FT (2.7 M)
Gross Tonnage 467 Ton
Guests 12
Crew 9
Builder MAYRA YACHTS
Year Built 2021
Construction Steel
Cruising Speed 13 Knots
LOA 164 FT (50 M)
Beam 27 FT (8.53 M)
Max Draft 9 FT (2.7 M)
Cruising Speed 13 Knots
Max Speed 16 Knots
Gross Tonnage 467 Ton
Water Capacity 9,500 Liters
Fuel Capacity 80,000 Liters
Hull Material Steel

Full Specifications


Length overall: 50.0m (164' 0")

Beam: 8.53m (28' 0")

Draught: 2.70m (8' 10")

Gross tonnage: 467 tons

Displacement: 480 metric tons

Hull/Superstructure: Steel / Aluminium

Deck material: Teak

External Designer: Ken Freivokh Design

Internal Designer: Ken Freivokh Design

Naval Architect: Naval Yachts

Classification Society: Registro Italiano Navale (RINA)

Classification Notation:EFP, DMS, GREEN STAR, COMPLIANCE LY2

MCA: Yes

Maximum Speed: 16.0 knots

Cruising Speed: 13.0 knots

Max: 1,800nm, 690ltrs/h @ 16kn, Cruising: 3,400nm, 340ltrs/h @ 15kn, Economical:

5,000nm, 180ltrs/h @ 12kn

Fuel consumption:

Range: 4,500nm

Fuel: 80,000ltrs

Lubrication oil: 1,300ltrs

Dirty lube oil: 1,800ltrs

Fresh water: 9,500ltrs

Grey water: 5,400ltrs

Black water: 4,000ltrs

Engines: 2 x CAT C32 ACERT 1193 bkW (1600 bhp) @ 2300 rpm

Generators:

Service Generator 2x CAT C4.4 DITA 86 ekW @1500rpm- 400VAC 50Hz ;

Emergency Generator 1x CAT C4.4 DITA 65 ekW @1500rpm- 400VAC 50Hz

BT MARINE HOLLAND

Exhaust System- Soundown

Bow thruster TRAC 24” 150HP

Stern thruster TRAC 20” 100HP

Stabilisers at anchor: Yes

Stabilisers underway: Yes

Stabilisers details: Stabilizer TRAC 4 FIN 440/20X zero speed stabilizers

Air conditioning CONDARIA 480.000 BTU

Watermaker SELMAR 2 x 7200 L/24 HR

Sewage treatment SELMAR 12.000 L/24 HR

Pumps GIANNESCHI

Purifier WESTFALIA

Fuel treatment system 900 L/Hr

Stabilizer TRAC 4 FIN 440/20X zero speed stabilizers

Fuel filters Separ

Sewage Treatment Tecnicomar

Toilet system Tecma

Steering sytem Sperry Marine

Underwater lights OceanLed

Shore power- Atlas

Input- 180- 530VAC, single and three phase, 50 or 60Hz

Output- 220/380V, three phase, 4 wire, 114 Amps, 50Hz/ 75kVa

X Band Radar- 6.5" Open Array- IMO

X Band Radar- 6.5" Open Array

4x Hatteland 26" monitor

ECDIS

Echo sounder- IMO

Speedlog- IMO

2x VHF DSC- IMO

3x GMDSS Portable VHF

SAT TV- 90 cm

V SAT

INMARSAT SAT-C- IMO

Magnetic compass- IMO

A class AIS- IMO

2x GPS- IMO

MF/ HF (SSB)- IMO

Weather stattion

Auto pilot

2x SART and EPIRP

Gyrocompass- IMO

BNWAS

Intercom

Panasonic phone system

4G GSM and wireless system

Sun deck:

Samsung-55” Ultra High Definition 4K TV

B&W- CCM 365 6” Inceiling Speaker x 2

Savant - Ipad controlling Lighting and Entertainment System

Sun Deck exterior area:

JL- AUDIO 770-CCX Marine Coaxial Speaker System x 4

Savant- Ipad controlling Lighting and Entertainmentt System

Bridge deck skylunge bar/ Lobby:

B&W- CCM 365 6” Inceiling Speaker x 2

Savant- Ipad controlling Lighting and Entertainment System

Bridge deck skylounge seating area:

Samsung - 65” Ultra High Definition 4K TV

Rotel- RSX 1550 5.1 Channel 4 Zone Surround Receiver

B&W- ASW 610 10” Active Subwoofer

B&W- CCM 365 6” Inceiling Speaker x 5

Savant- Ipad controlling Lighting and Entertainment System

Bridge deck Captain's cabin:

Samsung / 28” Ultra High Definition 4K TV

B&W / CCM 365 6” Inceiling Speaker x 2

Savant / Ipad controlling Lighting and Entertainment System

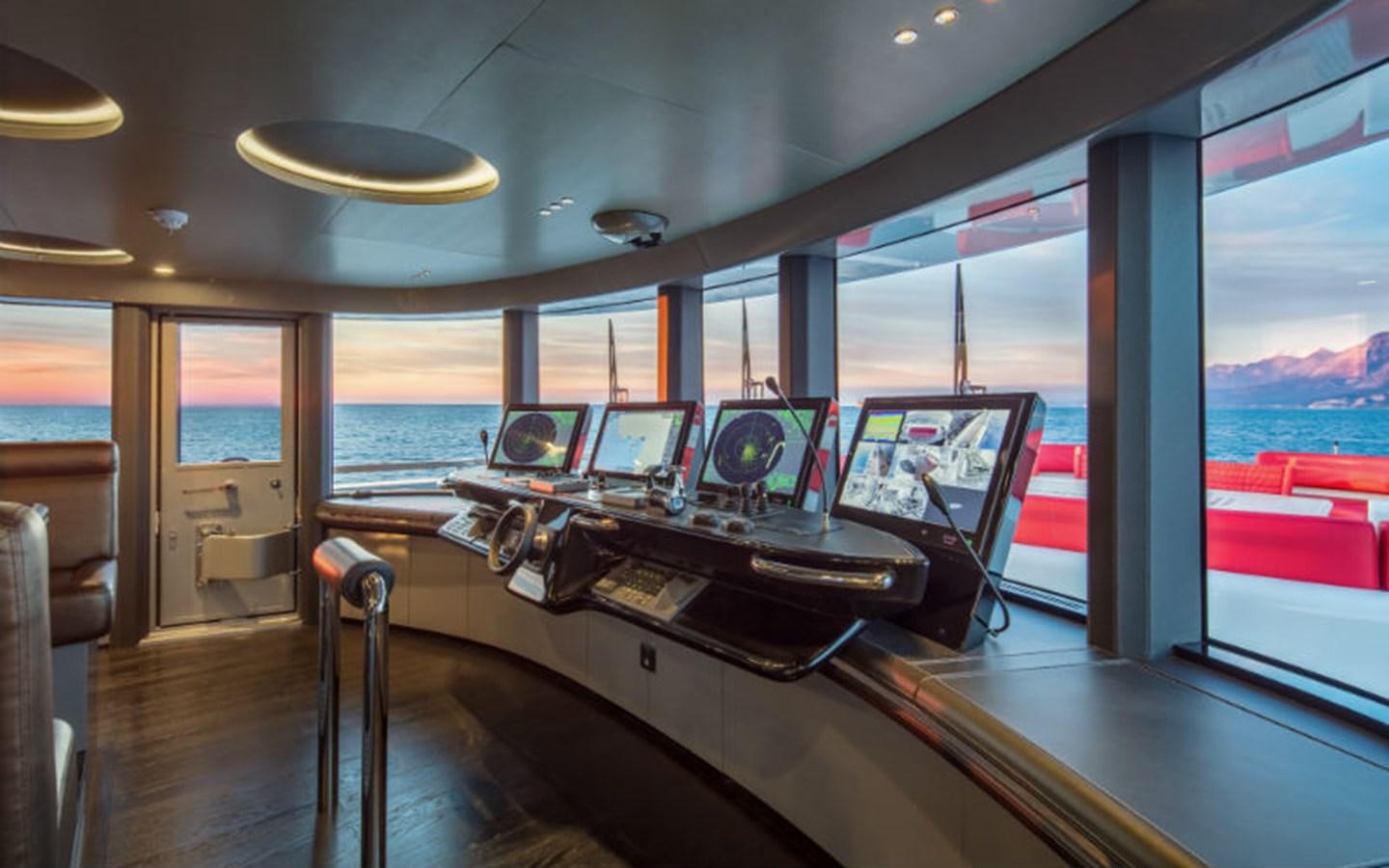

Bridge deck wheelhouse & office:

B&W- CCM 365 6” Inceiling Speaker x 2

Savant- Ipad controlling Lighting and Entertainment System

Bridge deck exterior area:

JL- AUDIO 770-CCX Marine Coaxial Speaker System x 2

Savant- Ipad controlling Lighting and Entertainment System

Main deck saloon:

Samsung- 85” Ultra High Definition 4K TV

Harman Kardon- AVR 370 Surround Receiver

B&W- ASW 610 10” Active Subwoofer

B&W- CCM 365 6” Inceiling Speaker x 5

Savant- Ipad controlling Lighting and Entertainment System

Main deck dining:

B&W- CCM 365 6” Inceiling Speaker x 2

Savant- Ipad controlling Lighting and Entertainment System

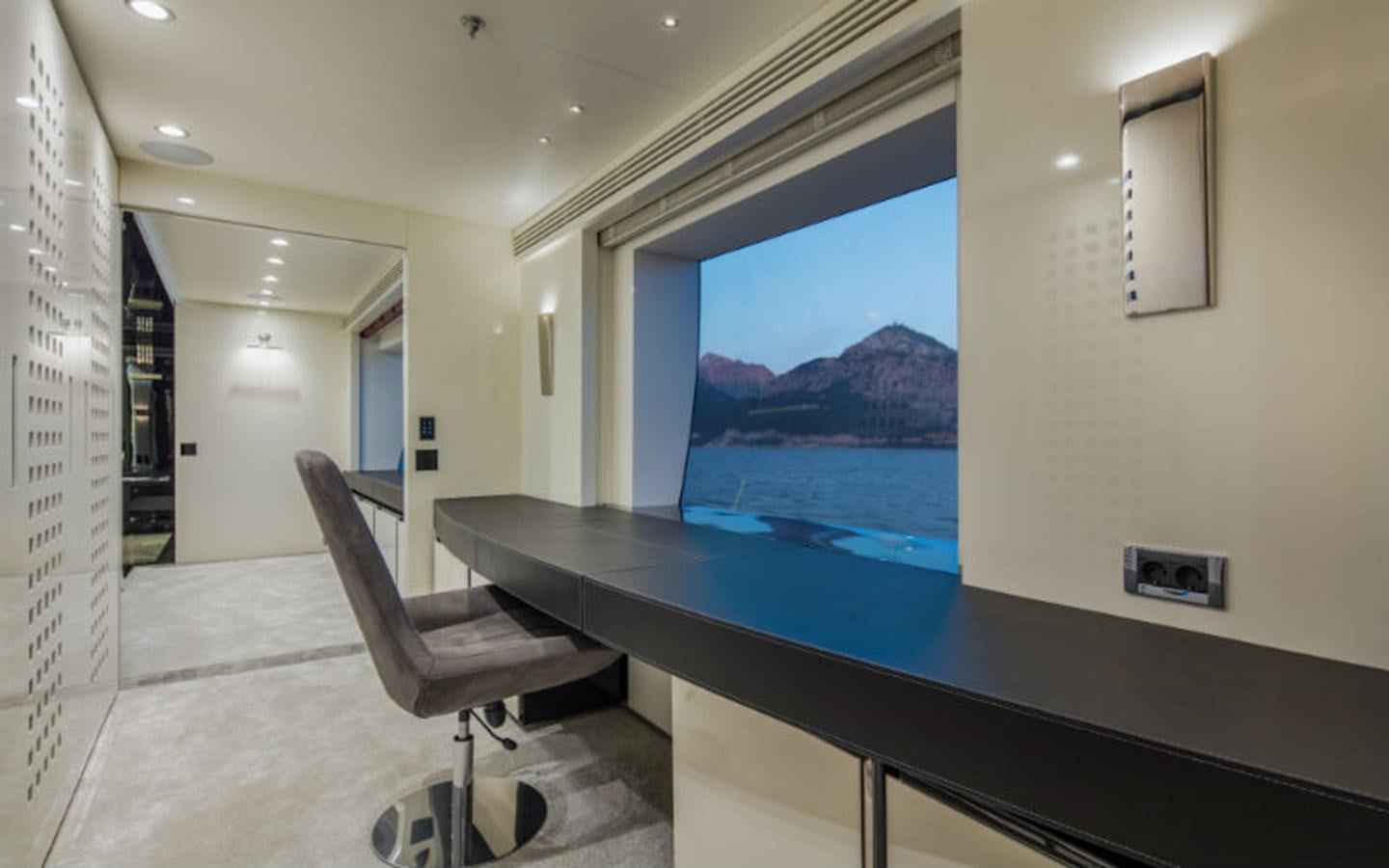

Main deck study:

B&W- CCM 365 6” Inceiling Speaker x 2

Savant- Ipad controlling Lighting and Entertainment System

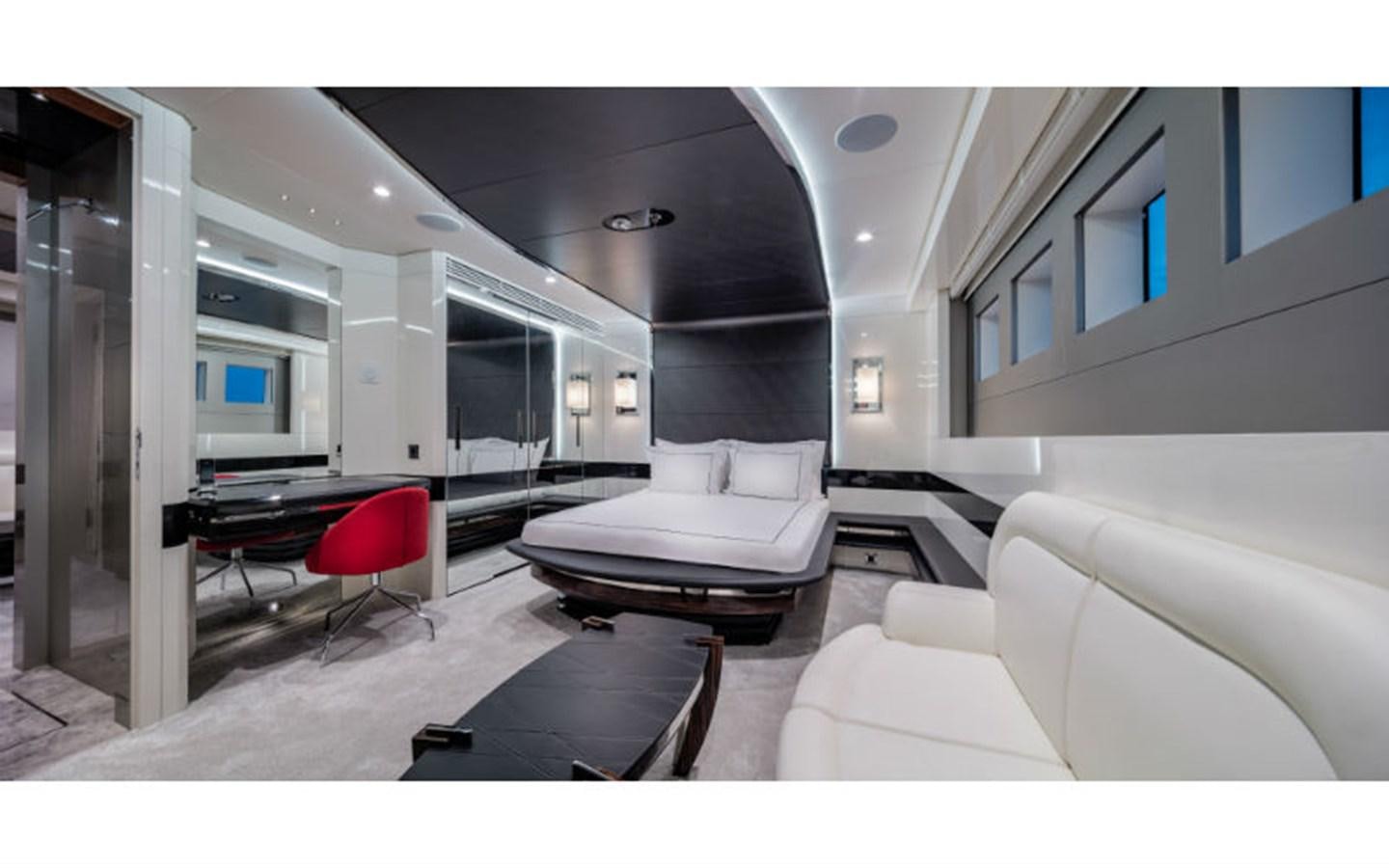

Main deck master stateroom:

Samsung- 65” Ultra High Definition 4K TV

Rotel- RSX 1550 5.1 Channel 4 Zone Surround Receiver

B&W- ASW 610 10” Active Subwoofer

B&W- CCM 365 6” Inceiling Speaker x 5

Savant- Ipad controlling Lighting and Entertainment System

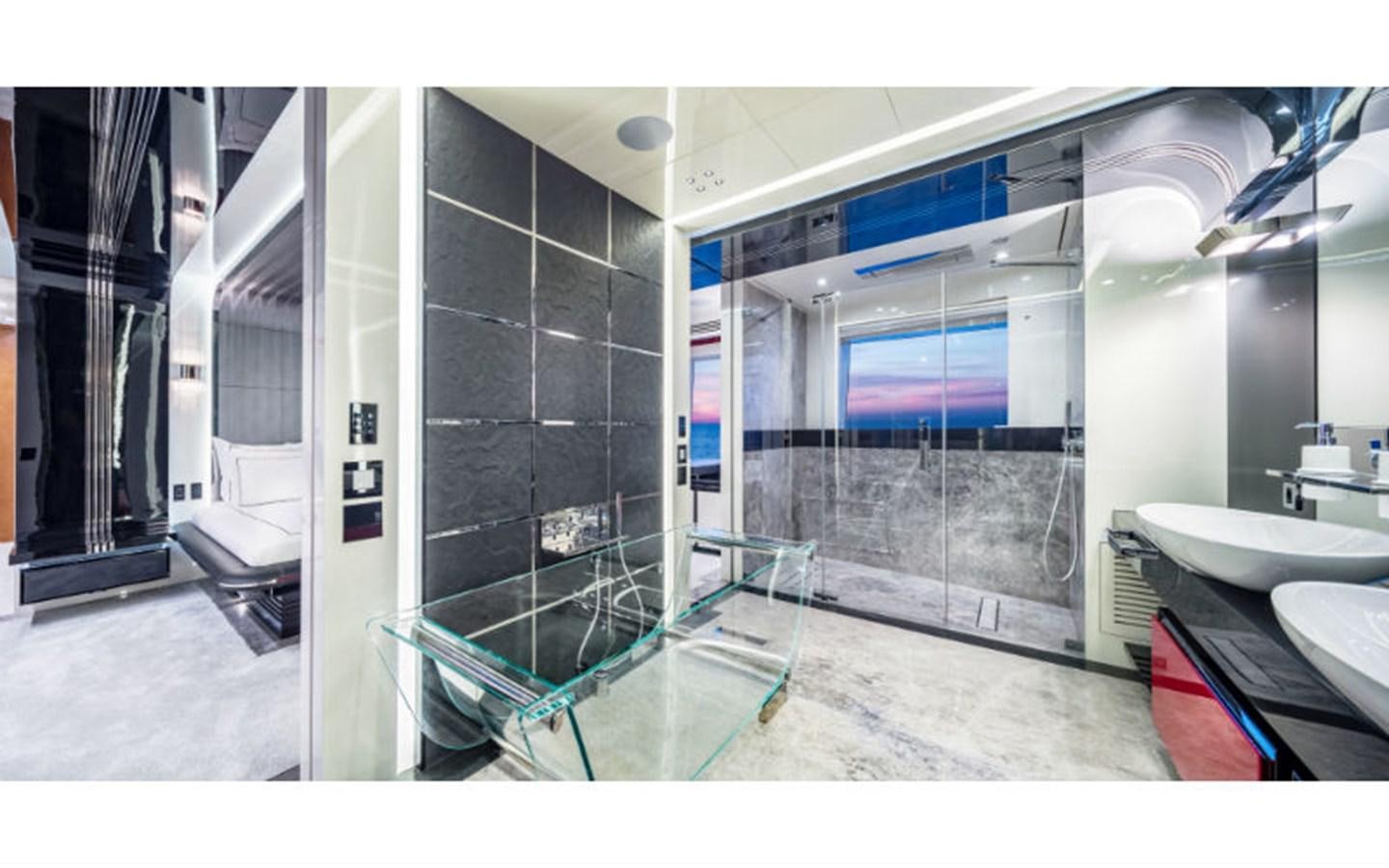

Main deck master stateroom en-suite:

B&W- CCM 365 6” Inceiling Speaker x 2

Savant- Ipad controlling Lighting and Entertainment System

Main deck galley:

B&W- CCM 365 6” Inceiling Speaker x 2

Savant- Ipad controlling Entertainment System

Main deck crew mess:

B&W- CCM 365 6” Inceiling Speaker x 2

Savant- Ipad controlling Entertainment System

Main deck pantry:

B&W- CCM 365 6” Inceiling Speaker x 2

Savant- Ipad controlling Entertainment System

Main deck exterior:

Samsung 55” Ultra High Definition 4K TV

JL- AUDIO 770-CCX Marine Coaxial Speaker System x 4

Savant- Ipad controlling Lighting and Entertainment System

Lower deck VIP cabins:

Samsung- 46” Ultra High Definition 4K TV

B&W- CCM 365 6” Inceiling Speaker x 2

Savant- Ipad controlling Lighting and Entertainment System

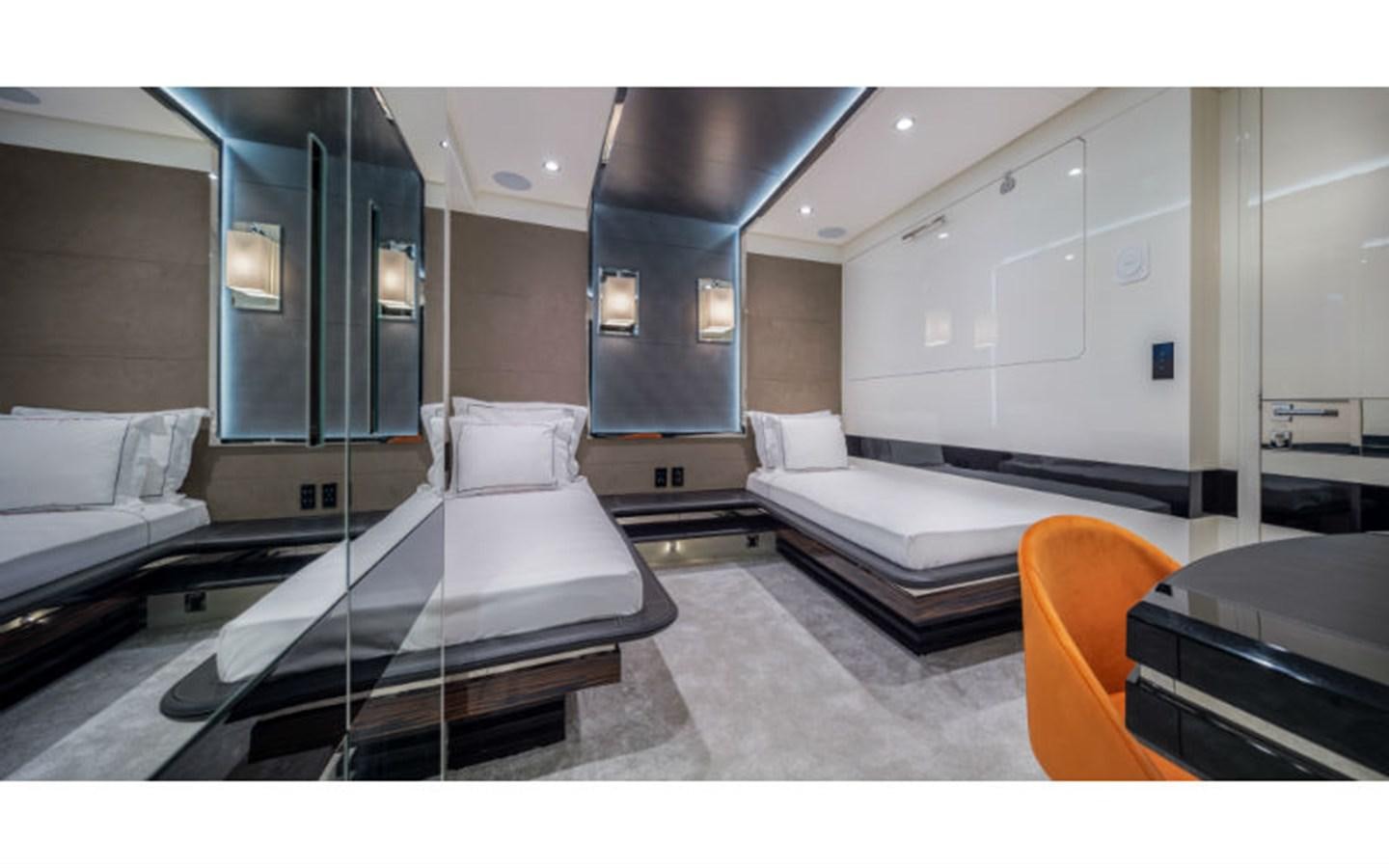

Lower deck Twin guests cabins:

Samsung- 46” Ultra High Definition 4K TV

B&W- CCM 365 6” Inceiling Speaker x 2

Savant- Ipad controlling Lighting and Entertainment System

Lower deck crew mess:

Samsung- 27” LED TV

B&W- CCM 365 6”

Inceiling Speaker x 2

Savant- Ipad controlling Entertainment System

Main rack equipmens & network of Savant automation system:

SAVANT HST-4501 HOST CONTROLLER x 3

SAVANT SSC-0008-10 SMART CONTROL x 7

SAVANT IRB-1010-00 IR EMITTER 10 PACK x 4

SAVANT SLN-88BT-00 SMARTLINK 8x8 HDMI MATRIX SWITCH OVER CAT5E/6/7 x2

SAVANT HCX-1010 EXTEND HDMI SIGNALS x 12

SAVANT CON-10FNN-00 SERIAL ADAPTER 10 PACK x3

SAVANT SSA-4000-10 SMART AUDIO (AUDIO + CONTROL) x1

ROTEL RMB 1512 12X100W POWER AMPLIFIER x4

HARMAN KARDON BDT30 3D BLUERAY PLAYER x4

APPLE APPLE TV x1

QNAP 6TB STORAGE x1

CUSTOM 42U RACK&ACC. X1

HP 48 PORT GIGABIT SWITCH x1

N/A 0AP POE ACCESS POINT x18

SAVANT KEC-08B2B KEYPAD x62

SAVANT LMR–8240 HIGH POWER RELAY MODULE x15

SAVANT LMD-8240 –CHANNEL DIMMER MODULE x11

SAVANT SKL-1000 KEYPAD LINK x5

SAVANT SSL-PO18 SMARTLIGTING 18 x1

ACC 24PoE Switch x1

Miele Induction Hob

Miele Grill Hob

Miele Hood

Miele Microwave

Miele Oven

Miele Steam Oven

Veco Custom made refrigerator

Miele Dishwasher x2

Miele Wine Cooler x2

Broan Trash compactor

Isotherm Ice maker

Miele Barbeque and Teppanyaki at Aft Deck

Veco custom made cold room and freezer room

Miele Washing Machine x2

Miele Dryer x2

Miele Ironer

She offers accommodation to 12 guests in 5 staterooms.

Gangway – Hydraulic– MAYRA YACHTS

Side boarding ladder- MAYRA YACHTS

Fore deck crane– OPACMARE

Stainless steel handrails

2x Vertical Windlass

4x Hydraulic capstans

Mooring bollard– custom stainless steel

2x Anchor– 360 kg stainless steel HHP pool

Anchor chains 22mm grade 2/300m

Sliding aft doors- stainless steel / glass electric doors

Sliding side door- stainless steel / glass electric doors

Watertight doors- WINEL, BOFOR

Underwater lights – SEAVISION

Enclosed tender garage with tender launching system

JETSKI and crew tender storage at FORE DECK

3.20 crew tender (rescue boat)

Note: Subject to change and/or negotiation during the buying process.

Life rafts- RFD 4x 25 people

Ultra- fog fire protection sprinkler/ foam system

Fire & general alarm system

CCTV system/ night vision cam ORLACO

Integrated alarm and monitoring system- NAVEL Italy

Life rings x4

SART 2x Jorton SART

EPIRB 1x Jotron

MAIN ENGINES

2 x CAT C32 ACERT 1193 bkW (1600 bhp)@2300 rpm

270 Hours (Sep 2021)

GEARBOX

ZF 5300, i = 3,471

GENERATORS

2x CAT C4.4 DITA 86 [email protected] – 400VAC 50Hz (960 hours Sep 2021-

1x CAT C4.4 DITA 65 [email protected] – 400VAC 50Hz

EXHAUST SYSTEM                                                                                                   SOUNDOWN

PROPULSION SYSTEM

BT MARINE HOLLAND

FUEL CAPACITY                                                                                                            80.000 LT

FRESH WATER CAPACITY                                                                                               9.500 LT

BLACK WATER                                                                                                                4.000 LT

GRAY WATER                                                                                                                  5.400 LT

BILGE WATER                                                                                                                 3.400 LT

SLUDGE                                                                                                                          1.800 LT

CLEAN OIL                                                                                                                      1.300 LT

SPRINKLER FRESH WATER                                                                                              5.300 LT

HULL / SUPERSTRUCTURE

STEEL / ALUMINIUM ALLOY

DECK

HANDLAID BURMESE/MYANMAR TEAK

BOW THRUSTER                                                                                                TRAC 24” 150HP

STERN THRUSTER                                                                                              TRAC 20” 100HP

AIR CONDITIONING                                                                              CONDARIA 480.000 BTU

WATERMAKER

SELMAR 2 x 7200 L/24 HR

SEWAGE TREATMENT

SELMAR 12.000 L/24 HR

PUMPS                                                                                                                    GIANNESCHI

PURIFIER

WESTFALIA FUEL TREATMENT SYSTEM 900 L/Hr

STABILIZERS

TRAC 4 FIN 440/20X ZERO SPEED

GANGWAY – HYDRAULIC

SIDE BOARDING LADDER

FORE DECK CRANE – OPACMARE

STAINLESS STEEL HANDRAILS

WINDLASS – 2x VERTICAL

CAPSTANS – 4x HYDRAULIC

MOORING BOLLARD – CUSTOM S.STEEL.

ANCHOR – 360 KG S.STEEL HHP POOL

SLIDING AFT DOORS - S. STEEL / GLASS ELECTRIC DOORS

SLIDING SIDE DOOR - S. STEEL / GLASS ELECTRIC DOORS

WATERTIGHT DOORS – WINEL, BOFOR

UNDERWATER LIGHTS – SEAVISION

ENCLOSED TENDER GARAGE with TENDER LAUNCHING SYSTEM

JETSKI and CREW TENDER STORAGE at FORE DECK

LIFE RAFTS – RFD 4 x 25 PERSON

ULTRA-FOG FIRE PROTECTION SPRINKLER/FOAM SYSTEM FIRE & GENERAL ALARM SYSTEM

CCTV SYSTEM / NIGHT VISION CAM ORLACO

3.20 CREW TENDER (RESCUE BOAT)

INTEGRATED ALARM and MONITORING SYSTEM – NAVEL ITALY

X BAND RADAR – 6.5” OPEN ARRAY – IMO TYPE

X BAND RADAR – 6.5” OPEN ARRAY

4x HATTELAND 26” MONITOR

ECDIS

ECHO SOUNDER– IMO TYPE

SPEEDLOG– IMO TYPE

2x VHF DSC– IMO TYPE

3x GMDSS Portable VHF

SAT TV – 90cm

V SAT

INMARSAT SAT-C – IMO TYPE

MAGNETIC COMPASS - – IMO TYPE

A CLASS AIS – IMO TYPE

2x GPS – IMO TYPE

MF/HF (SSB) – IMO TYPE

NAVTEX – IMO TYPE

WEATHER STATION

AUTO PILOT

2x SART and EPIRP

GYROCOMPASS – IMO TYPE BNWAS

INTERCOM

PANASONIC PHONE SYSTEM 4G GSM and WIRELESS SYSTEM

4G GSM and WIRELESS SYSTEM

IN GENERAL, ALL SURFACE FINISHES WILL BE SELECTED AND MATCHED FINE HARDWOOD VENEERS, POLISHED HARDWOOD PANELLING-FRAMES AND MOULDINGS, SELECTED PADDED FABRIC COVERED PANELS, MIRROR LACQUERED PANELS, MARBLE AND GRANITE, LAMINATED GLASS MIRRORED PANELS- HEATED WHERE REQUIRED TO AVOID CONDENSATION.

PLATES, SOLID WOOD, CARCASSING AND GLUE WILL ALL BE WATERPROOF ACCORDING TO THE REQUIREMENTS FOR MARINE USE.

HARDWOOD WILL BE PRIME QUALITY, WELL SEASONED AND OF STRAIGHT GOOD GROWTH AND WILL BE FREE FROM ANY DEFECT.

ALL FINISHED TIMBERS WILL BE CAREFULLY SELECTED, PLYWOODS WILL BE MARINE GRADE. ALL FRAMING WILL BE PROPERLY MORTICED, TENONED AND WEDGED-UP. ALL GLUED JOINTS WILL BE CROSS TENONED.

SOLID WOOD AND VENEER WILL BE PROTECTED WITH AT LEAST FOUR COATS OF TRANSPARENT ALL INTERIOR METALWORK WILL BE FULLY CORROSION RESISTANT BRASS OR STAINLESS STEEL.

ALL HARDWARE IN ACCOMMODATION SPACES, LOCKS, HINGES, VENTS, HOOKS AND SELF-CLOSING DEVICES WILL BE OF THE HIGHEST QUALITY, SUITABLE FOR MARINE APPLICATION.

ALL DRAWERS WILL EITHER BE LIFT AND PULL, OR MOUNTED ON BLUM RAILS OR SIMILAR APPROVED, AND PROVIDED WITH SECURE CATCHES.

ALL FURNITURE INCLUDING BERTHS WITH FITTED DRAWERS, CLOSETS, VANITORY UNITS, TABLES, SEATS, COUNTER TOPS, TV, DVD AND VIDEO CABINETS, BOOKSHELVES, CHART TABLE, CONSOLES IN WHEELHOUSE AND CREW MESS WILL BE FULLY FINISHED INSIDE WITH LOCKABLE DRAWERS, HANGING RAILS, STORAGE RACKS, ADJUSTABLE SHELVES AND COMPARTMENTS SHAPED TO FIT PERSONAL BELONGINGS.

UPHOLSTERING SOFAS AND CHAIRS WILL BE MADE WITH BEST QUALITY UPHOLSTERY MATERIALS.

THROUGHOUT THE ENTIRE ACCOMMODATION, ALL LIGHT COLOUR UPHOLSTERY CUSHIONS, CURTAINS, RUGS, ETC. WILL BE TREATED, WHERE APPROPRIATE, WITH A PROPRIETARY STAIN RESISTANT PRODUCT.

ALL MATTRESSES WILL BE POCKETED SPRUNG AND ENCASED IN FOAM OF THE HIGHEST QUALITY, ALSO WILL BE NON-FLAMMABLE. ALL BED COVERS WILL BE QUILTED, SELF PIPED AND MADE TO FIT AND TUCK INSIDE THE BED SURROUND.

CARPETS WILL BE TREATED WITH A STAIN RESISTANT AND PROTECTIVE COVERS FOR CARPETS WILL BE SUPPLIED.

SHOWER DOORS WILL BE 10MM TEMPERED GLASS WITH STAINLESS STEEL HUPPE SYSTEM WITH STAINLESS STEEL HINGES AND LOCKS AND REQUIRED RUBBER SEALS AND DRAINAGE CHANNELS.

ALL MARBLE AND STONE SURFACES WILL BE TREATED TO AVOID STAINS AND DAMAGE. MIRRORS WILL BE STEAM-PROOF WHERE APPROPRIATE.

DOOR HANDLES AND BATHROOM & WC ESCUTCHEONS IS IN  S.STEEL

DOOR RETAINERS AND LATCH SETS WILL BE “KROON”

WARDROBE DOOR HANDLES IS IN “SOUTHCO FIXED PUSH BUTTON” LOCKER CATCHES WILL BE “TIMAGE DRAWER LOCKS”

CURTAIN / BLIND SYSTEM IS IN AUTOMATIC VENETIAN BLINDS WITH BLACKOUT BLIND WHERE NECESSARY.

INTERIOR BATHROOM WATER FAUCET FIXTURES AND ACCESSORIES ARE IN “AXOR”,”RITMONIO” AND “HANSGROHE”, WASHBASINS IS “AXOR MASSAUD”

SINKS IN BARS AND GALLEY WILL BE “BLANCO” OR EQUAL.

TOILET SYSTEM WILL BE “TECMA”

INTERIOR CEILING LIGHTING FIXTURES WILL BE CANTALUPI LIGHTING SWITCHES AND ALL SOCKETS WILL BE SAVANT AND VIMAR

LIGHT SWITCHES AND SOCKET OUTLETS WILL BE AS SCHEDULED WITH EUROPEAN DOUBLE SOCKET OUTLETS. INVERTORS WILL BE PROVIDED AS REQUIRED, AND ALLOWANCE WILL MADE FOR CONNECTION TO TV AND HI-FI UNITS IF REQUIRED.

ALL LIGHT FITTINGS WILL BE MAINS, OR LOW VOLTAGE AS SCHEDULED. WARDROBES AND SELECTED CUPBOARDS AND OTHER UNITS WILL HAVE DOOR-ACTIVATED INTERNAL LIGHTS. EMERGENCY LIGHTS WILL BE PROVIDED IN EACH ROOM. NIGHT LIGHTS WILL BE PROVIDED IN THE UPSTANDS OF STEPS AND ALONG SKIRTINGS. NON-NEON TUBE LIGHTS OR PLEXINEON STRIPS WILL BE PROVIDED ON DISPLAY CABINETS AND BOOKCASES, BEHIND PELMETS BY WINDOWS, UNDER FURNITURE IN GUEST AREAS.

SAVANT SYSTEM WILL BE INSTALLED IN ALL GUEST AREAS TO CONTROL THE LIGHTING AND TO INTERFACE WITH THE BLINDS AND SUCHLIKE.

WINDOWS AND PORTHOLES WILL INCLUDE SOLID FRAMING AROUND OPENINGS, REMOVABLE AND BLIND FASTENED, TO INCLUDE APPROPRIATE INSULATION. DEADLIGHTS WILL BE SUPPLIED AND ACCESSIBLE STOWAGE PROVIDED, ALL WITH CLASS APPROVAL.

ALL SHIP'S SYSTEMS, APPLIANCES, ELECTRICAL AND PLUMBING CONNECTIONS WILL BE CONCEALED WITHIN LININGS AND FIXED JOINERY WORK, MAINTANING SUITABLE ACCESS FOR MAINTENANCE OF SUCH ITEMS. A HIGH STANDARD OF SOUND AND VIBRATION CONTROL WILL BE MAINTAINED.

ELECTRICAL EQUIPMENT WHICH VIBRATES WILL BE ISOLATED WITH SOFT NEOPRENE PADS OR EQUIVALENT.

HOT AND CHILLED WATER PIPING WILL BE THERMALLY INSULATED. ANY DRY PART OF THE EXHAUST SYSTEM WILL BE THERMALLY INSULATED.

NO SIGNIFICANT VOLUME WILL BE LEFT WITHIN THE YACHT WITHOUT ACCESS, VENTILATION, AND SUITABLE SUB-DIVISION FOR STOWAGE.

WHERE ACCESS IS REQUIRED TO SERVICE EQUIPMENT, MACHINERY, SEACOCKS ETC. LOCATED BEHIND JOINERY WORK, REMOVABLE PANELS WILL BE FITTED UTILISING FULLY CONCEALED FIXINGS. OVERHEAD PANELS WILL BE REMOVABLE, FIXED WITH FASTMOUNT FITTINGS OR SIMILAR.

HANDHOLDS WILL BE PROVIDED THROUGHOUT THE ACCOMMODATION, ISRECESSED WHERE REQUIRED.

VENTILATION AND AIR CONDITIONING GRILLES WILL REQUIRE TO BE PURPOSE-MADE, INTEGRAL WITH THE FURNITURE AND PANELLING, AND/OR AS A CONTINUOUS VISUAL FEATURE ALONG THE CEILING PERIMETER. CONDENSATION ON GRILLES WILL BE AVOIDED BY CHOICE OR MATERIAL OR PROPER COMBINATION OF COOLED AIR TEMPERATURE AND AIR-VOLUME.

ALL ESSENTIAL FEATURES AND FACILITIES WHICH IN THE COURSE OF NORMAL YACHT BUILDING PRACTICE WOULD BE INCLUDED WILL BE DEEMED TO BE SO INCLUDED. SUCH FEATURES WOULD INCLUDE, INTER ALIA, APPROPRIATE ROLLED STOWAGE FOR INTERNATIONAL CODE FLAGS, CHARTS, BINOCULARS, TORCHLIGHTS, INTERCOM CHARGERS, FIRE EXTINGUISHERS, DRAWERS/COMPARTMENTS FOR TAPES, C.D.’S ETC.

EACH LIVING AREA WILL HAVE GOOD NATURAL VENTILATION. SEPARATE EXTRACTION IS REQUIRED FOR EACH TOILET COMPARTMENT.

AIR CONDITIONING THROUGHOUT TO BE HIGHEST STANDARD, TO INCLUDE A HIGH LEVEL OF FRESH AIR MAKE UP.

THE INTERIOR WILL BE “FLOATING” TO ACHIEVE A HIGH LEVEL OF ACOUSTIC AND VIBRATION INSULATION. A HIGH LEVEL OF INSULATION WILL BE ACHIEVED THROUGHOUT AND PARTICULARLY BETWEEN CABINS.

DOORS WILL BE PURPOSE MADE, LACQURER AND LEATHER COVERED, MINIMUM THICKNESS 40MM, WITH SOLID WOOD FRAMES. CONCEALED DOOR CLOSERS, RETAINERS OR HOLD BACK DEVICES WILL BE ARRANGED WHERE APPROPRIATE. FIRE RATED DOORS WILL BE CUSTOM BUILT WITH APPROVED CORES AND MCA APPROVAL SECURED.

SLIDING DOORS WILL BE ELECTRICALLY OPERATED, WITH ALL NECESSARY FAIL-SAFE DEVICES, COUNTER- BALANCED IF REQUIRED FOR SAFETY, WITH POSITIVE HOLD OPEN FEATURES AND MANUAL OVERRIDES.

ALL FURNITURE WILL BE FULLY SECURED/TIED DOWN TO BULKHEADS OR FLOORS TO REMAIN IN POSITION IN A SEAWAY.

SUN DECK

SUNDECK GYMNASIUM

FLOOR                                                Teak Parquet

OVERHEAD                                         Glass and Majilite Splendor/Sand Upholstery

BULKHEADS                                       High glossy grey lacquer

CABINETS                                           High glossy grey lacquer

ENTERTAINMENT SYSTEM                 Samsung / 55” Ultra High Definition 4K TV

                                                           B&W / CCM 365 6” Inceiling Speaker x 2

Savant / Ipad controlling Lighting and Entartainmant System

SUNDECK EXTERIOR AREA

FLOOR                                                Teak Deck

BULWARKS                                         Toughened tinted glass and polished stainless louvres

AWNING                                            Provision for retractable awning, using Spradling exterior awning grade fabric

SUN LOUNGERS                                 Upholstered in Spradling exterior fabric

RAISED SUNBEDS                               Upholstered in Spradling exterior fabric

ENTERTAINMENT                               JL / AUDIO 770-CCX Marine Coaxial Speaker System x 4

                                                             Savant / Ipad controlling Lighting and Entartainmant S       System

BRIDGE DECK SKYLOUNGE BAR/LOBBY

FLOOR                                                Polished grey Empredor marble

OVERHEAD                                         Majilite Radiance/Sand with high glossy white lacquer

BULKHEADS                                       High glossy grey lacquer

DOORS                                               Genuine leather with opaque glass panel

STAIRS DOWN TO MAIN LOBBY         Genuine leather with polished stainless steel detail and illuminated glass strip

HANDRAILS                                        Polished stainless steel wrapped in genuine leather.

                                                           Lower rail in polished stainless steel

WINDOW MULLIONS                         High glossy grey lacquer

CABINETRY                                         Macassar ebony wood ,black lacquer and stainless details

BAR TOP                                             Polished black Corian counter with genuine leather surround

BAR STOOLS                                       Custom made with stainless steel and genuine leather

ENTERTAINMENT SYSTEM                 B&W / CCM 365 6” Inceiling Speaker x 2

Savant / Ipad controlling Lighting and Entartainmant System

BRIDGE DECK SKYLOUNGE SEATING AREA

FLOOR                                                Carpet

OVERHEAD                                         Majilite Radiance/Sand with High glossy white lacquer

BULKHEADS                                       High glossy grey lacquer

CABINETRY                                         Macassar ebony wood ,black lacquer and stainless details

DESK                                                   Custom Made: Built-in with glass and stainless supports/details

SOFAS X 2                                           Custom made

SOFA UPHOLSTERY                            Genuine leather

ARMCHAIR UPHOLSTERY                   Genuine Leather

CENTRAL SOFA                                   Custom made

ENTERTAINMENT SYSTEM                 Samsung / 65” Ultra High Definition 4K TV

Rotel / RSX 1550 5.1 Channel 4 Zone Surround Receiver B&W / ASW 610 10” Active Subwoofer

                                                           B&W / CCM 365 6” Inceiling Speaker x 5

Savant / Ipad controlling Lighting and Entartainmant System

BRIDGE DECK DAY HEAD

FLOOR                                                Polished grey Empredor marble with polished black granite border

OVERHEAD                                         Majilite Shimmer/Ivory

BULKHEADS                                       High glossy white lacquer + stainless + mirrors

DOOR                                                 Genuine leather with opaque glass panel

CABINETRY                                         Lacquer with stainless steel details

VANITY UNIT                                      Polished black Corian

BRIDGE DECK CAPTAIN'S CABIN

FLOOR                                                Carpet

OVERHEAD                                         Majilite Shimmer/Ivory

BULKHEADS                                       High glossy white lacquer

DOORS                                               Genuine leather with opaque glass panel

WINDOW MULLIONS                         High glossy white lacquer

BLINDS                                               Automation controlled leather venetian blinds

CABINETRY                                         High glossy white lacquer

ENTERTAINMENT SYSTEM                 Samsung / 28” Ultra High Definition 4K TV B&W / CCM 365 6” Inceiling Speaker x 2

Savant / Ipad controlling Lighting and Entartainmant System

BRIDGE DECK CAPTAIN'S ENSUITE

OVERHEADS                                       High glossy white lacquer

SHOWER BULKHEAD AND FLOOR      Polished grey Emredor marble with polished black granite

CABINETRY                                         High glossy white lacquer

VANITY UNIT TOP                              Polished black Corian

SHOWER DOOR                                 Glass/Huppe System

BRIDGE DECK WHEELHOUSE & OFFICE

FLOOR                                                Black painted waterproof oak parquet

OVERHEAD                                         Majilite Splendor/Sand with leather panels

BULKHEADS                                       High glossy grey lacquer

DOOR                                                 Genuine leather with opaque glass panel

CONSOLE                                            Combination leather and high glossy black lacquer

LEANING POST HELM SEAT                Genuine leather

VIEWING SEATING (U-SHAPE)           Custom-built with Majilite Nuance/Corona upholstery CUSTOM TABLE       High glossy black lacquer with stainless steel detail

OFFICE CHAIR                                     Swivel office style chair with genuie leather upholstery

ENTERTAINMENT SYSTEM                 B&W / CCM 365 6” Inceiling Speaker x 2

Savant / Ipad controlling Lighting and Entartainmant System

BRIDGE DECK EXTERIOR AREAS

FLOOR                                                Teak Deck

BULWARKS                                         Toughened tinted glass and polished stainless steel louvres

AWNING                                            Provision for retractable with Spradling exterior fabric

DINING TABLE                                    Custom made, teak + stainless steel

DINING CHAIRS                                  Custom made

EXTERIOR SEATING                            Gloster "Casablanca" range deep seating sofas c/w Spradling exterior fabric

X 3 SOFAS                                           or similar custom made

TABLE TO RAISE & EXT FOR DINING  Custom made, teak, stainless steel and glass ENTERTAINMENT        JL / AUDIO 770-CCX Marine Coaxial Speaker System x 2

                                                           Savant / Ipad controlling Lighting and Entart. System

MAIN DECK

MAIN DECK SALOON

FLOOR                                                Carpet

OVERHEAD                                         Majilite Radiance/Sand with lacquer and stainless steel details

BULKHEADS                                       High glossy white lacquer and high glossy ebony veneer

WINDOW MULLIONS                         Majilite Shimmer Ivory upholstery

BLINDS                                               Automation controlled leather venetian blinds

CABINETRY                                         High glossy white lacquer with leather and stainless features

TV UNIT                                              High glossy macassar ebony veneer with stainless steel details

SOFAS X 4                                           Custom made to electronically rotate on floor tracks to convert to cinema mode

COFFEE TABLE                                    Custom made: stainless steel,lacquer and glass combined.

ENTERTAINMENT SYSTEM                 Samsung / 85” Ultra High Definition 4K TV Harman Kardon / AVR 370 Surround Receiver B&W / ASW 610 10” Active Subwoofer

                                                           B&W / CCM 365 6” Inceiling Speaker x 5

                                                           Savant / Ipad controlling Lighting and Entartainmant System

MAIN DECK DINING

FLOOR                                                High glossy Portoro marble

OVERHEAD                                         Majilite Radiance/Sand with high glossy white and black lacquer and stainless steel details

DOORS                                               Genuine leather with opaque glass panel

WINDOW MULLIONS                         Majilite Shimmer Ivory upholstery

BLINDS                                               Automation controlled leather venetian blinds

CABINETRY                                         High glossy white lacquer with leather and stainless features

DINING TABLE                                    Custom made. Genuine leather, glass and stainless steel combined.

DINING CHAIRS                                  Quia 'Elena' chair

DINING CHAIR UPHOLSTERY              Genuine leather and stainless steel

ENTERTAINMENT SYSTEM                 B&W / CCM 365 6” Inceiling Speaker x 2

                                                           Savant / Ipad controlling Lighting and Entartainmant System

MAIN DECK LOBBY

FLOOR                                                Polished grey Empredor marble with stainless steel bordure

OVERHEAD                                         Majilite Radiance/Sand with high glossy white lacquer

BULKHEADS                                       High glossy grey lacquer FEATURE BULKHEAD BEHIND STAIRS          High glossy lacquered panels

DOORS                                               Genuine leather with opaque glass panel

STAIRS DOWN TO LOWER DECK        Genuine leather with polished stainless steel detail and

                                                           illuminated glass strip

HANDRAIL                                          Polished stainless steel

                                                           Lower rail polished stainless steel

MAIN DECK DAY HEAD

FLOOR                                                Polished grey Empredor marble with polished black granite

OVERHEAD                                         Majilite Shimmer/Ivory

BULKHEADS                                       High glossy white lacquer, marble

DOOR                                                 Genuine leather with opaque glass panel

CABINETRY                                         High glossy white lacquer with stainless steel detail

VANITY TOP                                       Polished black Corian

MAIN DECK STUDY

FLOOR                                                                Carpet

OVERHEAD                                                         Majilie Shimmer/ Ivory

BULKHEADS                                                        High glossy white lacquer

DOOR TO LOBBY                                                 Genuine leather with opaque glass panel

BLINDS                                                                Automation controlled leather venetian blinds

WARDROBE DOORS                                            High glossy white lacquer with black glass inlay

CABINETRY                                                         Highglossywhitelacquerwith stainlessfeatures

DESK                                                                  Custommadewithlacquerand genuine leather

DESKCHAIR                                                         Upholsteredswiveldeskchairwithglides.

ENTERTAINMENTSYSTEM                                     B&W/CCM3656” InceilingSpeakerx2

Savant/IpadcontrollingLightingandEntartainmantSystem

MAIN DECK MASTER STATEROOM

FLOOR                                                                 Carpet with polished Empredor marble bordure

CENTRAL OVERHEAD                                            Majilite Icon Pony/Granite gray with stainless steel edging

BULKHEADS                                                         High glossy white lacquer

DOORS                                                                Sliding with glass

WINDOW SURROUND                                           Majilite Shimmer Ivory upholstery

BLINDS                                                                Automation controlled leather venetian blinds

CABINETRY                                                          High glossy white lacquer with stainless steel features

TV UNIT                                                               High glossy red lacquered with stainless steel and black glass

BED HEADBOARD                                                 Majilite Icon Pony/Granite gray with stainless steel edging

BEDSIDE UNIT                                                      High glossy black lacquer with stainless steel features

BED SURROUND                                                   Genuine leather

BED COVER                                                          TBC

BED SCATTER CUSHIONS                                       TBC

DESK CHAIR UPHOLSTERY                                     Genuine leather

CHAISE LONGUE                                                   Freestanding Chaise Longue with genuine leather

                                                                           upholstery

ENTERTAINMENT SYSTEM                                     Samsung / 65” Ultra High Definition 4K TV

Rotel / RSX 1550 5.1 Channel 4 Zone Surround Receiver B&W / ASW 610 10” Active Subwoofer

                                                                           B&W / CCM 365 6” Inceiling Speaker x 5

Savant/IpadcontrollingLightingandEntartainmantSystem

MAIN DECK MASTER STATEROOM EN-SUITE

FLOOR                                                                 Polished grey Empredor marble with polished black granite

OVERHEAD                                                          White lacquer with stainless steel features

BULKHEADS                                                         High glossy white lacquer, steamproof mirrors

DOORS TO SHOWER/TOILET                                  Glass

WINDOW SURROUND                                           High glossy white lacquer

BLINDS                                                                White colored venetian blinds

FEATURE TILES BEHIND BATH                                Back stone in polished stainless steel frames CABINETRY            High glossy red lacquered with stainless steel

VANITY TOP                                                         Polished black Corian

SHOWER DOOR                                                    Glass/Huppe system

ENTERTAINMENT SYSTEM                                     B&W / CCM 365 6” Inceiling Speaker x 2

Savant / Ipad controlling Lighting and Entartainmant System

MAIN DECK GALLEY

FLOOR                                                                PolishedgreyEmpredormarblewithstainlesssteelbordure

OVERHEAD                                                         WhiteHighGlossLacquer

BULKHEAD                                                          SilverHighGlossLacquer+brushedstainlesssteel

DOORS                                                               WhiteHighGlossLacquerwithopaqueglasspanel

WORKTOP                                                          PolishedblackCorianwithstainlesssteelhandrail

CABINETRY                                                         SilverHighGlossLacquerwithpolishedstainlesssteel

detail

ENTERTAINMENTSYSTEM                                     B&W/CCM3656” InceilingSpeakerx2

Savant/IpadcontrollingEntartainmantSystem

MAIN DECK CREW MESS

FLOOR                                                                PolishedgreyEmpredormarble

OVERHEAD                                                         MajiliteShimmer/Ivory

BULKHEAD                                                          SilverHighGlossLacquer

DOORS                                                               WhiteHighGlossLacquerwithopaqueglasspanel

VENETIANBLINDS                                                Electricalcontrolledleathervenetianblinds

WORKTOP                                                          PolishedblackCorian

CABINETRY                                                         SilverHighGlossLacquerwithpolishedstainlesssteeldetail

OUTBOARDLOUVRES                                           SilverHighGlossLacquer

STOOLS                                                              Custommade

STOOLUPHOLSTERY                                             Leather

ENTERTAINMENTSYSTEM                                     B&W/CCM3656” InceilingSpeakerx2

Savant/IpadcontrollingEntartainmantSystem

MAIN DECK PANTRY

FLOOR                                                                PolishedgreyEmpredormarblewithstainlesssteelbordure

OVERHEAD                                                         WhiteHighGlossLacquer

BULKHEADS                                                        SilverHighGlossLacquer+brushedstainlesssteel

DOORS                                                               WhiteHighGlossLacquerwithopaqueglasspanel

CABINETRY                                                         SilverHighGlossLacquerwithpolishedstainlesssteeldetail

OUTBOARDLOUVRES                                           SilverHighGlossLacquer

WORKTOP                                                          PolishedblackCorianwithstainlesssteelhandrail

DUMBWAITER                                                     Stainlesssteel

ENTERTAINMENTSYSTEM                                     B&W/CCM3656” InceilingSpeakerx2

Savant /IpadcontrollingEntartainmantSystem

MAIN DECK EXTERIOR

FLOOR                                                                Teak deck, scarf joints for continuous look, aluminium colouredompoundjoints

DININGTABLE                                                      Custommadeteak+stainlesswith etchedglassandlighting

DININGCHAIRS                                                    Custommade

BUILT-INSEATINGUNIT                                        Custommade,teak,stainless,glass

SEATINGUPHOLSTERY                                          Sunbrellaexteriorfabric

COFFEETABLE                                                      Custommadewithteak,stainlessandglass

CHAIRSX2                                                           Gloster"Casablanca"rangeorsimilarcustomc/wSunbrellaexteriorfabric

SOFAX1                                                              Gloster"Casablanca"rangeorsimilarcustomc/wSunbrellaexteriorfabric

SCATTER CUSHIONS                                              Sunbrellaexteriorgradefabric

ENTERTAINMENT                                                Samsung55”UltraHighDefinition4KTV

JL / AUDIO 770-CCX Marine Coaxial Speaker System x 4Savant/IpadcontrollingLightingandEntartainmantSystem

LOWER DECK

LOWER DECK LOBBY

FLOOR                                                                 Polishedgrey

                                                                           Empredor marble with stainless steel bordure

OVERHEAD                                                          Majilite

Radiance/Sand                                                     with high glossy lacquer

BULKHEADS                                                         Higglossy greylacquer

CABIN DOORS                                                      Genuine leather   with

                                                                           opaque glass panel

STAIRS UP TO MAIN LOBBY                                   Genuine leather

HANDRAILS                                                          Polished stainless steel

LOWER DECK PORT & STBD VIP CABINS

FLOOR                                                                 Carpet

CENTRAL CEILING/BULKHEAD FEATURE                  Majilite  Baby  Cane  / Nickel

OVERHEAD                                                          MajiliteShimmer/Ivory

BULKHEADS                                                         Whitehighglosslacquerblackhigh gloss lacquerlower band detail

DOORS                                                                Whitehighgloss

                                                                           Lacquerwithblack high gloss lacquer lowerband and polished stainless steel upper band detail

WINDOW SURROUND                                           Majilite Shimmer/ Mist

BLINDS                                                                Automation   controlledleather venetian blinds

TV UNIT                                                               BlackHighGlossLacquer louvres

OUTBOARD WARDROBE DOORS                            Mirror with Black High

Gloss                                                                   Lacquer band/inlay

STARBOARD DESK                                                Highglossyblacklacquer with genuine leather

DESK CHAIR                                                         Custom made    swivelstyle chair, with glides

DESK CHAIR UPHOLSTERY                                     Genuine leather

SOFA                                                                   Custom made

SOFA UPHOLSTERY                                               Genuine leather

BED HEADBOARD                                                 Leather with   polishedstainless steel edging

BED                                                                     CustommadewithMacassar Ebony wood, BlackHigh    GlossLacquer louvres and polished stainless steel details

BED SURROUND                                                   Genuine leather   withstitching detail

BED COVER                                                          TBC

BED SCATTER CUSHIONS                                       TBC

ENTERTAINMENT SYSTEM                                     Samsung  / 46”  UltraHigh Definition 4K TV B&W / CCM 365 6”Inceiling Speaker x 2 Savant/Ipad controllinLighting andEntartainmant System

LOWER DECK PORT & STBD VIP ENSUITES

FLOOR                                                                 PolishedgreyEmpredor marble with Nero Assoluto Granite border

OVERHEAD                                                          Whitehighglosslacquer with polished stainless steel edge + perimeter lighting

BULKHEADS                                                         Whitehighglosslacquerblackhigh gloss lacquerlower band detail

DOORSWhitehighglossLacquerwithblack high gloss lacquer lower      band     and polished stainless steel upper band detail

WINDOW SURROUND                                           MajiliteShimmer/mist

BLINDS                                                                Automation   controlled.leather venetian blinds

VANITY TOP                                                         Polished black Corian

VANITY UNIT                                                        High glossy whitelacquer

SPLASHBACK                                                        Mirror+polishedstainless steel band

SHOWER BULKHEAD                                             PolishedgreyEmpredor marble with Nero Assoluto Granite band

SHOWER FLOOR                                                   PolishedgreyEmpredor marble

SHOWER DOOR                                                    Glass/Huppe system

LOWER DECK PORT & STBD TWIN PULLMAN GUEST CABINS

FLOOR                                                                 Carpet

CENTRAL CEILING/BULKHEAD FEATURE                  Majilite  Baby  Cane  / Nickel

OVERHEAD                                                          MajiliteShimmer/Ivory

BULKHEADS                                                         Whitehighglosslacquer black  high gloss lacquerlower band detail

DOORS                                                                WhitehighglossLacquerwithblack high gloss lacquer lower      bandand polished stainless steel upper band detail

WINDOW SURROUND                                           Majilite Shimmer/ Mist

BLINDS                                                                Automation   controlledleather venetian blinds

BED HEADBOARD                                                 Leather   with   polishedstainless steel edging

TV UNIT                                                               BlackHighGlossLacquer louvres

WARDROBE DOORS                                              Mirror with Black HighGlossLacquer band/inlay

DESK                                                                   Highglossyblacklacquer with genuine leather

DESK CHAIR                                                         Custom made    swivelstyle chair, with glides

DESK CHAIR UPHOLSTERY                                     Genuine leather

BED SURROUND                                                   Genuine leather  withstitching detail

BED COVER                                                          TBC

BED SCATTER CUSHIONS                                       TBC

ENTERTAINMENT SYSTEM                                     Samsung  / 46”  UltraHigh Definition 4K TV B&W / CCM 365 6”

Inceiling Speaker x 2 Savant/Ipad controllingLighting andEntartainmant System

LOWER DECK PORT & STBD TWIN PULLMAN GUEST ENSUITES

FLOOR                                                                 PolishedgreyEmpredor marble with Nero Assoluto Granite border

OVERHEAD                                                          Whitehighglosslacquer with polished stainless steel edge + perimeter lighting

BULKHEADS                                                         Whitehighglosslacquer black  high gloss lacquerlower band detail

DOORS                                                                WhitehighglossLacquerwithblack high gloss lacquer lower      bandand polished stainless steel upper band detail

WINDOW SURROUND                                           Majilite Shimmer/ Mist

BLINDS                                                                Automation   controlledleather venetian blinds

VANITY TOP                                                         Polished black Corian

VANITY UNIT                                                        High glossywhitelacquer

SPLASHBACK                                                        Mirror+polishestainless steel band

SHOWER BULKHEAD                                             PolishedgreyEmpredor marble with Nero Assoluto Granite band

SHOWER FLOOR                                                   PolishedgreyEmpredor marble

SHOWER DOOR                                                    Glass/Huppe system

STEPS DOWN TO CREW AREA

TREADS                                                               Whiteoiledoakparquet

RISERS                                                                 Straightgrainsycamore

HANDRAIL                                                           Polished stainless steel

CREW CORRIDOR

FLOOR                                                                 Carpet

OVERHEAD                                                          Suede upholstery

BULKHEAD                                                           Straightgrainsycamore

DOORS                                                                Straightgrainsycamore

LOWER DECK CREW CABINS

FLOOR                                                                 Carpet

OVERHEAD                                                          Suede upholstery

BULKHEAD                                                           Straight grainsycamore with suede upholstery band detail

DOORS                                                                Straightgrainsycamore

WINDOW SURROUND                                           Suede upholstery

VENETIAN BLINDS                                                Blackout roman blinds

CABINETRY                                                          Straightgrainsycamore.   Mirror on wardrobe door.

AUDIO SYSTEM                                                    JBL / On time Micro

Ipod-Iphone                                                         Dock- Alarm Radio

LOWER DECK CREW CABINS ENSUITE

FLOOR                                                                 PolishedgreyEmpredor marble

OVERHEAD                                                          White Lacquer

BULKHEADS                                                         Straightgrainsycamore

DOORS                                                                Straightgrainsycamore

WINDOW SURROUND                                           White Lacquer

BLINDS                                                                Roller blinds

VANITY UNIT                                                        Polished black Corian

SPLASHBACK                                                        Polished black Corian

SHOWER FLOOR                                                   PolishedgreyEmpredor marble

SHOWER BULKHEADS                                           White lacquer

SHOWER DOOR                                                    Glass/Huppe System

LOWER DECK CREW MESS

FLOOR                                                                 TBC

OVERHEAD                                                          Suede upholstery

BULKHEAD                                                           Straightgrainsycamore + Silver High Gloss Lacquer details

WINDOW SURROUND                                           Suede upholstery

BLINDS                                                                Leathervenetianblinds

CABINETRY                                                          SilverHighGlossLacquer and straight grain sycamore with

WORKTOP                                                           Polished black Corian

FIXED SEATING                                                     Custom made

ENTERTAINMENT SYSTEM                                     Samsung / 27” LED TVB&W / CCM 365 6”Inceiling Speaker x 2 Savant/Ipad controlling Entartainmant System

LOWER DECK LAUNDRY

FLOOR                                                                 TBC

OVERHEAD                                                          White lacquer

BULKHEAD                                                           Straightgrainsycamore + Silver HighGloss Lacquer details

WINDOW SURROUND                                           Suede upholstery

BLINDS                                                                Leathervenetianblinds

CABINETRY                                                          SilverHighGlossLacquer with straight grain sycamore

WORKTOP                                                           Polished black Corian

MAIN RACK EQUIPMENTS & NETWORK OF SAVANT AUTOMATION SYSTEM

  • SAVANT HST-4501 HOST CONTROLLER x 3
  • SAVANT SSC-0008-10 SMART CONTROL x 7
  • SAVANT IRB-1010-00 IR EMITTER 10 PACK x 4
  • SAVANT SLN-88BT-00 SMARTLINK 8x8 HDMI MATRIX SWITCH OVER CAT5E/6/7 x2
  • SAVANT HCX-1010 EXTEND HDMI SIGNALS x 12
  • SAVANT CON-10FNN-00 SERIAL ADAPTER 10 PACK x3
  • SAVANT SSA-4000-10 SMART AUDIO (AUDIO + CONTROL) x1
  • ROTEL RMB 1512 12X100W POWER AMPLIFIER x4
  • HARMAN KARDON BDT30 3D BLUERAY PLAYER x4
  • APPLE APPLE TV x1
  • QNAP 6TB STORAGE x1
  • CUSTOM 42U RACK&ACC. X1
  • HP 48 PORT GIGABIT SWITCH x1
  • N/A 0AP POE ACCESS POINT x18
  • SAVANT KEC-08B2B KEYPAD x62
  • SAVANT LMR–8240 HIGH POWER RELAY MODULE x15
  • SAVANT LMD-8240 –CHANNEL DIMMER MODULE x11
  • SAVANT SKL-1000 KEYPAD LINK x5
  • SAVANT SSL-PO18 SMARTLIGTING 18 x1
  • ACC 24PoE Switch x1

Have Questions?

Ask our experienced sales brokers about this yacht

Related Yachts for Sale
