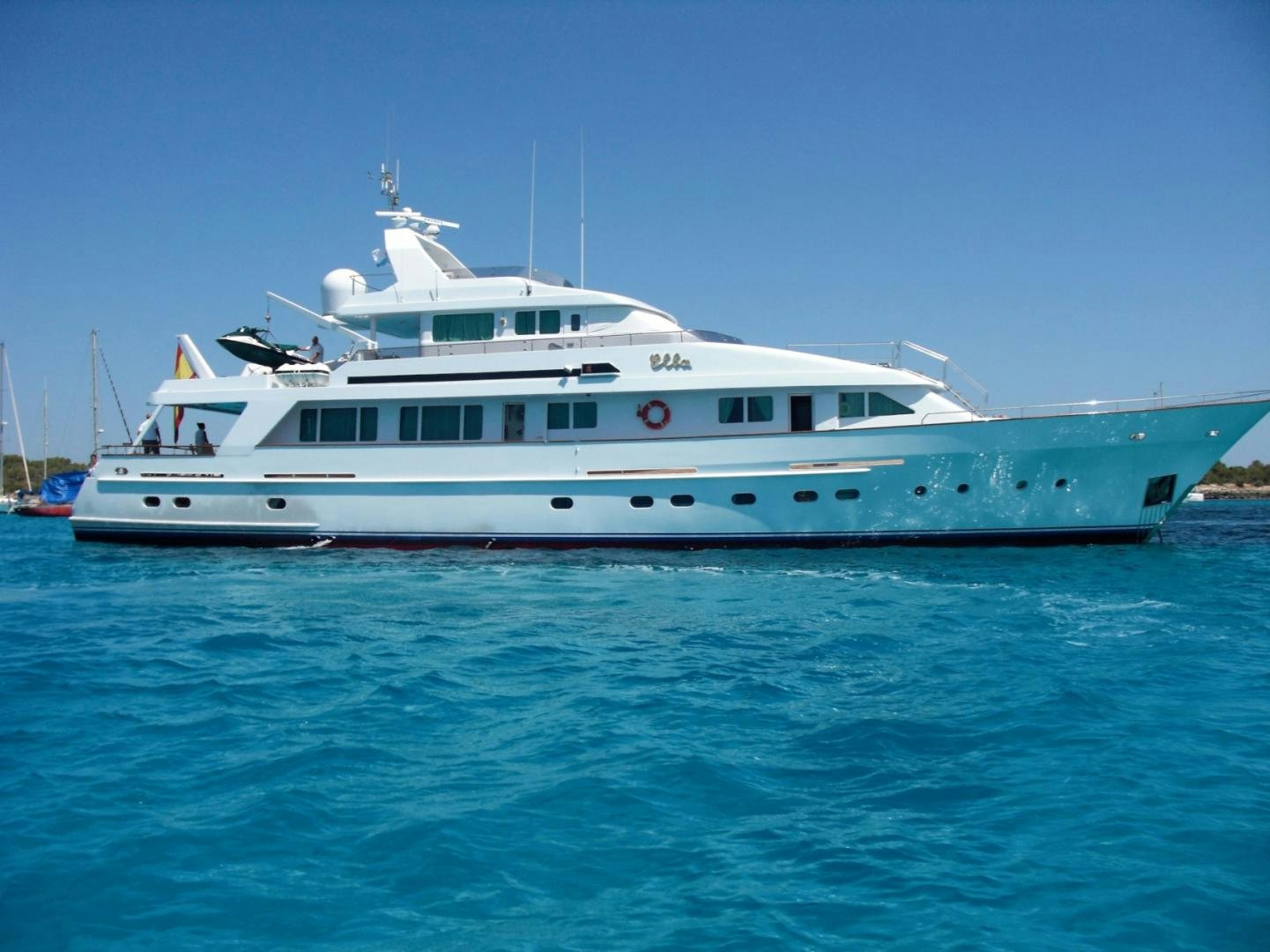

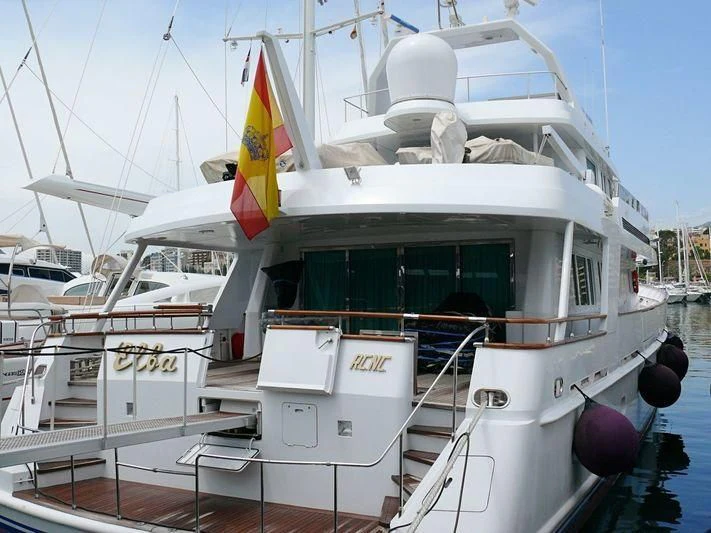

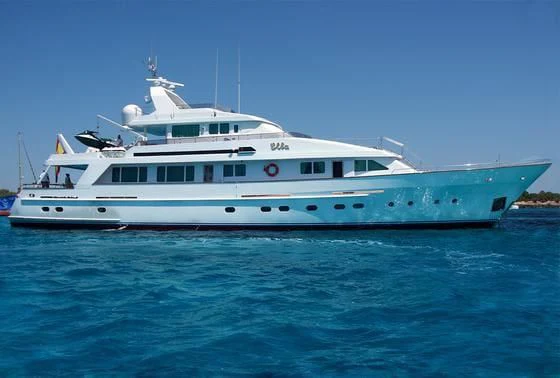

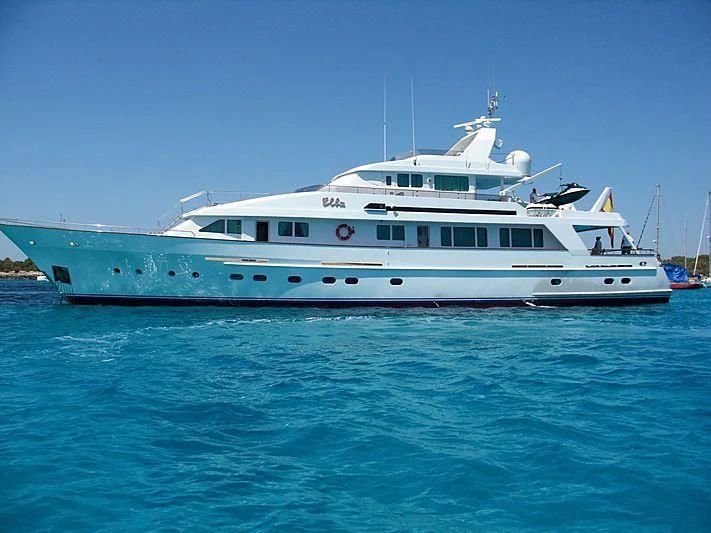

Built entirely in steel by Astilleros Armon, the 110-foot (33.40m) luxury motor yacht ELBA has only had one owner since her launch in 1991.

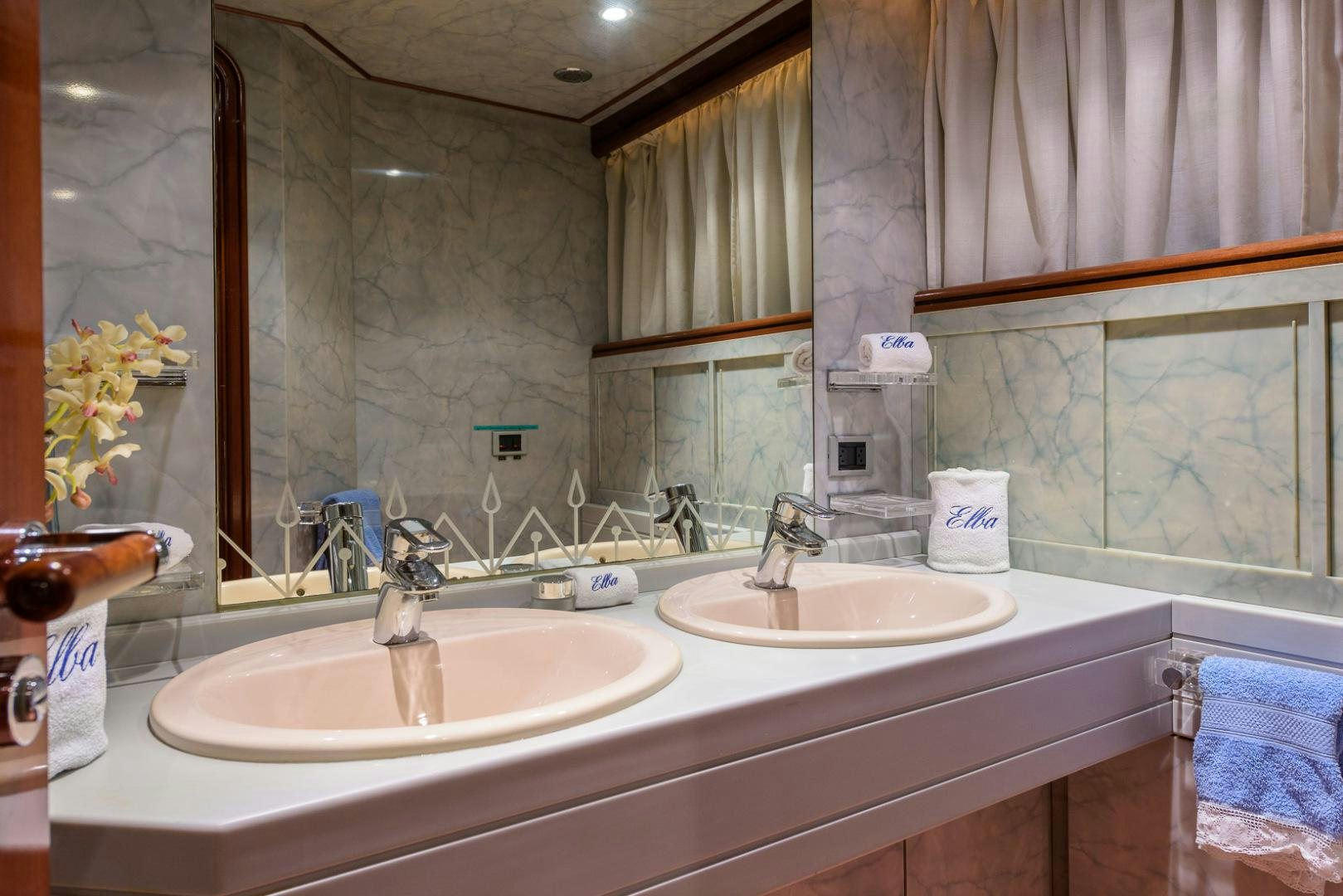

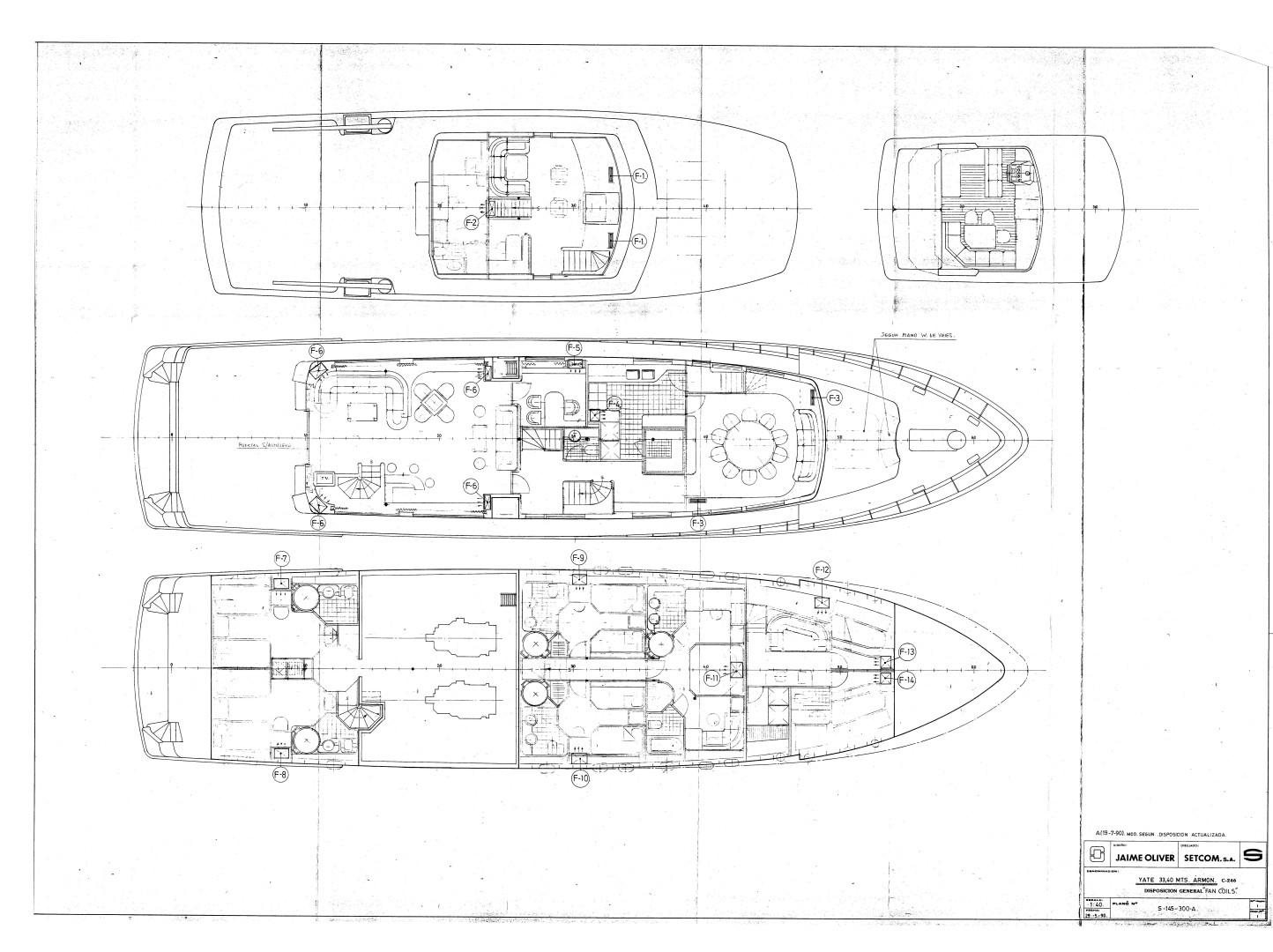

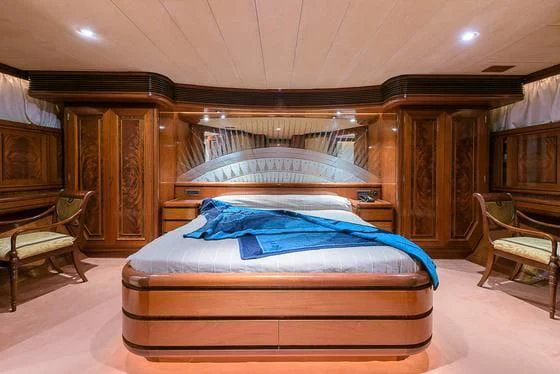

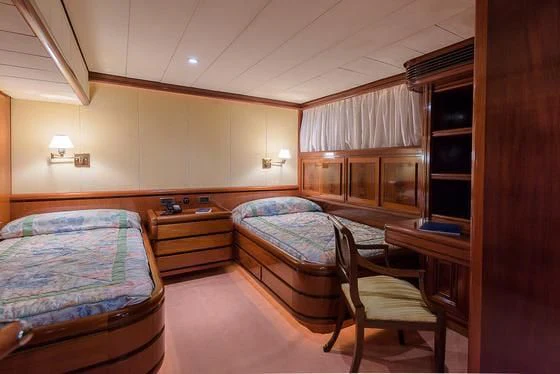

ELBA is a classic, well-appointed motor yacht with livable ample spaces and storage. Ten guests can comfortably sleep in five staterooms. Each guest stateroom includes all the necessary amenities to feel at home. Her layout boasts a well-appointed master suite, two doubles and two twin cabins — all with en-suite facilities.

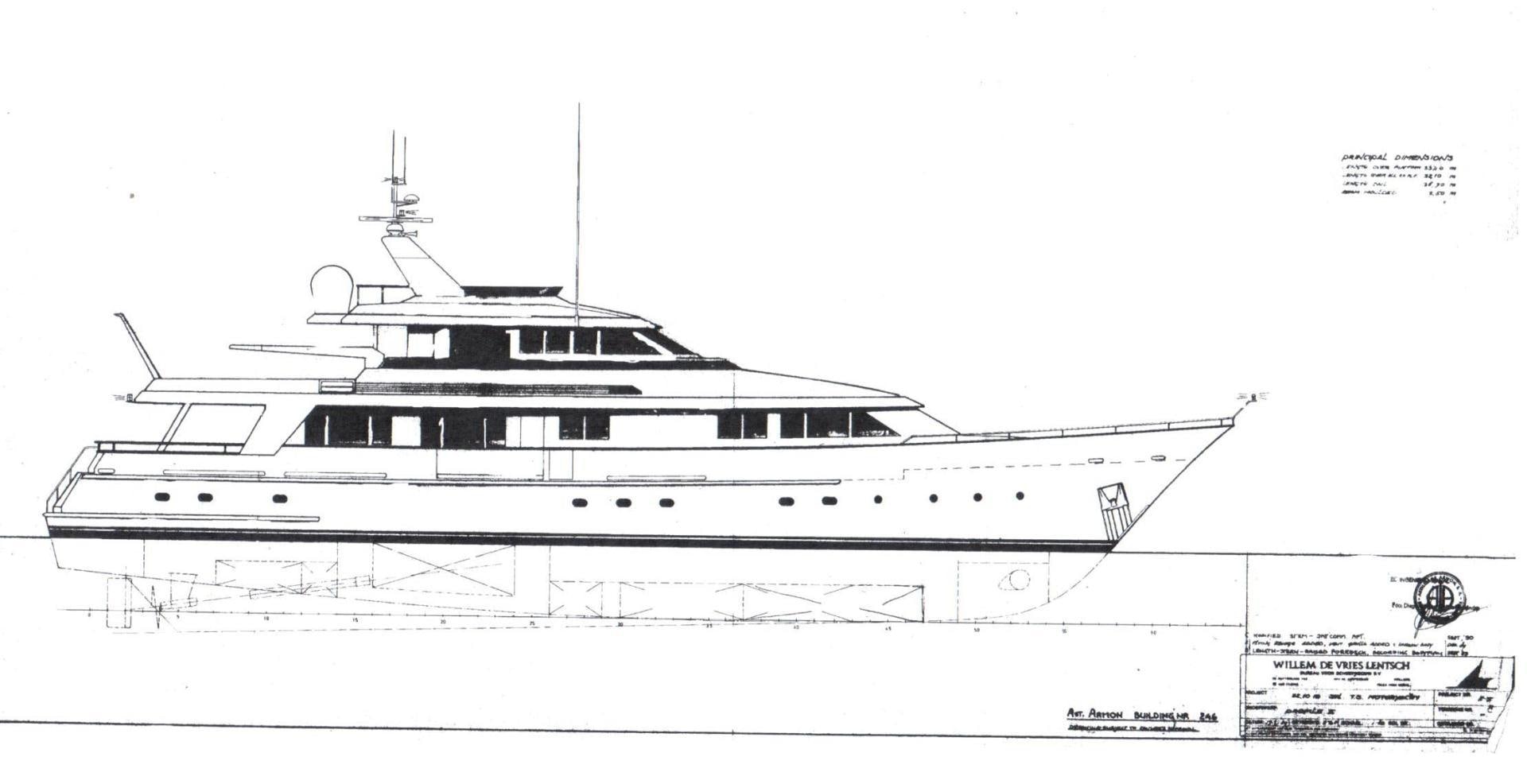

ELBAS’s exterior styling is classic and distinctive. De Vries Lentsch Jr. designed an ideal place to relax with friends and family while on board.
ELBA is equipped with two Caterpillar main engines of 625hp each, providing a top speed of 14 knots. Her draft of only 2.60m enables anchoring in selected, shallow marinas and moorings worldwide.
She also features a variety of water toys and tenders, including a Jet Ski and diving equipment.
Winches
Anchorandchain: 2x160kg,2x130m,20,5mmDeckshower:Yes
Bathingladder
CanvasCover
Passerelle
Sideboardingladder
Sunmattresses
Condaria Airconditioning
Condaria Heating
Condaria Ventilation
Marco Watermaker
VHF–RT2040
VHFRadiotel:VHFDSCSAILORRT4822
SSBRadiotel:HC4500
Satcom:INMARSATNERAMINIM
Intercom:FURUNO
Internet:INMARSATNERAMINIM,2,4kbps
LARSON170
MAJONIW425
Jetski:BOMBARDIER GTX
Water ski
Divingequipment
Liferafts:2xRFD16Pax,RFD16Pax.
Lifejackets
Distressflares
Epirb
Securitycameras are located in the passageway,engineroom, andstern

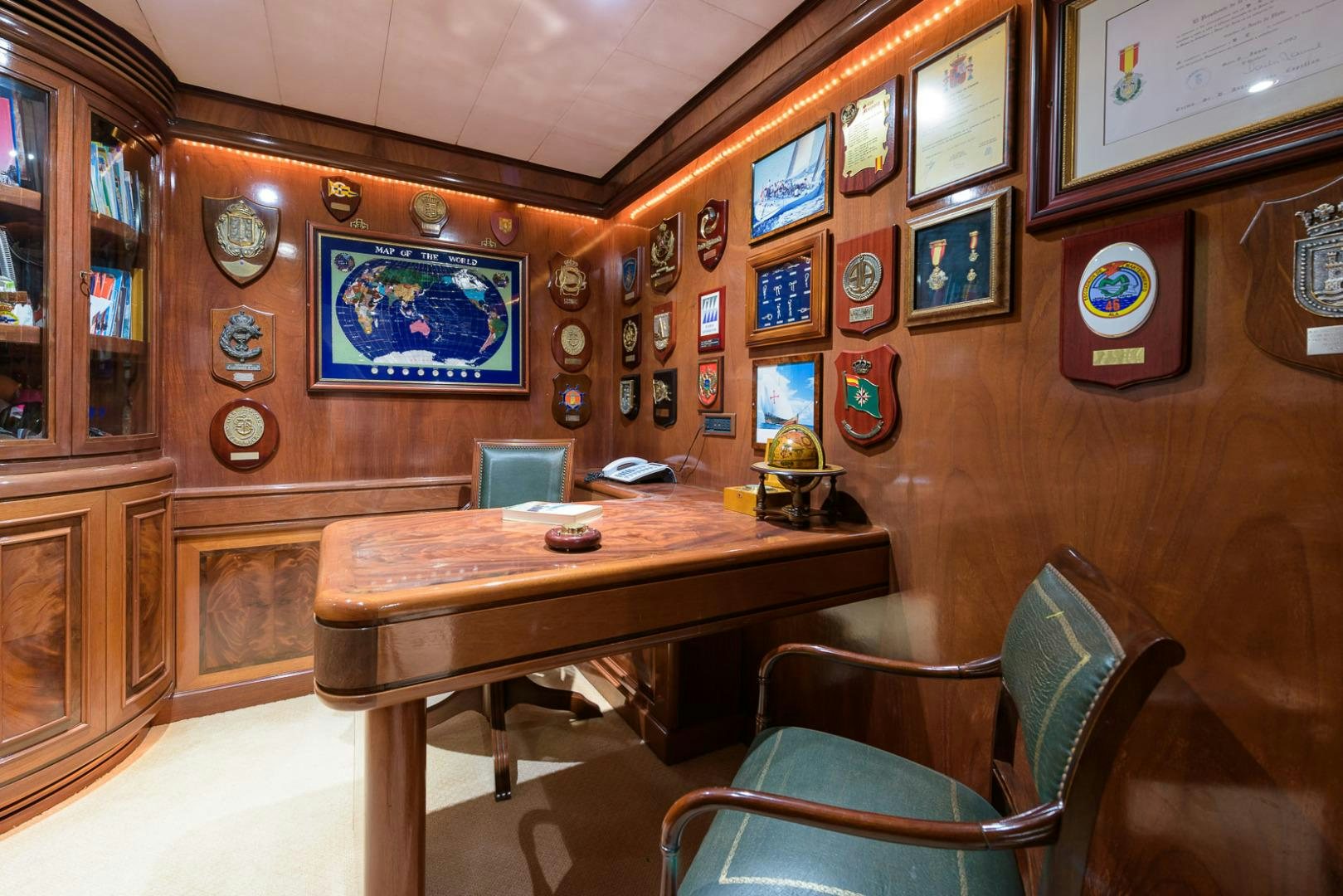

There is a safe in the owner'soffice
Bilge alarm
FireextinguisherFM200in the engineroomandseveralotherareas
Smokealarm  in the engineroom,
ServoMOBequipment:2xbasicasper Spanish Shipping Rules
RADARSERPEI.E.S.M.GMDSS•NAVTEXNAV5SAILOR HC4500
SATPhoneINMARSATNERA

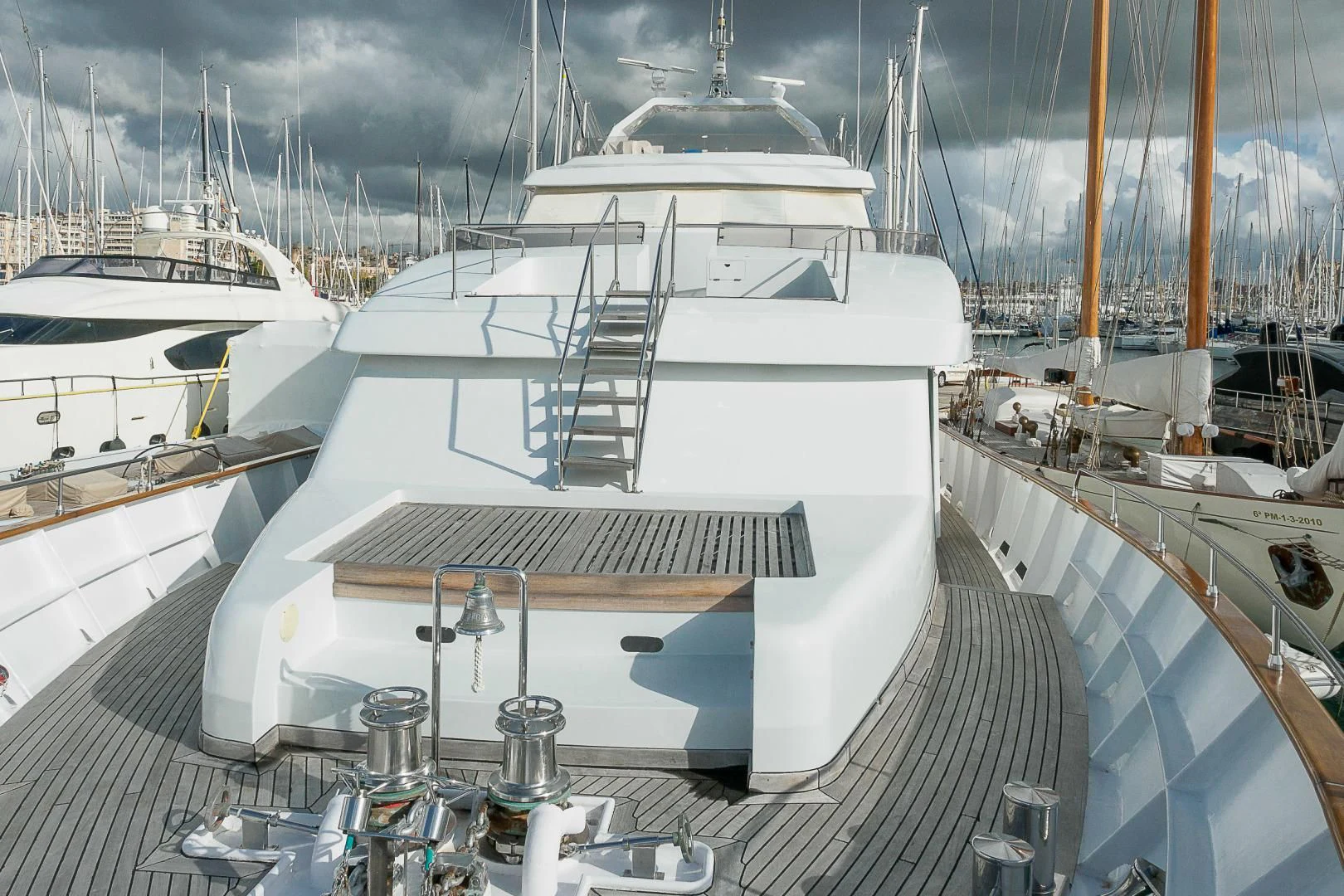

Teakdeckscontinuouslyrefittedbetween2012•2014.
Engineroomcompletelypainted in2012.
Hullandsuperstructurepainted2009andperfectlymaintainedandkeptinthelastyears.
Works Completed in Astilleros Shipyard 2017
Five Yearly Inspection/5th Special RINA Inspection
General Engine and Generator Inspection
Hull thickness measurement
General electric isolation measurement, Megartest
Propeller shafts removed and received and authorized condition inspection
Rudders removed and condition inspected
Yearly antifouling and propellers painted
Anchor chains calibrated
Sea Water faucets dismantled and cleaned
Water drainage systems dismantled and cleaned
Fuel and fresh water tanks checked
Grey and Black water tanks checked
Various underwater areas painted
2 x NEW Furuno radars installed
A list of other smaller works have been carried out
Navigation Certificate valid until 2022
RINA special Certificate Max Class Motor Yachts C*, Y – until 2022
Winches
Anchorandchain:Â 2x160kg,2x130m,20,5mmDeckshower:Yes
Bathingladder
CanvasCover
Passerelle
Sideboardingladder
Sunmattresses
Mainenginestype:2xCATERPILLAR625Hp,model3412DITAdiesel,totalengineoutput1250HpMainenginespower:Â 920kW/1,251hp
Year:1991
Gearbox:CATWAF3402,963:1
Speed(max.):14.00knSpeed(cruising):12.00kn
Range 3,600nm
Hours – January 2017
Port -  7632
Stb -   7672
Fuelseparator:Â ALFAÂ LAVAL MAB 103B
Propeller is a 2x4•blade
Generatortype:Â CAT3304B, 127hp,106Kva, 85Kw,50Hz
Generatorpower:Â 95kW/129hp
Hours - 7953
Generator2type:CAT 3304B,127Hp, 106 Kva, 85 Kw, 50Hz
Generator2power:Â 95kW/129hp
Hours - 8426
Generator3type:Â CATERPILLARC2.2, 22,5
Hours – 3807
Bowthrustertype:TunnelTransversal
Stabilizer KOOPNAUTIC(SeaRocq)
FuelTank56,740l
Fresh watertank7,400l
Wastetreatmentsystem is ORCA II
BatteriesGMDSSÂ ( due to be changed in 2017)
EmergencyBatterycharger
Converters
Shore power

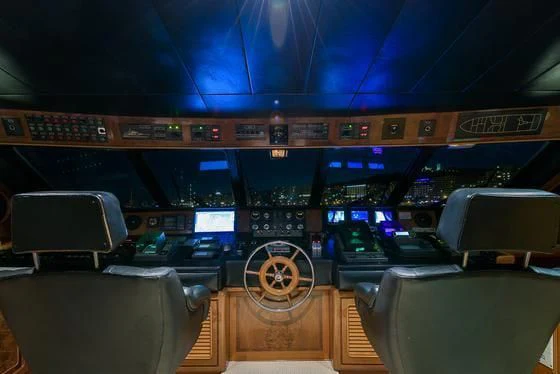

Navigationsystem:MAXSEA
Autopilot 1xFURUNOFAP50,FURUNONAVPilot/ 1 x SIMRAD AP60 ( 2016)
CompassMagnetic
CompassFluxgate
Gyrocompass ALPHATRON
GPS/plotter FURUNOGP500andGP32
RadarFURUNOFR8100DA
FURUNO1940

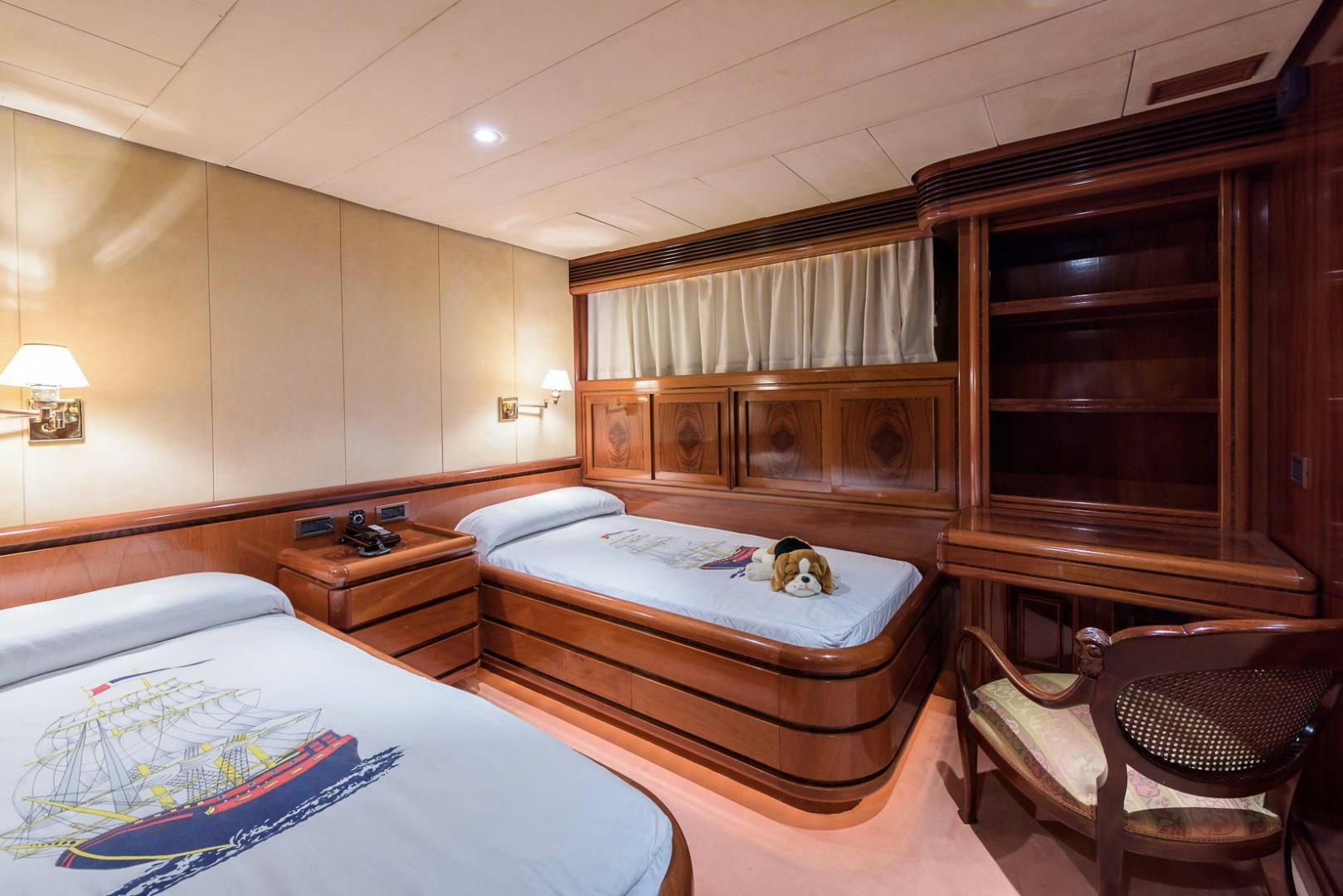

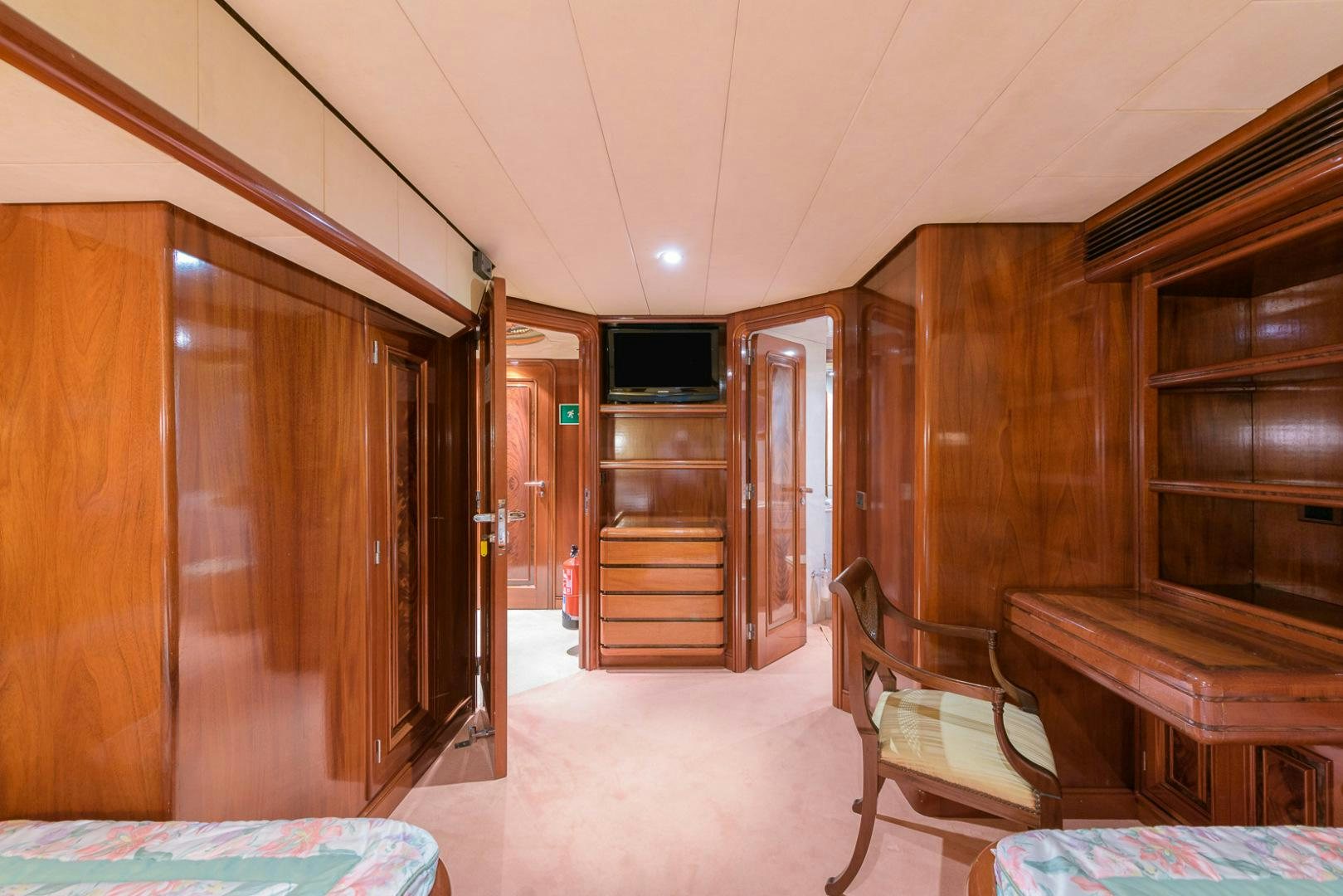

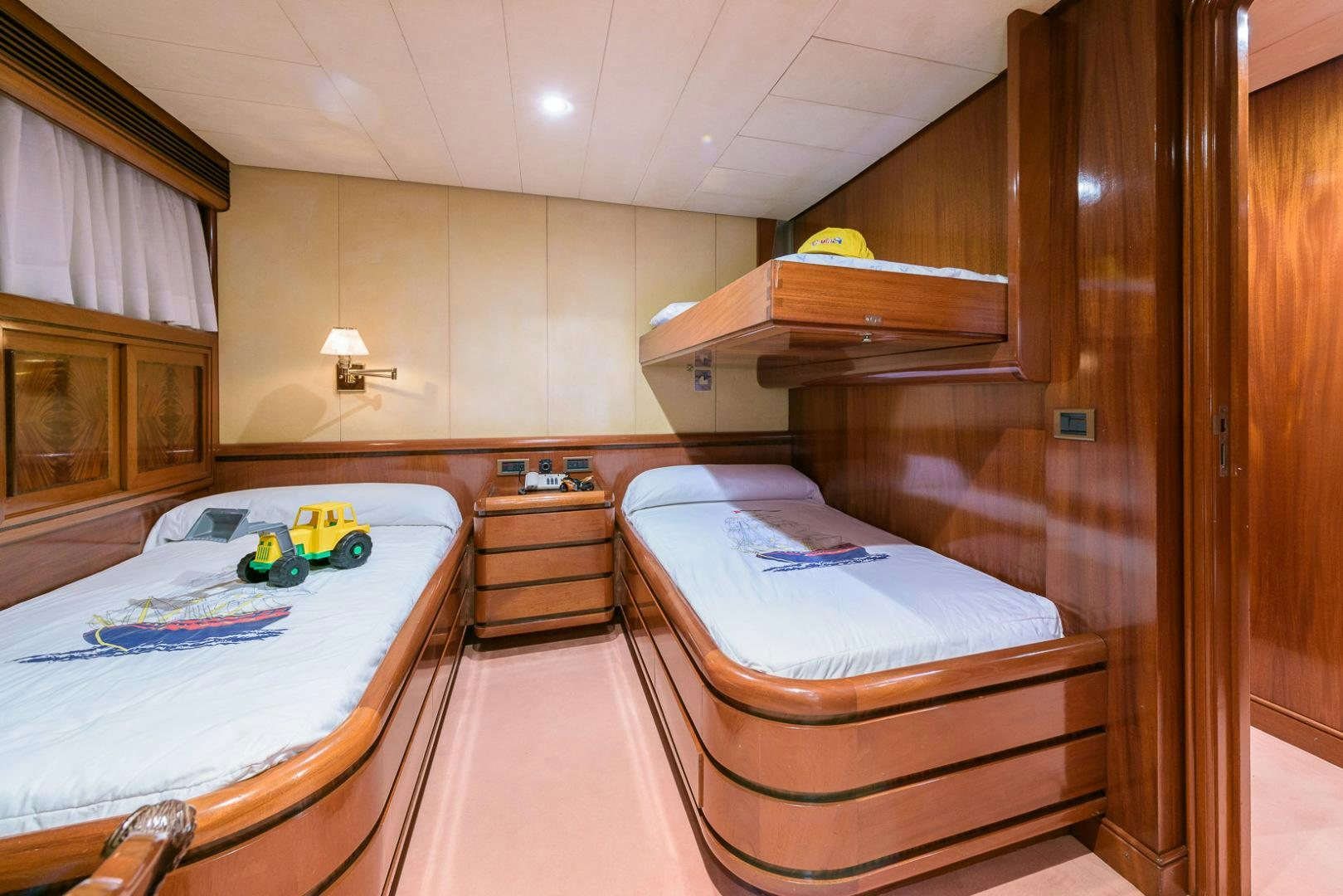

There are 5 guest cabins that can accommodate up to 10 guests. Each cabin has its own en-suite and two of the guest cabins have a Pullmans bunk.Â
The crew area consists of 2 cabins for 4 persons and there is also a private cabin for the Captain.
SAMSUNGÂ TVÂ in allcabinsandsalonDVD/Video
LGminiequipmentsaloon
Stereo system: PIONEERin the salon,diningroom,bridge,Flybridge, anddecks.
BottlecoolerÂ

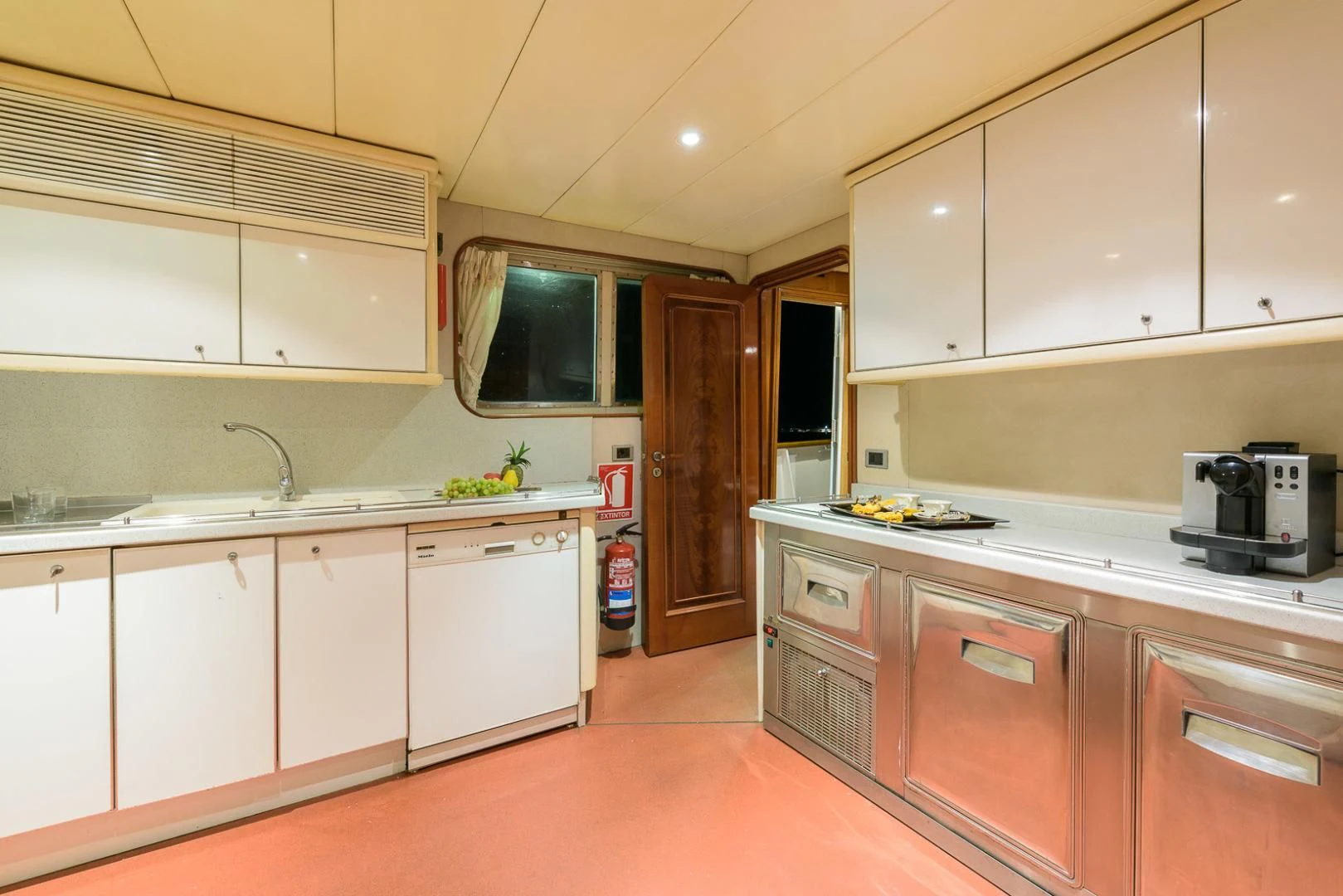

Refrigerators in the galley,salon, andcockpitÂ
Deepfreezer
Icemakers are located in the galley and in the flybridgeÂ
Microwaveoven:MIELE
Coffee machine
StoveMIELE
DishwasherMIELE
Washingmachine MIELE
Dryer MIELE
Condaria Airconditioning
Condaria Heating
Condaria Ventilation
Marco Watermaker
VHF–RT2040
VHFRadiotel:VHFDSCSAILORRT4822
SSBRadiotel:HC4500
Satcom:INMARSATNERAMINIM
Intercom:FURUNO
Internet:INMARSATNERAMINIM,2,4kbps
LARSON170
MAJONIW425
Jetski:BOMBARDIERÂ GTX
Water ski
Divingequipment
Liferafts:2xRFD16Pax,RFD16Pax.
Lifejackets
Distressflares
Epirb
Securitycameras are located in the passageway,engineroom, andstern

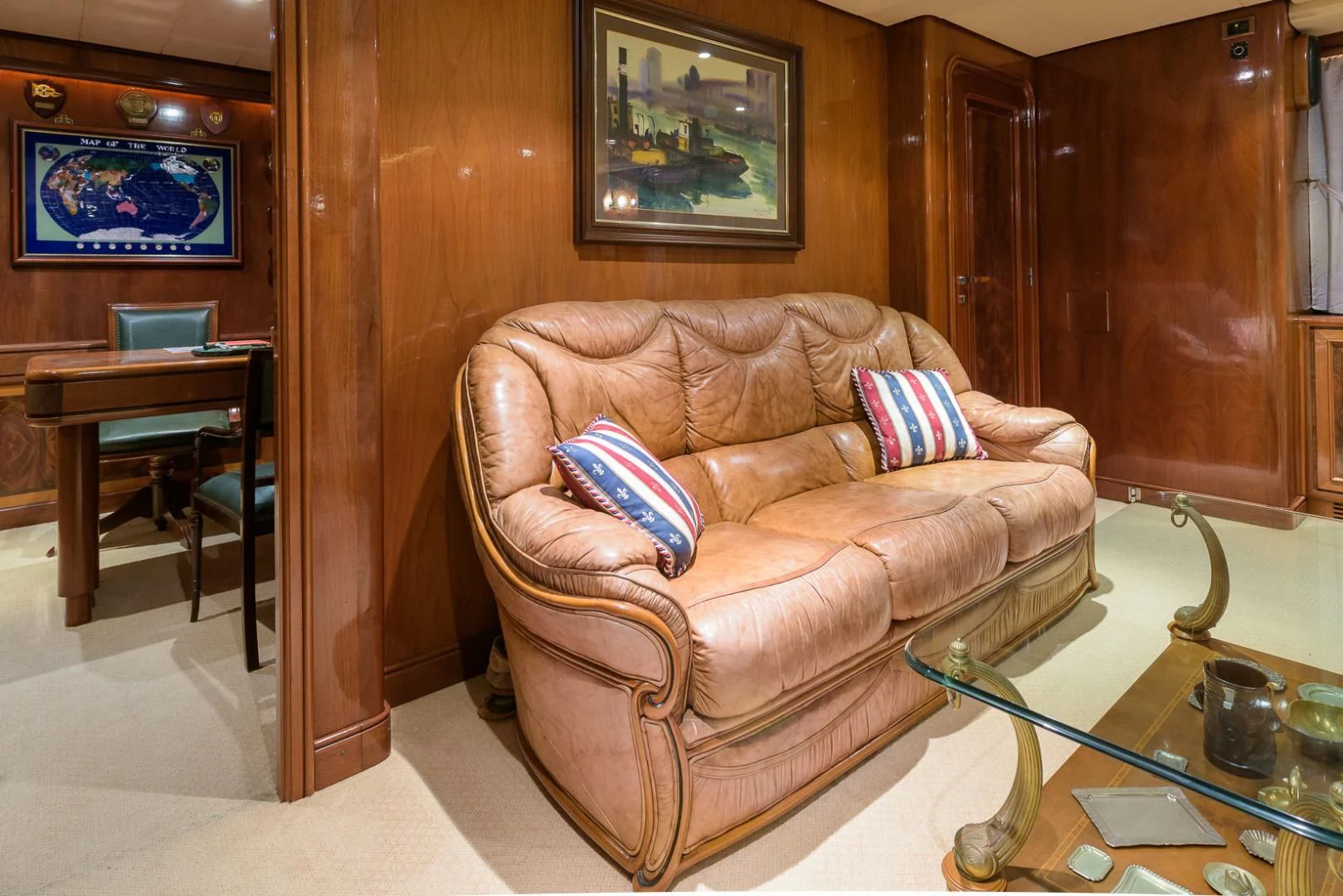

There is a safe in the owner'soffice
Bilge alarm
FireextinguisherFM200in the engineroomandseveralotherareas
Smokealarm  in the engineroom,
ServoMOBequipment:2xbasicasper Spanish Shipping Rules
RADARSERPEI.E.S.M.GMDSS•NAVTEXNAV5SAILOR HC4500
SATPhoneINMARSATNERA
Teakdeckscontinuouslyrefittedbetween2012•2014.
Engineroomcompletelypainted in2012.
Hullandsuperstructurepainted2009andperfectlymaintainedandkeptinthelastyears.
Works Completed in Astilleros Shipyard 2017
Five Yearly Inspection/5th Special RINA Inspection
General Engine and Generator Inspection
Hull thickness measurement
General electric isolation measurement, Megartest
Propeller shafts removed and received and authorized condition inspection
Rudders removed and condition inspected
Yearly antifouling and propellers painted
Anchor chains calibrated
Sea Water faucets dismantled and cleaned
Water drainage systems dismantled and cleaned
Fuel and fresh water tanks checked
Grey and Black water tanks checked
Various underwater areas painted
2 x NEW Furuno radars installed
A list of other smaller works have been carried out
Navigation Certificate valid until 2022
RINA special Certificate Max Class Motor Yachts C*, Y – until 2022
