CROSSBOW Yacht for Sale

Length
104' (31.71m)
Builder
SOUTHERN WIND SHIPYARDS
Build
2016/2023
Cabins
4
Crew
5

Yacht is no longer available for sale.
This is an archived web page showing historic information for reference purposes only. Search Yachts for Sale.

Not for sale or charter to U.S. residents while in U.S. waters.

Amenities

  • Personal Watercraft
  • Tender Garage
  • Wi-Fi

Specifications

Builder SOUTHERN WIND SHIPYARDS
Length (LOA) 104' (31.71m)
Year 2016
Year Refit 2023
Gross Tonn. 99
Draft 13' (3.95m)
Beam 23' (7.3m)

Accommodations

Staterooms 4
Sleeps 8
Heads 4
Crew Cabins 5
Crew Sleeps 5

Dimensions & Capacity

LOA 104' (31.71m)
LWL 91' (27.72m)
Min Draft 13' (3.95m)
Max Draft 13' (3.95m)
Fuel Tank 1,342 g (5,080 L)
Fresh Water 634 g (2,400 L)
Gross Tonn. 99

Construction

Hull Material Composite
Ext. Designer Nauta Design
Int. Designer Nauta Design
Cruising Speed 10 Knots
Have Questions?

Complete the form below and one of our experienced sales brokers will be in touch soon.

Full Details

Other Machinery

BATTERIES

  • Service: Valence Lithium 1.104 Ah 24V
  • Starting: 260 Ah 24V
  • Navigation: Valence Lithium 276 Ah 24V
  • Emergency: 2 x Victron Gel 200 Ah 12V

MAIN ENGINE START

  • 10/06/23

SERVICE

  • 31/10/23

GENERATOR START

  • 06/06/23

CHARGERS

  • 3 x Charger / Inverters Victron Multi 24/3000/70

EMERGENCY

  • 220 Amp hours, Gel / Victron

HYDRAULICS

  • Maxpower Double BK13 Powerpack DC and PTO both on Generators

FUEL SYSTEM

  • 2 x Integral composite fuel tanks
  • 1 x Stainless steel day tank, approx 190 litres

WATER MAKERS

  • 2 x HEM water maker series 25, 250 litres / hour

FRESH WATER SYSTEM

  • 2 x integral composite water tanks

FRESH WATER PUMPS

  • 2 x Gianneschi Ecojet 2 B 230V AC with
  • electronic flow switch

AIR CONDITIONING

  • Centralised water-circulation A /C system
  • 2 x Frigomar 607NT Marine Modular NT series (inverter BLDC), 42,000 BTU each
  • Fancoils and LCD digital displays in each cabin

SEWAGE SYSTEM

  • 2 x Gianneschi interchangeable pumps

HYDRAULIC SYSTEM
HYDRAULICS CUT OFF

  • Repeated at mast, at pedestals and at anchor locker

POWER HYDRAULIC

  • Bow thruster, winches, furlers, windlass, anchor arm, capstan, transom door
  • 1 x Power Pack with two 13kW DC electrical motors
  • 2 x Hydraulic pumps linked to the PTO of generators

SAILING HYDRAULIC

  • Backstay, vang, outhaul, Inner forestay, tensioner, jib and staysail halyard tensioners
  • Vang quick release (dump elec solenoid)

Accommodation

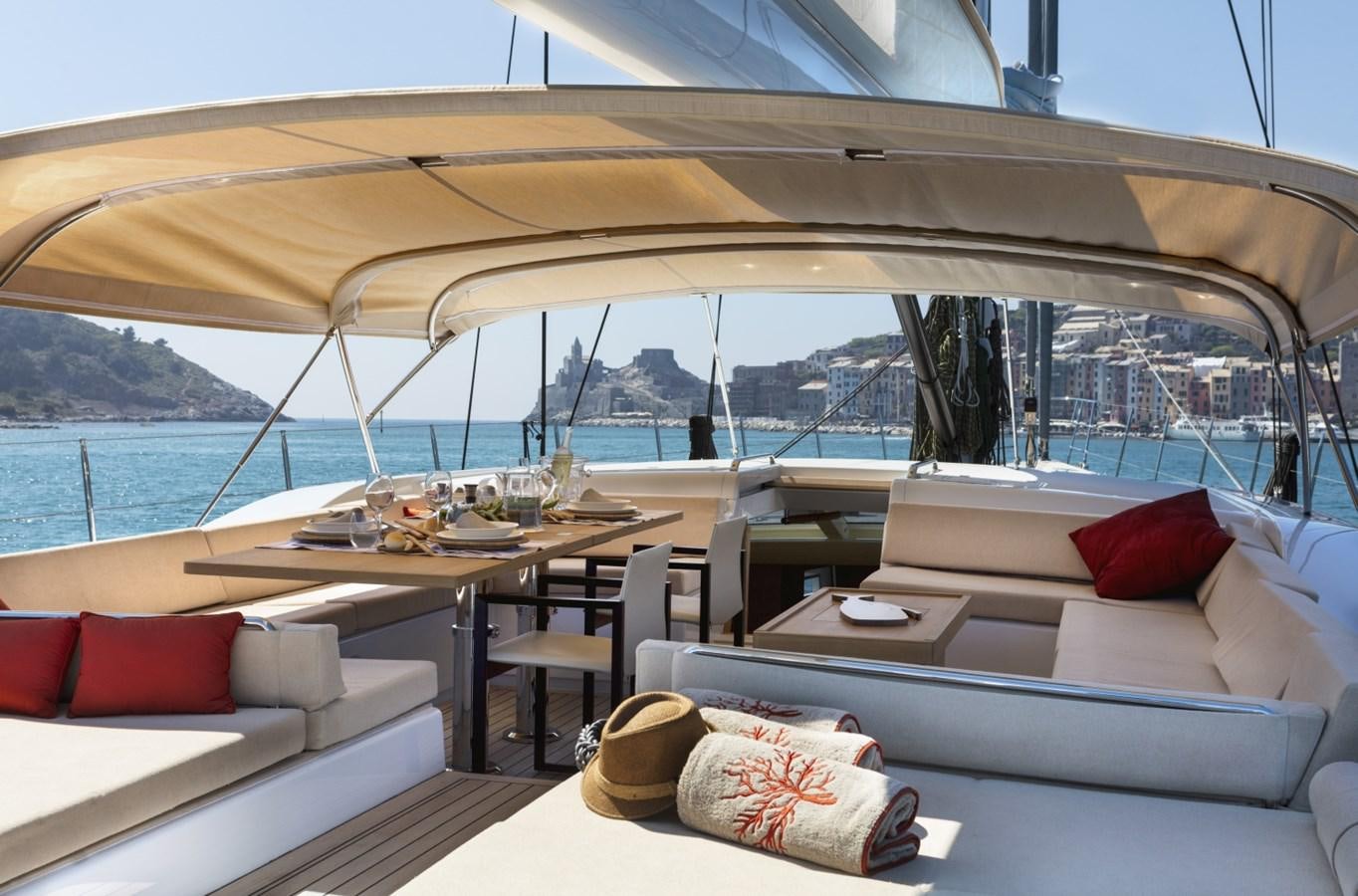

EXTERIOR

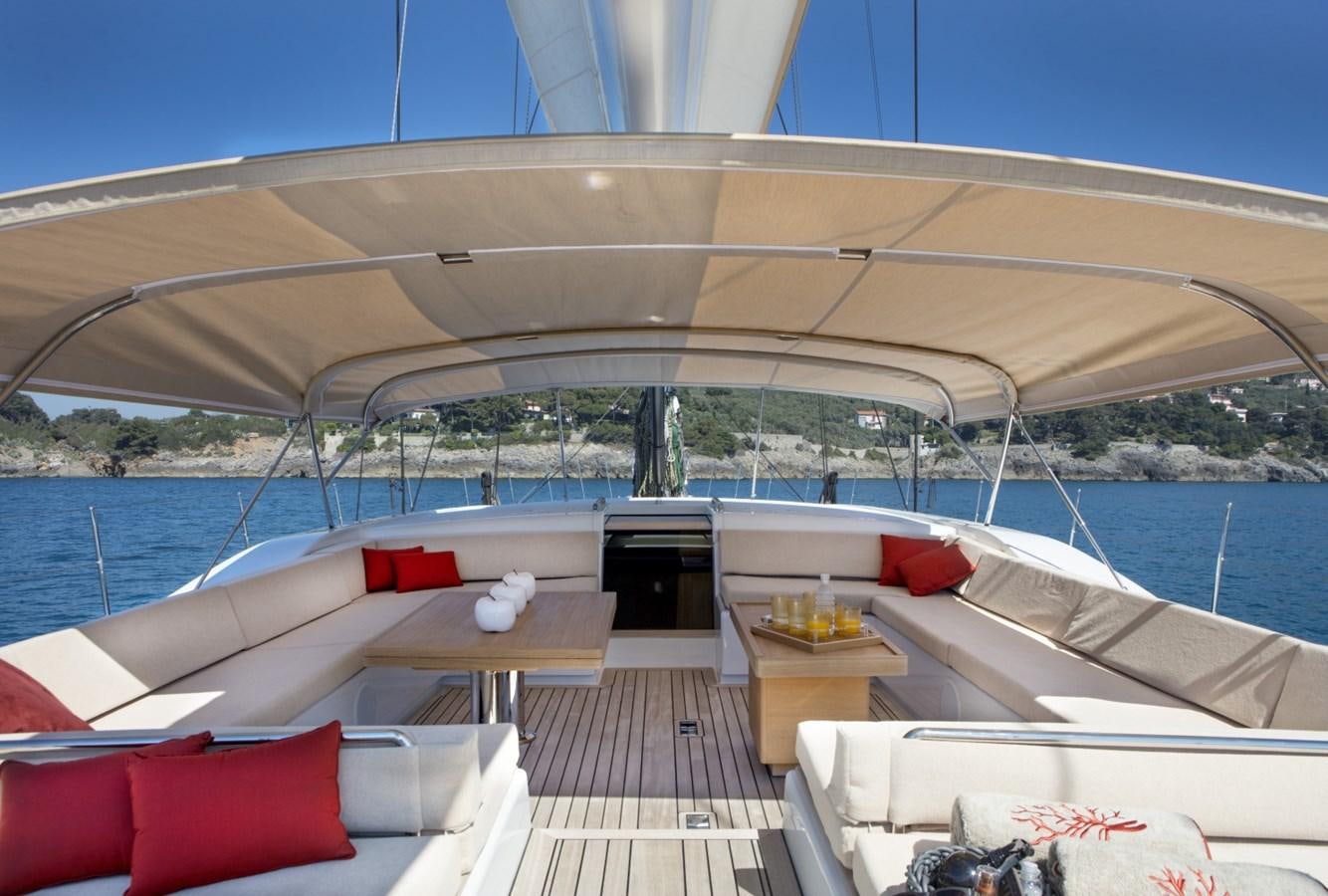

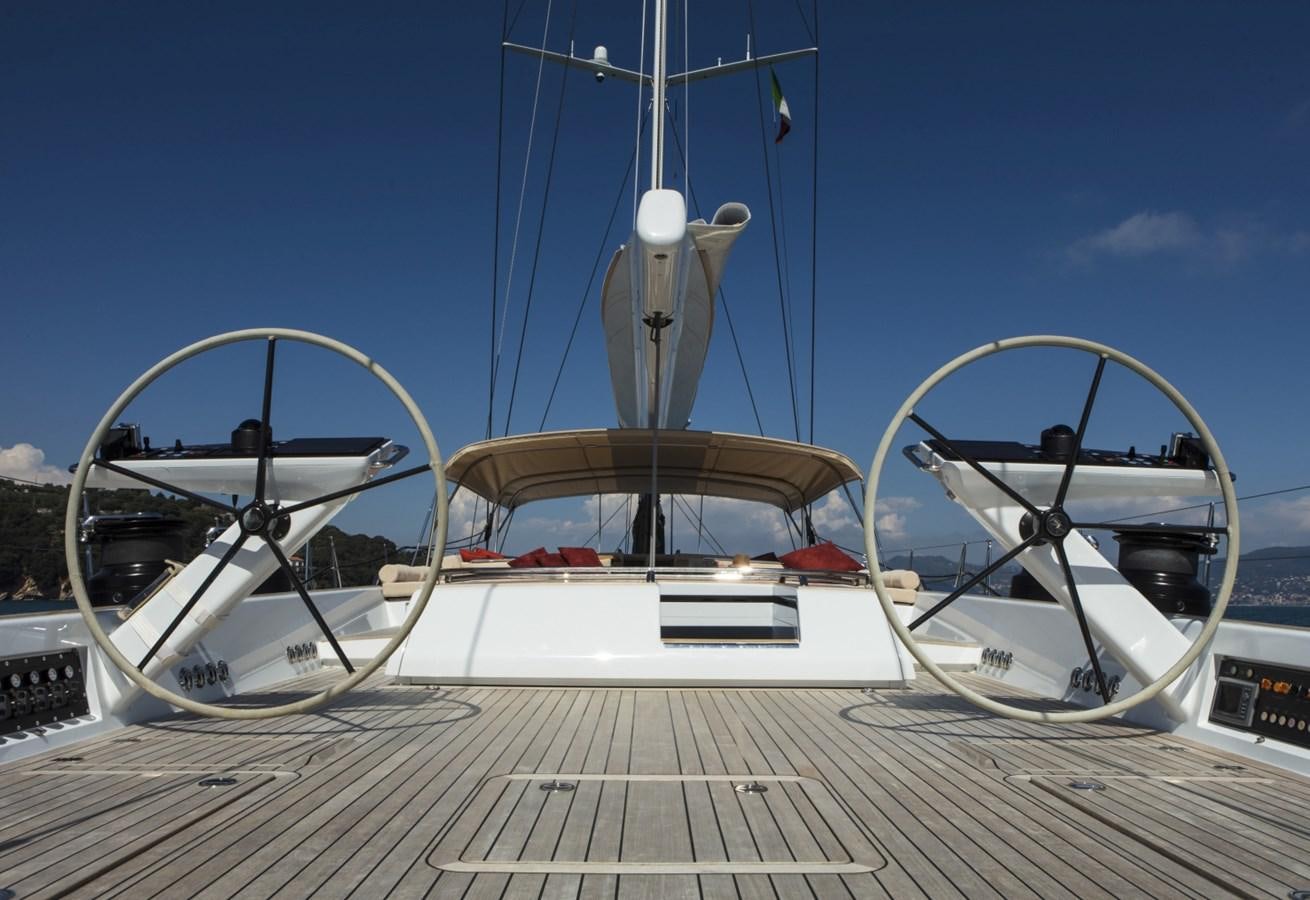

  • The exterior layout has been planned to allow for easy movement from the helm positions to the companionways in complete safety, thanks to a clean and flush deck.
  • A garage beneath the manoeuvring cockpit can host a 4.24m dinghy. She is built to the highest RINA standards and is certified RINA Charter Class.

INTERIOR

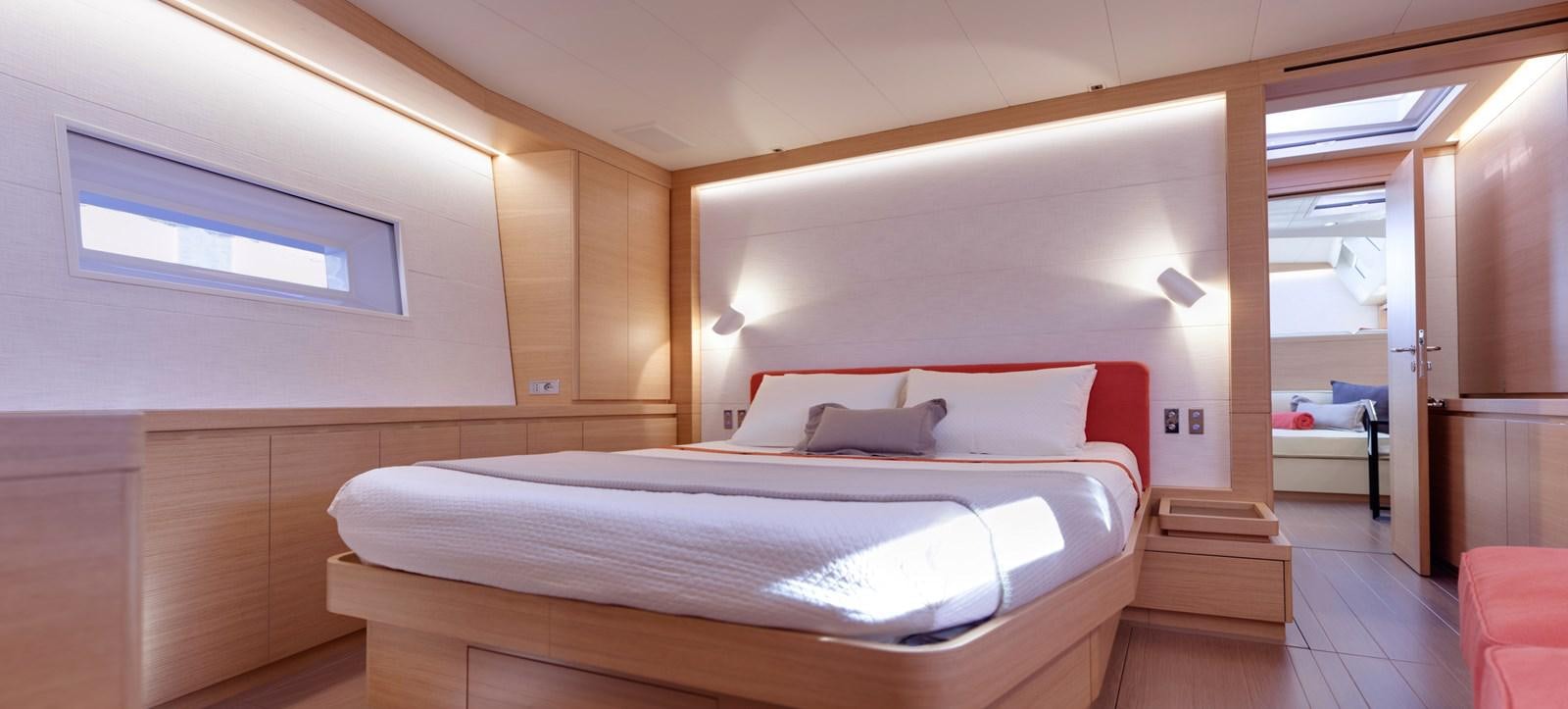

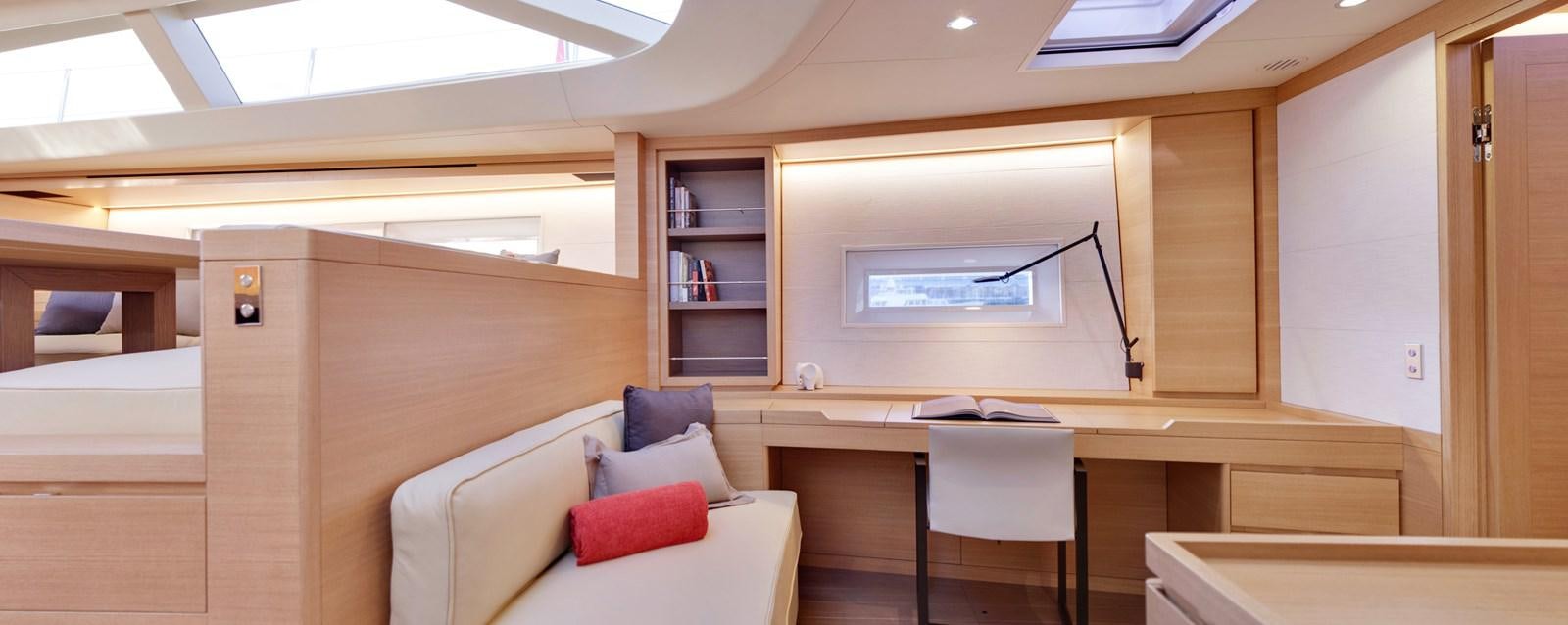

  • Her interior has a very light and airy look. This refined 102’ stands out for the elegant and timeless style of her interiors: light oak panelling is set off by walnut flooring and stainless-steel details; upholstery has an off white and coral red colour scheme.

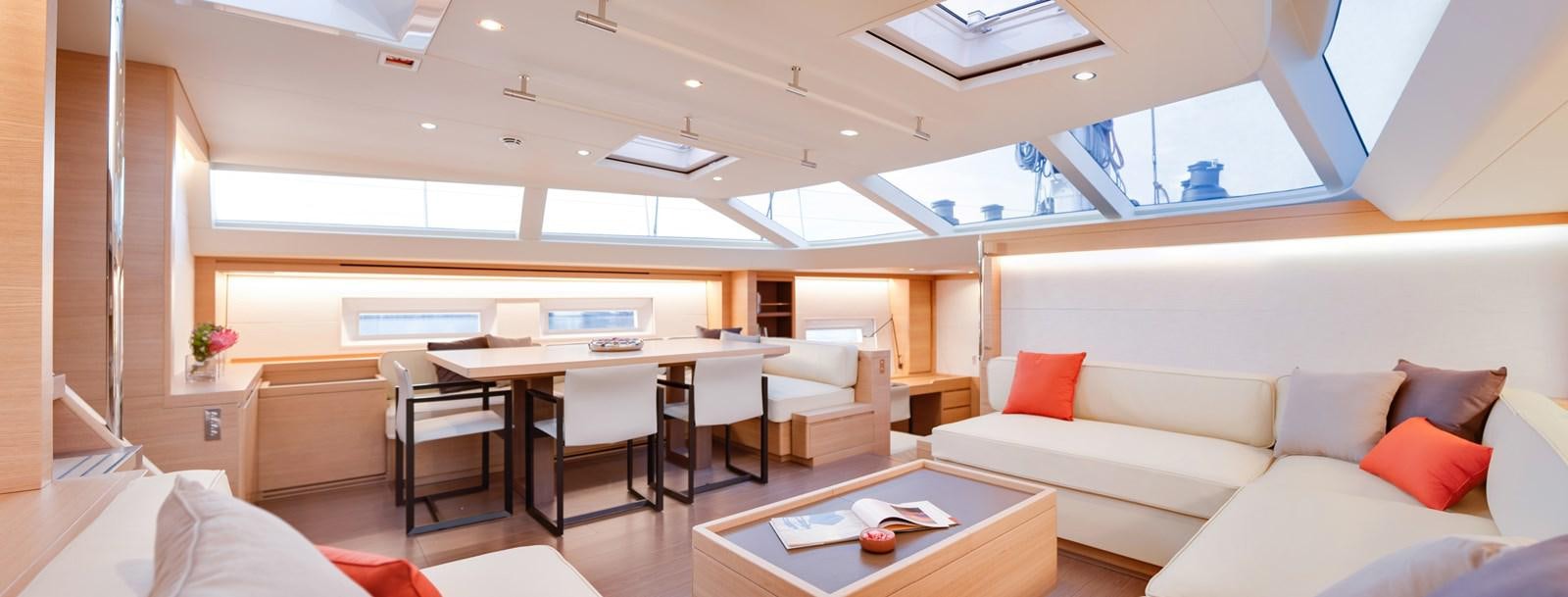

  • The main saloon is a large open-plan space where eight to ten people can relax in comfort on couches or at the dining table. Just behind the living area, a spacious studio amidships flawlessly separates the main saloon from the owner’s private area, providing a dedicated space for the owner’s personal activities. The owner’s cabin fore includes a vanity desk and a sofa. There are three guest cabins amidships while crew quarters and the galley are aft. The four-suite layout allows two families to cruise comfortably and is ideal for both the owner’s private use and for charters.
  • The crew area features three cabins with two heads. A door separates the professional galley from the mess area and navigation station. The area is served by a dedicated companionway to ensure the privacy of owners and their guests.

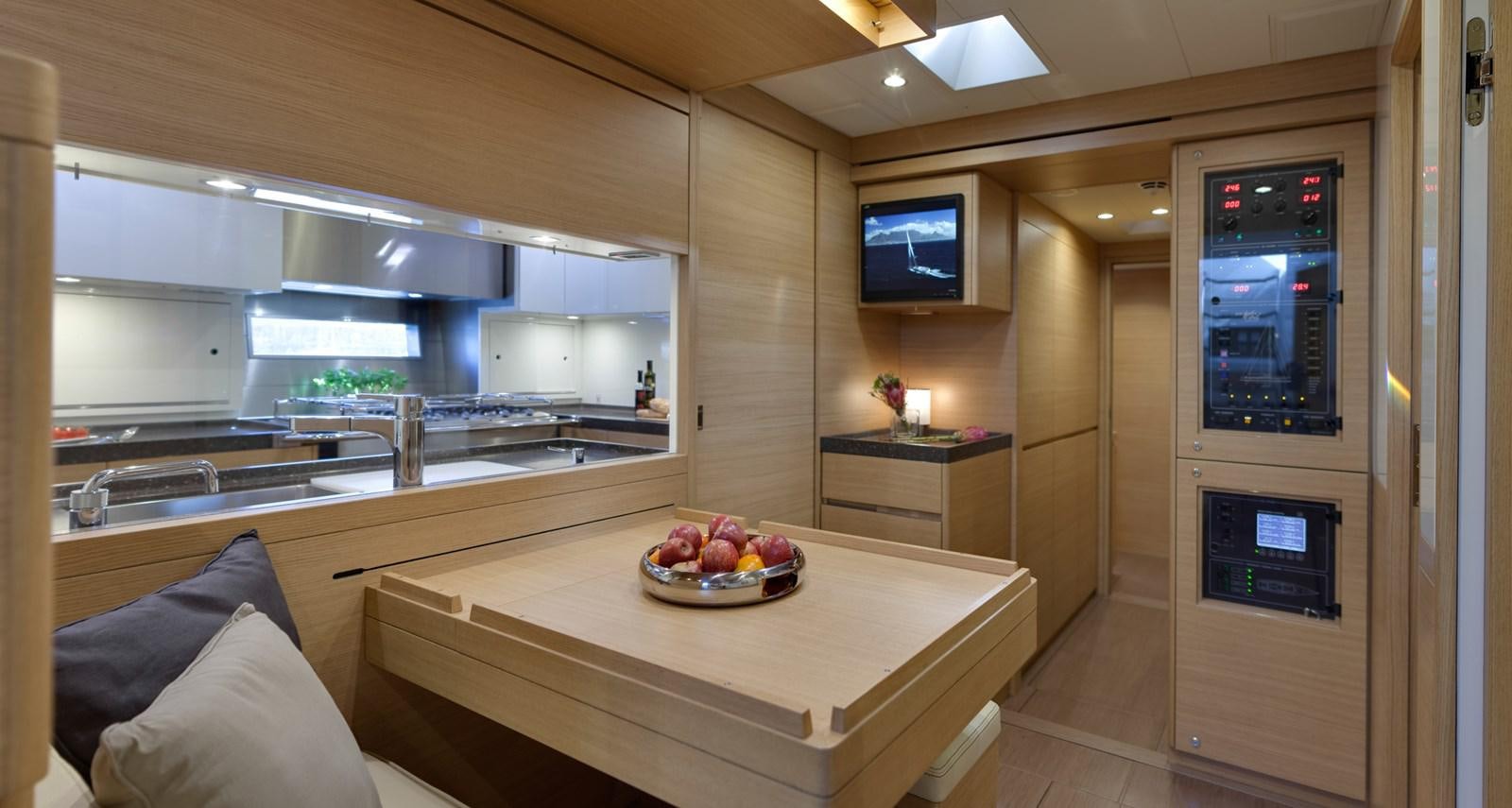

Galley & Laundry Equipment

GALLEY

  • 1 x Custom gimballing stove with SMEG 90cm oven
  • 2 x SMEG Double gas burners
  • 1 x SMEG double induction plates
  • 1 x Miele microwave combi grill
  • 1 x Miele dishwasher 60 Domestic
  • 1 x Frigomar Custom double column fridge, 580 litres
  • 1 x Frigomar top-load bilge freezer, 130 litres
  • 1 x Espresso Lattissima coffee machine
  • 1 x U Line ice maker

SALOON

  • 1 x Frigomar day fridge, 70 litres

LAUNDRY

  • 1 x Miele 7kg Washer
  • 1 x Miele 7kg Dryer

Communication Equipment

SATCOM

  • Sat C Thrane 3026D GMDSS

VHF

  • Sat Phone Fleet Broad Band 250
  • Sailor 6222 with external command microphone /
  • speaker

IT

  • 4G Router
  • Starlink
  • WiFi for entire yacht

Navigation Equipment

RADAR

  • Furuno DRS4DL+

RADAR PLOTTER

  • Furuno TZ Touch

CHART PLOTTER

  • Furuno, Time Zero

AUTOPILOT

  • B&G

AIS

  • Furuno FA50

GPS

  • Furuno GP33

DISPLAYS

  • B&G H5000 5GFD +4 20 / 20 displays
  • 2 x Displays @ Navigation Station
  • 2 x Displays @ Pedestals

ECHO SOUNDER

  • B&G

COMPUTER

  • 1 x High Performance PC

Entertainment Equipment

SALOON

  • Samsung LED Smart TV 48”
  • Harman Kardom BDS 680 5.1 surround
  • Apple TV multimedia box
  • Terrestrial Digital TV capability

OWNER'S CABIN

  • Samsung Led Smart TV 32”
  • Apple TV multimedia box
  • Sonos amplifier with Polk Speakers

GUEST CABIN

  • Sonos amplifier with Polk speakers

NAV / CREW

  • Samsung Led TV 22”
  • Apple TV multimedia box
  • Sonos Amplifier with Polk speakers

DECK

  • Sonos amplifier with Sonance speakers

Tenders & Toys

TENDERS

  • 1 x Williams 395 jet tender 90Hp (Rotax jet engine)

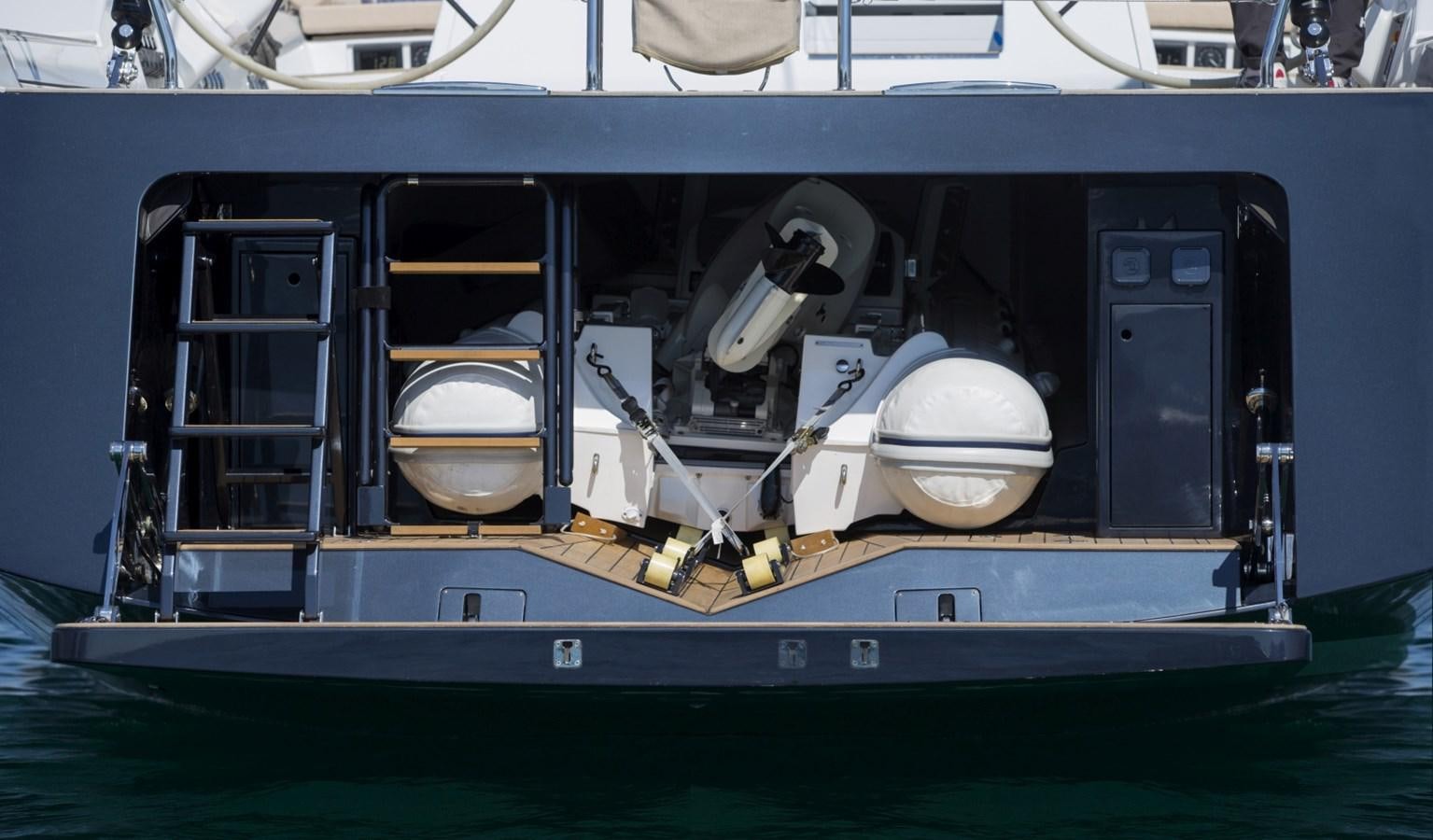

  • Tender garage with rigid cover and launching system for tender
  • 2 x Removable s/s saddles w/ screw-in plugs on the foredeck for tender

WATERSPORTS

  • 1 x Water skis
  • 1 x Wakeboard
  • 1 x Knee board
  • 2 x Inflatable SUPs
  • 2 x Inflatable canoes
  • Inflatable biscuit
  • Snorkelling equipment
  • Fishing gear

DIVING

  • 1 x Full set

Deck Equipment

ANCHOR WINDLASSES

  • Hydraulic Lewmar V8

AFT WARPING CAPSTAN

  • Retractable Capstan

CAPSTAN

  • Retractable Capstan

MAIN ANCHOR

  • Ultra 100kg S/S, 140m of 14mm high tensile calibrated chain

SPARE ANCHOR

  • Fortress FX 125 (37kg)

PASSERELLE

  • Sanguineti 3750200 (stainless steel)

AWNINGS

  • Deck awnings

COVERS

  • Available for everything on deck

MISCELLANEOUS

  • BCM Lighting led spotlights through the yacht
  • Additional lifting bunk in starboard aft guest cabin
  • Service dive equipment with wetsuit
  • 2 x New big bean bags to use on deck

Rigs & Sails

RIG DIMENSIONS

  • I: 37.49m
  • P: 36.62m
  • J: 11,05m
  • E: 13.28m

SAILS

  • Doyle Stratis (New 2023)

SAIL AREA

  • 53sqm

TOTAL SAIL AREA

  • 513 sqm

MAIN SAIL

  • Doyle Stratis 1100 CT (2023 Palma)

STAYSAIL

  • Doyle Stratis 1100 CT (2023 Palma)

FURLING

  • JIB Doyle Stratis 1100 CT (2023 Palma), Vertical
  • Battens

FULL BATTEN MAINSAIL

  • Doyle Stratis 1100 CT (2023 Palma), New C-tech
  • Battens(2023)

GENNAKER

  • Doyle A4 (2020 Palma)

SPARS MAST

  • Southern Spars pre-preg Intermediate

MAST

  • Modulus carbon fibre mast

BOOM

  • Southern Spars pre-preg carbon fibre boom (Park Avenue)

RIGGING

  • Southern Spars EC6+ Continuous Carbon side rigging

RUNNING RIGGING

  • Gottifredi Maffioli running rigging

FURLING

  • Reckmann hydraulic head stay flush deck furler with aluminium foils
  • Reckmann hydraulic inner forestay furler with aluminium foils
  • Aramid backstays and deck stays

WINCHES

  • Harken 980, 1000 (foredeck) & 1100 (aft deck)

Safety & Security Equipment

Maltese Commercial Registration safety equipment (including but not limited to):

  • Immersion suits
  • 1 x Fireman breathing apparatus
  • Extra fire extinguishers
  • Personal locators beacons
  • 2 x Portable VHFs etc etc)
  • 1 x Cat A Medical Kit for 10 people

Refit History

AUTUMN 2023:

  • Starlink installation
  • Replacement of leather and wood panels in Saloon
  • New Radar
  • New B&G CPU
  • Steering consoles redone
  • All relevant deck, engine room services
  • Tender service

WINTER 2022 / 2023:

  • New Engine and two Generators installed including new wiring and engine control system
  • Full service on Gen PTO system
  • New Set of Doyle Stratis 1100 CT sails. (Main, jib & staysail)
  • Replacement of all forward hydraulic hoses (Anchor, capstan system, bow thruster, jib / staysail systems)
  • Replacement of PTO hydraulic hoses and swim platform hoses
  • Repaint of the transom
  • RINA lightship survey completed
  • On Hard, antifoul, anodes & replacement of bow thruster propellors and service
  • All Pumps serviced
  • All new Guest linens and towels
  • Removal and replacement of parts in Jib Reckman Furler
  • New running rigging

SPRING 2022:

  • NDT of every padeye / block on yacht with replacement of any failed units
  • Serviced all deck equipment & engine room pumps
  • On Hard, antifoul, anodes, nano polish of hull & bow thruster
  • Relevant engine and generators services
  • Tender service
  • All new exterior cushions

AUTUMN 2021:

  • Service of all deck equipment
  • Various pump services and relevant engine and generators services
  • Replacement of all pneumatic lines on the yacht
  • On Hard, antifoul, anodes, nano polish of hull & bow thruster
  • Full tender service

WINTER 2020 / 2021:

  • 5-year Refit: All relevant 5-year surveys carried out and passed by RINA and Malta Flag
  • 5-year Shaft and Tail Survey Removal of Rudder and change bearings from Solimar to new JP3 bearings
  • Bow thruster removal, complete service in the workshop then reassembled and reinstalled
  • Rig pulled & all kit sent (furlers, rams, standing rigging etc.) to relevant companies, serviced & reinstalled
  • New running rigging
  • All underwater through holes removed, tested & reinstalled
  • All bilge and fire pumps serviced
  • All deck & engine room equipment serviced
  • Relevant engines and generators services
  • Megger Test
  • Tender Service

WINTER 2019 / 2020:

  • New Williams 395 jet tender - 90Hp (Rotax jet engine)
  • New mainsail, staysail and jib. (Doyle stratis ULX)

WINTER 2018 / 2019:

  • New A3 Gennaker
  • Mainsail, jib and staysail performance based improvements
  • New port generator
  • New interior wall panels throughout
  • New drinking water system
  • Upgraded and improved sailing instruments
  • Generator and engine servicing
  • Intermediate rig survey and rigging improvements
  • New deck sealant throughout
  • All deck equipment serviced
  • New bimini and sprayhood
  • Various other canvas work
  • Improved anchoring system
  • Full list of minor warranty work

Comments

  • SW102 is the fifth hull in the well-known SW102 mini-series and the third of the Raised Saloon version. Thanks to the time-tested collaboration of Farr Yacht Design (naval architecture) and Nauta Design (concept, interior and exterior design), this 102’ is again proving to be the perfect expression of the yard’s ability to build comfortable and luxurious high performance yachts.
  • Combining the best features of both a Flush Deck and Deck Saloon configuration, the design of this RS yacht blends a sleek deckhouse and uncluttered sight lines with higher ceilings and ample light, which floods into the interior through 270° panoramic windows.
  • Hull, deck and structure are in resin infused carbon fibre sandwich, making this yacht enjoyable both in light breeze and strong weather conditions.
