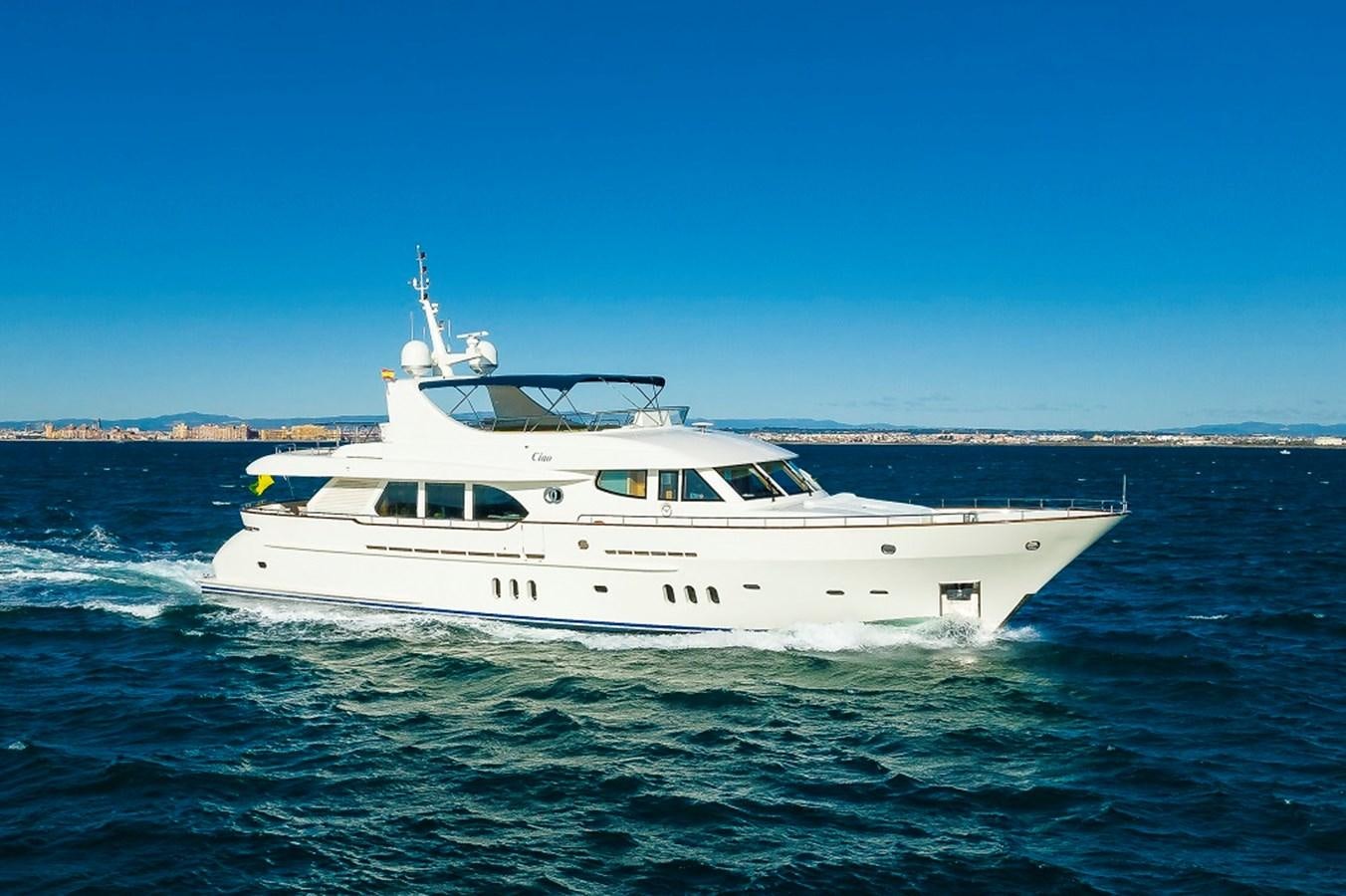

CIAO Yacht for Sale

Mechanical Systems

• Interior Lighting: 220V, 12V halogen and 24V emergency lighting
• Hydraulic system: A Cramm central hydraulic system with a collection tank, pumps at the two main engines and an electrical harbor pump, serving the bow thruster, steering system, stabilizers, capstans and anchor winches
• Air pressure system: One air compressor with a horn in the mast
• HVAC System: Frequency controlled engine room ventilator with fire shutters and one mist eliminator in the intake. Marine air, Caribbean condition, air conditioning with a chiller in the engine room and fan coils in the accommodations. Heating through reverse cycle. Towel heaters and floor heating in bathrooms

Fluid Systems

• Fuel system: Five Integrated fuel tanks, including two-day wing tanks in the engine room. Kübler level sensors, Alfa Laval fuel separator and Racor fuel filters, electrical fuel trimming pump and manual back up pump
• Cooling system: Two stainless steel water inlets with filters and butterfly valves, connected to a cross over
• Lube oil: Integrated used lube oil tank with suction point in bunkering station, electrical pump and separate hose
• Exhaust: Dry exhaust with stainless steel water injector and bypass above the waterline
• Bilge: Two electrical general service pumps in engine room connected to a manifold. The fore peak has a separate bilge pump
• Fire extinguishing: The general service pumps in the bilge system are also used for the fire fighting system, with several hose connections through the yacht. A Novec hand remote extinguishing system in the engine room and free-standing foam extinguishers in each area
• Fresh water system: Integrated and painted water tank, one Speck water pressure systems, one 115 liters water heater with two electrical heating elements and a hot water circulation pump. Idromar Duplex MC2 water maker, sand & carbon filters, dosing Unit and UV sterilizer
• Sanitary system: Two grey and one black water tanks, connected to an overboard stack in the engine room, to a Hamann Super Mini sewage treatment system and to a shore

• All Galley & Laundry: All Miele Appliances

• Satcom: Iridium phone AIS
• Telephone System: Panasonic Telephone system Search and rescue
• VHF: 2 x HT50 VHF handheld 6 x ICOM VHF handheld
• Cellular System: WIFI Pepwave Network Sailor
• Intercom: 2 x RS87 Simrad VHF’s Radio Telephone Intercom
• Starlink Internet

• Radar: Radar and chart system at flat screens Max Sea navigation program
• Magnetic Compass: Simrad Compass
• Auto Pilot: Simrad FU50
• Depth Sounder: 2x Furuno Echosounder
• GPS: Simrad GPS GN33 / AIS Furuno FA 170
• Weather FAX: Marine Barograph
• Wind/Speed Log: Garmin wind instruments
• Navtex: Navtex Receiver Furuno NX700 Simrad navigation

• Video Equipment: Bose and Denon audio and video equipment
• Smart TVs throughout
• KVH SAT TV antenna Satellite receiversAudio Equipment: Bose and Denon audio and video equipment with speakers on aft and sun deck

Tenders & Dive Gear

• AB 17 DLX RIB with 115HP / Yamaha outboard
• 11’ GT Marine crew tender with 20HP / Tohatsu outboard
• Bauer Junior II diving compressor

• Anchor Windlass: 2 x Muir hydraulic VRC4500 anchor winch
• Aft Warping Capstans: 2 x Cramm hydraulic NCK 1000 capstan
• Anchors: 2 x Balanced galvanized Pool-N anchors
• Anchor Chain: Short-link galvanized chains (150m each)
• Boat Crane and Davits: Cramm hydraulic crane on fly (1 ton)
• Passerelle: Besenzoni hydraulic gangway with hoisting function
• Swim Platform: Hydraulic Opacmare swim ladder
• Boarding Ladder: Marquipt removable side boarding ladder

• CCTV System: CCTV System with 4 x cameras
• Cameras: 4 cameras integrated at touch screens
• Monitors: Tijssen MPA, PLC controlled w/Touchscreens
• Central extinguishing system with hose connections throughout
• Novec remote extinguishing system in the engine room
• Fire Extinguishers: Free standing foam extinguishers in each area
• Alarms: Integrated burglar and fire alarm system
• Life Rafts: 2 x RFD SOLAS life rafts

Work in 2018/19

• Refit at Moonen Shipyard in Holland
• Changed stabilizer system to electric CMC system zero speed
• Top end engine refit on both engines, new heads
• Shafts pulled

Work in 2020/21

• Complete paint job of hull and superstructure in Oyster White Awlcraft
• Removal and refurbishing of 80% of the stainless steel parts, and re-isolation
• Bow thruster servicing - new bearings, seals, etc.
• Engines fully serviced every 500 Hrs.
• Generators fully serviced every 250 Hrs.
