CANDY Yacht for Sale

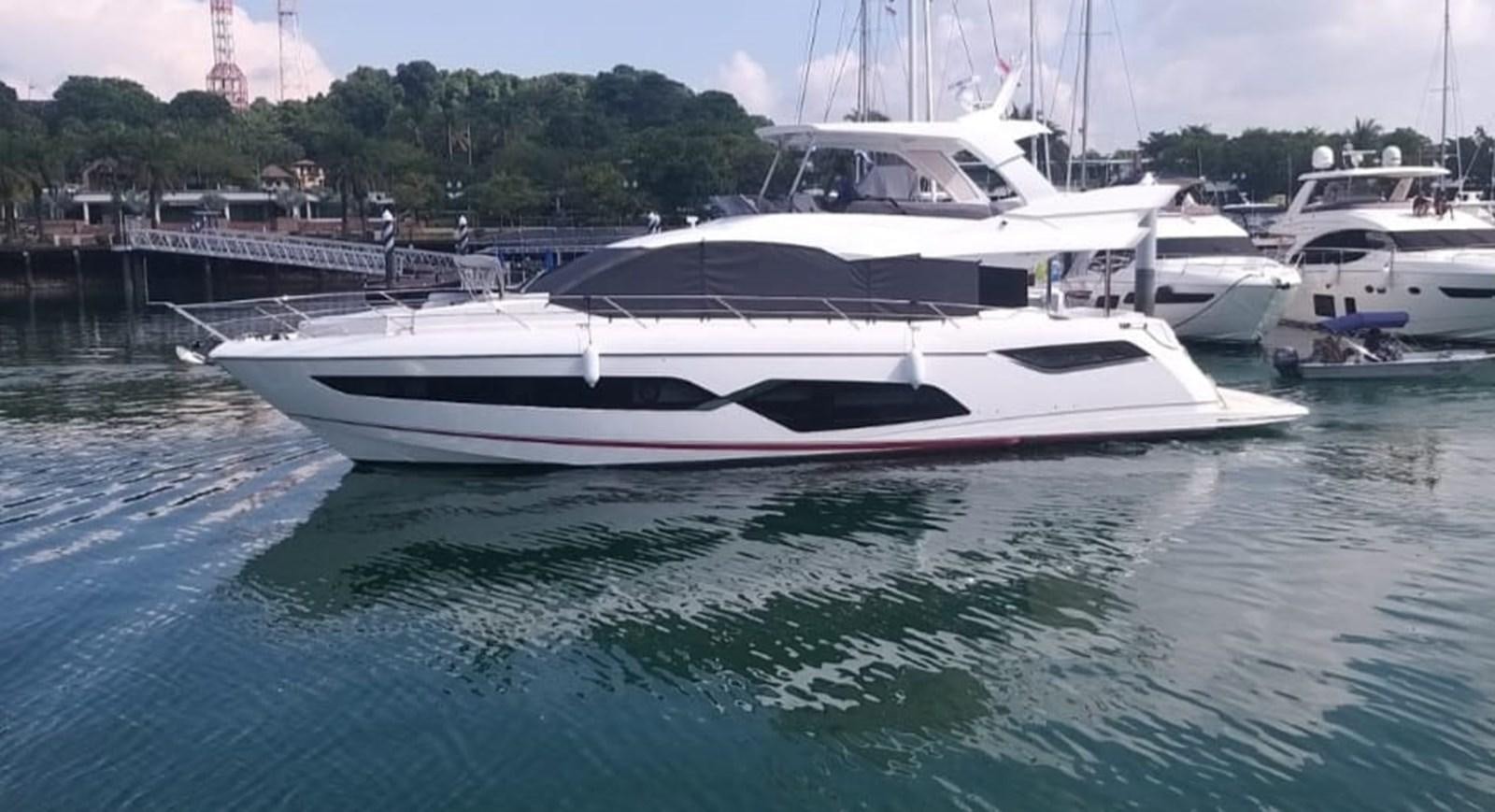

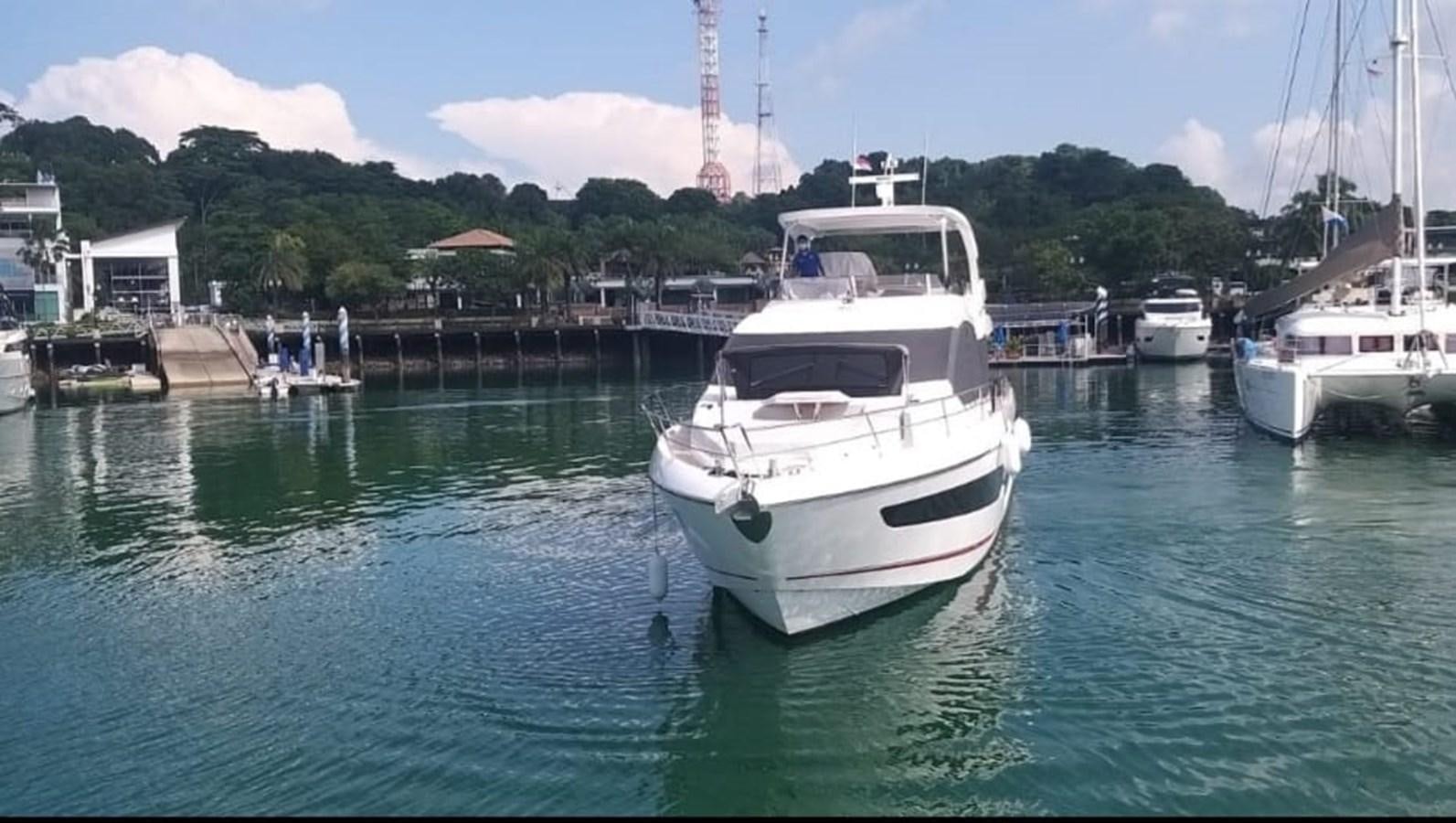

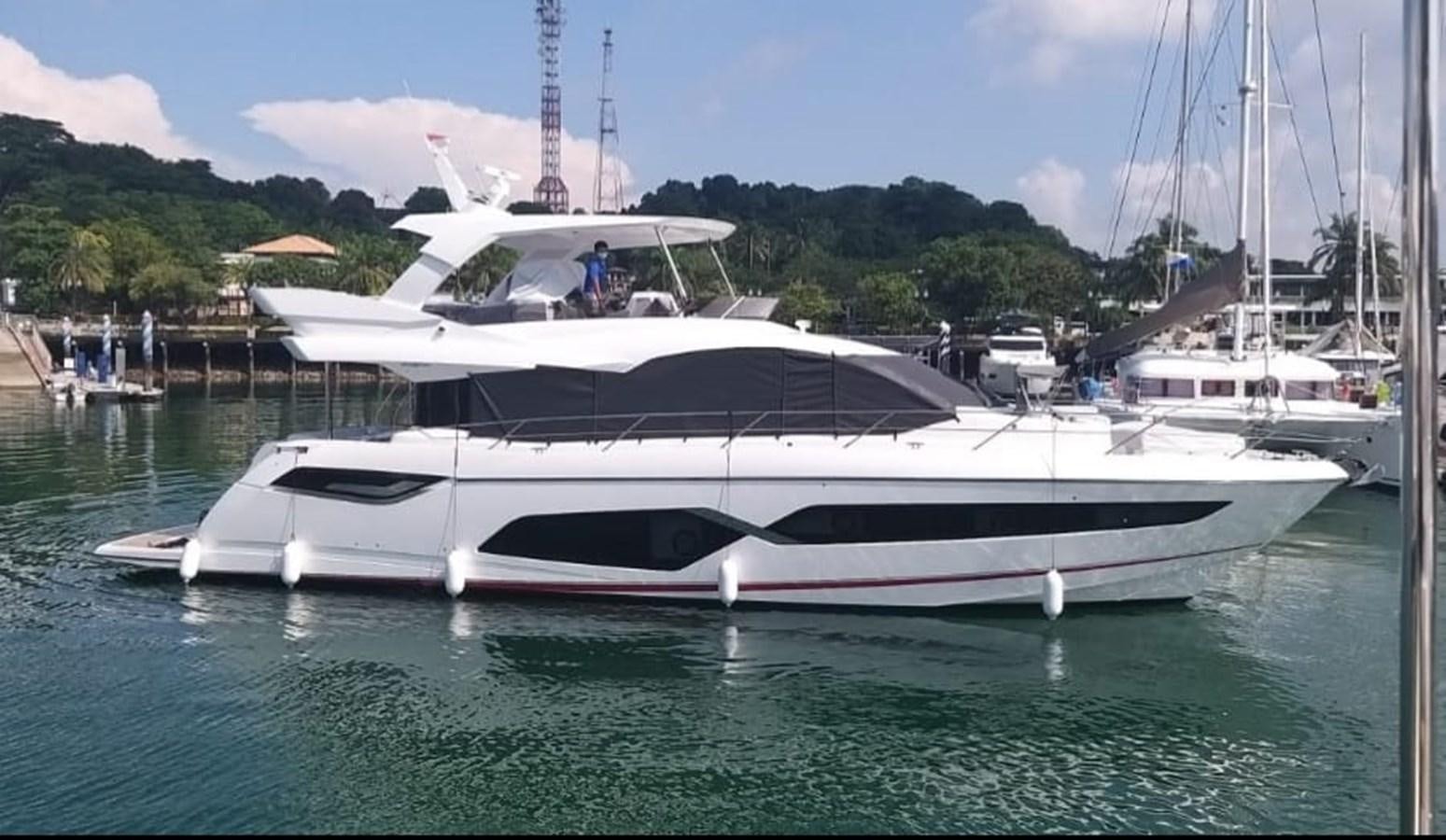

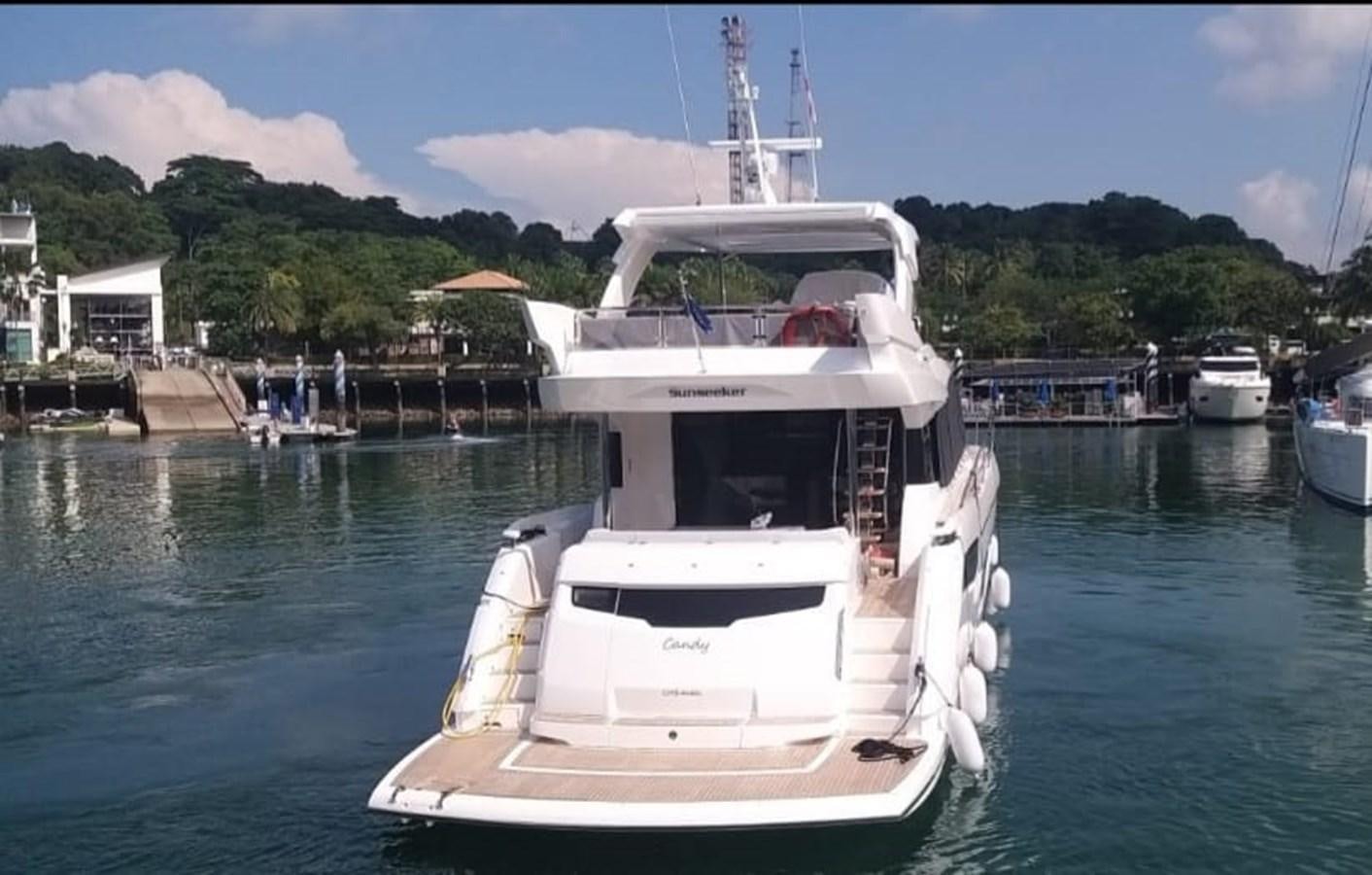

SUNSEEKER MANHATTAN 68

      Item Description

Item Description

Packages

Asia Package

- Air conditioning Tropical specification - Upgraded Generator to 27kW

- Stern Thruster with Proportional Joystick and upgraded batteries

- Stern Storage with hydraulically actuated door incorporating shelves, Teak bench seat and overhead

shower

- Additional pair of stern Spring Mooring cleats

- Fresh water deck wash system

- Additional 30 Metres of anchor chain

- Low level side deck lights

- Underwater lights x4 - Blue

- Wine cooler for 20 bottles

- Miele Slimline Dishwasher - change to extra storage space - Flybridge Teak Decking.

- Washer Dryer

Moulding

- Flybridge Hard top on stainless steel supports with electric central opening and stern electric canopy - Stern Storage with hydraulically actuated door incorporating shelves, Teak bench seat and overhead shower

1

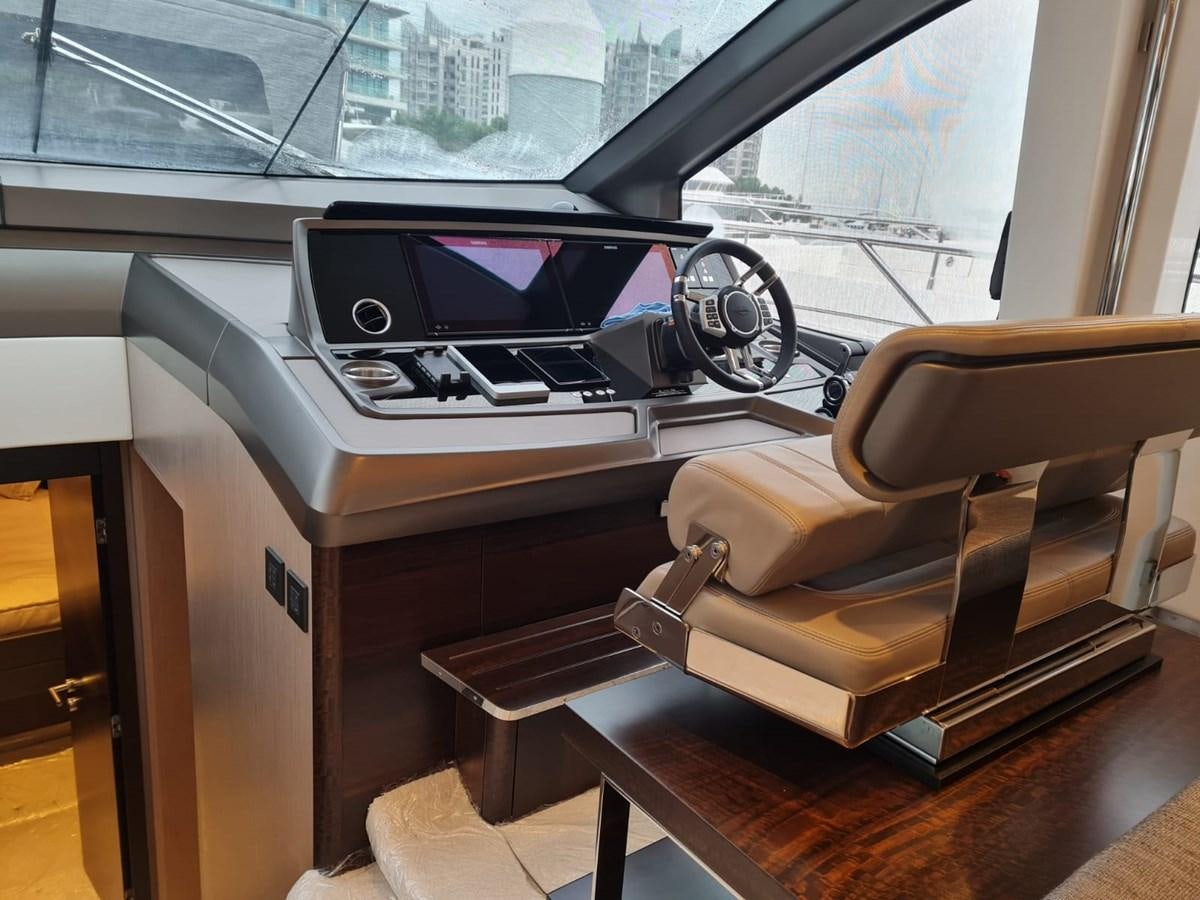

Console

Simrad Premium

Simrad 2 x NSO evo3 - 16" Multifunctional Colour Radar Chartplotter/engine data on lower console with performance dual transducer Structurescan and depth fishfinder

Transducer B744V for depth/speed/temperature transducer

Simrad 2 x NSO evo3 - 16" Multifunctional Colour Radar Chartplotter/engine data on fly console and GP25-GPS antenna

Simrad Halo 4 Pulse Compression Radar Open Array 4 foot - 64nm

Simrad AP 44 Autopilot system

MAN OP Interface allowing integration of engine data on the Simrad displays

Simrad RS90S VHF with DSC on lower console with second station hand set at the flybridge console Simrad AIS NAIS500 Class B Transponder with GPS and 2.4 meter AIS antenna

ISOTTA steering wheel with control functions for the helm displays

Searchlight

Sanshin Twin Beam remote controlled Halogen Searchlight HR-1012

Electrical

Air Conditioning

Air conditioning Tropical specification 104,000 BTU. Including a second shore power intet. Air conditioning Tropical specification 1 X 8000 BTU in the Crew Quarters

Moulding

Crew Cabin fit out installation

Upgraded Exterior Audio package

Sonos Zoning Audio Performance Package: Sonos

Zone one. Cockpit 4 x Sonance Performance Speakers Zone two. Flybridge 4 x Sonance Performance Speakers Zone three. Foredeck 2 x Sonance Performance Speakers

All speaker zones are powered via Sonos Amps with built in AirPlay for Wifi streaming of music from Apple or Android Devices, allowing independent control for each zone

A wireless network is provided to give the owners personal device access to the speaker system

Note. The wireless network is to provide possible access to the internet via Wi-fi or Cellular data and to allow the user to link to an available marina Wi-fi network. The boat can be fitted with up to 2 SIM cards (user supplied) to access the internet when in range of 3G-4G data signals. This system will give data communications only. Voice communication is not covered. Air time, service agreements and SIM cards shall be the responsibility of the Client.

If offshore internet access is required this would need additional equipment such as a satellite receiver and a data plan.

2

Upgraded AV Entertainment Package

Performance AV Package upgrade

1. Saloon Samsung 55" QLED 4K Television with Apple TV App and Airplay 2 included. 4K Blu-ray player. Sonos Playbar and Sonos Subwoofer with Sonos Amp connecting two built in Sonance rear speakers allowing for amplified TV sound. Automatic switching to allow music streaming via Sonos App.

2. Master cabin Samsung 55" QLED “The Frame” Smart 4K Television with AppleTV App and Airplay 2 included. 4K Blu-ray player, Sonos Playbar and Sonos Subwoofer allowing music streaming.

3. Forward VIP cabin Samsung 43" QLED “The Frame” Smart 4K Television with AppleTV App and Airplay 2 included. Sonos Amp connecting TV with two built-in Sonance VP62R speakers allowing music streaming.

4. Starboard Guest cabin 24" Smart HD Television. Sonos Amp connecting TV with two built in Sonance speakers allowing music streaming. Apple TV 4K for streaming content from your Apple device.

5. Port Guest cabin 24" Smart HD Television. Sonos Amp connecting TV with two built in Sonance speakers allowing music streaming. Apple TV 4K for streaming content from your Apple device.

Samsung 22" LED TV with Fusion DVD/CD/Radio with stereo speakers and with Bluetooth wireless connectivity for the Crew Quarters

Additonal Items

Two Additional AC 220v single sockets fitted at the top of the central mullion between dining and saloon

Interior Appliances

Dometic Coolmatic dual voltage HDC-275 Refrigerator above and Deep Freezer below in the Galley Ceramic hob - Miele KM6520 FR 4 ring

Hob Extractor - Miele DA3366 in the Galley

Integrated microwave oven - Miele H7240BM

Miele 220V Slimline Dishwasher G4680 SCVi (to change to extra storage space) Wine cooler for 20 bottles in the bar opposite the Galley

Siemens IQ500 WD14H421-GB Washer-Dryer

Exterior Appliances

Icemaker - Vitrifrigo IM Classic Hydro on the Flybridge Electric cooling unit for top loading cool box on the Flybridge Marine Electric BBQ Grill fitted in the wet bar on the Flybridge

Thrusters

Bow Thruster - Sleipner SEP170/250T-24V - 10.7hp.

Bow Thruster - Sleipner Side-Power SEP210/250T-24V - 13.5hp Stern Thruster - Sleipner Side-Power SEP170/250T-24V IP - 10.7hp Winches

Lewmar Anchor winch V5 GD - 24V

Stern docking Capstans - Lewmar C3 -24V fitted port and starboard

Lighting

Low level LED cockpit lights

Low level LED side deck lights 13 per side, 2 in the foredeck seating group and platform step lights Underwater lights - Lumishore LED x 4

Stern Docking Lights

LED interior overhead lighting

Dimmer switches on interior and exterior overhead lighting

3

General Electrical

Twin Anti-roll Quick Gyroscopic stabilizers MC2X 16

Sunseeker Cm8 integrated power management boat monitoring and control system.

7" Touchscreen display at lower console and a further 7" display aft saloon allowing the control of the following systems. 3.5" alarm display on the flyconsole.

AC Power.

Generator status, detailed graphic generator information via a MODBUS link to the generator controllers

Voltage measurement. Current Measurement and Frequency Measurement.

DC Power.

Graphic status of Port, Starboard, Domestic and Generator battery Voltage and Current. Battery Switch Status and Control.

Tank Level.

Graphic level of the fuel tank, Water tank, and Black water tank.

Navigation lights. Controlled and monitored.

Systems Operation.

Facility to operate all of the main equipment loads.

Water Heaters, Water Pumps, AC system, DC Systems, Navigation Lights, Bilge and flood pump systems.

Alarm Handling.

Crew to Bathing Platform door, Bathing Platform lowered, Shore Power MCB tripped and System Alarms.

Synchronised wiper control system.

230V AC 63 Amps shorepower socket with 20m cable Air Horns AFI twin trumpet Horn

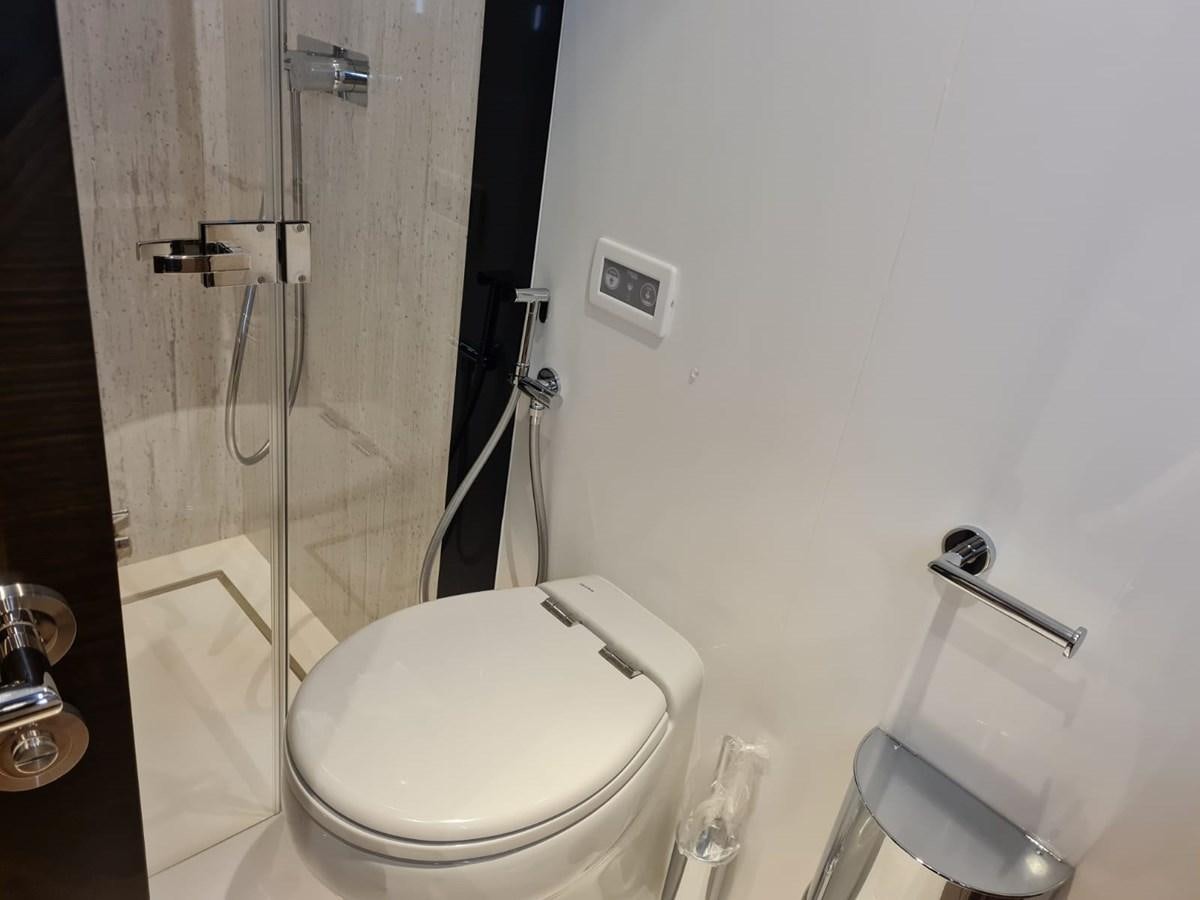

Tecma 2G - 24V toilet

Hygiene wash hose Located right handed for all toilets

Black and Grey Water

Standard Black Water tank 185 litres. Discharge via a either deck mounted fitting or to sea. Grey water sump tank collects shower and basin water with automatic overboard discharge

Engine Room

Generators

Cummins Onan Marine QD 50Hz 17.5kW (17.5MDKDR)

Cummins Onan Marine QD 50Hz 27kW (27MDKDU) needed for Tropical air con and or Stabilisers

Systems

Diesel FuelMag conditioning system for engines and generator Oil change system for engines gearboxes and generators

Watermakers

Water Maker HRO Seafari 110lt per hour (SFC 700-1)

Deck & Exterior

90 Metres of Galvanised 9.5mm anchor chain.

Lewmar 40Kg Galvanised Delta Anchor.

Fore deck hatch to access anchor chain well and fender storage with stainless steel fender tie bar under lid Mooring cleats 12" in polished stainless steel fitted port and starboard on the fore deck and aft main

deck.

Spring cleats 10" x two sets in polished stainless steel fitted port and starboard on bulwark.

Additional pair of Spring Mooring cleats 12" in polished stainless steel fitted port and starboard on the aft edge of the hull band.

4

Exterior fittings

Antifouling application in Black

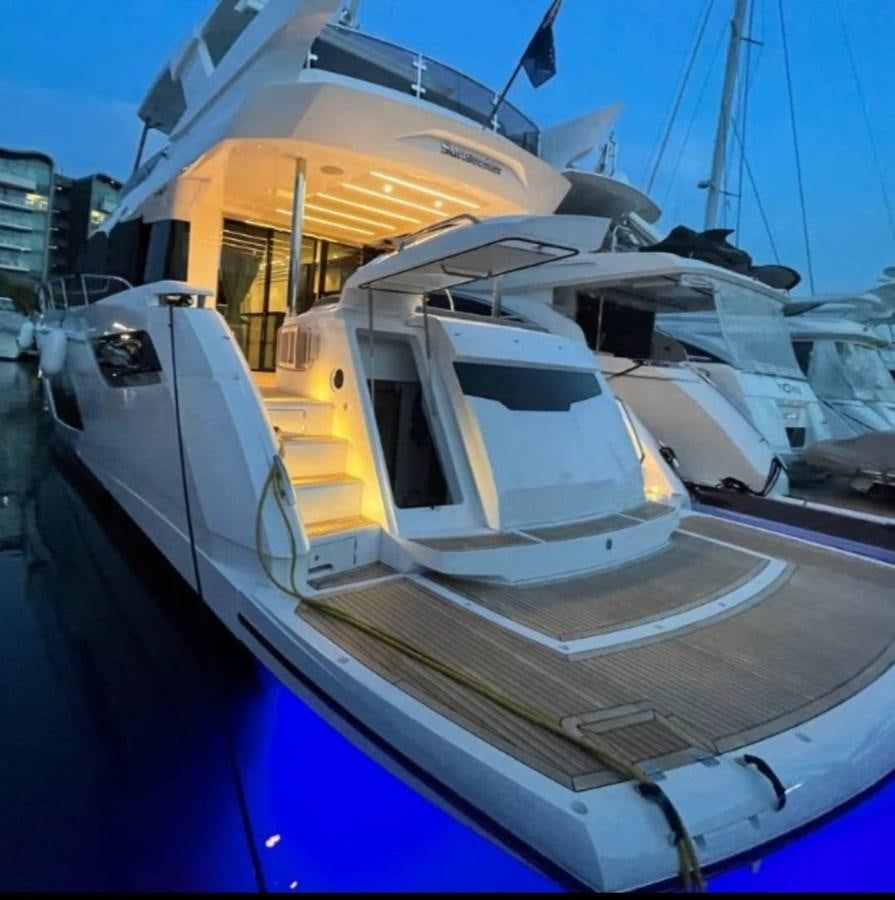

Hydraulically lifting platform with maximum lift capacity of 450kg and tender size of 3.85 x 1.76m Fresh water deck wash system with outlets forward and aft including deck wash hose kit Stainless steel ensign staff and socket

Bow sunbathing cushions

Folding back rests to the bow sunbathing cushions

Folding back rest for the port side forward seating cushions

Sunbrella performance exterior upholstery upgrade

Additional: Flybridge Aft Dining Seating

Supply items

Liferaft 10 Man Canister in stainless steel frame on the Flybridge aft starboard side

Teak

Lower cockpit and platform Teak Decking

Teak Side Decks to include the anchor deck and Seating group deck

Teak aft cockpit table with folding top fitted on a polished stainless steel leg Flybridge Teak Decking

Teak fore deck table with fixed top fitted on a polished stainless steel leg

Boat Covers

Rear Camper with windows

Windscreen Cover

Flybridge Instrument Cover

Flybridge Protective Covers Package for general Seating, sunbed, table, helm seats and Wet bar cover Main Deck Protective Covers Package - Aft cockpit seating and table cover. Foredeck seating, table and sunbed cover.

Fore deck seating group canopy with a manually operated stainless steel frame work and canvas cover

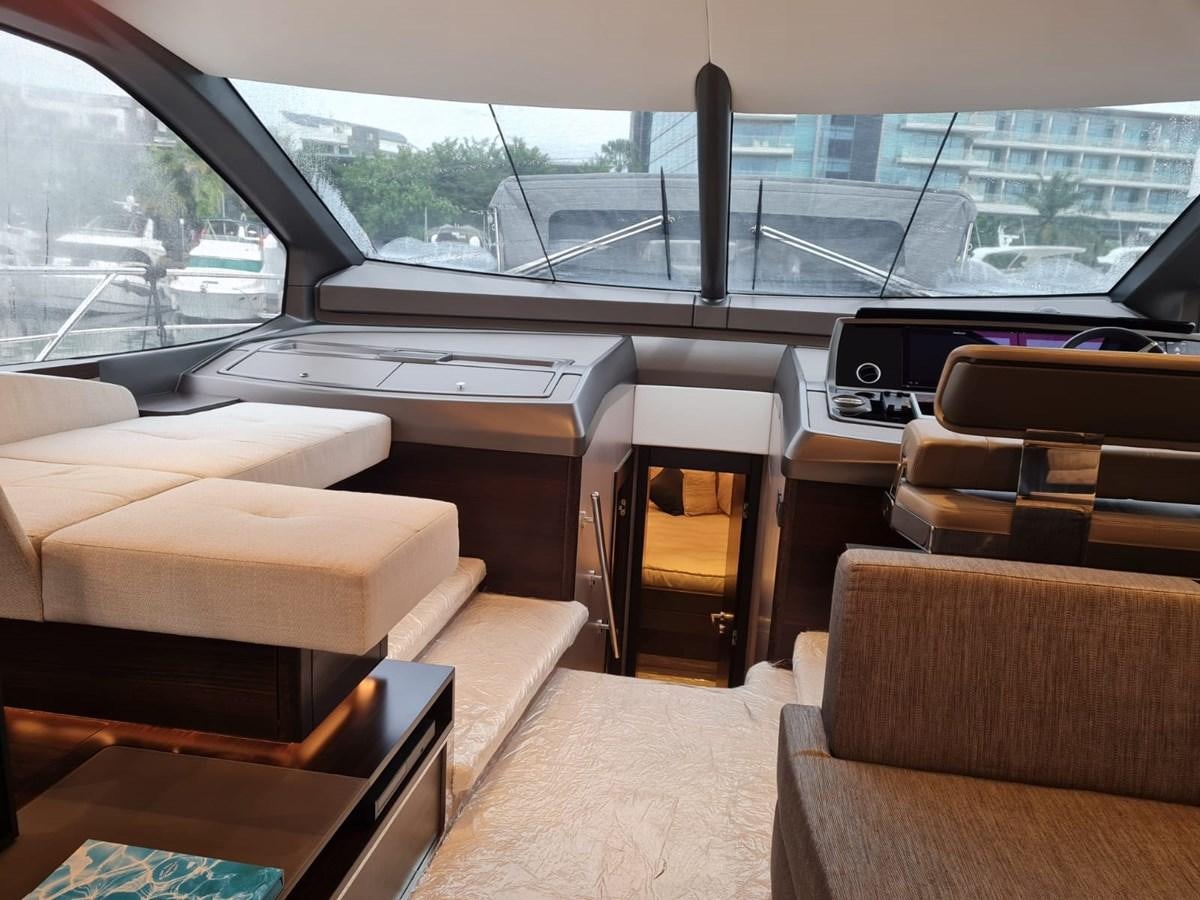

Interior

Wood Finishes

Interior Wood Finish - Black American Walnut Satin

Interior Wood Finish - Combination of Smokes eucalyptus figured high sheen satin with Silver Oak Low build open grain Satin

Layout options

Main deck Galley - Standard configuration

Tinting of windows

Medium Tinted film to side windows and sliding doors

Additional Items

To install elctronic Roman or Venetian Blinds in Saloon & Galley

To install electronic Roman or Venetian Blinds in Master Cabin

To install double USB outlet next to each double 240v power socket

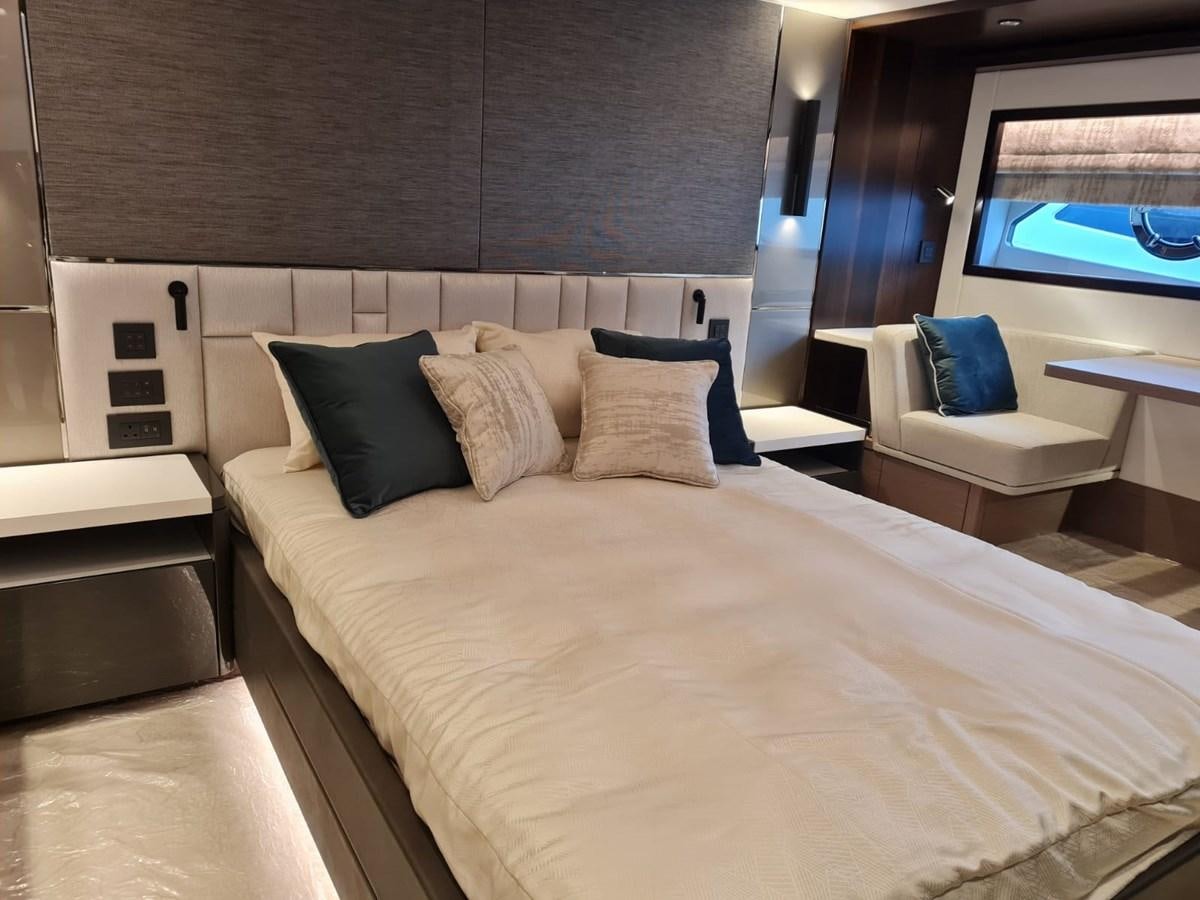

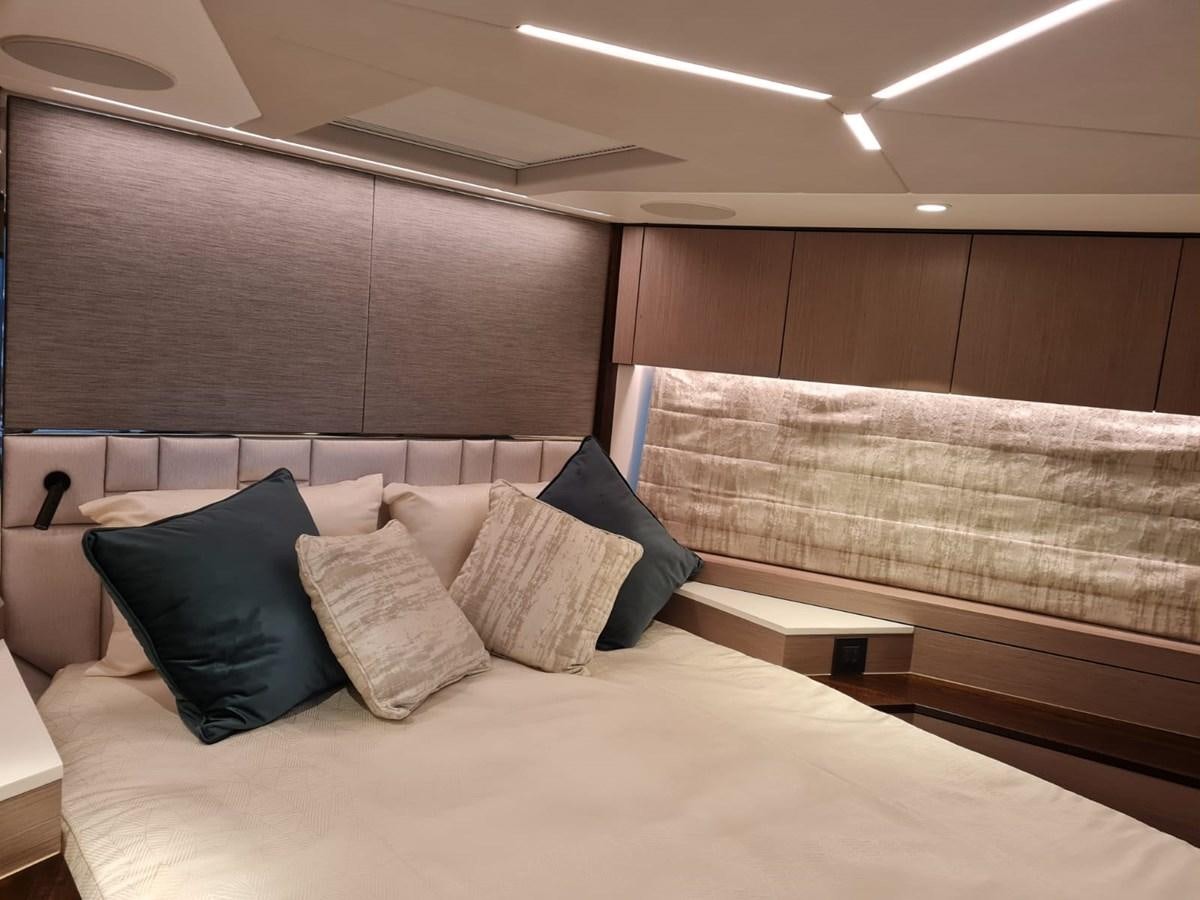

Master cabin variations

Standard starboard side arrangement. Two upholstered seats and central breakfast table in the Master Cabin

Standard starboard side arrangement. Fully upholstered settee in the Master Cabin

Guest cabin vairations

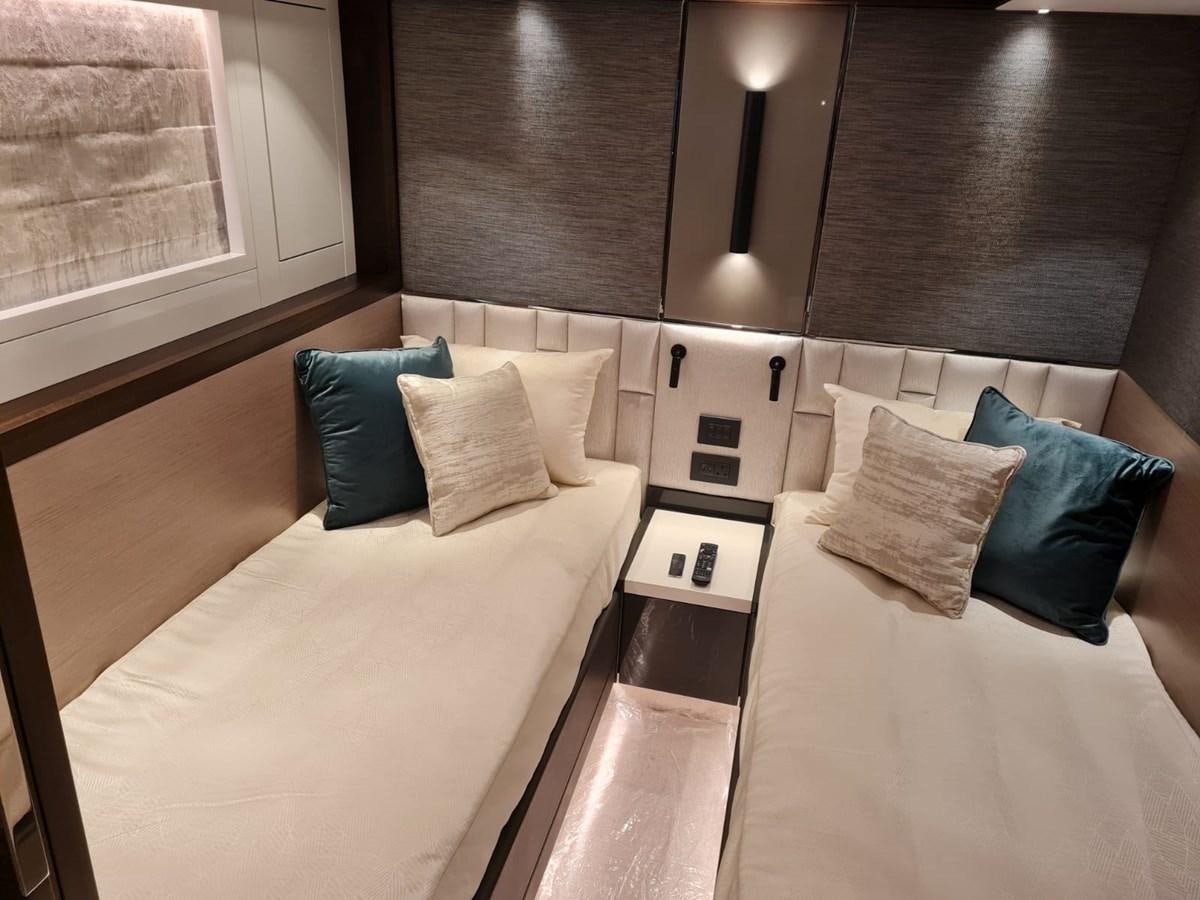

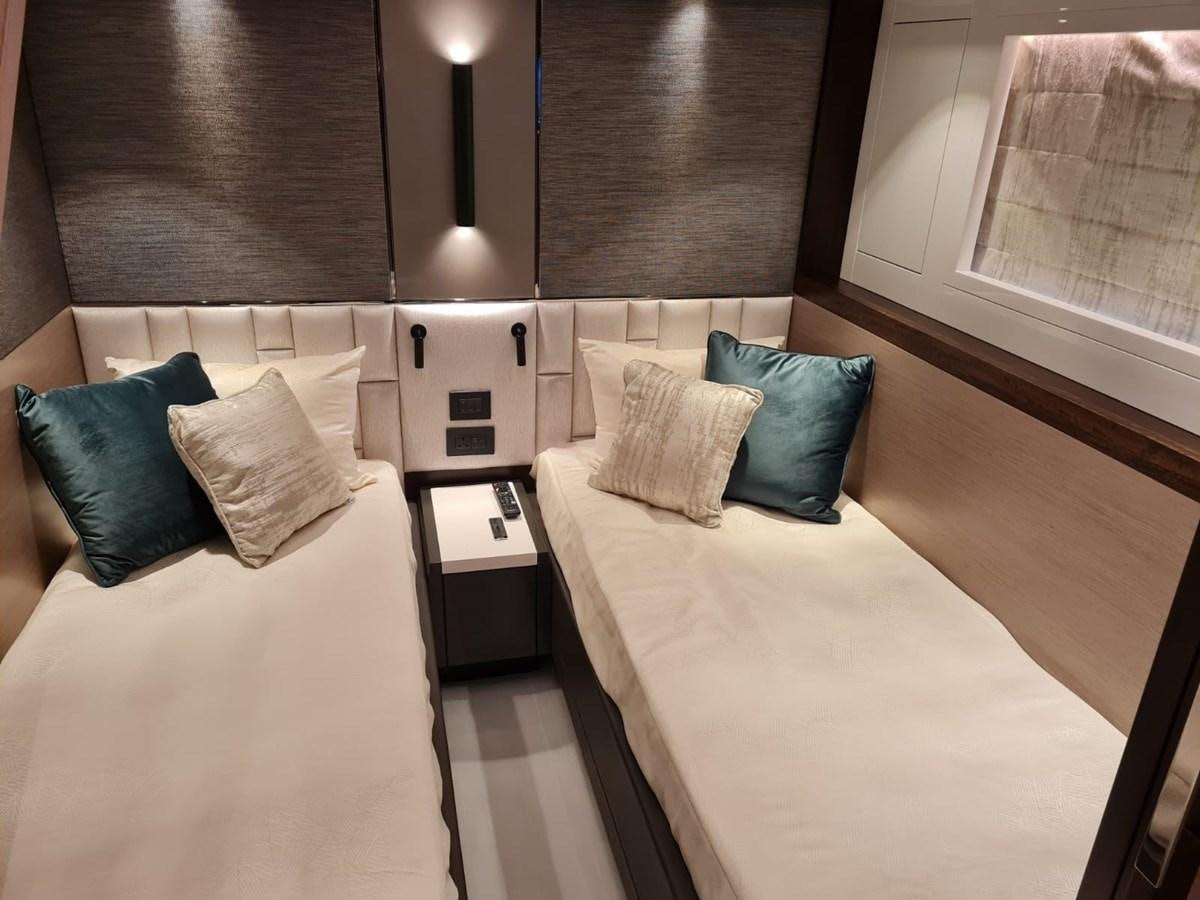

Two single beds with electrically operated slider to form an occasional double in the guest cabin

5

Interior upgrades

Wood Venetian blinds or Roman blinds in lieu of standard Metal Venetian Blinds

Bed furnishings

Foam and quilted mattress for beds

Sprung mattress for beds

The standard number of scatter cushions on this boat is 24. Additional cushions over this amount is 136.00 each

Others

Pre Delivery Inspection Survey

Door furniture

Key lock for cabin door for the Master Aft Cabin - Key on the outside with snib lock on the inside Key lock for cabin door for the Forward Cabin - Key on the outside with snib lock on the inside Key lock for cabin door for the Port Mid Cabin - Key on the outside with snib lock on the inside Key lock for cabin door for the Starboard Cabin - Key on the outside with snib lock on the inside

Safe option

Safe concealed in cabinetry (8.3 lts. W280mm x H165mm x D235mm) in the Master Cabin Safe concealed in cabinetry (8.3 lts. W280mm x H165mm x D235mm) in the Forward Cabin

Supply Items

Retractable boat hook

4x Docking lines. 15 metre x 16mm 3 strand black with eye on one end

1x Tender line. 10 metre x 10mm 3 strand black

8x Fenders Majoni F4, 24 x 70 cm in white

8x Fender ties. 3 metre x 10mm 3 strand black

Stainless steel ensign staff 1225 mm long x 32mm diameter

Hand held LED inspection lamp

Basic spare lamp kit

Basic small tool kit

Basic First Aid Kit

Fire Blanket. Ocean Safety FIR0022. 1.1 x 1.1 M

6 x Portable dry powder fire extinguisher 1kg 5A 34B C (plus one for crew if option taken) Leather Cleaning Kit

RINA Fire bucket 3 gallon with line

Mosquito screens for openable portlights

8x Guest Towel sets

Crockery, Cutlery and Glassware

Royal Doulton Fusion white dinner set consisting of 8x dinner plates, 8x side plates, 8x soup bowls, 8x cups and saucers, 1x Teapot, 1x Cream/milk jug, 1x Sugar bowl, 1x Salt pot and 1x Pepper pot.

Robert Walsh cutlery set comprising of 8x dinner knives, 8x dinner forks, 8x Soup spoons, 8x Side knives, 8x Side forks, 8x desert spoons, 8x teaspoons and 4x serving spoons

Dartington Crystal set comprising of 8x champagne flutes, 8x whiskey tumblers
