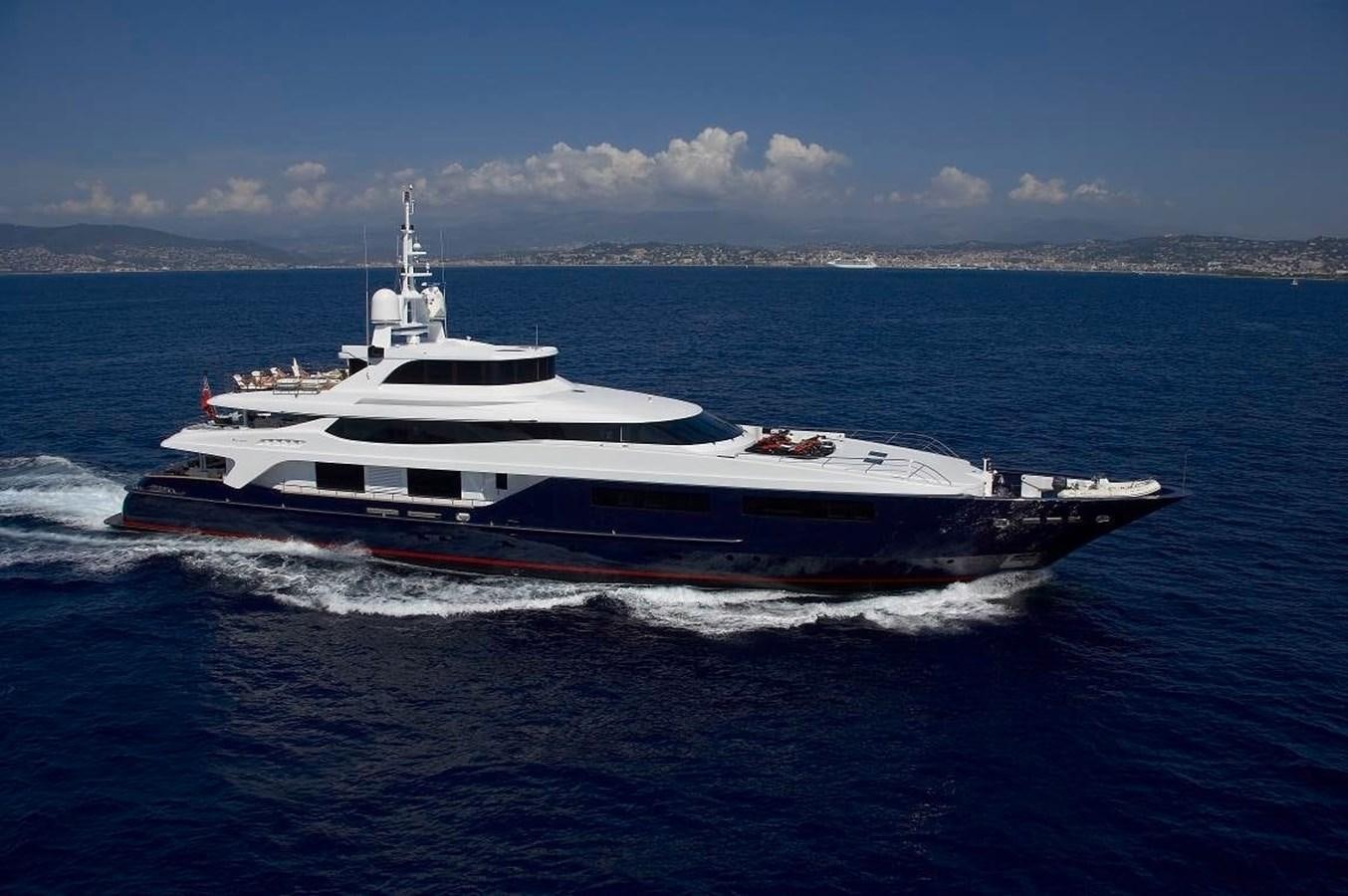

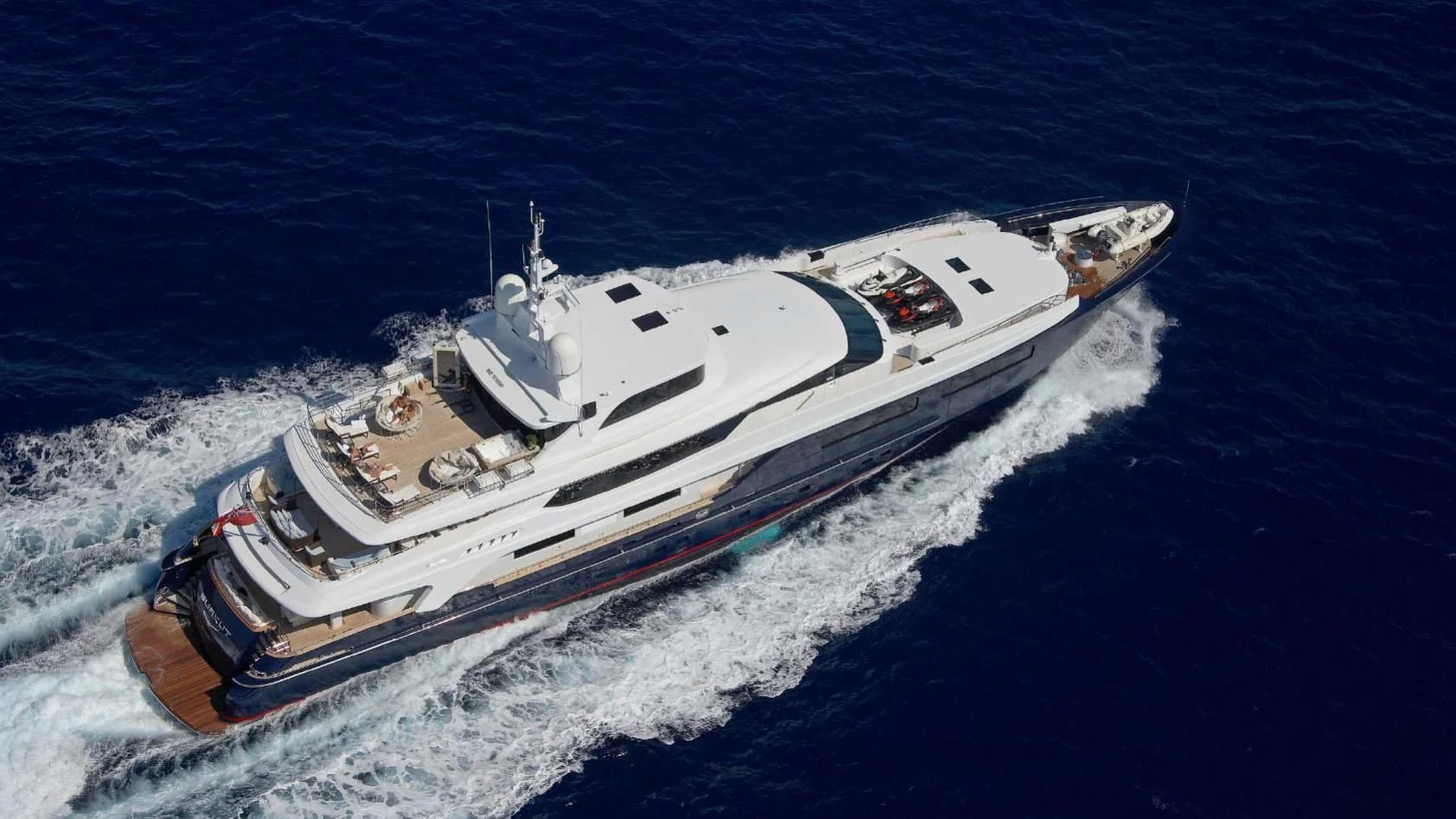

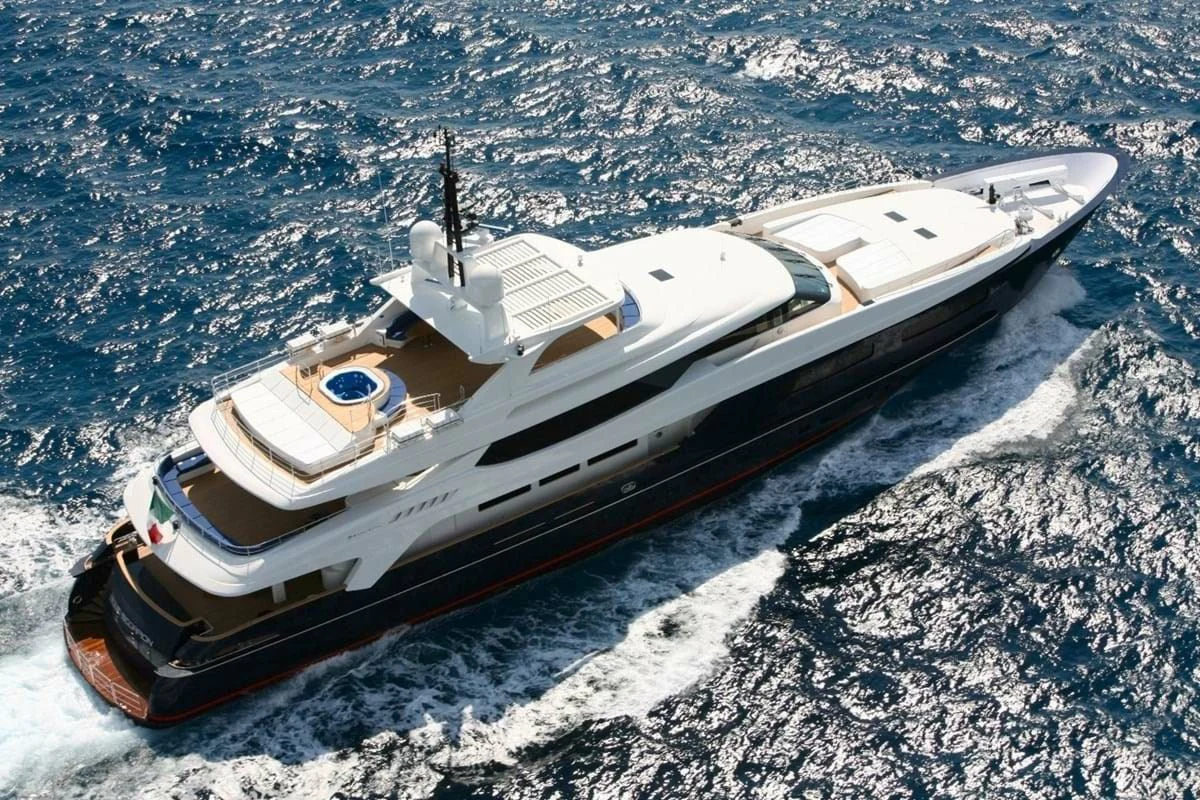

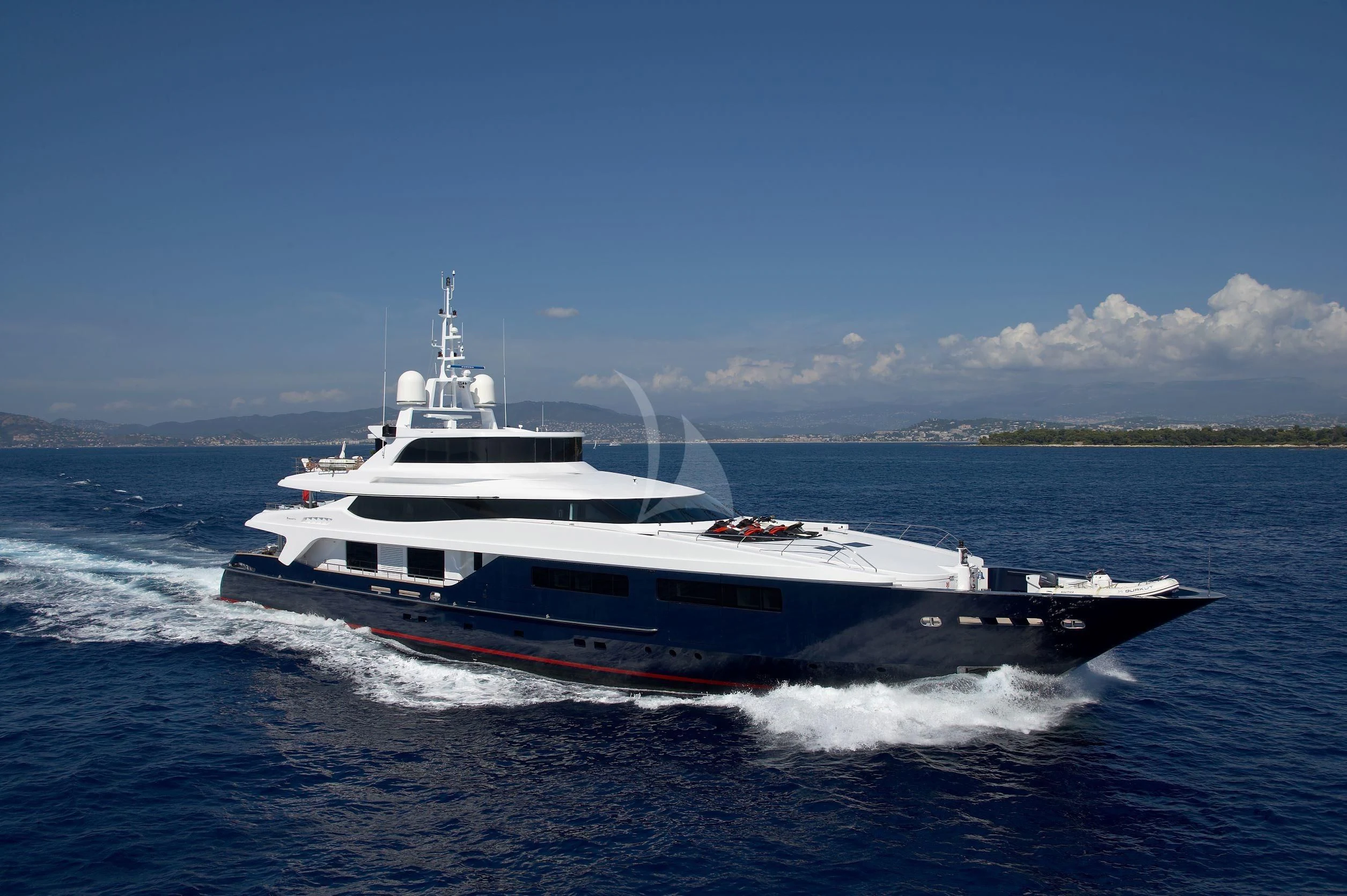

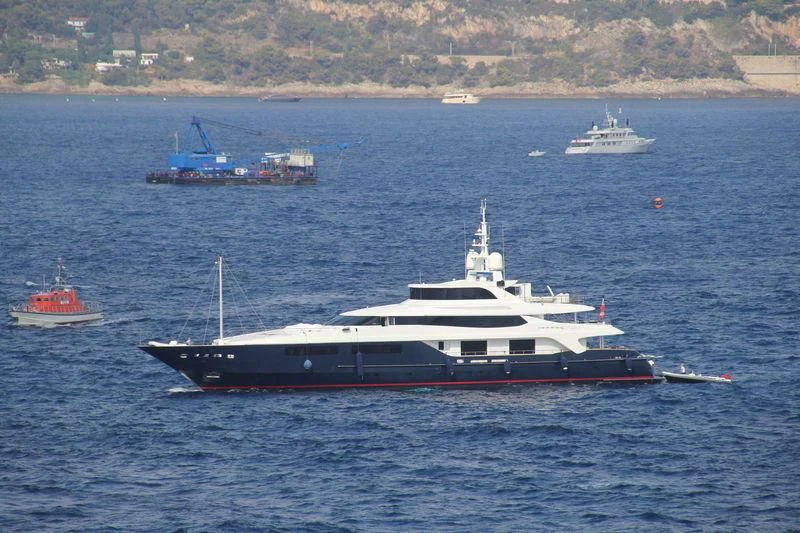

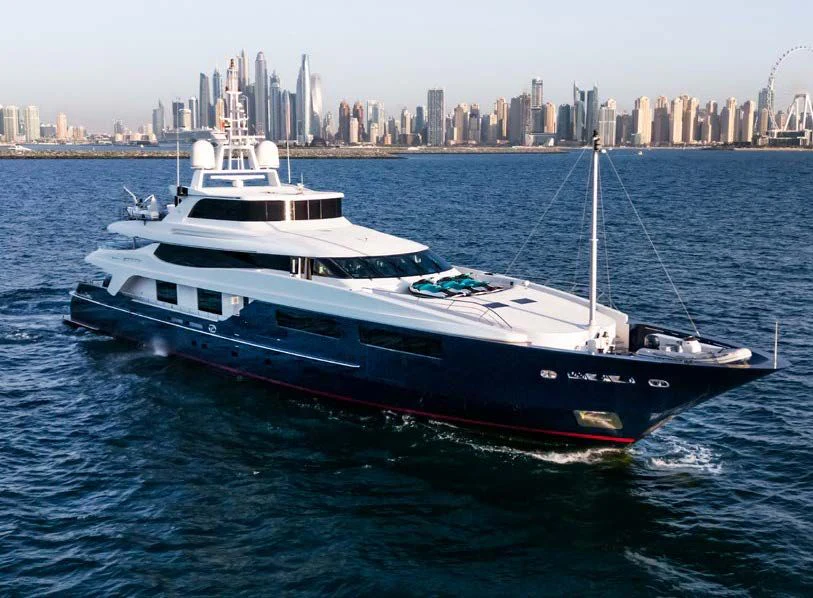

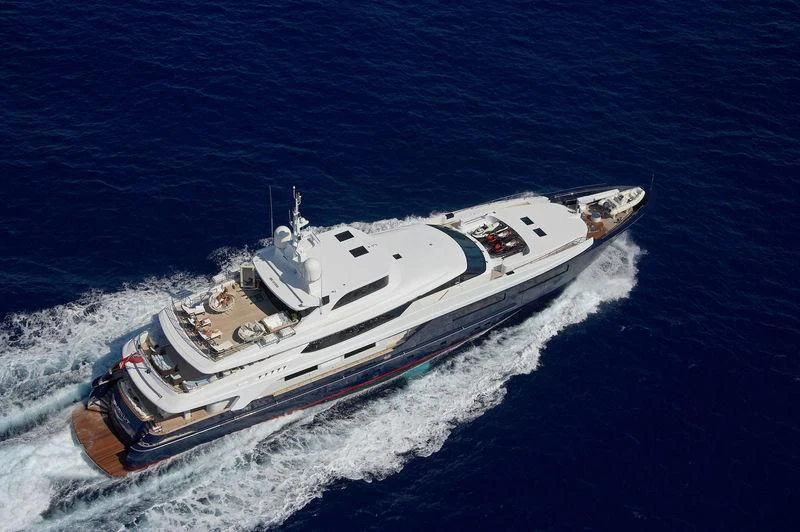

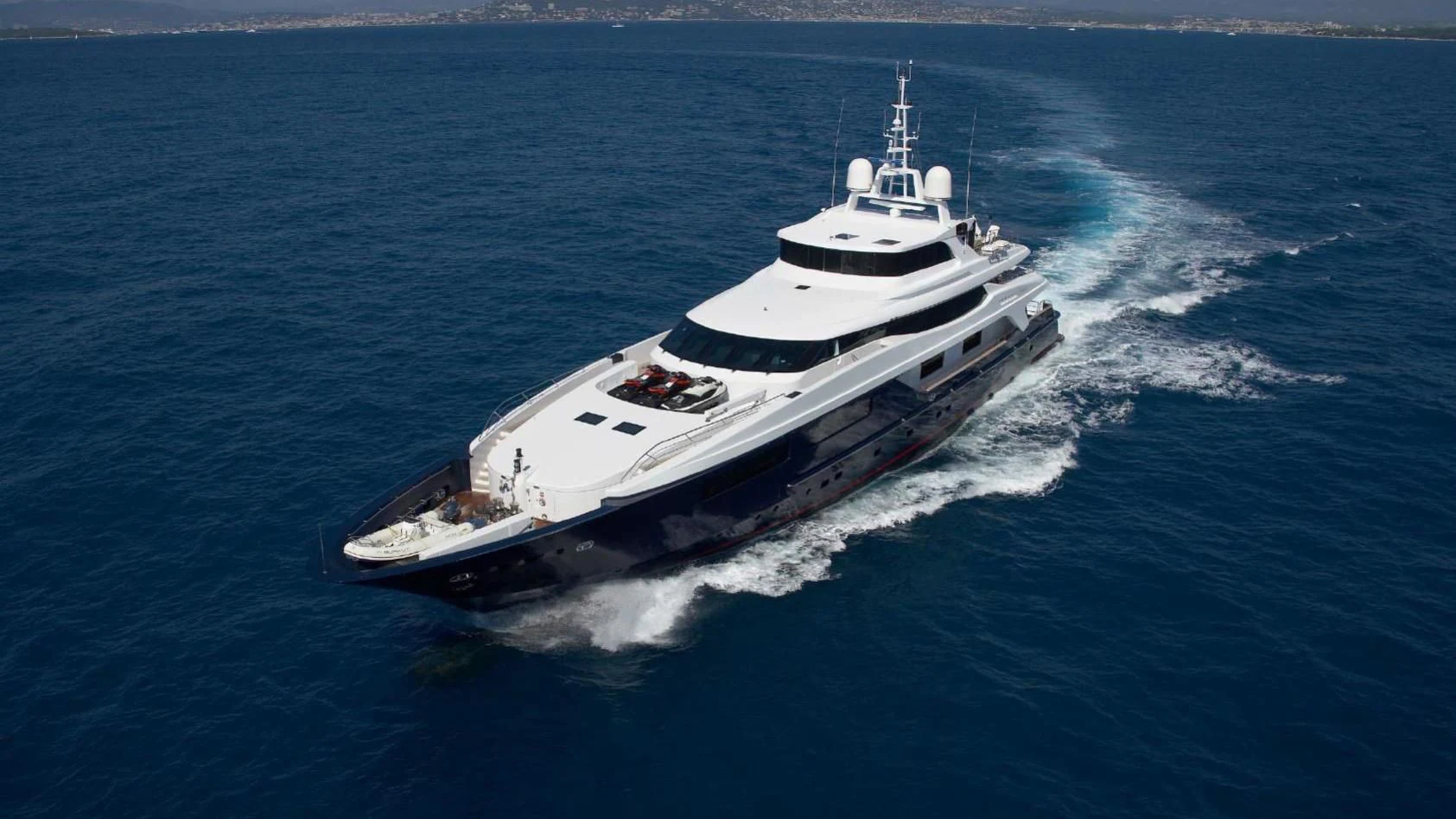

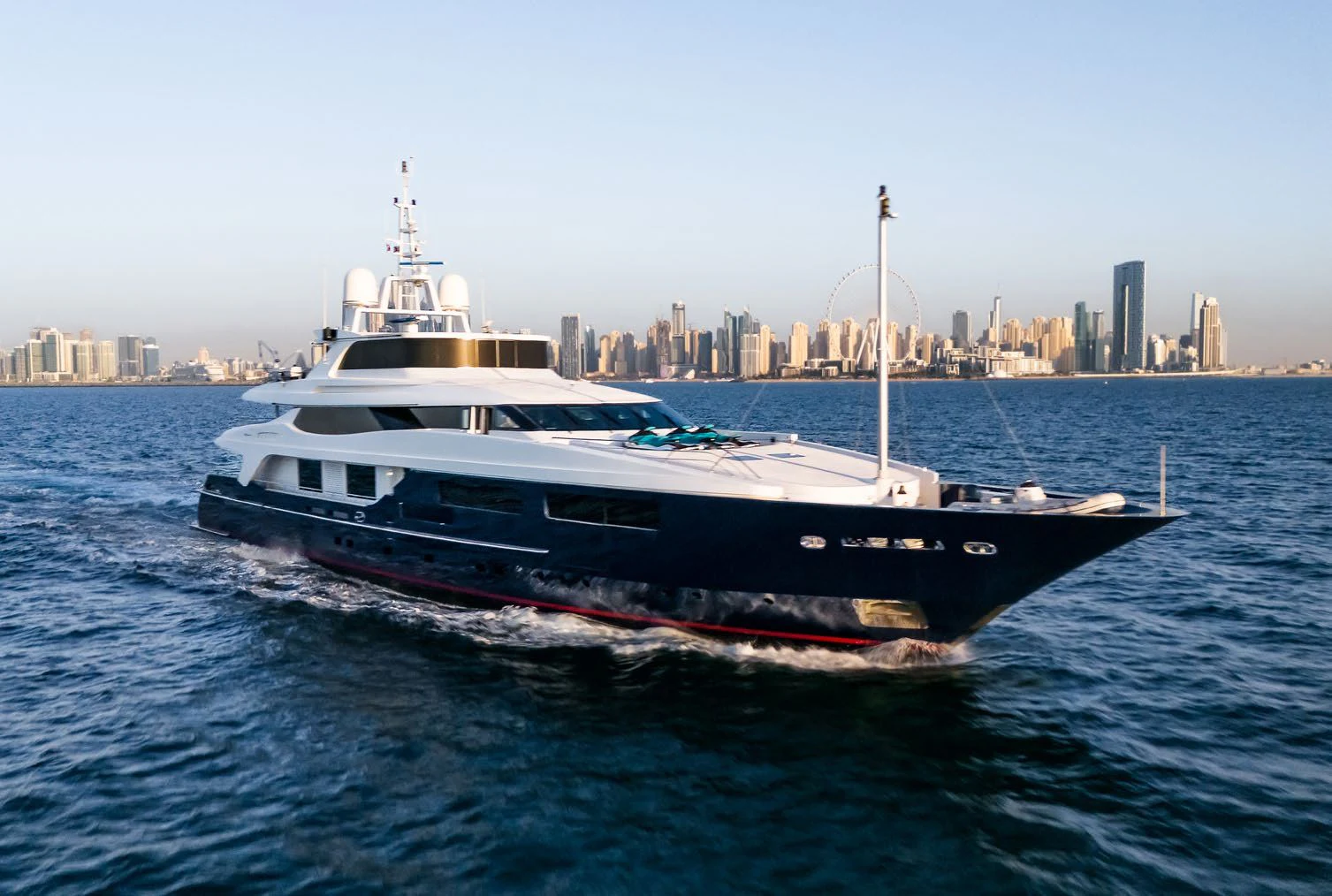

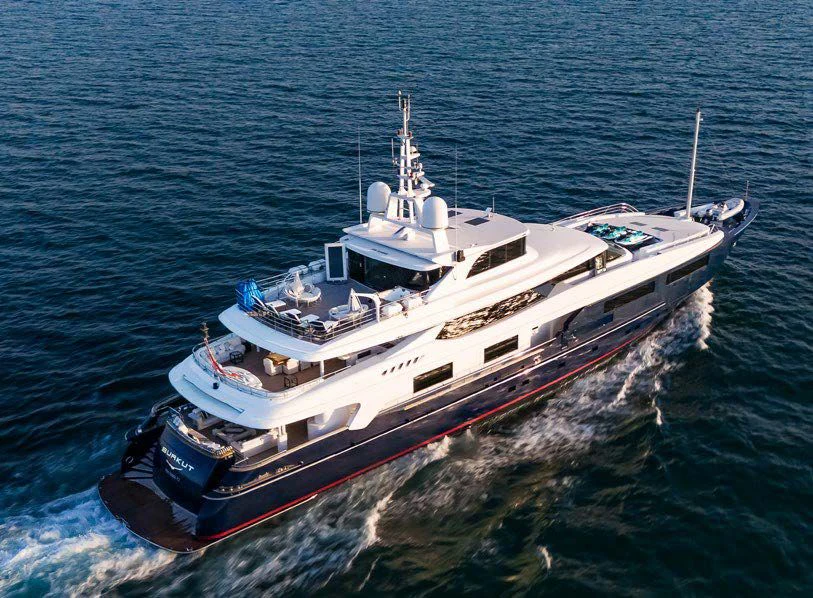

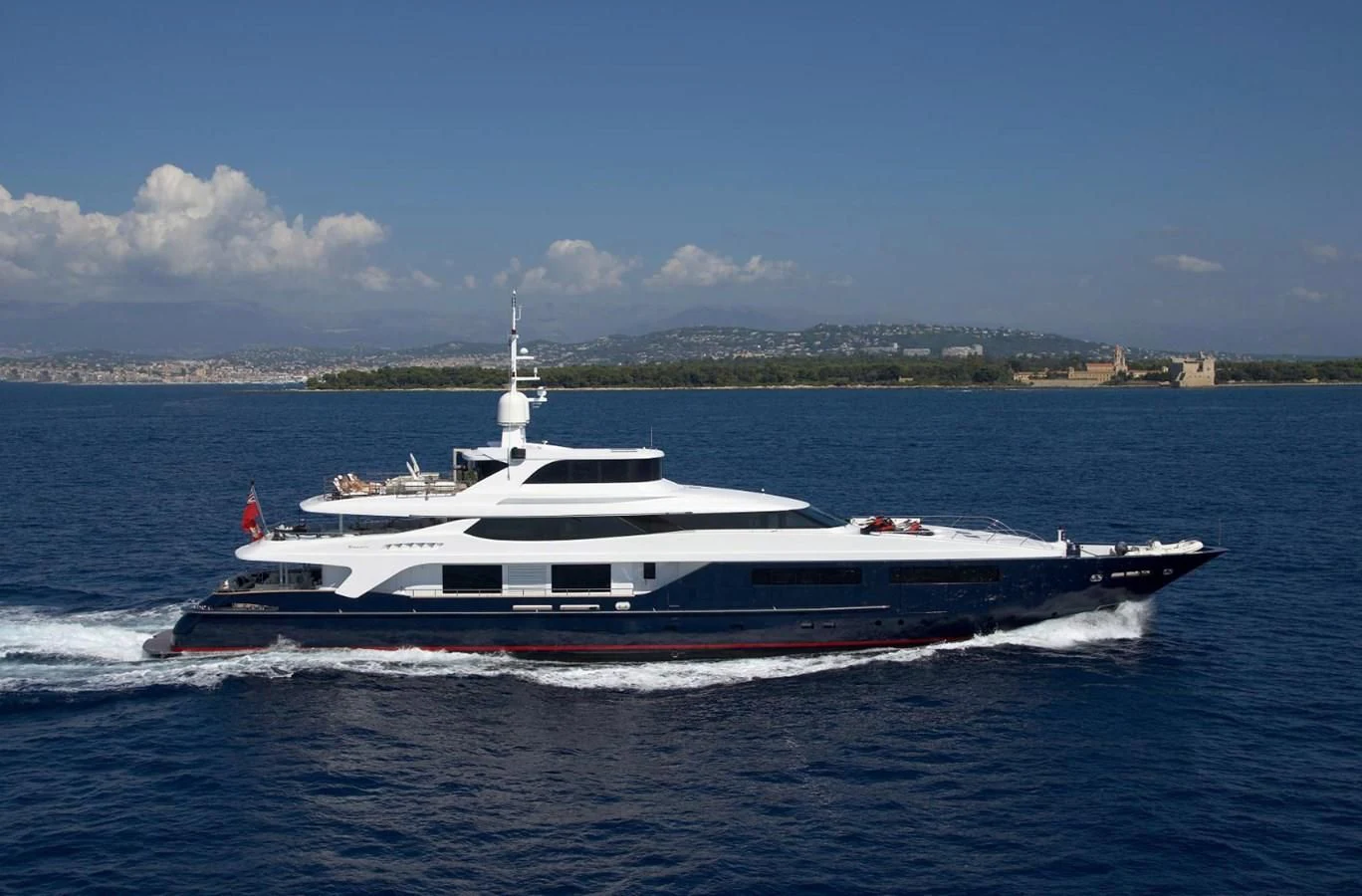

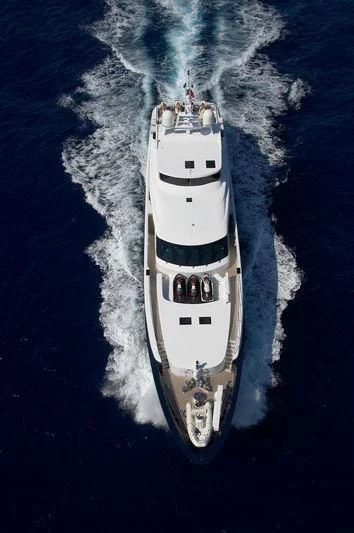

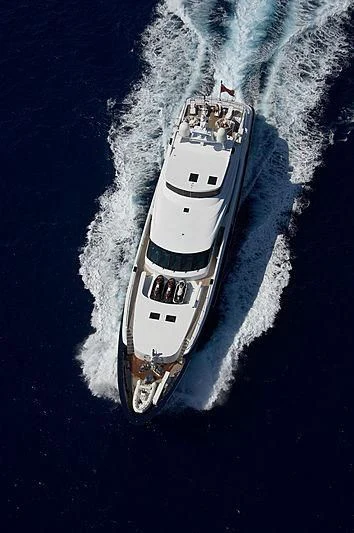

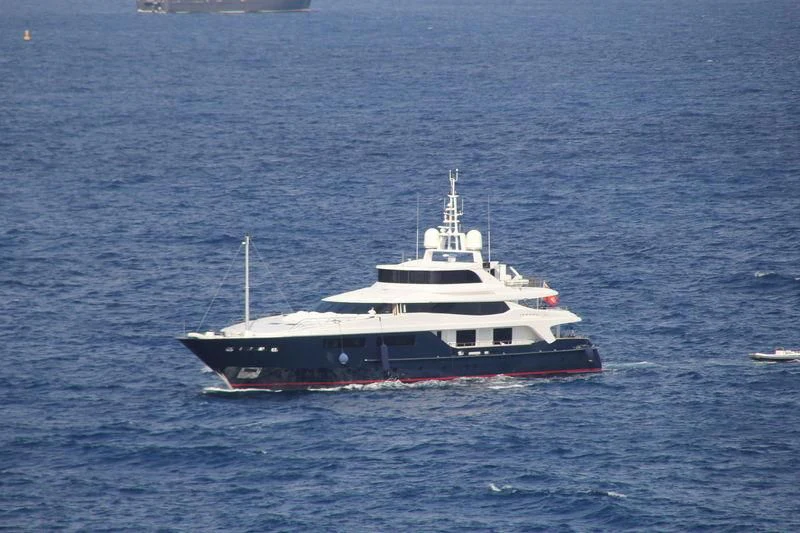

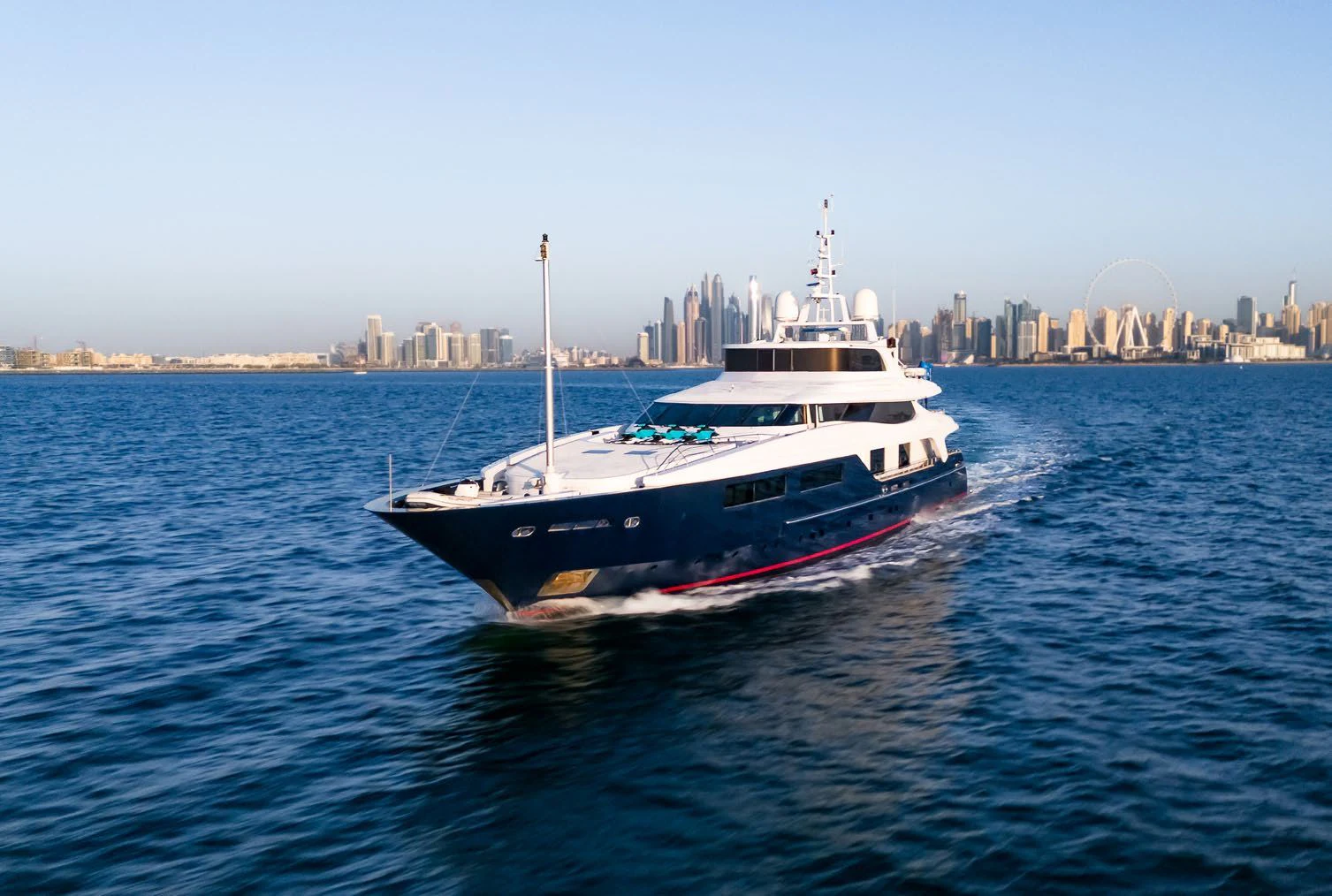

Burkut Yacht for sale

177' (54)
BAGLIETTO
2009/2012

Length 177 FT (54 M)
Beam 33 FT (10 M)
Gross Tonnage 733 Ton
Guests 10
Crew 13
Builder BAGLIETTO
Designer Francesco Paszkowski
Year Built 2009
Construction Steel
Cruising Speed 15Knots
LOA 177 FT (54 M)
Beam 33 FT (10 M)
Min Draft 10 FT (3 M)
Cruising Speed 15 Knots
Max Speed 18 Knots
Gross Tonnage 733 Ton
Fuel Capacity 85,001 Liters
Hull Material Steel
Designer Francesco Paszkowski

Full Specifications




1. MAIN CHARACTERISTICS
TYPE Full Displacement Motor Yacht
HULL NO. 10206
BUILDER Baglietto
EXTERIOR DESIGN Francesco Paszkowski
INTERIOR DESIGN Francesco Paszkowski
YEAR 2009
REFIT 2011/2012 - swim platform extension; creation of spa on

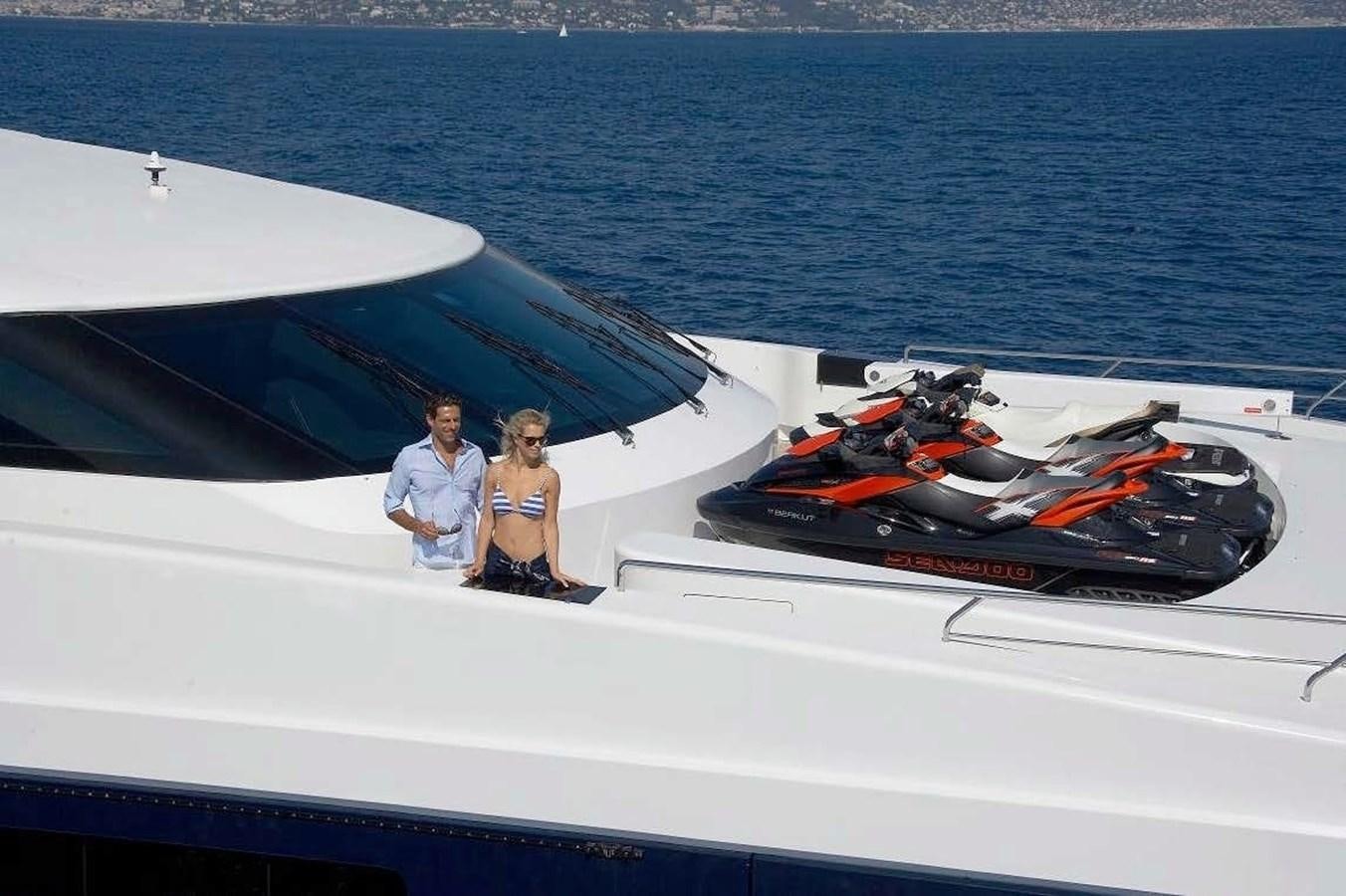

Sun Deck; new jet-ski stowage area; expansion of Bridge
Deck Salon
CONSTRUCTION Steel hull, Aluminium Superstructure, Teak decks
CLASSIFICATION Lloyds Malta 100A, MCA compliant
FLAG Cayman Islands
ENGINES 2 x 2,000 Hp CAT 3516B
GT 733 tons
DISPLACEMENT 550 tons @half load

2. DIMENSIONS

LOA 53.90m / 177’10"
BEAM 10.20m / 33’ 47’’moulded
DRAFT 3.20m / 9’ 10’’ loaded

3. SPEED & RANGE UNDER POWER

MAXIMUM SPEED 17.5 knots
CRUISING SPEED 15 knots
RANGE 3,850 nm @ 12 knots
Fuel Consumption Details
Speed Consumption per hours Range RPM
Maximum 17.5 knots 243 US gallons/920 litres 1,500 nm 1,700
Cruising 15.0 knots 134 US gallons/510 litres 2,500 nm 1,400
Economical 12.0 knots 84 US gallons/320 litres 3,850 nm 1,125

4. CAPACITIES

ACCOMMODATION 10 x Guests in 5 cabins
CREW Up to 13 x Crew members in 7 cabins
FUEL 85,000 litres / 22,454 US gallons
FRESH WATER 23,000 litres / 6,075 US gallons
LUBE OIL 5,677 litres / 1,500 US gallons
WASTE OIL 5,677 litres / 1,500 US gallons
WATER MAKERS 20,817 litres / 5,500 US gallons


5. ACCOMMODATION
GENERAL

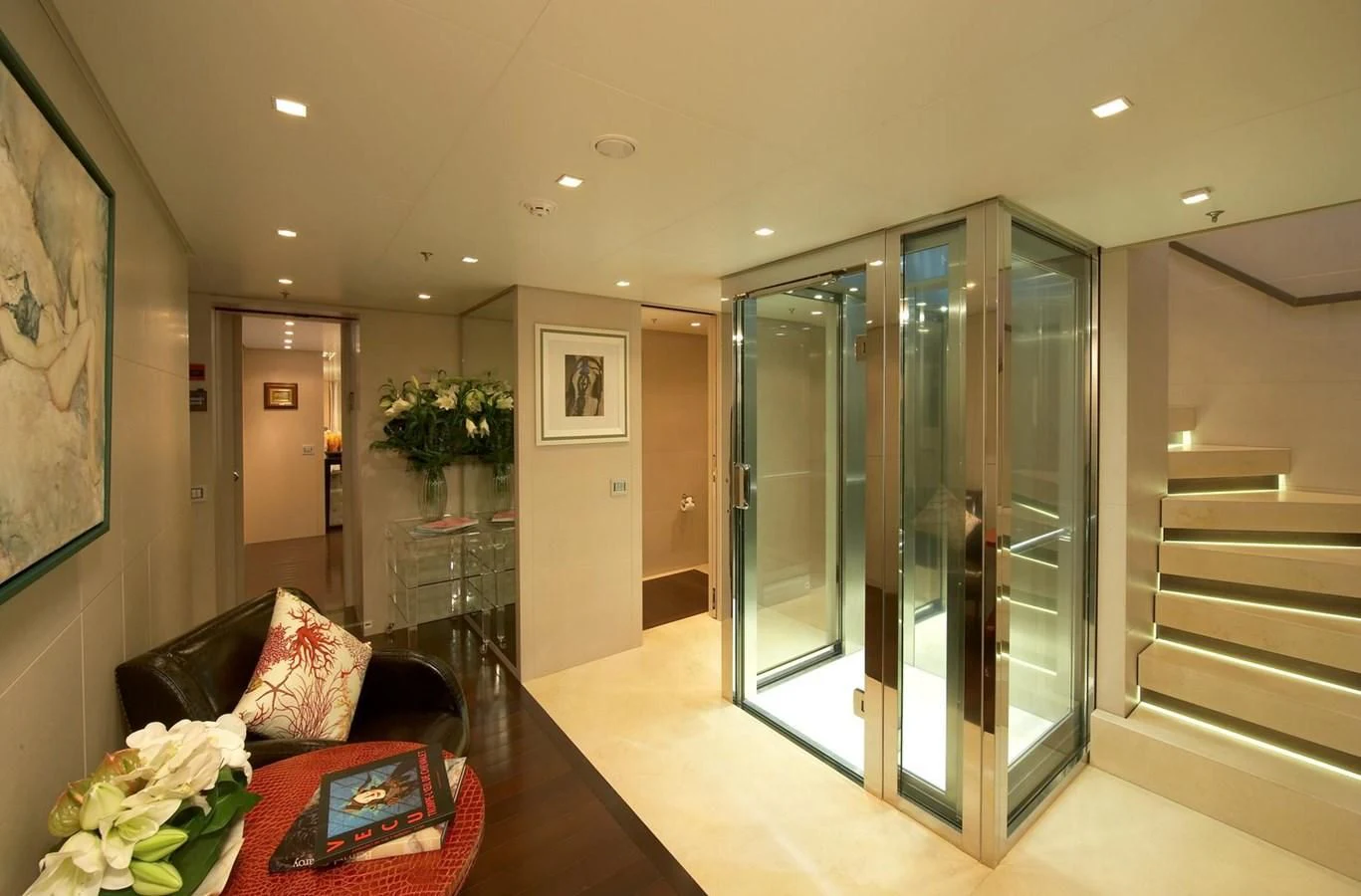

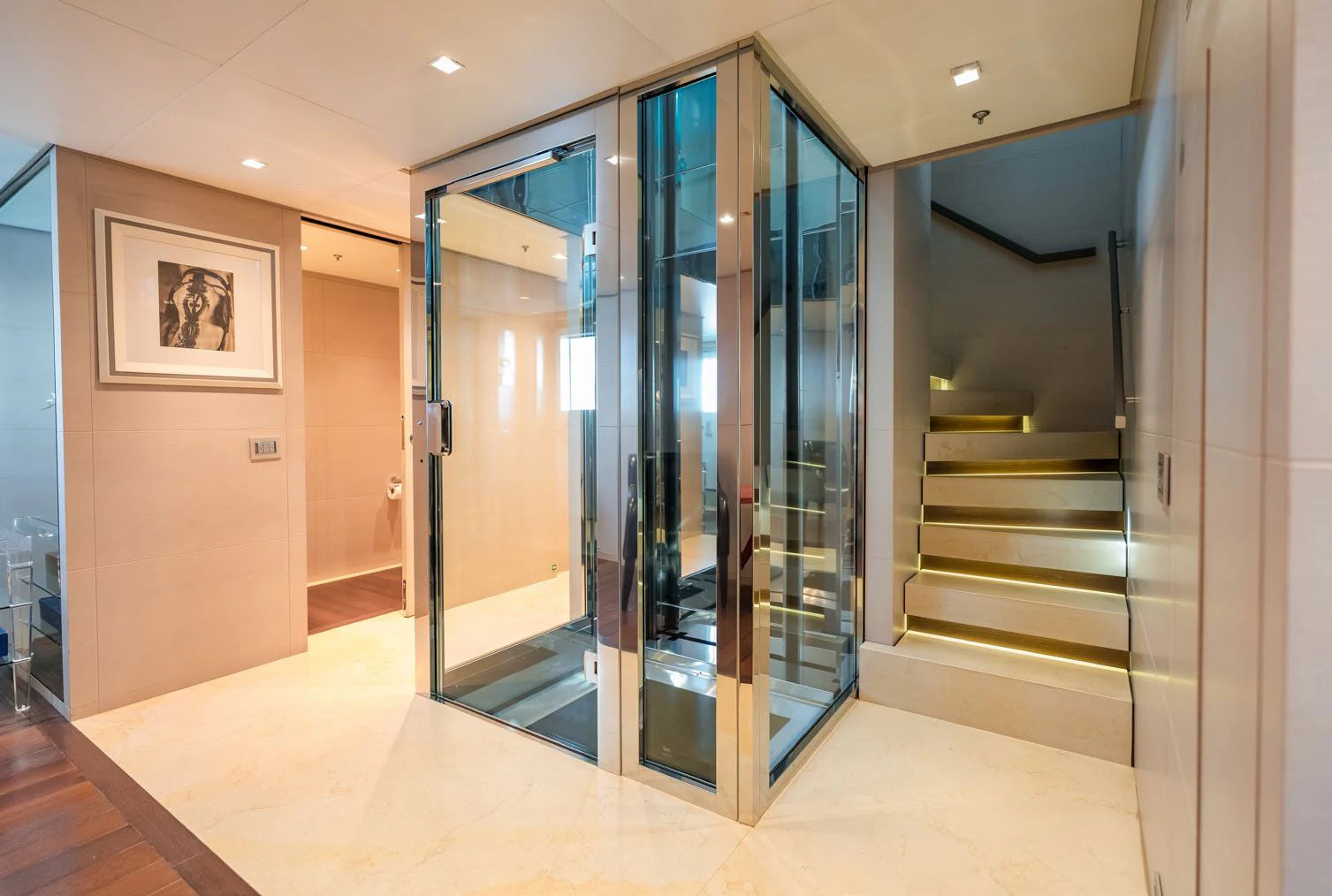

· Guest Elevator Lower to Main Deck
OWNER

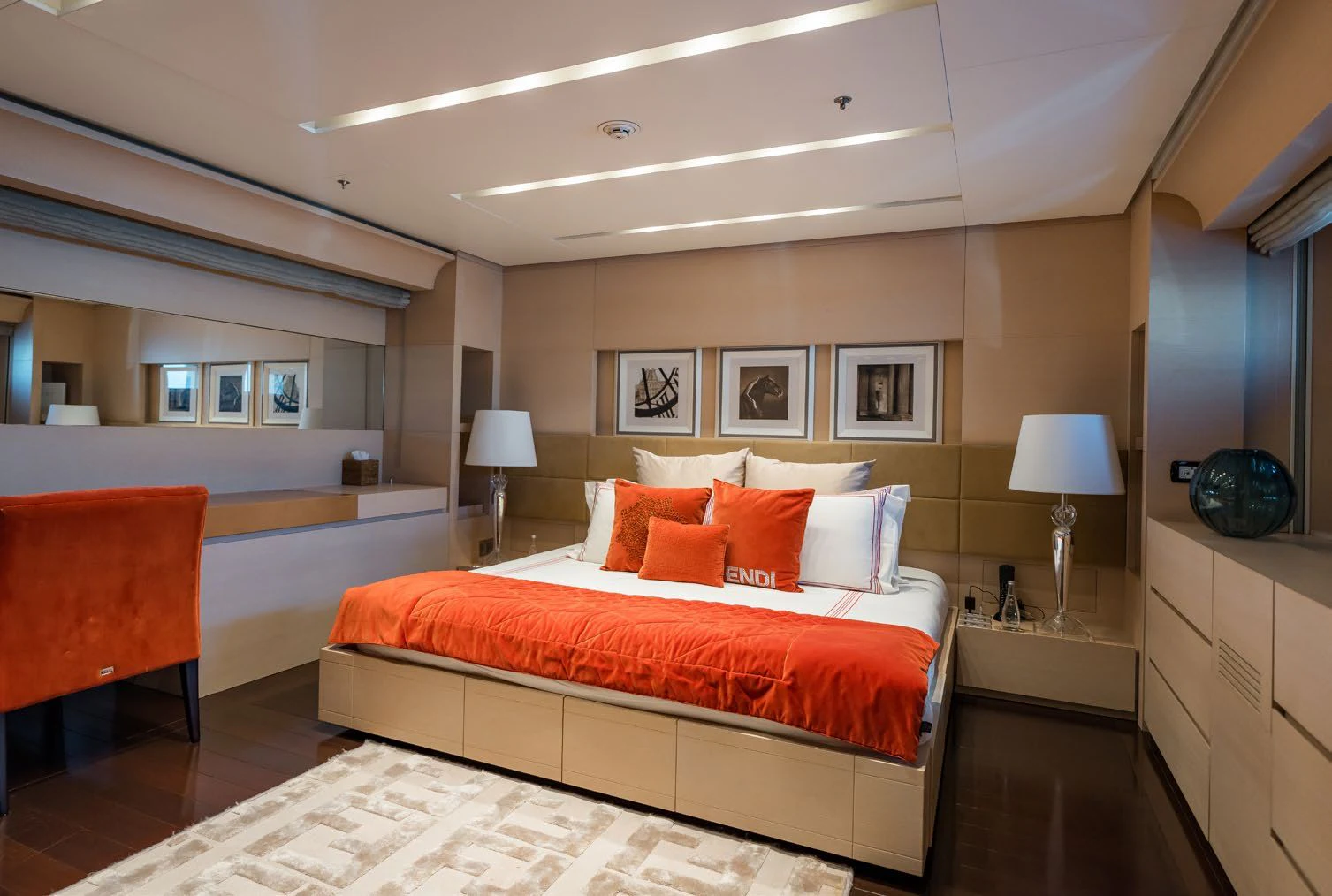

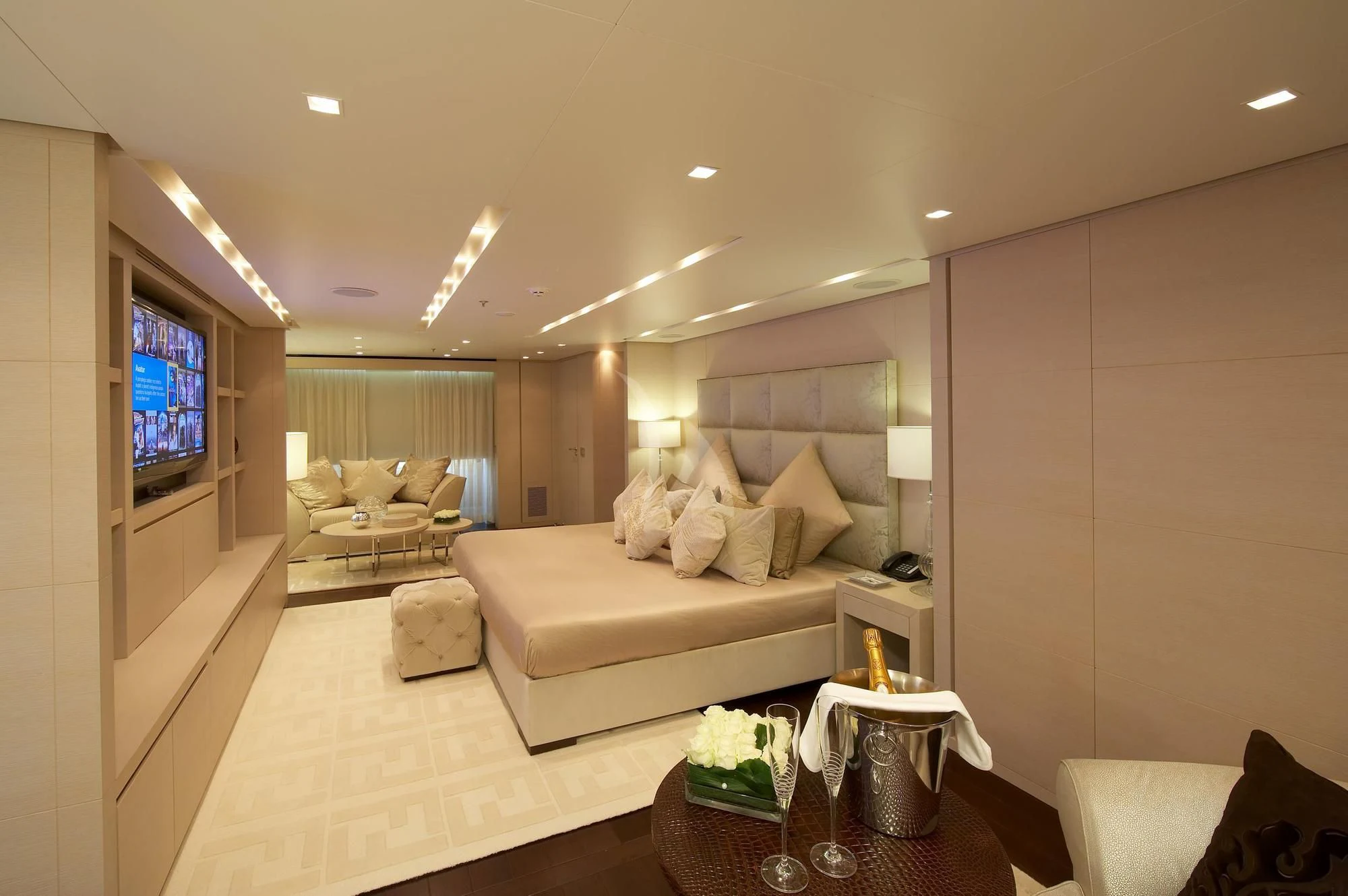

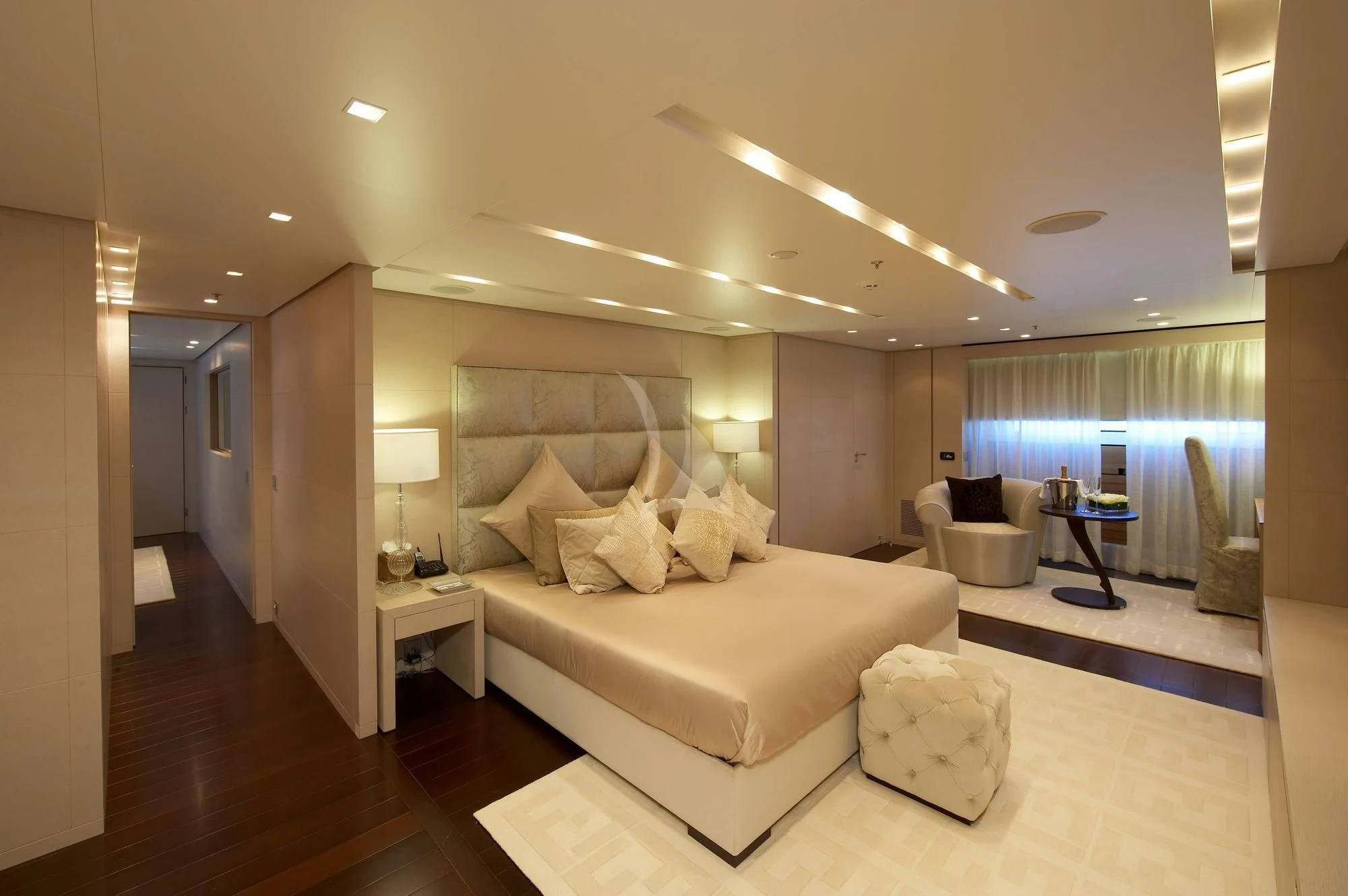

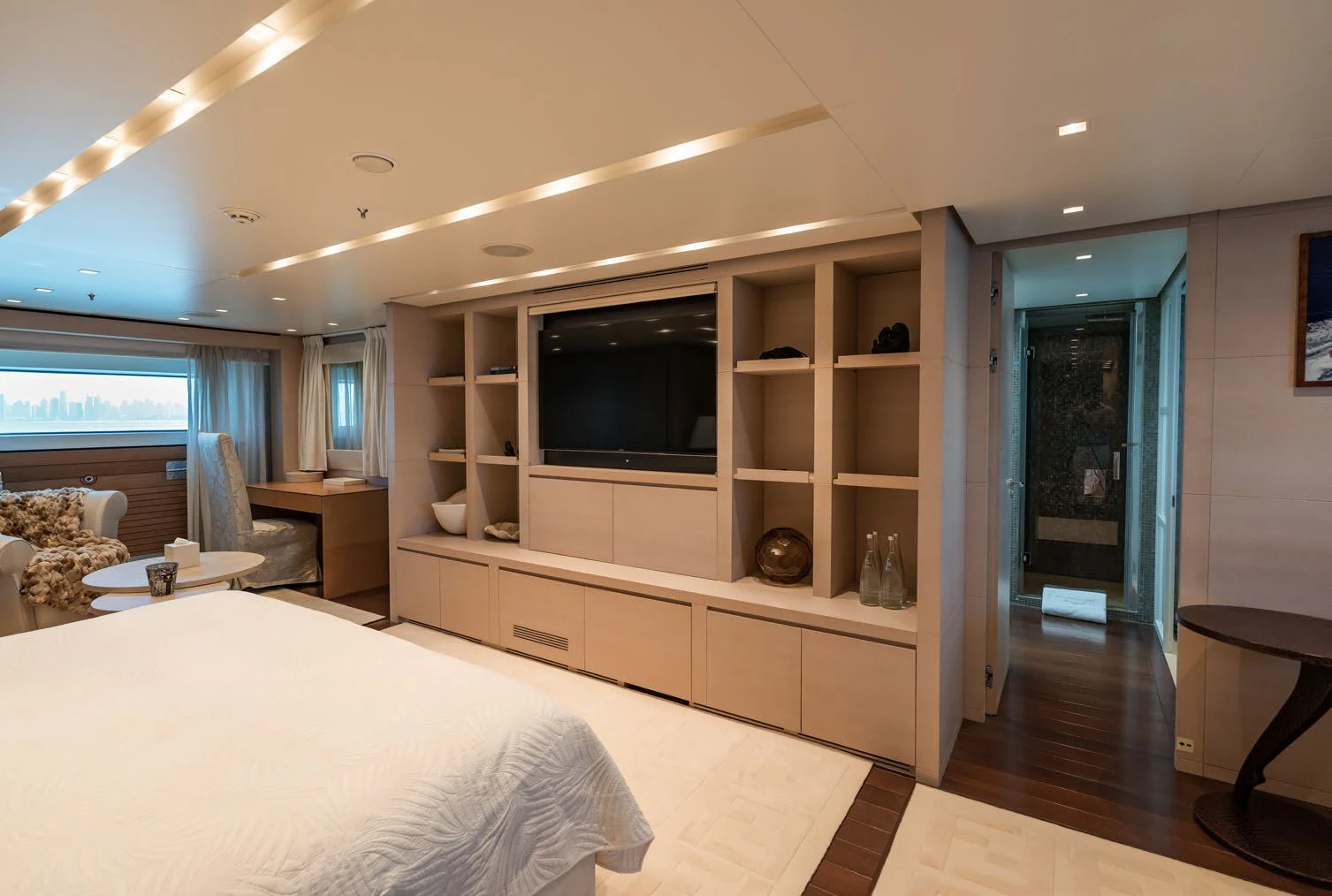

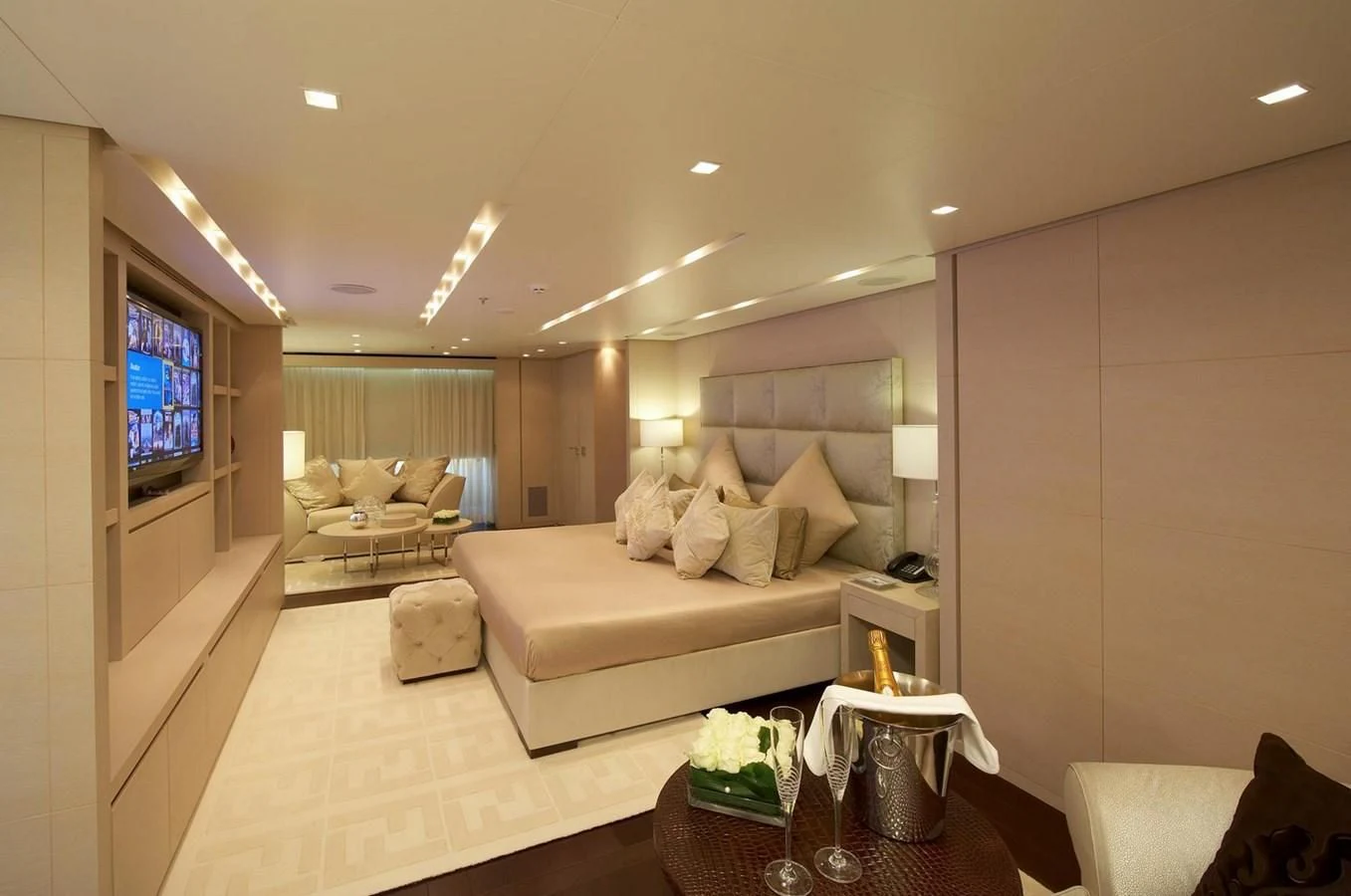

· Main deck King en-suite cabin

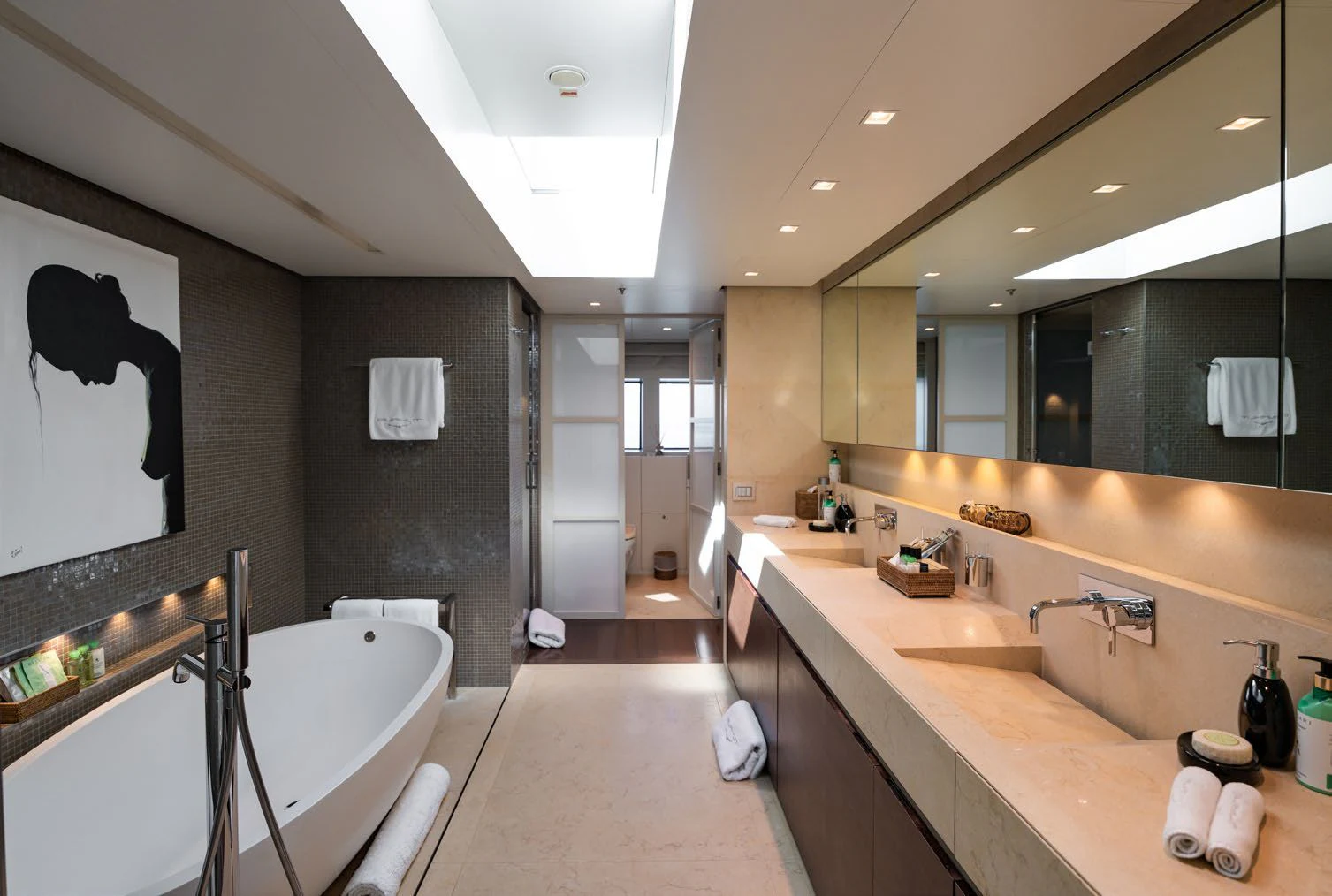

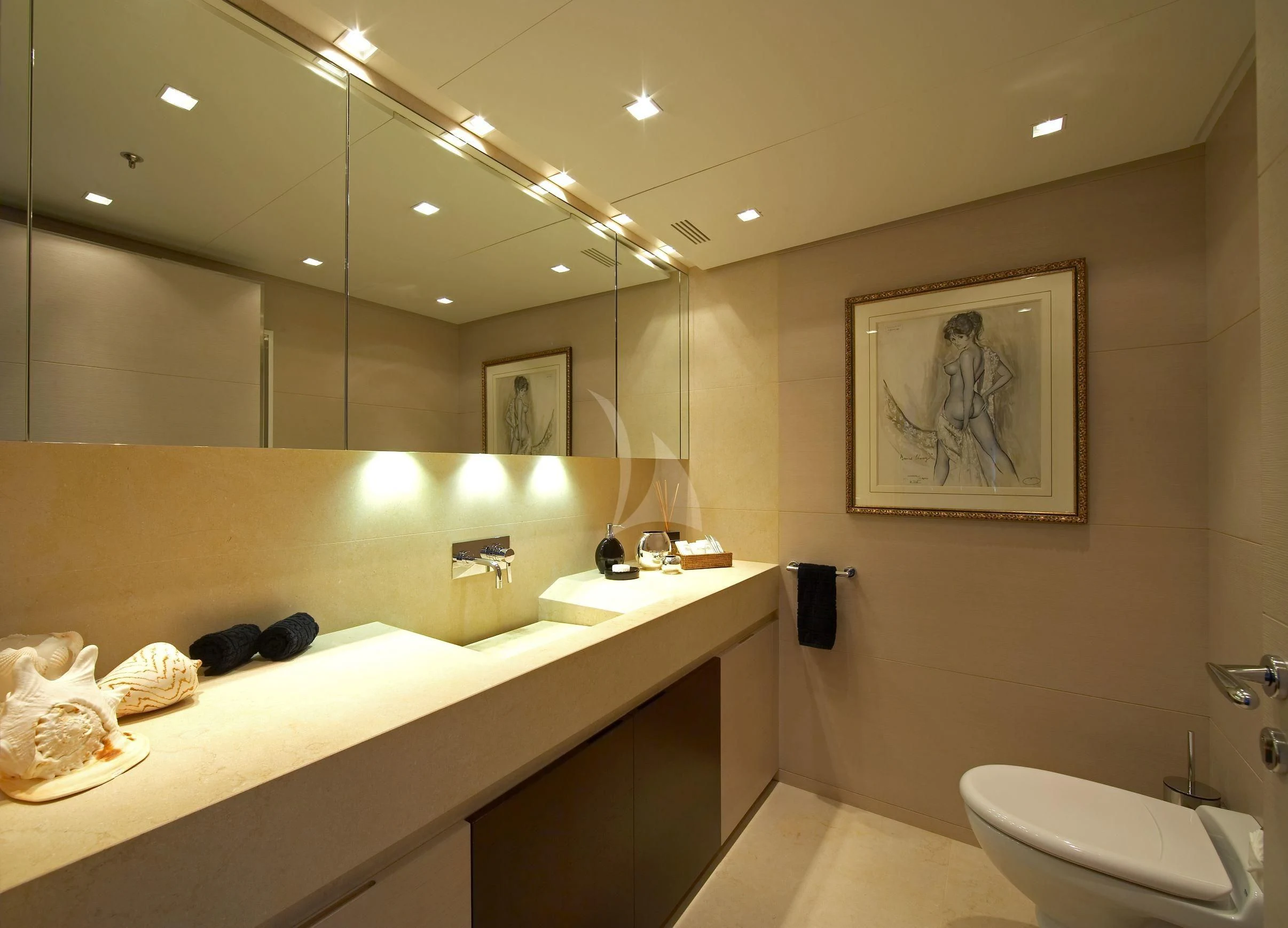

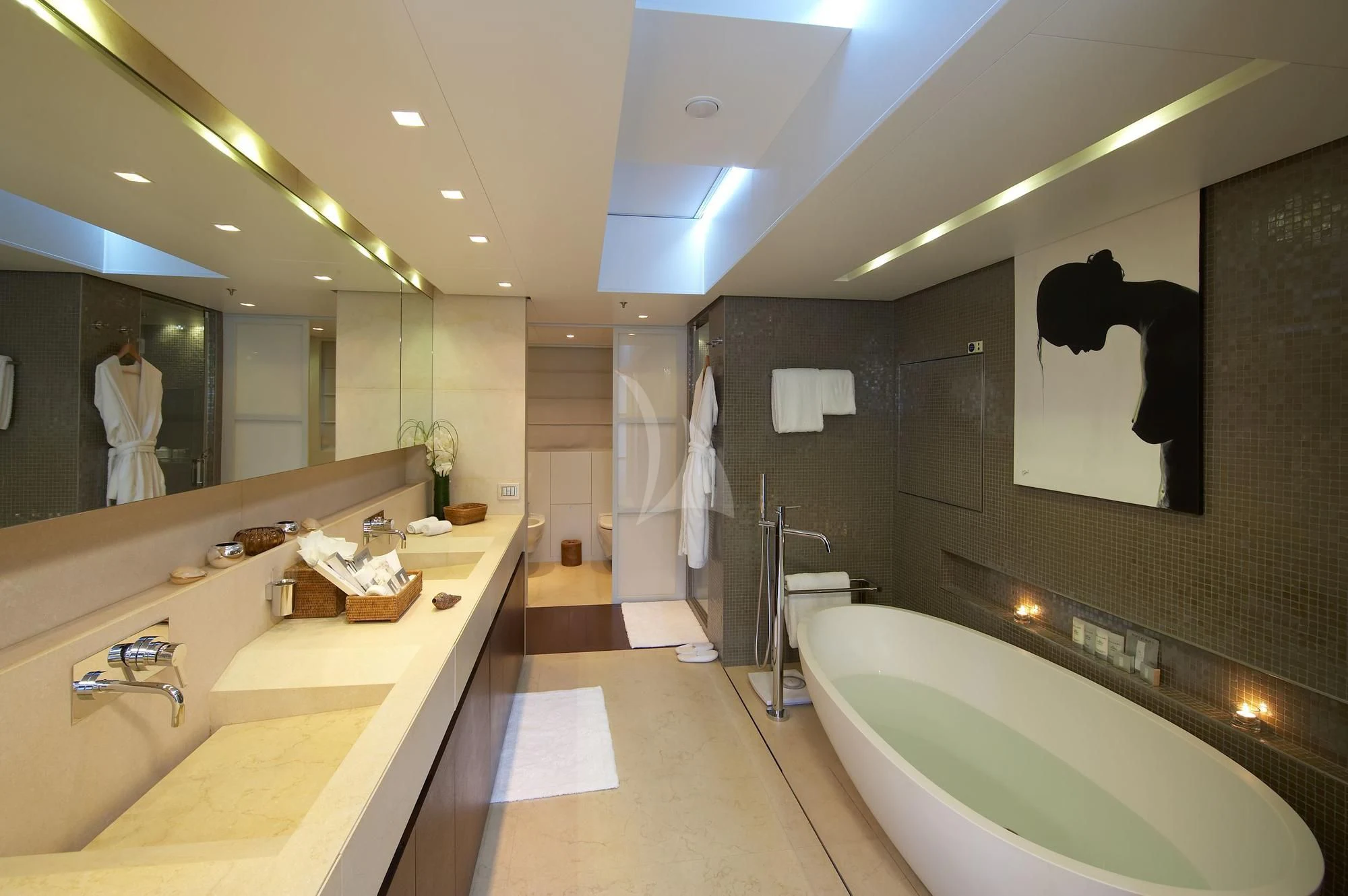

· His & Her heads with 2 x showers plus 1 x bathtub
· Lounge
· 2 x Walk in Wardrobes
· Sea View Opening Balconies Port and Starboard
· Skylights in Bathroom
GUESTS

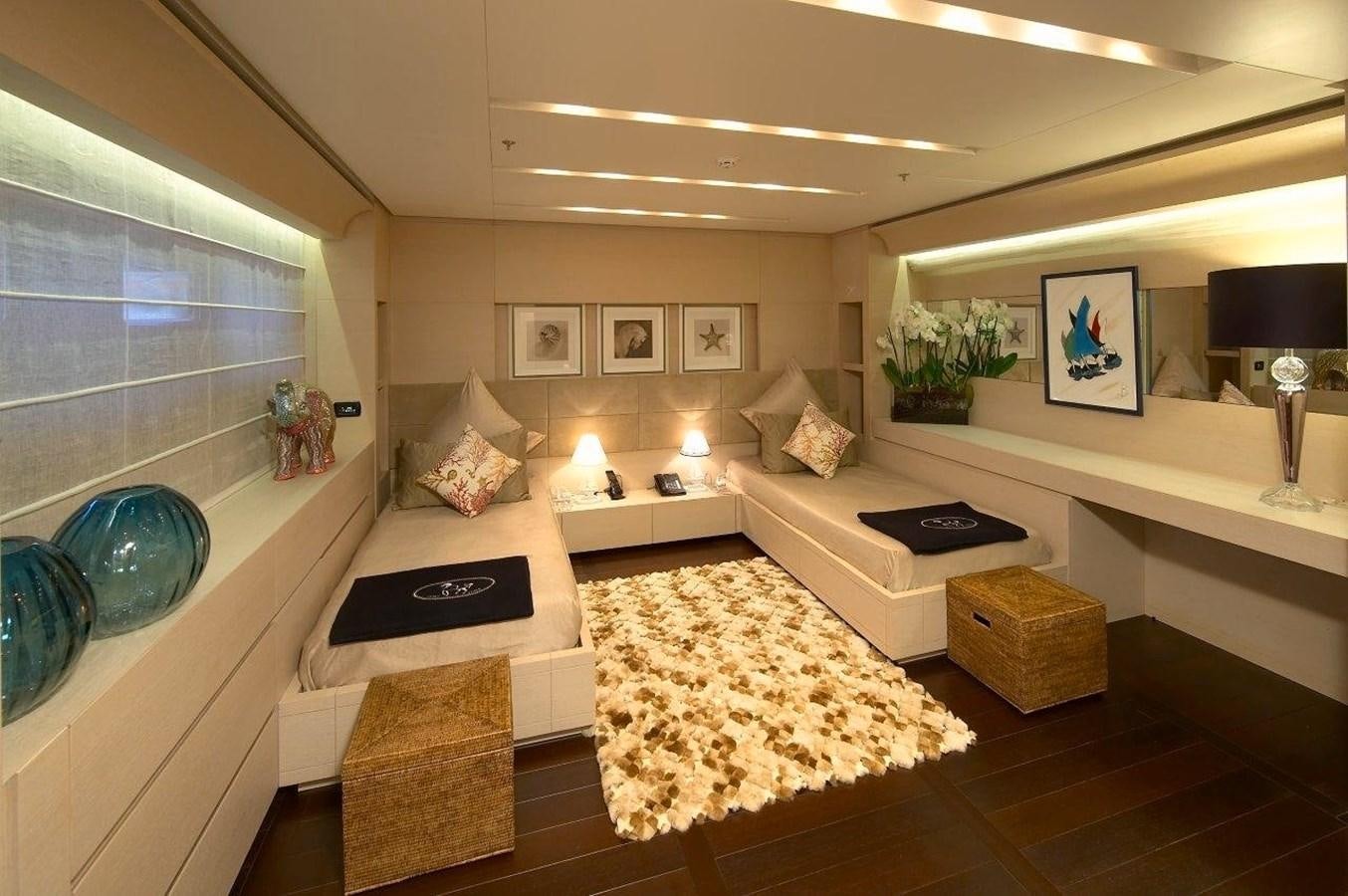

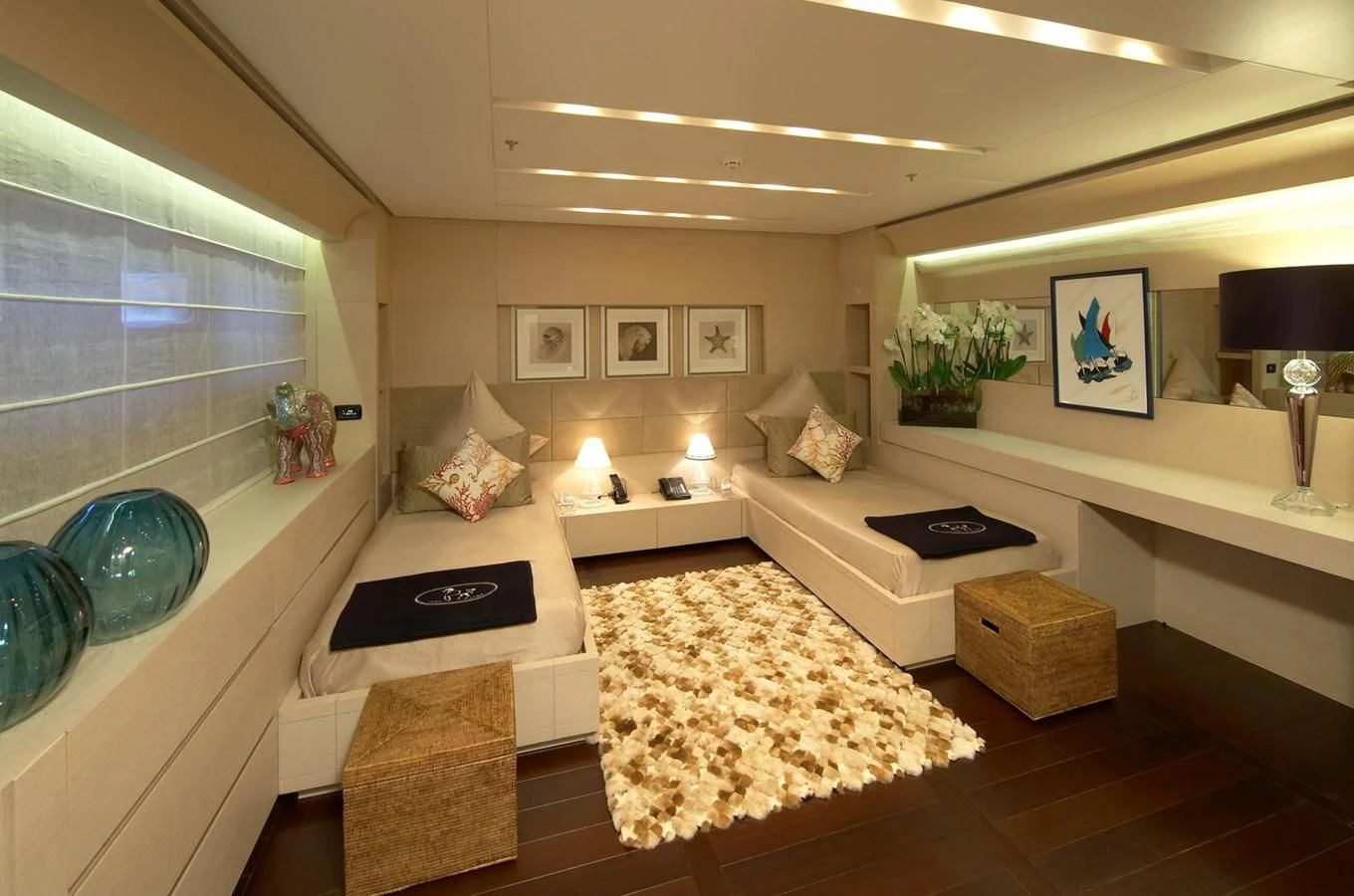

· 1 x Twin en-suite shower with additional (11th) Nanny Bed, A equipped

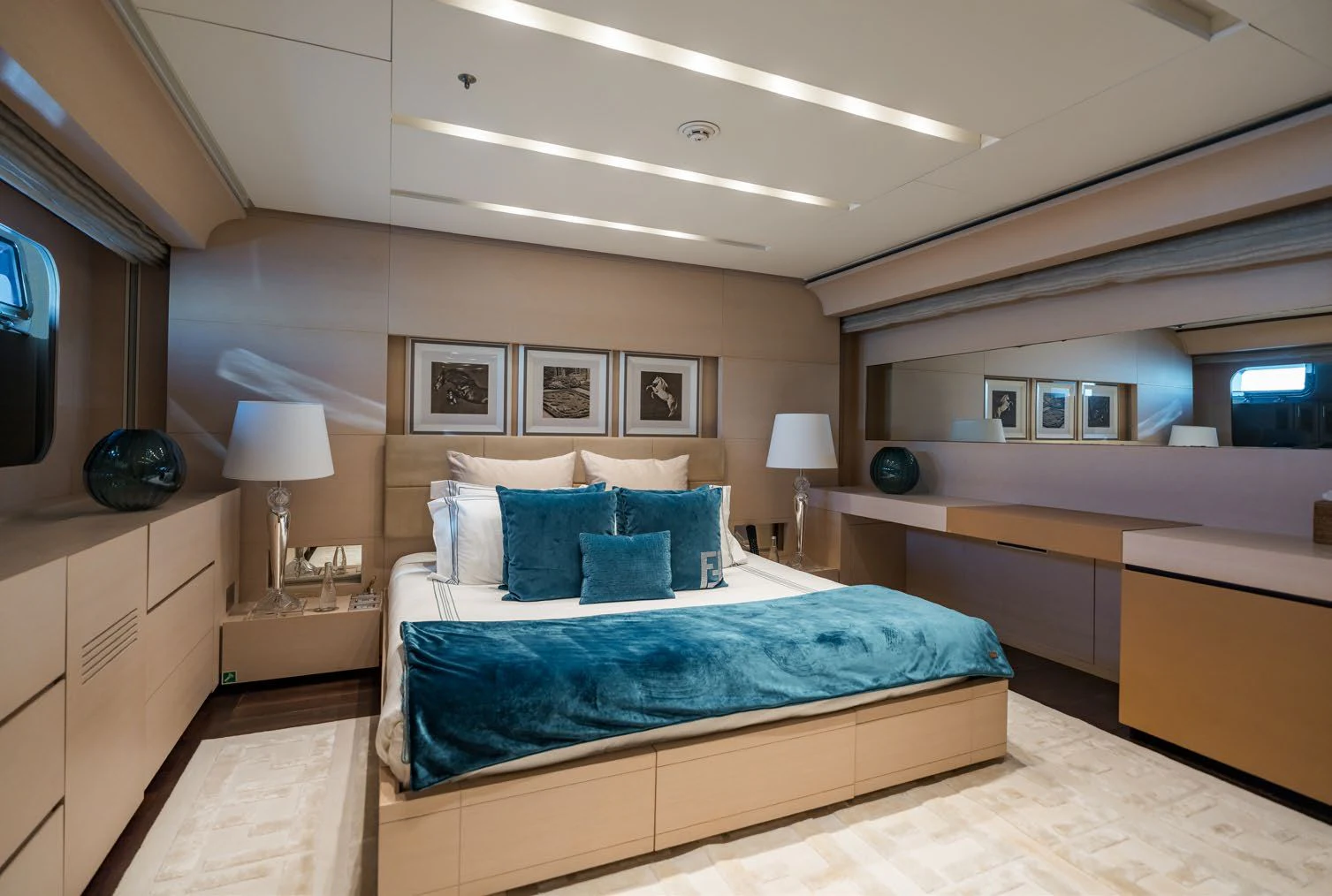

· 3 x Queen cabins, en-suite w/ shower, AV equipped

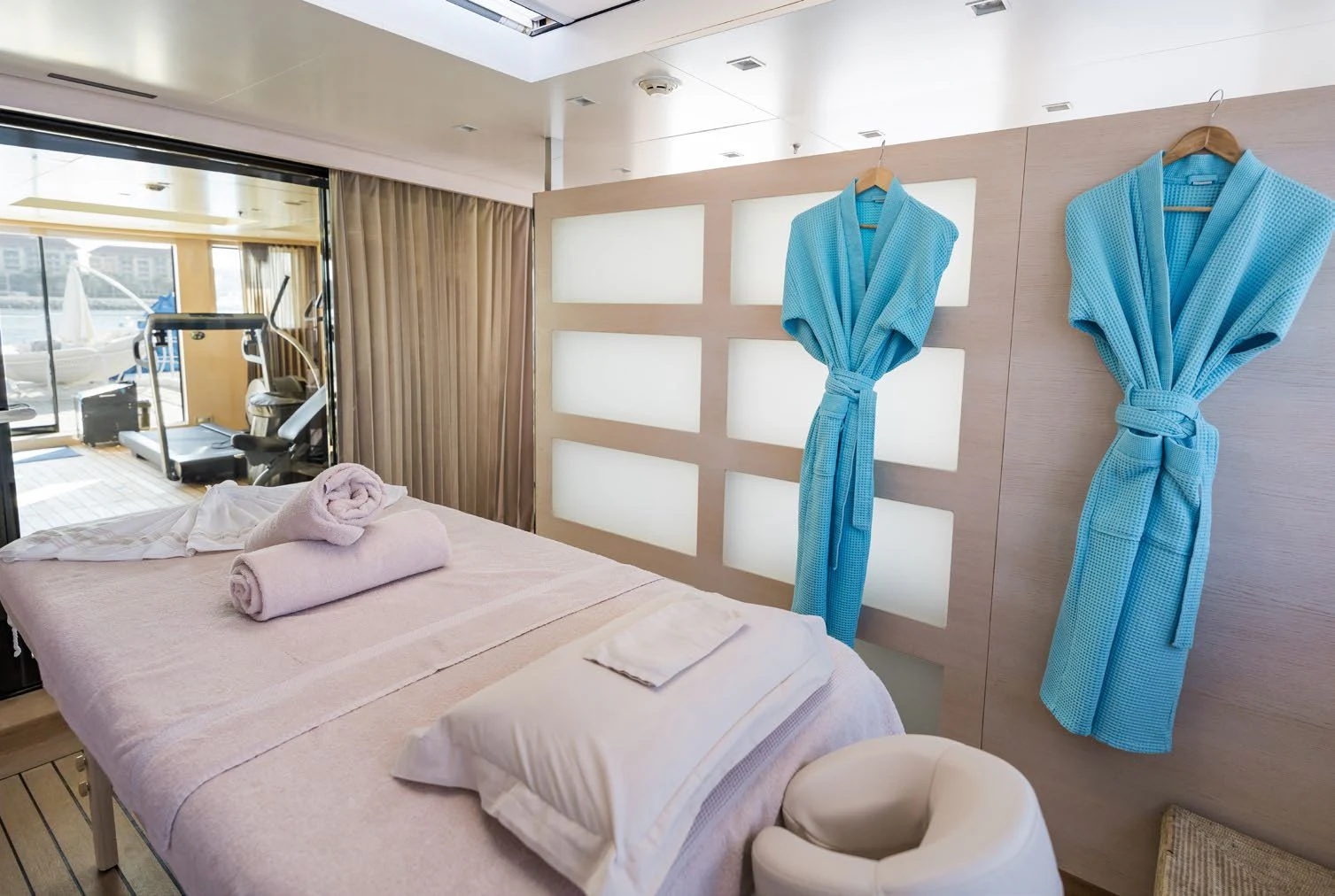

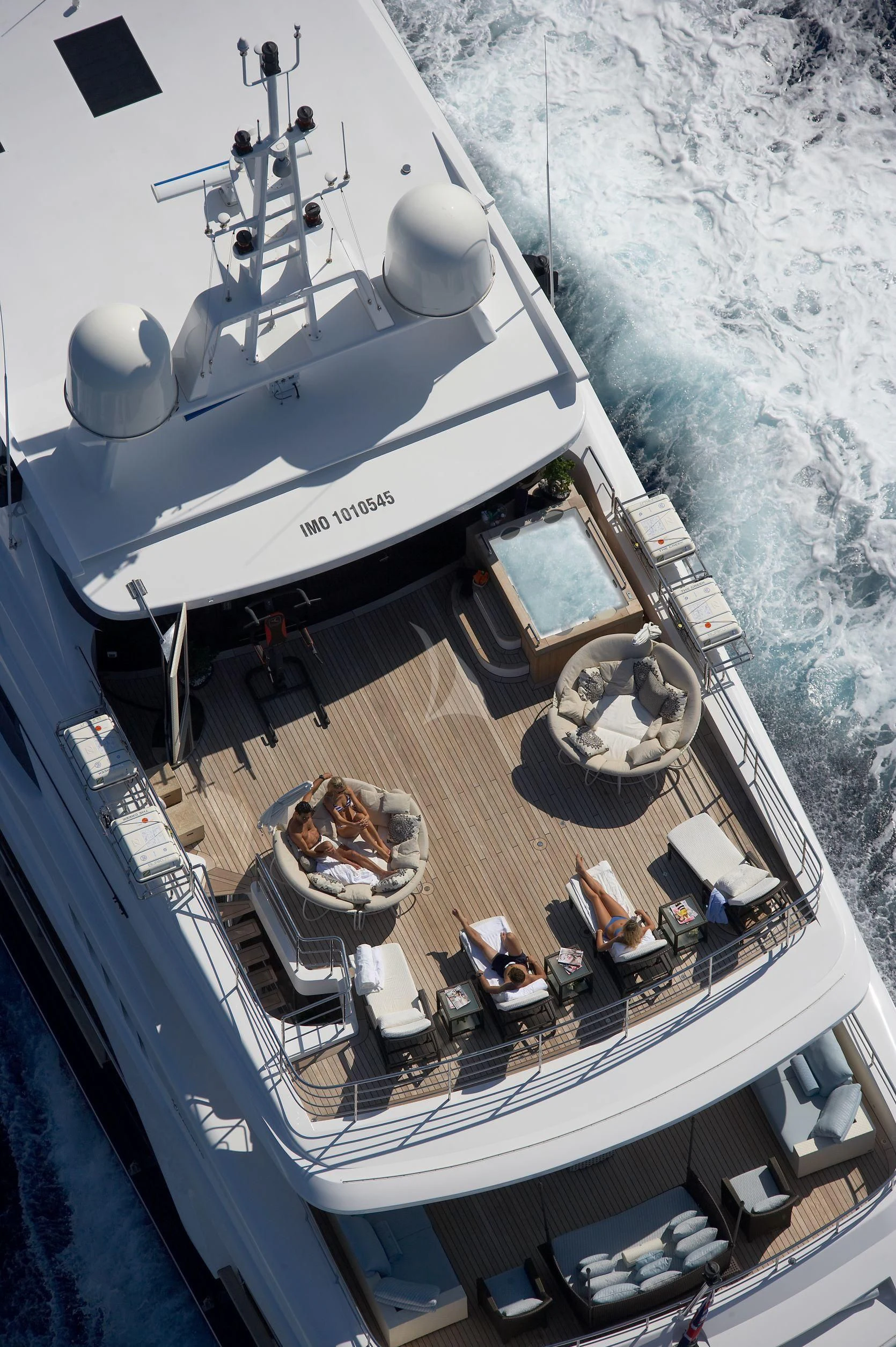

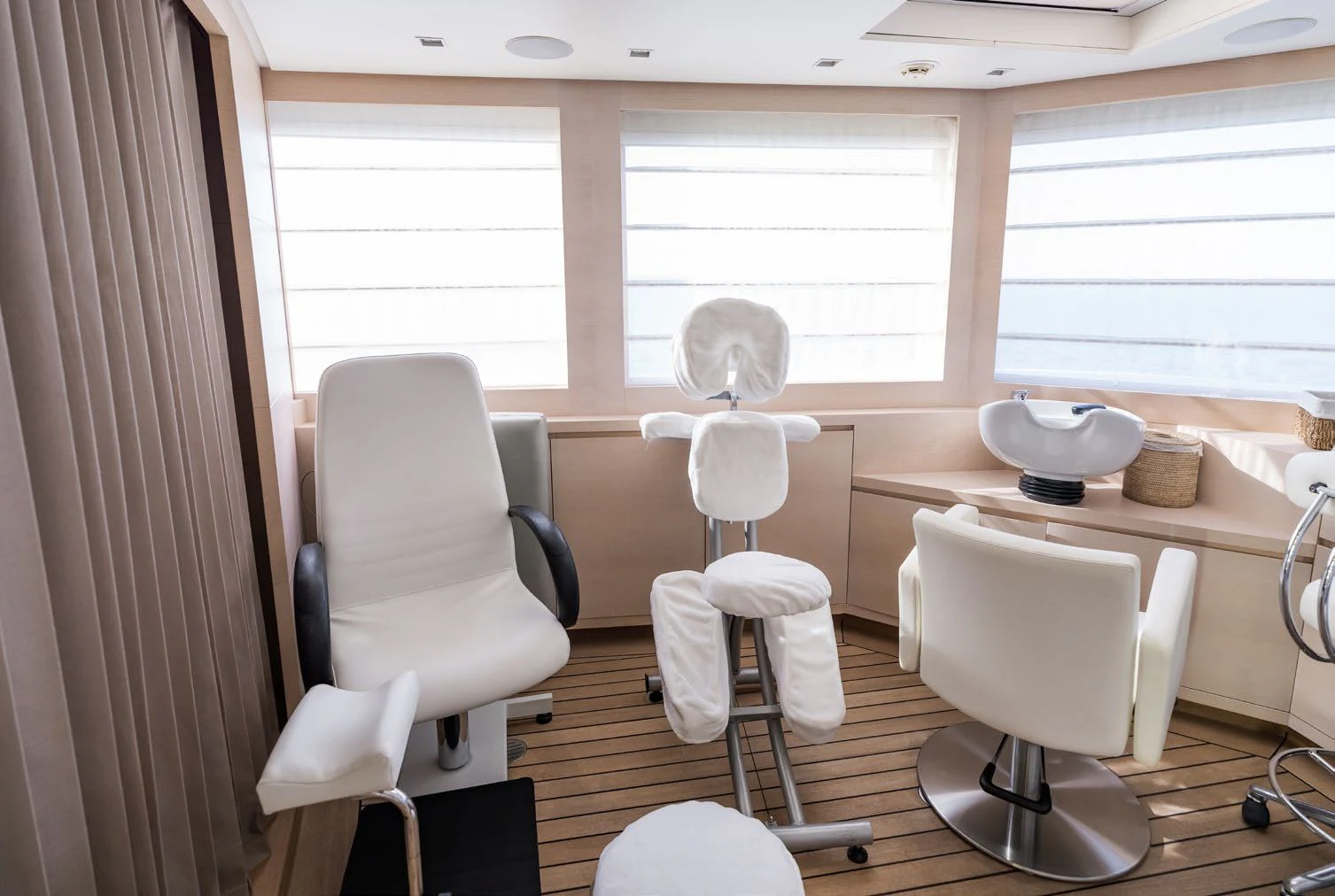

· Health Spa on Sundeck including Massage Room, Sauna, Steam Room,
Beauty Treatment Room
· Gym Club on Sundeck including Running Machine (Technogym Run
Personal), Elliptical Stepper (Technogym Syncro Excite), Free Weights, Spinning Bike, Gym Bench
· Enclosed on Sundeck; Massage, Sauna, Steam, Beauty Treatment
Rooms, Gym- Running Machine, Weights, Techno gym Excite, Bike,
Bench; all equipment is by Techno gym

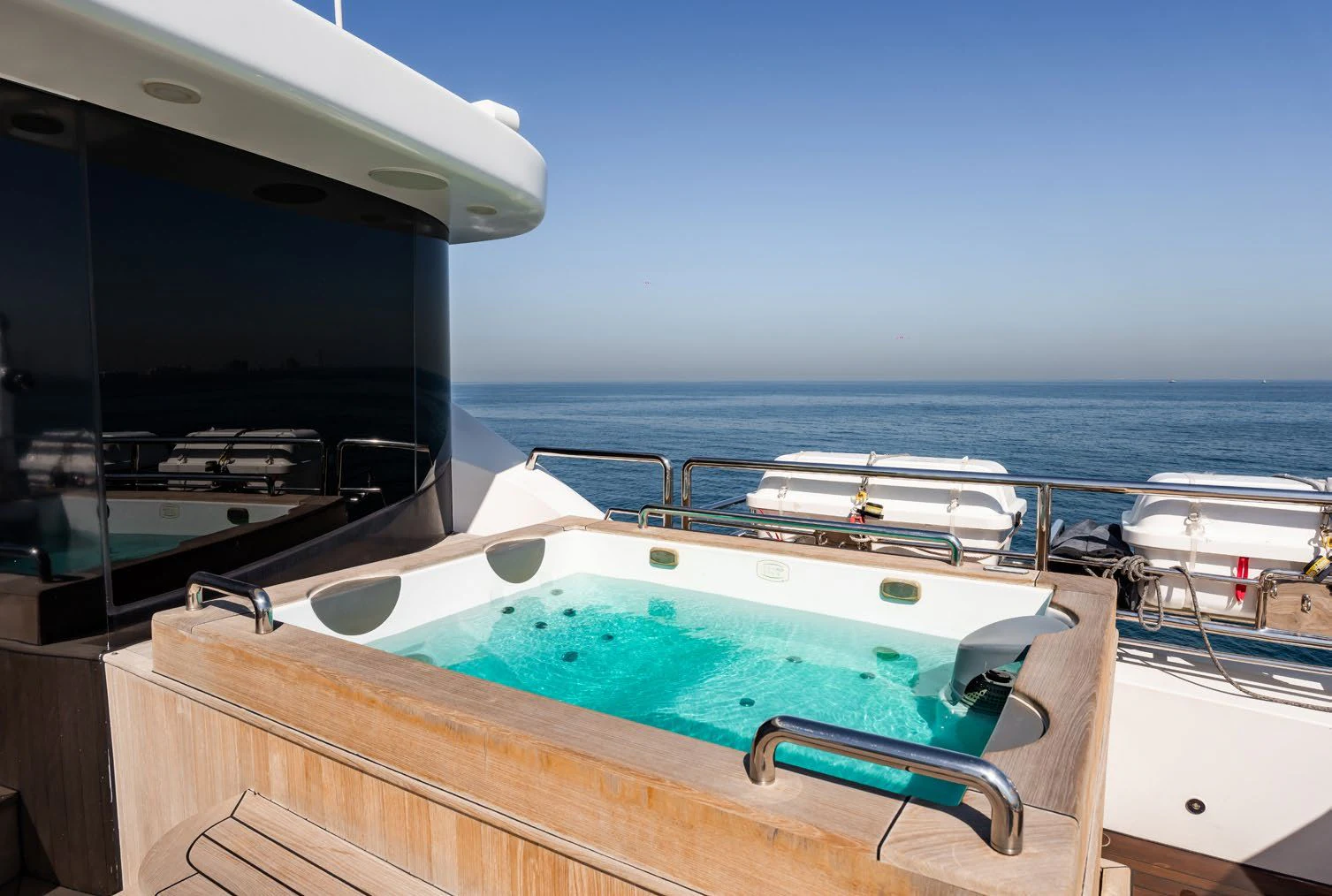

· Sundeck outdoor Jacuzzi plus Exercise Pullup
CREW
· 1 x Captain’s Cabin Double Bed + bathroom
· 5 x Twins forward + 5 bathrooms
· 1 x Twin aft (Engineers) + bathroom

6. MECHANICAL EQUIPMENT

ENGINES
ENGINE HOURS
2 x 2,000 Hp Caterpillar 3516B, Diesel
Port: 3,383 / Stbd: 3,310 (December 2018)
GEARBOXES ZF - Nibral 5-blade drive
STEERING SYSTEM BCS
STABILISERS Vosper Naiad Koopnautic KN 620 Zero speed
at anchor stabilisation
BOWTHRUSTER American 115hp
ELECTRICITY 400V 3-Phase /50Hz
GENERATORS
GENERATOR HOURS
3 x 150 kW Caterpillar C9
#1: 7,255 / #2: 6,623 / #3: 6,744 (December 2018)
EMERGENCY GENERATOR 1 x 60kW Caterpillar (70 hours December 2018)
GEN. FUEL CONSUMPTION C9: 32 US gallons / hour (120 litres)
C4.4: 16 US Gallons per hour (60 litres)
SHORE POWER 2 x Asea 75 KVA
BATTERIES All Gel type
AIR CONDITIONING Frigoboat Fan Coils; Individual room temp control
throughout, including health spa
Fresh air make up system
WATERMAKERS Idromar 10 000 litres per day
FUEL FILTER SEPARATOR Alfa Laval and Raccord
SEWAGE SYSTEM Hamann Wasser Technic
FRESH WATER SYSTEM Gianneschi & Rammichiotti
BILGE WATER SYSTEM SOLAS approved

7. COMMUNICATIONS EQUIPMENT

SATCOM Orbit V-Sat & Wifi throughout
IRIDIUM Sailor
SAT C Furuno
TELEPHONE SYSTEM Panasonic PABX TDA 100
SSB Sailor
VHF Sailor RT 5200
GMDSS VHF & HF Sailor
INTERCOM Baglietto

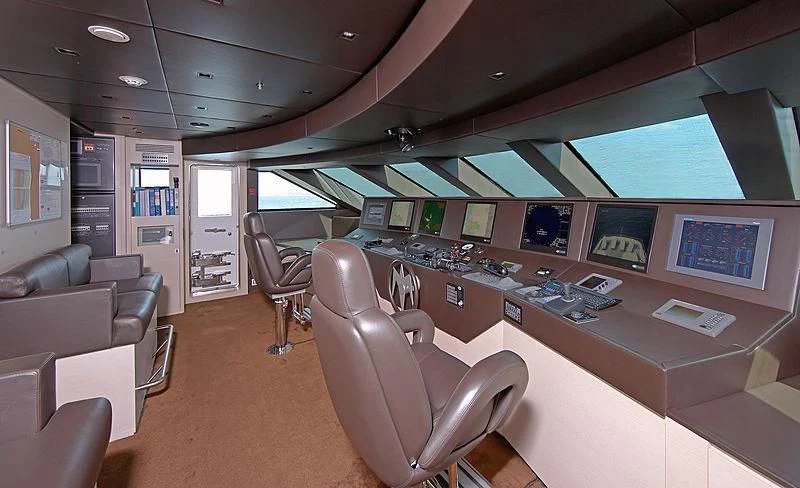

8. NAVIGATION EQUIPMENT
RADARS 1 x S Band
1 x X Band Furuno
GYRO COMPASS Sperry Marine
MAGNETIC COMPASS Cassens & Plath
AUTOPILOT Sperry Marine
DEPTHSOUNDER Furuno IMO type plus searchlight sonar
GPS 2 x IMO class from Furuno
WEATHER FAX Furuno
LASER PLOTTER Transas
WIND / SPEED LOG Furuno
NAVTEX Furuno
9. DECK EQUIPMENT
WINDLASS Maxwell Anchor Windlass system
CAPSTANS Maxwell aft warping capstans
ANCHORS 2 x 480 kg Anchors
CHAINS 2 x 300 m (900') anchor chains
CRANES Motomar SOLAS 3 Boat crane & davits (SOLAS)
PASSERELLE 1 x Motomar for 3 or 1 wheelchair
BOARDING LADDER 1 x Motomar hydraulic boarding ladder on starboard
SWIMMING PLATFORM 1 x Motomar swimming platform
10. ENTERTAINMENT SYSTEM
AUDIO/VIDEO EQUIPMENT Kaleidescape & Crestron in Main Saloon Master,
Sky Lounge, Gym
TV & MUSIC Sat TV (Sky); throughout all interior & exterior areas
IPOD DOCKS Various locations
PANASONIC FLAT SCREEN Sky Lounge
FENDI TV Sun Deck
SONY OUTDOOR Dinning deck
SKY LOUNGE 100 Inch Flat screen surround sound.
SONY TV LCD Main Saloon


11. GALLEY & LAUNDRY EQUIPMENT

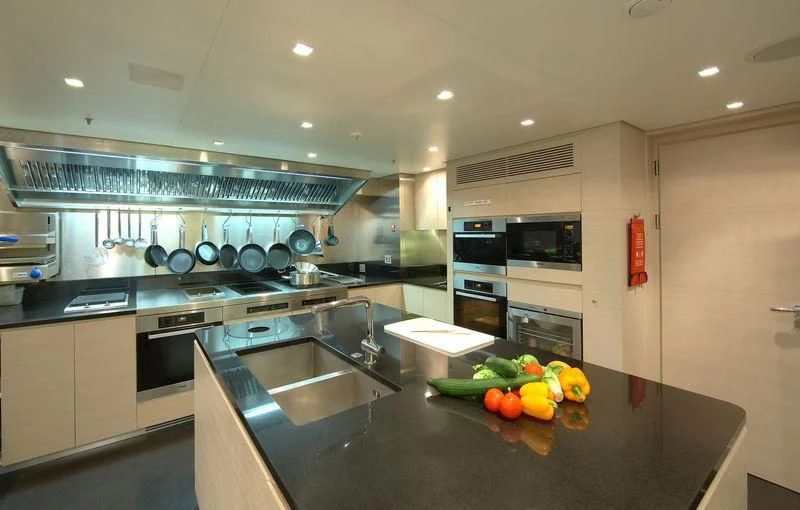

MAIN GALLEY
· 1 x 4 burner hob commercial induction
· 2 x Miele convection ovens
· Miele steam oven
· Miele fryer
· Miele grill
· Miele microwave
· Miele refrigeration/Freezer
· Dishwasher Miele
· Eye level Grill
· CCTV Screen
CREW GALLEY/MESS
· Refrigeration/Freezer
· 1 x Lift from laundry room to crew accommodation
· 500 bottles wine cellar
· 1 x Lift from wine cellar to main deck, Upper & lower pantries
· Wine coolers/storage AV Equipped
LAUNDRY
· 3 x Miele Professional Washers and Dryers

12. SAFETY & SECURITY EQUIPMENT

SECURITY
· Baglietto CCTV system
· 6 x Cameras
· 2 x Monitors plus all TV’s
· Infra-Red Camera on Mast
FIRE FIGHTING
· Ultrafog AV + ER + Galley Suppression Fire Control System
· Fire Extinguishers throughout
· Fire alarm bridge panel alarm
SAFETY
· 4 x Life Rafts
· 6 x Life Rings
· 1 x EPIRBS
· 2 x SARTts
· 1 Flare - Offshore
· 1 x MCA Offshore Medical equipment
· LY2 /MCA Compliant

13. TENDERS & WATERSPORT EQUIPMENT

TENDERS

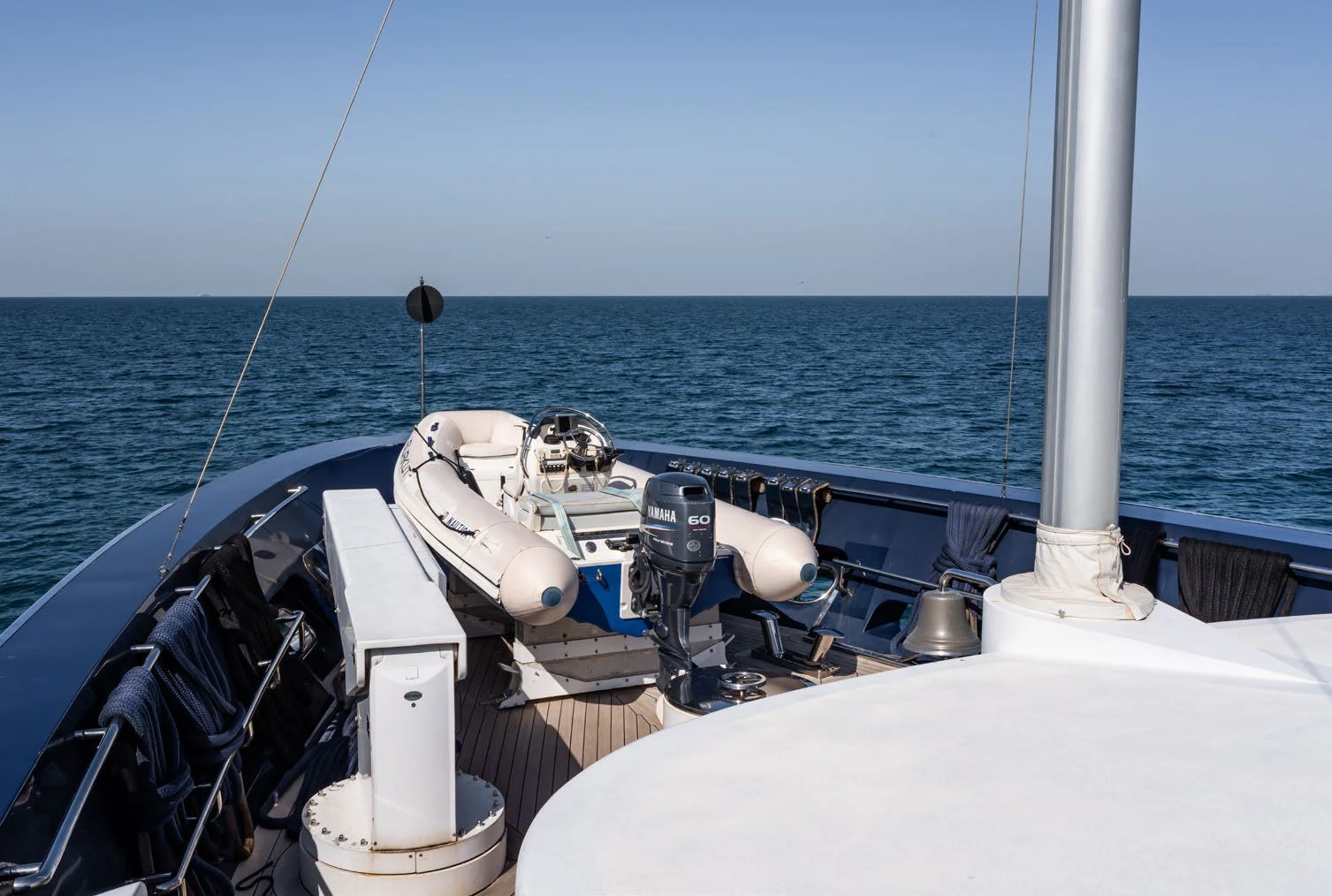

· Custom Tender – 7m TS (14 passengers)
· RIB Tender – 6.5m BSC66 (14 passengers)
· Rescue Tender – 4.5m Nautica DL15 (8 passengers)
WATERSPORTS

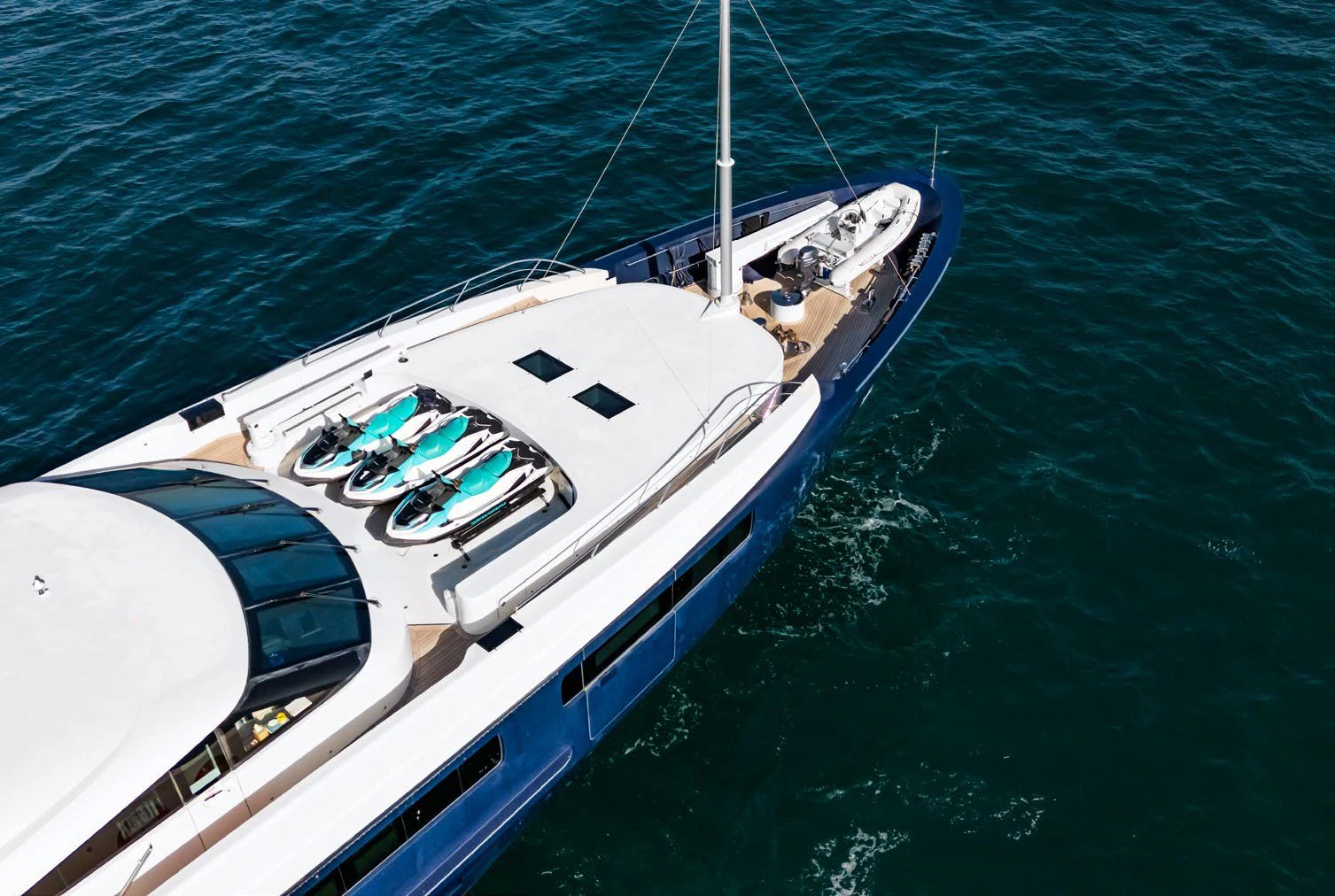

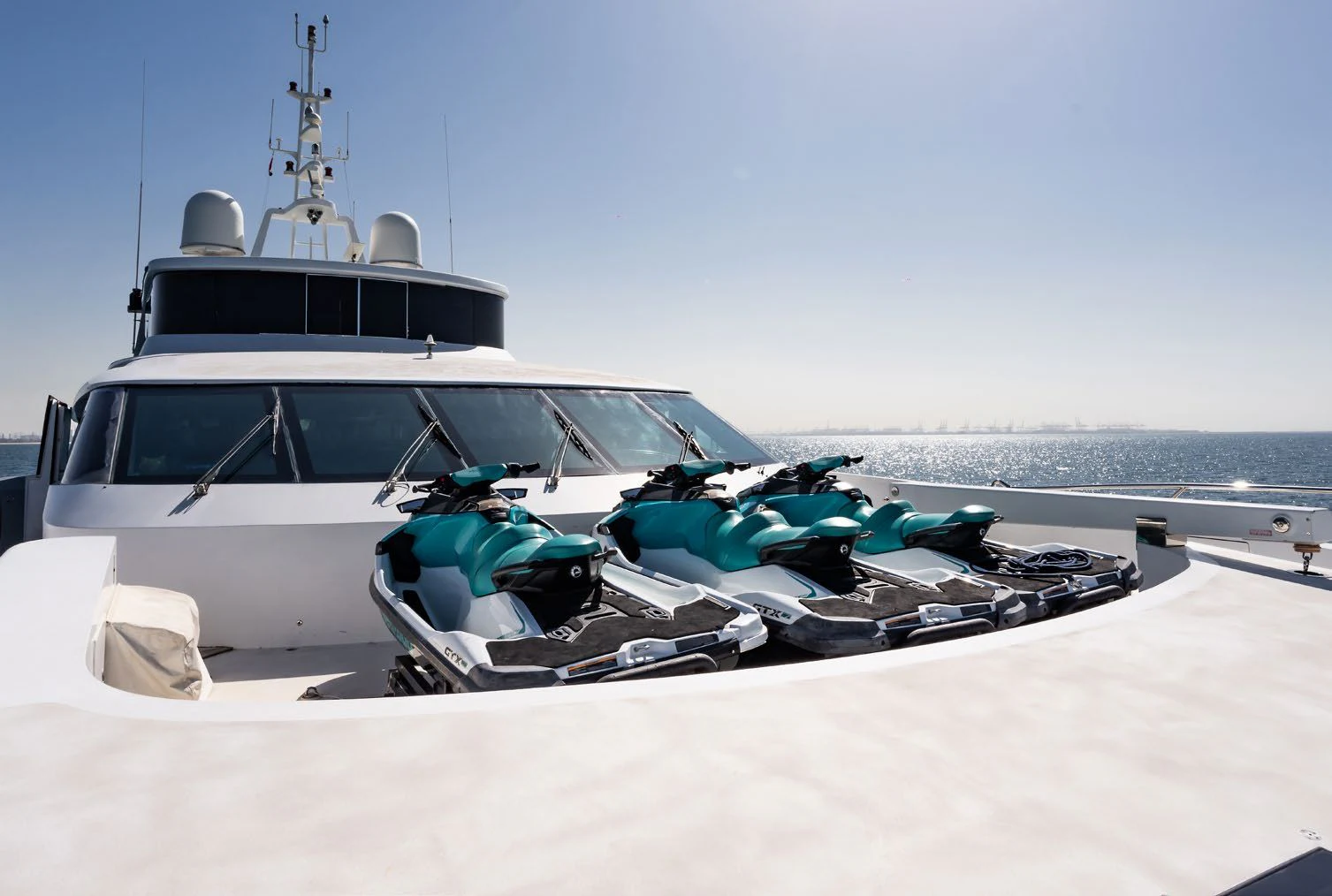

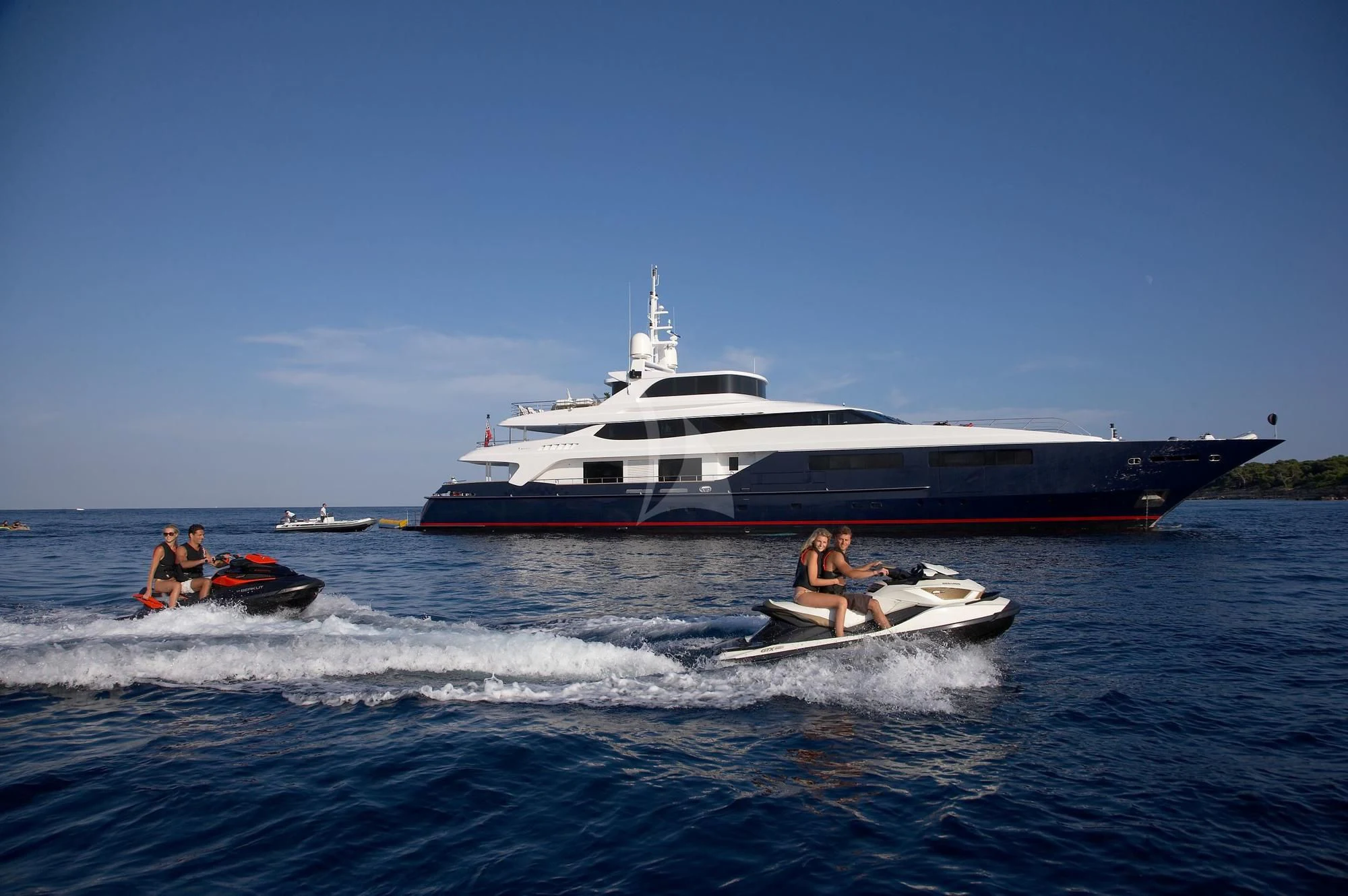

· 2 x Sea Doo Jet ski RXT 260 RS
· 1 x Sea Doo Jet ski GTX 260 Limited
· 2 x Seabob
· Towable Raft – Airhead Transformer (3 person)
· Towable Raft – Sportssuff Shockwave 3 (3 person)
· Towable Banana – Island Hopper (5 person)
· Towable Donut – Sportsstuff Frequent Flyer (3 person)
· Slide – Aquaglide Platinum Freefall
· Inflatable floating dock – Aquaglide Platinum
· Water Trampoline – Island Hopper
· Floating Swimming pool net – Henshaw Sea pool
DIVE GEAR
· Bauer Dive compressor
· Scuba pro dive gear
· Snorkelling gear
· Wetsuits
· Water sports jackets
GYM
· Running machine (Technogym Run Personal)
· Elliptical stepper (Technogym Syncro Excite)
· Spinning bike
· Free weights
· Gym bench
OTHER SPECIAL AMENITIES
· Health and Beauty Spa and Treatment Room
· Sauna
· Steam Room
· Outdoor Jacuzzi


14. COMMENTS

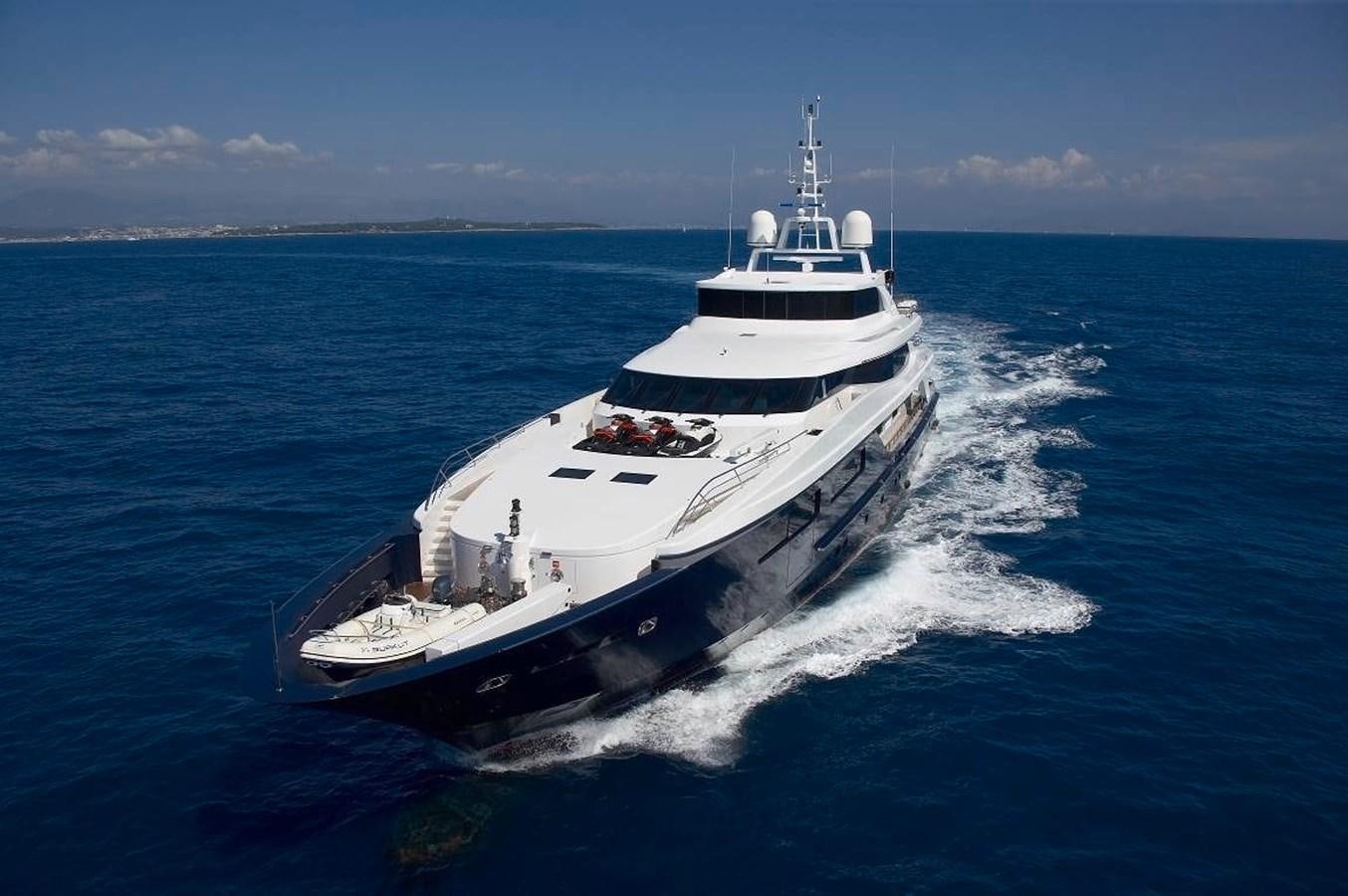

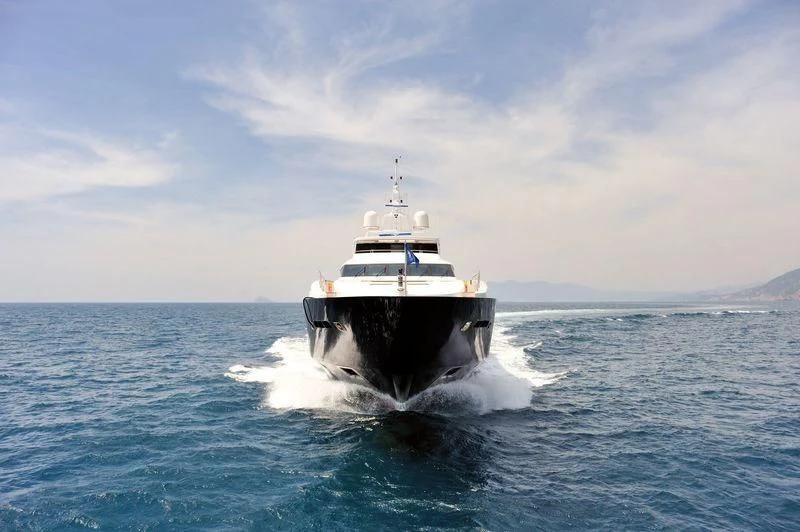

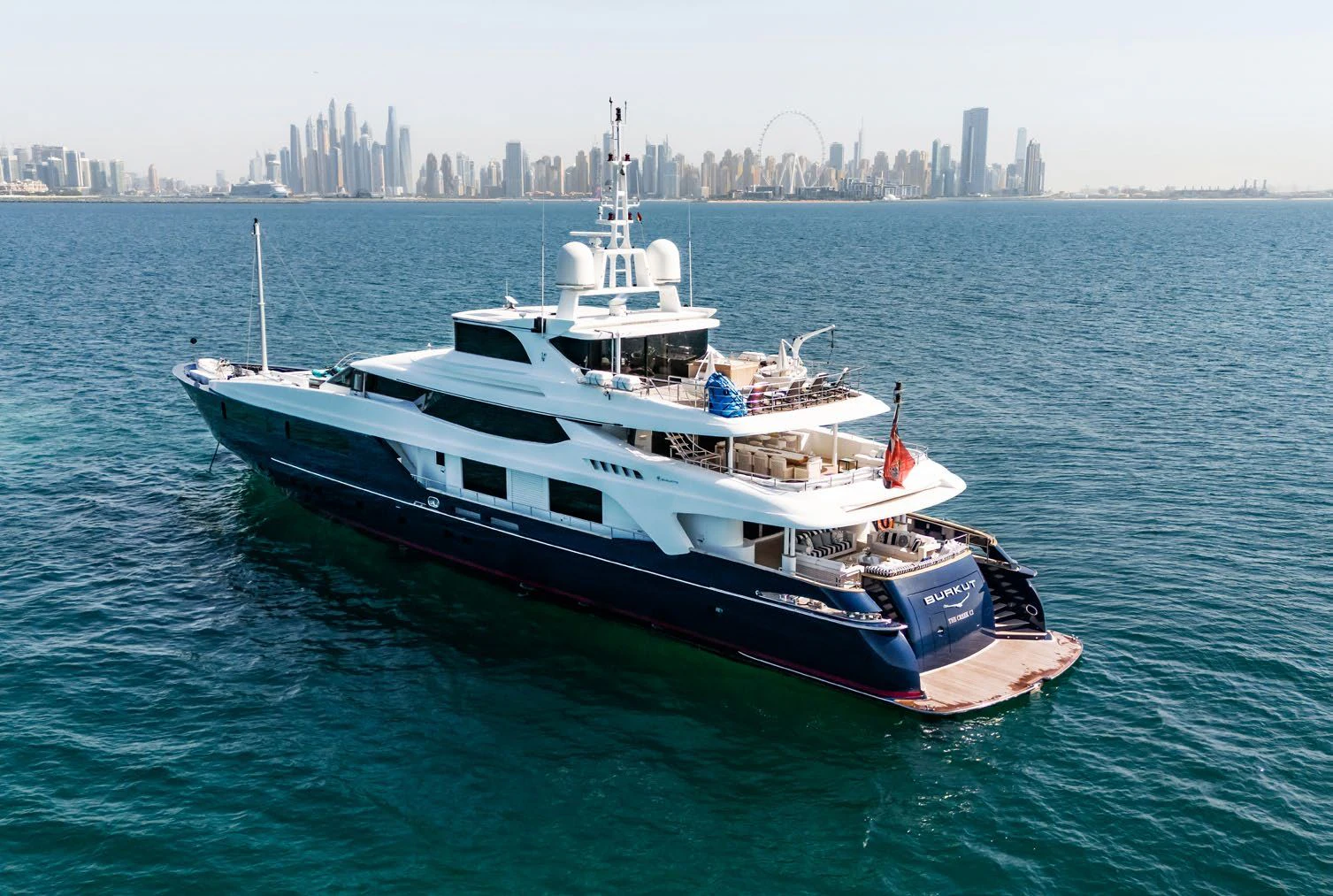

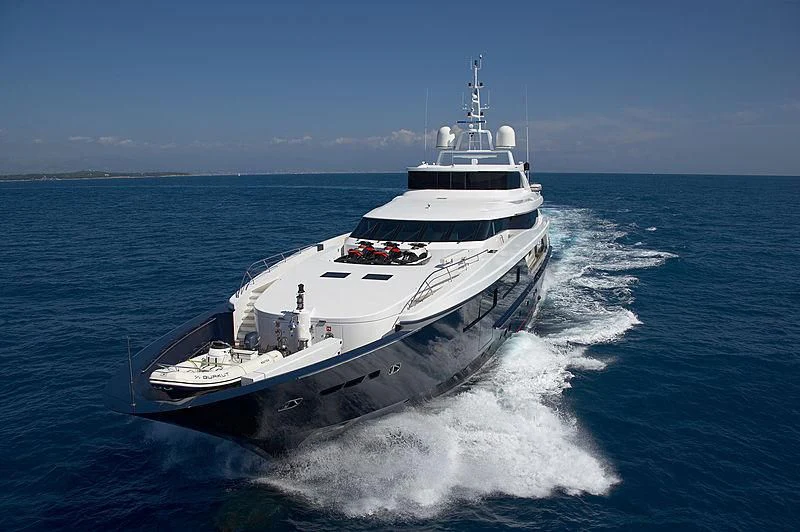

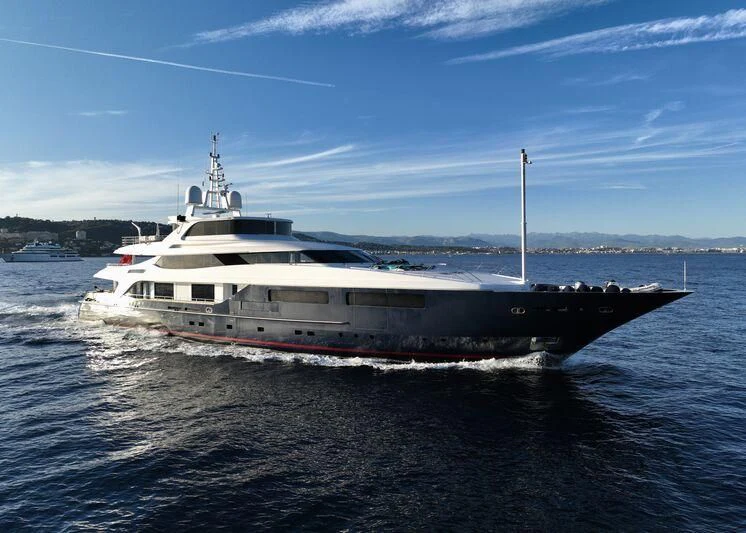

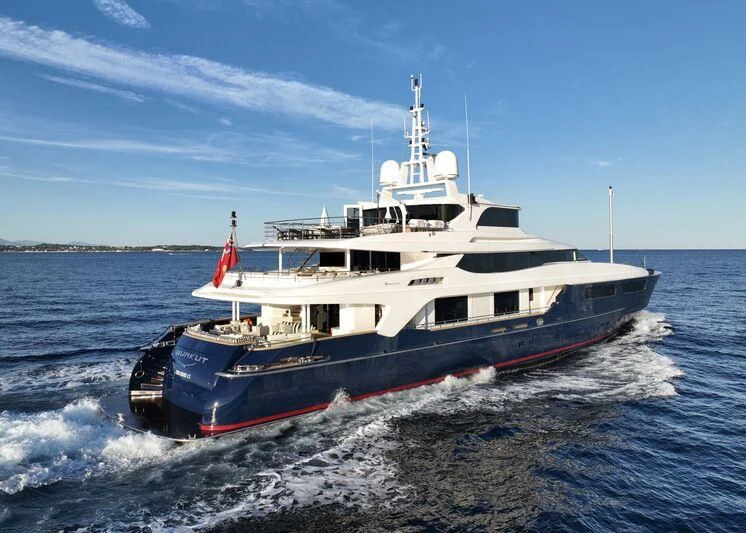

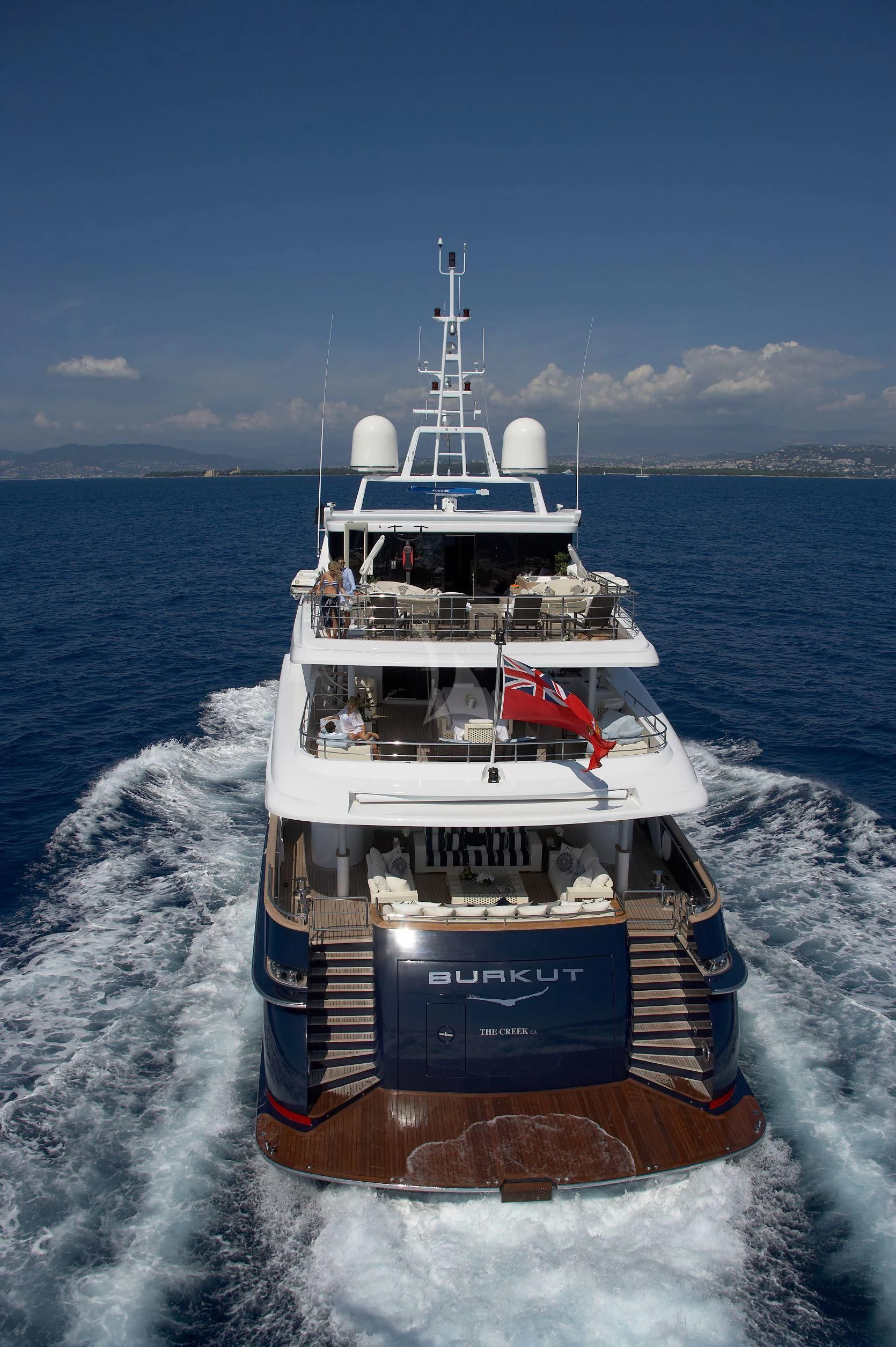

Delivered by Baglietto in 2009, BURKUT is the fourth superyacht built in Baglietto’s successful 54m steel hull full displacement series and is Lloyds classed and MCA compliant. She was built to a high specification including 3 large generators + an emergency set as well as zero speed stabilizers.
The yacht has been especially designed to allow a large passage for a wheelchair directly from the quay to the passerelle. Further to that the yacht offers full large access to the main deck for the wheelchair and a glass elevator connects the lower and upper decks.
The top deck features a large spa / wellness centre including a gym, massage room, sauna, steam room, Jacuzzi and beauty salon.
Having been carefully managed BURKUT offers more than most of the competition in her class.”
