- Motor Yacht
- Hitachi Zosen
- Jack Hargrave
- Jack Hargrave
- ABS +A1 E Yachting service (discontinued in 1990)
- Aluminium Hull
- Teak Decks
- Caterpillar 3508 detuned at 565hp
- 36.58m / 120'
- 33.00m / 108'
- 7.72m / 25'4”
- 2.18m / 7'2”
SPEED & RANGE UNDER POWER
- 12 knots
- 10 knots
- 8 x Guests in 4 cabins
- 8 x Crew in 5 cabins
- 51,250 litres / 13,538 US gallons
- 20,770 litres / 5,487 US gallons
- 681 litres / 180 US gallons
- 757 litres / 200 US gallons
- 1,100litres / 291 US gallons
- 2,740 litres / 724 US gallons
ENCLOSED AFT DECK SALOON

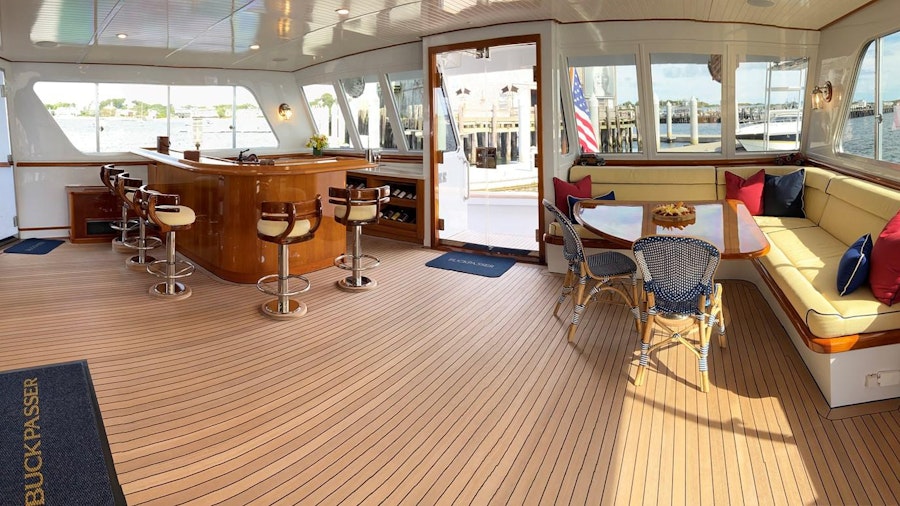

- Upon boarding Buckpasser you immediately enter the enclosed aft deck salon which has been completely renewed with full bar, new
- cocktail table, tongue & groove overheads and more. The aft deck salon has new teak decks with built-in L-shaped settee on the port side with matching chair and table settings. The full-service bar is situated to starboard with gloss varnished teak and Corian bar top with matching teak and stainless swivel bar stools. Small varnished teak consoles are built-in on both sides of the vessel and house the A/C system for this area. Doors to the walk around decks are just forward of the varnished consoles, and large sliding glass windows give the space an open feeling.
- Buckpasser's transom is wide and has a large swim platform with a stout rub rail. There's a large, centerline towing buckle below the swim platform for towing. The transom door is on the port side, which gives access to the cockpit featuring massive teak covering boards, rod holders and a space for a fighting chair on the starboard side. There are multiple deck hatches to access the live baitwells and lazarette.
EXTERIOR MAIN DECK & BOW AREA

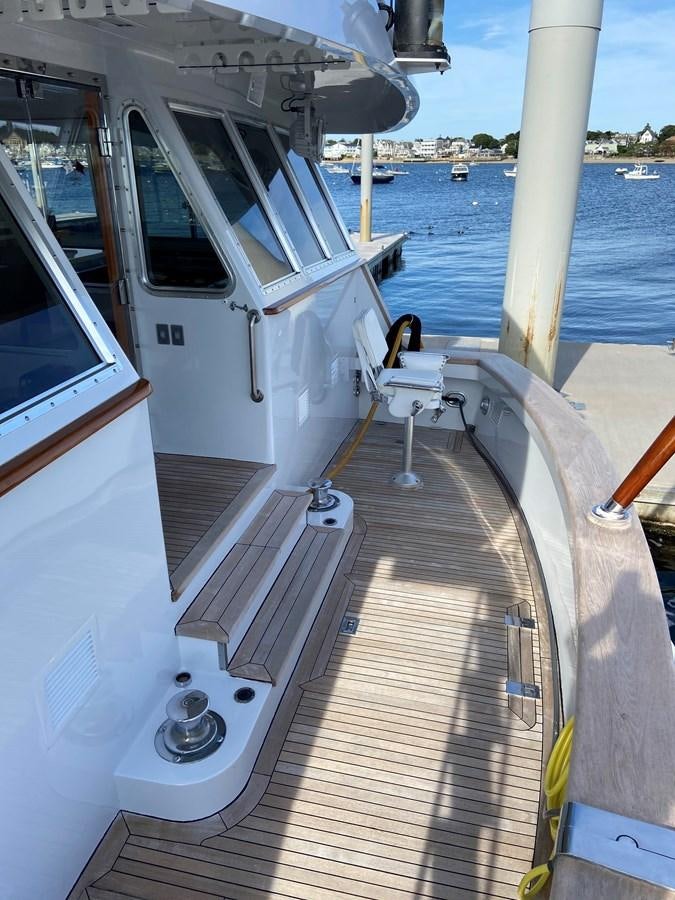

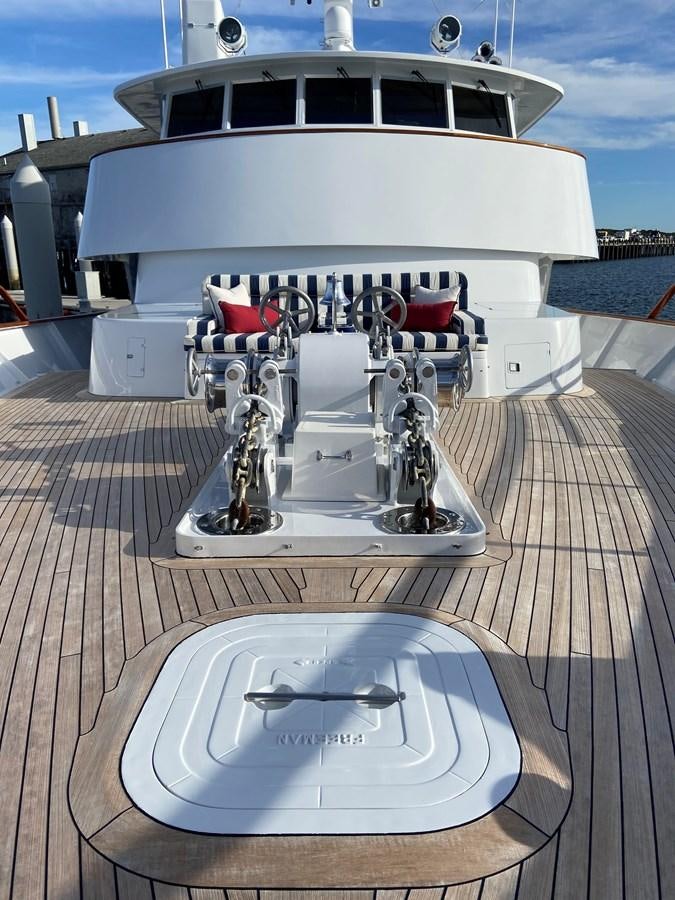

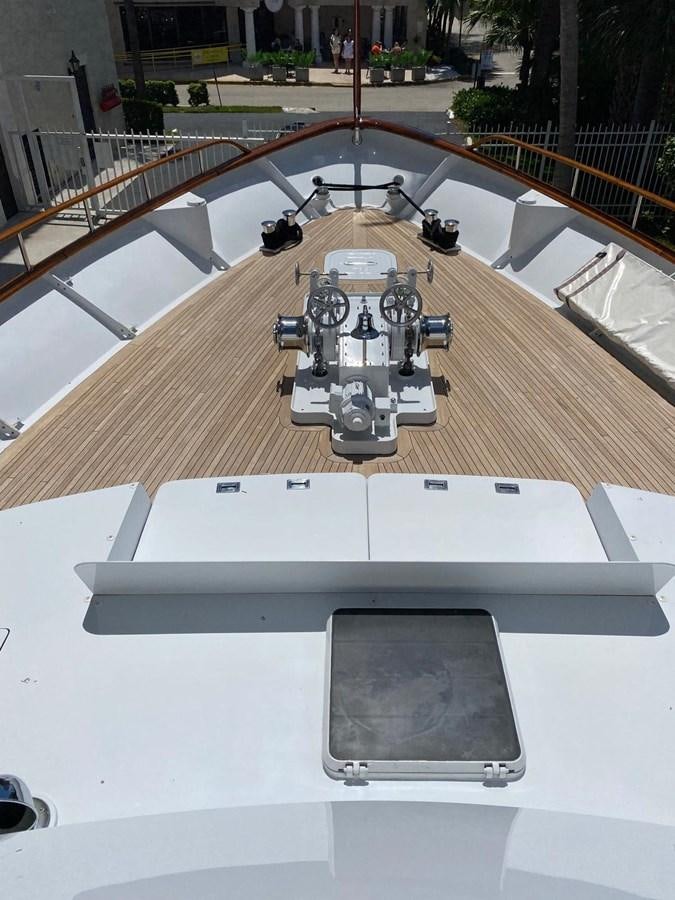

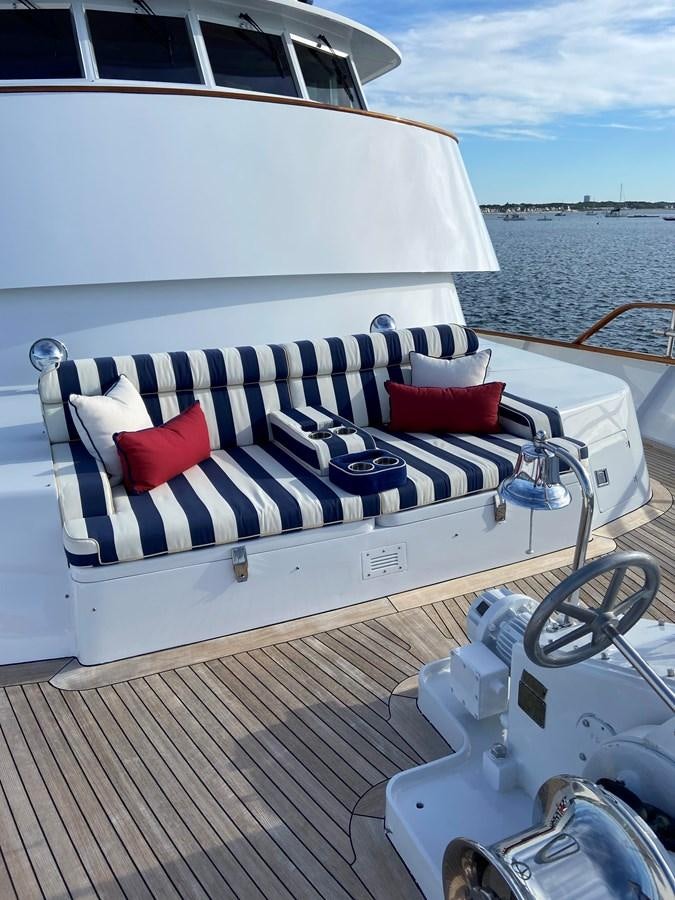

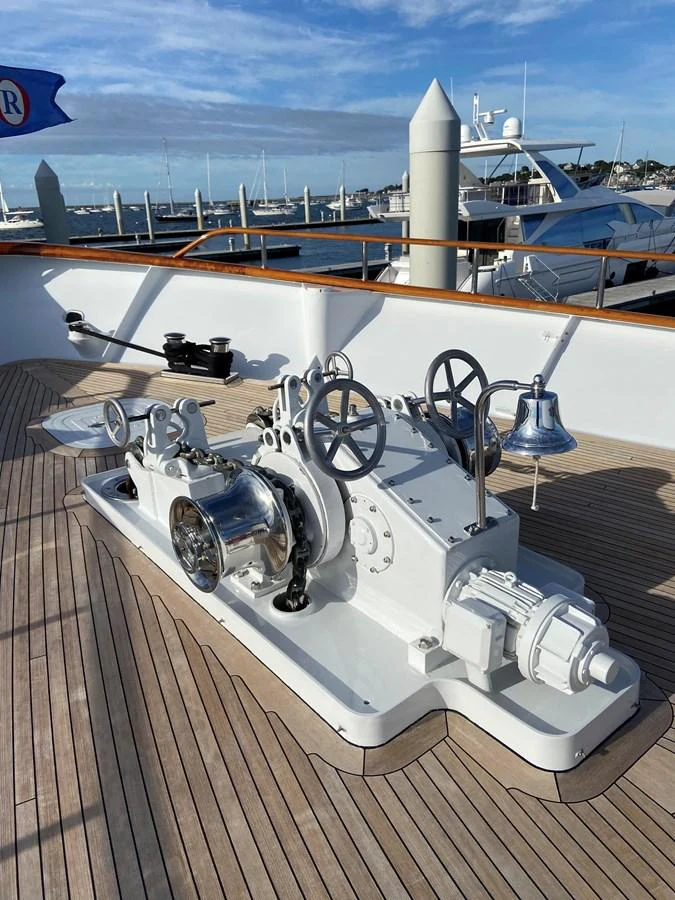

- Buckpasser has walkaround covered teak decks. Her cap rails are solid teak. There are two massive Steen windlass drums to manage the ground tackle with ample shots of chain and an emergency retrieval arm for both sides of the deck. Her bow is high and powerful, accented with a large burgee pole. A generous seating area exists on the forward part of the deckhouse, with spacious bosun lockers on either side.

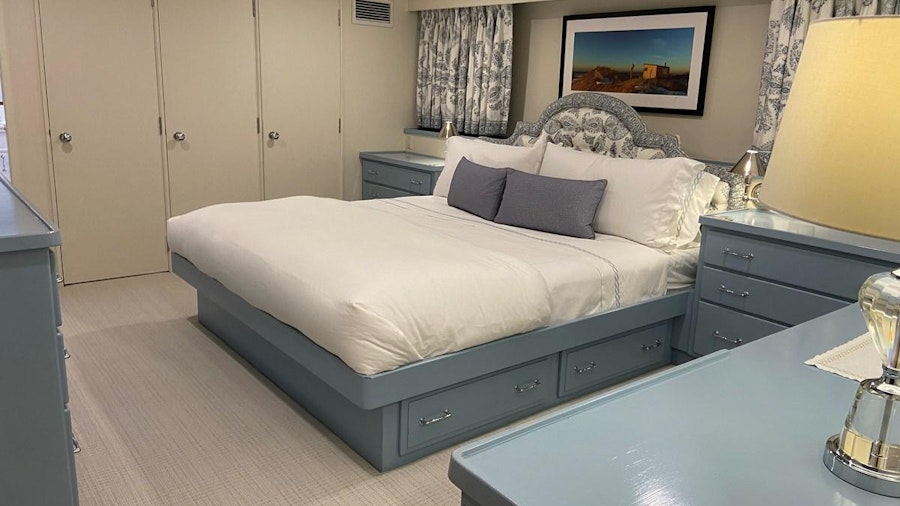

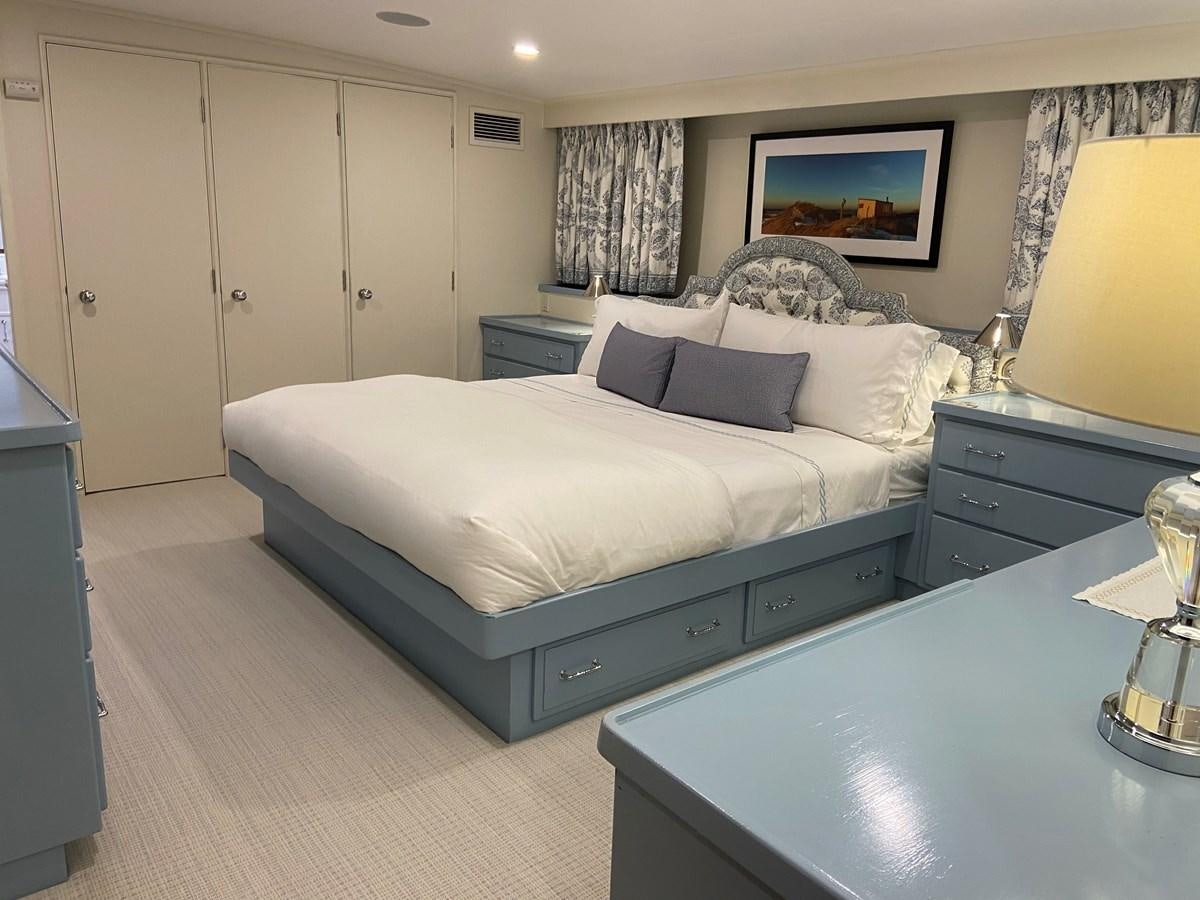

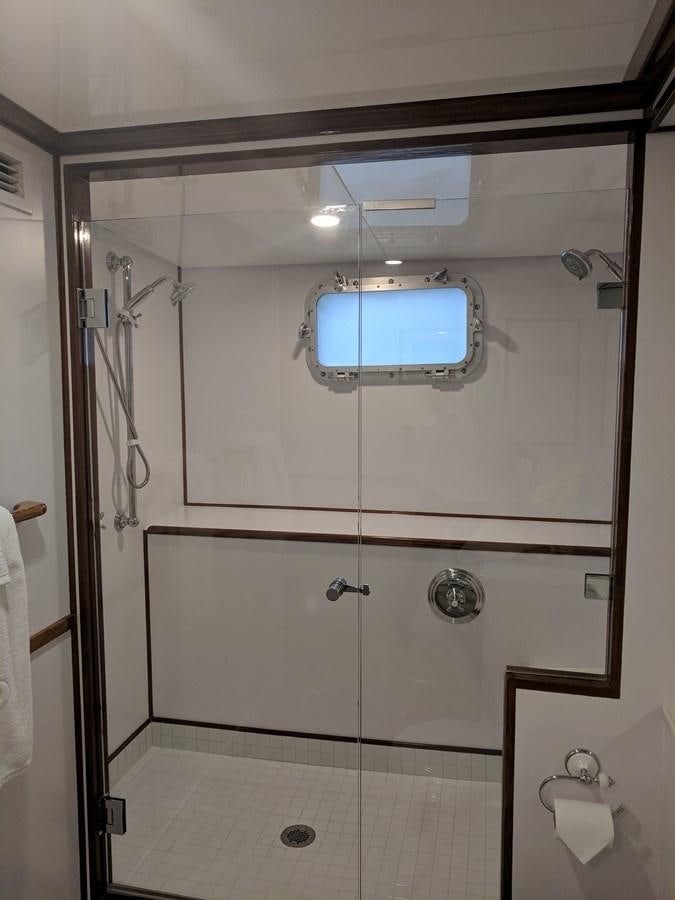

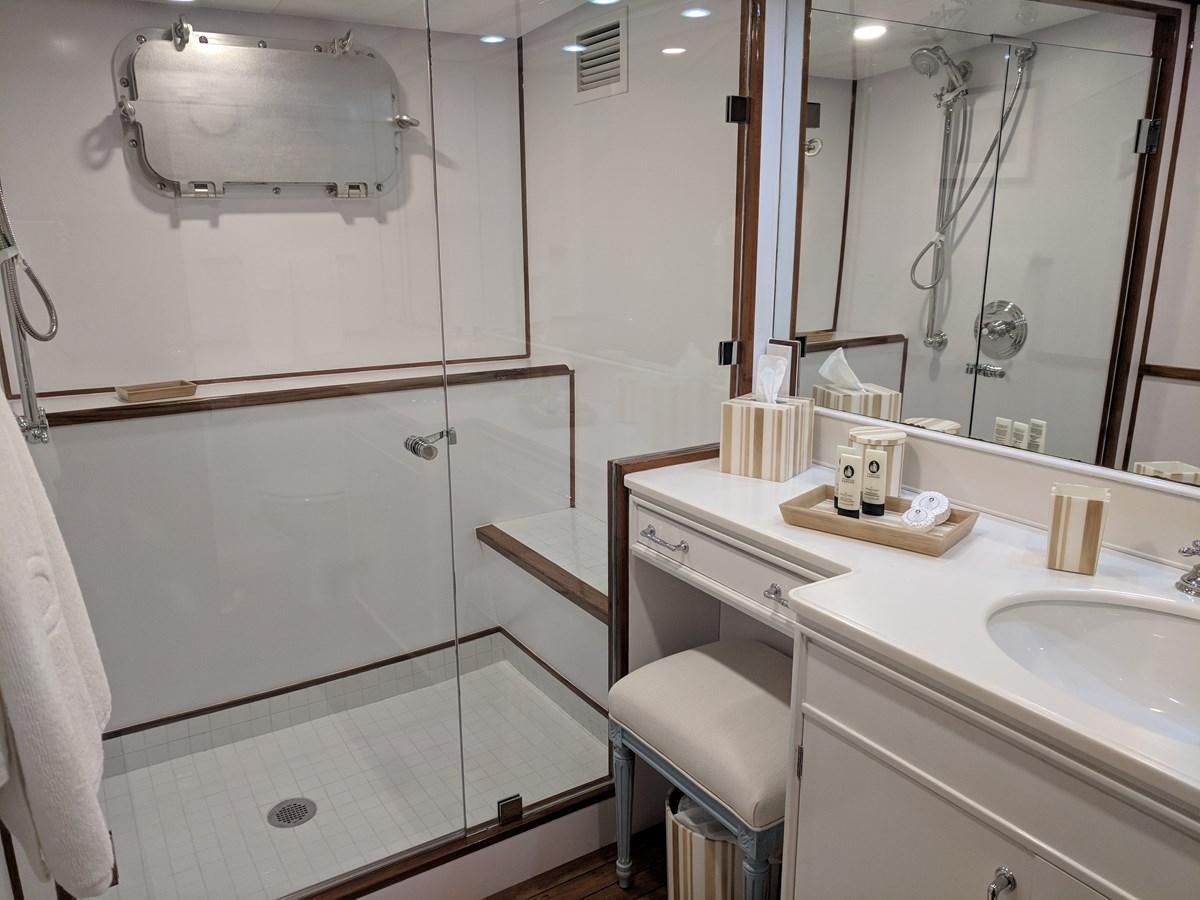

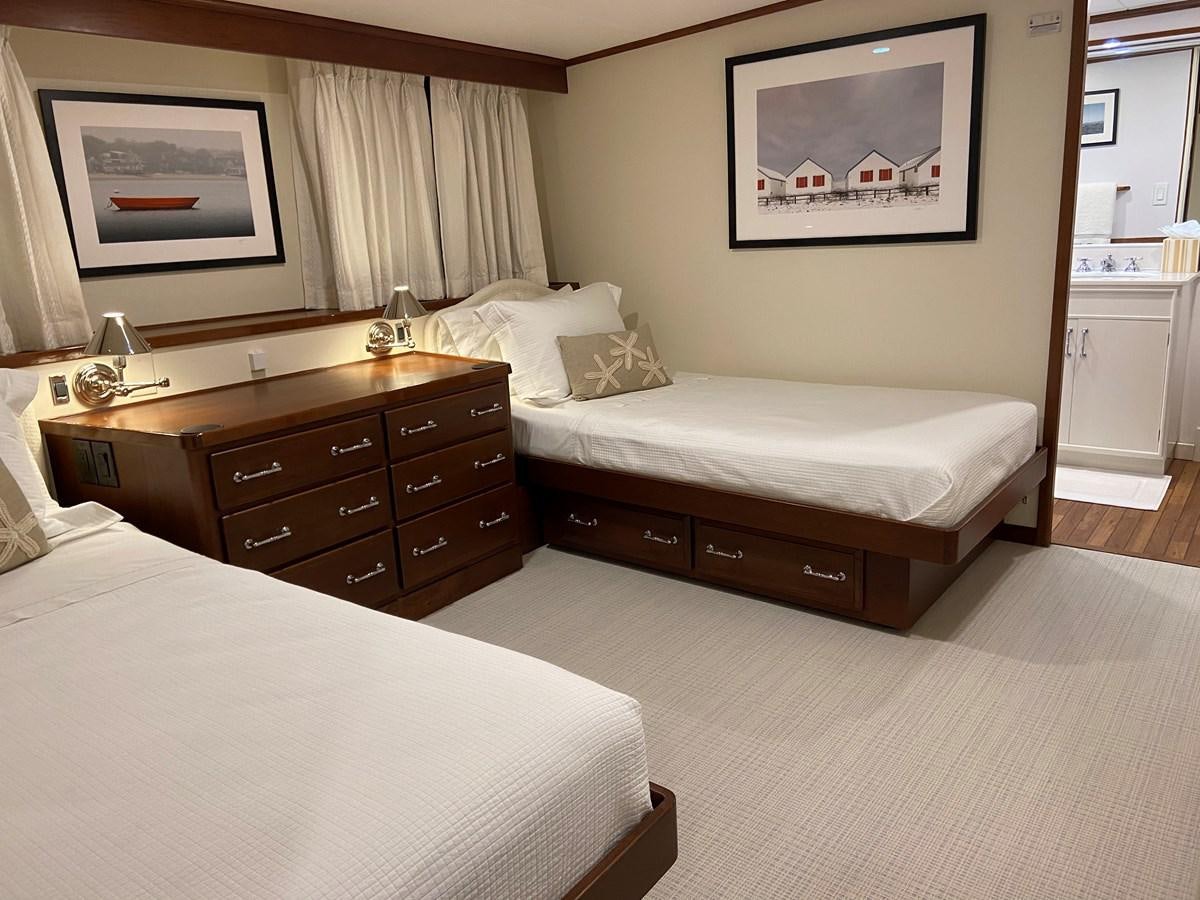

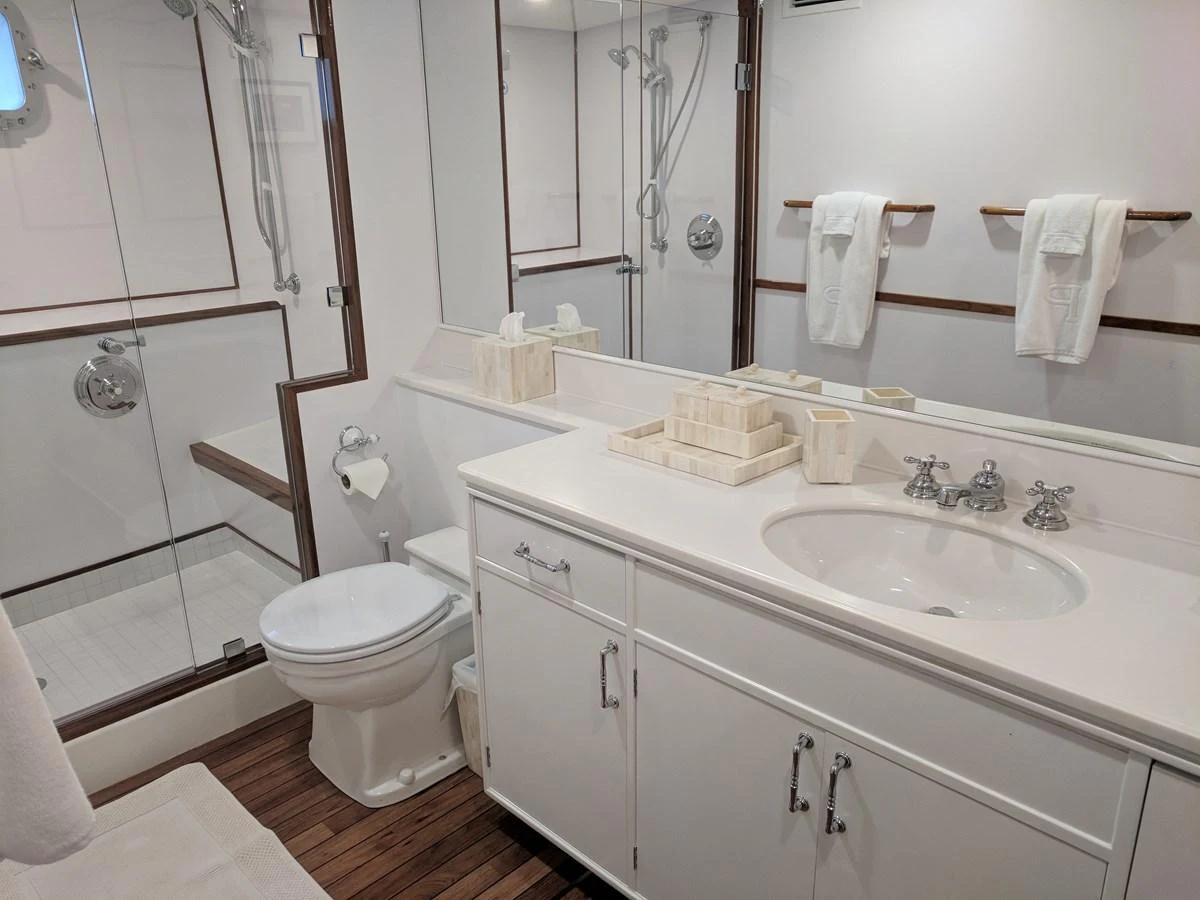

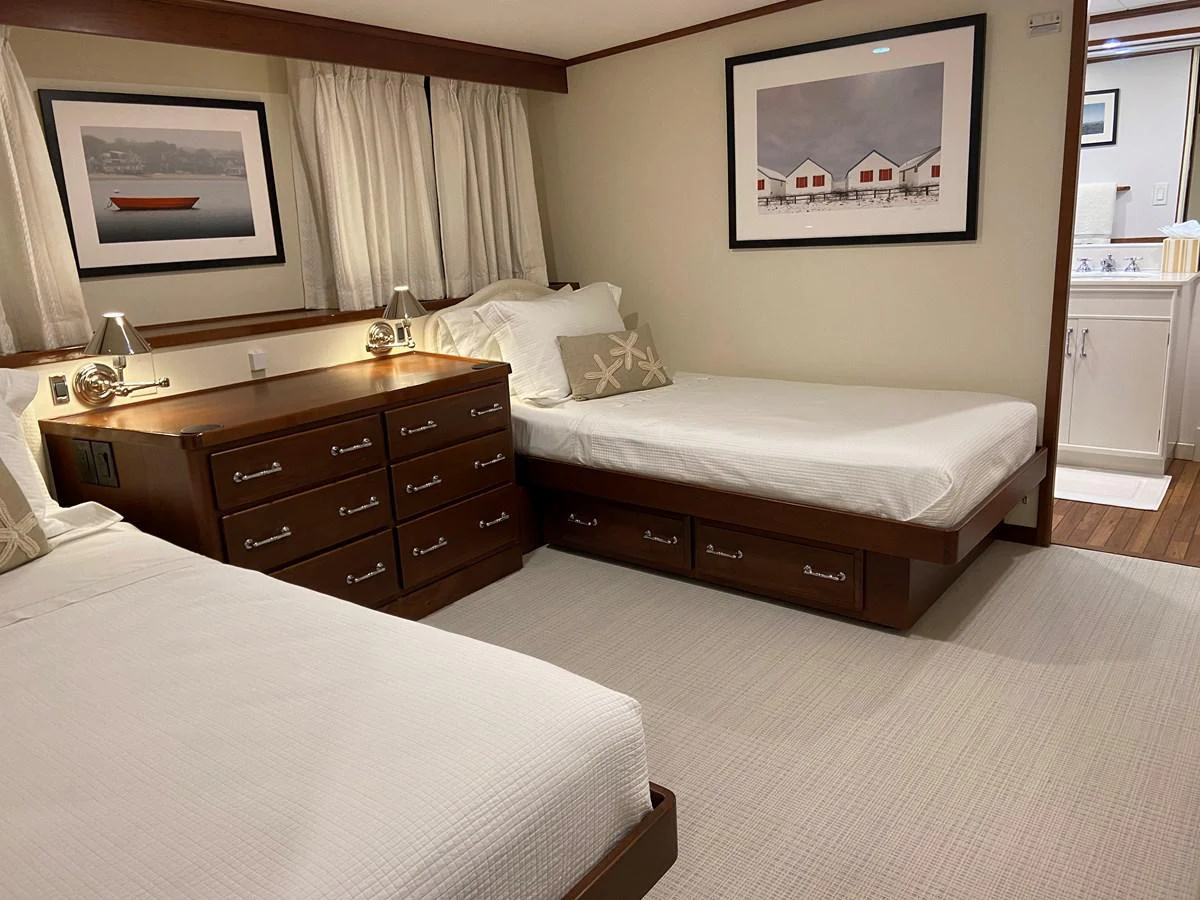

- The four guest cabins are accessed downstairs through the starboard aft section of the main salon. The stairs turn toward the center of the yacht into a small common area outside the cabins. There are two generous mirror image cabins aft with a pair of movable full-size beds in each, closets, built-in dressers and ensuite heads with showers. The two larger staterooms are forward and mirror imaged as well. Each has a wraparound counter with a built-in desk just inside each door, athwartship king sized beds and built-in side tables. Further forward in each cabin are three closets and an entrance to the large ensuite head and showers. The port stateroom is varnished mahogany, while the starboard stateroom is painted light blue.
MAIN SALOON AND CARD ROOM

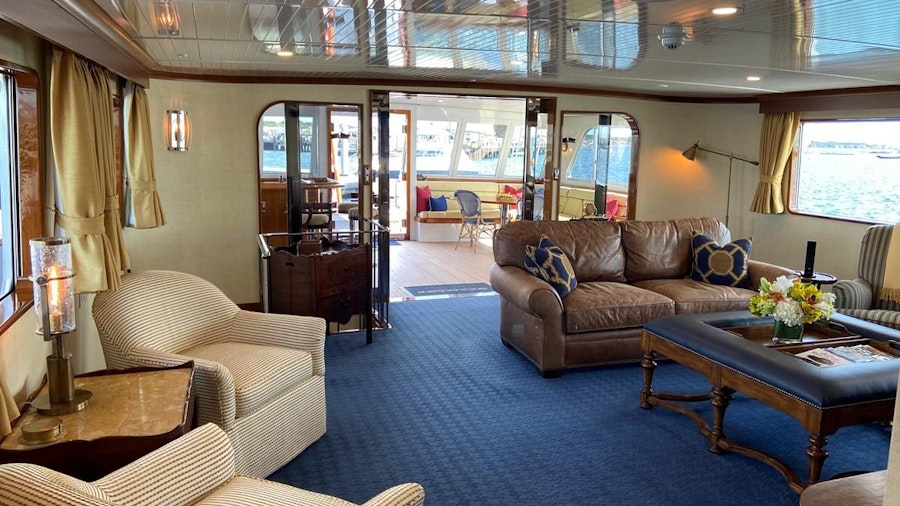

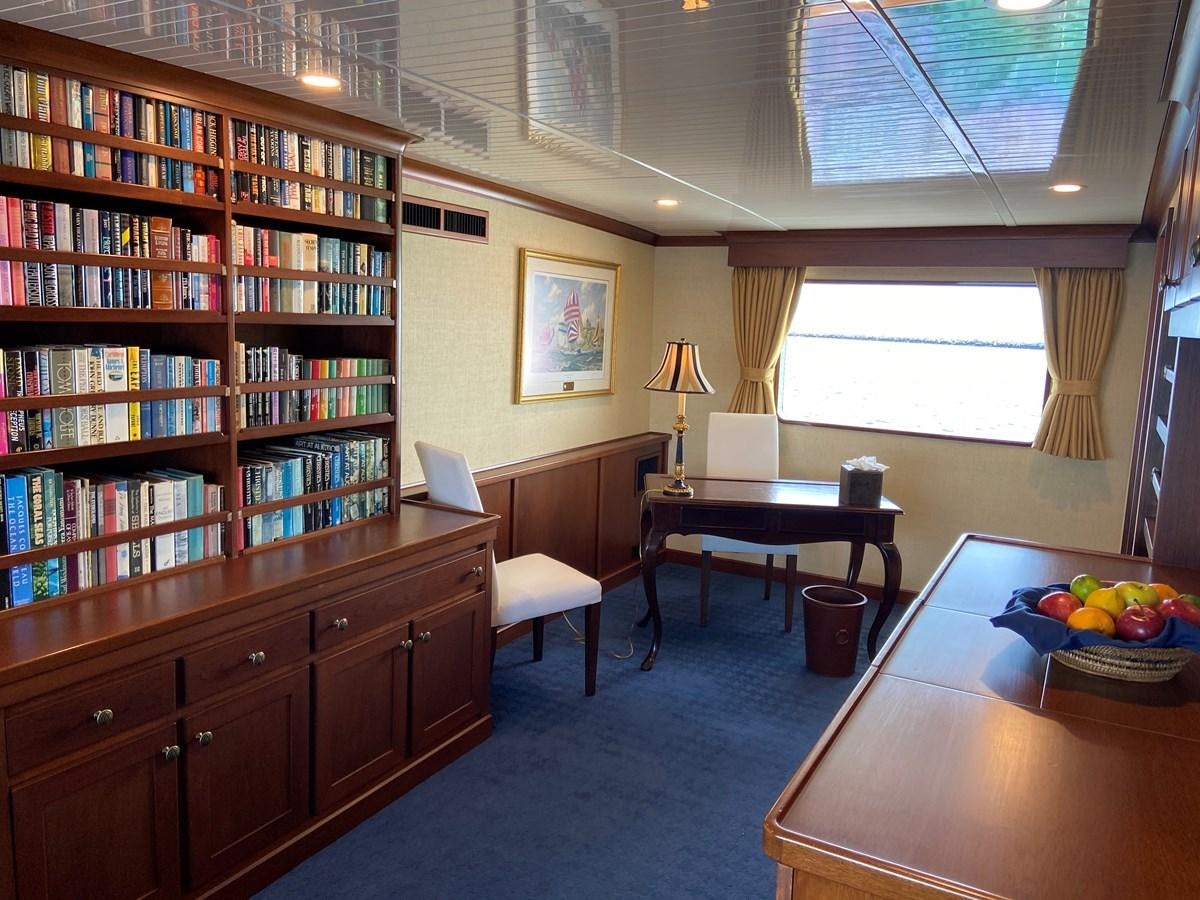

- From the aft deck, thick glass and stainless doors slide open to the large Main Salon, which has expansive windows on both sides, highlighted by varnished teak trim and crown mouldings above. On the starboard portion of the vessel, a large buffet and dual bookcases split another window. A wall extends ¾ of the way out from the port side, which forms one side of the card room just forward of the Main Salon. There is a walkway down the starboard side that allows you to turn into this area or proceed to the Main Dining Room. The Card Room has a forward facing teak buffet with bookcase, while on the opposite wall facing aft is a bar with cabinets above. The bar has a sink, fridge, and icemaker that disappear when closed up. There is another set of big opening windows in this room, as well as a day head.
FORMAL DINING ROOM

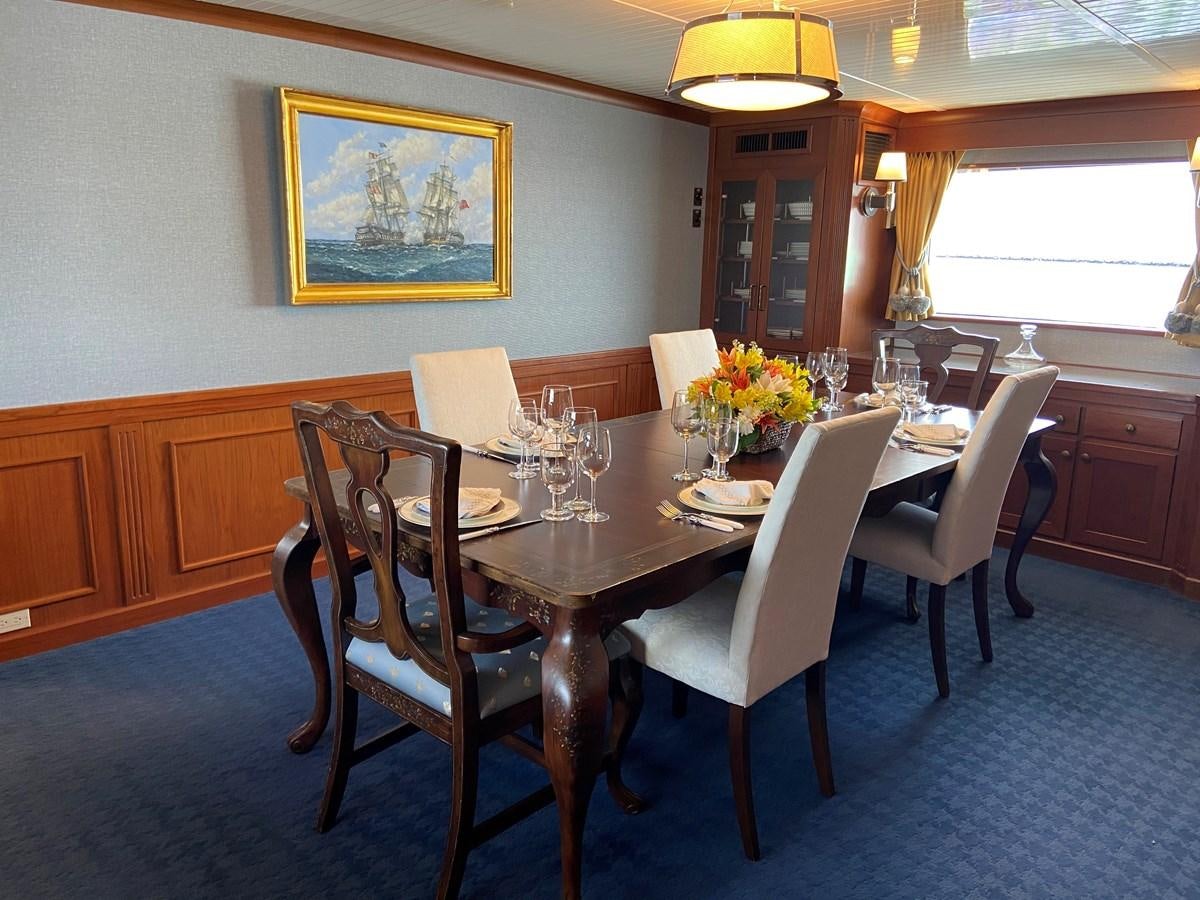

- Further along the starboard walkway, there the formal Dining Room for 8 with identical built-in hutch/buffets on both sides. The buffets are full length, and the glass china cabinets split the large windows on both sides.
- Buckpasser was designed with excellent crew living and work areas. The on deck forward crew salon is well positioned and provides valuable functionality and separation of crew and owners. Everything forward of the dining area door is crew. A solid teak door on the starboard side brings you forward to the service end of the yacht. A narrow hallway extends a thwartship to doors that open onto the walkaround decks. Immediately to starboard is the bridge deck stairway, to port is the galley, and further forward is the full beam crew lounge.

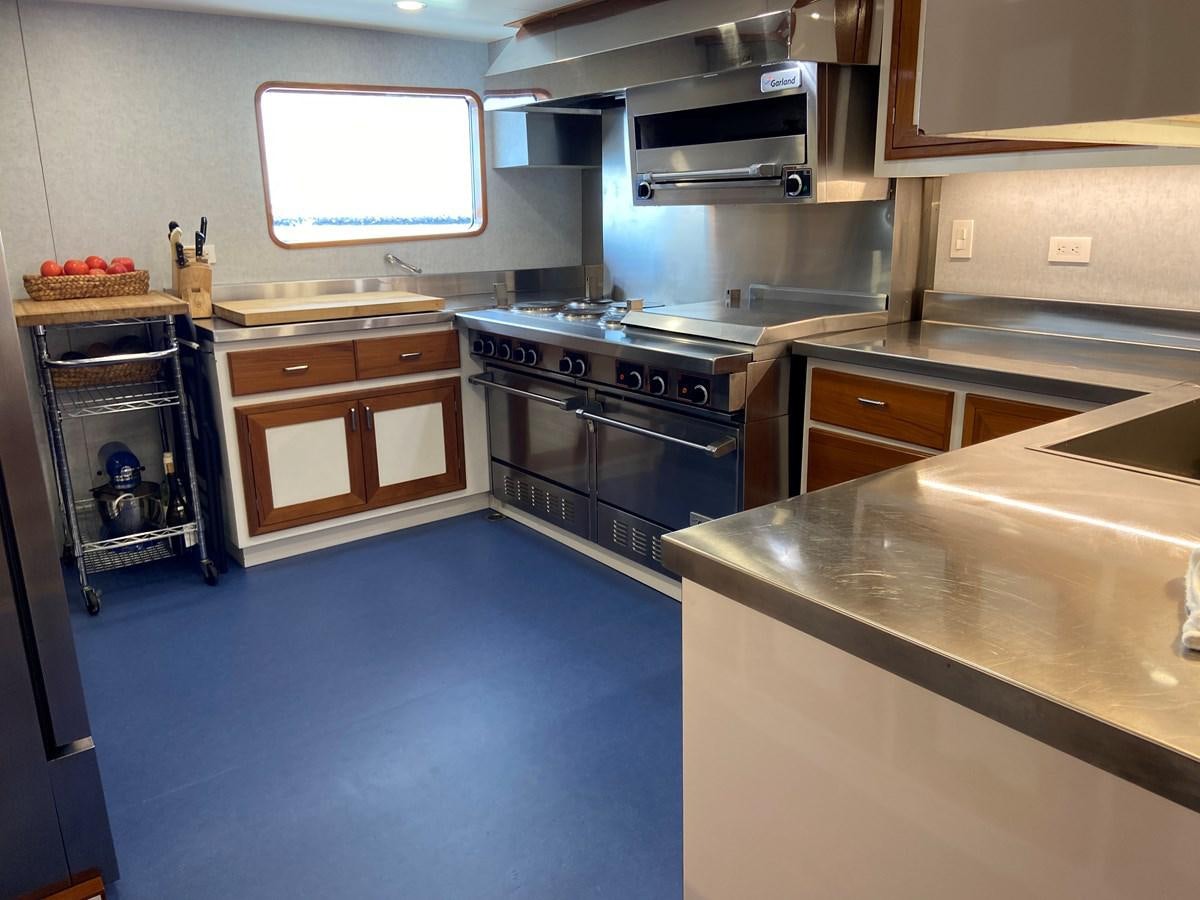

- The Galley is commercial grade which was completely rebuilt new in 2017. There are stainless steel counters throughout, commercial grade refrigerators, freezers and a large arrangement of Garland cooking equipment would please any chef.

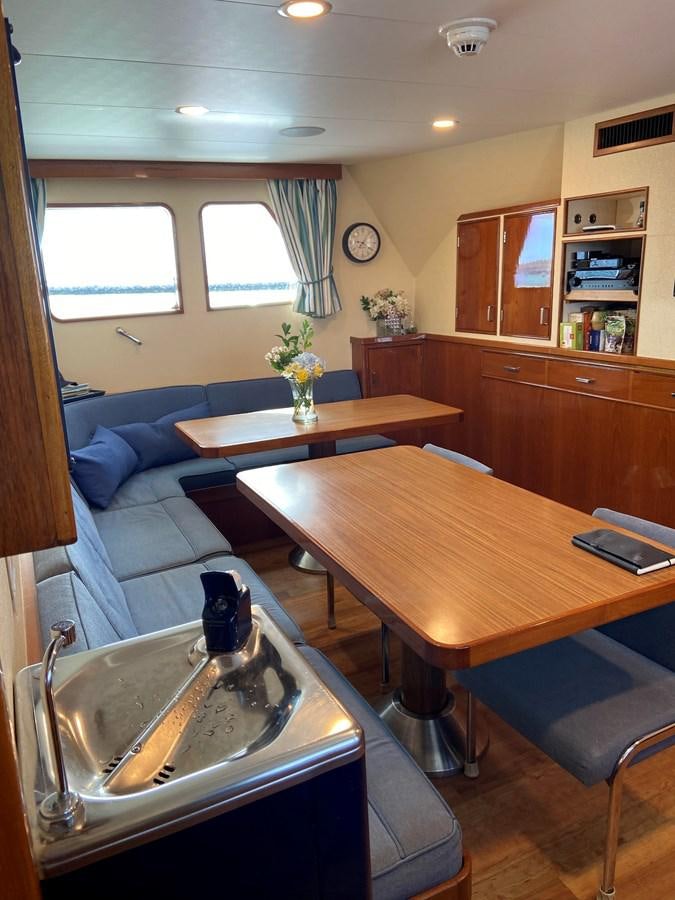

- The Crew Lounge is full beam, forward of the Galley, and accessed down the hallway on the starboard side. There is a wraparound bench seat and tables with all the necessary equipment, including refrigerator, coffee machine, TV, water fountain, sink, etc. There is a pair of large windows on both sides of the lounge with hand cranks to open. This area could serve as a library, classroom, office or possibly even another guest stateroom.
- The "bridge deck" Captain's Cabin and the generous crew accommodations for up to 8 crew in 5 staterooms are remarkable for a vessel of her size.

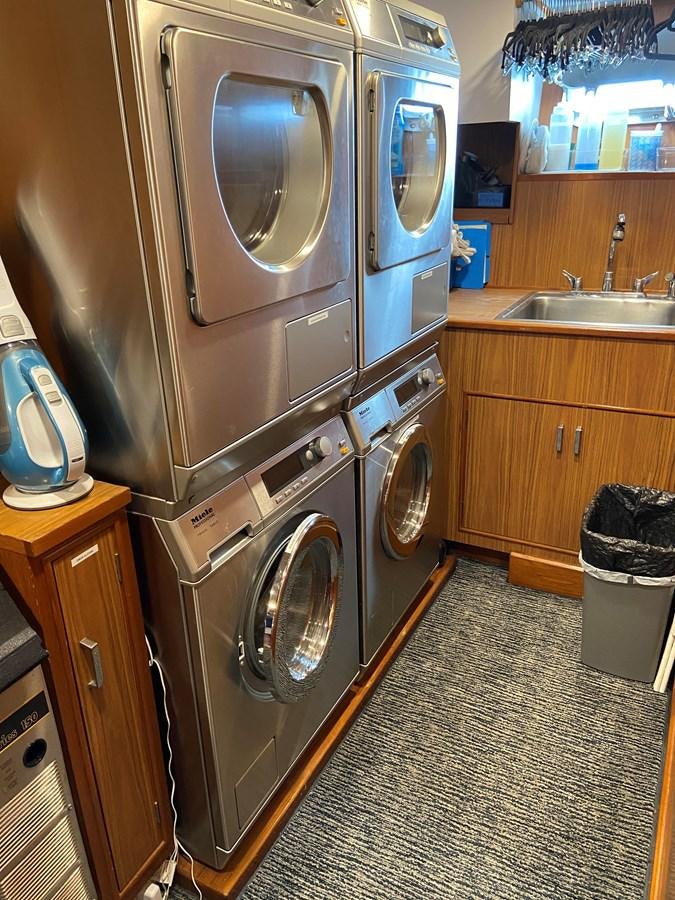

- Aft and starboard of the Crew Lounge are thick teak stairs leading down to the crew area. There is a large, double wide freezer at the bottom of the stairs, and this area opens into a full beam utility room with an ice machine, washer/dryer, utility sink and a counter with cabinets. A large floor hatch in the middle of the crew hallway gives access to dry storage, multiple tank tops, and other yacht related systems. There are five crew cabins on board, four in the crew area and a large captain's cabin on the bridge deck. The lower crew area has a centerline hallway to access the cabins. To starboard is a twin cabin with built-in dressers, closet, desk area, and private ensuite head. The portside cabin has twin bunks, built-in dressers, closet, nice desk, and private ensuite head. Forward is a small set of stairs up to two additional cabins, which are mirror images of each other. Both have twin bunks, built in dressers, closet, and head. These cabins share a centerline shower, which join the spaces in a reverse “U” shape. There is a ladder and escape hatch just outside of these cabins at the top of the access stairs. Below these stairs is another large dry storage area and access to the bow thruster.

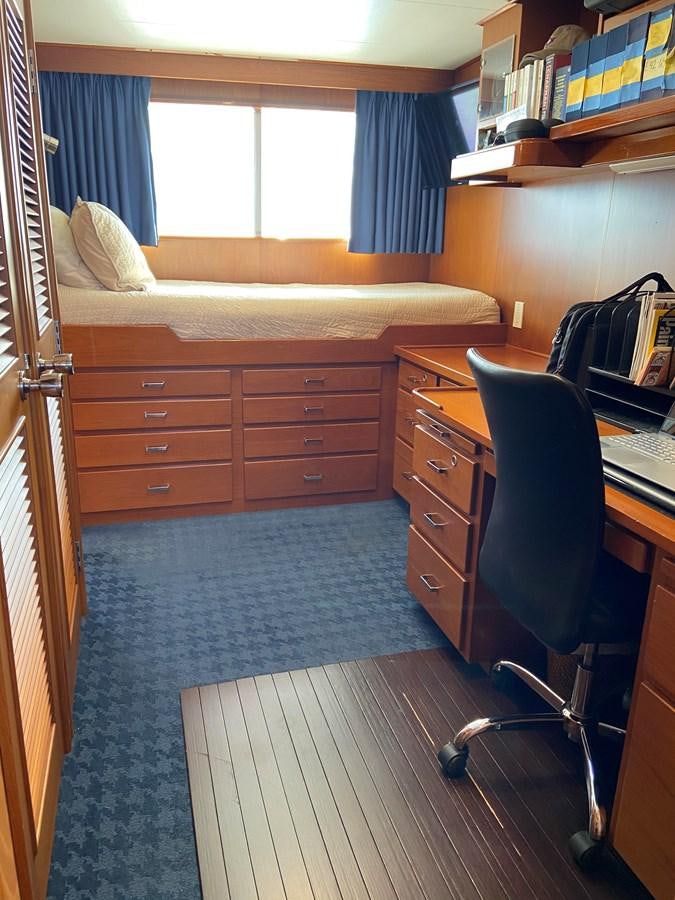

- On the starboard side of the bridge, you can walk aft into the navigation and captain's area. There is a large chart table and additional electronics to starboard, storage area with a gun locker aft, and the captain's cabin to port. The entire area is full beam and has opening windows on both sides. The captain has a generous cabin with built-in dressers, closets, big desk with bookcases above and a walk-in head and shower aft.
- The Bridge is located up the starboard stairway at the intersection of the galley, service hallway and just inside the dining room door. The stairs are made from thick teak boards and open up to a full beam bridge with access doors to starboard and port. There is a large built-in red leather bench and a doorway to the chart room, gun closet, and captain's cabin.
BRIDGE & AFT WORKING DECK

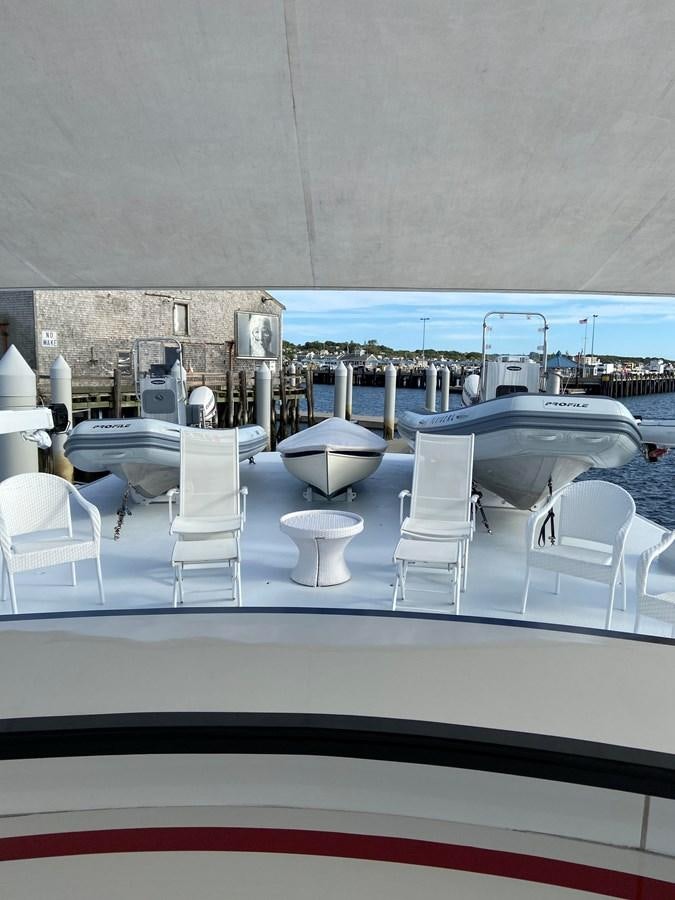

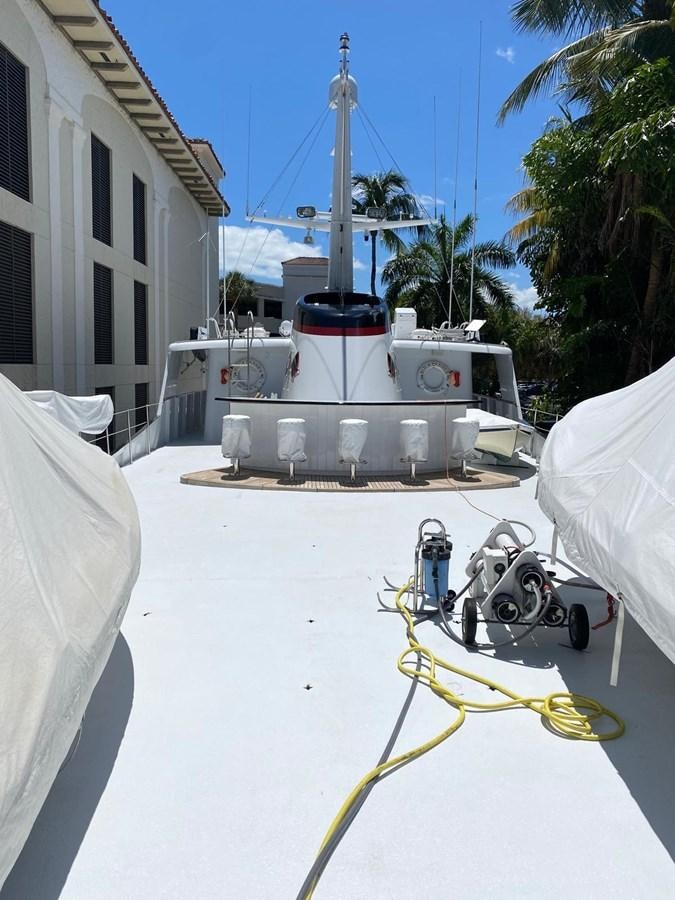

- The bridge deck has a wraparound "Portuguese Bridge" with dual wing stations and white non-skid decks. A thickly varnished cap rail surrounds the entire deck. Walking aft on either side brings you to the tender deck. There are two deployment cranes for the tenders.

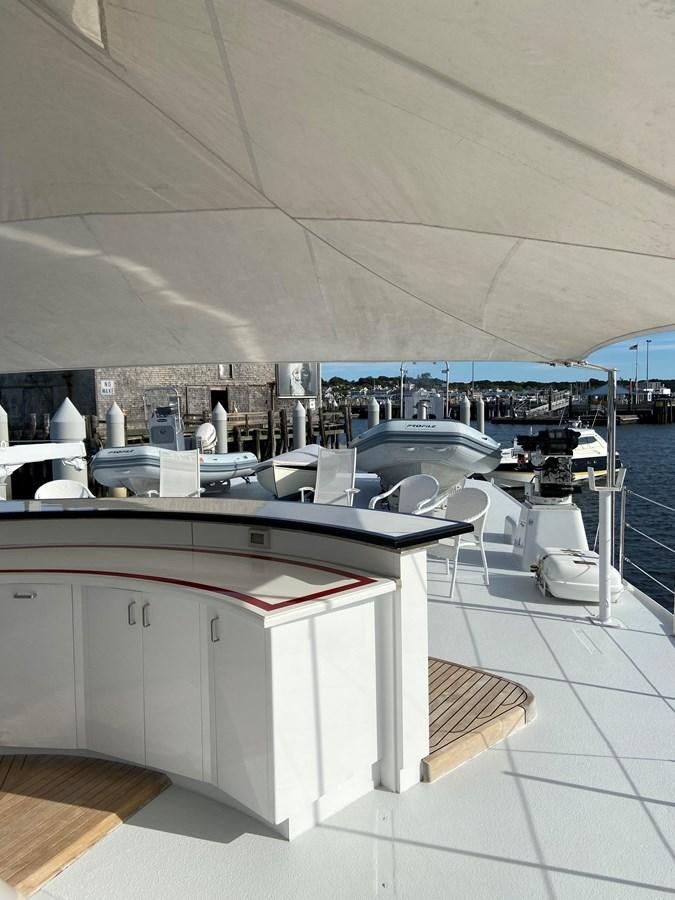

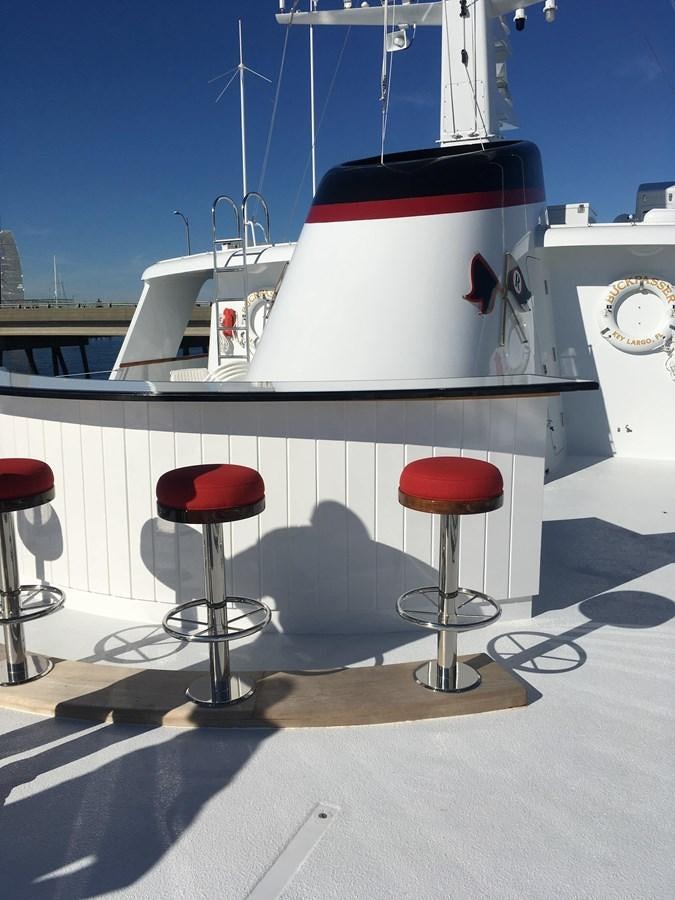

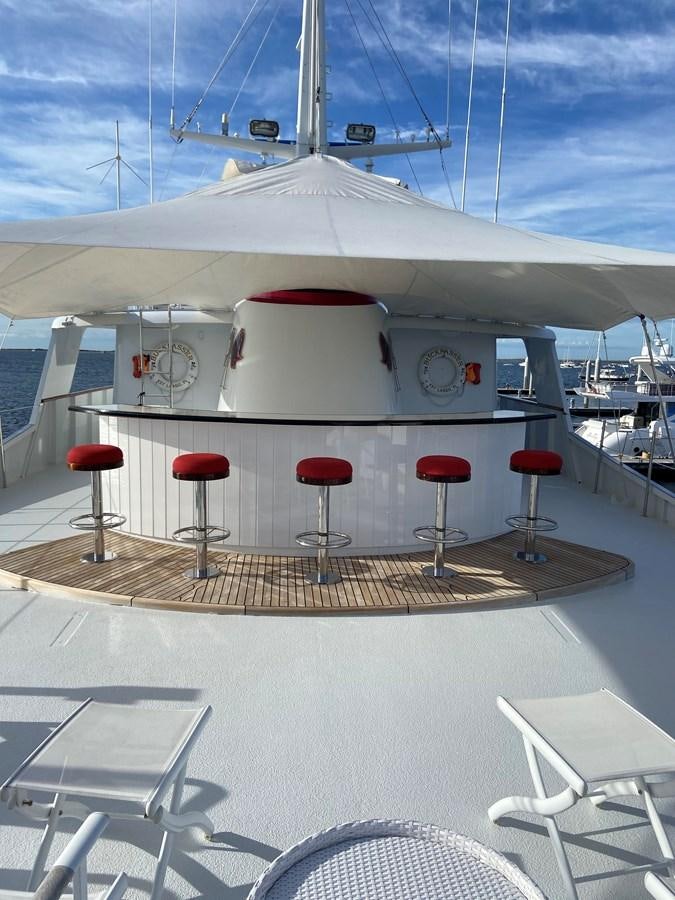

- Outside and directly behind the bridge is a huge stack, which is one of Buckpasser's most notable features. The Stack exchanges air for the engine room and also has a large storage area accessed from the starboard side. The storage area is walk-in and houses additional equipment, dryer, and other machinery. Immediately aft of the stack is an al fresco bar with bar stool seating affording 270° views and massive deck space when the tenders are launched.
- A ladder on the port side of the tender deck gives you access to the roof of the bridge. The area has non-skid paint, a huge storage box for fishing rods and tackle, as well as an ingenious helm station module, which provides a 360 degree view of the yacht for docking or tight quarter manoeuvring.

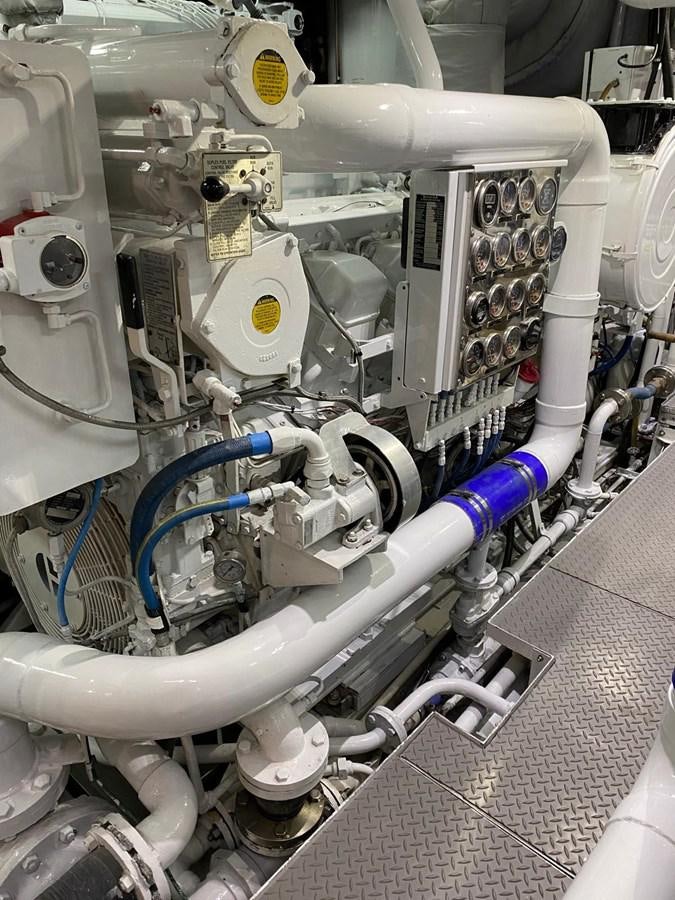

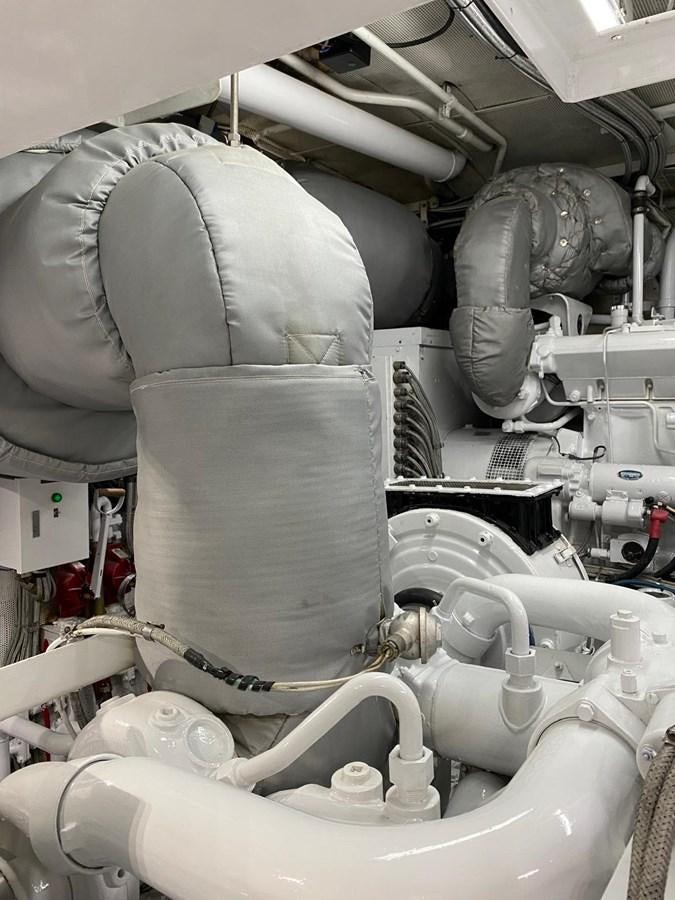

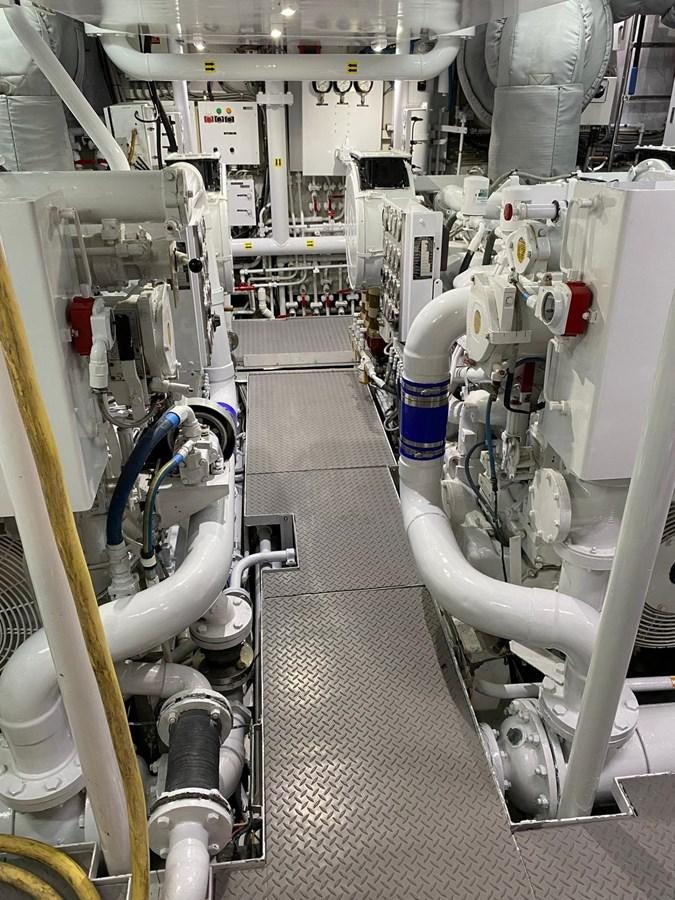

- 2 x CAT 3508 - completely rebuilt 2018
- Twin Disc
- Twin Screw
- 48x52 4 blade Nibral
- Wagner Rudder Angle Gauge
- Naiad 402 with 16 sq. ft fins
- PSI Mini Thruster

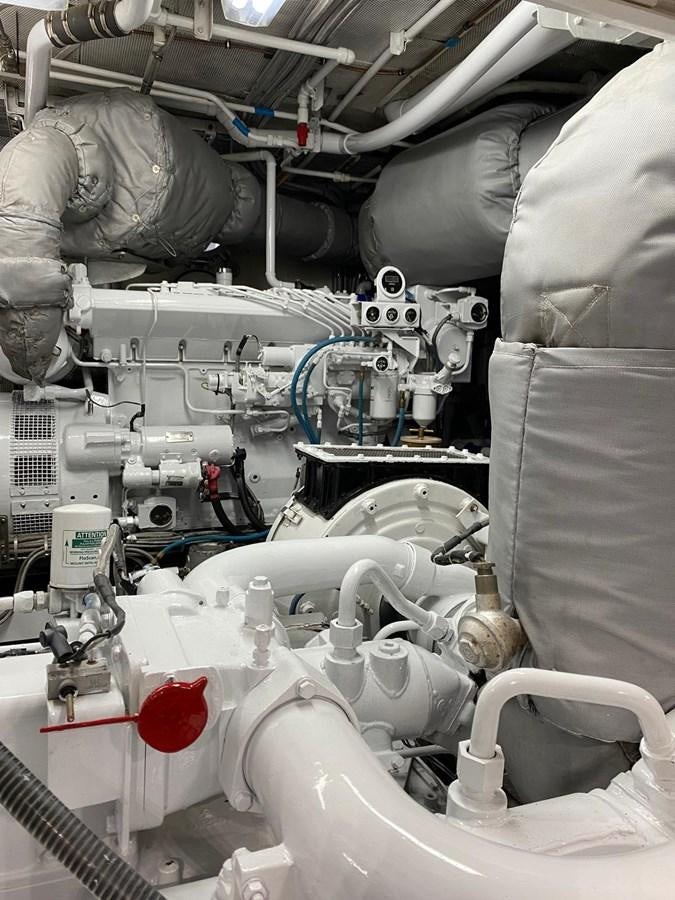

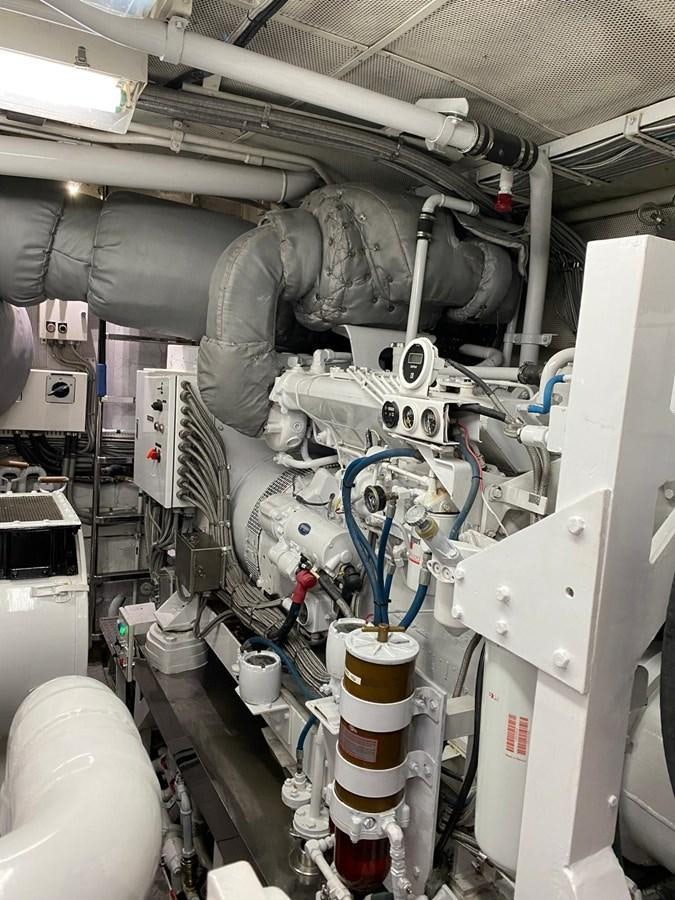

- 2 x CAT 3306T 135KW - completely rebuilt 2018

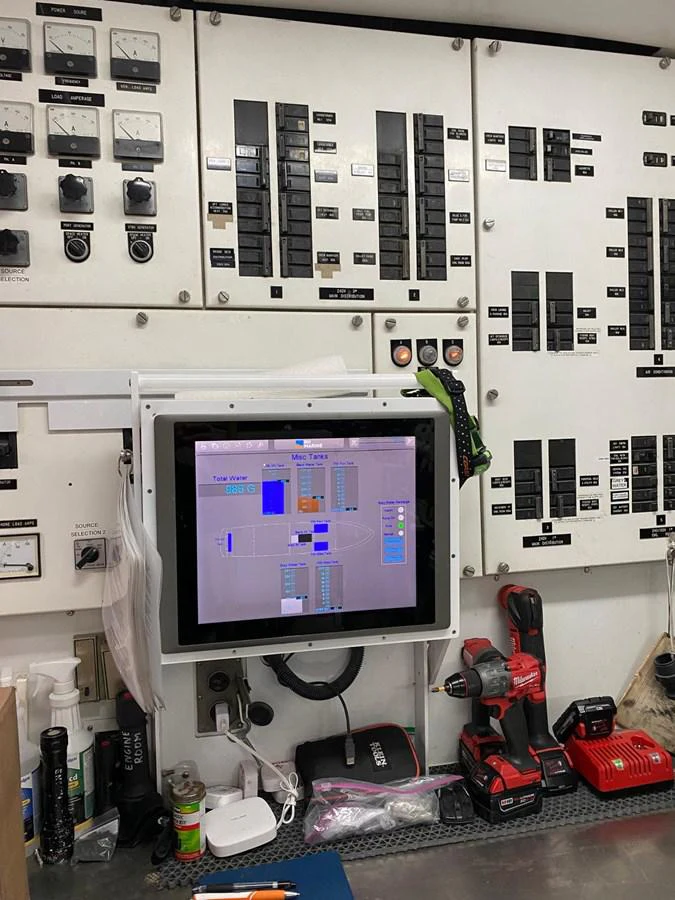

- 208/240 100AMP, 200AMP 60 cycle, 3-phase
- Custom Elecrical Surge Protection System
- 2 x Banks of 32V Batteries
- 2 x Banks of 12V Batteries
- 2 x 32 & 12V Battery Chargers
- Sentry Battery Chargers

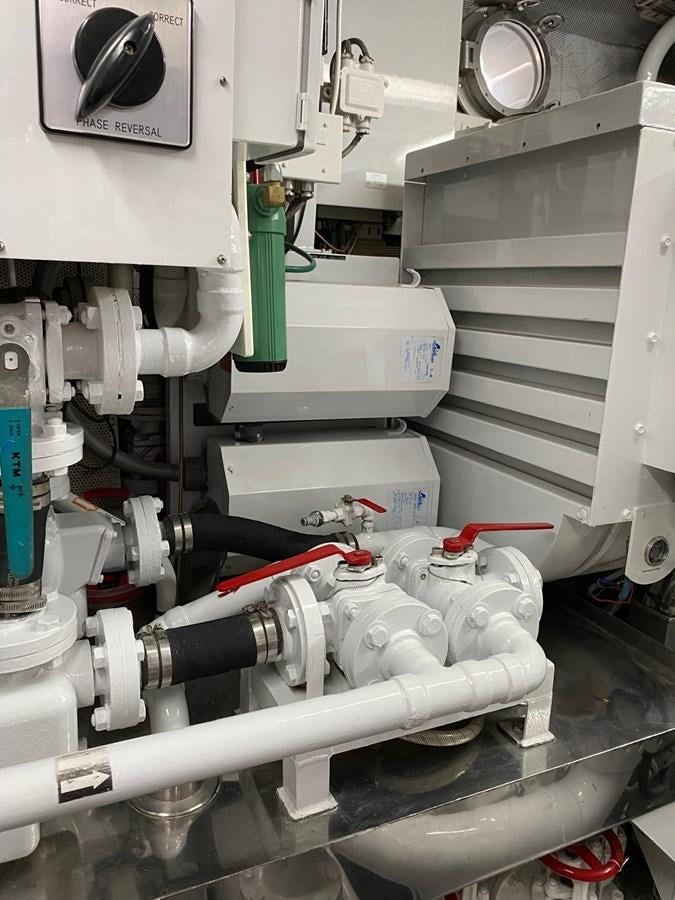

- Burks fire & emergency pumps
- Haldex PTO (Starboard Engine)

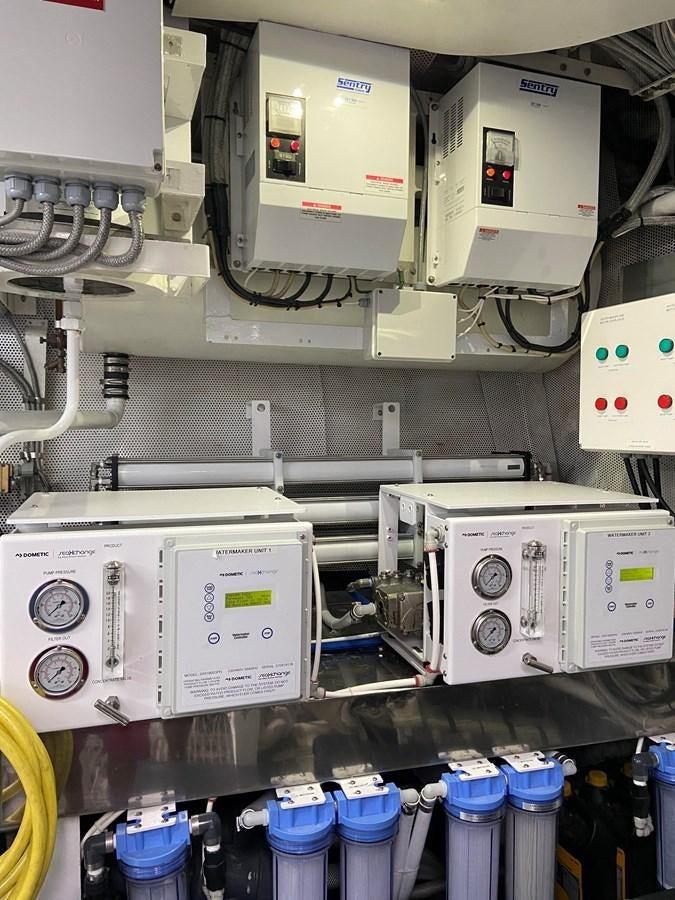

- 2 x Matrix water makers 1500 gallon/day
- 2 x Burks fresh water pumps
- Grayco Black water pump
- Trochoid lube oil pumps Grayco grey water pump
- C. Plath
- C. Plath
- C. Plath
- Sperry Navipilot 4000
- Furuno FCV1200L
- 2 x Furuno RPU013 25KW
- Fununo FA100
- Furuno RD 30
- Garmin 6208
- Nobletec TimeZero
- Transas Navi Sailor 4000
- RH Marine
- Mathers Controls – for all gear and throttle
- Mathers Slip Clutch & Combined Controls
- Iridium & KVH
- 3 x Iridium Handheld Phones
- Techsonic SPG015 Horizon GX5000S
- Icom ICM126DSC
- Furuno FS5000
- Steen Horizontal
AFT WARPING CAPSTANS
- Ideal x 2 aft
- Stockless 275kg x 2
- ¾ in Studless x 270' port
- ¾ in Studless x 360 stbd
BOAT CRANE & DAVITS
- Hydraulic 1x 9000lb 1x 5000lb
SIDE BOARDING LADDER
SECURITY & SAFETY EQUIPMENT
- 2 x 8 person life raft
- Standard Fire Suppression System
TENDERS & WATERSPORTS EQUIPMENT
- 14' AB aluminum RIB w/ 40 hp Evinrude E-Tec 2019
- 18' AB aluminum RIB w/90 hp Evinrude E-Tec 2017

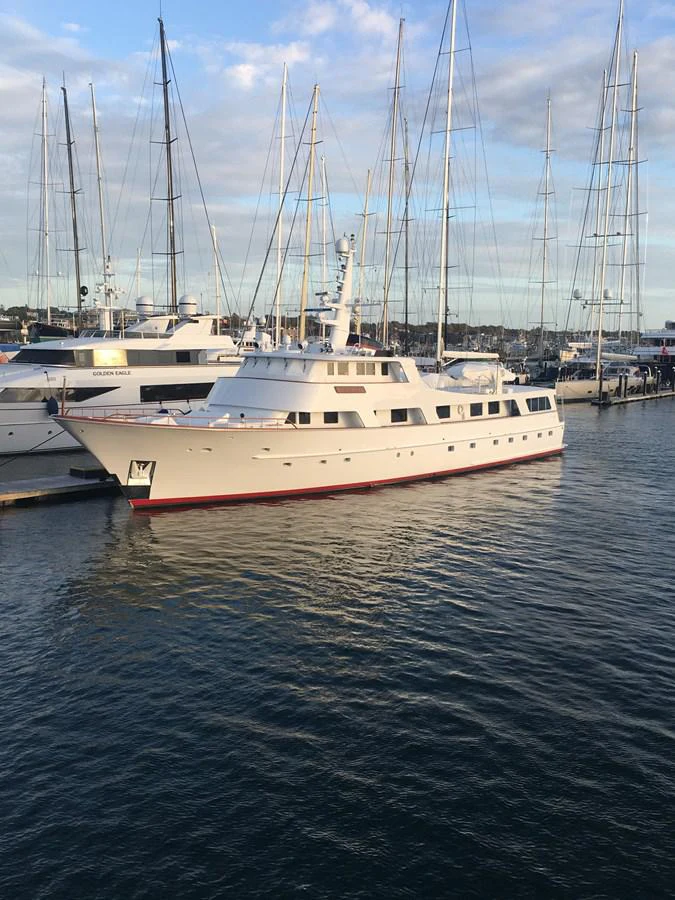

Buckpasser is a rare find by today's standards. She is beautiful, functional, and economical, has more tender and crew capacity than many 150' motoryachts and has been maintained to the highest standards.
Buckpasser was custom designed by Jack Hargrave for an experienced Florida yachting family as a mothership to support expedition style hunting and fishing excursions for weeks at a time. Her even more experienced second and current owner updated her to operate in a more traditional motor yacht role where she continues to serve as a luxury yacht which can support a multitude of water sports such as sailing, surfing, scuba diving, kiteboarding, kayaking, etc. Her detuned 565 hp Caterpillar 3508 engines are considered some of the most robust marine diesel engines ever built providing an effortless 4000+ miles of range.
An extensive list of improvements and upgrades is available upon request. It is safe to say that every aspect of Buckpasser from a mechanical, structural and cosmetic standpoint has been attended to in keeping with the highest standards of seaworthiness, safety and owner comfort.
- Her interior was recently completely refurbished to fine yacht standards including walls, overheads and decks
- New accommodation area plumbing, wiring, A/C system and lighting
- Hull and superstructure recently painted
- Bullet proof Cat 3508’s rebuilt and ready for another 20,000 hrs of reliable service
- Massive boat deck with 9,000lb crane plus 5,000lb crane.
- Enclosed aft deck completely refurbished with new teak decking, full seated bar and dining settee.
A list of exclusions is available upon Request
Buckpasser is a rare find by today's standards. She is beautiful, functional, and \neconomical, has more tender and crew capacity than many 150' motoryachts and has \nbeen maintained to the highest standards. \nBuckpasser was custom designed by Jack Hargrave for an experienced Florida \nyachting family as a mothership to support expedition style hunting and fishing \nexcursions for weeks at a time. Her even more experienced second and current \nowner updated her to operate in a more traditional motor yacht role where she \ncontinues to serve as a luxury yacht which can support a multitude of water sports \nsuch as sailing, surfing, scuba diving, kiteboarding, kayaking, etc. Her detuned 565 \nhp Caterpillar 3508 engines are considered some of the most robust marine diesel \nengines ever built providing an effortless 4000+ miles of range. \nAn extensive list of improvements and upgrades is available upon request. It is safe \nto say that every aspect of Buckpasser from a mechanical, structural and cosmetic \nstandpoint has been attended to in keeping with the highest standards of \nseaworthiness, safety and owner comfort. A list of exclusions is available upon Request
|Length||120 FT (36.58 M)|
|Beam||25 FT (7.72 M)|
|Draft||8 FT (2.18 M)|
|Gross Tonnage||269 Ton|
|Cruising Speed||10 Knots|
|LOA||120 FT (36.58 M)|
|LWL||109 FT (33 M)|
|Beam||25 FT (7.72 M)|
|Max Draft||8 FT (2.18 M)|
|Cruising Speed||10 Knots|
|Max Speed||12 Knots|
|Gross Tonnage||269 Ton|
|Water Capacity||20,770 Liters|
|Fuel Capacity||51,250 Liters|
