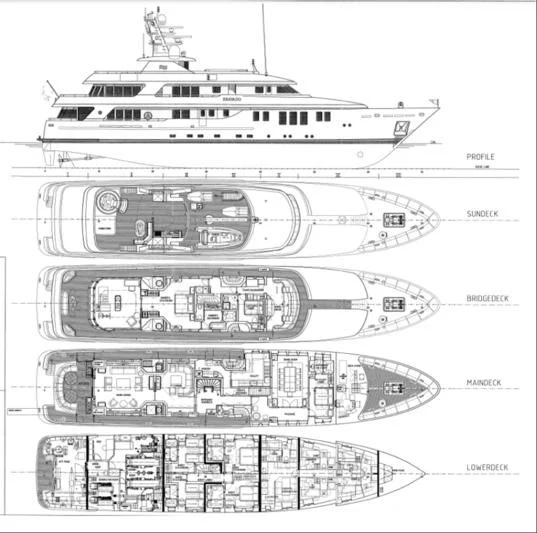

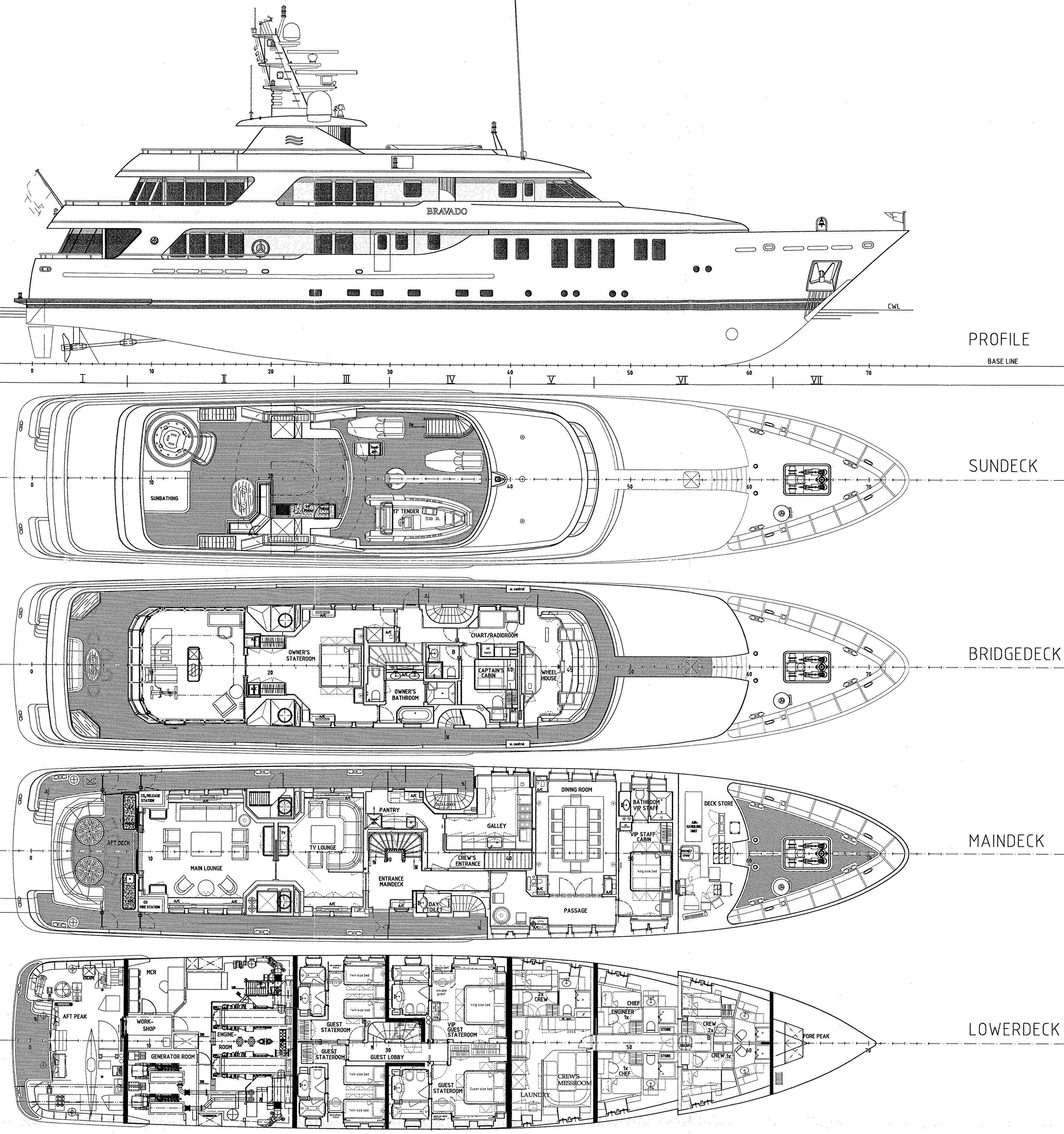

BRAVADO's interior configuration has been designed to comfortably accommodate up to 12 guests overnight in 6 cabins, comprising a master suite, 1 VIP stateroom, 2 double cabins and 2 twin cabins. She is also capable of carrying up to 12 crew onboard to ensure a relaxed luxury yacht experience.

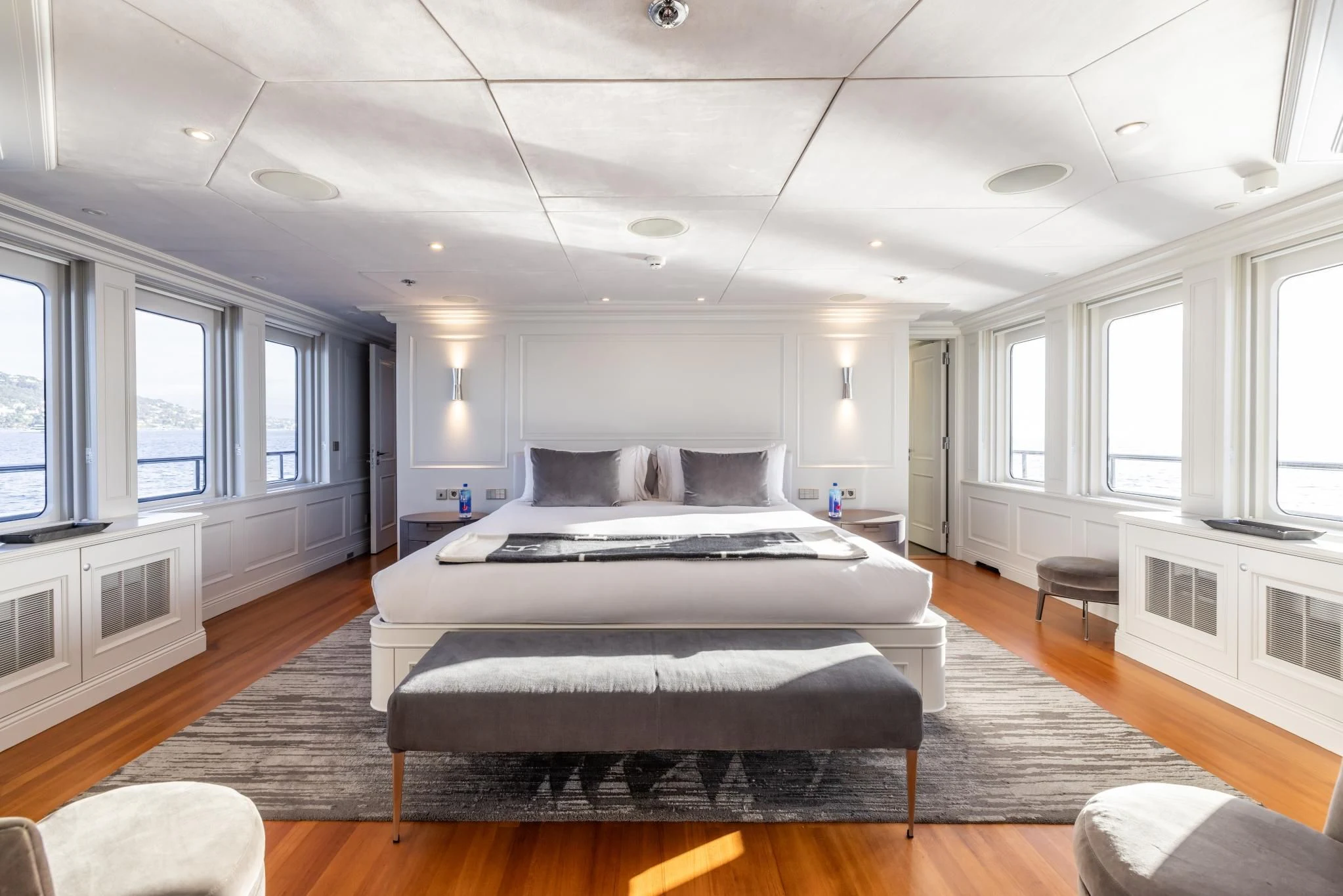

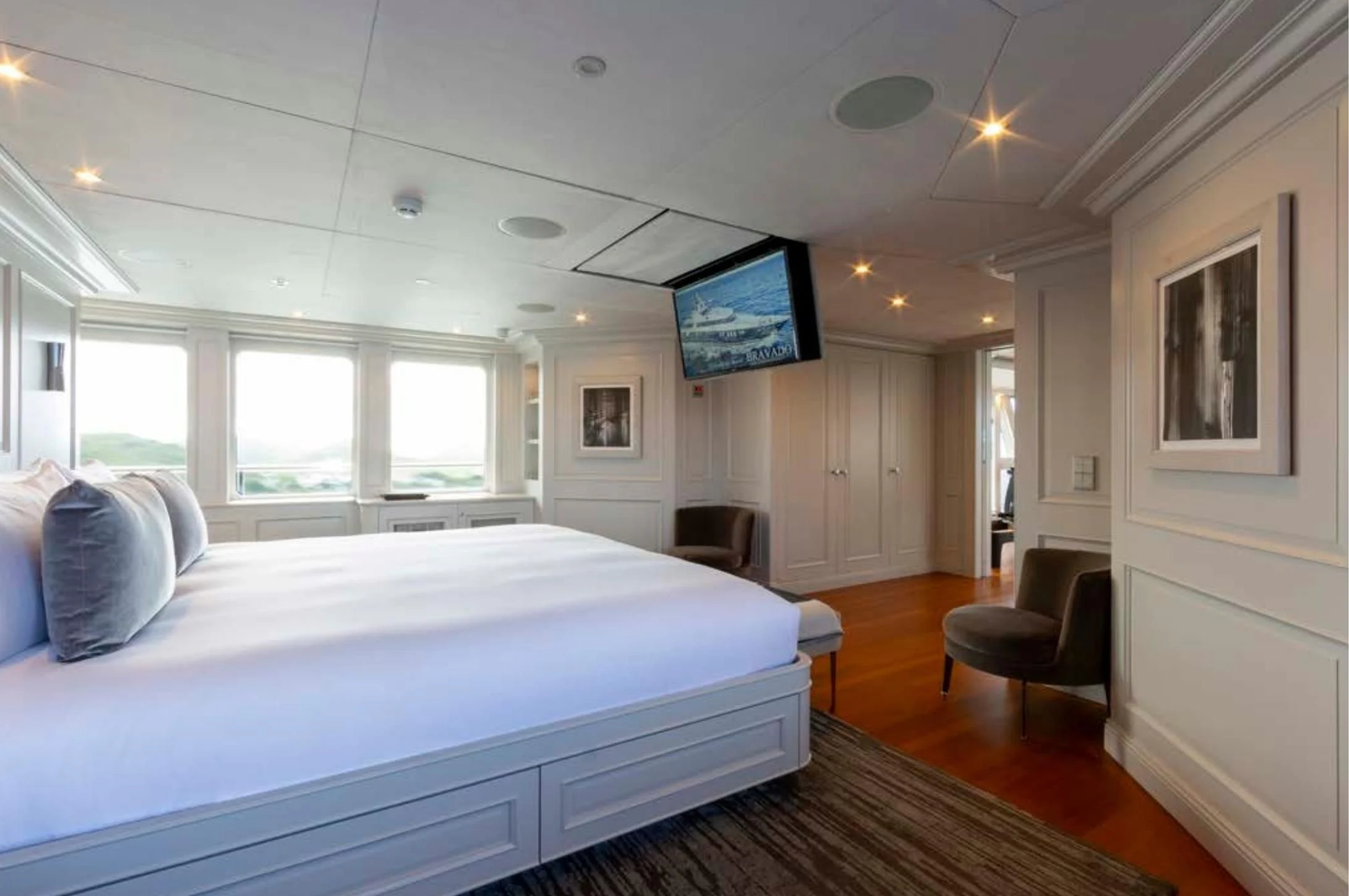

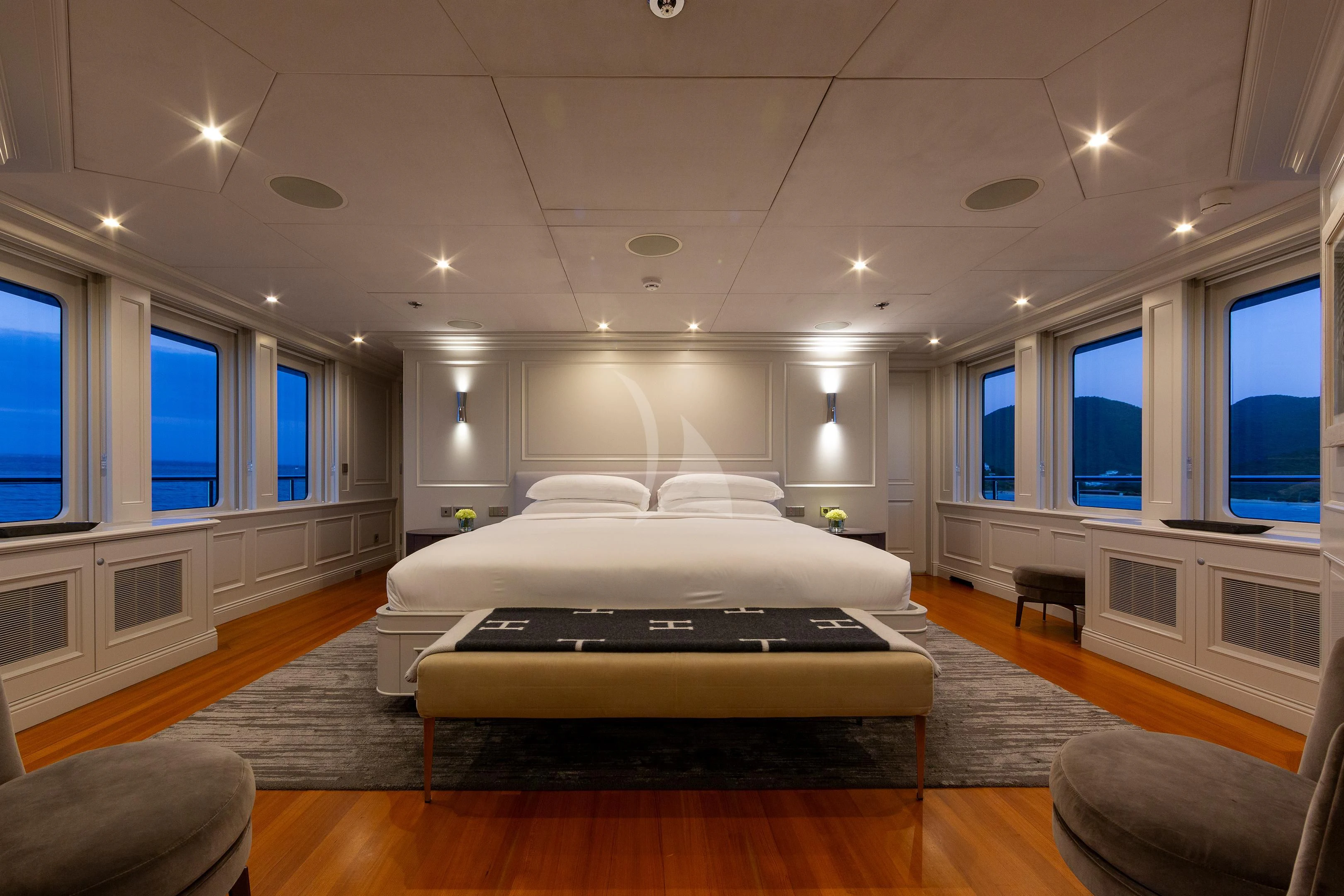

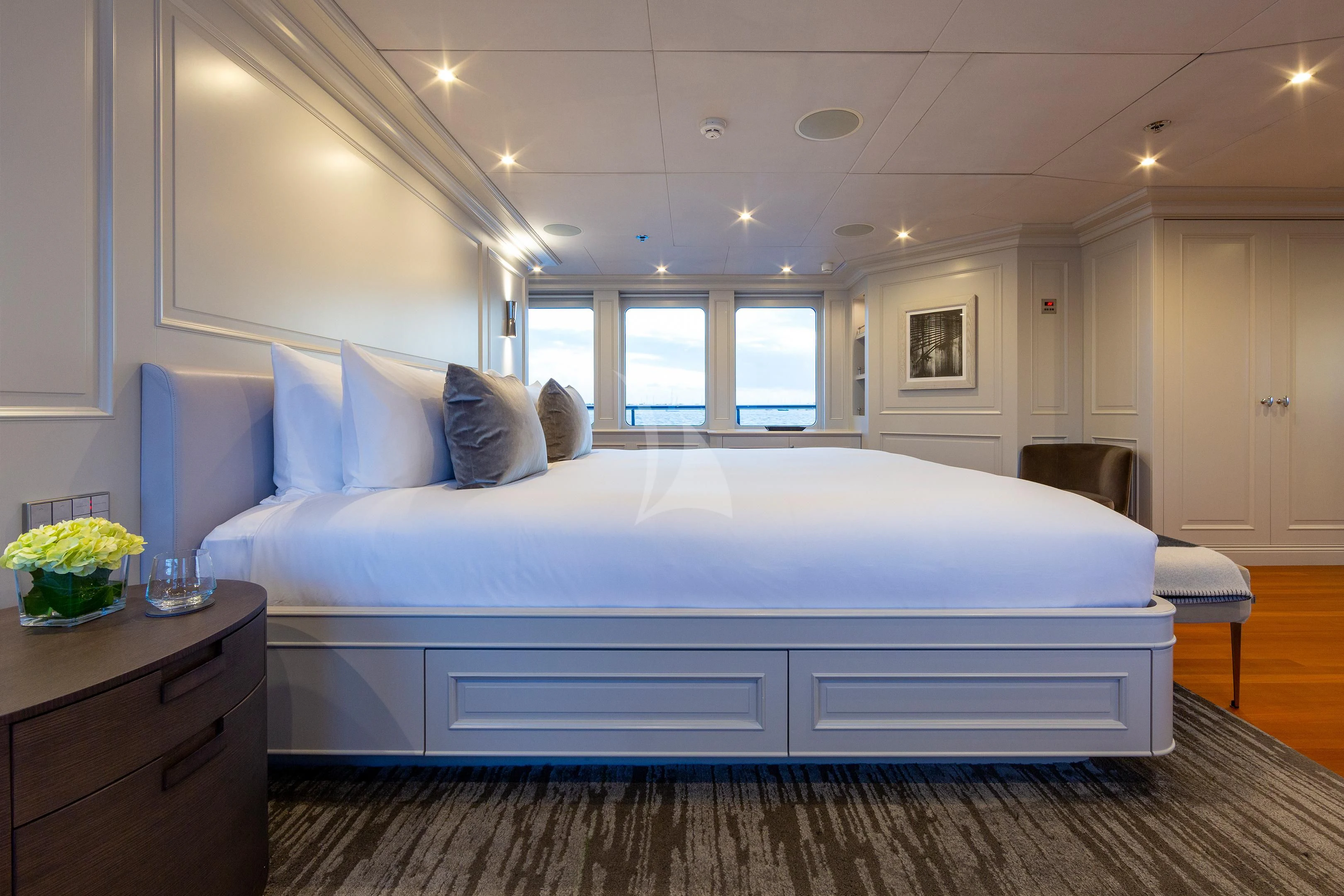

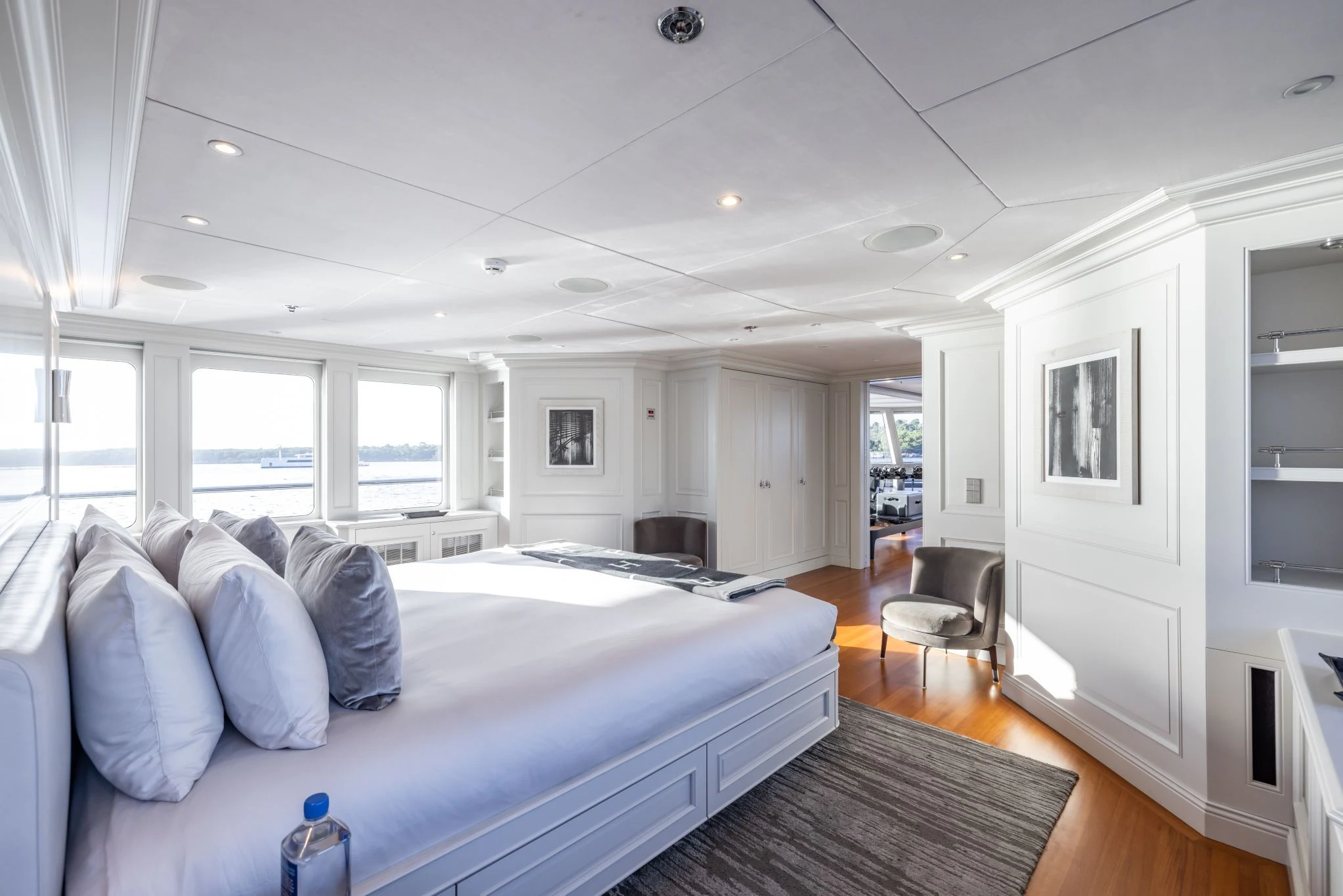

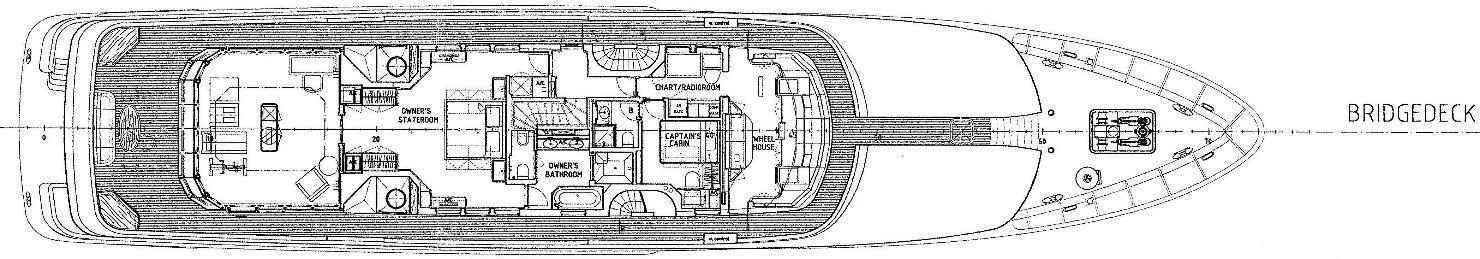

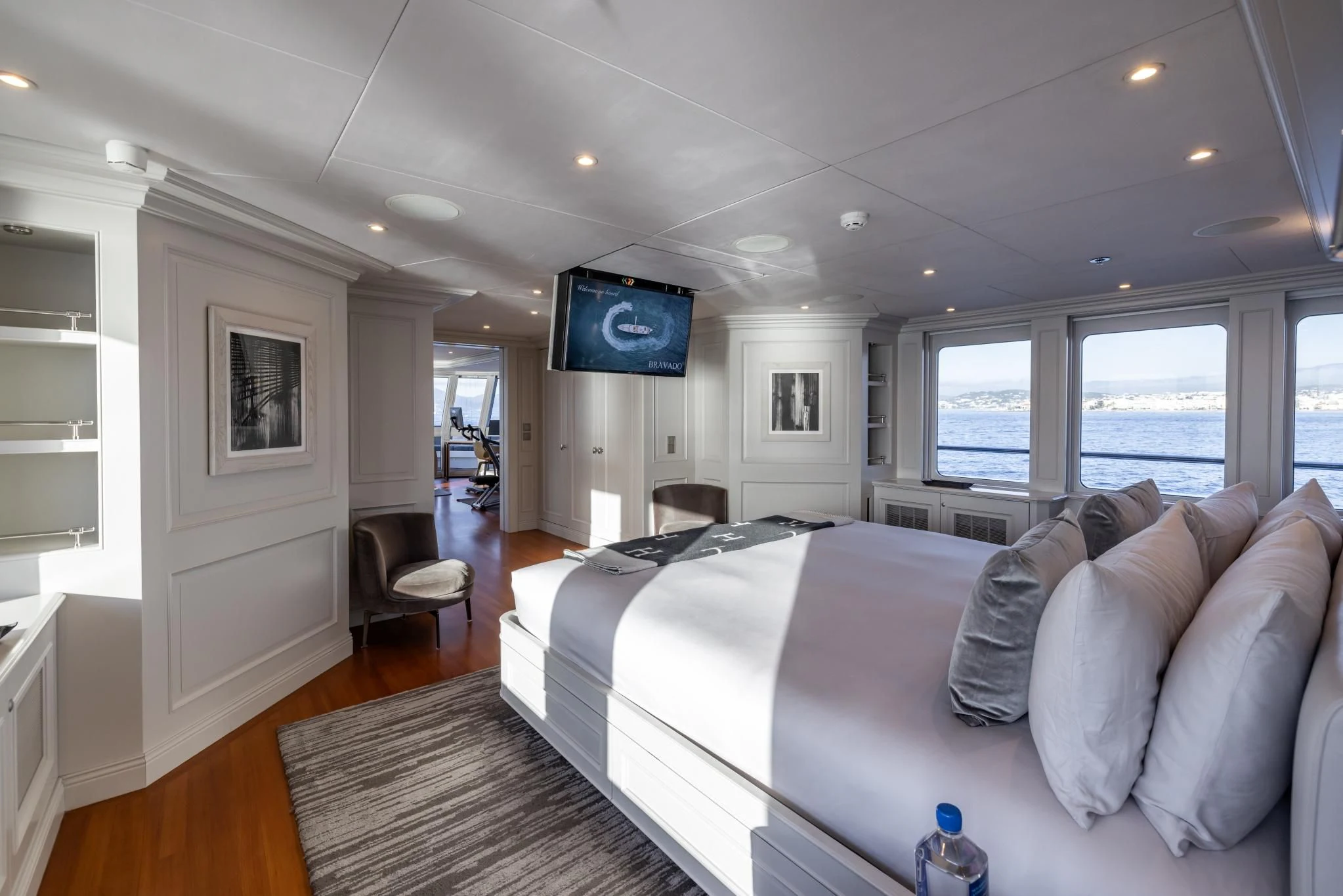

Owners’ suite

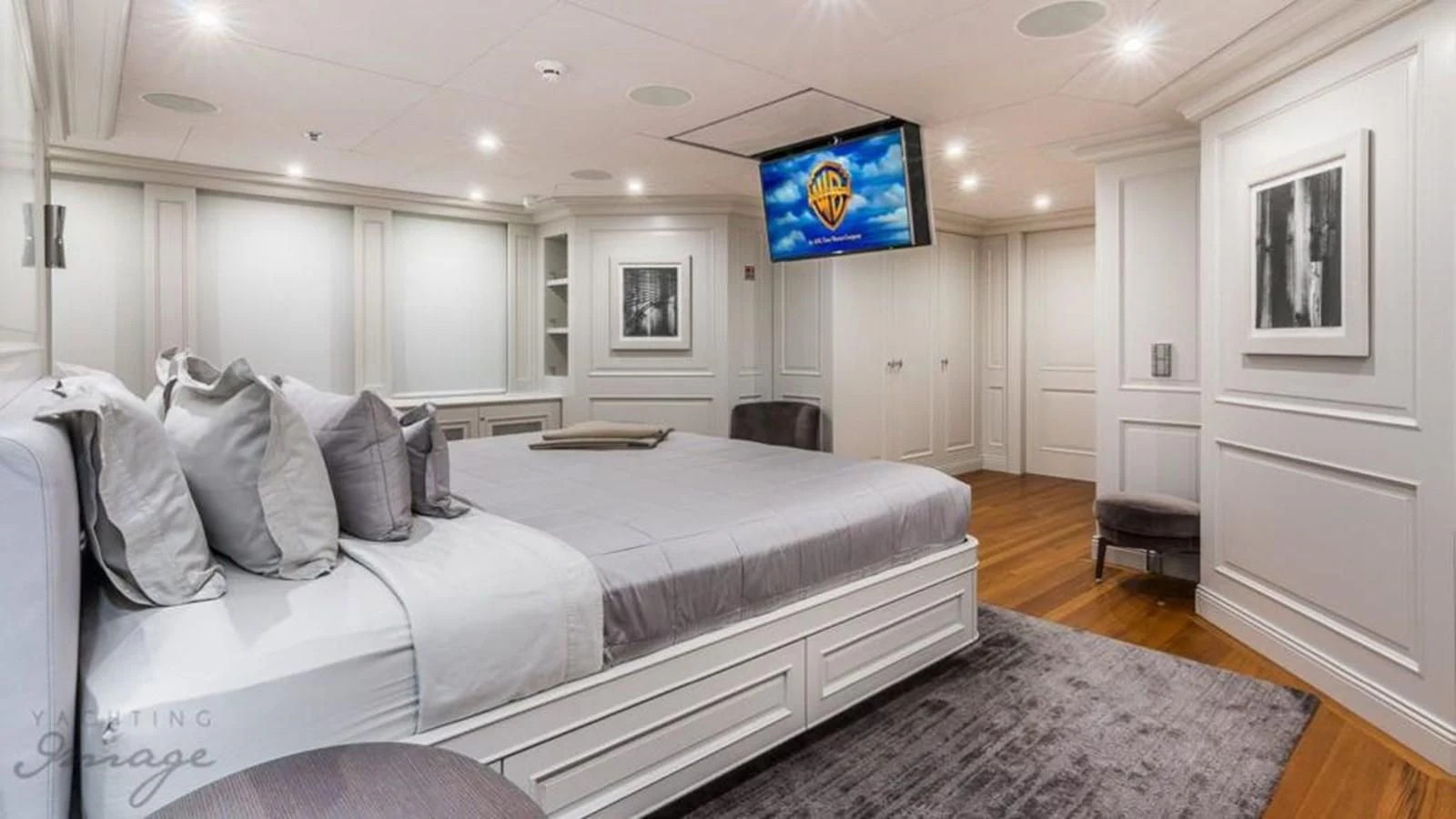

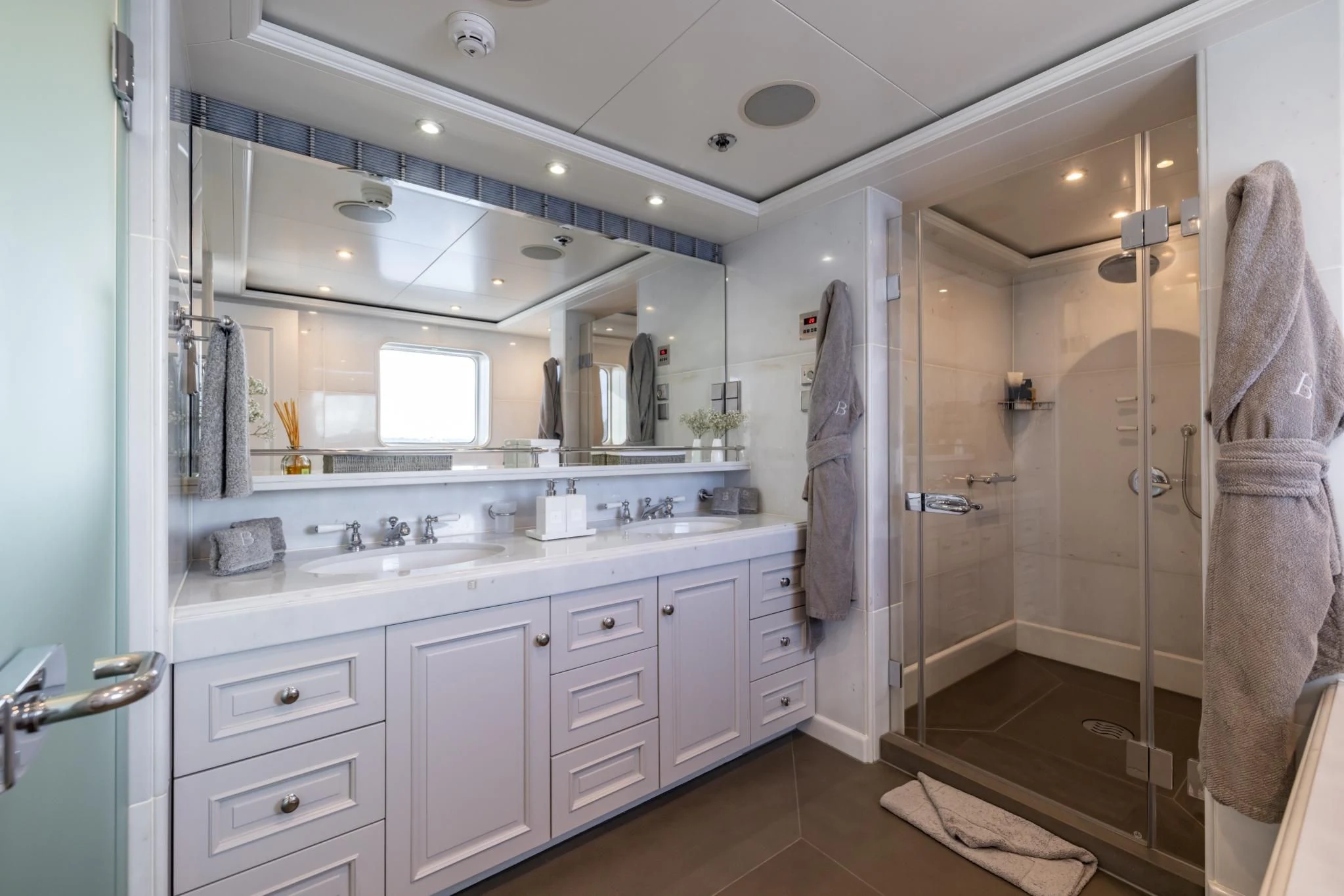

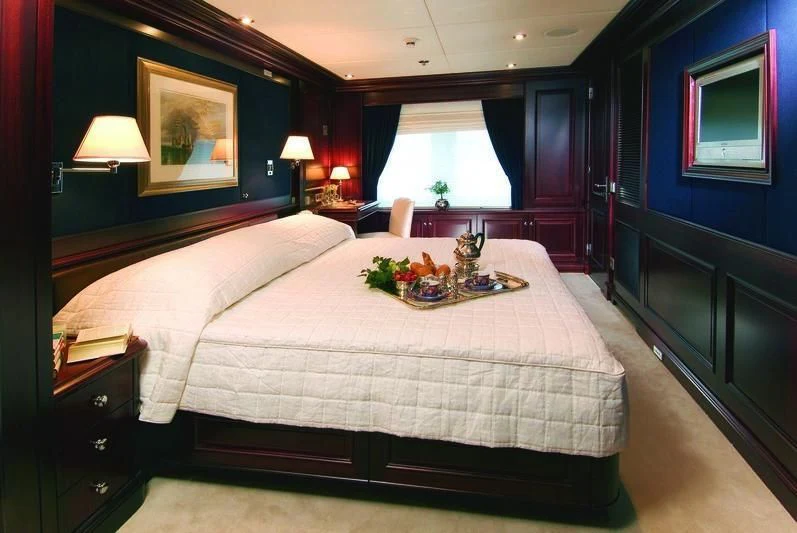

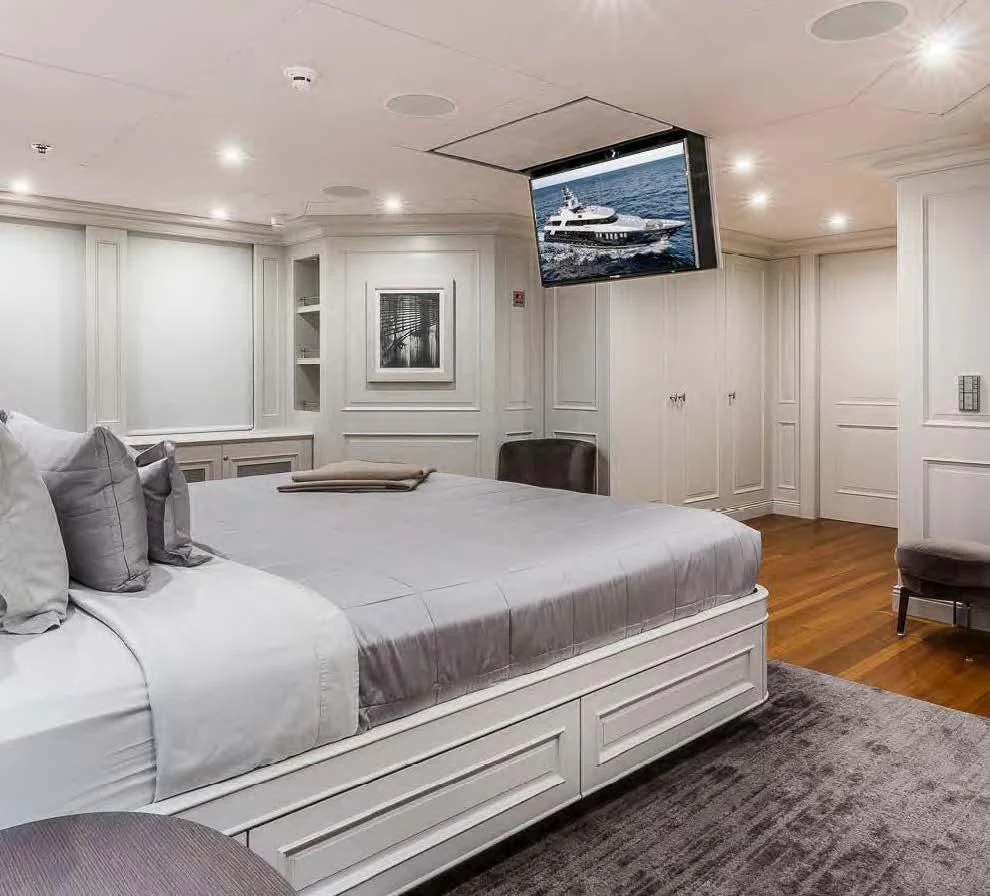

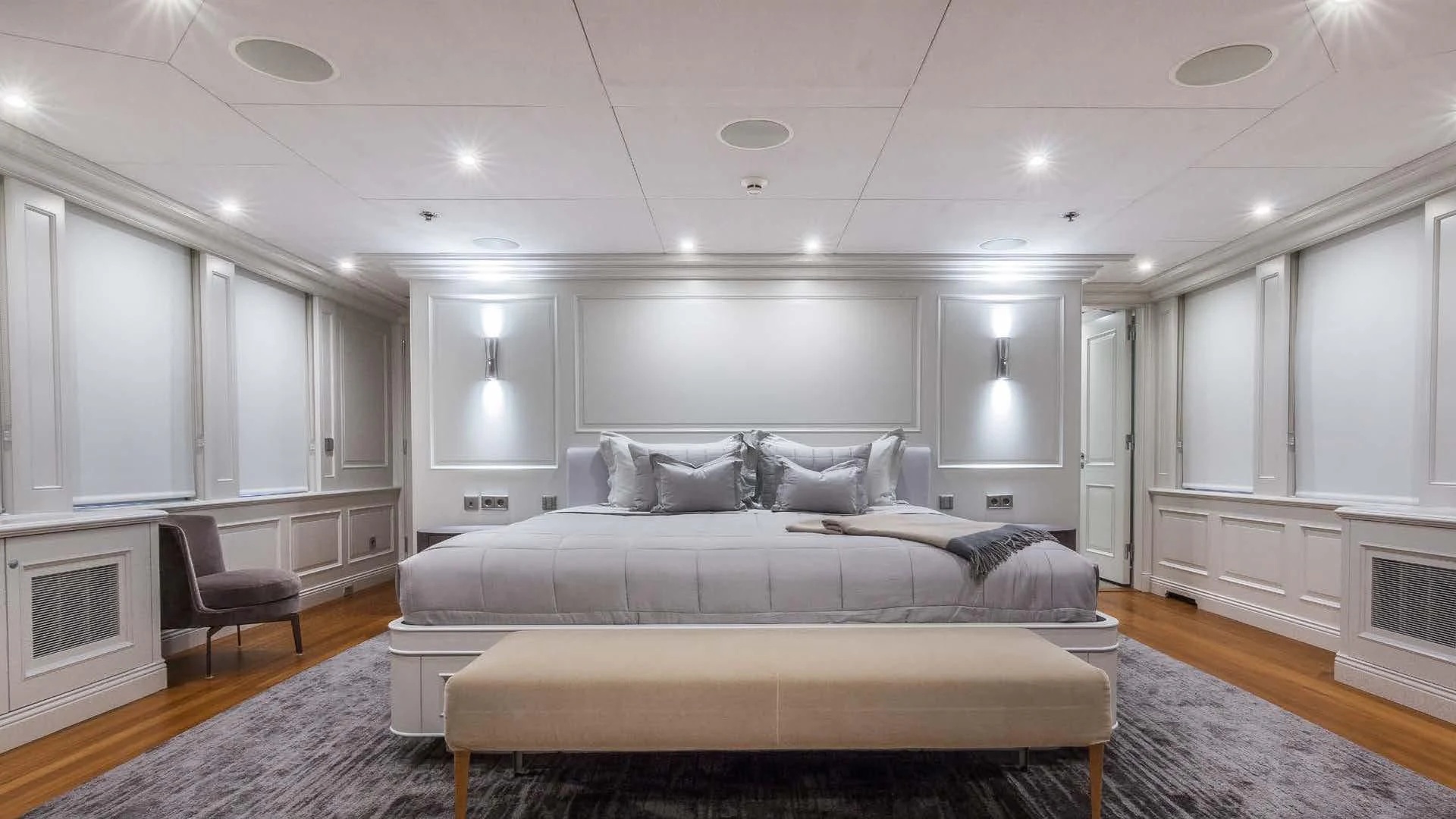

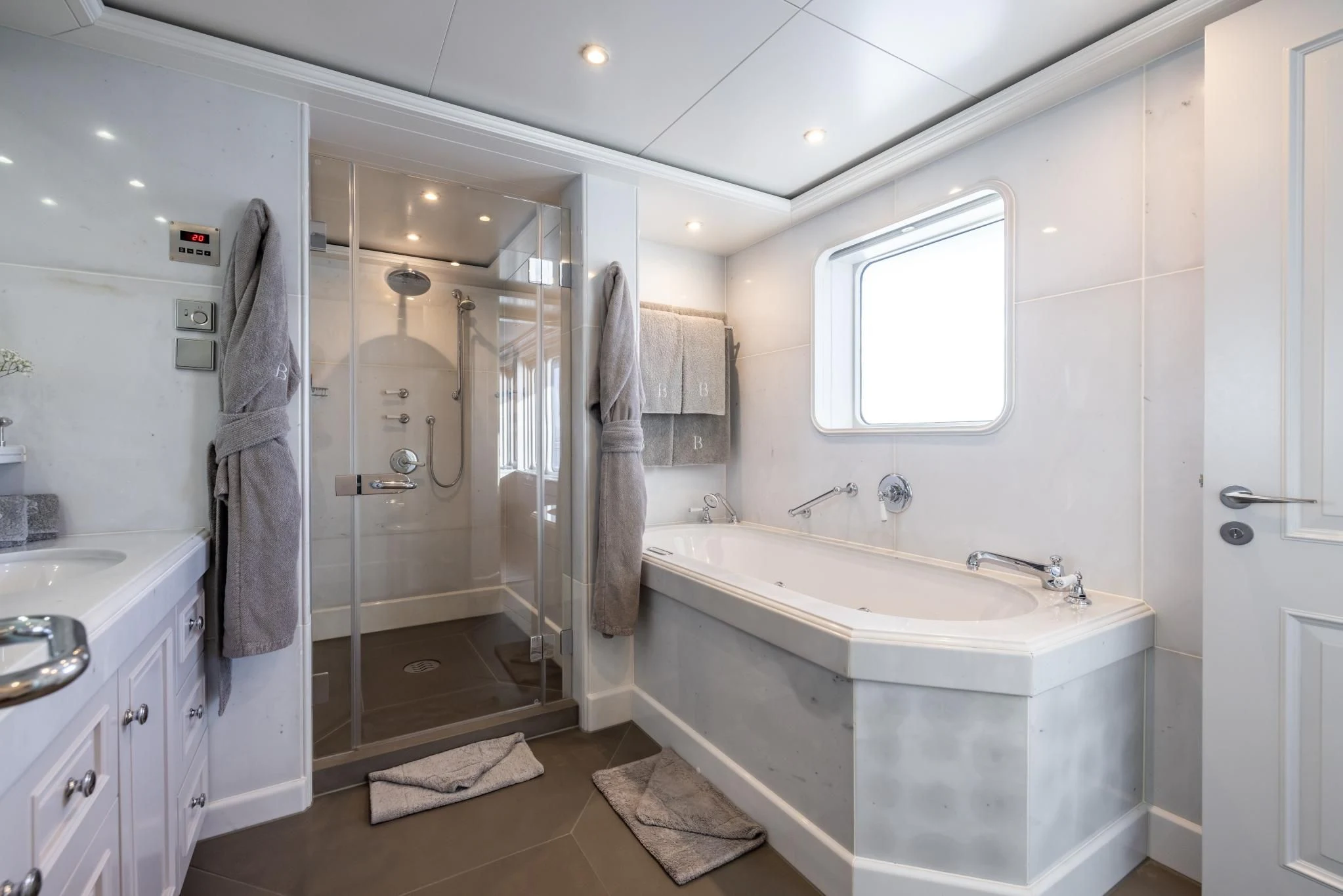

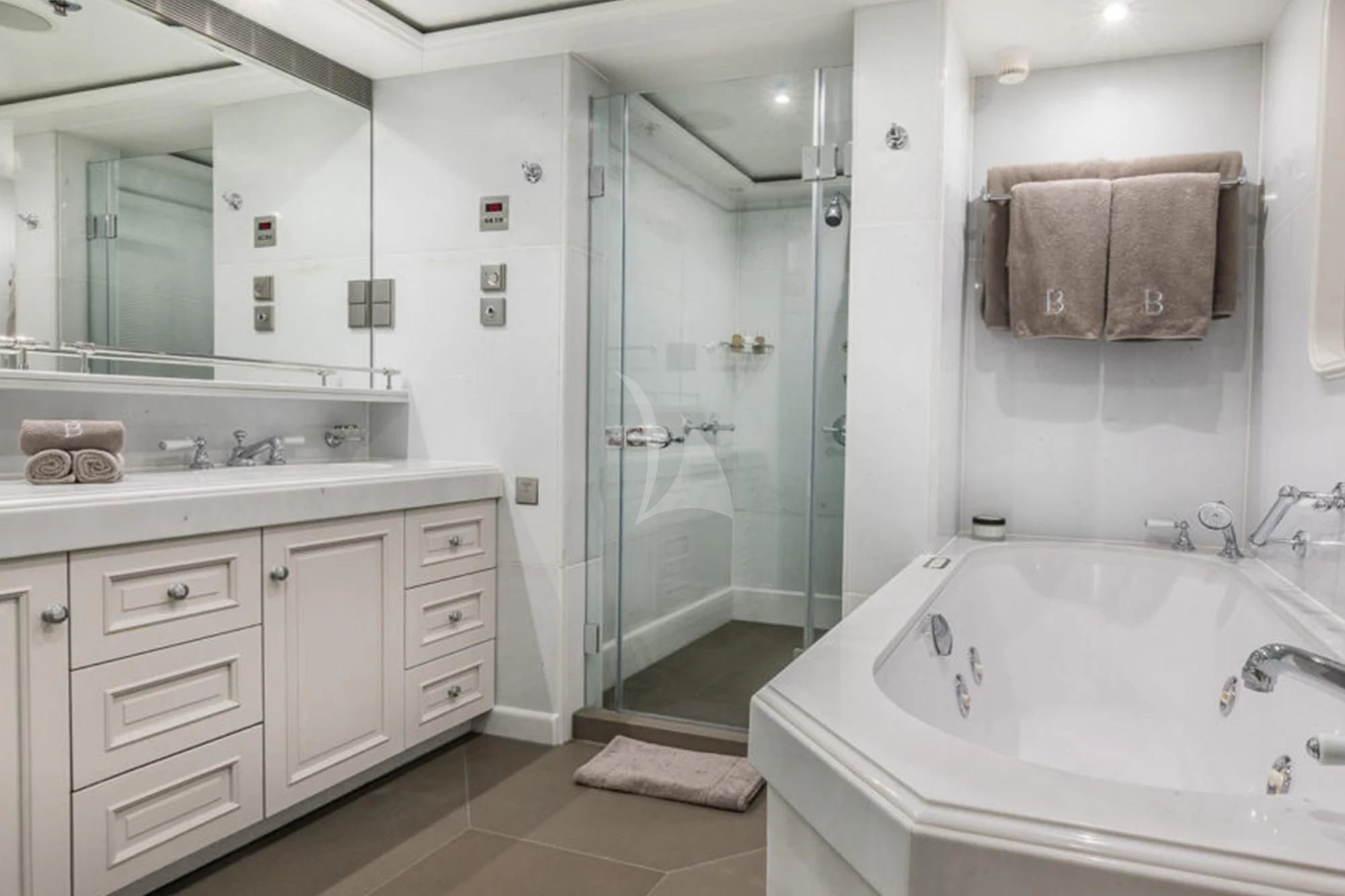

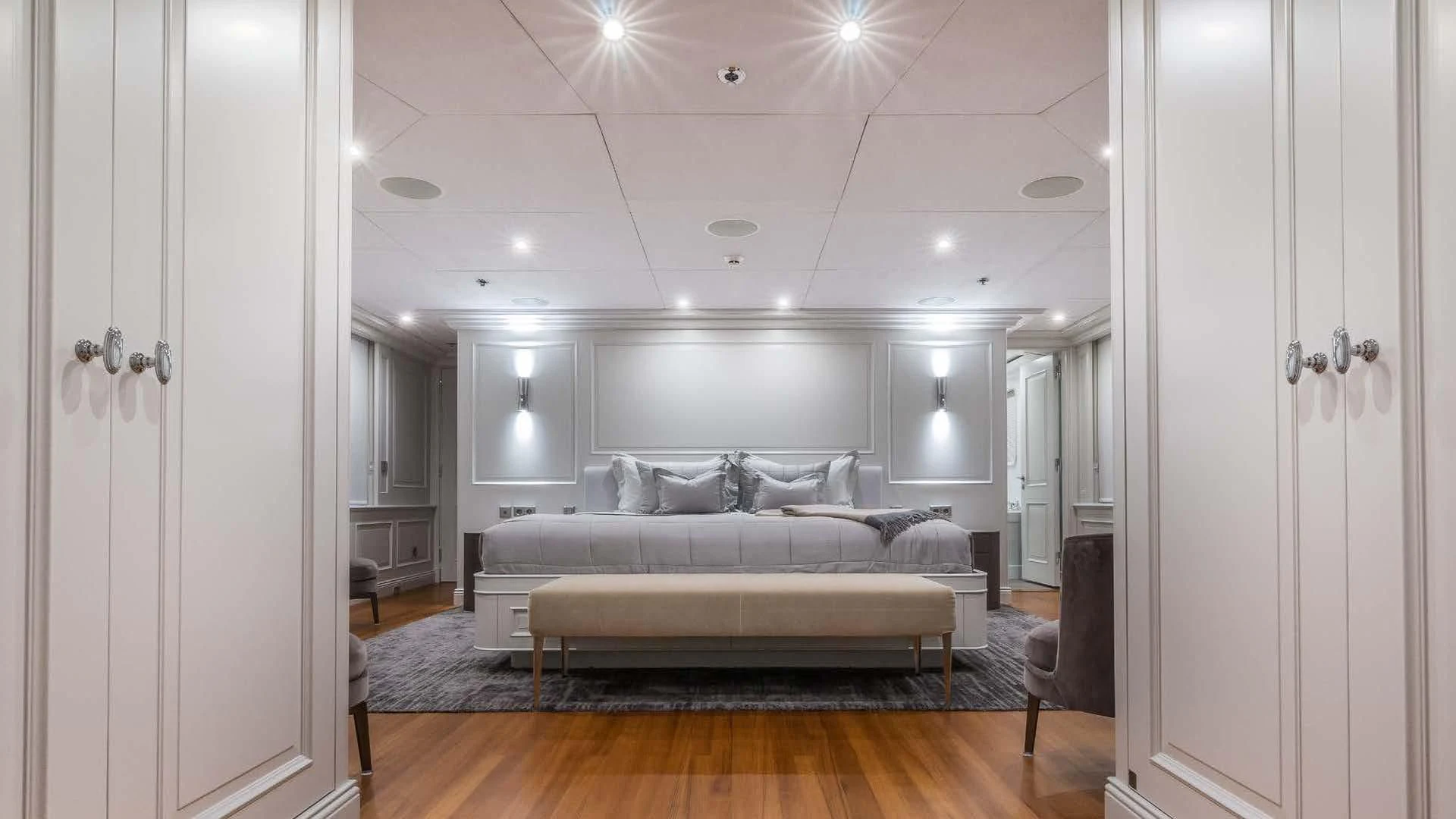

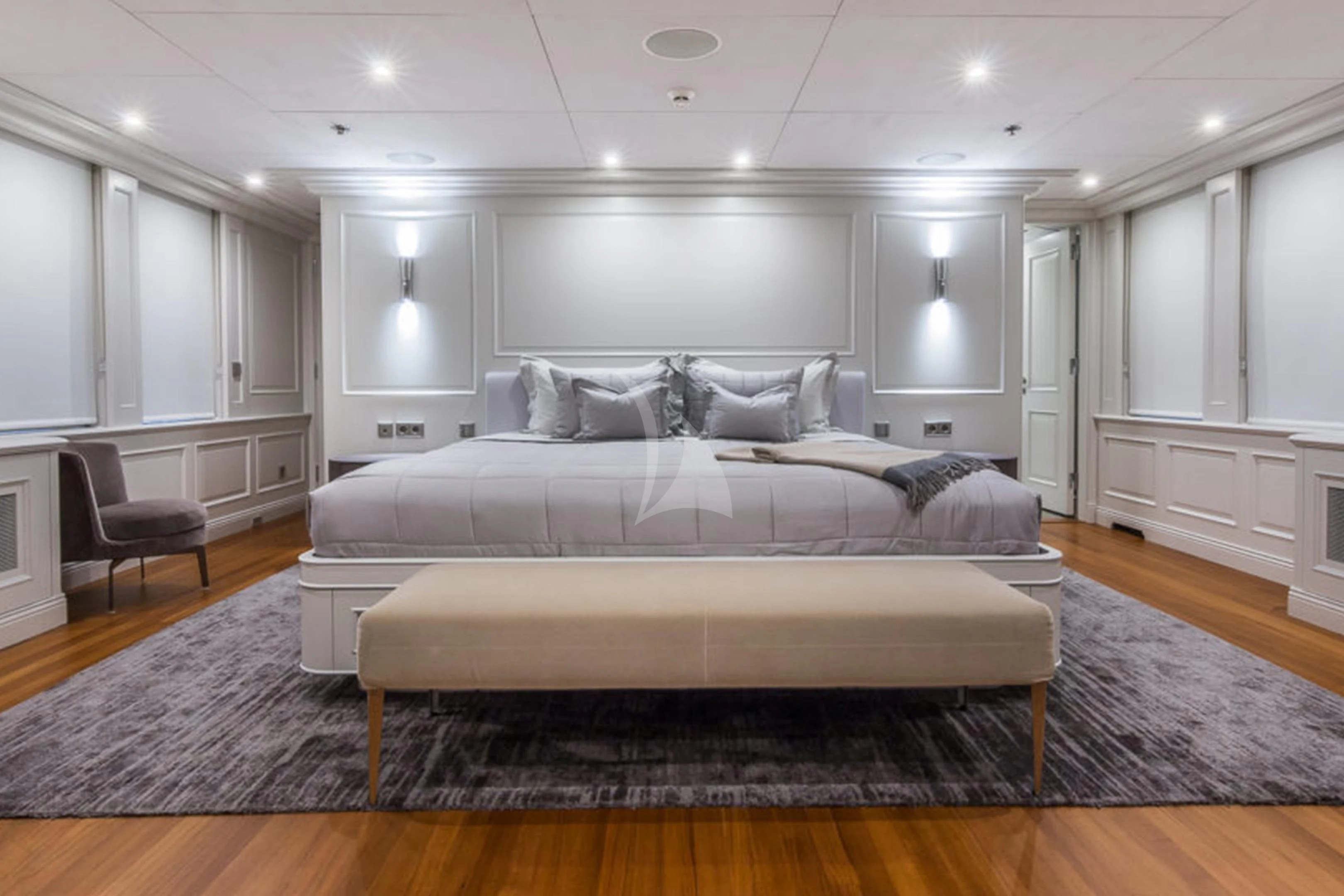

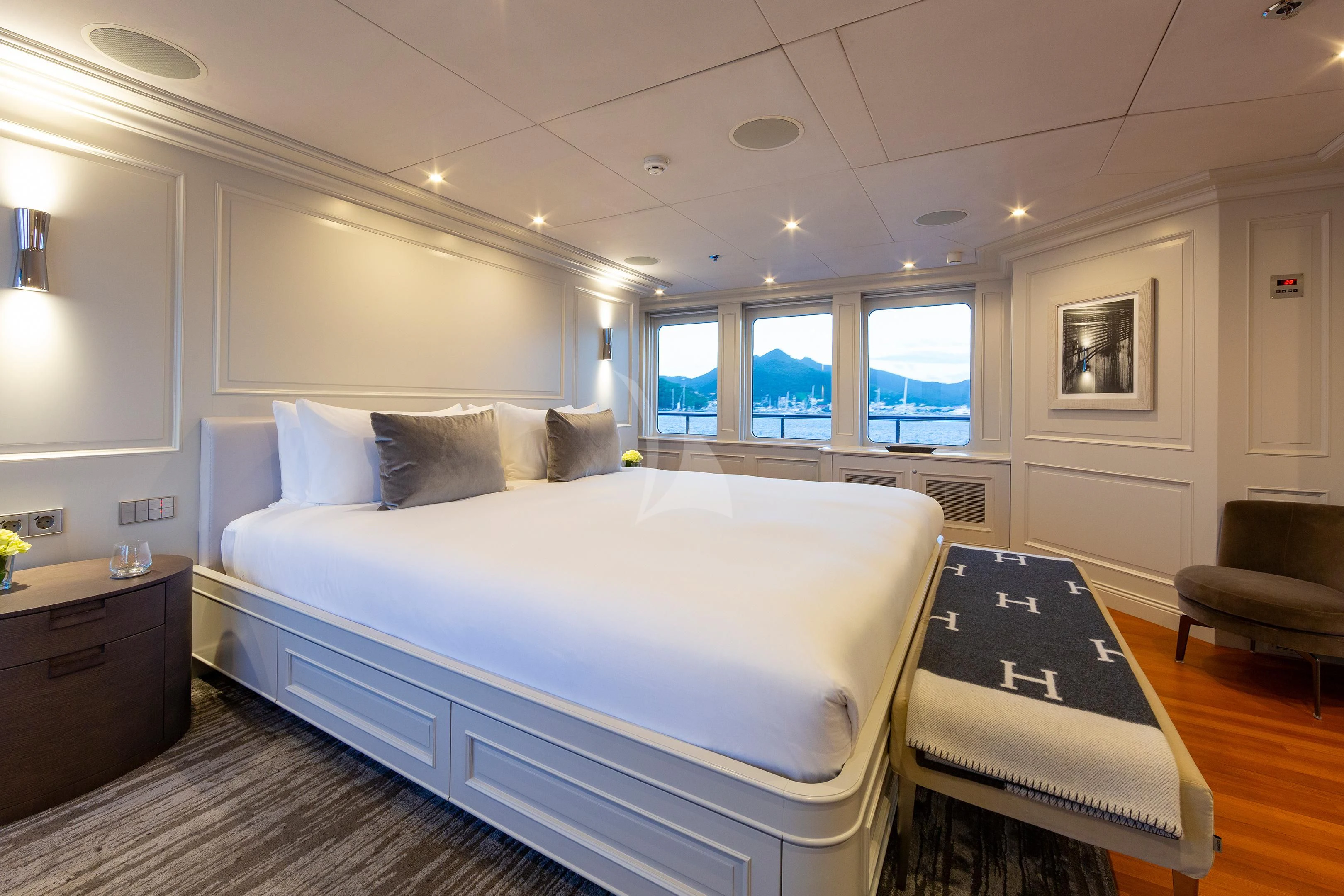

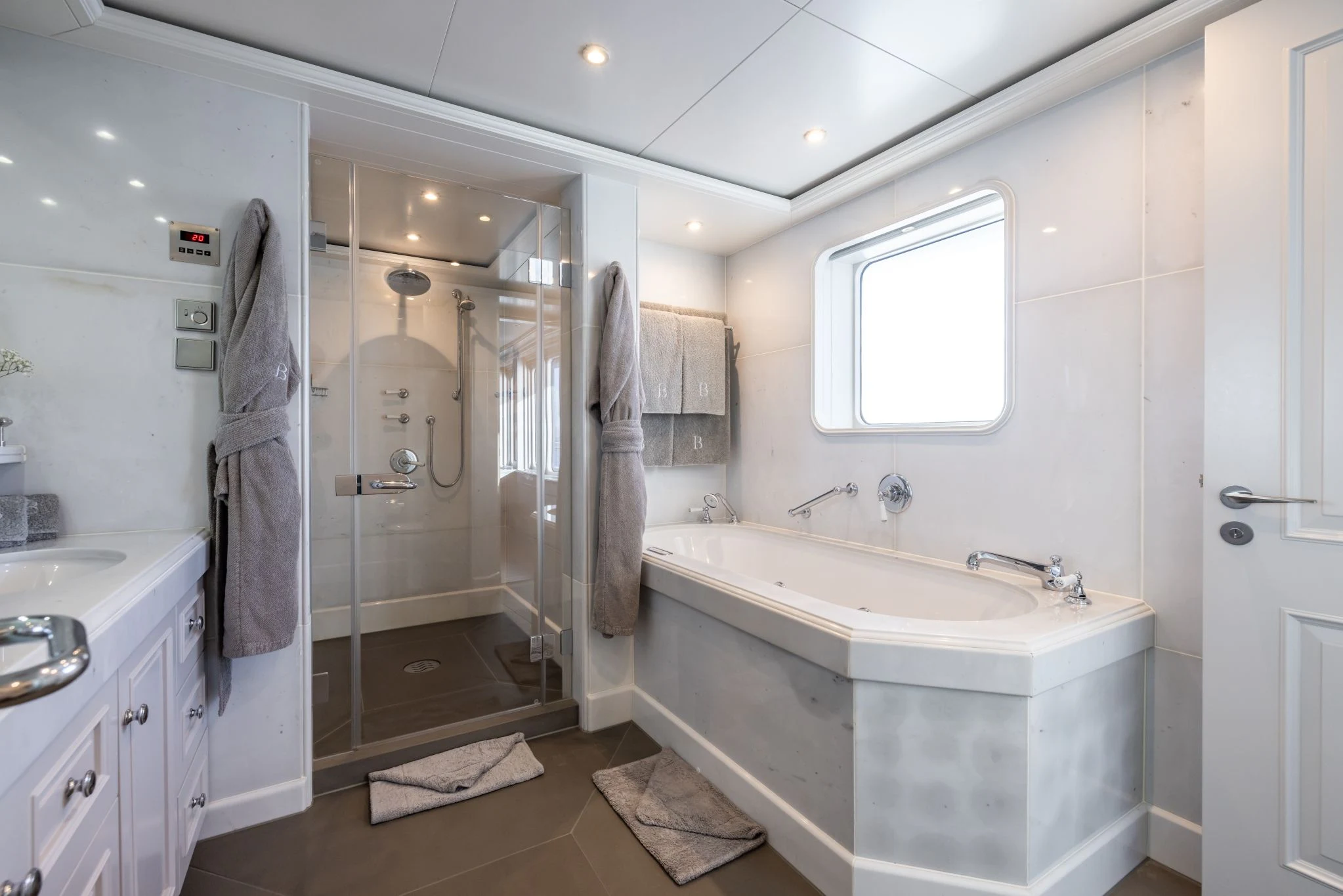

The owner’s suite is located on the bridge deck complete with XXL king size bed. A stunning bathroom in Bianco pie and Gaya grey marble features a bathtub, separate toilet, shower, and floor heating. Apple & Sonos controls for all AV systems in all rooms true out the yacht.

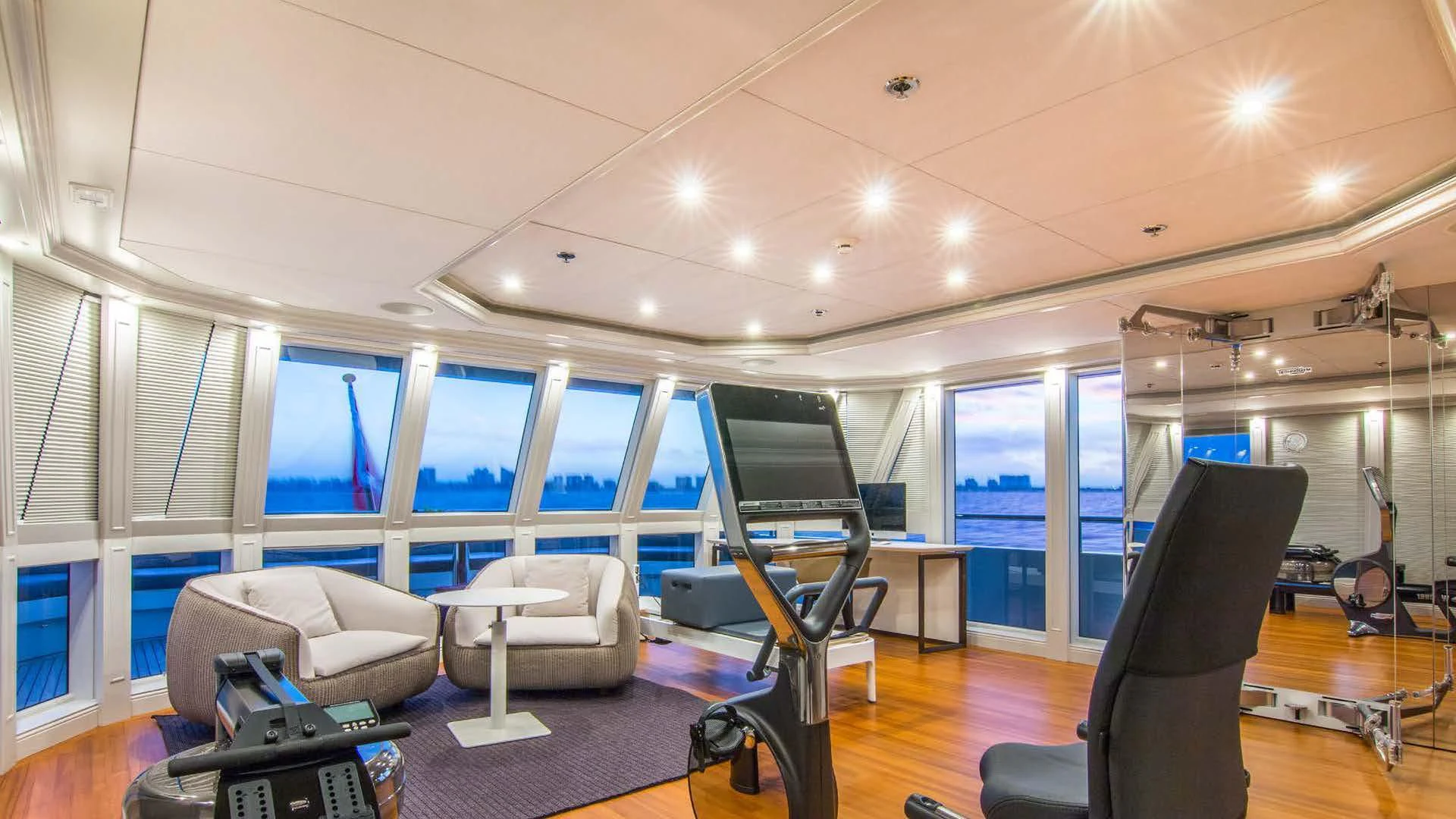

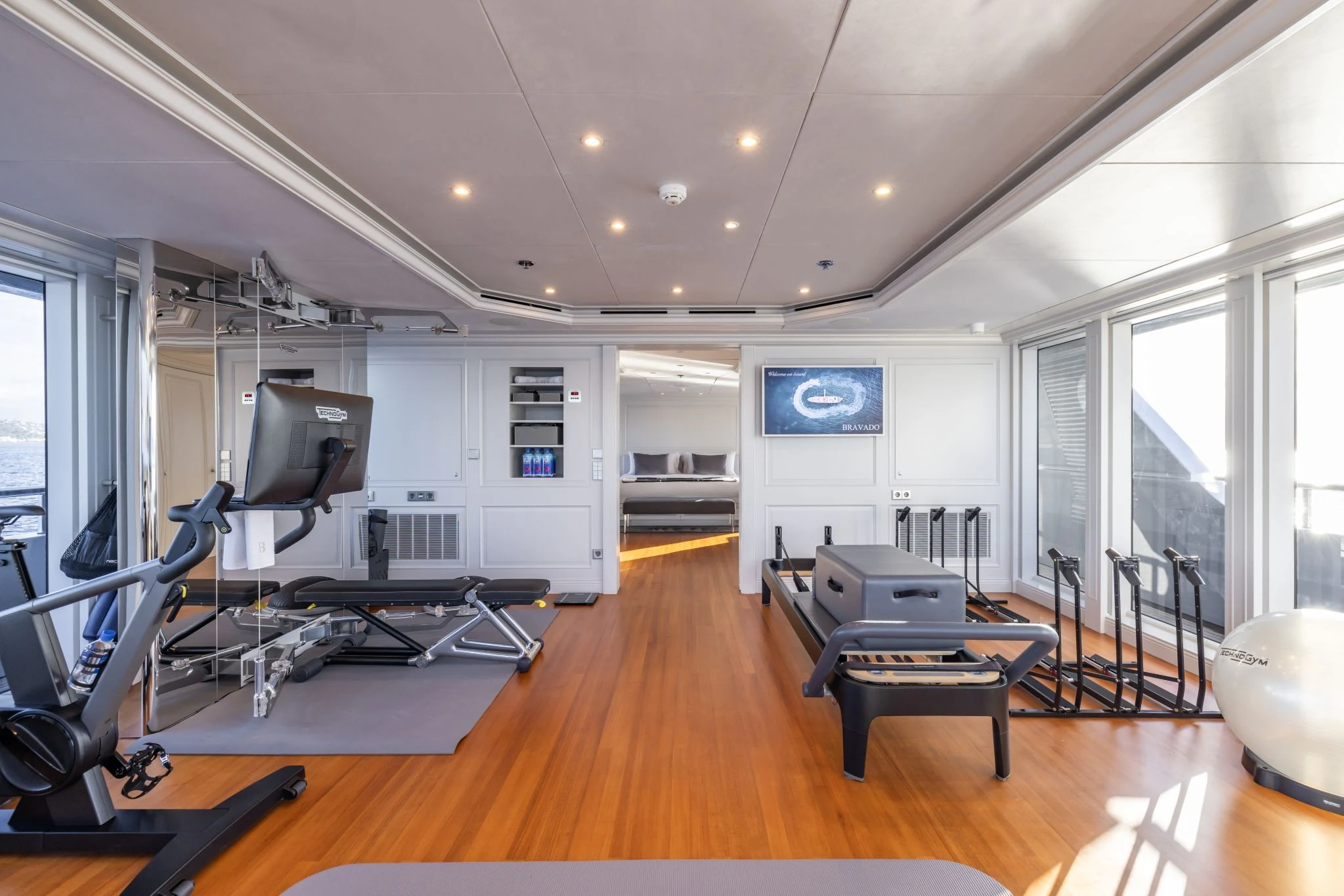

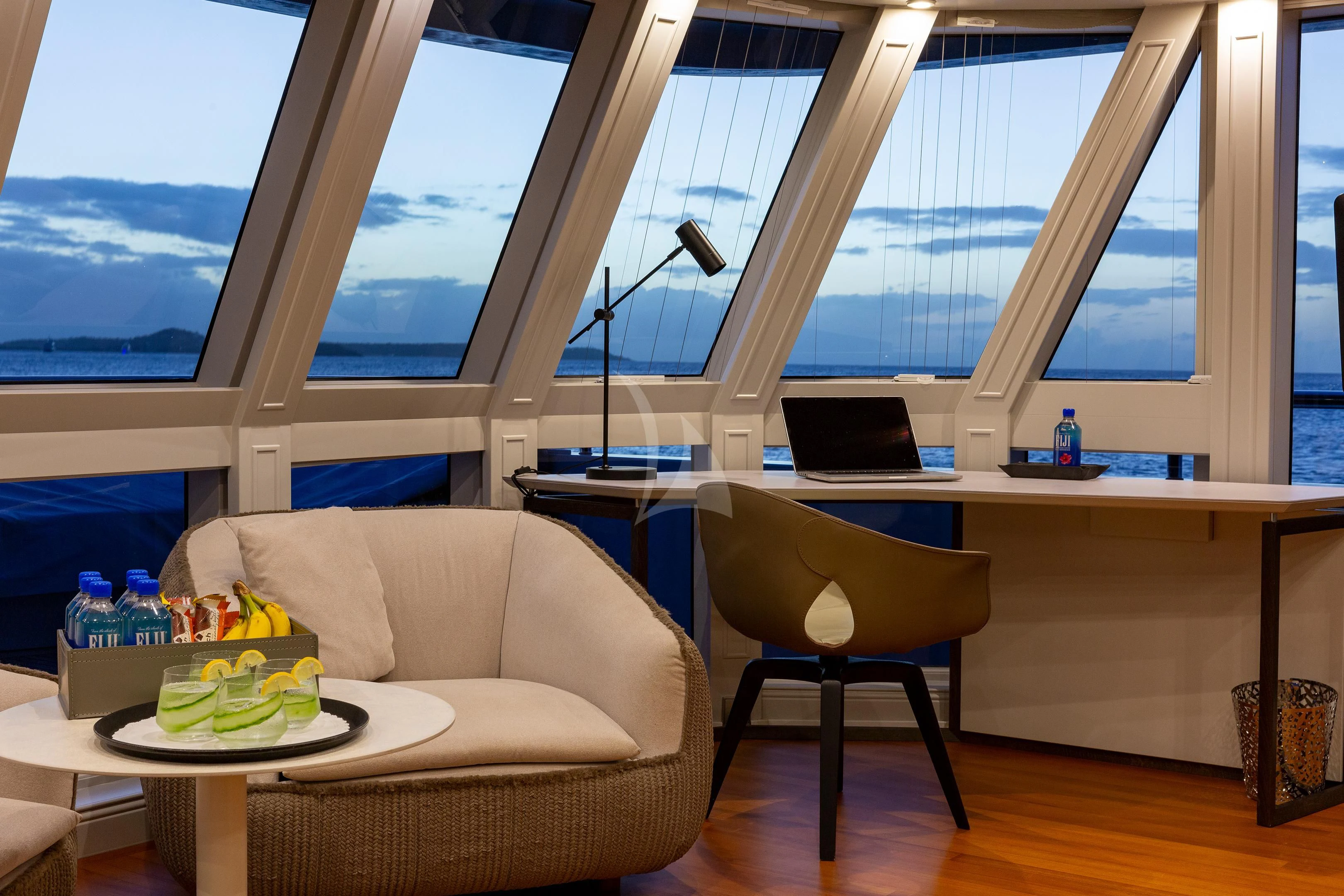

Gym & Owner's office

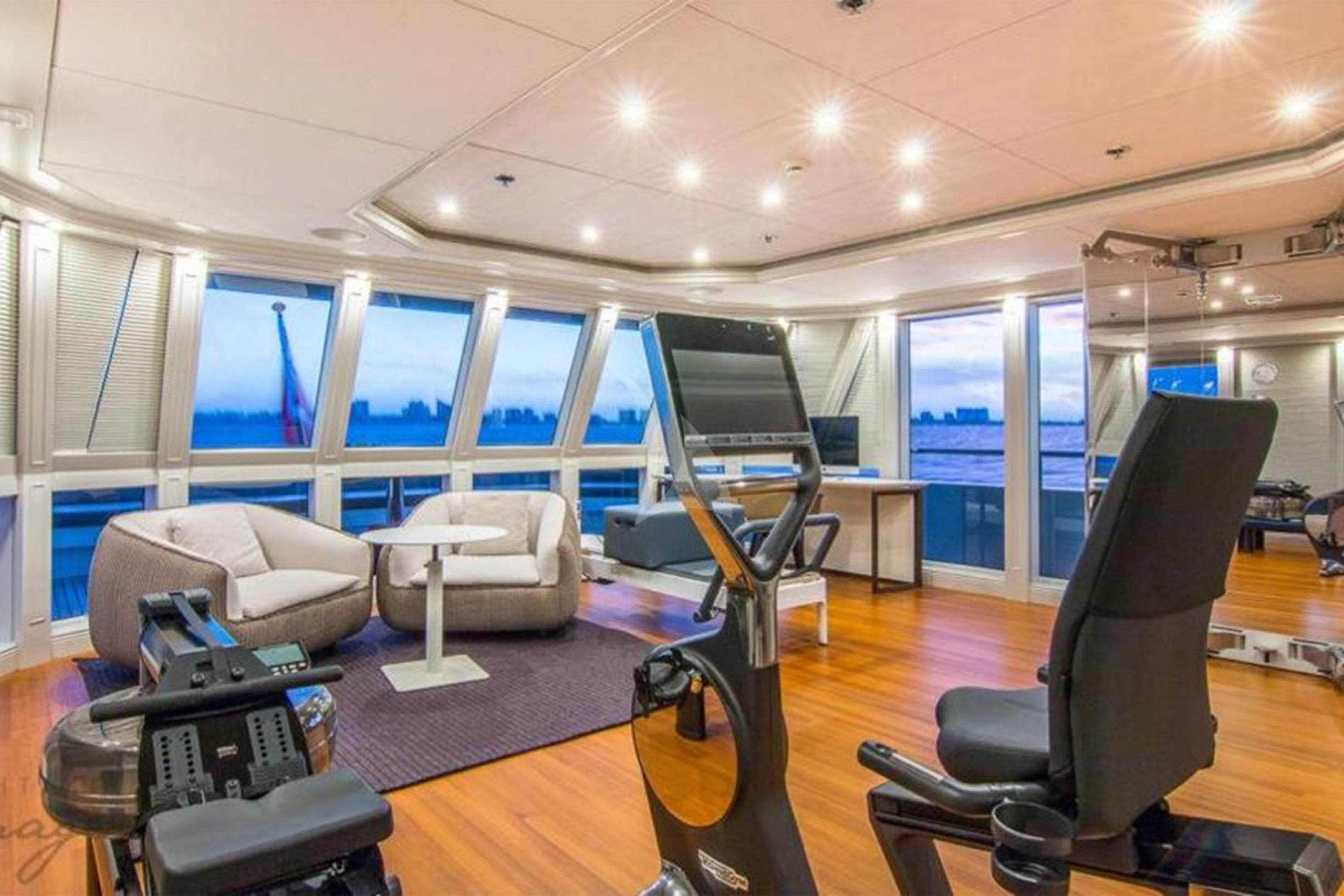

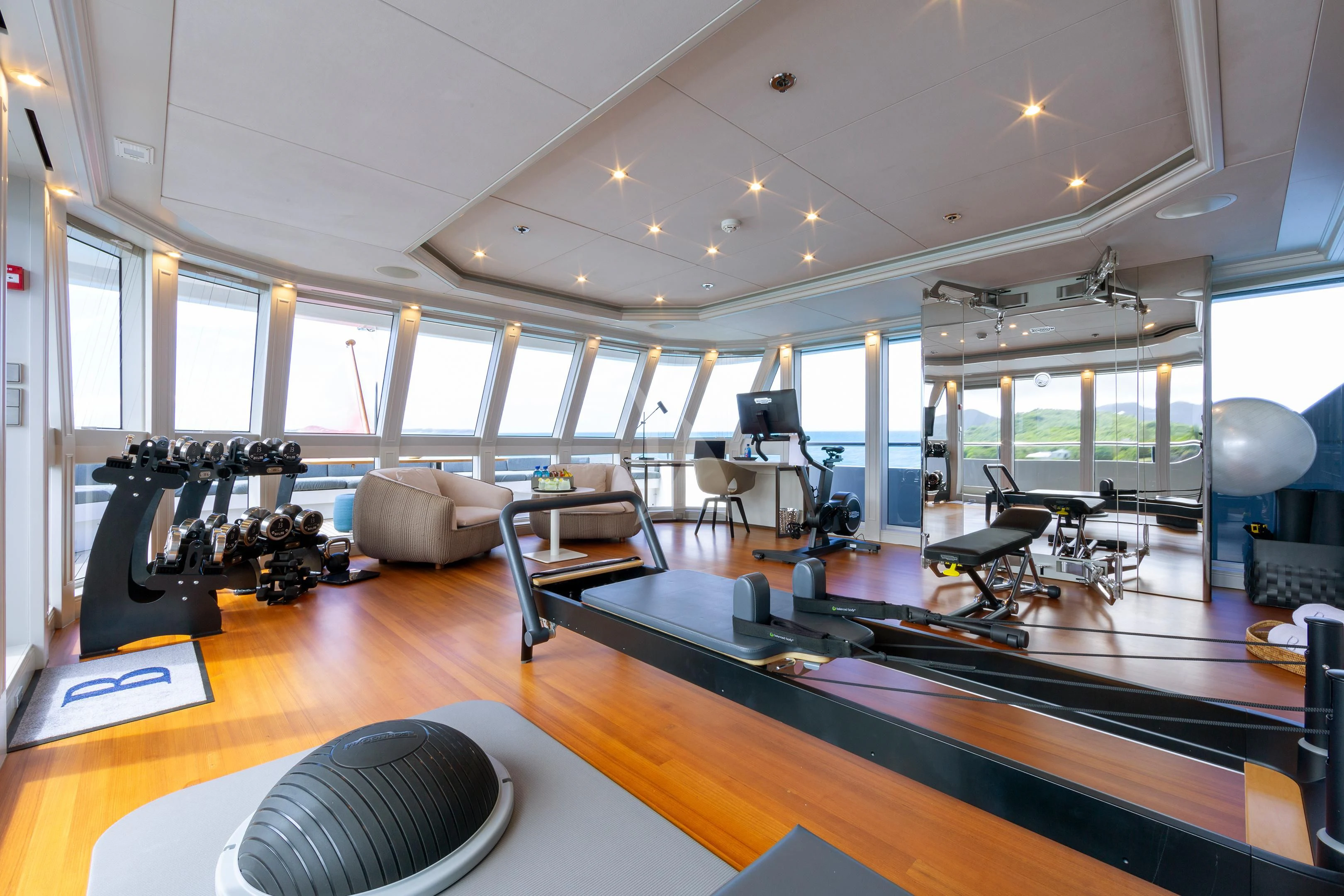

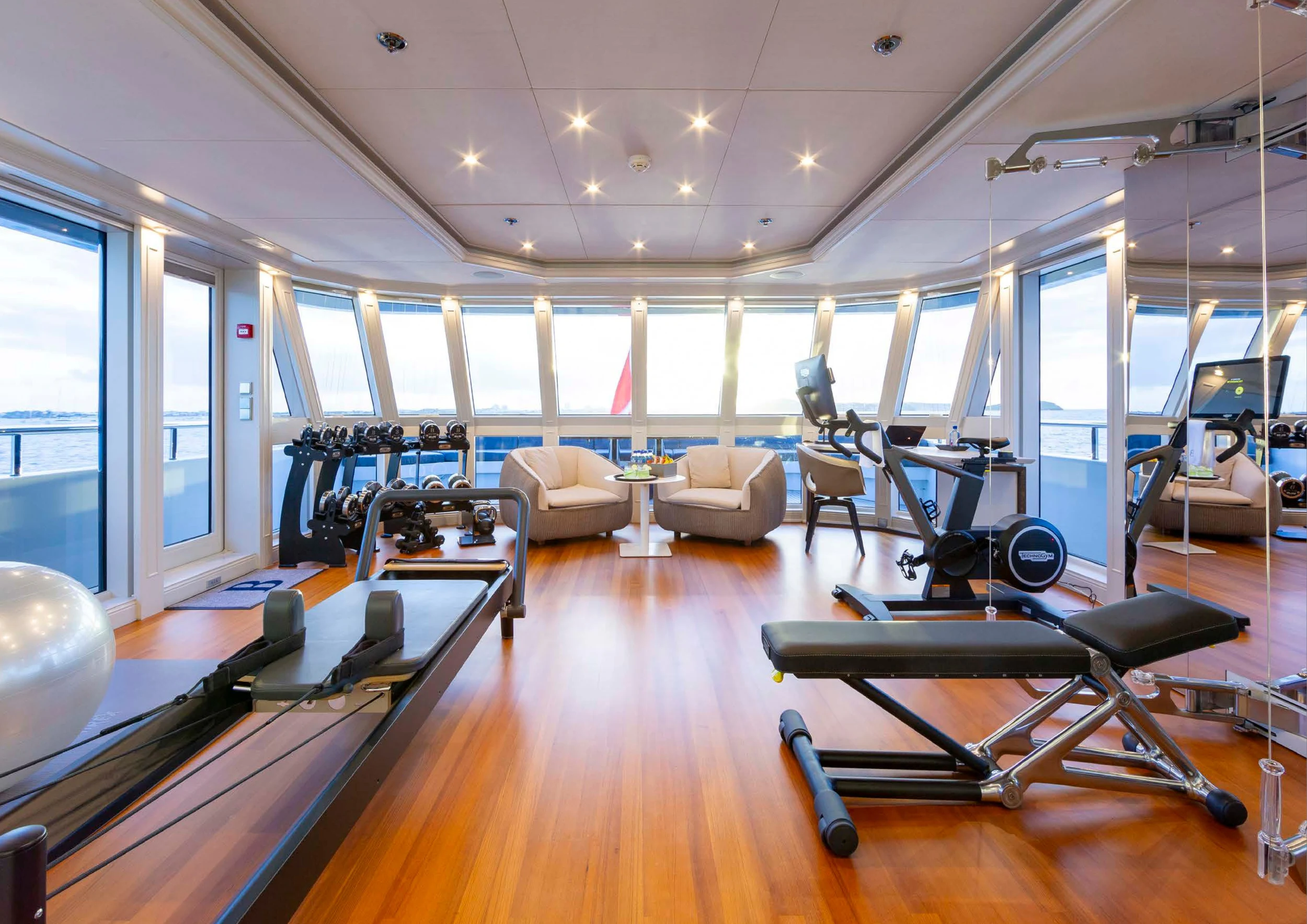

A very spacious gym enclosed to the owner’s stateroom includes a rowing machine, exercise bike, Kenesis fitness wall and a Pilatus bed. A custom-made leather desk with sea view and comfortable office chair is used as owners’ office. Apple and Sonos controls for all AV systems in all rooms true out the yacht.

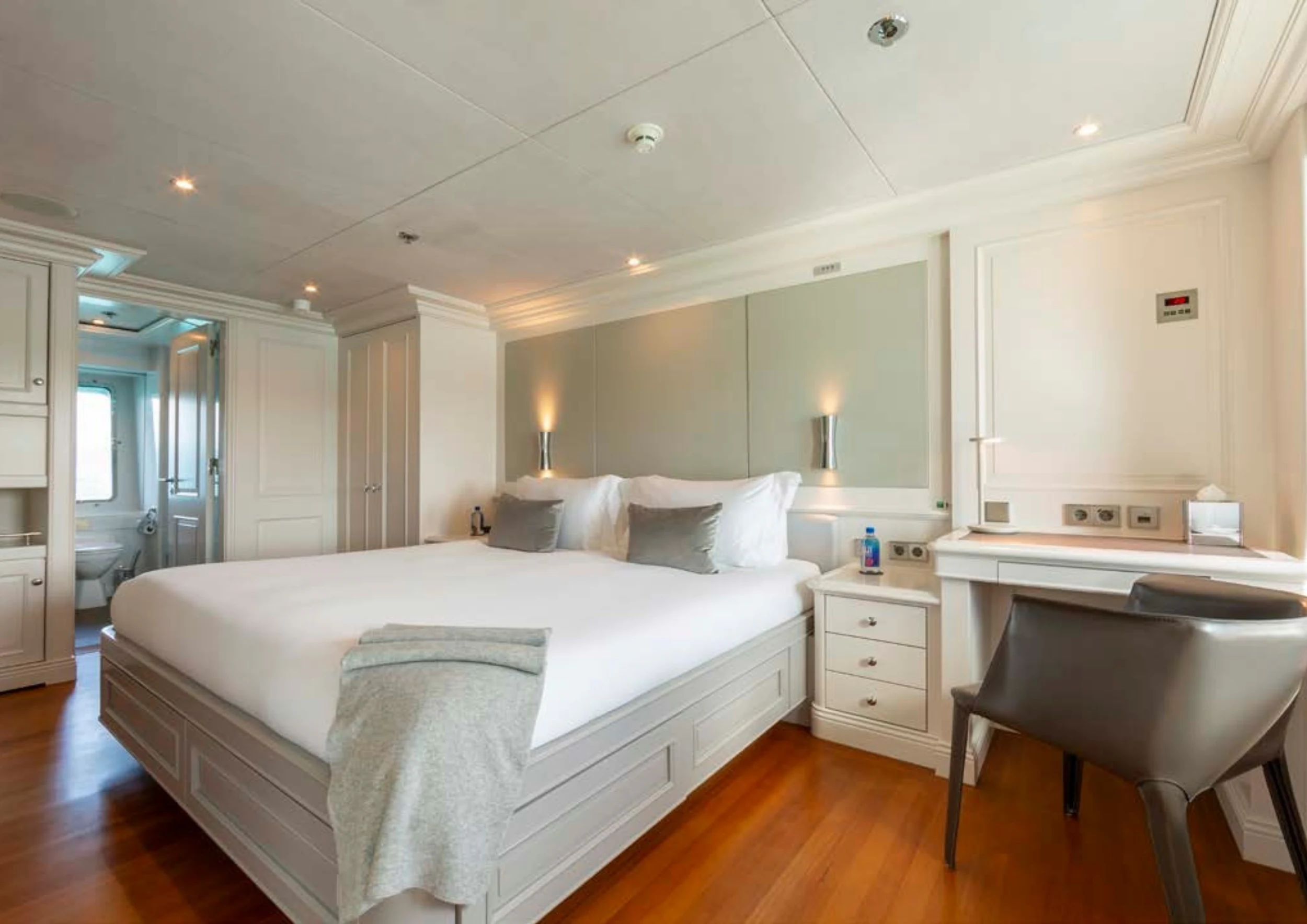

VIP

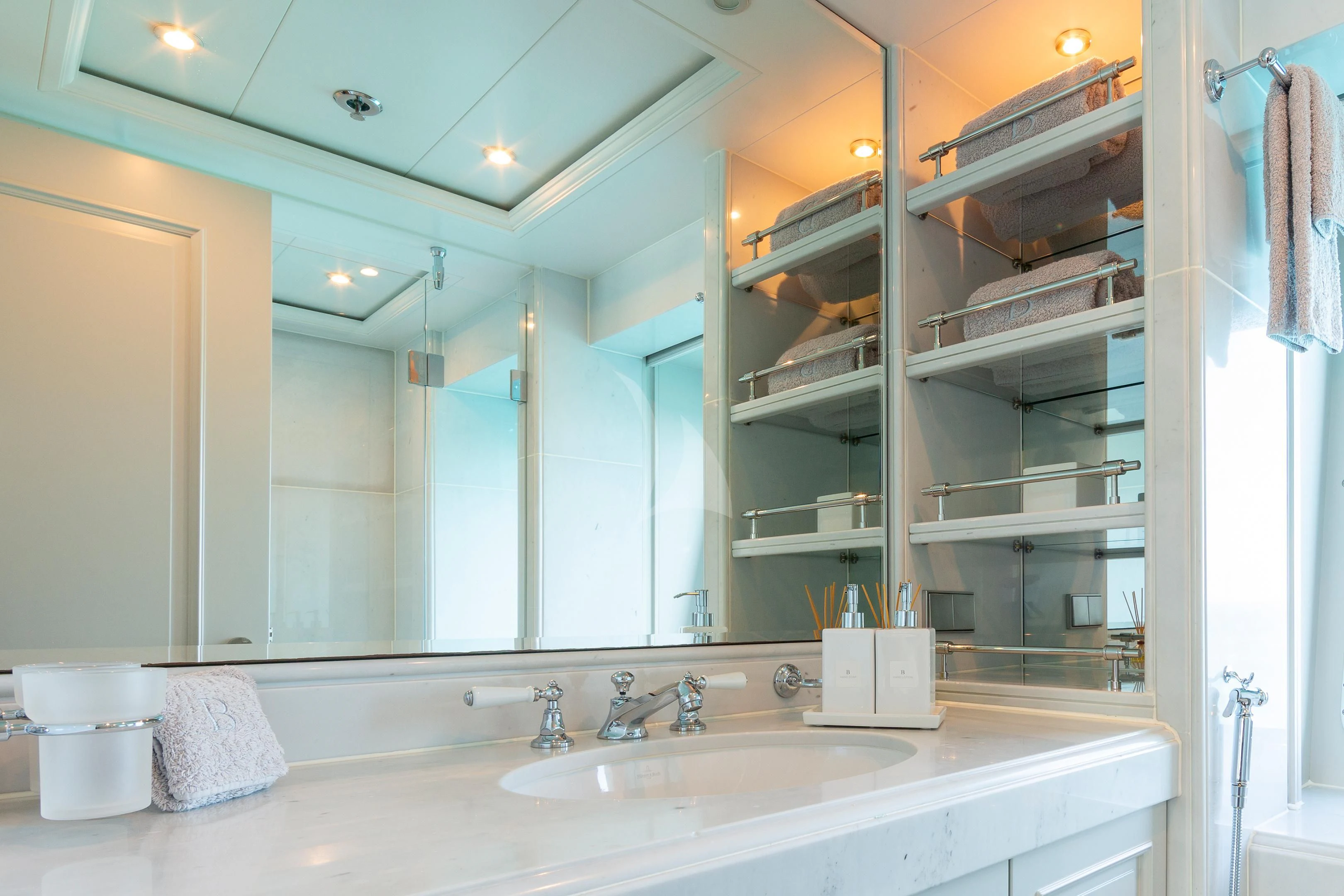

The main deck boasts a full beam VIP cabin with en suite bathroom in Bianco pie and Gaya grey marble. Comfortable shower and marble sink top is giving this room a very luxury feel. Apple and Sonos controls for allAV systems in all rooms true out the yacht.

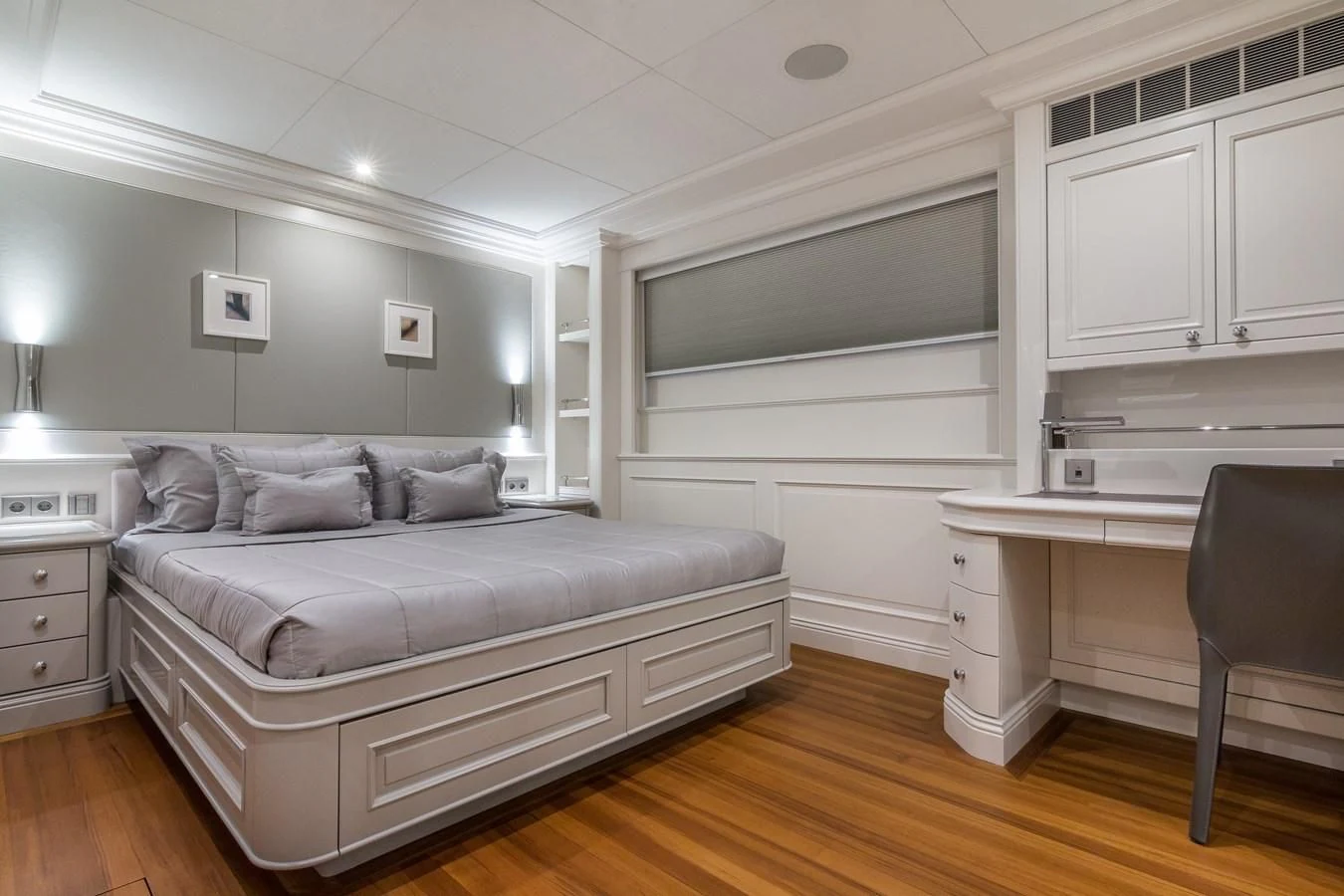

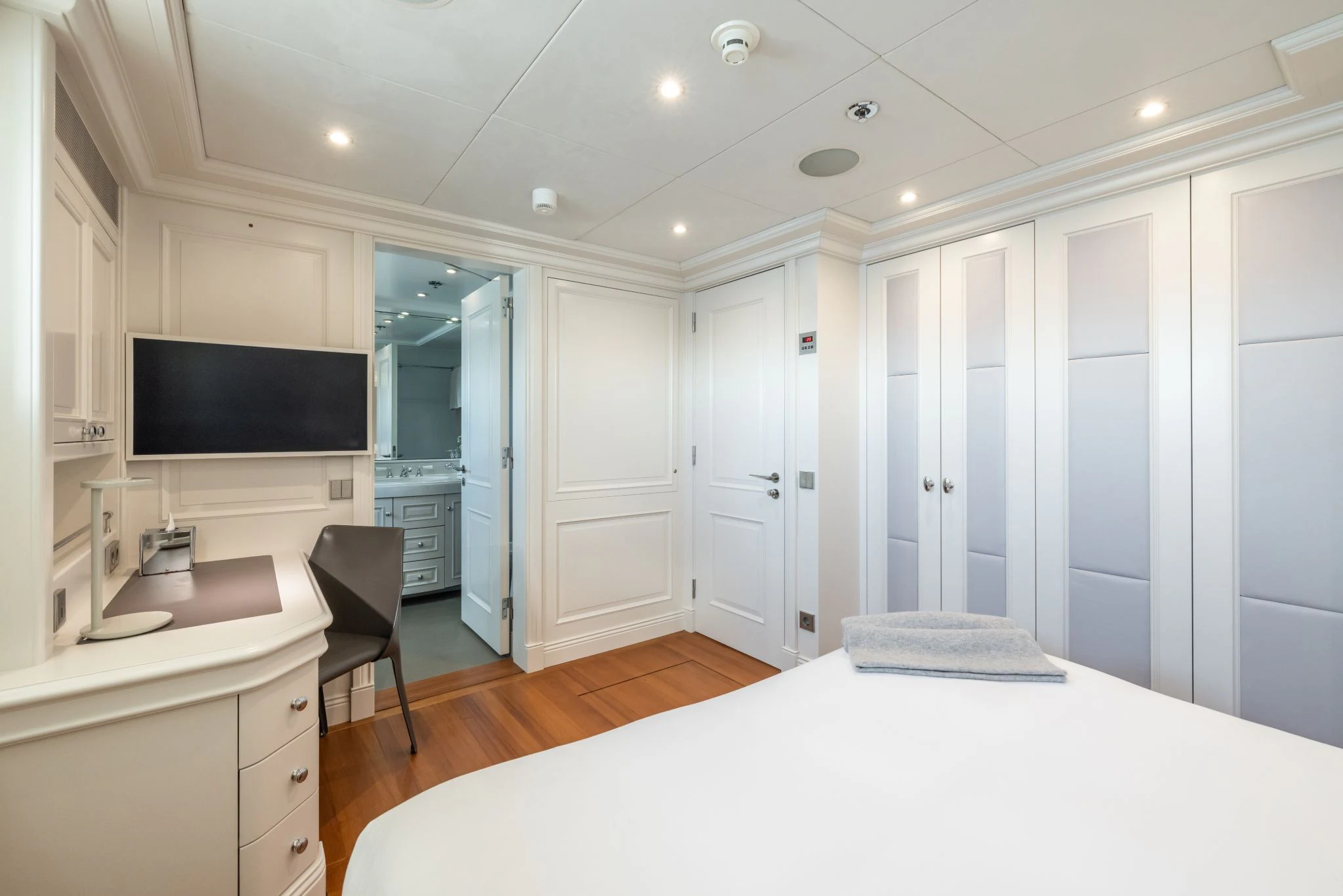

Guest

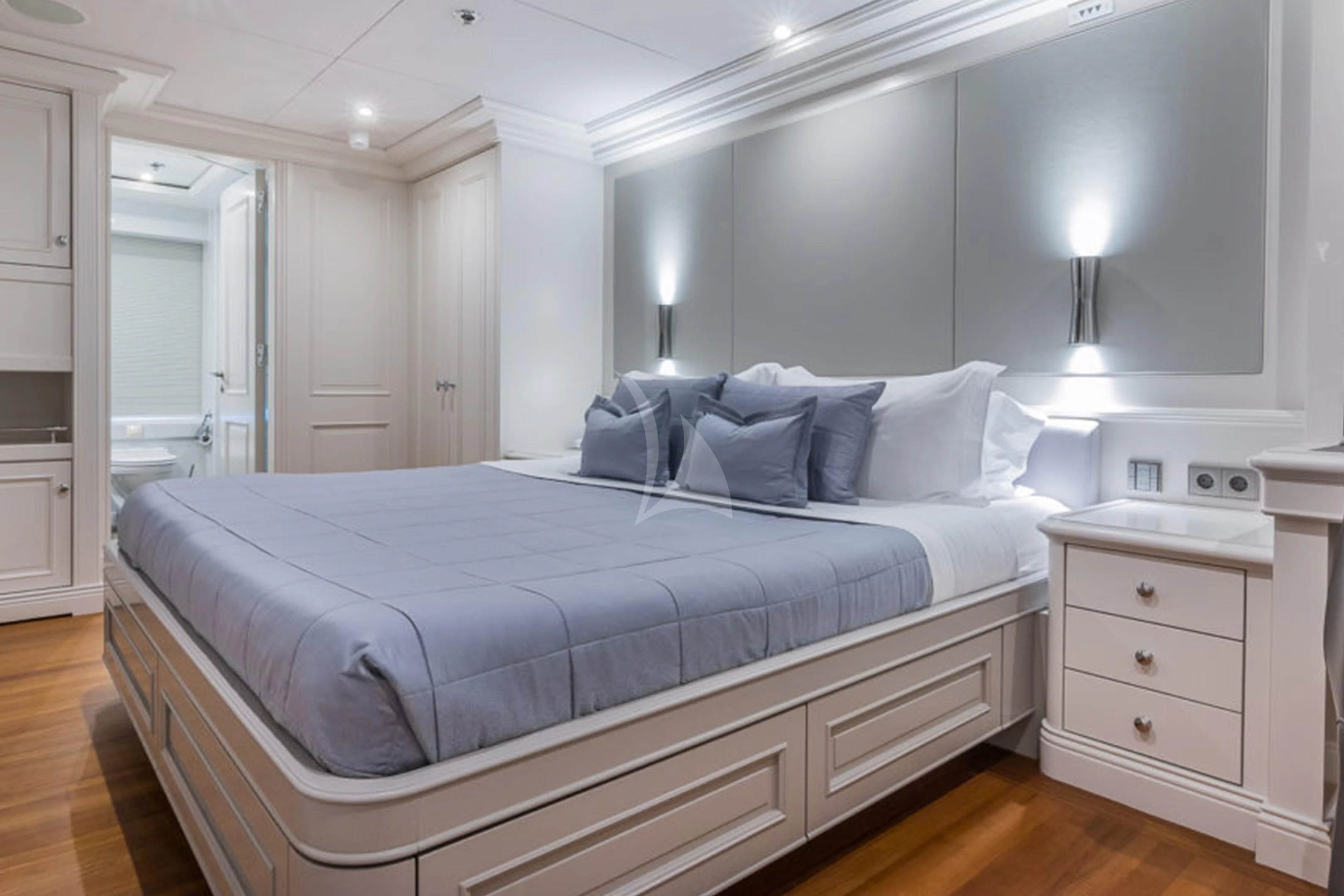

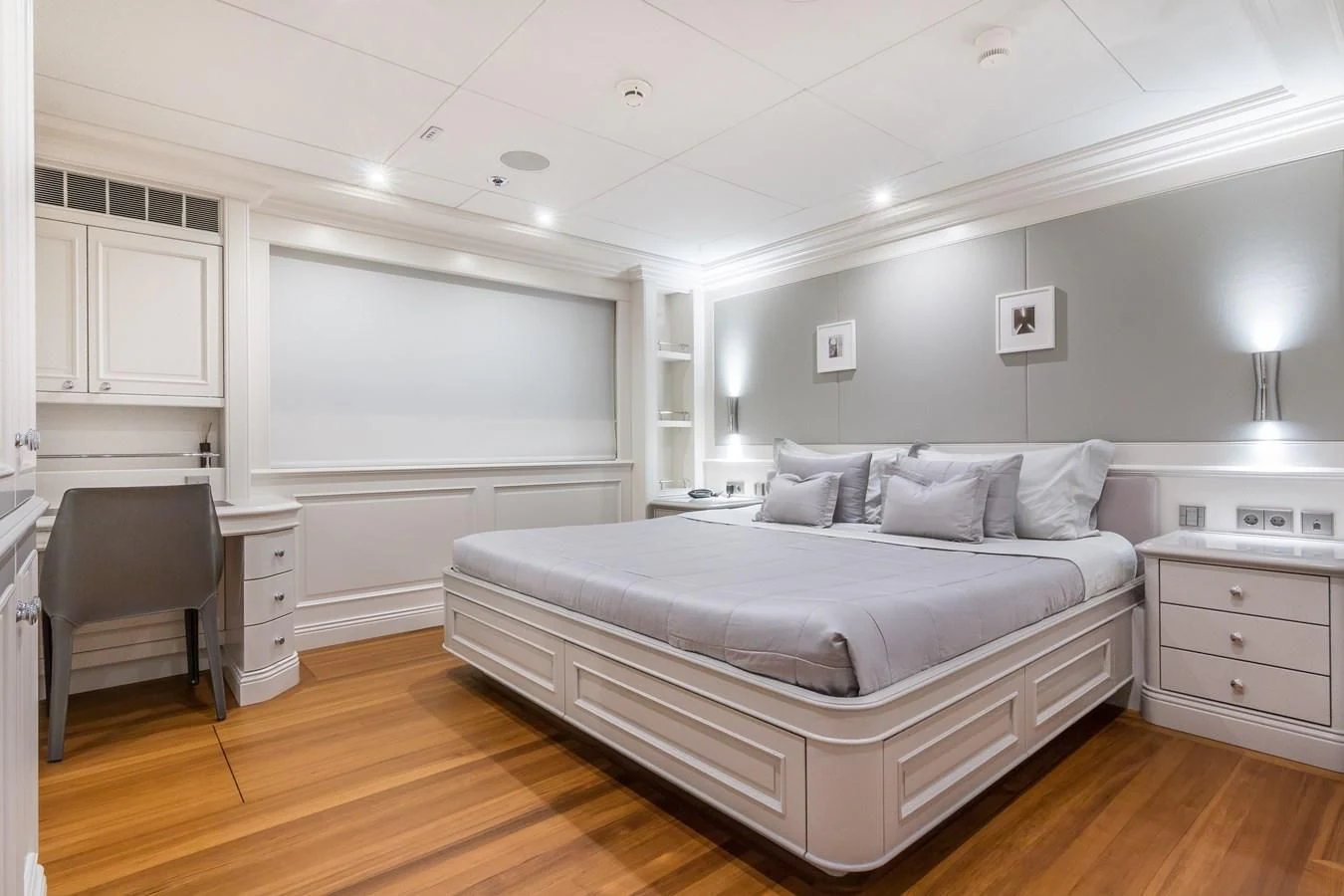

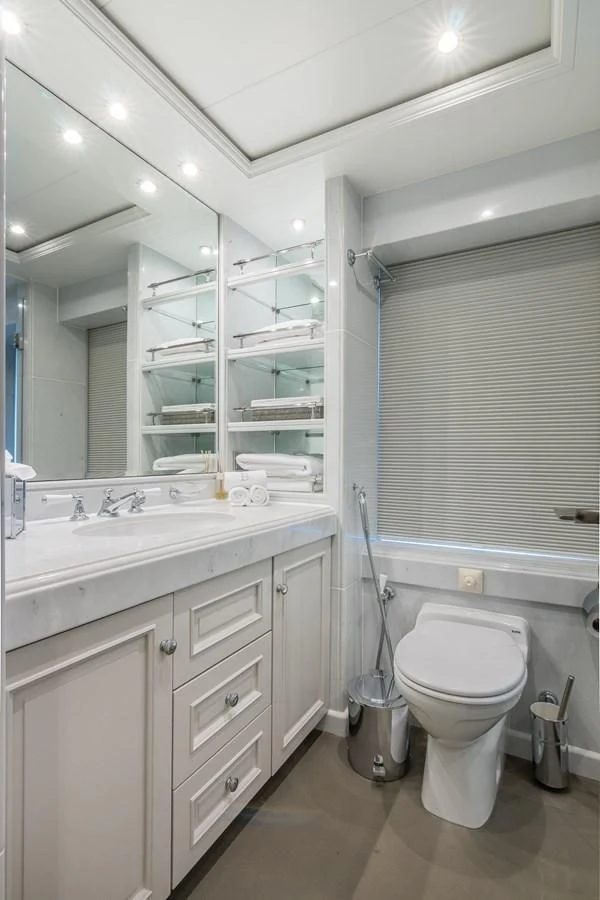

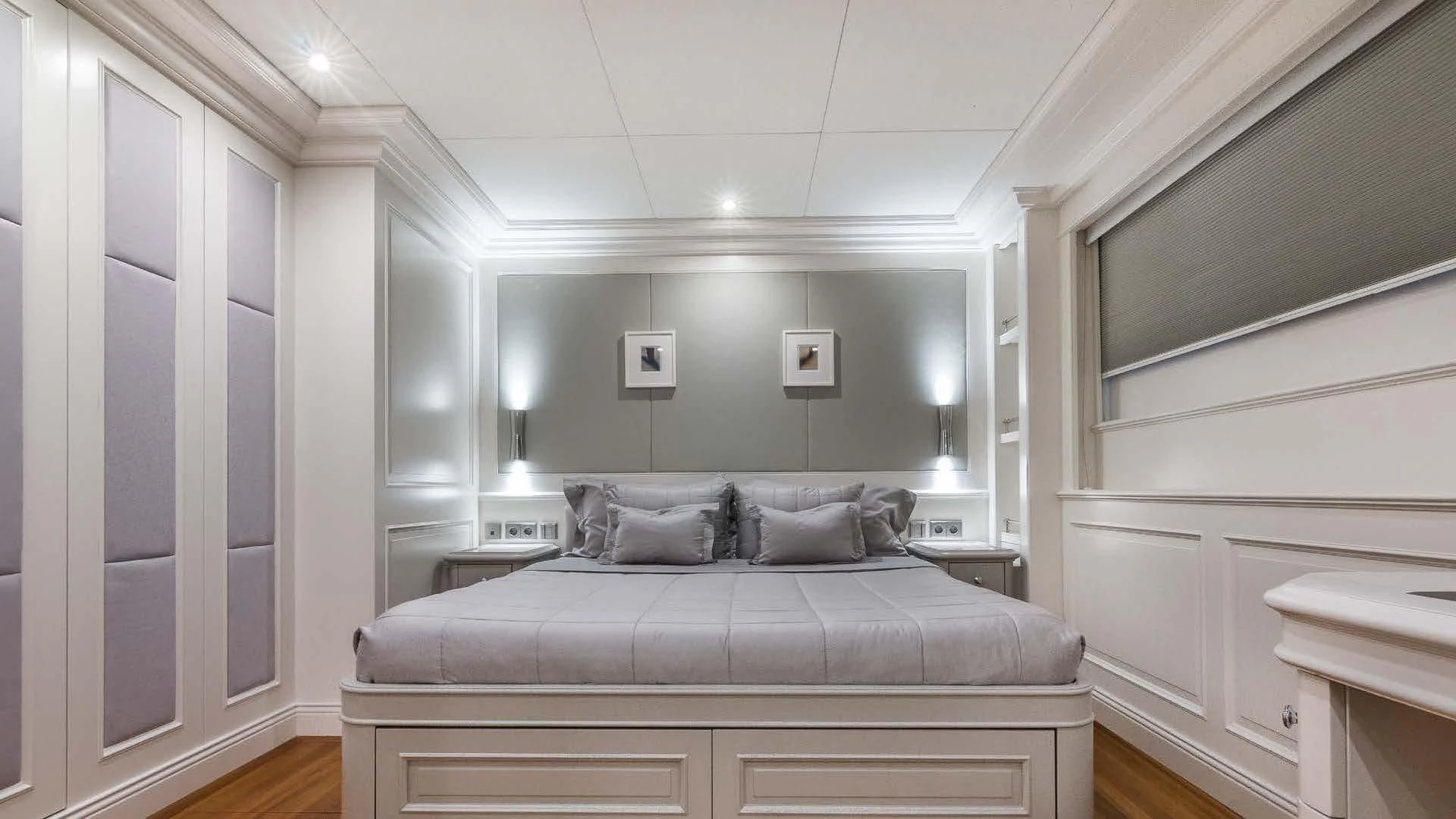

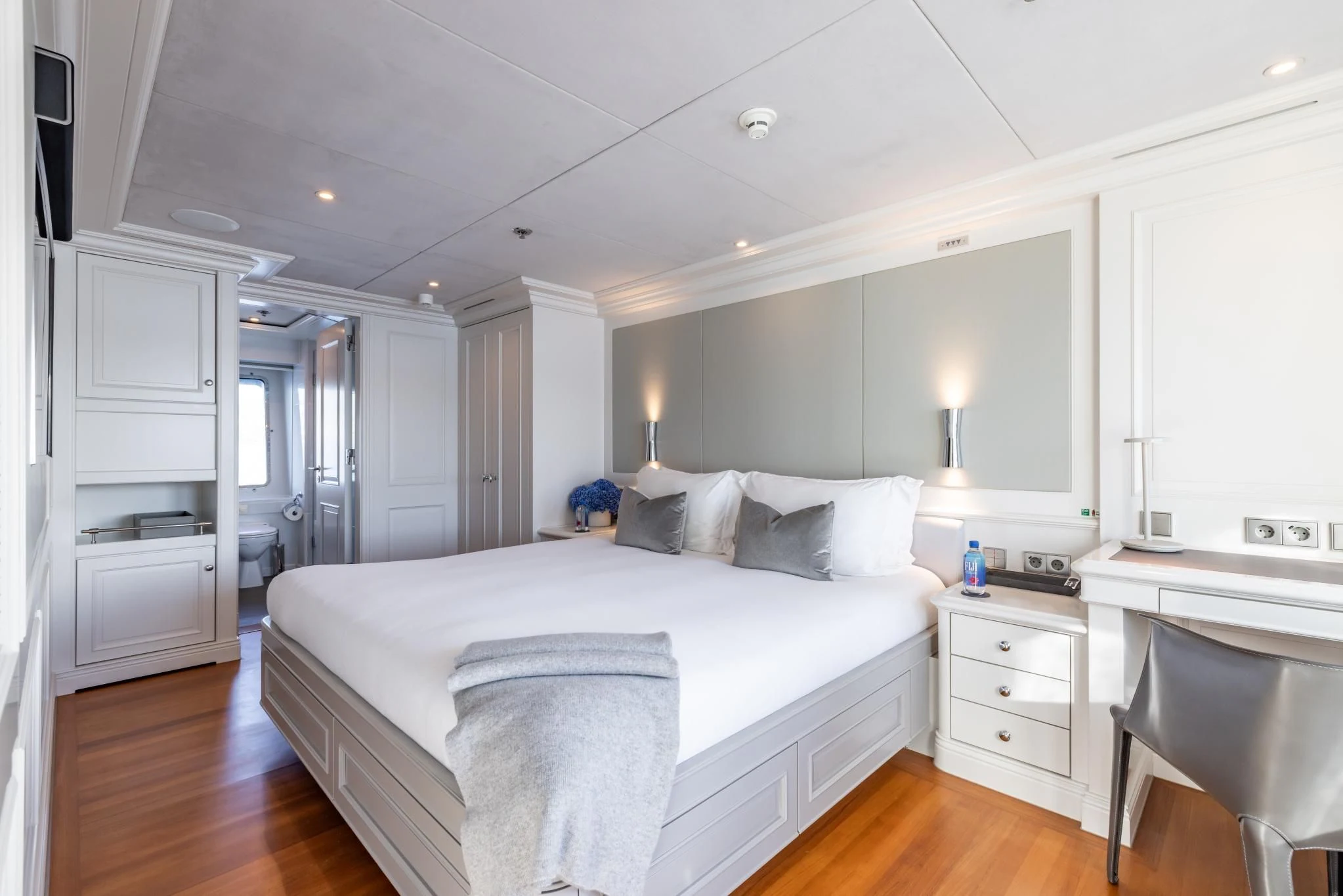

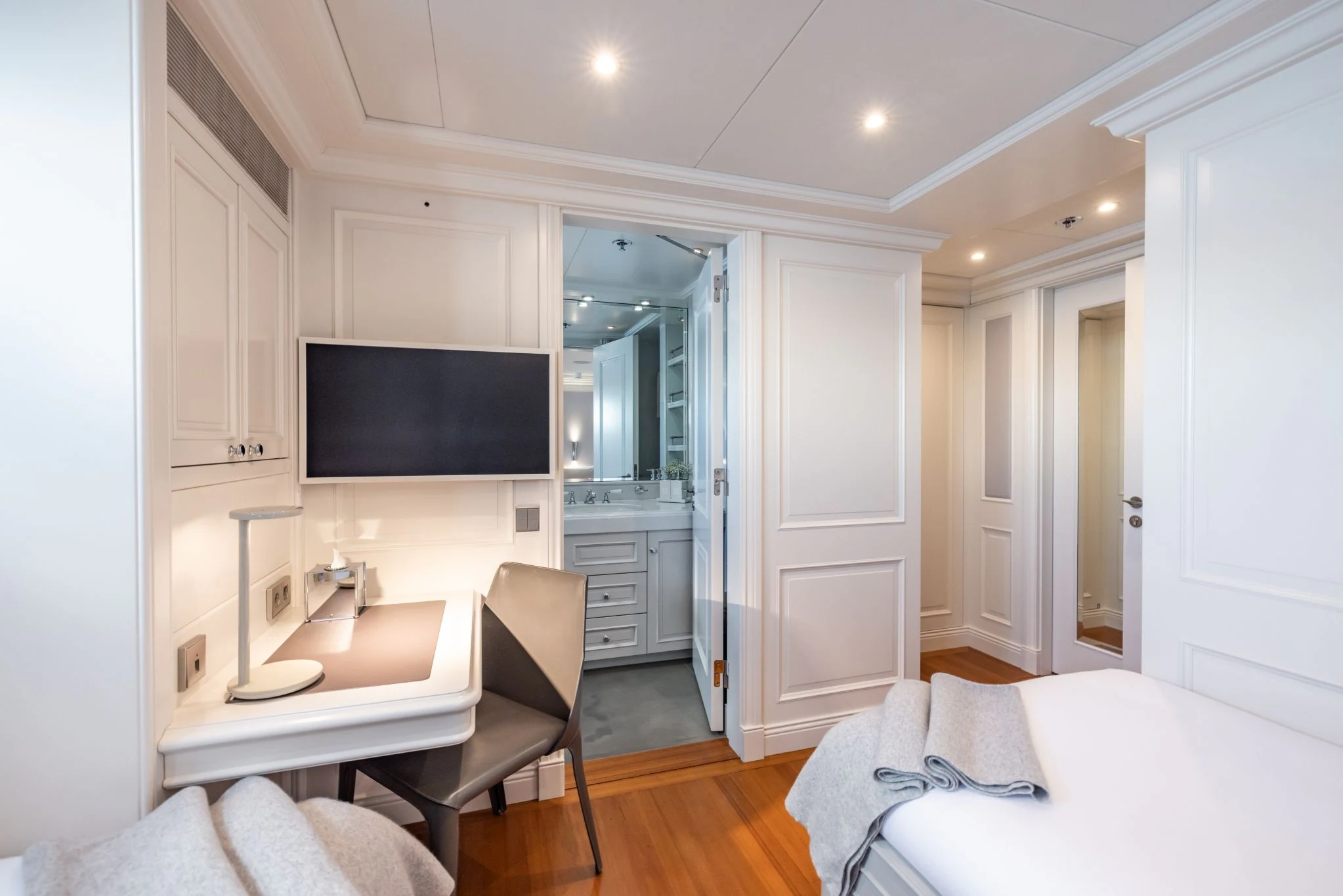

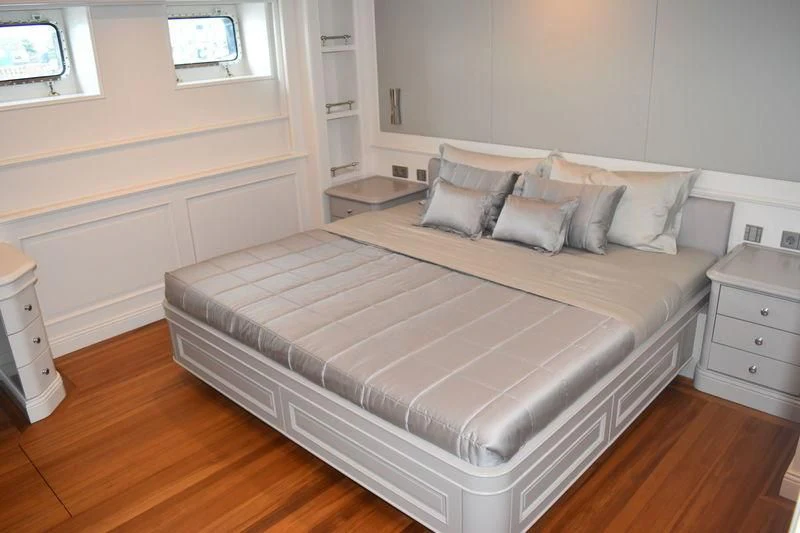

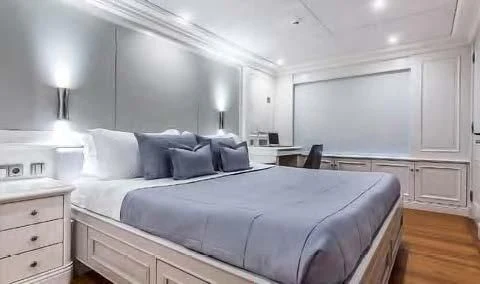

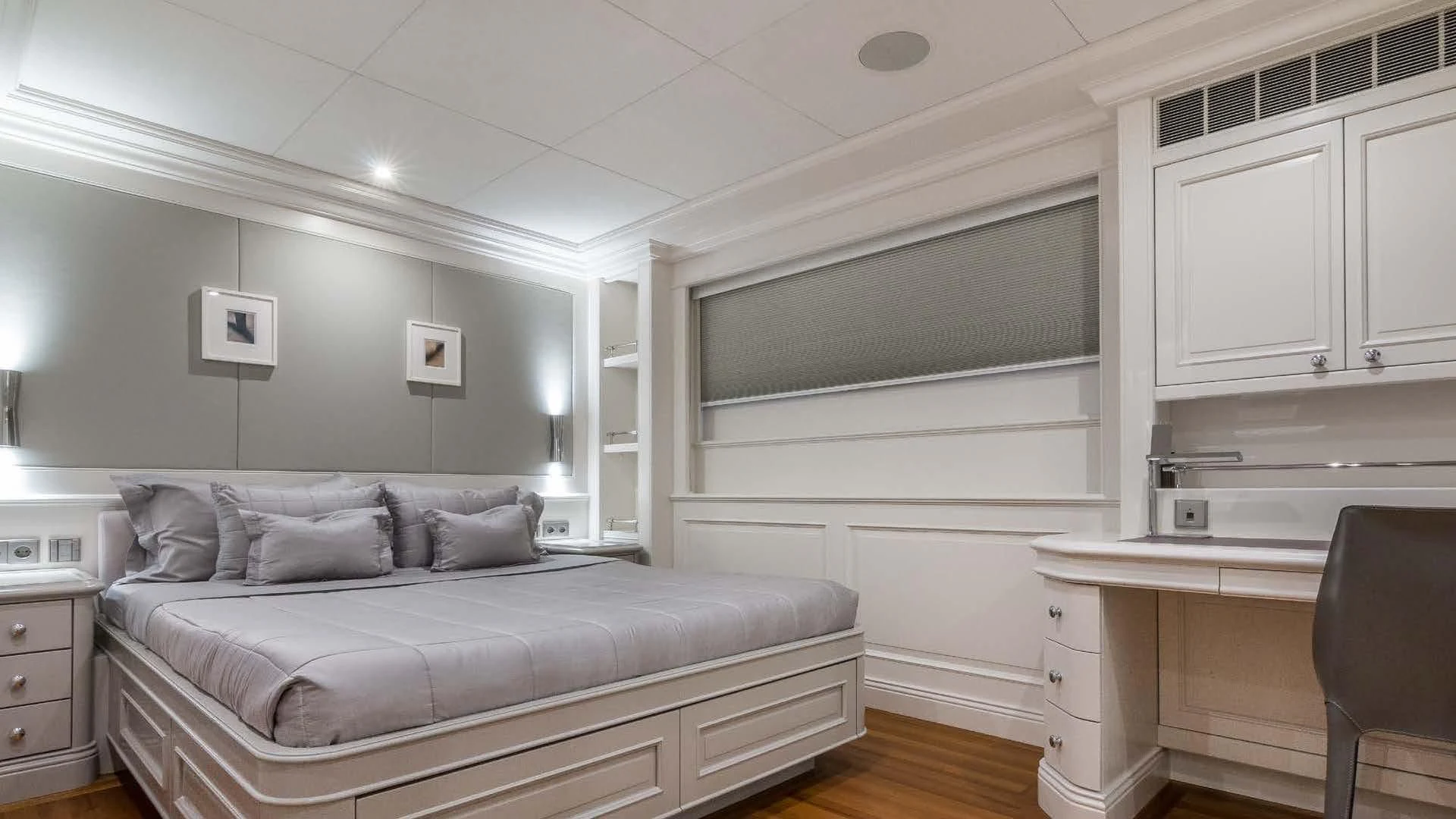

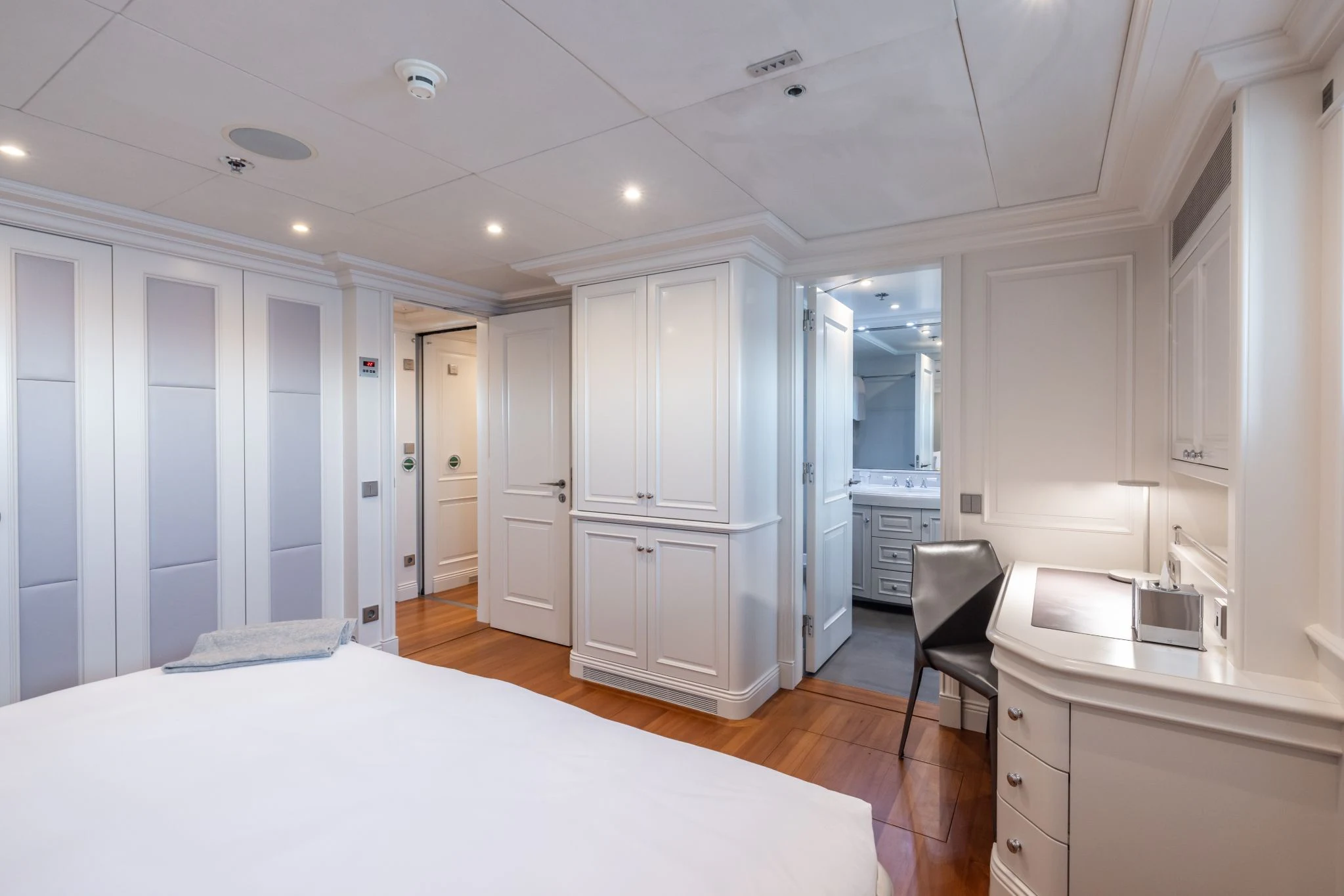

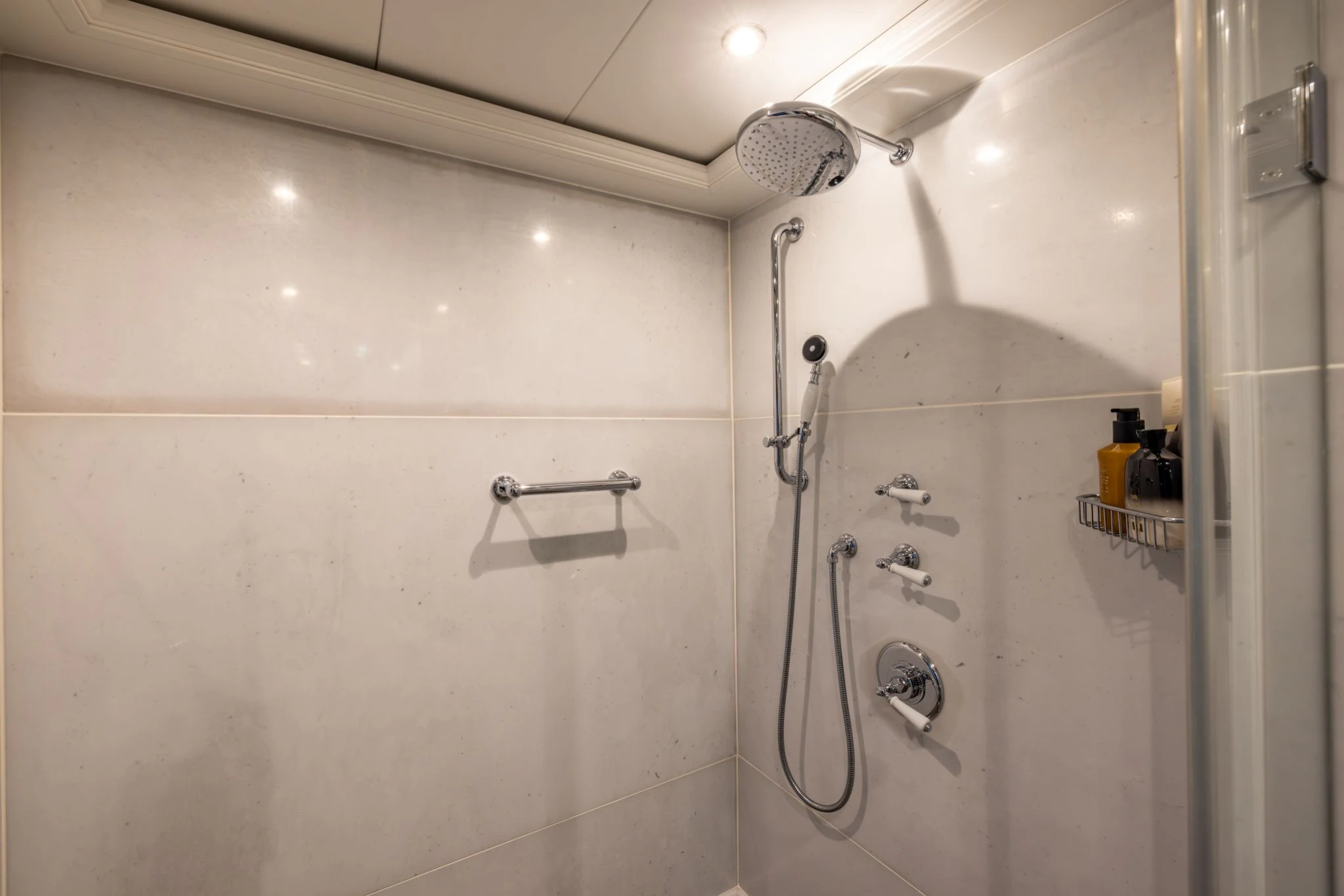

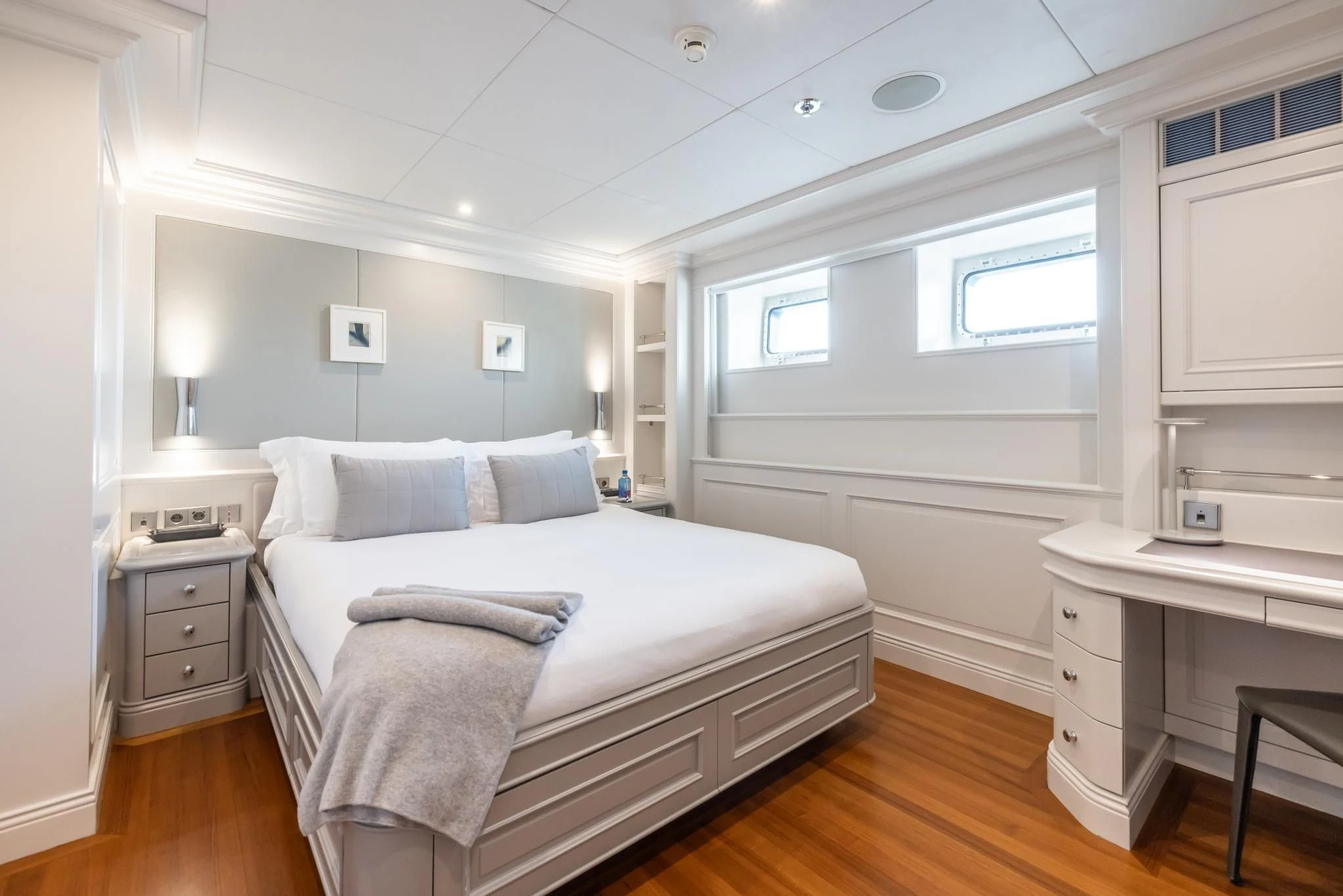

2x lower guest cabin with queen size bed, desk, and en suite marble bathrooms with comfortable shower. Apple and Sonos controls for all AV systems in all rooms true out the yacht.

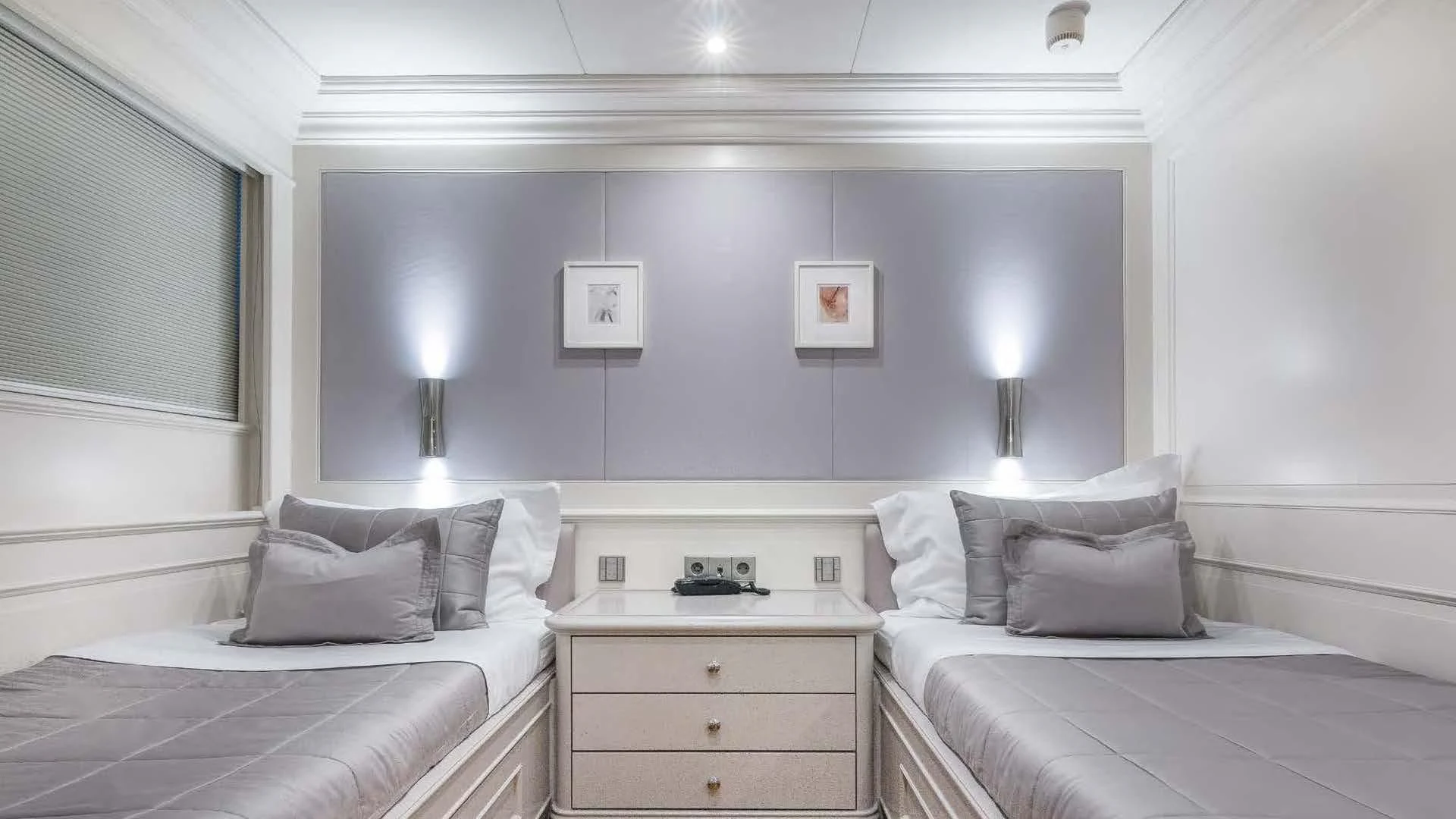

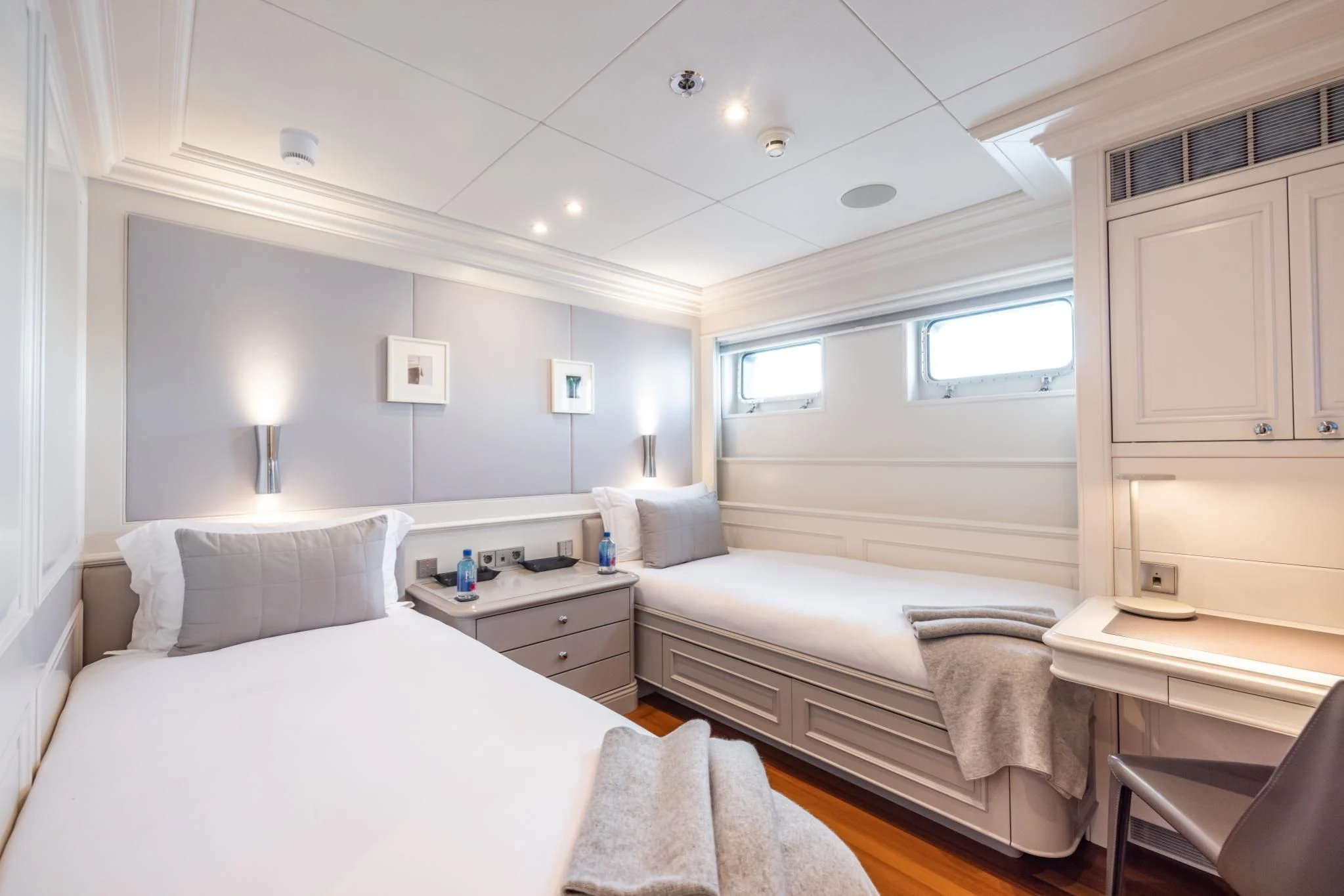

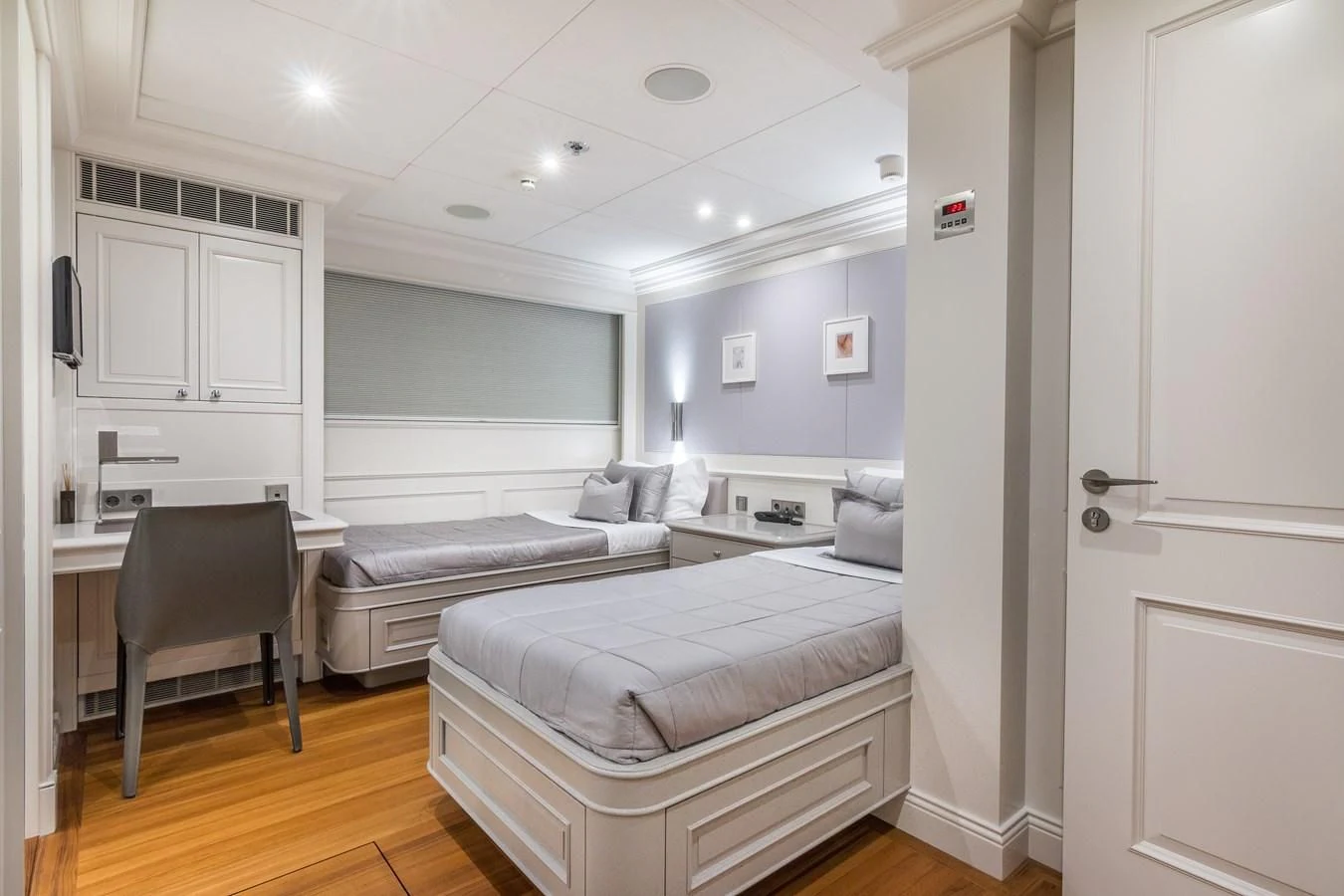

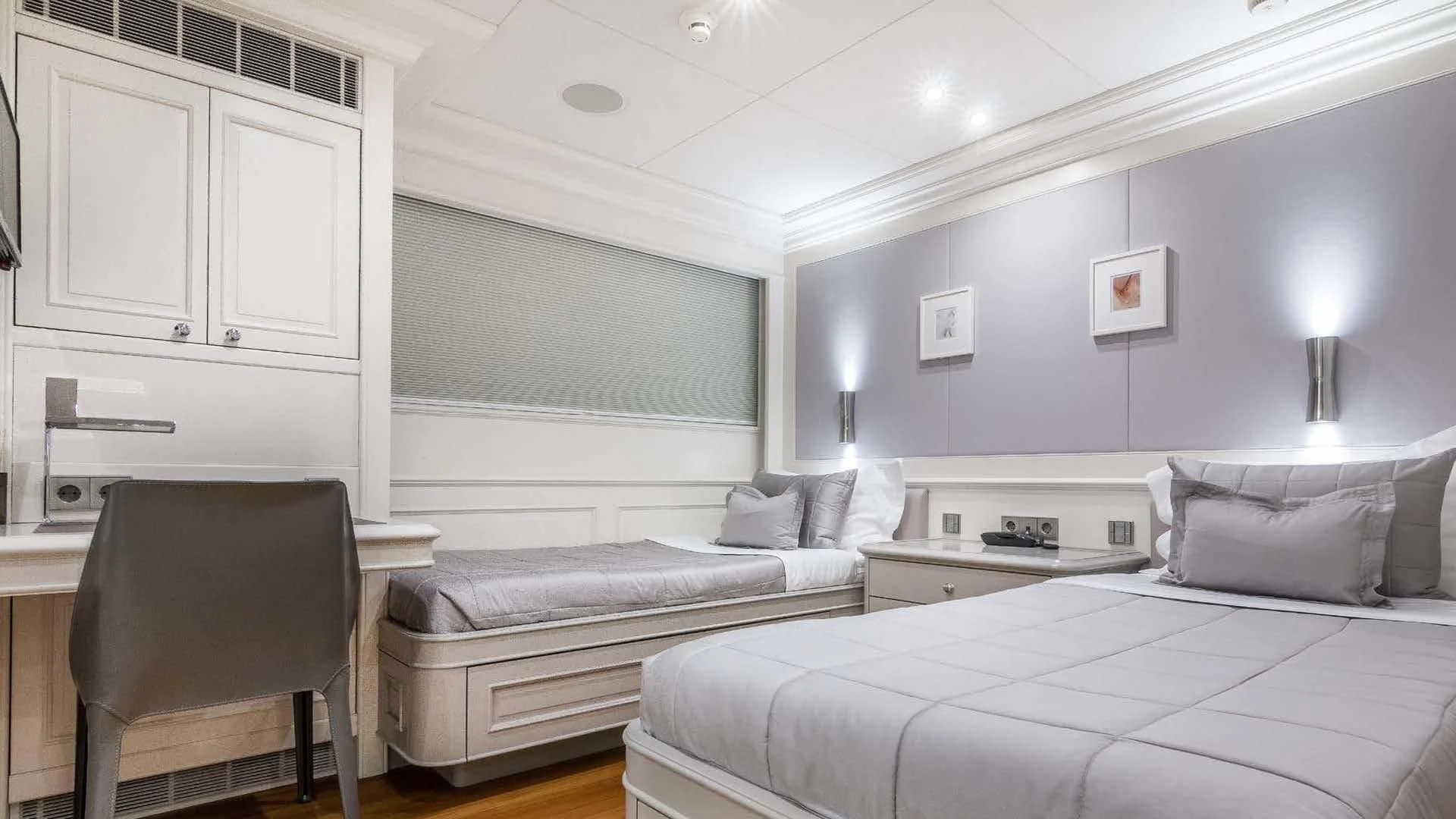

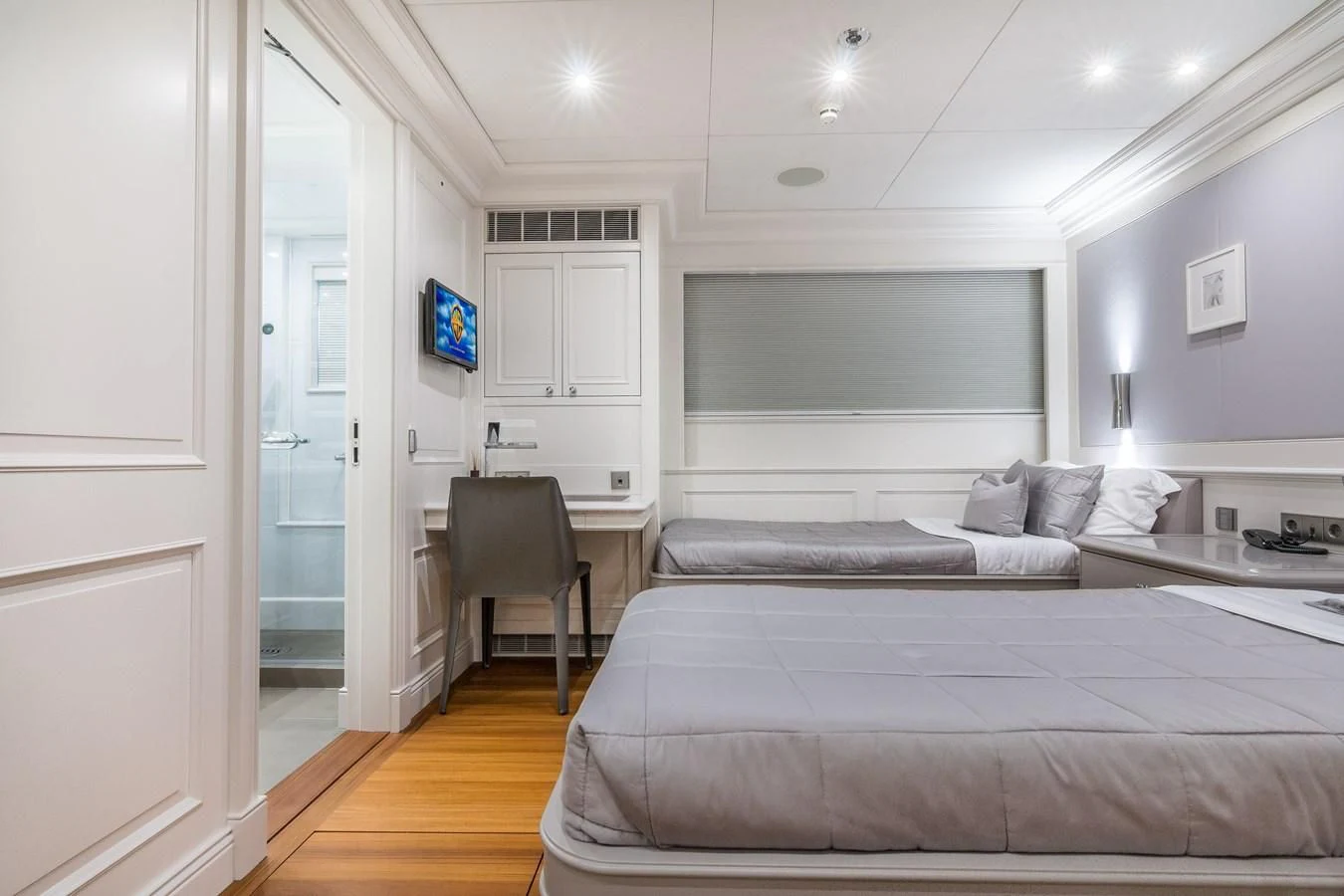

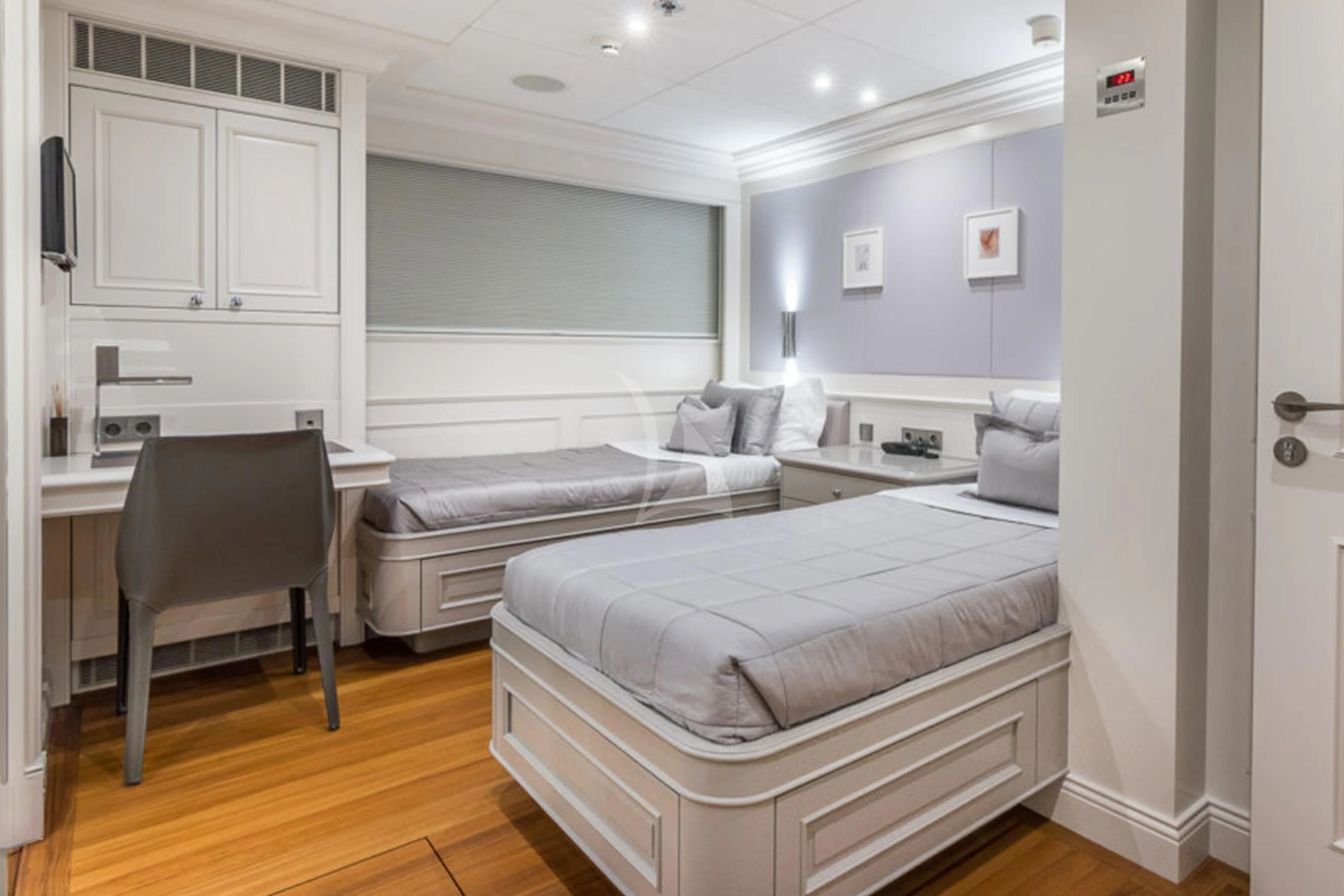

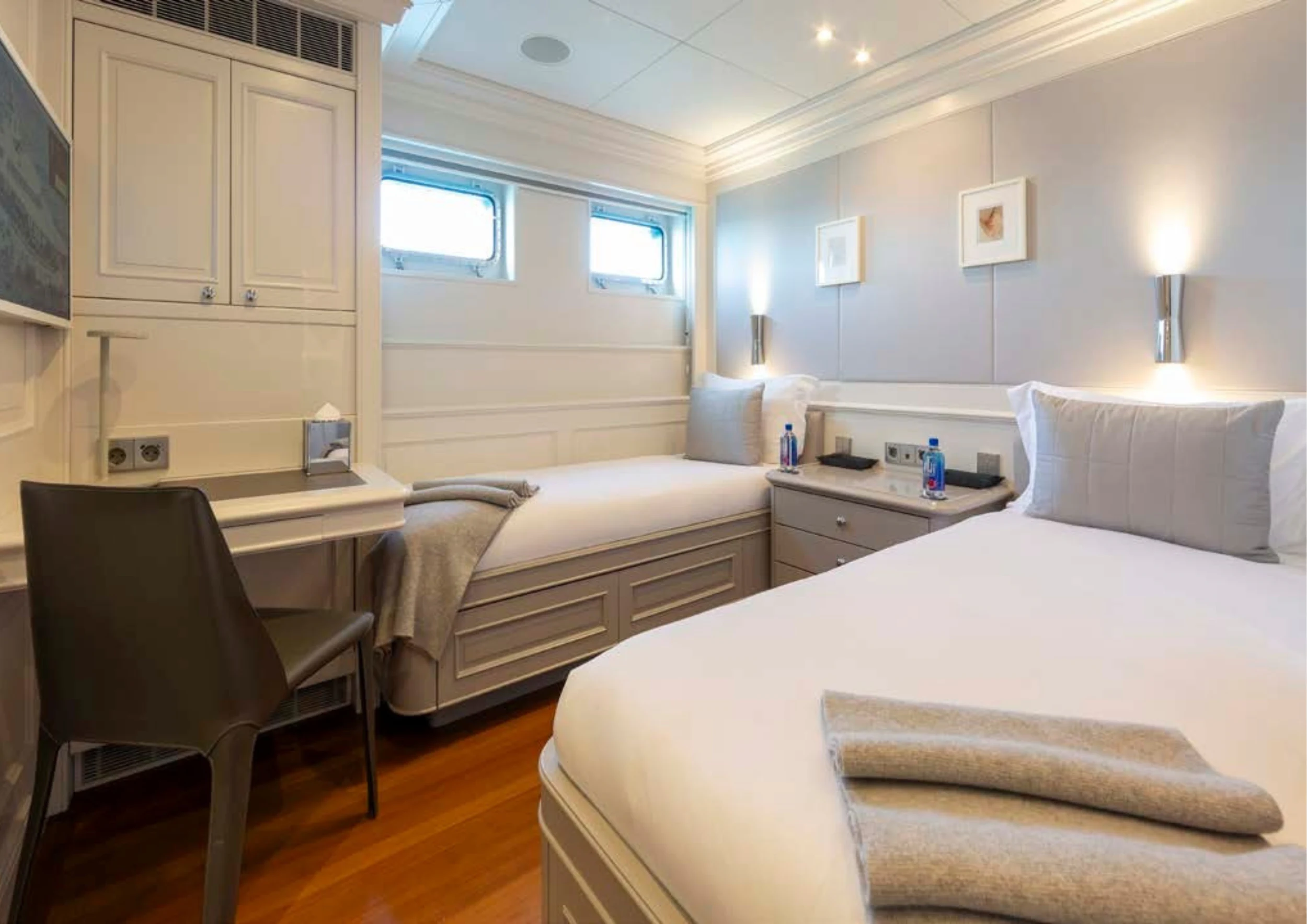

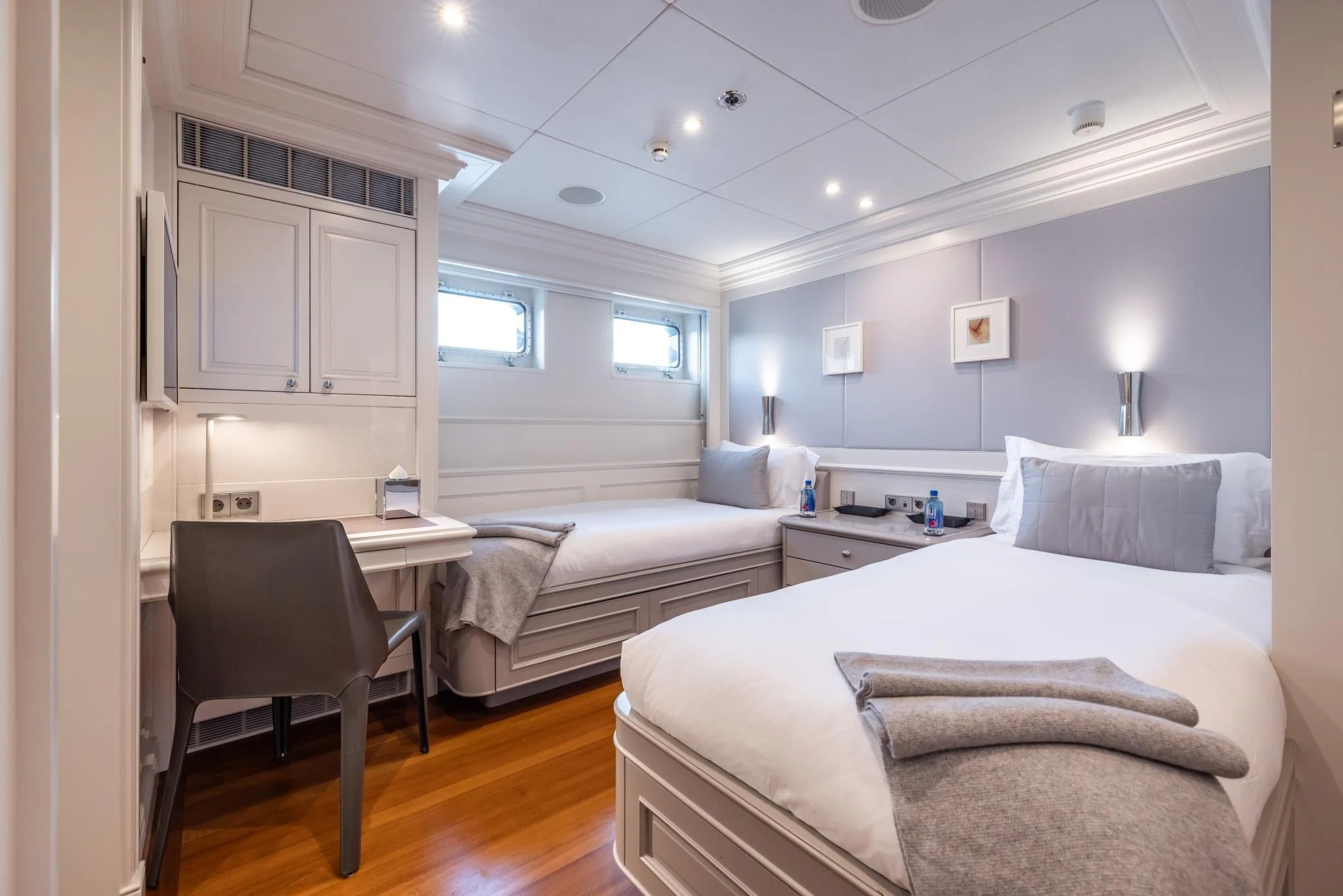

2x lower guest twin cabin with desk and en suite marble bathrooms with comfortable shower. Apple andSonos controls for all AV systems in all rooms true out the yacht.

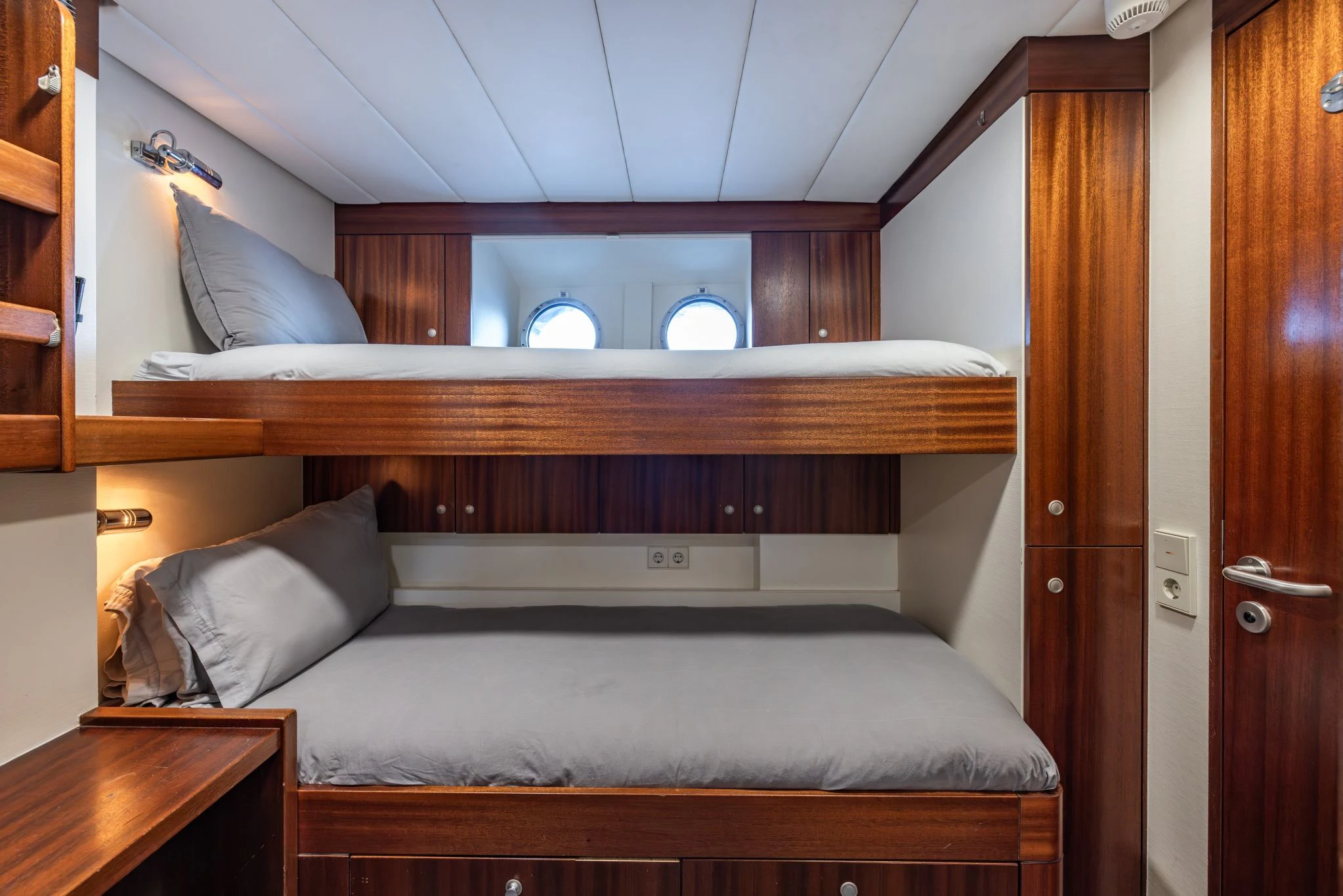

Crew

Accommodation up to 12 crew in 4 cabins on the lower deck plus a double Captain’s cabin on the bridge deck.

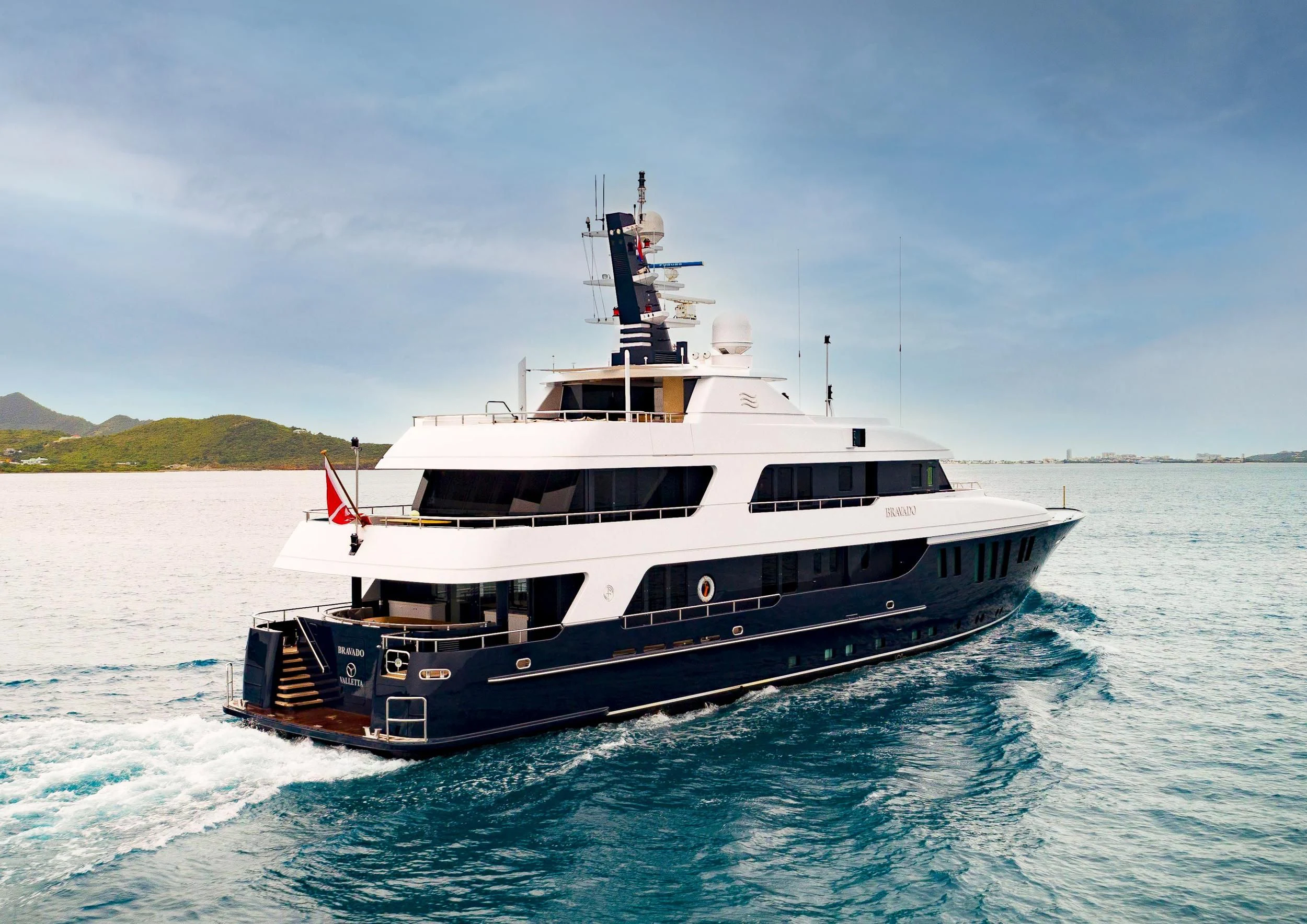

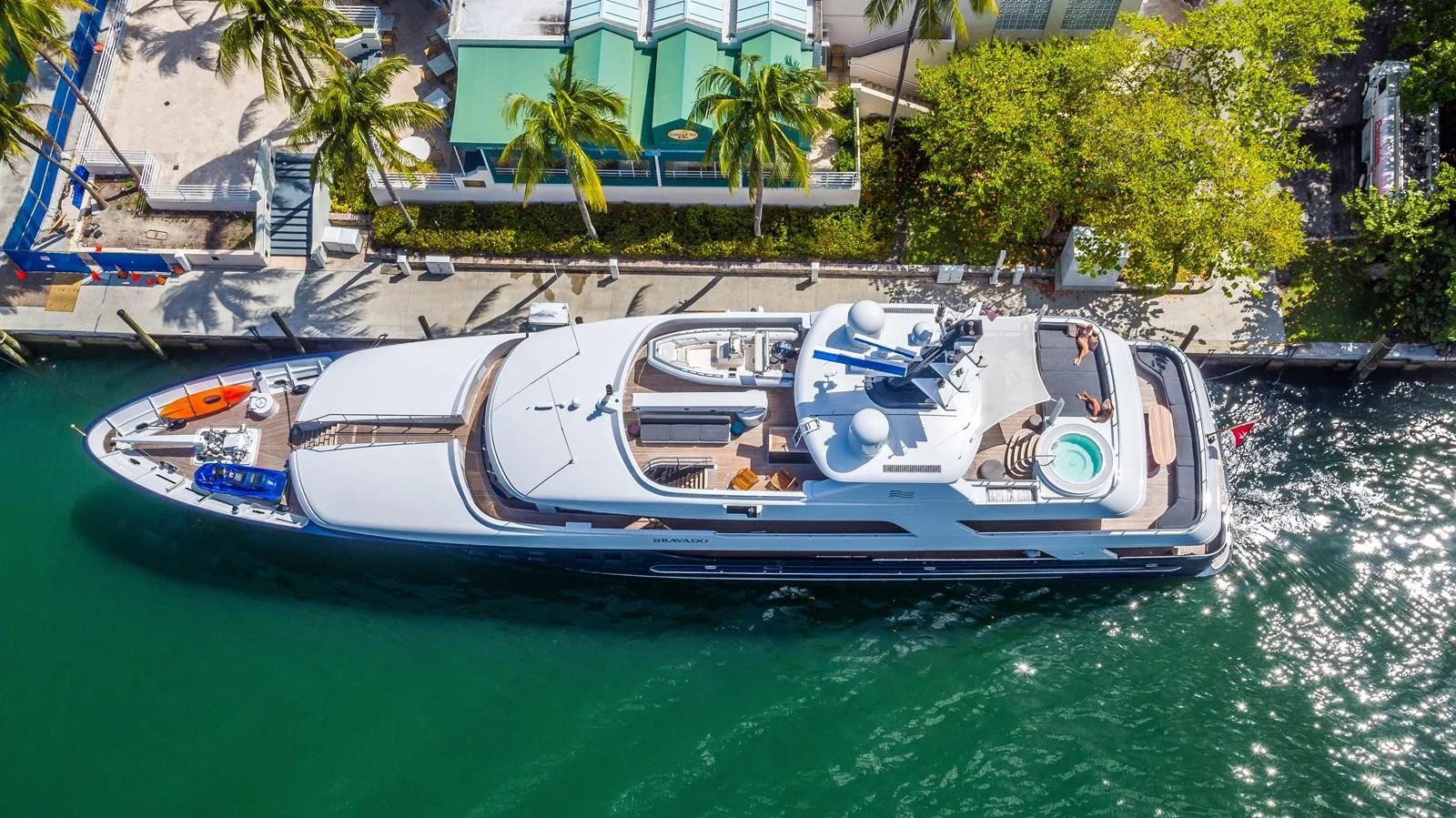

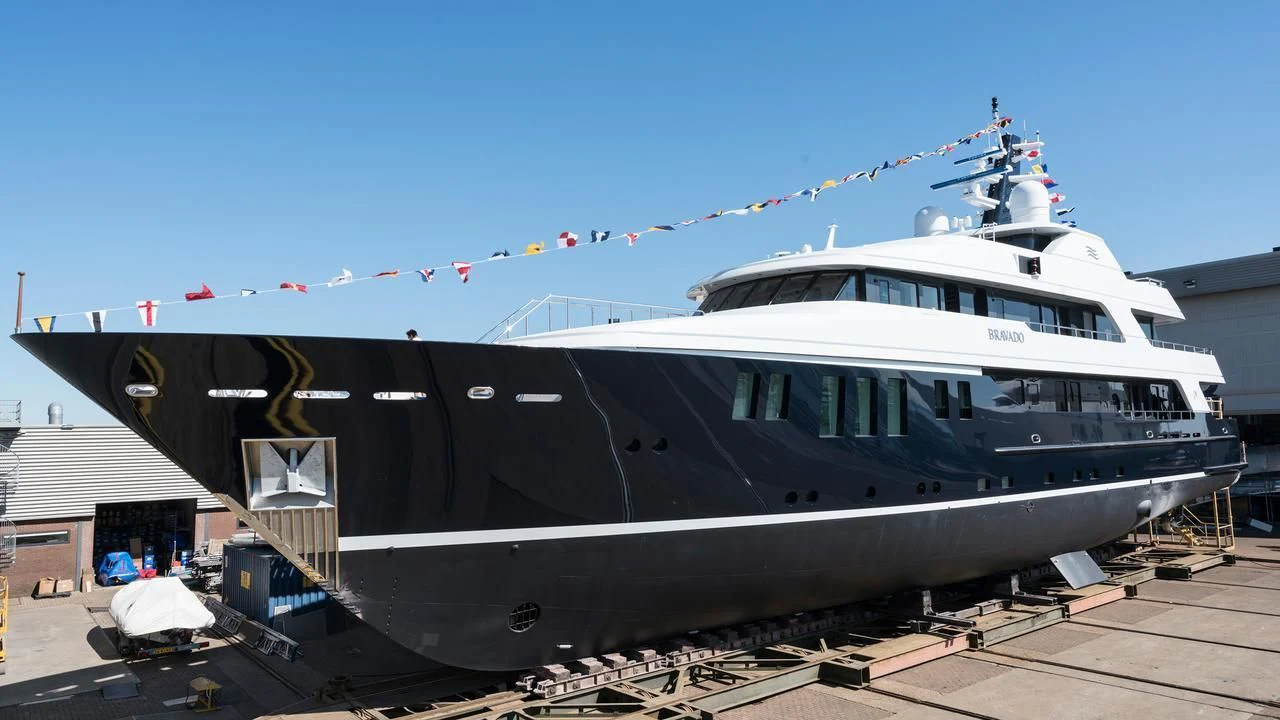

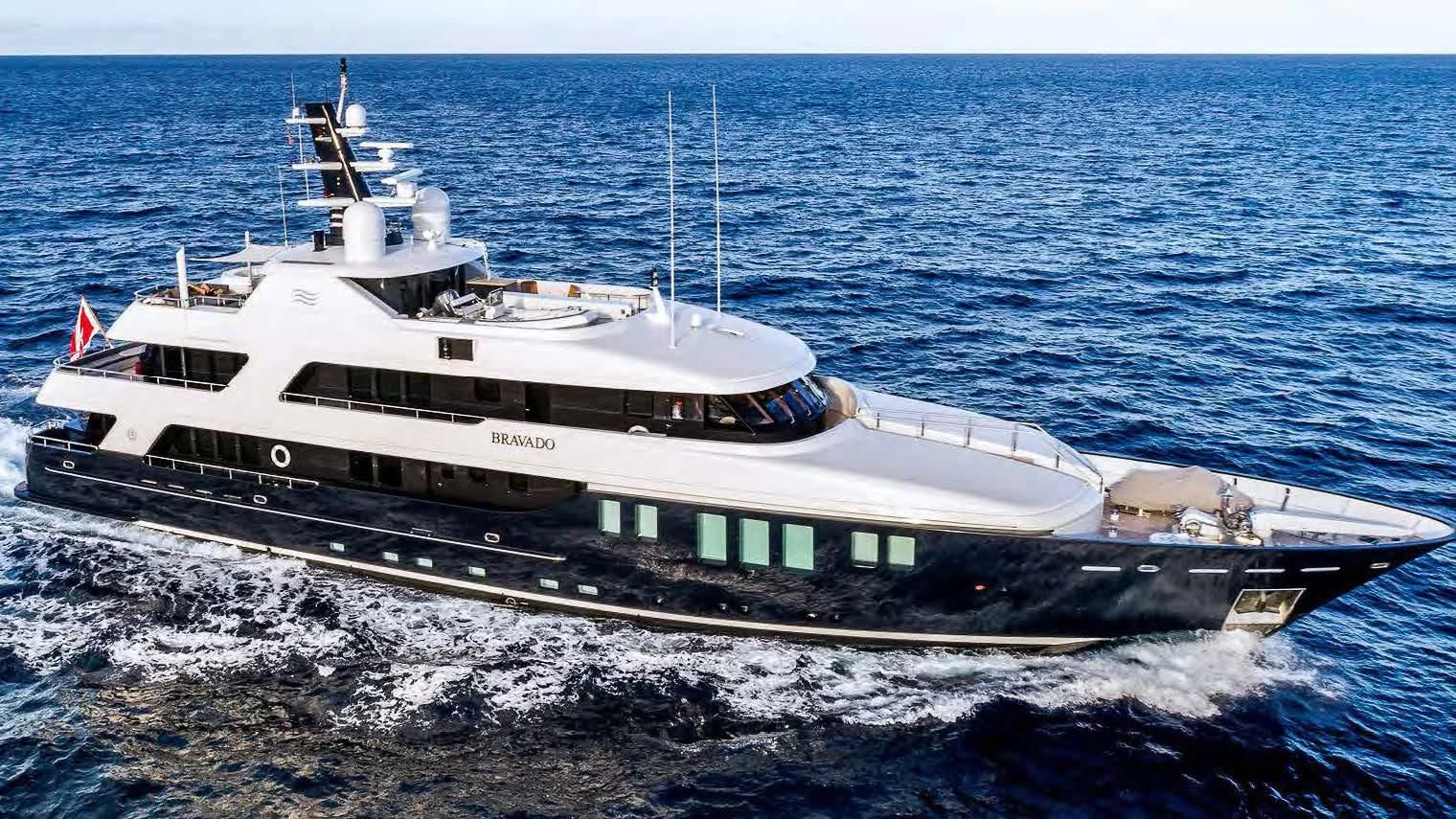

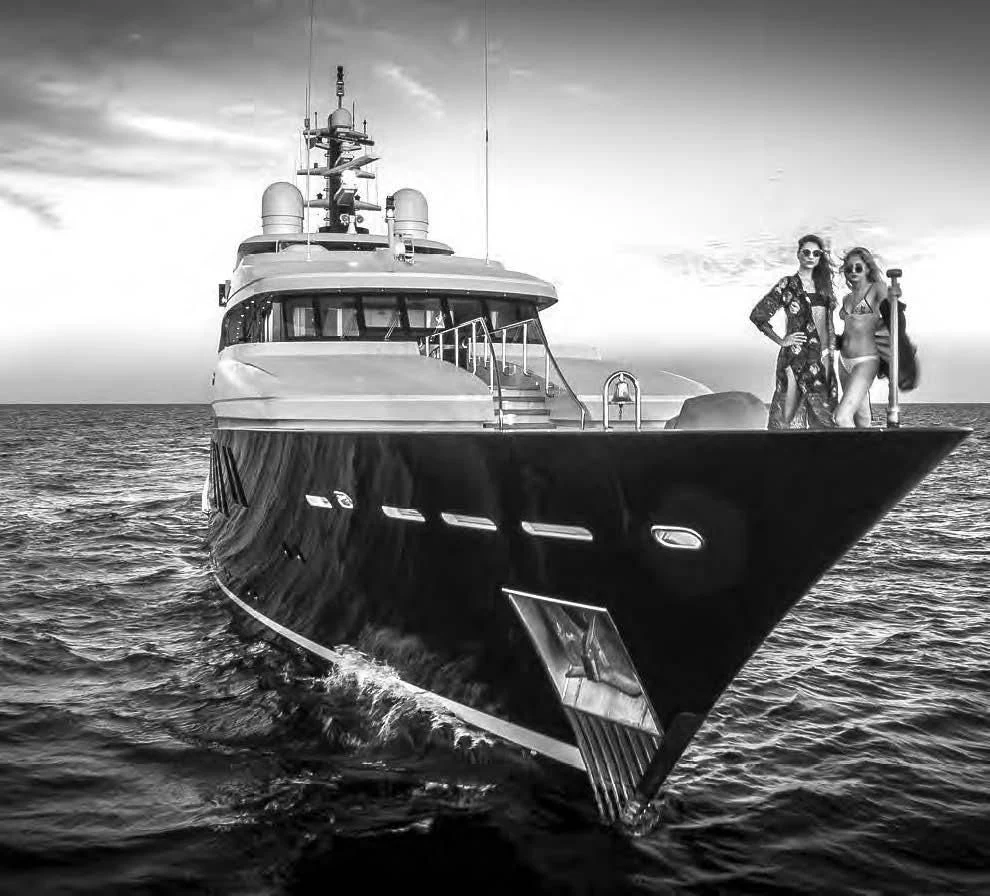

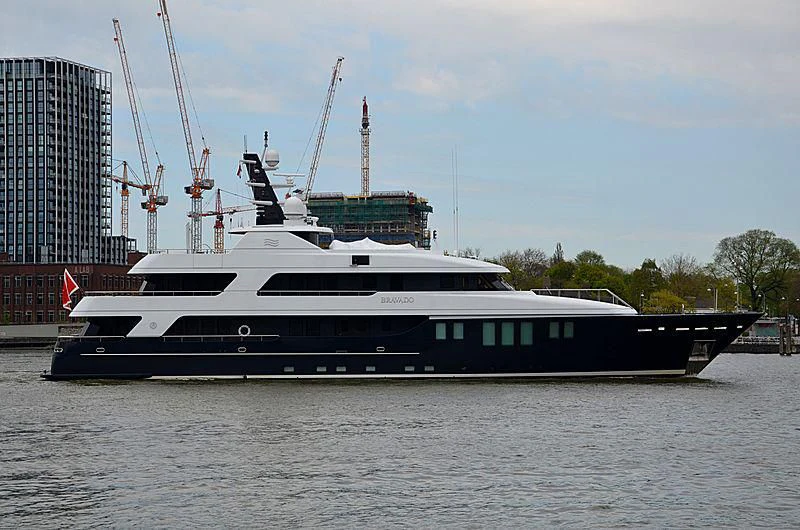

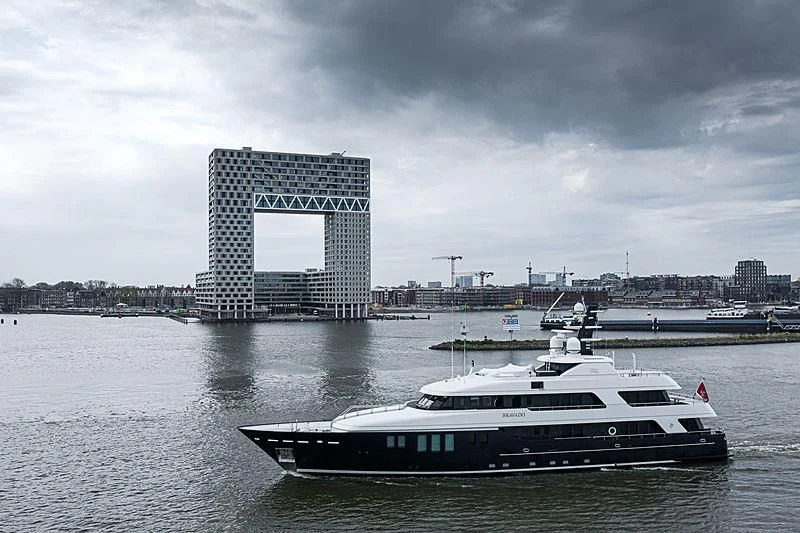

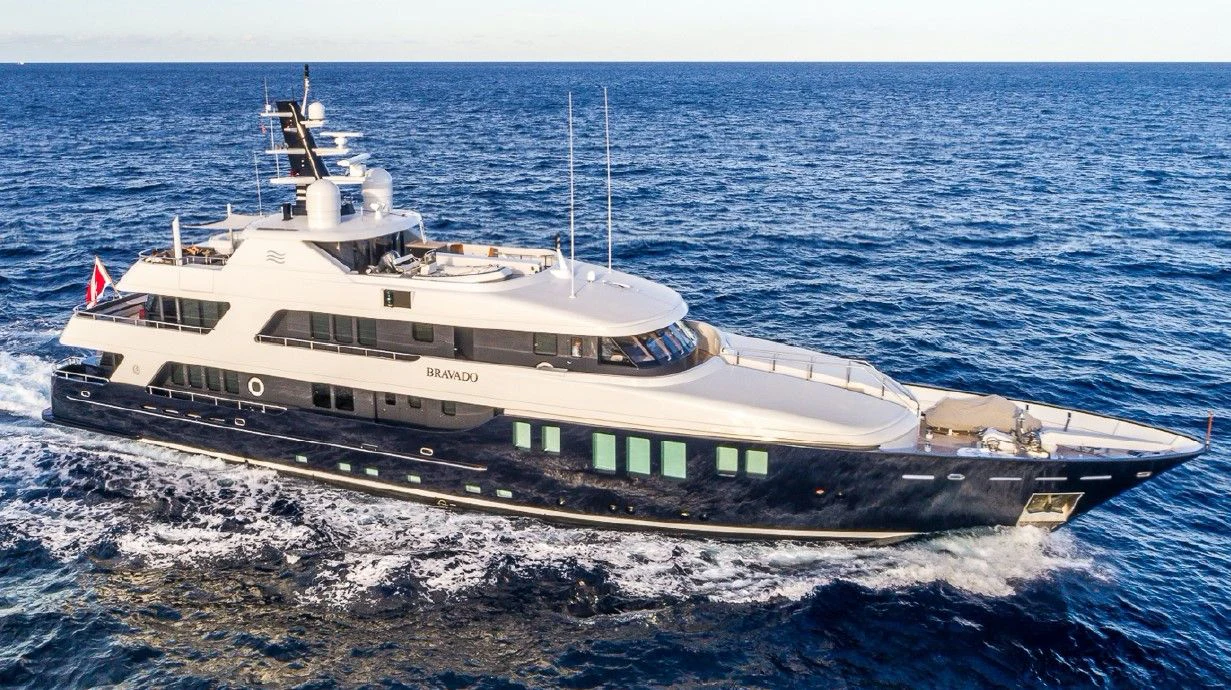

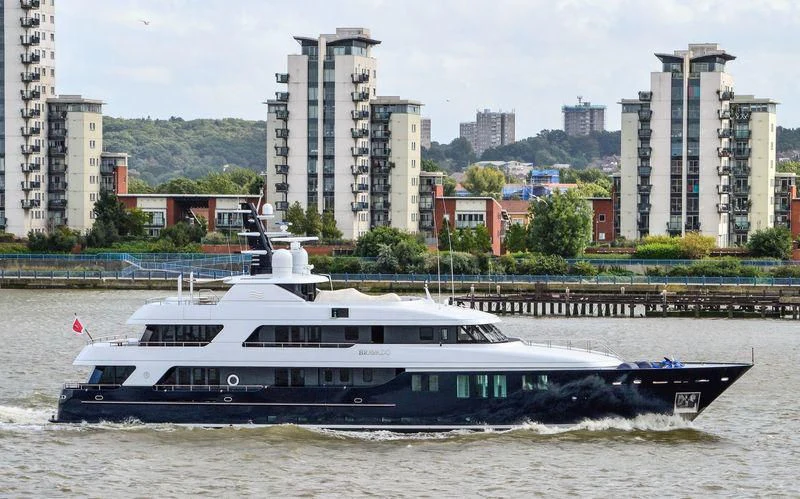

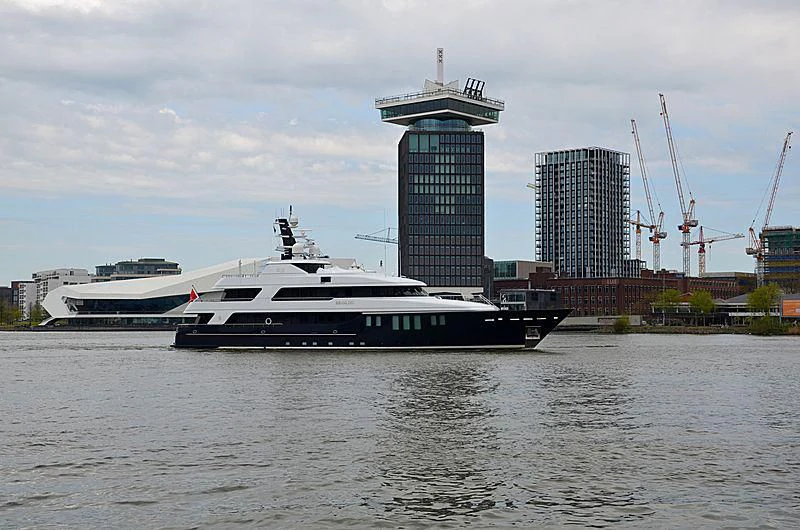

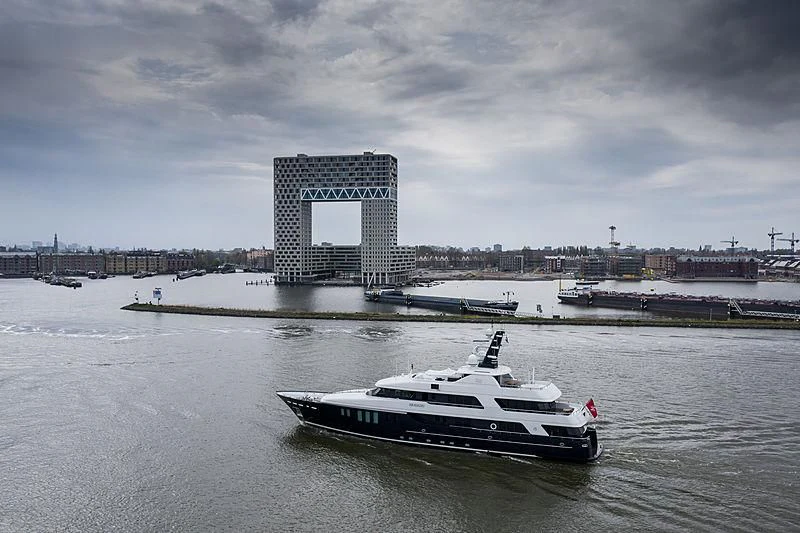

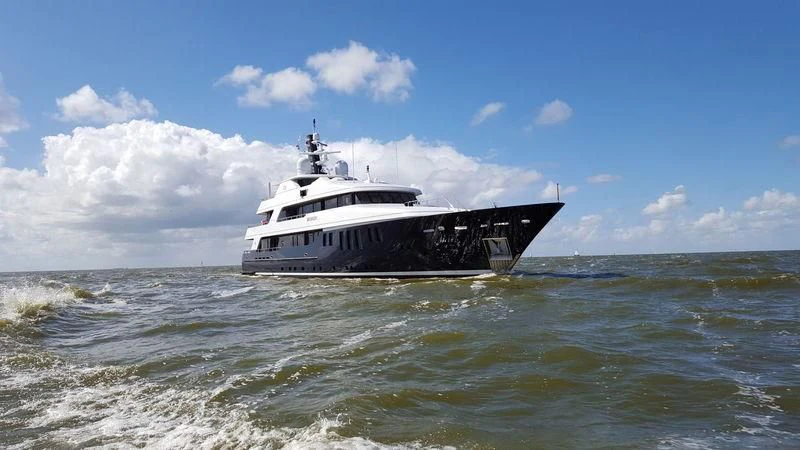

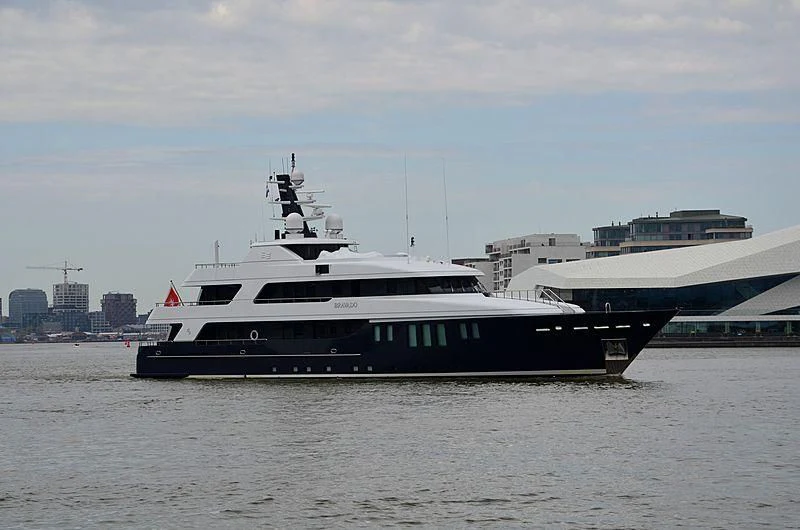

BRAVADO features a displacement steel hull and an aluminum superstructure, with teak decks. She was built to Lloyds Register classification.

Dimensions

Length Overall: 44.9m (147.31ft) Beam: 8.7m (28.54ft)Draught Max: 2.9
m (9.19ft) Gross Tonnage: 499

Construction

Builder: Abeking & Rasmussen Hull #: 6465

Country of Build: Germany Date of Completion: 2004

Hull Configuration: Displacement

Hull Material: Steel

Superstructure Material: Aluminum

Design

Naval Architecture: Abeking & Rasmussen

Exterior Design: Reymond Langton Design Ltd.

Interior Design: Reymond Langton Design Ltd.

Class: Lloyds Register

Powered by 2 MTU (16V 2000 M70) 1,080hp diesel engines and propelled by twin screw propellers motor yacht BRAVADO can reach a top speed of 14 knots, and comfortably cruises at 12 knots, her range at 10 knots is 3500 nm. Bravado water tanks store around 17800 liter fresh water.

Max Speed: 15 kn

Cruise Speed: 13 kn

Economic speed: 10 kn

Range: 3500 nautical miles

Fuel Capacity: 70000 (L) - 15850 (US gal.)

Water Capacity: 17800 (L) -4702 (US gal.)

Consumption 150 L/ph (engines and 1 generator)

Engine hours September 2021

Main engine port 17722 (last QL3 overhaul 16766)

Main engine starboard 17725 (last Ql3 overhaul 16769)

Gen #1 31271 (last QL3 overhaul 30015)

Gen #2 31618 (last QL3 overhaul 30362)

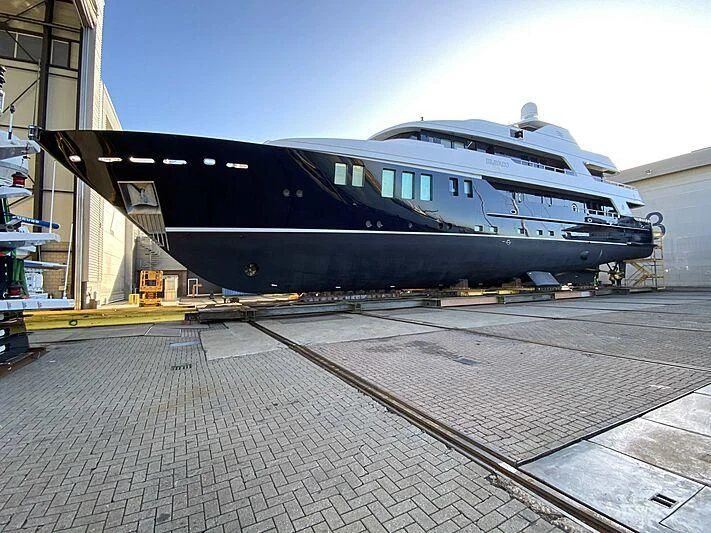

Refit / Maintenance history 2021 Balk Shipyard Netherlands

-Full repaint, Hull and Superstructure Awlgrip (Bonsink)

-W5 / QL3 main engines

-W5 / QL3 generators

-New crew floors

-Serviced all fancoil units

-Serviced A/C

-Cleaned tanks

-Quantum stabilizers 8000hr service

Loyds 15 year survey Monaco Marine La Ciotat 2018/2019

-Hull thikness survey

-All Sea valves off & overhauled or replaced

-Megger test

-Cleaned tanks

Refit / Maintenance history 2016 Balk Shipyard Netherlands

Hull

-Sandblasted and build up with new Jotun paint system

-Repainted Alex seal majestic blue

-Dropped Rudders and pulled shafts new bearings and bushings

-Simplex shaft seal overhaul

-Cleaning all tanks

-Sandblasted and painted fresh water, grey water and black water tanks

-Re-galvanised both anchors

-New anchor chains and swivels

Superstructure

-Alex seal matterhorn white & Shark grey

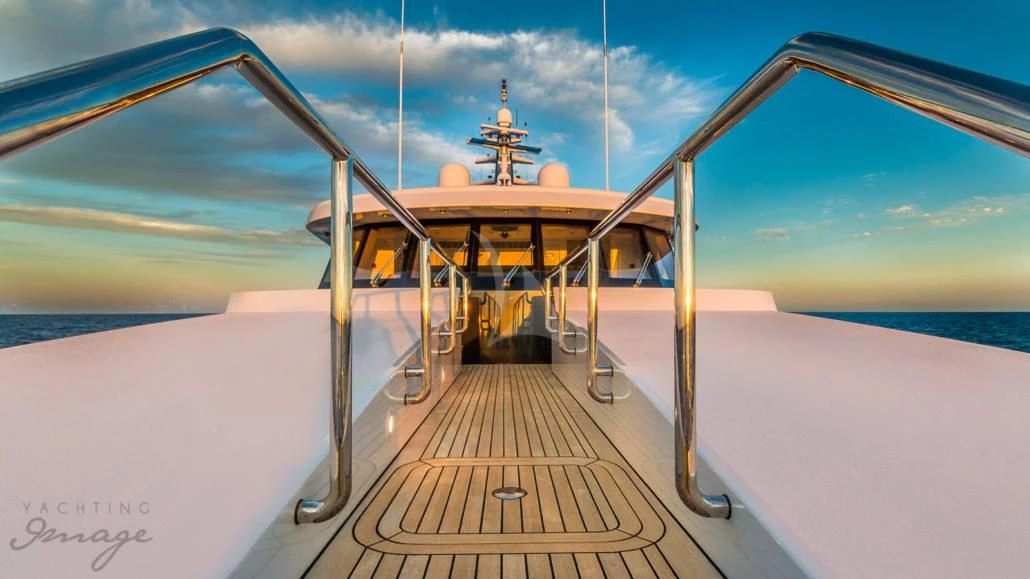

-Revision teak decks

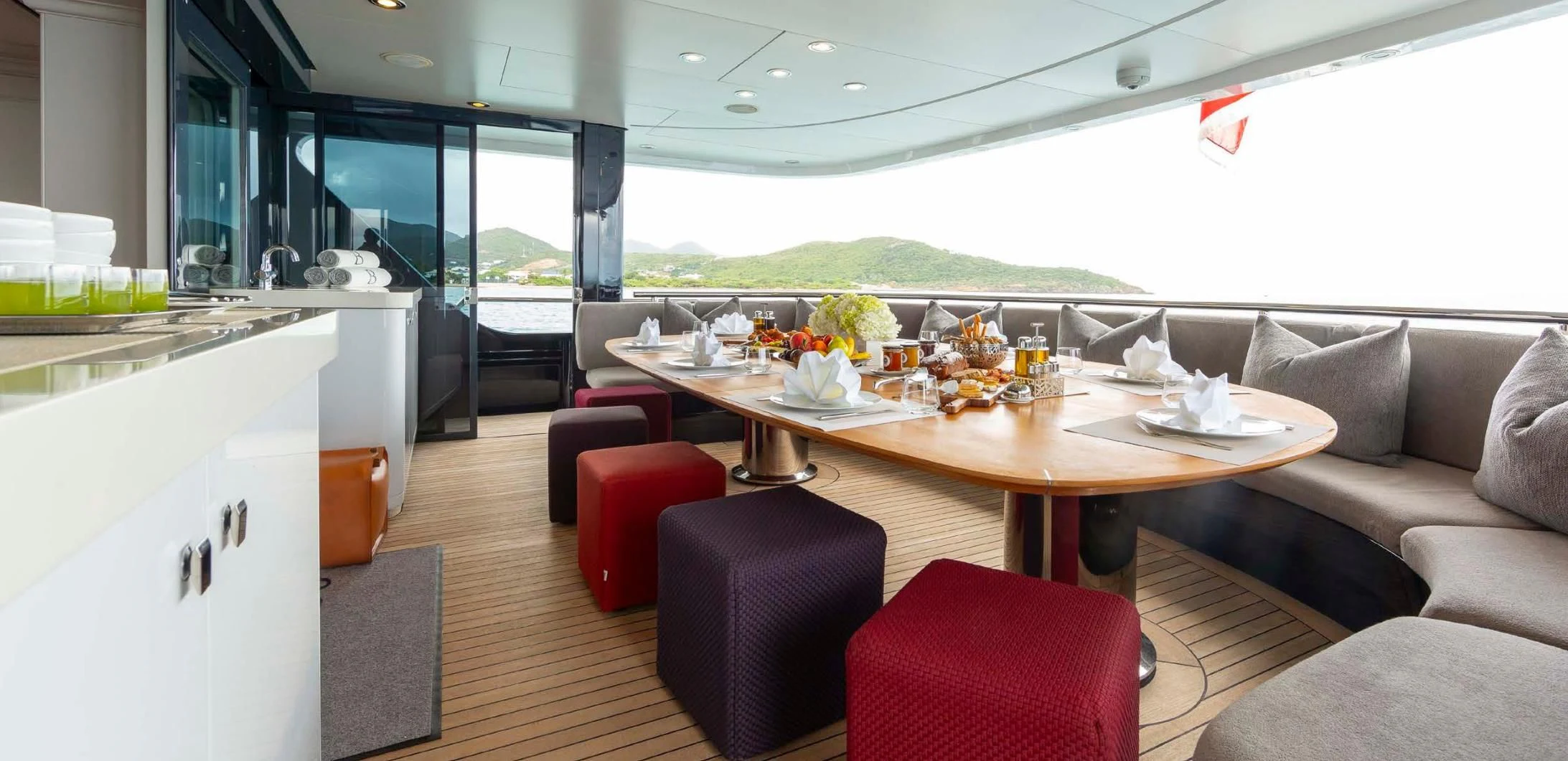

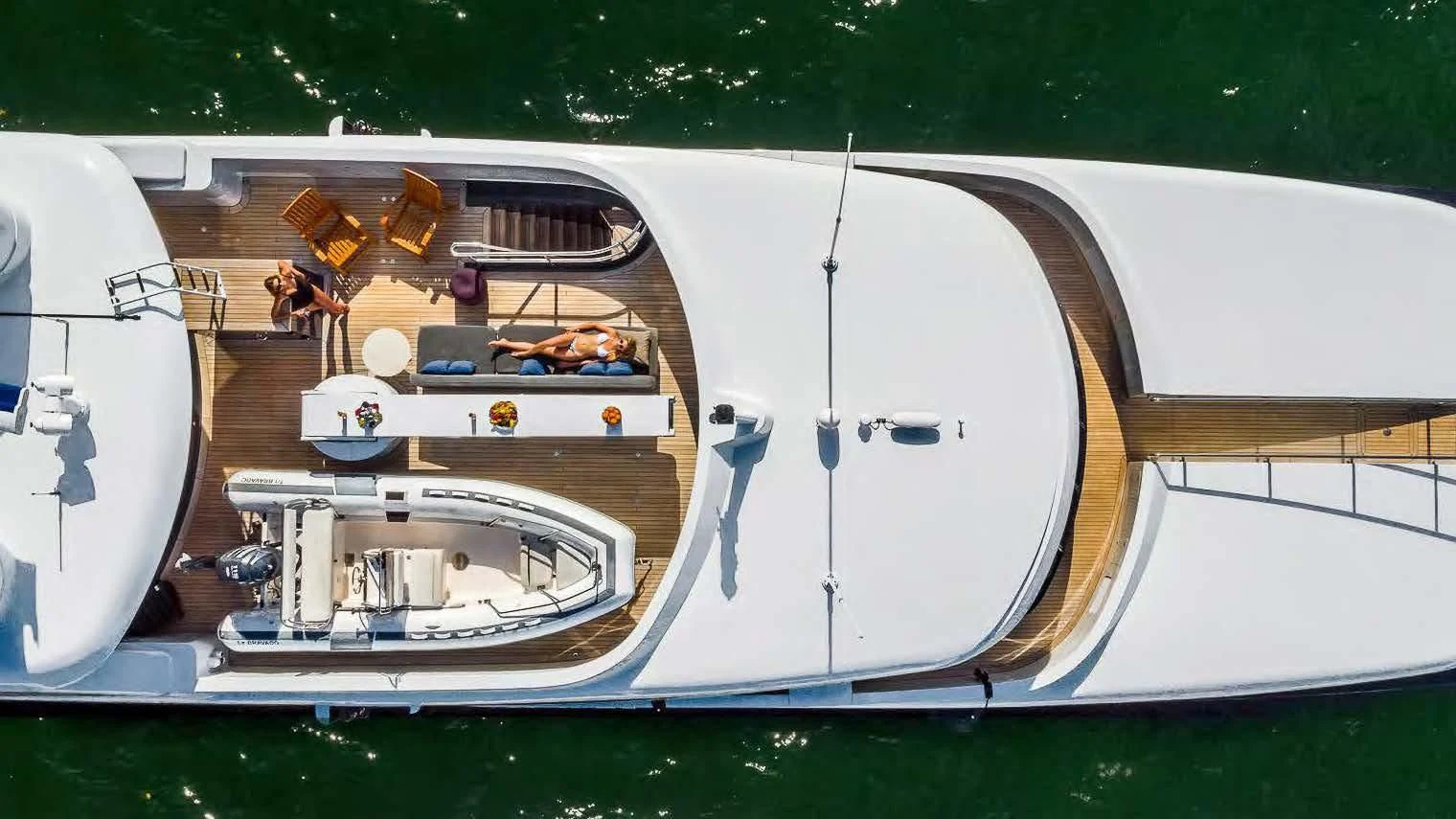

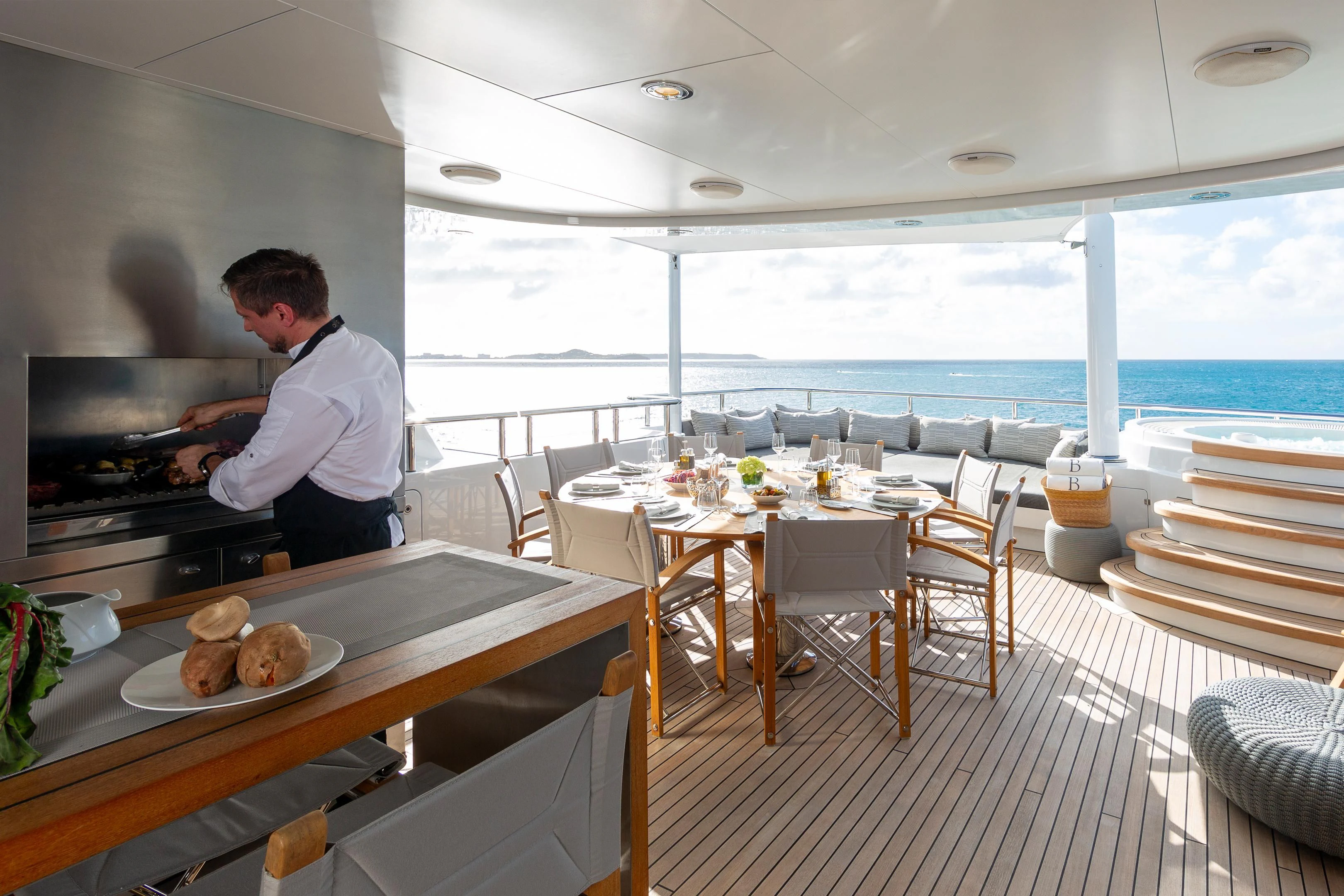

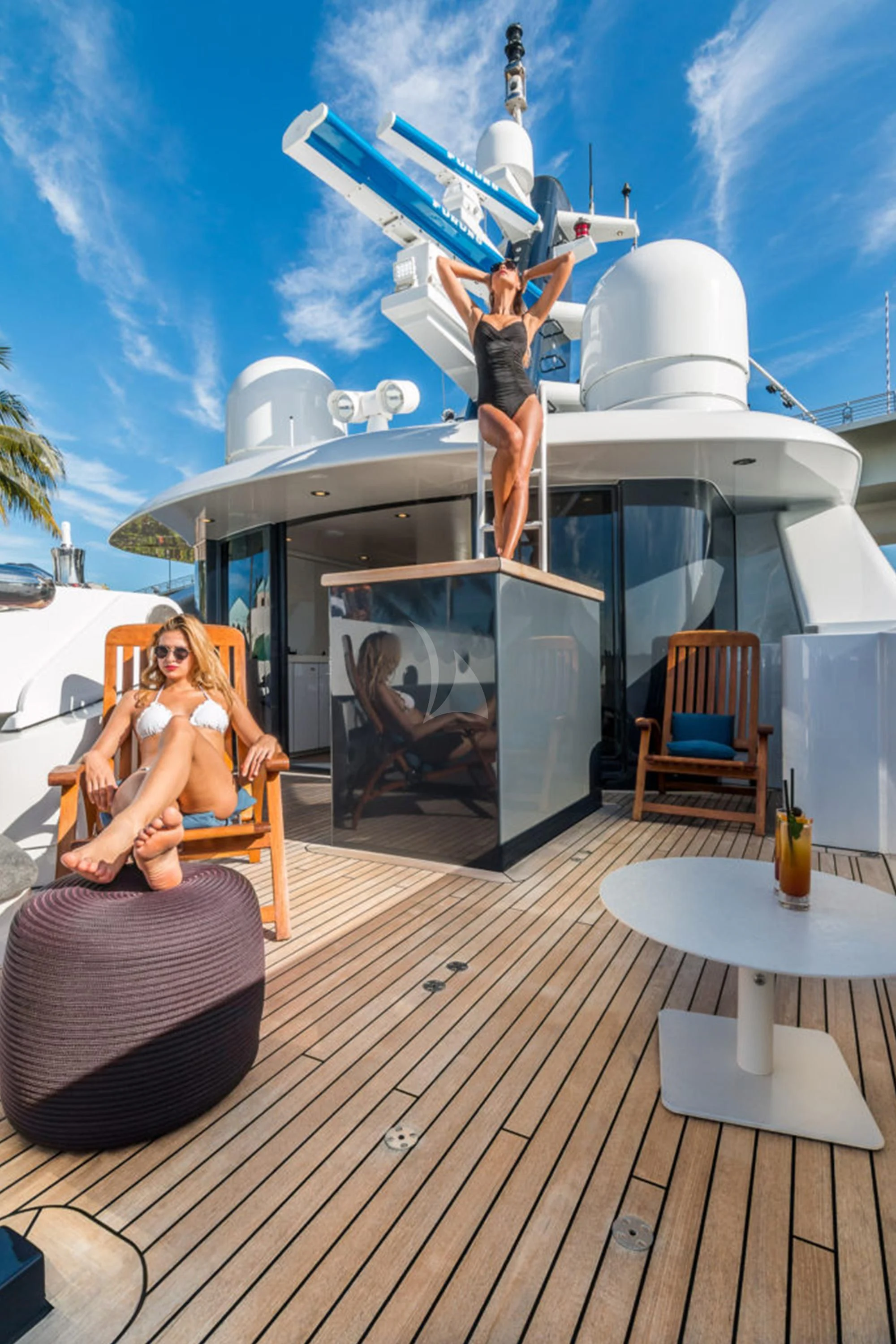

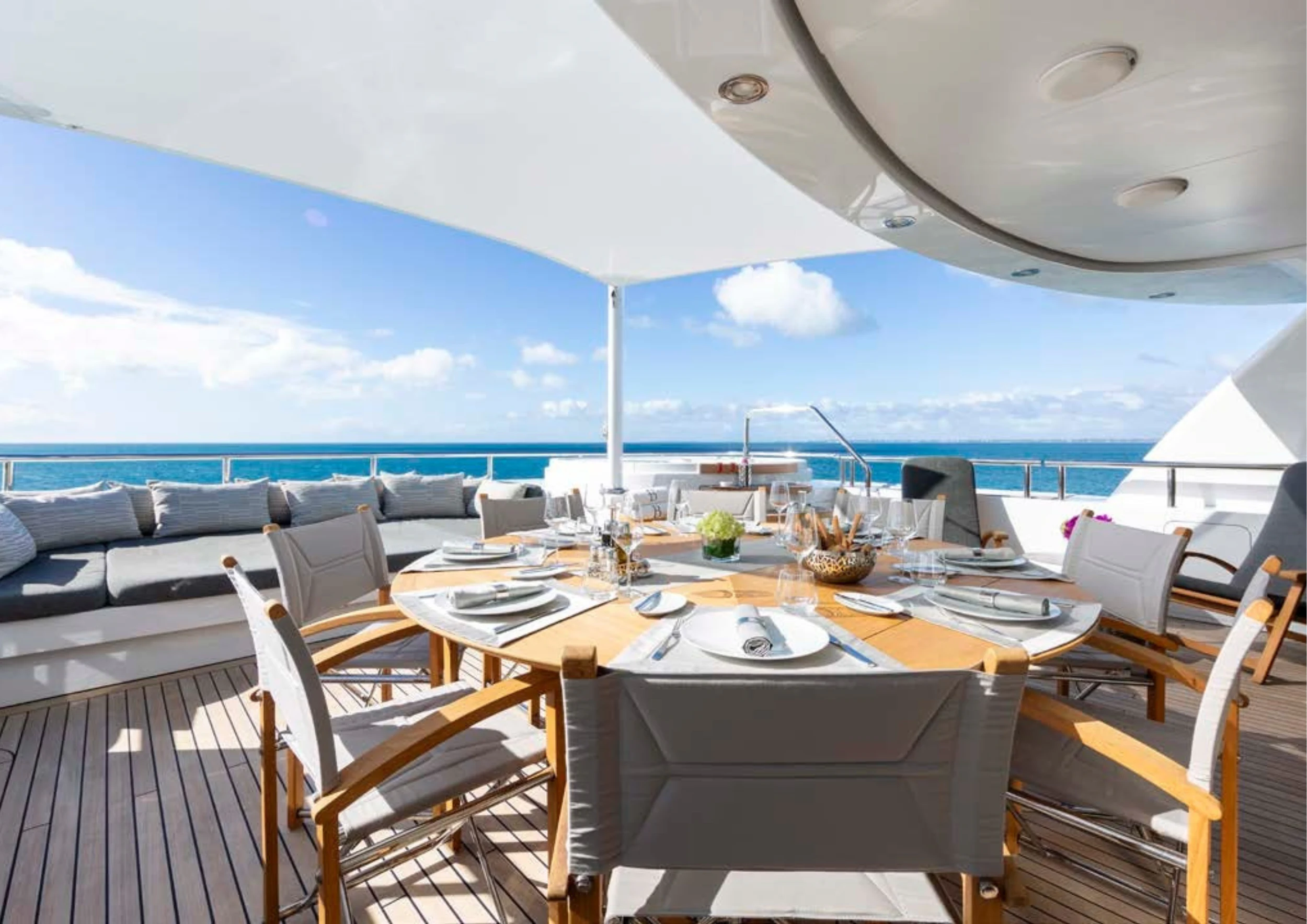

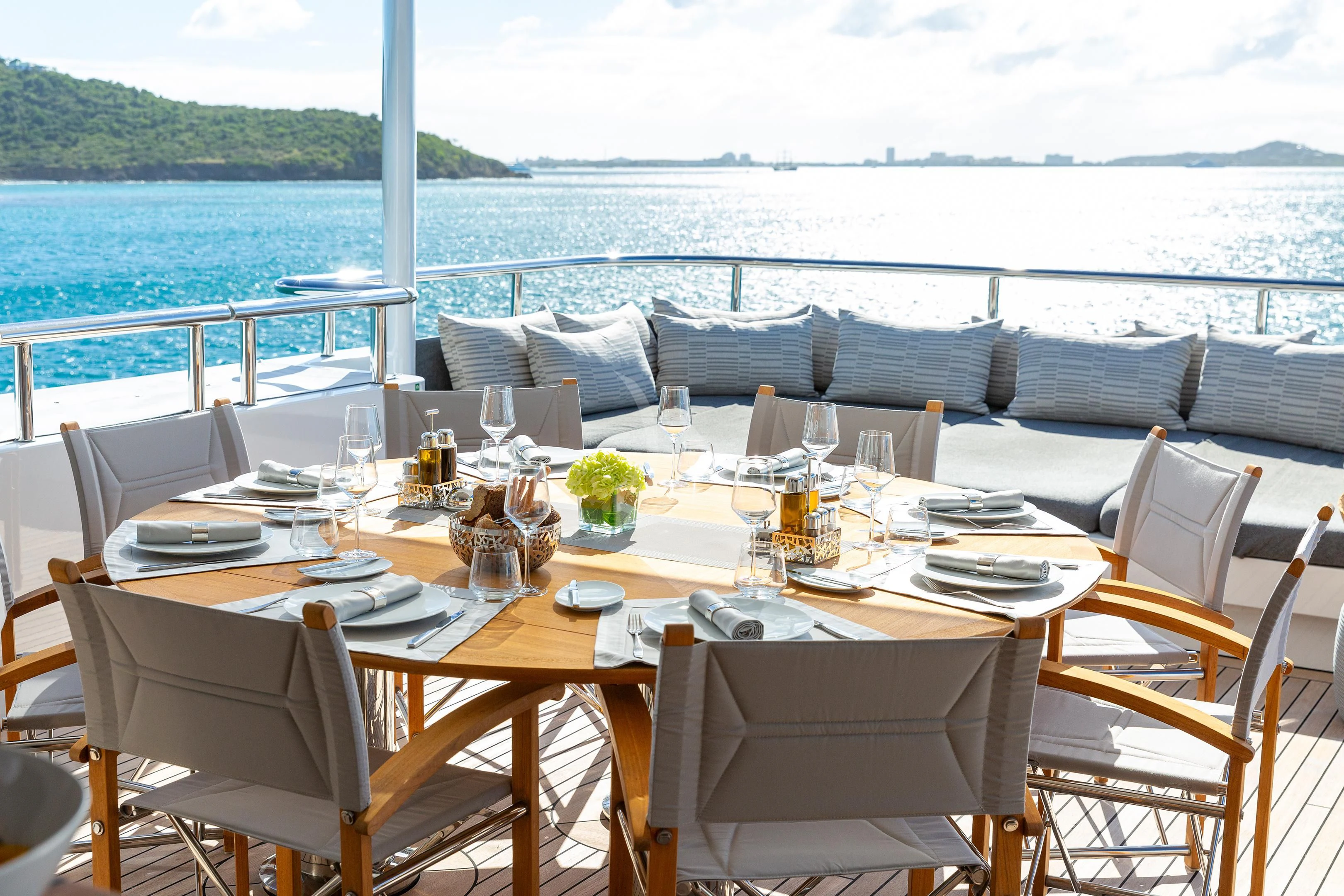

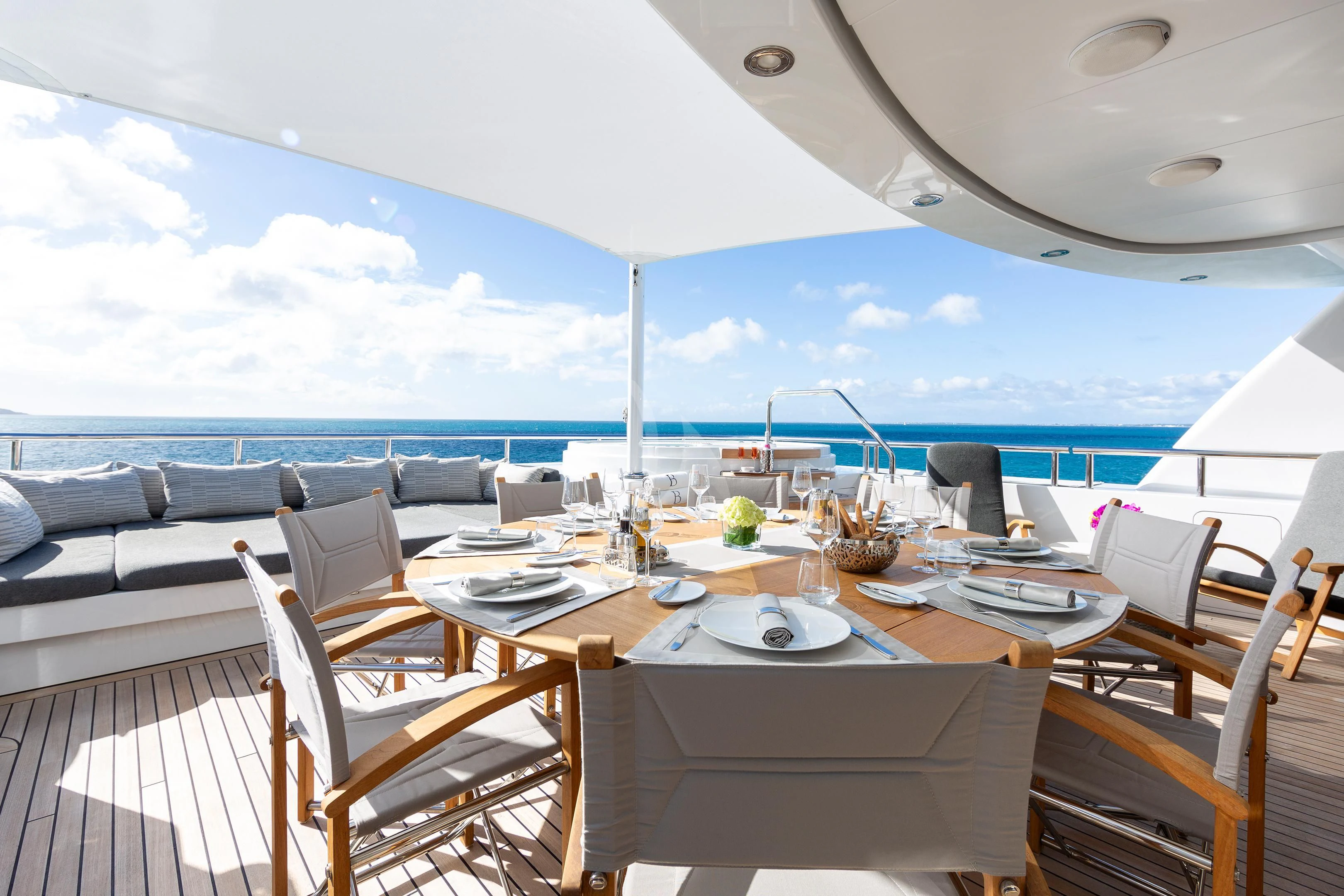

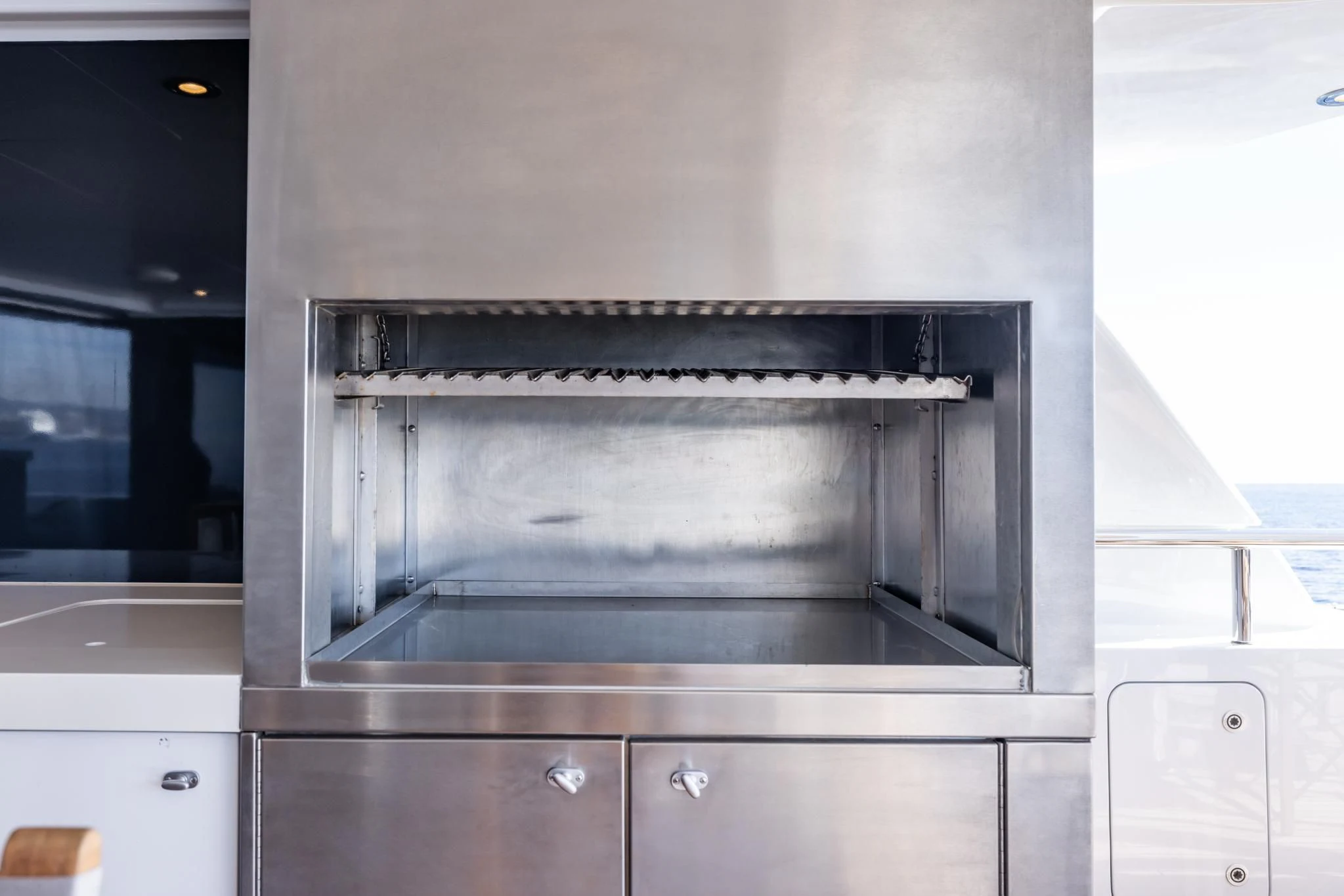

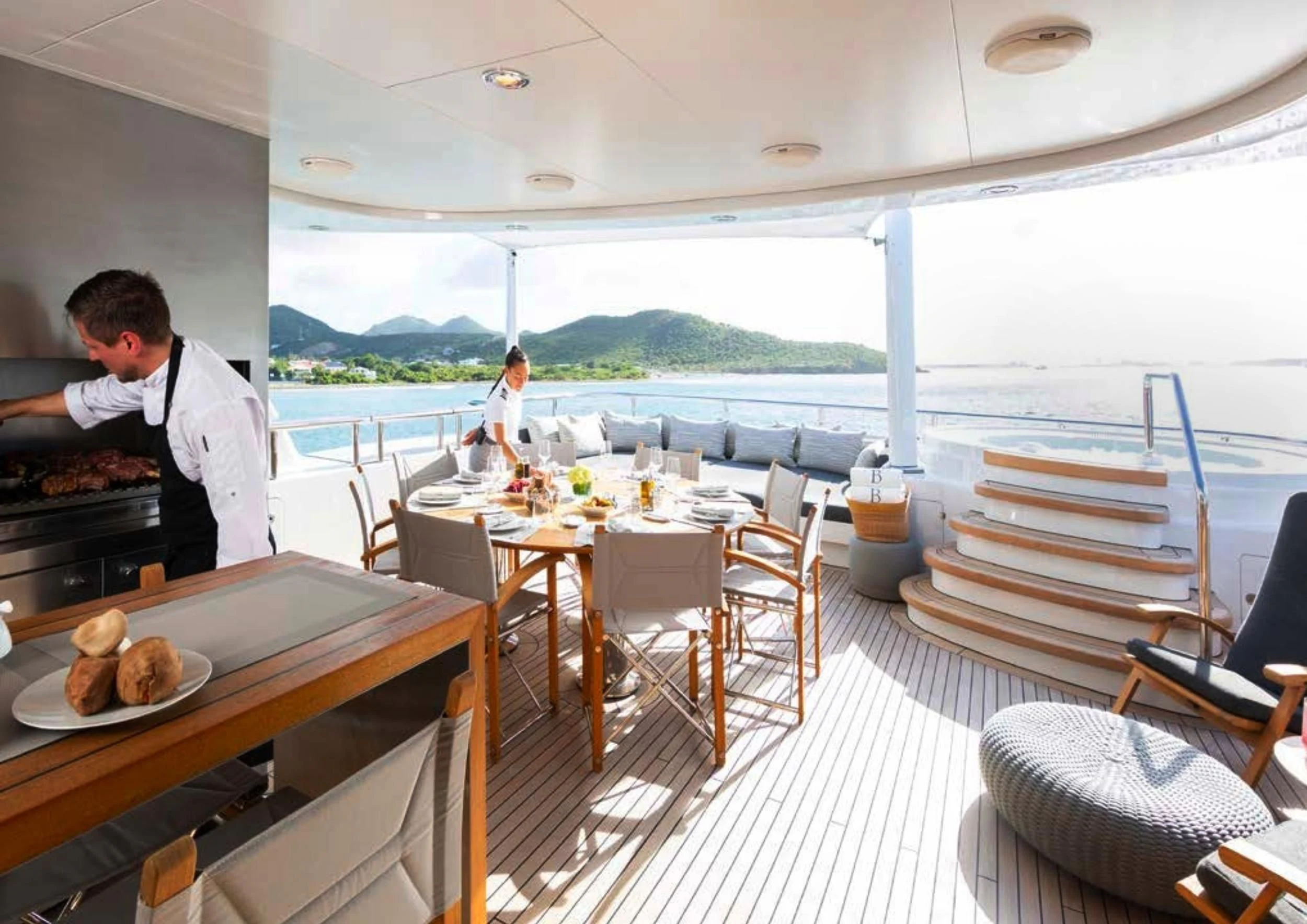

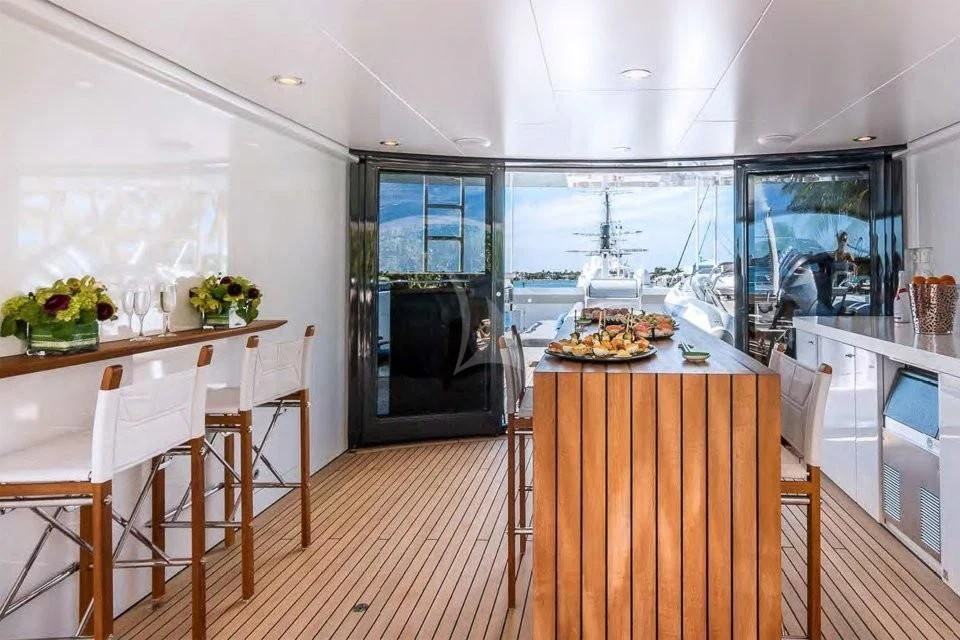

-New design sundeck including extra storage, BBQ, Teak bar with stools, re- designed dining table

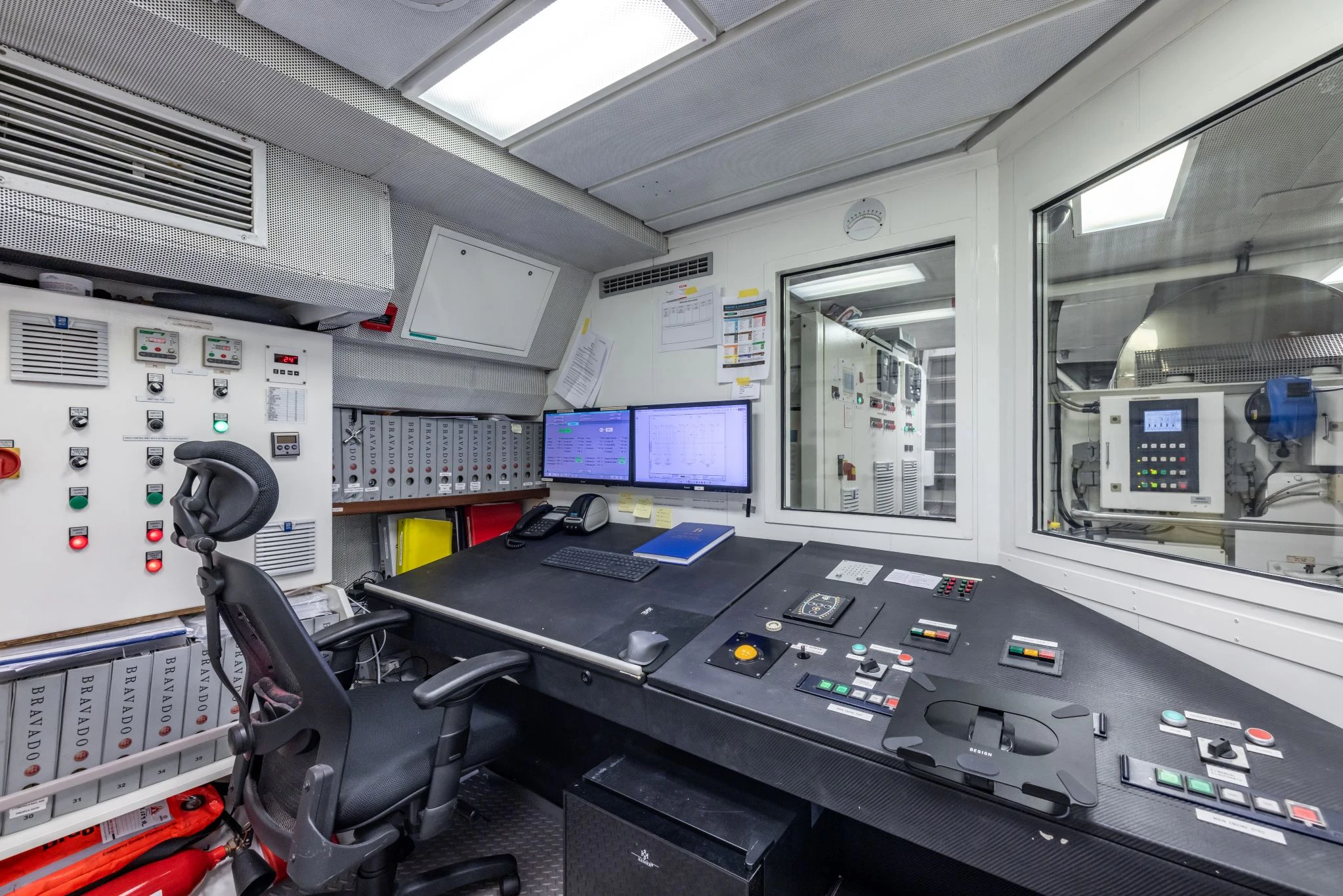

Mechanical

-ME MTU W5 overhaul, liners, piston rings, HP fuel pumps, injectors, fresh & sea water pumps, Alternators, starter motors

-GE MTU W6 overhaul (complete removed to workshop) liners, piston rings, HP fuel pumps, injectors, fresh & sea water pumps, Alternators, starter motors, rewinding of the Alternators plus MEG testing.

-Quantum stabilizer overhaul including removing fins and change bearings.

-Haman sewage treatment system – complete overhaul

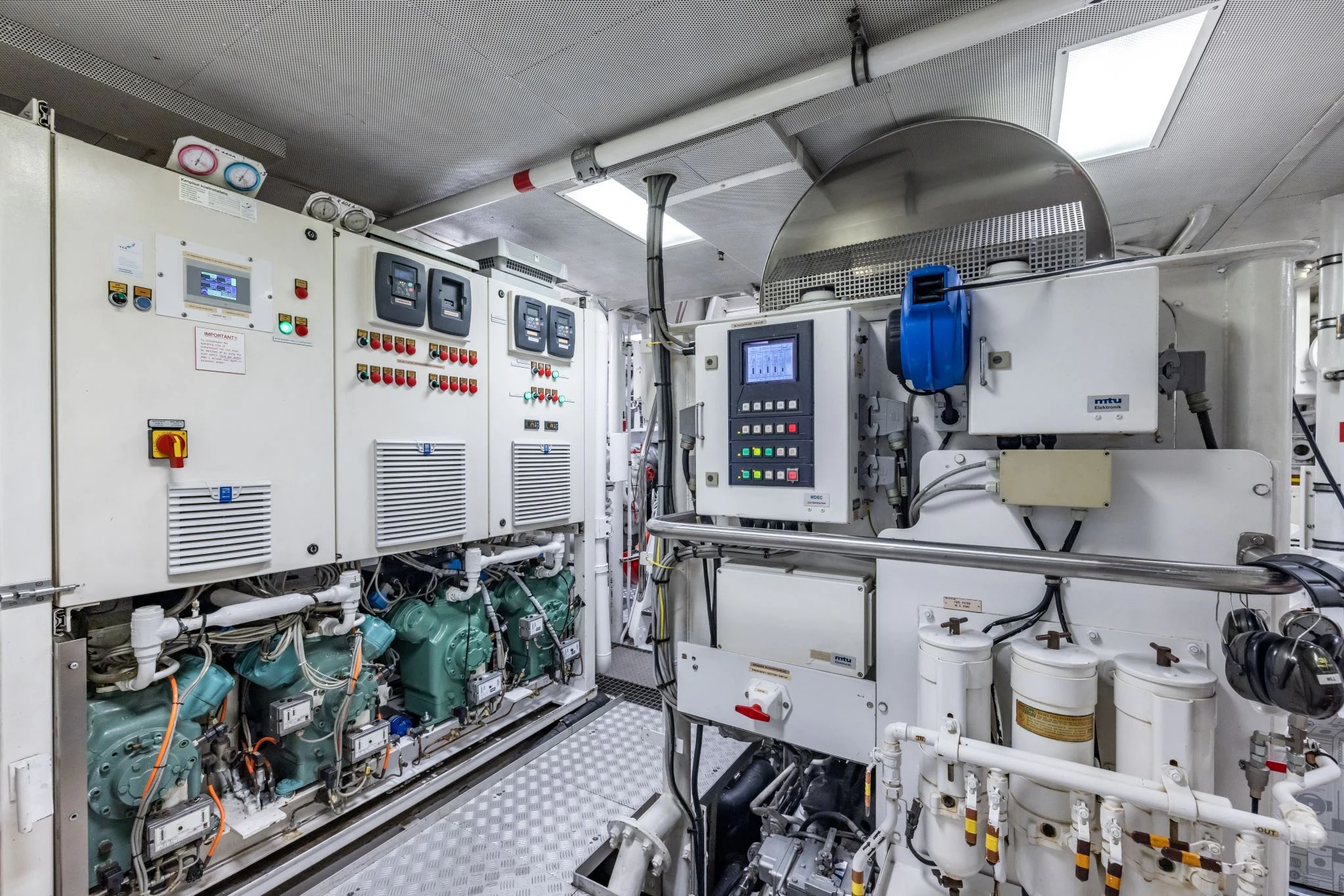

-A/C system overhaul – removed and serviced all air handlers and serviced all compressors

-Additional fridges and freezers in lazarette

-All pumps and pipes removed and replaced in engine room.

-All bilges painted true out yacht.

-Cranes, capstans and windless removed overhauled and painted.

-HEM water makers overhaul

-Oily water separator overhaul

-Air compressors overhaul

-Extra spare parts based on world cruising itinerary

-Replaced – Overhauled all hull valves

Electronics & AV

-New atlas power converter 250 KVA 2017

-V-sat upgrade to new 2x KVH v11 2017

-New IP moble cast unit for sat tv 2017

-New wi-fi system & 2x 4G Sim Routers 2017

-New rack for electronics plus cooling 2017

-All interior lights changed to LED 2016

-Apple TV & Sonos upgrades true out yacht 2016

-New fire detection system 2016

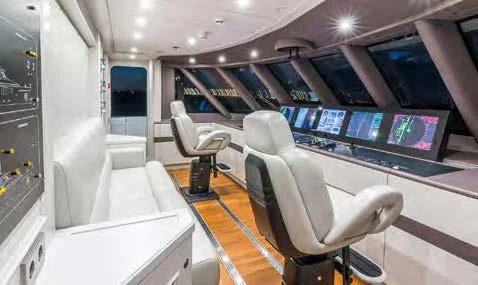

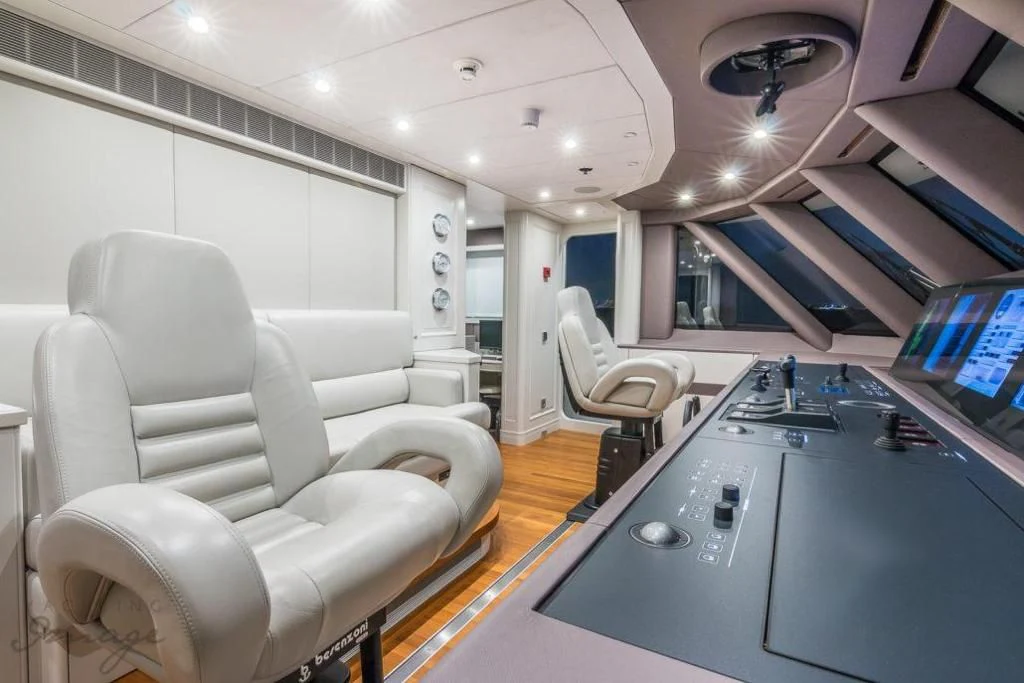

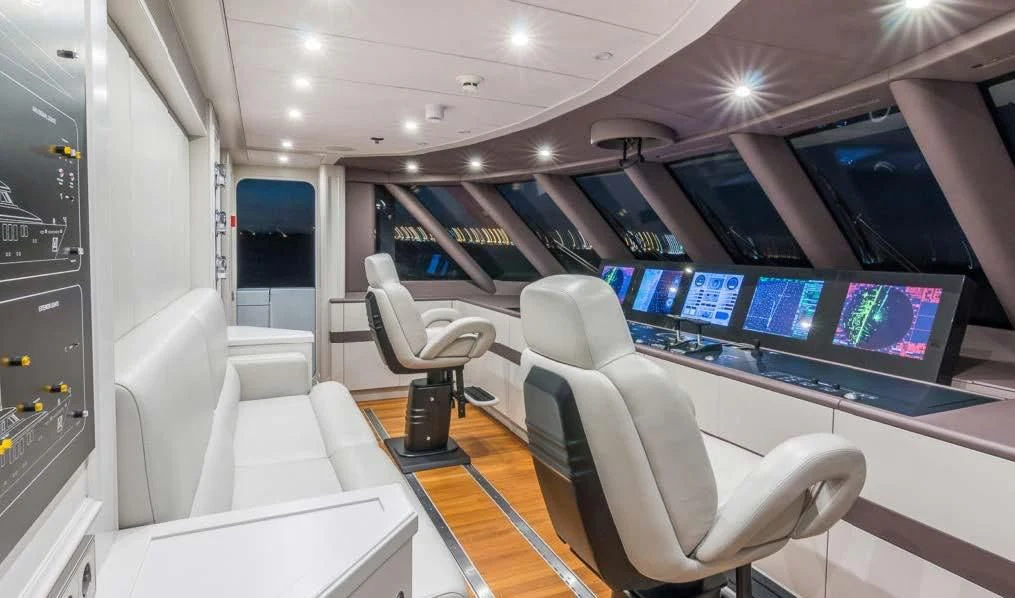

New Navigation equipment

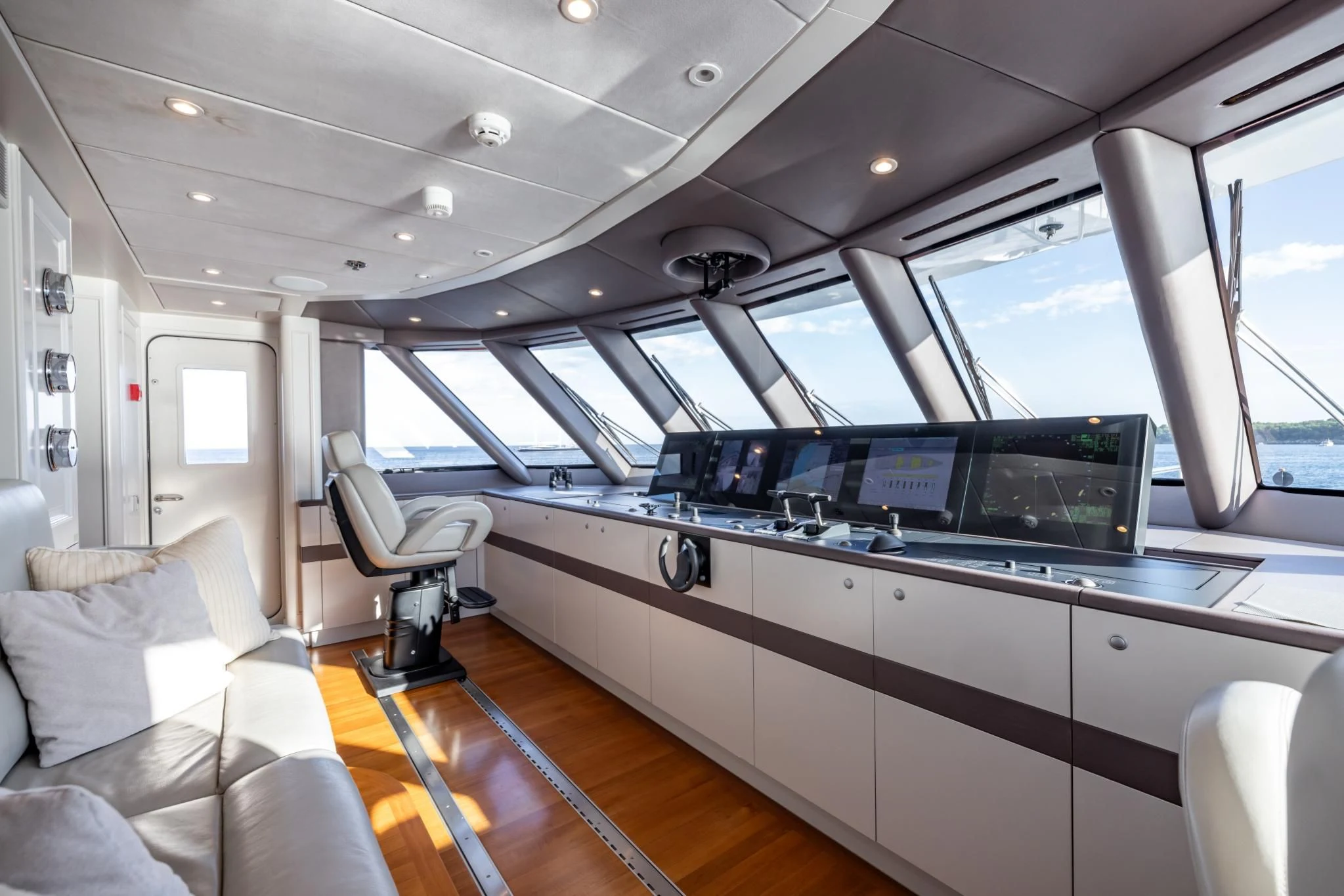

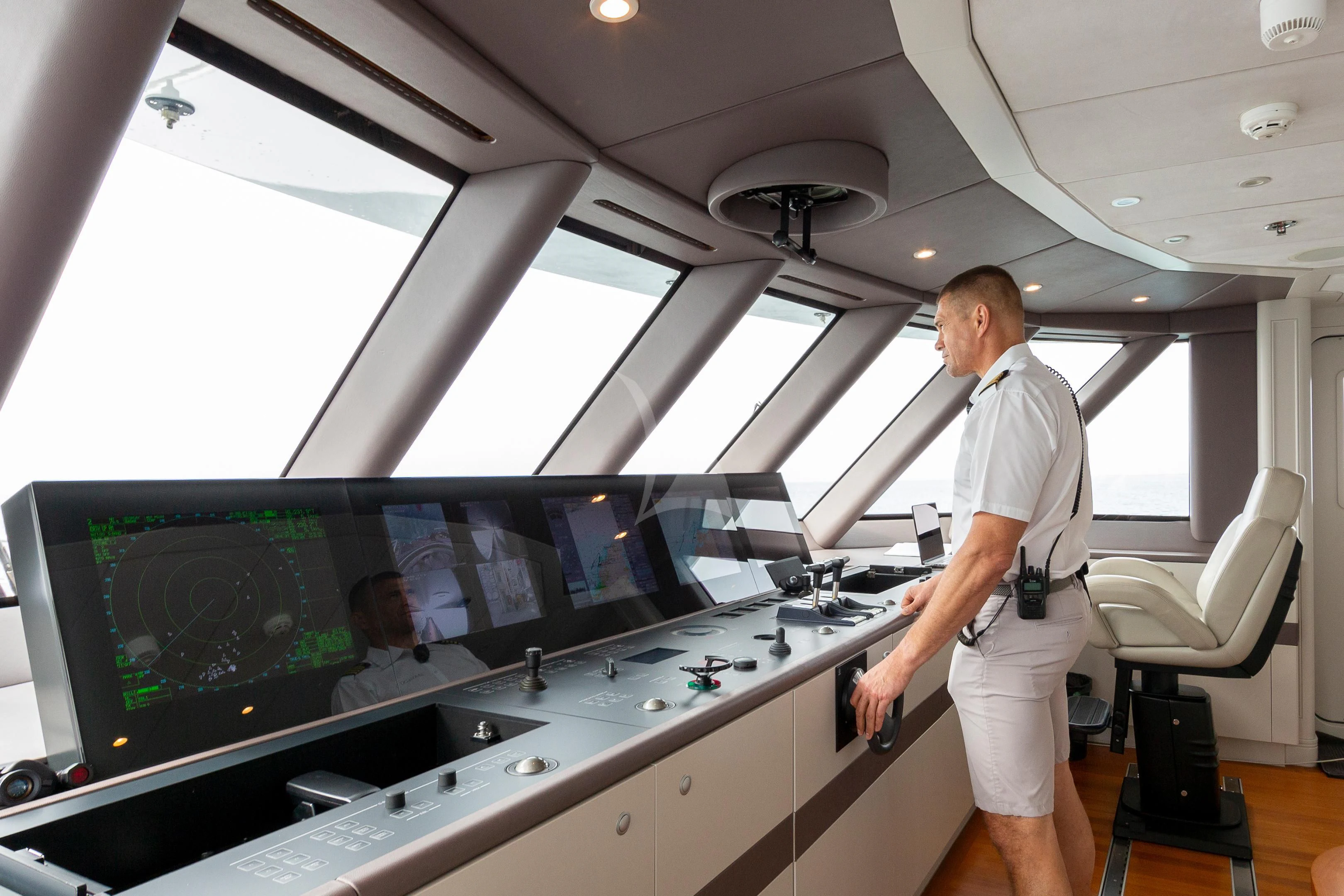

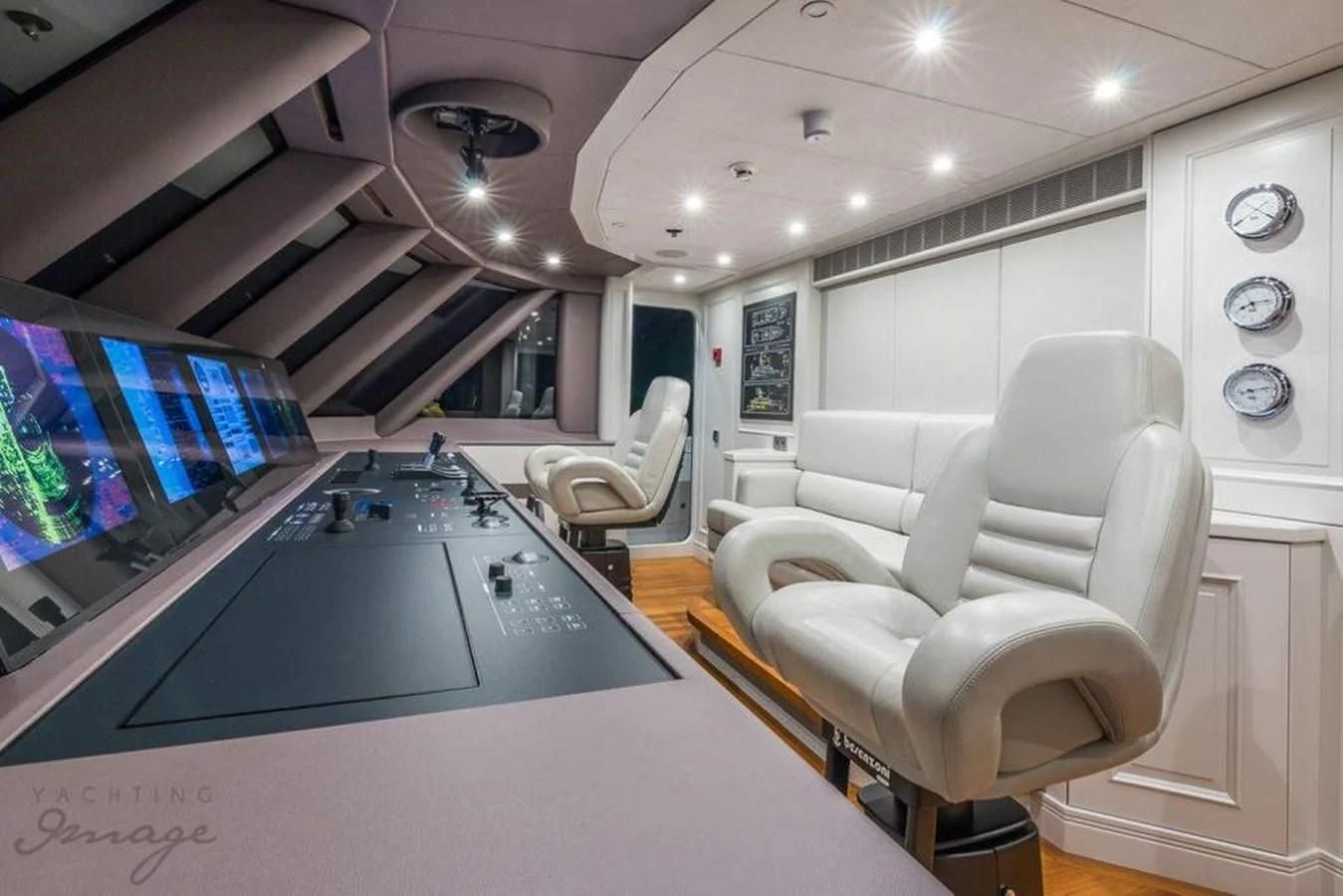

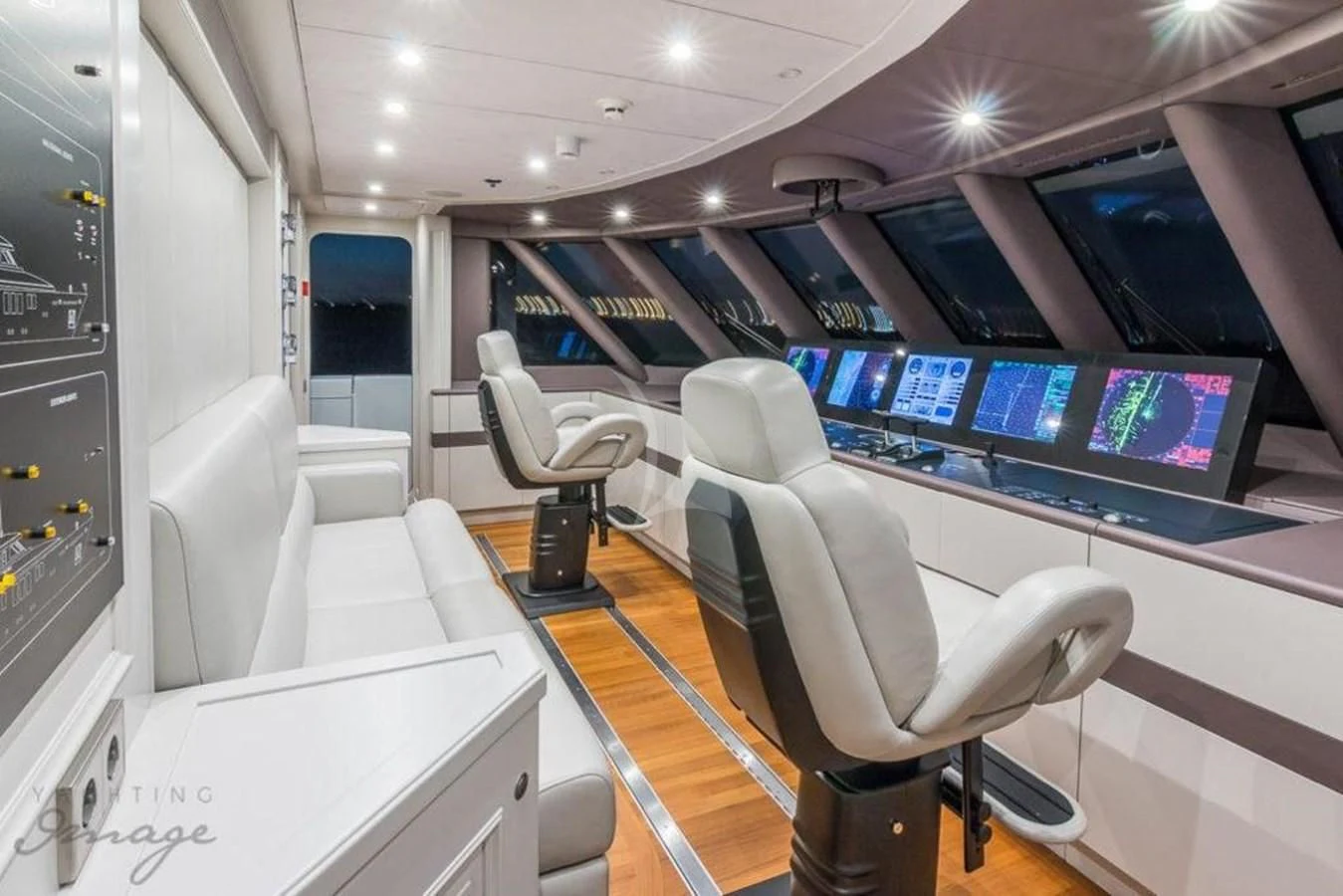

-Radio Zeeland intergraded bridge console including full glass monitors 2016

-Radars X / S 2016

-VHF + handhelds 14x 2016

-GPS 2016

-Flir sea stabelized night vision camera 2016

-Max sea Time zero PC 2016

-Transas 4000 PC 2016

-Conning system PC 2016

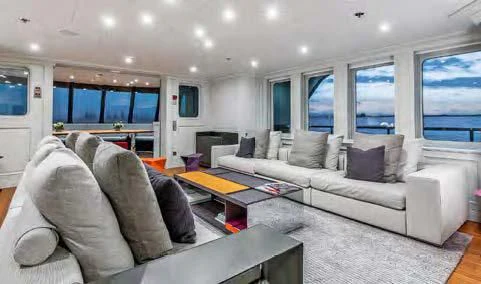

Interior

-Modern design 2016

-Repainted 1000M2 2016

-New teak floors 200M2 2016

-New high end fixed designer furniture 2016

-New Head linings and Curtains 2016

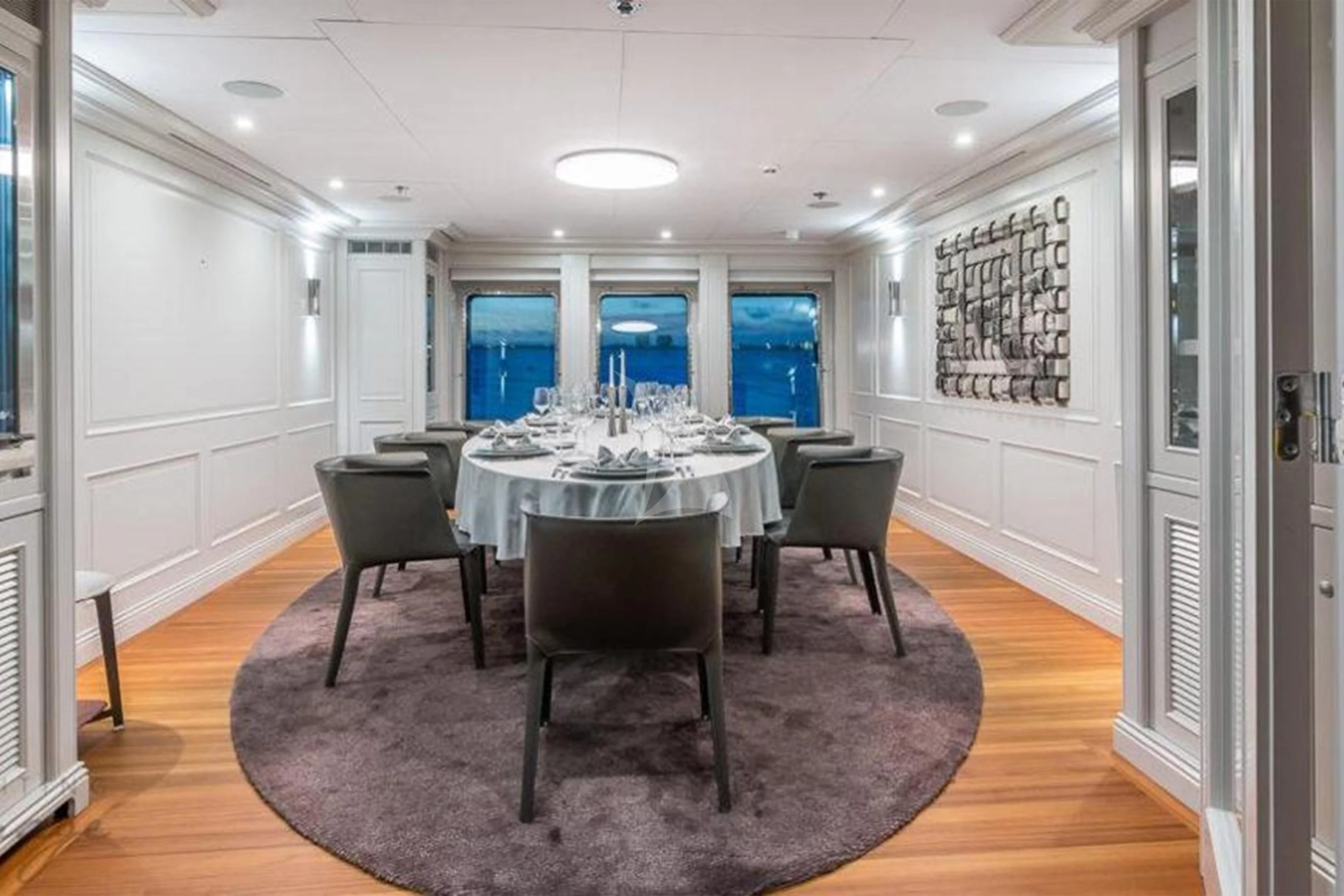

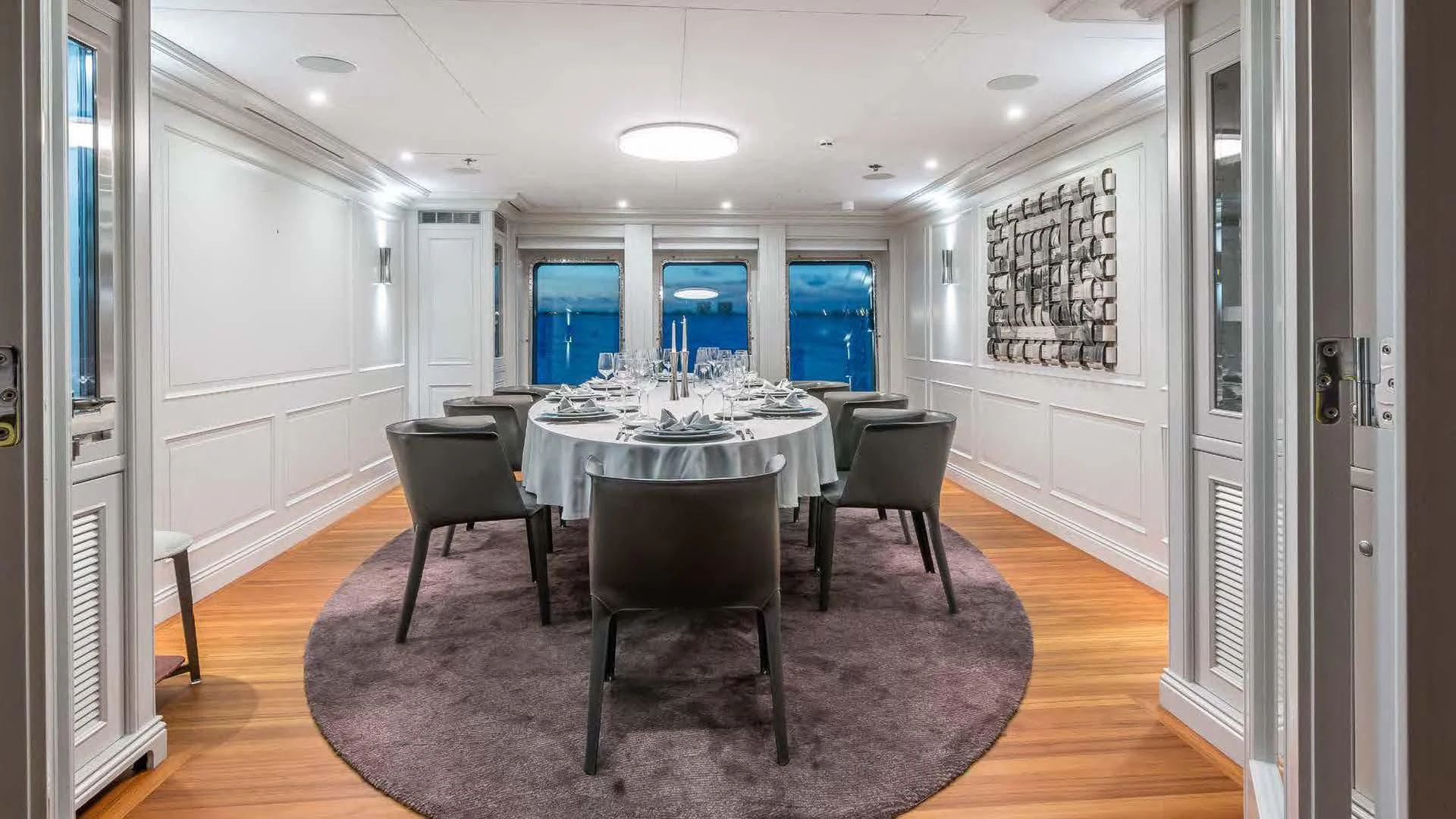

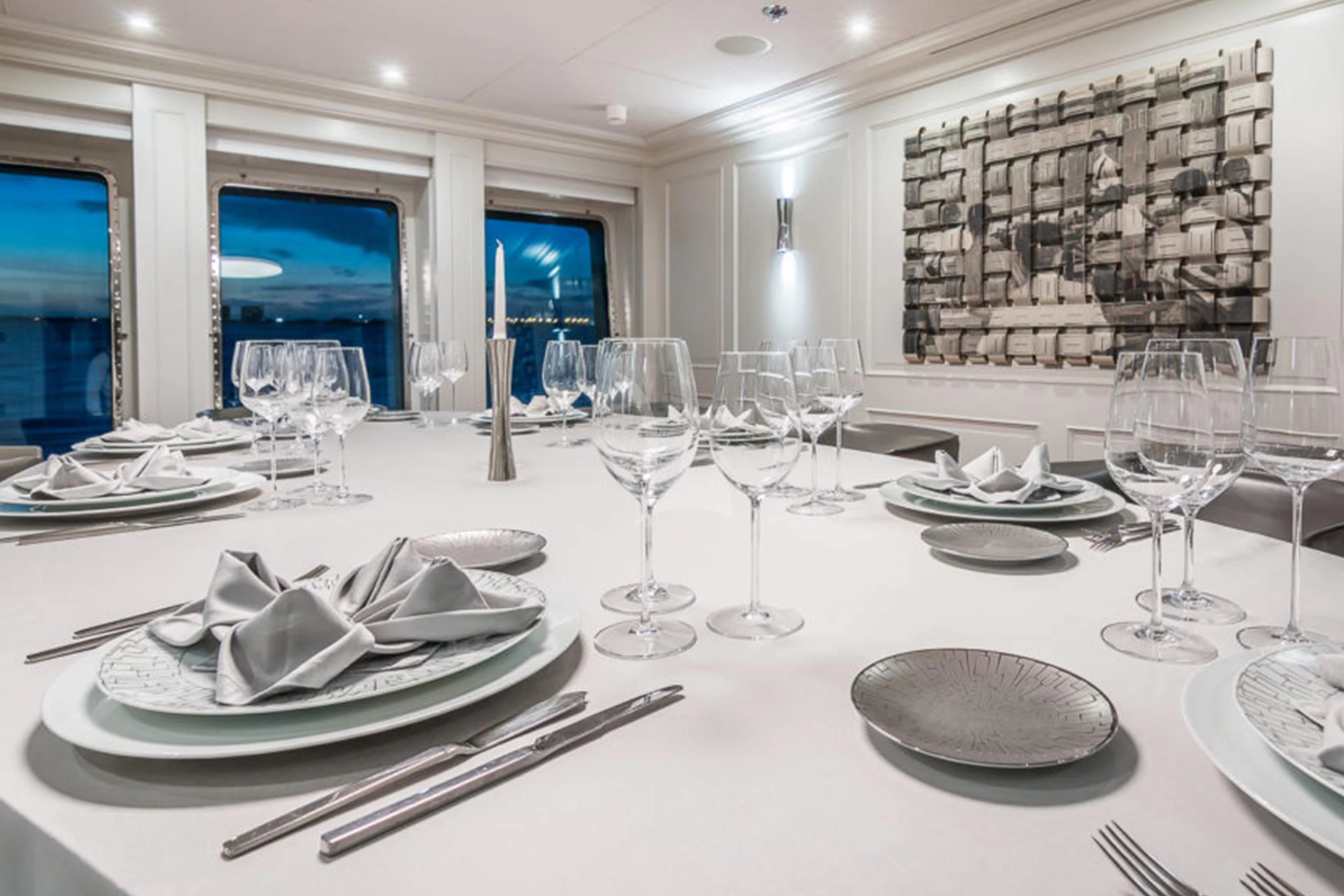

-Custom made wine cooler in dining room 2016

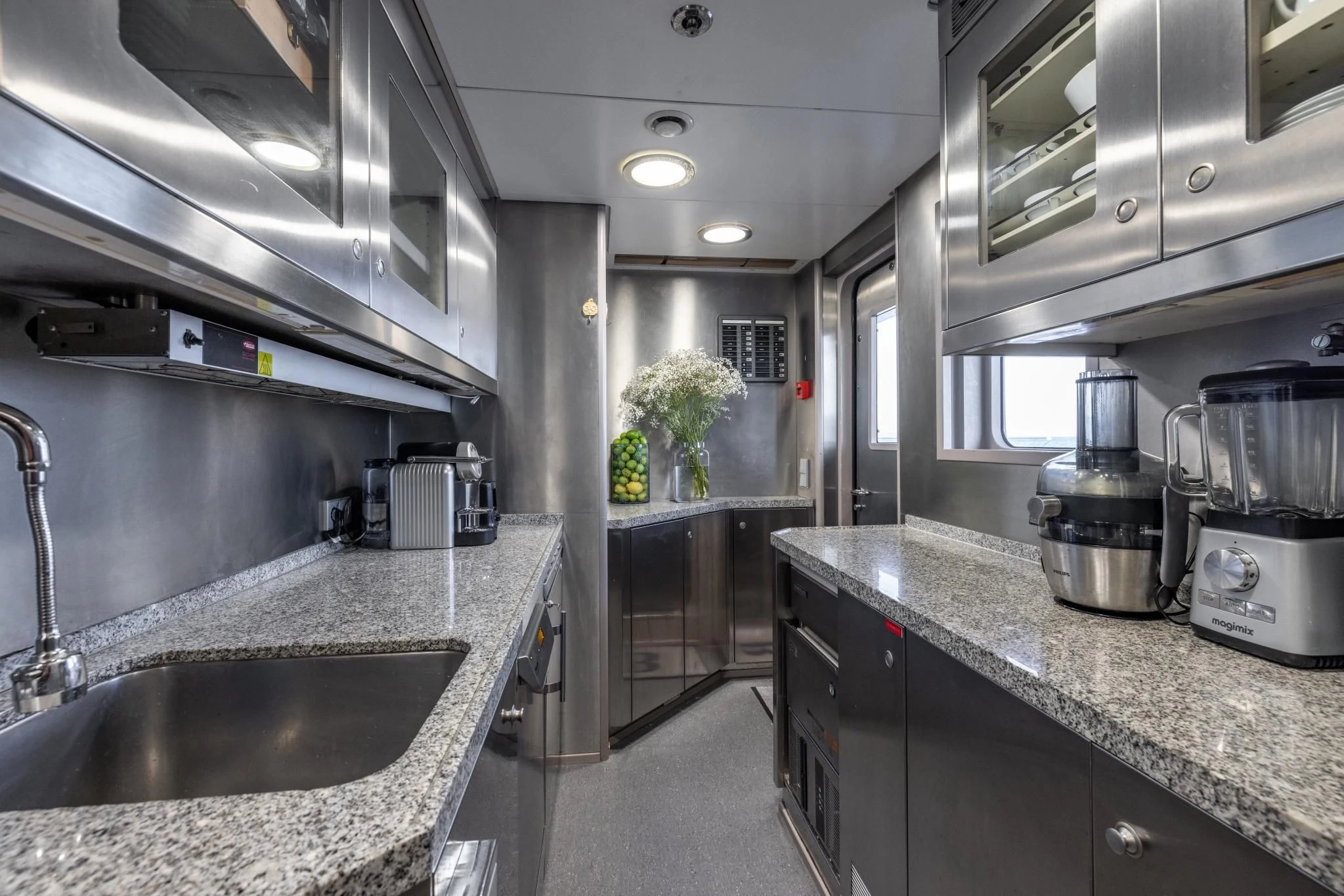

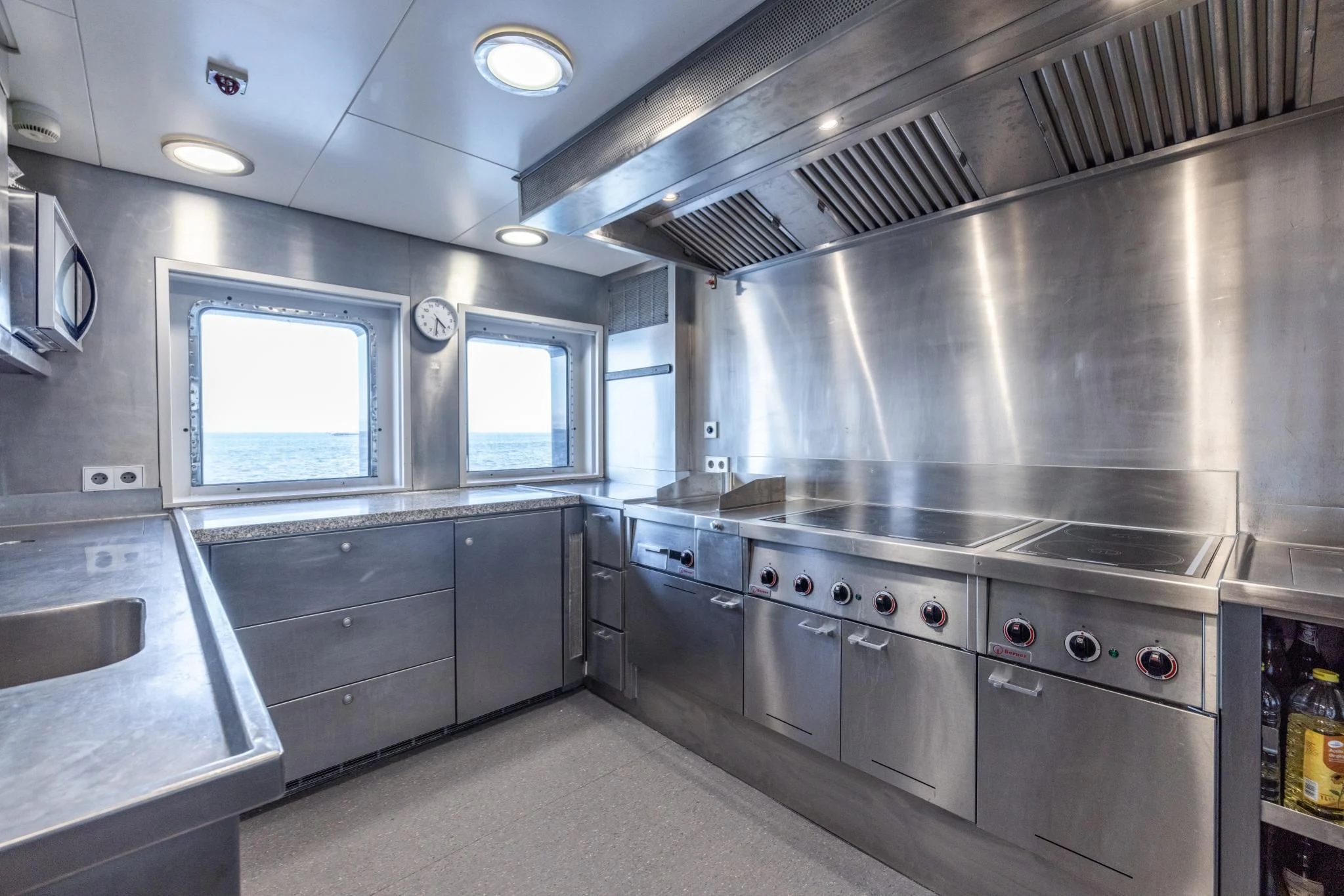

-Galley & Laundry refit with replacement of equipment 2016

Management

-Full ISM system implementation

-MMV Planned maintenance system

-Spares Inventory
