AR-DE Yacht for Sale

122' (37m)

Yacht is no longer available for sale.
This is an archived web page showing historic information for reference purposes only. Search Yachts for Sale.

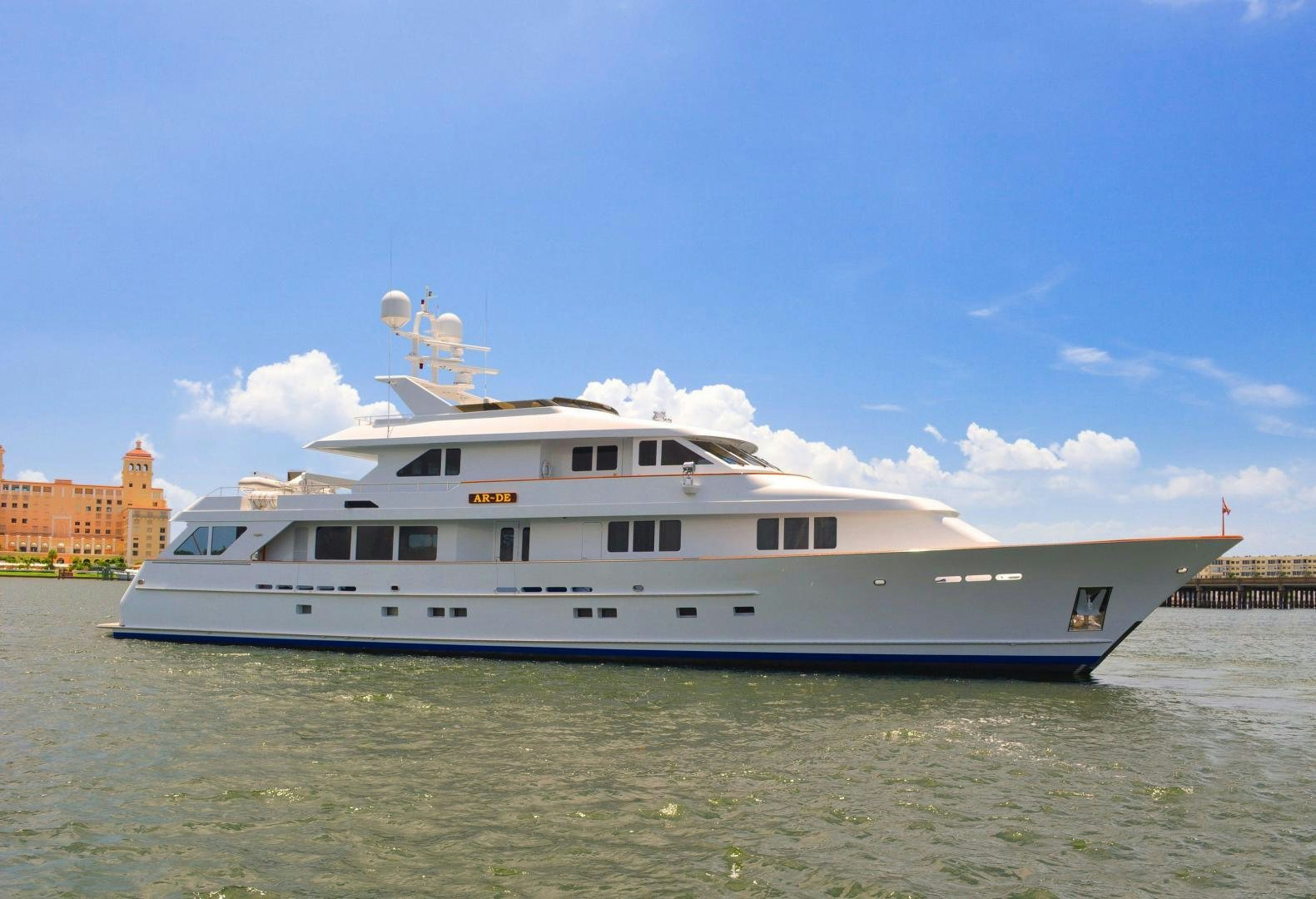

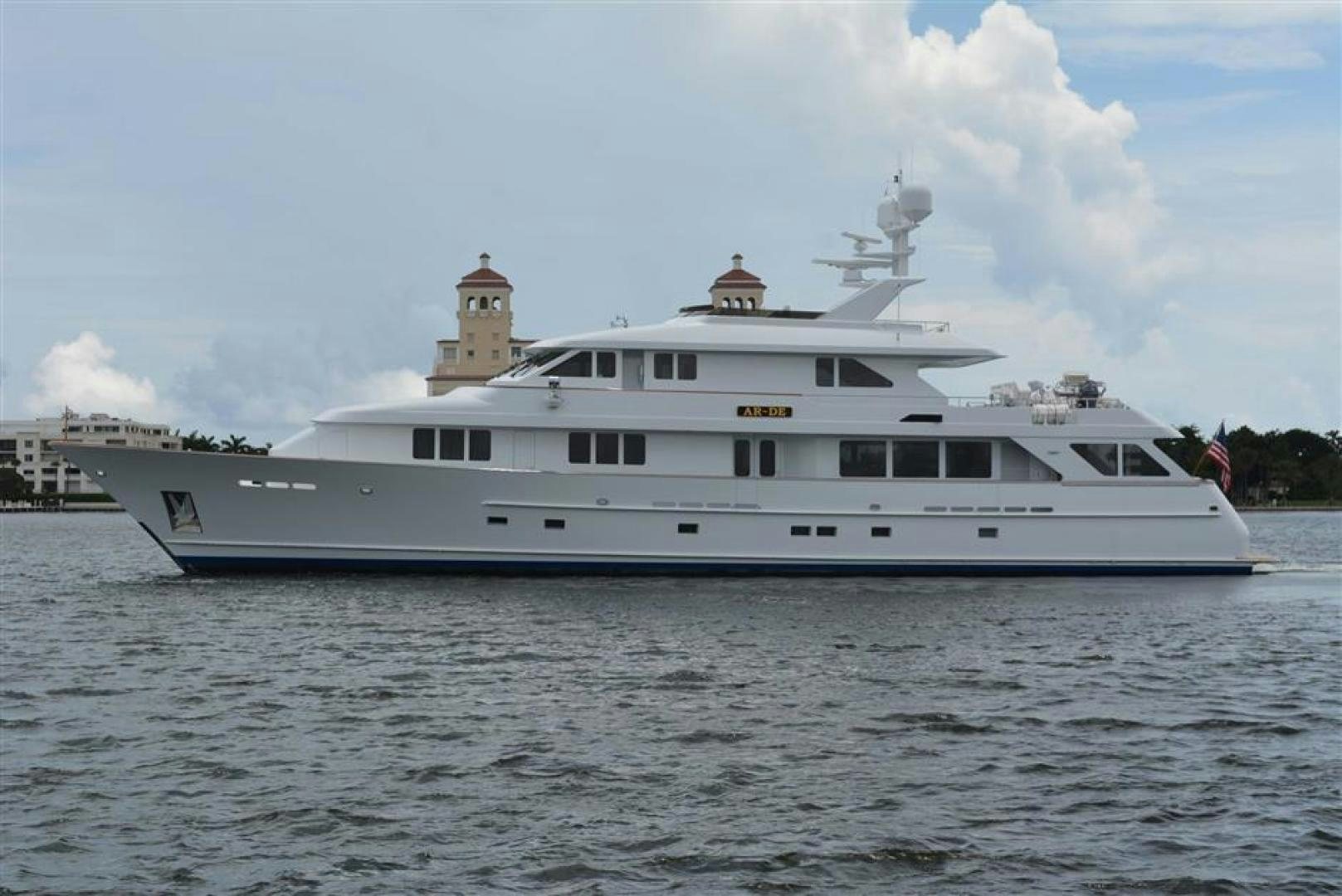

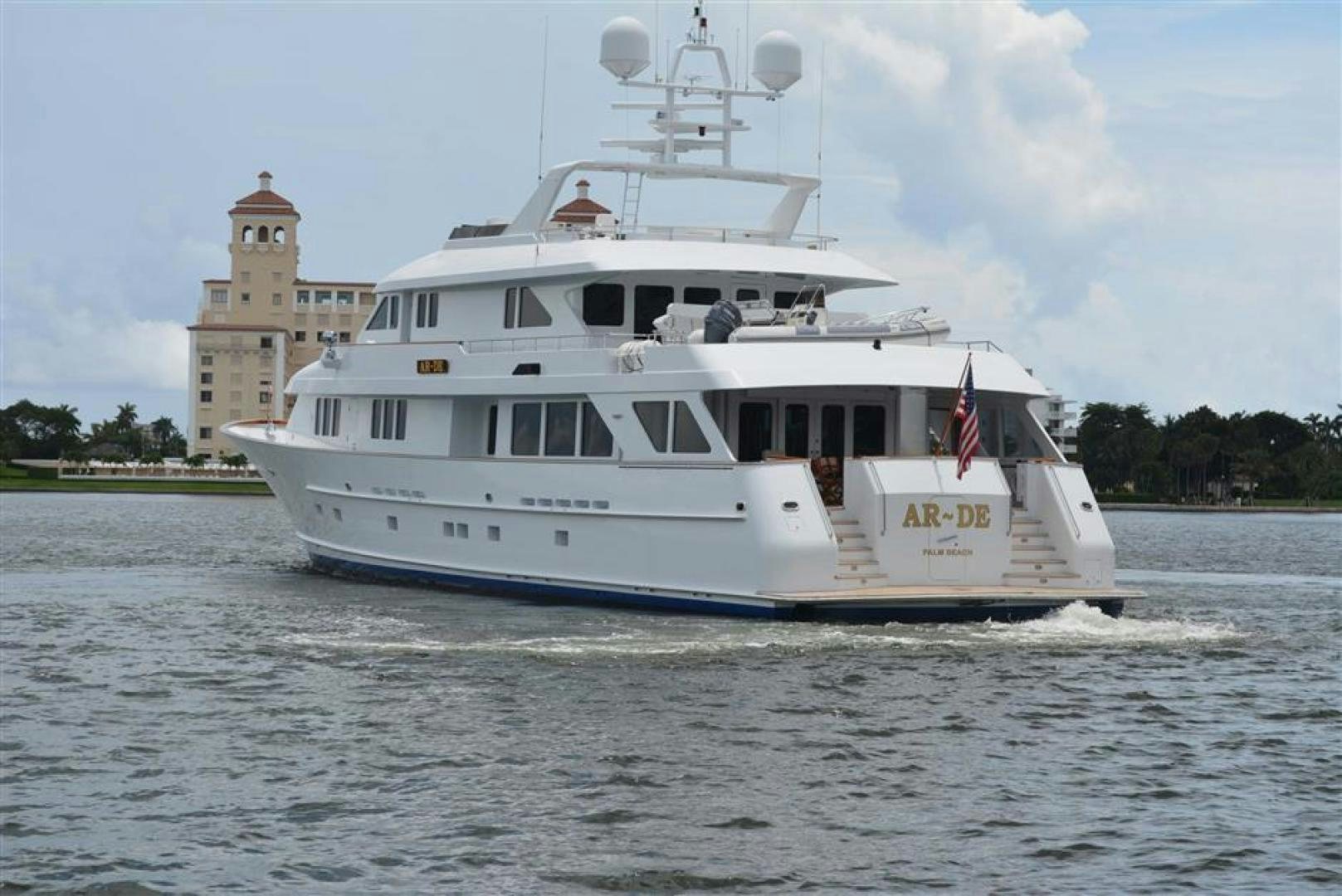

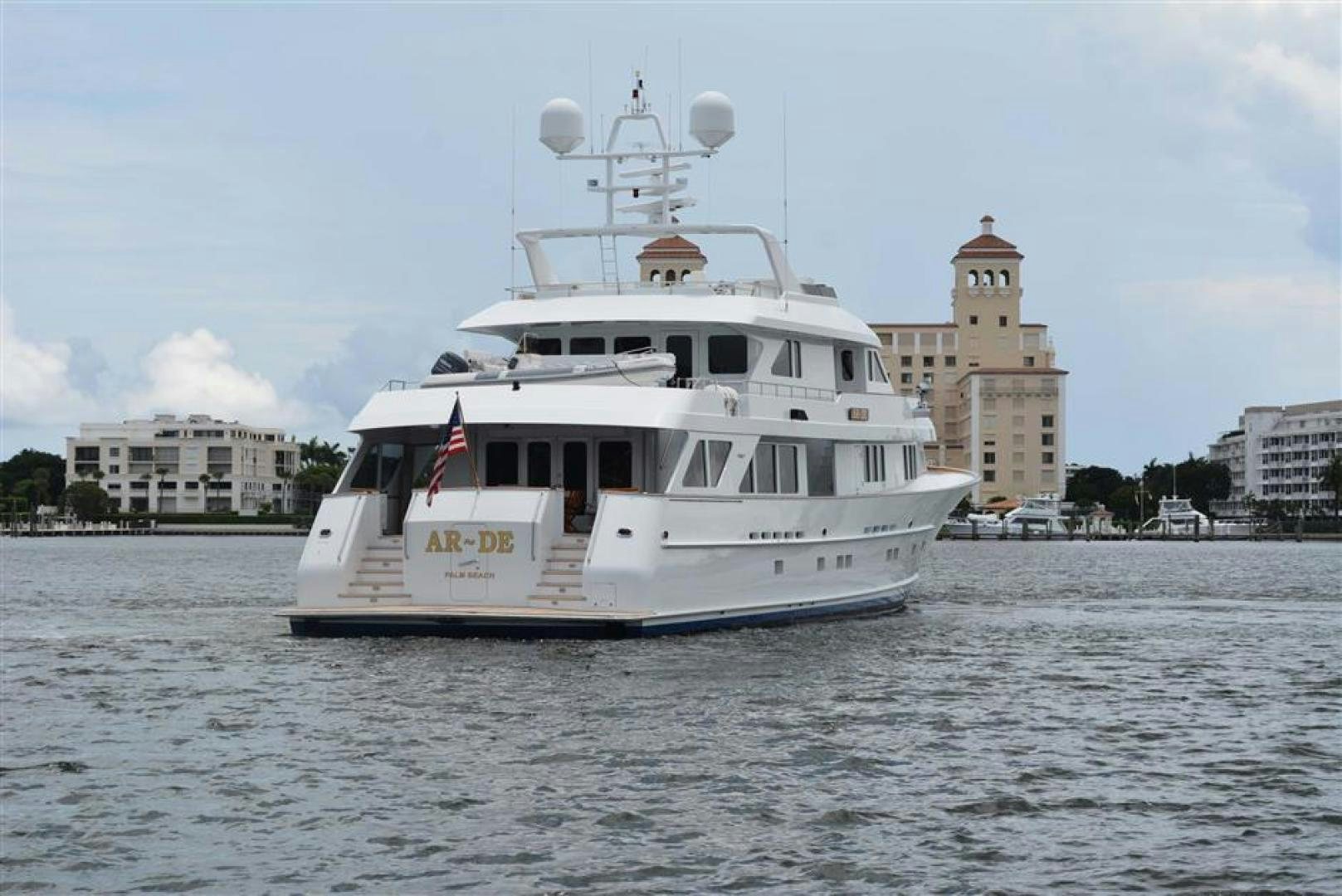

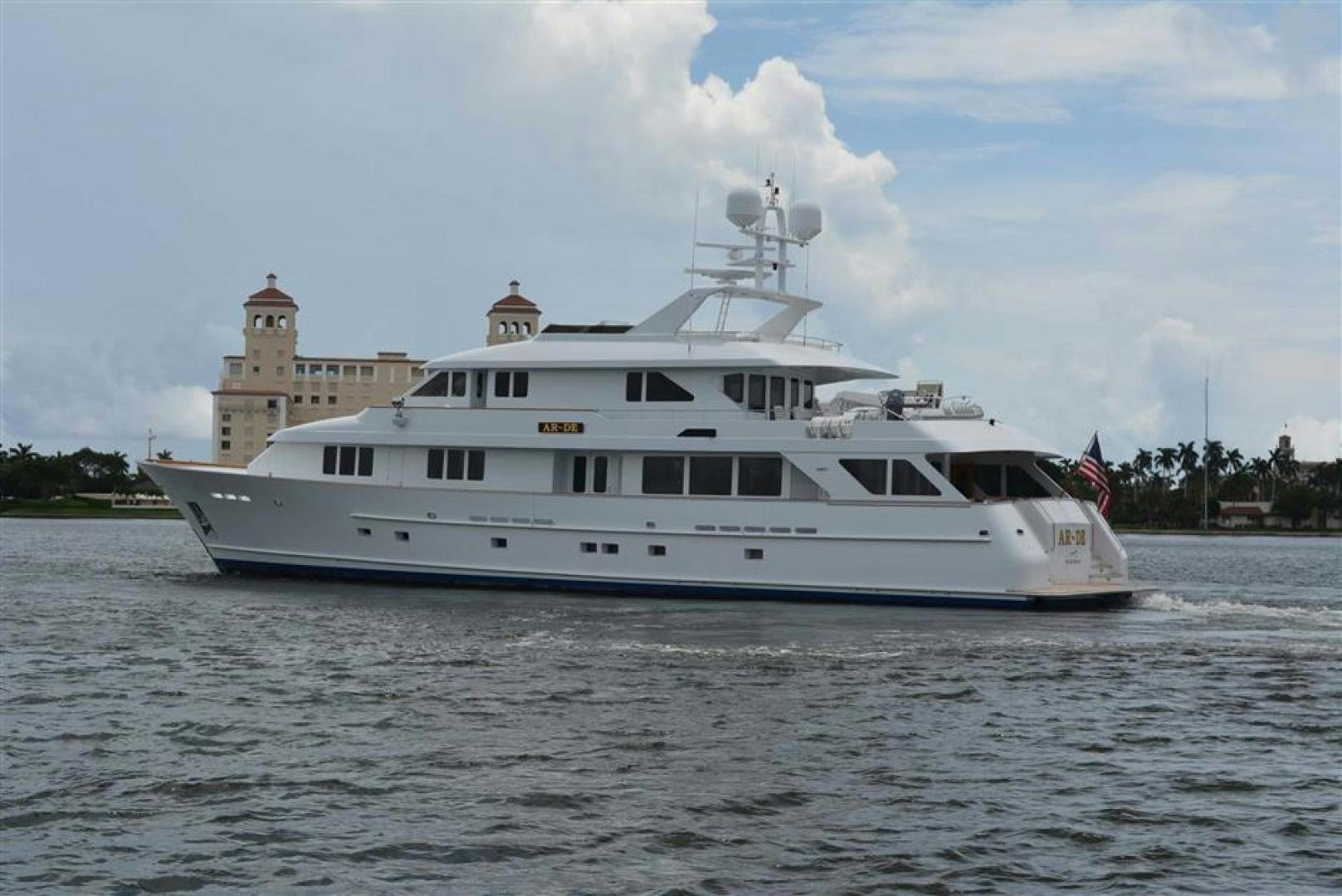

The 122-foot motor yacht AR-DE has been loved and enjoyed her entire life by devoted Burger aficionados. A very versatile, capable yacht with tremendous volume, she features unique characteristics and handles extremely well.

At home in Newport, The Bahamas or the Caribbean, AR-DE is the perfect family yacht and also is well suited to charter. To fully appreciate the intricacies of AR-DE, you must personally inspect her.

AR-DE is a well-equipped custom Burger tri-deck motor yacht. Her large aft deck area with teak table and abundant seating is ideal for outdoor entertaining. The elegance and quality of finish of every detail on board is evident of a custom Dee Robinson interior. AR-DE boasts five luxurious staterooms, a magnificent grand salon, panoramic skylounge and exceptional deck areas.


  • Well equipped custom Burger tri-deck motor yacht
  • Accommodations for 10 guests in 5 staterooms, including an on-deck master
  • Exceptional outdoor space with abundant seating
  • Walk around decks on both the main and upper decks
  • Never been chartered


  • At-Anchor Stabilizers


Builder Burger
Model Pilothouse
Length (LOA) 122' (37m)
Year 2002
Draft 6' (1.83m)
Beam 26' 5" (8.05m)
Location Palm Beach, United States


Staterooms 5
Capt. Quarters No

Dimensions & Capacity

LOA 122' (37m)
Min Draft 5' 6" (1.68m)
Max Draft 6' (1.83m)
Fuel Tank 13,239 g
Fresh Water 7,142 g
Holding Tank 2,115 g


Hull Material Aluminum
Hull Config Pilothouse
Max Speed 20 Knots
Cruising Speed 17 Knots
Stabilizers None

Engines (x2)

Engine Make Detroit Diesel
Engine Model MTU 12V-4000 TA
Engine Type Inboard
Power HP 2,750
Power KW 2,051
Fuel Type Diesel
Engine Location Port
Have Questions?

Complete the form below and one of our experienced sales brokers will be in touch soon.

Full Details

Virtual Tour

Click here for a virtual tour: http://www.virtualsinc.com/yacht/1055.html

Special Features

1. Custom built Burger tri-deck with beautiful Dee Robinson interior & Cherry wood joinery.
2. Complete new paint job from Rybovich shipyard (Winter 2016- currently in process).
3. Features 5 stateroom layout, with an on-deck master stateroom and owner's study on upper deck.
4. Powered by DDC/MTU 12V-4000TA's with low hours.
5. All the large yacht options, including Atlas ShorPower, Naiad Stabilizers, and 2 x Kilopak Generators.
6. Walk-around decks on both main and upper decks.
7. Never been chartered!
8. AR-DE has been loved and enjoyed her entire life by one devoted Burger aficionado.


Aluminum hull and superstructure with teak decks on the aft deck and swim platform.


Length Overall: 122.00 feet (37.19 meters)

Length at Waterline: 107.50 feet (32.74 meters)

Beam: 26.50 feet (8.05 meters)

Draft half load: 5.60 feet (1.67 meters)

Maximum draft full load: 6.00 feet (1.82 meters)

Total displacement full load: 210 long tons

Displacement full load: 470,400 pounds (approx.)

Regulatory Gross Tonnage: 277 T.

Net tonnage: 212 T.


Fuel Capacity: 13,239 US Gallons (50,115 liters)

Freshwater Capacity: 1,887 US Gallons (7,143 liters)

Gray Water: 548 US Gallons (2,074 liters)

Black Water: 559 US Gallons (2,116 liters)

Oil: 531 US Gallons (2,010 liters)


17 Knots Max Speed / Consumption per hour 170 US Gallons / RPM 1800

15 Knots  Cruising Speed / Consumption per hour 150 US Gallons / RPM 1600

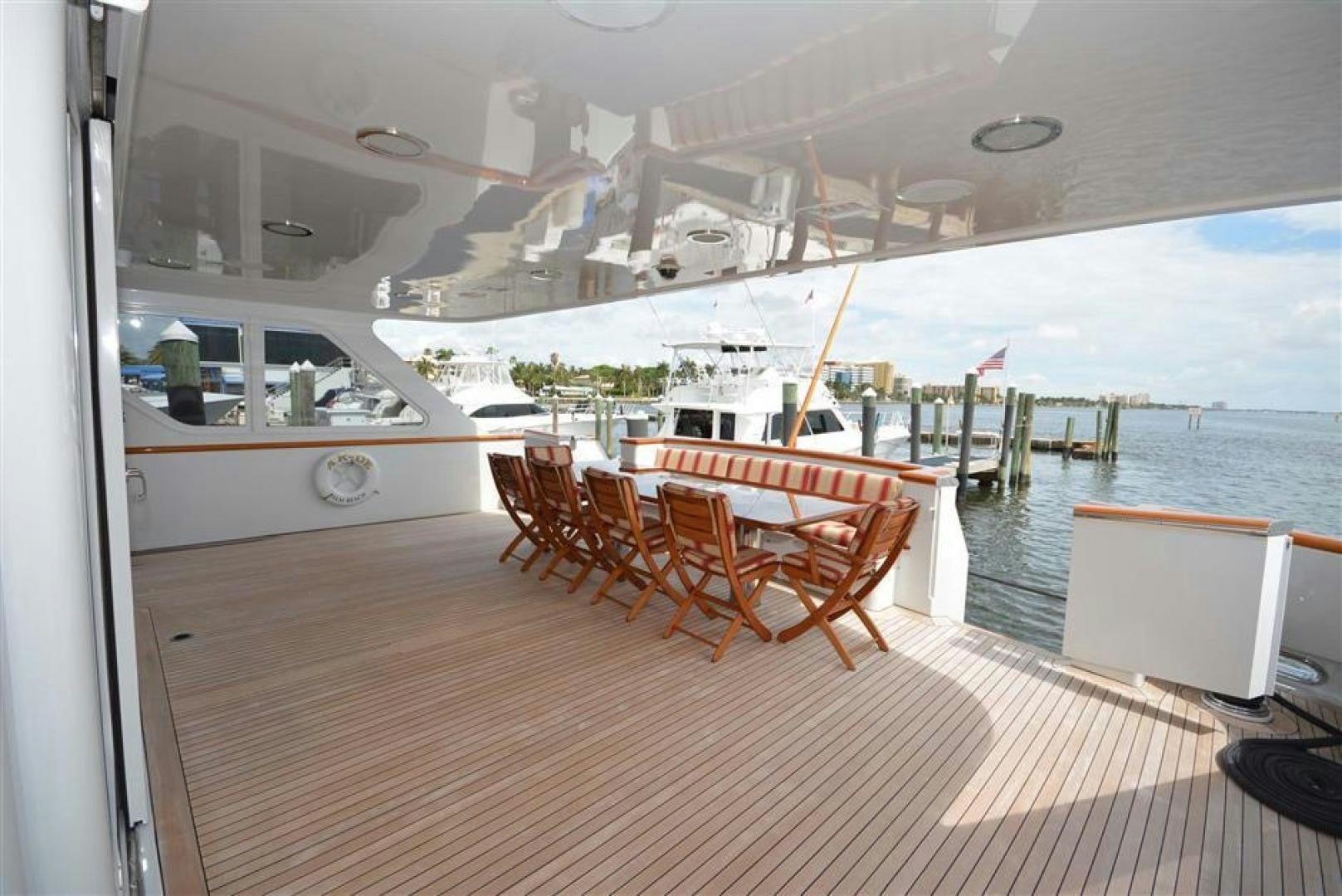

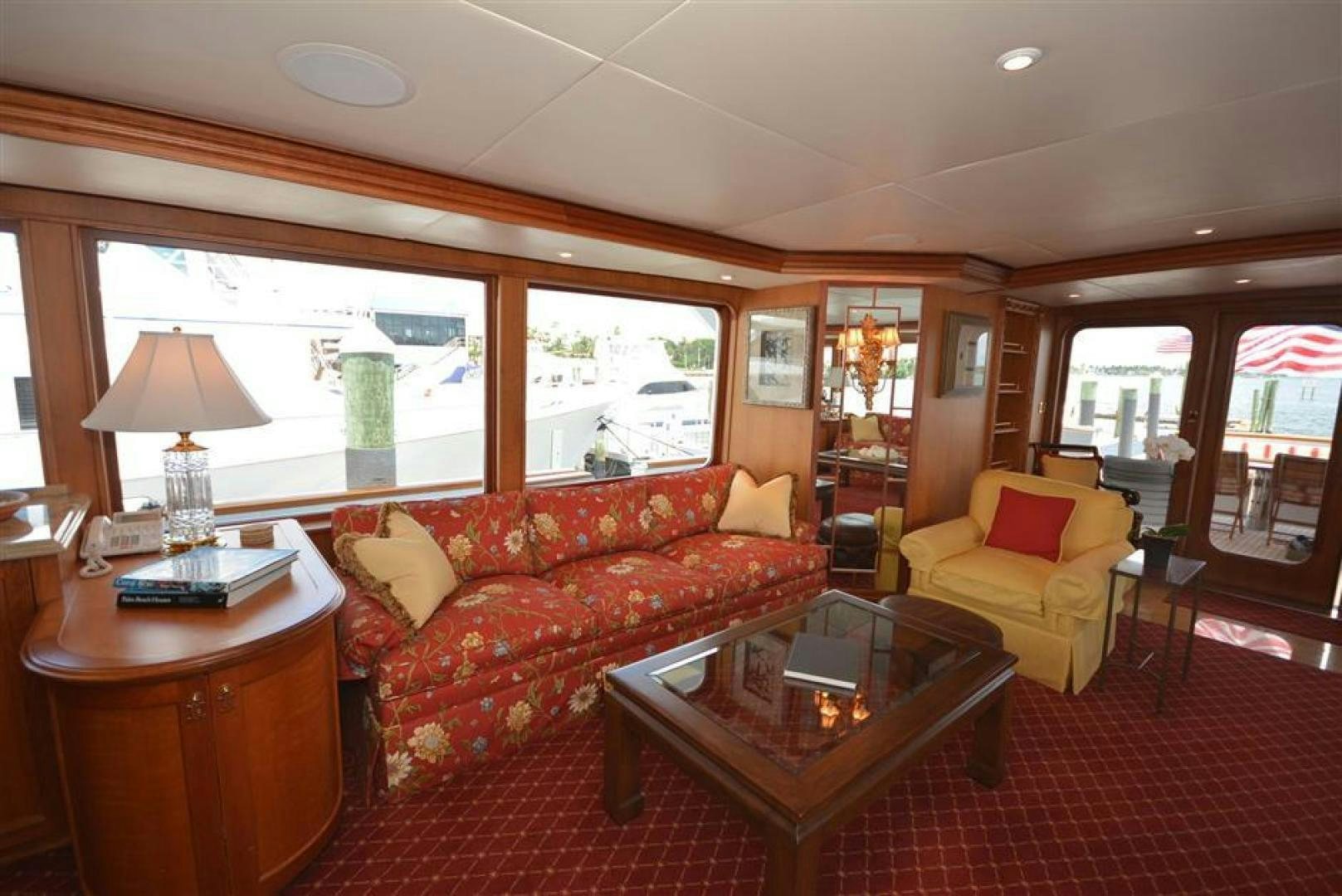

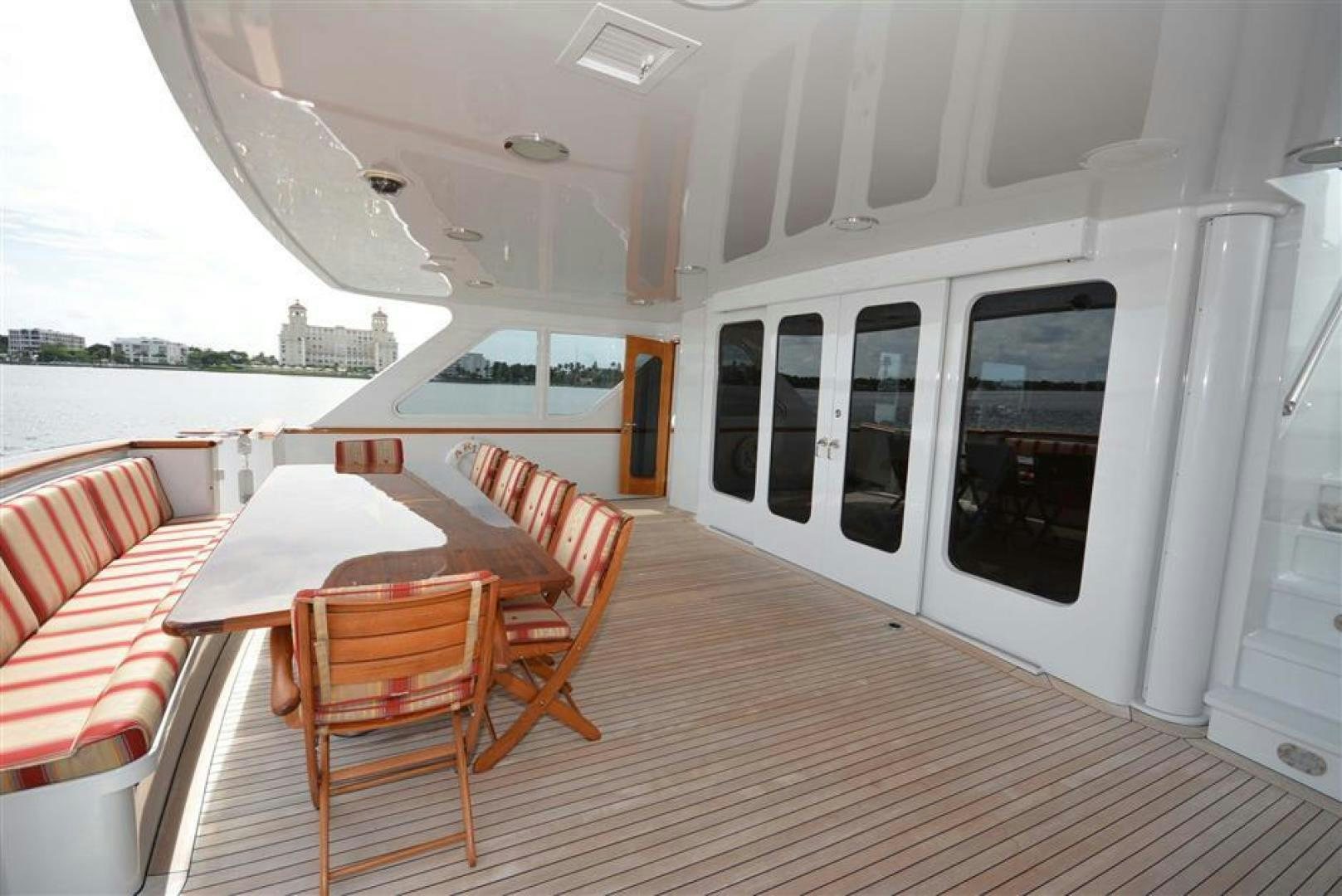

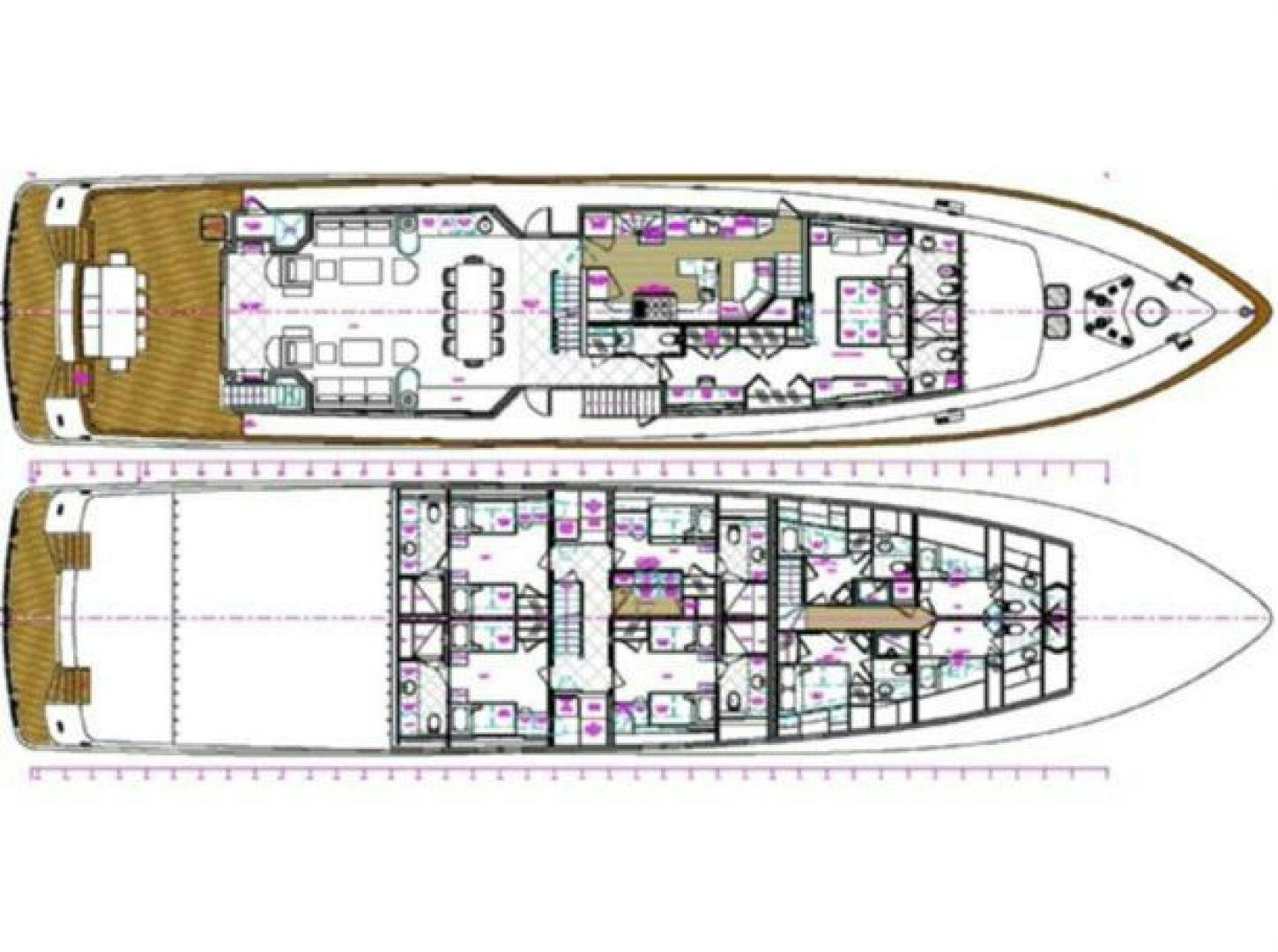

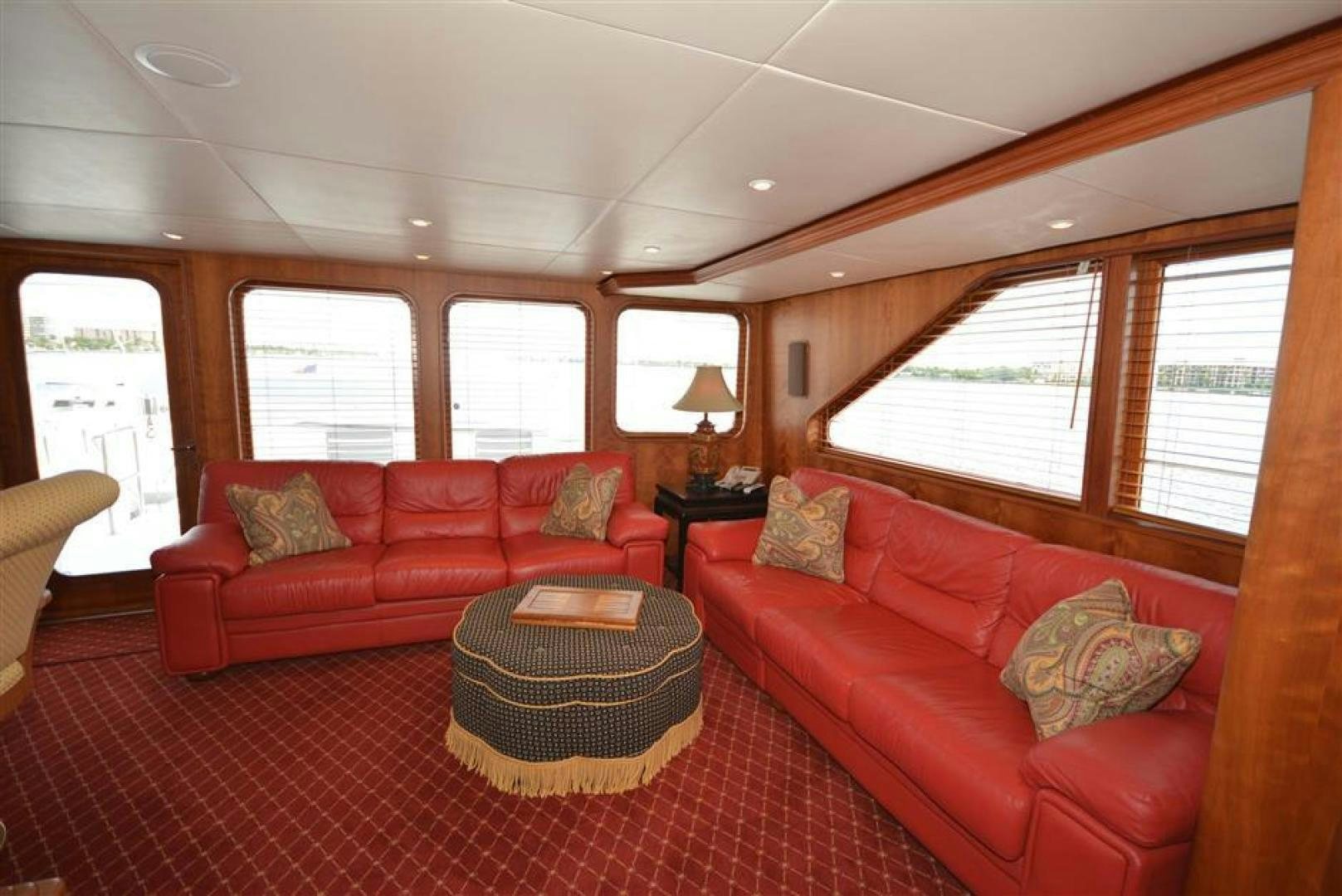

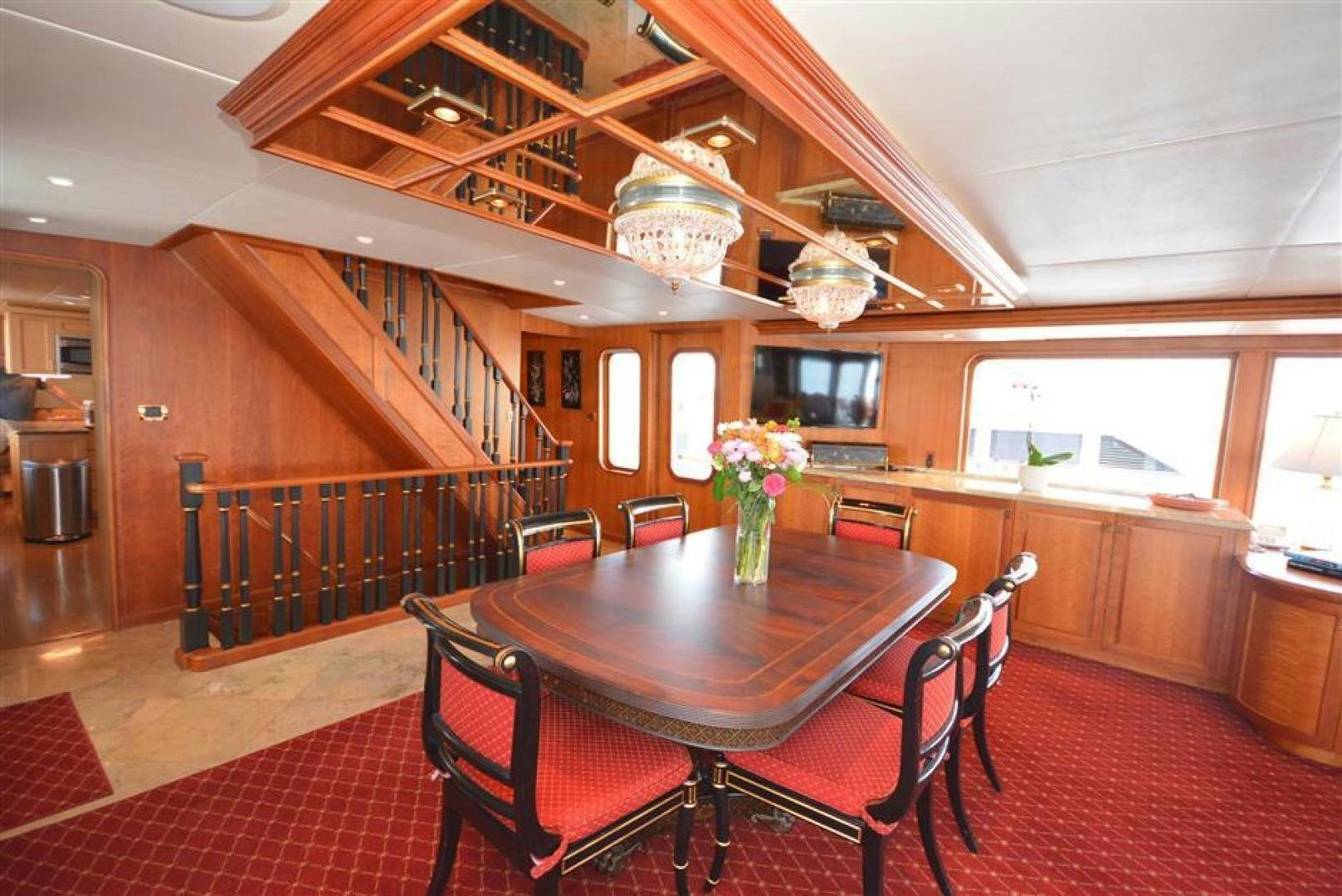

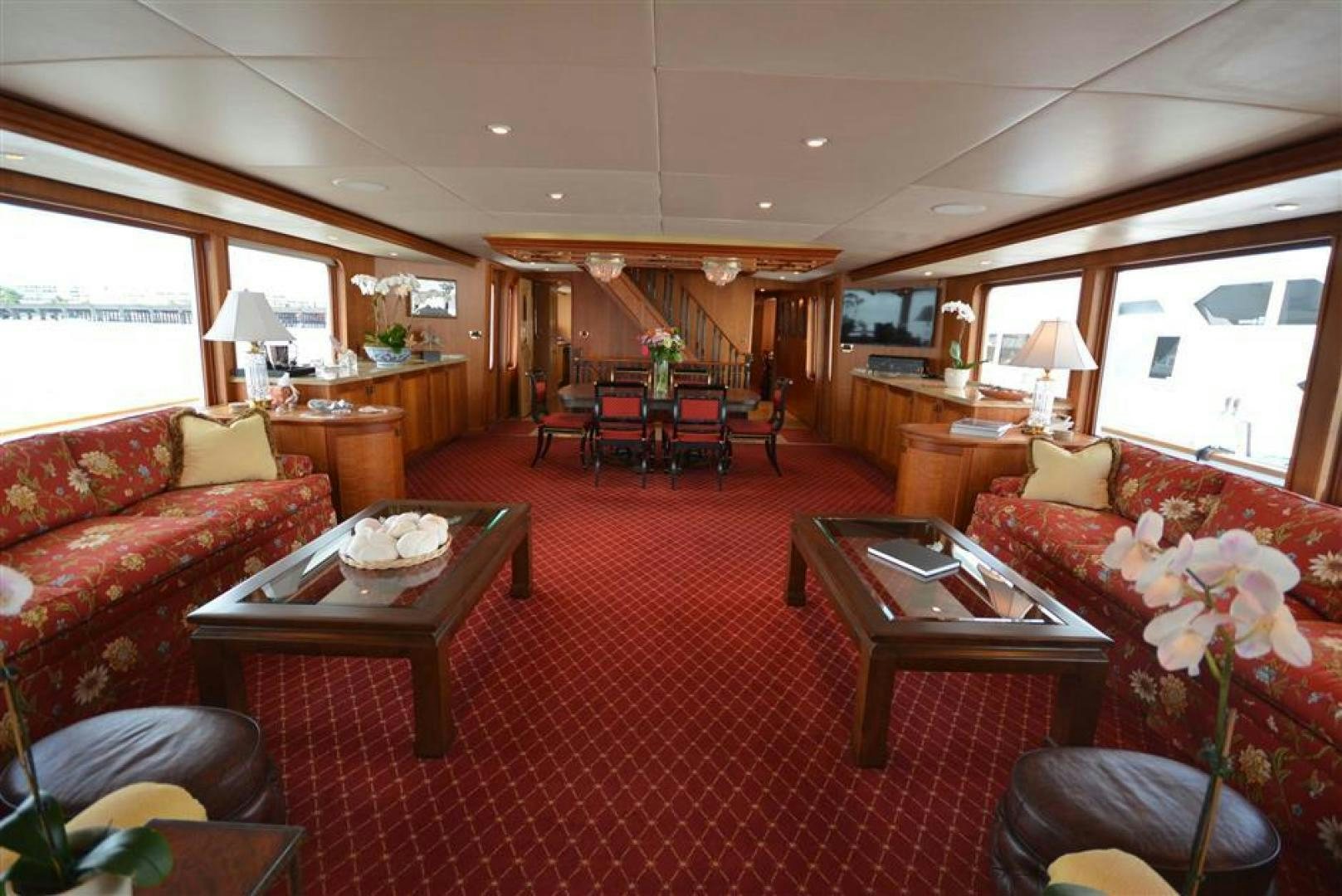

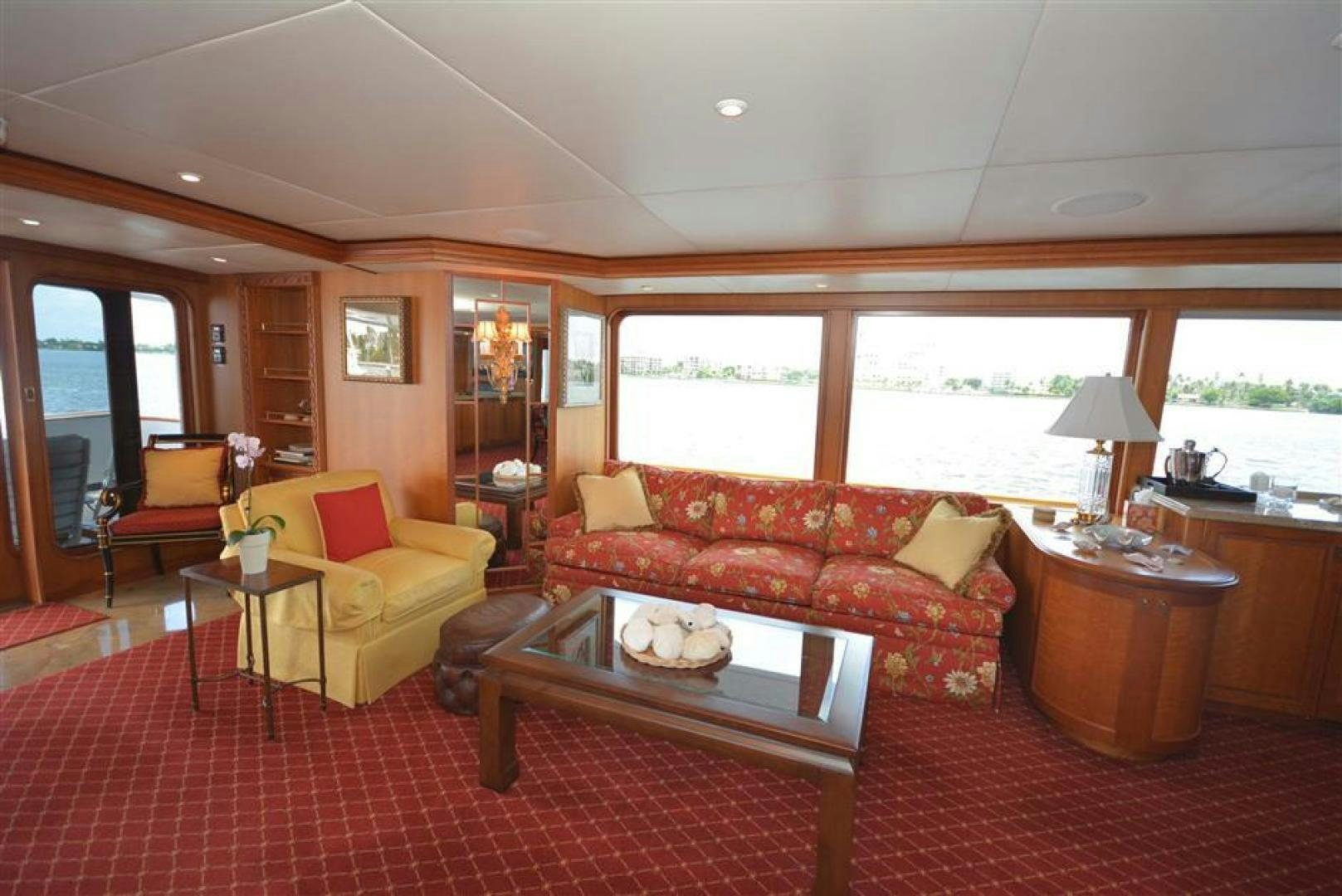

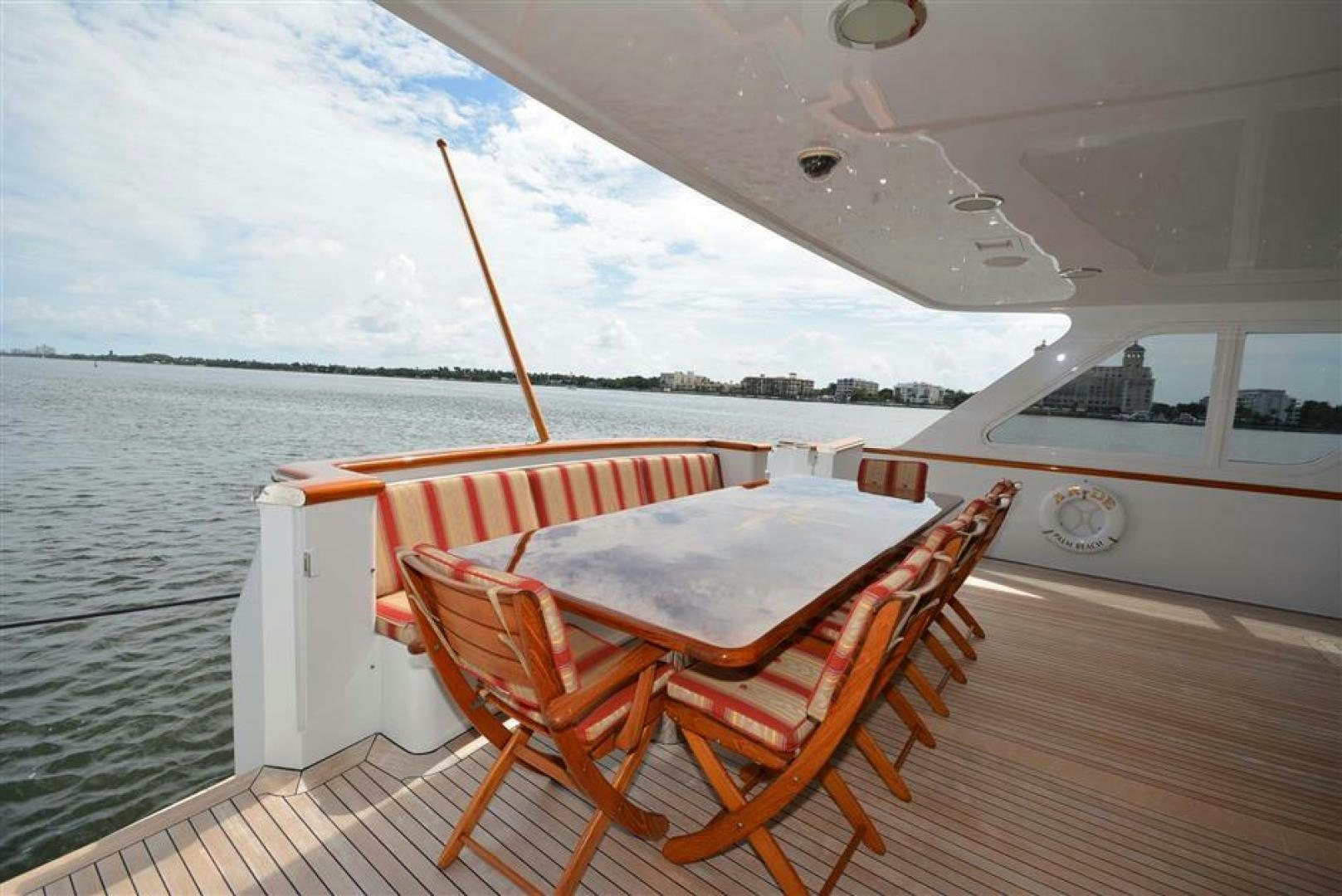

AR-DE represents a very well equipped custom Burger Tri-Deck Motor Yacht. Starting on the main deck is a large aft deck area with teak table and abundant seating, ideal for outdoor entertaining. From the aft deck, enter the main salon through automatic sliding doors. The elegance and quality of finish and detail is evident of a custom Dee Robinson interior. The aft salon area is furnished for relaxing and entertaining. Forward in the main salon is the formal dining area.

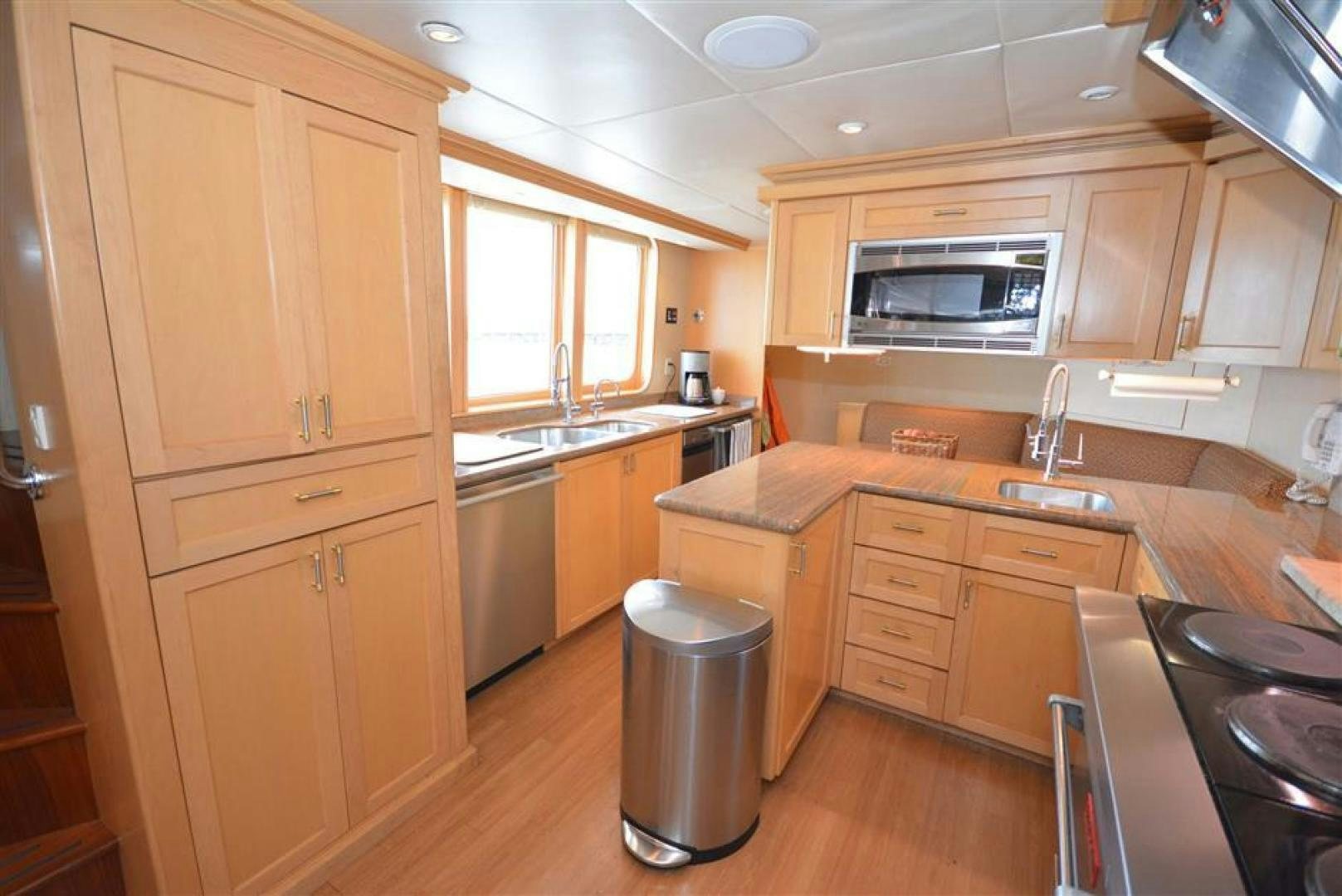

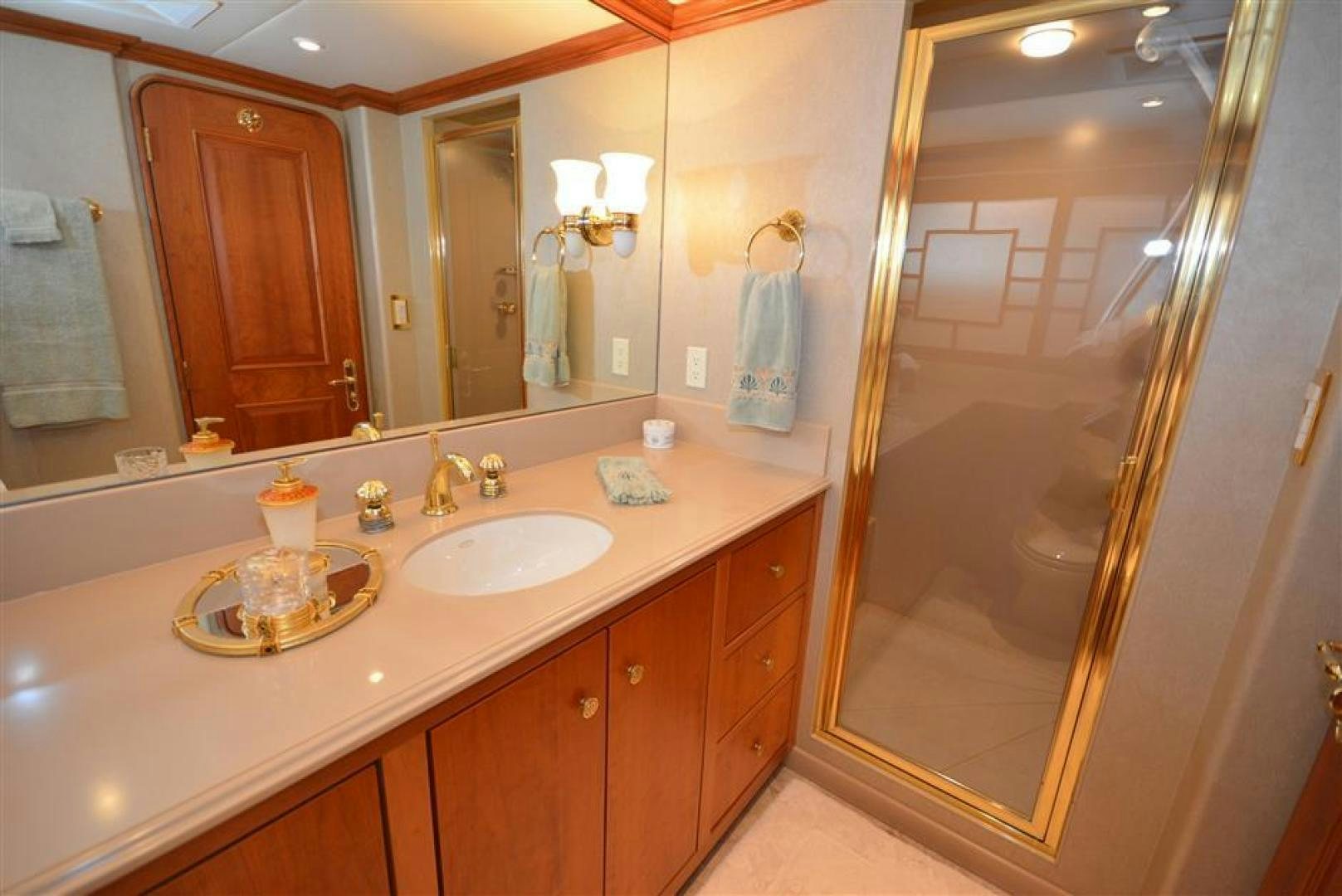

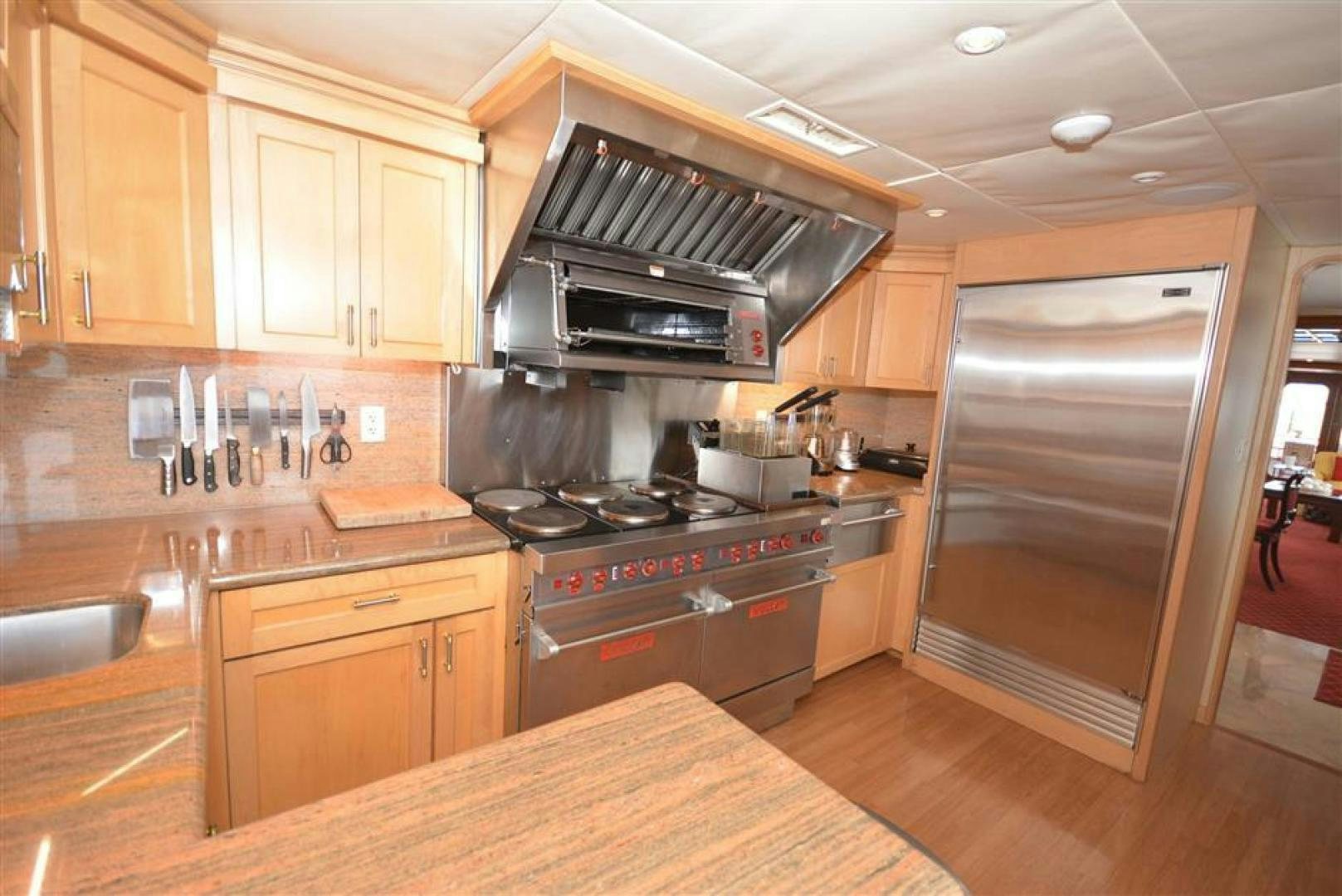

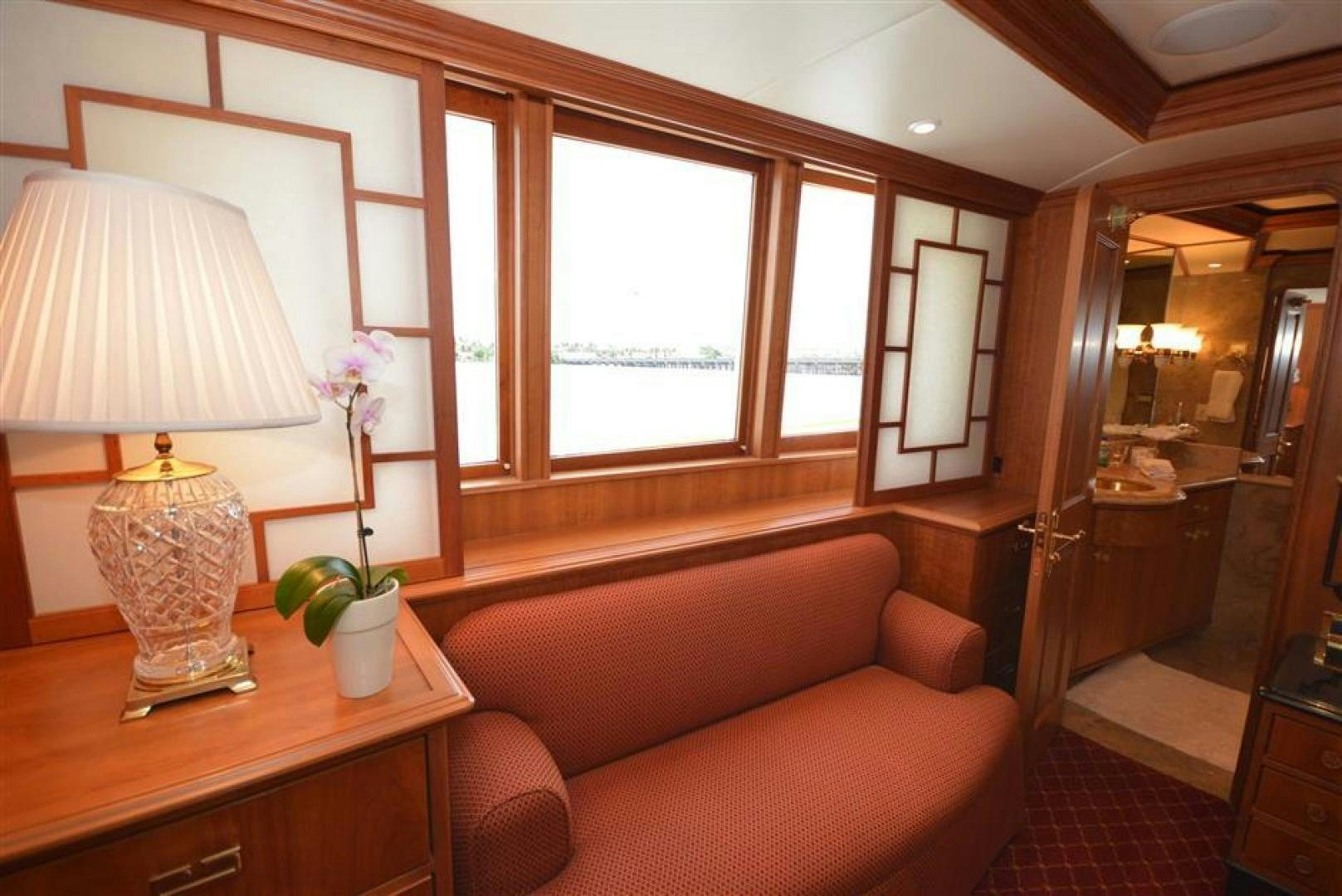

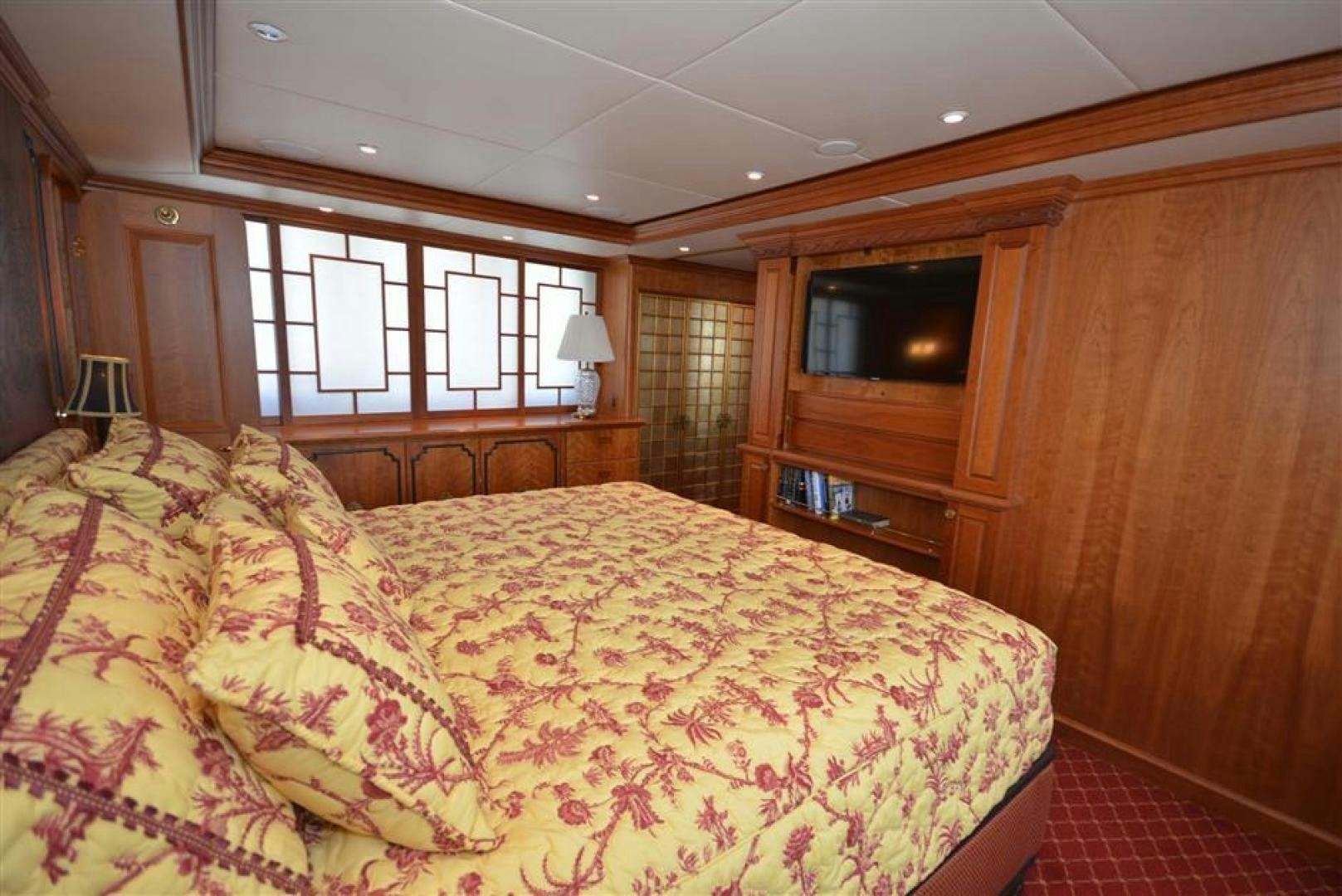

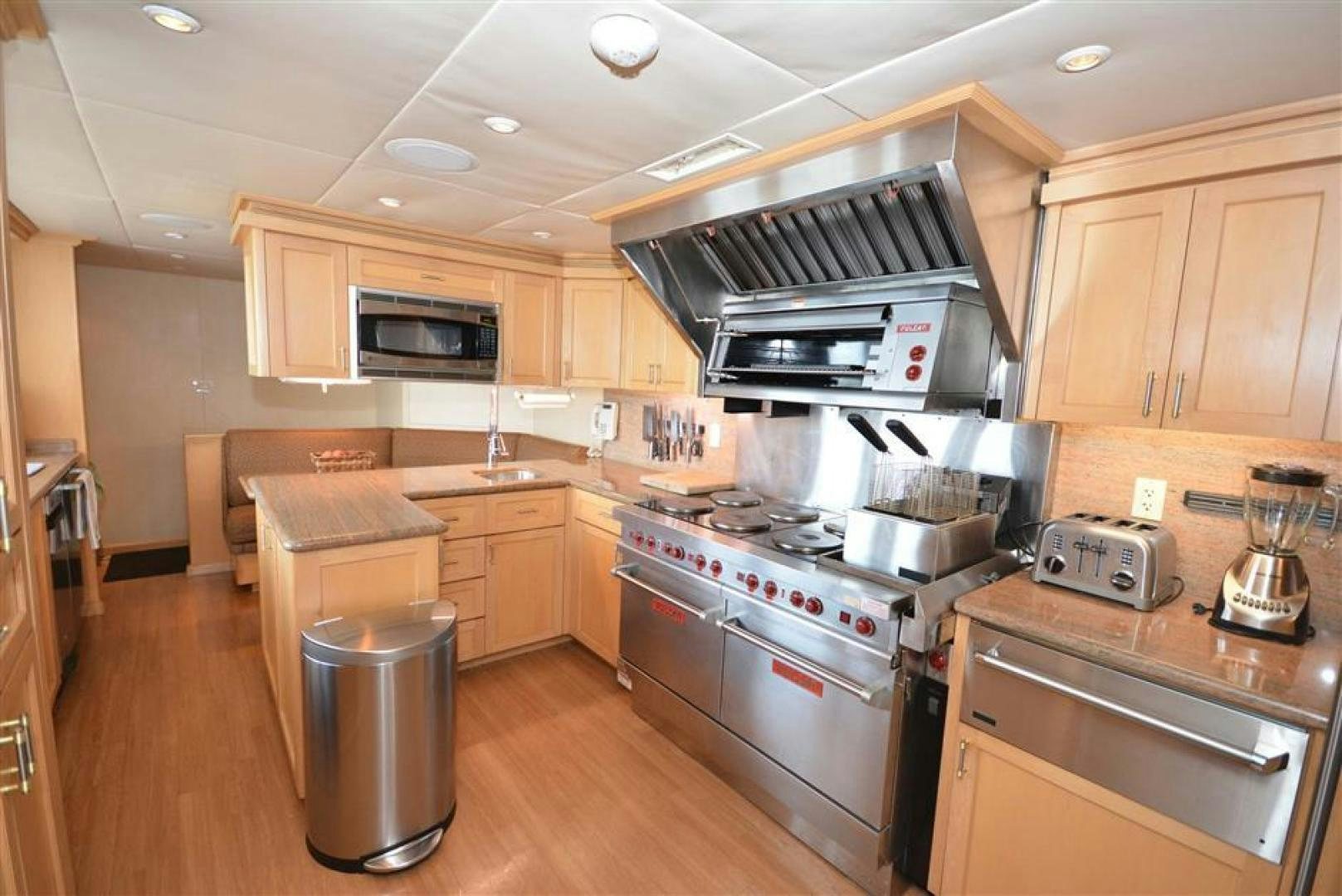

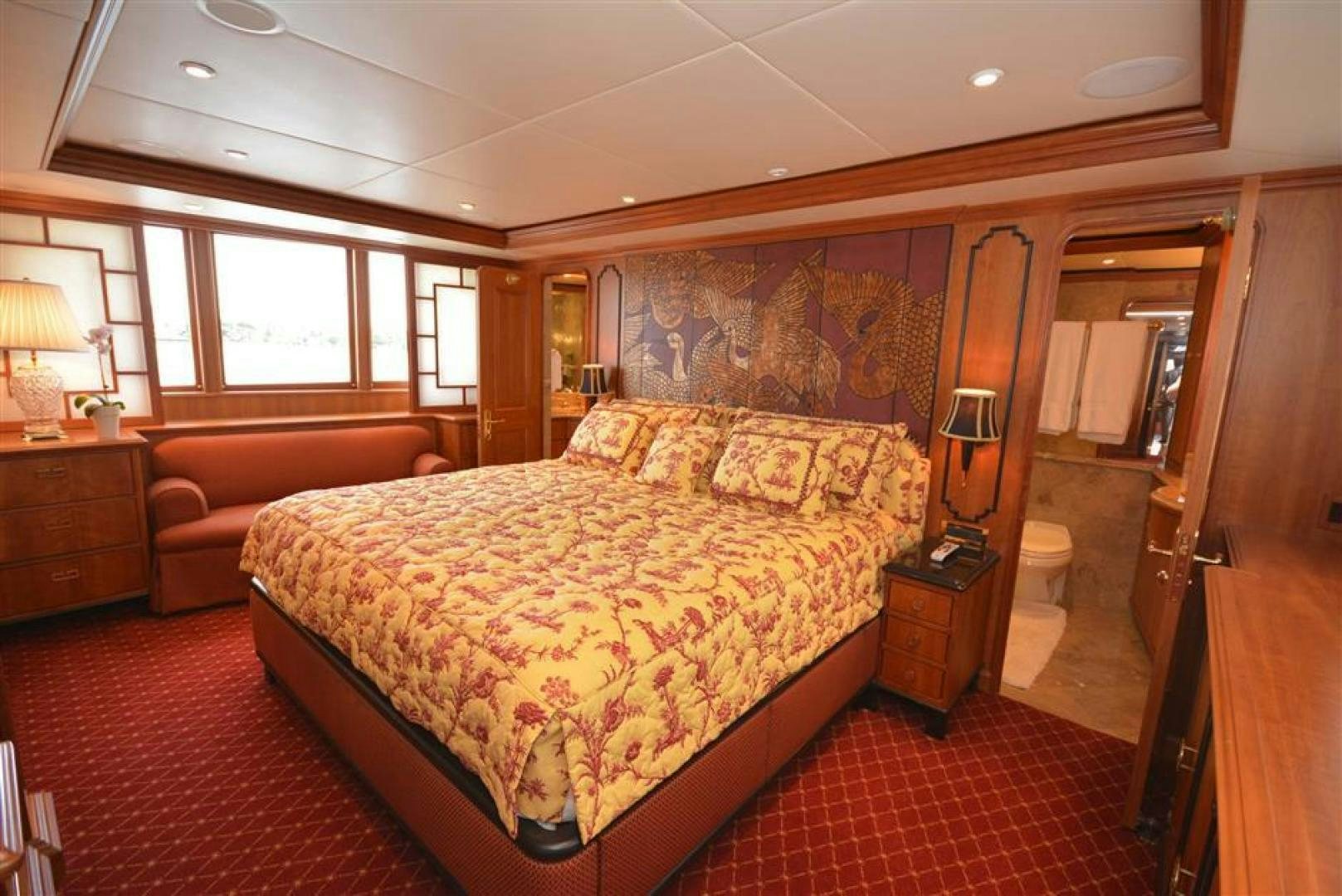

Continuing forward of the main salon to starboard is an on-deck powder room and the entrance to the master stateroom. The master stateroom is full beam width with private his and her heads forward. Three sets of large windows provide a very open and light feeling in this area. A commercially equipped galley is accessed through a door on the forward port side of the main salon where you will find all the equipment necessary to satisfy any professional chef. A settee and table in the galley provide an area for crew meals and forward in the galley are stairs up to the pilothouse and down to the crew quarters.

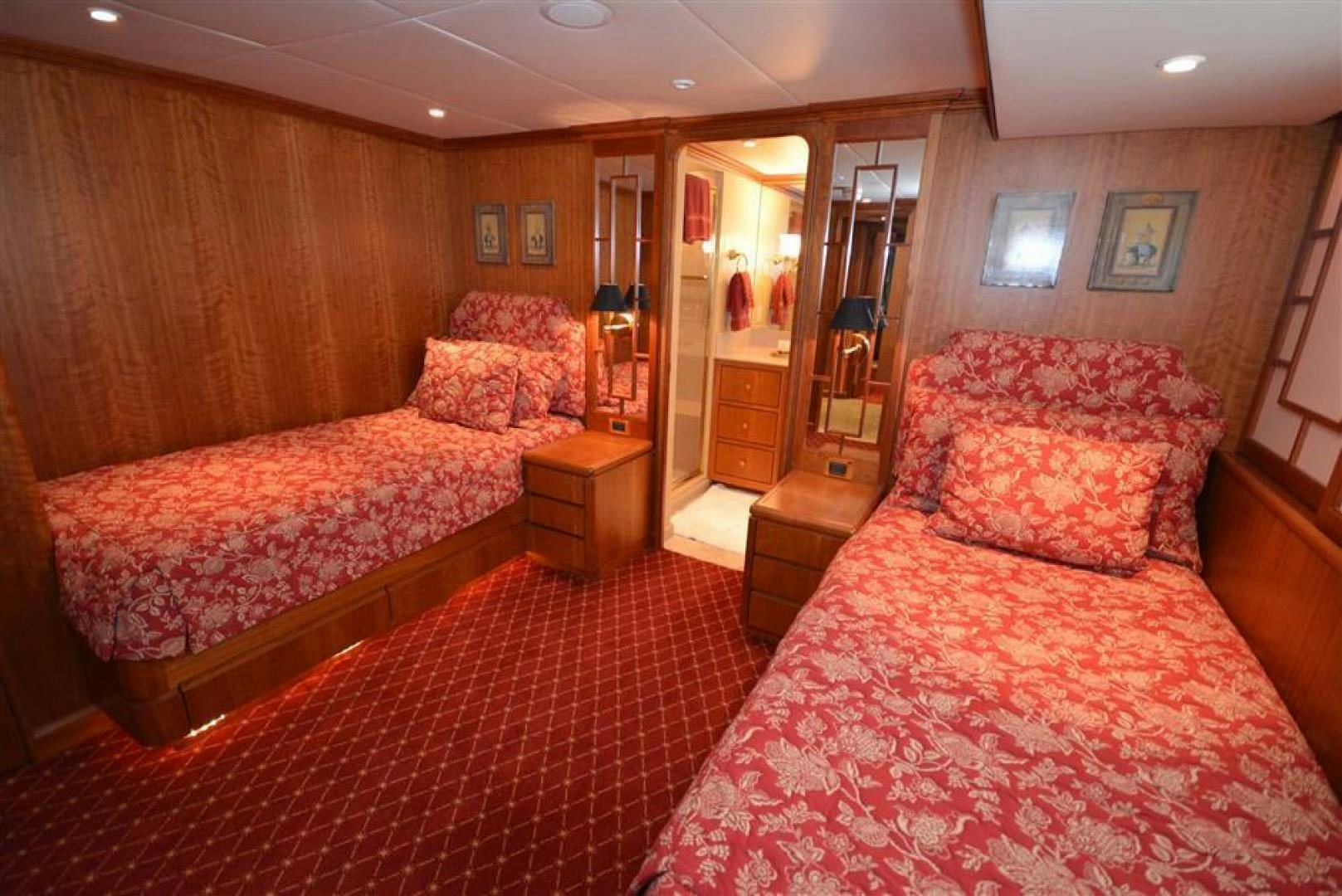

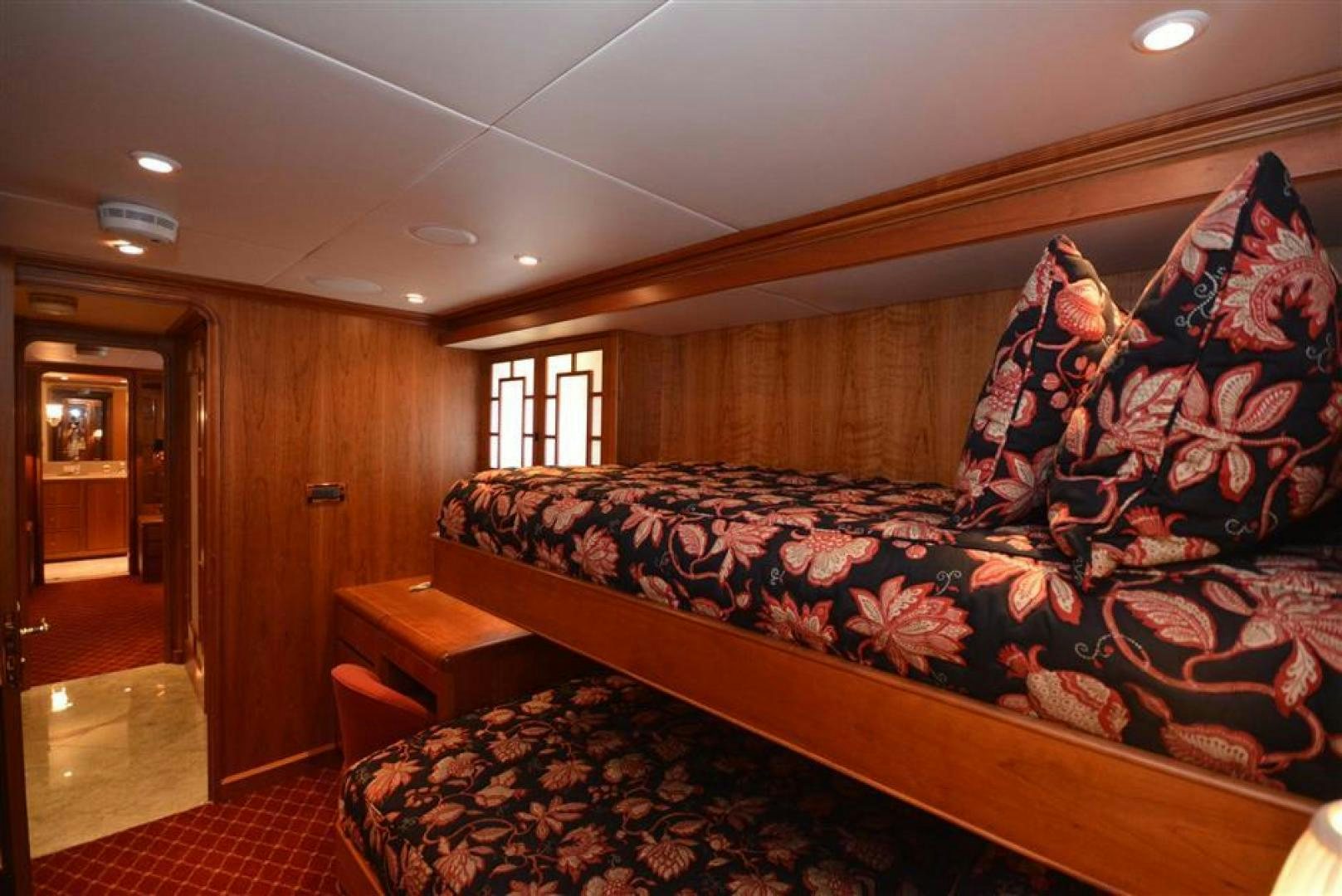

Forward of the main salon are stairs down to the lower accommodation area and four guest staterooms.  Three of the staterooms have two twin berths with the fourth stateroom having twin bunks. Each stateroom has an en-suite head and includes a high level of interior finish. Forward on the lower deck is the crew area with four separate staterooms each with an en-suite head. Aft on the lower deck is the engine room and lazzerette where the finest in yacht equipment and features are maintained in spotless condition.

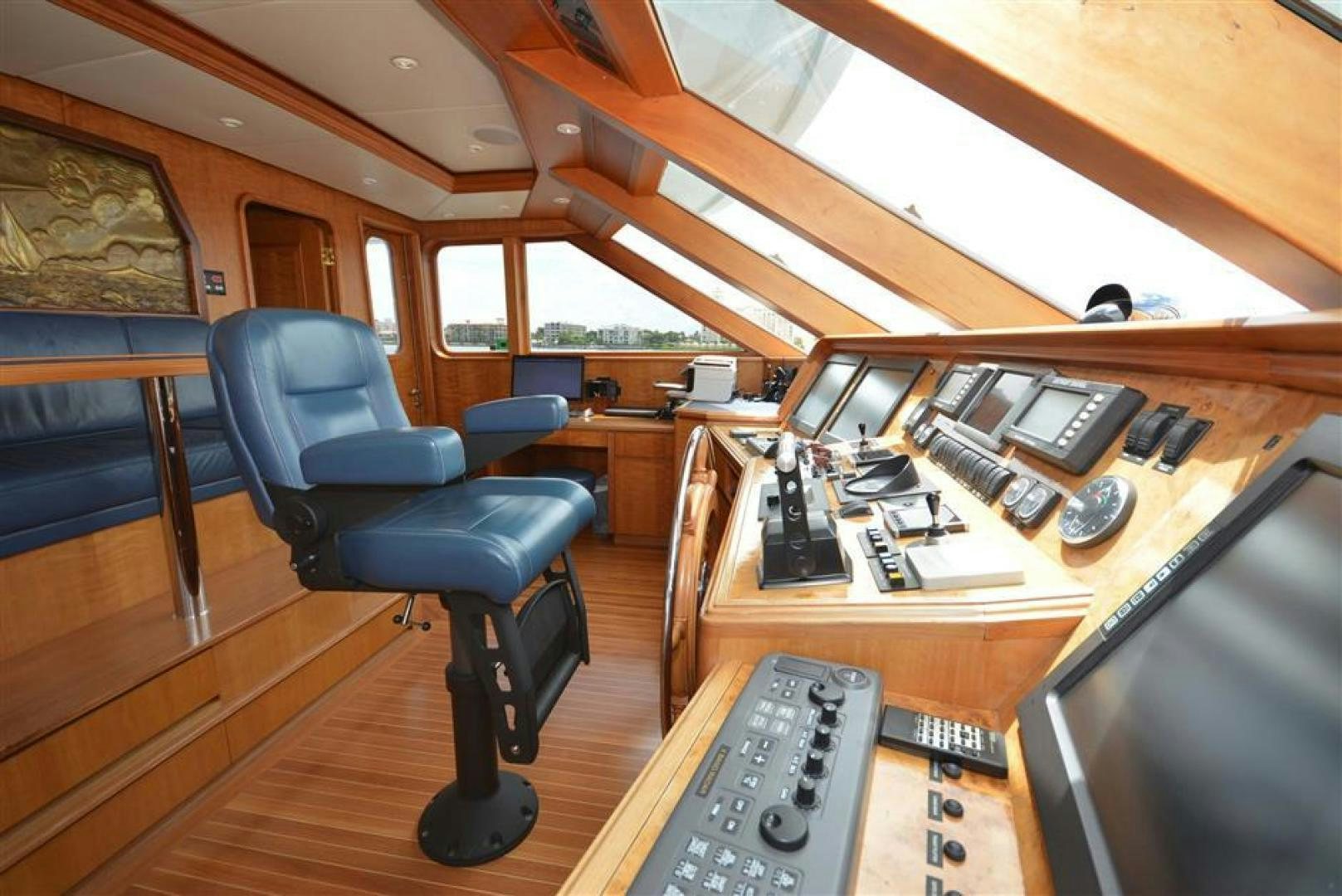

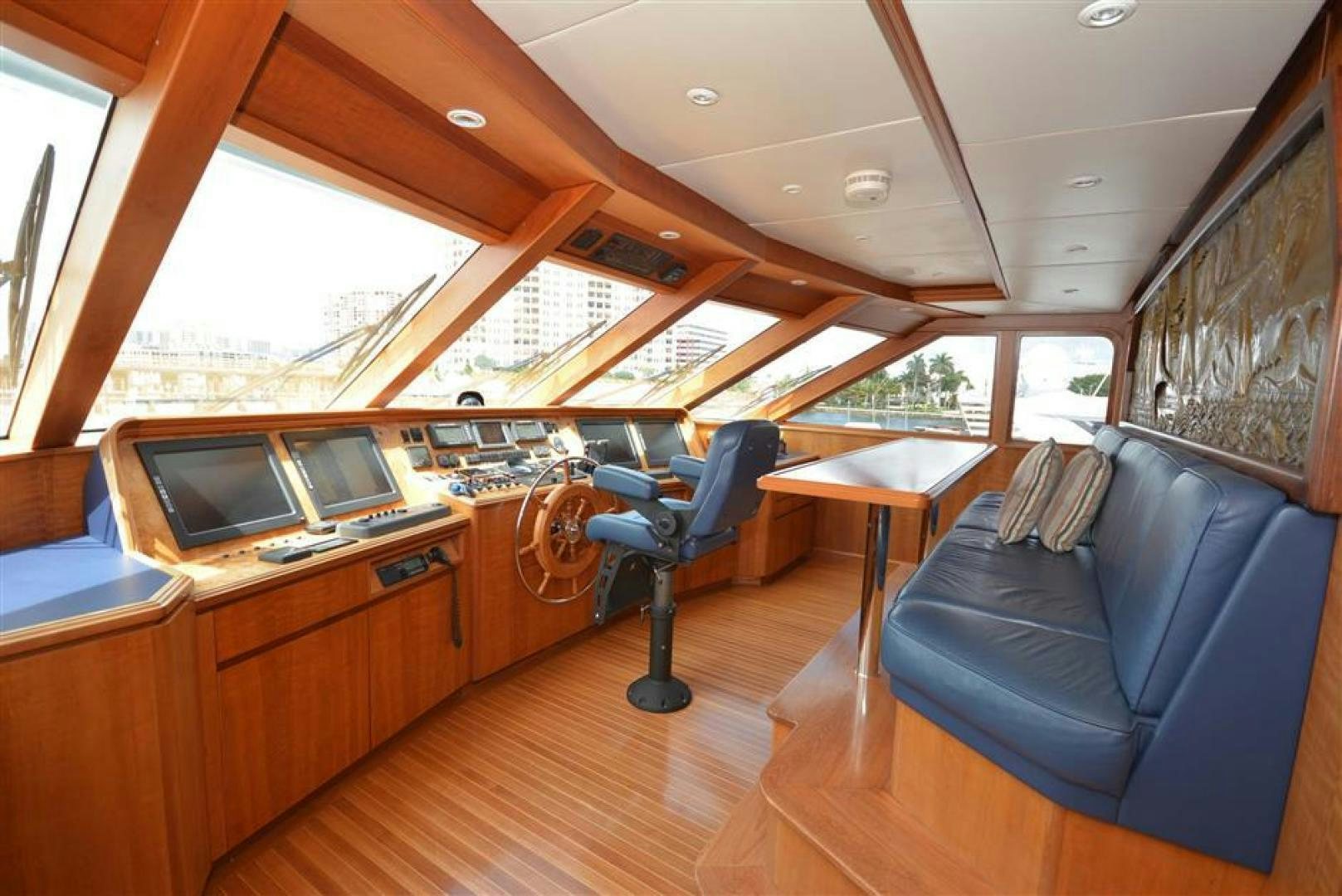

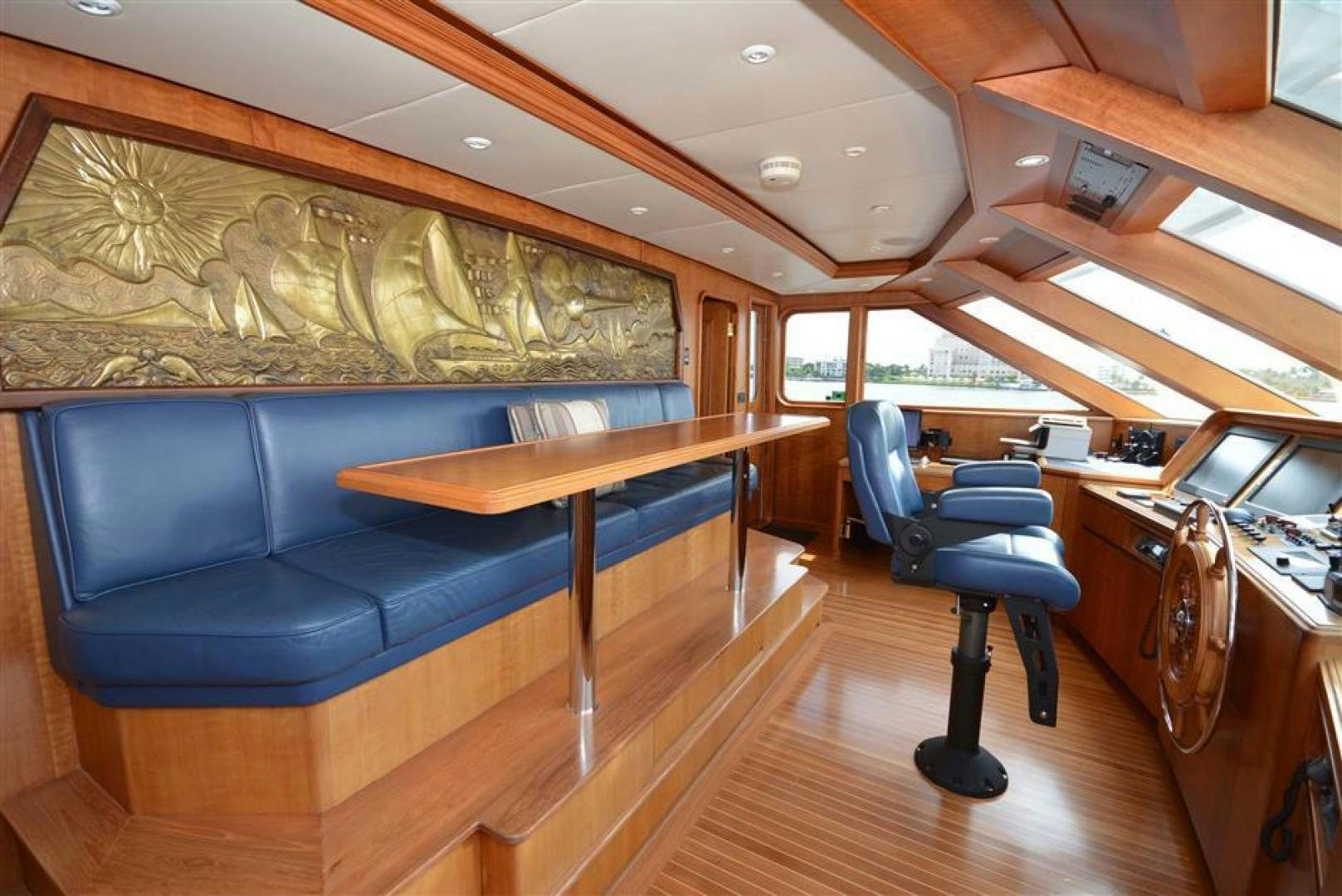

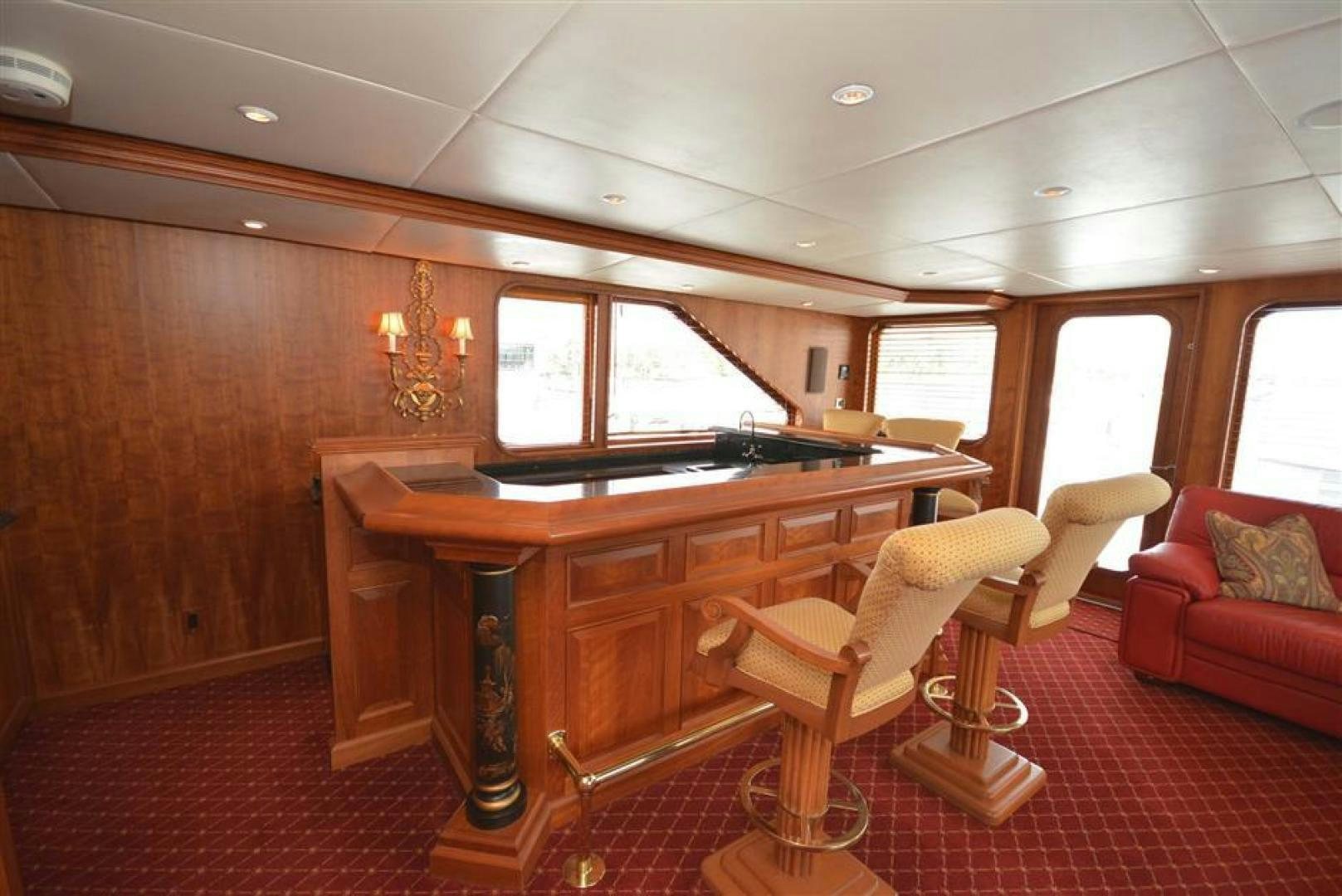

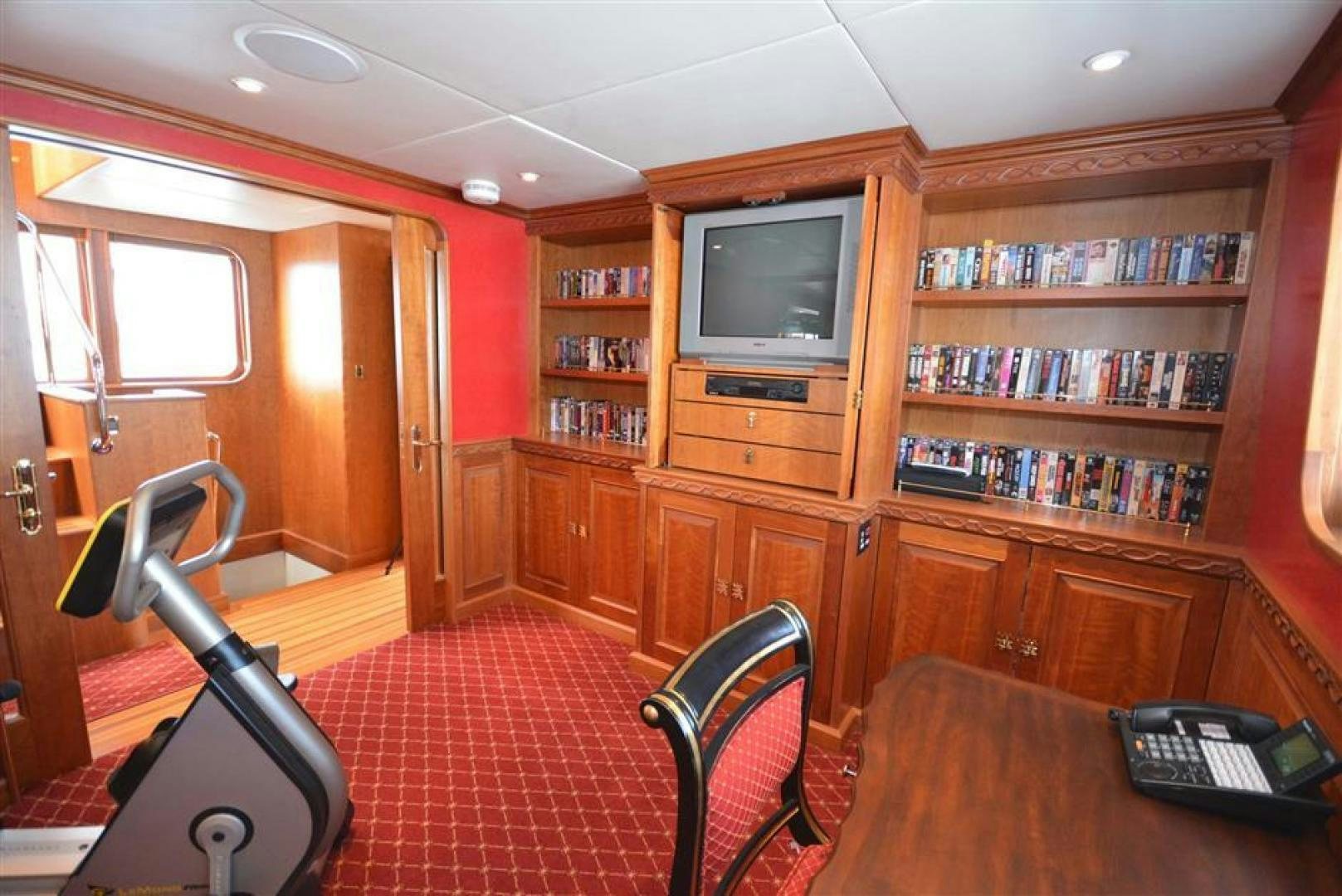

The upper deck is accessed via a stairs in the main salon where forward is the pilothouse equipped with dual radars as well as the navtronics necessary for worldwide cruising. Two wing control stations are located on the outside deck to port and starboard. Aft of the pilothouse is the private owners office/study with built-in wall unit, sliding privacy doors and windows to provide natural light. The skylounge, located just aft of the office, features a full service bar, a large seating area, entertainment systems, 52" plasma television and powder room to port. This is an ideal area for entertaining or relaxing to watch a movie or football game.

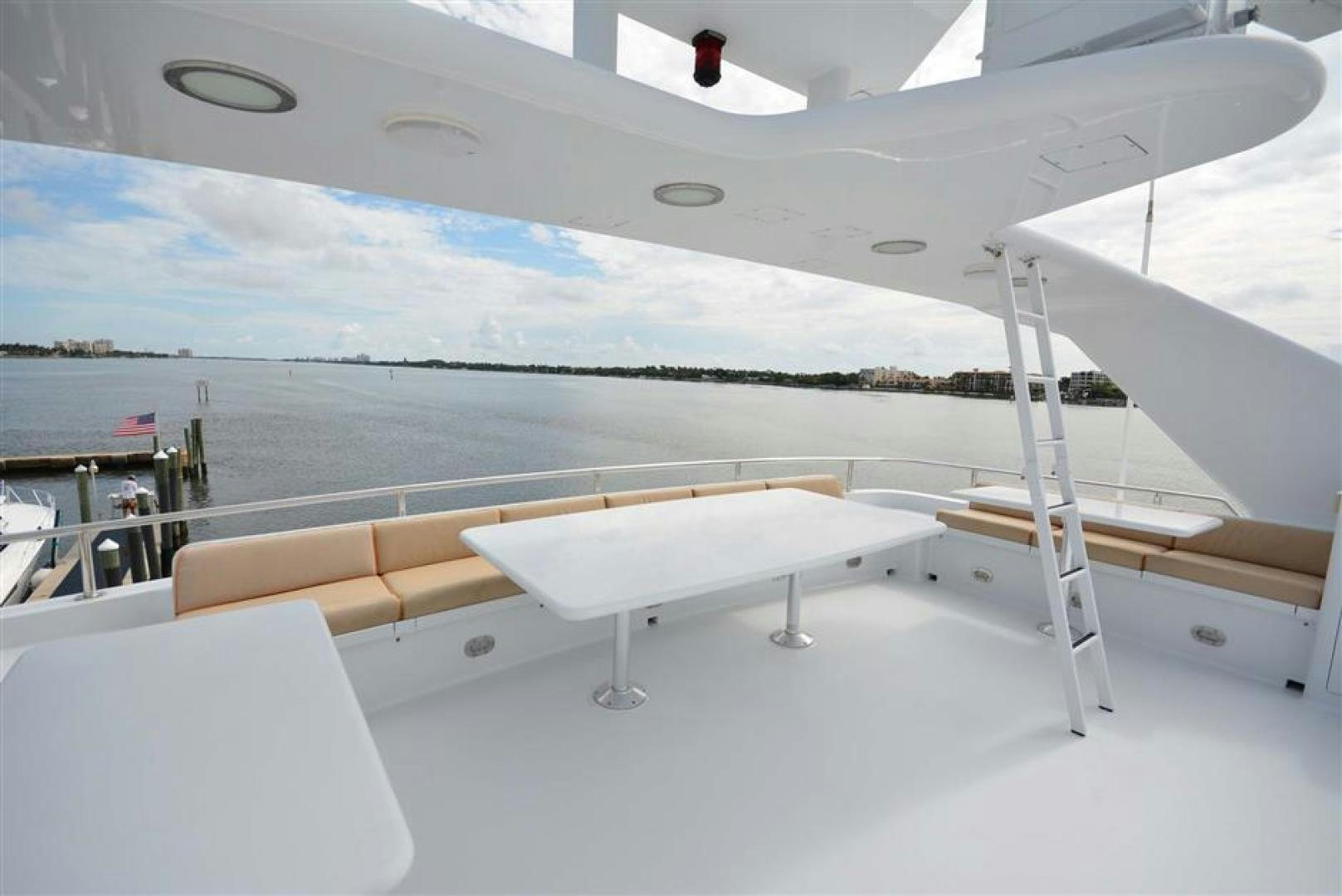

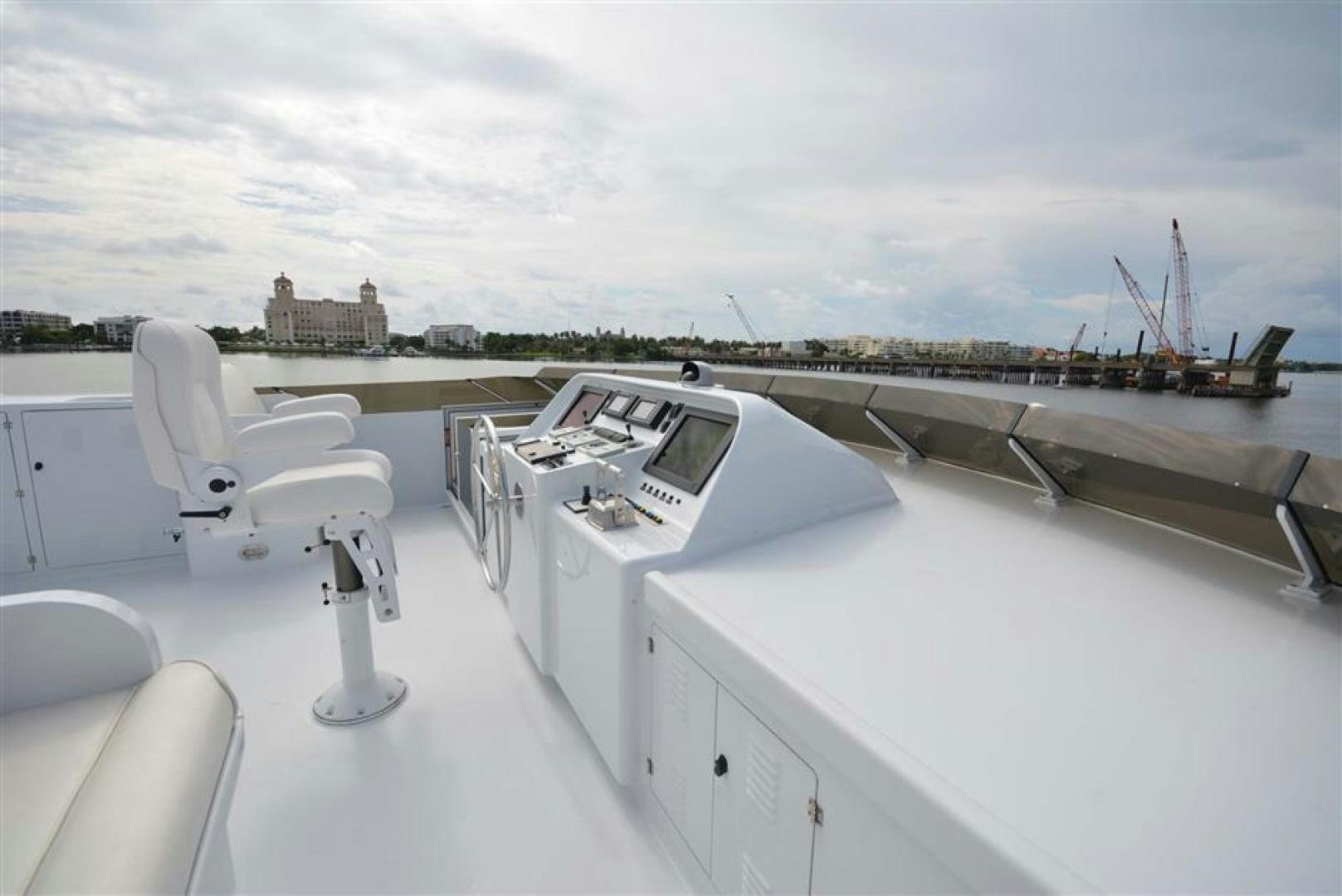

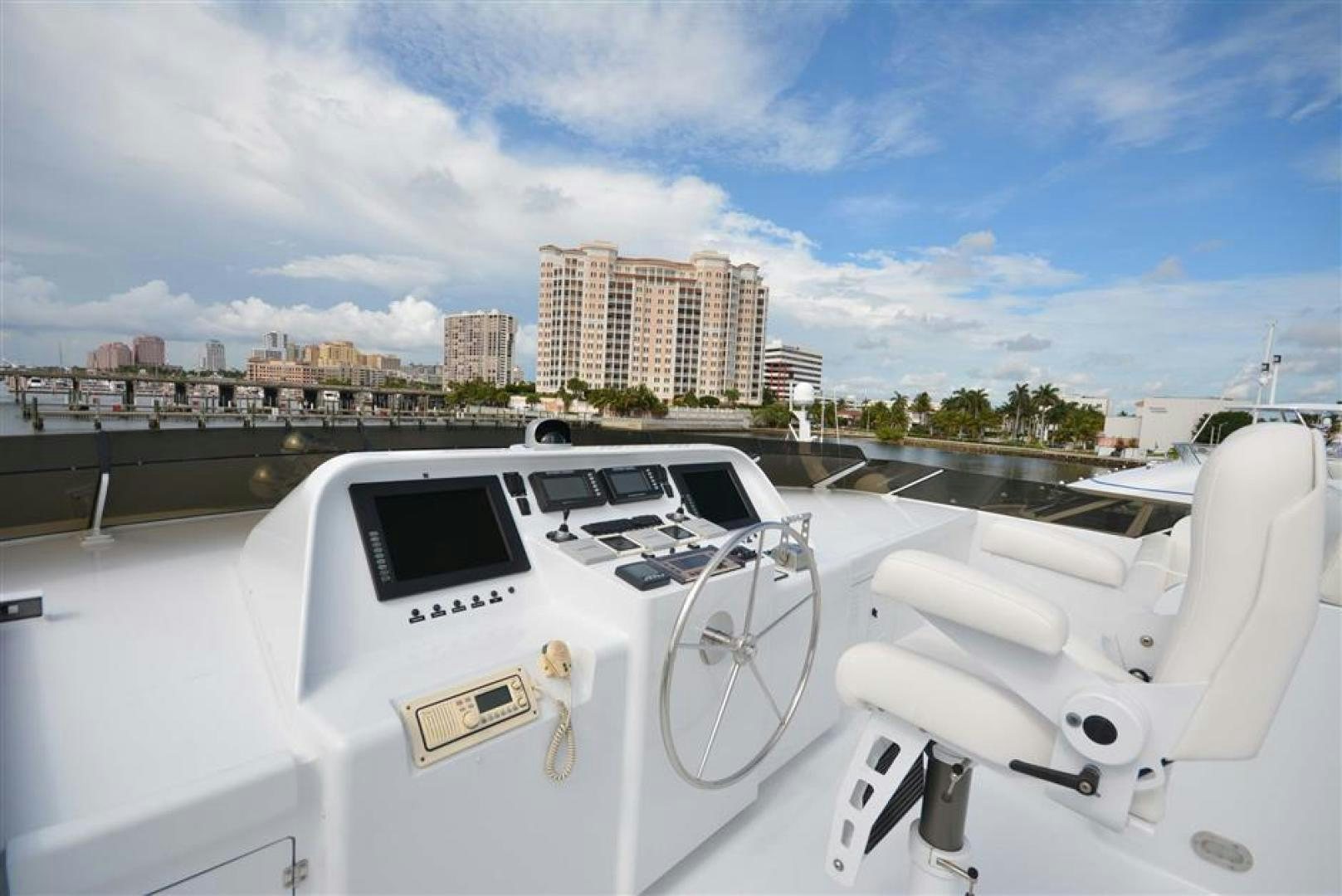

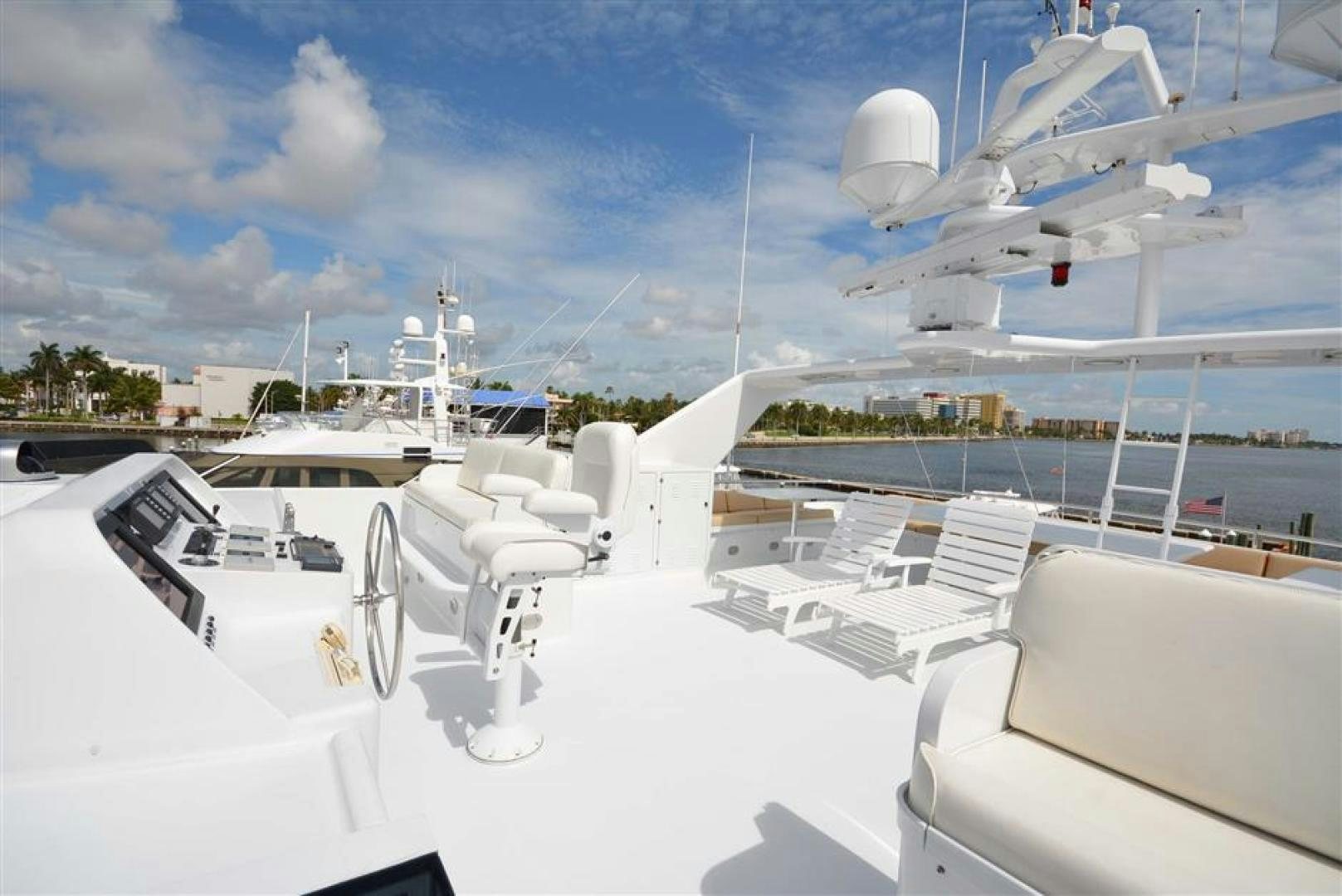

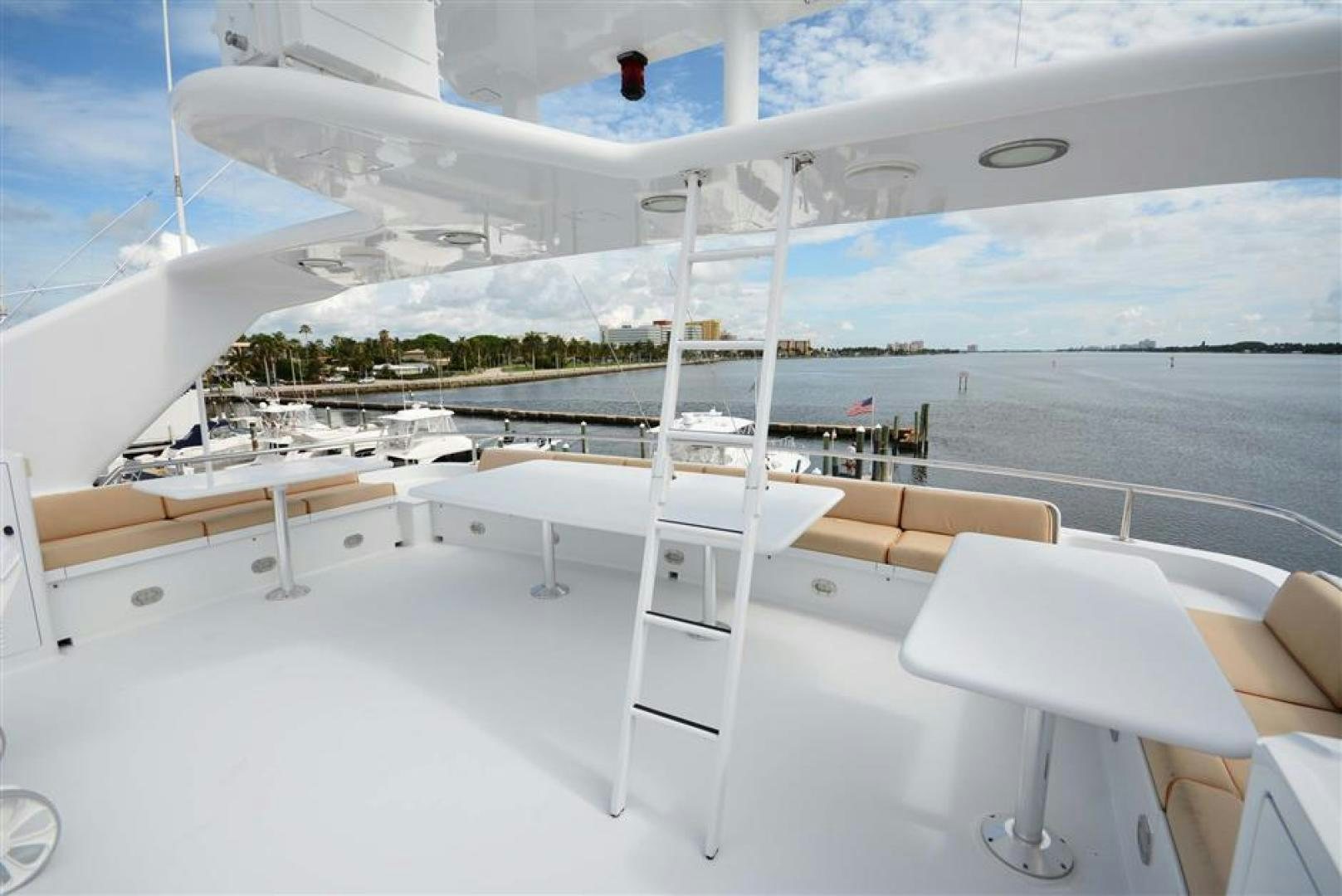

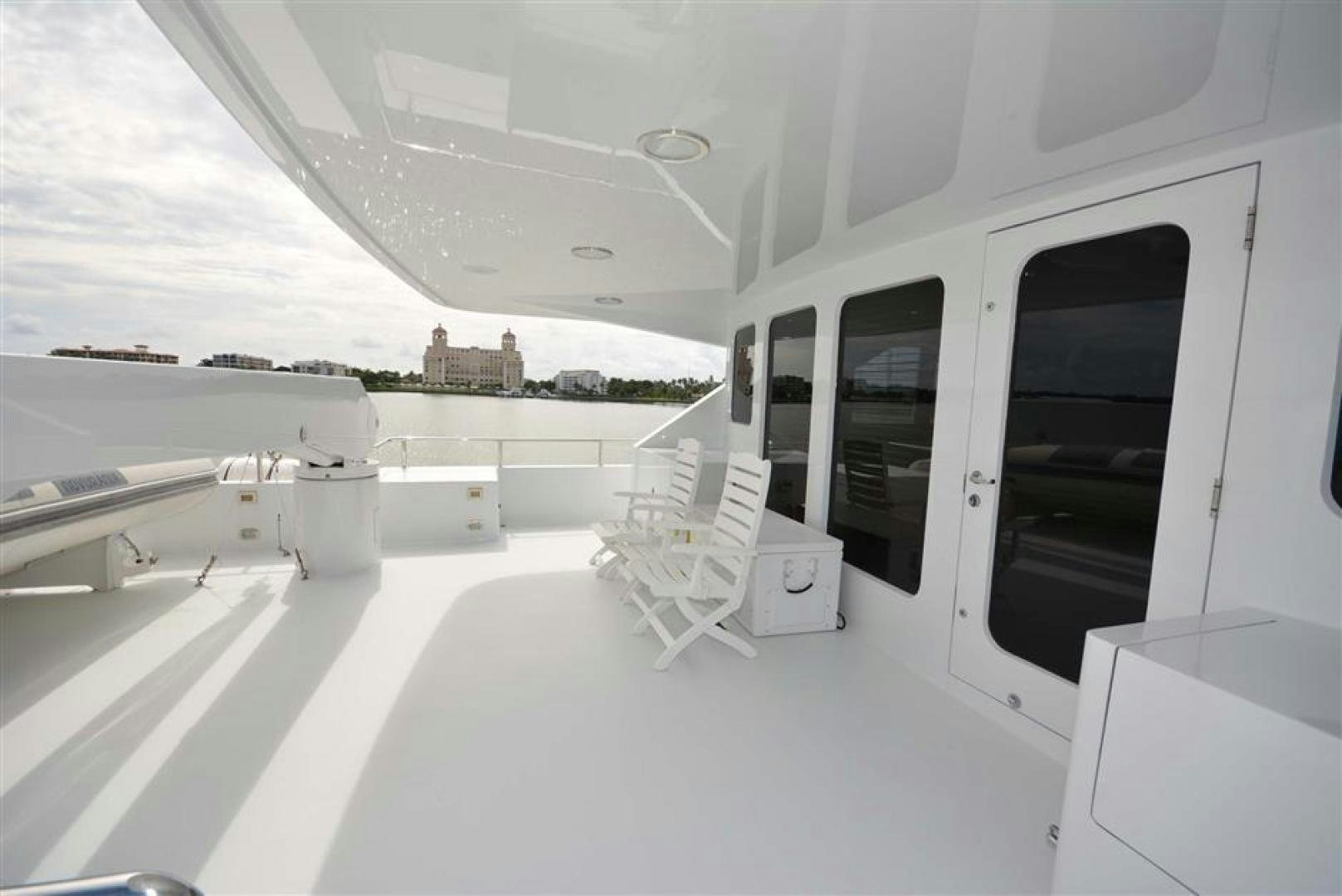

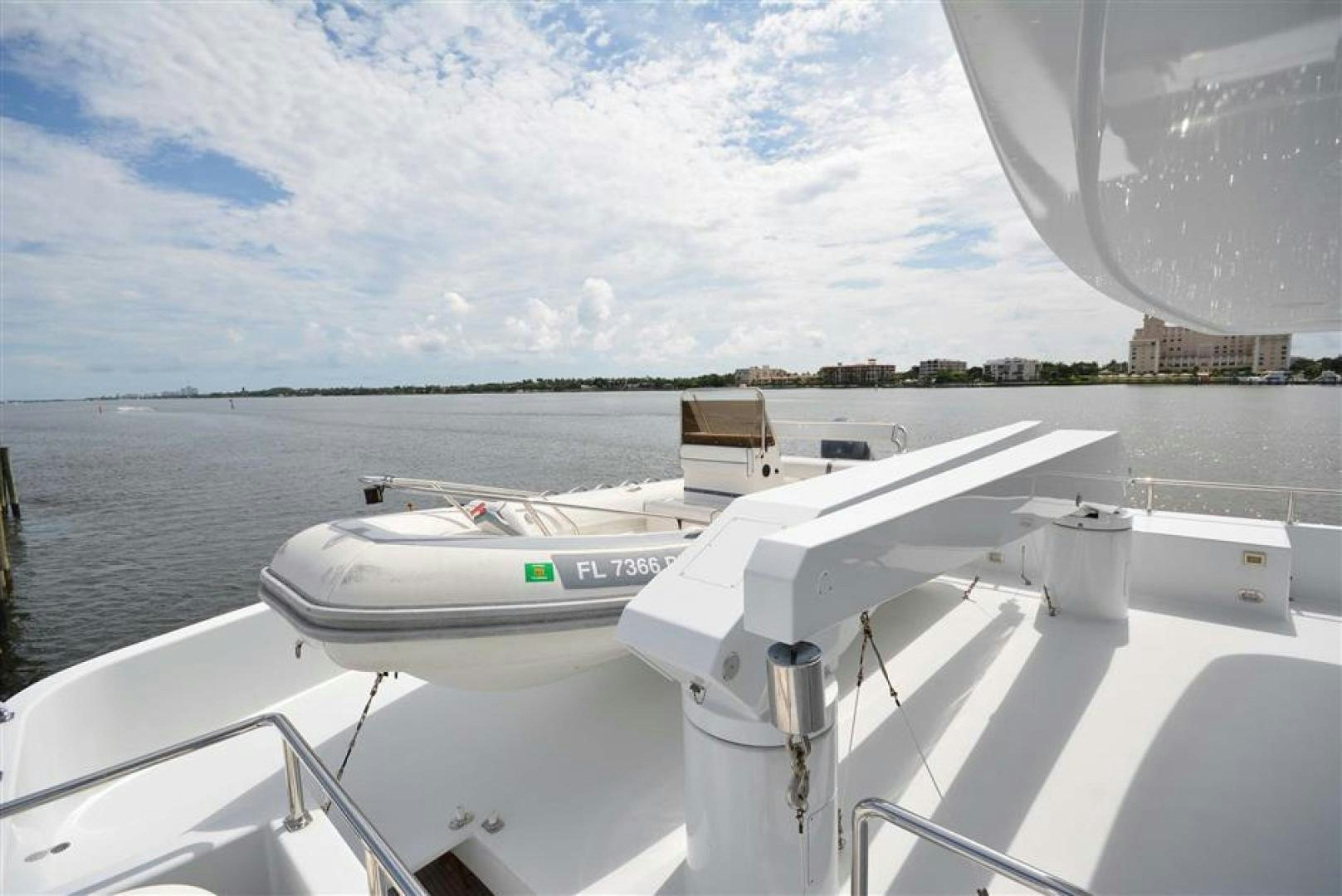

Exiting the skylounge aft is the upper aft deck where two 4000lb davits provide easy off-loading of the tender to either side of the vessel.  The flybridge deck is access via an inside stairwell behind the pilothouse where you will find a full helm control station a walk-up bar and seating and tables for outdoor lounging and entertaining.

AR-DE is a must see vessel when looking for an efficient Tri-Deck Motor with a custom designed interior along with new complete paint job in 2009/10.


Main Engines:

Engine Type: (2) DDC/MTU 12V-4000

Engines continuous power: 2,650 BHP @ 1,900 RPM

Engines maximum power: 2,750 BHP @ 2,100 RPM

Hours (as of 12/2016) Port: 4,471 Starboard: 999

Gearboxes: ZFBW465A-1 @ 3.04:1 with autoroll

Drive: Propeller

Generators & Electricity

Output: 120/208-Volt AC / 3-phase / 60 Hz

Generators: (2) Kilopak 60 Kw

Hours (as of 12/2016) Forward: 8,362 Aft: 8,396

Shore Power: Atlas ShorPower 60-kVA

Batteries: Main engine starting: 2 x 2 12-volt DekaPower-Tech, Generator starting: 2 x 2 12-volt DekaGel-Tech Gelled Electrolyte 8G8D, Electronics: 1 x 2 12-volt Dryfit Prevailer Gel DF230/6TN


Type: Marine Air 288,000 btu/h 4-stage with 30kW heat

Other Machinery

Watermakers: Matrix Silver Series "B"S3600 @ 3,600 US Gallons/day or 150 US Gallons/hour

Stabilizers: Naiad 420 with Multisea II controller

Bow Thruster: Quantum dual counter-rotating propeller, 80 hp

Steering System: Jastram 3hp FFU Power Steering

Backup Emergency Steering:  Manual, located in the pilothouse

Fuel Filtration:  Alfa Laval MIB303, (3) Racor 10 micron filters on each engine

Sewage System: Headhunter Tidal Wave TW200B

Freshwater System: Mach 5, M5-230/60 fresh water pressure units

Communication, Navigation & Entertainment Systems

Communication Systems:

SatPhone: KVH

Telephone System: Panasonic KXT7453 Digital System

VHF: Sea 157 & Icom M127 VHF/FM Radiotelephone (Pilothouse), Icom M127 VHF/FM Radiotelephone (Flybridge)

Ship's Computer: HP with Samsung Syncmaster

Ship's Printer: HP Envoy 5540

Navigation Systems  Radar: X-Band: Furuno FR-2125BB, color with ARPA, S-Band: Furuno FR-3235S, color with ARPA

Gyrocompass: Anshutz repeater

Compass: Danforth Constellation

Automatic Pilot:  Anshutz Pilotstar D

Navtex: Furuno NX-500

AIS:  Garmin GPS Map5208

Digital Depth: Garmin

GPS: (2) Northstar 941XD Differential GPS receivers

Wind/Speed: Garmin


(2) Samsung flatscreen 24" (crew mess and crew)

(1) Coby 14" flatscreen (crew)

(1) Sharp 20" flatscreen (crew)

(1) Samsung 47" flatscreen (main salon)

(1) Samsung 42" flatscreen (master stateroom)

(4) Sony Trinitron 24" (four lower guest staterooms)

(1) Sony Trinitron 25" (office)

(1) Sony Hi-Fi Stereo VCR (office)

(1) Pioneer plasma 52" (sky lounge)

Sea Tel 1392 Satellite TV with 11 receivers

Galley And Laundry Equipment

Main Galley Equipment:

Cooking Equipment:

(2) Miele ovens

Schott Ceran Induction 5-burner cooktop

Miele Grilltop

GE Profile microwave

Anvil 2-basket fryer

Refrigeration & Freezer:

Subzero side by side refrigerator and freezer

Subzero upright freezer with 2 drawers (guest area)

(3) Sub-zero under counter refrigerators (salon, sky lounge, and flybridge)

(1) GE freezer (lazarette)

Icemaker: (4) Hoshizaki (galley, salon, sky lounge, and flybridge)

Wine Cooler: Sub-zero Wine Storage Model 427

Dishwasher: (2) Miele Optima Series

Warming Drawer: Thermador

Trash Compactor: KitchenAid

Laundry Equipment:

Laundry Equipment: Maytag Washer/Dryer (crew area)

Maytag Performa Washer (guest area)

Maytag Performa Dryer (guest area)

Deck Equipment

Anchor Windlass: (2) Muir VRC 6000 2-speed vertical hydraulic with chain-stopper

Anchor: (1) Poole "N" High Holding Type, 400 pound

Anchor Chain: (1) 300' of 5'8" HT G-40 galvanized chain

Deck Capstans: (2) Muir VC4000- 24 volt (aft deck)

Crane and Davit:  (2) Nautical Structure E24000-FB 4,000 pound lift

Passerelle: 24' hydraulic

Swim ladder: Yes

Shower: Yes, handheld

Air-horn: Kahlenberg T-3A with whistle

Misc.: (2) Carlisle and Finch search lights (port and starboard)

Security, Fire Fighting, & Safety Equipment

Security Equipment:

CCTV: Elbex ECC9205 Matrix switcher with 5 EXC97H cameras (ER, lazz, aft deck, port, and starboard walkaround decks

Monitors: (4) in wheelhouse and (2) on flybridge

Ship safe: (2) Captain's cabin and master stateroom

Fire Fighting Equipment:

Fire/Heat/Smoke Detectors: Throughout

Fire Suppression System: Ansul CO2

Fire extinguishers: Throughout

Firefighting System: Saltwater system in engine room

Safety Equipment

Life rafts: (2) Switlik 10-person with a SOLAS A-pack

Life jackets: 16 USCG Type 1

Ring buoys: (2) 24"

EPIRBS: (1) Satfind 406 MHz


"AR-DE" is a registered name and does not convey. All owner's and crew's personal items. A detailed list of exclusions will be provided at time of sale, upon written request.


The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
