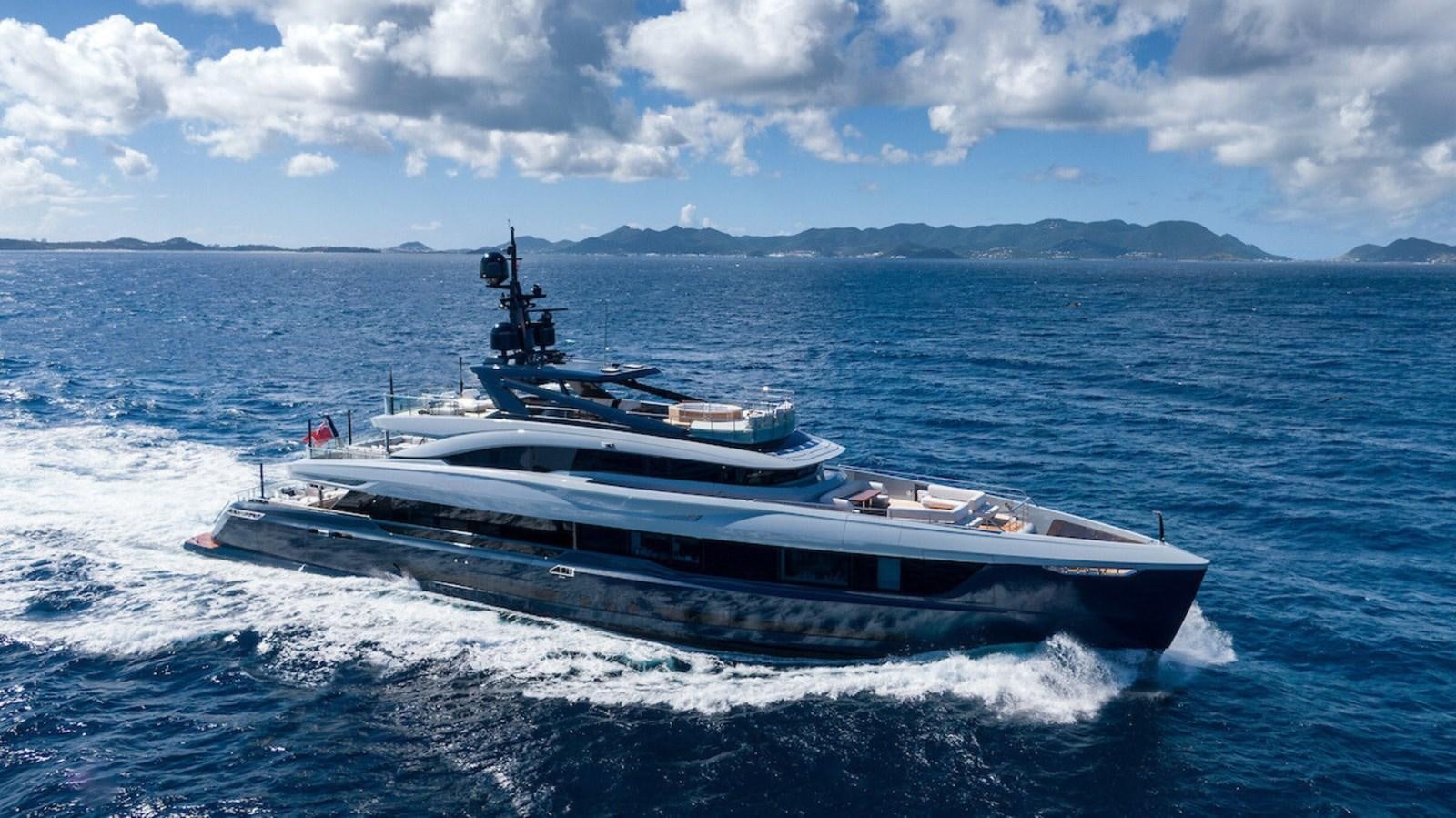

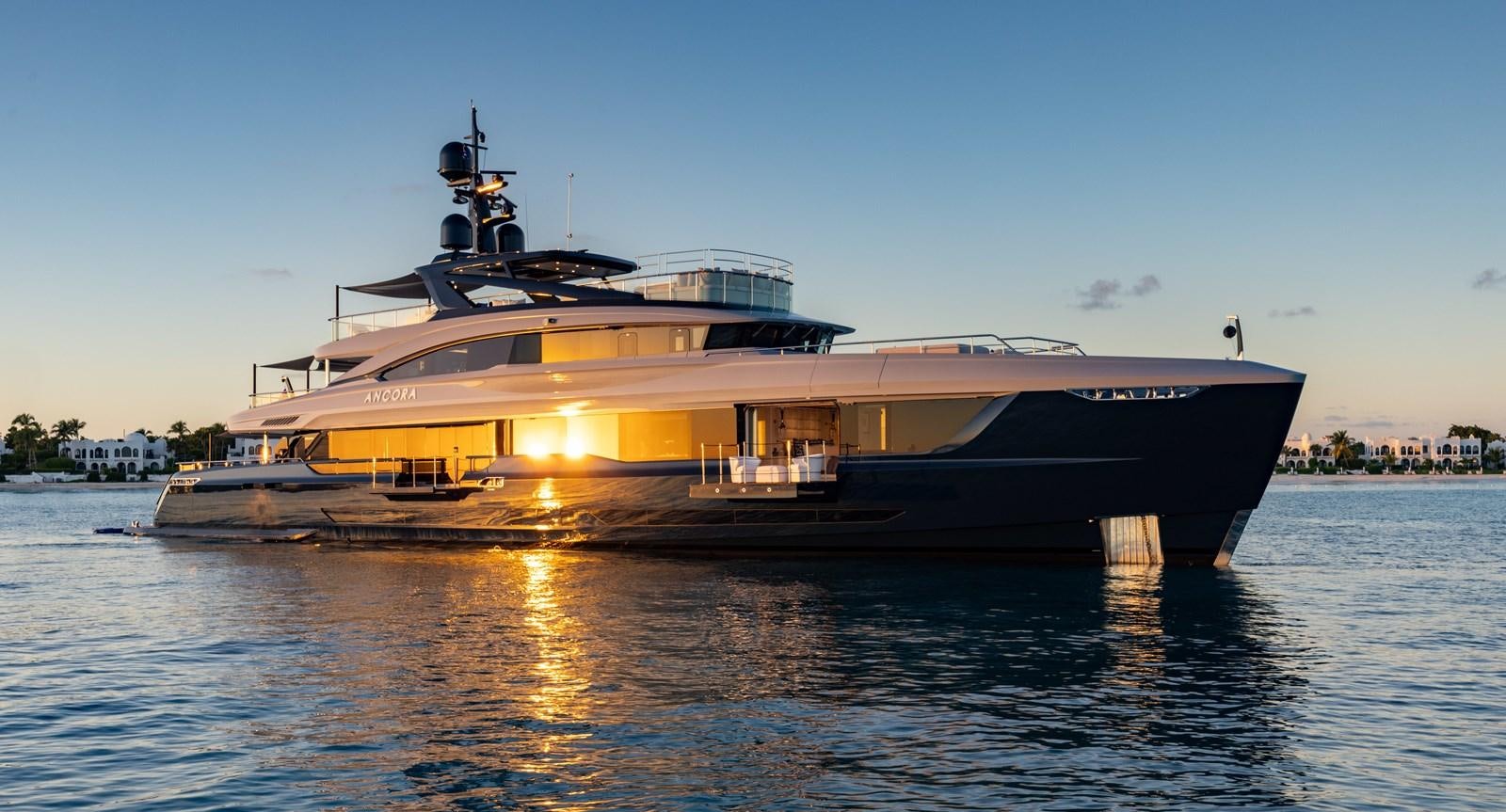

ANCORA Yacht for Sale

Length
154' (47m)
Builder
MENGI YAY
Build
2023
Cabins
5
Crew
9

Yacht is no longer available for sale.
This is an archived web page showing historic information for reference purposes only. Search Yachts for Sale.

Not for sale or charter to U.S. residents while in U.S. waters.

Amenities

  • At-Anchor Stabilizers
  • Deck Jacuzzi
  • Jacuzzi
  • Wi-Fi

Specifications

Builder MENGI YAY
Model Virtus 47
Length (LOA) 154' (47m)
Year 2023
Gross Tonn. 496
Draft 10' (2.8m)
Beam 29' (8.9m)
Range 2,850 NM

Accommodations

Staterooms 5
Sleeps 12
Crew Cabins 9
Crew Sleeps 9

Dimensions & Capacity

LOA 154' (47m)
LWL 147' (44.65m)
Min Draft 9' (2.69m)
Max Draft 10' (2.8m)
Fuel Tank 13,420 g (50,800 L)
Fresh Water 2,552 g (9,660 L)
Gross Tonn. 496
Displacement 450

Construction

Hull Material Steel
Hull Config Monohull
Ext. Designer VYD Studio
Int. Designer Robert Trown And Associates
Cruising Speed 12 Knots
Range 2,850 NM
Have Questions?

Complete the form below and one of our experienced sales brokers will be in touch soon.

Full Details

Other Machinery

  • Day Tank: 4,400 Litres, 1,162.03 Gallons
  • Water Makers: 1,100 Litres, 290.05 Gallons
  • Bilge Water Tank: 800, Litres 211.03 Gallons
  • Lube Oil: 900 Litres, 237.07 Gallons
  • Waste Oil: 900 Litres, 237.07 Gallons
  • Engine Controls: Caterpillar Multi- Station Control System (wheelhouse, 2xwings station and main deck aft)
  • Engine Mounts: Rubber Design
  • Engines Exhaust System: Soundown
  • Engine Ventilation: Gianneschi
  • Battery Chargers: Victron
  • Generator Start: Exide
  • Steering Gear: Data Hidrolik, DDS2x1000-ESC
  • Emergency Steering: Hydraulic
  • Under Water Lights: Seavision SV 14
  • Helm/Wing Station Controls: Data Hidrolik, DP120K
  • Night Generator: 1 x CAT C2.2, 51 EKW, 50 HZ @1,500 RPM

Fuel & Oil System

  • Fuel Filters:  Racor
  • Fuel Oil Separator: Alfa Laval MIB503-13
  • Fuel Transfer Pump: Gianneschi ACB331/B
  • Fuel Filling Pump: Gianneschi ACB331/B
  • Bunkering Station: Main Deck PS&STB&AFT
  • Oily Bilge Water Separator: Epe Poseidon FIT0.5
  • Dirty Oil Pump: Gianneschi FQ15
  • Lubrication Oil Pump: Gianneschi FQ15

Firefighting & Bilge System

  • Firefighting & Bilge Pump: Gianneschi ACB631/B

Fresh Water System

  • Fresh Water Makers: Idromar MSE300 Dublex & HEM 30 R.O Plant
  • Hot & Cold Circulation Pump: Gianneschi Z30 (TOP180)
  • Hot Water Boilers: Gianneschi INOX OR2
  • Sea Water Pumps: Exide

Black & Grey Water System

  • Black & Grey Water Treatment: Hamann HL-CONT Plus 025
  • WC's (toilets/bidets): Evac
  • Sanitary Vacuum System: Evac
  • Sanitary Water System: Evac
  • Black & Grey Water Pumps: Gianneschi

AC & Ventilation System

  • Air Conditioning: Cruisair
  • Air Compressor: Gianneschi GK17/2/330
  • Provision Refrigeration: Marin Cold
  • Engine Room AC: Cruisair Independent System
  • Engine Room Ventilation: Gianneschi C402 RD
  • Galley Ventilation & Extraction: Heinen & Hopman SFDC-E200

Antifouling System

  • Type: Cathelco Iccp / MGPS Q/64003-EH/International Antifouling Paint

Accommodation

SQUARE METERS

  • TOTAL EXTERIOR DECKS: 292.03 M² / 3,146.26FT²
  • TOTAL INTERIOR: 481.00 M² / 5,177.04NFT²

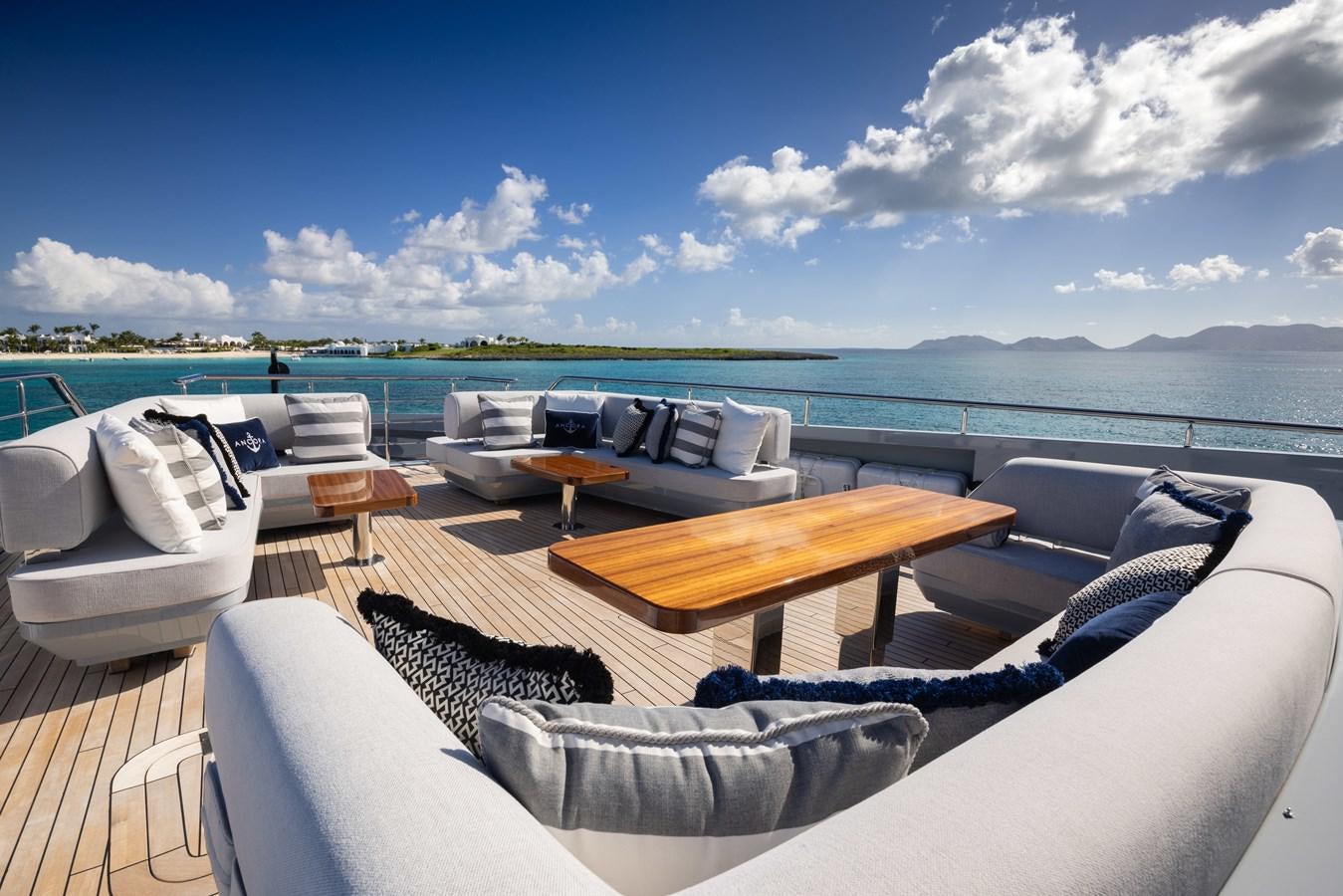

  • Sun Deck: 90.00 M² / 969.00 FT²
  • Bridge Deck Total (Interior): 190.05 M² / 2,050.05 FT²
  • Upper Saloon: 28.06 M² / 307.08FT²
  • Lobby: 12.00 M²/ 129.16 FT²
  • Powder Room: 3.03 M² / 35.52 FT²
  • Main Deck Total (Interior): 232.00 M² / 2,497.22 FT²

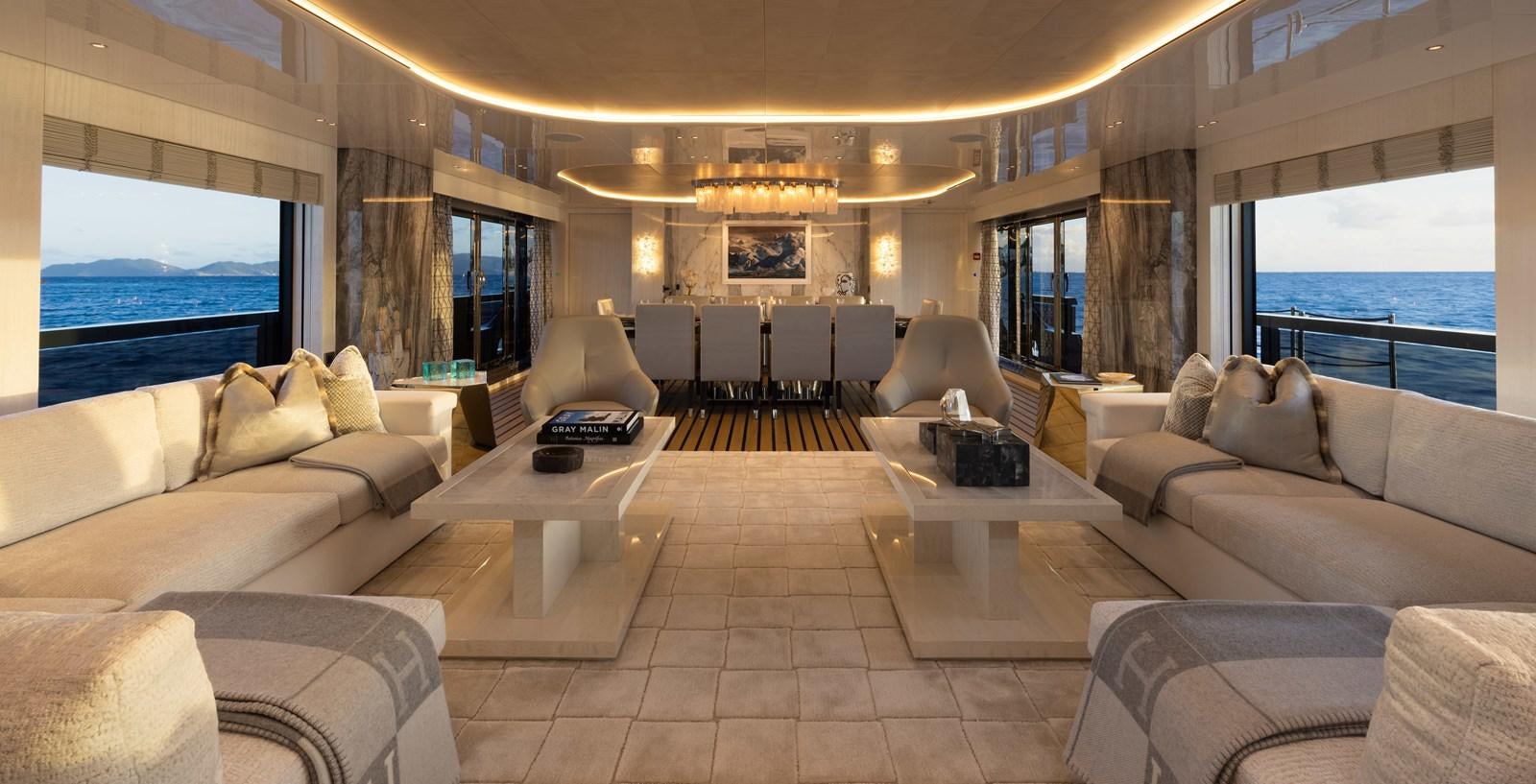

  • Main Salon: 56.07 M² / 610.31 FT²

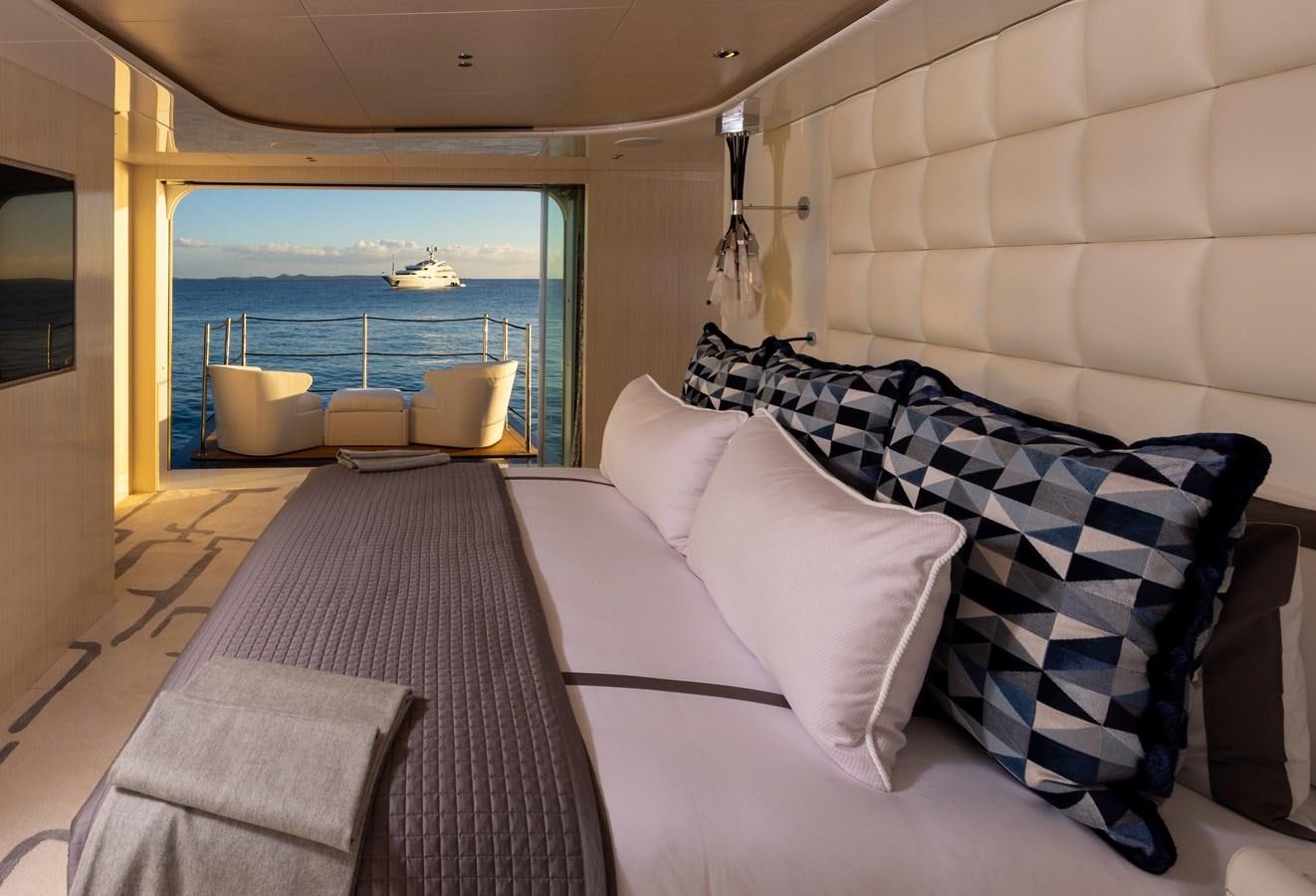

  • Owner’s Stateroom: 44.09 M² / 483.30 FT²
  • Lobby: 15.00 M²/ 161.45 FT²
  • Powder room: 2.05 M²/ 26.90 FT²
  • Lower Deck Total (Guest): 81.00 M² / 871.87 FT²
  • VIP Stateroom: 19.02 M² / 206.66 FT²
  • Double Stateroom: 19.02 M² / 206.66 FT²

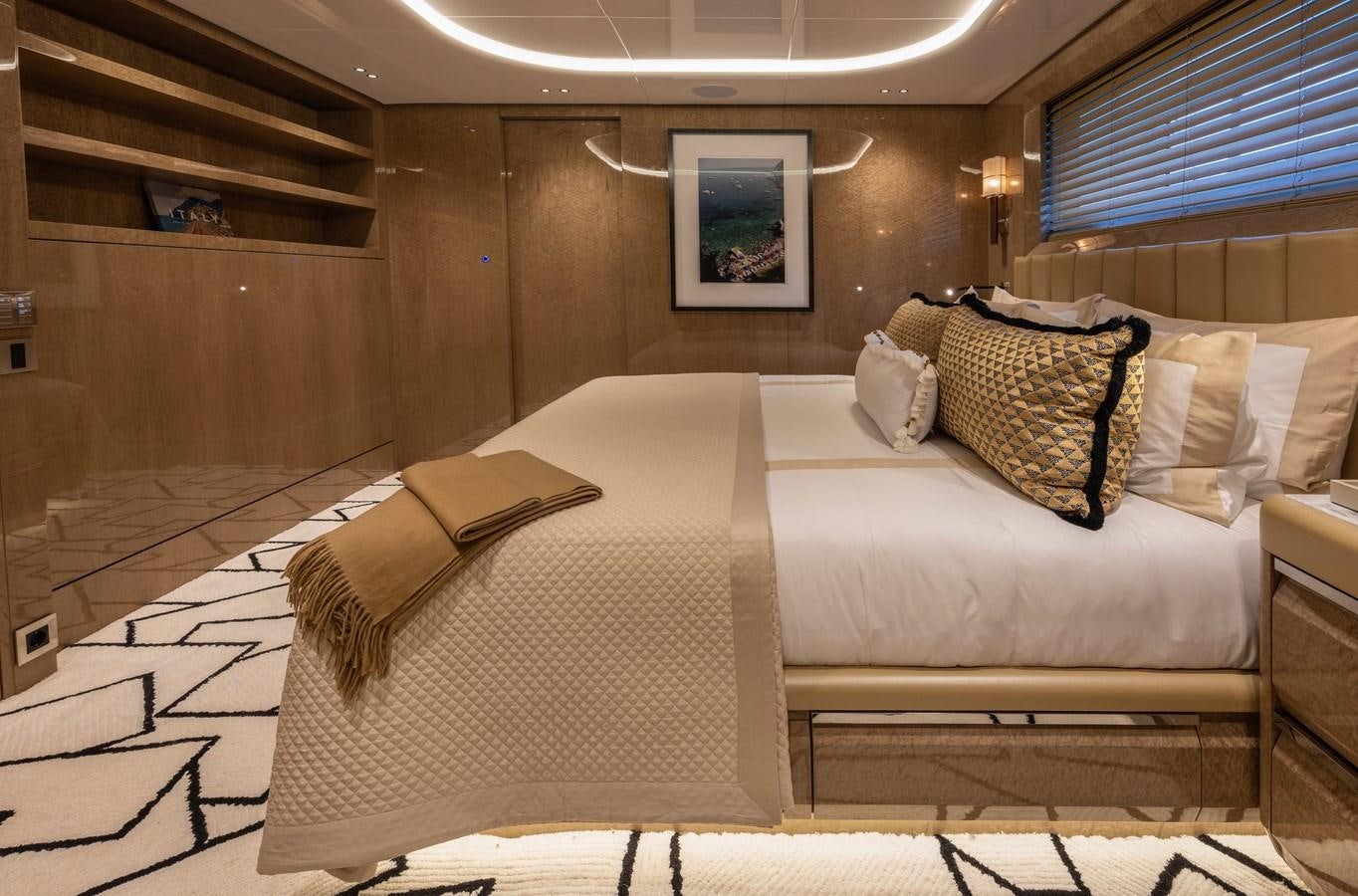

  • Twin Stateroom: 17.03 M² / 186.21 FT²
  • Lobby: 8.03 M² / 89.34 FT²
  • Crew Quarters: 46.07 M²/ 502.67 FT²

DECKHEAD HEIGHTS

  • Main Deck Exterior: 2.10M 6.88 ‘
  • Owner’s Deck Interior: 2.10 M 6.88 ‘
  • Bridge Deck Interior: 2.10M 6.88 ‘

Galley & Laundry Equipment

MAIN GALLEY EQUIPMENT

  • Cooking Equipment: Miele
  • Refrigeration/Freezer: Electrolux
  • Dishwasher: Hobart

PANTRIES AND OTHERS

  • Refrigeration/Freezer: Electrolux

CREW GALLEY / MESS EQUIPMENT / COOKING EQUIPMENT

  • Microwave: Electrolux
  • Refrigeration/Freezer: Electrolux
  • Dishwasher: Miele
  • Sun Deck: Electrolux Ice Maker and Liebheer Baveria Fridge
  • Wine Storage: Enofaber
  • Main Laundry Equipment: Miele
  • Crew Laundry Equipment: Miele
  • Owner/Guest Staterooms: Liebheer Humidor

Communication Equipment

  • SAT com: KVH
  • ECDIS: Furuno, EC-8100
  • Telecom Systems: Iridium
  • VHF Radiotelephones: Furuno, FM-8900S
  • Portable VHF: ICOM
  • Portable GMDSS VHF: Sailor
  • Iridium Satellite Phone: Yes
  • Intercom – Talk Back: Furuno
  • Telephone System: Grand Stream
  • Intercom System: Furuno
  • VHF Digital Radios: Furuno FM-8900S
  • Radar Transponders: Furuno
  • Navtex Receiver: Furuno NX-700B
  • GMDSS Battery Plant: Victron
  • Guest Phones: Grand Stream
  • Internal Ship’s Communication: Grand Stream

Navigation Equipment

  • Navigation Bridge: Furuno
  • Monitors: Hatteland, ND HD24 T22FUD-MA4-FAGA
  • X-Band Radar: Furuno, DRS6A X-CLASS
  • S-Band Radar: Furuno, FAR-2218 BB
  • Magnetic Compass: Cassens&Plath, 33005
  • Gyrocompass: Tokyo Keiki, TG-8100
  • Auto Pilot: Simrad, AP-70 MK2
  • Rudder Angle Indicator System: Data Hidrolik
  • Echo Sounder: Furuno, FE-800
  • Speed Log: Furuno, DS-85
  • Depth Sounder: Furuno, 50/200-1T
  • DGPS: Furuno, GP-39
  • GPS: Furuno, GP-170
  • AIS: Furuno, FA-170
  • Navtex: Furuno, NX-700B
  • Wind Instruments: Airmar, 200WX
  • Horn: Kahlenberg, M-100
  • Search Lights: Francis, A7185 VX500RC
  • Night Vision Camera: Vivotek's SD9368-EHL IP
  • Tender Tracking System: Vivotek's SD9368-EHL IP
  • Bridge Navigation Watch Alarm: Furuno, BR-500

Entertainment Equipment

  • Video Equipment: Apple TV
  • TVRO: KVH
  • Audio Equipment: B&W- JL- L’ACOUSTIC
  • Control: RTI
  • Light Management: Lutron
  • Main Salon: RTI
  • Master Stateroom: RTI
  • VIP Stateroom: RTI
  • Guest Staterooms: RTI
  • Sky Lounge: RTI
  • Exterior, Aft Deck, Bar, Bridge Deck: RTI
  • Captain’s Cabin: RTI
  • Crew Mess: RTI

Tenders & Toys

  • Tenders: Castoldi JT16
  • Jet Skis: 2 x Seadoo RXP300

Deck Equipment

  • Anchors: Mengi Yay
  • Anchor Chains: Yapas
  • Data Hidrolik DZC 3300-2 EPL/Kr-23K
  • Cranes: Opacmare, 3131/52
  • Warping Capstans: Data Hidrolik DHC 2200-2 EPL/K/5
  • Ground Tackle: Bow Crane: REM, 650 KG
  • Passerelle: REM Marine
  • Side Boarding Ladder: REM Marine
  • Stern Boarding Gangway: Opacmare, 3382.50.S1.38
  • Spotlights: Stein
  • Paint Exterior: Awlgrip HDT
  • Paint Underwater: International

Safety & Security Equipment

  • CCTV: Vivotek
  • Monitors: Hatteland
  • Fixed Firefighting System: FirePro, 5700 T/S/TS
  • Gas Detection: TYCO
  • Smoke Detection: TYCO
  • Fire Alarm: TYCO Fire & Security GmbH, 851PH
  • MOB Boat: Survitec RIBO340
  • Life Rafts: Arimar 101 6006 FC & 6010FC
  • Breathing Apparatus: Zelinsky- ZEVS-U
  • Lifejackets: Mesica
  • Immersion Suits: Seabee
  • EPIRB: Sailor, 4065
  • SART: Sailor, AIS SART 5052
  • Flares and Signals: Painswessex
  • Medical Equipment: Medaire
