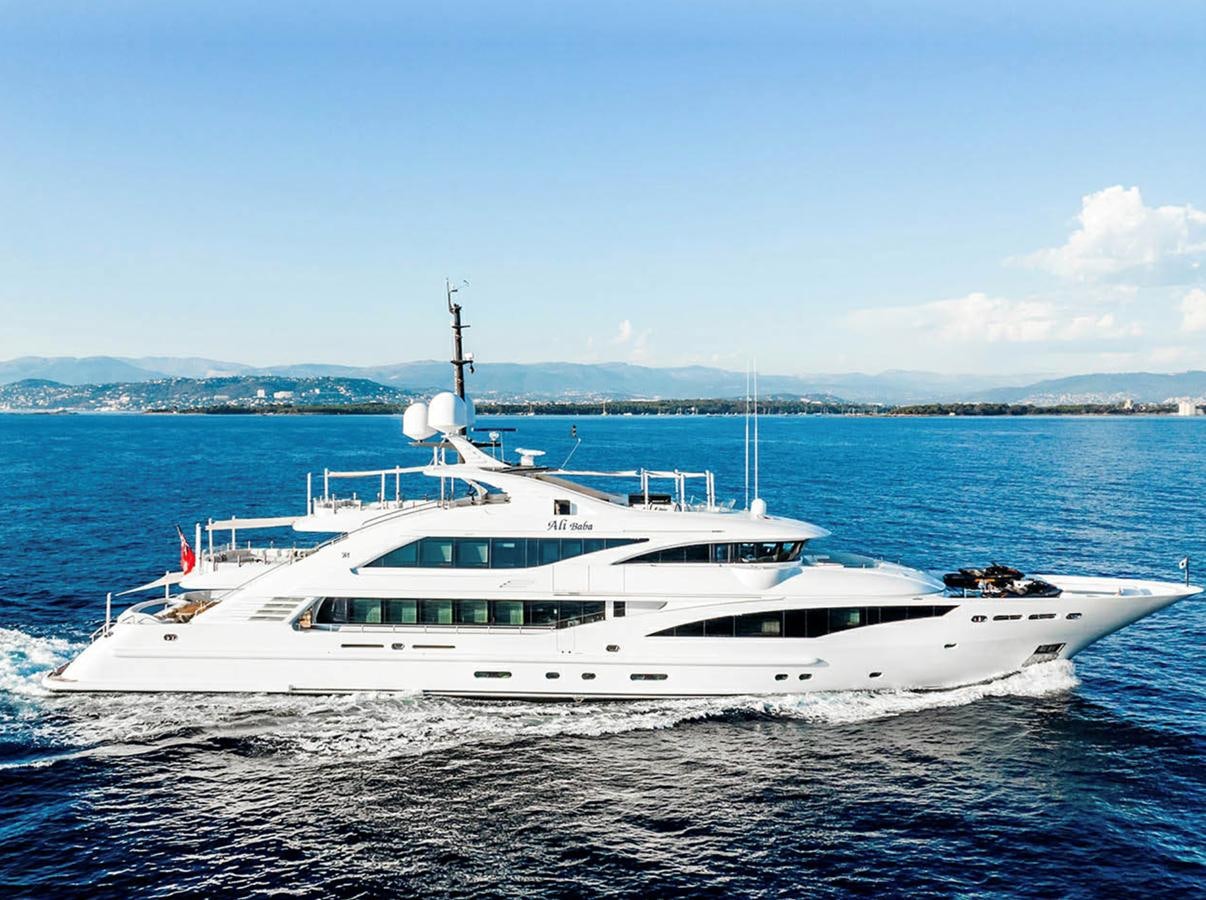

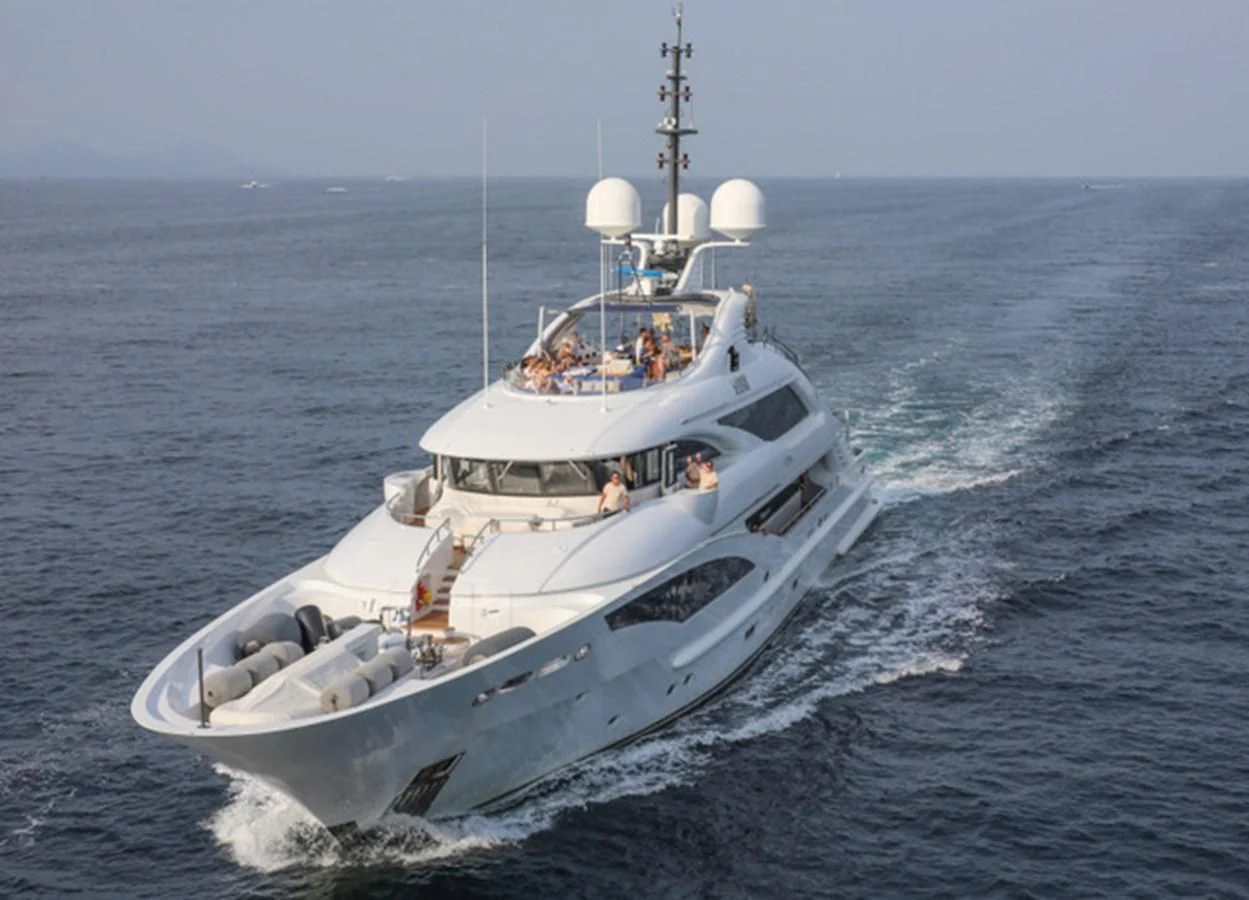

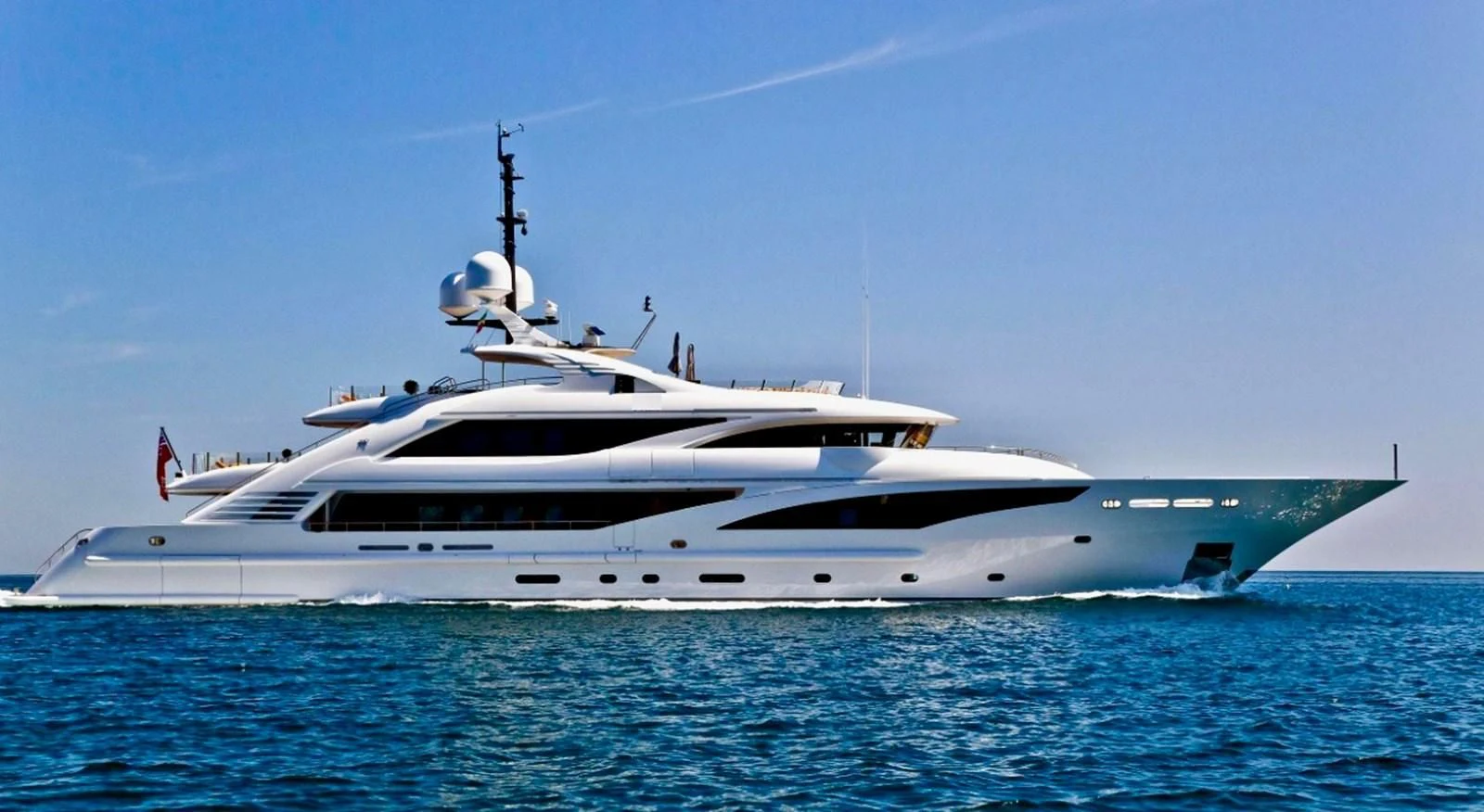

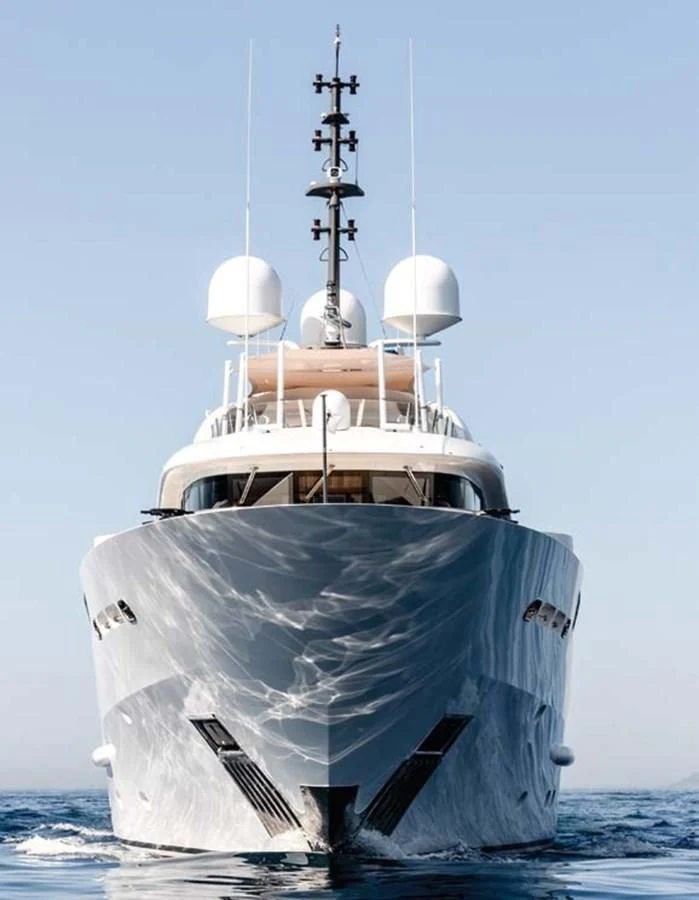

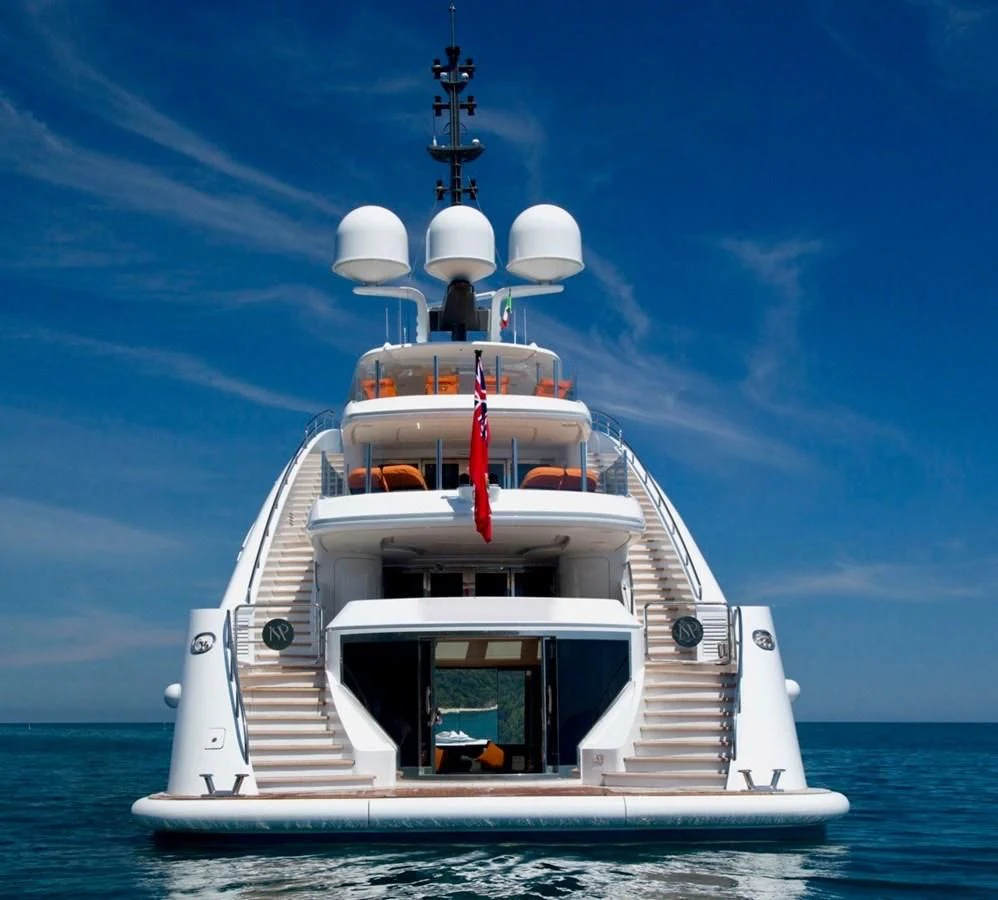

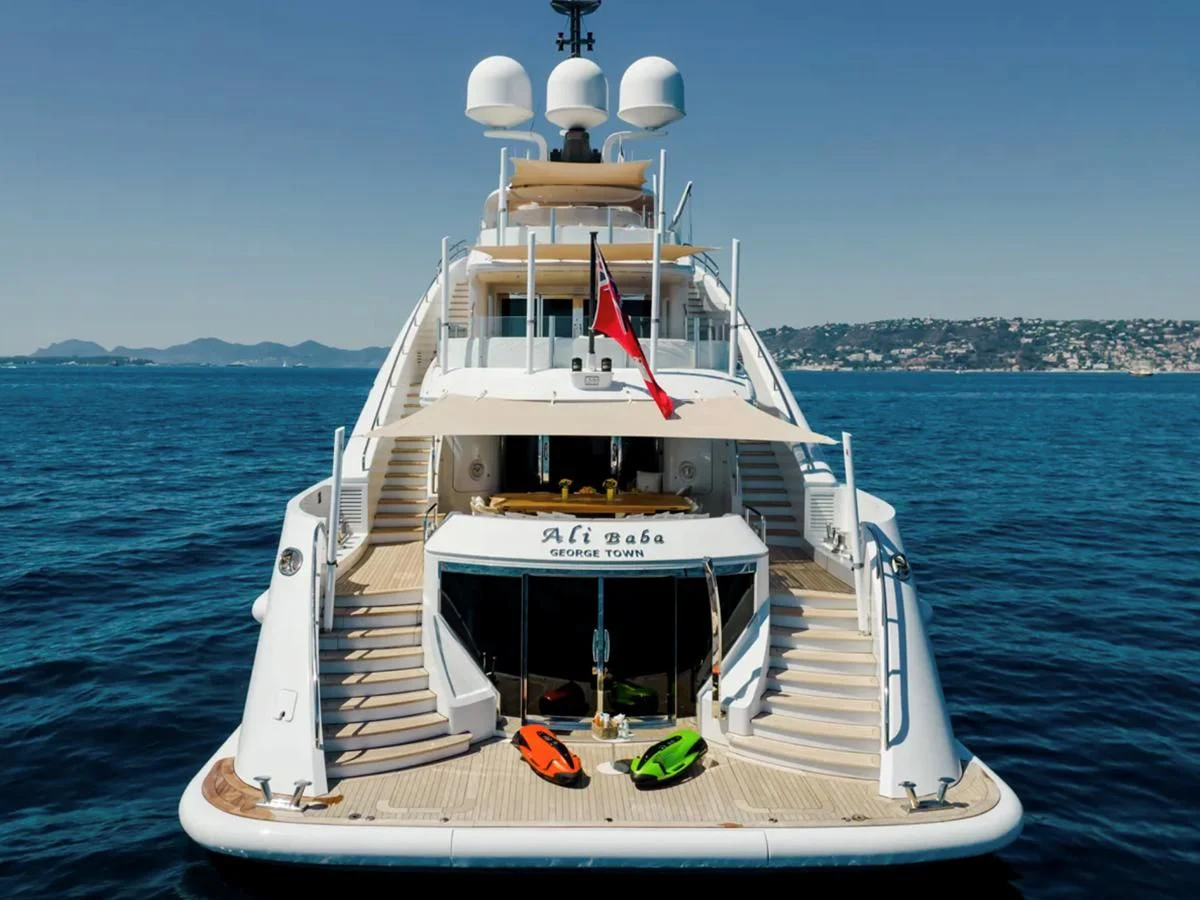

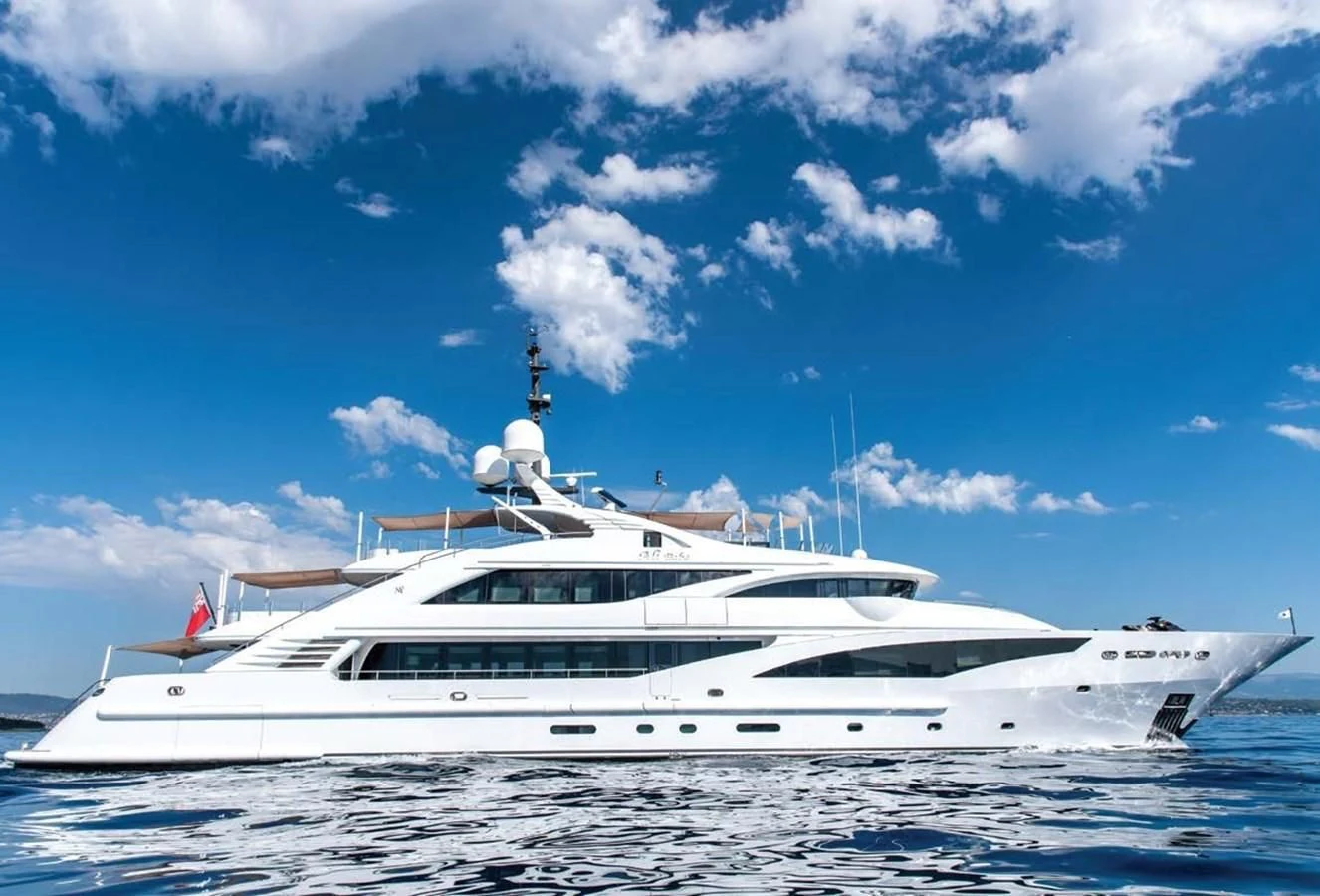

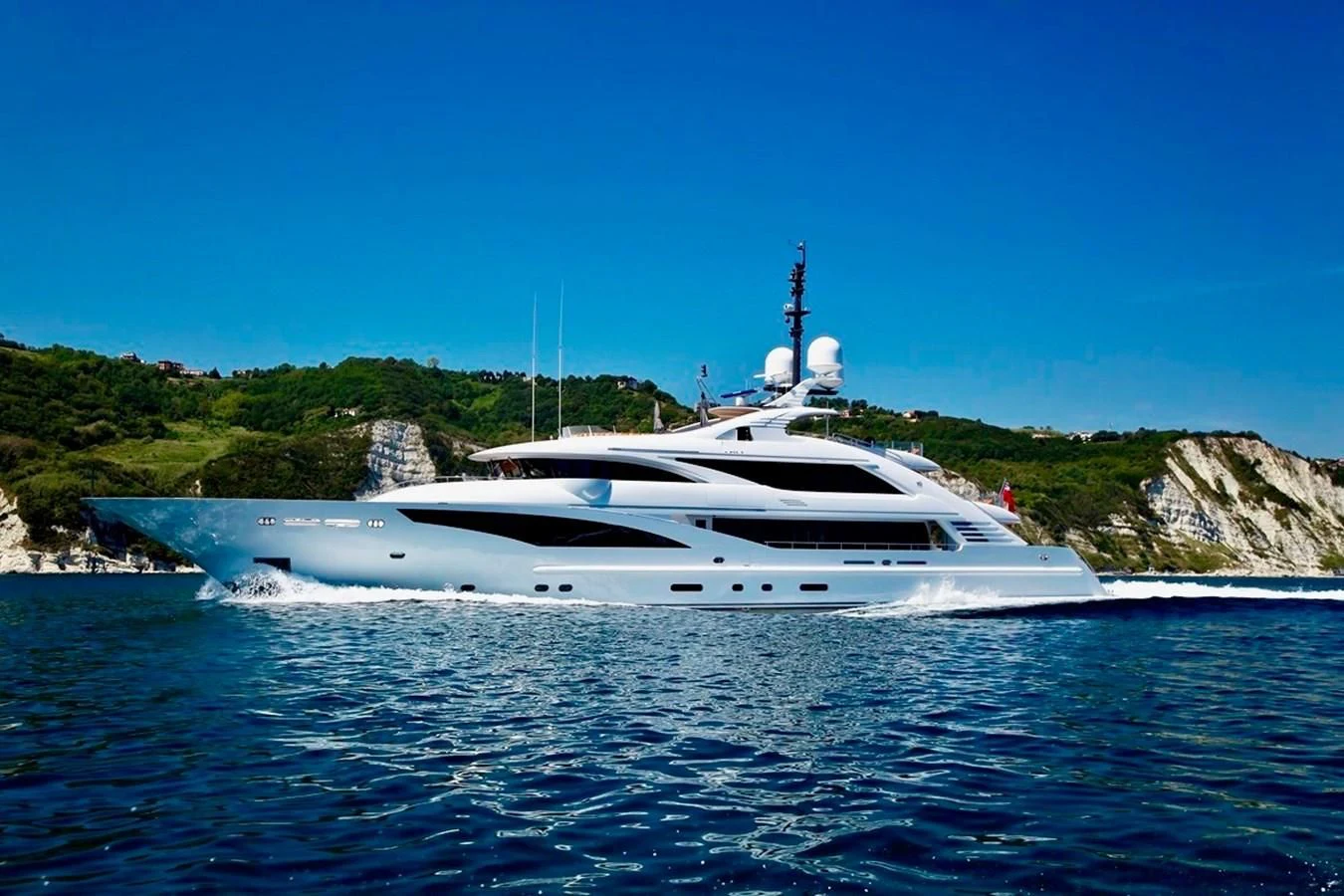

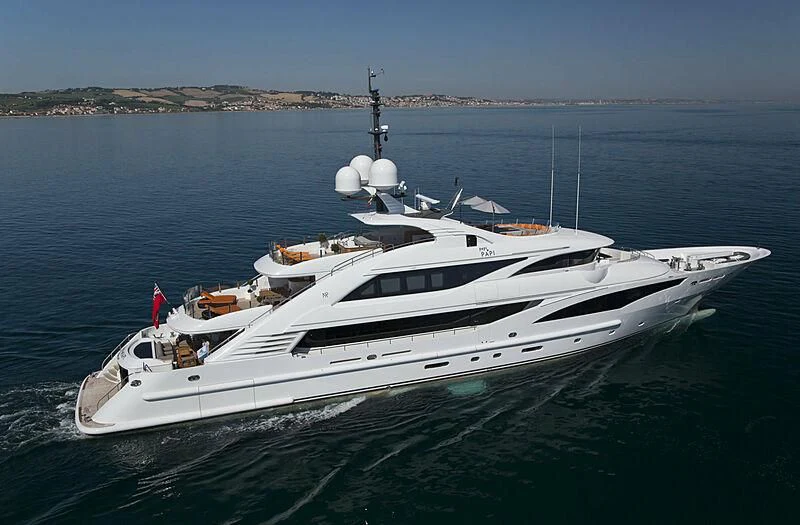

ALI BABA Yacht for Sale

Length
164' (49.99m)
Builder
ISA YACHTS
Build
2012/2023
Cabins
6
Crew
9

Yacht is no longer available for sale.
This is an archived web page showing historic information for reference purposes only. Search Yachts for Sale.

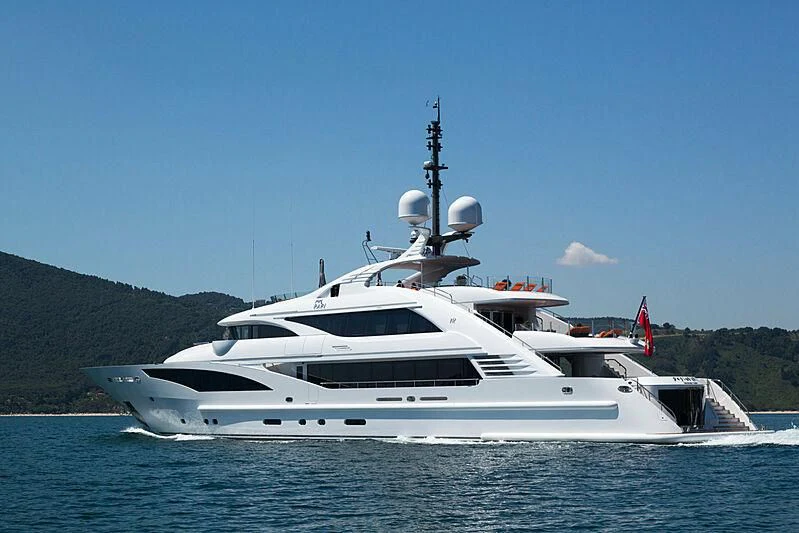

Specifications

Builder ISA YACHTS
Model 500 - 2 POP
Length (LOA) 164' (49.99m)
Year 2012
Year Refit 2023
Gross Tonn. 498
Draft 9' (2.5m)
Beam 29' (9.07m)
Range 4,400 NM
Location Monaco

Accommodations

Staterooms 6
Sleeps 12
Crew Cabins 9
Crew Sleeps 9
Capt. Quarters Yes

Dimensions & Capacity

LOA 164' (49.99m)
Min Draft 9' (2.5m)
Max Draft 9' (2.5m)
Fuel Tank 21,000 g (21,000 L)
Fresh Water 5,548 g (5,547 L)
Gross Tonn. 498

Construction

Hull Material Steel
Hull Config Full Displacement
Ext. Designer Andrea Vallicelli
Int. Designer Francesco Paszkowski
Cruising Speed 12 Knots
Range 4,400 NM
Have Questions?

Complete the form below and one of our experienced sales brokers will be in touch soon.

Full Details

Other Machinery

  • PROPULSION:  Twin screw 5 blades
  • FUEL PURIFIER:  Alfa Laval
  • WATER MAKER : 2x 4500 lt/d (4755 USG) - Idromar
  • LUBE OIL SYSTEM: Garbarino
  • OIL SEPARATOR: DVZ
  • MAIN BILG PUMP : Garbarino IA3/140
  • EMERGENCY BILGE/FIRE PUMP: Garbarino BT651
  • BILGE SEPARATOR: AM60B2
  • FUEL TRANSFER PUMP: Garbarino
  • WATER TREATMENT SYSTEM: Hamman system

Accommodation

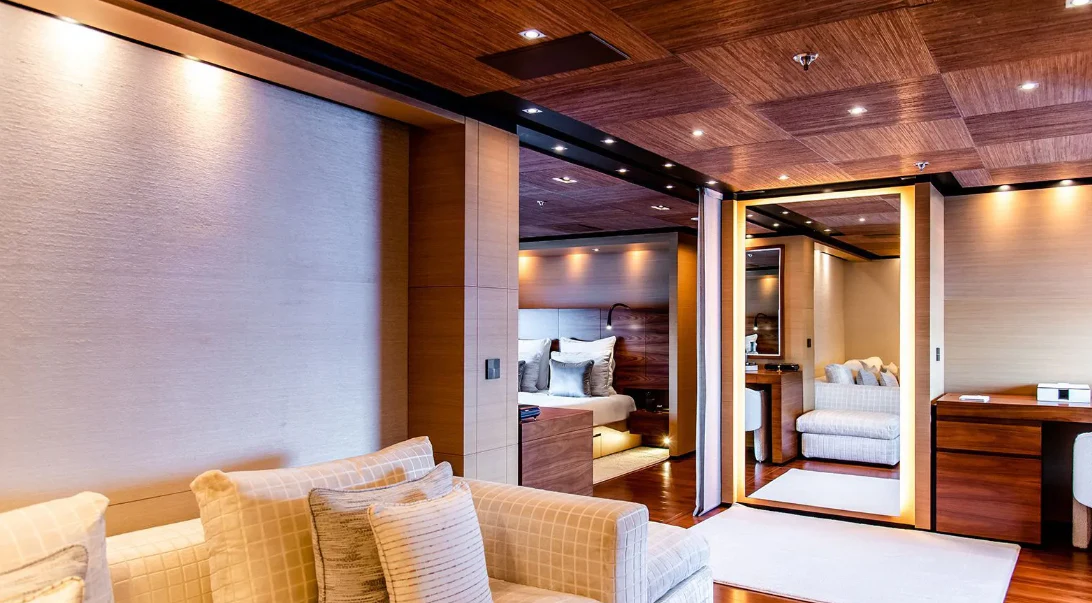

  • The Superyacht ISA Classic 50 Saint luxury interior sleeps up to 12 guests in 6 staterooms. She is also capable of carrying up to 9 crew onboard to ensure a relaxed luxury yacht experience. Timeless styling, beautiful furnishings and sumptuous seating feature throughout to create an elegant and comfortable atmosphere.

Accommodation for up to 12 Guests in 6 cabins:

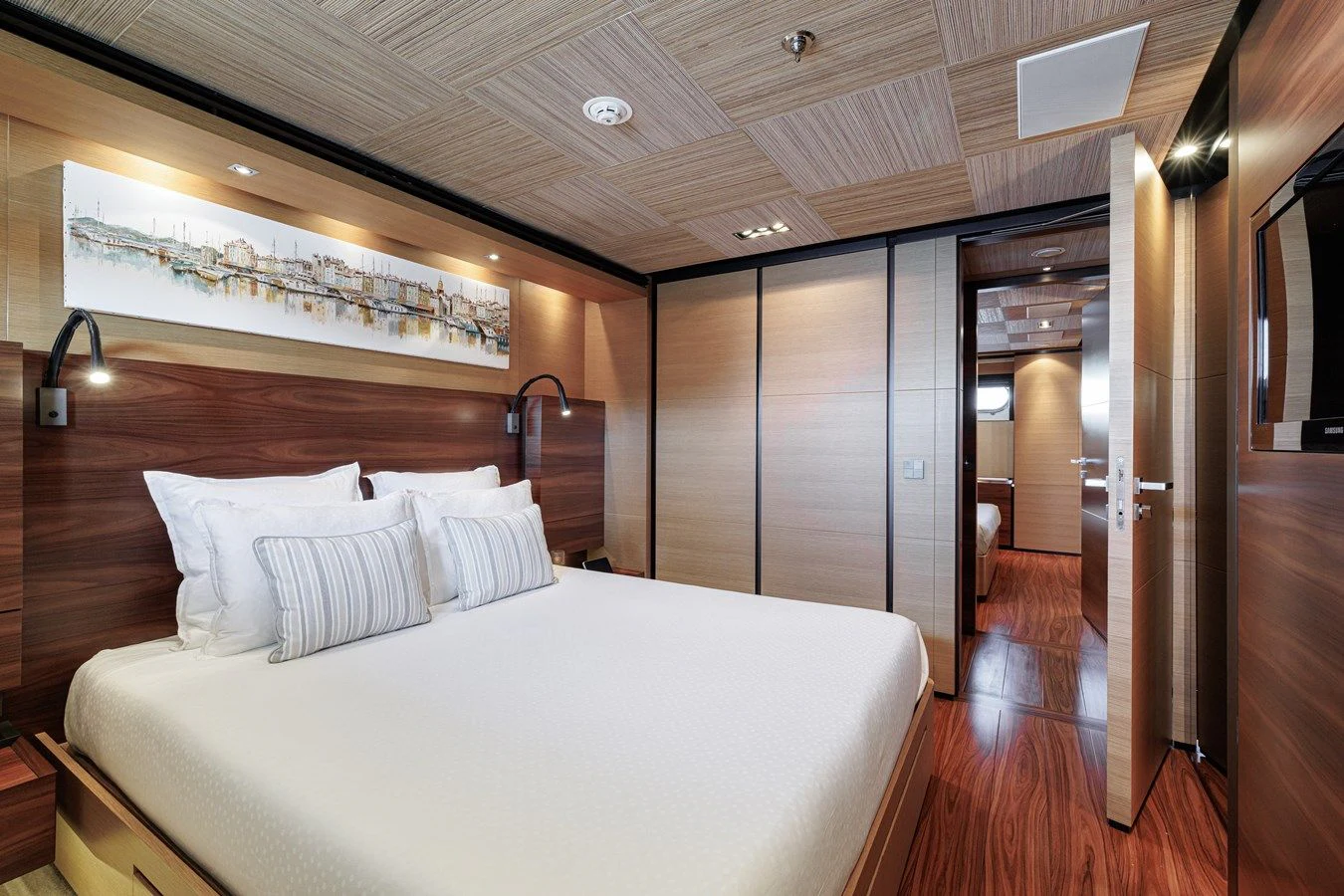

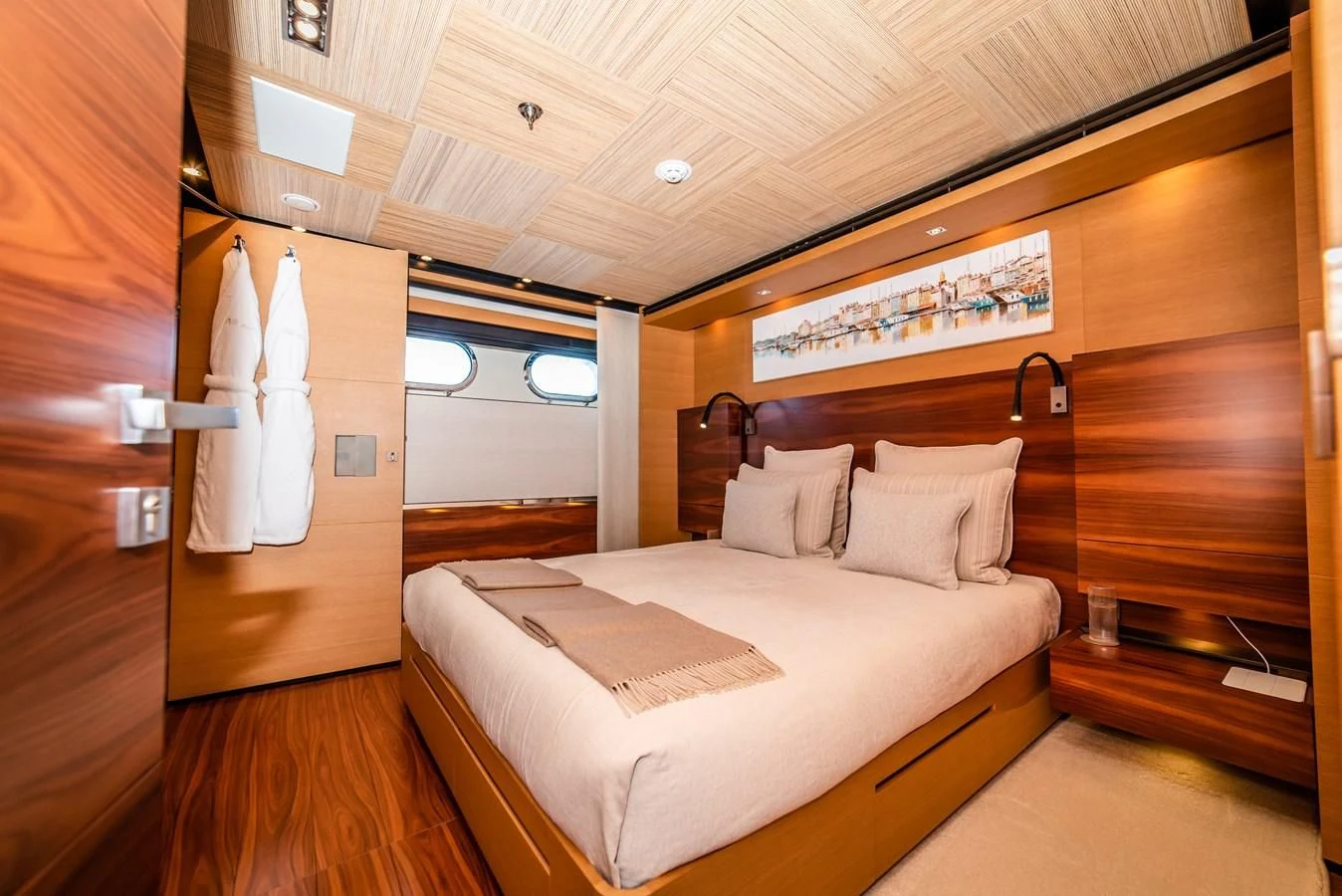

GUEST CABINS

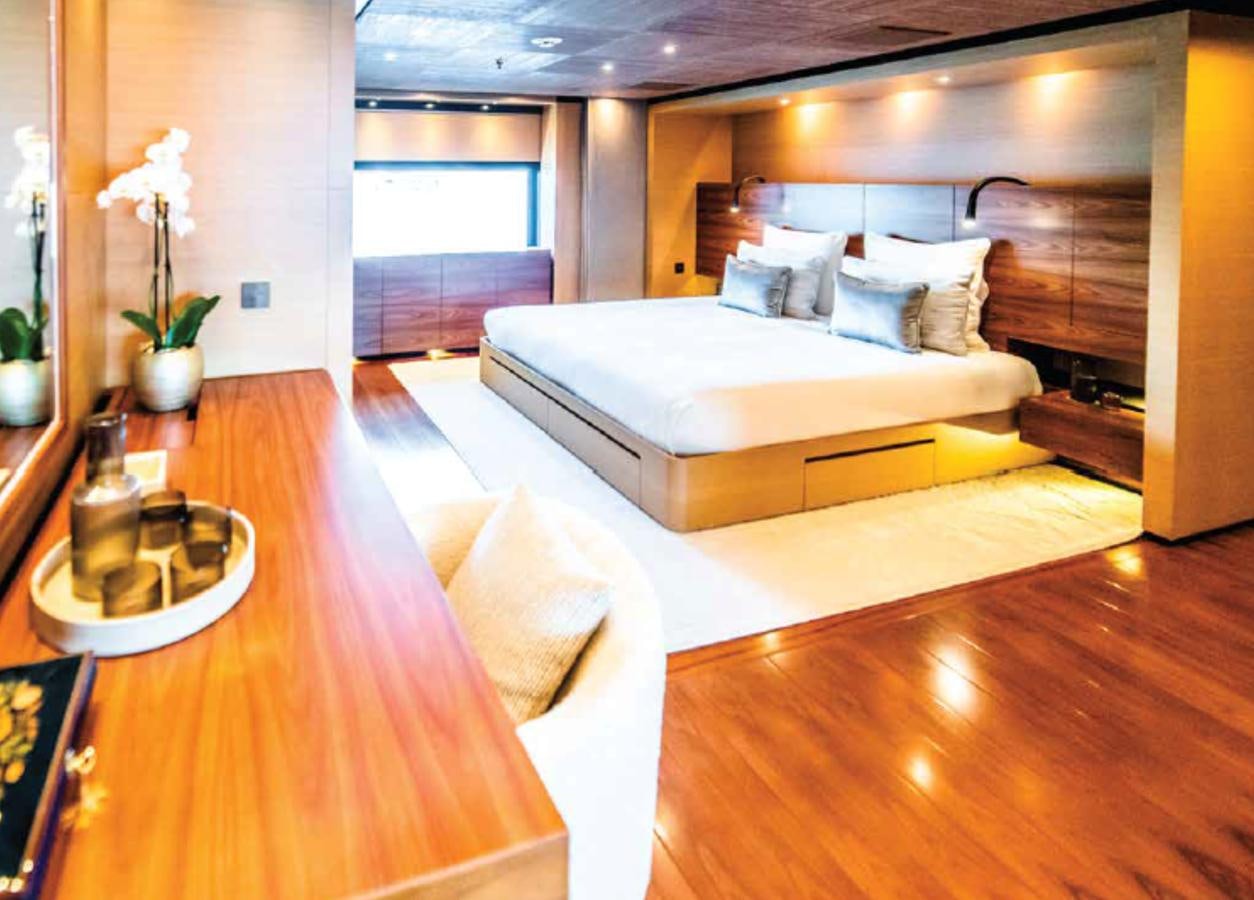

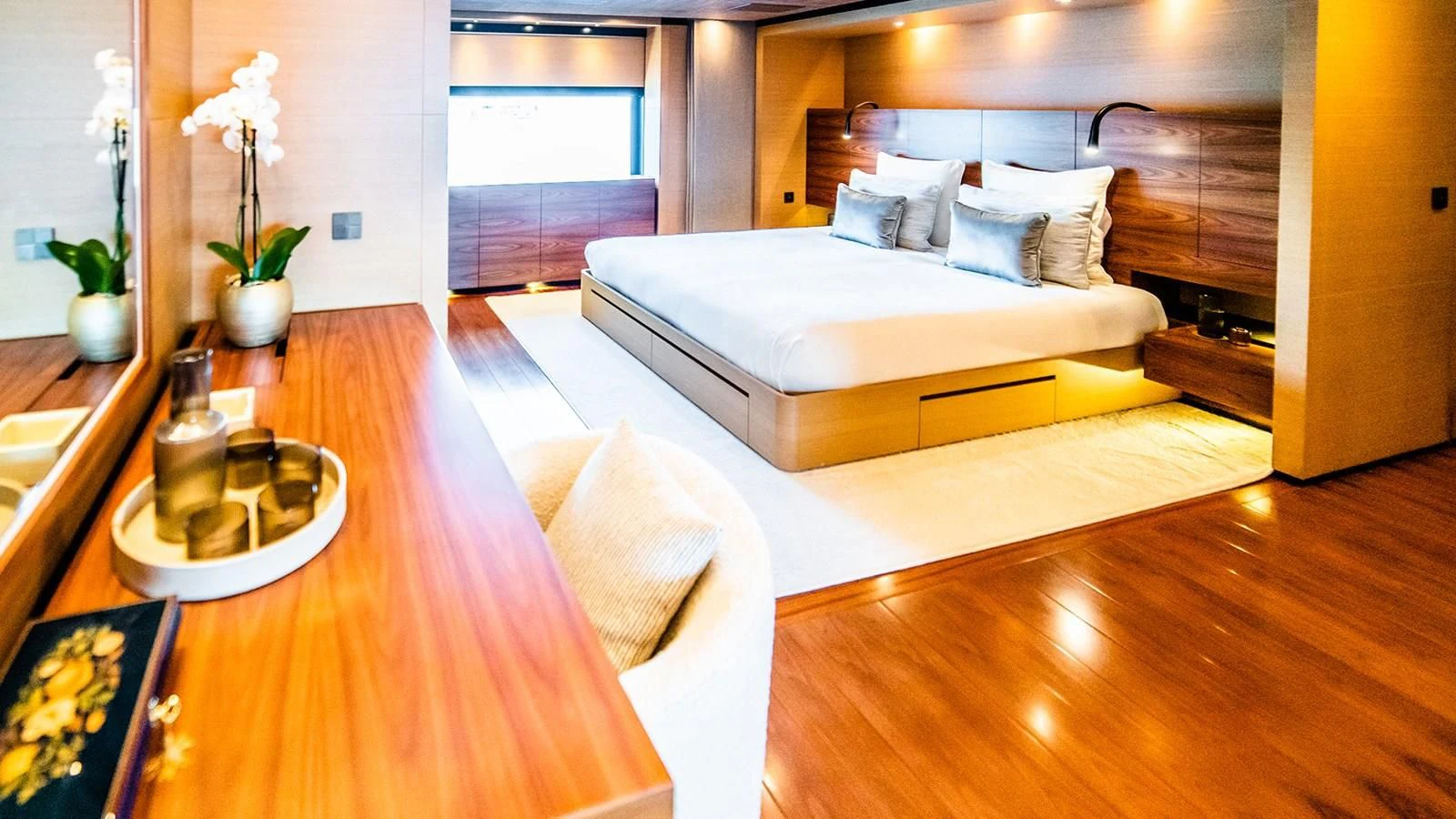

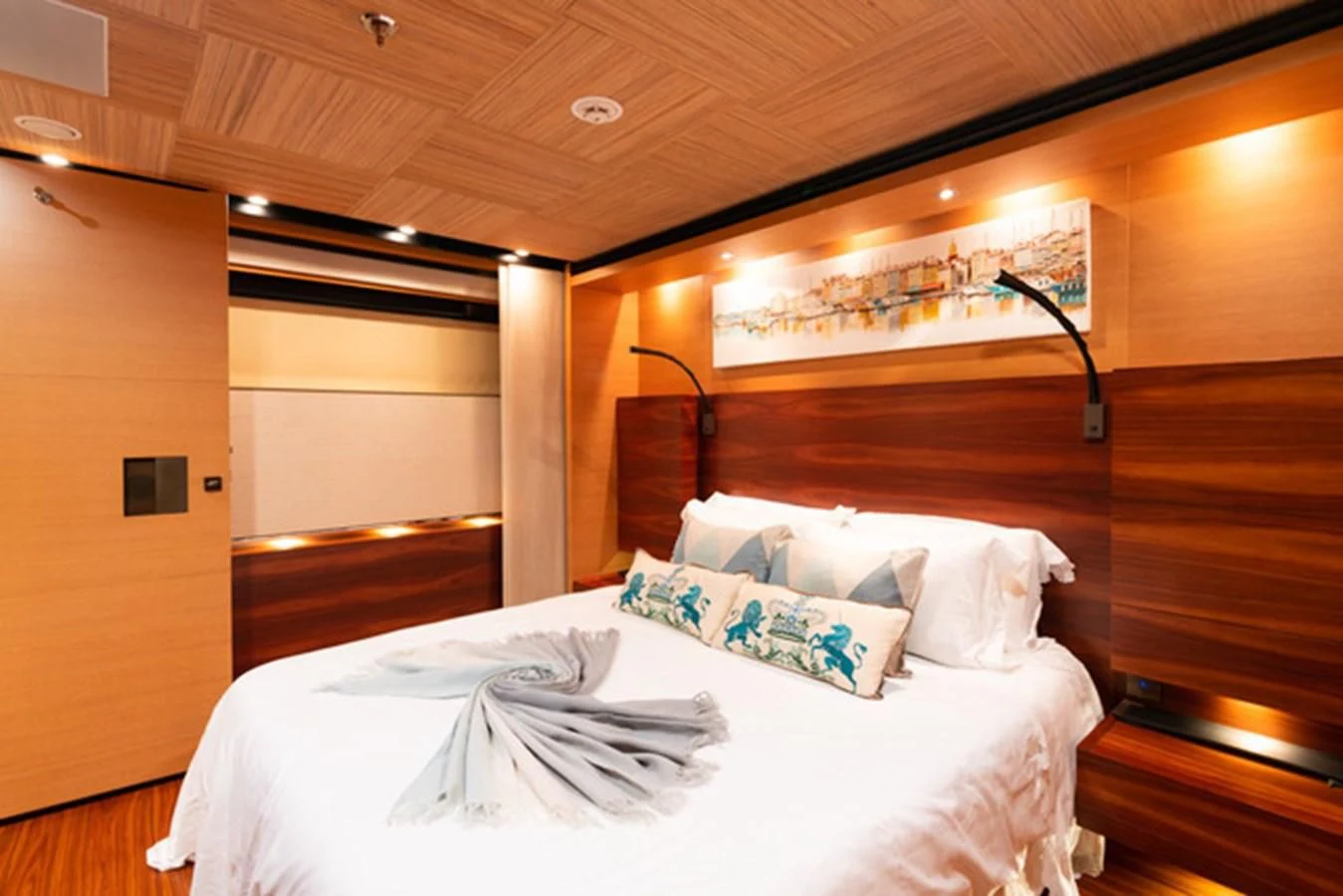

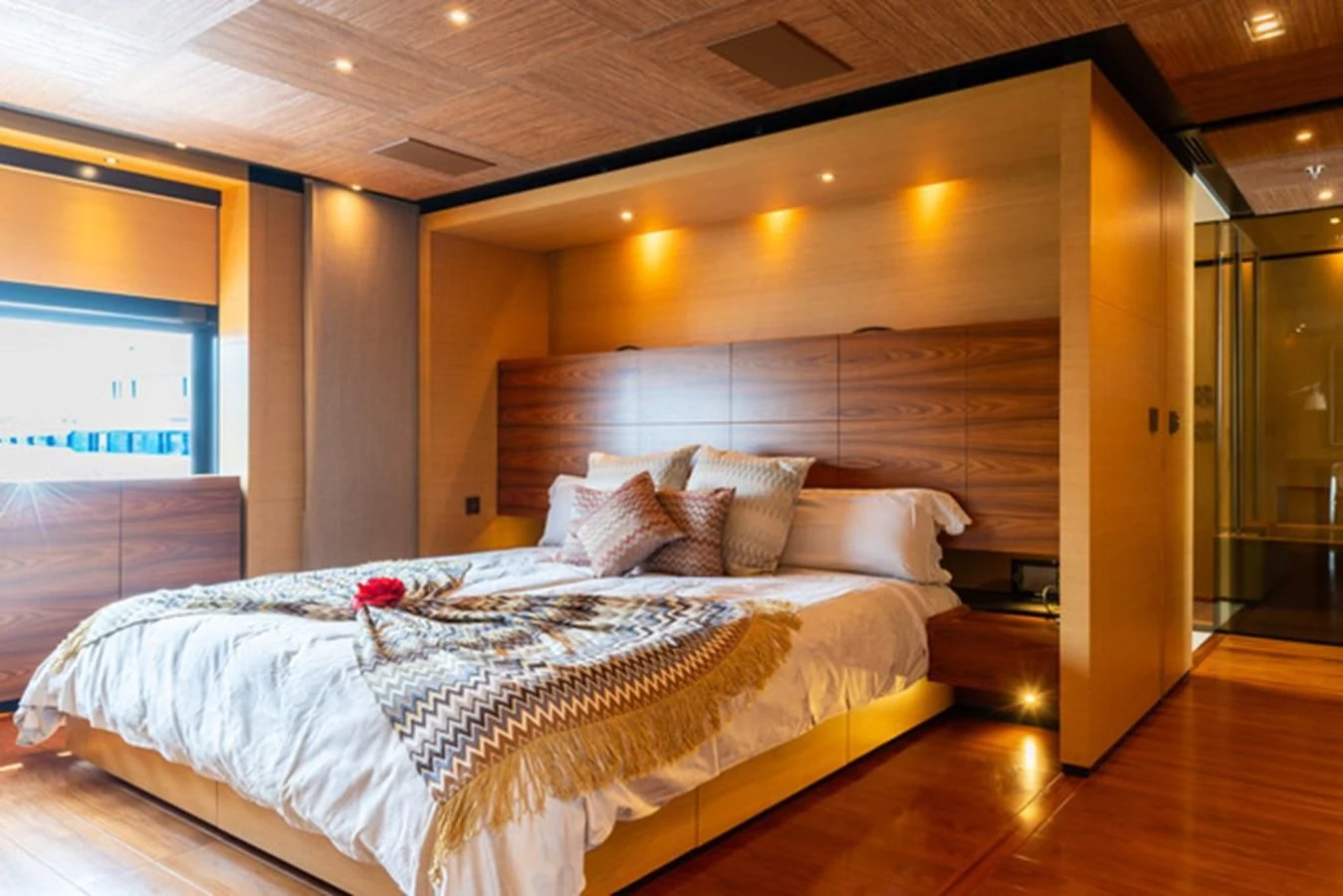

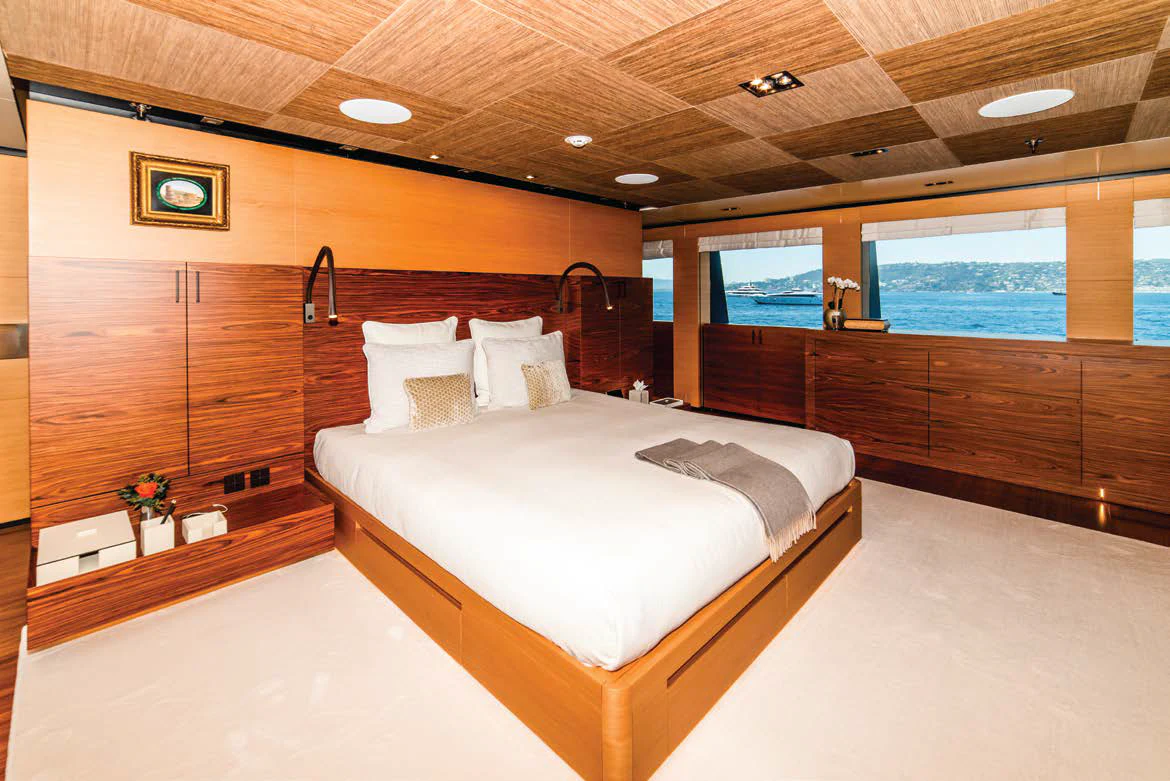

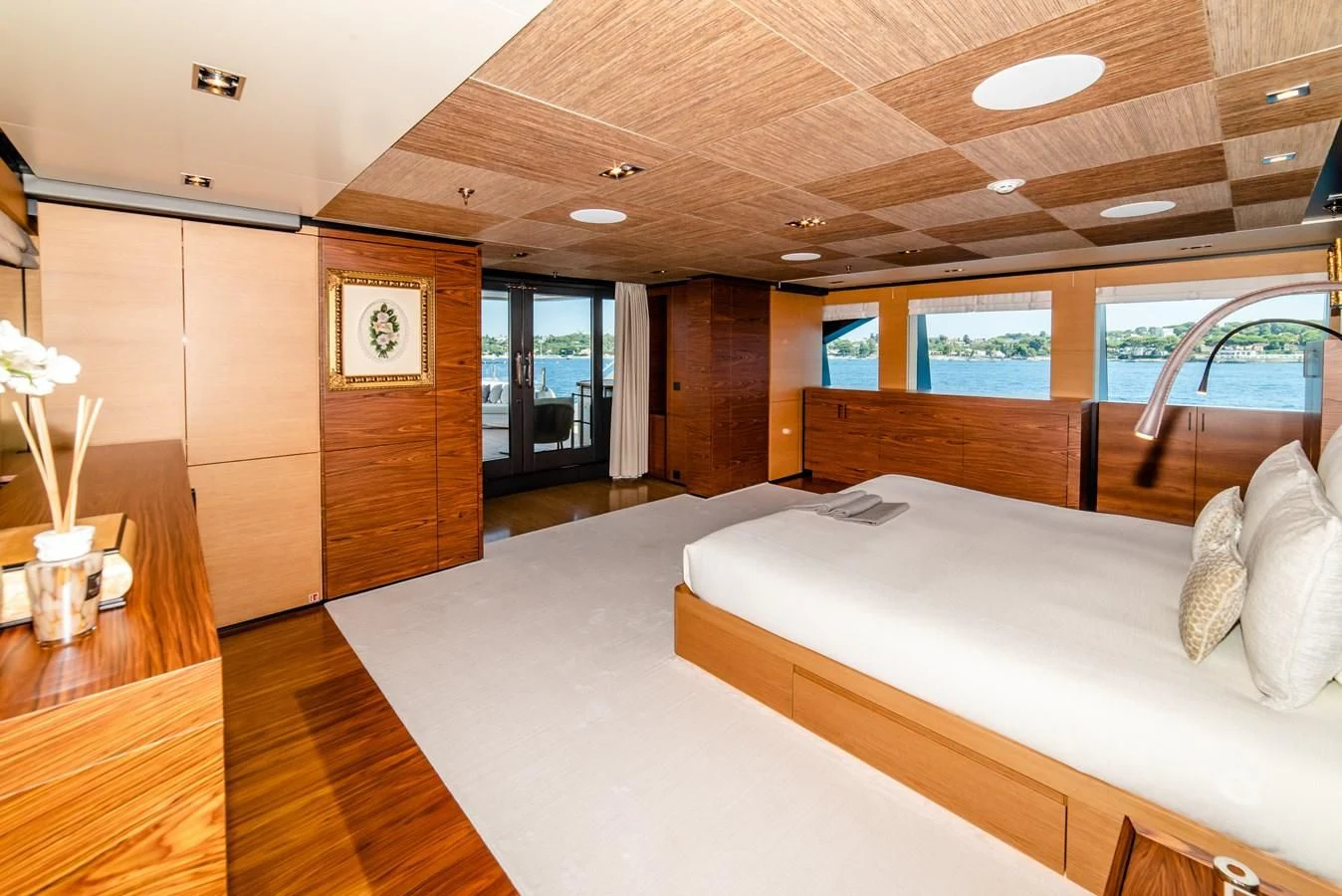

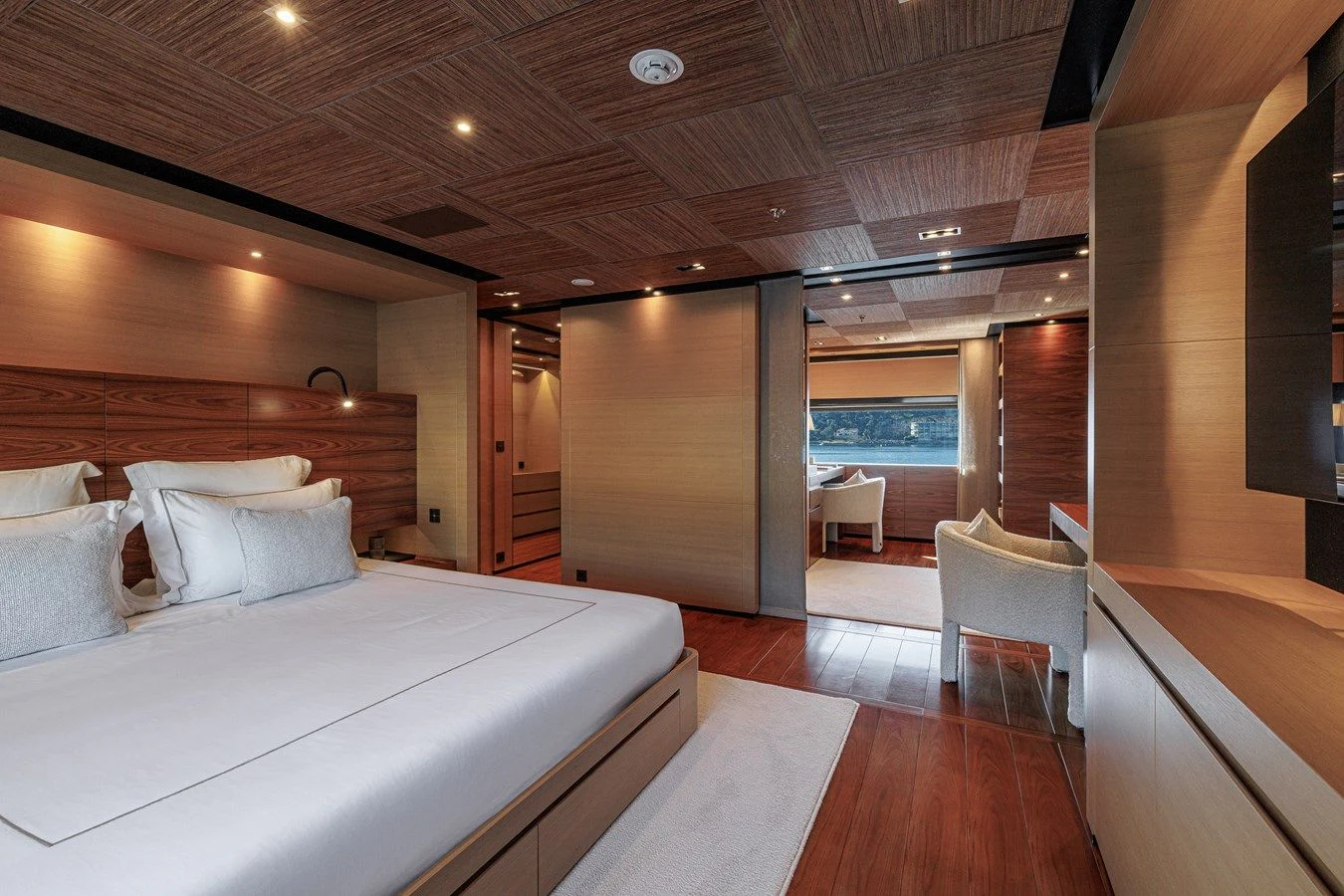

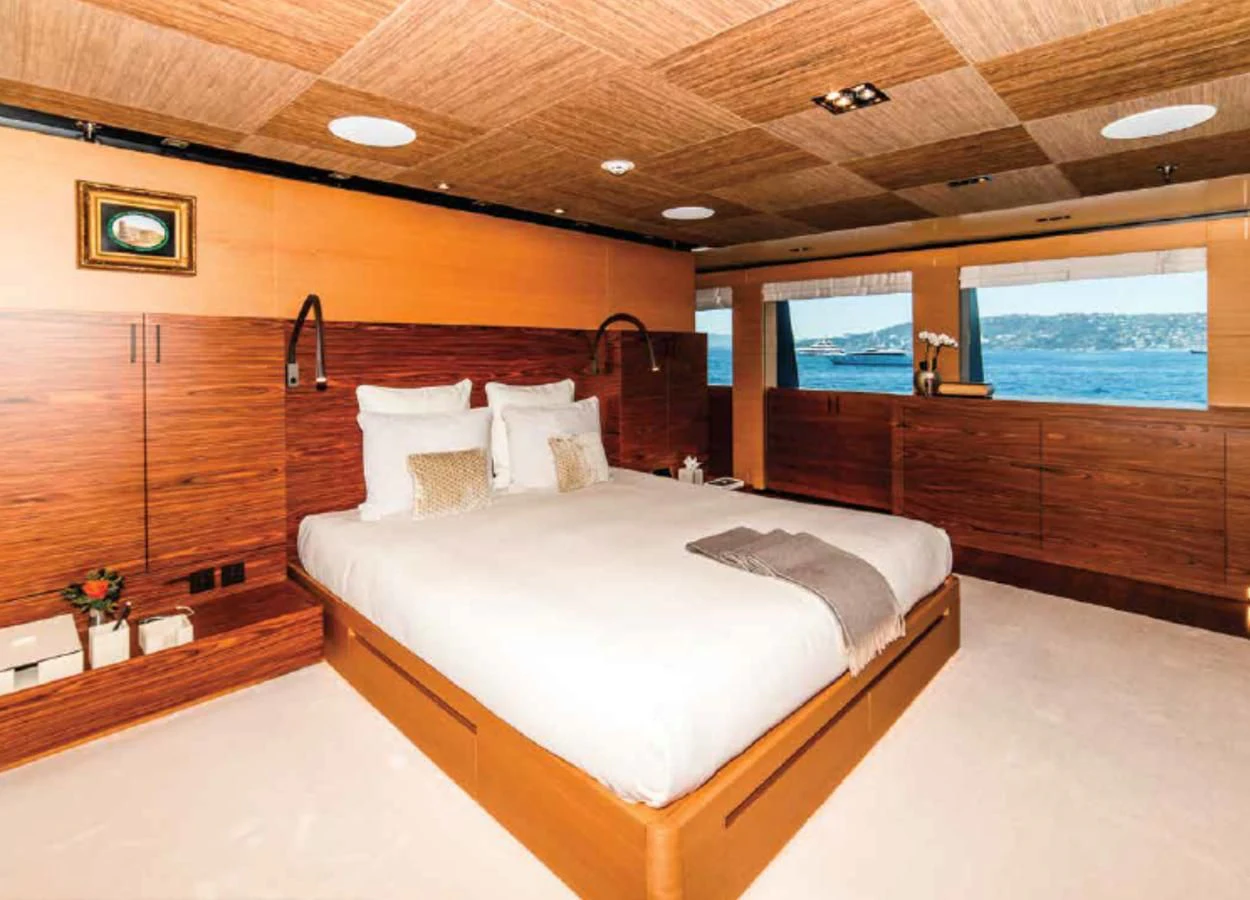

  • 1 x Master Cabin with en suitefacilities - main deck
  • 1 x Master Cabin with en suitefacilities - Hammam - upper deck

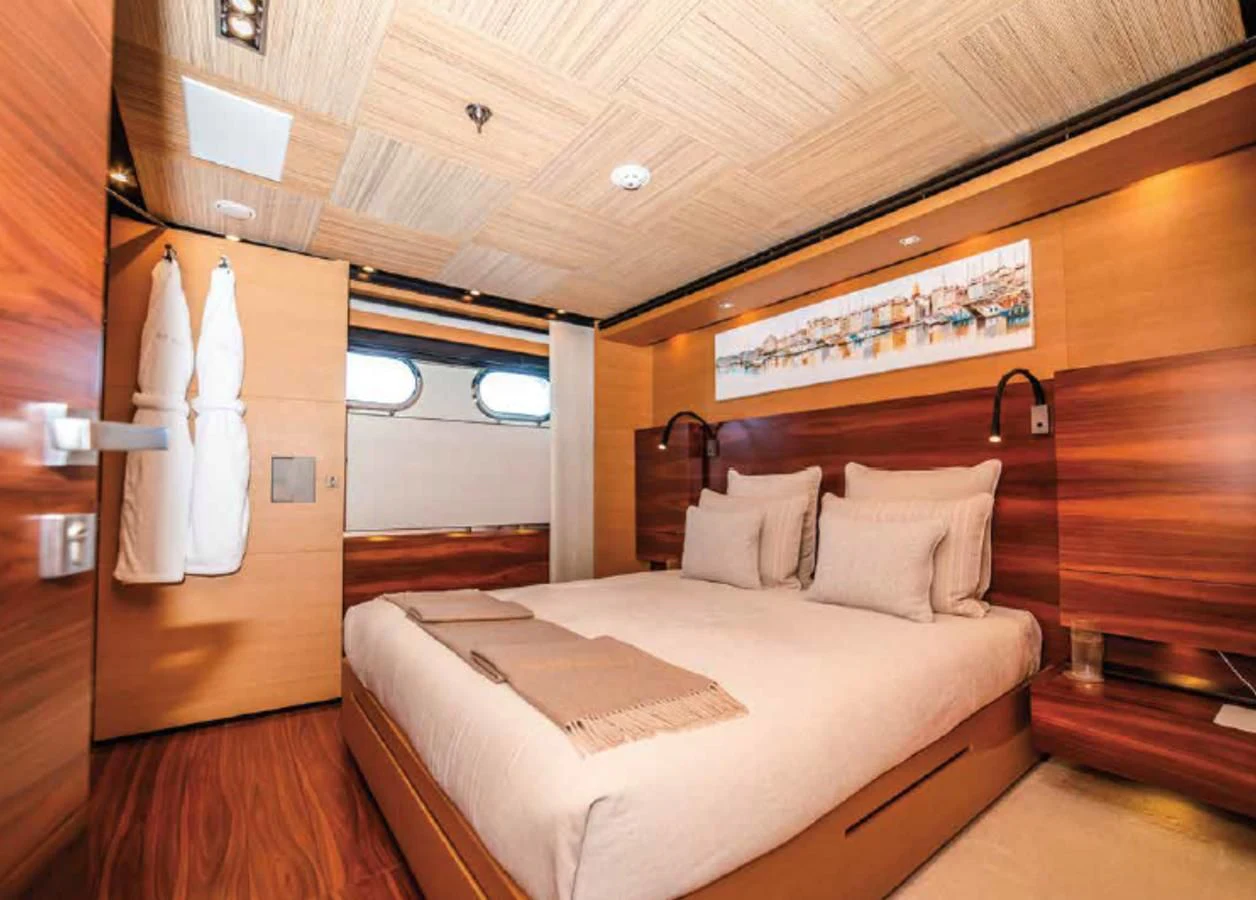

  • 2 x Double cabins

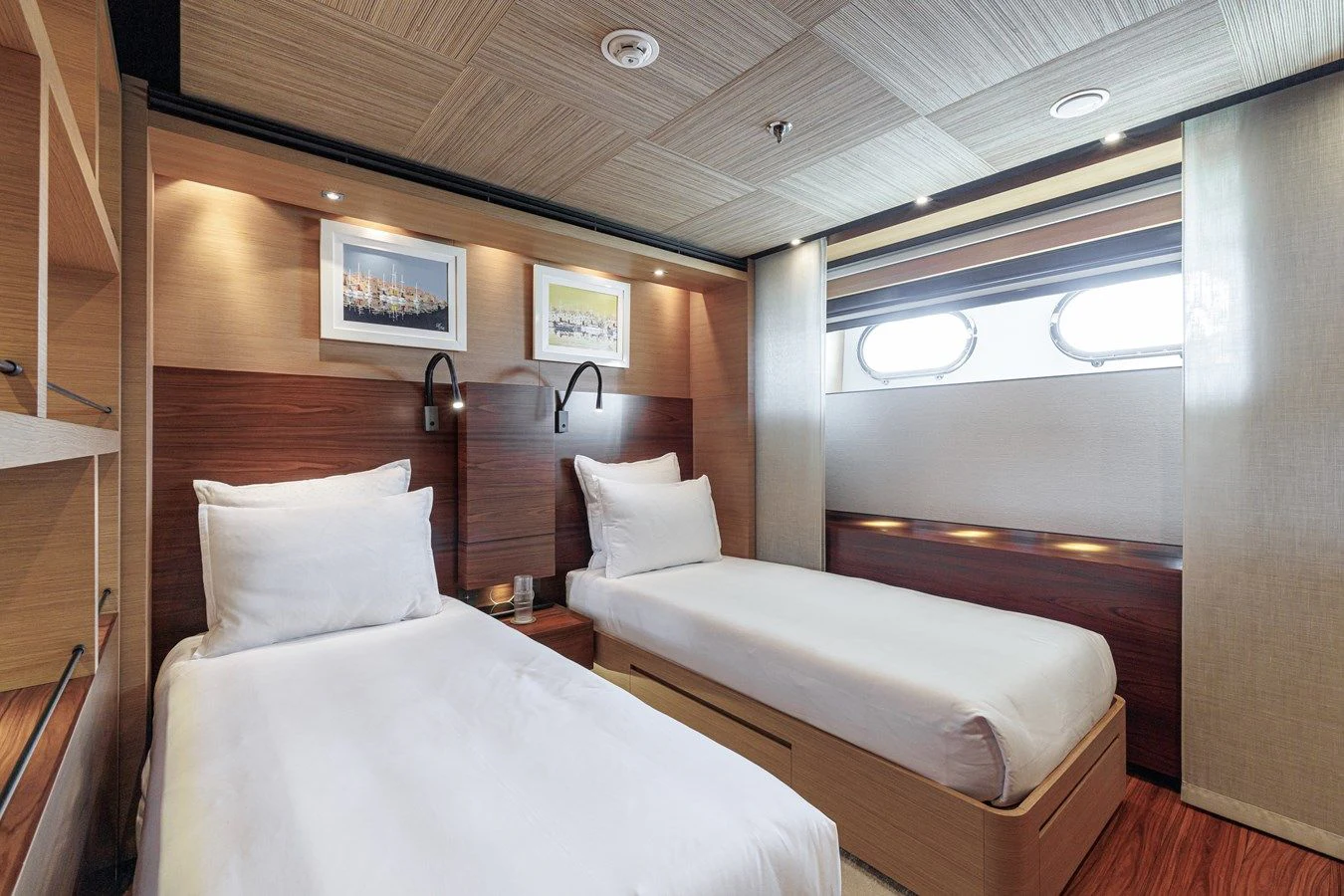

  • 2 x Twin cabins

CREW CABINS

  • 1 x Captain’s cabins
  • 4 x Crew cabins

Galley & Laundry Equipment

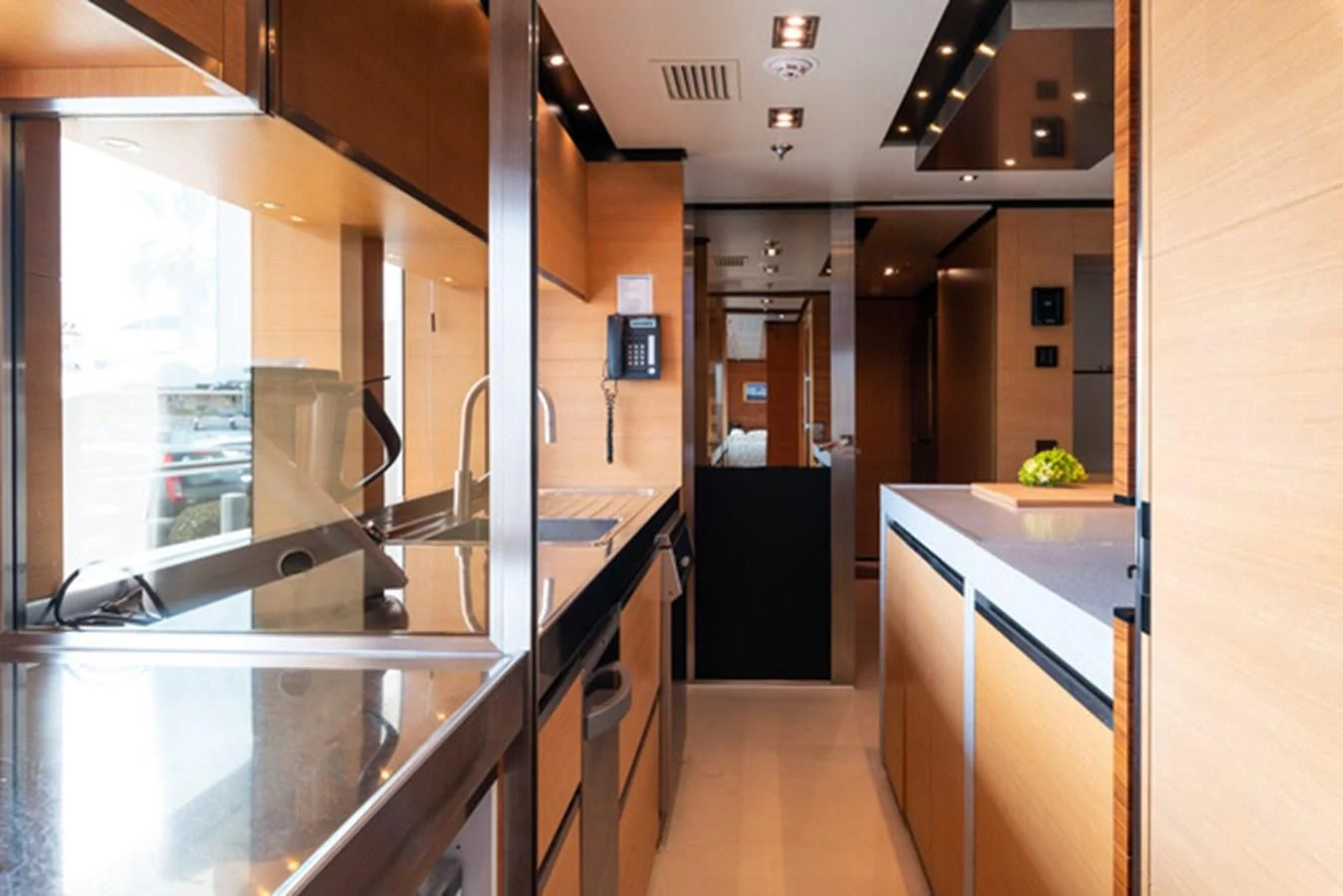

GALLEY & PANTRY

  • Crockery, cutlery and glassware (2 set for 16 PAX)
  • 2 x dishwashers Miele
  • 1 Grill top Miele
  • 1 Electrical stove top Gaggenau
  • 1 Oven Gaggenau
  • 1 Oven INDESIT
  • 1 Thermomix
  • 1 Microwave De Dietrich
  • 1 Coffee machine Phillips
  • 1 Fridge
  • 1 Walking fridge
  • 2 Freezers
  • 1 Ice maker Brema 24kg/d

UPPER DECK PANTRY

  • 1 Wine fridges Liebherr
  • 1 Small fridge Whirlpool

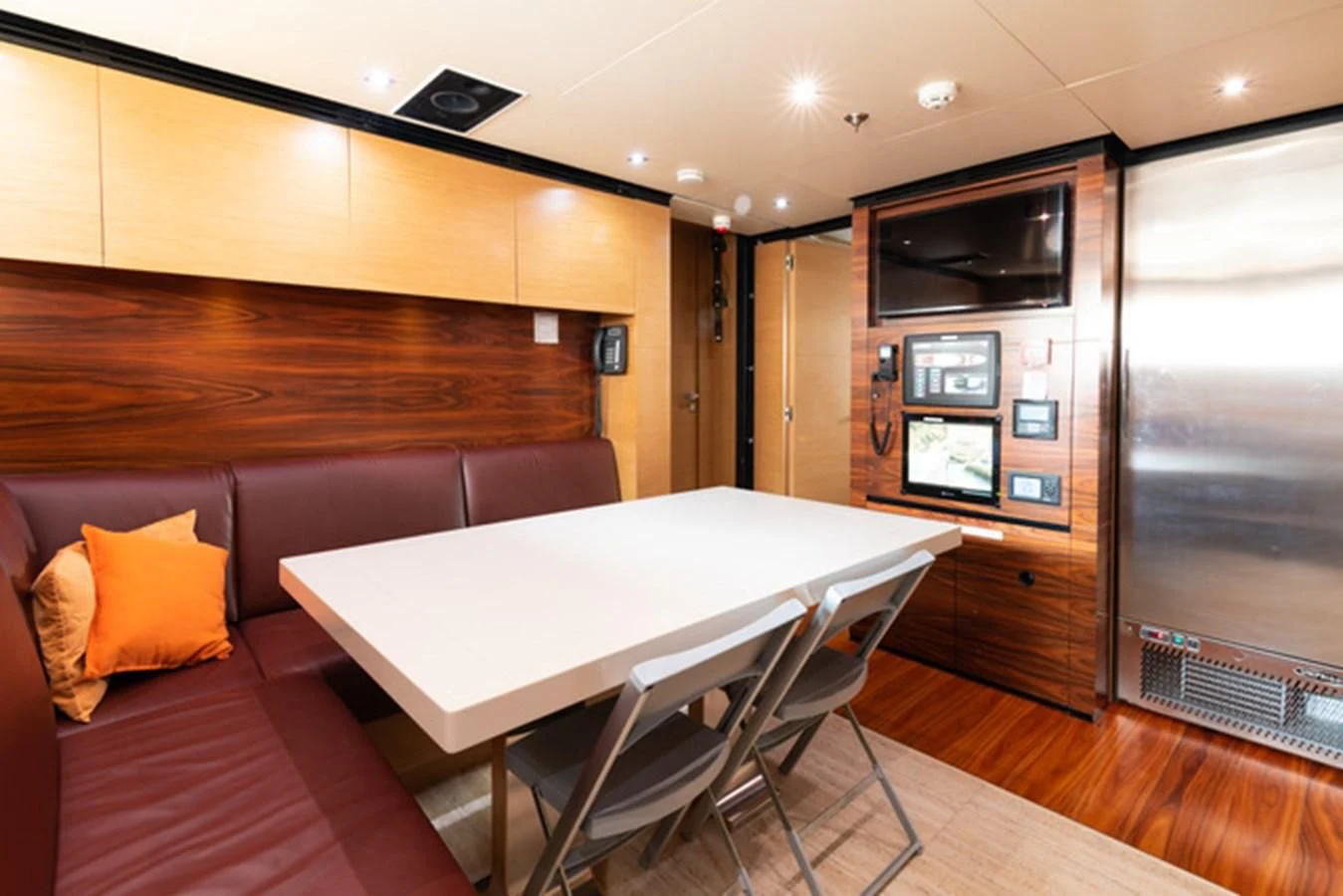

CREW MESS

  • 1 Dishwasher Miele
  • 1 Microwave Miele
  • 1 Fridge Unifrigor
  • 1 Coffee machine Philipps

LAUNDRY

  • 3 x Dryers « vario » Miele
  • 3 x Washing machines Miele
  • 1 Iron Philipps

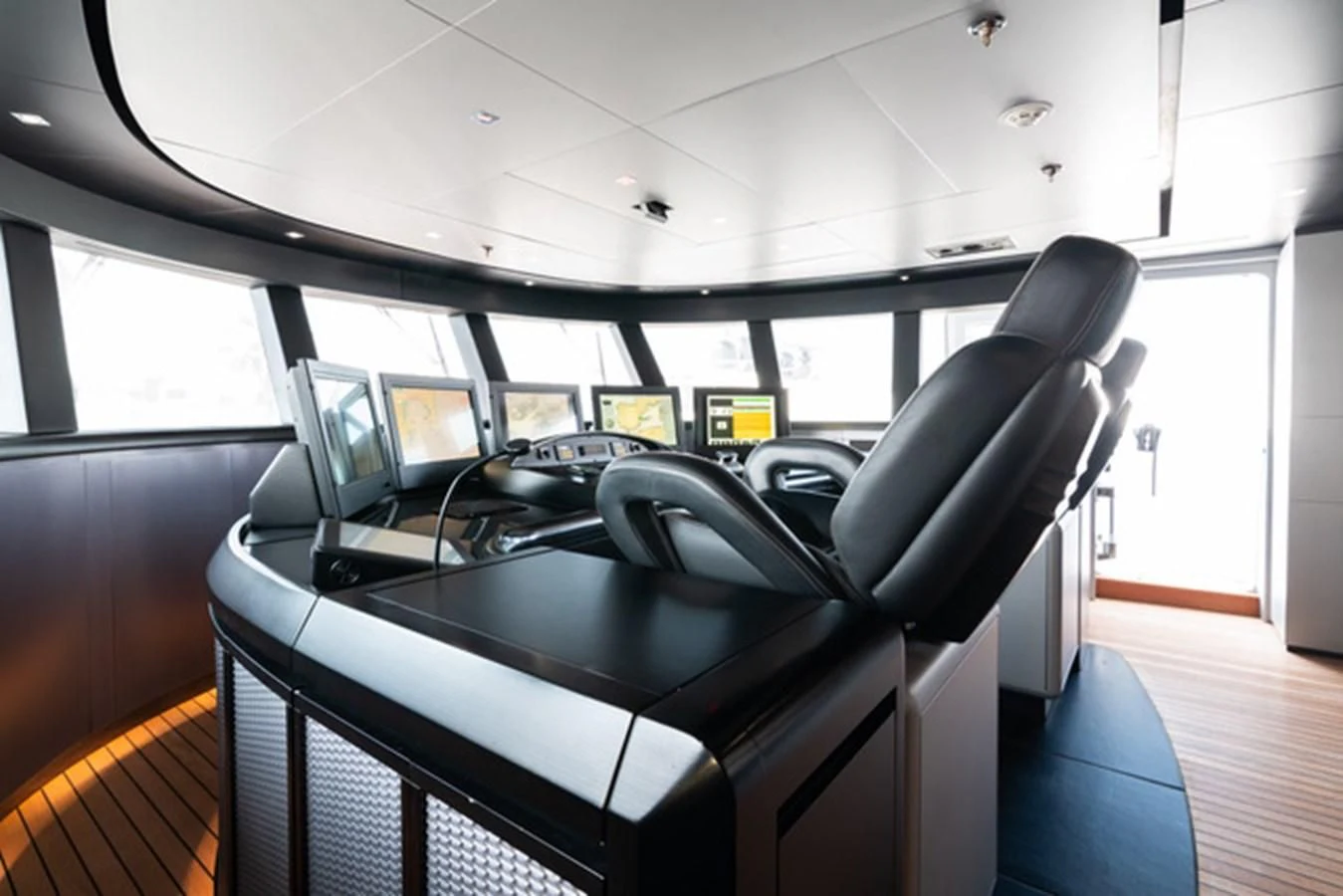

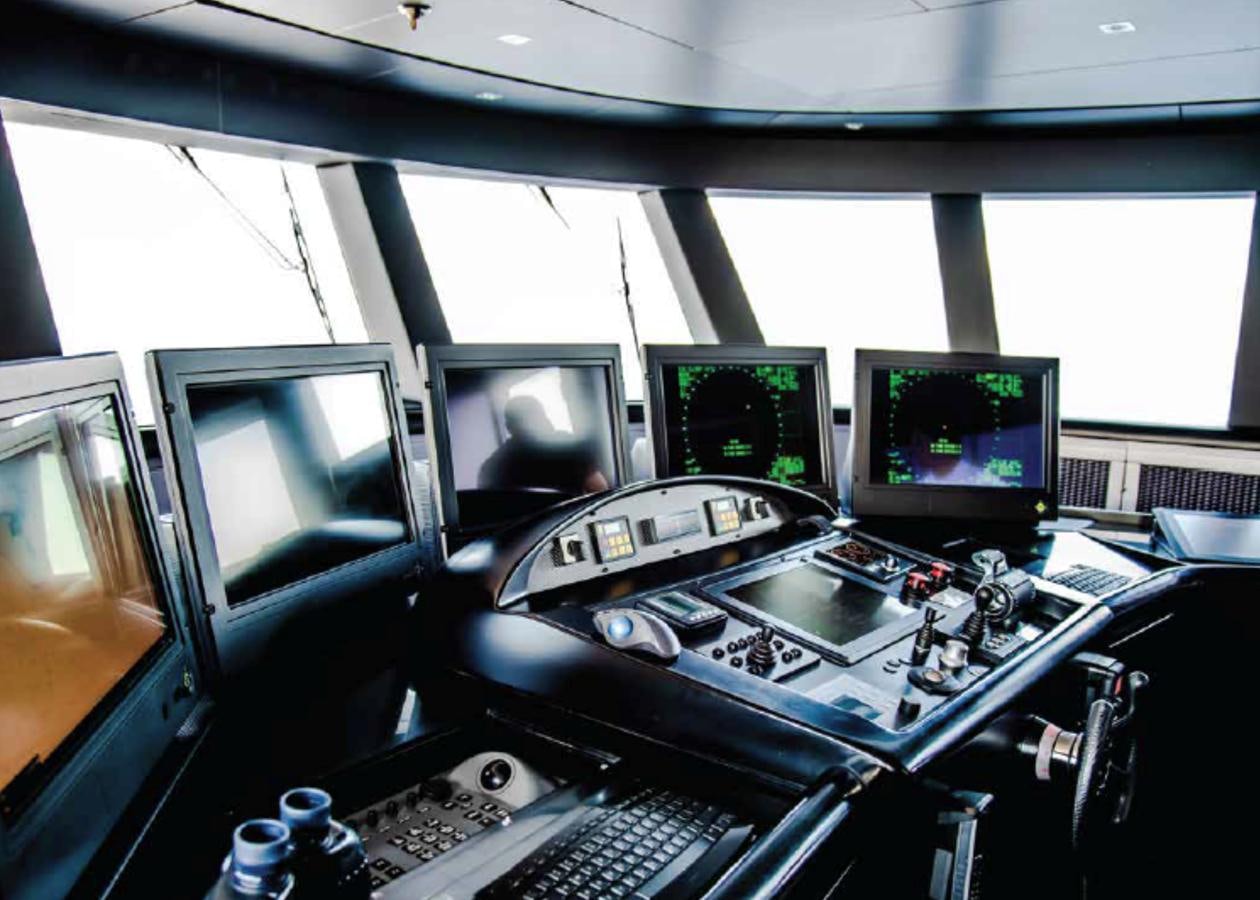

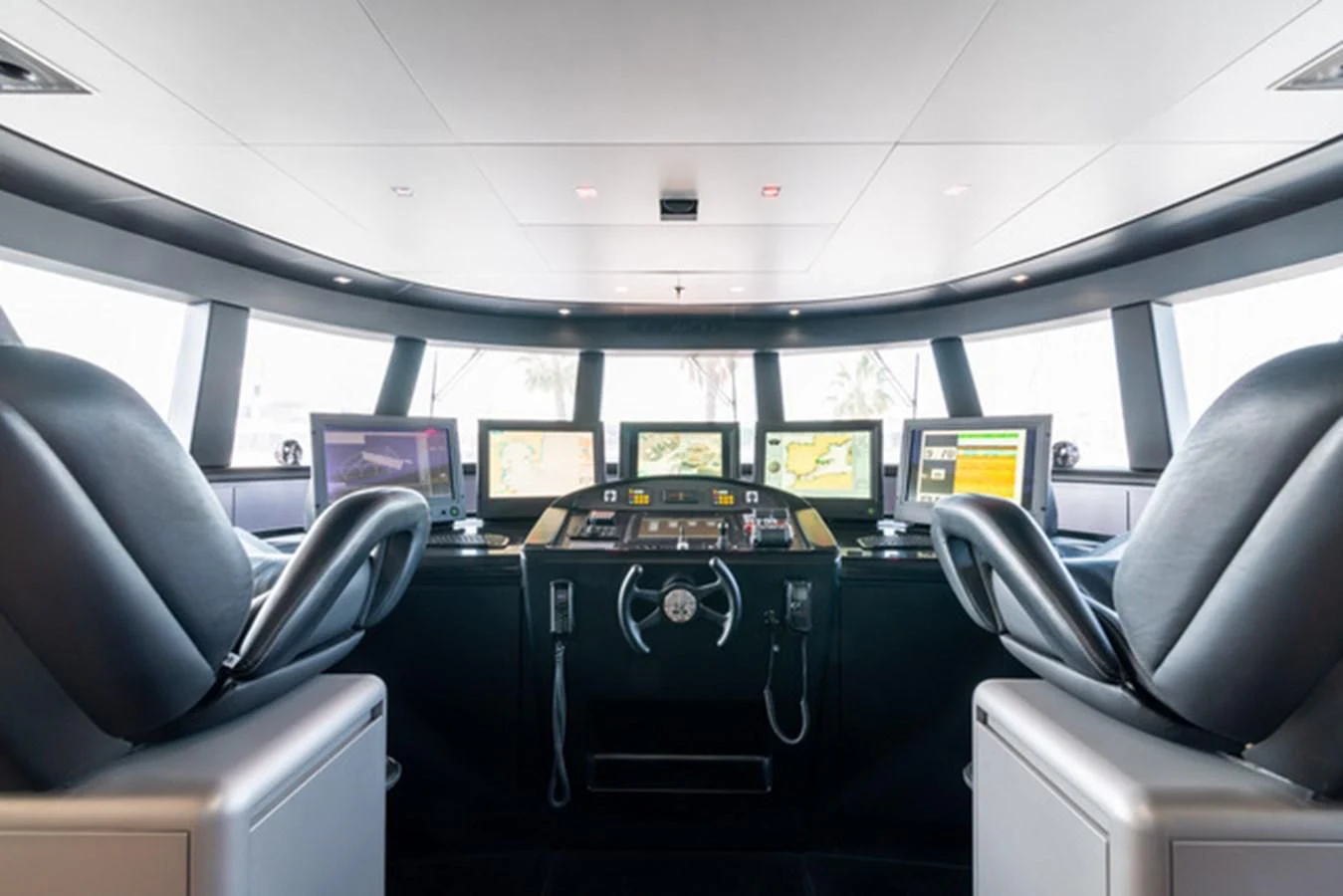

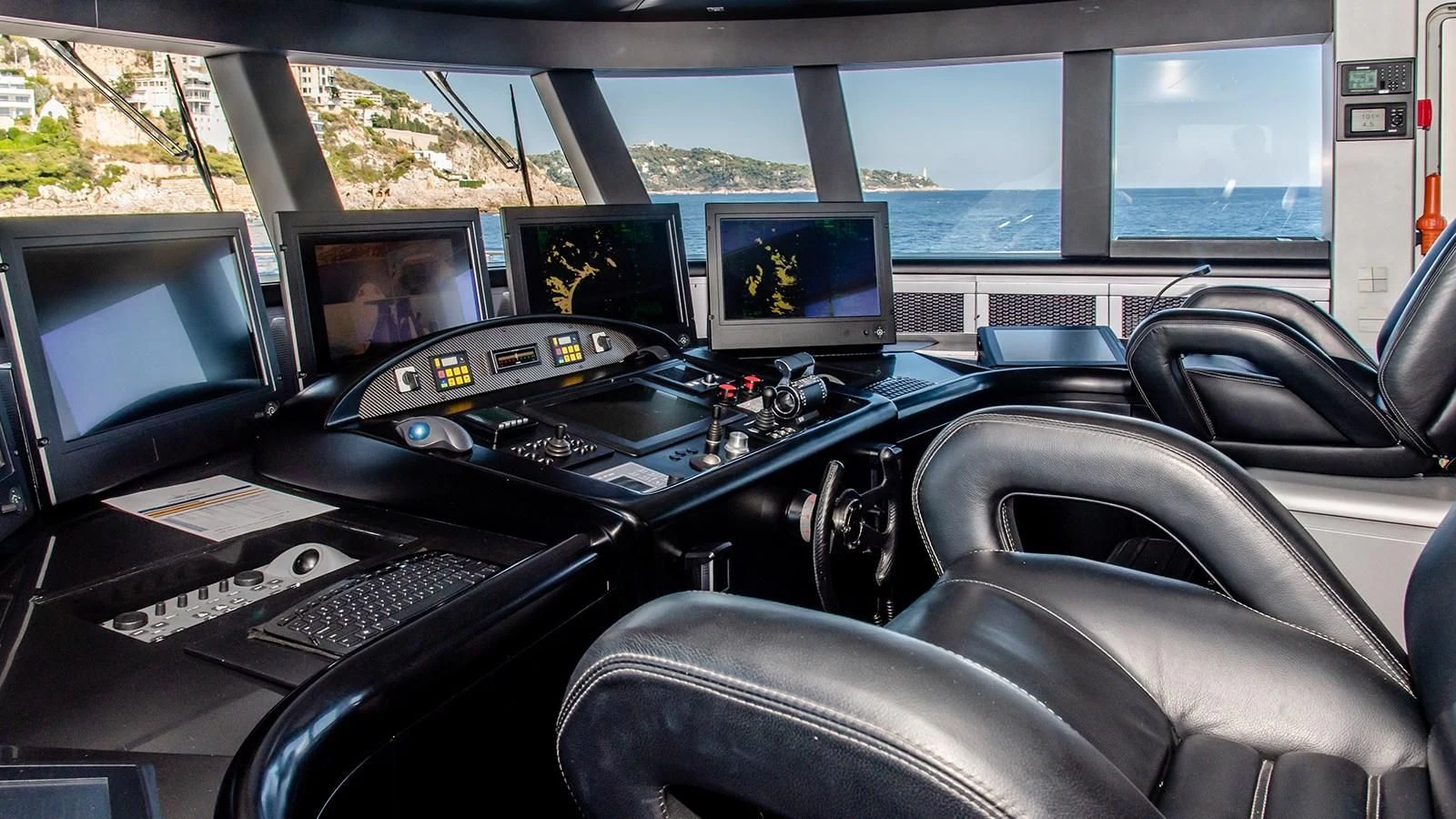

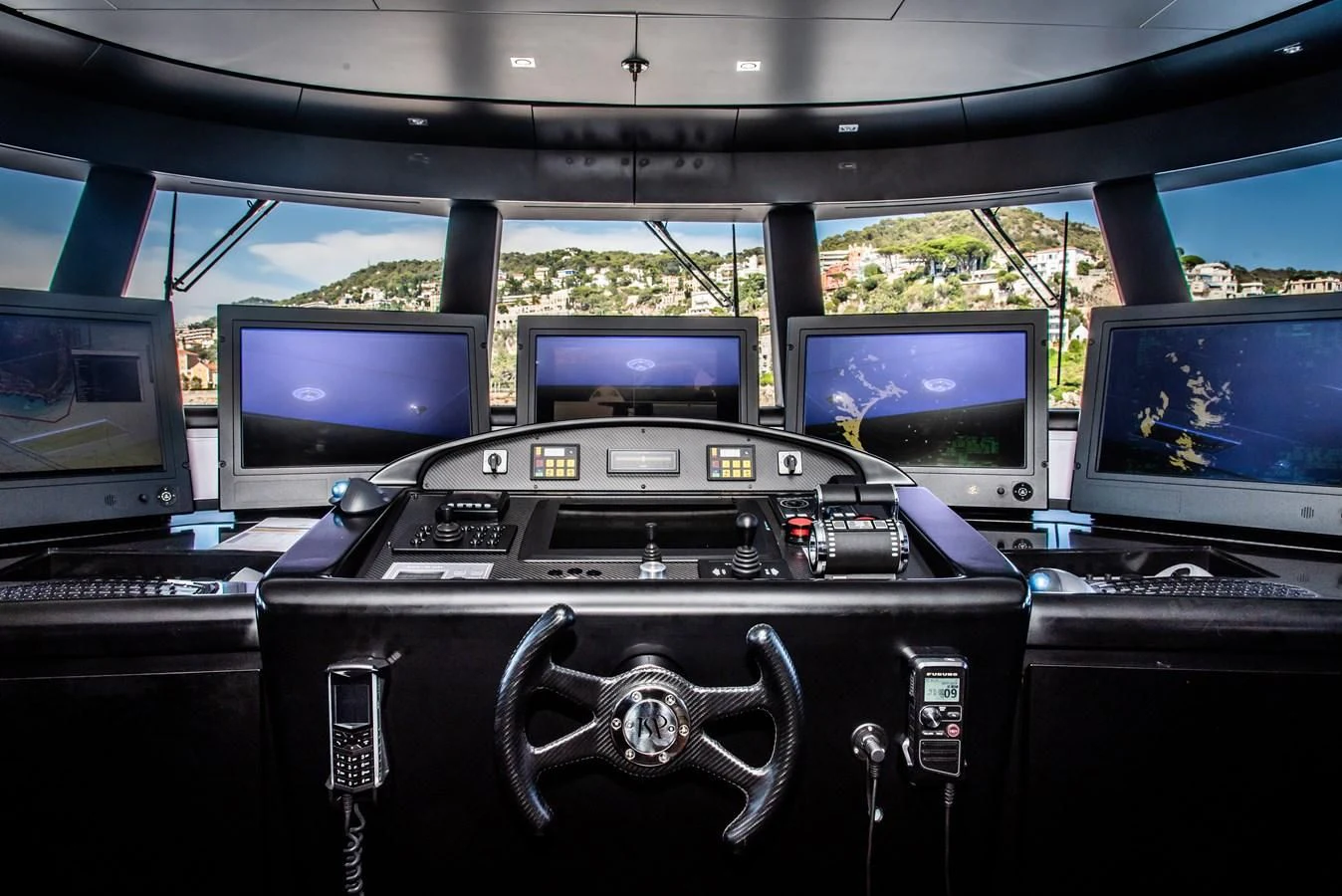

Navigation Equipment

  • AIS : Furuno FA-150
  • AUTOMATIC PILOT: Navis - AP 3000
  • GYRO COMPASS: Raytheon
  • MAGNETIC COMPASS:  Raytheon
  • RADAR: Furuno 3GHz and 9GHz (S and X band)
  • GPS: 2 x Simrad MX500
  • NAVTEX: NX-700
  • ECHO SOUNDER: Skipper GDS101
  • WIND INSTRUMENTS:  B&G Multi, Wind, Speed, Depth, Log, GPS
  • LOG : BenLog Speed
  • COM : EPIRBS
  • SAT C : Sailor CU5100

Entertainment Equipment

  • CONTROL SYSTEM: Crestron
  • TELEVISIONS SATELLITE TV’S: Samsung 4K
  • VIDEO RECORDERS: Garbarino BT651
  • ENTERTAINMENT : Video on demand Apple TVRemote control IPAD
  • SURROUND SOUND SYSTEM: B&WDenon AVC-X4700H
  • SATELITE RECEIVERS: DVB

Tenders & Toys

TENDER

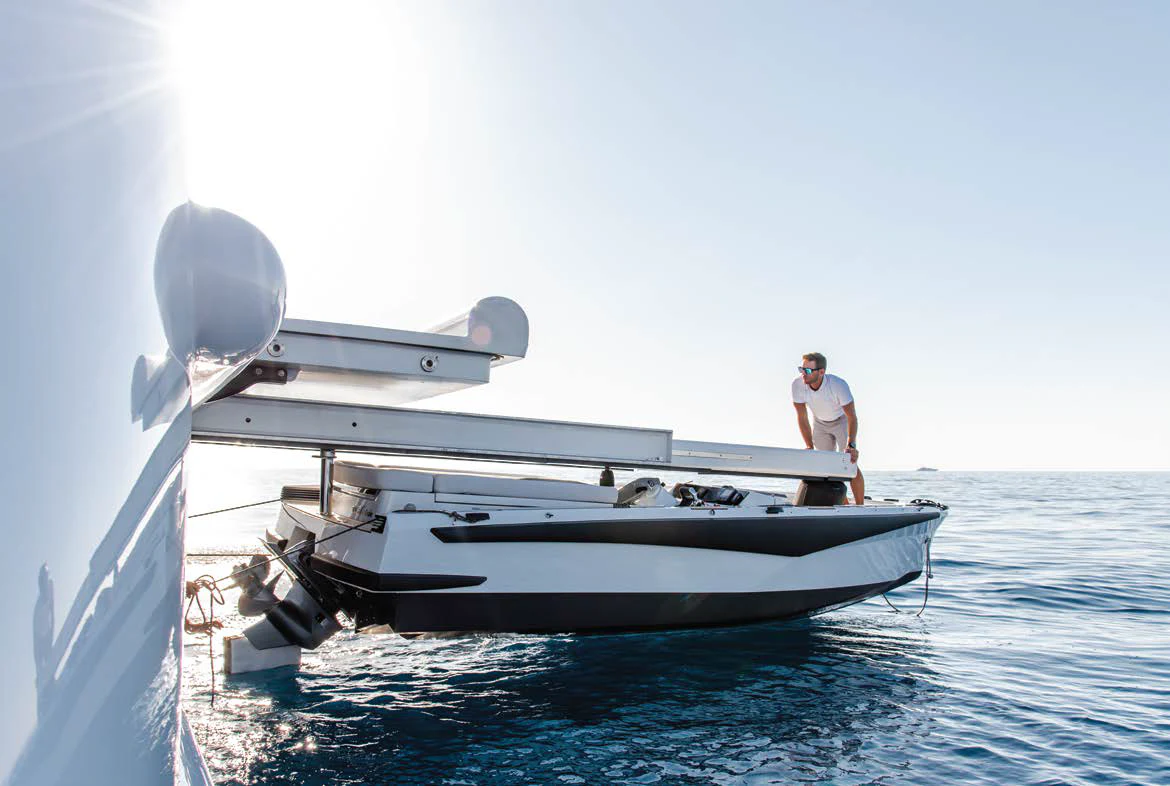

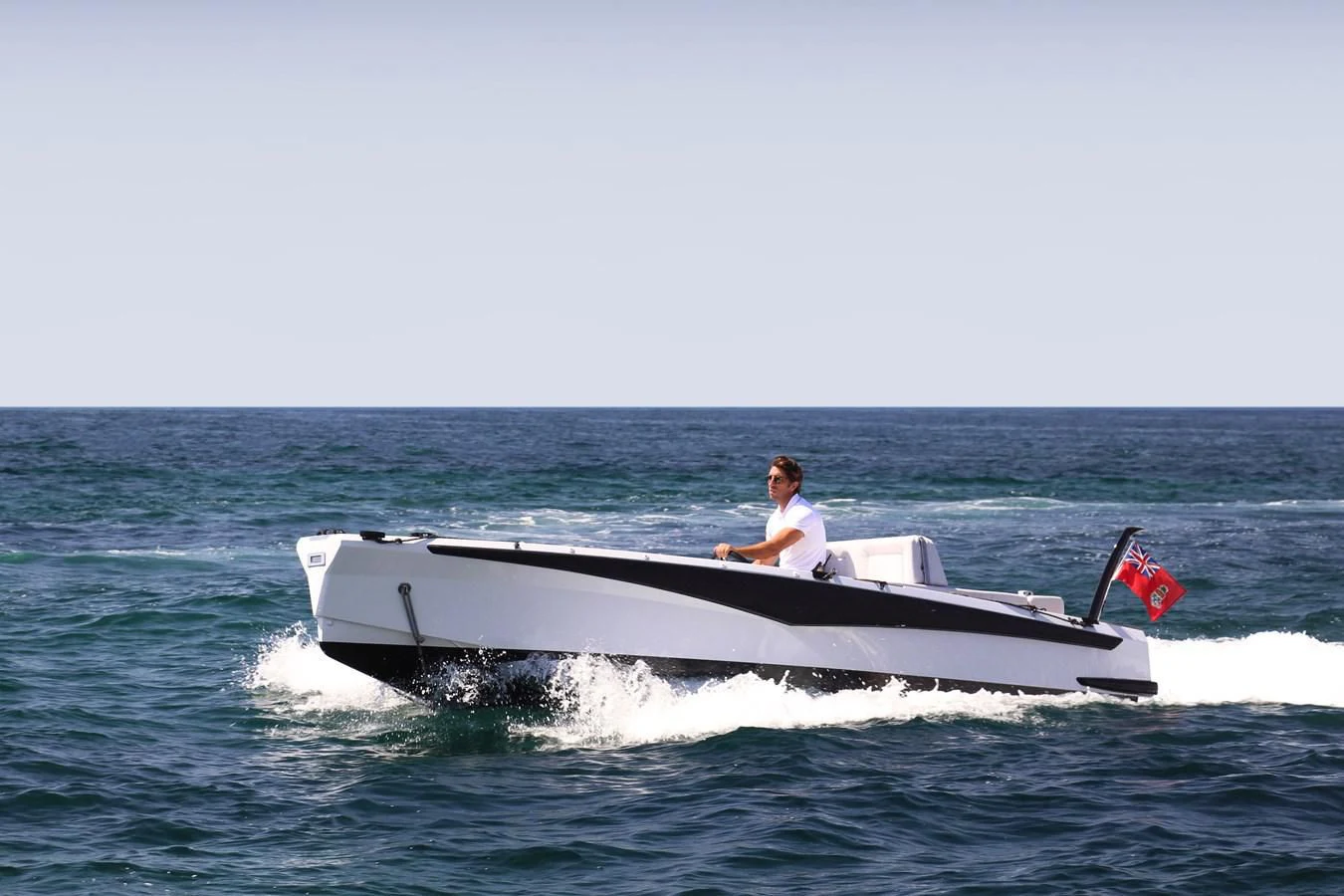

  • 1 Custom tender JFA 5.60m 170Hp
  • 1 Novurania 3.60m 30Hp (rescue tender)

DIVING EQUIPMENT & TOYS

  • 2 x Jet Ski Seadoo GTX 230Hp
  • 4 x Sea bob
  • 2 x Fliteboard (medium size)
  • 1 Slide
  • 1 Inflatable plateform
  • 1 Compressor + bottles

Deck Equipment

  • WINDLASSES:  2 x Maxwell VWC 11000
  • CAPSTANS:  2 x Maxwell VC 6000
  • ANCHOR: 2 x HHP 360 kg galvanized
  • BOAT CRANE:   Motor Custom deck crane 1200 kg
  • SWIMMING PLATFORM: Pressmair swim platform with Motomar hydraulics
  • PASSERELLE:  Motomar custom passerelle access from stern and Port side

Safety & Security Equipment

SAFETY

  • Life raft 4 Zodiac 16 pax
  • 1 Ocean safety 6 pax
  •  Immersion suit
  • Life Jackets
  • GMDSS VHF portable x 2
  • EPIRB Beacon

FIRE FIGHTING

  • Full class approved kits
  • Alarm system for fire, heat, smoke, flame and general alarm

Refit History

REFIT 2022/ 2023
BRIDGE/DECKS :

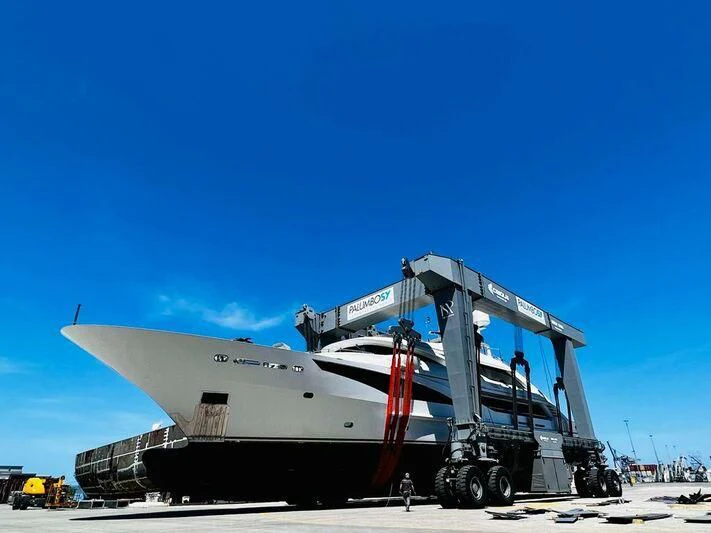

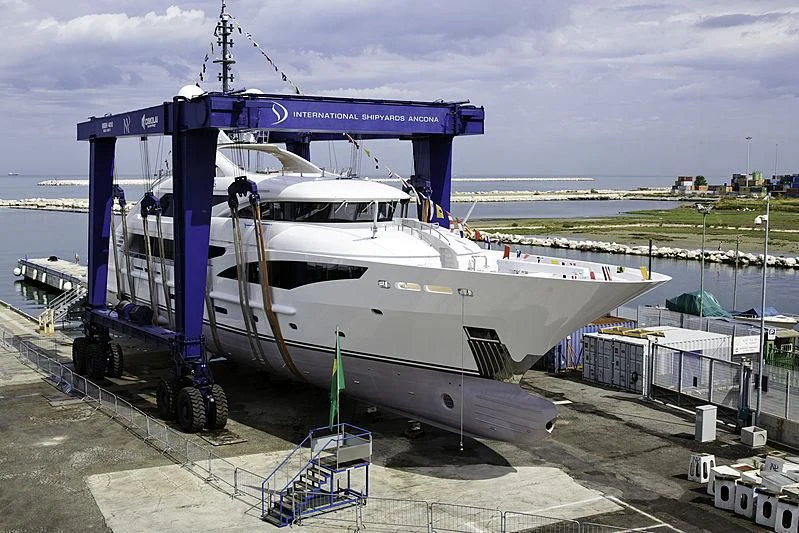

  • Dry dock: complete antifouling cycle with corrosion treatment
  • Various paint touch-ups: rear flange, gangway, machine door, area rescue boat forward, crew entrance.....
  • Replacement of all exterior upholstery + all the covers
  • Complete polish + ceramic hull protection

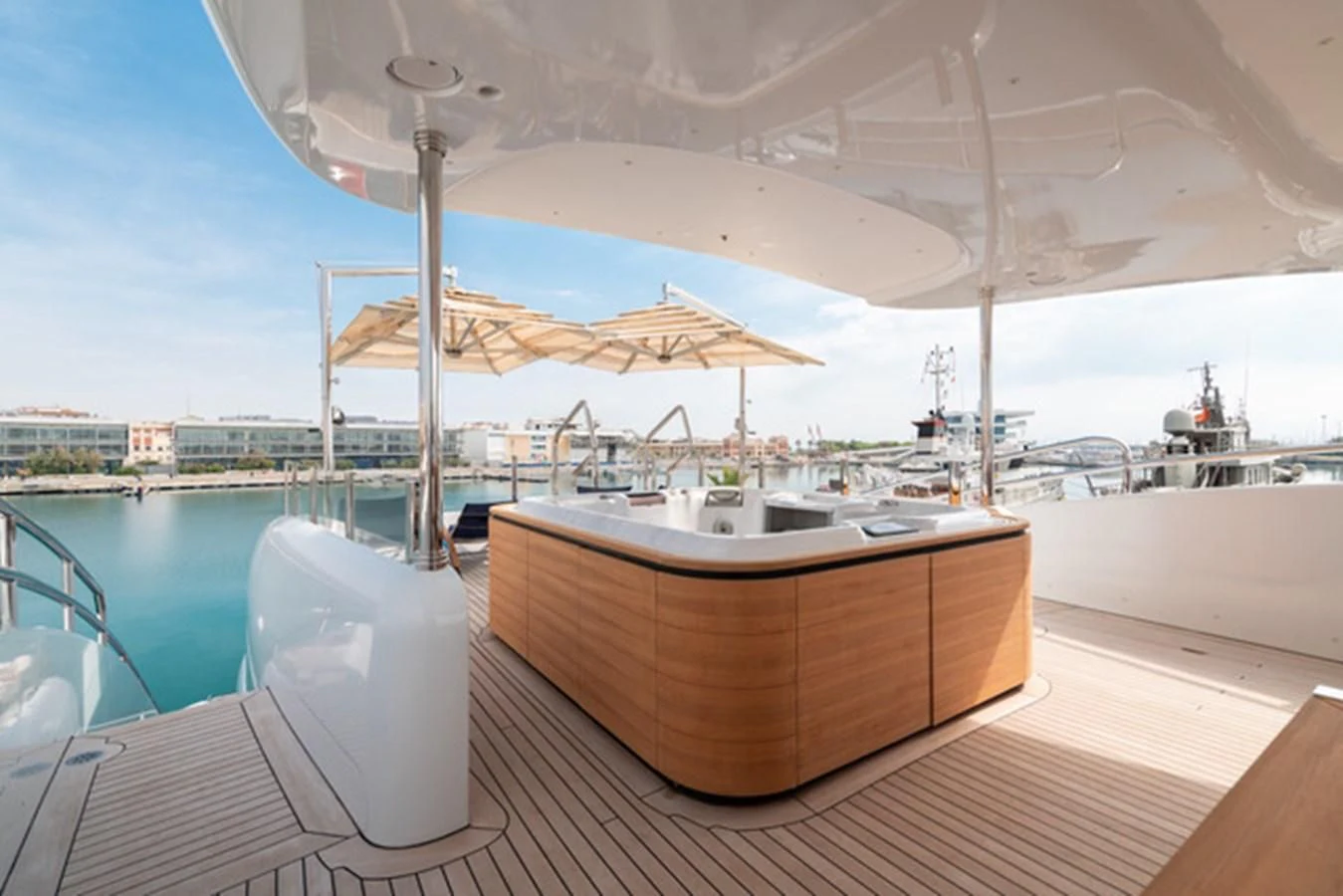

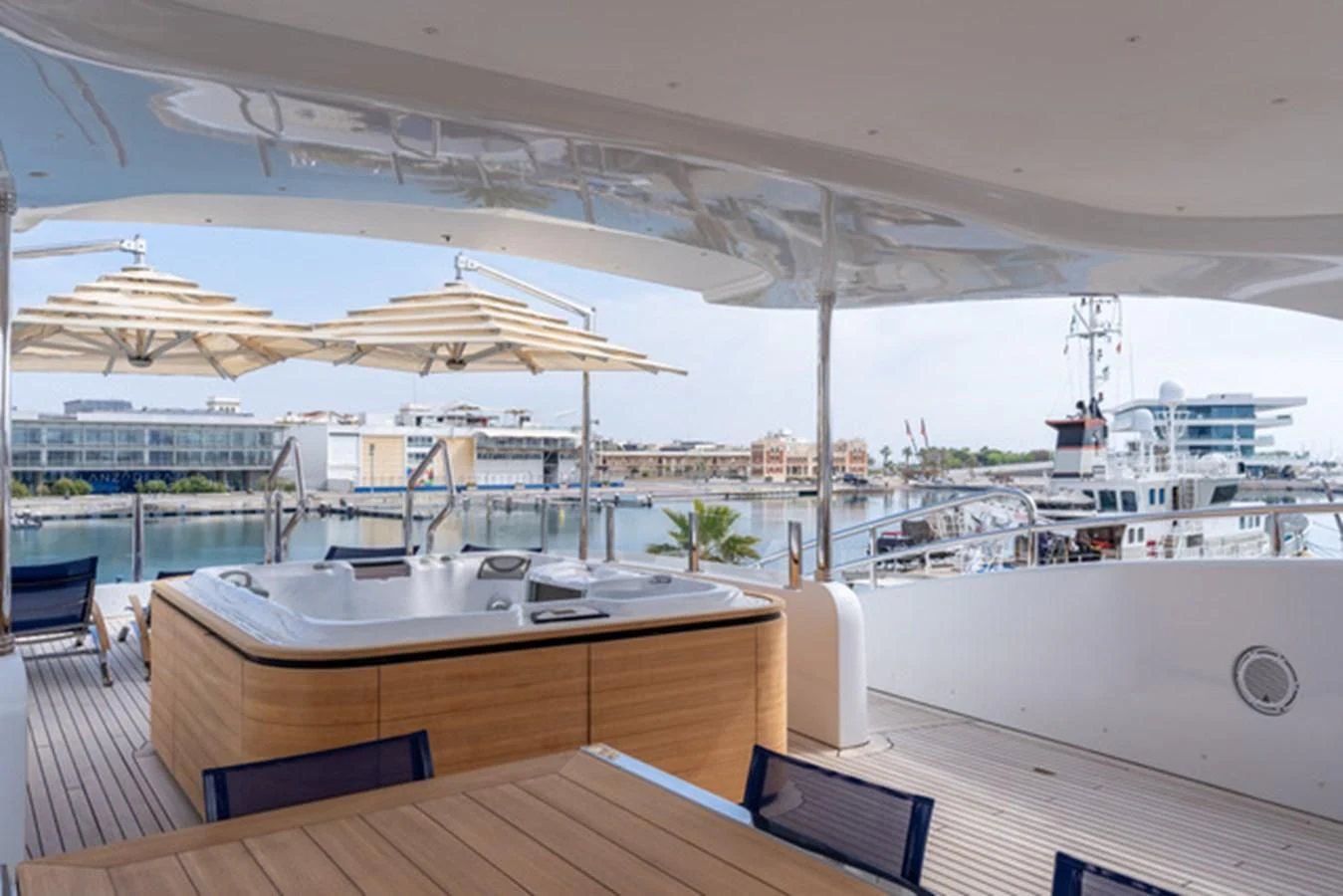

  • Removal of the jacuzzi on the sundeck (all piping/connections still existing)
  • New window on the upper deck
  • Master cabin
  • Installation of a manual crane on the sundeck in order to raise the slide
  • Installation of “sunshades” on all decks
  • Installation Starlink antenna : 2 maritimes + one terrestrial
  • New carbon swim-ladder

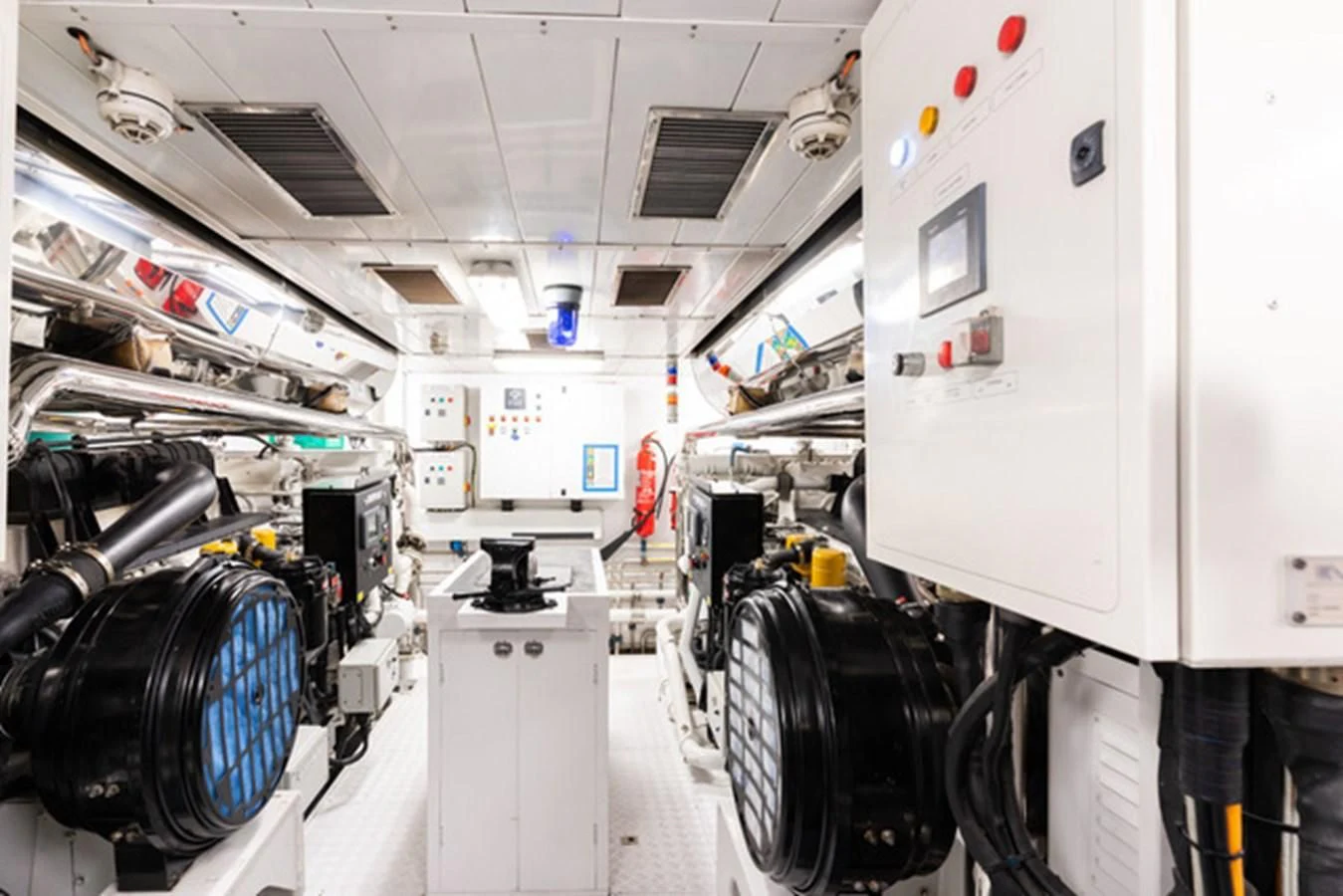

MACHINE:

  • Vibration test before and after shipyard period
  • Replacement of gland press, hydroluble ring, engine’s support and inverters + propeller shaft check
  • Propeller balance
  • New rudder seals
  • Welding of the exhaust silencers with replacement of the protection thermal + replacement of gaskets
  • Black water tank: sandblasting + treatments
  • Fresh water tank: treatments + total disinfection of the entire circuit
  • Replacement of fire shutters
  • Maintenance of ALL the pumps on the boat
  • Complete change of the refrigerator compressor system
  • Full maintenance of the desalinator with new membrane
  • Maintenance of stabilizers
  • Maintenance of windlasses + electric motors
  • Cleaning of all fan coils and pipes
  • Maintenance of the air treatment unit and extractor
  • General hydraulic maintenance with replacement of lot of hoses
  • Maintenance of cranes’s electric motors and rudders
  • Annual maintenance of the engines
  • Annual maintenance of the inverters
  • Annual maintenance of generators + replacement of turbos and injectors + injector’s pump
  • Replacement of the bow thruster pod


INTERIOR:

  • New plexiglass storage for all new dishes
  • Raising the living room sofa
  • New carpet in all cabins
  • Lot of "touch up" cosmetic throughout the boat, treatment of stone walls, marbles, etc…
  • New oven, hotplates, grill, and installation of 2 new dishwasher
  • New interior decoration: cushions + sheets + decorative objects + leather accessories…

TOYS:

  • New tender luxplorer 560
  • Replacement of the rescue boat Novurania 3.40m
  • 2 new sea bob

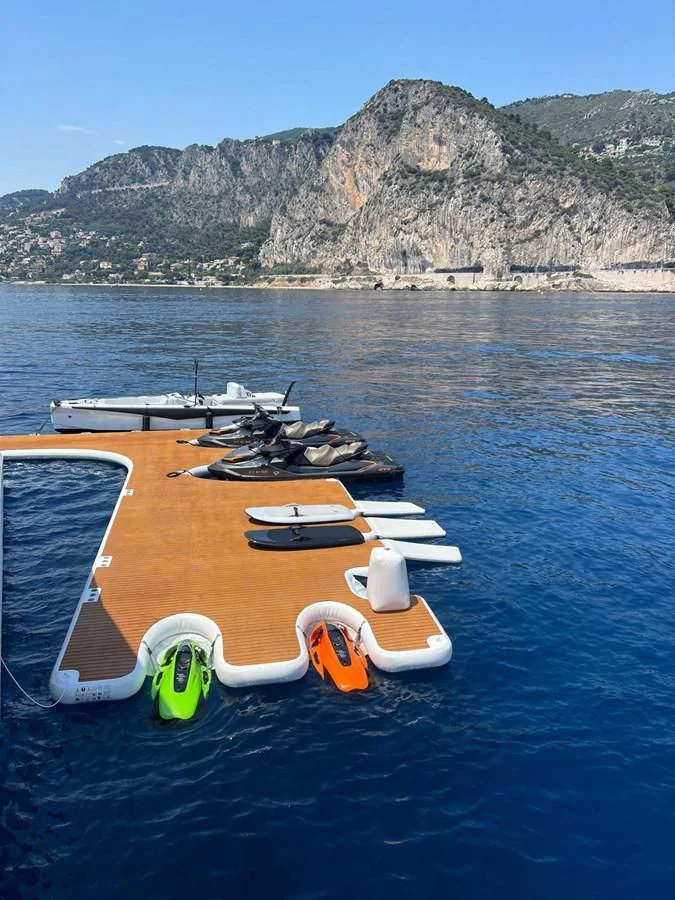

  • New inflatable platform for jet ski, seabob and flitboard
  • Annual maintenance of all security equipment (fire control unit, fire extinguishers, life jackets, life suits, life raft, HIFOG system, diving compressor, radio visit, pharmacy…)

REFIT 2021

  • Full 10 years class survey completed with RINA
  • All list of maintenance/services requested by RINA has been done!

EXTERIOR REFIT

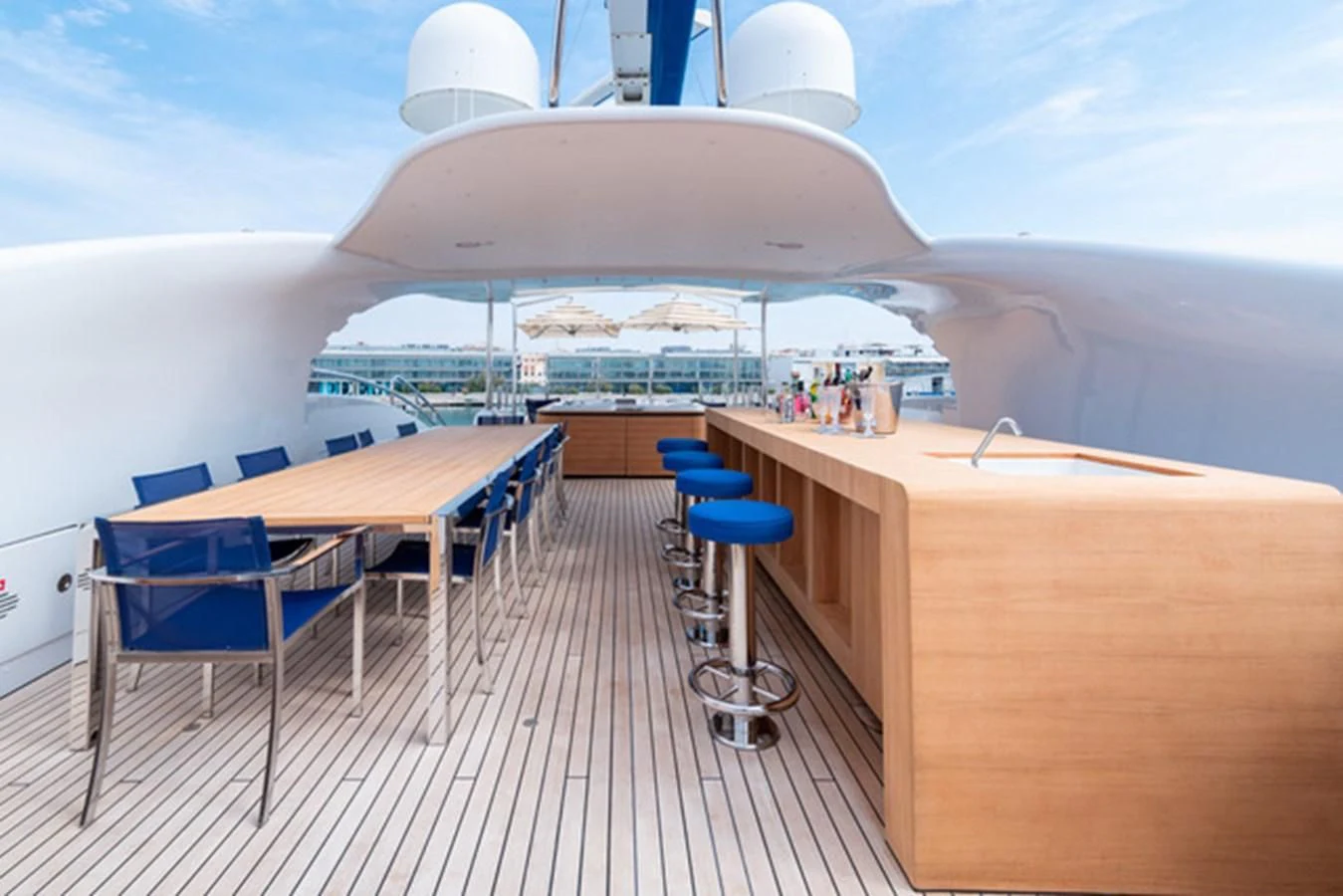

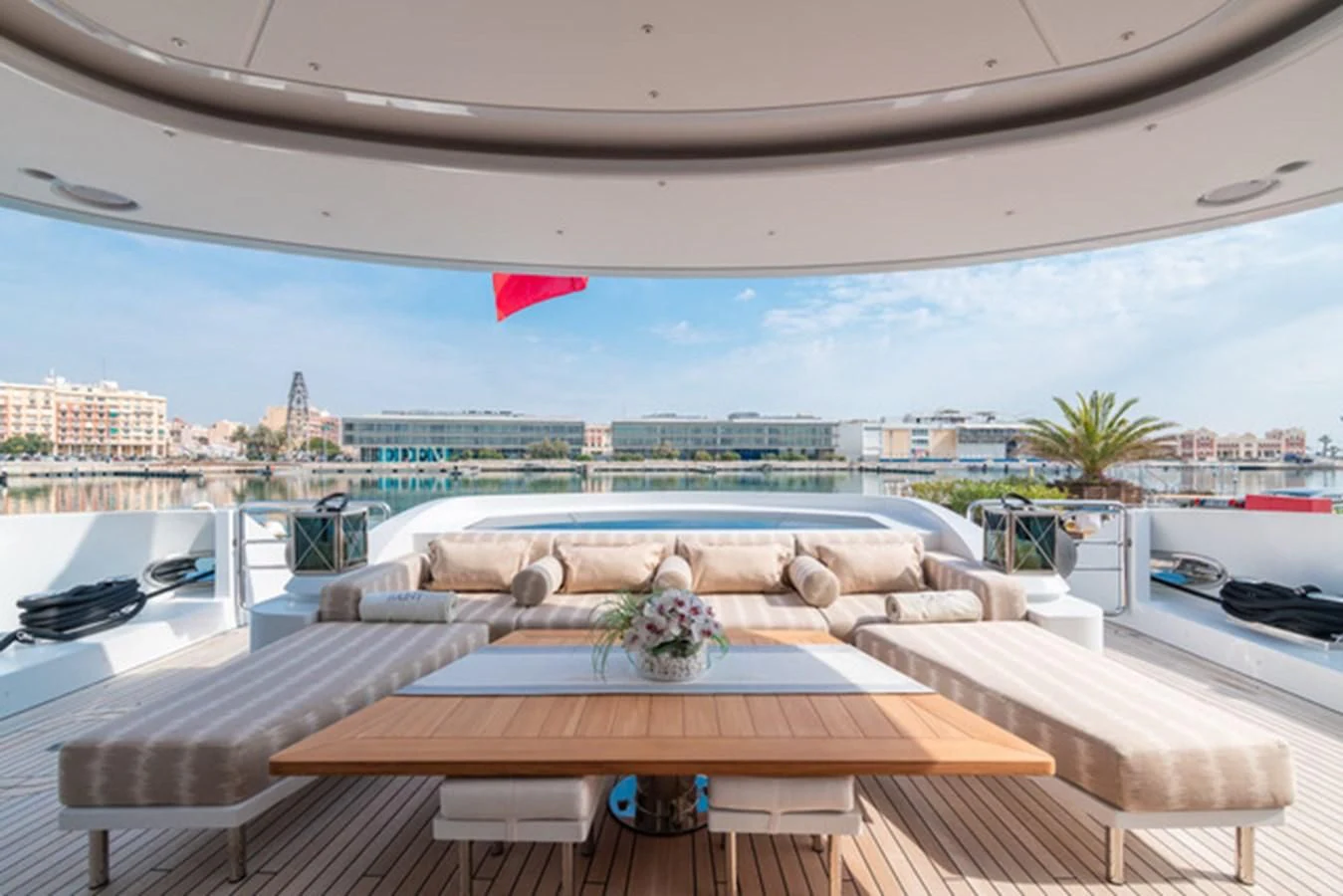

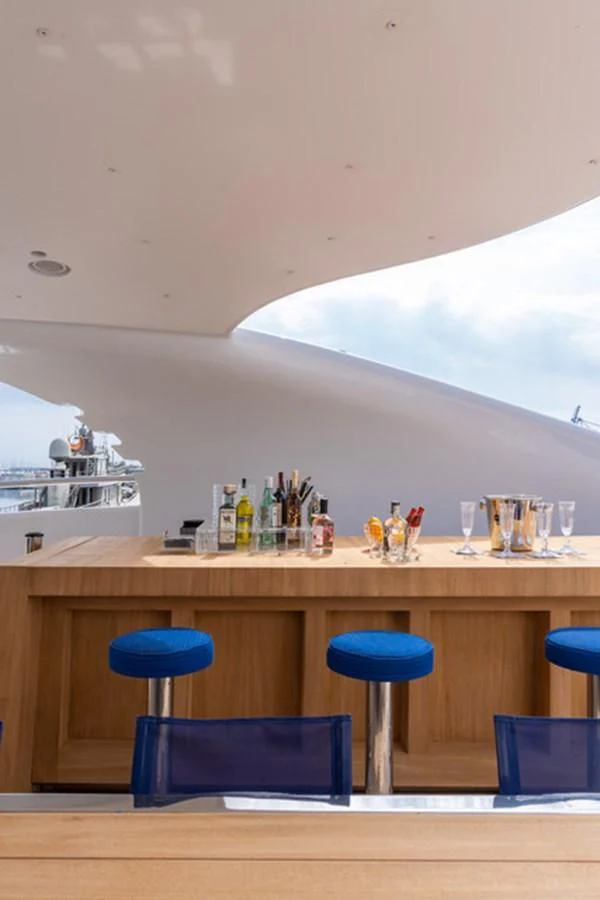

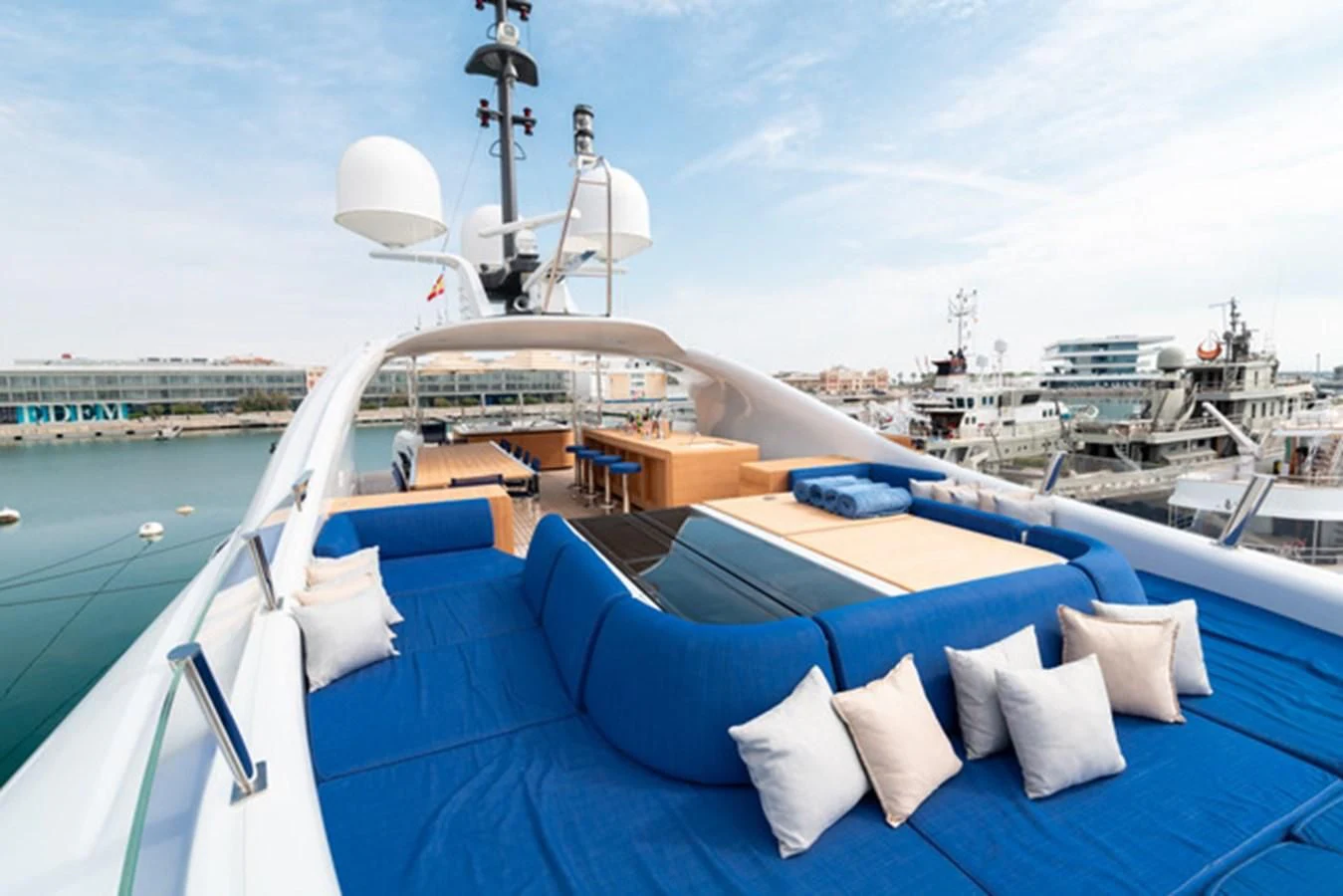

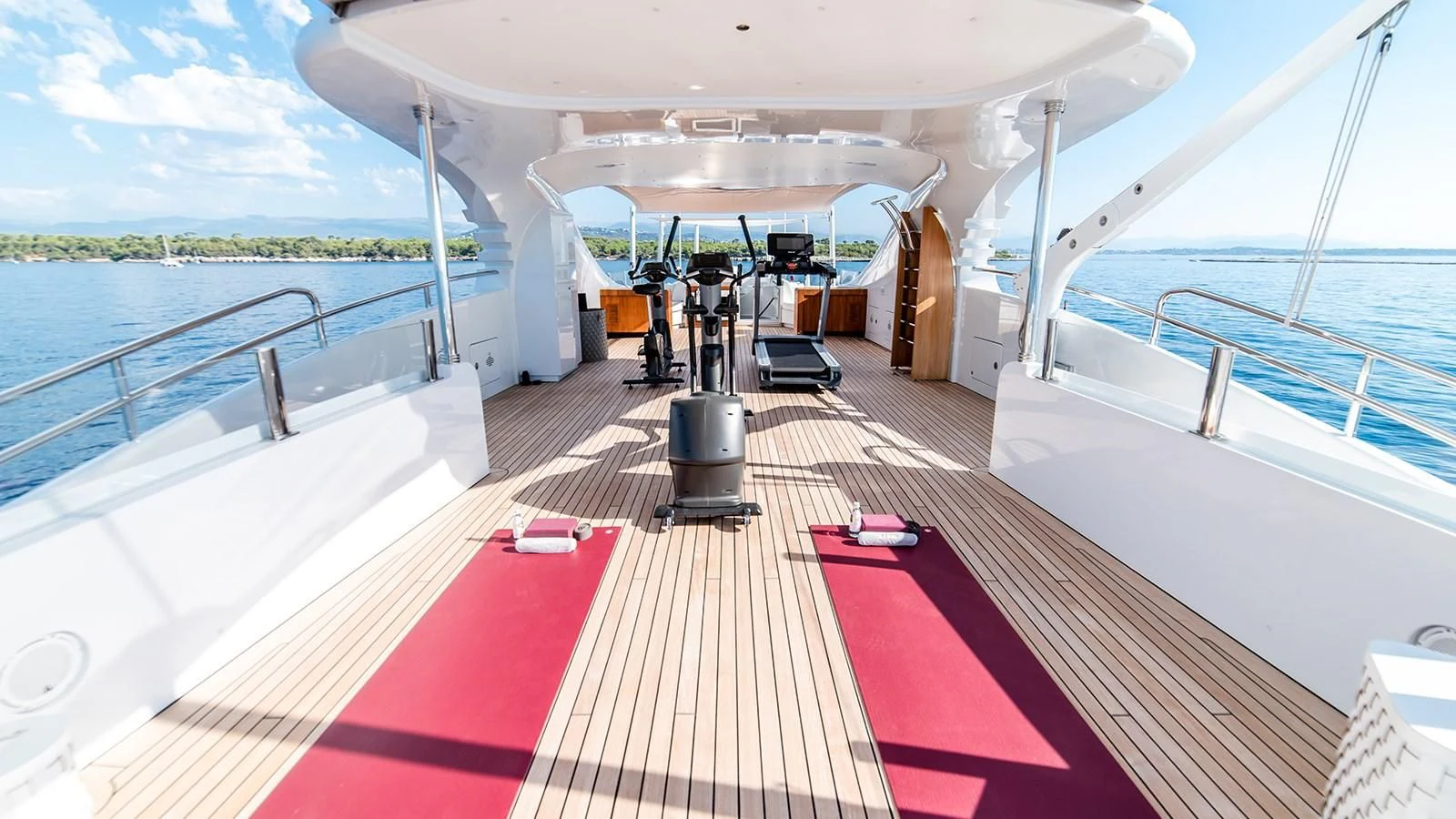

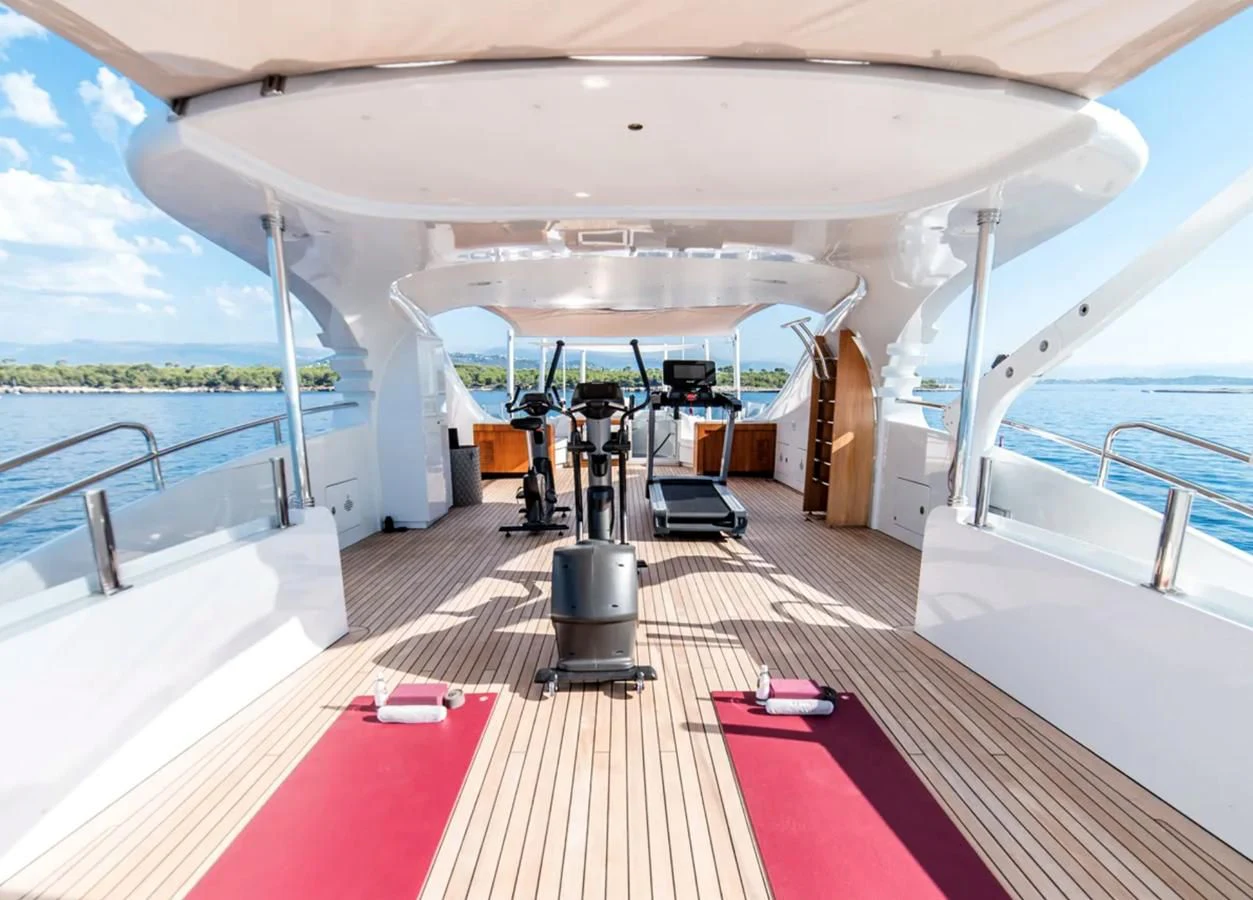

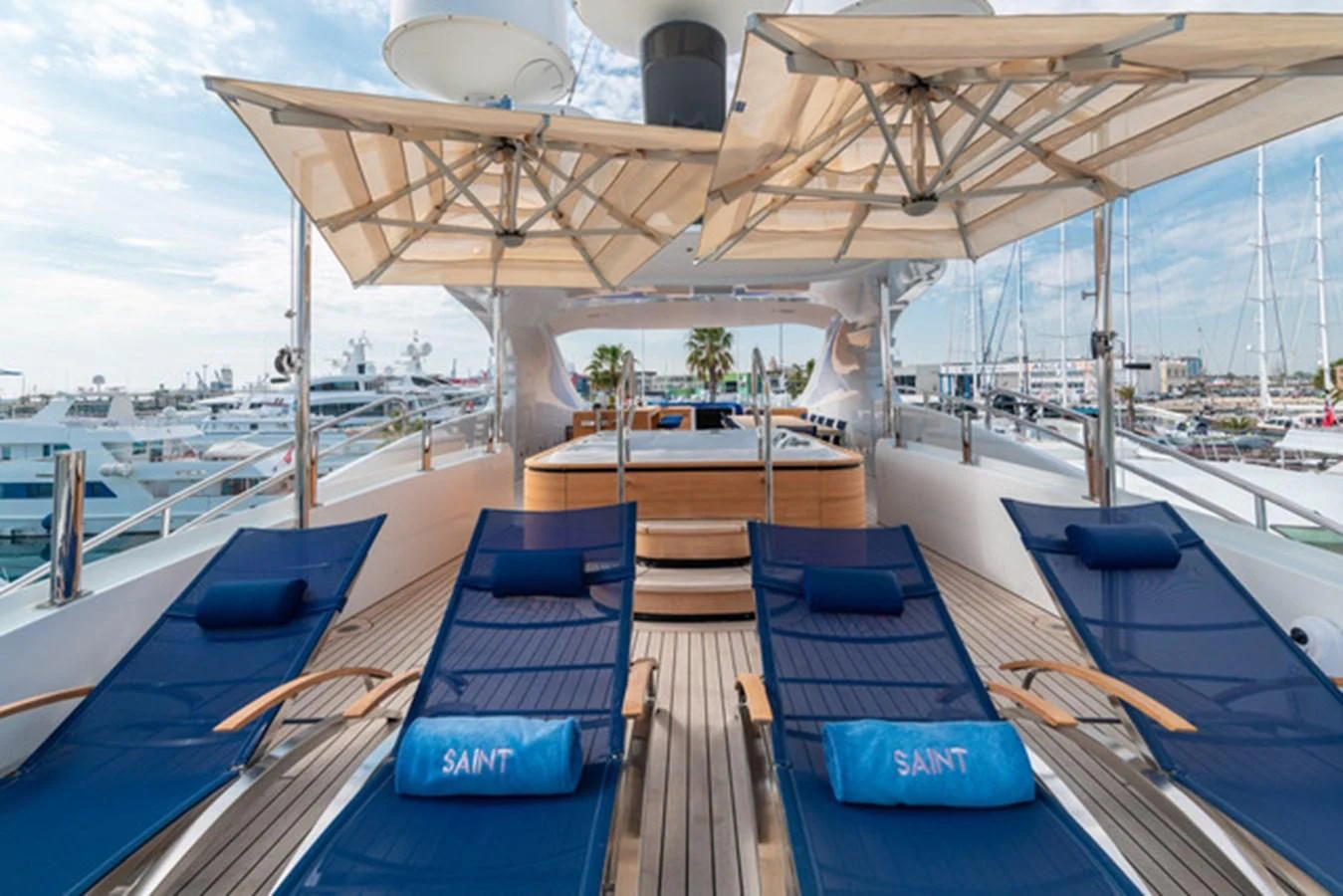

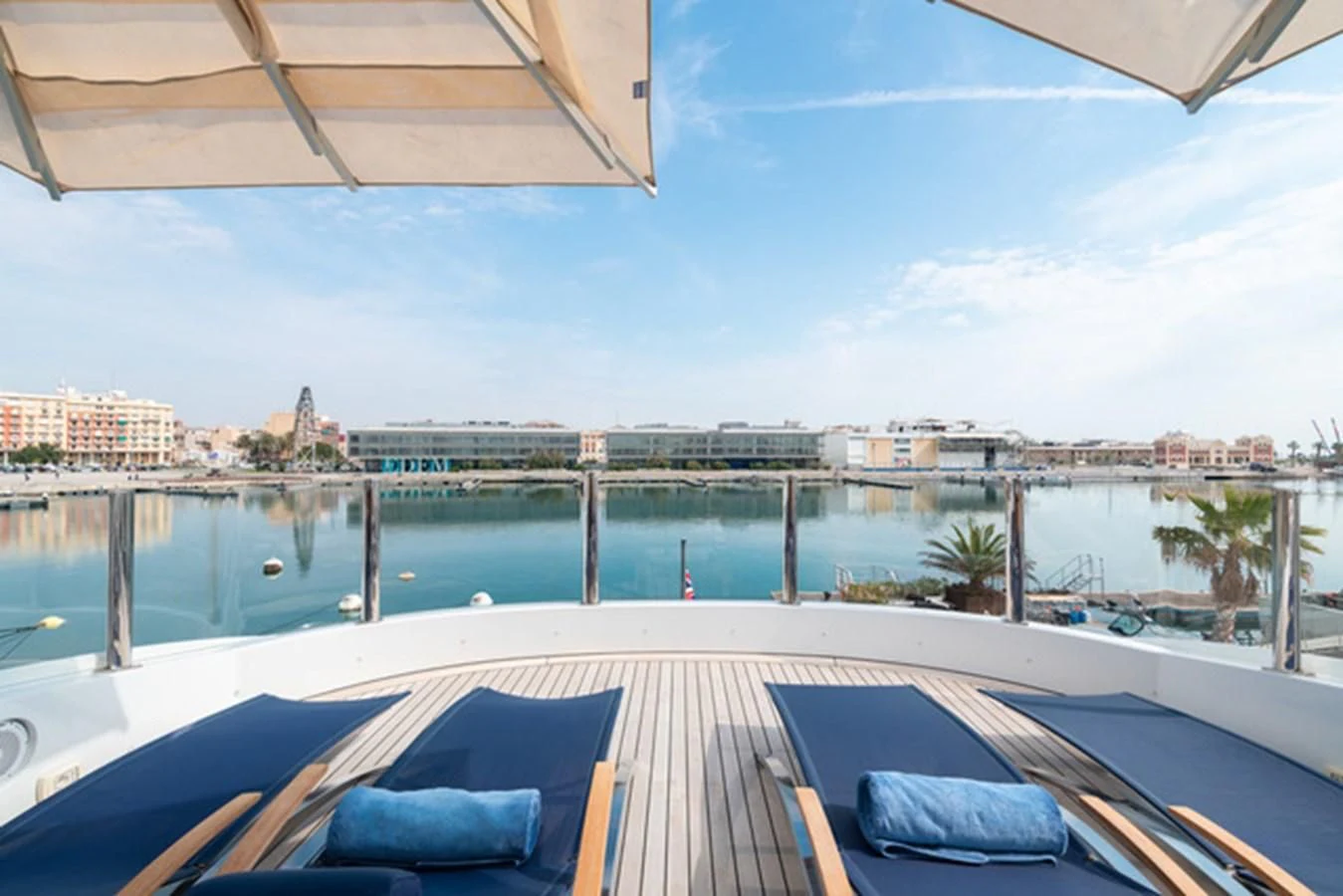

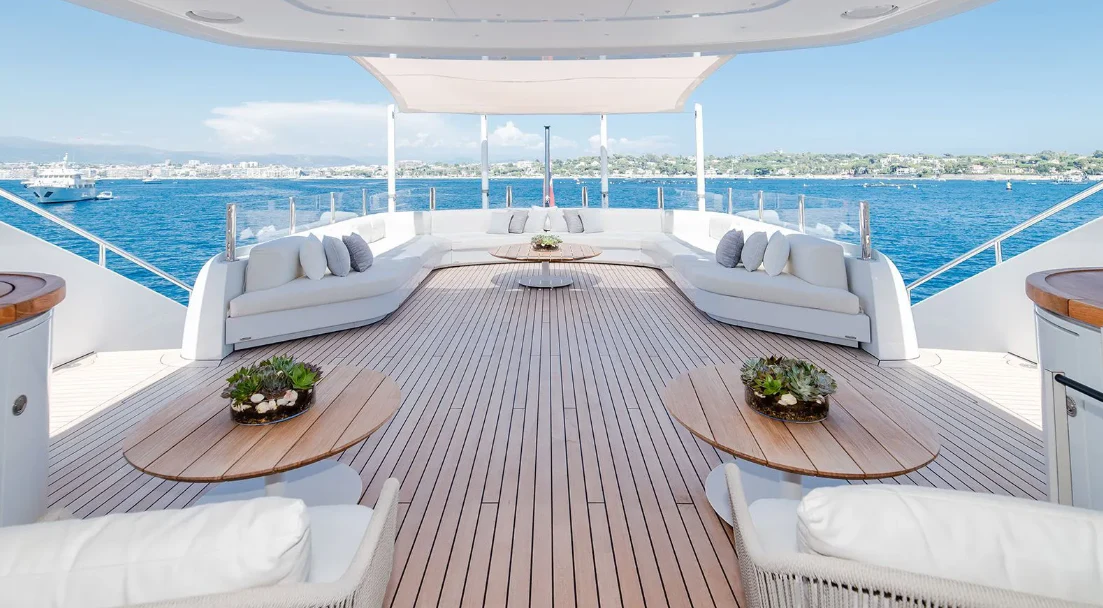

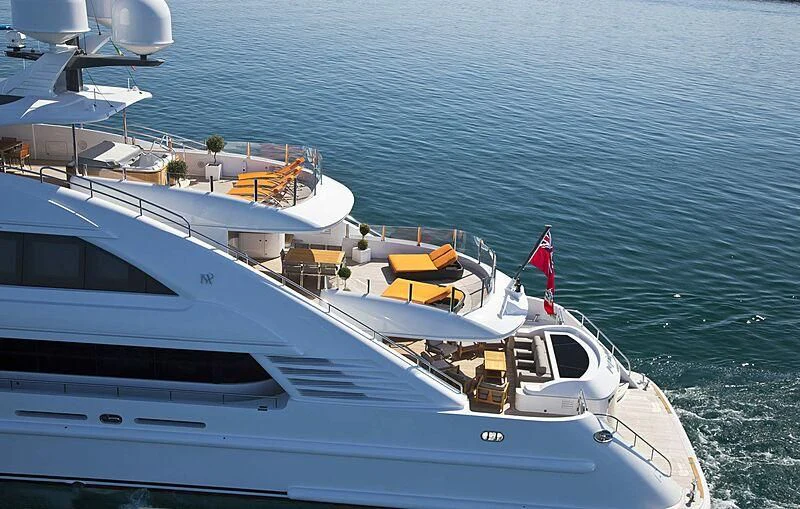

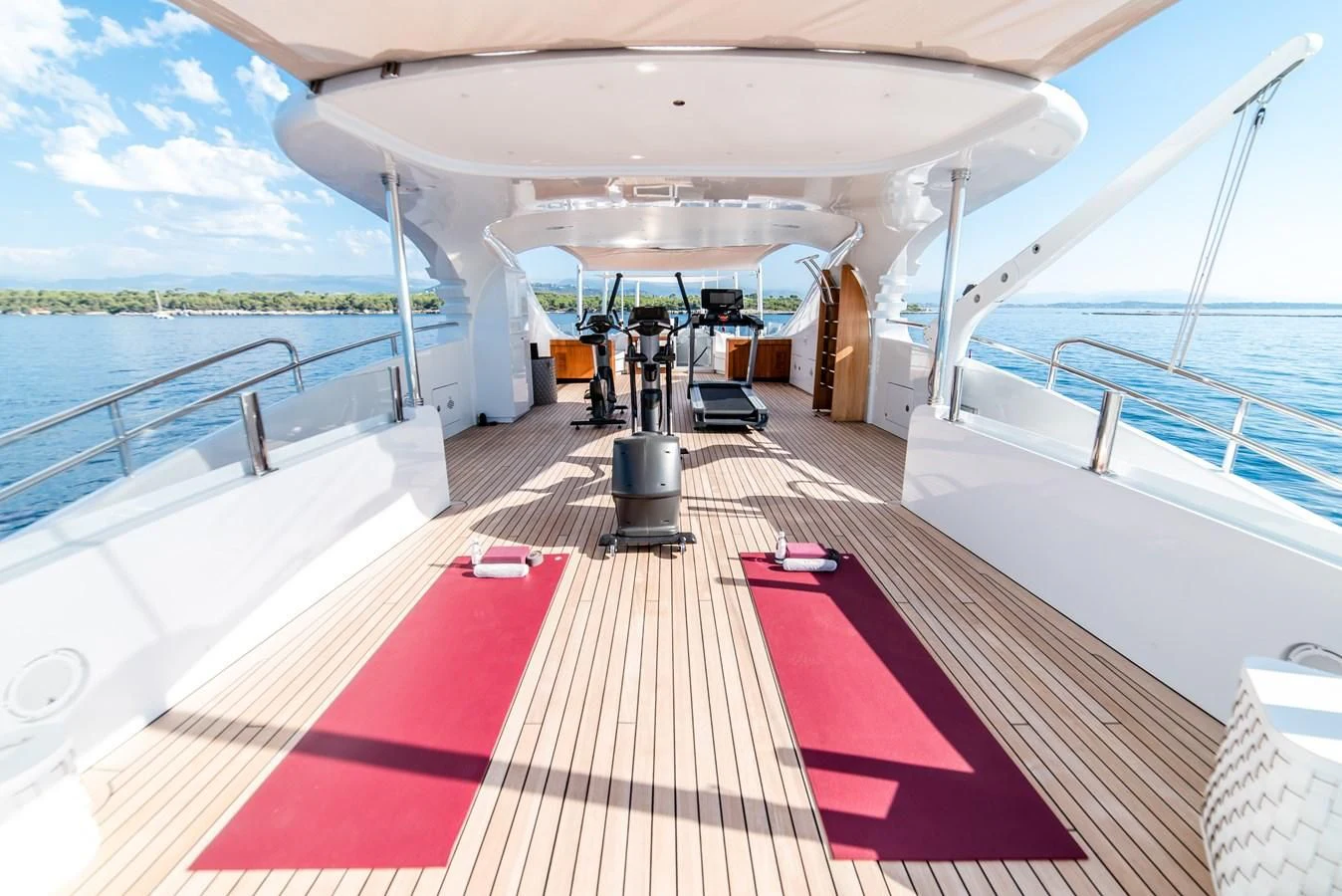

  • Sun deck: removal of table and bar, new spotlights, sound system, Installation of Swedish wall gym equipment, teak deck refurbishment and paint touches up.

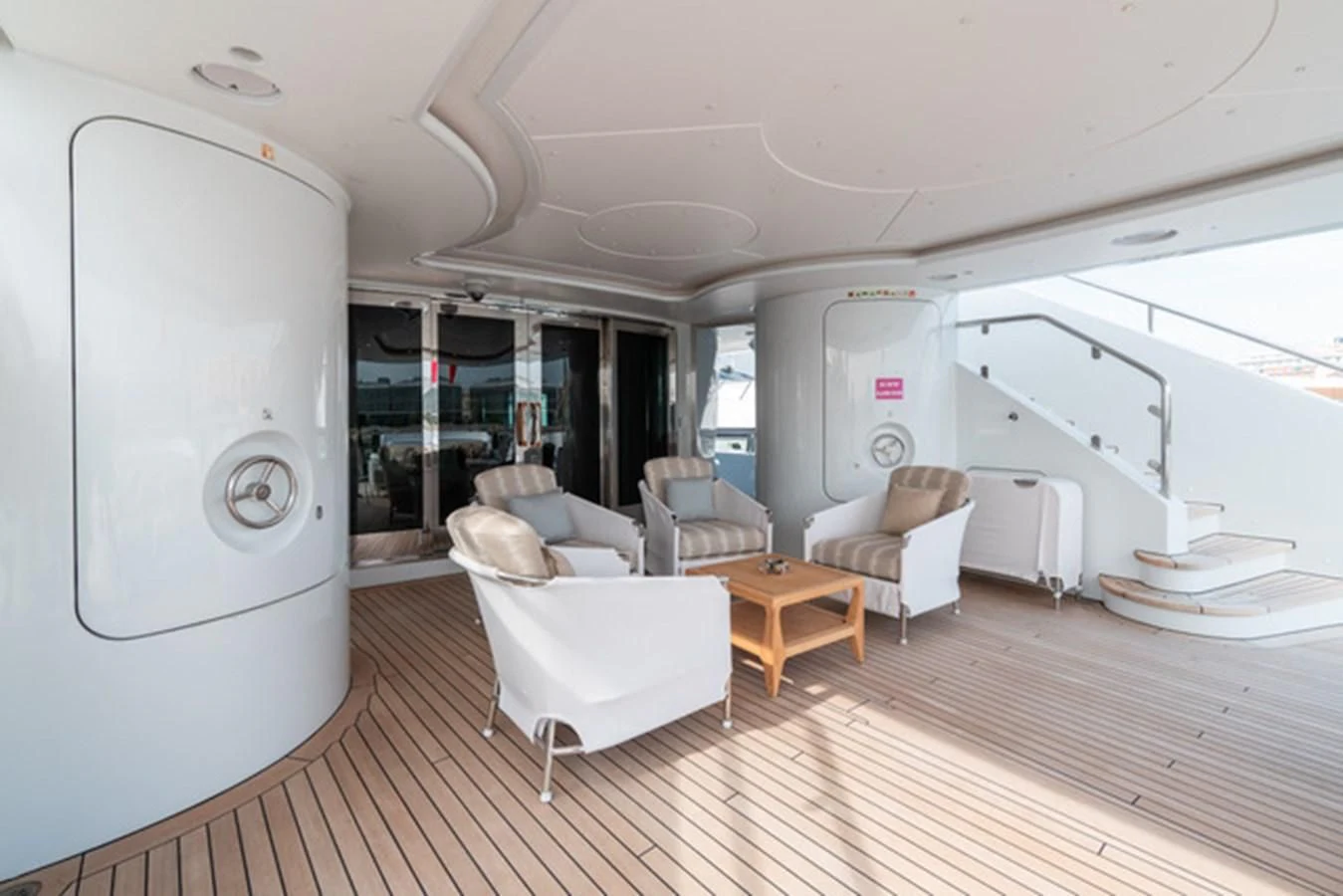

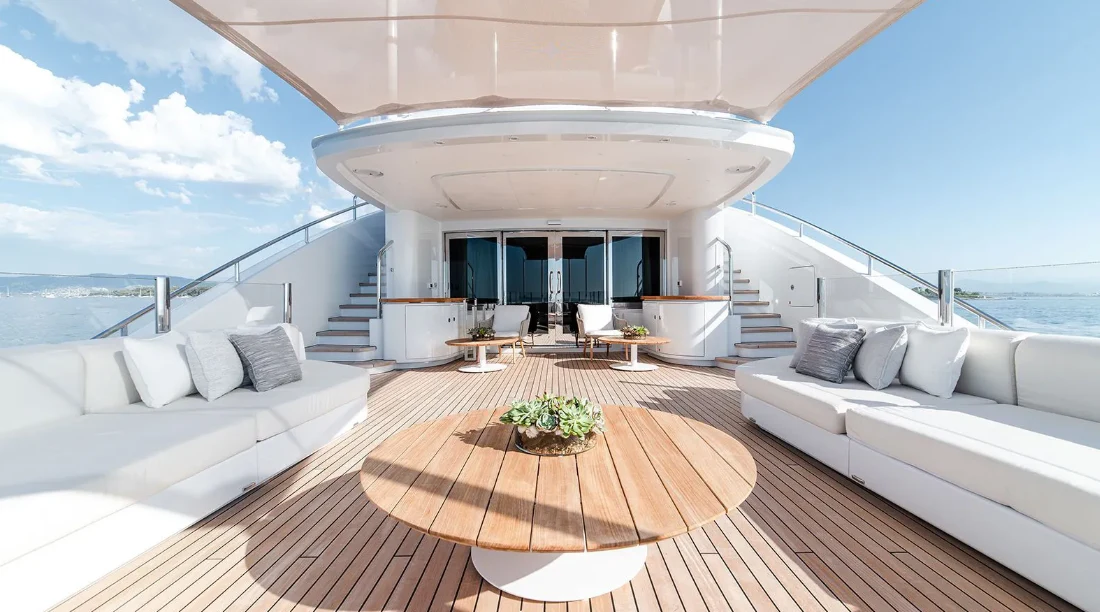

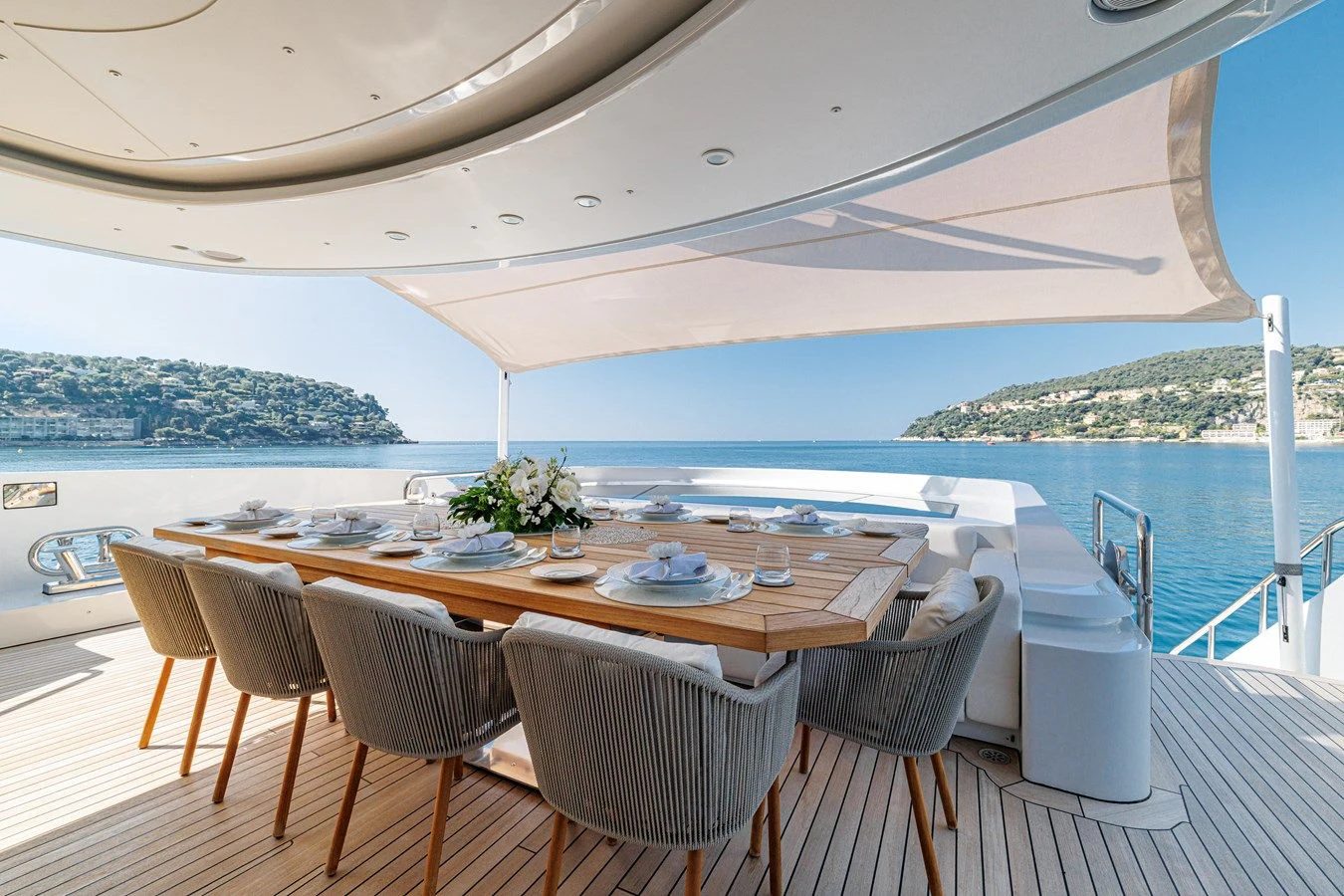

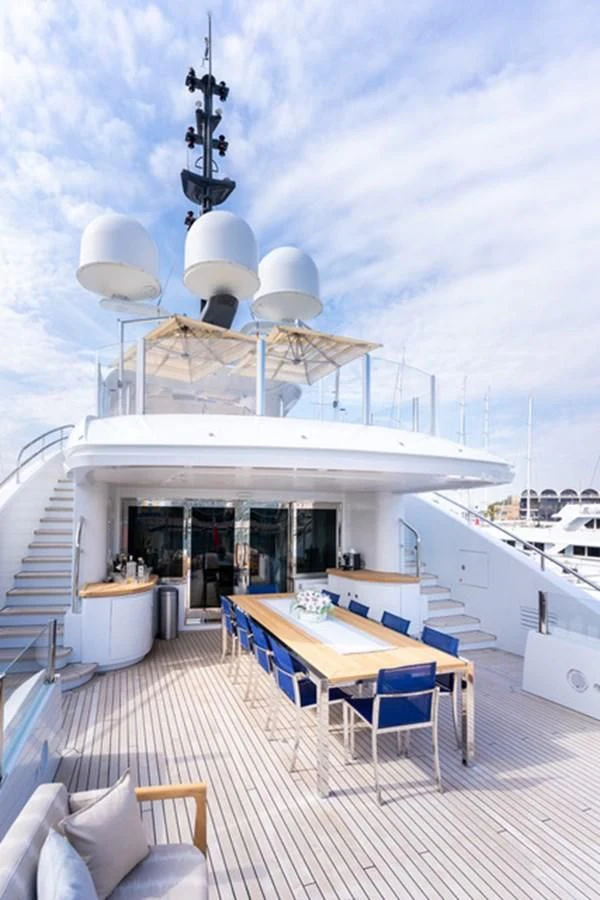

  • Aft main deck provide a foldable/sliding new table for 10/12 persons
  • Complete new upholstery on main deck, sun deck, upper deck

INTERIOR REFIT

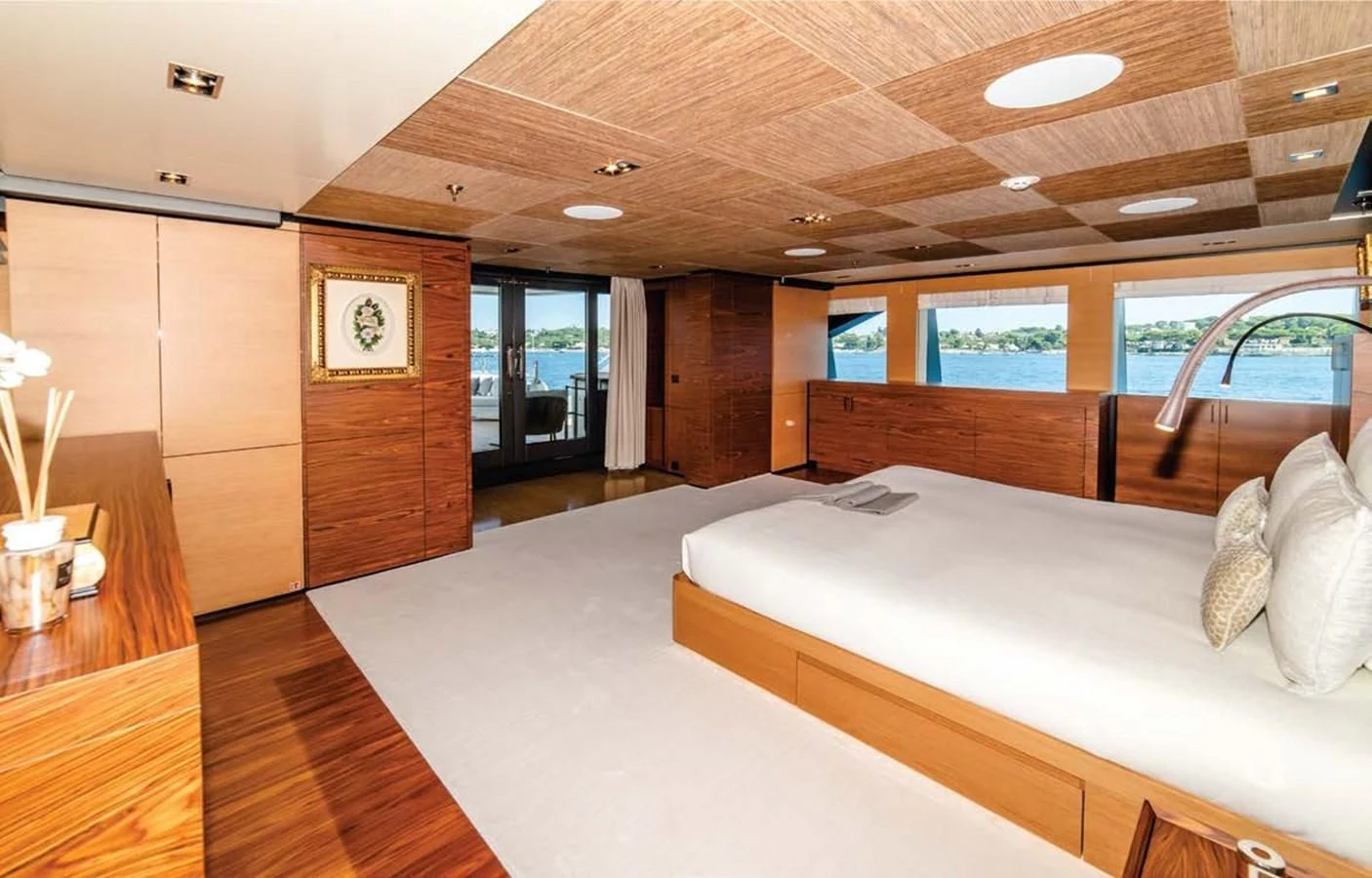

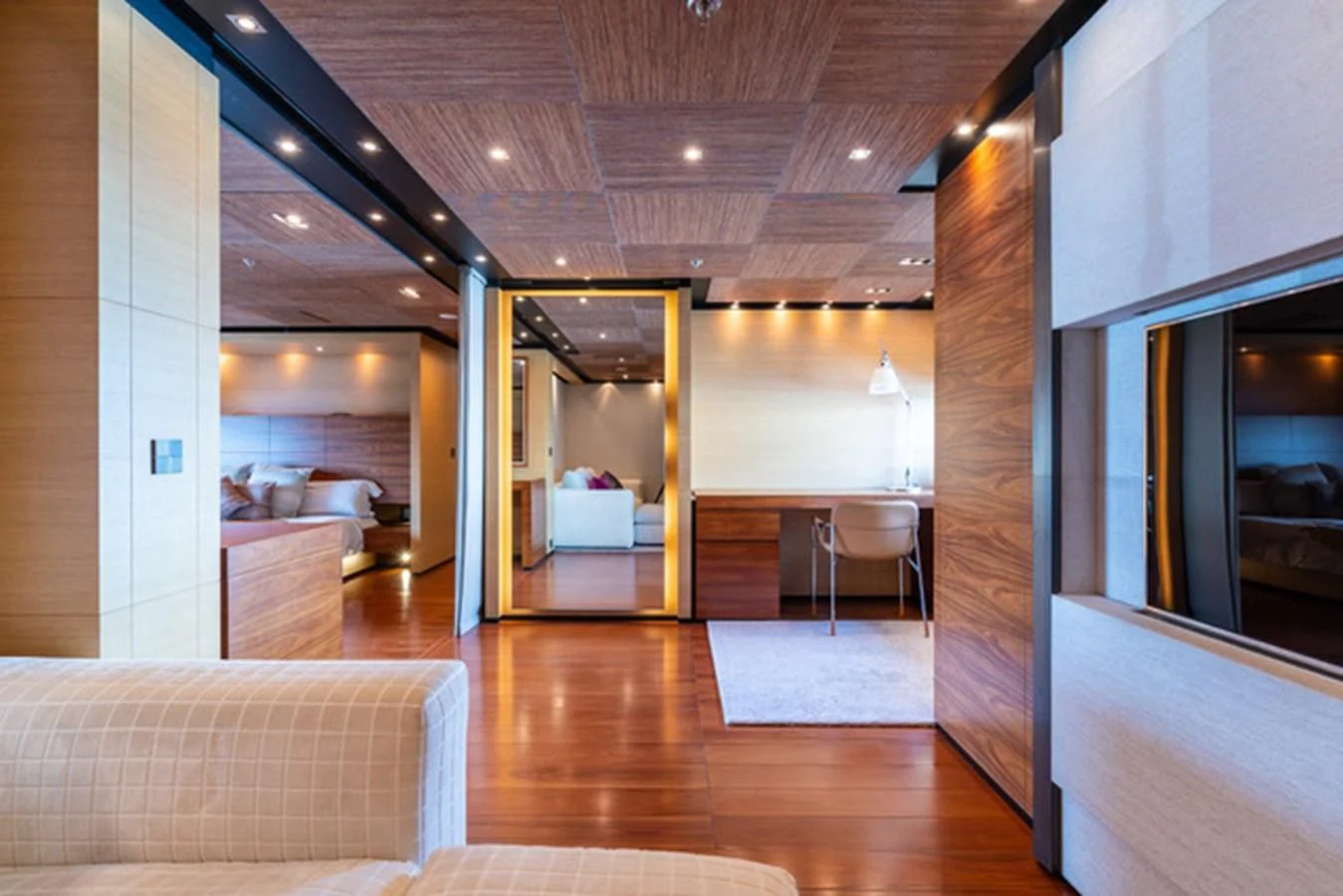

  • Upper saloon: convert upper saloon in master bedroom and bathroom, moving captain cabin to the 5th guest cabin in lower deck, adding decorative door between low corridor and guest area TV lift, sound system; lights and A/V upgrade in new master cabin.

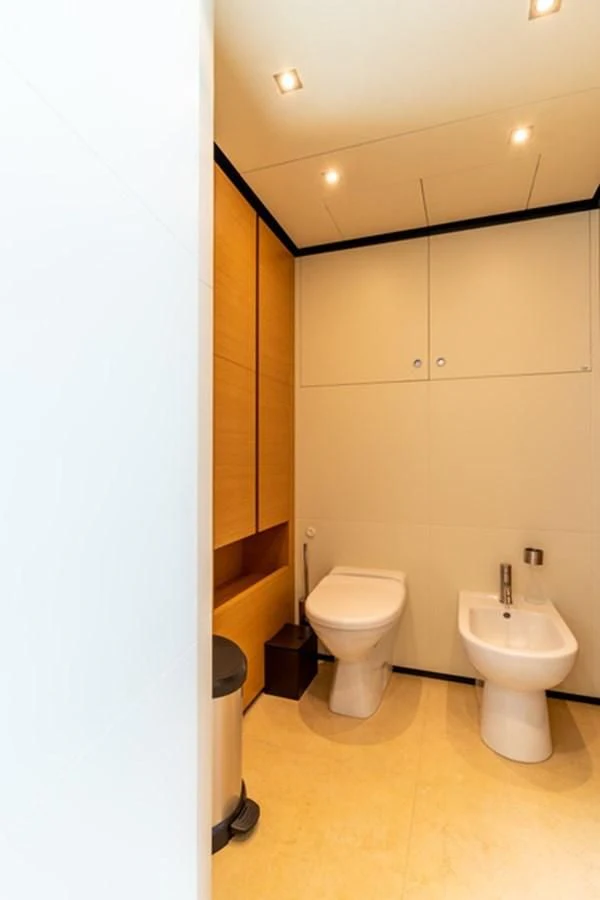

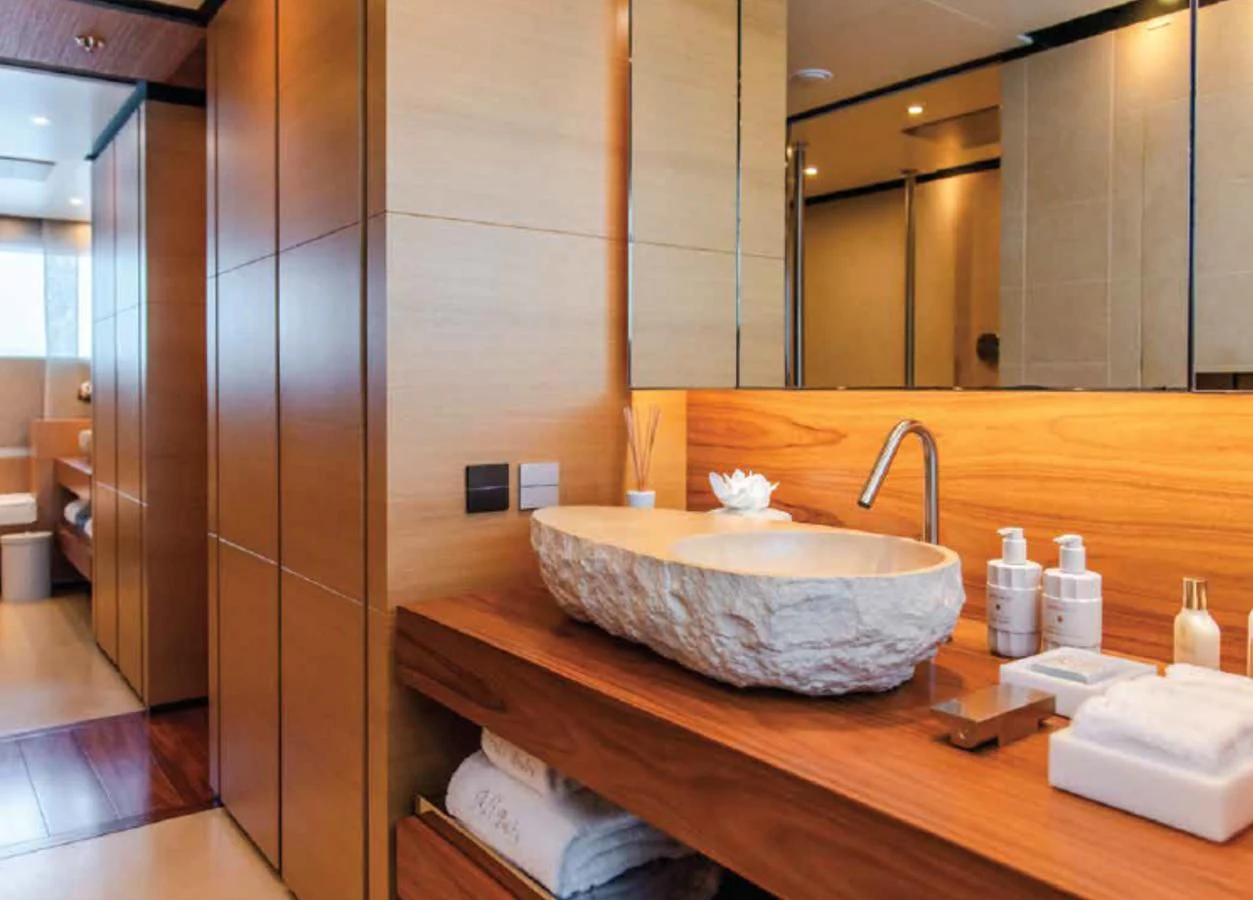

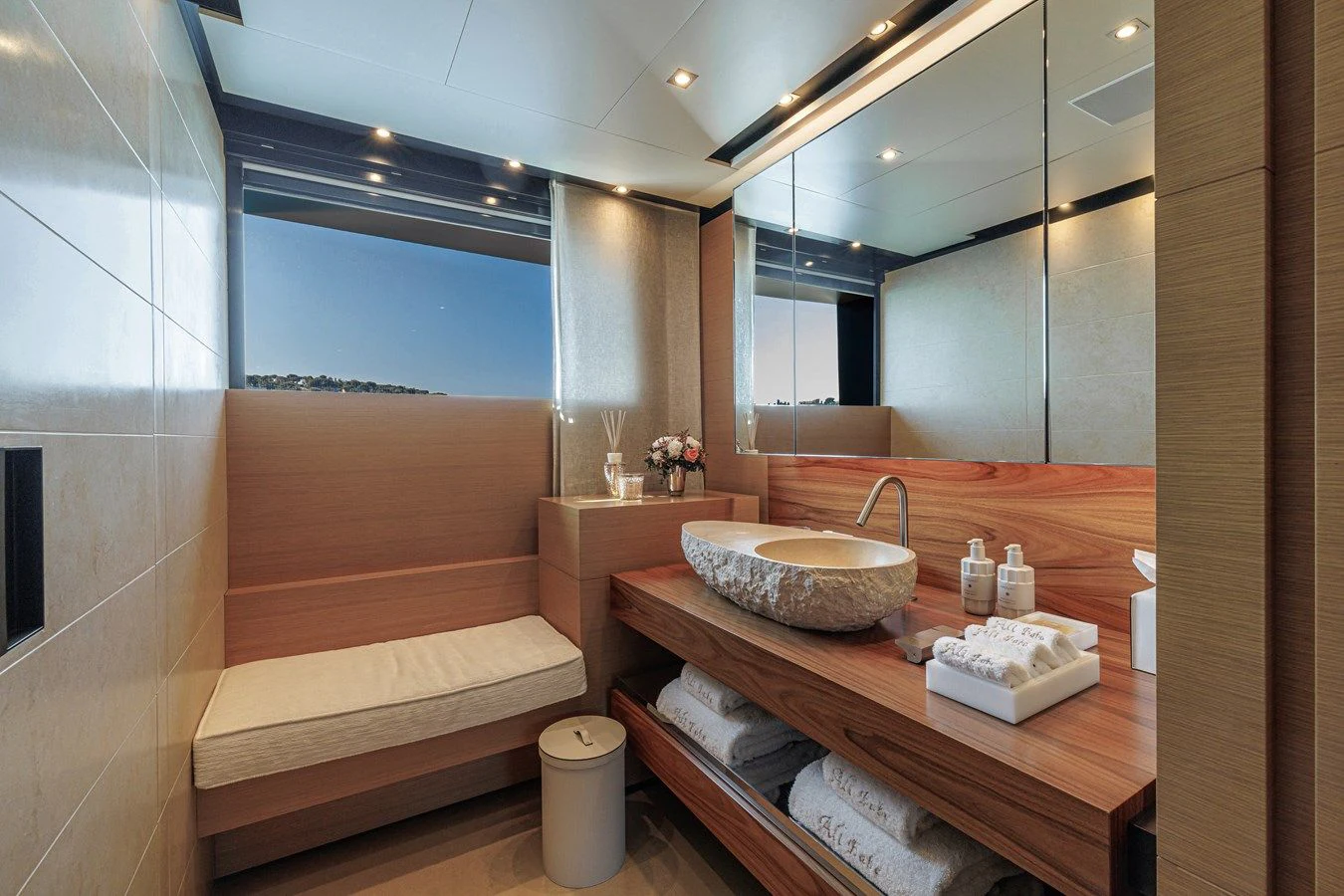

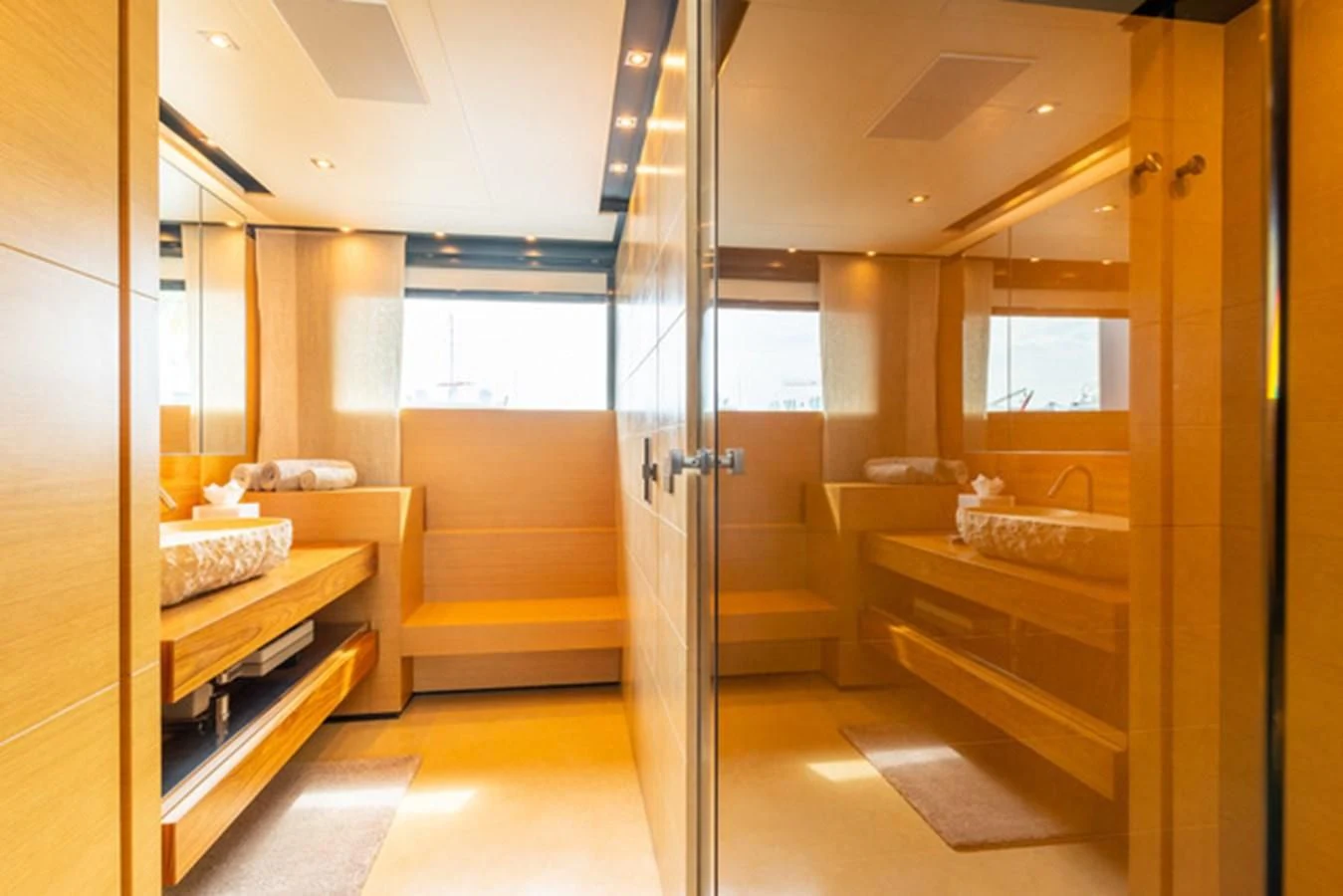

  • Installation of new complete bathroom, including WC, shower with same design and material than others cabins.

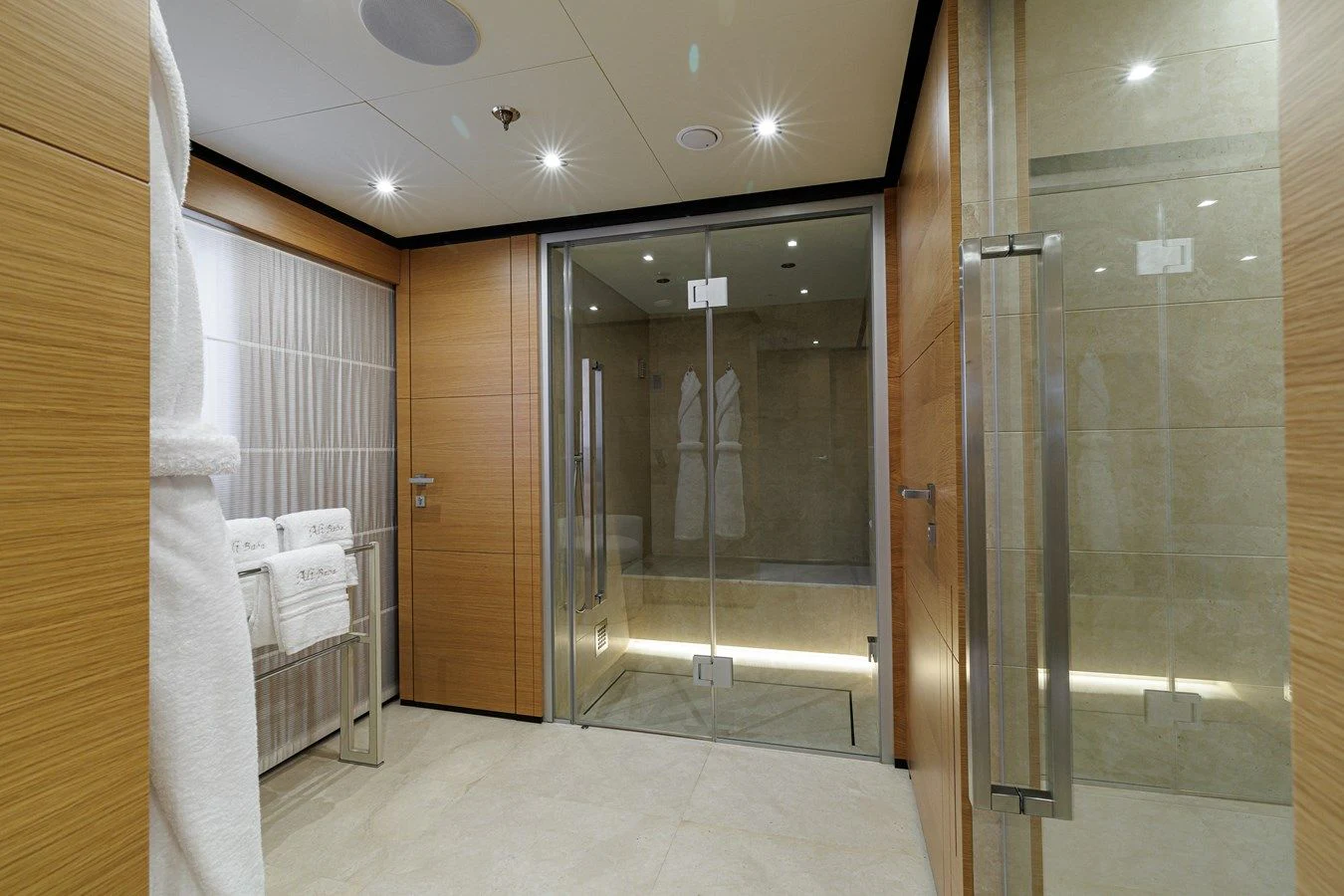

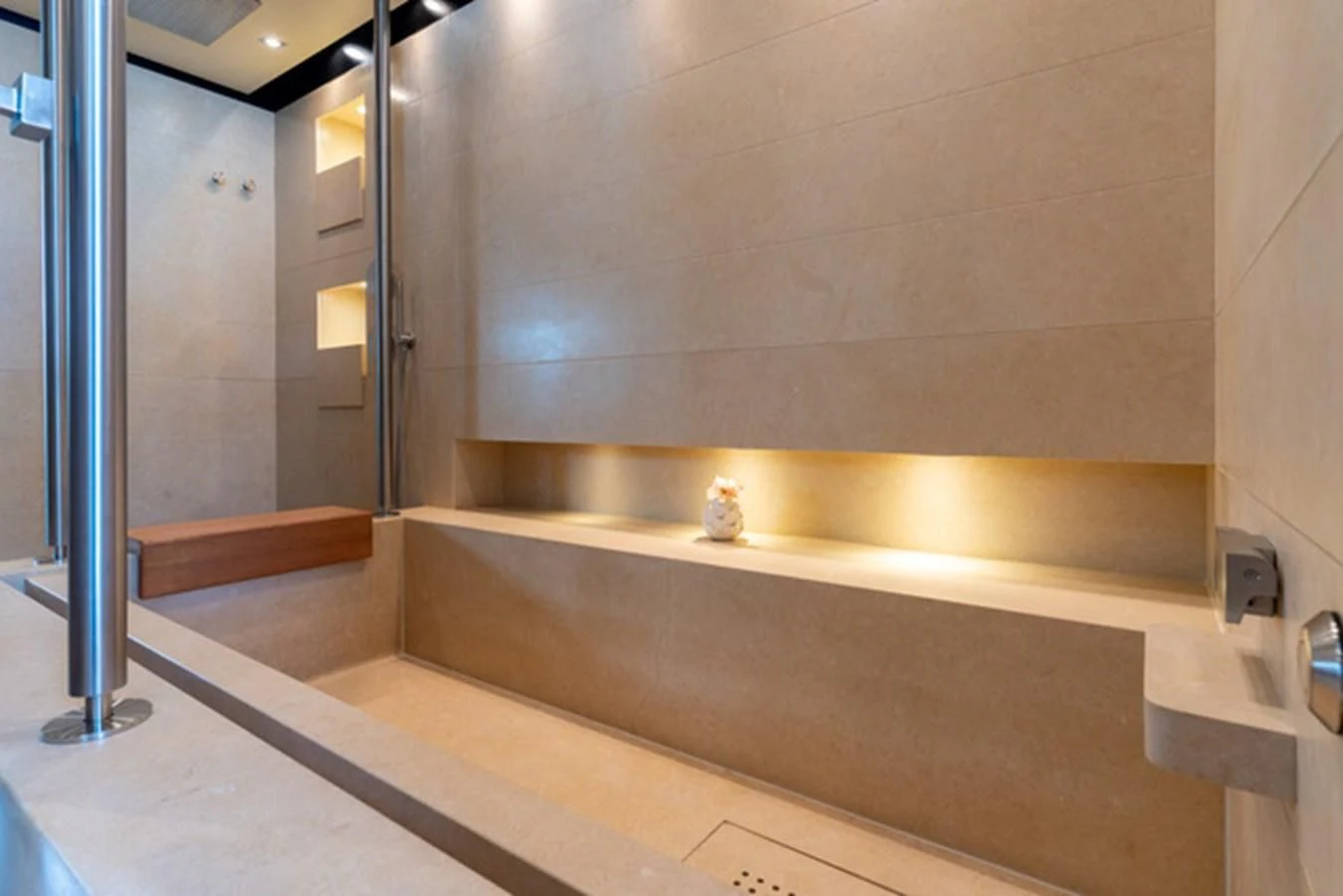

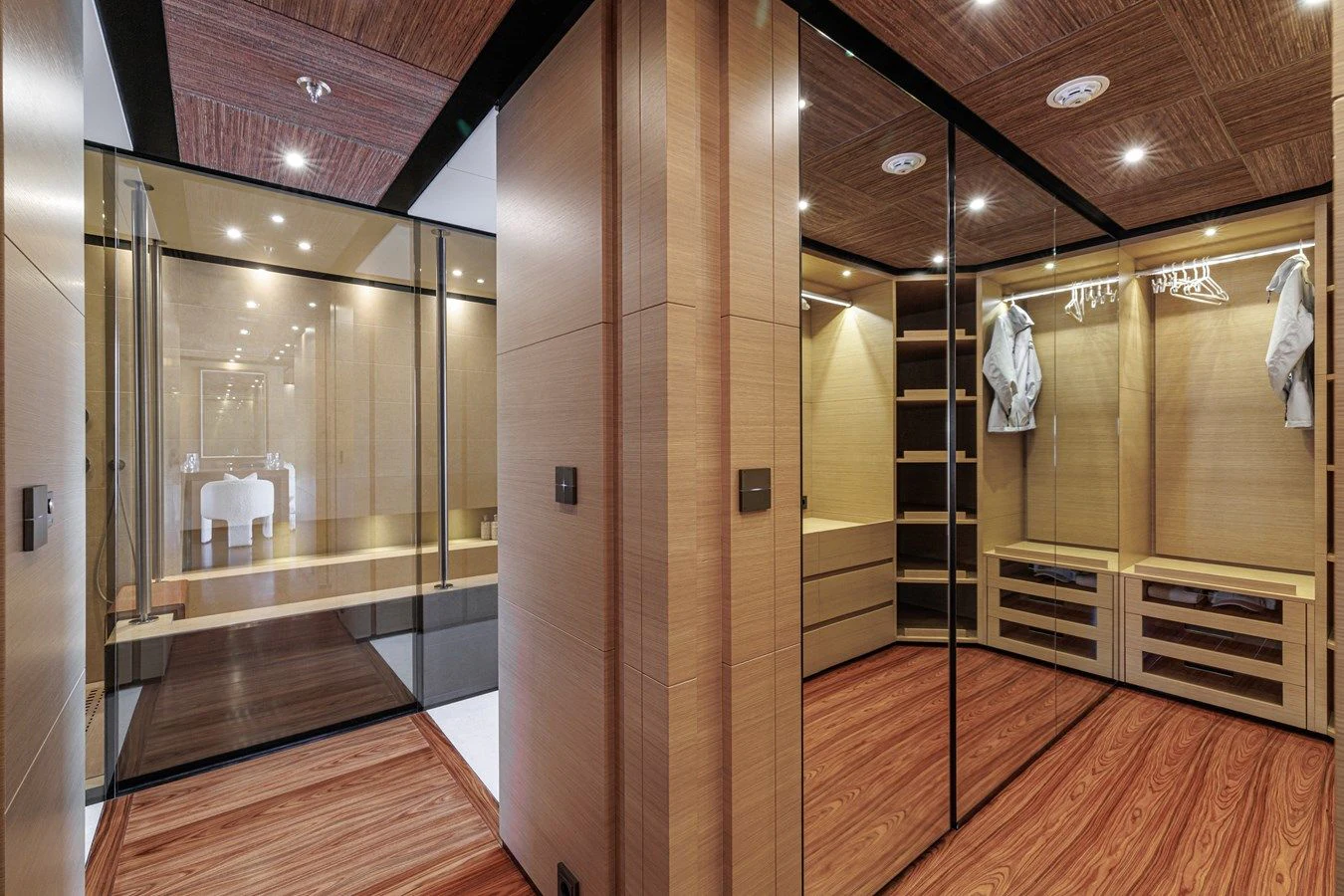

  • Installation of hammam in new master cabin with stone finishing

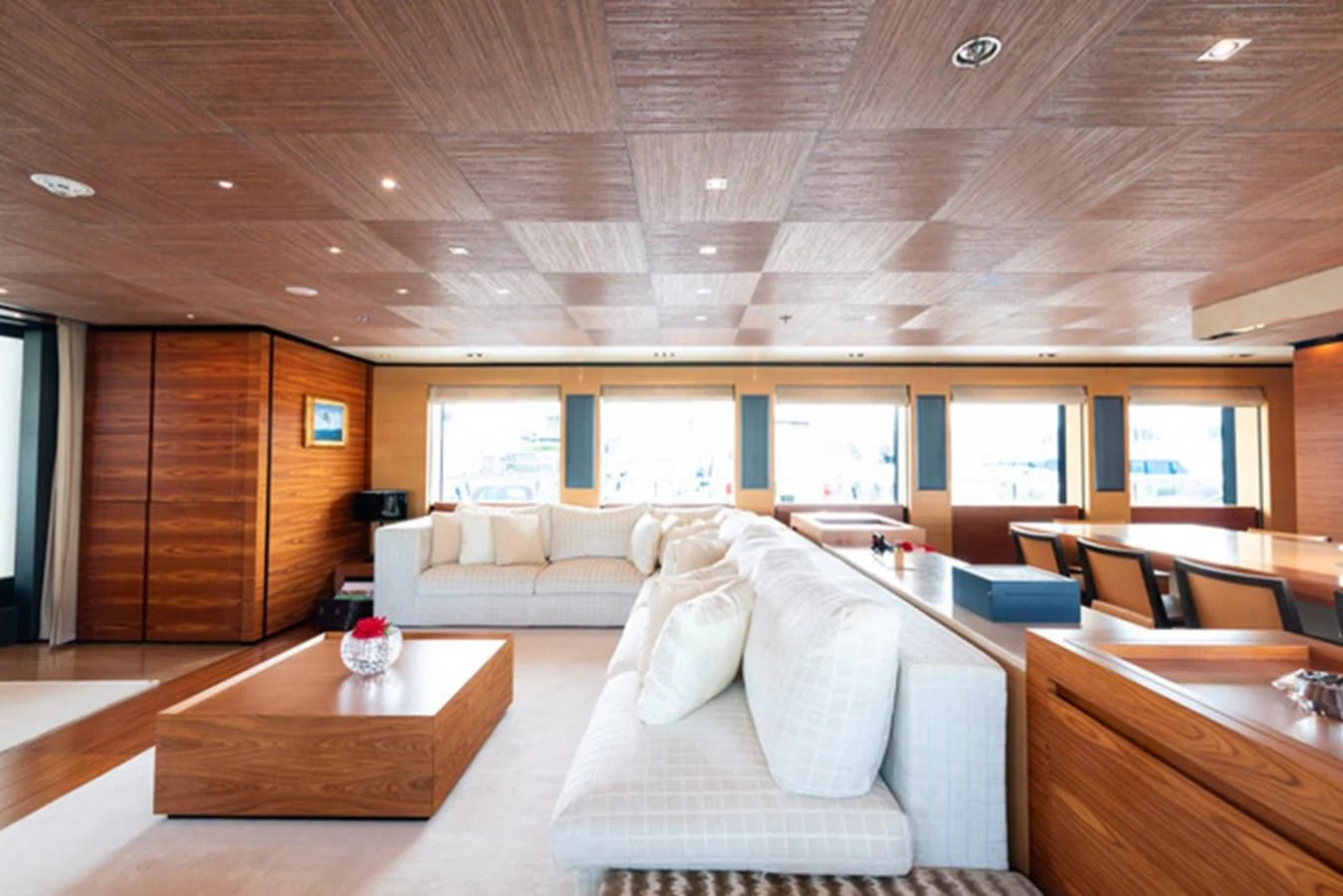

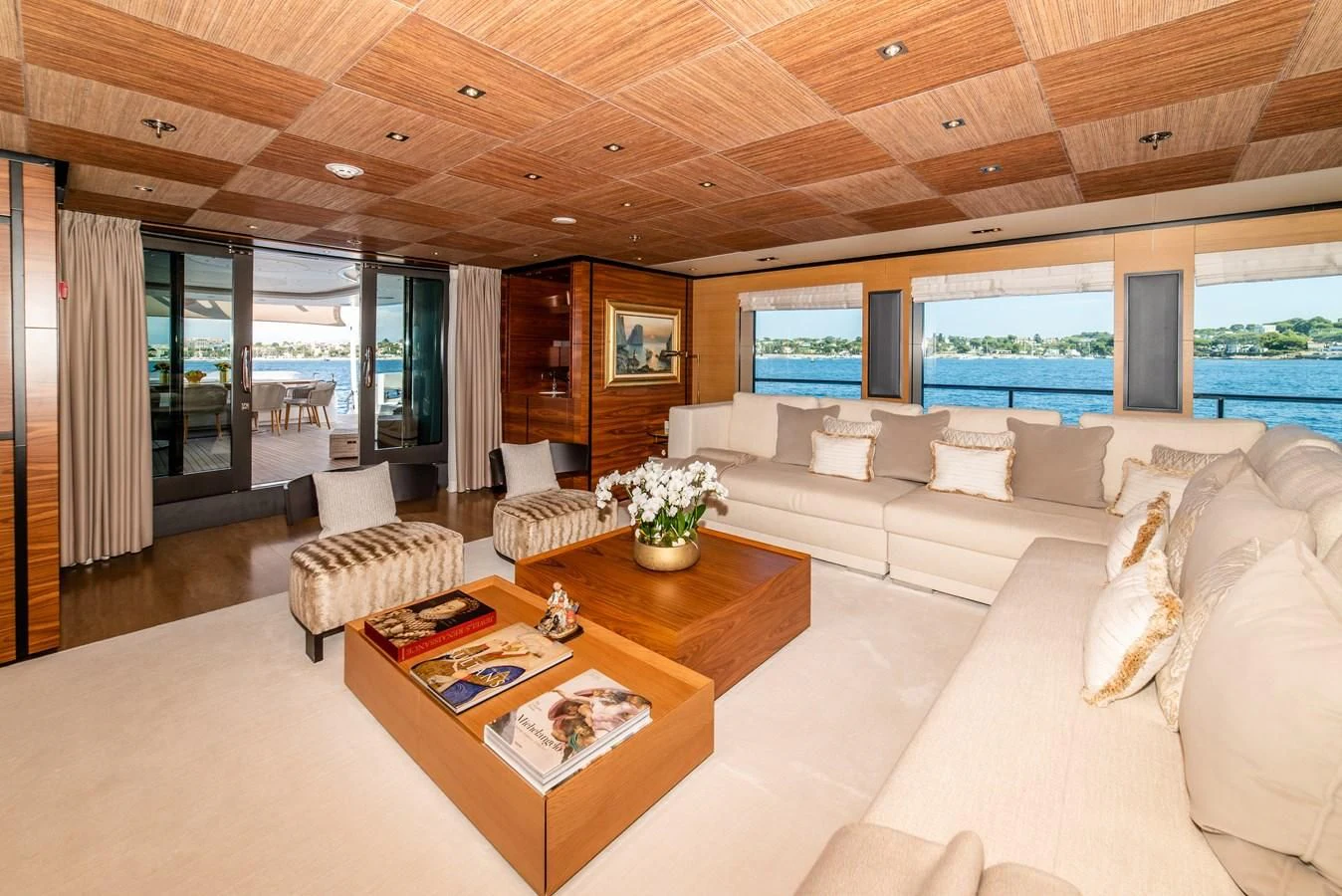

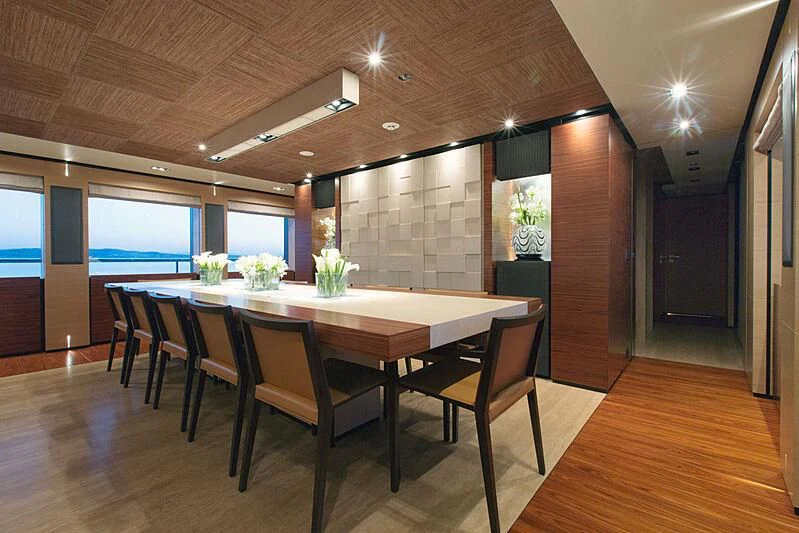

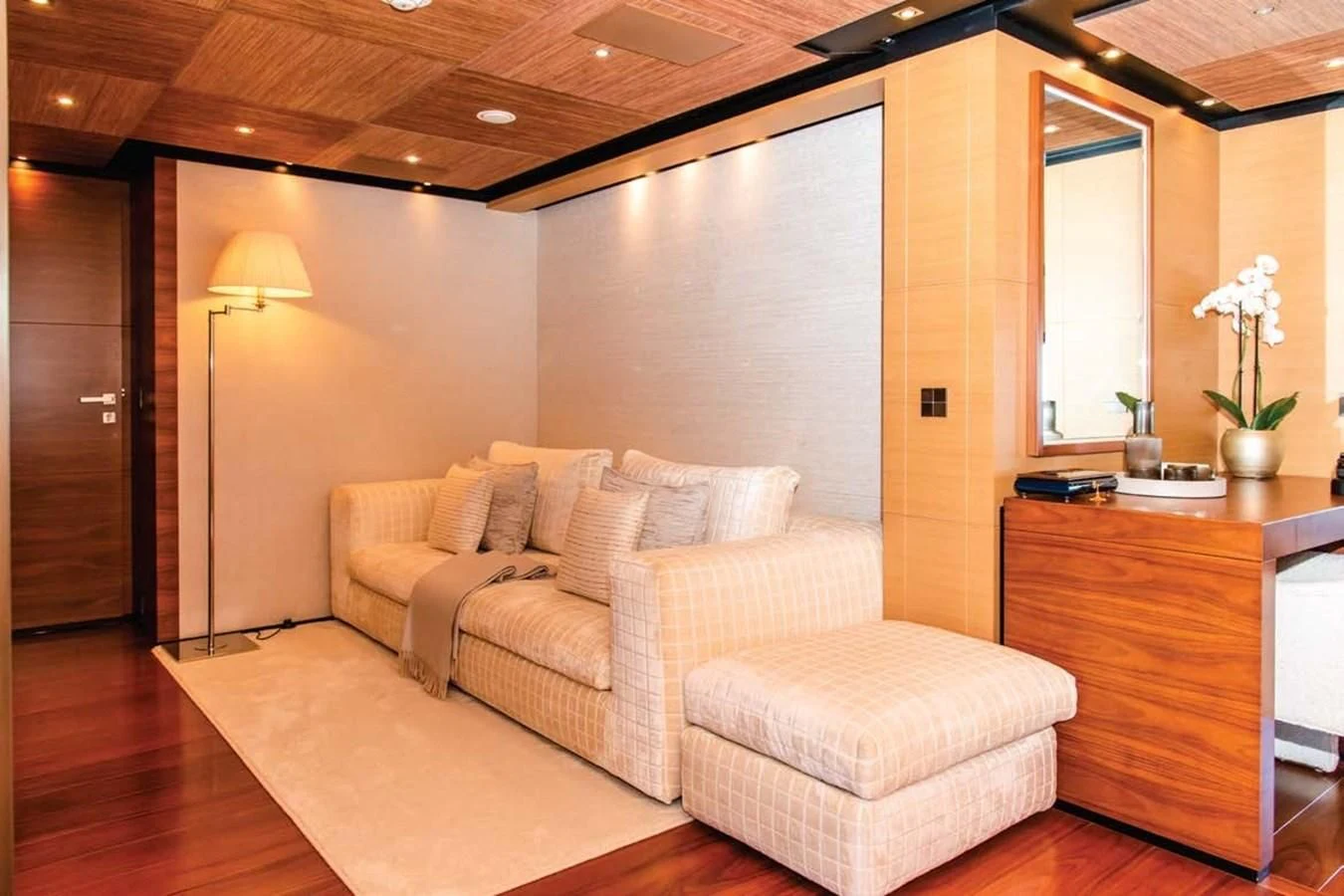

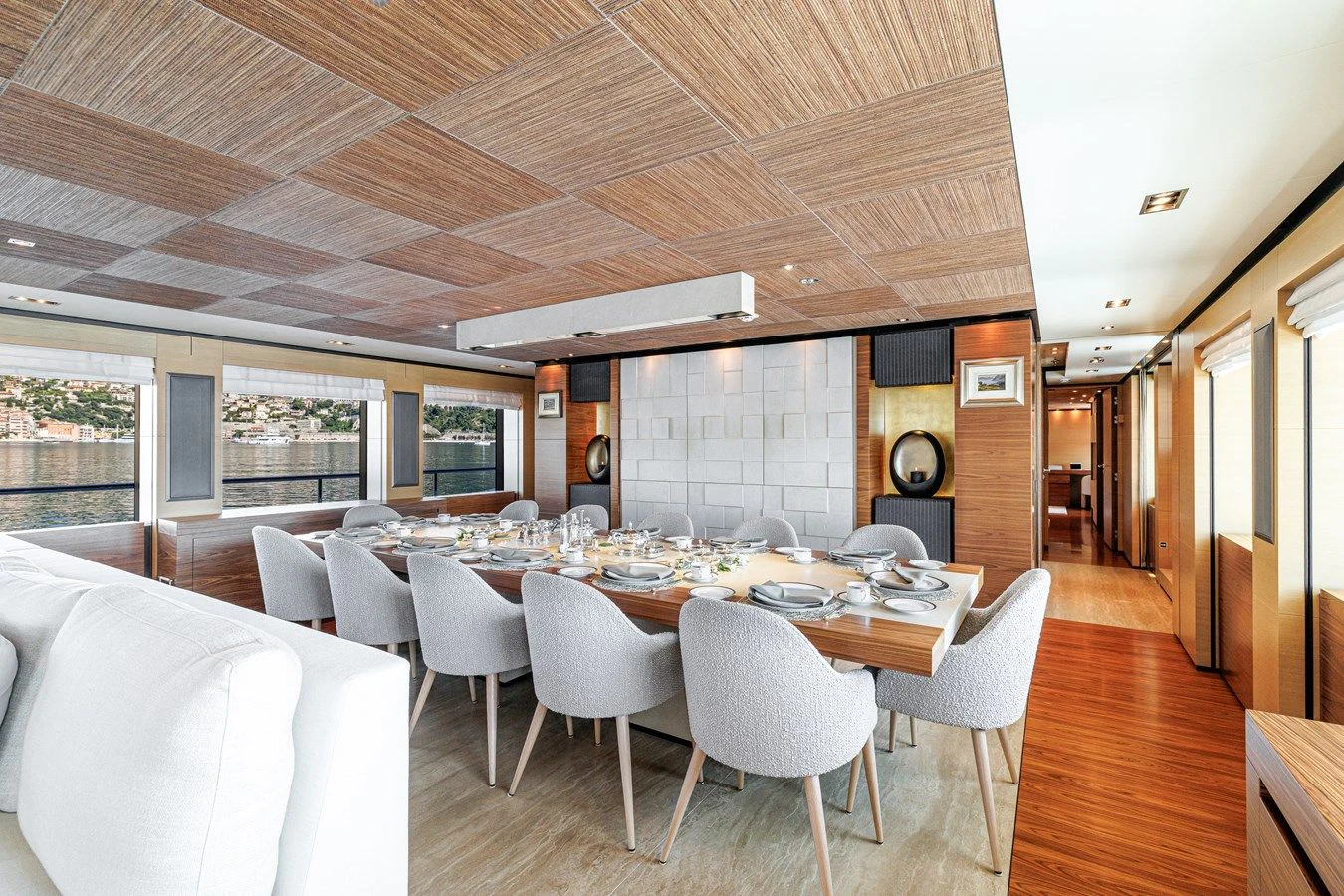

  • Main Saloon:
  • New layout, installation of new tv, crockery, cabinet/furnitures, new curtains, new sofa, chairs, cupboards, carpets…

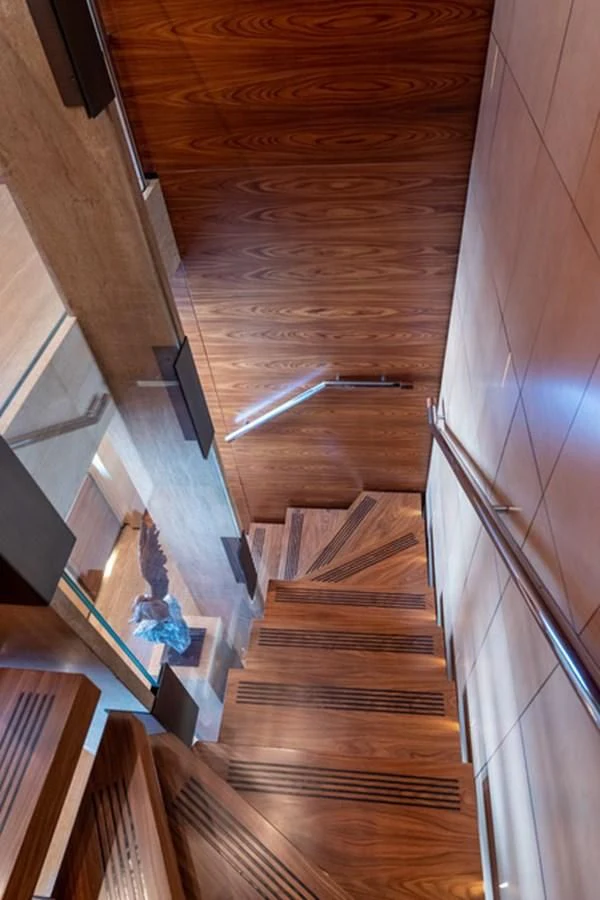

  • Rebuilt completely the steps to avoid any « cracks » noise.
  • Dominic system updated
  • Interior furnitures for beds and towels
  • New plates, glasses ....
  • Complete set of interior furniture to upgrade service table, interior design
