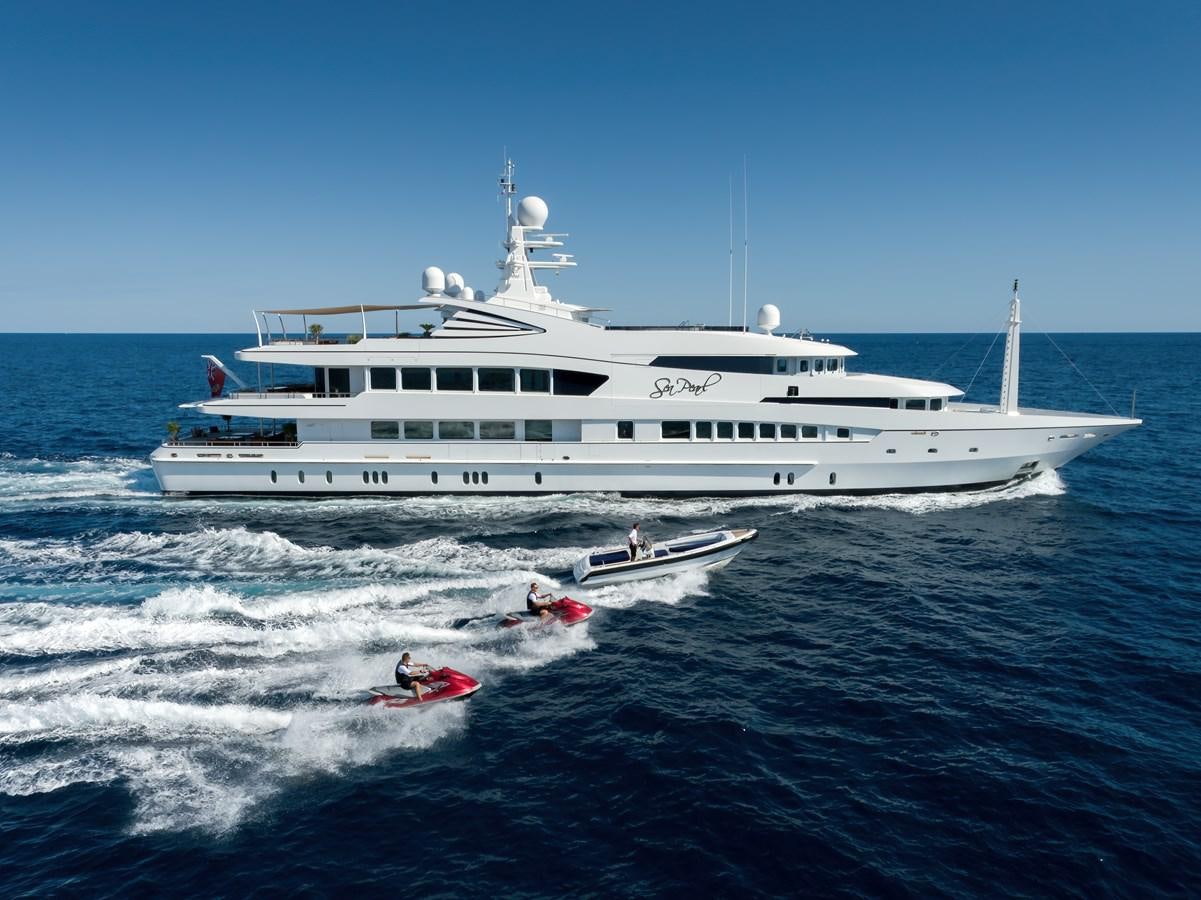

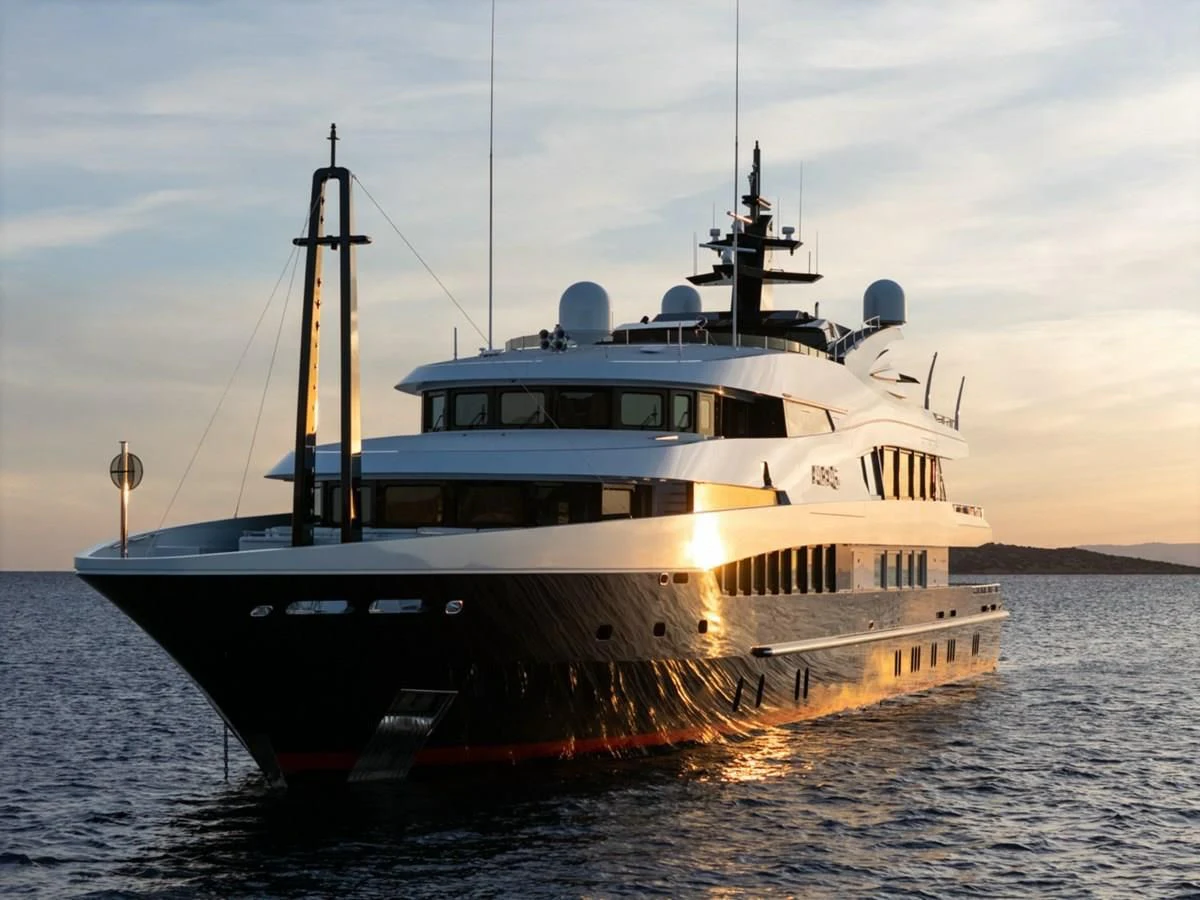

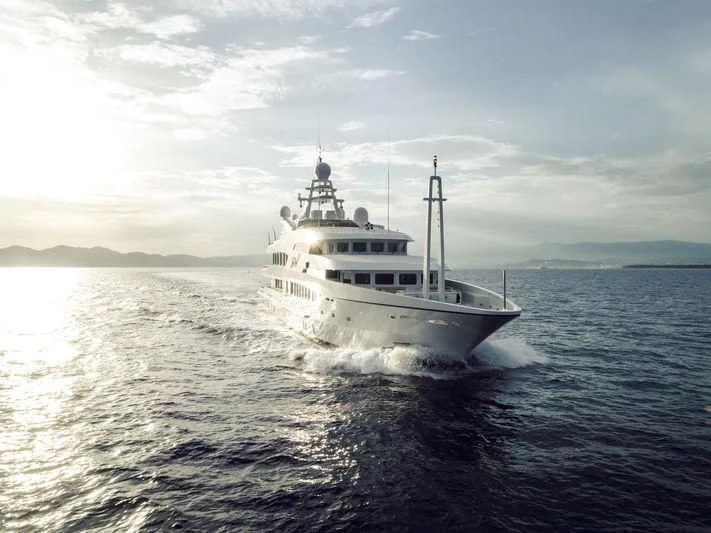

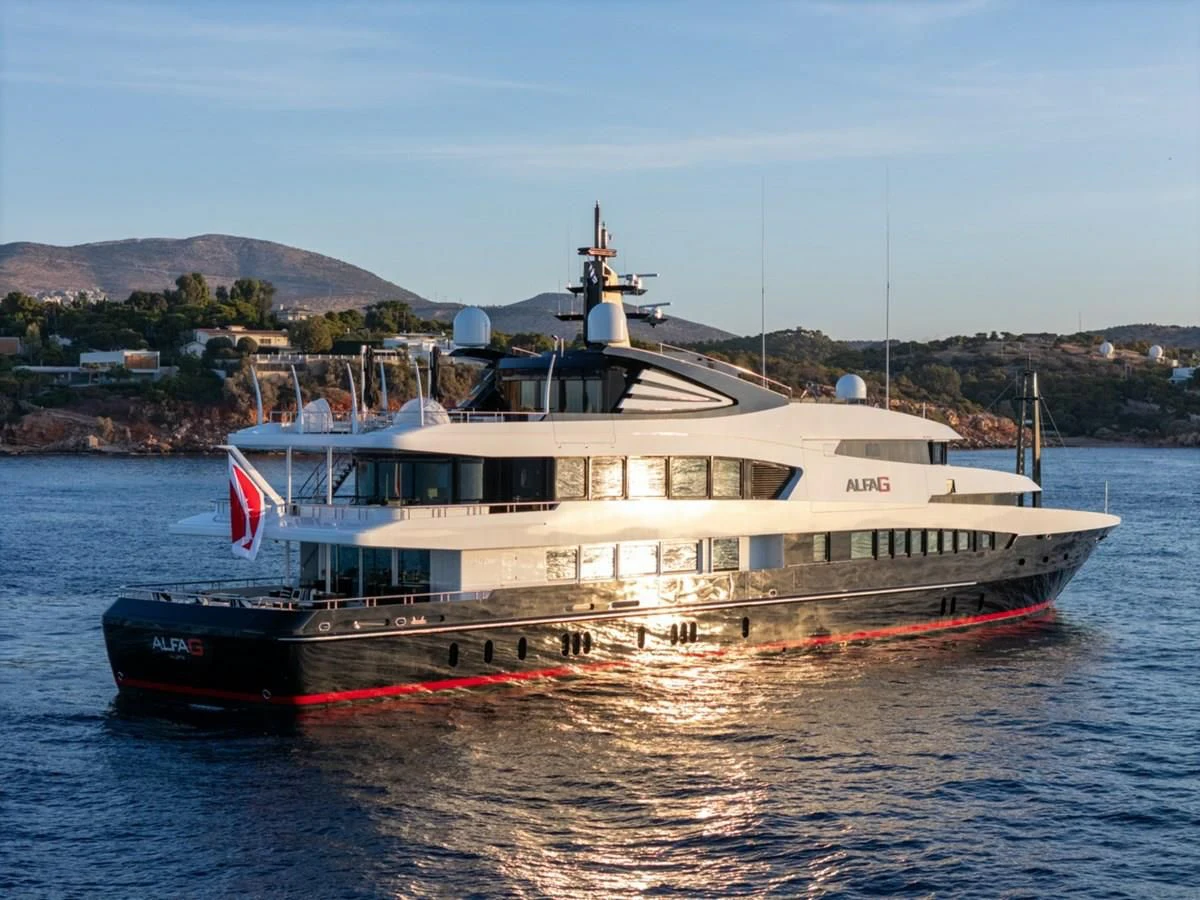

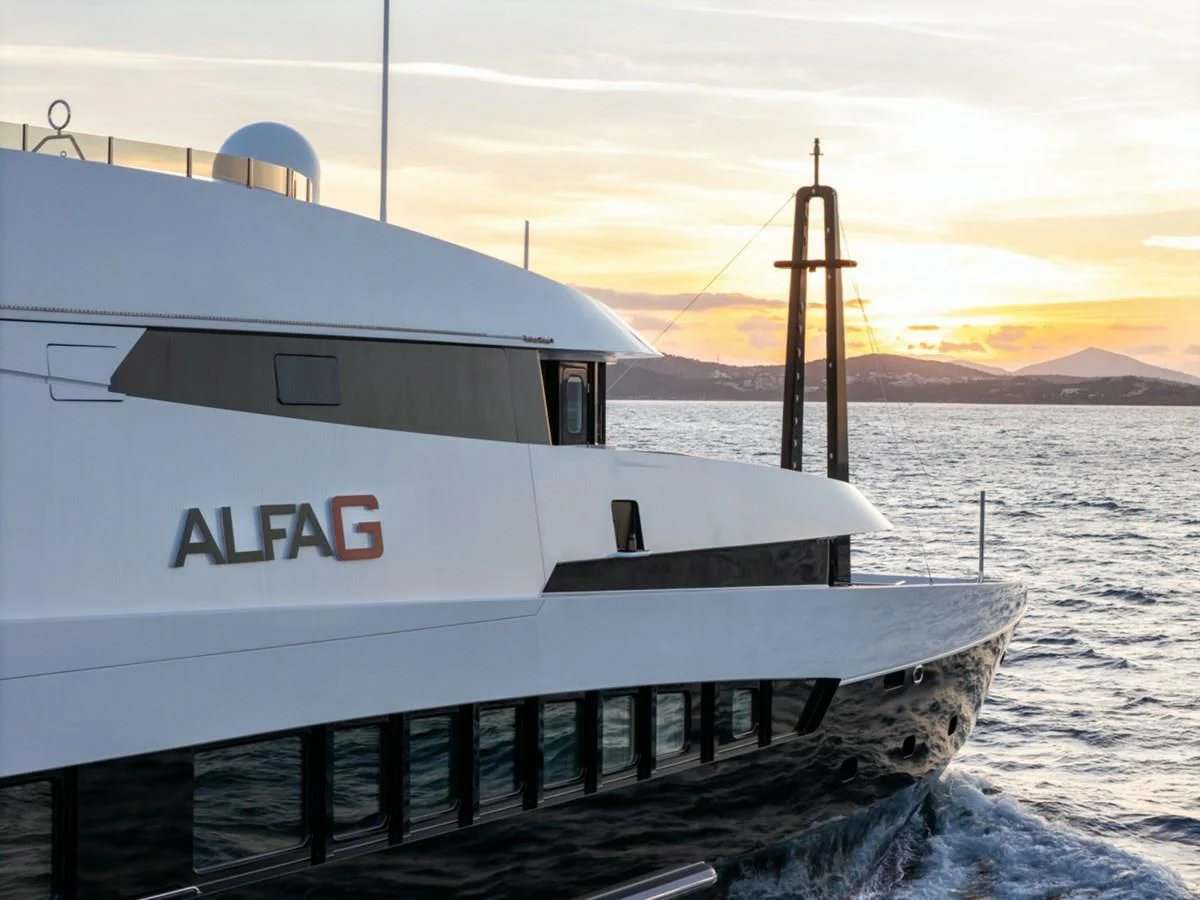

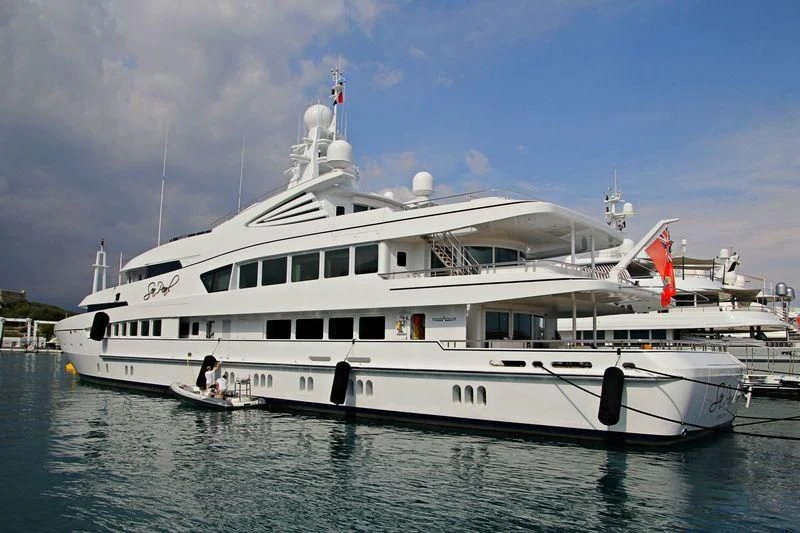

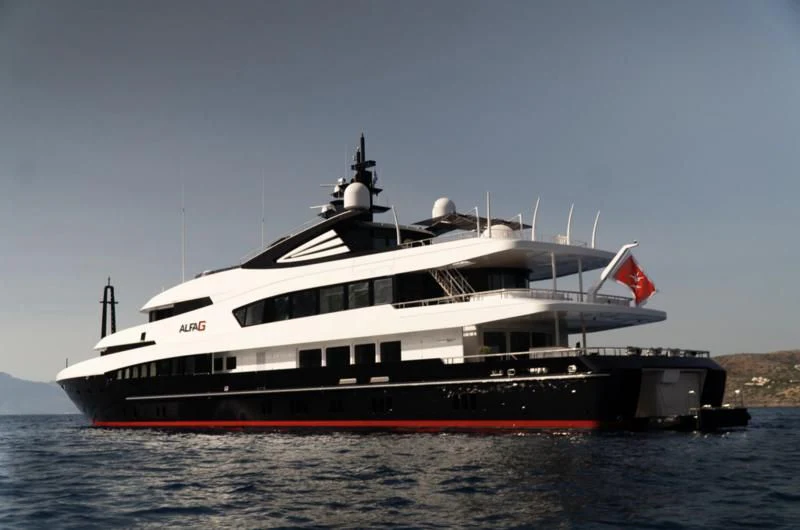

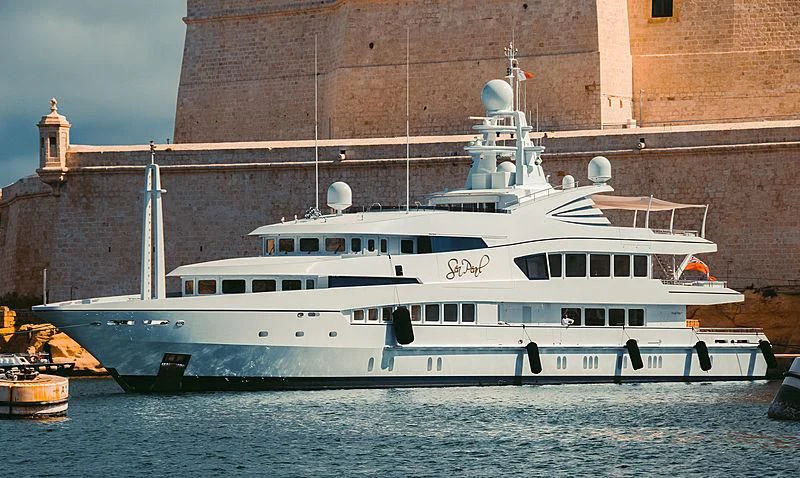

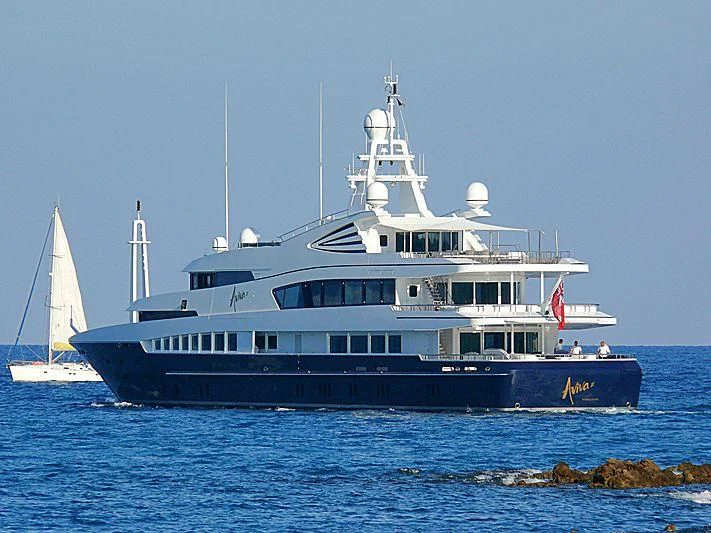

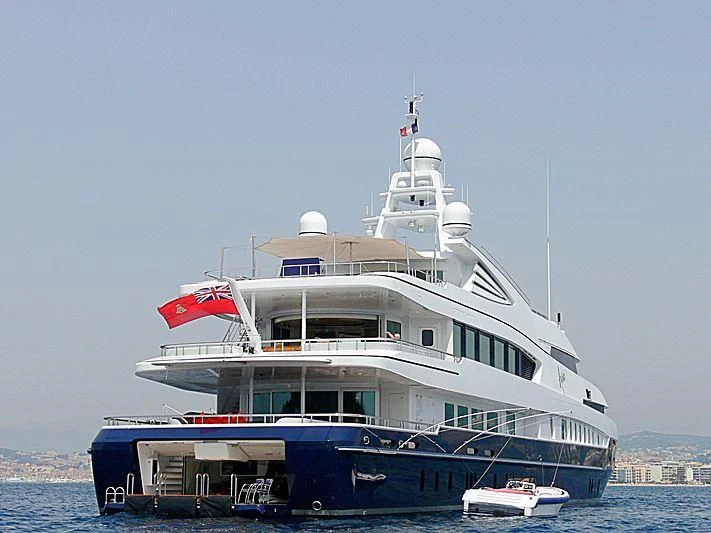

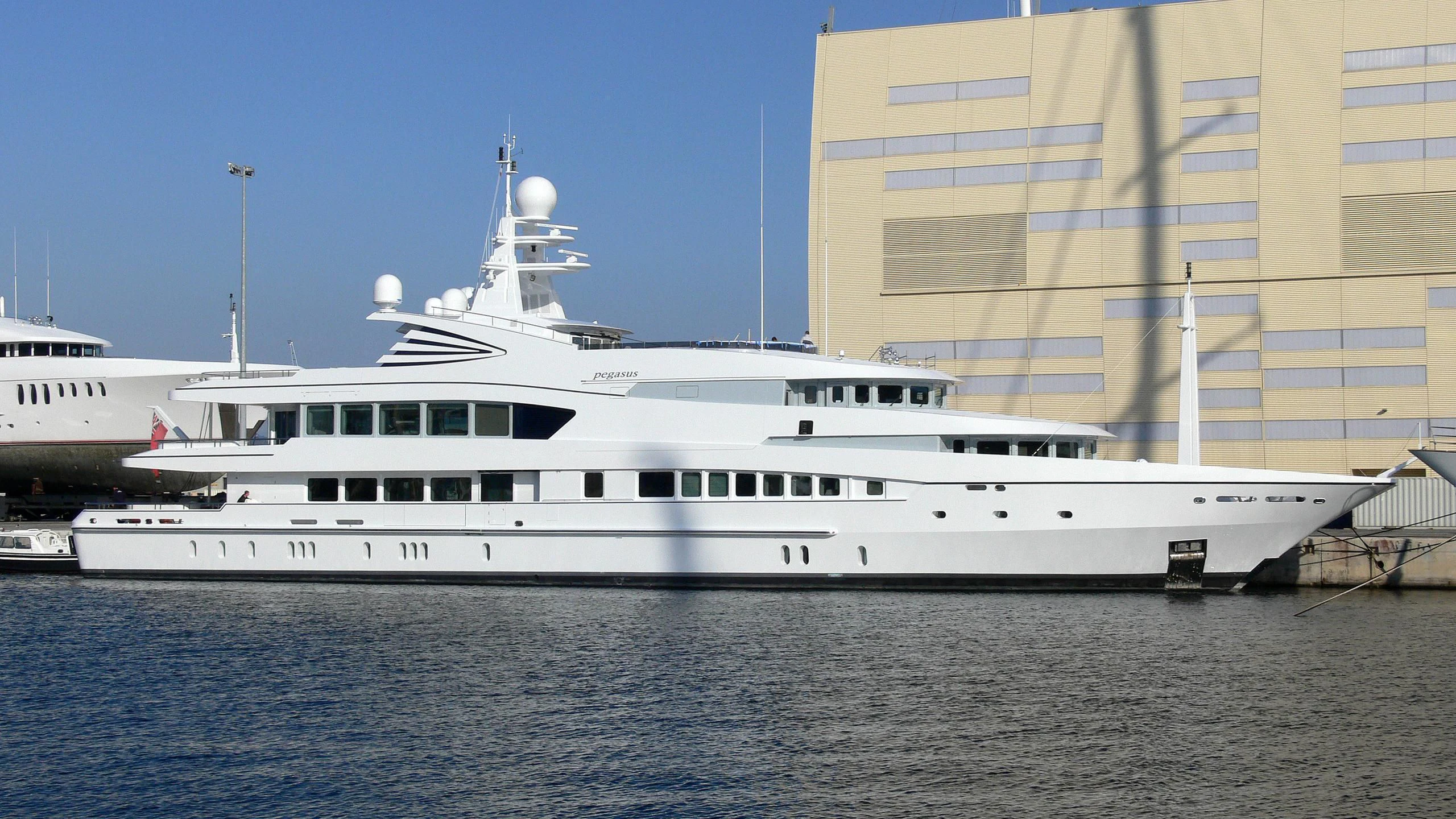

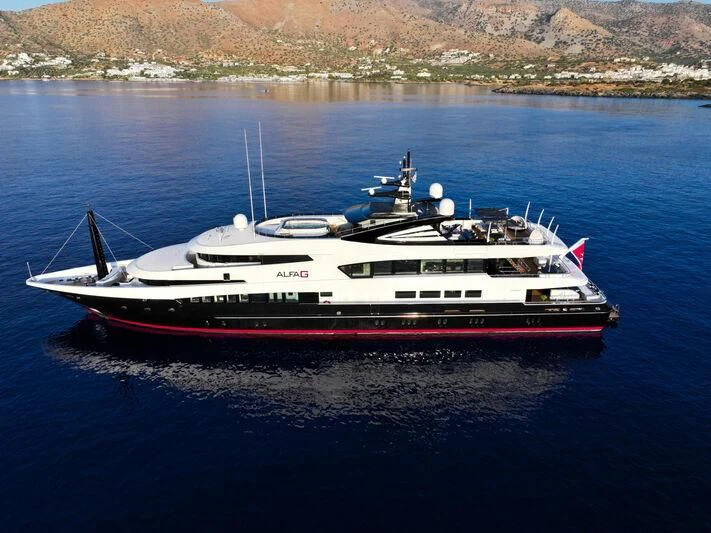

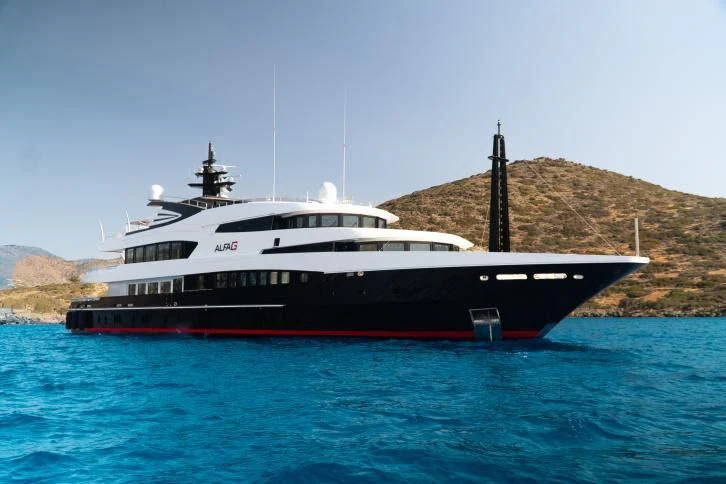

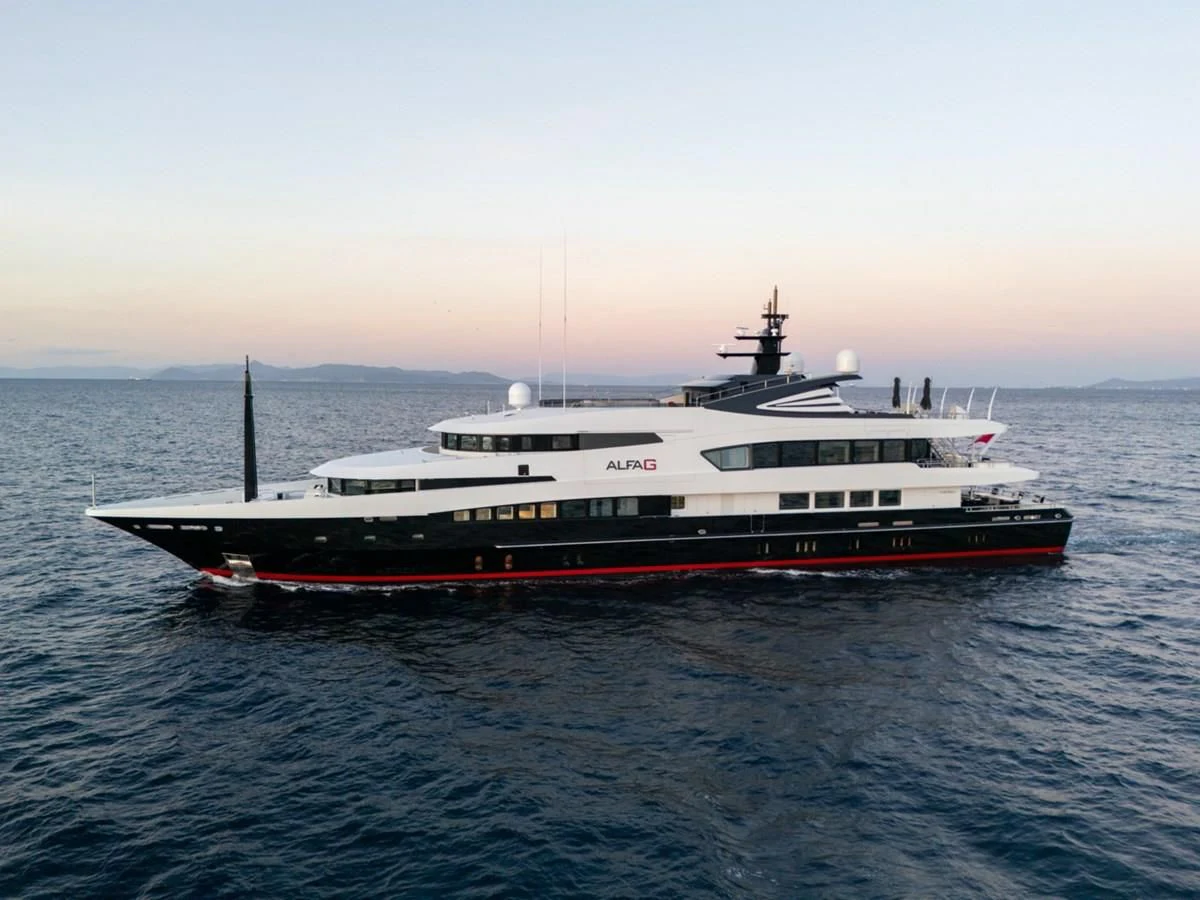

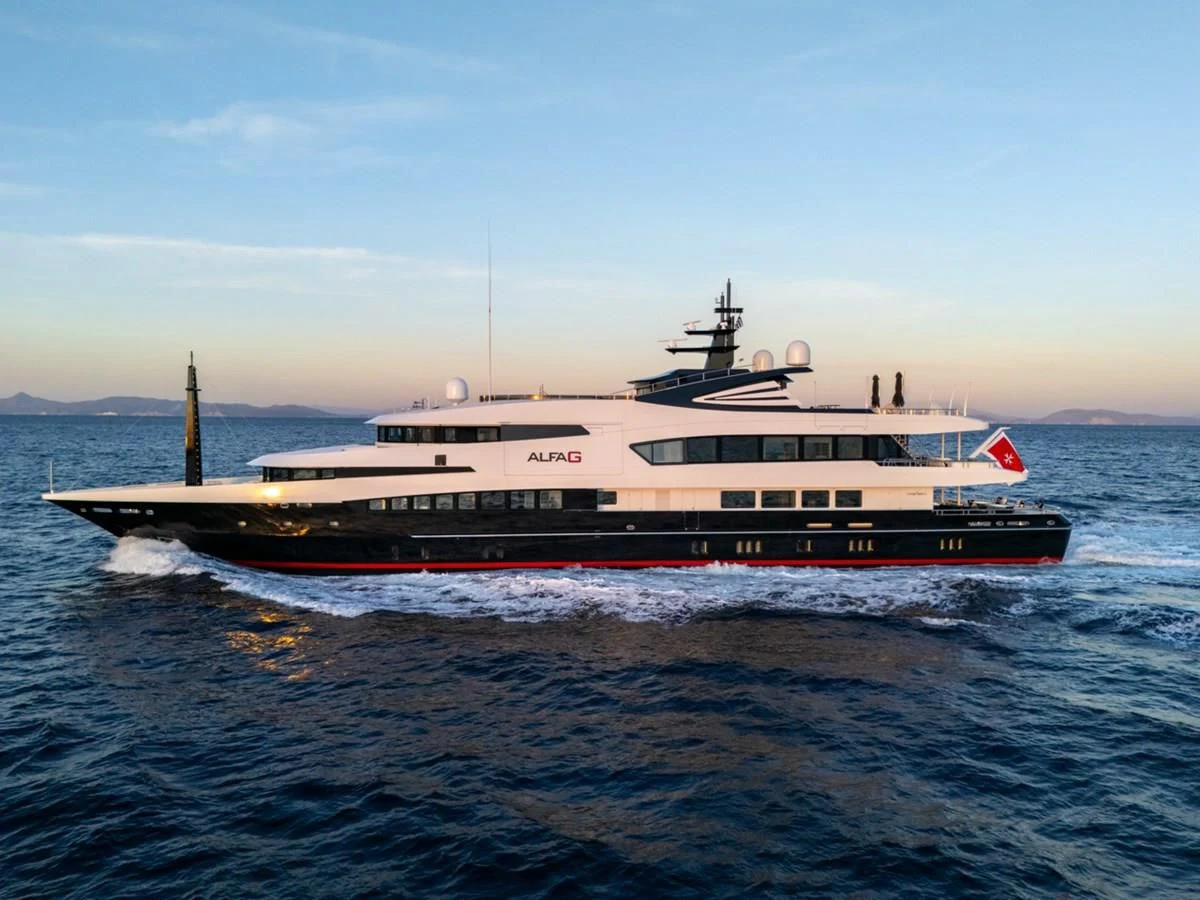

ALFA G Yacht for Sale

Length
196' (60m)
Builder
OCEANCO
Build
2004
Cabins
6
Crew
18

Yacht is no longer available for sale.
This is an archived web page showing historic information for reference purposes only. Search Yachts for Sale.

Specifications

Builder OCEANCO
Length (LOA) 196' (60m)
Year 2004
Gross Tonn. 1,184
Draft 13' (3.78m)
Beam 32' (10m)
Range 5,000 NM
Location Italy

Accommodations

Staterooms 6
Sleeps 12
Crew Cabins 18
Crew Sleeps 18

Dimensions & Capacity

LOA 196' (60m)
LWL 167' (50.6m)
Min Draft 12' (3.6m)
Max Draft 13' (3.78m)
Fuel Tank 34,078 g (129,000 L)
Fresh Water 9,405 g (35,600 L)
Gross Tonn. 1,184
Displacement 947

Construction

Hull Material Stainless Steel
Hull Config Full Displacement
Ext. Designer Winch Design
Int. Designer Winch Design
Cruising Speed 12 Knots
Range 5,000 NM
Have Questions?

Complete the form below and one of our experienced sales brokers will be in touch soon.

Full Details

Main Characteristics

TYPE: FULL DISPLACEMENT OCEANGOING
          MOTOR YACHT

BUILDER: OCEANCO

NAVAL ARCHITECT:  OCEANCO

EXTERIOR DESIGN: ANDREW WINCH DESIGNS

INTERIOR DESIGN: ANDREW WINCH DESIGNS

YEAR: 2004

CLASSIFICATION:  LLOYD’S • 100A1, SSC YACHT(P) MONO G6
                              + MCA COMPLIANT
CONSTRUCTION: STEEL HULL, ALUMINIUM SUPERSTRUCTURE,
                             TEAK DECKS
FLAG: CAYMAN ISLANDS

CREW:  18

ENGINES:  2 X CAT 3512 B DITA @ 1,230 KW
GT: 1,184
DISPLACEMENT: 947.7 (FULL LOAD)

Dimensions

LOA: 60.00M / 196'9''
BEAM: 10.00M / 34'5''
DRAFT: 3.60M / 11'8''

Speed & Range Under Power

MAX SPEED: 15 KNOTS
CRUISING SPEED: 12.5 KNOTS
ECONOMICAL SPEED: 10 KNOTS
RANGE: 5,000 NM @ 11.5 KNOTS

Capacities

ACCOMMODATION:  12 X GUESTS IN 6 CABINS
CREW: 18 X CREW IN 9 CABINS + 1 STAFF CABIN
FUEL: 129,000 LITRES / 34,100 US GALLONS
FRESH WATER: 35,600 LITRES / 9,410 US GALLONS
LUBE OIL: 2,700 LITRES / 714 US GALLONS
DIRTY LUBE OIL: 2,700 LITRES / 714 US GALLONS
GREY WATER: 14,500 LITRES / 3,830 US GALLONS
BLACK WATER: 2,600 LITRES / 687 US GALLONS
SLUDGE TANKS: 1,100 LITRES / 290 US GALLONS

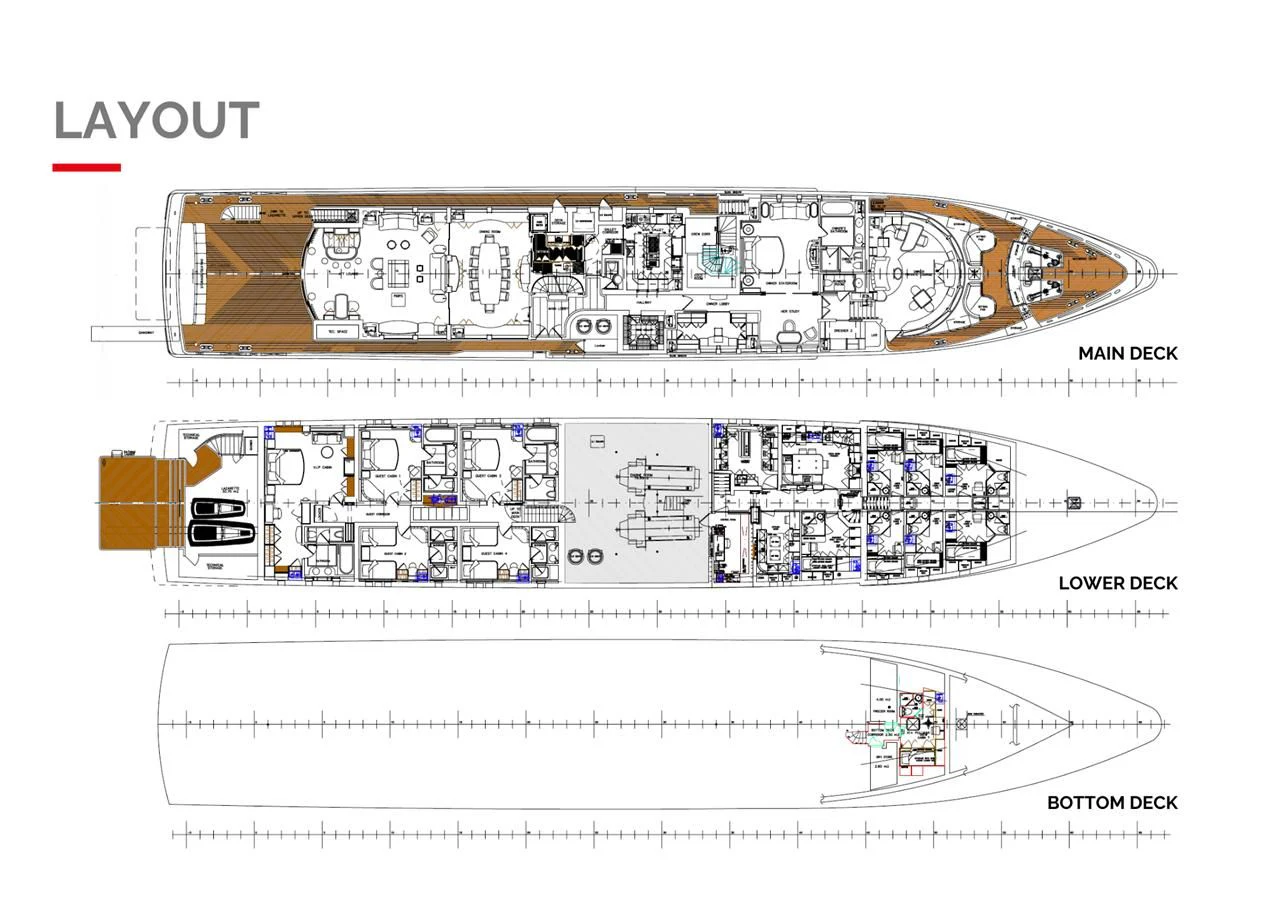

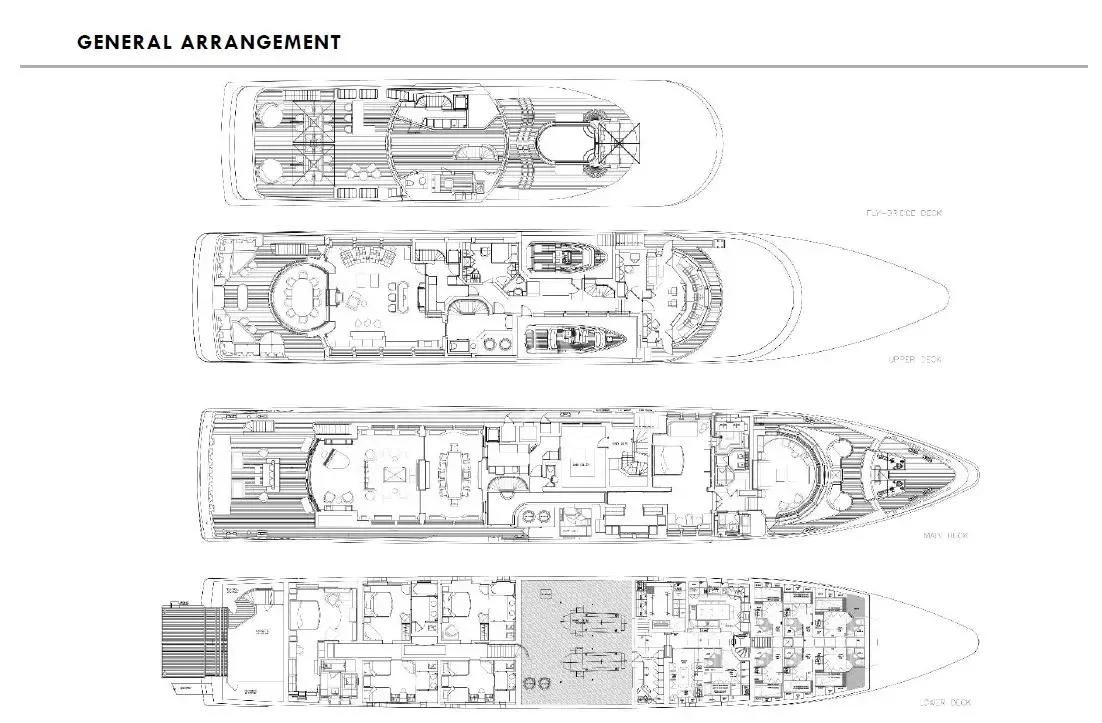

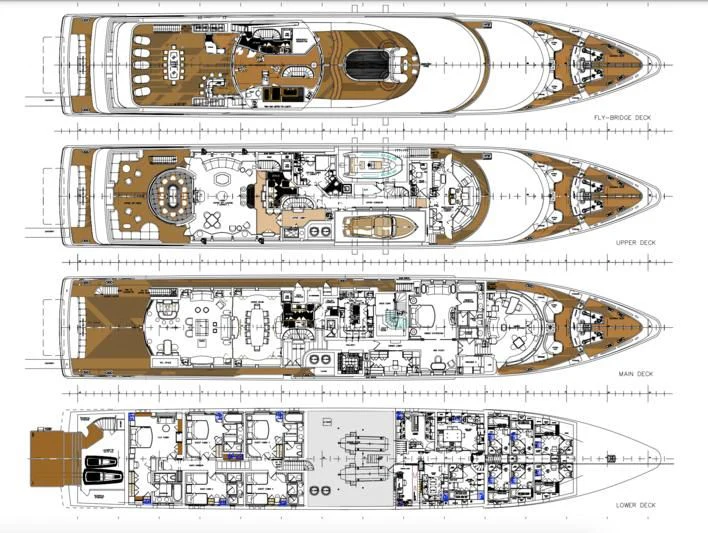

Accommodation

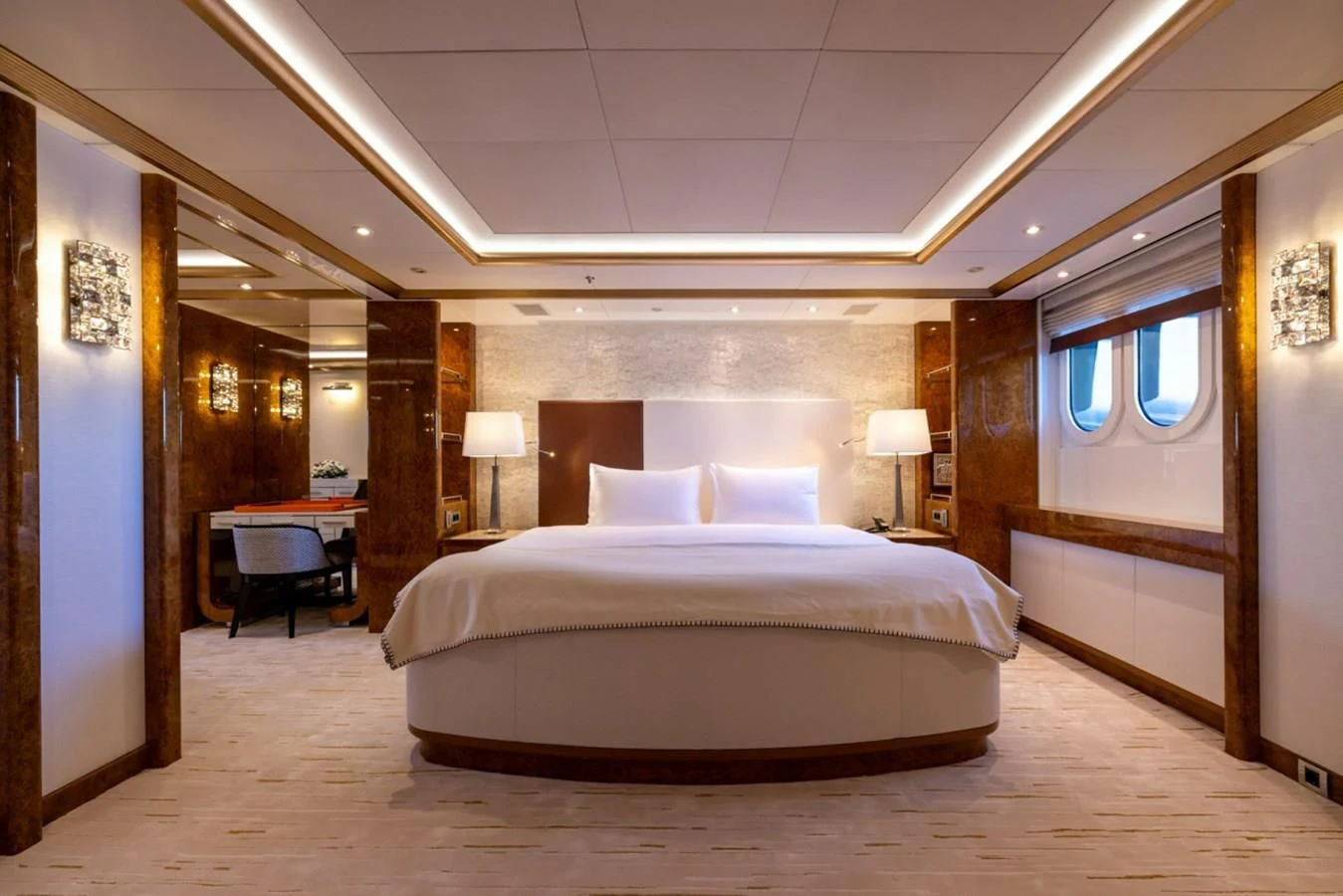

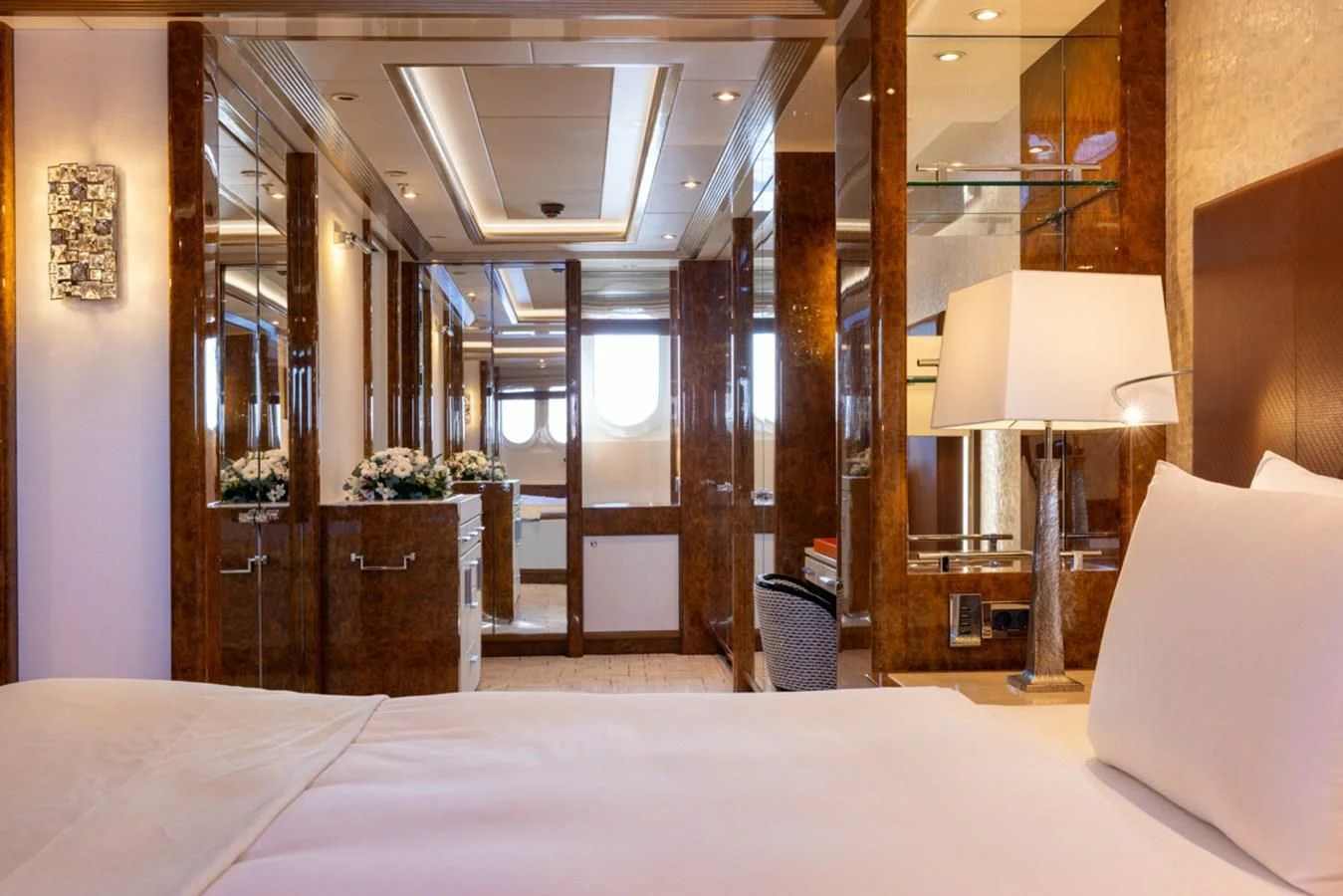

GUESTS: 1 X MASTER CABIN ON MAIN DECK WITH
               PRIVATE PANORAMIC SALOON, STUDY, LOBBY,
               DRESSING ROOM AND A PRIVATE DINING AREA
               OUTSIDE

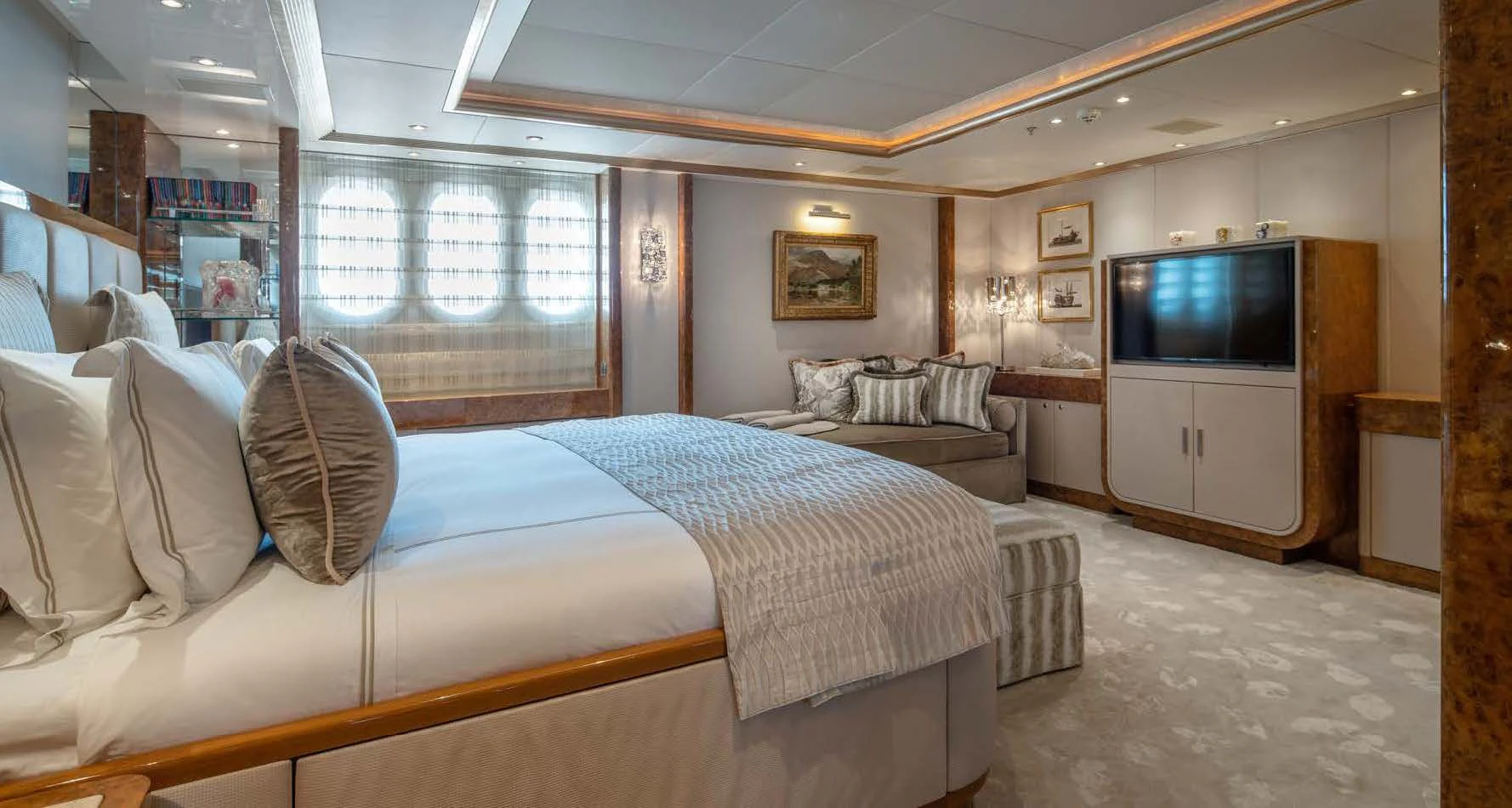

               1 X VIP CABIN ON LOWER DECK
               2 X DOUBLE CABINS ON LOWER DECK

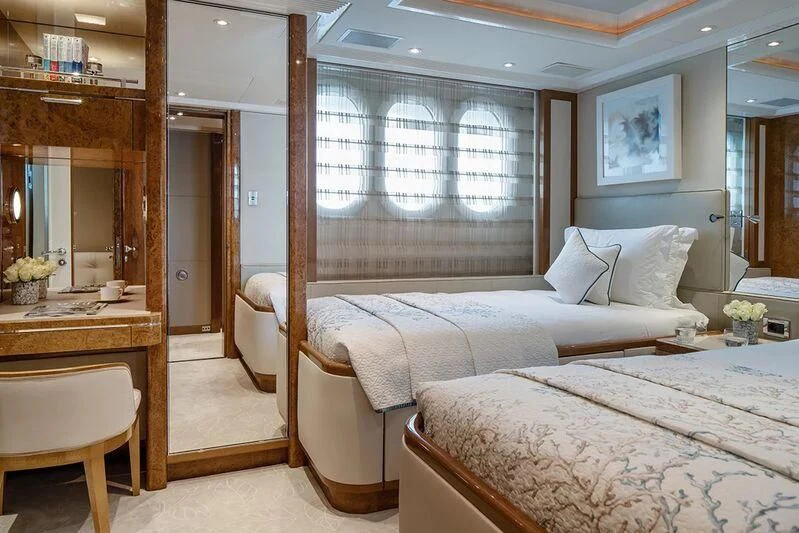

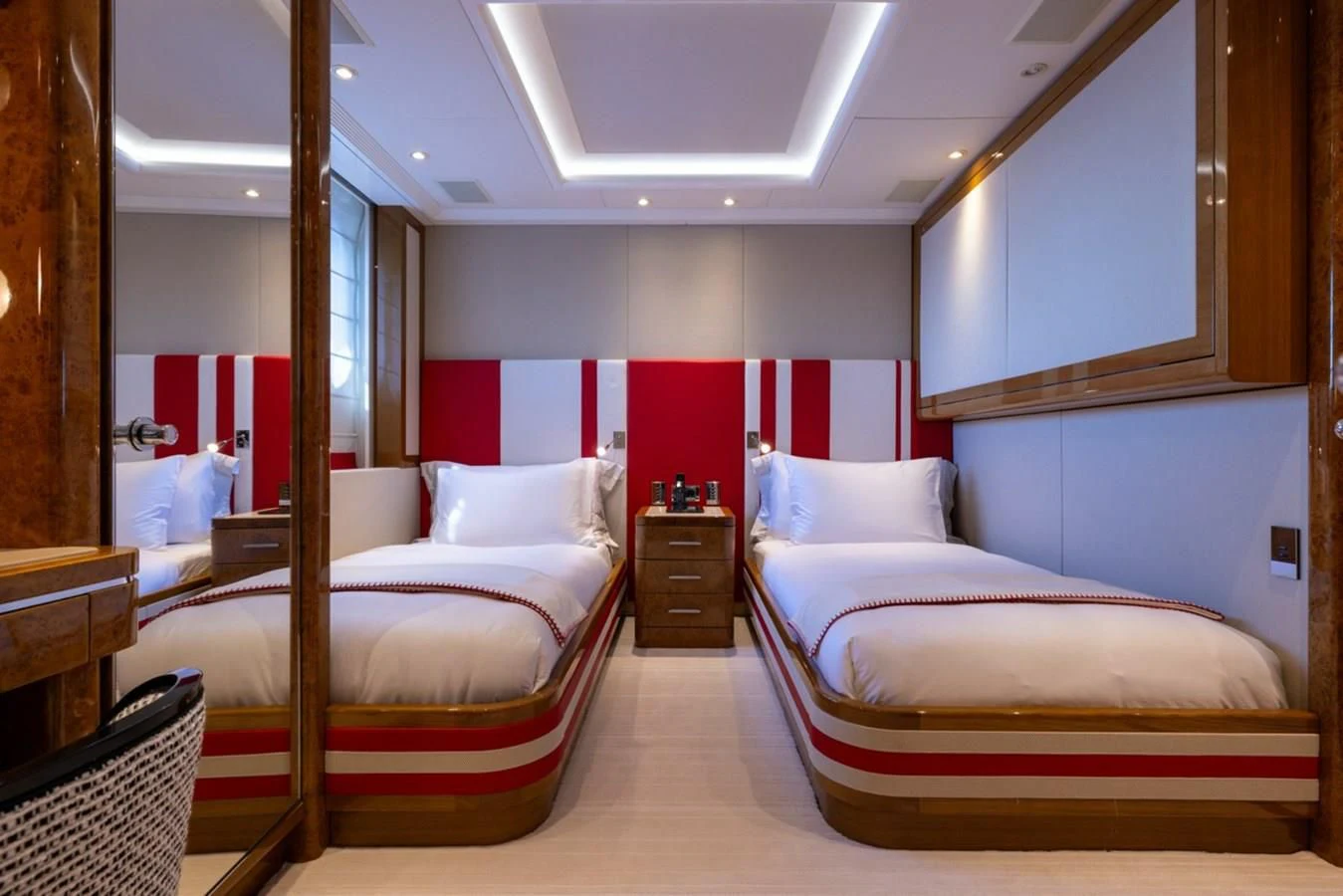

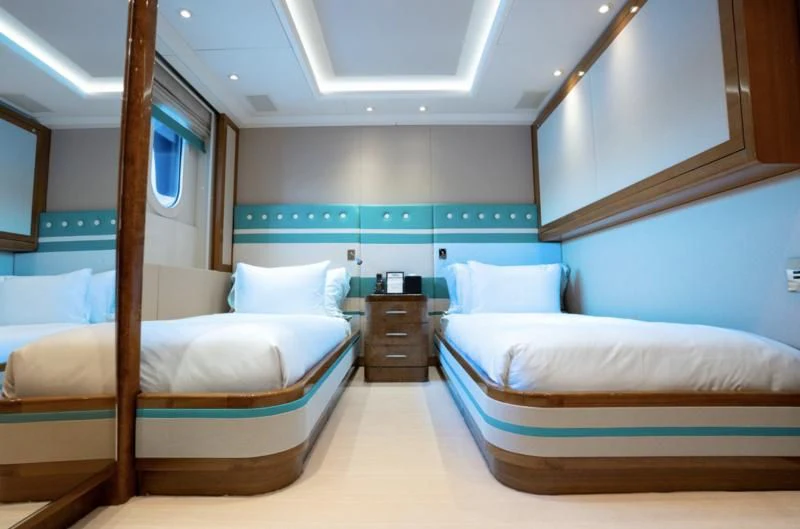

               2 X TWIN CABINS ON LOWER DECK

CREW: 1 X CAPTAIN’S CABIN
            1 X STAFF CABIN
            8 X CREW 2-BUNKER CABINS

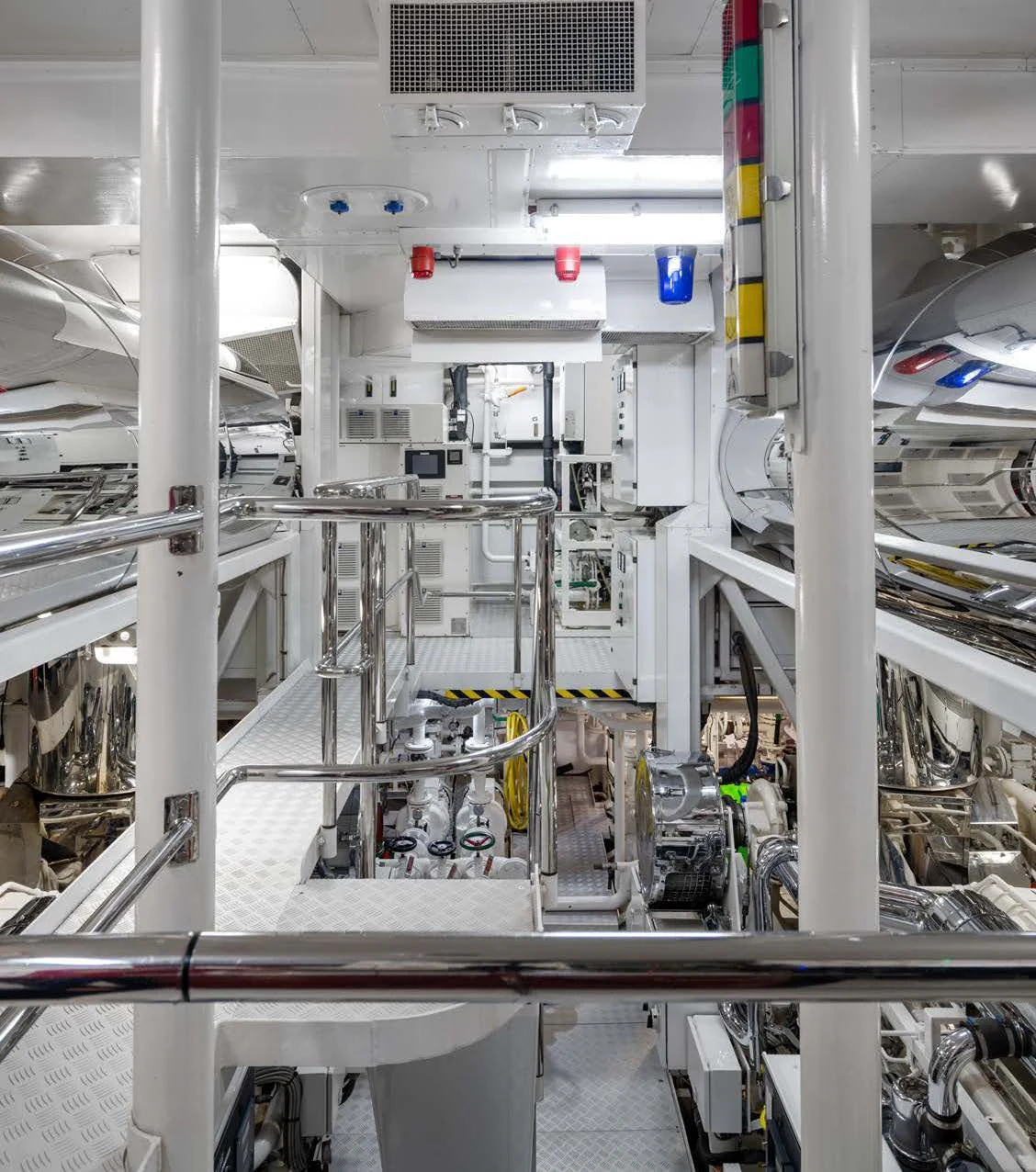

Mechanical Equipment

ENGINES: 2 X CAT 3512B DI-TA 12-CYLINDER
                TURBOCHARGED DIESEL, 1,650 HP AT 1,600 RPM
                MAIN ENGINE HOURS - 16,700hrs (Sept2022)
GEARBOX:  2 X ZF BW 466G REVERSIBLE,
                   REDUCTION RATE 4.063:1
BOWTHRUSTER: HOLLAND ROE PROPELLER
                           HRP 200-60-E 125kW
GENERATORS: 2 X NORTHERN LIGHTS M6125T 155kW
                        1 X NORTHERN LIGHTS M668H 80kW

ELECTRICITY: 400/230V / 3-PHASE / 50 Hz

SHORE POWER:  INPUT: 400 V / 50 Hz / 3 PHASE
                           OUTPUT: 400 V/ 50 Hz / 3 PHASE
BATTERIES: 24v DC MAIN ENGINE STARTING BATTERIES
                   24v DC FOR EMERGENCY LIGHTING /
                   CONTROLS / ALARM MONITORING

STABILIZERS: 2 X KOOPNAUTIC SEA ROCQ 4080 WITH ROLL
                     SUPPRESSION AT ANCHOR

WATER MAKER: 2 X HEM EACH 15,000 LITRES / 3,960 US GALLONS PER DAY

BOILERS: 2 X Nibe 500 LITRES / 133 U.S. Gallons HOT
               WATER CALORIFIERS

SEWAGE SYSTEM:  1 X EVAC/HAMANN CHEMICAL SEWAGE
                               TREATMENT PLAN

FUEL SEPARATOR: 1 X ALFA LAVAL MMPX 303 SGP CENTRIFUGE

AIR CONDITIONING: HEINEN & HOPMAN CHILLED WATER FAN COIL
                                  SYSTEM WITH INDIVIDUAL CONTROLS

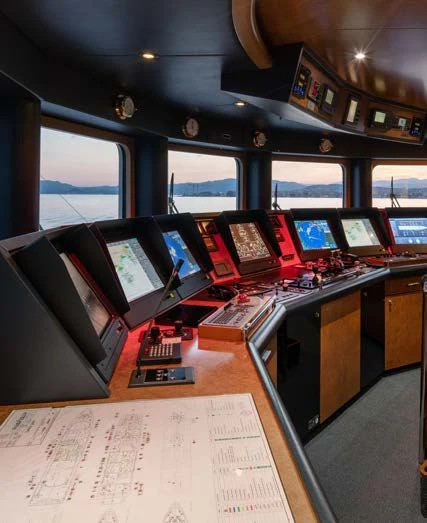

Navigation Equipment

MAGNETIC COMPASS: 1 X CASSENS & PLATH

GYRO COMPASS: 2 X SPERRY MARINE NAVIGAT X MK1 DIGITAL
                            GYROCOMPASS

AUTOMATIC PILOT: 1 X CPLATH NAVIPILOT V

ECHO SOUNDER: FURUNO FE800

RADAR: 2X KH NUCLEUS 5000 2 ATA1/7/U 72NM
              RADARS

AIS: 1 X FURUNO CLASS A AIS
       (U-AIS TRANSPONDER) FA 170

GPS: 2 X LEICA MX420
        1 X SIMRAD MX521 DGPS SENSOR

NAVIGATION INSTRUMENTS: FURUNO FE-700 ECHOSOUNDER
                                                CPLATH RUDDER ANGLE INDICATOR AND
                                                FEEDBACK SYSTEM
                                                WALKER LOG AND WIND INSTRUMENTS
                                                JRC NCR-333 NAVTEX RECEIVER
CCTV: SECURITY SYSTEM ON OUTSIDE DECKS,
           LAZARETTE, TENDER BAYS, ENGINE ROOM
           WITH 10 X CAMERAS

Communication Equipment

SATCO: 2 X INMARSAT B NERA SATURN B
             2 X SKANTI SCAN INMARSAT MINI M/C
             TRANSCEIVER
             GMDSS DUAL MODE SYSTEMS

TELEPHONE SYSTEM: PNASONIK KXTD 1232

VHF: 3 X SAILOR W/GMDSS
         SAILOR MF/HF RADIO

CELLULAR PHONE SYSTEM: NOKIA PREMICELL GSM W/PBX INTERFACE

Deck Equipment

ANCHOR WINDLASS SYSTEM: 2 X ASCON VERTICAL
AFT WARPING CAPSTANS: 2 X ASCON ELECTRICALLY DRIVEN
                                           W/DUAL ROTATION

ANCHORS: 2 X 585KG POOLE TYPE BOW ANCHORS

ANCHOR CHAINS: 2 X 9 SHACKLES X 22MM CHAINS

BOAT CRANE AND DAVITS: FIXED LENGTH BOOM JET SKI CRANE
                                           (500KG) IN LAZARETTE
PASSERELLE: HYDRAULIC RETRACTABLE 5.2M
                     MEDITERRANEAN PASSERELLE ON
                     STARBOARD SIDE WITH 90 DEGREE
                     SLEWING CAPABILITY

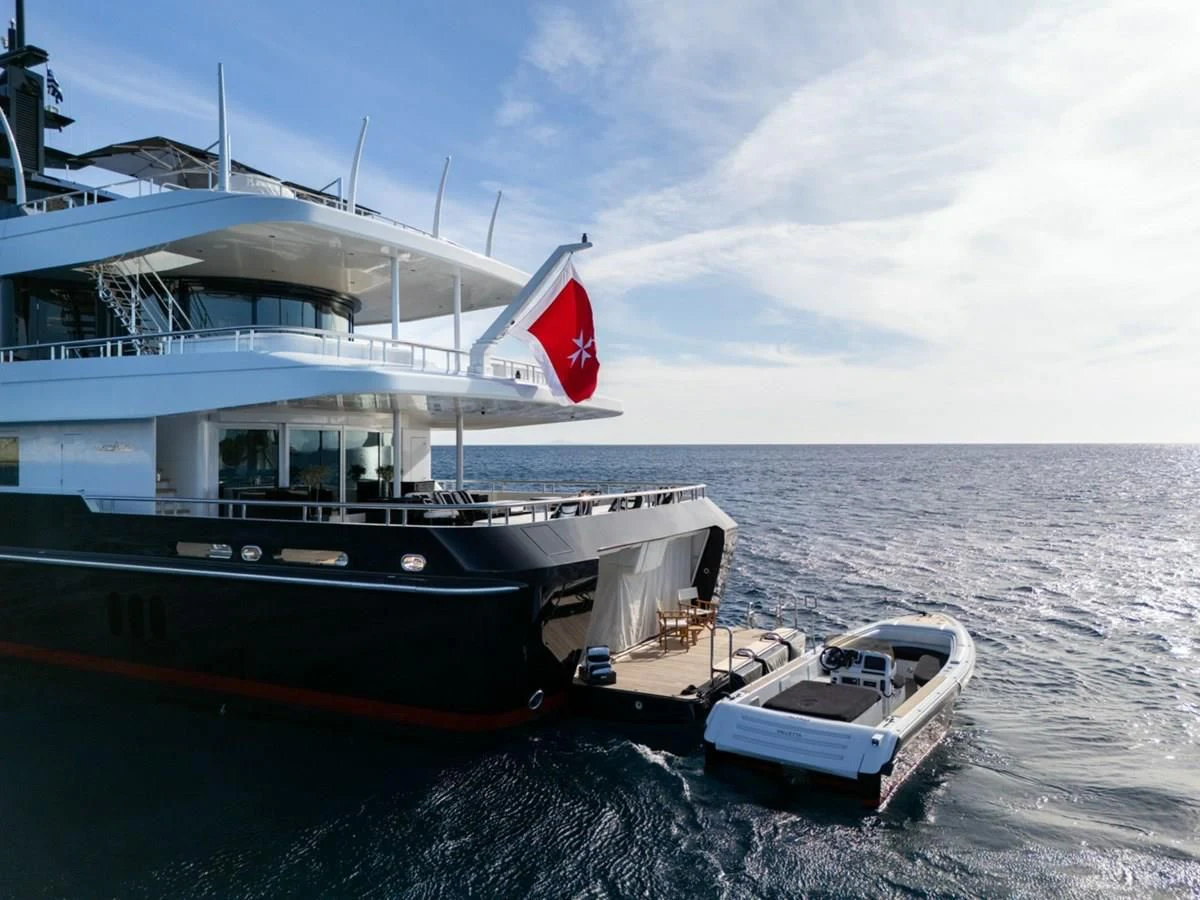

SWIMMING PLATFORM: HYDRAULICALLY FOLDING DOWN STERN
                                        SWIMMING PLATFORM ACCESSED
                                        VIA LAZARETTE
SHOWERS: 1 X ON SUN DECK
                  1 X LAZARETTE

BARBECUE: 1 X ON SUN DECK

Tenders & Watersports

TENDERS: 1 X PASCOE 6.2M (SOLAS)
                 APPROVED RESCUE BOAT, 164 HP RIB
                 1 X SPECIAL CRAFT VIP TENDER 7.7M
WATER SPORT: 2 X KAYAKS
                         2 X SEA THROUGH KAYAKS
                         4 X PADDLEBOARDS

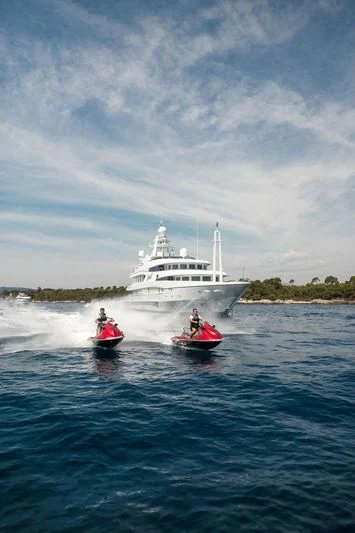

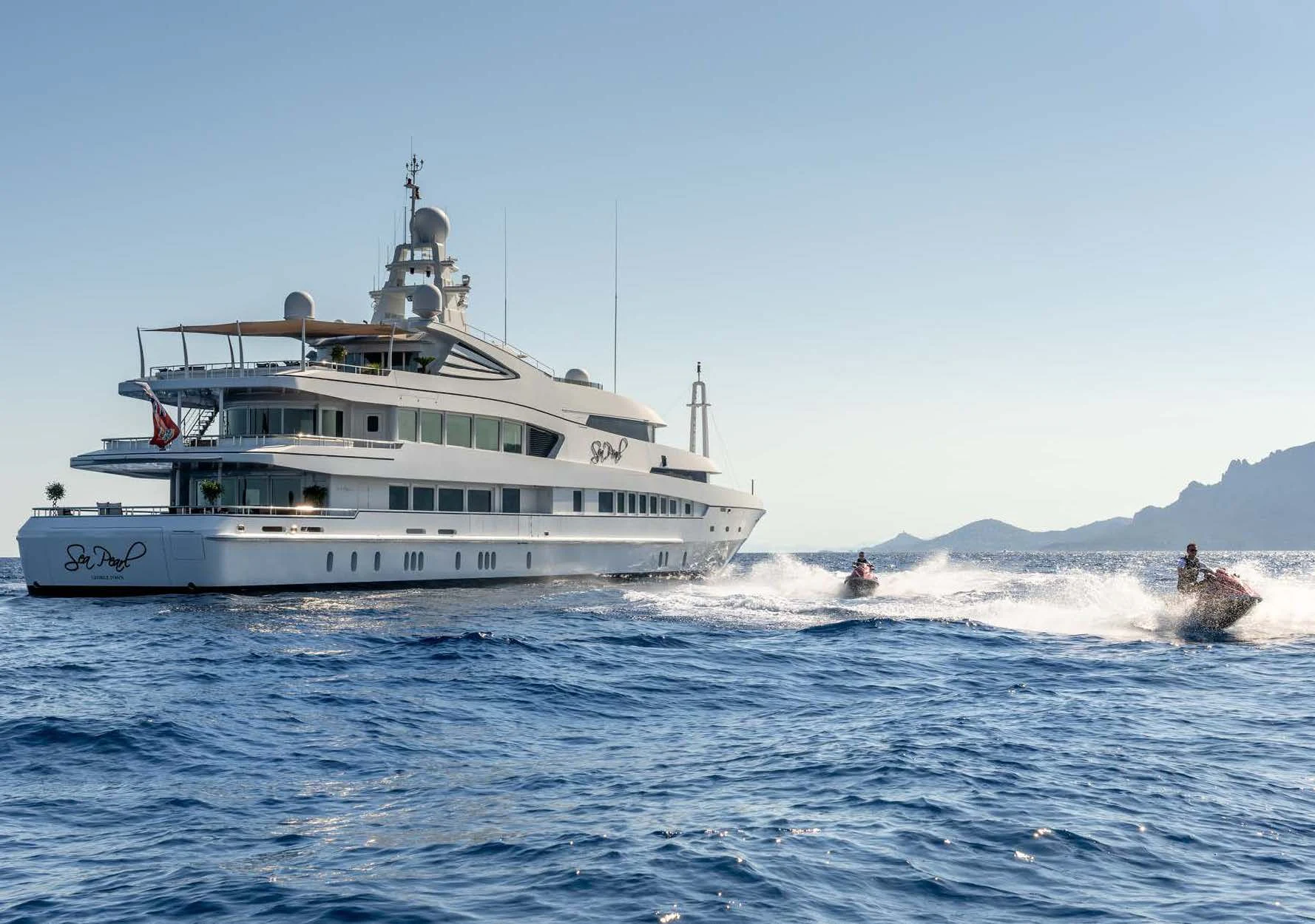

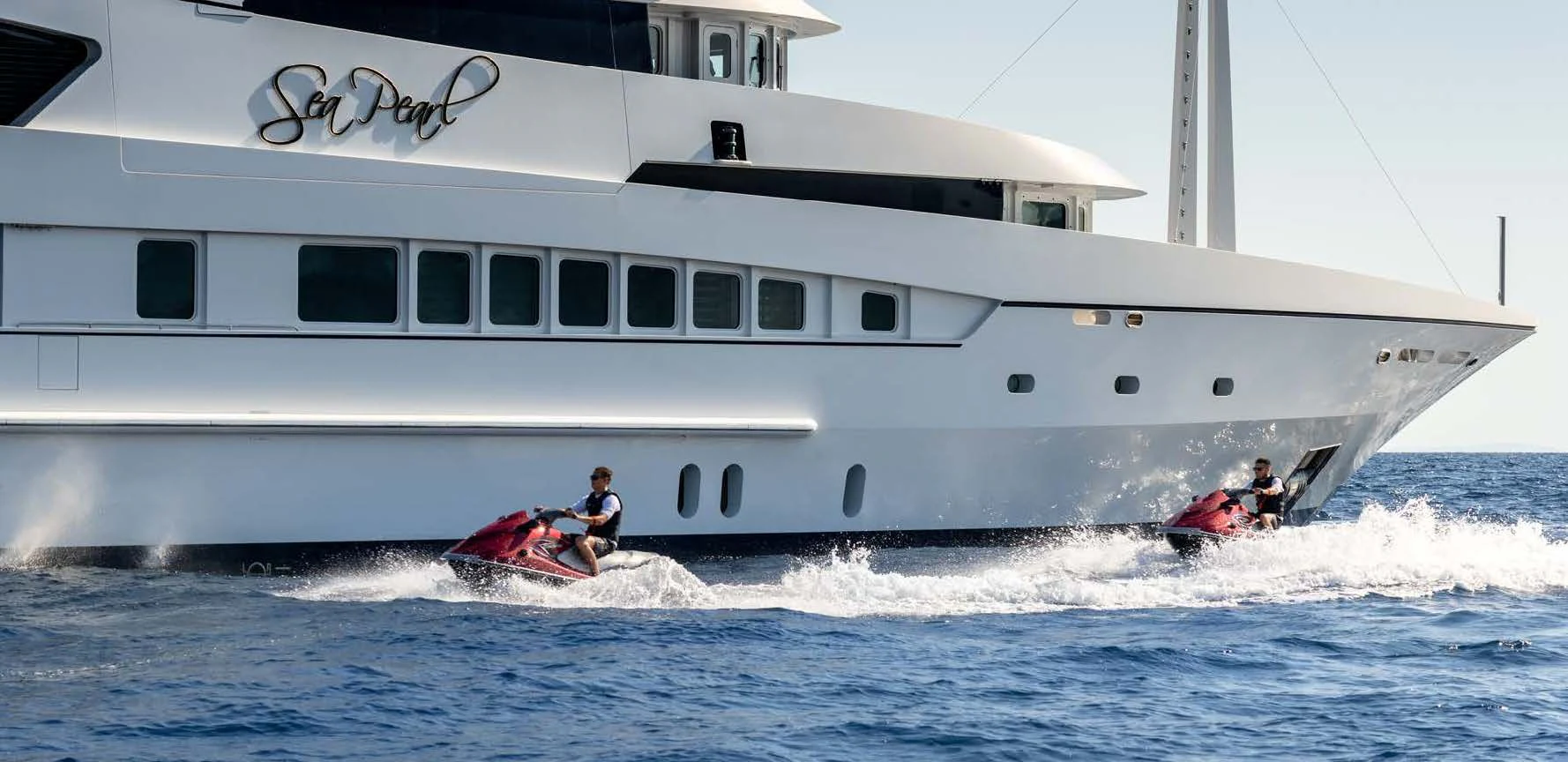

                         2 X YAMAHA WAVERUNNERS
                         3 X WAKEBOARDS
                         2 X IAQUA WATER SCOOTERS
                         2 X SEAWINGS
