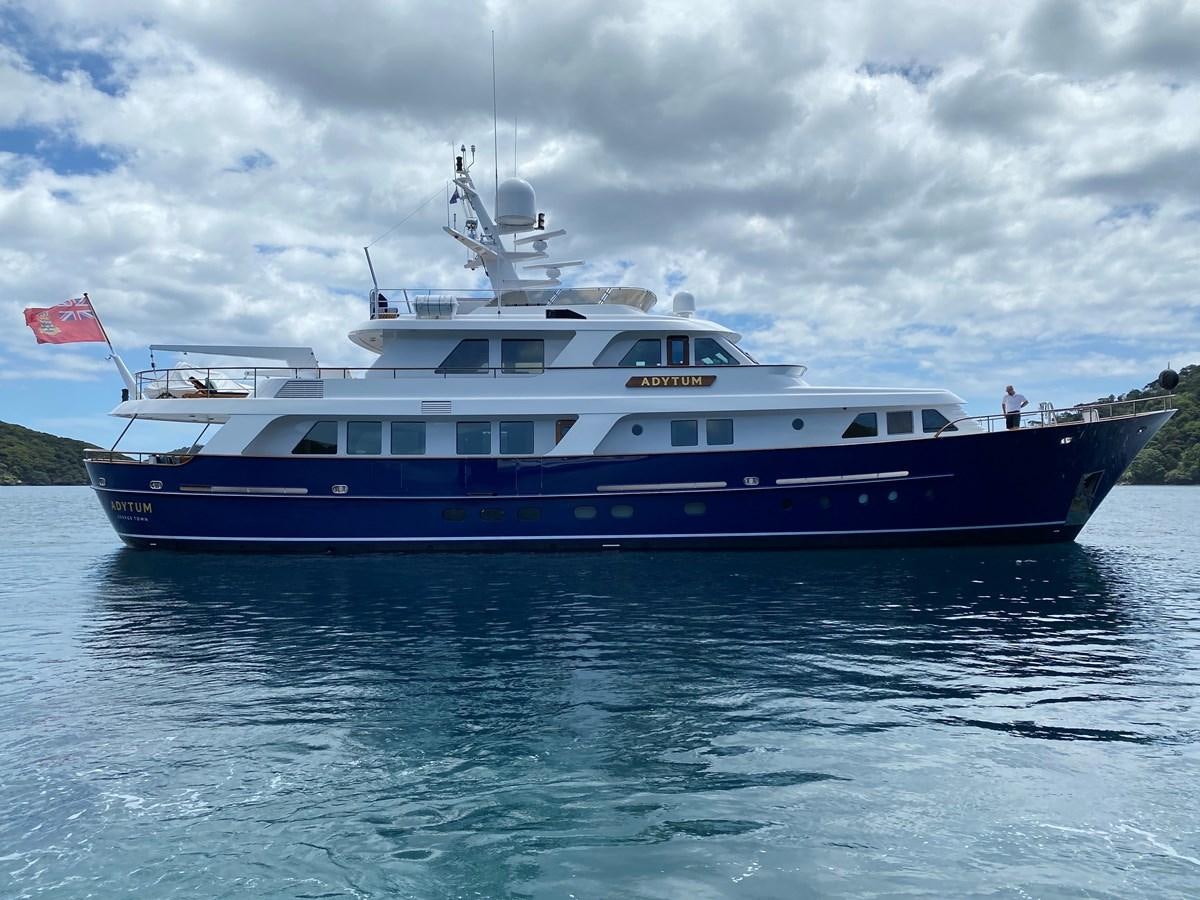

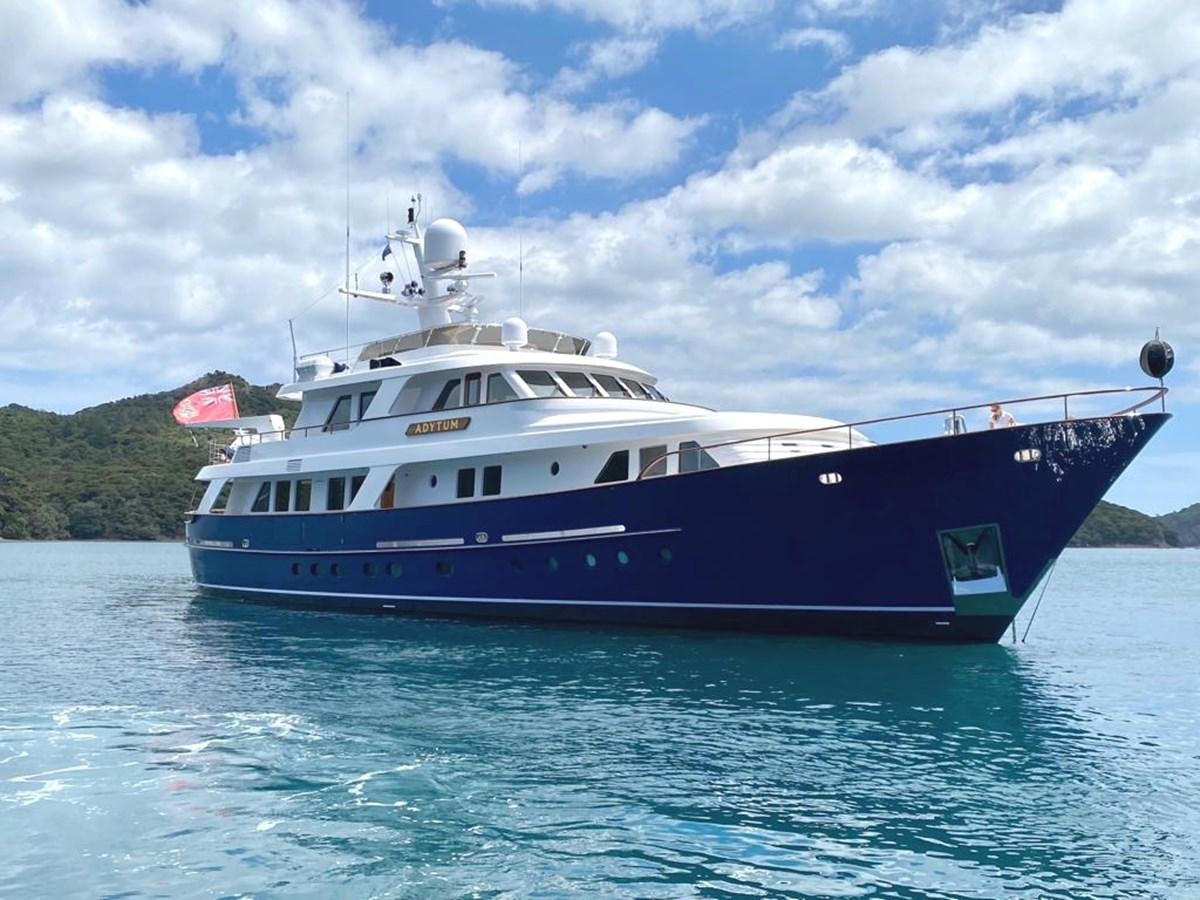

ADYTUM Yacht for Sale

Length
110' (33.7m)
Builder
HAKVOORT
Build
2002
Cabins
4
Crew
6

Yacht is no longer available for sale.
This is an archived web page showing historic information for reference purposes only. Search Yachts for Sale.

ADYTUM in the News

Specifications

Builder HAKVOORT
Length (LOA) 110' (33.7m)
Year 2002
Gross Tonn. 271
Draft 9' (2.6m)
Beam 26' (8.2m)
Range 5,000 NM
Location New Zealand

Accommodations

Staterooms 4
Crew Cabins 6
Crew Sleeps 6

Dimensions & Capacity

LOA 110' (33.7m)
Max Draft 9' (2.6m)
Fuel Tank 15,586 g (59,000 L)
Fresh Water 2,378 g (9,000 L)
Holding Tank 755 g (2,857 L)
Gross Tonn. 271
Displacement 235

Construction

Hull Material Steel
Ext. Designer De Vries Lentsch
Int. Designer Ken Freivokh Design
Cruising Speed 10 Knots
Range 5,000 NM
Have Questions?

Complete the form below and one of our experienced sales brokers will be in touch soon.

Full Details

Other Machinery

  • Lubrication oil:   660
  • Dirty lube oil:  660
  • Emergency Steering: Tenfjord
  • Drive: Direct Drive
  • Watermaker(s): HEM model # series 30
  • Fuel Separator: Alpha Laval model # MIB 303
  • Filtration: Carbon, UV
  • Sewage System: Hammond model ABM 25
  • Fresh Water System: Headhunter model Mach 5 x2
  • Bilge Water System: Bilge Boy
  • Helm Control: Rexroth
  • Main Engines Batteries: Sonneschien, model # GS12 160D (196 amp hours x 4, 784 amp hrs total)
  • Generator Starting Batteries: Sonneschien model # GS12 160D (196 amp hours x 4, 784 amp hrs total)


Accommodation

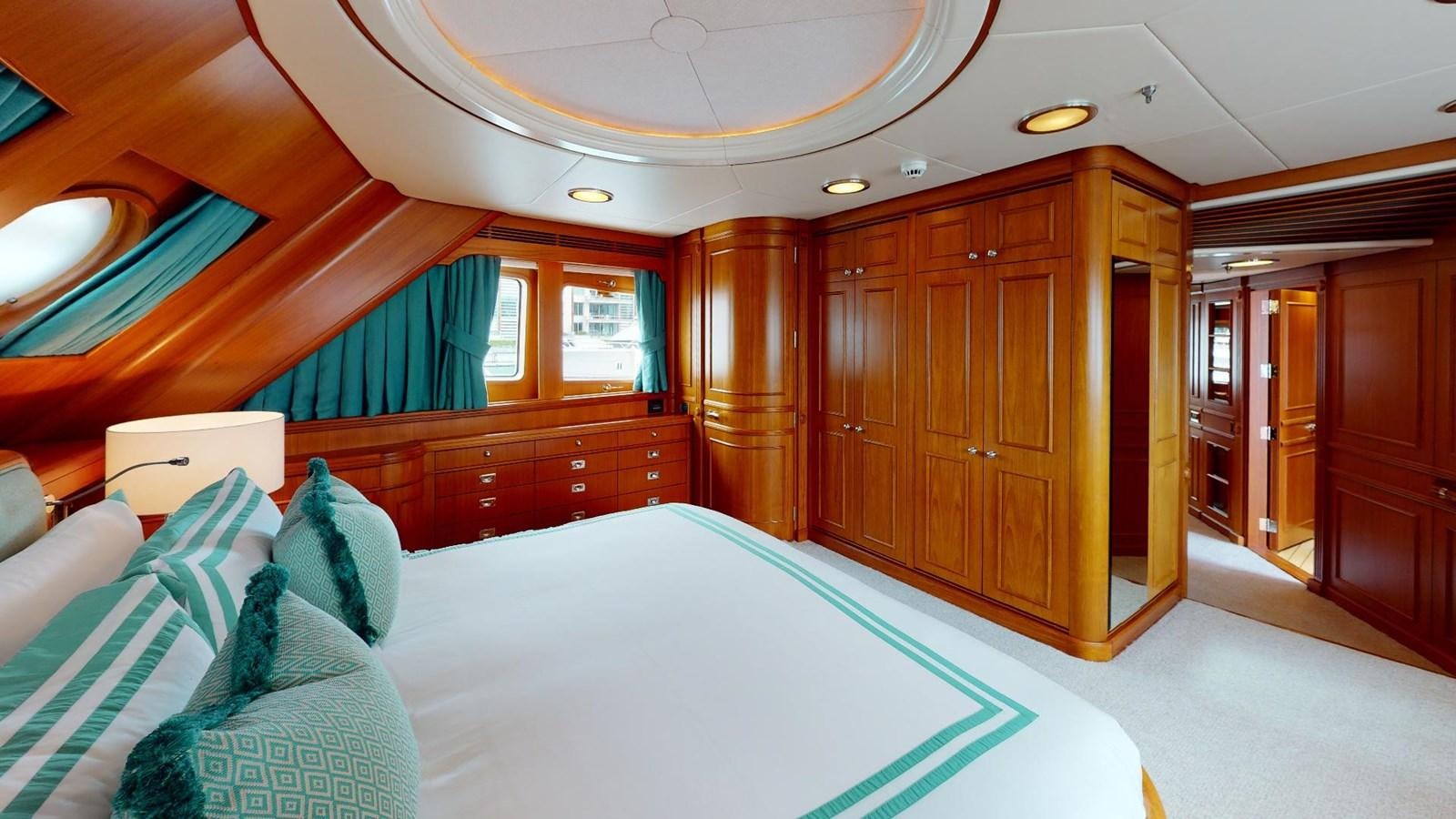

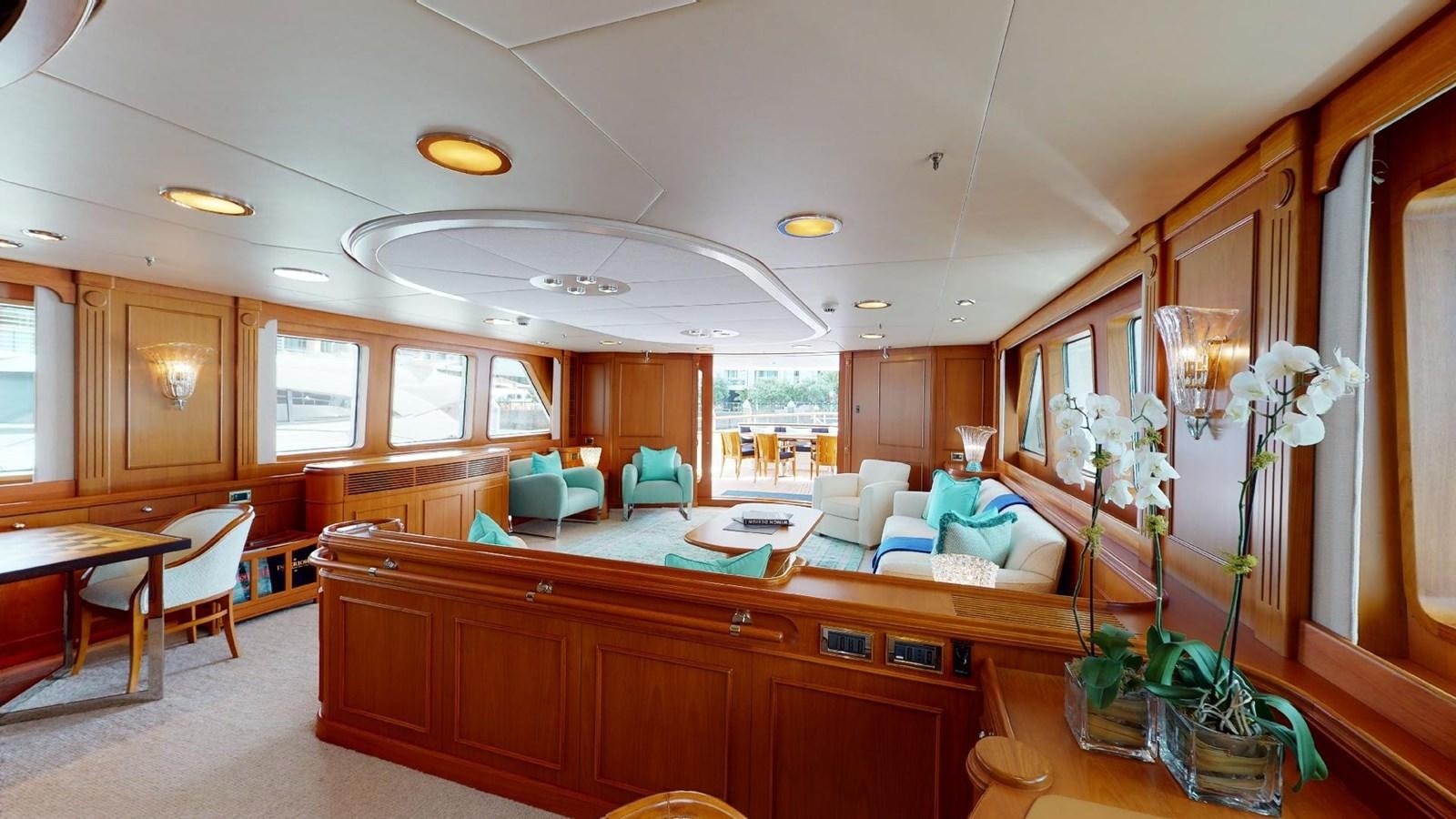

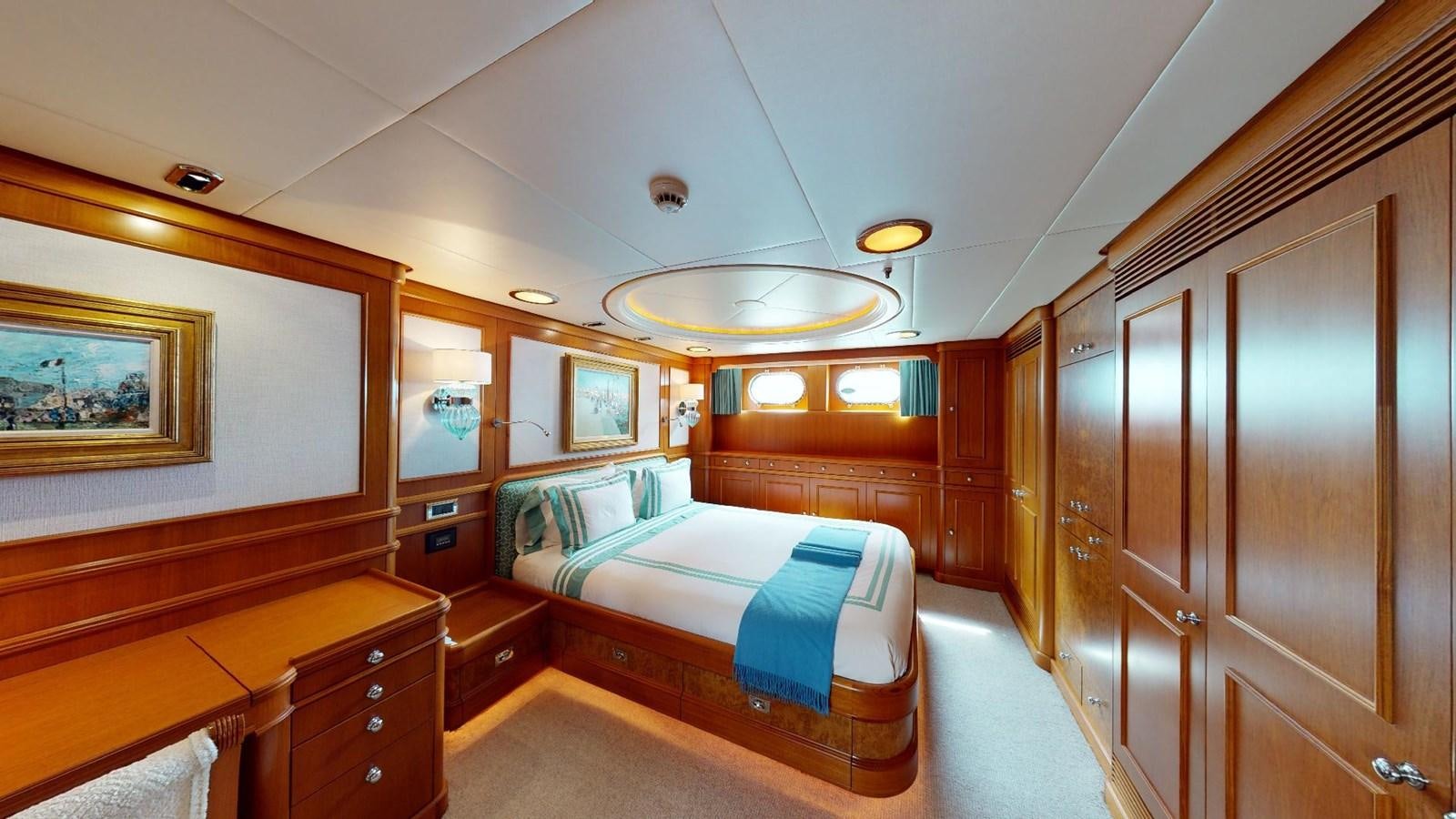

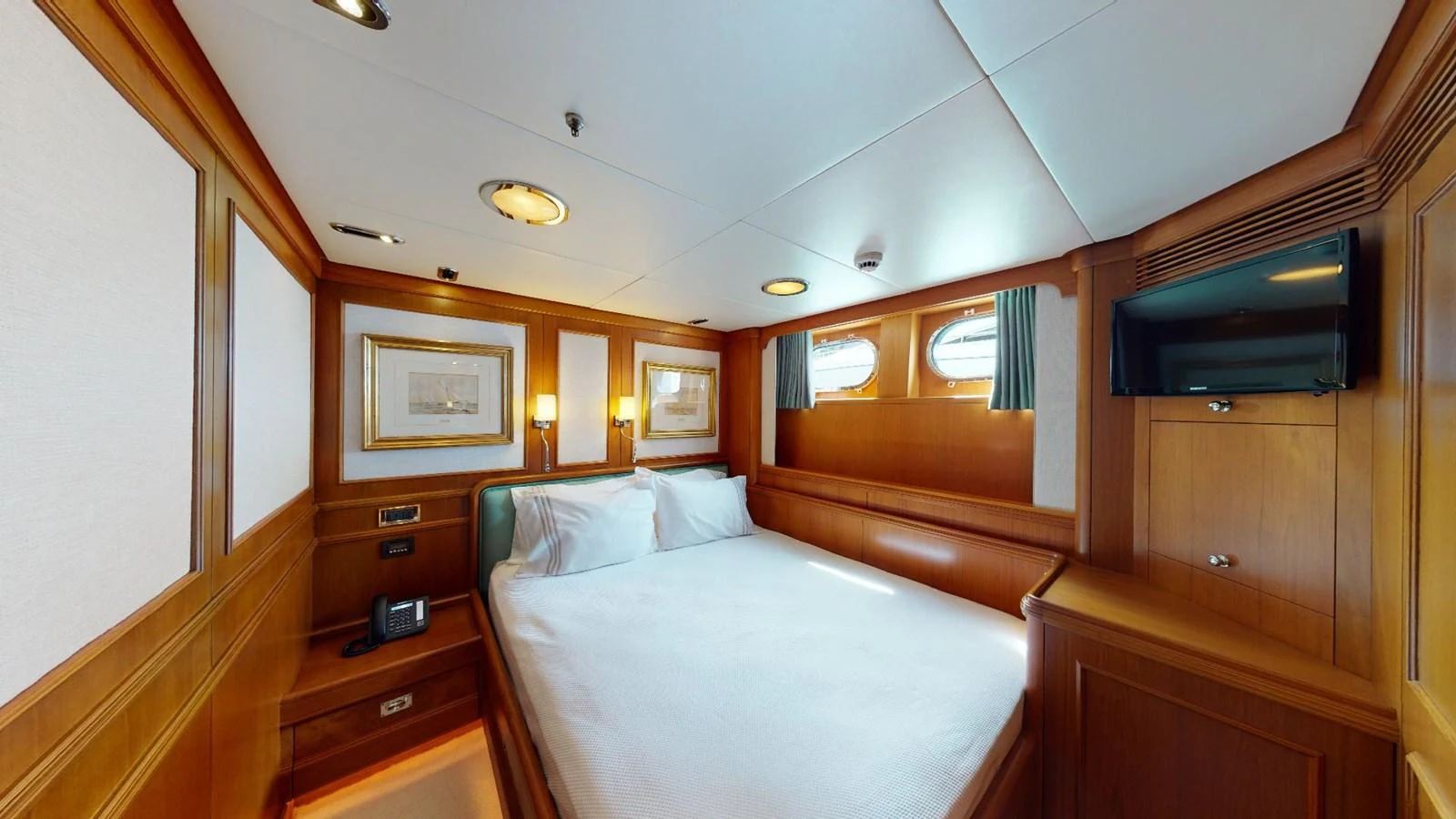

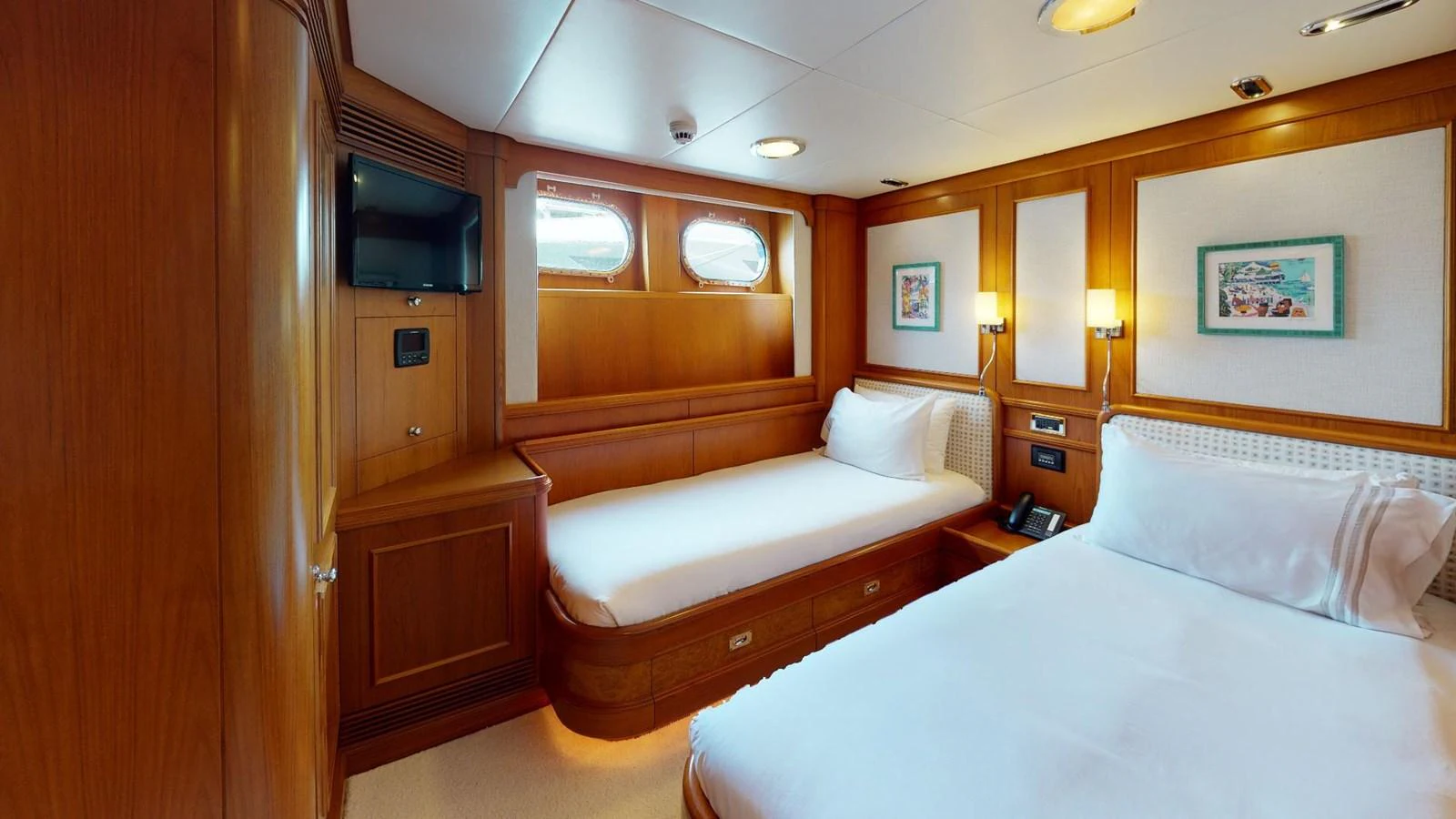

  • This vessel has a large master stateroom forward on main deck with ensuite bathroom and adjoining private office. The main deck saloon has curved sliding doors and can be separated from lobby and entrance to galley and master.Below deck she features a full beam VIP stateroom aft with a large king bed and ensuite bathroom, further forward she has a newly modified king bed stateroom to starboard and a twin bed cabin to port, both with ensuite bathrooms.

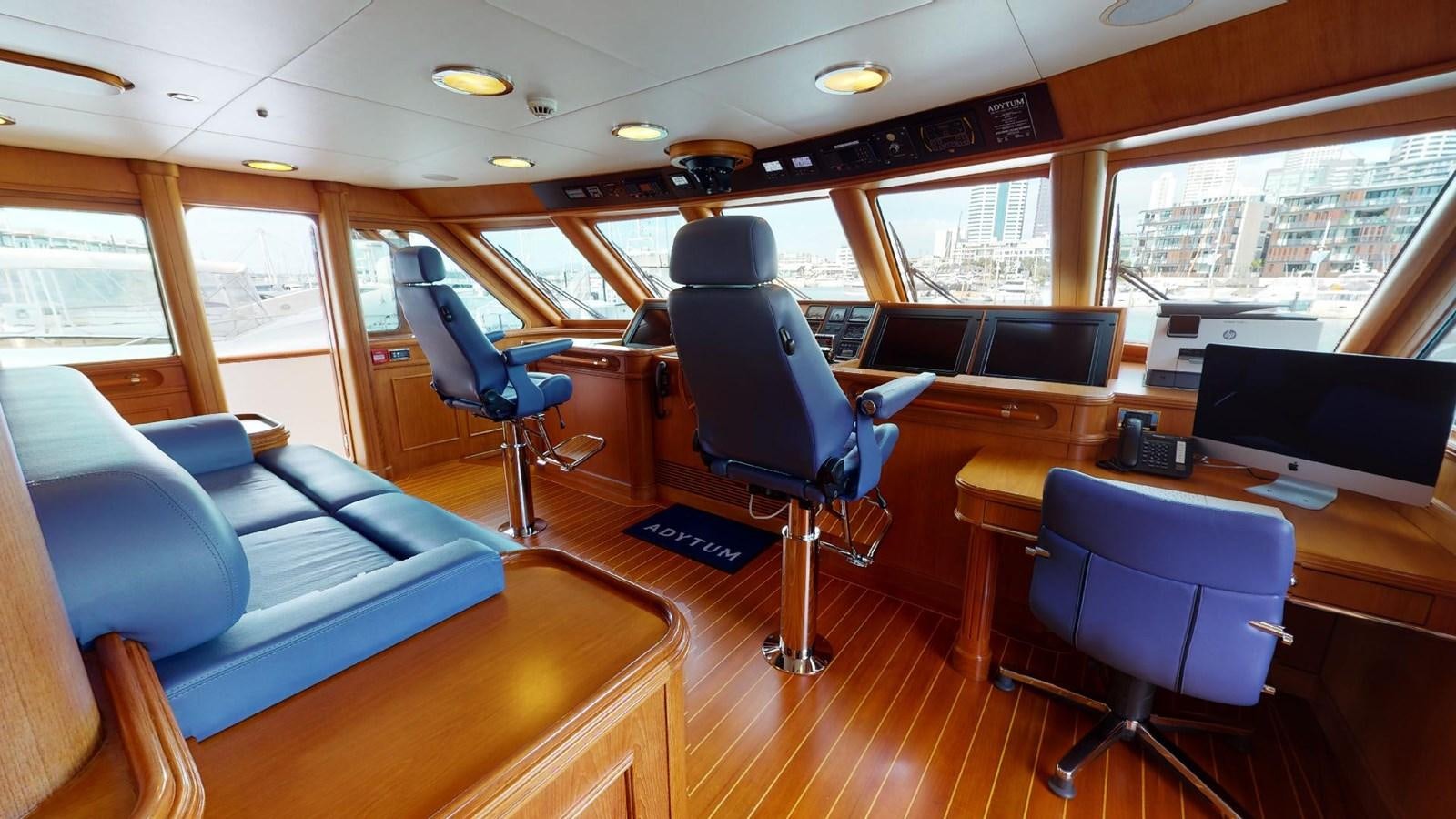

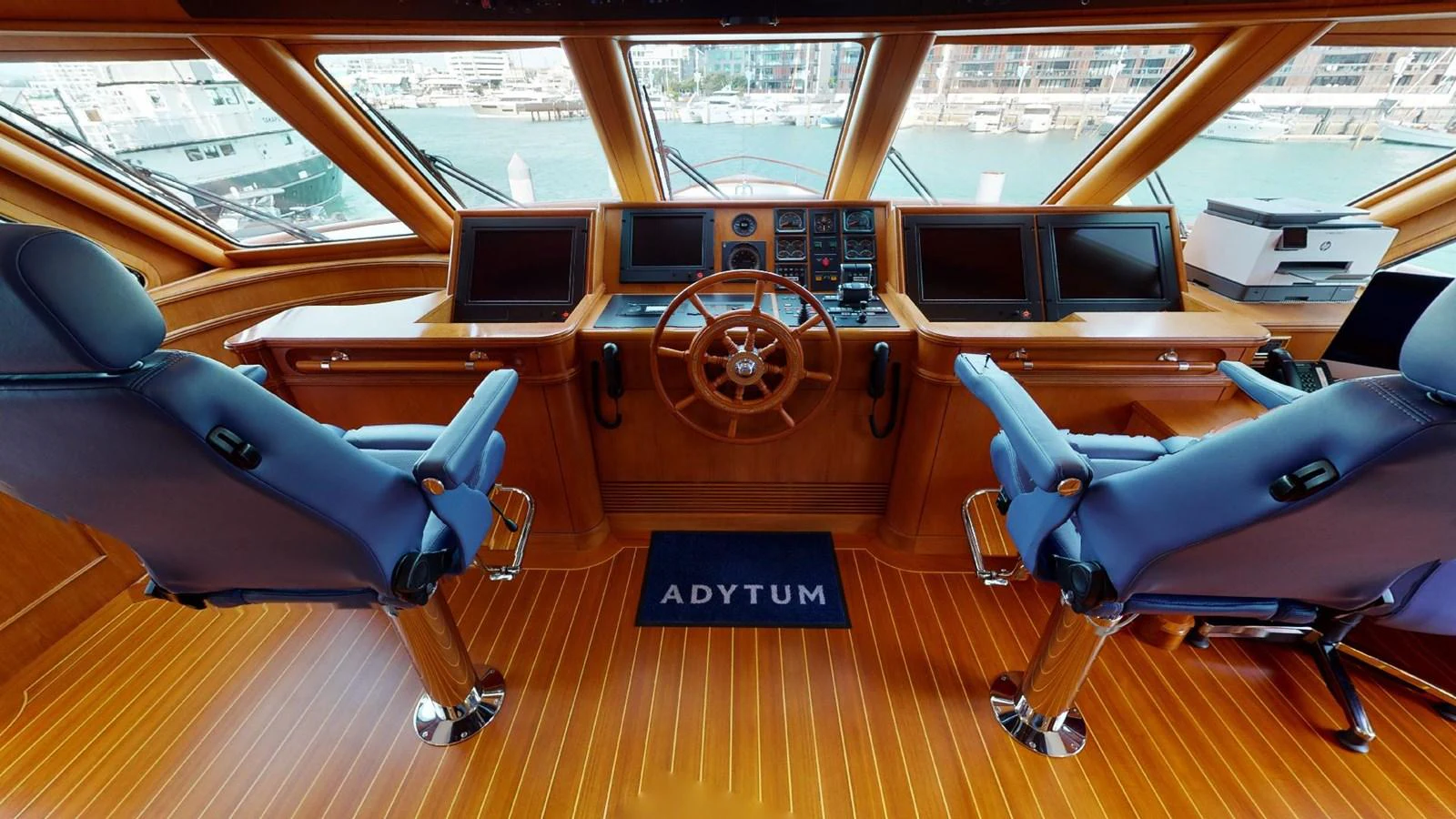

  • The bridge deck has a large skylounge with a dining table that seats 8 pax on starboard side and a bar with three barstools to port. Easy access to aft bridge deck or forward to the wheelhouse.

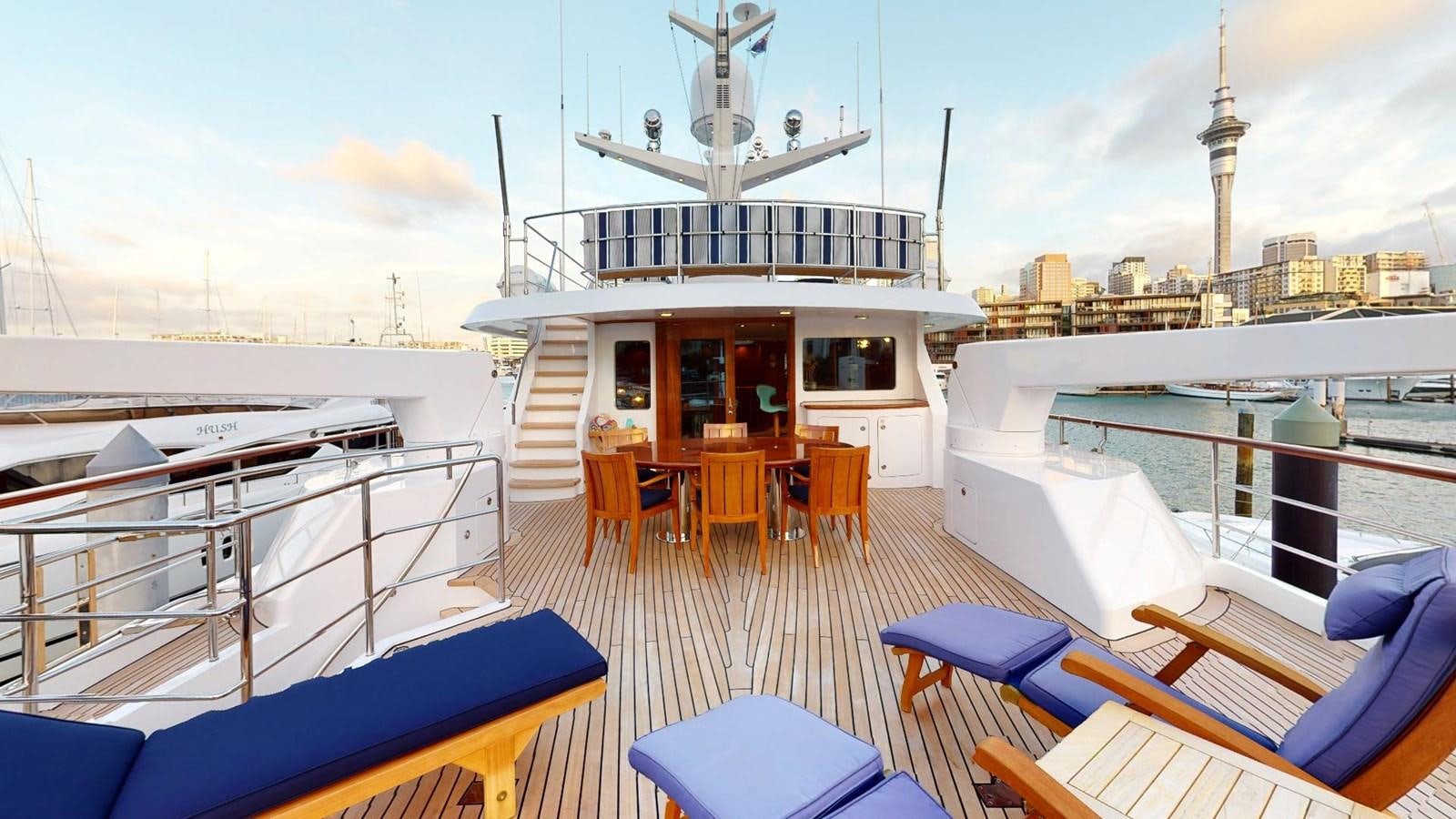

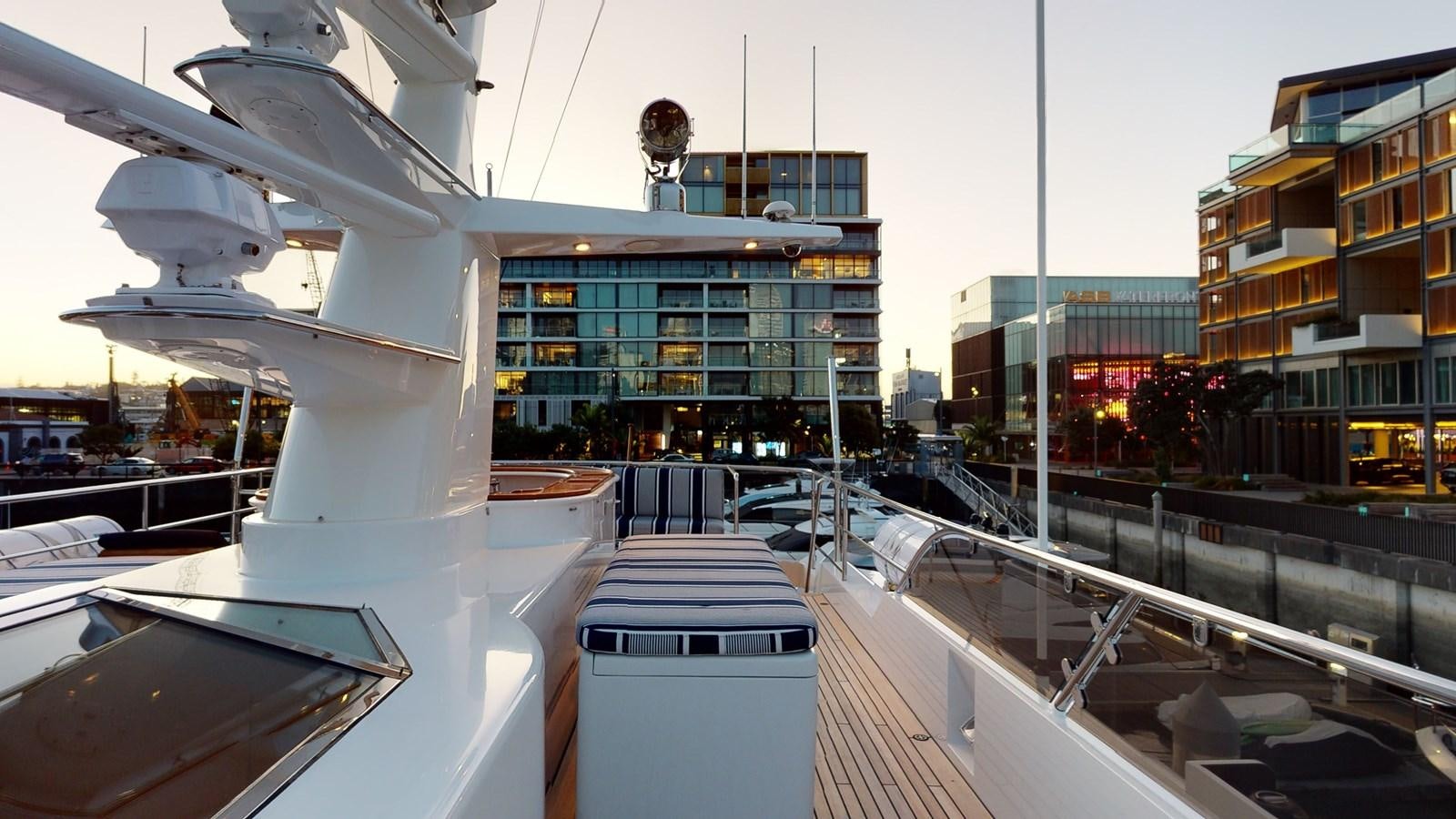

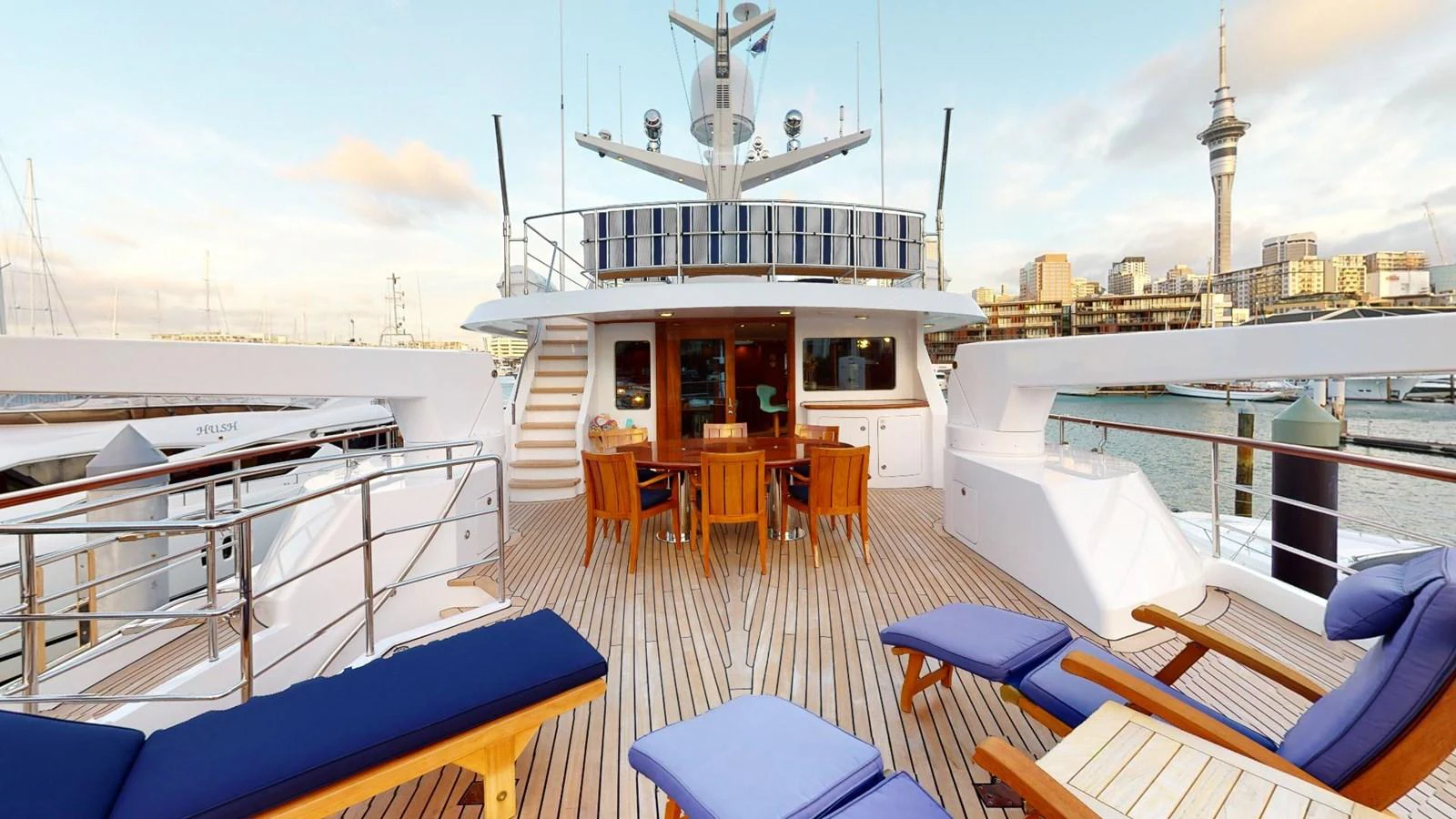

  • There are ample outside living spaces with a seating/dining area on aft deck and a round table for dining or entertainment on bridge deck aft plus comfortable sun deck above.

Galley & Laundry Equipment

  • Range: Miele cook top 5 burners/induction, New Oct 2021
  • Oven: Gaggenau
  • Microwave: Galley – Samsung.  Crew mess: Moulinex
  • Refrigeration: Cospolich model # R182MSMLML12 (in galley)
  • Freezer: SubZero 30CI (in galley)
  • Icemaker(s): ULine in skylounge
  • Small Fridge: SubZero ICBID30RP
  • Fridge/Freezer Plant: Custom with Bitzer compressors (in crew mess)
  • Main Laundry Washer: Miele stackable pw 6065 x 2
  • Main Laundry Dryer: Miele stackable pt7/35c x 2

Communication Equipment

  • Sat-phone: KVH Fleet One
  • SatCom(s): Sailor VSAT
  • Satellite TV System:  KVH T6 (NZ & World), In storage: KVH HD7 (US east & WI)
  • Satcom C: IC-218 (New 2022)
  • Telephone System: Panasonic model # KXDT521
  • Cellular WIFI: Pep Wave - Pepmax HD2 dome All new internet Access points (Ubiquiti Network long range x 8), Feb 2022
  • SSB: Sailorman
  • VHF Fixed:  Sailorman
  • Intercom System:  Amplidan Commander 1500
  • Ships Computer: LG - Beelink
  • Ships Printer: HP Jet Pro 9022

Navigation Equipment

  • Radar #1: Furuno S Band model # FR2105/ 2015/B series with ARPA
  • Radar #2: Furuno x band 12 kw with ARPA
  • Autopilot: Pilotstar D
  • GPS #1: Furuno GP33 (Firmware updated Feb 2022)
  • GPS #2: Furuno GP33 (Firmware updated Feb 2022)
  • Plotter Software: TimeZero Nobeltec (Charts updated Jan 2022, incl.US, WI,Med)
  • Gyrocompass: Anschutz (serviced Jan 2022)
  • Depth Sounder: Blackbox Furuno DFF1
  • Magnetic Compass: C. Plath model # 2843
  • Navtex: Furuno model # NX700
  • Weather Fax: Sailor model # DT 4646E/Printer: Sailor model # H1252B
  • Wind Indicator: B&G
  • Speed Indicator: B&G
  • Speed Log: BEN Anthea, transducer replaced 2020

Entertainment Equipment

TV main deck saloon:

  • 1 x Samsung 8K 75”, new Dec 2021
  • New ultra-quiet custom TV lift in main saloon, new Dec 2021
  • 2 x Yamaha 9-channel AVENTAGE network receiver amplifiers, new Dec 2021

TV skylounge:

  • 1 x Samsung 8K 55”, new Dec 2021

TV Lower deck:

  • 3 x Samsung 24” with Denon Processor amplifiers
  • Kaleidoscope movie server for main saloon and skylounge, new Dec 2021
  • Middle Atlantic custom AV racks x 2, new Dec 2021
  • Apple TV x 2

DVD’s:

  • Sony BlueRay BOP – S1700

Tenders & Toys

  • 2017 Novurania 15’ with 2017 Yamaha F60LB 4-stroke

Note: Subject to change and/or negotiation during the buying process.

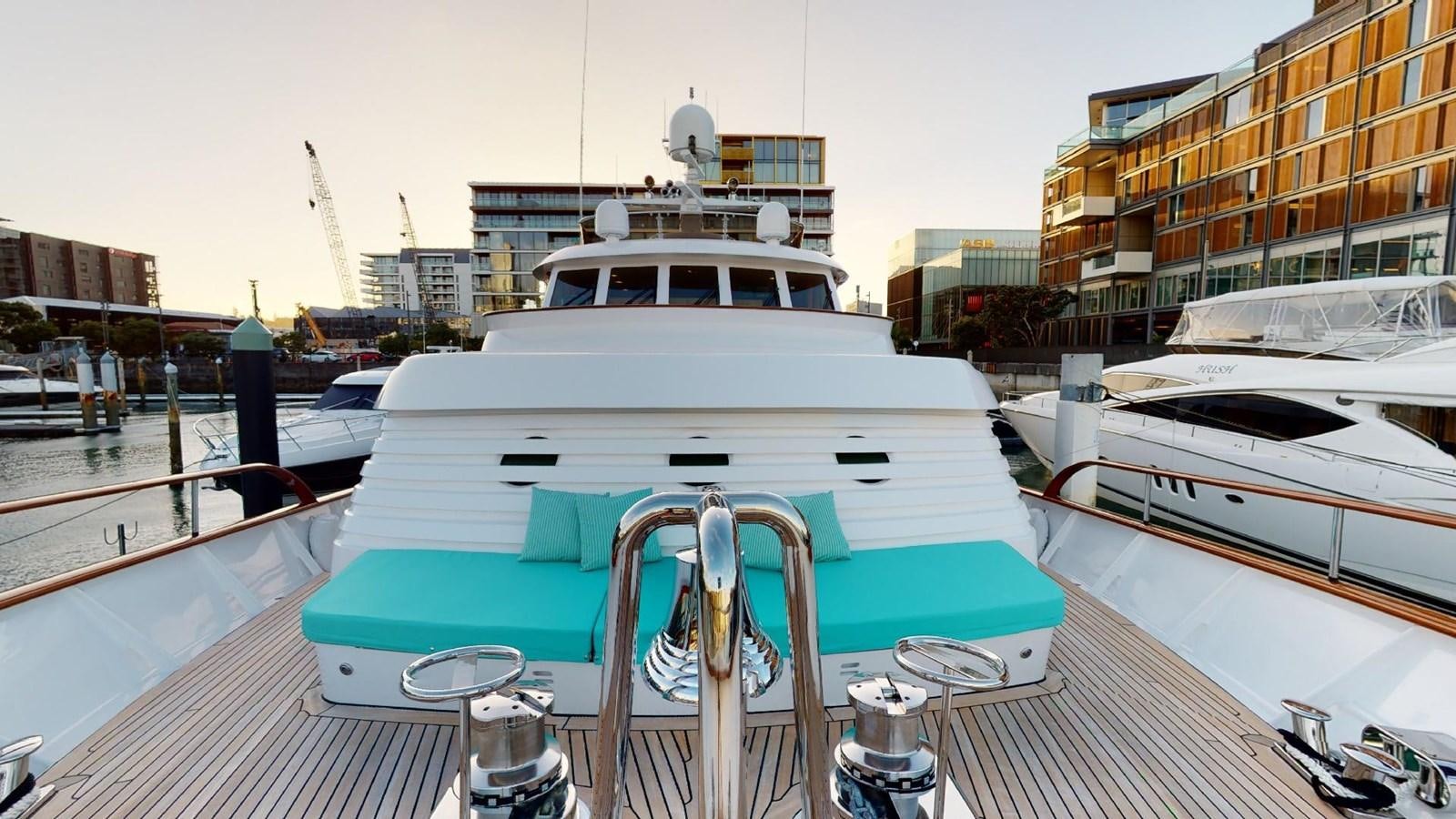

Deck Equipment

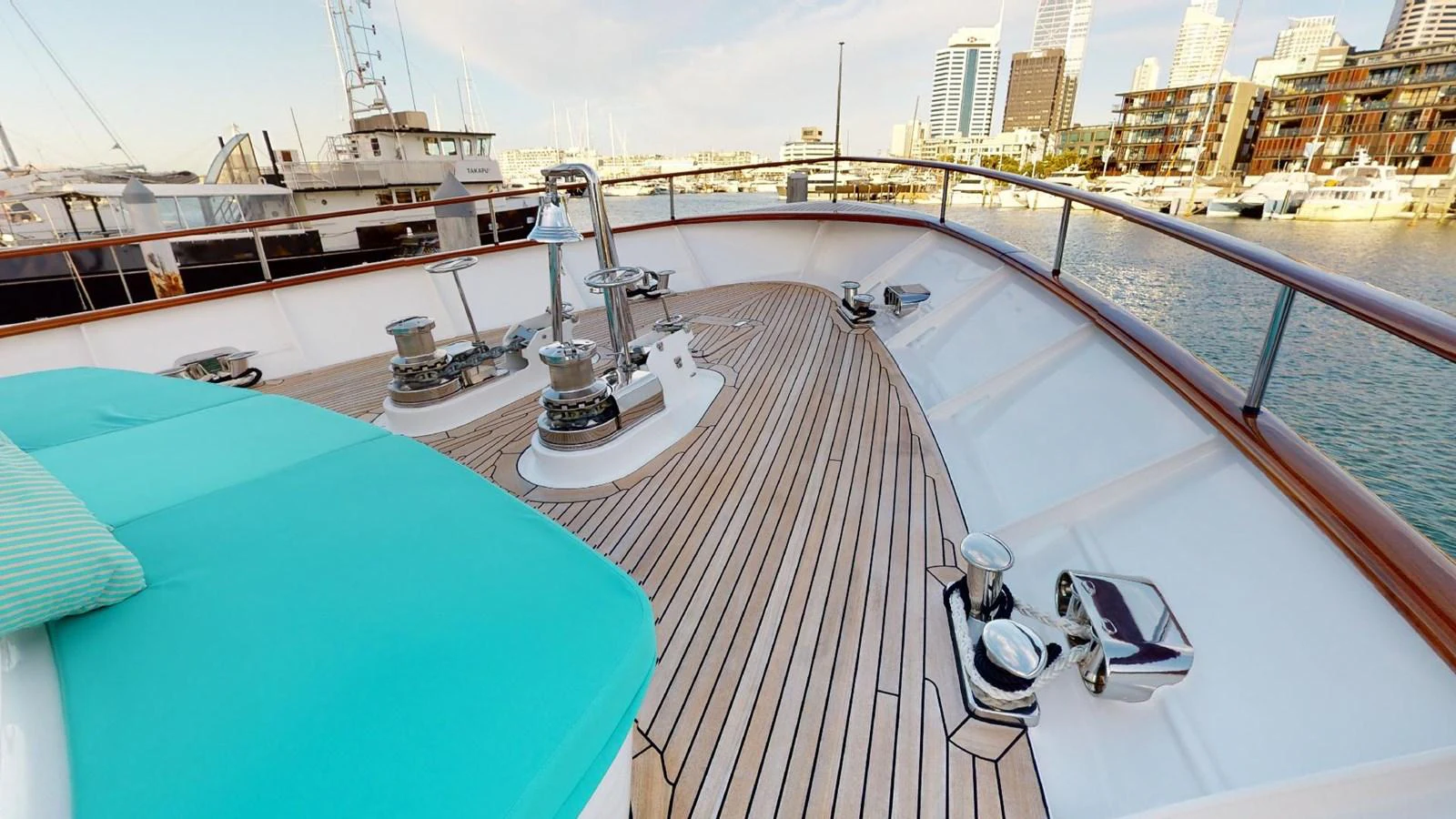

  • Anchor Windlass System: Ascon model # ACV20.19E x 2; Aft anchor windlass Muir
  • Anchors: Poole 270 kg x 2 – foredeck: 90 kg anchor on aft deck
  • Anchor Chain & Rode: 182 m x 19 mm stud link galvanized chain x 2 on foredeck;
  • Stern anchor chain: 60 m
  • Deck Capstans: Ascon CV20.00E
  • Davit/Cranes: Staalart Techniques 48kmm
  • Accommodation Ladders: Staalart Techniques
  • Passarelle: Staalart Techniques
  • Spotlights: Carlisle & Finch x 2
  • Exterior Showers: Hansgrohë
  • Underwater Lights: Sea Vision SV18 LED x 12

Safety & Security Equipment

Security Equipment:

  • CCTV System:   Hikvision – NVR firmware updated Dec 2021
  • Cameras: 1080 IP PTZ x 6
  • Monitors:  NEC Multi sync model # LCD 1770bx
  • Ship Safe(s): Securikey Premiere in master and in captain’s cabin

Fire Fighting Equipment:

  • Fire/Heat/Smoke Detectors: Throughout – Thorne Security model # T1008/H016
  • Fixed fire suppression system: Ultrafog, recertified Dec 2021
  • Fire Extinguishers:  x 19, re-certified Dec 2021
  • Fire Fighting Bunker Gear:  Viking – 2 x breathing apparatus sets
  • Fire Suppression System for Engine Room:  Sea Fix BN234, recertified Dec 2021 + 2 spare bottles

Safety Equipment:

  • Life Rafts:  Duarry 16 person with hydrostatic release x 2, serviced Nov 2021
  • Life Rings:  4 regular life rings, 2 life rings with smoke & strobe
  • EPRIB(s):  ACR RLB36 cat 1 x 1; Mcmurdo E5 model ADCE428B AL0028D Cat 2
  • SART:  Mcmurdo S4 Rescue SART S4/17 698 77
  • Flares: Pains Wessex 9506720, Replaced Nov 2021
