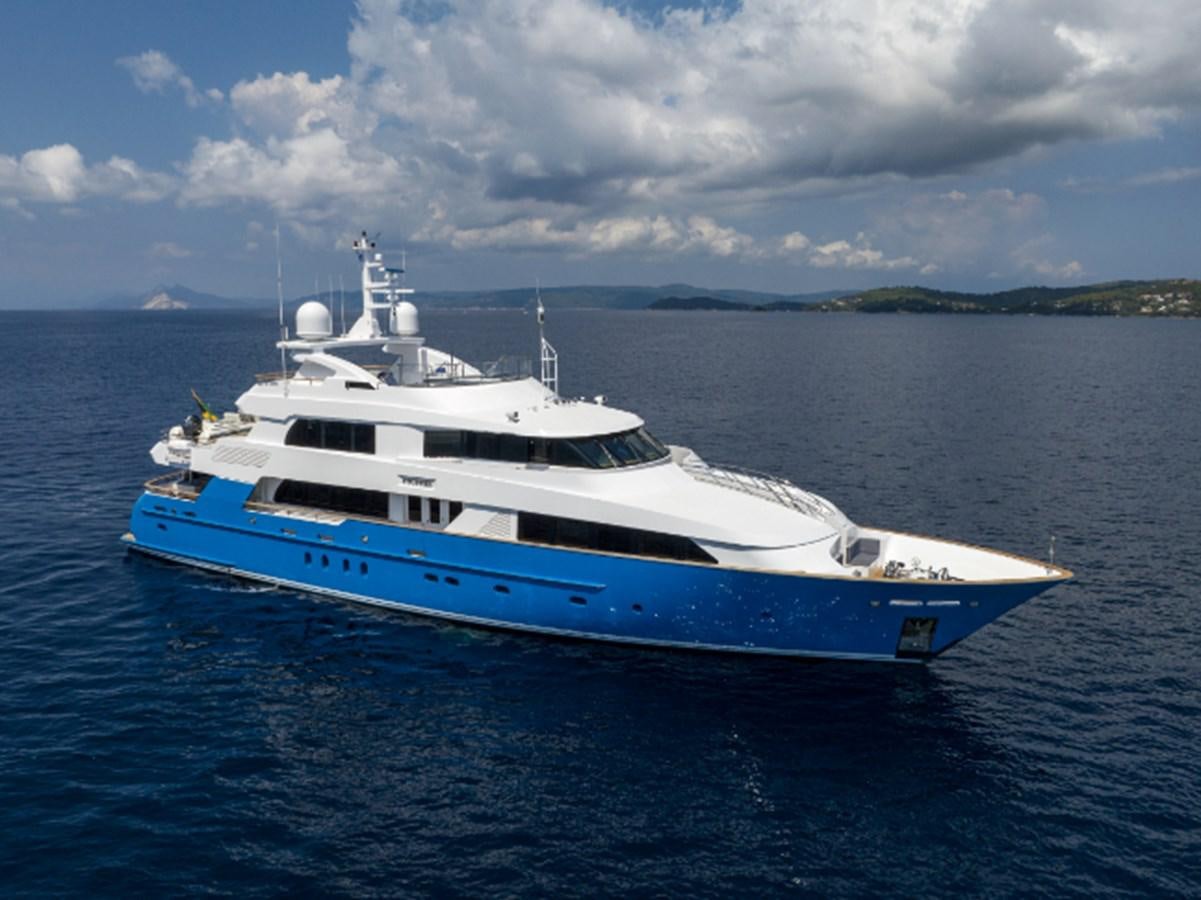

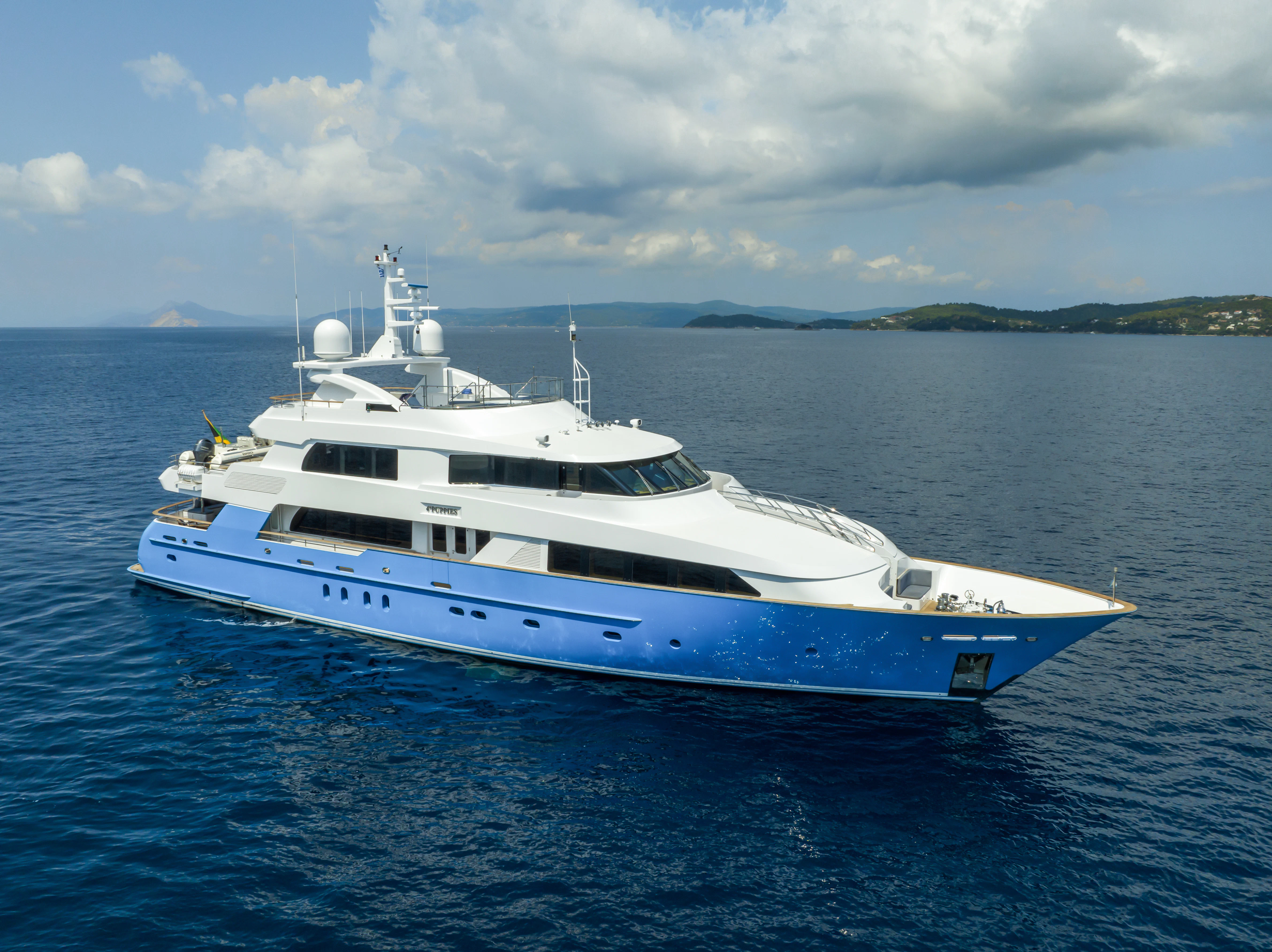

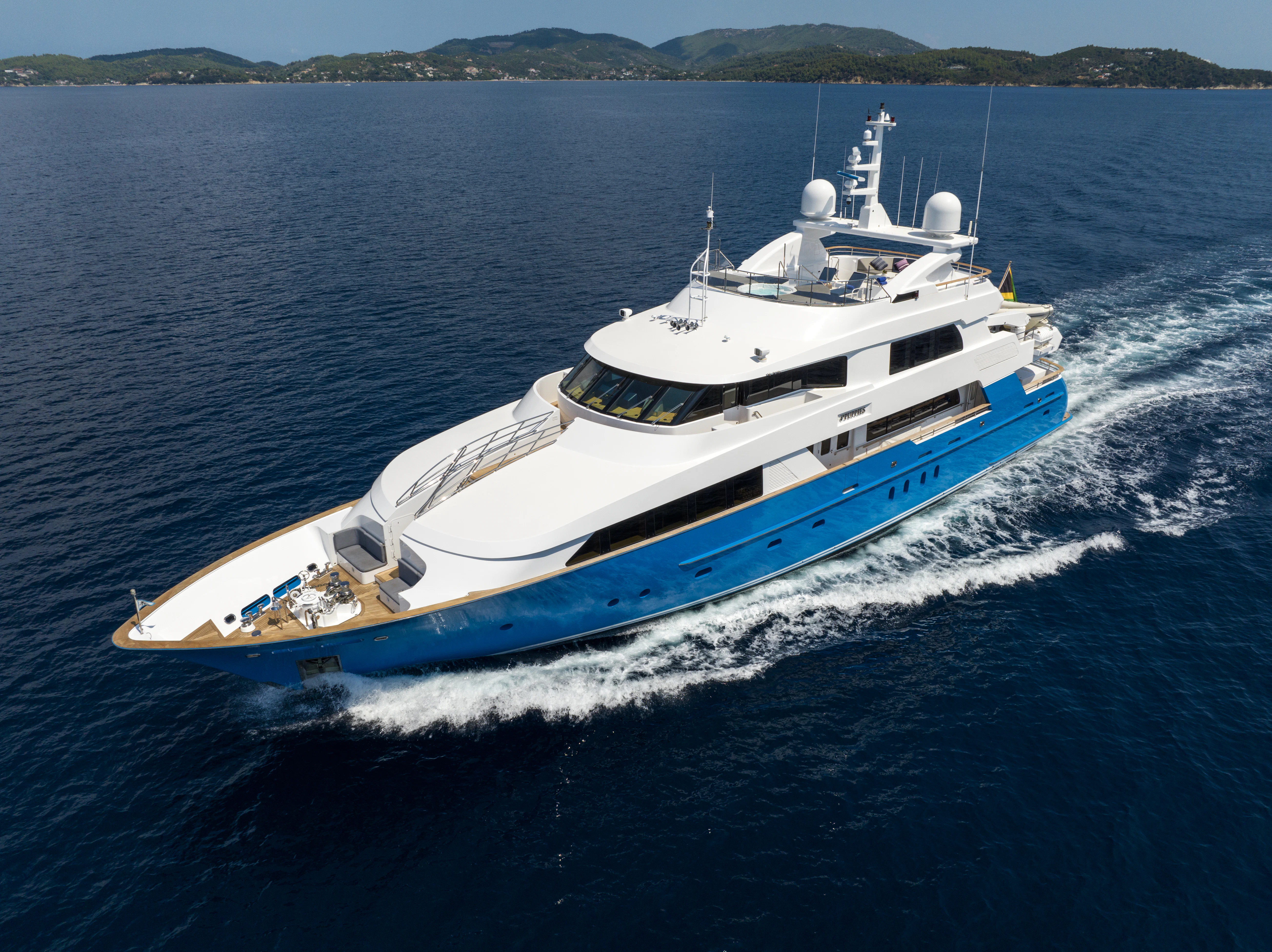

4*PUPPIES Yacht for Sale

Length
130' (39.62m)
Builder
PALMER JOHNSON
Build
2003/2022
Cabins
5
Crew
8

Yacht is no longer available for sale.
This is an archived web page showing historic information for reference purposes only. Search Yachts for Sale.

Amenities

  • At-Anchor Stabilizers
  • Jacuzzi
  • Passarelle
  • Scuba Diving

Specifications

Builder PALMER JOHNSON
Length (LOA) 130' (39.62m)
Year 2003
Year Refit 2022
Gross Tonn. 399
Draft 7' (2m)
Beam 28' (8.53m)
Range 4,350 NM
Location United States

Accommodations

Staterooms 5
Sleeps 14
Heads 6
Crew Cabins 8
Crew Sleeps 8
Capt. Quarters Yes

Dimensions & Capacity

LOA 130' (39.62m)
LWL 113' (34.26m)
Max Draft 7' (2m)
Fuel Tank 14,500 g (14,500 L)
Fresh Water 2,500 g (2,500 L)
Holding Tank 900 g (3,406 L)
Gross Tonn. 399
Displacement 261

Construction

Hull Material Aluminum
Hull Config Full Displacement
Ext. Designer Palmer Johnson and Murray and Associates
Int. Designer A La Mer and Preston Phillips
Cruising Speed 12 Knots
Range 4,350 NM
Have Questions?

Complete the form below and one of our experienced sales brokers will be in touch soon.

Full Details

Other Machinery

  • Ballast Water: 7,000 USG, (26,498 Liters)
  • Watermakers: 2 x 1,200 GPD, 2 x 4,542 LPD
  • Waste Oil: 190 USG, ( 719 Liters)
  • Air Compressor: 1 x Dayton Speedaire compressor
  • Fresh Water Heaters: 1 x Grundfoss
  • Fresh Water Maker: 2 x Sea Recovery 1200 gpd Aqua Whisper
  • Fresh Water Pump: 1 x Gianneschi & Ramacciotto
  • Fuel Separator: Alpha Laval
  • Fuel Filters: 2 x Racor 79/100, 2 x Racor 500 MA, 1 x Walbro
  • Oil Pumps: 2 x Oberdorfer
  • Sewage Treatment System: 1 x Headhunter model RE 200B
  • Toilet System: Headhunter Tidal Wave

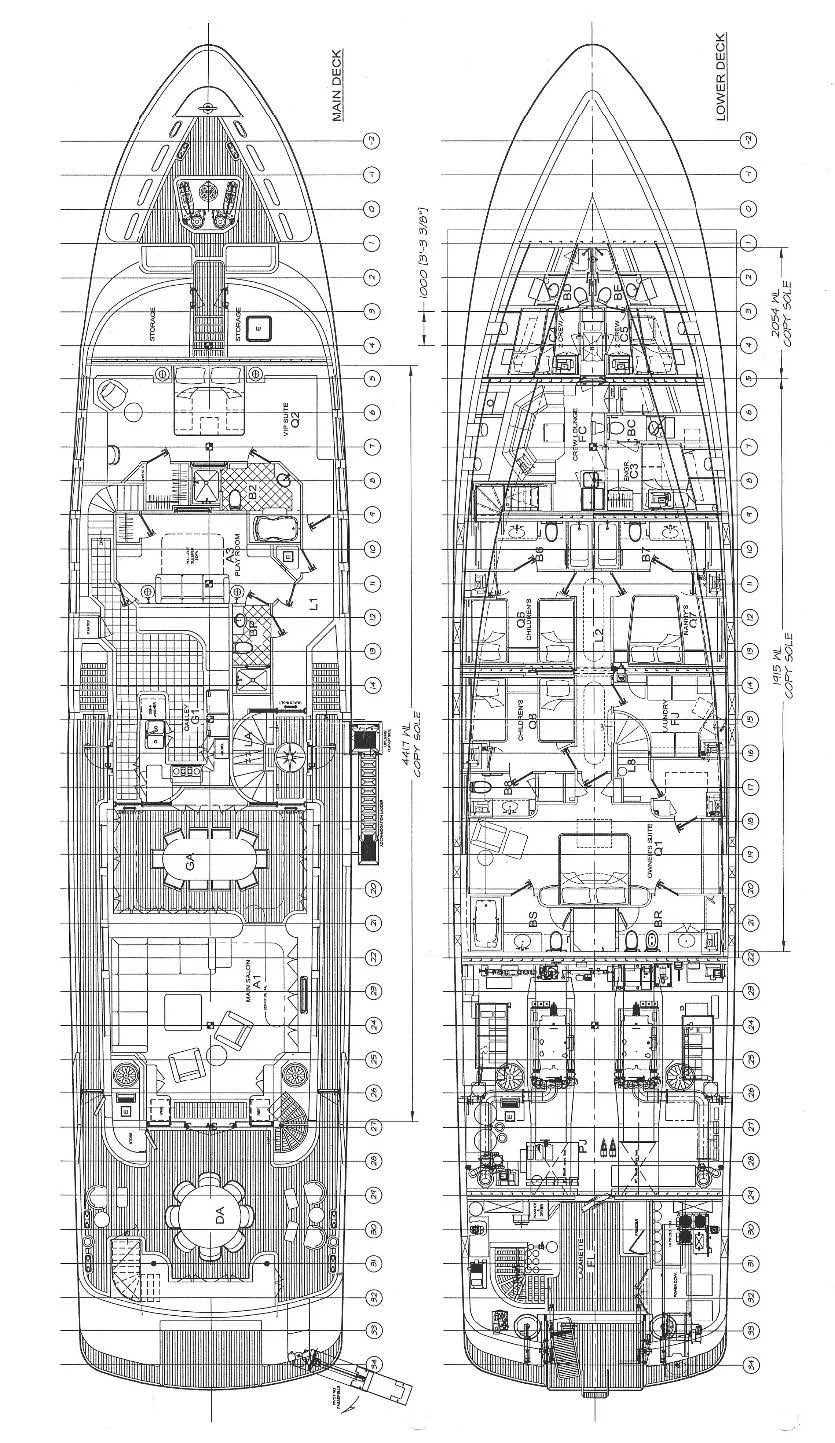

Accommodation

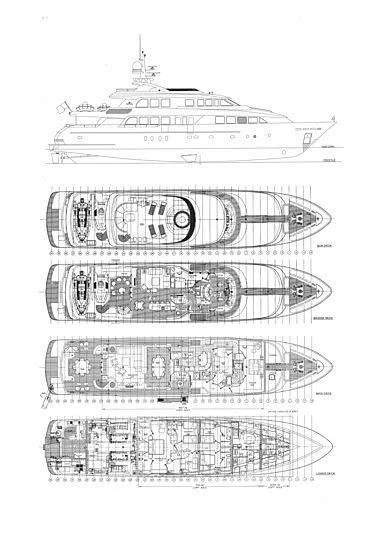

  • This vessel has a delightful layout with a full beam VIP or second Owner’s stateroom on deck, a study which can double as an additional stateroom with full head aft of the VIP /Owner’s on-deck stateroom, an updated galley layout, a light bright and airy main salon and open aft deck and very safe protected water access. She has a full width Owner’s suite with his and her bathrooms as well as three additional guest staterooms all below, a full beam sky lounge and a well laid out sun deck.
  • She was purposely built to be the largest yacht able to fit into the undercover storage sheds at the Fort Lauderdale Boat House and to enter shallow waters of Ocean Reef Club in the Florida Keys.

LOWER DECK:

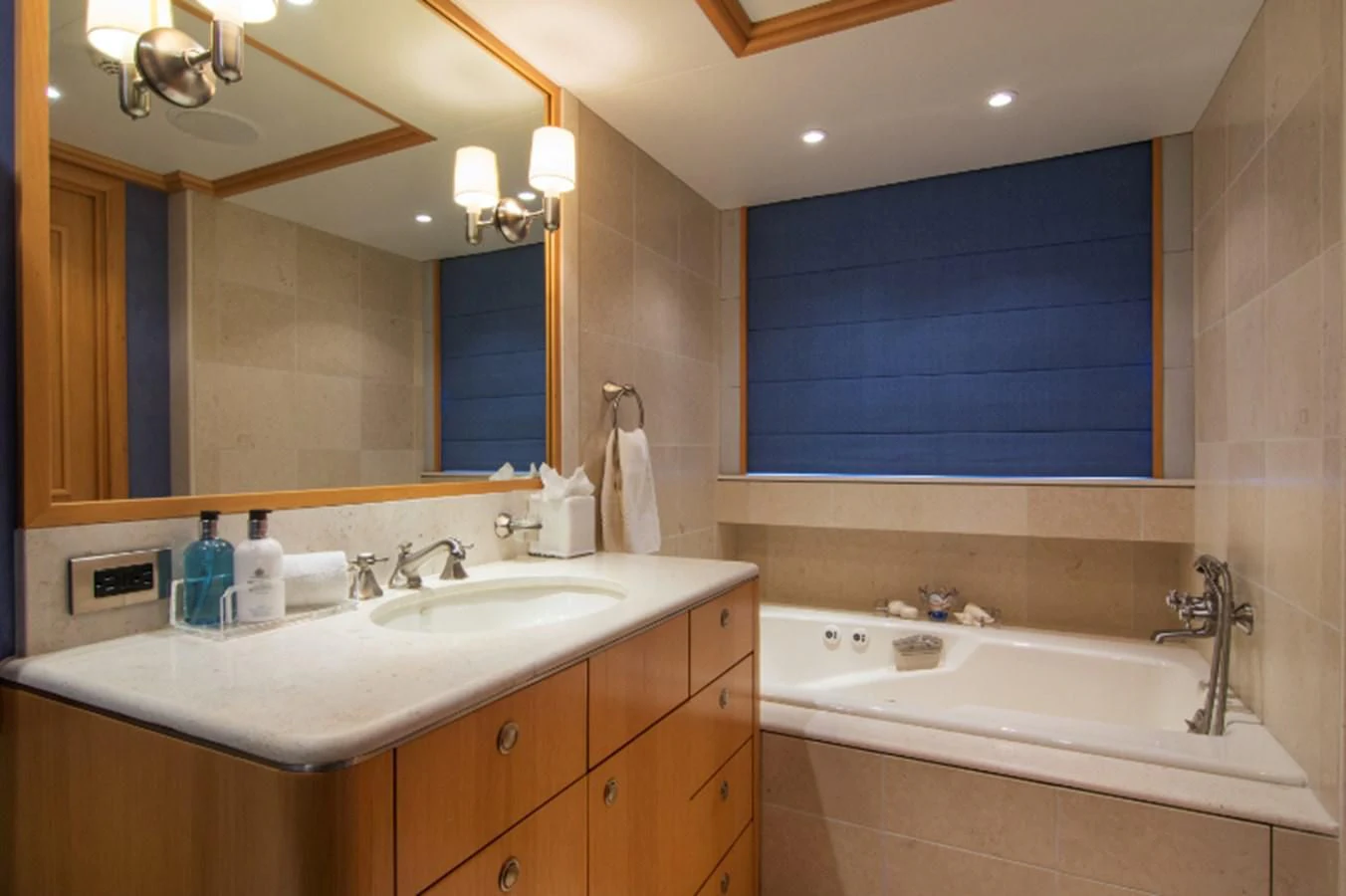

  • There are four guest staterooms on the lower deck. Forward in the guest accommodations area to port is a twin berth stateroom with en suite head with bath tub and shower.

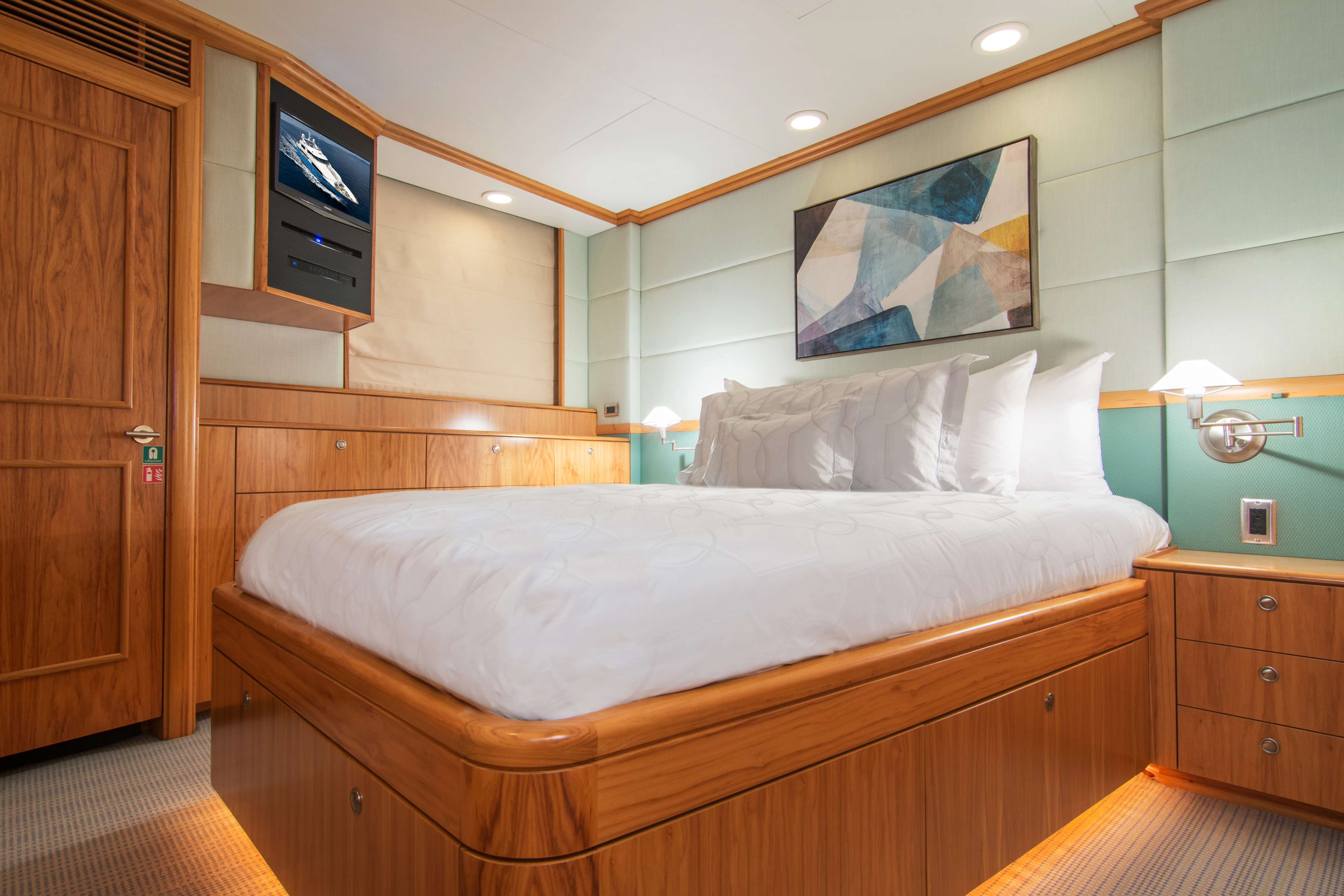

  • Opposite to starboard is a queen berth stateroom with en suite head with bathtub and shower.

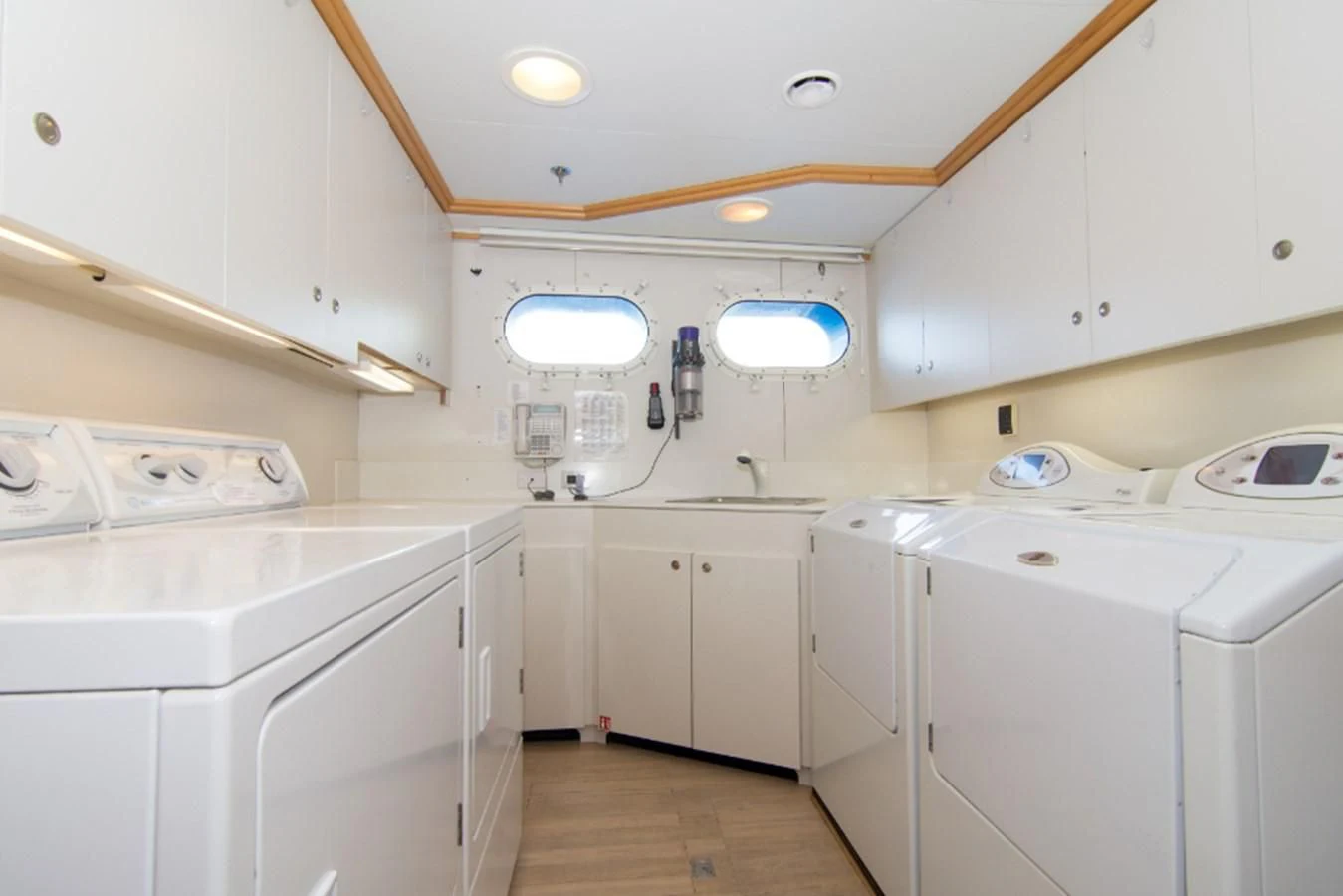

  • Aft to starboard is a proper sized full service laundry room.
  • Opposite the laundry to port is a four berth bunk cabin, each berth is a twin and can be converted back to just twin berths. Offers en suite head with stall shower.

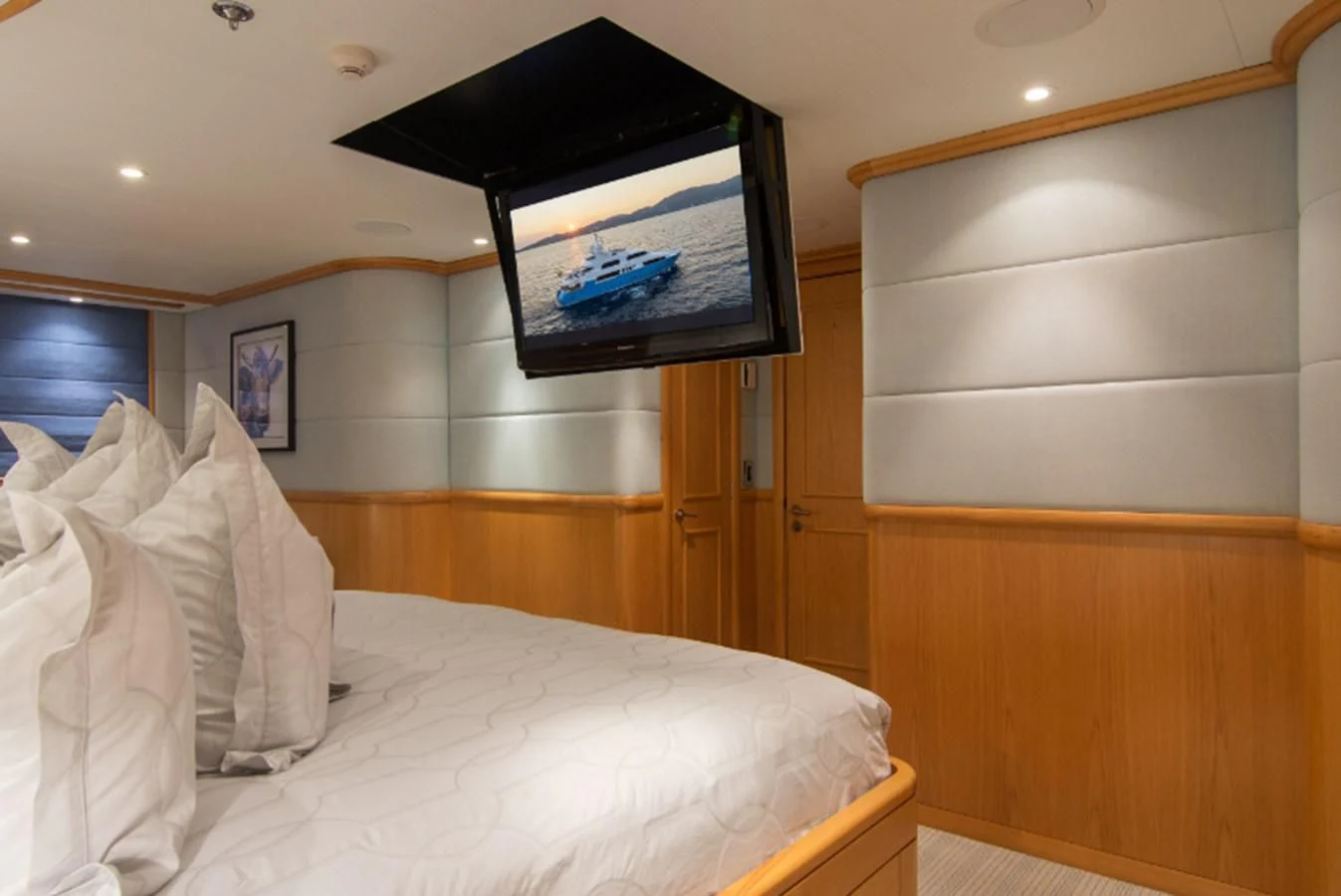

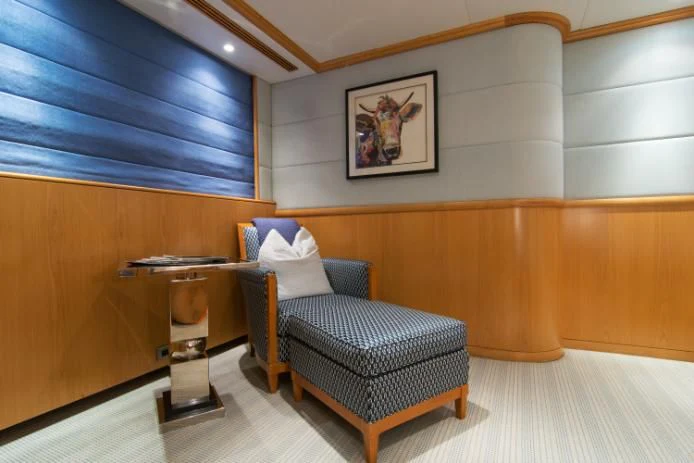

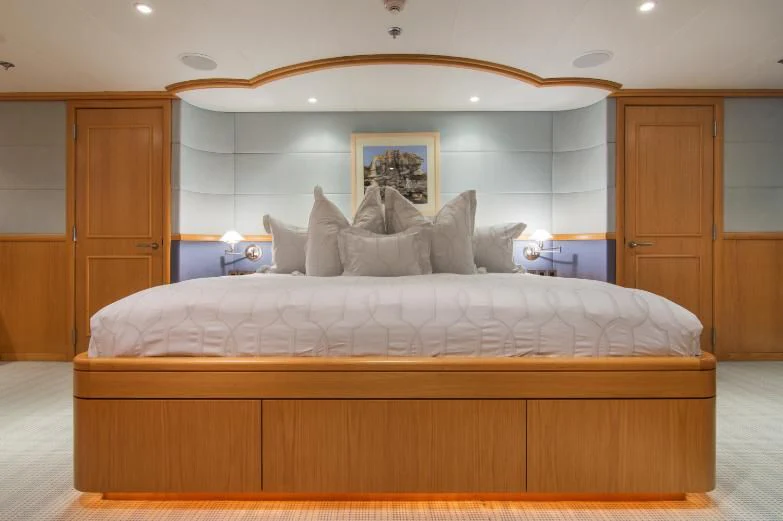

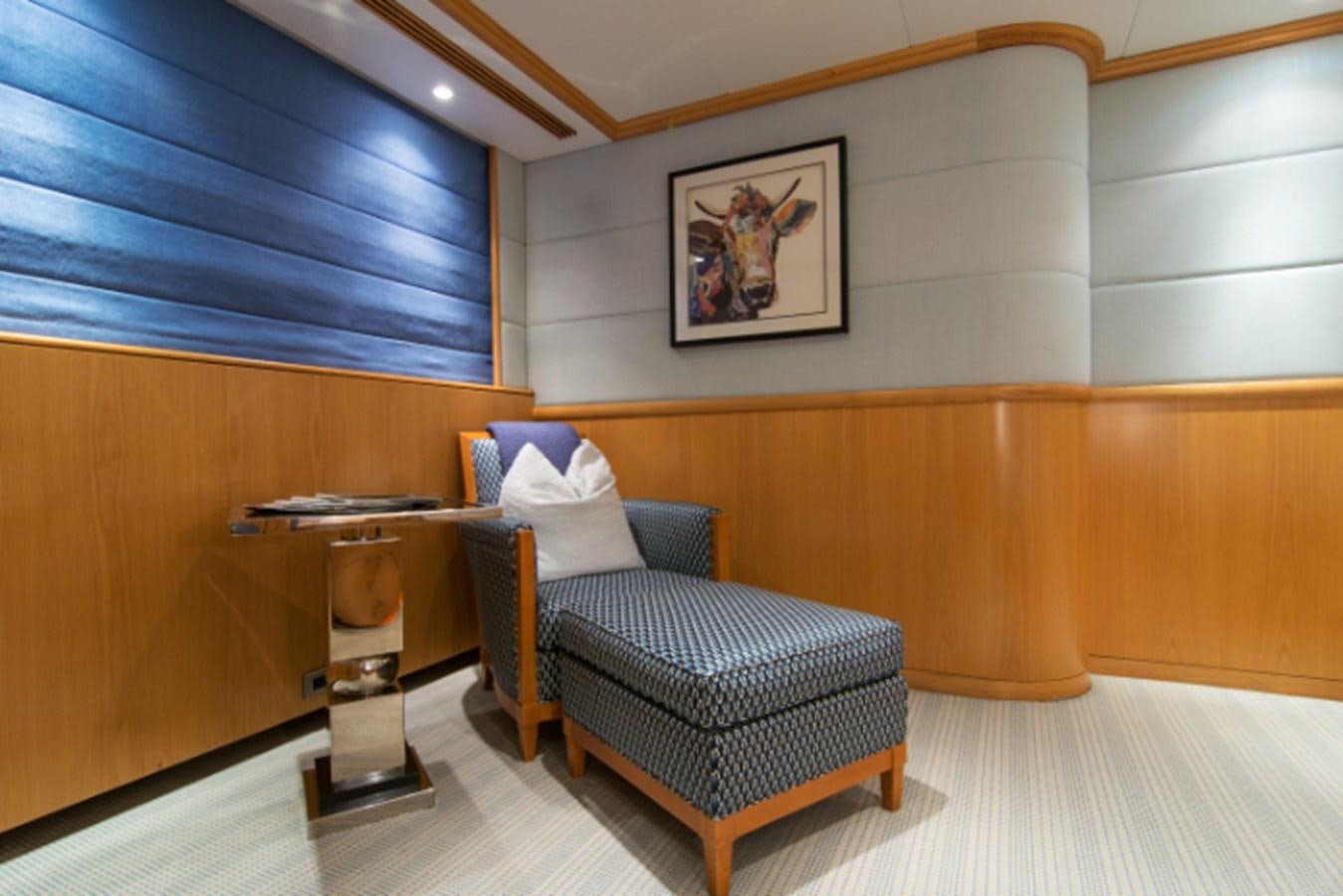

  • Aft and full beam is the Owner’s stateroom with a large walk-in closet with his and her heads. TV drops down from the ceiling at the foot of the bed. Portside has a chest of drawers and starboard has a lounge chair and ottoman. Portside head has a bathtub, there’s a center line shower which passes through to the starboard head. Starboard head has a bidet, each head has wash basins and toilets.

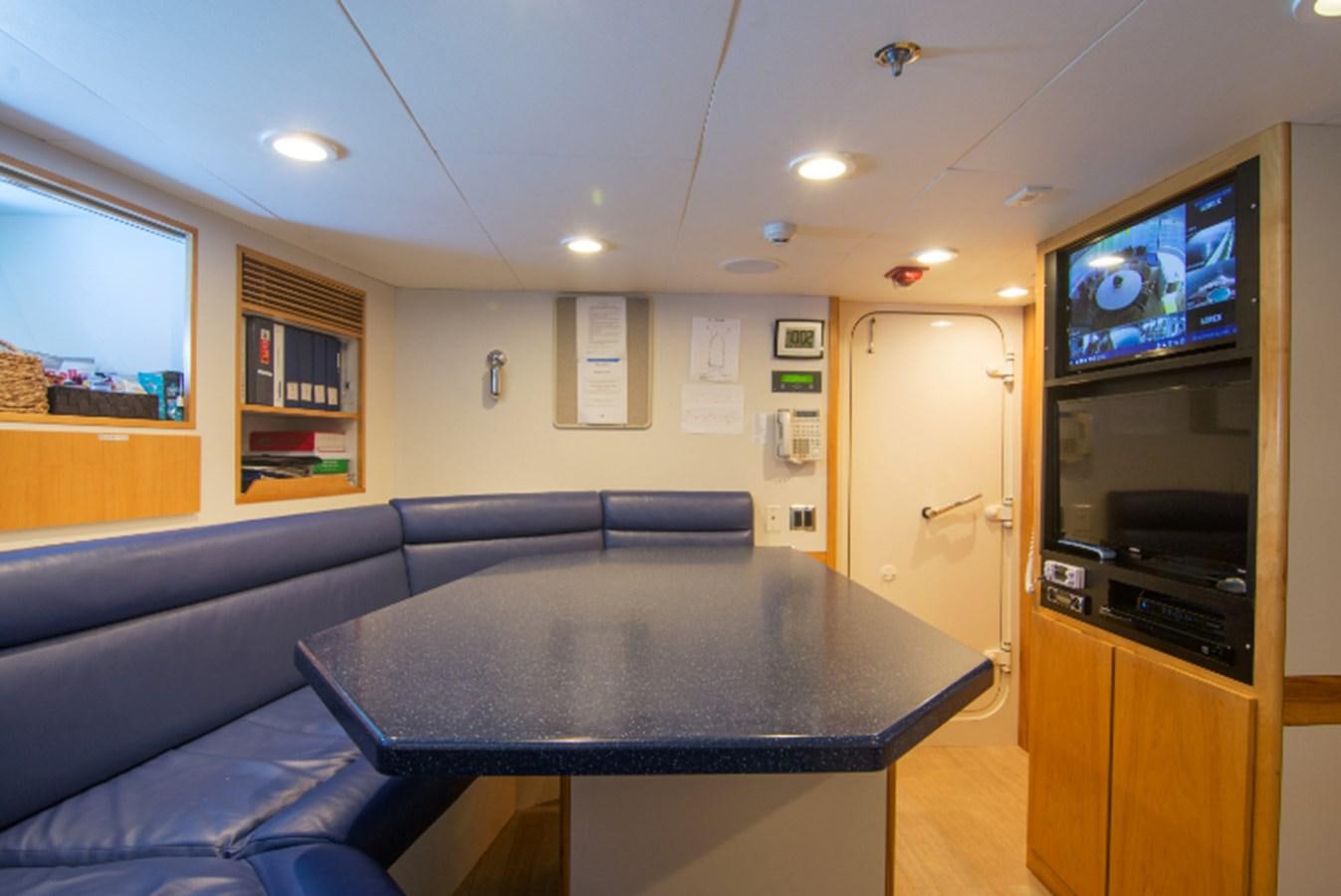

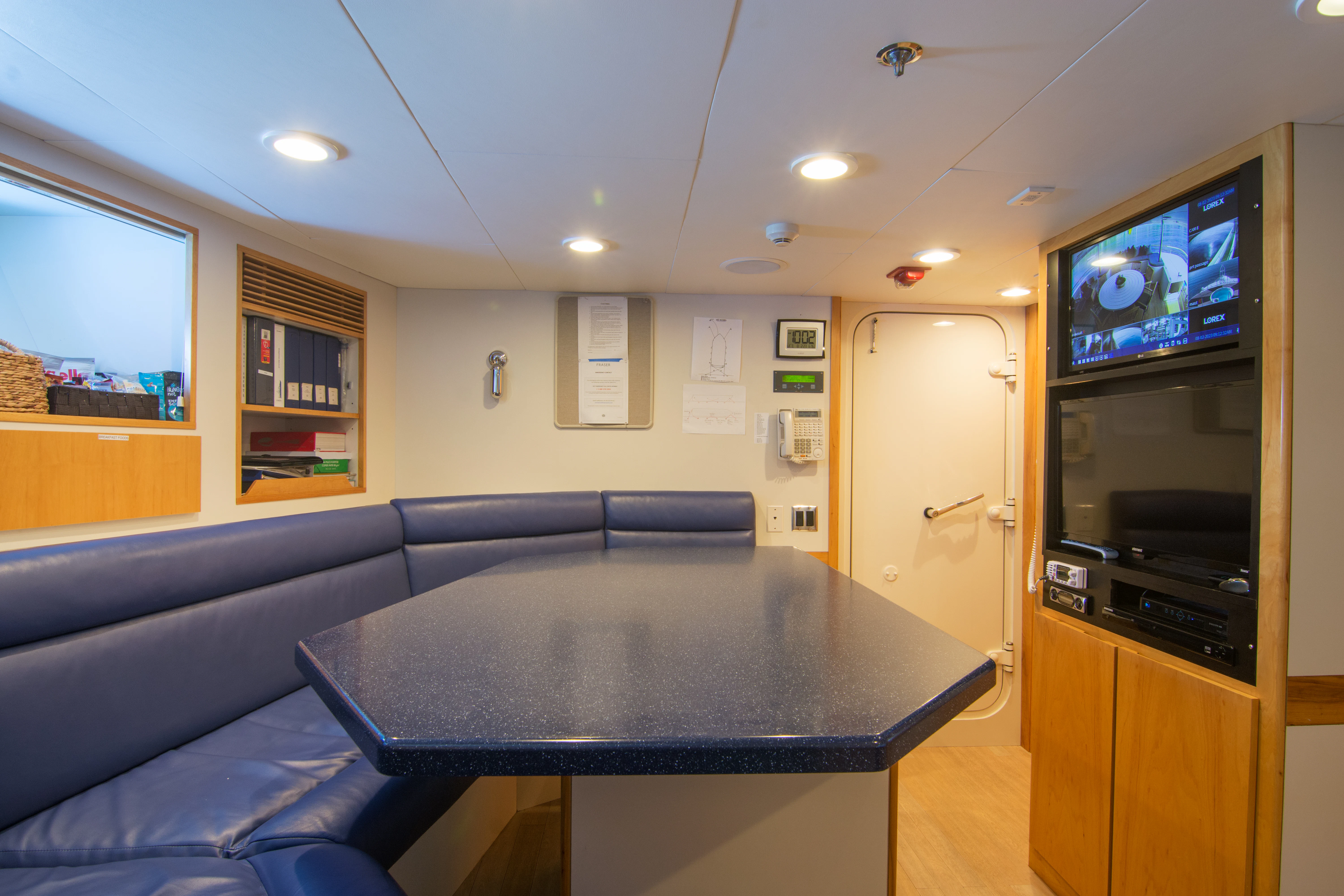

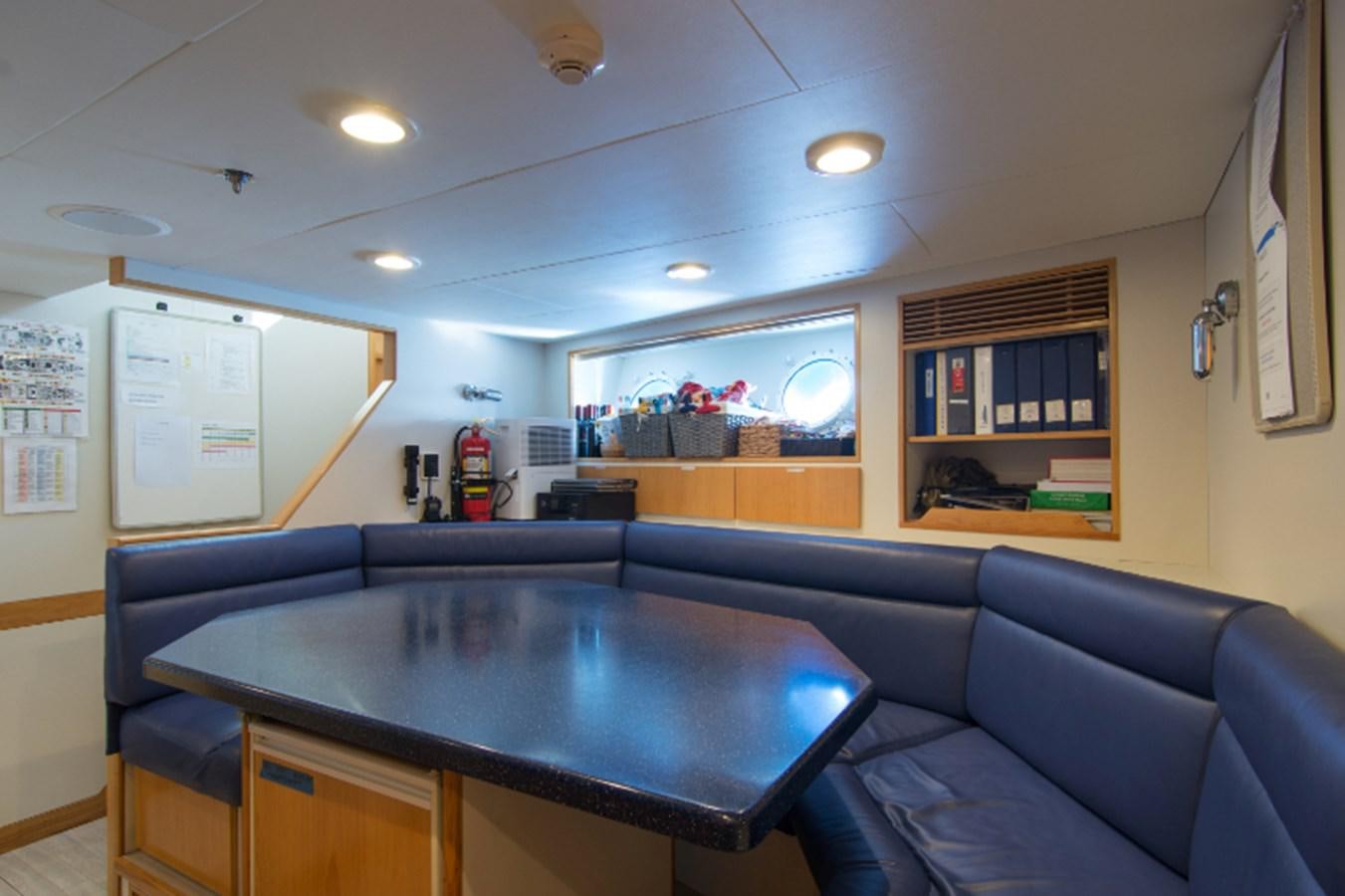

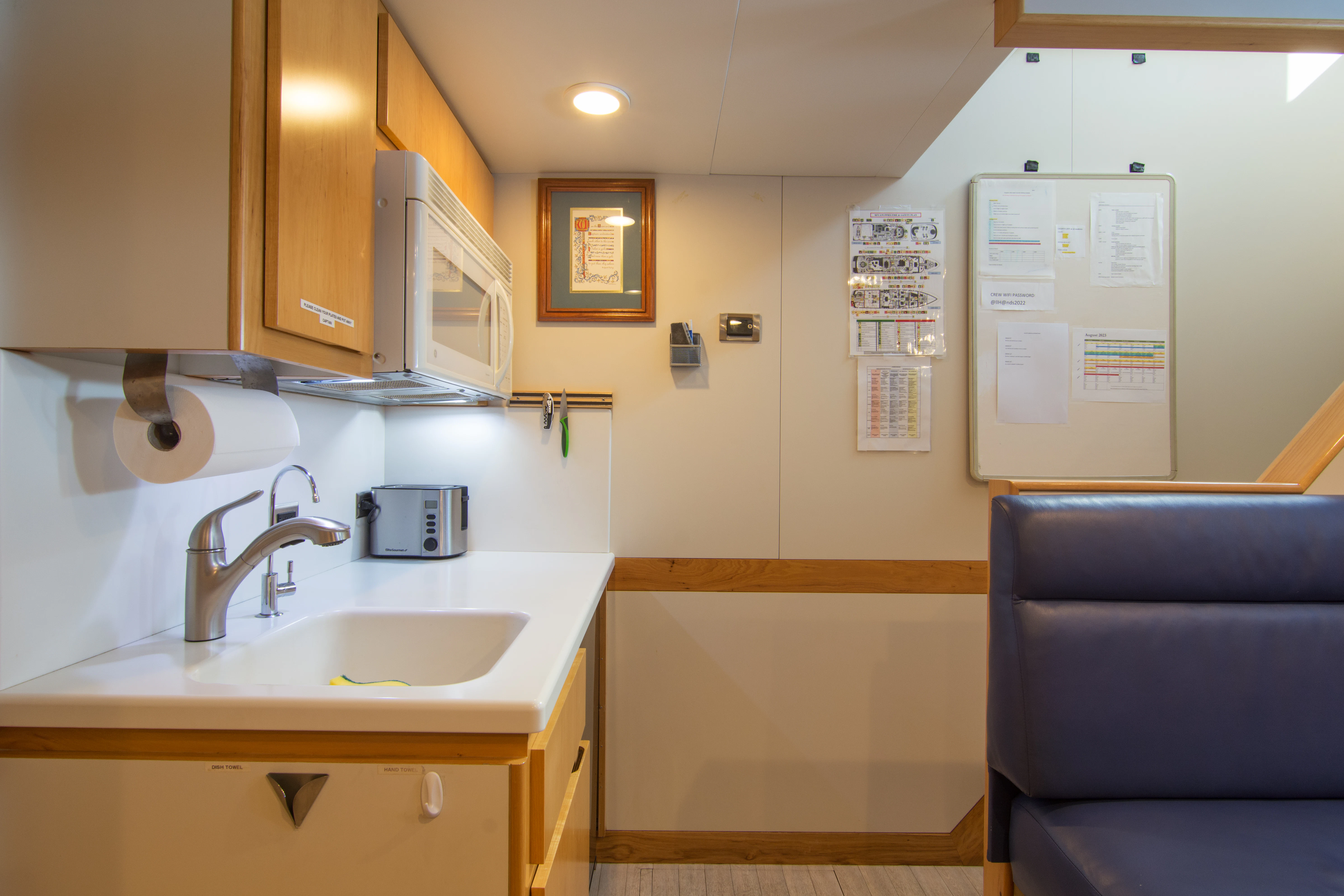

  • Crew quarters further forward is accessed through the galley. Features two upper and lower crew staterooms forward, each with upper and lower berths and en suite bathrooms with stall showers. Further aft to starboard is a double berth engineer’s cabin with en suite bathroom with stall shower. The crew mess is opposite to port with basic galley. Captain’s cabin is located aft of the bridge with full ensuite head.

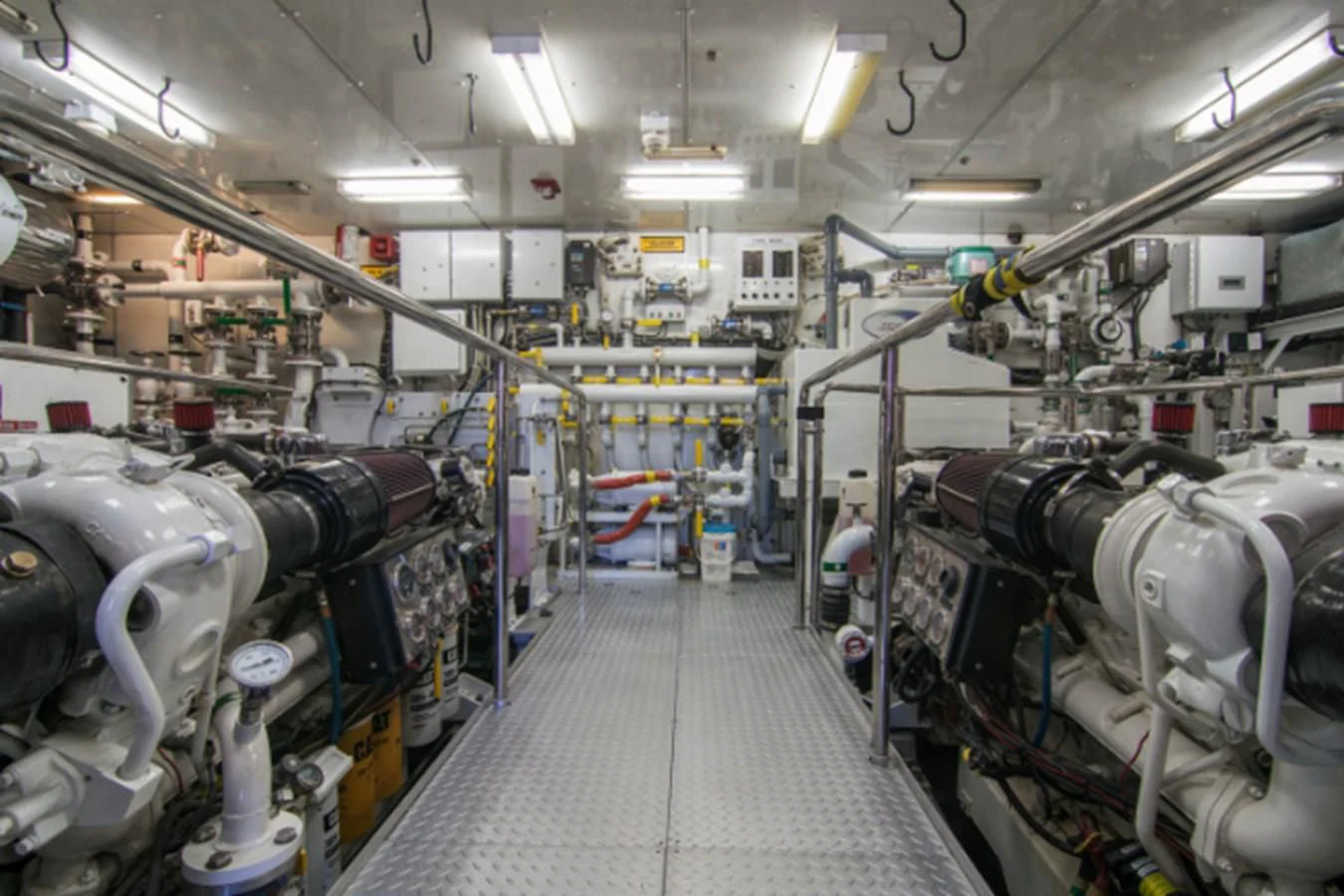

  • The engine room is further aft with large lazarette all the way aft with very safe internal staircase access up to the aft deck and centerline access out to the swim platform.

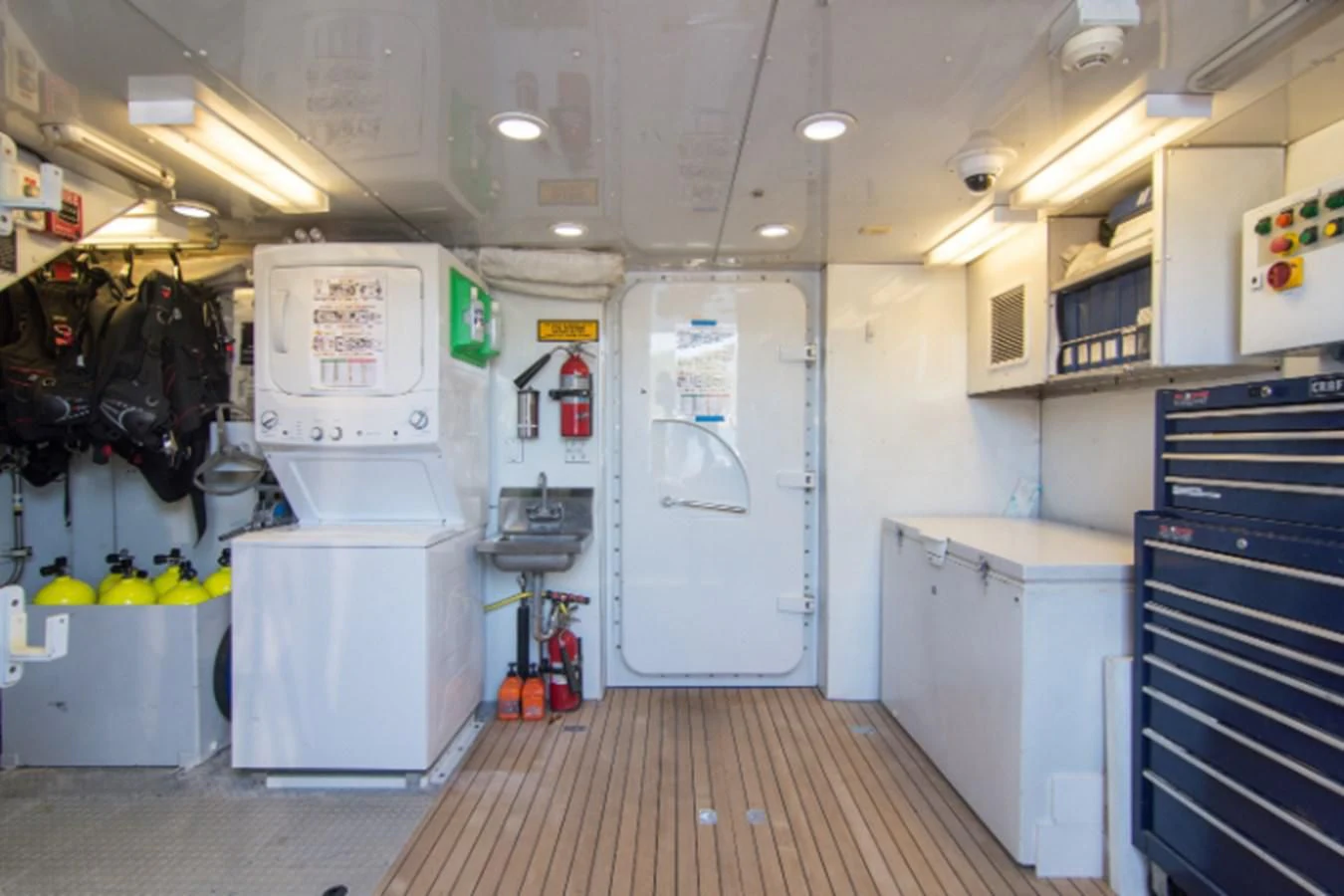

  • The lazarette has a dive center with bottle storage and additional laundry service for deck towels.

MAIN DECK:

  • The full width VIP or on deck owner’s suite is forward with vanity and easy chair outboard to port and vanity areas to starboard. The bathroom is aft with separate stall shower and separate bathtub.
  • Moving further aft is the study /children’s playroom, or children’s cabin with sleeper couch and access to the head/ day head with shower. This can also be used as a cabin. There is a direct access point from the galley if this space is to be used for additional crew or guides.

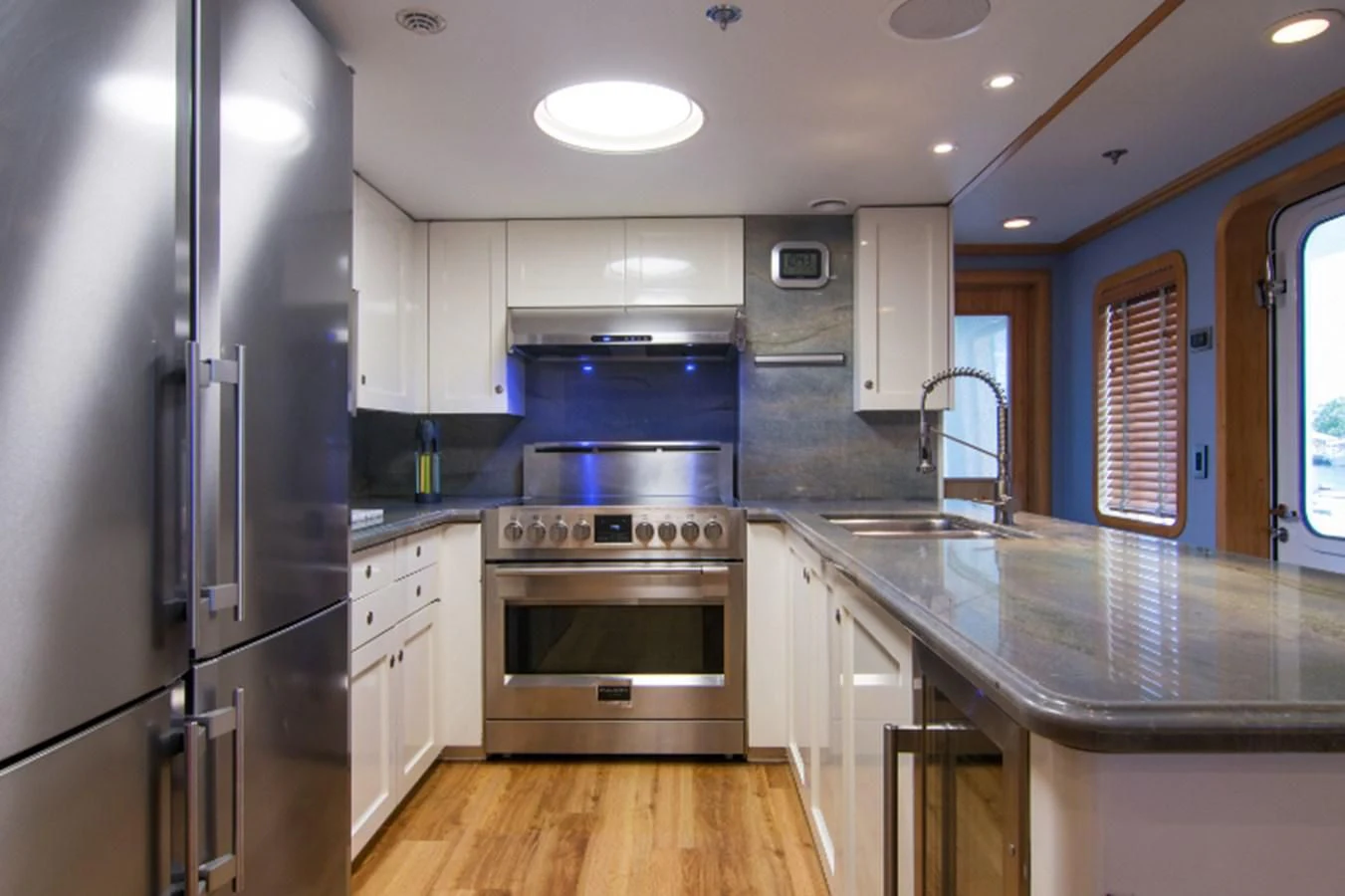

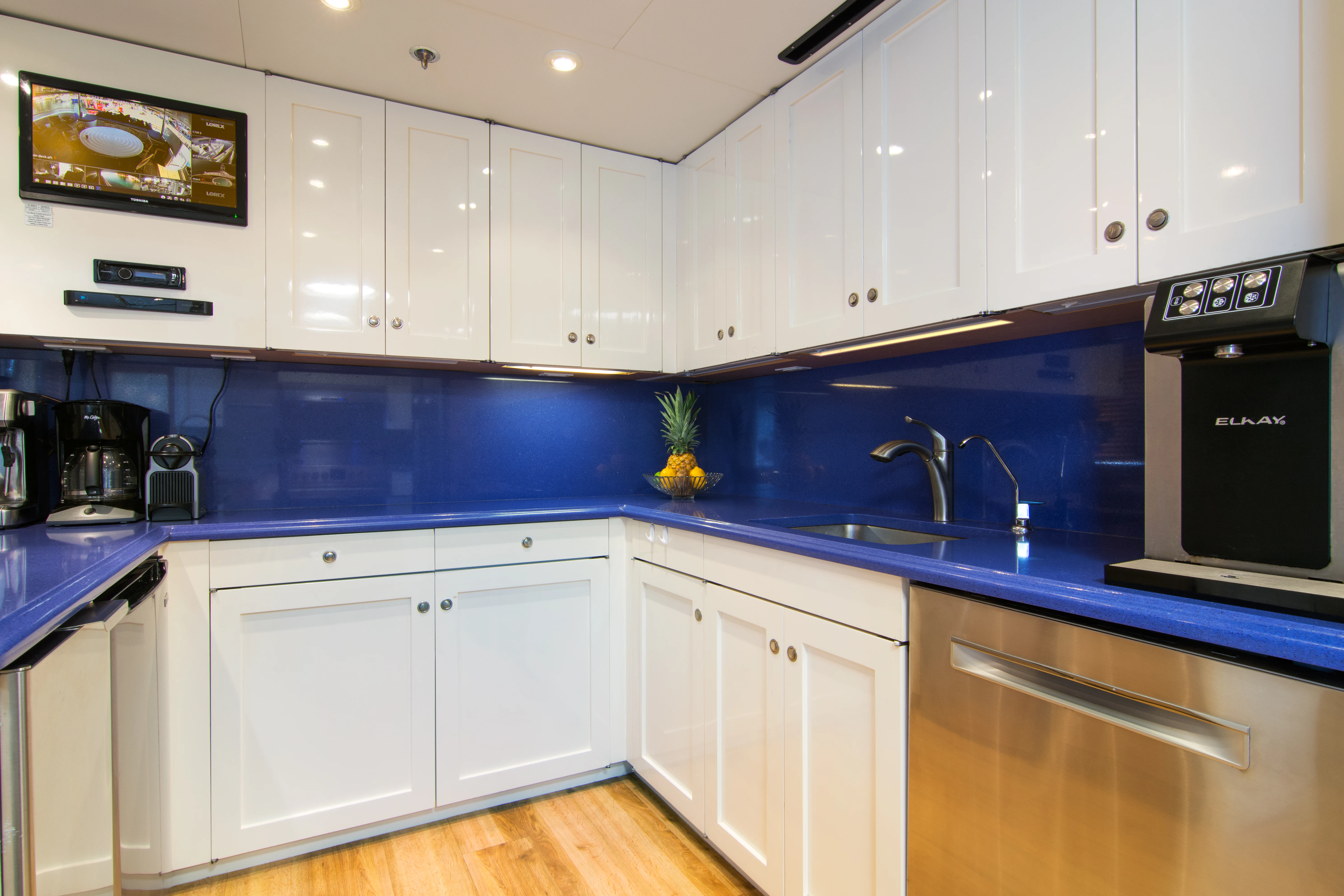

  • The very large galley is a full function workspace with extra large stewardess station/pantry area. From the galley there is access to the portside deck, crew quarters forward, guest dining room and the on deck study. Large on deck windows.

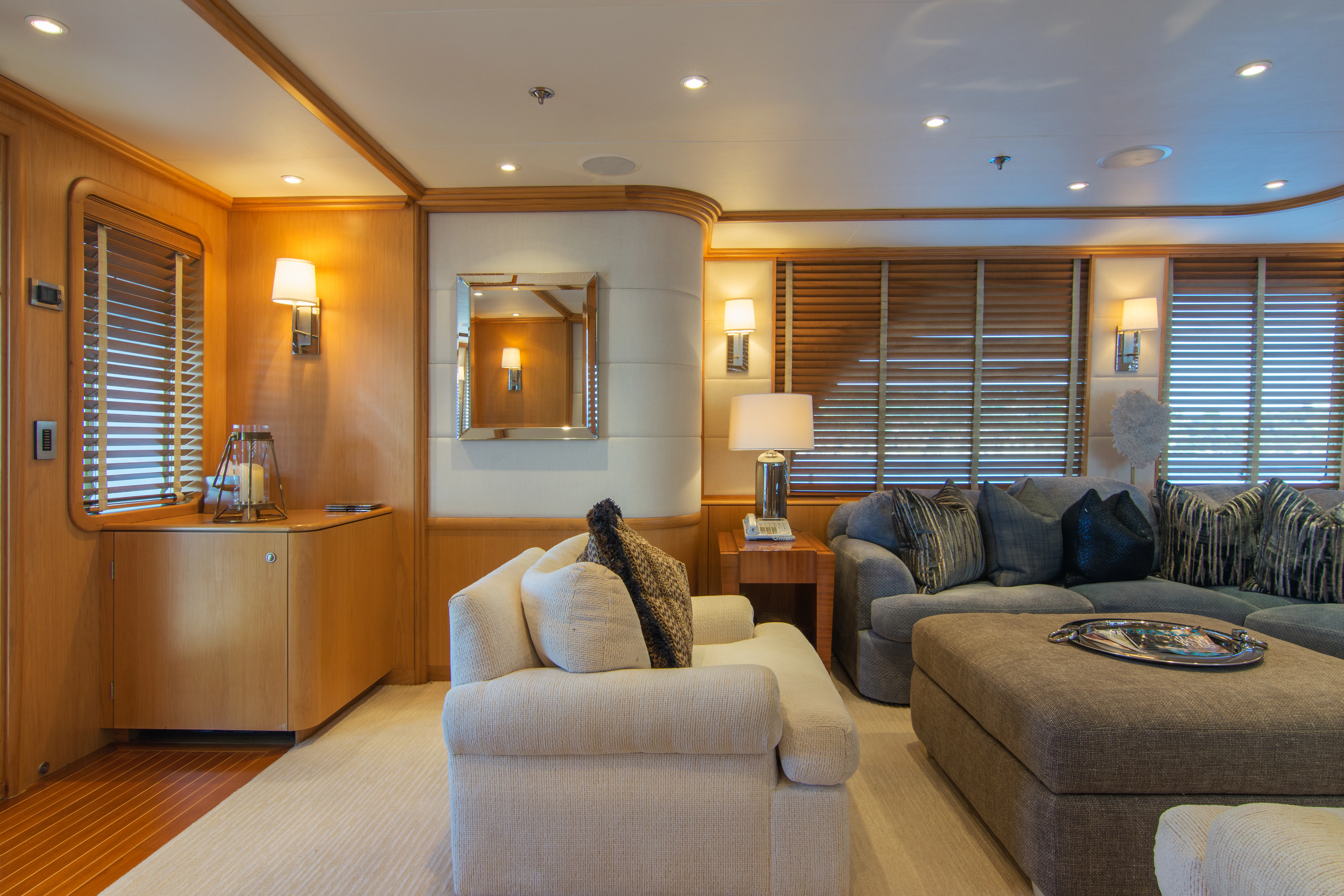

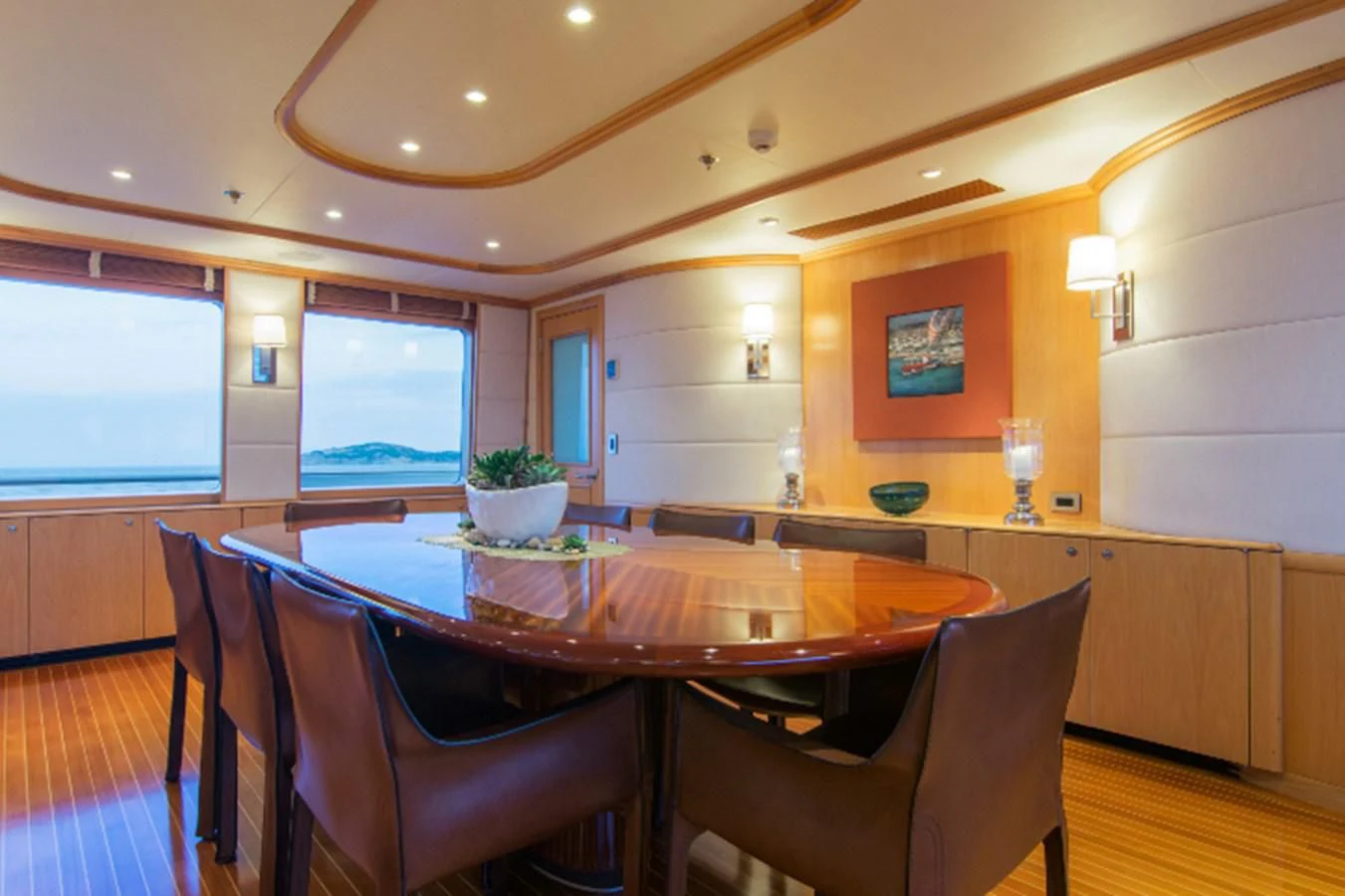

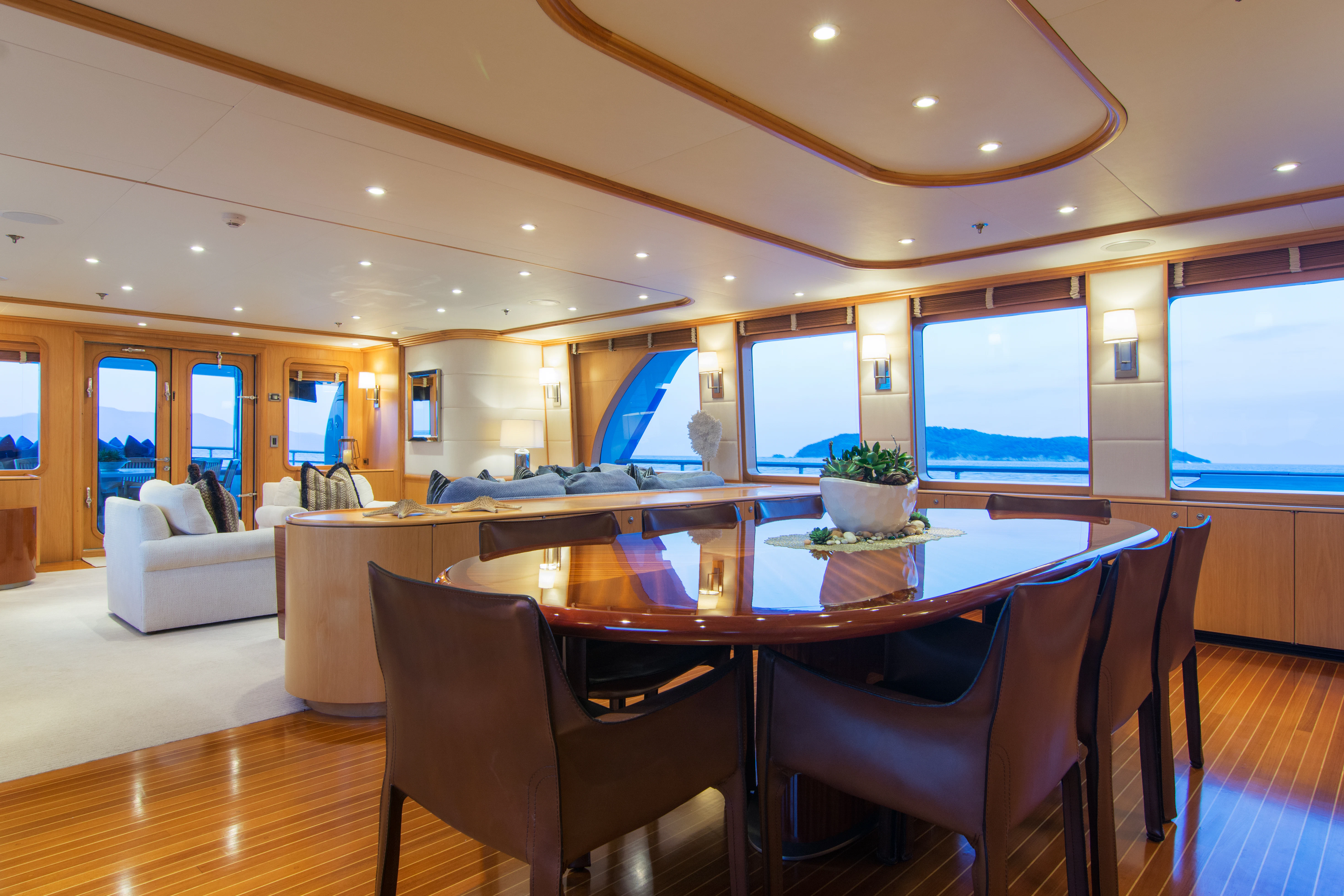

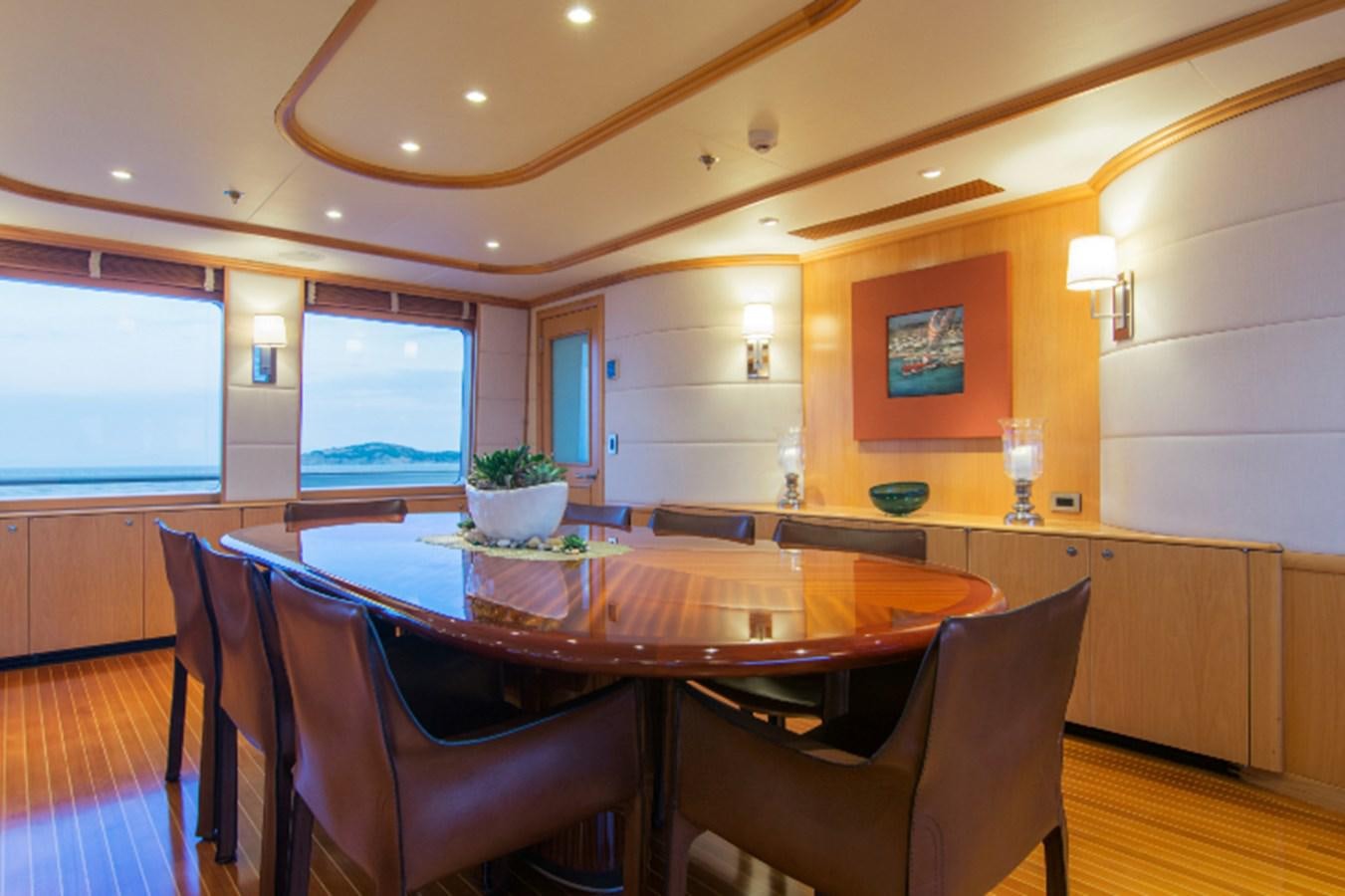

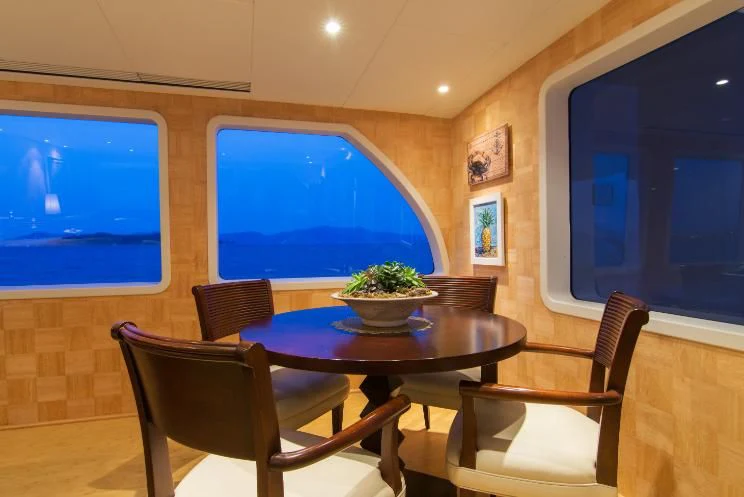

  • The inside dining room is open to the main salon, separated by a low buffet cabinet. This area has very large windows and open feel.

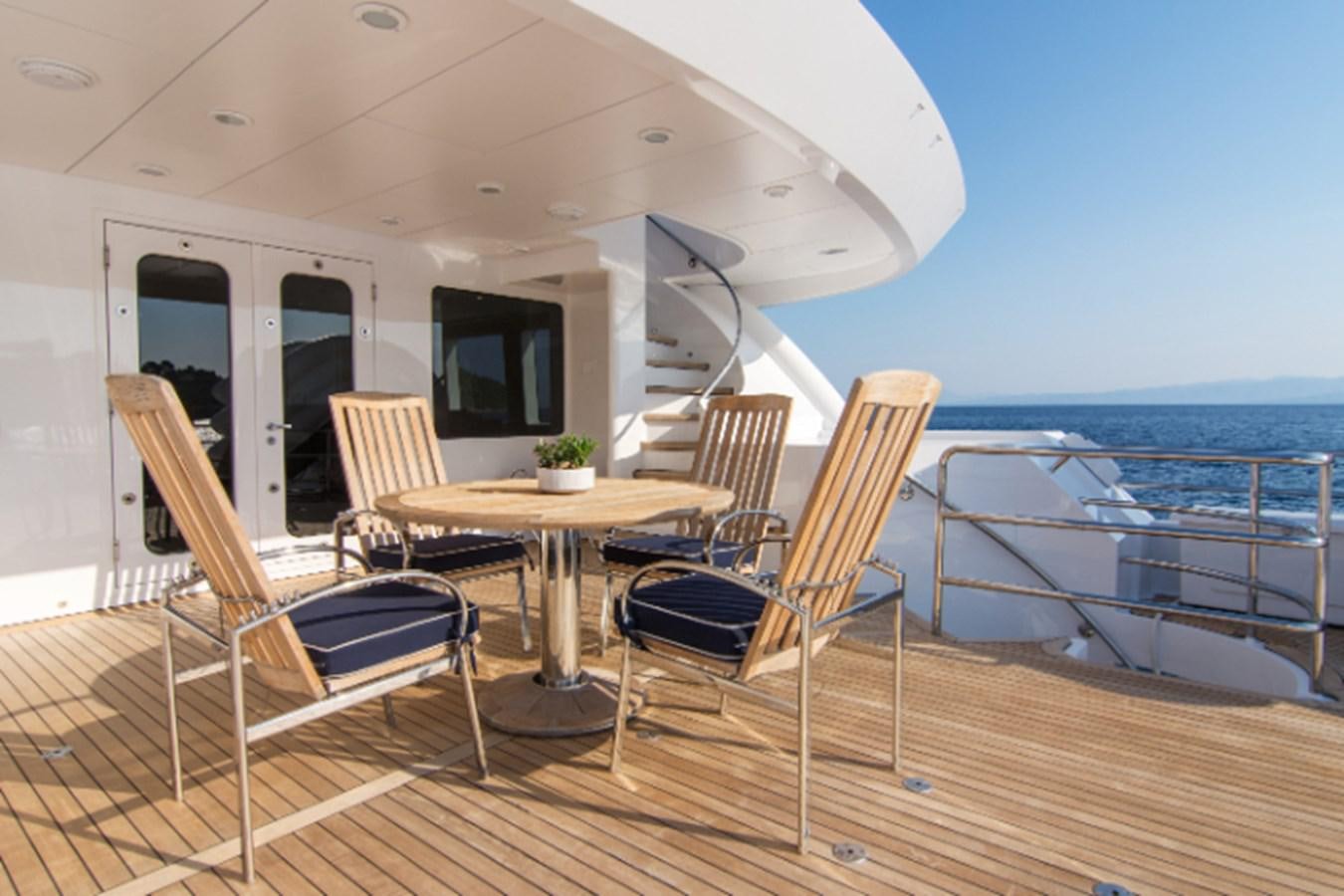

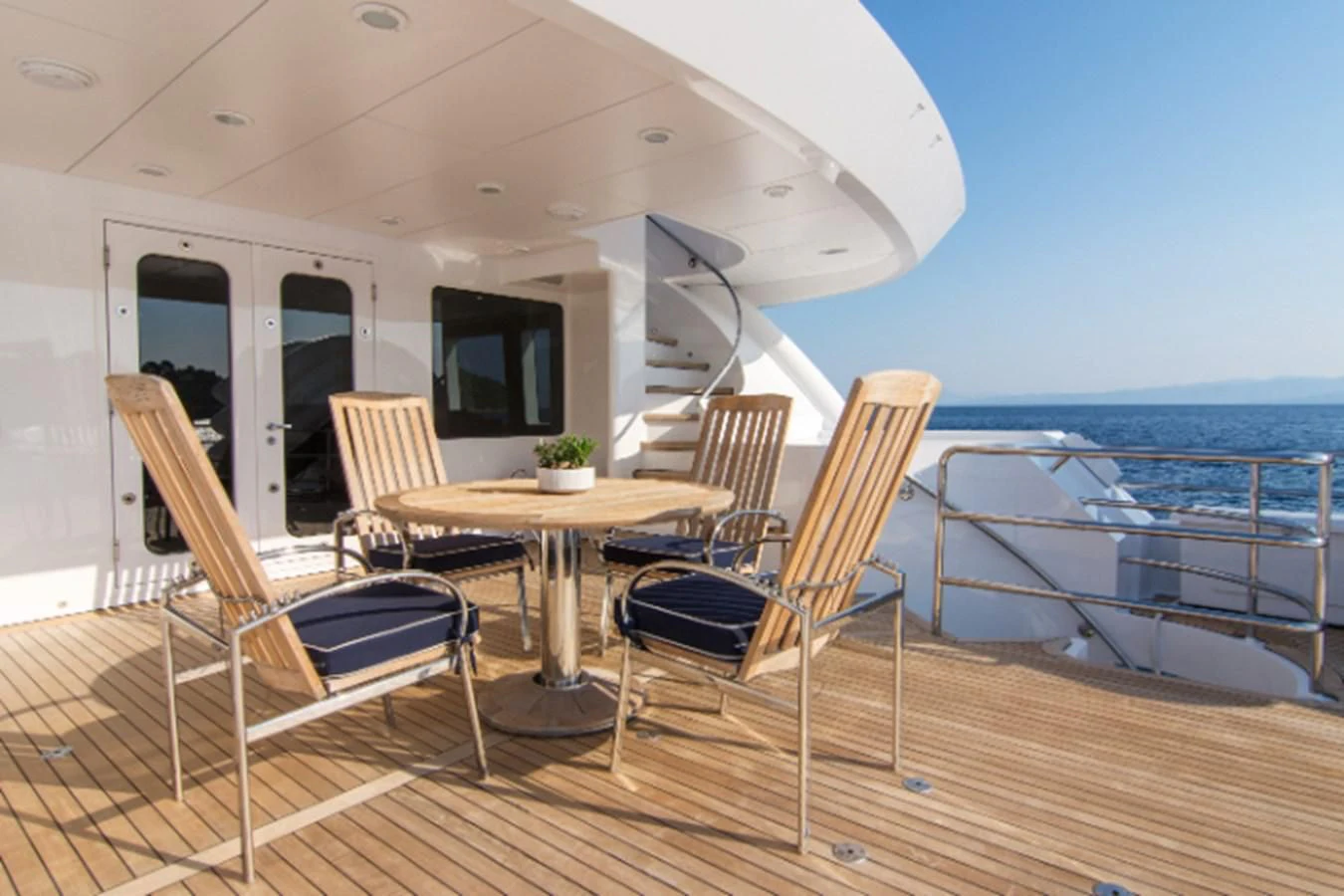

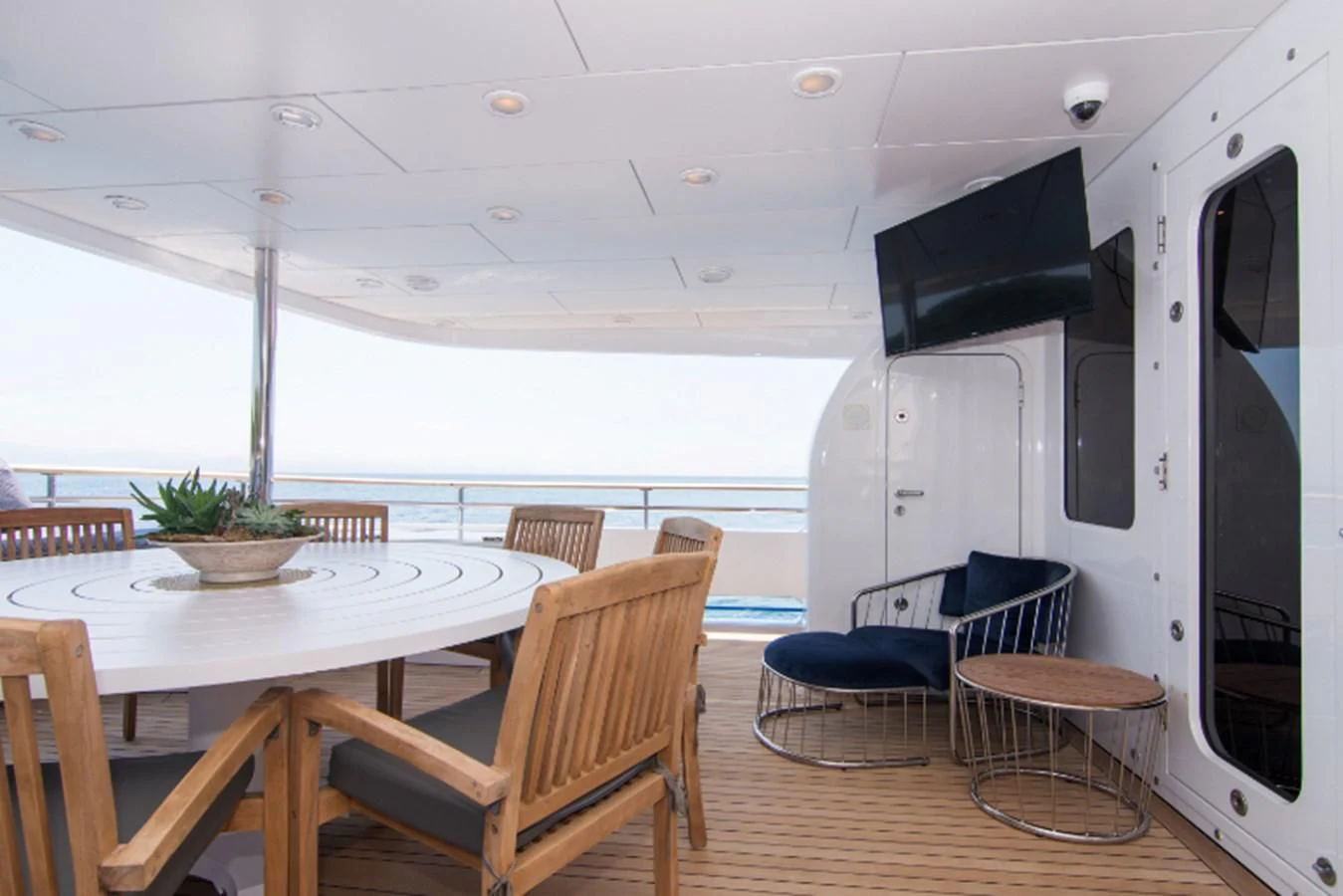

  • The main aft deck is open with a circular dining table, staircase access to the bridge deck above, there is access to a passarelle starboard side of the stern and staircase access to the lazarette and swim platform on the portside.

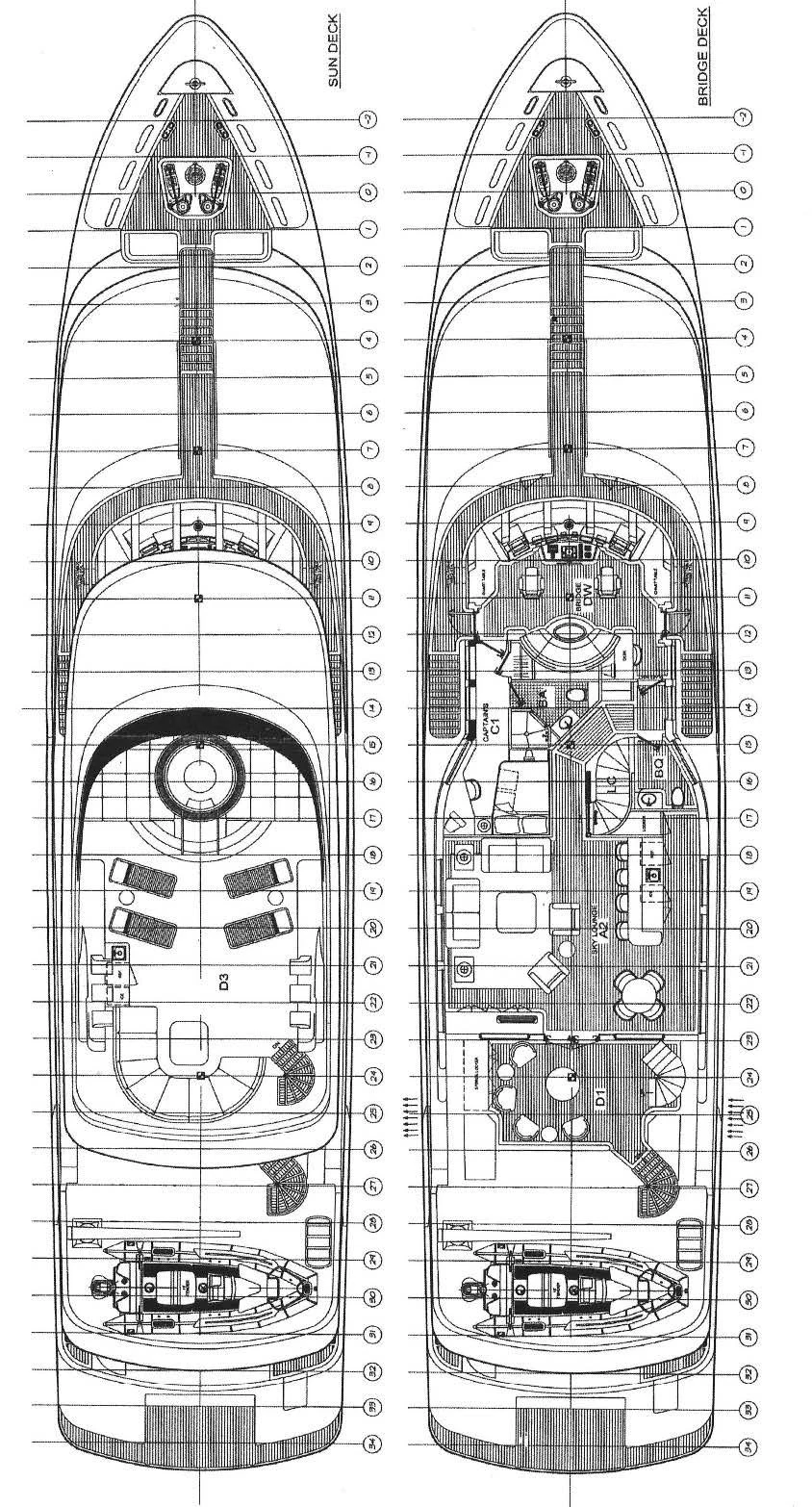

BRIDGE DECK:

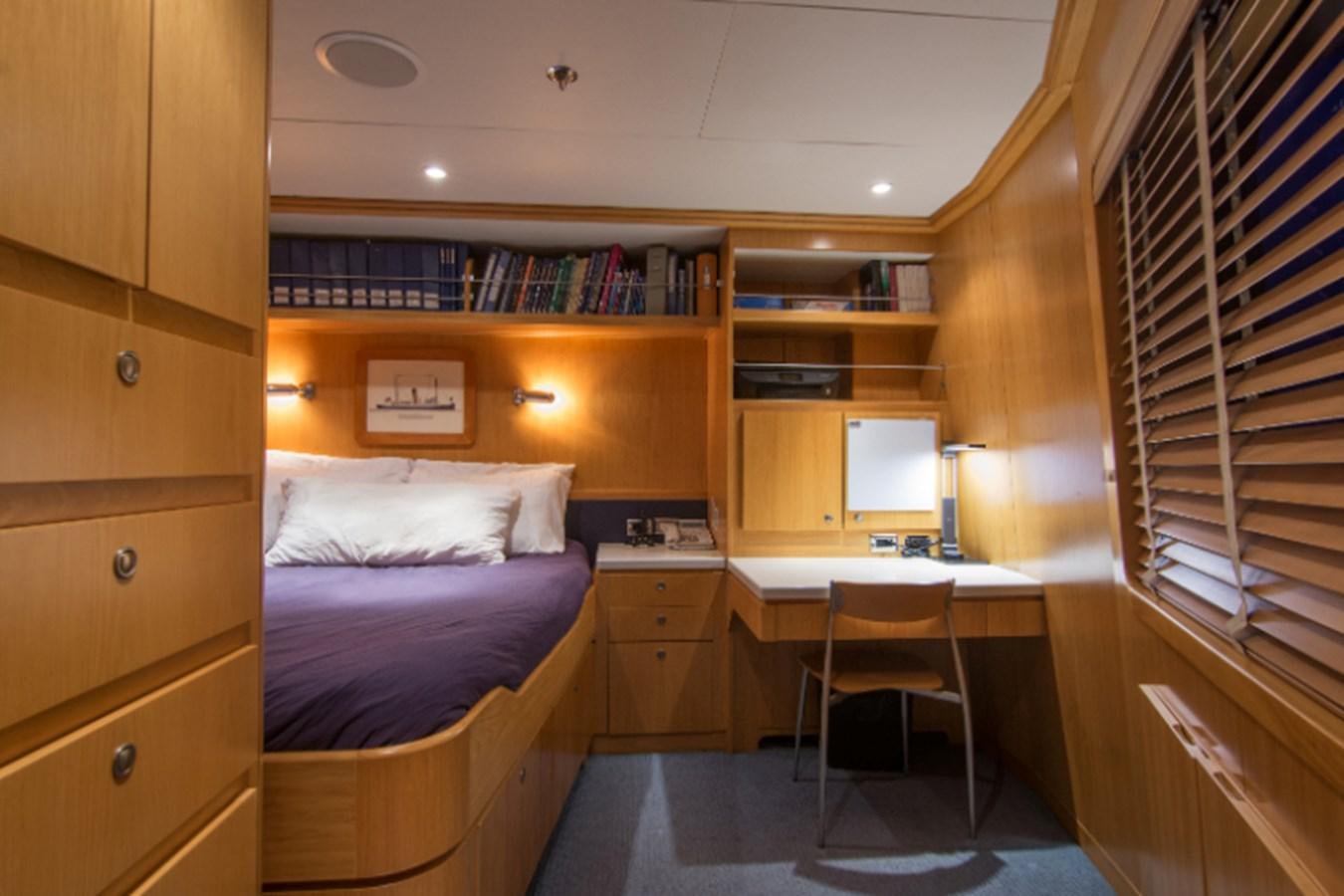

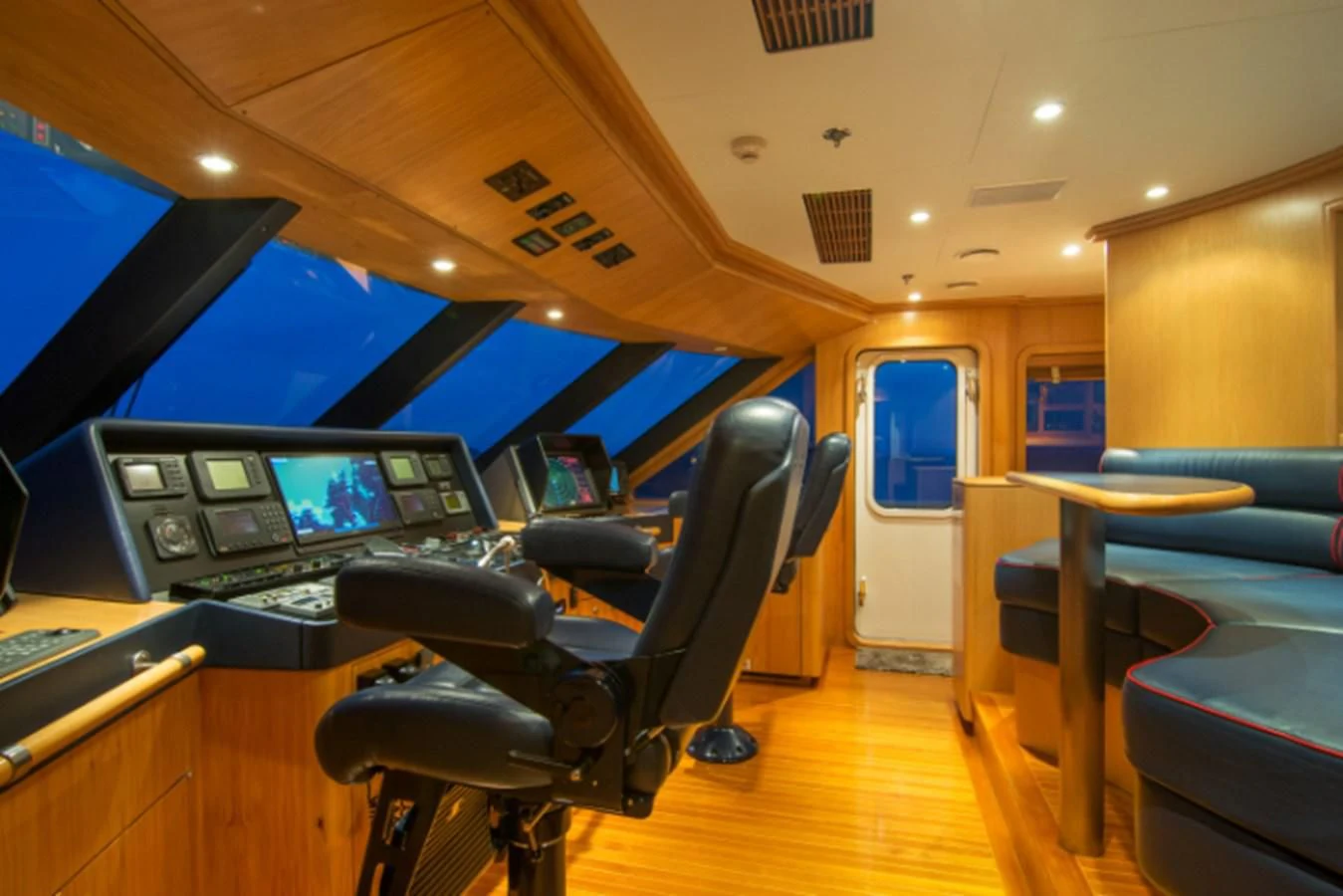

  • There is a Portuguese bridge forward of the wheelhouse with wing stations on both port and starboard side. The wheelhouse has port and starboard doors out and a settee along the center aft bulkhead. The Captain’s cabin is aft of the wheelhouse to port with double berth, desk and en suite bathroom.

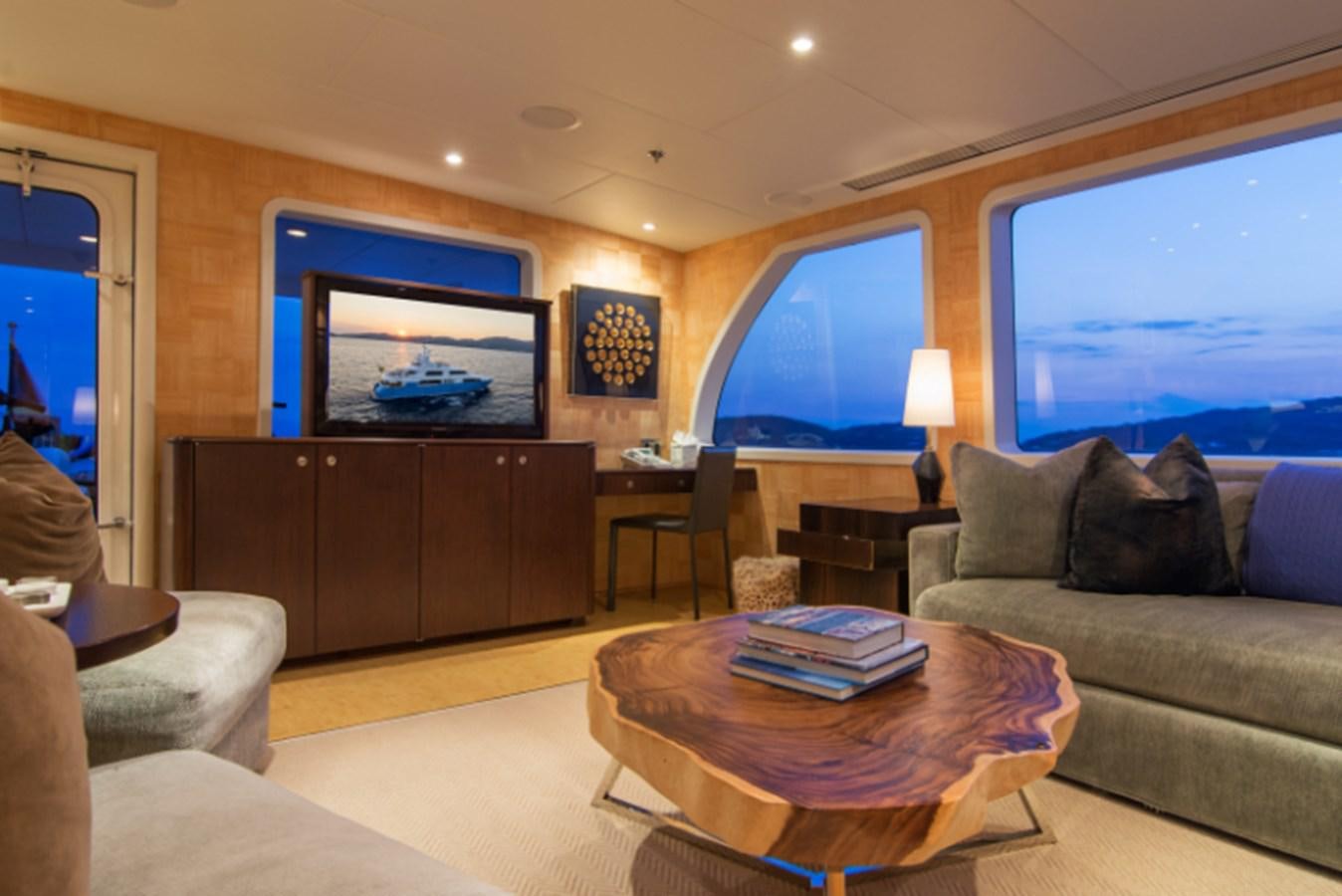

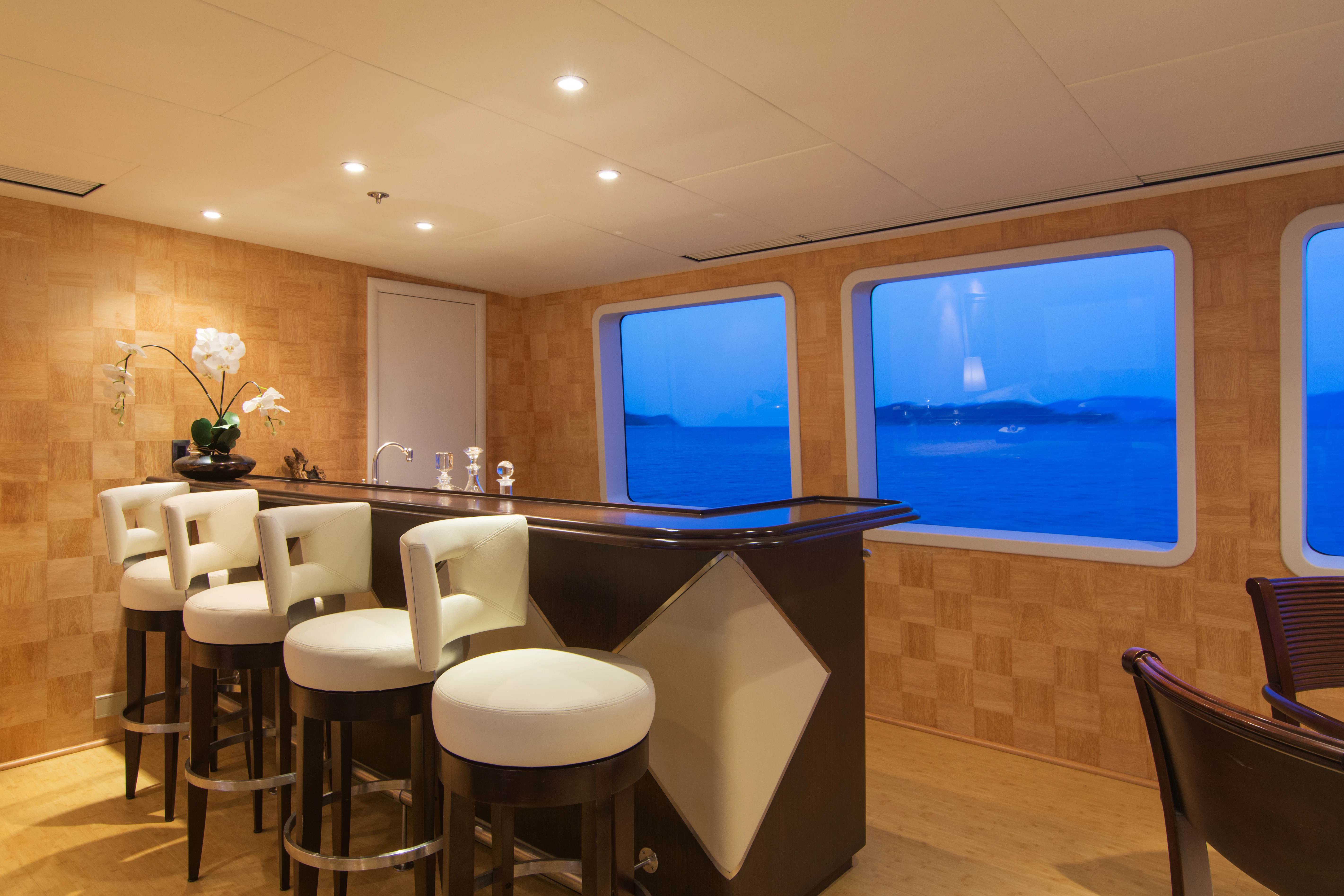

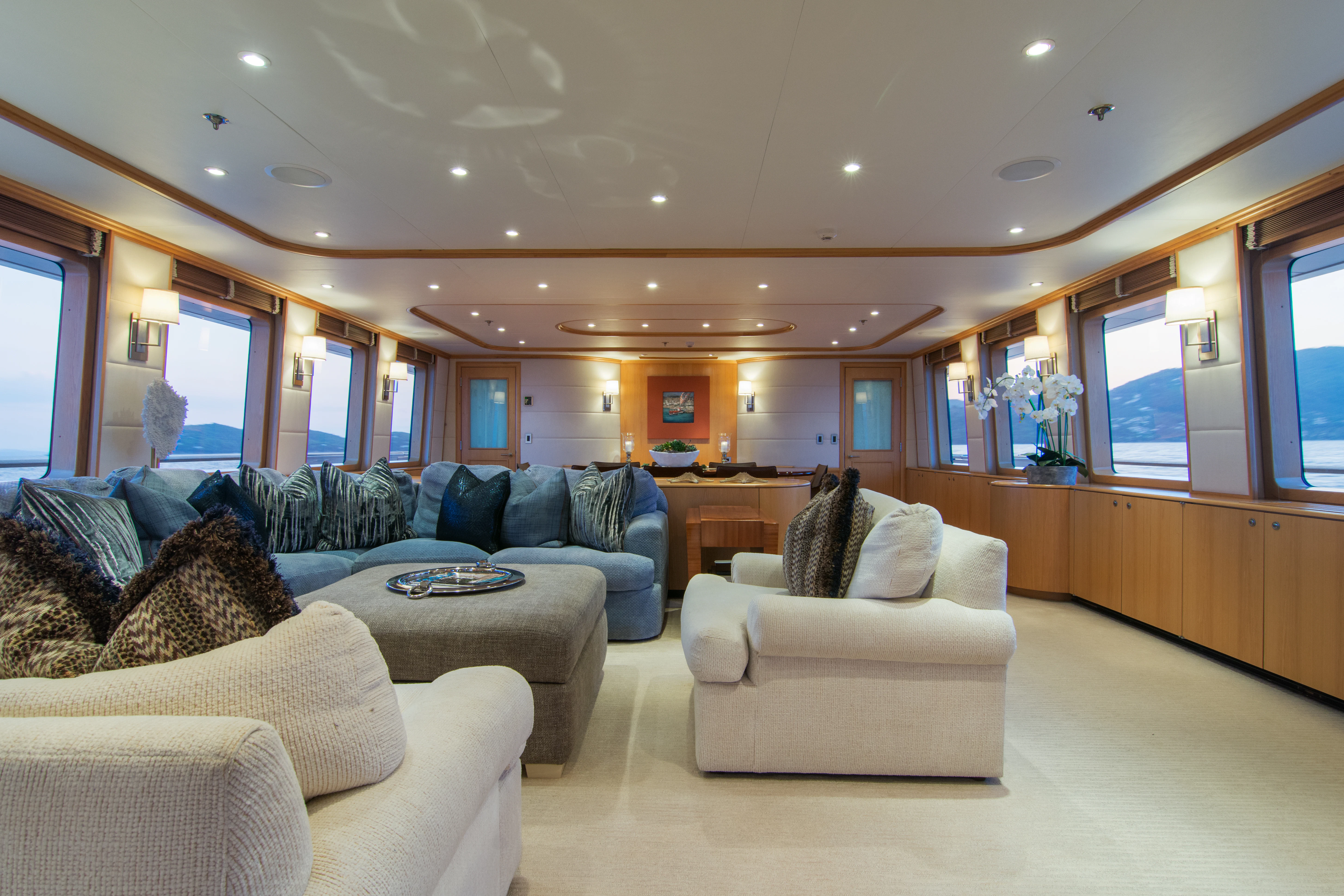

  • A day head is located aft of the wheelhouse on the starboard side of the guest foyer. Further aft is the full beam skylounge which is a fantastic size, it offers a bar with stools to starboard, game table aft, and lounge area with couches and a desk opposite to port. Large windows complement the light woods.

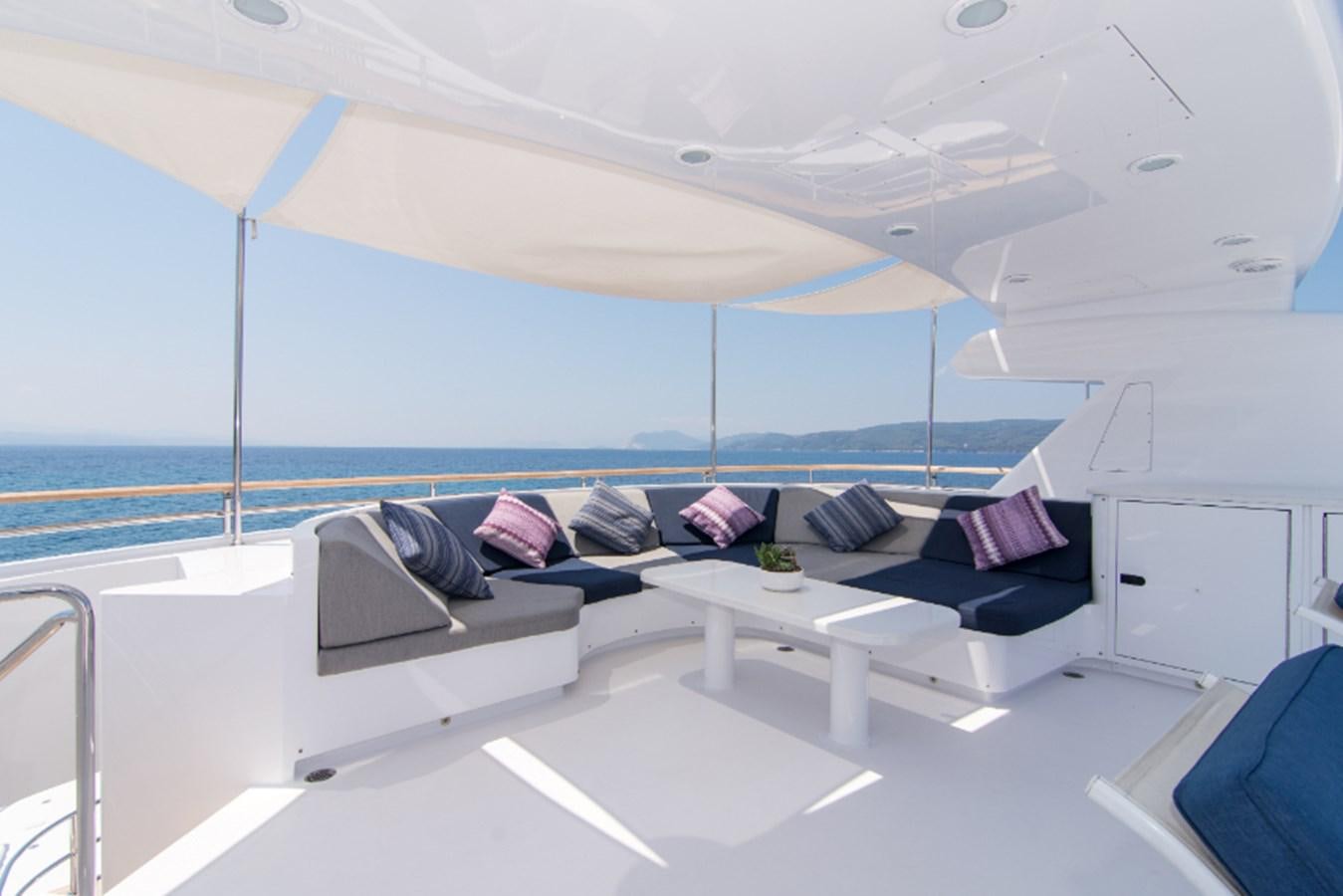

  • The aft bridge deck has seating ahead of the tender and toy storage area which also has the tender launching davit and stairs up to the sundeck and down to the main deck.

SUN DECK:

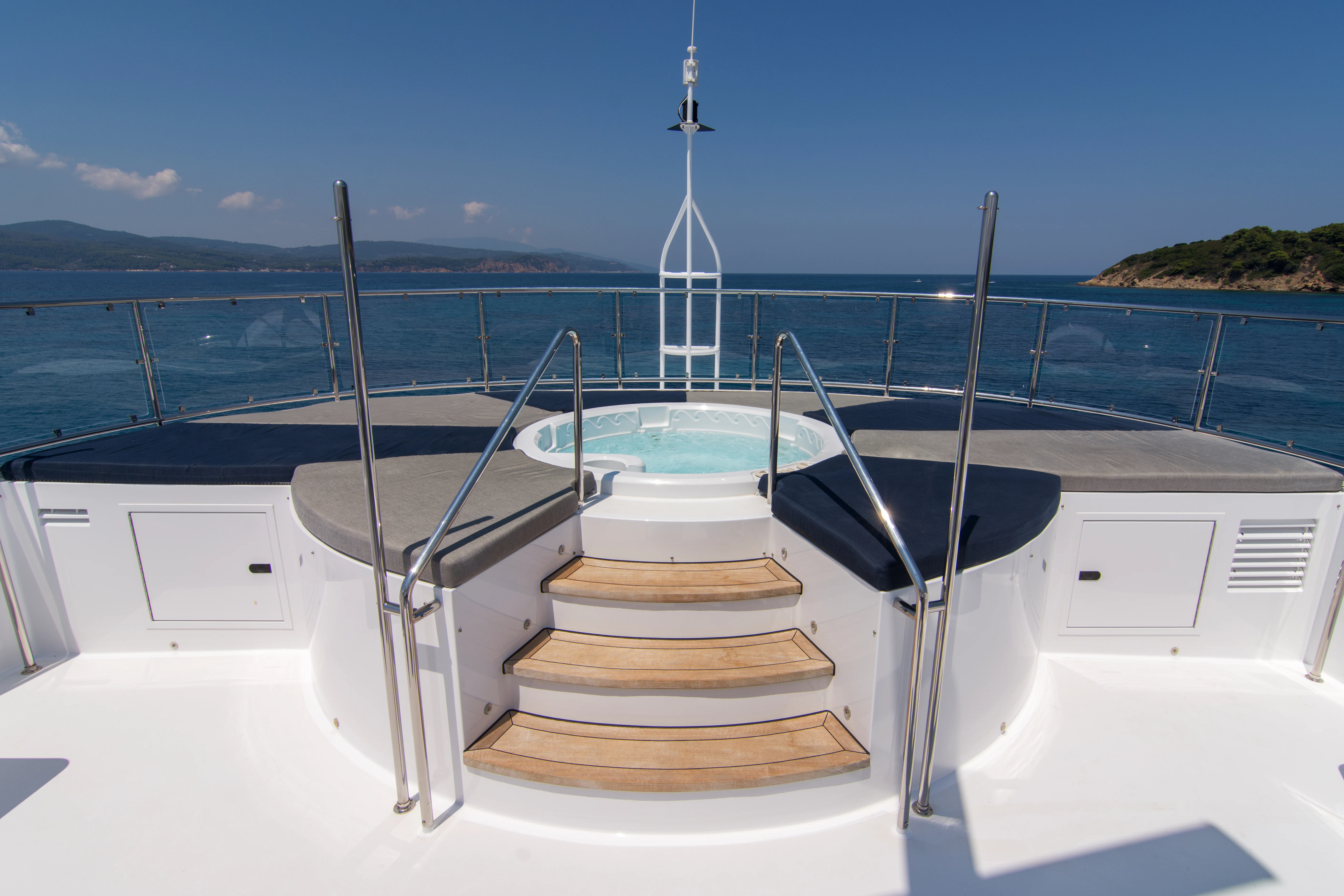

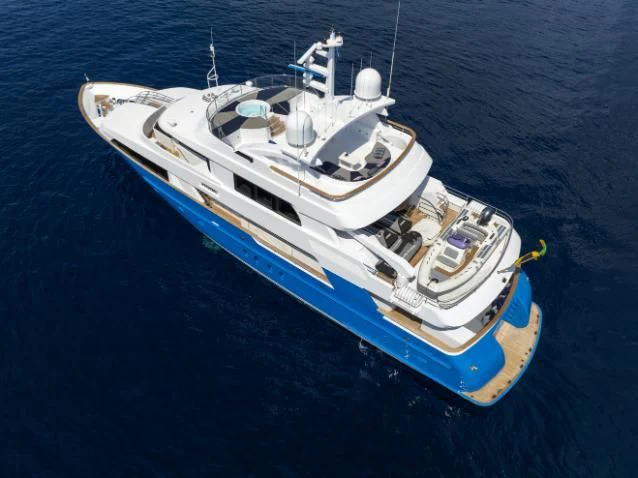

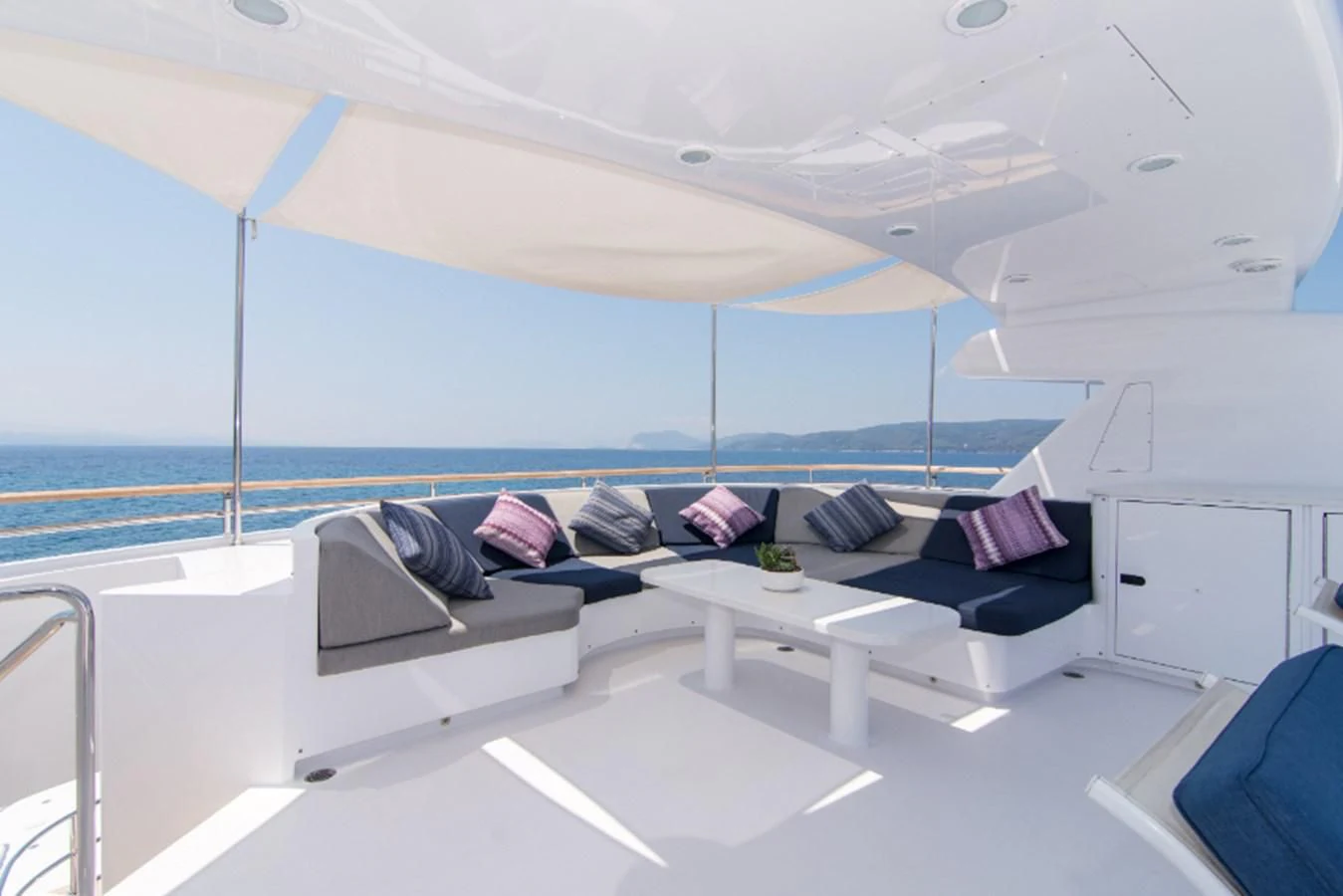

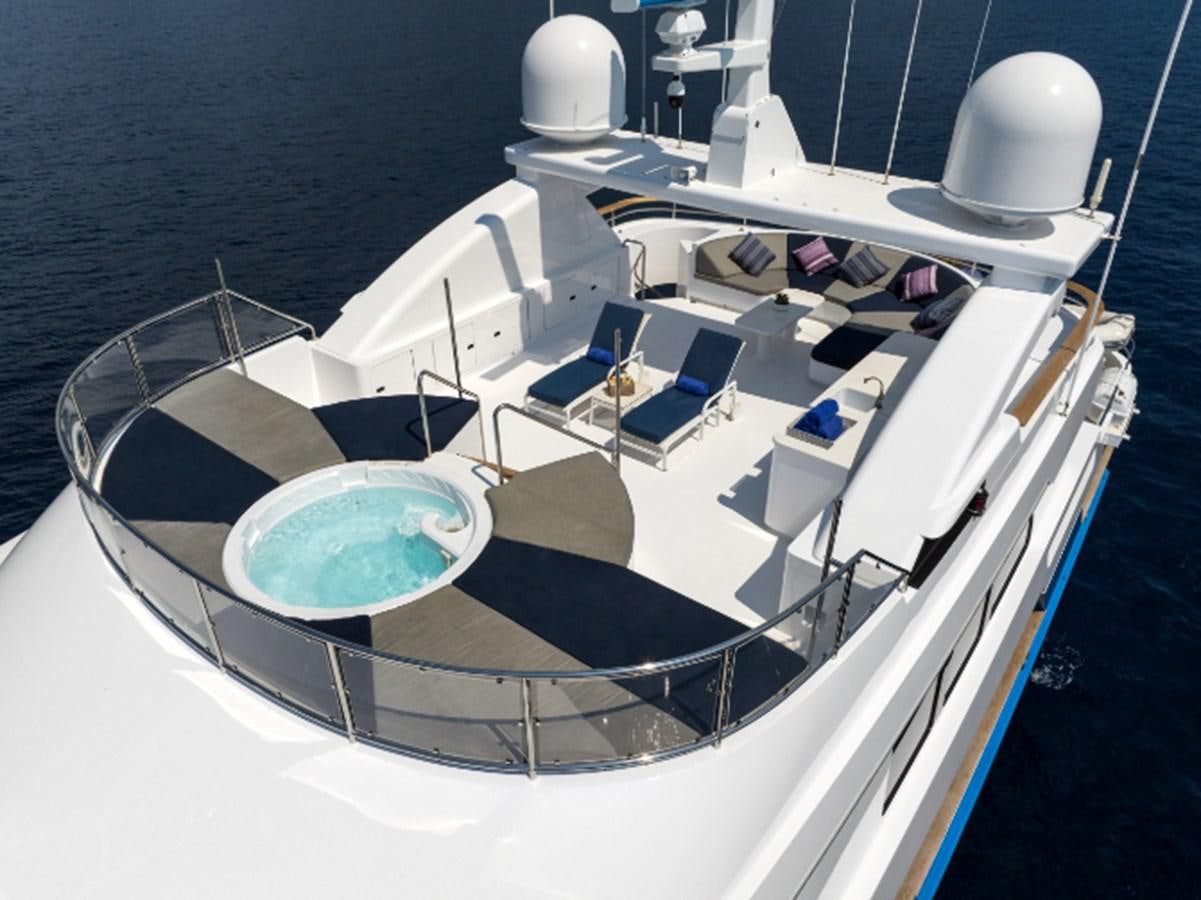

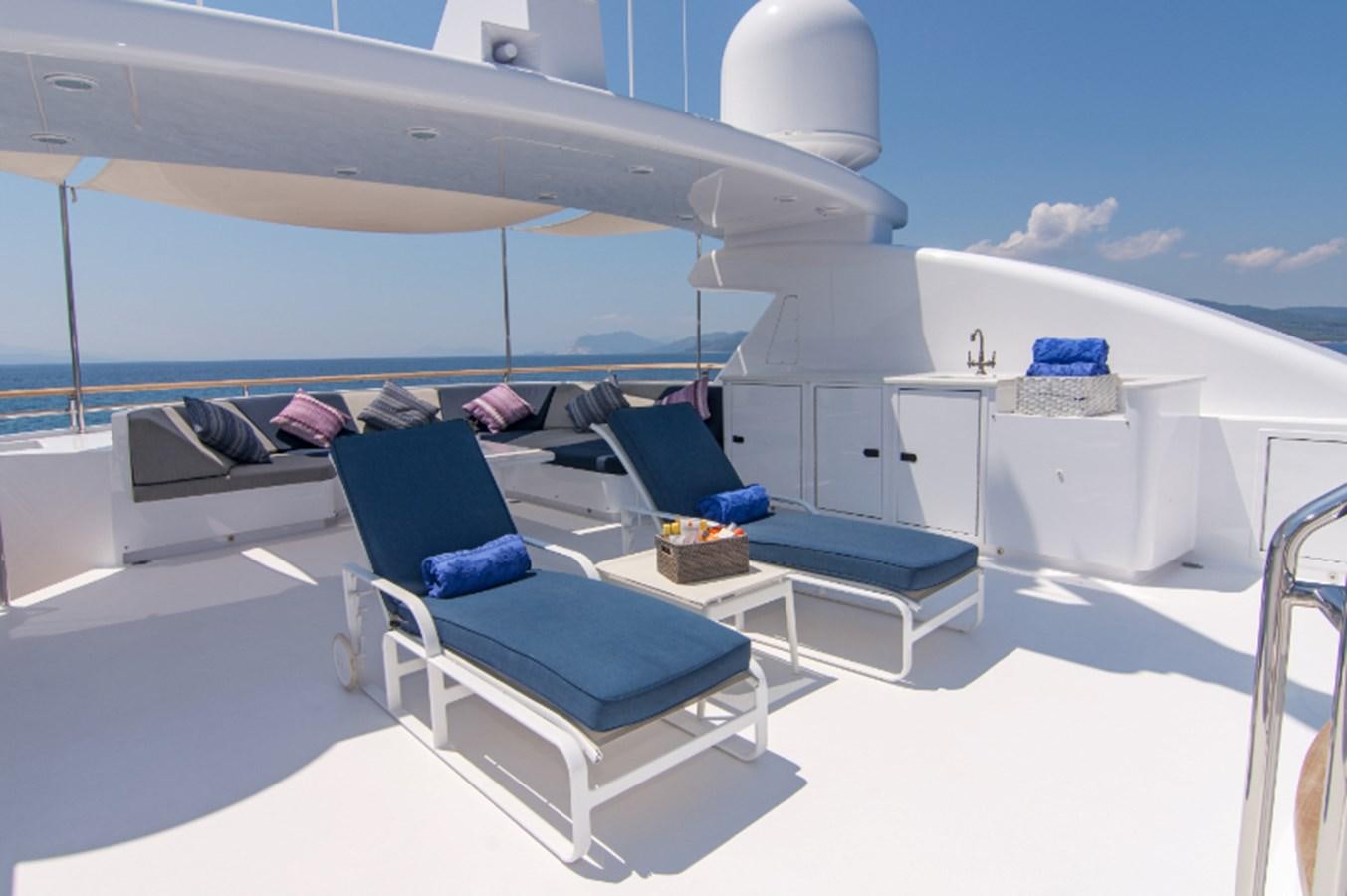

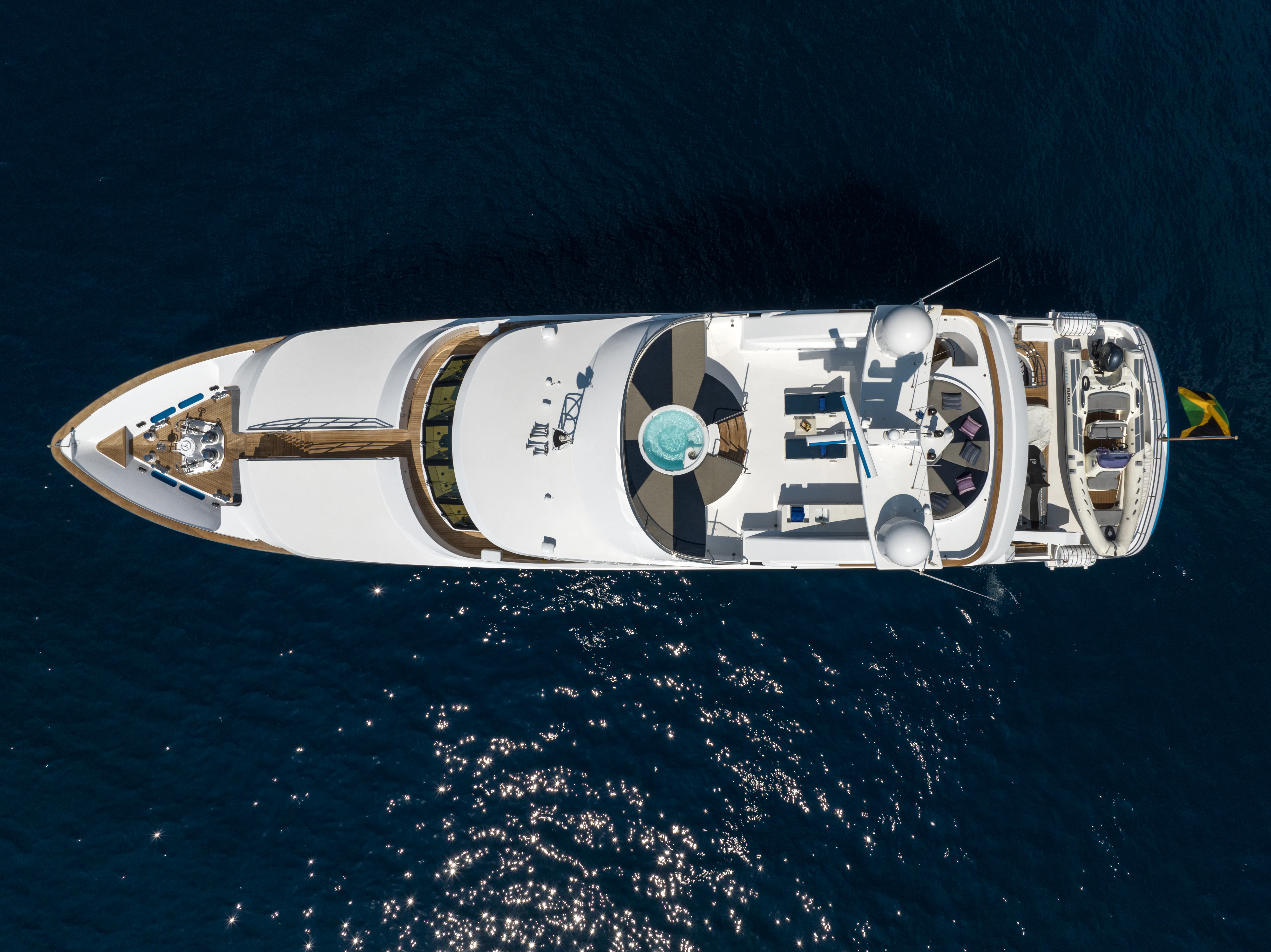

  • The sun deck is a lovely spot with Jacuzzi tub on the centerline forward surrounded by sun pads either side, and chaise lounges under the arch. There’s a bar and BBQ area on the portside and u-shaped seating and dining aft.

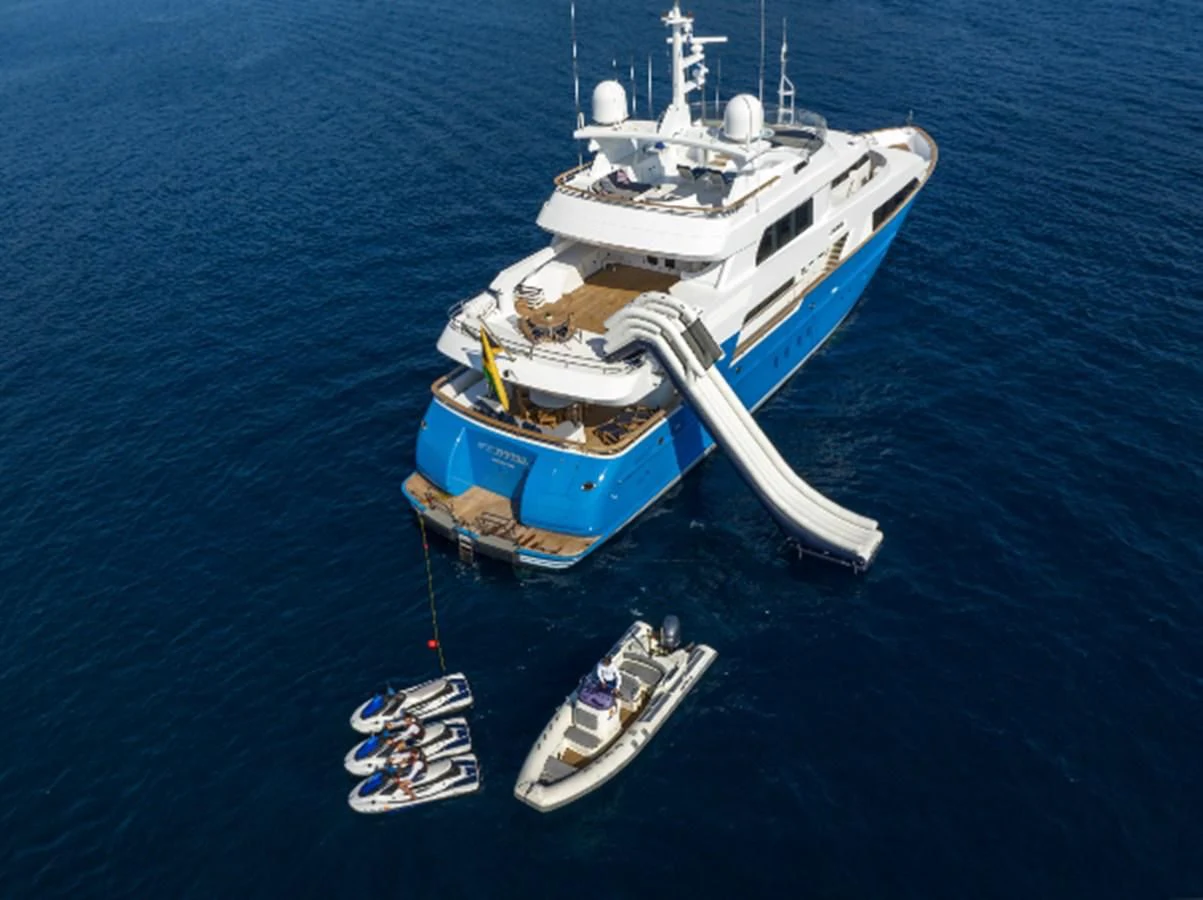

Tenders & Toys

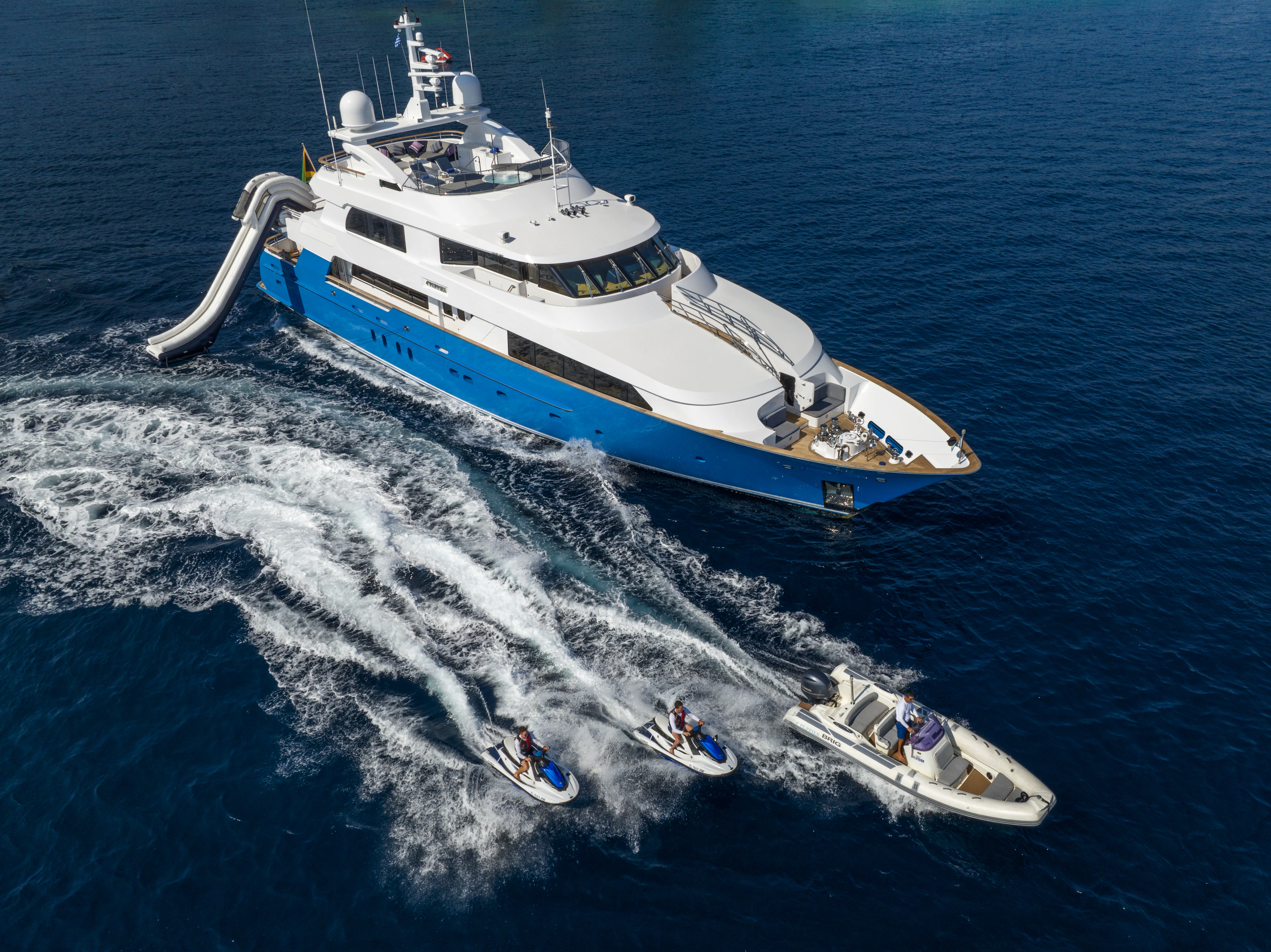

  • Tender: 1 x Brig semi rigid DIStender 21’09” /6.5m (2019)
  • Waverunners: 3 x Yamaha Sport 11’00” (2019)
  • Waterslide: AquaBanas 550 with the additional base in blue and white
  • Dive Compressor: Bauer, CII/DV. 5.0 CFM
  • Paddleboard: 1 x Lagoon

Scuba Gear

  • 8 x BC’s
  • 12 x Masks and snorkels
  • 12 x Fins, various sizes

Deck Equipment

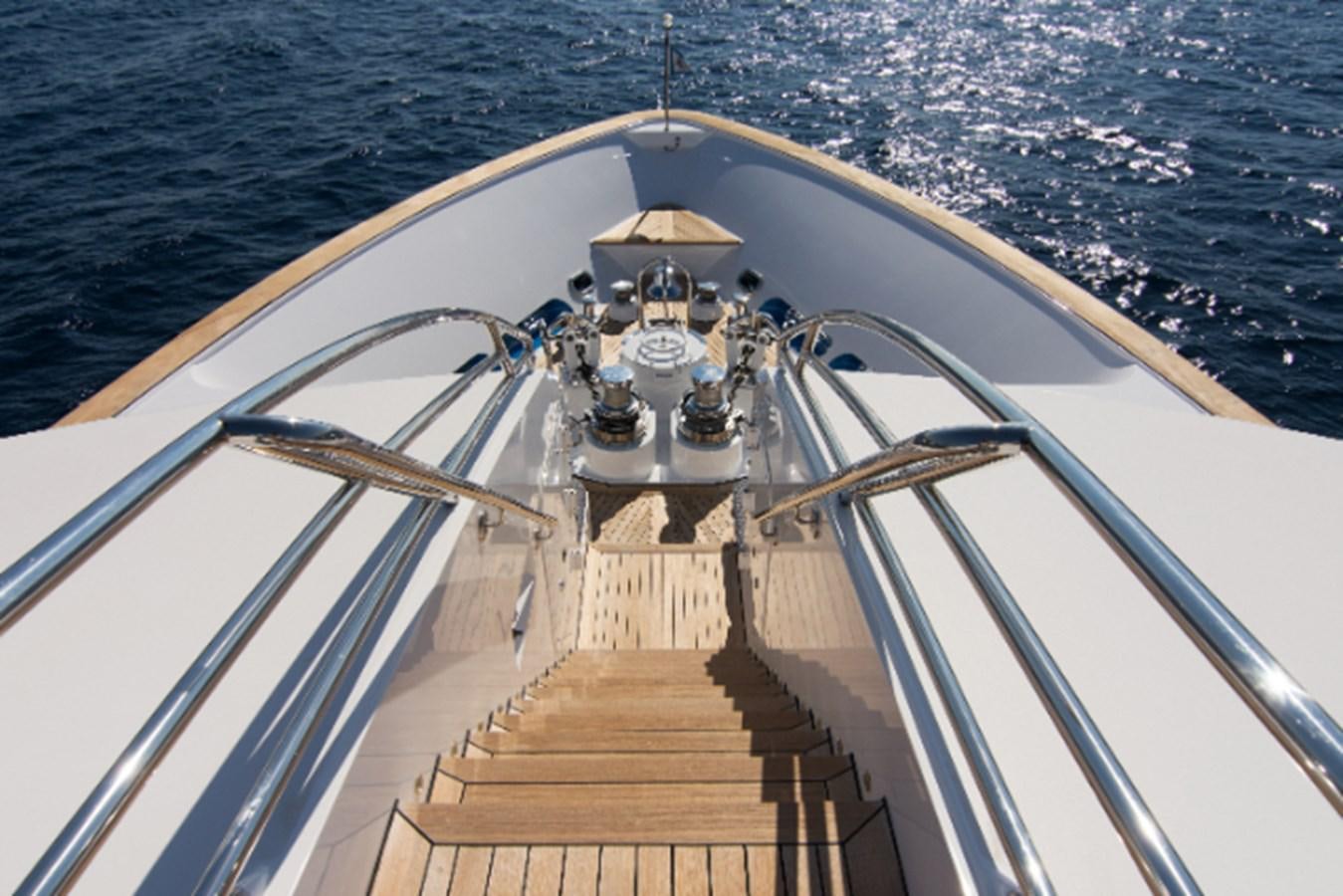

  • Anchors: 2 x 200kg Poole-N galvanized anchors
  • Anchor Chains: 2 x 150m of 11/16” chain
  • Anchor Windlass System: 2 x Muir
  • Aft Warping Capstans: 2 x Muir
  • Boat Crane: 1 x Nautical Structures EZ-3000FB hydraulic crane, 3,000 pounds and 16’ boom length
  • Passarelle: 1 x Marquipt, telescoping with rotation
  • Spotlights Hella and Jabsco, 24VDC
  • Jacuzzi

Accommodation Ladders

  • 1 x Nautical Structures ship side accommodations stairs
  • 1 x Marquipt Sea Stairs with turnstyle
  • 1 x Marquipt swim ladder for swim platform

Safety & Security Equipment

  • Sart: 2 x ACR
  • Ship’s Safe: 1 x Owner’s Stateroom, 1 x Captain’s Cabin
  • Horn: 2 x Kahlenberg
  • Bell: 1 x 12” Perko
  • Searchlight: 2 x Carlisle & Finch
  • Fire Fighting Equipment: 2 sets of Fire fighting gear
  • Fire Control System: SEAMCO Hi Fog system nitrogen charged
  • Portable CO2: 3 kg CO2, one for each of following spaces: salon, lower foyer, wheelhouse, crew lounge, galley and lazarette.
  • Portable Fire Extinguishers: 4.5 kg dry powder, one for galley, two for engine room, 45 liter foam for engine room

Refit History

SHIPYARD WORKS (LMC)
2020:

  • Annual shipyard overhaul
  • New HVAC plant with capacity upgrade
  • New shore power 90 KVA Atlass SHF converter/isolator
  • Atlas transfer box for shore power
  • Main engines/gear box coupling replacement/upgrade
  • Upgrade communication system /Pepwave antenna

2021:

  • Annual shipyard overhaul
  • Main engines top end overhaul
  • Gear boxes/clutch transmission upgrade
  • Service stabilizer/rebuild
  • New shaft seals
  • Davit overhaul

2022:

  • 10 year special survey docking
  • Full Repaint hull and top sides
  • Generators rebuilt
  • New MSD plant
  • Windlass and anchor gear repair/design modification
  • Painting of galley cabinets
  • Davit overhaul
  • New covers Jacuzzi, dining, pilot house
  • Installation of Cathelco antigrowth system
  • Installation of new bathroom hardware
  • Interior air ducts sanitized
  • New galley range and fryer
  • Converted LED exterior/interior 19mm lights and 4" Lights
  • Flooring laminate
  • Nanny and salon AHU units replaced
  • Wall décor in galley

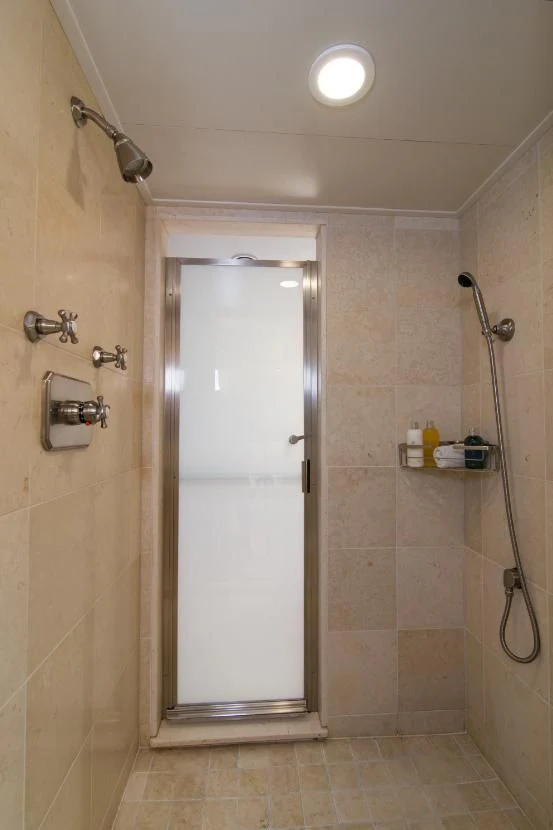

  • Master suites 2 x shower door replacements
