UTOPIA III Yacht for Sale

Length
150' (45.72m)
Builder
Trinity Yachts
Build
2000
Guests
11
Cabins
5
Crew
10

Yacht is no longer available for sale.
This is an archived web page showing historic information for reference purposes only. Search Yachts for Sale.

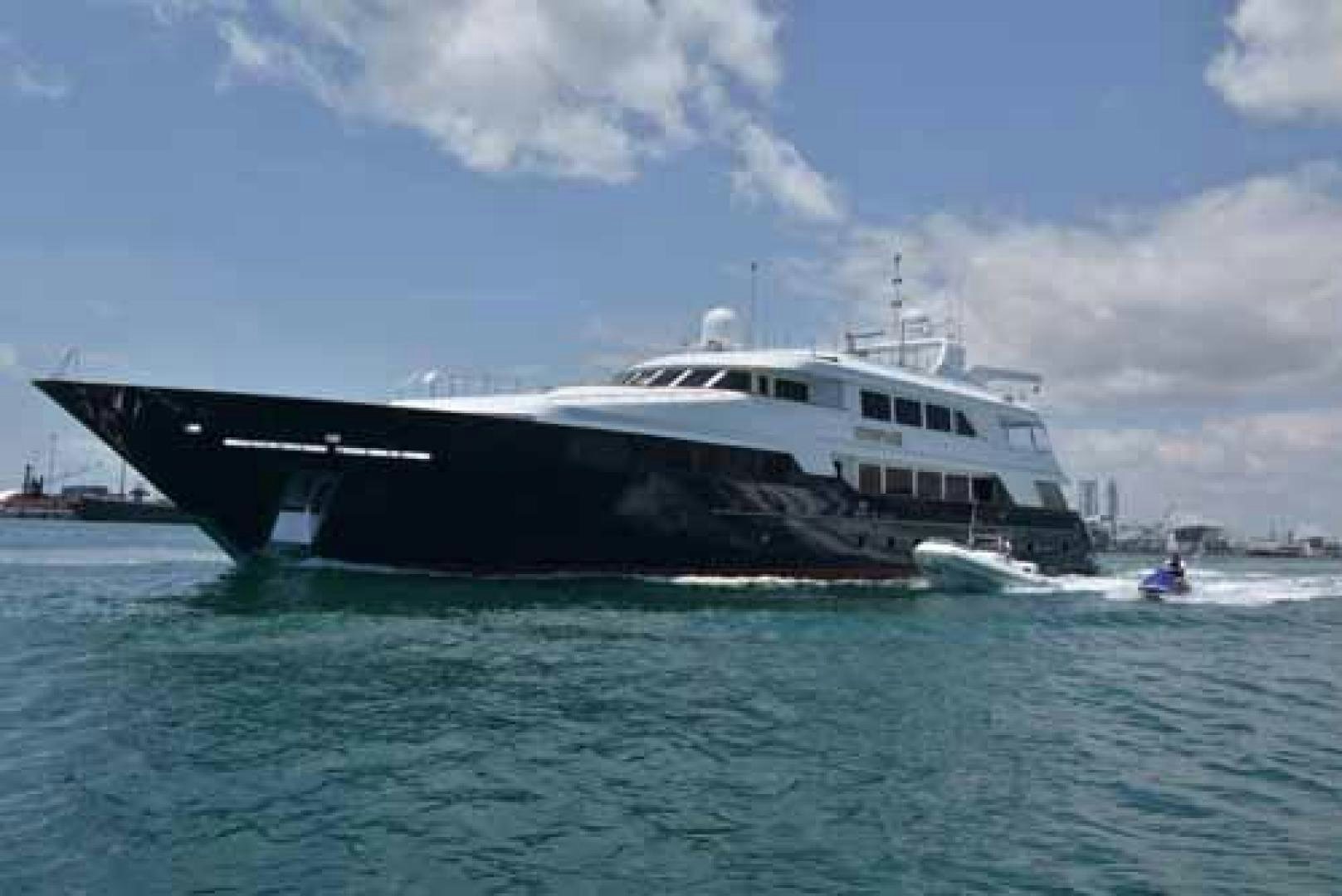

A ground breaking success for Trinity at the time of her launch, UTOPIA III was the first of the newer style Trinity yachts, as drawn by Paragon Designs.  Built to, and remaining in, ABS Classification, this large volume five stateroom, tri-deck motoryacht  provides speeds in excess of 21 knots, while offering tremendous economy and rage at 12.5 knots.

Offered by a motivated and serious Seller, UTOPIA III is a must see for any prospect considering a fully Classed tri-deck motoryacht.

MAIN FEATURES:

  • Award winning design with large volume, full width skylounge and on-deck master
  • Shallow draft ideal for Bahama cruising. Power convertor and passarelle for Med cruising
  • ABS Classed, U.S. Flagged, U.S. Built and an outstanding option for private use or charter
  • Large exterior spaces with multiple alfresco dining options
  • Semi-planning hull offers speeds up to 21 knots while retaining excellent sea-keeping abilities.

Specifications

Builder Trinity Yachts
Model semi-displacement
Length (LOA) 150' (45.72m)
Year 2000
Gross Tonn. 488
Draft 7' 6" (2.29m)
Beam 28' (8.53m)
Range 3,500 NM
Location Miami, United States

Accommodations

Staterooms 5
Sleeps 11
Heads 5
Crew Cabins 5
Crew Sleeps 10
Capt. Quarters No

Dimensions & Capacity

LOA 150' (45.72m)
Min Draft 7' 2" (2.18m)
Max Draft 7' 6" (2.29m)
Fuel Tank 16,250 g
Fresh Water 2,750 g (10,409 L)
Gross Tonn. 488

Construction

Hull Material Aluminum
Hull Config semi displacement
Max Speed 22 Knots
Cruising Speed 18 Knots
Range 3,500 NM
Stabilizers Standard

Engines (x3)

Engine Make Caterpillar
Engine Model 3512B
Engine Type Inboard
Power HP 2,250
Power KW 0
Fuel Type Diesel
Engine Location Port
Have Questions?

Complete the form below and one of our experienced sales brokers will be in touch soon.

Full Details

Dimensions

General

Length Overall:                                 150                                (45.7 meters)
Beam (molded):   28 (8.5 meters)
Draft:      7 (2.1 meters) (medium load)
Tonnage:  488 GRT

Capacities

Fuel Capacity:                               16,250 U.S. Gallons (61,506 liters)
Water Capacity:    2,750 U.S. Gallons (10,408 liters)
Watermakers:  (1) FCI Reverse Osmosis  3,500 gallons a day (13,248 liters)
                                    Speed       Consumption per hour  Range           RPM
Maximum:  22.0 knots  205 gallons  1,400 nm  1875
Cruising:  18.0 knots  180 gallons  1,600 nm  1775
Economical:  13.0 knots  3,500 nm

Machinery

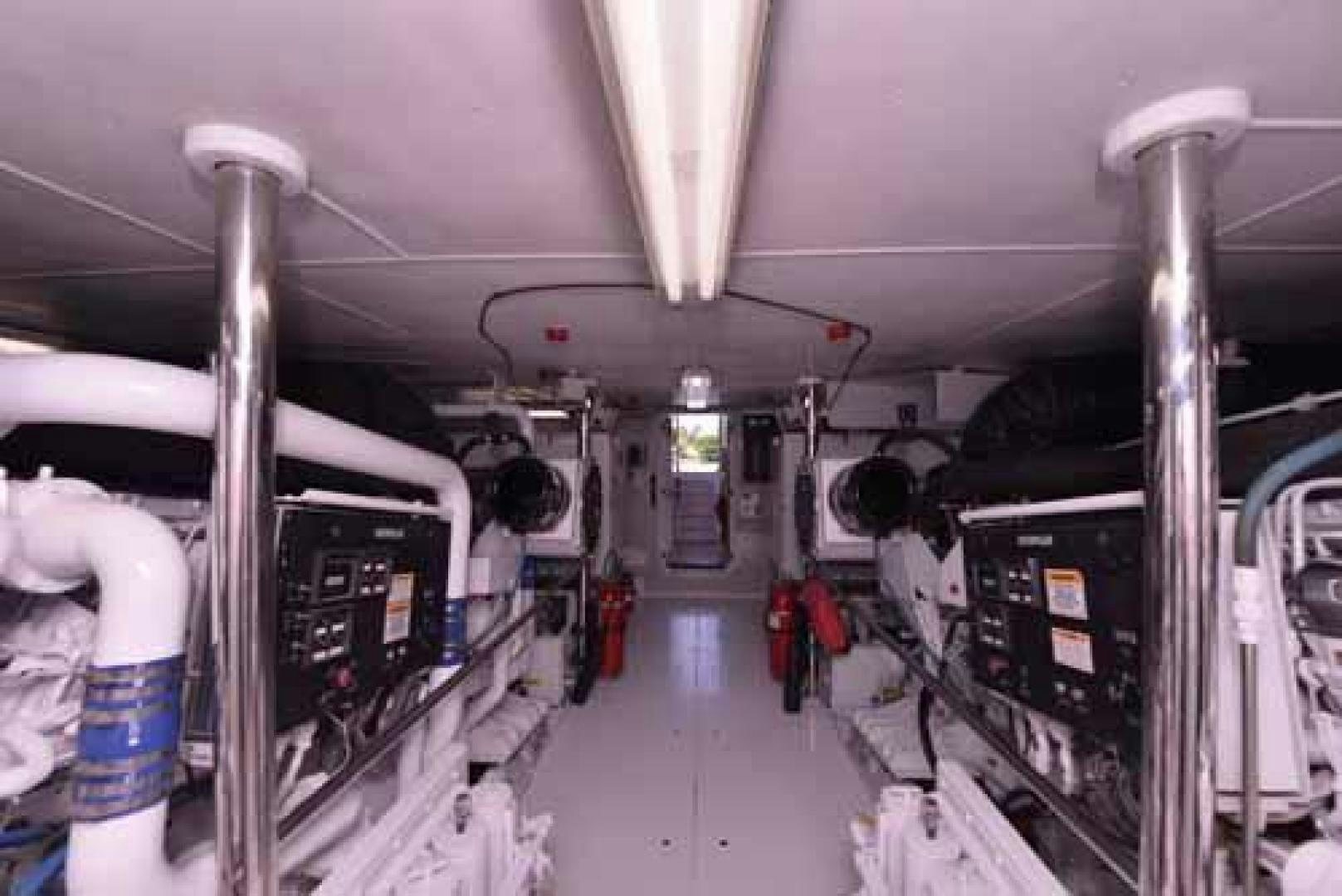

Main Engines

Engine Type: (2) Caterpillar 3512B diesels @ 2,250 hp each
Engine Hours:  Port: 8,196, Stbd: 8,182 as of Aug 2018)
Gearboxes for Main Engines:  (2) ZF-BW465 with 3:0371 ratio
Drive:  Propellers

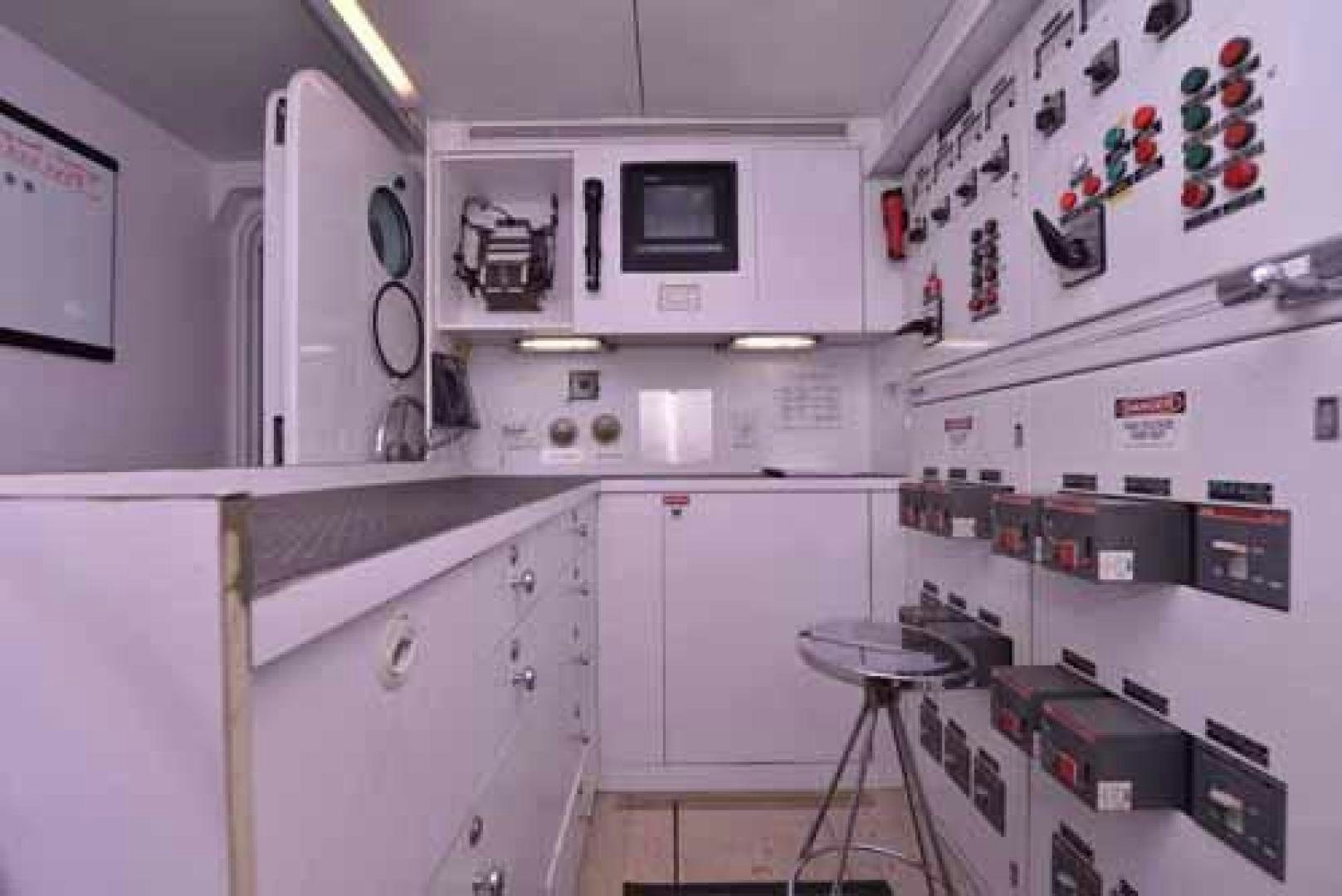

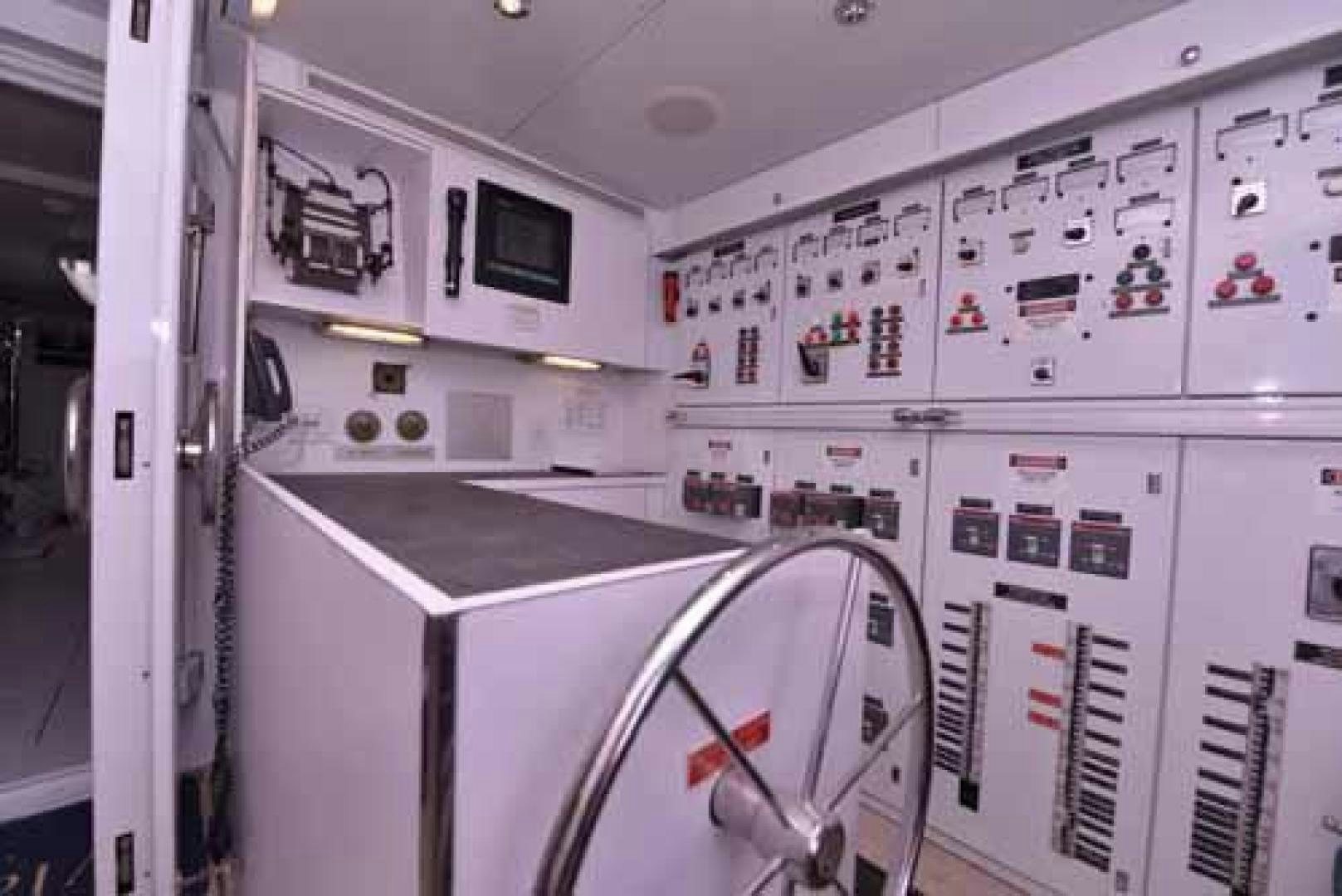

Generators & Electricity

Output:                           110/208 AC electrical system
12/24volt DC electrical system
Generators:  (2) 99 kW Kilopak 120/208v/ 3 phase/60 hz
@ 1,800 RPM (sound shields)
Generator Hours:  Port: 17,113 as of Aug 2018 (2009 Rebuild)
Stbd:  11,073 as of Aug 2018 (2011 Rebuild)
Shore Power:  (2) Atlas 40 KVA converters 110/220/480v
1 or 3 phase - /50-60hz cycle

Air-Conditioning

Type:                                                      Aqua Air chilled water system conditioner with 30 ton
capacity and 25 air handling units (Compressors new
2016, all air handlers rebuilt or replaced in 2015 & 2016)

Other Machinery

Watermakers:               (1) FCI Filtration Concepts Inc, 3,500 gallons per day
Stabilizers:  Quantum ARC 3000
ACR 3000 Electronic Control Panel
Bow Thruster:  American 65 hp - Electric
Fuel Filtration:  Alfa Laval MAB 203
Bilge Water Filtration:  Heli-Sep 500 OMD 2005
Sewage System:  Orca  IIA
Fresh Water System: (2) Headhunter 220v AC pumps
Steering System:  Jastram EW2 Elecro-Hydraulic
Emergency steering:  Jastram
Misc.:  Kobelt engine controls, (2) 80 gal hot water heaters (2017)

Communication, Navigation And Entertainment Systems

Communication Systems

Satcom:                 V-Sat, (2) Nera Mini M
Telephone System:  Toshiba Starta DK 16 phone system
SSB:  Sea 2250 (Pilothouse)
VHF:  (2) Sea 156
(2) Shipmate RS8300 (Pilothouse, Crew Mess)
(2) Icom IC-M504 (Pilothouse , Flybridge)
Hailer:  SEA SeaHail (Pilothouse)
Cellular Phone System:  Through Ships phone system
Intercom:  Through Ships phone system
Computer:  HP Pavilion w/ HP OfficeJet Pro 8600 printer (Pilothouse)
Dell w/ HP OfficeJet 4630 printer (Captain’s Cabin)

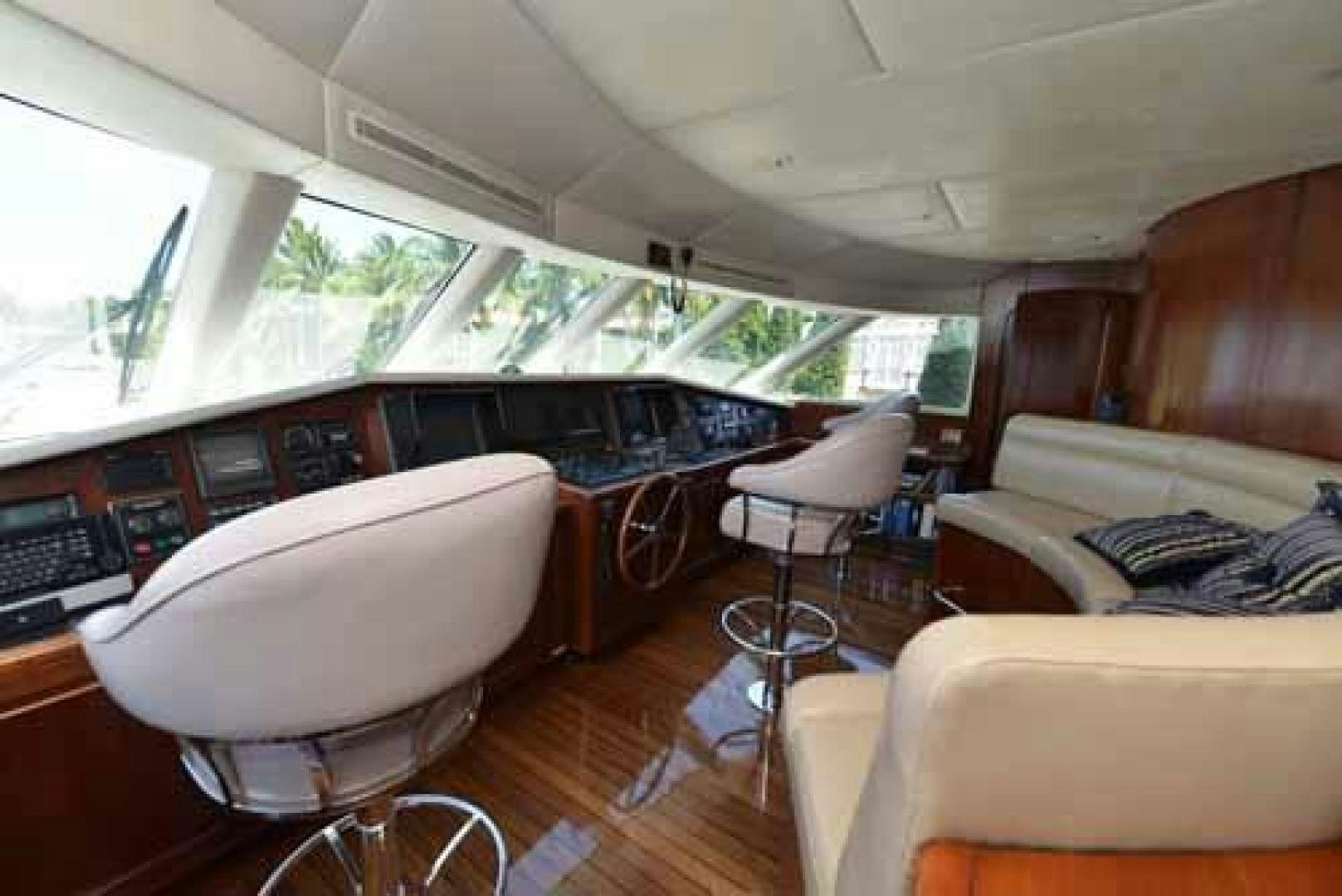

Navigation Systems:

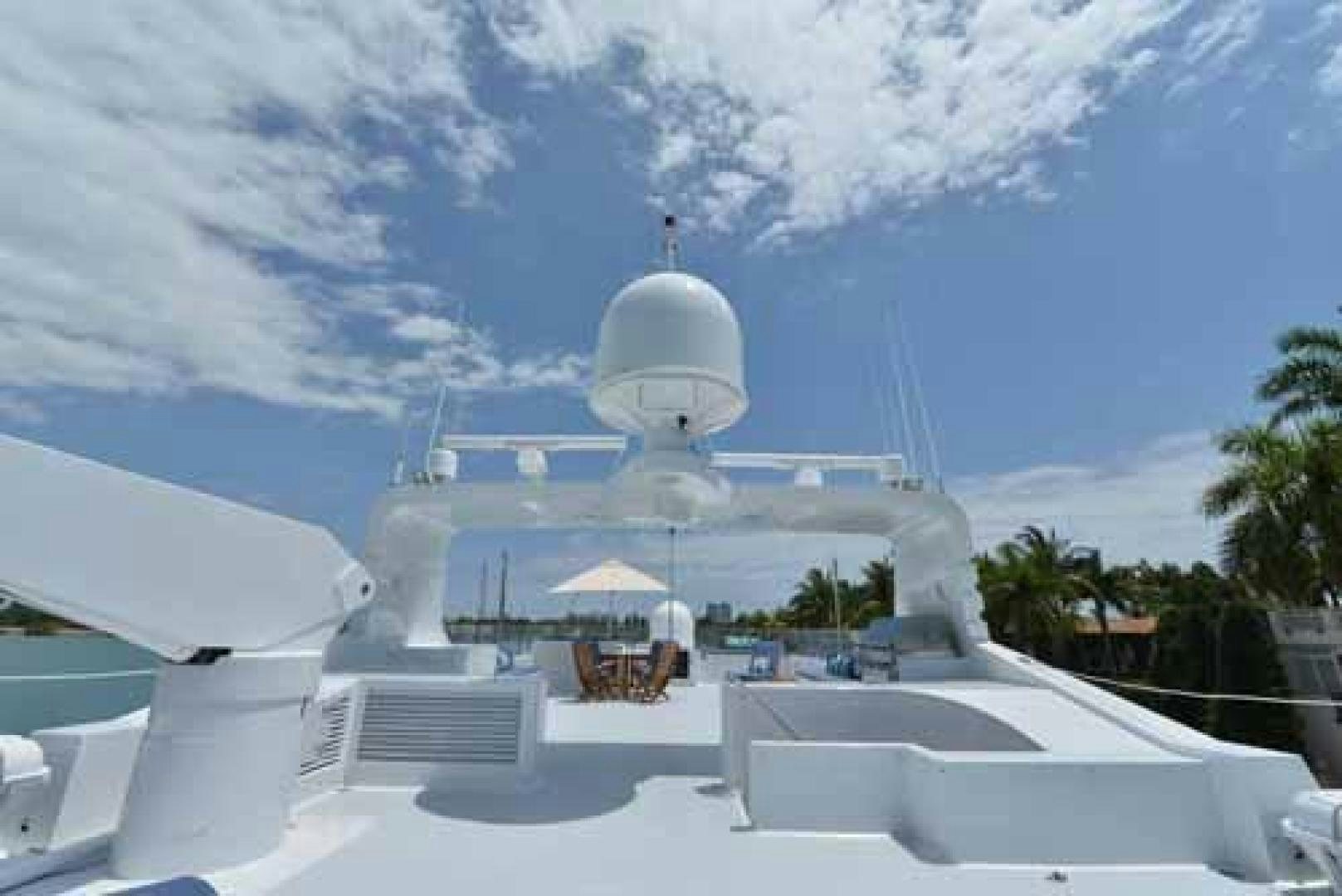

Radars:                       (2) Furuno FR 2125 color 96 nm with (1) Furuno S-ARPA
auto chart plotter
Gyrocompass:  C-Plath Navigator, Mod. 10 MK1
Magnetic Compass:  (1) C-Plath 6” (Pilothouse); (1) Ritchie 6” (flybridge)
Automatic Pilot:  C-Plath Navipilot V w/ Flybridge remote
Depth Sounder:  B&G 20/20 MultiFunction (Pilothouse, Flybridge)
GPS:  (2) Northstar XD 952X (Pilothouse, Flybridge)
(1) Garmin GPSmap 741XS (Pilothouse)
Weather FAX: Furuno NX 500
AIS:  Furuno FA150
Chart Plotter:  Nav PC w/ Nobeltec

Entertainment System

UTOPIA III’s audio/visual package is extensive and a full list of equipment is available upon request.

Galley And Laundry Equipment

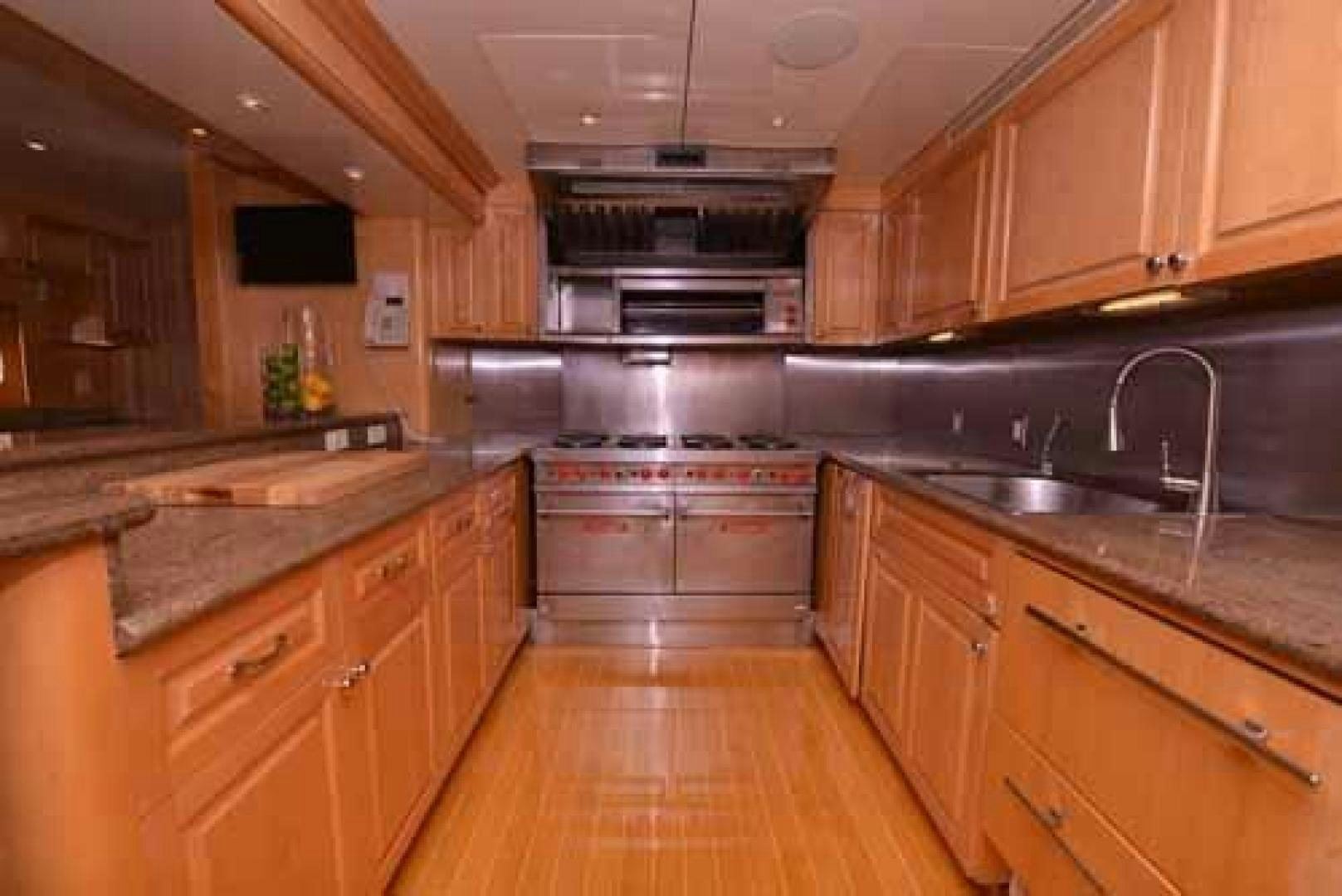

Main Galley Equipment

Cooking Equipment:             Vulcan 8 burner range and 2 ovens
(1) MagicChef microwave
Refrigeration & Freezer:  (1) Sub Zero 601R refrigerator (rebuilt 2016)
(1) Sub Zero 601R freezer (rebuilt 2016)
(1) Sub Zero 700BR Refrigerator Drawers (new 2016)
(1) KitchenAid Icemaker
(1) KitchenAid Trash Compactor
Dishwasher:  (1) Bosch SilentPro Dishwasher

Additional Galley Equipment

                                                                  (1) Solaire infra-red BBQ S.S. grill (Flybridge)
(1) Vulcan Salamander with S.S. fire/exhaust hood
(3) KitchenAid Icemakers (aft deck) (flybridge)
(skylounge)
(1) KitchenAid KCDS 250X3 sink macerator
(2) Wine coolers (sky lounge, main salon)
(3) SubZero under-counter refrigerators
(aft deck, flybridge, skylounge)
(1) KitchenAid trash compactor (skylounge)

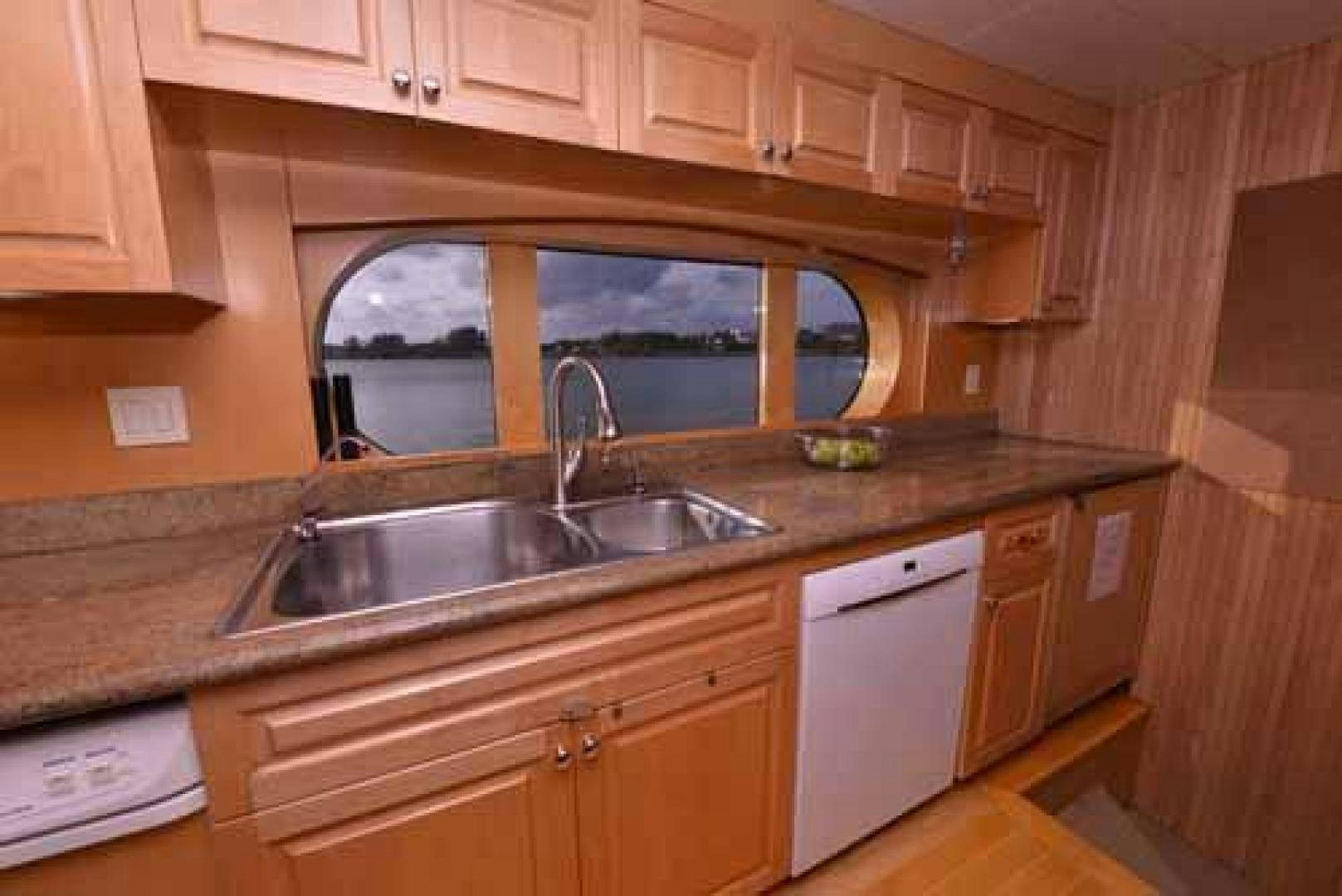

Crew Galley

                                                                 (1) Oster microwave
(1) Amana upright refrigerator/freezer
(2) SubZero under-counter refrigerators
(Crew mess & pantry)

Laundry Equipment

Main Laundry:                                 (2) Miele Pro PT7136 stacked washer/dryer (laundry room)
(1) Miele T8003 dryer; (1) Miele W 3033 washer (guest foyer)

Tenders And Toys

  • Tenders:                 (1) 2002 22’ Novurania 660DL tender with 200hp Yamaha outboard
    Exercise Equipment:  (1) Pro-Form Treadmill

Deck Equipment

  • Anchor windlass system:          (2) Maxwell VWC8000 electric with chain
    gypsy and capstan (Rebuilt 2017)
    Aft Warping Capstans:  (2) Maxwell VC3500 (aft stern quarters)
    Anchors:  (2) Pool 397 pound/180 kilograms anchors
    Anchor Rode/Chain:  (1) 450'/137m of ¾"/19mm high tensile chain
    (1) 400’/122m of ¾"/19mm high tensile chain
    Boat Crane and Davits:  Marquipt 3,500 pound davit
    Accomm. Ladders:  (2) Marquipt manual
    Stern Boarding Ladder:  (1) Marquipt Electric-Hydraulic Passarelle
    Misc.:  Overhead heating panels on pilothouse aft deck;
    (2) ACR RCL-100D  spotlights;
    (1) ACR RCL-600A spotlight; sundeck shade sails,
    Transom shower,  Sundeck Flood lights

Security, Fire Fighting And Safety Equipment

Security Equipment

CCTV system:                                 Burle
Cameras:  (5) Mast, side decks, aft deck and engine room
Monitors:  (2) Pilothouse and crew quarters
Ships Safe:  (6) Captain’s cabin, owner’s cabin, 4 in guest cabins

Fire Equipment

Fire pump:              (4) Sea water firefighting stations
Fire Extinguishers:  Throughout the vessel (portable)
Fixed Fire System:  CO2 system in engine room
Fire/smoke detectors:  Throughout the vessel

Safety Equipment

Life rafts:                                     (2) Givens 12 person
(1) ACR 6,000,000 candle power remote control searchlight
(2) ACR small remote control searchlights
Life Rings:  (5)
EPIRBS:   (2) (handheld and auto)
Medical Kit:  (1) Complete Medical Aid Package

Accommodations

General

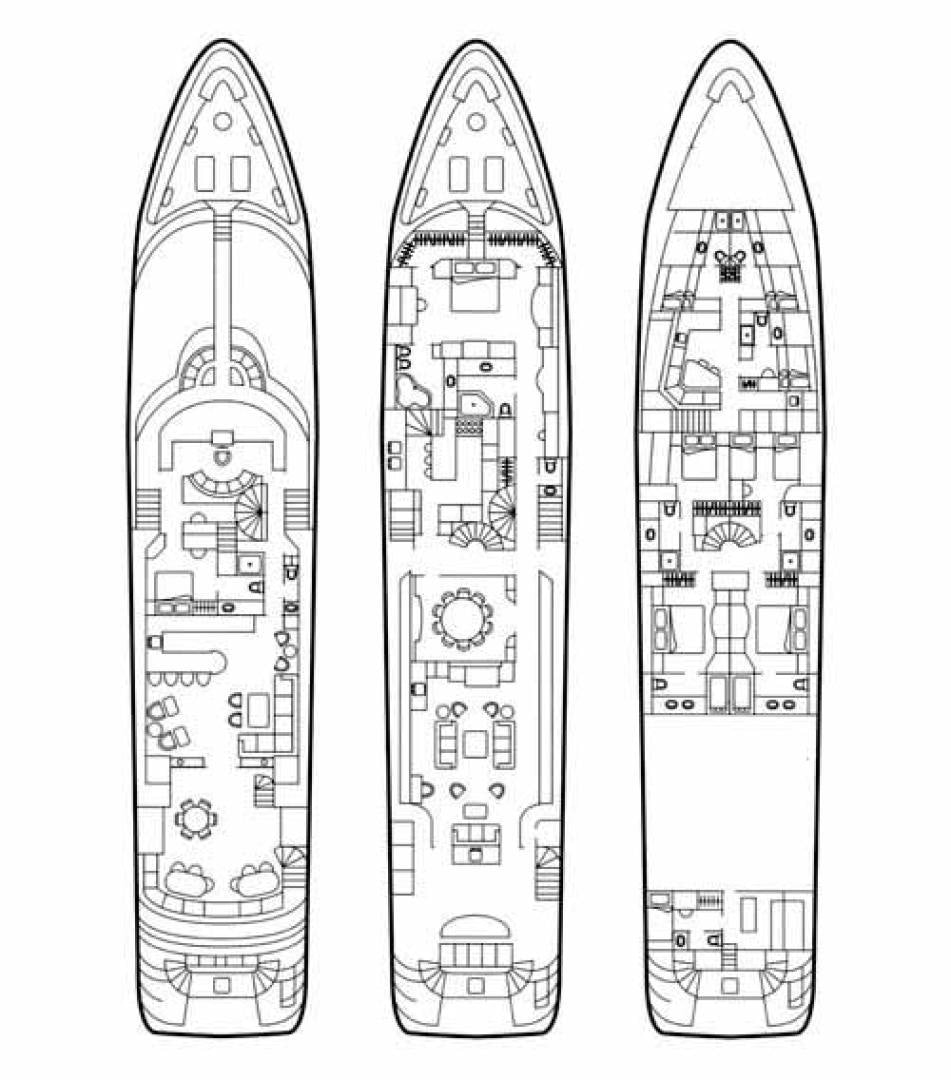

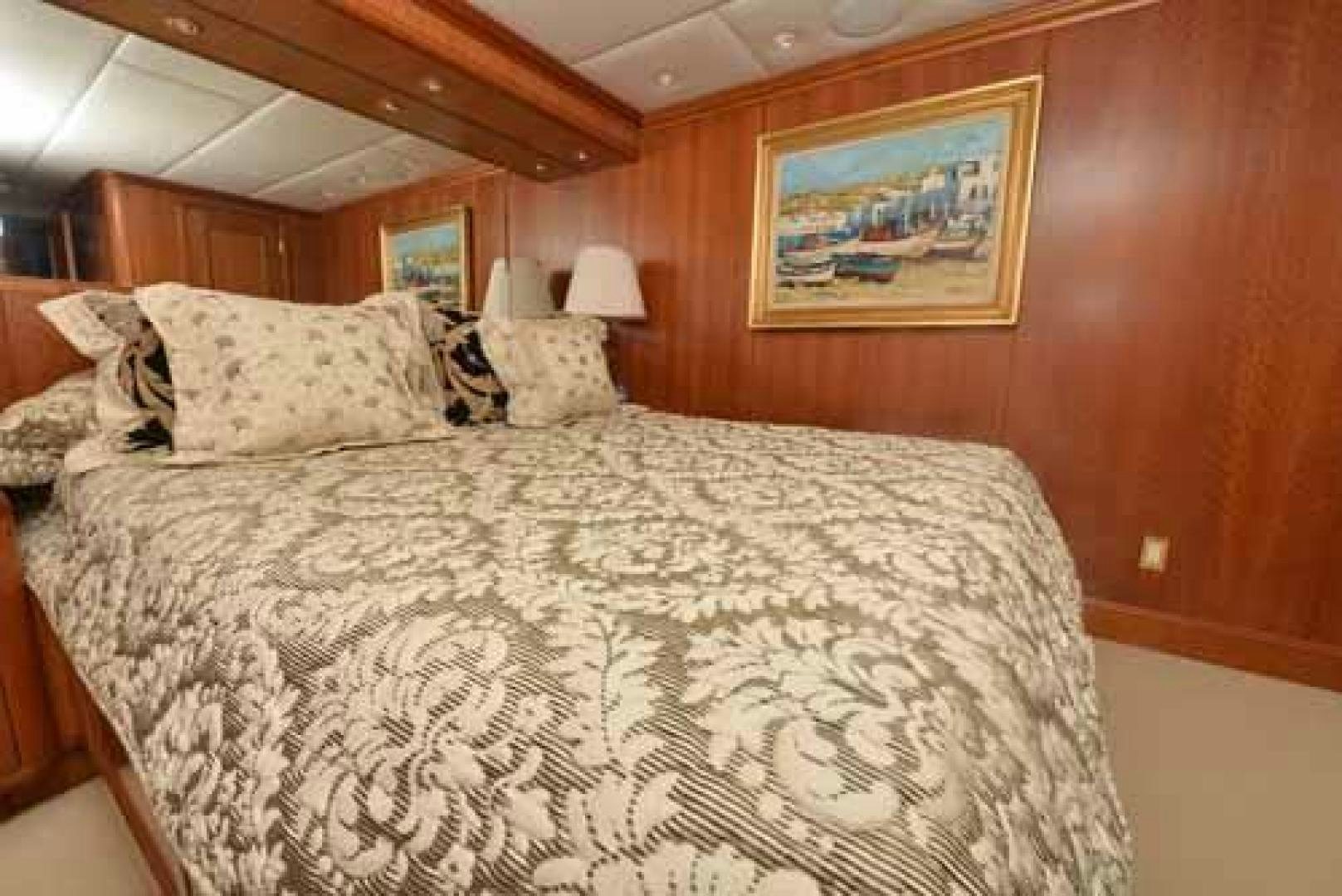

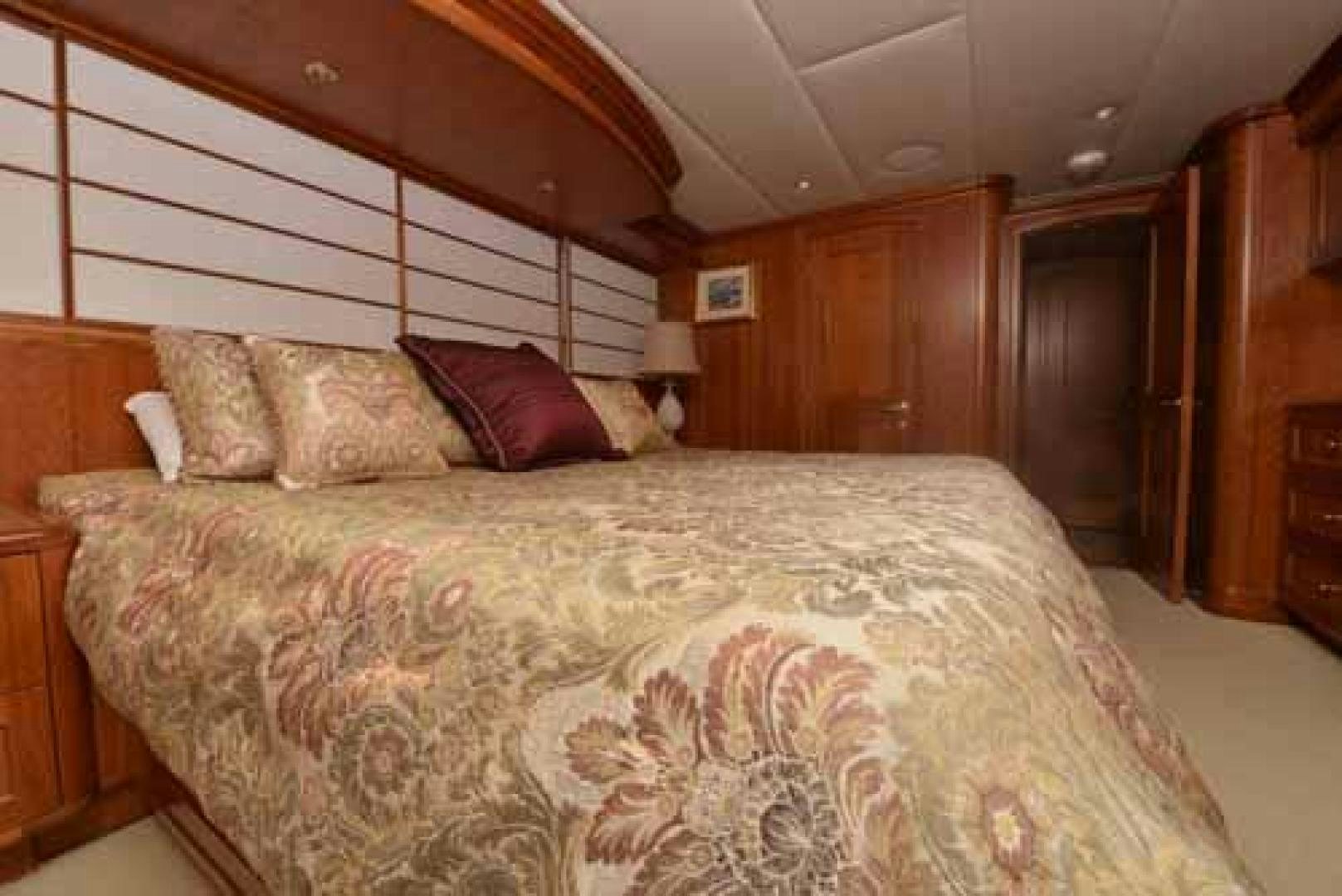

Sleeps ten in owner's party with the master suite on the main deck forward and four guest cabins below. Captains' cabin is behind the bridge. Three double cabins below forward with ensuites and a single cabin below aft complete a layout that provides for up to nine crew.

Last Yard Period - May 2018

  1. All through hull pipes and flanges where inspected and replaced where needed.
  2. All valves where removed,inspected and replaced where needed.
  3. Emergency bilge and fire system piping in the engine room was replaced with copper-nickle pipe.
  4. New voltage inverters for the anchor windlass where installed.
  5. New bottom paint, prop speed and zincs.
  6. Shafts where pulled and inspected, no work was needed.

Comments

A ground breaking success for Trinity at the time of her launch, UTOPIA III was the first of the newer style Trinity yachts, as drawn by Paragon Designs.  Built to, and remaining in, ABS Classification, this large volume five stateroom, tri-deck motoryacht  provides speeds in excess of 20 knots, while offering a swift cruising speed of 18 knots.

Offered by a motivated and serious Seller, UTOPIA III is a must see for any prospect considering a fully Classed tri-deck motoryacht.

UTOPIA III (x: BELLINI, LADY LINDA) was the recipient of the Showboats Yacht of the Year Award in 2000.

Custom Disclaimer

Specifications and details of this vessel are provided in good faith for informational purposes only. Data regarding the specifications, operating characteristics and condition of the vessel was obtained from sources believed reliable but is not guaranteed by owner or brokers. Buyer assumes responsibility to verify all speeds, capacities, consumption and other measurements contained herein and otherwise provided and agrees to instruct his agent or surveyor to confirm such details prior to purchase. Vessel is offered subject to prior sale, price and inventory changes and withdrawal from market without notice.

Engine hours are as of the date of the original listing and are a representation of what the listing broker has been told by the owner and/or actual reading of the engine hour meters. The broker cannot and does not guarantee the true hours. It is the responsibility of the purchaser to verify engine hours, warranties implied or otherwise, and major overhauls as well as all other representations noted on the listing brochure.
