IMAGINE Yacht for Sale

144' (44.18m)
ALLOY
2010

Not for sale or charter to U.S. residents while in U.S. waters.

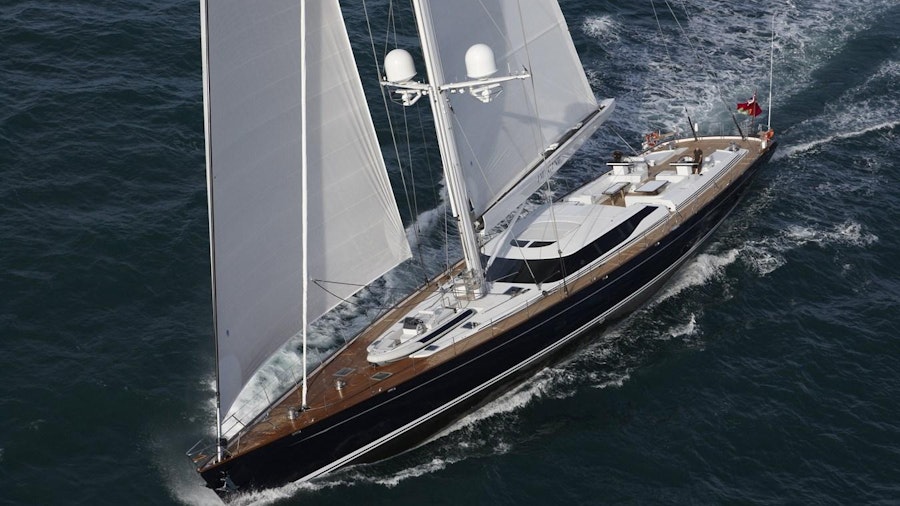

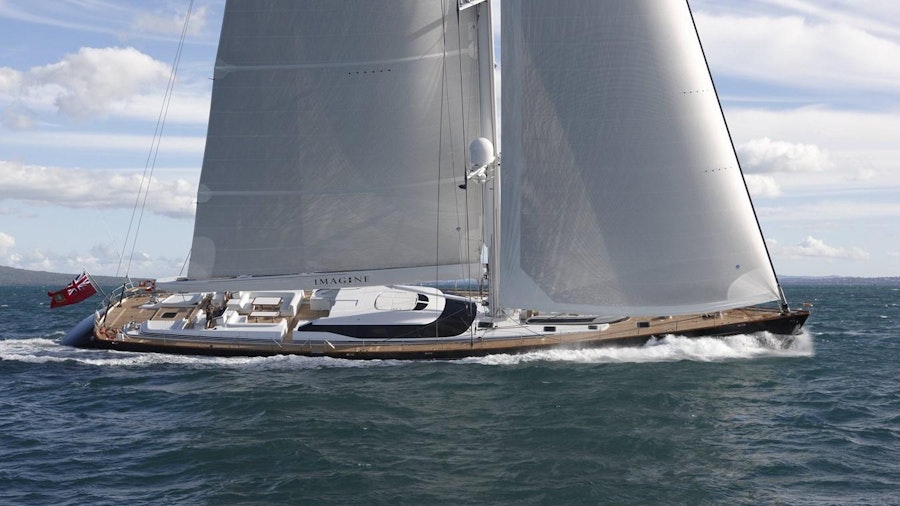

The 44.18m 2010 Alloy Yachts sailing yacht IMAGINE is now offered for sale and is a robust yet sophisticated displacement sloop, kitted out with the latest technologies.

With an exterior design by Dubois Naval Architects and interiors designed by Maria Luisa Poggi, this yacht is the successor to the much earlier (1993) yacht IMAGINE, built for the same Owner by the New Zealand yard.

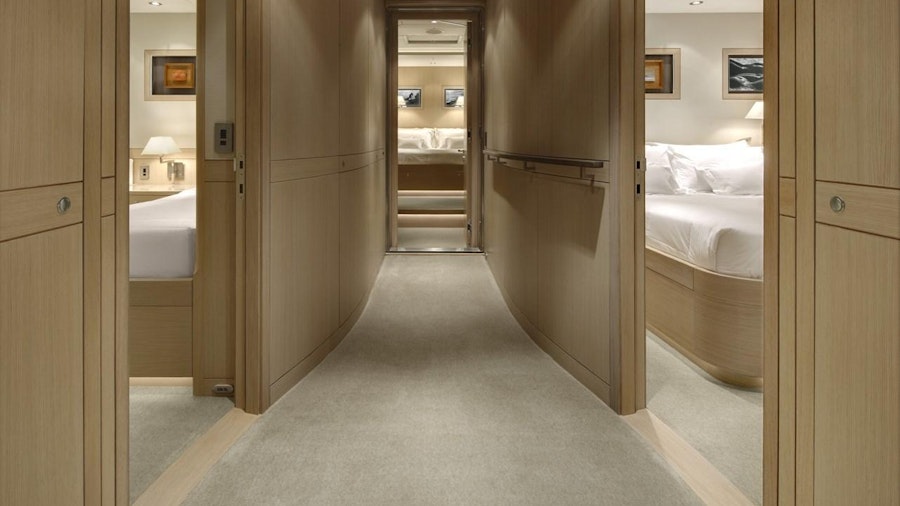

IMAGINE can accommodate eight guests across four cabins, including a full-beam Owner’s cabin, a VIP, a twin cabin with a Pullman berth and a fourth cabin with a French side bed and second Pullman berth. There is also space for up to six crew.

IMAGINE had a refit in 2020 which included the rebuild of her main engine and generators, and a gearbox inspection. Her teak was re-caulked and her running rigging was checked and polished. Additionally, her blade, staysail sheets and runner tails were replaced and her mast, mast hydraulics, cranes, electrics, Reckman and rams were serviced. IMAGINE also had her 10-year Lloyds survey renewed in 2020.

Powered by a single Caterpillar C18 Diesel engine, IMAGINE has a motoring cruising speed of 10 knots and a maximum speed of 14 knots.

Currently based in Monaco, IMAGINE is a practical and unpretentious go-anywhere yacht, designed for real adventure sailing: a true sailor’s yacht.

Inquire Now

Details

Length 144 FT (44.18 M)
Beam 30 FT (9.38 M)
Draft 21 FT (6.25 M)
Gross Tonnage 245 Ton
Builder ALLOY
Designer Dubois Naval Architects
Year Built 2010
Construction Aluminum
Cruising Speed 10 Knots
LOA 144 FT (44.18 M)
LWL 127 FT (38.5 M)
Beam 30 FT (9.38 M)
Min Draft 15 FT (4.3 M)
Max Draft 21 FT (6.25 M)
Cruising Speed 10 Knots
Max Speed 14 Knots
Gross Tonnage 245 Ton
Water Capacity 9,200 Liters
Fuel Capacity 22,000 Liters
Hull Material Aluminum
Designer Dubois Naval Architects
Details for IMAGINE Private Luxury Yacht For sale

Full Specifications


  1. MAIN CHARACTERISTICS

    TYPE
    • Displacement Sloop
    HULL NO.
    • AY40
    BUILDER
    • Alloy Yachts
    NAVAL ARCHITECT
    • Dubois Naval Architects
    EXTERIOR DESIGN
    • Dubois Naval Architects
    INTERIOR DESIGN
    • Maria Luisa Poggi
    YEAR
    • 2010
    REFIT
    • 2020
    CALL SIGN
    • ZJL8312
    IMO
    • 1010973
    CLASSIFICATION
    • Lloyds Register LY2
    CONSTRUCTION
    • Aluminium Hull & Superstructure
    • Teak Decks
    CREW
    • 6
    FLAG
    • British Virgin Islands
    ENGINE
    • 1 x 873 Hp Caterpillar C18 Diesel
    GT
    • 245
    NT
    • 175
    DISPLACEMENT
    • 260 tons
  2. DIMENSIONS

    LOA
    • 44.18m / 144' 9"
    LWL
    • 38.5m / 126'3"
    BEAM
    • 9.38m / 30' 7"
    DRAFT
    • 4.30m / 14' 1" min
    • 6.25m / 20' 5" max
  3. SPEED & RANGE UNDER POWER

    MAXIMUM SPEED
    • 14.00 knots
    CRUISING SPEED
    • 10.00 knots
    FUEL CONSUMPTION
    • Approx. 54 litres p/h @ 10 knots
    RANGE
    • 4,000 nm
  4. CAPACITIES

    ACCOMMODATION
    • 8 x Guests in 4 cabins
    CREW
    • 6 x Crew in 3 cabins
    FUEL
    • 22,000 litres / 5,811 US gallons
    FRESH WATER
    • 9,200 litres / 2,430 US gallons
    HOLDING TANK
    • 8,900 litres / 1,958 US gallons
    LUBE OIL
    • 720 litres / 158 US gallons
    DIRTY OIL
    • 720 litres / 158 US gallons
    GREY/BLACK WATER
    • 2,750 litres / 605 US gallons
  5. ACCOMMODATION

    Accommodation for 8 guests in 4 cabins and up to 6 crew.
    GUEST CABINS
    • 1 x Master cabin
    • 1 x VIP cabin
    • 1 x Twin cabin with a Pullman berth
    • 1 x Single cabin with a French side bed and Pullman berth
    CREW CABINS
    • 3 x Bunk bed crew cabins
  6. MECHANICAL EQUIPMENT

    ENGINE
    • 1 x 873 Hp Caterpillar C18 Diesel
    ENGINE HOURS
    • As of September 2021: 12,100 hours (rebuild 2020)
    GEARBOX
    • ZF 2300 @ 4.444:1
    PROPULSION
    • Hundested VP9.5 FR-HP 1,300mm
    PROPELLERS
    • Hundested VP9.5 FR-HP 1,300mm
    STEERING SYSTEM
    • Kobelt
    BOWTHRUSTER
    • 2 x 90 Hp TRAC
    GENERATORS
    • 2 x Northern Lights 67 kW
    GENERATOR HOURS
    • As of September 2021: 20,300 hours (rebuild 2020)
    ELECTRICITY
    • 400V 50Hz
    SHORE POWER
    • 120- 480 V50-60Hz ABB VSP4
    BATTERIES
    • UPS General Electric
    TYPE
    • Emergency bank
    MAIN ENGINE START
    • Caterpillar
    SERVICE
    • 2 x Sonnenschien Gel 12V Cells
    GENERATOR START
    • Northern Light
    CHARGERS
    • Mastervolt
    CONVERTERS
    • UPS
    EMERGENCY
    • UPS
    HYDRAULICS
    • Alloy Yachts
    AIR CONDITIONING
    • Condaria
    WATER MAKER
    • 2 x HEM 5,000 litres p/d capacity
    TOILET SYSTEM
    • Actana
    SEWAGE SYSTEM
    • Hamann
    FUEL CENTRIFUGE
    • Westfalia
  7. SAILS & RIGGING

    MAIN SAIL
    • Upwind: 1,011 sqm
    • Downwind: 1,902 sqm
    SPARS
    • Southern Spars
    RIG
    • Southern Spars EC6 rigging
    BOOM
    • Southern Spars with Leisure Furl boom
    MAST
    • 61.90m height
    RIGGING
    • EC6 + Southern
    STANDING RIGGING
    • EC6 + Southern
    RUNNING RIGGING
    • EC6 + Southern
    FURLING GEAR
    • Reckmann
    WINCHES
    • Alloy Yachts custom
  8. NAVIGATION EQUIPMENT

    MAGNETIC COMPASS
    • Plastomo
    GYRO COMPASS
    • Alphatron V2
    SATELLITE COMPASS
    • SC 30
    AUTOMATIC PILOT
    • Furuno
    ECHO SOUNDER
    • Furuno
    RADAR
    • Furuno FAR28 and DRS2d
    AIS
    • Furuno
    DGPS
    • Furuno
    GPS
    • Furuno
    CHART PLOTTER
    • Navnet 3d Chart + Max Sea Time zero
    NAVTEX
    • Furuno NX700-B
    WEATHER FAX
    • Furuno
    LOG
    • B&G
    WIND INSTRUMENTS
    • B&G H3000
    SEARCHLIGHTS
    • Southern Spars
    CAMERAS
    • Mast head and engine room
  9. COMMUNICATION EQUIPMENT

    VSAT
    • Internet coms
    SATCOM
    • FB500
    • Iridium
    • Inmarsat-C
  10. GALLEY & LAUNDRY EQUIPMENT

    GALLEY
    • 1 x Miele Coffee Machine CVA5065
    • 1 x Miele Microwave/Oven H5080BM
    • 2 x Miele Dishwashers G7859
    • 3 x Miele Ceramic Hobs induction CS 1212
    • 1 x Miele Oven H5981 BP
    LAUNDRY
    • 2 x Miele Washing Machines PW 6065
    • 2 x Miele Tumble Dryers PT 7136 Plus
  11. SAFETY & SECURITY EQUIPMENT

    SAFETY & SECURITY
    • 2 x Life Rafts with 16-people capacity each
    • 12 x Immersions Suits
    • 22 x Life Jackets
    • 4 x Life Rings
    • Emergency Flares
    • Aquamist Sprinklers
    FIRE FIGHTING
    • Extinguishers
    • Compliant with Lloyds regulations
    • Novec fire suppression system in Engine Room
  12. TENDER EQUIPMENT

    TENDER
    • 1 x 6.30m Smuggler, inboard diesel engine Volvo Penta D3 170Hp
    DIVING
    • 1 x Dive compressor
    • 6 x Sets of dive gear
  13. REFIT

    • 2020 - Auckland

      • Main engine rebuild
      • Generators rebuild
      • Gearbox inspection
      • Teak re-caulked
      • Running rigging checked and polished
      • Blade, staysail sheets and runner tails replaced
      • Mast serviced
      • Mast hydrolics, cranes, electrics, Reckman and rams serviced
      • 10-year Lloyds survey renewed
  14. COMMENTS

    The 44.18m 2010 Alloy Yachts sailing yacht IMAGINE is now offered for sale and is a robust yet sophisticated displacement sloop, kitted out with the latest technologies.

    With an exterior design by Dubois Naval Architects and interiors designed by Maria Luisa Poggi, this yacht is the successor to the much earlier (1993) yacht IMAGINE, built for the same Owner by the New Zealand yard.

    IMAGINE can accommodate eight guests across four cabins, including a full-beam Owner’s cabin, a VIP, a twin cabin with a Pullman berth and a fourth cabin with a French side bed and second Pullman berth. There is also space for up to six crew.

    IMAGINE had a refit in 2020 which included the rebuild of her main engine and generators, and a gearbox inspection. Her teak was re-caulked and her running rigging was checked and polished. Additionally, her blade, staysail sheets and runner tails were replaced and her mast, mast hydraulics, cranes, electrics, Reckman and rams were serviced. IMAGINE also had her 10-year Lloyds survey renewed in 2020.

    Powered by a single Caterpillar C18 Diesel engine, IMAGINE has a motoring cruising speed of 10 knots and a maximum speed of 14 knots.

    Currently based in Monaco, IMAGINE is a practical and unpretentious go-anywhere yacht, designed for real adventure sailing: a true sailor’s yacht.

    • KEY FEATURES

      • Second yacht commissioned by the Owner to Alloy Yachts / Dubois
      • Always private (one owner from new). Built LY2 compliant
      • Refit and 10-year Lloyds survey completed in 2020 in Auckland
      • Immaculate condition
      • EU VAT paid
