HELIOTROPE 65 Yacht for Sale

Length
64' 11" (19.79m)
Builder
Bakri Cono Shipyard
Build
2014
Guests
8
Cabins
4

Yacht is no longer available for sale.
This is an archived web page showing historic information for reference purposes only. Search Yachts for Sale.

The 65-foot (19.81m) power catamaran HELIOTROPE 65 perfectly combines advanced solar technology with luxurious amenities to provide a desirable on-water retreat. As a blue-water cruiser boasting a 3,000 nautical mile range and the ability to reach speeds up to 24 knots, HELIOTROPE 65 is perfect for those seeking a cruising, exploring or liveaboard yacht.

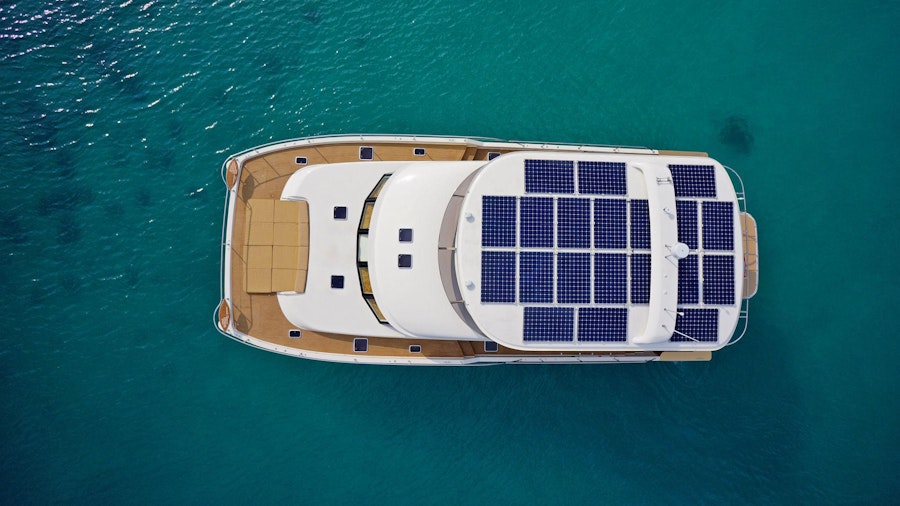

HELIOTROPE 65 is arguably the most advanced catamaran on the market with flexible solar cells (28+sqm of them) directly mounted on the surfaces. She receives up to 7 kW of power from a state-of-the-art solar power system with battery storage up to 5,000 amps. The yacht’s day-to-day operations can be run on this system with only a backup generator required. HELIOTROPE 65 features a canoe underwater hull shape with tunnels that provide an efficient propulsion system and protection for her props and rudder. Additionally, the power catamaran has a unique catchment for freshwater. The rainwater from the rooftop of the flybridge drains directly into the freshwater tanks. If they are full, they flow out to sea.

The luxury power catamaran showcases exceptionally spacious living areas both inside and out. HELIOTROPE 65 has four separate spaces for guest entertaining as well as a space on deck for toys and watersports activities. The yacht features a large 46 square meter flybridge that is perfect for taking in the views, relaxing and socializing. The yacht also has exceptional outdoor spaces on the main deck for alfresco dining and sunbathing. Inside, the yacht showcases contemporary styling with a welcoming ambiance.

As a catamaran, HELIOTROPE 65 has excellent separation between the living area and the staterooms. The motor yacht features four staterooms, two in each hull accommodating eight guests. The yacht’s master stateroom is complemented with an exceptional en-suite bathroom. Her owner wanted a bathroom that exceeded the norm, and the result is a large, comfortable and silent bathroom. HELIOTROPE 65’s additional staterooms include a spacious VIP stateroom and two twin-bed staterooms. Each is complete with an en-suite bath.

Highlights

  • State-of-the-art solar power system provides up to 7 kw of power and up to 5,000 amps of battery storage
  • Designed for blue-water cruising with a 3,000 nm range
  • Cruising speed of 12 knots and maximum speed of 24 knots
  • Accommodations for eight guests in four beautifully appointed cabins
  • Maximum use of deck space for guest enjoyment
  • Bakri Cono Shipyard awarded “Maritime Company of the Year 2015 (Asia).”
  • Bakri Cono Shipyard given the award for Outstanding Contributions to Maritime Industry and Boating Safety Improvement in April 2014 by Boat & Yacht Thailand
  • Certified teak, white oak, and Asian mahogany onboard
  • Volvo Penta engines with under 1200 hours
  • 22kW Onan generator with 400 hours

Specifications

Builder Bakri Cono Shipyard
Model heliotrope 65
Length (LOA) 64' 11" (19.79m)
Year 2014
Draft 3' 5" (1.04m)
Beam 26' (7.92m)
Range 3,000 NM
Location Pattaya City, Thailand

Accommodations

Staterooms 4
Sleeps 8
Heads 4
Capt. Quarters No

Dimensions & Capacity

LOA 64' 11" (19.79m)
Max Draft 3' 5" (1.04m)
Fuel Tank 1,585 g (6,000 L)
Fresh Water 528 g (2,000 L)
Holding Tank 132 g (499 L)
Displacement 56,658

Construction

Hull Material Composite
Hull Config catamaran
Ext. Designer Albatross Marine Design
Int. Designer bakri cono in-house
Max Speed 24 Knots
Cruising Speed 12 Knots
Range 3,000 NM
Stabilizers None

Engines (x2)

Engine Make Volvo Penta
Engine Model D9-500
Engine Year 2014
Engine Type Inboard
Power HP 1,117
Power KW 0
Fuel Type Diesel
Engine Location Port
Have Questions?

Complete the form below and one of our experienced sales brokers will be in touch soon.

Full Details

Special Features

  1. State-of-the-art solar power system provides up to 7 kw of power; up to 5,000 amps of battery storage
  2. Designed for blue water cruising with a 3,000nm range
  3. Cruising speed of 12 knots; maximum speed of 24 knots
  4. Accommodations for 8 guests in 4 beautifully appointed staterooms
  5. Maximum use of deck space for the ultimate in guest enjoyment
  6. Woodwork using certified teak, white oak, and Asian Mahogany
  7. Volvo Penta engines with under 1,200 hours
  8. Onan generator 22kW with 400 hours
  9. Bakri Cono Shipyard awarded "Maritime Company of the Year 2015 (Asia)."
  10. Bakri Cono Shipyard given the award for "Outstanding Contributions to Maritime Industry and Boating Safety Improvement" in April 2014 by Boat & Yacht Thailand

Construction

  • Multiaxial FRP Construction using Bisphenol A-type Epoxy Vinyl Ester resin
  • Isopathalic gelcoat for high color stability
  • Vacuumed infused core sandwich
  • Resin infused bulkheads
  • Watertight collision bulkheads in forepeak
  • High quality tempered glass windows
  • Marine Grade 316L stainless steel handrails, deck fittings and hardware

Dimensions

General

Length Overall: 65 feet (19.81 meters)

Beam: 26 feet (8.0 meters)

Draft Maximum: 3 feet 5 inches (1.06 meters)

Air Draft: 20 feet 3 inches (6.20 meters)

Displacement (MOC): 56,658 pounds (25,700 kilograms)

Displacement (LDC): 82,012 pounds (37,200 kilograms)

Capacities

Fuel Capacity: 1,585 US Gallons (6,000 Liters)

(4) stainless steel tanks

Freshwater Capacity: 528 US Gallons (2,000 Liters)

(2) stainless steel tanks

Gray Water: 132 US Gallons (500 Liters)

Black Water: 132 US Gallons (500 Liters)

Speeds

Cruising speeds: 12-16 knots

Maximum speed (at LDC): 23 knots

Maximum speed (at MOC): 25 knots

Accommodations

HELIOTROPE accommodates 8 guests in 4 staterooms.

Machinery

Main Engines

Engine Type: 2 x Volvo Penta D9-500; 500 hp/358 kW-2600rpm

Hours (as of 11.2020): 1,117 Starboad; 1,136 Port

Gearboxes: ZF286 Reverse Gears, 1.96:1

Propellors: Teignbridge 5-blade x 700mm C-Foil

Shafts: 76mm (3") x 3400mm shafts with stern tubes, couplings and dripless shaft seals

Generators & Electricity

Generator: 1 x 22kW Cummins Onan water cooled with sound shield; 120/220Volt

Hours (as of 11/2020): 400 hours

Shore Power: Stainless steel connections and cables

Batteries: 24 V AGM deep cycle batteries for engine and generator starting

24V to 12V converter for certain equipment

Air-Conditioning

Type: Reverse cycle A/C system: 96,000 BTUs

Individual controls in all cabins and saloon

Other Machinery

Watermaker: 37 US Gallons/hour (140 Liters/hour)

Fuel Filtration: Racor 500 fuel/water separators

Remote fuel shut offs from outside engine room

Fuel tank monitoring and transfer through C-Zone

Steering: Self-supporting rudders with tubes and assemblies with hydraulic steering cylinders

Exhaust system: Water cooled with Waterlock for noise reduction and safety

Other: Engine room insulated and soundproofed; raw water strainers with clear lids for easy inspection; Integrally molded engine beds for strength and vibration absorption

Communication, Navigation & Entertainment Systems

Communication Systems

Radio:VHF radio

Navigation

GPS, Depth Sounder:Simrad

AIS

Rate Compass

HD Structure Scan

3G Broadband Radar

Rudder Indicators

Autopilot

Search Lights: (2) x MARINCO

Entertainment Systems

(1) x Samsung 42" LED Smart TV, HD (Main Salon)

(2) x Samsung 32" LED Smart TV's, HD (Forward cabins)

(2) x Samsung 22" LED Smart TV's, HD (Midship cabins)

Galley And Laundry Equipment

Main Galley Equipment

Cooking Equipment: Stove with extraction fan

4 induction plates

Refrigerator/Freezer: 3 Refrigerators (1, 103 US Gallon capacity multidoor unit in the galley, 2 on flybridge)

Wine Refrigeration: 1 x 23 bottles, main salon

Drinking Water: Filtration system (galley and flybridge)

BBQ: 1 x stainless steel (flybridge)

1 x Sterne electrical

Dishwasher: Commercial grade (washes and dries in less than 3 minutes)

Icemaker: Webasto, white ice, 22 pounds per day (10 kg/day)

Dry storage: 3 x 80 US Gallons dry food storage (3 x 300 L); 1 x 80 US Gallon chilled garbage room (1 x 300 L)

Other: Double stainless steek sink with mixer tap; corian countertops with draining grooves

Laundry Equipment

Washing Machine: 22 pound load (8 kg load)

Dryer: 11 pound load (5 kg load)

Tenders And Toys

Tender: Williams jet tender

Diving Compressor: Yes, plus 4 tanks

Decks

Anchor: Lewmar Delta, 100 pounds (45 kg)

Windlass: Lewmar V5 vertical windlass, bow roller

LED Floodlights: (6) Port, Starboard, and Stern

Exterior Lighting: (74) Hella Marine LED courtesy and ambience lighting

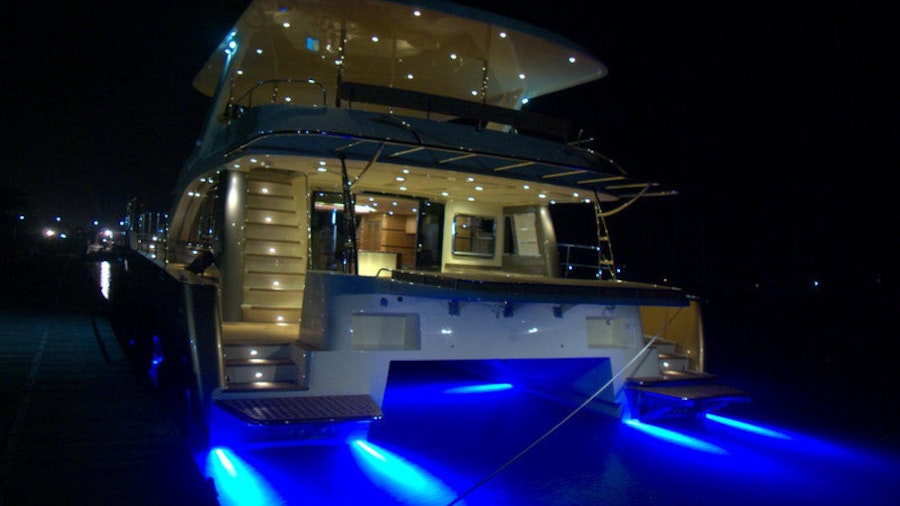

Underwater lights:Aqualuma

Mooring lines: (12)

Mooring fenders with socks:(12)

Security, Fire Fighting, And Safety Equipment

Security Equipment

Safes: (4) x electronic safety boxes

Fire-Fighting Equipment

Fire-suppression system: Automatic; heat activated engine room shut down

Safety Equipment

EPIRB

Solas man-overboard lifebouy light

Rescue sling

Life jackets

Canister Life rafts: (2) x 8-person
