DOJO


150' (45.72M) :: FEADSHIP :: 1981/2018

11

Guests

10

Crew

10,000,000

Asking Price

Inquire Now

Length 150 FT (45.72 M)
Beam 25 FT (7 M)
Draft 8 FT (2 M)
Gross Tonnage 369 Ton
Guests 11
Crew 10
Builder FEADSHIP
Designer Bannenberg & Rowell Design
Year Built 1981
Construction Steel
Cruising Speed 13Knots
LOA 150 FT (45.72 M)
Beam 25 FT (7 M)
Max Draft 8 FT (2 M)
Cruising Speed 13 Knots
Max Speed 15 Knots
Gross Tonnage 369 Ton
Fuel Capacity 45,000 Liters
Hull Material Steel
Designer Bannenberg & Rowell Design

FULL SPECIFICATIONS


1 . COMMENTS
DOJO has completed substantial refits from 2015 through to 2018 and now represents a unique opportunity to purchase a classic pedigree Feadship with all the features of a much newer yacht. She is without question one of the best rebuilds of this classic era of Feadship.

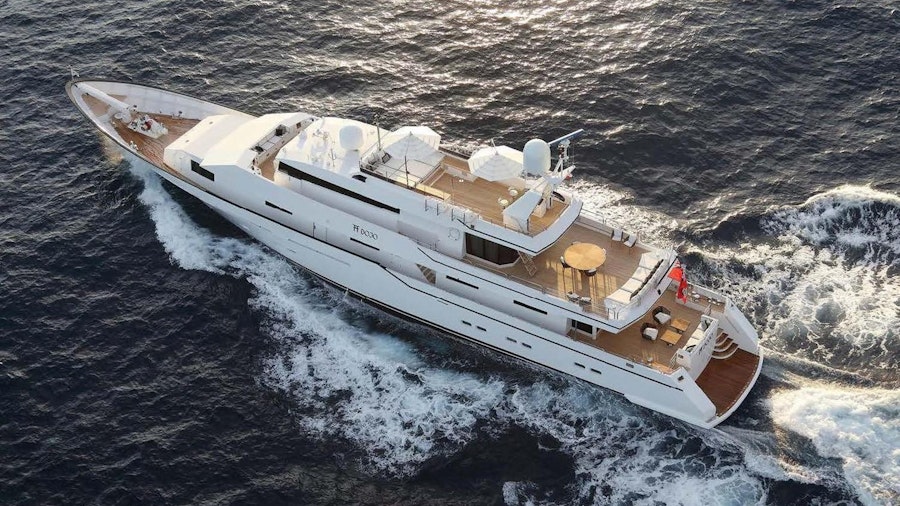

DOJO is a 45.72m Feadship motor yacht of contemporary design built in 1981 by the De Vries Shipyard to the designs of Jon Bannenberg.
Pedigree Feadship with classic Bannenberg exterior
Privately owned with low levels of use
Comprehensive maintenance schedule throughout ownership
Twin 935hp Caterpillar engines, maximum speed approx. 15 knots /impressively low engine hours
2. MAIN CHARACTERISTICS
TYPEEFull Displacement Motor Yacht
HULL623
BUILDERFeadship De Vries, The Netherlands
NAVAL ARCHITECTFritz De Voogt, The Netherlands
EXTERIOR DESIGNBannenberg & Rowell Design
INTERIOR DESIGNJon Bannenberg, Howard & Horsfield
YEAR1981
REFIT - REBUILD2016 - 2018
CONSTRUCTIONSteel Hull, Aluminium Superstructure, Teak decks
CLASSIFICATIONLloyds + 100 Al + LMC
FLAGCayman Islands
CREW10
ENGINES2 x 932 Hp Caterpillar DTCE 398
GT369
NT110
DISPLACEMENT291.5 tons
3. DIMENSIONS
LOA45.72m / 147’6’’
LWL 40.58m / 133’1’’
BEAM7.72m / 25’3’’
DRAFT2.50m / 8’2’’
4. SPEED & RANGE UNDER POWER
MAXIMUM SPEED15 knots @ 1,225 rpm using 405 litres / 106 USG p / h
CRUISING SPEED13.5 knots @ 1,000 rpm using 193 litres / 51 USG p / h
ECONOMICAL SPEED11.3 knots @ 800 rpm using  110 litres / 29 USG p / h
RANGE5,200nm @ 10 knots

5. CAPACITIES
ACCOMMODATION10 + 1 x Guests in 5 cabins
CREW10 x Crew in 5 cabins
FUEL45,000 litres /11,905 US gallons
FRESH WATER13,000 litres / 3,439 US gallons
DIRTY LUBE OIL750 litres / 198 US gallons
WATER MAKERS12,000 litres / 3,175 US gallons per day approx.

5. ACCOMMODATION
OWNER & GUESTS

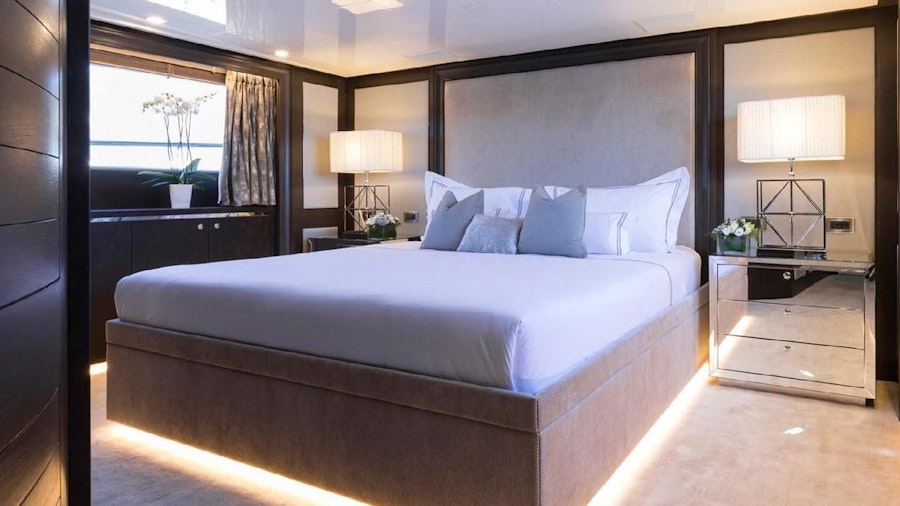

·           1 x Master cabin with shower en suite

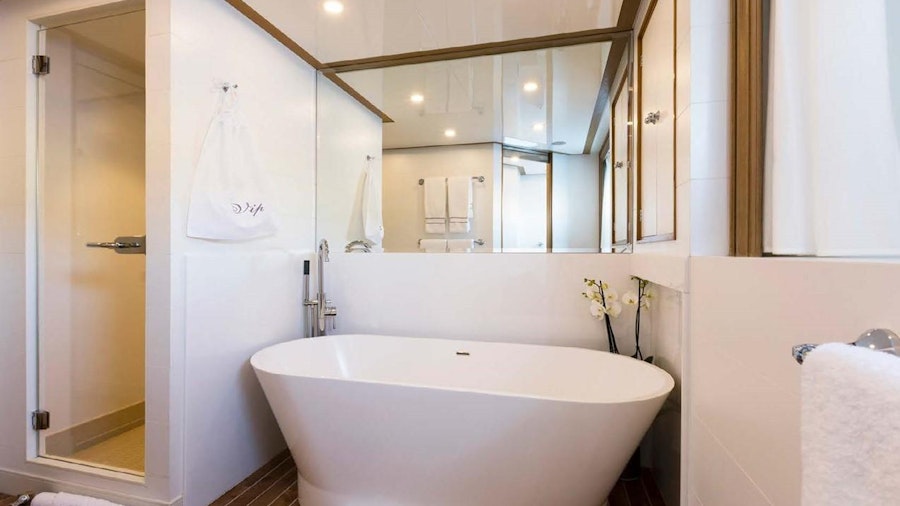

·           1 x Double VIP cabin with bathtub and shower room
·           2 x Double cabin with shower room en suite
·           1 x Twin cabin with shower en suite & Pullman berth
CREW
·           1 x Double Captain's cabin with shower room en suite
·           4 x Twin cabins with shower rooms en suite
SUNDECK
·           Sunbathing area and shower top deck
·           Sundeck bar area
BRIDGE DECK
·           Wheelhouse
·           Captain’s office
·           Captain's cabin with shower en room en suite
·           Upper deck saloon
·           Upper deck pantry
·           Exterior dining area
·           Forward seating area
·           Day head
MAIN DECK

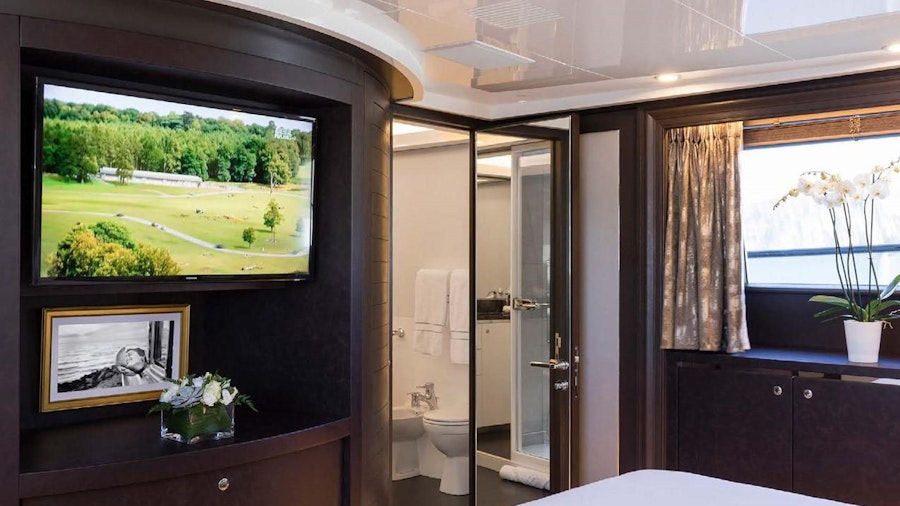

·           Owner's double cabin with shower room en suite
·           Guest double cabin with shower room en suite
·           Pantry

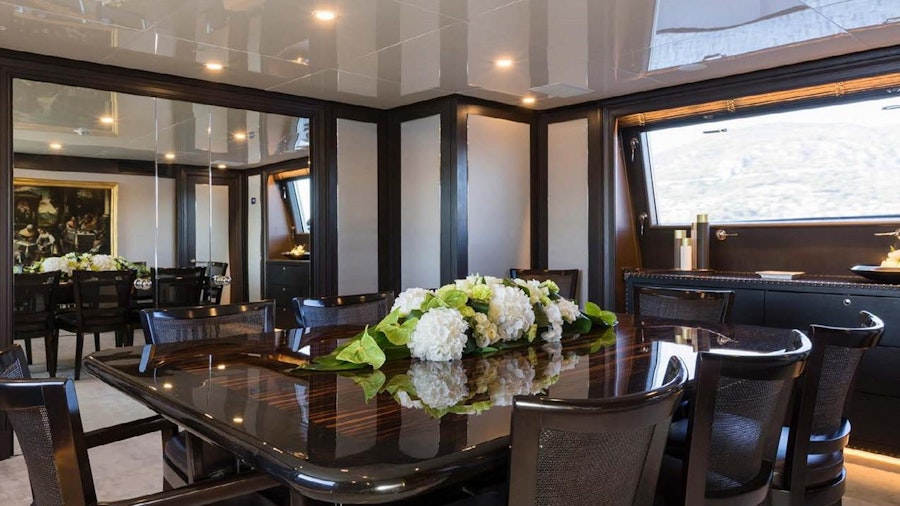

·           Dining saloon

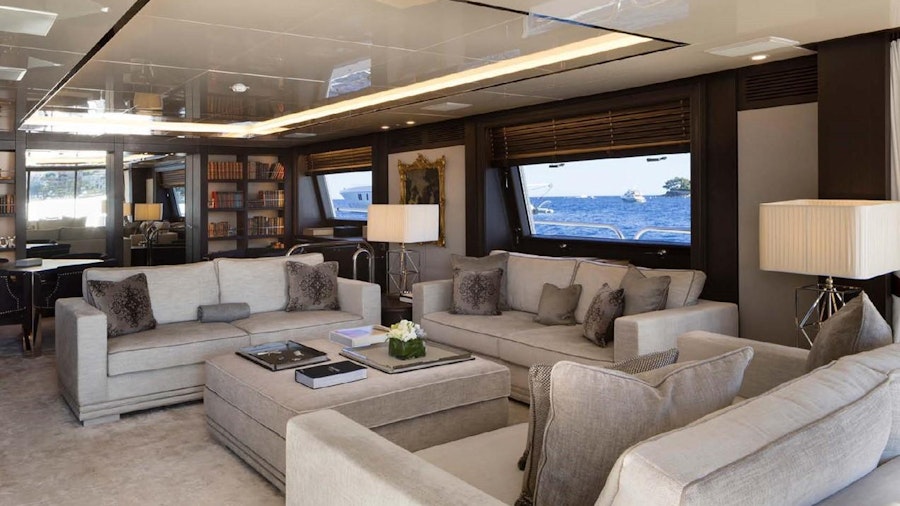

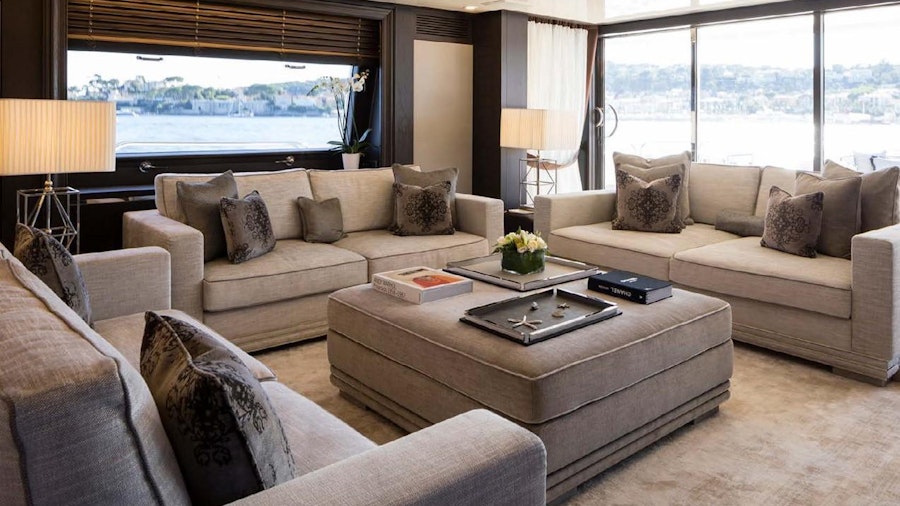

·           Main saloon
·           Aft Deck seating area
·           Day head
LOWER DECK
·           VIP Double guest cabin with shower room en suite
·           Guest double cabin with shower room en suite
·           Twin guest cabin with shower room en suite & Pullman berth
·           Laundry
·           Crew quarters
·           Galley (stbd)
·           Crew mess (port)
·           Engine room

7. MECHANICAL EQUIPMENT
MAIN ENGINES2 x 932hp Caterpillar 398 DTCE Turbo charged, Diesel
ENGINE HOURS400 hours since rebuild
GEAR BOXES2 x Caterpillar Marine 2.95:1 reverse reduction CAT 7251
SHAFTS & PROPELLERS2 x 4 bladed bronze propellers, shafts, seals, bearings all NEW
STEERING SYSTEMTenfjord hydraulic main steering system
Emergency tiller steering control at each wing station
Rudder blades for better performance, NEW
BRIDGE WING CONTROLS2 x Bridge wing control stations each with:
o    Sperry Marine rudder angle indicator, NEW
o    Foruno depth sounder, NEW
o    Foruno wind meter, NEW
o    RPM engine rev. counters, NEW
o    Rexroth main engine controls, NEW
o    Bow thruster control, NEW
o    Anschutz steering control, NEW
RUDDER ANGLE1 x C Plath rudder angle indicator, NEW
2 x Sperry Marine (on bridge wing control stations)
STABILISERSNaiad zero speed stabilisers, NEW
BOW THRUSTER1 x 55 kW @ 1,450 min Schottel S51 LK Reliance
(380v AC 3-phase)
GENERATORSPort & centre - 125kW Kilopak
1 x 65kW Northern Lights
ELECTRICITY380V AC 3 phase 50 Hz
220V AC single phase 50 Hz
24V DC
SHORE POWERYes
BATTERIESVetus Marine, NEW
FRESH WATER SYSTEMIdromar UV fresh water treatment SH 8000 NEW
FUEL SEPARATOR1 x Alfa Laval MIB 303 centrifugal NEW
FUEL FILTERSRacor fuel filters
BOILERSGianneshi - 250 litre capacity, NEW
SEWAGE TREATMENTHamann Wasser Technik GmbH
(U.S. Coast Guard Approved)
AIR CONDITIONINGDometic Condaria System throughout with 2 x compressors
Chilled/hot water system for cold air and heating, NEW
WATERMAKERS2 x Idromar MC 5, NEW
12,000 litres /3,175 US gallons per day
8. NAVIGATION EQUIPMENT
MAGNETIC COMPASS1 x Observator "Binnacle" with periscope
GYRO COMPASS1 x JRC NWZ 4701, NEW
AUTOMATIC PILOT1 x Anschütz NP 60, NEW
ECHO SOUNDER2 x Furuno FCV 628, NEW
RADARS1 x Furuno / Arpa type FAR 2807
1 x Furuno Navnet, NEW
GPS2 x Furuno Navigator GP-32, NEW
CHART PLOTTER1 x Transas Navisailor 4000 with all extras, NEW
1 x Furuno Navnet back up, NEW
NAVTEX1 x Foruno NX-700 A/B, NEW
WIND INSTRUMENTS6 x Foruno, NEW
AIS 1 x Foruno Class A type FA-170/GPA017S, NEW
MONITORS 1 x Duramon WS 24’ monitor ECDIS approved, NEW
2 x NEC EA24WMi monitor’s cameras & radar NEW
9. COMMUNICATION EQUIPMENT
SATCOMV-Sat, NEW
VHF1 x Furuno VHF DSC type FM-8900, NEW
1 x Icom VHF DSC 195-B VHF,  NEW
2 x ACR handheld SR 203, NEW
4 x Icom handheld IC-M24
10 x crew communication radios Hytera PD 682, NEW
INTERCOM SYSTEMRaytheon RAY 350 loudhailer system from wheelhouse to
foredeck and aft deck
TELEPHONE EXCHANGEPanasonic Hybrid system throughout
PHOTOCOPIERS / PRINTERS1 x HP C3180 colour, NEW
1 x HP 7640 colour, NEW
10. DECK EQUIPMENT
ANCHOR WINDLASSSteen electric (380vAC) with 2 x cable gypsies & 2 x
warping drums, NEW motors
AFT WARPING CAPSTANS2 x Electric 380vAC on aft deck
ANCHORS2 x 230kg Bow anchors
ANCHOR CHAINS2 x 6.38 Shackles (574ft/175m) anchor cables
BOAT CRANE & DAVITS1 x Foredeck boat crane Motomar SWL 800kg, NEW
PASSERELLE1 x Motomar  SWL 200kg, NEW
SIDE BOARDING LADDERMarquipt Manual
SWIMMING PLATFORMTeak on transom with  swimming ladder with
removable shower, NEW
SEARCHLIGHT1 x Remote controlled search light, NEW
AWNINGS2 x Large sun umbrellas on sundeck, NEW
2 x Large sun awnings on main & bridge deck, NEW
DECK FURNITURE2 x Bar chairs on sundeck, NEW
12 x Yachtique chairs on bridge deck (2 x arm chairs)
2 x Yachtique arm chairs on main deck
OTHERShip's bell
4 x Pains Wessex Speedline line throwing devices
Engine room work bench with vice & grinder
2 x Speich clear view screens
3 x Straight line windscreen wipers

11. ENTERTAINMENT EQUIPMENT
MAIN SALOON
·           1 x Samsung QLED TV 55’ Q7
·           1 x Apple TV
·           1 x SKY UK HD box
·           1 x LG 3D Blue ray BP325 player
·           2 x Sonos amplifiers
·           1 x Marantz AV surround receiver NR 1504
·           1 x Powersoft M28Q HDSP+ETH 4 channel power amplifier
·           7 x Polk RC 85i ceiling speakers
·           1 x Logitech Harmony remote
BRIDGE DECK SALOON
·           1 x Bang & Olfusen TV 55’
·           1 x Apple TV
·           1 x SKY UK HD box
·           1 x Marantz AV surround receiver NR 1504
·           1 x Powersoft 4K4 DSP+ETH 8 channel power amplifier
·           1 x LG 3D Blue ray BP325 player
·           3 x Sonos amplifiers
·           4 x Polk RC 85i ceiling speakers
·           1 x Logitech Harmony remote
OWNER'S CABIN
·           1 x Samsung TV 40’ UE 6320
·           1 x Apple TV
·           1 x Marantz AV surround receiver NR 1504
·           1 x LG 3D Blue ray BP325 player
·           1 x Sonos amplifier
·           4 x Polk RC 85i ceiling speakers
·           1 x Logitech Harmony remote
GUEST CABIN MAIN DECK
·           1 x Samsung TV 40’ UE 6320
·           1 x Apple TV
·           1 x Marantz AV surround receiver NR 1504
·           1 x LG 3D Blue ray BP325 player
·           1 x Sonos amplifier
·           1 x Opticum X80P  satellite receiver
·           4 x Polk RC 85i ceiling speakers
·           1 x Logitech Harmony remote
VIP CABIN
·           1 x Samsung TV 55’ UE 6700
·           1 x Apple TV
·           1 x Marantz AV surround receiver NR 1504
·           1 x Samsung Blue ray BD H5500 player
·           1 x Sonos amplifier
·           5 x Polk RC 85i ceiling speakers
·           1 x Logitech Harmony remote
TWIN CABIN
·           1 x Samsung TV 40’ UE 6320
·           1 x Apple TV
·           1 x LG 3D Blue ray BP325 player
·         1 xOpticum X80P satellite receiver
·           1 x Sonos Play 1 speaker
·           1 x Logitech Harmony remote
DOUBLE CABIN LOWER DECK
·           1 x Samsung TV 40’ UE 6320
·           1 x Apple TV
·           1 x LG 3D Blue ray BP325 player
·         1 x Opticum X80P satellite receiver
·           1 x Sonos Play 1 speaker
·           1 x Logitech Harmony remote
CAPTAIN’S CABIN
·           1 x Samsung TV 40’ UE 6320
·           1 x Apple TV
CREW MESS
·           1 x Sony TV 32’ KDL WE615
·           1 x Apple TV
·           1 x SKY UK HD box
·           1 x Sonos Play 1 speaker
12. GALLEY & LAUNDRY EQUIPMENT
GALLEY
·           All NEW including cabinets & countertop
REFRIGERATION
·           1 x Large commercial freezer by Condaria, NEW
·           2 x Large commercial fridges by Condaria, NEW
CREW GALLEY
·           1 x Stainless steel sink unit
·           1 x 1 x Liebherr fridge / freezer
·           2 x Miele ovens  6290 B and 2661 1B
·           2 x Miele inductions with 4 and 2-zones
·           1 x Miele deep fryer
·           1 x Miele professional dishwasher
·           1 x Sharp microwave
MAIN DECK PANTRY
·           1 x Stainless steel sink unit
·           1 x Miele fridge / freezer
·           1 x Miele dishwasher
·           1 x Zanussi small fridge
·           2 x Hoshizaki  icemakers
·           2 x Wine fridges CDA 80 bottles & Transhterm 170 bottles
·           1 x AEG microwave oven
BRIDGE DECK PANTRY
·           1 x Stainless steel sink unit
·           1 x Miele small fridge / freezer
·           1 x Scotsman  icemaker
·           2 x Wine fridges
·           1 x AEG microwave oven
·           1 x Miele dishwasher
·           1 x Nespresso coffee machine
CREW MESS
·           1 x Stainless steel sink unit
·           1 x Nespresso coffee machine
·           1 x Miele dishwasher
·           1 x Bosch fridge
LAUNDRY
·           2 x Miele W1 washing machines
·           2 x Miele T1 clothes driers
·           1 x Miele ironing steam station
SUNDECK BAR
·           Drinks refrigerator
·           Icemaker

13. SAFETY & SECURITY EQUIPMENT
SAFETY
·           All the safety equipment has been completely replaced including:
·           4 x 12 person life rafts, NEW
·           1 x SART, NEW
·           1 x EPIRB, NEW
FIRE FIGHTING
·           1 x Hatcz 1B20/6 with Giannesci emergency fire pump MP 1703531, NEW
·           2 x Deshi electric fire pumps type SA-35-135/12 (12 cubic metres per hour capacity)
·           Aerpro AM800 engine room firefighting system, NEW
·           Fire hydrants, fire hoses and fire nozzles, NEW
·           Portable hand held fire extinguishers throughout the yacht (CO2 and Dry Powder), NEW
·           Scott BA kit, NEW
·           Immersion suits, NEW
SECURITY
·           CCTV system with 7 x cameras, NEW
14. WATER SPORTS EQUIPMENT
·           2 x Yamaha FX HO 1100cc three-seater waverunners
·           2 x Seadoo F5S Seabobs, NEW
·           Selection of customized inflatables including a convertible dock & large slide, NEW
15. REFIT - REBUILD NOTES
REFIT-REBUILD 2018
·           Installation of new larger surface rudder blades
·           Rudder stock bushes replaced
·           New shaft rotative anodes
·           Monitoring system upgrades
·           All tanks cleaned and repainted
·           Engine room bilges and plates painted
·           New service battery installation
·           Propellers cleaning balancing and reconditioning
·           Toilette system jets manifold and pipelines replaced
·           Generator separator replaced, emergency generator valves replaced
·           Anodes replaced
·           Antifouling done
·           Fore deck lighting system installed
·           Wheelhouse cable wiring cleaning and organizing
·           24 V bridge system upgraded
·           New Alfa Laval installed
·           New steering pumps
·           Rudder angle sensor and mechanical rudder angle upgrade
·           Watertight doors monitoring system installed
·           Engine starter batteries replaced
·           New bridge console switchboard and cabling
·           New anchor swivels, new fuel oil transfer pumps
·           Fire monitoring system repeater installed
·           Installation of laundry and upper deck saloon fan coil
·           Tender towing lights installation
REFIT- REBUILD 2017
DOJO underwent second part of the major refit / rebuild including:
·           Full refit of the crew area, pantries, galley, crew cabins & bathrooms, laundry, interior   stairs, corridors, walls, furniture etc.
·           New wheelhouse equipment
·           New floors and new carpets through the boat
·           New interior ceilings and lights
·           Complete new air condition system
·           New generator bus bar
·           New water makers
·           New monitoring touch system installed in bridge and engine room
·           Complete new fridge and freezer units including compressors and pipes
·           Shore power switchboard replaced
·           New main engine sea water pipes, grey water pipes and all manifolds
·           New fire alarm system
·           New bow crane installation
·           Surveillance system upgrade
·           Main engine throttles replaced, Rexroth throttles installed
·           Wing stations upgrade to new equipment
·           Sensors installed on portholes
·           New WiFi system
·           All electrical systems restoration
·           Installation of engine room fixed firefighting system
·           Anchor pockets re polished
·           Shaft removals
REFIT – REBUILD 2016
DOJO underwent a major refit / rebuild including:
·           3.5m extension with new stern and swimming platform design
·           Zero speed stabilisers
·           Hull and superstructure repaint
·           Engine room bilge repaint
·           Chain locker sand blasted and painted
·           New gangway
·           Significant interior alterations and upgrades
·           New teak decks, stbd generator overhaul
·           New HUG filters installed
·           Sliding doors overhauled
·           Anchor windlass overhaul and new motor
·           New external ceilings
·           New exterior ceiling lights
·           Stern capstans overhaul
·           New shaft seals and bushes
·           All tanks cleaned and painted
·           Aircon system and fan coils service
·           All new appliances
·           New external speakers
·           New PMS
·           New Vega tank sensors
·           Entertainment system upgrade
·           Safety equipment replaced and upgraded
·           Lazarette wall insulation
·           New sundeck bar and stools
·           New umbrellas and awning poles
·           Fresh water tank pipes replaced
·           All new exterior furniture tables, chairs etc.
·           V- sat dome and equipment installed
·           Main engines rebuild
·           Full overhaul of all mechanical and electrical systems

DISCLAIMER

This document is not contractual. All specifications are given in good faith and offered for informational purposes only. The publisher and company do not warrant or assume any legal liability or responsibility for the accuracy, completeness, or usefulness of any information and/or images displayed. Yacht inventory, specifications and charter prices are subject to change without prior notice. None of the text and/or images used in this brochure maybe reproduced without written consent from the publisher


HAVE QUESTIONS?

ASK OUR EXPERIENCED SALES BROKERS ABOUT THIS YACHT
