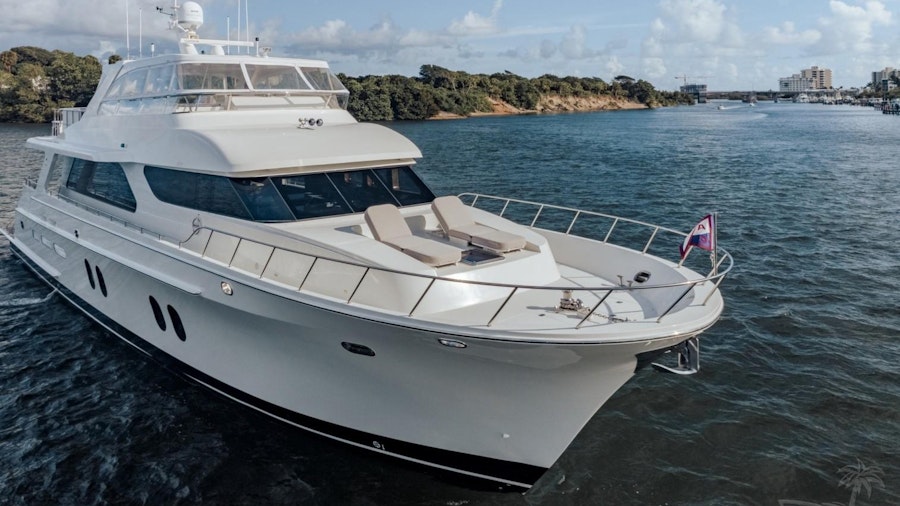

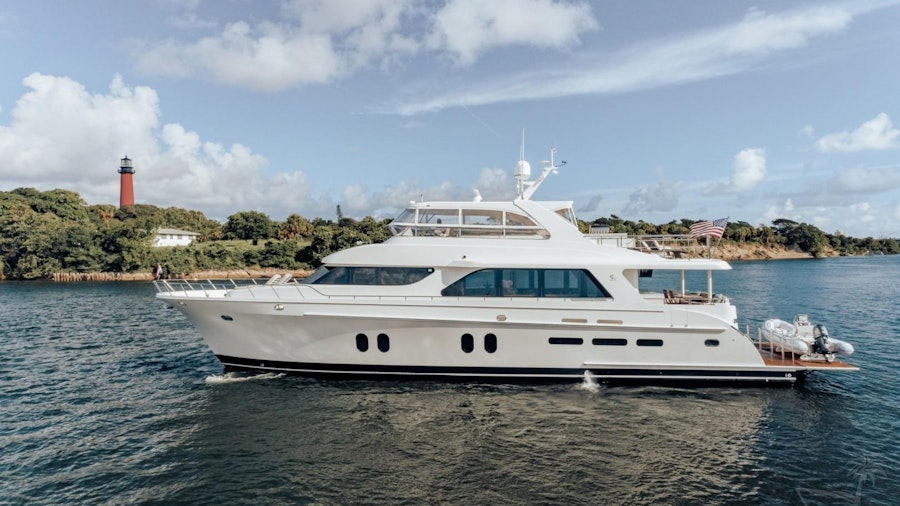

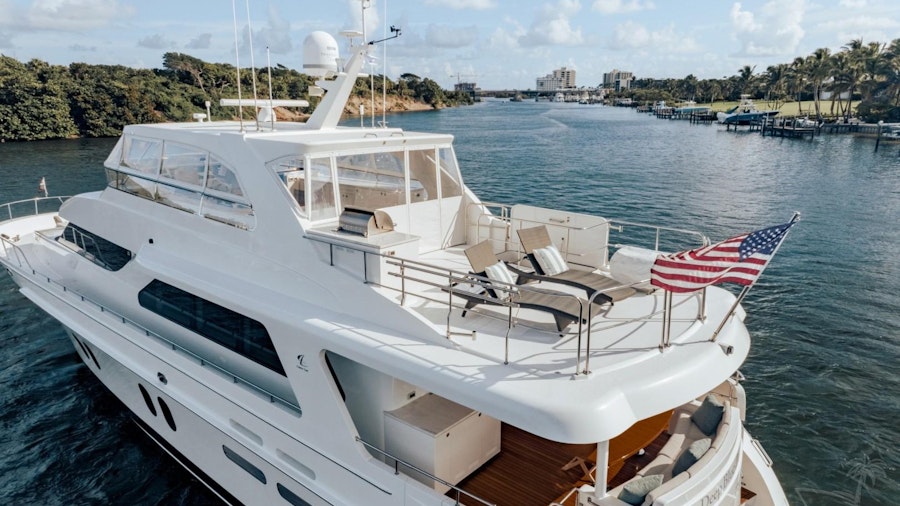

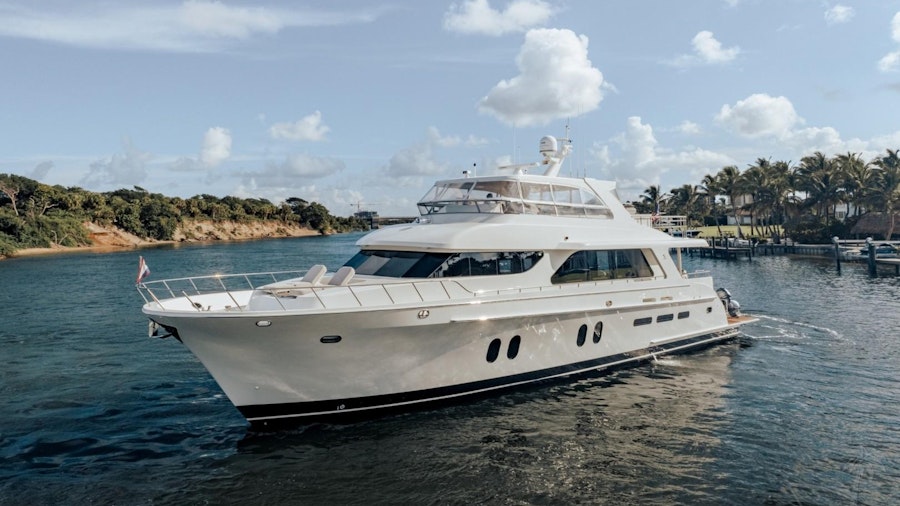

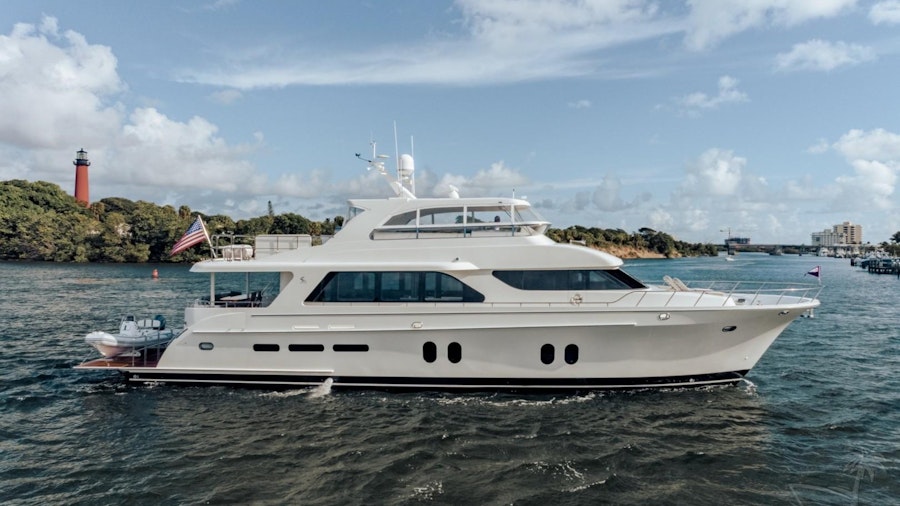

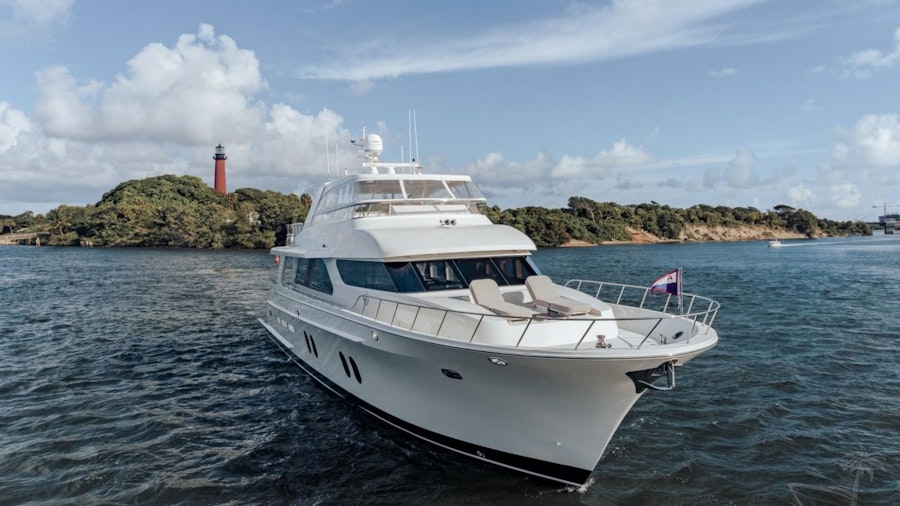

DEEP BLUE ZEE Yacht for Sale

78' (23.77m)
Cheoy Lee
2018

Beautiful example of the Cheoy Lee 78 Bravo Sport Motor Yacht. Stunning boat, both inside and out. This vessel boasts a custom designed interior by Sylvia Bolton, upgraded Cat C32 Engines with low hours, SeaKeeper stabilization, and an expansive layout more akin to a vessel in the 85-90' range. The entire build project was independently managed by TMS National representative Matt Schmahl, an industry veteran with extensive knowledge and an impressive record for overseeing large yacht projects. "Deep Blue Zee" currently sits in a private marina and has been meticulously maintained by her knowledgeable owners. Thoughtful and valuable upgrades were made to enhance enjoyment on board and maximize comfort for extended trips. If you are in the market for a late model vessel of this size, you simply must schedule a tour of this yacht...it is exceptional, loaded with upgrades and sure to impress.

Inquire Now

Details

Length 78 FT (23.77 M)
Beam 20 FT (6.15 M)
Draft 6 FT (1.65 M)
Guests 6
Builder Cheoy Lee
Year Built 2018
Construction Fiberglass
Cruising Speed 20 Knots
LOA 78 FT (23.77 M)
LWL 68 FT (20.57 M)
Beam 20 FT (6.15 M)
Min Draft 6 FT (1.65 M)
Max Draft 6 FT (1.65 M)
Cruising Speed 20 Knots
Max Speed 27 Knots
Water Capacity 1,420 Liters
Fuel Capacity 10,221 Liters
Hull Material Fiberglass
Details for DEEP BLUE ZEE Private Luxury Yacht For sale

Full Specifications


  • Upgraded CAT C32's 1600HP ea. (687 Hours 8/2021)
  • Seakeeper 26 Gyroscopic Stabilizer
  • Upgraded factory A/C in Master Stateroom and Bridge

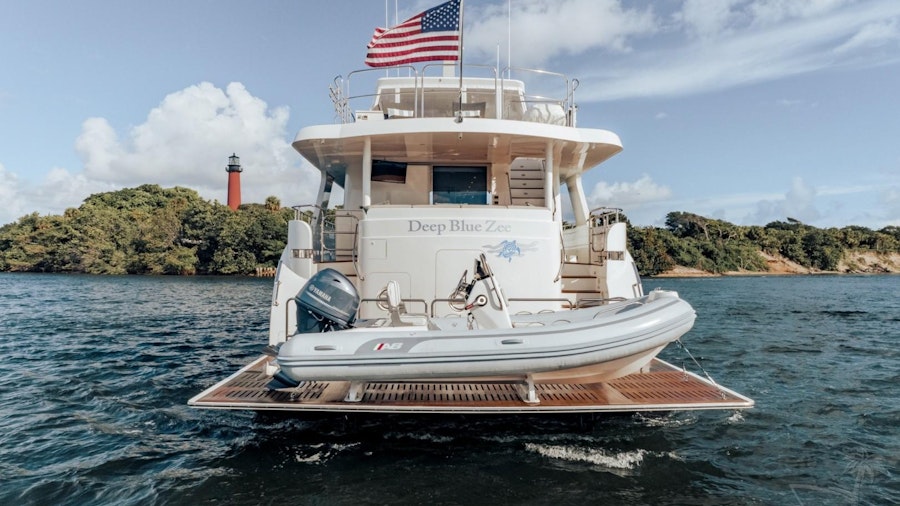

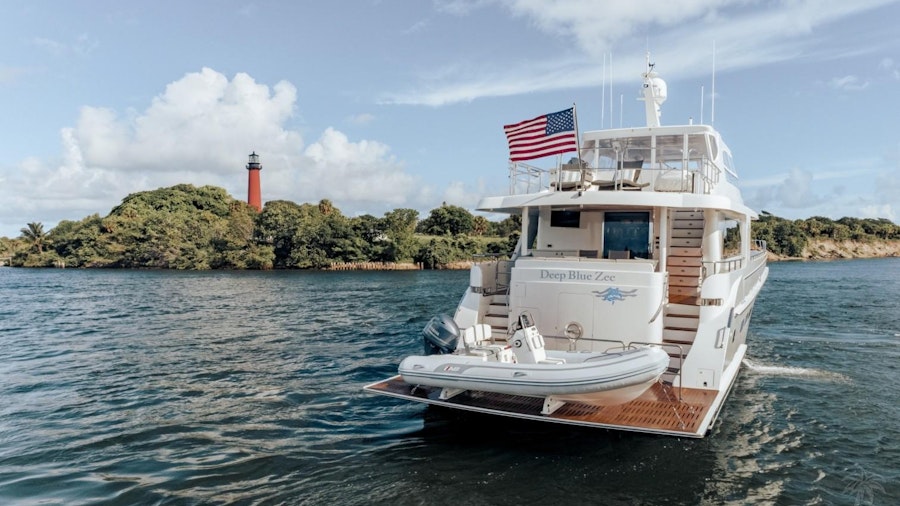

  • TNT Hydraulic Swim Platform w/ Remote
  • Sylvia Bolton Custom Interior
  • Day Head in Salon
  • His & Hers Heads and Vanities in the Master
  • Twin station ZF remote engine controls make docking a breeze
  • Twin Kohler Generators
  • Spot Zero Water Filtration System
  • Eco Mar Waste Management System
  • 2 Extended Sunshades added
  • Entire Flybridge was enclosed with EZ2CY
  • Central Vacuum System
  • Tecnicomar Watermaker
  • 14' AB Fiberglass Tender (w/ 57 hours)
  • Cavernous Dry Storage sub-room aptly named "the dungeon"
  • Length Overall: 78'3" (23.85m)
  • Length Waterline: 67'6" (20.57m)
  • Beam: 20' 2" (6.15m)
  • Draft: 5'5" (1.65m)
  • Displacement (full load-est.): 133,800 lbs. (60,700 kg)
  • Fuel: 2700 USG (10,200 ltr)
  • Water: 375 USG (2,100 ltr)
  • Holding Tank: 300 USG (1,140 ltr)
  • Gray Water tank: 300 USG (1,140 ltr)
  • Engines: Twin CATERPILLAR C32 ACERT, 1600bhp
  • Generators: 2x KOHLER 24EKOZD
  • Naval Architect: MG Burvenich, Inc.
  • Hull, deck and superstructure of DIVINYCELL or equivalent cored, resin infused fiberglass
  • Extensive use of bi-axial and multiaxial E-glass reinforcement
  • Integral fiberglass fuel, fresh water and holding tanks
  • Fiberglass rub rail with stainless steel capping
  • Tinted tempered glass windows, utilizing high strength, adhesion style window system
  • ALEXSEAL exterior finish (Off White with Black trim)
  • ALEXSEAL non-skid exterior decks
  • Vinylester hull laminates and epoxy barrier system applied to hull bottom, with five-year structural and anti-osmosis warranty
  • Two coats of antifouling bottom paint
  • 316 stainless steel hardware
  • Vertical anchor windlass, MAXWELL VWC 4000 (hydraulic) with 3/8" G40 chain wheel and rope capstan, deck pipe and chain stopper. Local controls with remote at both helm stations
  • 110 1b. Lewmar Claw anchor stowed on roller assembly on bow
  • 30 fathoms of 3/8" high test G40 galvanized chain
  • Walkway lighting on side deck overhangs
  • Step lights for molded stairs
  • Fresh water anchor wash spigot
  • Foredeck storage with twin flush access hatches
  • Twin trumpet air horn
  • Stainless steel bollards (9)
  • Stainless steel fairleads
  • Stainless steel rails 1.25" with mid rail forward
  • Stainless steel burgee flag staff on bow rail
  • Navigation lights
  • Flag staff
  • Boarding gates port and starboard
  • Marquipt aluminum boarding ladder UPGRADE
  • Step plates located at deck entrances
  • Scuppers draining to boot top
  • 220/110v, 60Hz AC and 24/12vDC electrical panels, main panels in engine room and sub-panels throughout vessel
  • ACR 100 searchlight with dual station remote control
  • LED lighting throughout for interior, exterior, rope, cabinet, step and engine room lights
  • Valance lights and floor rope lighting with control switches
  • Automatic wardrobe lights
  • Emergency lights, automatic at loss of primary lighting system, operating from an independent DC power supply. Removable emergency flashlights in each stateroom
  • 110VAC receptacles in galley, heads and exterior are protected with GFI safety breakers
  • Four 24vDC 245Ah 8D AGM battery banks for engine starting and ship service
  • Battery parallel system at helm station
  • Two 24VDC 60A battery chargers NEWMAR
  • Two 12vDC 105Ah Group 31 AGM battery banks for generator starting
  • 12vDC 20A battery charger
  • Two 24VDC 105Ah Group 31 AGM battery banks, with 60A 12VDC VANNER power supply for electronic use. 12 spare 24/12VDC circuit breakers in sub-panel
  • Two 24VDC 198Ah 4D AGM battery bank for LED lighting circuit
  • GLENDENNING Cablemaster shore power cable retrieval system, for 230VAC 100A service with 100' cable
  • Copper bonding system, connecting all through hull fittings and major metal components to exterior hull zinc anodes
  • Isolation transformer (25 kVA), for shore power system
  • Dynaplate grounding plate and strap to pilothouse and flybridge ground terminal boards
  • Voltmeters and ammeters for supply circuits
  • Generating set/shore power selector switches and shore power polarity indicator
  • CZONE LCD touch screen control/alarm monitoring system with audible and visual signals displayed on Programmable Logic Controller (PLC) located at helm station for generator low oil pressure, generator high temperature, high bilge level, and smoke detectors (engine room, staterooms, galley, and salon). Security alarm sensors on all doors and hatches. Navigation light control and monitoring.
  • Twin CATERPILLAR C32 ACERT (1,600 bhp) diesel engines, fresh water cooled, electronic injection/governor, reduction gearboxes, 24VDC starting
  • Local mounted start/stop instrument panels for main engines and generators
  • Underwater exhausts, with bypass and fiberglass mufflers
  • 2x KOHLER, 24kw generators with sound guards, in parallel.
  • 2x DOMETIC 220VAC chilled water air conditioning with frequency drives (except engine room)
  • CENTEK combo generator mufflers, air/water separator type, with hull side exhaust
  • Engineered engine room ventilation system, with intake blowers taking air in via air/water separator filters on hull side
  • SEA FIRE Fire protection system, consisting of manually and automatically actuated fire extinguisher system with audio and visual alarms. Upon system actuation, blowers are shut down and hull side ventilation inlet dampers are closed
  • ABT-TRAC hydraulic bow & stern thrusters driven off gearbox PTO
  • SeaKeeper 26 Gyroscopic stabilizer
  • Tecnicomar Watermaker
  • Power hydraulic steering system, including valves for optional autopilot installation
  • Engine driven emergency bilge pumping system for engine room bilges
  • REVERSO lube oil change system with manifold and hoses to all engines and gearboxes
  • RACOR fuel filters with vacuum gauges for the main engines, manifold to allow filter change underway
  • RACOR filters with vacuum gauges for generators
  • Two 30 gallon water heaters, dual element, quick recovery type
  • HEADHUNTER Mach 5 water pump and accumulator tank for freshwater pressure system
  • HEADHUNTER Aqua Box. UPGRADE
  • Fresh water hose bib
  • Automatic sump pumps
  • Automatic bilge pumps with electronic level detectors for each compartment
  • Fuel management system, consisting of fuel shut-off valves, fuel transfer pump with meter system and selector manifold
  • Tank Tender gauges for fuel, fresh water, black water and greywater tanks, pneumatic pump type
  • Black water tank level indicator and high level alarm
  • Black water holding tank system with Y-valve selector to allow direct discharge overboard or into the holding tank. Macerator pump for pump out of holding tank direct overboard, or to vented deck fitting for shore side disposal
  • GROCO bronze raw water strainers, all engines and sea water pump intakes
  • Seacocks on all through hull fittings below the waterline
  • Fiberglass battery boxes
  • Battery condition indicator
  • Noise and vibration attenuation system for engine room spaces consisting of sound insulation covered with perforated white aluminum sheeting. Sound mounts for main engines, generators, head pumps/motors, air conditioning compressors and sea water cooling pumps
  • Drip trays under engines
  • SEASHAFT 22 or equal propeller shafts
  • Stainless steel rudder blades
  • Nibral propeller shaft struts
  • Nibral propellers, 5 blade, class S, dynamically balanced
  • DURAMAX cutless rubber stern and rudder bearings
  • PYI packless shaft seals
  • Overhead lights (4)
  • Smoke detectors
  • 110VAC outlets (2 GFI type)
  • Watertight entrance door from aft swim step to crew area
  • Watertight emergency escape hatch from engine room to master stateroom
  • (see NAV / AV for full electronics equipment list)
  • 2 CATERPILLAR electronic engine control monitors
  • RITCHIE 5" compass, flush mount with light, dimmer and cover
  • SEASTAR hydraulic power steering
  • Engine instrumentation and alarms
  • Fiberglass instrument and electronic console
  • Remote control for anchor windlass and searchlight
  • Stainless steel steering wheel
  • Stainless steel framed acrylic windscreen
  • Stainless steel rails ahead of aft tender deck
  • Stainless steel rails around hatch/ladder to aft deck
  • Fiberglass radar arch with integral fiberglass hardtop. Flush mounted lighting, including red night lights (2) STIDD helmsman's seats (2) with vinyl covers
  • Fiberglass L-shaped lounge seat with storage under foam cushions
  • Custom Wood table top with stainless steel pedestals (Dining table height)
  • Scuppers and drainage system for water to lower deck
  • Lightning arrester system
  • Hatch and molded steps to aft deck, with stainless steel rails and gate
  • Custom porcelain bar top, sink with hot and cold faucet, fresh water washdown hose bib, U-LINE refrigerator and icemaker
  • Island cabinet with storage lockers with 2 tank propane grill
  • Stainless steel framed tempered glass sliding hatch covering staircase to salon
  • ACR 100 quartz halogen search light
  • Twin trumpet air horn
  • Teak Deck
  • Bar with U-LINE refrigerator, ice maker unit, glass vessel sink & decorative hardware
  • Circular staircase up to flybridge and down to staterooms, wood with carpet inserts and flush mounted LED lights in step treads
  • Smoke detector
  • Full height entertainment cabinet
  • Ceiling lights with control/dimmer switches
  • Valance lights and floor lighting
  • Port salon settee with leather upholstry, starboard upholtered club chair seating
  • Glass coffee table & mother of pearl end table in salon
  • Salon and dining area with fabric upholstered mullions and columns
  • Wood dining table with glass bead inlay to seat 6 and overhead soffit with 3 light
  • Dining area cabinets
  • Fixed adhesion style, tinted, tempered windows
  • Recess window boxes with motorized shades (one button)
  • 110VAC duplex outlets (4) in salon, one GFI type in head
  • Stainless steel framed, tempered glass sliding door flanked by decorative sconces
  • Day head with HEADHUNTER electric head (fresh water flush), wall mounted faucet and polished chrome bath accessories, counter top with clear glass vessel sink. Exhaust blower in head
  • GE 30" electric stainless steel oven unit
  • GE 30" electric stainless steel cooktop
  • GE stainless steel microwave oven with ventilation hood
  • GE stainless steel refrigerator/freezer with ice dispenser
  • GE stainless steel dishwasher
  • Stainless steel farmhouse sink
  • GE garbage disposal
  • Kohler faucet with removable sprayer handle
  • Cabinets, upper and lower, and full height slide cabinet behind refrigerator
  • Breakfast nook with wood) table and inlay. Settee with leather upholstery.
  • Soffit above settee with light fixture
  • Smoke detector
  • Overhead lights
  • Under cabinet lights
  • 110VAC duplex outlets (4 GFI type)
  • Wood stairs up to salon with carpet inserts and flush mounted LED lights in step treads
  • Overhead soffit with light
  • Wallpaper Mural
  • King berth, with fabric upholstered headboard and wall. Storage under berth
  • Over the berth fabric) upholstered soffit with indirect lighting on dimmer control
  • Two wooden night tables
  • Custom safe for valuables UPGRADE
  • Fixed large oval ports (4)
  • Fabric upholstered television wall
  • Smoke detector
  • His & Hers closets, cedar lined
  • Vanity unit with mirror
  • Storage cabinets
  • Ceiling lights with control/dimmer switch
  • Valance lights and floor lights
  • Two reading sconces
  • Mirror on closet door
  • 110VAC duplex outlets (3)
  • His & Hers heads w/ vanities
  • Vanity top with marble vessel sinks (2) and wall mounted faucets (2)
  • Make-up vanity, storage drawers and framed mirror
  • Valance lights and floor lights
  • HEADHUNTER electric head (fresh water flush)
  • Stall shower with frameless glass enclosure including hinged door
  • Shower wall with marble center panel
  • Emergency escape through watertight hatch, from head to engine room
  • Exhaust blower
  • 110vAC outlets (2 GFI type)
  • Queen island berth with fabric headboard and storage drawers under
  • Soffit above bed
  • Two wooden" night tables
  • Vanity unit
  • Fabric above bed and TV wall
  • Smoke detector
  • Wardrobe, cedar lined on back surface with mirror on door
  • Ceiling lights
  • Valance and floor lights
  • Two reading lights
  • Fixed large oval ports (4)
  • 110VAC duplex outlets (2) Head
  • Stall shower
  • Faucets and bath accessoriesVanity with sink
  • Exhaust blower
  • HEADHUNTER electric head (fresh water flush)
  • 110VAC outlet (GFI type)
  • 27" stack up washer/dryer
  • Wood stairs up to galley with carpet inserts and flush mounted LED lights in step pads
  • 110VAC duplex outlet
  • Queen berth with fabric headboard and storage drawers under
  • Two wooden" night tables
  • Vanity unit with mirror
  • Ceiling lights
  • Valance and floor lights
  • Two reading lights
  • Smoke detector
  • Wardrobe cedar lined on back surface with mirror on door
  • Stainless steel framed ventilation/escape hatch with shade
  • 110VAC duplex outlets (2) Head
  • HEADHUNTER electric head (fresh water flush)
  • Stall shower
  • Faucets and bath accessories
  • Vanity top with sink
  • Exhaust blower
  • 110VAC outlet (GFI type)
  • Upper and lower berths
  • Smoke detector
  • Wardrobe cedar lined on back surface
  • Two reading lights
  • 110VAC duplex outlet Lounge
  • Crew lounge with upholstered settee and CORIAN table top
  • Cabinet with CORIAN tops, stainless steel U-LINE refrigerator and stainless steel microwave oven over
  • Clothes Washer/Dryer combo unit
  • GALLEY MAID electric head (fresh water flush)
  • Ceiling lights
  • Stall shower
  • Faucets and bath accessories
  • Exhaust blower
  • 110vAC outlets (GFI type)
  • Teak steps to flybridge
  • Teak Deck
  • Overhead lights
  • Molded fiberglass seating with cushion
  • Custom Wood pedestal mounted table with inlay mother of pearl.
  • Porcelain counter bar top, U-LINE refrigerator and icemaker
  • Teak stairs to sport deck with step lights and stainless steel gate
  • 110VAC outlets (2 GFI type)
  • TNT Hydraulic swim platform
  • Teak stairs to aft deck
  • Stainless steel swim ladder
  • Stainless steel U-shaped rails (hinged/removable)
  • Fresh water telephone type shower, hot and cold
  • Watertight door to crew quarters
  • Locker for shore services, shore power
  • Storage locker with watertight door
  • 2018 AB 14' Fiberglass
  • Yamaha 70 hp

NAVIGATION PACKAGE

FLYBRIDGE HELM:

1. 2x Garmin GPSMAP® 8617 MFD, With Preloaded U.S and Canada BlueChart® g2 and LakeVüTM HD

2. 2x Lily 107L Antenna Mount SS Deck 4" high

3. 2x Garmin GRID (Garmin Remote Input Device) Part Number

4. Garmin Chart microSDTM/SDTM card: VUSO 10R-Southeast Florida

5. Garmin Card Reader

6. Garmin Marine Wi-Fi Adapter Kit with DC and AC Power Adapters, North America

RADAR:

7. GARMIN GMR 626XHD2 6KW, 6FT Array Radar

8. Garmin 40ft Marine network cable, RJ45

9. Garmin GSD 24 Sonar Module

10. Airmar B258, 1kW, thru-hull w/fairing, depth & temp, 14x23/3x5 deg, 39ft cable, 8-pin

11. Transducer Extension Cable 10M

12. NMEA 2000 Kit

VHF:

13. 3x Garmin VHF300 Marine Radio, Black, North America2ea in PH, 1ea Crew.

14. 2x Newmar 60W Peak Hi Power W/P Deck Horn p/n: PA-60/40 Yard to paint horns.

15. 3x ANTENNA - Digital 829-WW 8FT VHF 6db w/male ferrule

16. 3x Lilly 101 All Stainless 4-Way Ratchet Mount w/ feed thru hole

AUTOPILOT:

17. Garmin Autopilot GHP Reactor Hydraulic Corepack w/SmartPump

18. Garmin GRF 10 rudder feedback sensor

19. HYDRAULIC HOSE KIT

DEPTH / WIND:

20. 2x Garmin GM/T 20 Digital Marine Instrument Display

21. Bronze housing, Depth, Speed, and Temp, Longstem NMEA 2000 network transducer

22. Cable Kit

23. Garmin gWindTM Transducer

CAMERAS:

24. 2x Garmin GC 10 Marine Camera, NTSC Standard Image - ER

25. 3x Garmin GC 10 Marine Camera, NTSC Reverse Image - AFT DECK

26. 2x Camera video switch and cable kit

27. 400FT Video Cable - RG6

AIS:

28. Garmin AIST 600 Transceiver

29. Lily 107L Antenna Mount SS Deck 4" high

WEATHER:

30. Garmin GXM 52 SiriusXM Marine Receiver (requires subscription)

31. Lily 107L Antenna Mount SS Deck 4" high

WIFI / NETWORK:

32. Aigean AN-7000 High Power, Dual-Band Wi-Fi Client

33. 2x Lily 107L Antenna Mount SS Deck 4" high

34. 3x Cisco Wireless Access Point

35. Peplink Balance 30 Multi-WAN Router (3 WAN), 4-port LAN

36. Netgear ProSafe Plus JGS516PE Ethernet Switch

37. Cat 6 Cable 500FT - No shield, stranded, red, low smoke, tinned copper part 8628 or 1302

38. AT&T Cell Phone - Voice & Data capable of changing cell Sim card for Bahamas

39. Shakespeare CA-VAT-10 Anywhere Super HALO Cellular Booster Kit for AT&T, T-Mobile and Verizon networks, 10 user

40. Lily 101 All Stainless 4-Way Ratchet Mount w/ feed thru hole

41. LMR-400 Low Loss Cable 50 Ohm 100FT

42. Naval TV-AM-FM Digital Antenna Nargentus

43. Flange for deck mount and 6" pipe for deck mount

LOCAL TV AND FM DISTRIBUTION - to all TVs and FM Stereos:

44. 4x 500FT RG-6 Coax Cable 75 Ohm, tinned copper, dialectic foam

45. RF Splitter/Amplifier/ Connectors

SATELLITE PHONE/INTERNET:

Prewire only for future Sat phone.

46. KVH S32-1031-0100 TracPhone V3/V7-IP Power/Data Cable, 100FT

47. Prepare forward Hardtop for future Sat Phone Antenna.

48. 500FT RG-11B Coax Cable 75 Ohm, 97% Braided, Low Loss

49. 250FT LMR-400 Low Loss Cable 50 Ohm

SATELLITE TV:

50. KVH TracVision HD7 w/Tri-Americas Circular LNB w/Ka-Ku-/Ka-band TriAD Technology; for DIRECTV U.S. HDTV (Ka) & DIRECTV L.A. Services; Tapered Base Version (to match TracPhone V7-IP) 01-0339-03

51. Seaview Antenna Mount for KVH IP Dome

52. 500FT RG-11B Coax Cable 75 Ohm, 97% Braided, Low Loss

53. TracVision HD7 SWM Expansion Kit - 16 Tuners 72-0452-01

54. 2x 500FT RG-6U Cable for Sat TV distribution

Run Cat 6 cable from Galley Settee to MSR, VIP, Guest, Foyer, and Salon for future Phone System

55. Cat 6 Cable 500FT- shield, stranded, red, tinned copper part 2932

56. Installation Material - Detailed list TBD

57. CAD Drawings

58. Engineering

59. Travel to China approx. 13 days including travel time and labor - approx

60. Travel Expenses - Airfare and Accommodations - approx **Receipts will be provided and will reflect final cost plus 10%.

61. Final Hook-up and Commissioning in FL - approx

62. Inbound Freight and Insurance

63. 2 Year Insurance/Warranty Option - TBD (excludes water or lightning damage)

AV PACKAGE

FLYBRIDGE

1. Fusion MS-UD750 Marine Stereo - Bonded glass TFT color display, AM/FM/Sirius Ready/Pandora Control with internal Universal dock for all Apple, Android, and Windows phone products. Internal BlueTooth, 4 Zone, IPX5, 4X70W Class D, Ethernet and NMEA2000 capable 12V, 7A

2. Converter 24-12V

3. 16/2 Twisted Cable 65FT - for feed from Salon

4. Cat 6 Cable 65FT - for feed from Salon

5. 2x Ground Loop Isolator

6. 3.5mm Outlet (under port arch close to seating area)

7. 2x JL Audio M770-CCX-CG-WH - 2-way - 100 watt 7.7" 175W 2-Way Coaxial Marine Cockpit Speakers with Classic Grille Design (White) PAIR Frame Outer Diameter 7.70 in / 196 mm Mounting Depth 3.15 in /80 mm

8. JL Audio M101B5-CG-WH 10-inch marine subwoofer driver for infinite-baffle use (250W, 4 ohm), Classic grilles, white Overall Diameter 10.75 in/273 mm Mounting Depth 5.93 in / 151 mm

9. JL Audio MHD900/5 Five-Channel Class D 24V Marine System Amplifier 500W 10.74 in. x 8.29 in. x 1.93 For 24V systems only

10. Fusion MS-NRX200i NMEA 2000 Marine Wired Remote (port side seating area)

FORE DECK

11. JL Audio M770-CCX-CG-WH - 2-way - 100 watt 7.7" 175W 2-Way Coaxial Marine Cockpit Speakers with Classic Grille Design (White) PAIR Mounted under brow angled forward by yard-provided pod.

12. N2K Cable kit for Fusion

13. Fusion MS-NRX200i NMEA 2000 Marine Wired Remote mounted aft of sun pad.

14. JL Audio MHD600/4 4-Channel Class D Marine Full-Range Amplifier, 150 W x 4 @ 1.5-4 O Yard to run 40A cable to amplifier.

AFT DECK:

15. 2x JL Audio M770-CCX-CG-WH - 2-way - 100 watt 7.7" 175W 2-Way Coaxial Marine Cockpit Speakers with Classic Grille Design (White) PAIR Milli( FROM SALON )

Frame Outer Diameter 7.70 in / 196 mm Mounting Depth 3.15 in /80 mm

16. 2x 16/2 Shielded Wire (white) 500FT Speaker Cable (for F/B, Forward, and Aft Decks)

17. Samsung LED J5205 Smart TV - 32" Class (31.5diag Model UN32J5205AFXZA 29.2x3.1x17.2

18. HDMI Cable for Outlet to be supplied by yard to match decor (length to be specified by yard)

19. Wall Mount

20. RTI-T21 AN REMOTE CONTROL

21. DirectTV H24 HD Receiver IR

22. HDMI Cable (length to be specified by yard)

23. Samsung 4K UHD JU6400 Series Smart TV - 48" Class (47.6" Diag.) Model UN48JU6400FXZA 42.8" x 24.8" x 2.5"

24. Wall Mount FLT3260FULL-LVL

25. HDMI Cable for Outlet to be supplied by yard to match decor (length to be specified by yard)

26. Directv H24 HD Receiver IR

27. Samsung BD-J7500 Blu-ray Player 14.17" X 1.57" x 7.72"

28. Yamaha AVENTAGE RX-A1060 7.2-channel Network AV receiver with Wi-Fi®, Bluetooth®, Apple AirPlay®, and Dolby Atmos® (17-1/8" x 7-1/8" x 17-1/4" (with antenna up: 17-1/8" x 9-3/4" x 17-1/4")

29. 5x Triad IC MINI OPENROUND speaker (7 3/8" dia x 3 5/8"D)

30. Sunfire 8" High Resolution Series Subwoofer - HRS-8 10" cube

31. RTI AD-4x Audio Distribution System (for aft deck and Galley) 2.4in H x 19in W x 13.3in D

32. RTI-T2I AN REMOTE CONTROL - to control all above and TV lift.

33. RTI RM-433 RF Receiver Module

34. RTI XP-6s Advanced Control Processor - to accommodate TV Lift, Galley, Salon and Aft

35. 2x Digital to Analog Audio Converter - needed to get audio from Bluray player and Apple TV in Galley and Aft Deck. Yard to supply & install fans.

36. Middle Atlantic Pull-Out Rack 19x20x30

37. Dell DLT1500RM2U Smart-UPS 1500VA LCD RM 2U 120V

38. 2x HDMI Cable (length to be specified by yard)

GALLEY (from Salon):

39. 2x Triad IC MINI OPENROUND speaker (7 3/8" dia x 3 5/8" D)

40. RTI RK1 White 8-Button Keypad p/n: 10-210072-13

MASTER STATEROOM:

41. Samsung 4K UHD JU6400 Series Smart TV - 40" Class (40" Diag.) Model UN40JU6400FXZA 36.1 x 2.5 x 21.1

42. HDMI Cable for Outlet to be supplied by yard to match decor (length to be specified by yard)

43. Wall Mount FLT3260FULL-LVL

44. DirectTV HD Receiver IR

45. Marantz NR1506 5.2-ch home theater receiver with Wi-Fi®, Bluetooth®, & Apple® AirPlay®

46. 5x Triad IC MINI OPENROUND speaker (7 3/8" dia x 3 5/8" D)

47. RTI T2iRFKIT T21 KIT INCLUDES T2i RP4 and RTIRP4-5USER

48. 2x HDMI Cable (length to be specified by yard) 49. APC 650 UPS BE650G1

STATEROOM/VIP (X2):

50. 2x Samsung LED H4500 Series Smart TV - 28" Class (27.5" Diag.) model: UN28H4500AFXZA 25.3" x 15.6" x 2.5"

51. 2x HDMI Cable for Outlet to be supplied by yard to match decor (length specified by yard)

52. 2x Wall Mount FLT1339FULL

53. 2x DirectTV H24 HD Receiver IR

54. 2x Samsung HT-H6500WM/ZA Home Theater System 16.93" X 2.17" x 9.92

55. HDMI Cable for Outlet to be supplied by yard to match decor (length to be specified by yard)

56. 2x Fusion MS-FR6021 6" High Performance IPX65 2 way Marine Speakers 200 watts - pair Mounting Depth 75mm (3") 6" dia.

57. 2x 3.5mm Outlet

58. 2x HDMI Cable (length to be specified by yard)

59. 2x IR KIT - for DirecTV receivers DL85K

CREW LOUNGE

60. Samsung H4500 Series Smart TV 24" Class (23.6" Diag.) UN24H4500AFXZA 22.1x13.7x1.9

61. Wall Mount FLT1339FULL

62. DirectTV HD Receiver IR

63. HDMI Cable (length to be specified by yard)

64. IR KIT DLK85K

65. 2x Cat 6 Cable 500FT- shield, stranded, red, tinned copper part 2932

66. Installation Material - Detailed list TBD

68. CAD Drawings

69. Engineering

70. Final Hook-up and Commissioning in FL - approx

71. 2-Year Warranty Option - TBD (excludes water or lightning damage)

***ENTIRE BUILD PROJECT INDEPENDENTLY MANAGED BY TMS NATIONAL REPRESENTATIVE MATT SCHMAHL

OPTIONS

CHEOY LEE SHIPYARDS NORTH AMERICA, INC.

ADDENDUM B

1. NEW VESSEL OPTIONS BRAVO 78' FLYBRIDGE MOTOR YACHT

2. ALLOWANCES

2.1 *SOFT GOODS (Suggested allowance) Décor allowance to include interior

upgrades, window treatments, bedspreads, throw pillows, linens, towels, etc.

2.2 *ELECTRONICS (Suggested allowance)

2.3 *AUDIO VISUAL (Suggested allowance)

2.4 *TENDER, supplied by owner including chocks and tie downs, CLSNA provides installation of chocks and tie downs.

2.5 *CANVAS PACKAGE (Suggested allowance) Flybridge & aft deck cushions are standard.

3. INTERIOR

3.1 Salon layout as per drawing Rev-C dated 1-12-17

3.2 Salon bar layout as per drawing Rev-C dated 1-12-17

3.3 Salon bar supply and install sink with hot and cold water faucet. Interior designer

to provide details

3.4 Salon bar supply and install wine cooler, U-Line 1224WCS 24"

3.5 Salon bar supply and install ice machine, U-Line U-CLR1215B-40B 15"

3.6 Salon bar upgrade refrigerator to U-Line 1215RB 15" in lieu of standard

3.7 Dining area layout as per drawing Rev-C dated 1-12-17

3.8 Galley layout as per drawing Rev-C dated 1-12-17

3.9 Day head relocate to salon aft port side as per drawing Rev-C dated 1-12-17

3.10 Master stateroom layout as per drawing Rev-C dated 1-12-17

3.11 Master stateroom provide His 'n' Hers head

3.12 Crew stateroom supply and install 24 inch Ariston washer-dryer combo ARWDF

129NA (white). See drawing for details, Rev-C dated 1-12-17

3.13 Delete lower helm station. Move staircase to stbd. install larger galley table and

add seating. See drawing for details, Rev-C dated 1-12-17

4. EXTERIOR

4.1 Teak decks in the following areas: flybridge under hardtop, aft deck, including

steps to flybridge, swim platform, including steps to aft deck

4.2 Two foredeck sun loungers with custom pads (covers under canvas package)

4.3 Flybridge supply and install 24" Fire Magic gourmet grill with two propane tanks

in cabinet

4.4 Flybridge handrails extended aft and across aft deck. Aft rails to fold down

4.5 Flybridge bar countertop upgrade to granite

4.6 Flybridge settee table upgrade to wood

4.7 Flybridge bar layout as per drawing Rev-C dated 1-12-17

4.8 Flybridge bar upgrade ice machine to U-Line CLR1215SOD-40B in lieu of standard

4.9 Flybridge supply and install (3) three 12000 btu air handlers. Open area spot air conditioning only at helm and cabinets both sides with upgraded extra 2 tons of chiller cooling capacity. Additional equipment and installation cost

4.10 Aft deck table high gloss wood with SS vertical pedestals

4.11 Aft deck bar supply and install U-Line U-CLR1215SOD-40B 15" ice machine

5. MECHANICAL

5.1 Upgrade main engines from Caterpillar C18 to C32 Acert Tier 3, 1,600 bhp

including ZF gearboxes and other upgrades ancillary components for larger

engines

5.2 Two remote plug in stations with remote module on 25' lead. Remote module to

include throttle, gears, bow and stern thruster controls

5.3 Stabilizers supply and install Seakeeper SK 26 gyro

5.4 ABT-TRAC 32 HP hydraulic stern thruster. Both bow and stern thrusters to be

driven by PTO's off gearboxes (2), including two live C-pads

5.5 Blue Water Desalination watermaker 1500 g/d with UV sterilizer

5.6 Charles Iso Boost transformer is no longer available from the manufacturer

5.7 Underwater lights, six (6) Sea Vision SV10 LED, color white (additional light,

original quote 5 lights)

5.8 Transom hydraulic lift with 1,500 lb. tender capacity, teak decking on platform. Remove sport deck centerline mooring bollard

S/S Rub rail to continue around platform lift in lieu of standard platform

5.10 Davit delete option: Leaving stand pipe and power availability by way of a spare

breaker on the electrical panel.

5.11 CZONE System to include monitoring for bilge, door open, smoke, navigation

lights and tank levels

5.12 Reverso 210 GPH fuel polishing system 220VAC with digital timer, metal heat

deflector (21-1945)

5.13 Upgrade generators to two Kohler 24kW generators with Decision-Maker 3500

Paralleling Controller in lieu of standard

6. MISCELLANEOUS

6.1 Engineer the bollards on the aft deck to be stronger by through bolting them to a reinforced deck. Safe towing procedures needs to be practiced as specified by

U.S. Coast Guard Navigation Rules and IMO COLREGS

6.2 Hot water on demand system with circulation pump

6.3 Nutone CV653 central vacuum system

6.4 EIAPP certification for main engines ($700 each engine)

6.5 Tonnage certificate includes shipyards administrative cost

6.6 Fresh water tank capacity reduced from 550 USG to 400 USG to compensate for

the weight of the gyro (3,000 lbs.) and to make room for the underwater lights

Decor & Interior Upgrades

78 Cheoy Lee Bravo 5141

Décor and Interior Upgrades by Sylvia Bolton Interior Design

Change Order 1 (April 3, 2017) Interior

1.1 Master state room hull side and ceiling: Provide additional sound insulation as per shipyard recommendations

1.2 Master state room upgrade port air handler from 9,000 BTU to 12.000 BTU

Change Order 3a (June 7, 2017) Interior

1.1 Interior ceiling lights: Provide and install BCM Venice-80 4W satin S/S ceiling lights throughout boat in lieu of standard

1.2 Headliner overall upgrade to Majilite PRD 12687 in lieu of std.

1.3 Cabinet push latches upgrade to square push latch, satin nickel finish in lieu of standard

1.4 Salon and stair columns upgrade to Rodolph RAD3773H Radiance color silver in lieu of standard

1.5 Salon supply and install 2-Arteriors Prescott Sconces Model: 44322, with dimmer switch on aft walls near aft sliding doors, 1-port wall, 1-stbd.wall as per SBD drawing

1.6 Salon settee upholstery upgrade to Carroll, Hollywood Class Slipper leather in lieu of standard

1.7 Salon bar door fronts, supply and install Inovations Gilded Cork Light Brass inlay as per SBD dwg.

1.8 Salon bar sink provide and install Novatto frosted vessel sink, Novo 1136

1.9 Salon Bar Faucet provide and install Delta Addison, Champagne Bronze, 524945

1.10 Day Head Sink upgrade to Kraus satin nickel 17" clear glass vessel sink with pop-up drain in lieu of standard

1.11 Day Head Faucet upgrade to Willis wall mounted faucet, brushed nickel in lieu of standard 1.12 Dining area hanging cabinet front provide and install Maya Romanoff, Beadazzeled Bauble MR BB-1462 Bluebell Tiles as per SBD drawing

1.13 Dining table, Wenge with fore and aft grain direction with Maya Romanoff, Beadazzeled Bauble MR-BB-1462 Bluebell tile inlay as per SBD drawing

1.14 Dining table soffit light upgrade to 3-Hinkley Lighting Ceiling lights, M/N Sabina 4911SL with dimmer switch in lieu of standard. Includes soffit upgrade and Inovations Gilded Cork Light Brass inlay

1.15 Galley sink faucet upgrade to Aqua Brass brushed nickel finish in lieu of standard

1.16 Galley exhaust hood, supply and install Zephyr hood insert tornado mini power pack above 1.17 Galley settee material upgrade to Spinney back Espana ES8006 leather in lieu of standard 1.18 Galley settee table Wenge with athwart ship grain direction with Mother of Pearl inlay as per SBD drawing

1.19 Master stateroom provide concealed storage cabinet under berth as per SBD drawing

1.20 Master stateroom: Provide and install EIKO ES-9XPL fire resistant safe fire in closet. Location as per drawing

1.21 Master stateroom upgrade wall paper above headboard to Inovations Antwerp AWP-06 Bevern in lieu of standard

1.22 Master stateroom décor sconces on wall above night stands provide dimmer switch on each light

1.23 Master his n her Heads: Provide and install 4-Hinkley Lighting wall Sconces, M/N: Anya FR44812SLF, with dimmer switch. 2- in each head

1.24 Master stateroom head sink faucets -2, upgrade to Kohler Purist K-T 14413-4 BGD, brushed gold finish, in lieu of standard

1.25 Master stateroom shower faucet upgrade to Kohler Purist shower head & valve K-TS14422-4 BGD, Kohler Purist multi-function hand shower K-978-BGD, Kohler 30" slidebar K-8524-BGD, Kohler 60" metal shower hose K-9514-BGD, Kohler Purist wall mount supply elbow K-976-BGD, | brushed gold finish, in lieu of standard

1.26 Master, VIP and Guest stateroom head sinks-4, upgrade to Vigo vessel sinks, color white in lieu of standard, 2-MSR, 1-VIP, 1 GSR

1.27 VIP and Guest stateroom sink faucets upgrade to Danze Sirius D316144NT brushed nickel in lieu of standard

1.28 VIP and Guest stateroom shower faucet upgrade to Danze Sirius D510544BNT brushed nickel in lieu of standard

1.29 VIP and Guest stateroom reading lights upgrade to Palagi 1157 Nickel Satin in lieu of standard

1.30 VIP wall fabric above headboard upgrade to MDC, Abalone Verde in lieu of standard

1.31 VIP stateroom stbd. side, provide cabinet with storage in lieu of standard settee

1.32 Crew head sink faucet upgrade to Danze Sirius D221144BN brushed nickel in lieu of standard

11.33 Crew shower faucet upgrade to Danze Sirius D511544BNT brushed nickel in lieu of standard

Exterior

2.1 Sun pads fwd. and aft deck settee cushion covers upgrade to Perennials, Touch Feely, color #975 270 in lieu of standard

2.2 Aft deck settee teak table with classic sunburst with Mother of Pearl inlay as per SBD drawing

2.3 Flybridge settee cushion covers upgrade to Perennials, In the Loop, color #982-328 in lieu of standard

2.4 Flybridge settee teak table with folding center leafs to fold under table with Volaka stone inlay as per SBD drawing

Change Order 4A (June 27, 2017) Interior

1.1 Salon and galley motorized window shades: Poseidon Window Treatments to supply and install motorized window shades after the boat arrives in Ft. Lauderdale, as per SBD specifications

1.2 Salon and galley motorized window shades: Shipyard to pre-wire including circuit breaker for motorized window blinds along with modifications to window boxes

1.3 Salon aft sliding door shade: Poseidon Window Treatments to supply and install Hunter Douglas door shade after the boat arrives in Ft. Lauderdale, as per SBD specifications

1.4 Master stateroom stbd. closet safe, CO #3 item 1.20: Provide enclosure to conceal safe from view w/access panel per SBD dwg

Change Order 7 (November 1, 2017) Interior

1.1 Forward stateroom stbd. closet: Provide shelves in forward section of closet, hanging rod to run port to stbd. in aft section of closet, as per drawing

Change Order 8 (February 2018) Interior

1.1 Vintage Floor and Interiors to supply and install, oak hardwood floor and borders, lightly brushed finished as per SBD drawing and specifications. Note: Hardwood floors and borders to be installed after the boat arrives in Ft. Lauderdale. Estimated 3 weeks to install

1.2 Credit for standard flooring in areas hardwood floor and border is installed

1.3 Poseidon Window Treatments to supply and install lower deck window treatments in the following areas as per SBD specifications

1.4 Master Stateroom bath accessories provide Kohler Purist brushed gold finish in lieu of standard 1.5 Day Head bath accessories provide Kohler Purist brushed nickel in lieu of standard

The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.

Have Questions?

Ask our experienced sales brokers about this yacht

Related Yachts for Sale
